Mobiletron Electronics LF005 LF Controller User Manual
Mobiletron Electronics Co., Ltd. LF Controller
User manual
Table of Content
Content
1. Product Introduction 1
2. Transmitter ID to Receiver by LF005 2
3. Limit Warranty 3
3.1 Warranty Service
3.2 What Are Not Covered
4. Thing to Notice 4
5. Technical Specification 5
1
1ǵ
ǵǵ
ǵ
Product Introduction
LF005 is a controller, used to transmit transmitter ID saved in ID-Transcorder to
Receiver.
Transmitters sometimes are used to Trailer, but drays of trailers are usually
exchanged to another trailer. It means transmitter ID is not fixed. For this kind of
situation, we need ID-Transcorder recording transmitter ID and LF005 transmitting ID
to Receiver.
Take the models of TX008 RX004, and DS002 to help explain how to use LF005
completely.
TX008 : a kind of transmitter
RX004 : a kind of LCD screen of digital receiver
DS002 : a kind of ID-Transcorder
TX008 contains highly accurate sensors to detect tire pressure and temperature.
RF modules send data via radio wave to RX004 placed in driver’s cabin. when the
vehicle is in motion,TX008 starts to detect pressure and temperature automatically.
Pressure and temperature data will be showed on RX004. If the pressure and
temperature go wrong, the driver will be warned with LCD backlight, beep, and
flashing numbers. Therefore, the driver can take action immediately. If Transmitters
are fixed to trailers and the drays are changeable, then DS002 and LF005 will be used
to receive new ID.

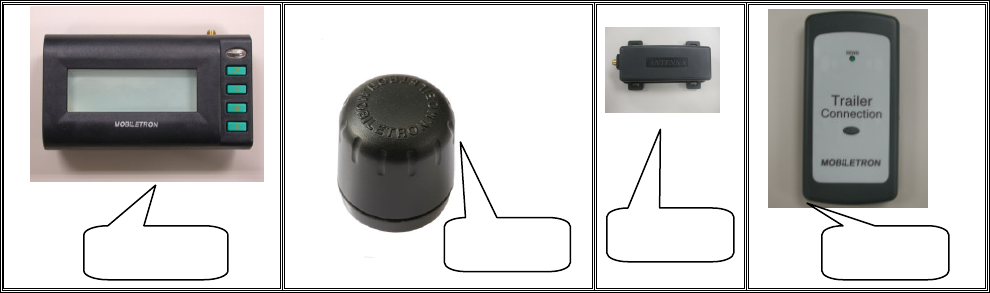

RX004 TX008 LF005
DS002
2
2ǵ
ǵǵ

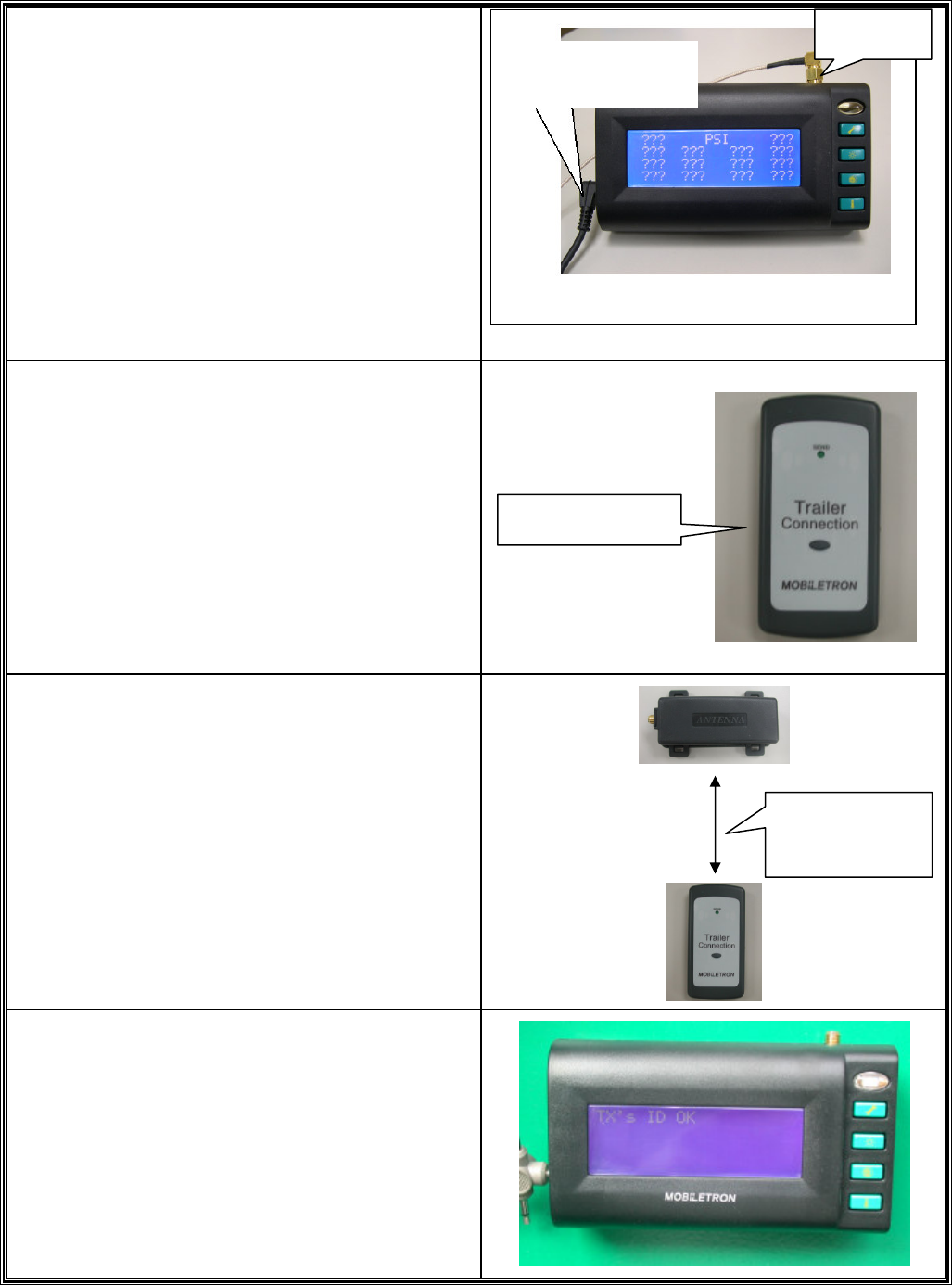

ǵTransmitter ID to Receiver by LF005
1.
Take RX004 for example.
Check receiver is on power and antenna is
connected.
2.
Turn on the LF005.
3.
Take LF005 close to DS002 in 20~30
centimeters and push the button.
4.
Check RX004 show ” Tx’s ID OK ”,and push
any button to return normal display model.
If it shows ” Tx’s ID LOST ”, please try again.
NOTEǺ
ǺǺ
ǺThe value above is for reference.
POWER CABLE
Antenna
On / Off Switch
20~30
centimeters
3
3. Limit Warranty
Mobiletron, hereby warrants that this Mobiletron wireless tire pressure moni
Mobiletron, hereby warrants that this Mobiletron wireless tire pressure monitoring
system shall be free from material defects in workmanship and/or materials until
the expiry of twelve months from its purchase by the end user, EXCEPT WHERE
any such defect has been caused by: Improper or non-normal use, Improper
installation, contacts with any corrosive or otherwise harmful substance, any other
acts or omission not sanctioned by the User Manual.
Mobiletron warrants the wireless tire pressure monitoring system product for
twelve months from the end user purchase date under normal operation
condition, which is free from manual improper operation, improper
installation or any casualty.
Mobiletron’s sole obligation shall be to repair or replace the defective product
at no charge to the original owner.
Mobiletron warns the user or driver of the driving safety by the limited
warning signal range, and does not protect or take the responsibility of the
user’s or driver’s safety directly.
In no event will Mobiletron be liable for any direct, indirect, special, incidental
or consequential damage, including loss of profit, loss of savings, or any
other damages caused by product, or its documentation, or failure of the
product to perform, even if Mobiletron has been advised of the possibility of
such damages.
3.1 Warranty Service
(1) The above warranty will be honored by the retailer from which it was purchased,
provided that the owner can provide dated proof of purchase.
(2) In the event that any defect in the unit is covered by the above warranty,
Mobiletron will replace the affected components free of charge, shipping prepaid.
The owner shall be responsible for any labor and installation costs incurred in
removing the defective parts and/or installing the replacement.
(3) The retailer shall at Mobiletron’ cost send any unit which is defective as described
in the above warranty to Mobiletron at No.39, Sec 3, Chung-Ching Rd., Ta-Ya,
Taichung Hsien, Taiwan 428.
4
3.2
This Limited Warranty Provided by Mobiletron Does Not Cover
(1) Product that have been subjected to abuse, accident, alteration, modification,
tampering, negligence, misuse, faulty installation, lack of reasonable care,
improper transportation, repair or service in any way that is not authorized by
Mobiletron.
(2) Any damage attributable to fire, flood, lightning strike or act of God.
(3) This limited warranty coverage will exclude the package material and user
manual.
(4) The damage caused from benzene, alcohol or any corrosive cleaner.
(5) Any repair should implement in Mobiletron by returning from the Mobiletron
authorized retailer. Any repair without authorization will be excluded from
the warranty.
4. Things to Notice
Be sure to keep record of the Transmitter ID number for each of the corresponding
four tires on the last page. Because next time if the original Transmitter is replaced by a
new one, inputting the original Transmitter ID number to the new one should be a must.
Temperature Compensated Pressure Readings :
When a tire heats up, caused by long duration of driving or braking, the air pressure
inside the tire can also be expected to increase, e.g. tire temperature increases 20ʚ
to 30ʚ may lead to 3psi to 6psi pressure increment.
5
5. Technical Specifications
5.1 Operation Condition
˗˸̆˶̅˼̃̇˼̂ ́ ʳ ˩ ˴ ˿ ̈ ˸ʳ ˔ ˶˶̈ ̅˴ ˶̌ ʳ ˨ ́ ˼̇̆ʳ
ˀ˅˃ʳ̑ ʳʾ ˉ ˃ʳ ̈́ʳ ˆʳ кʳ
ˢ ̃˸̅˴ ̇˼́ ˺ ʳ˧ ˸̀ ̃˸̅˴ ̇̈ ̅˸ʳ ˀˇʳ̑ ʳʾ ˄ ˇ˃ʳ ̈́ʳ ˈʳ лʳ
ˀ˅˃ʳ̑ ʳʾ ˉ ˃ʳ ˀʳ кʳ
˦ ̇̂ ̅˴ ˺ ˸ʳ˧ ˸̀ ̃˸̅˴ ̇̈ ̅˸ʳ ˀˇʳ̑ ʳʾ ˄ ˇ˃ʳ ˀʳ лʳ
ˢ ̃˸̅˴ ̇˼́ ˺ ʳ˛ ̈ ̀ ˼˷ ˼̇̌ ʳ ˃ʳ̑ ʳ˄ ˃˃ʳ ˀʳ ʸʳ
5.2 Radio Transmitter
˗˸̆˶̅˼̃̇˼̂ ́ ʳ ˩ ˴ ˿ ̈ ˸ʳ ˨ ́ ˼̇̆ʳ
ʳ
˖ ˸́ ̇̅˴ ˿ ʳ˙ ̅˸̄ ̈ ˸́ ˶̌ ʳ ˄ ˅ˈʳ ˞˛ ̍ ʳ
˦ ˴ ̀ ̃˿ ˼́ ˺ ʳ˥ ˴ ̇˸ʳ ˇʳ ˦ ˸˶̂ ́ ˷ ʳ
˥ ˴ ́ ˺ ˸ʳ ˄ ˃ʳ ˖ ̀ ʳ
5.3 General Specification
˗˸̆˶̅˼̃̇˼̂ ́ ʳ ˩ ˴ ˿ ̈ ˸ʳ ˨ ́ ˼̇̆ʳ
ʳ
˗˼̀ ˸́ ̆˼̂ ́ ̆ʳ ˄ ˄ ˊ ˁ ˈʽ ˈˊ ˁ ˇʽ ˄ ˈˁ ˅ˊ ʳ ̀ ̀ ʳ
ʳ
˪ ˸˼˺ ˻ ̇ʳ ˉ ˈʳ ˚ ̅˴ ̀ ʳ
ʳ
5.4 Power
˗˸̆˶̅˼̃̇˼̂ ́ ʳ ˧ ̌ ̃˸ʳ ˩ ˴ ˿ ̈ ˸ʳ ˨ ́ ˼̇̆ʳ
ˣ ̂ ̊ ˸̅ʳ˦ ̂ ̈ ̅˶˸ʳ ˟ ˼̇˻ ˼̈ ̀ ʳ˕ ˴ ̇̇˸̅̌ ʳ ˆˁ ˉ ʳ ˩ ˷ ˶ʳ
˕ ˴ ̇̇˸̅̌ ʳ˟ ˼˹ ˸ʳ ˀʳ ˅ʳ ̌ ˸˴ ̅ʳ
Manufacturer: Moniletron Electronic ,Inc.
Address : No.39, Sec 3, Chung-Ching Rd., Ta-Ya, Taichung Hsien, Taiwan 428
Telephone : +886-4-25683366
Fax : +886-4-25673069
Web Site: http://www.more.com.tw
FCC Caution:
1.The device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
2.This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.
3. Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.
