Mobiletron Electronics TX008 Tire Pressure Monitoring System User Manual
Mobiletron Electronics Co., Ltd. Tire Pressure Monitoring System
Users manual
Installation and Operating Instructions
For
Tire Pressure Monitoring System
Model No. ：TX008
Contents
1. System Introduction
2. Safety Features
3. Applicable Vehicles
4. Installation Tools Required
5. Mounting the Tire with Transmitter on Wheel Valve
6. Transmitter Technical Specifications
1. System Introduction
1.1 TX008 is a wireless tire pressure monitoring system with sensors and
transmitters mounted in each tire. Highly accurate sensors collect tire
pressure and temperature data which is transmitted to a Digital Display
Receiver.
1.2 The System monitors the tire data with a LCD display which informs the
driver of the condition of the tires while driving. The Digital Receiver will
immediately alert with a beeping sound, a bright yellow LED and the
backlight of the LCD when tire pressure and/or temperature are outside of
factory-preset critical limits. The wireless tire pressure monitoring system
will alert the driver to the unsafe tire or temperature condition and thereby
reduce the possibility of an accident.
2. Safety Features
2.1 The System is designed to measure and display active data, i.e. pressure
and temperature, in tires, and provides a warning when the System
detects tire pressure and/or temperature is above or below preset critical
limits. It is the driver’s responsibility to react to a warning. Abnormal tire
pressure and temperature must be checked and brought back to within
the preset safe limits to avoid dangerous driving conditions.
2.2 This product must be properly installed and programmed by qualified
personnel according to this User Manual.
3. Applicable Vehicles
This system is suitable for use on trucks, buses, and trailers.
4. Installation Tools Required
¾ Tire Balancing Equipment.
¾ Torque Wrench.

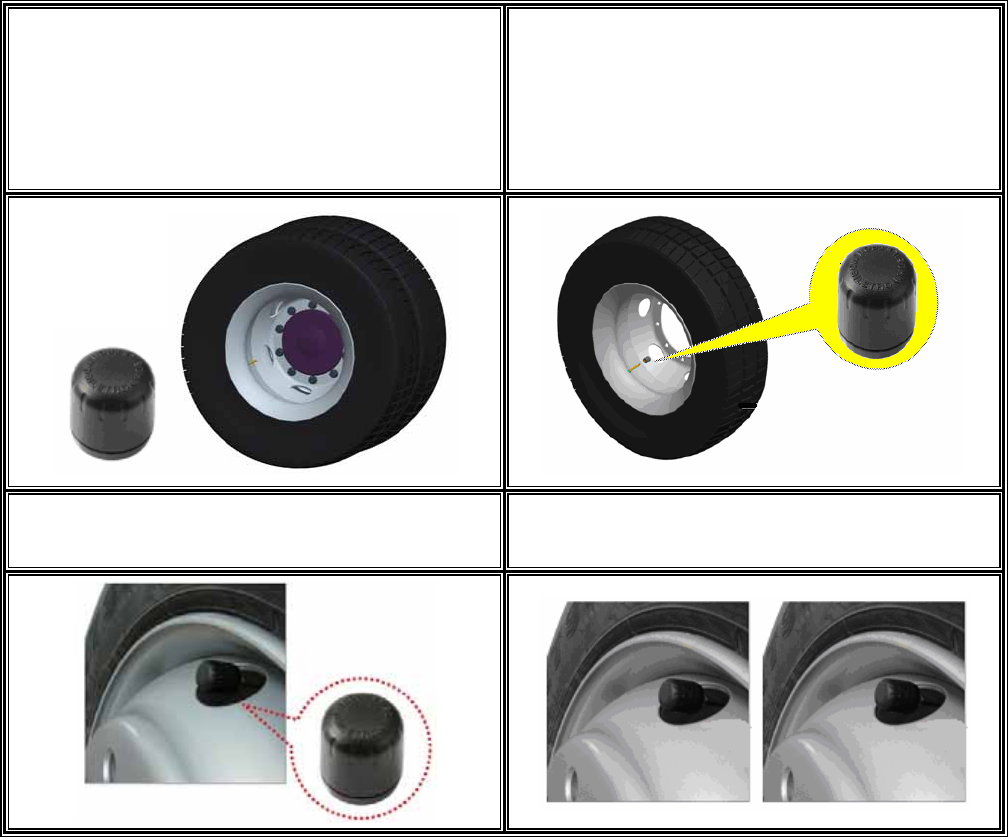

5. Mounting the Tire with Transmitter on Wheel Valve
Please follow the installation steps below. Once the installation completed,
please rebalance the tire again.
The fixed torque for spinning the transmitter suggested to set at 9~10 ※
Kgf.cm
(1) Start to install transmitter onto the tire (2) Spin the transmitter onto the inner tire
valve
Note：The fixed torque suggested to be set at
9~10 Kgf.cm. Transmitter for better
tire rebalancing
(3) One-wheel installation is completed. (4) Repeat the steps (1)~(3) until all wheels
installation completed.
6. Transmitter Technical Specifications
6.1 Operation Condition
Description Value Accuracy Units
Pressure Range 0 ~ 180 +/- 5 PSI
Rated Pressure 240 - PSI
-40 ~ +85 +/- 3 ℃
Operating Temperature -40 ~ +185 +/- 5 ℉
Operating Humidity 0 ~ 100 - %
6.2 Radio Frequency Transmitter
Description Value Units
Central Frequency 433.92 MHz
6.3 General Specification
Description Value Units
Weight 21.5 Gram
6.4 Power
Description Value Units
Power Source 3.6 Vdc
Battery Life 4 years or Over
500,000 km Year or km
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
2.FCC RF Radiation Exposure Statement: The equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
3. This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
