Mobiletron Electronics TXU02 TPMS User Manual

Users Manual

MOBILETRON TPMS Installation Manual

(1) First, please follow the standard procedures to dismount tire

from rim.

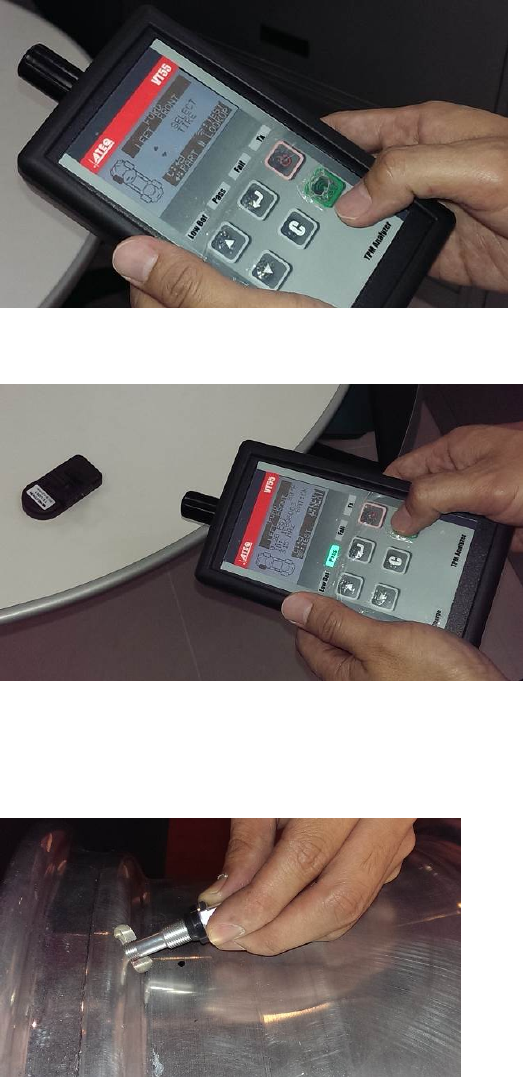

(2) Check and verify sensor

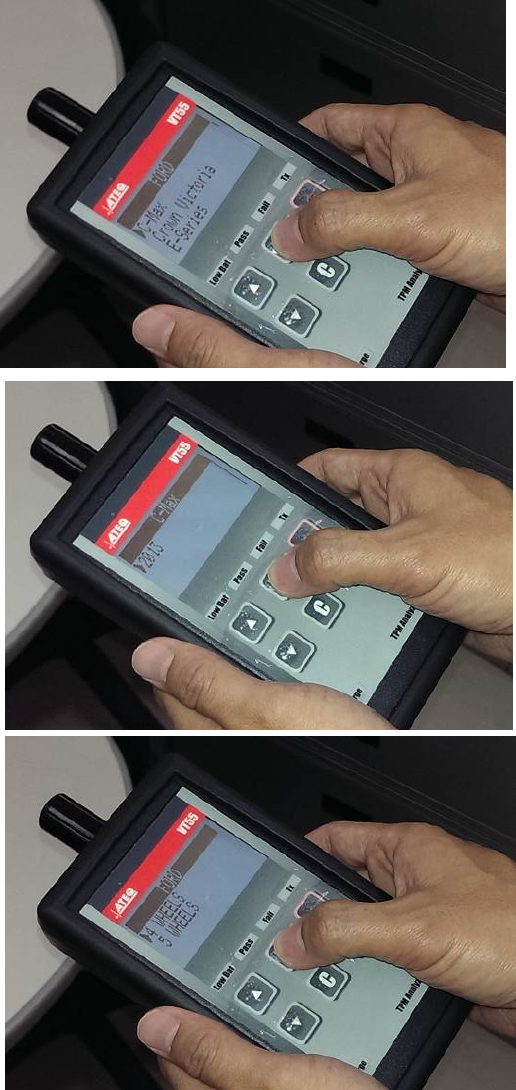

(3)Vehicle Selection (Model, Year,…)

(4)Tire Select (Choose the tire position)

(5)Trigger the sensor (press the TEST button)

If succeed, the “Pass” button be shone. Once it shows “Fail”, it means the sensor won’t

be fitted to the selected vehicle.

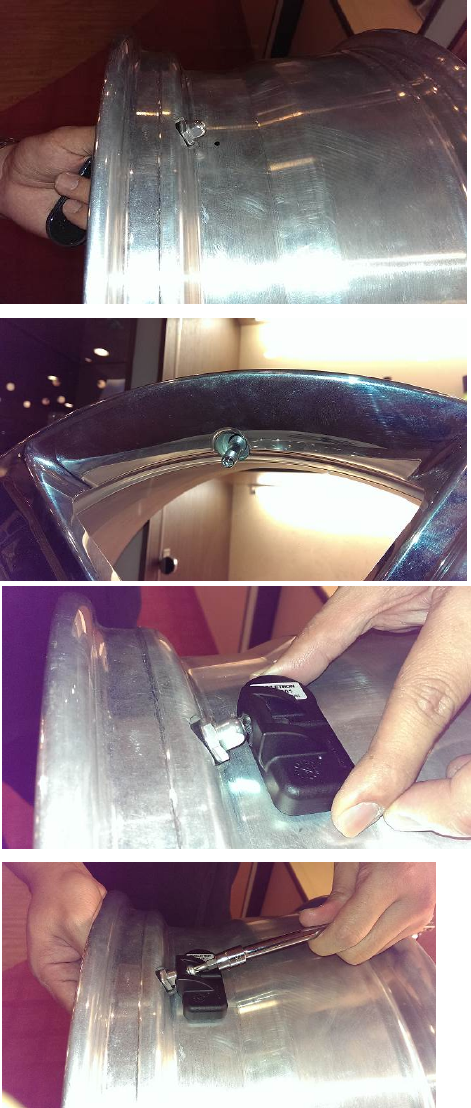

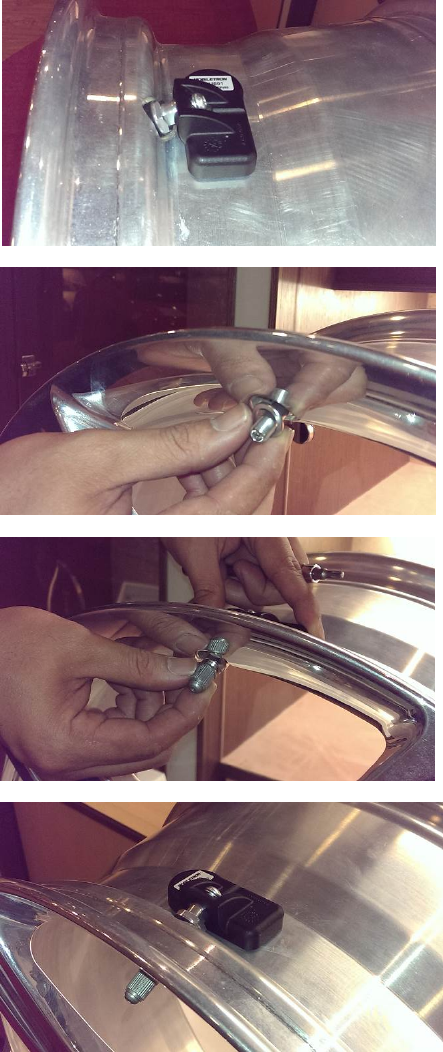

(6)Install to the rim

(7)Mount the tire back to vehicle.

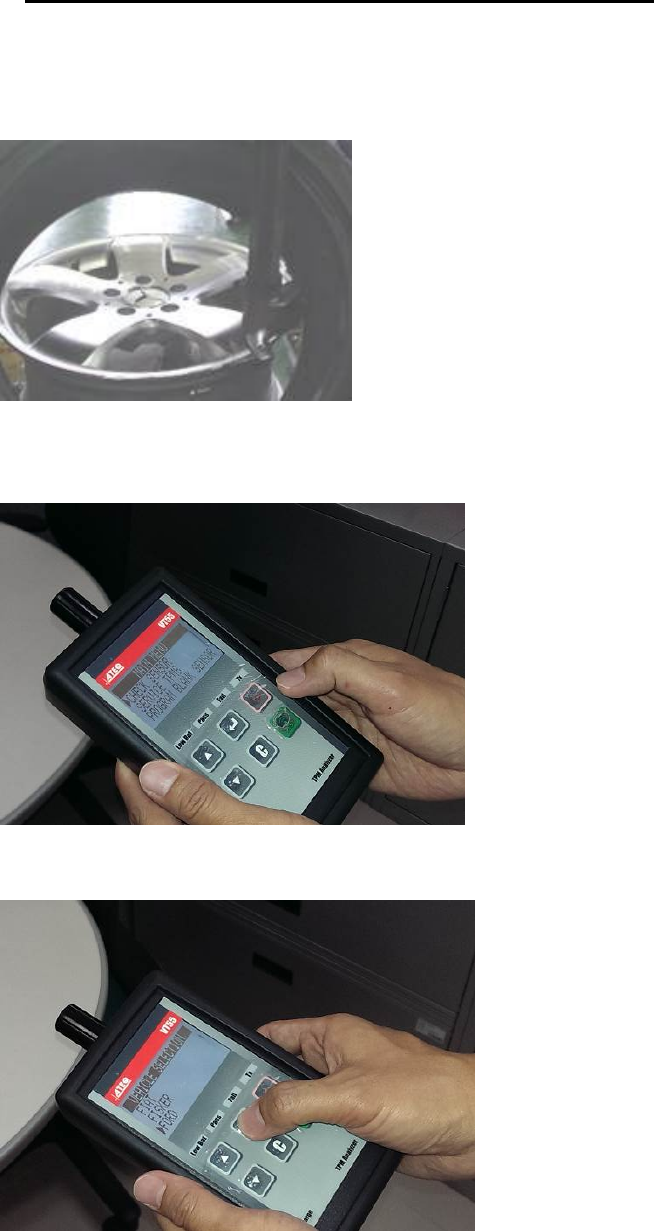

(8)Follow OE re-learn procedures

Please refer to the standard re-learn procedures of each automaker. Basically, we

suppose the tire garages and specialists should own this essential information because it is

very important tool for them to fix the TPMS. However, you can still go online to have more

understanding about it. Below are some websites for your reference.

(9)Finish

As long as the sign is removed from the dashboard , it means

TPMS installation is finished.

(10)FCC Compliance Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

(11)FCC 15.21 Statement:

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.
