User manual
1

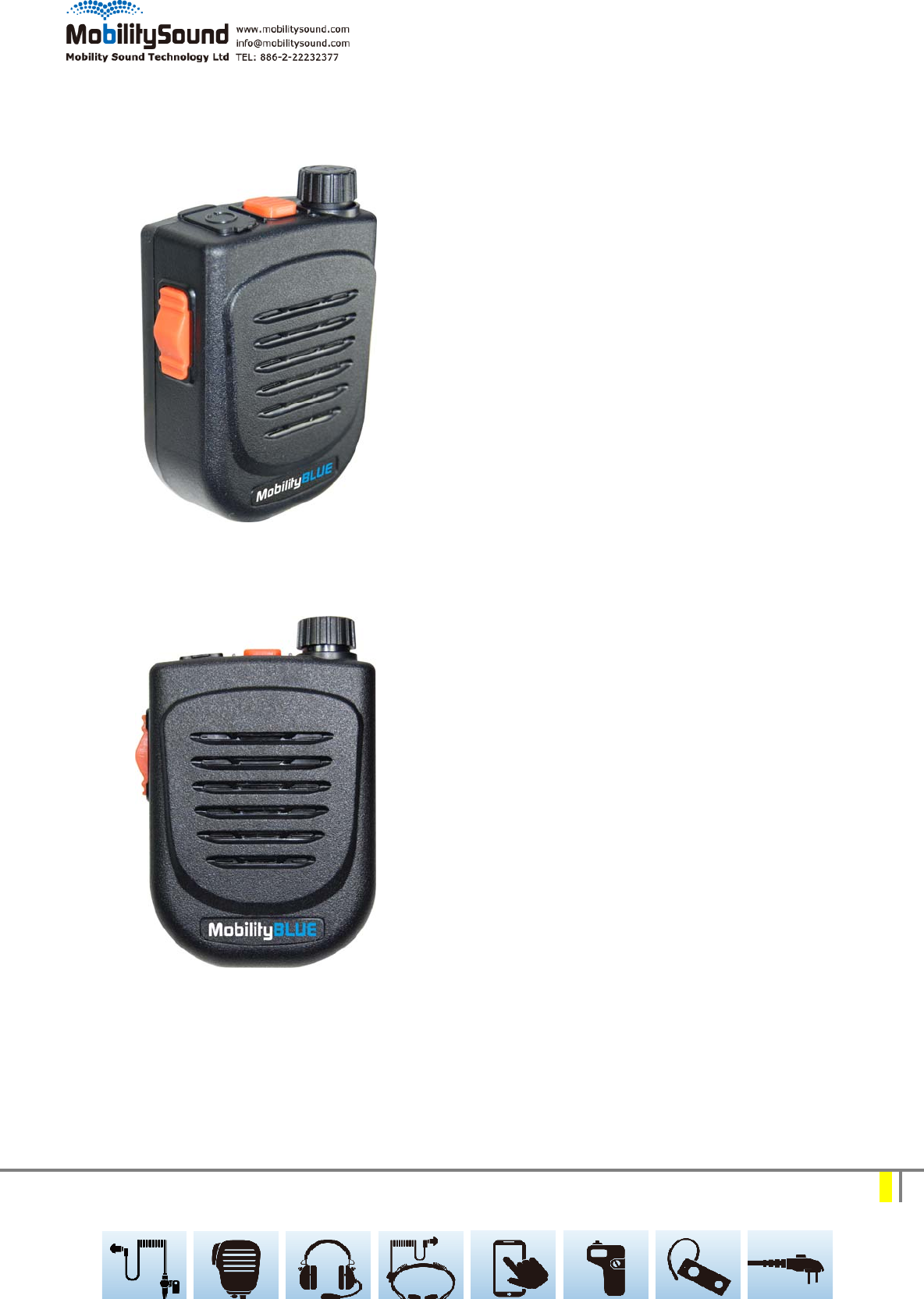

BluetoothSpeakerMicrophone‐BTH‐500
<ProductDescription>
•BTspeakermicrophoneforHyteraradio
built‐inBluetooth.
•Rotarypower&volumecontrolswitch,phone
answer/rejectionkey,andPairingbuttonare
embedded.
•FeaturesminiLEDlamponthetopofspeaker
foruserindimenvironment.
<Specification>
Type:BluetoothSpeakerMicrophone
OperatingTemp:‐20℃±2℃~50℃±2℃
Approx.Weight:126g
Size:5.5cmx7.5cmx3.0cm
•Bluetoothv4.0(withoutBLE).
•Echocancellation,noisereduction,also
extendedfeatures.
•HighQualityDAC,CSRCVCbuilt‐in.
•80MHzRISCMCUand80MIPSKalimbaDSP.
•FastCurrent(200mA)batterycharge.
•SBC,MP3,AAC,Faststream,APTXcodec
support.
•RoHScompliant.
•HSP/HFP/A2DP/AVRCP/PBAP/SPP/MAP
profilesupports.
•SpeakerOutput:2W.
•DisplayLED:BlueandRed.
•DCInput:5Vdc(std.)MicroUSBjack.
•DCCurrent:25mA(Average).
•Battery:1000mAH,nonereplaceable.
•TalkTime:40Hours
2
Federal Communication Commission Interference Statement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto
Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequency
energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto
radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe
determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferenceby
oneofthefollowingmeasures:
‐Reorientorrelocatethereceivingantenna.
‐Increasetheseparationbetweentheequipmentandreceiver.
‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance
couldvoidtheuser'sauthoritytooperatethisequipment.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.To
maintaincompliancewithFCCRFexposurecompliancerequirements,pleaseavoiddirectcontacttothe
transmittingantennaduringtransmitting.
3

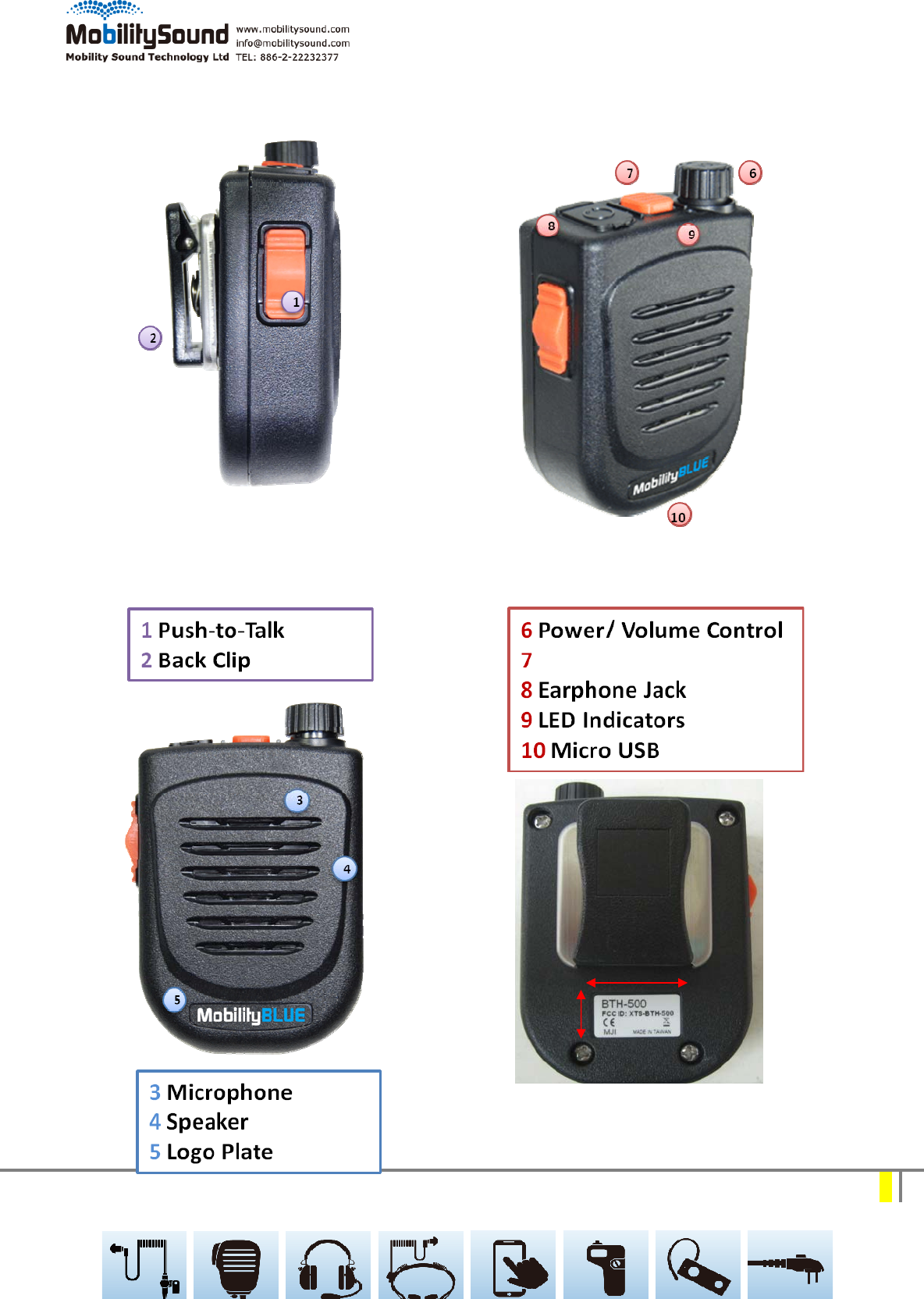

PairingButton
2.5cm
1.8cm
4
BTH‐500
BTH‐500StateandLEDFlashingPattern
BTH‐500State&ButtonPressLEDMessage Function
Nolinkandnopaired
BTH‐500isOFFNoLEDBTH‐500OFF
WhenBTH‐500isOFF,rotate
powerswitchclockwise.
BothBlue&RedLEDarelighten
for1second
BTH‐500isturnedON
WhenBTH‐500isON,rotate
powerswitchanticlockwise.
RedLEDflashes2timesthenOFF BTH‐500isturnedON
WhenBTH‐500isOFF,pressand
holdPairingbutton,thenrotate
powerswitch,andwaitfor3
seconds
Red&BlueLEDflashes
alternatively
GetBTH‐500intopairingmode
UnpairedorlostlinkBlueLEDflashesonceevery2
seconds
Nolink,nopair
5
BTH‐500PairingProcessforHytera
1. MakesureBTH‐500isOFF,press&holdPairingbuttonandswitchonBTH‐500.
2. BTH‐500isunderpairingmodewhenyouseetheLEDflashingREDandBLUE
alternatively.
3. StartBluetoothfunctiononyourHyteraradio.
4. Findthedevicename“BTH‐500‐XX”underBluetoothlistandconnectit.
5. Pairingprocessiscompleted
