Mobvoi Information Technology LS418F Smart Watch with Bluetooth LE User Manual PO 2B3112A LS418 FC004 GB 04 A1
Shanghai Mobvoi Information Technology Company Limited Smart Watch with Bluetooth LE PO 2B3112A LS418 FC004 GB 04 A1
User manual
User Manual
Please do read the user manual carefully and thoroughly so
as to ensure the safe usage of this product, and keep the
manual well for further reference in case you have problems.
Thank you very much for selecting TicBand LS418-F.
2018-04-16
技术要求：
1、黏合不可露胶
2、保持印刷面板上的清洁
3、注意套印的准确性
4、表面处理不可爆开
5、结构工艺以结构受控图为准
6、颜色参考：
产品型号 材质
尺寸
70g书写纸
110*65 mm
黑色
产品名称 计步器
-
LS418-FC004
李秋燕 2018-04-16
罗佳钰 2018-04-16
谭文昊 2018-04-16
LS418-FC004-GB-04
PO#2B3112A-LS418-FC004-GB-04-说明书-A1
改P5
共 11 张 第 1 张
A/1
对应结构图纸 印色
1:1 -表面处理
Table of Contents
Overview
Device Components
Initial Start-Up
General Instructions
Install the App and Pair-up
Start Measuring
Light It up
Troubleshooting
Specifications
Maintenance
Warranty
3
3
6
8
14
15
16
16
............................................................................................
.............................................................................................
.............................................................................................................
.....................................................................................................
.........................................................................................................
...........................................................................................................
.................................................................................................................
...................................................................................................Tie the wristband
5
...................................................................................
Change the wristband 6
...........................................................................................
Check the Data
Symbol Meaning
Symbol Meaning
2
...................................................................................................
Activate the TicBand 4
............................................................................................
Warning 16
...................................................................................................................
TicBand Care 17
..........................................................................................................
Built-in Battery Care 17
..............................................................................................
Health Disclaimer 17
..................................................................................................
Other Notes 17
............................................................................................................
View the Data
.................................................................................................... 9
List 3
.......................................................................................................................
Special Function
Alarms
Call Notification
Text Notification
Move Reminder
Night Mode
Wrist Selection
..................................................................................................................
....................................................................................................
.....................................................................................................
....................................................................................................
.....................................................................................................
..........................................................................................................
10
10
10
11
11
11
OLED Display
2
......................................................................................................
Battery Charging ................................................................................................... 7
How to Use 8
..........................................................................................................
Heart Rate Detection ........................................................................................... 12
Display Mode ....................................................................................................... 12
Display Settings .................................................................................................... 12
Goal Achievement Reminding .............................................................................. 13
Sleeping Condition Monitor ................................................................................... 13
Running Mode ...................................................................................................... 13
1
Table of Contents
List

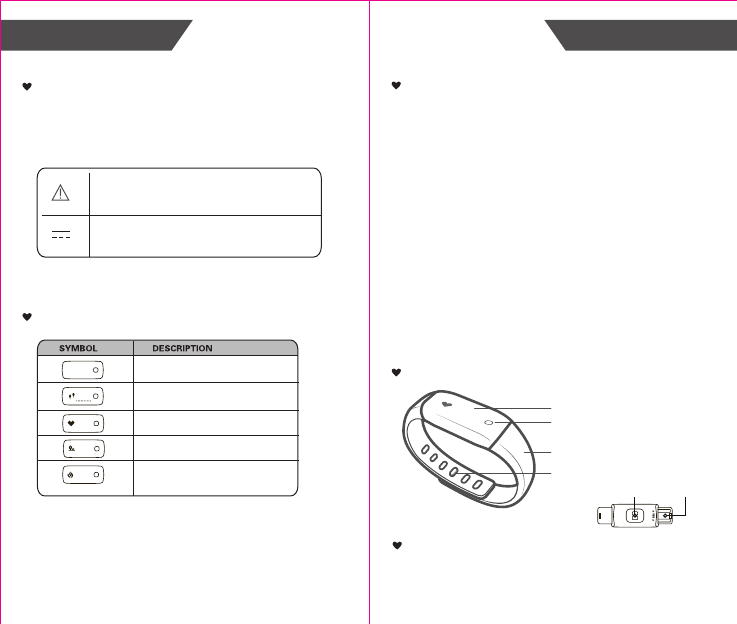

1.TicBand LS418-F (Built-in Polymer Lithium Battery)
2. User Manual
General Instructions
Device Components
Symbol Meaning
OLED Display
Brand new TicBand LS418-F can track your activity in anytime.
It is designed to measure the walking steps, distance,consumed calories
and dynamic heart rate.
Main Features:
a. support the Bluetooth 4.0 technology
b. Single point of touch function and OLED display
c. keep a record of the measuring data during 7 days
d. display walking steps, walking distance, the consumed calories,
dynamic heart rate, and time
e. 24 hours heart rate monitoring
f. Swimming water proofing
g. Sleeping monitoring
h. Accurate step-counting
i. Call notification
j. Text Notification
k. Automatic identify running function
Steps and goal completion progress
Walking Distance
The Consumed Calorie (kcal)
Time ( Time format :24 hours)
USB Interface
Symbol for “THE OPERATION
GUIDE MUST BE READ”
Symbol for “DIRECT CURRENT”
Heart rate
Heart rate sensor
Wristband button
95
OLED Display
Wristband
Touch Key
1.97
9:25 THU
18
36.6
2023
95
This device has Bluetooth 4.0 technology, the user can set personal
information such as height, weight, goal step and so on through the
Bluetooth devices, and then the information can be downloaded to
theTicBand. The data in the TicBand also can be uploaded to the device
which supports the Bluetooth 4.0 technology. So the user can check it in
anytime.
The warning signs and symbols are essential to ensure your correct
and safe use of this product and protect you and others from injury.
Please kindly find the meanings of the warning signs and symbols,
which you may encounter in the label and user manual, as follows:
23
OverviewSymbol Meaning

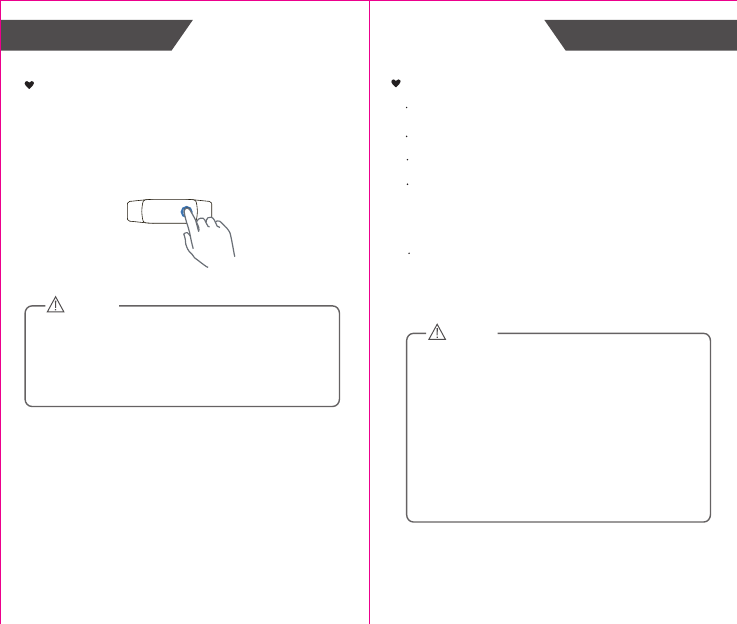

Install the App and Pair-Up
Activate the TicBand
For the initial use, tap the touch key to light up the TicBand.
“Open App to Connect” appears on the screen for 10 seconds
and then turns off. Please activate it by connecting it with the app
during 30 minutes, otherwise, it will return to shipping mode
automatically and only support touch light up function, displaying
“Open App to Connect”.
CAUTION
Notes:
(1) When the shipping mode is removed, theTicBand will display
the initial time: 0:00.
(2) After connecting with the mobile device, theTicBand will
download the time from the mobile device, and it will display the
current time.
Open App to Connect
CAUTION
Download the Mobvoi app from APP Store or Google Play .
Install the APP, and register an account. Then set your personal
information (Gender, Birthday, Height, Weight, Name and so on).
Enter the “Device” interface to add the device. Click “Add New
Device” button to add it . Then use the mobile device to scan the
special QR code which is located on the kraft paper for the TicBand
to bind the device, after the pairing is completed, click “OK” on the
APP to confirm, it will synchronize with your mobile device.
Before you use the mobile device which supports Bluetooth 4.0
technology, please turn on the Bluetooth.
The time on TicBand will synchronize with the one on your mobile
device. The measuring data will be transmitted to your device which
supports Bluetooth 4.0 technology through the Bluetooth.
The device can’t connect with the app or upload the data if the
following situations appear:
1.The Bluetooth is off, or unconnected with the Internet.
2.Over the specified transmitting distance. The Bluetooth
transmitting distance of TicBand is ≤8 meters in the situation of no
obstacle.
3. The special QR code is not correct.
4. The smartphone isn’t in the list of compatible devices.
List of compatible devices:
For iOS devices:
The operating system must be iOS 9 or more, such as iPhone
4S, iPhone 5/5C/5S, iPhone 6/6 Plus and so on.
For Android devices:
The operating system must be 4.4 or more.
5
4
Initial Start-UpInitial Start-Up

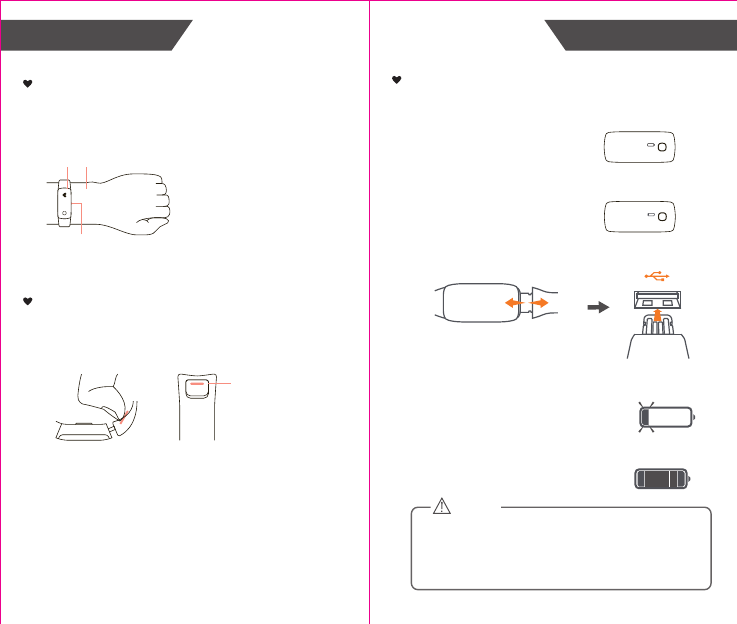

When the OLED displays the following symbol, it reminds you
the battery is used up, you need to charge the power at once.
When the device is charging the power, the OLED will display as
the following picture. The power symbol blinks.
The OLED displays as the following picture, it means the
charging is complete.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
The charging input voltage is 5V.
Pull out the wristband, then insert the device’s charging port into
the computer’s or charger’s USB port to finish the charging.
When the OLED displays the following symbol, it reminds you
the battery is low, you need to charge the power.
≥2cm
Close to the skin
95
Must make the touch key towards to the inner side of body. The
heart rate sensor must be close to the skin. The distance between
wristband and wrist should be 2 cm or more.
Tie the wristband
Change the wristband
Press here
Press the identifed part of the wristbands to take them out as
below.
Battery Charging
9:25 THU
9:25 THU
CAUTION
The Mini USB port is only used for charging the power, but can
not be used for transmitting the data to the computer.
7
6
Initial Start-UpInitial Start-Up

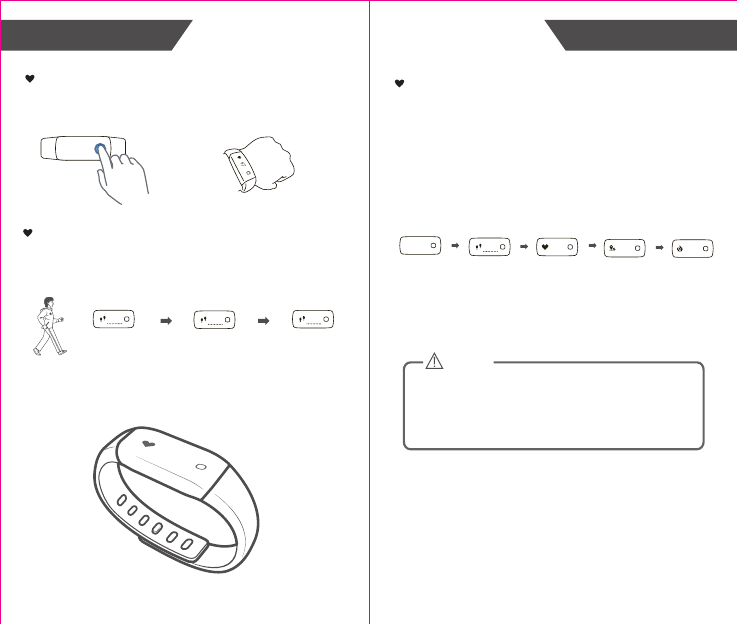

Light It up
The measuring data will be transmitted to your device which supports
Bluetooth 4.0 technology if you have paired up with it.
How to Use
Follow the hints in the manual to wear the TicBand. Then it can start
the measurement.
Check the Data
Start Walking
(within 10 steps)
10 Steps More than 10 steps
(the digit increases)
Following the steps of LIGHT IT UP to read the data you want.
CAUTION
Notes: The data of the day will be cleared to zero automatically
when the time is 0:00. The data cannot be cleared to zero
manually.
The device only stores the latest 7 day’s heart rate data, the data
will be deleted if it’s over 7 days.
Light up the TicBand as the below steps:
Tap the touch key Rotating your wrist
11
Tap the touch key at any time to light up theTicBand, it will
display the time first. Tap the touch key each time, it will display
the data according to the following order: time, steps and goal
completion, heart rate, distance and calorie alternately. If there is
no operation, it will turn off in 5 seconds.
9:25 THU
1 8
OR
CalorieDistance
1.97
9:25 THU
18
Time Heart rate
36.6
Steps
2023 95
010
95
Start Measuring
89
View the Data

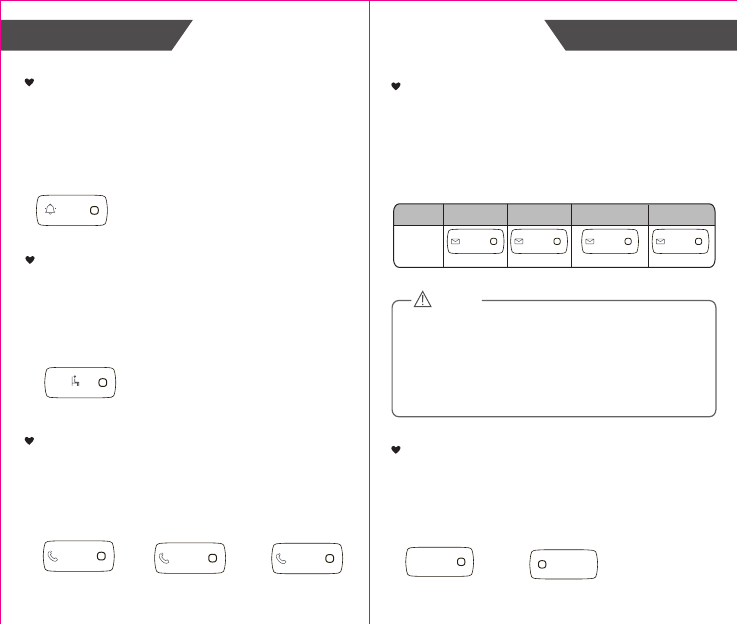

Text Notification
Call Notification
Move Reminder
Alarms
Wrist Selection
You can select wear theTicBand on left wrist or right wrist. The default
wrist is the left one.
When it displays vertically, the display direction of left wrist and the right
wrist is the same.
When it displays horizontally, the display direction of left wrist and right
wrist is different, 180° oppositely, as below:
When the phone is coming, tap the touch key to hang up.
TheTicBand only supports displaying the messages from the
smartphone with iOS system or Android system.
TheTicBand only displays the message icon and contents once, and it
cannot be thumbed through .
Smartphone
Messages from
CAUTION
14:20
9:25 THU
1 8
Left wrist
9:25 THU
1 8
Right wrist
David 13285436972 Incoming Call
Name Phone number Unidentified
David New Message 9 New Messages 99+ New Messages
Name 1 new message (1-99) new message More than 99
new messages
The device can’t give you a Text Notification if the following situations
appear:
1. The Bluetooth is off, or unconnected with the Internet.
2. Never set the Text Notification on.
3. Never set notice permission on the smartphone.
4. The screen of the smartphone is unlocked.
5. There are many messages in the smartphone, it won’t give you a
notice unless you clear them.
You can set the Text Notification on the app. Keep theTicBand
connecting with the mobile device. When a message is coming,
theTicBand will vibrate, display the message icon and contents.
Keep theTicBand connecting with the mobile device. Set the Call
Notification on the app. When the phone call is coming, it will display
the phone icon and the name about 10s, vibrate 1s then stop 1s. It will
vibrate 4 times and then turn off in 10s.
When the setting time is coming, it will vibrate twice and display the
sedentary icon about 5s, then turn off and log out. You also can tap the
touch button to log out.
When you focus on your work too long, it can give you a notice to
relax. But you must set the move reminder on through the app. Set the
reminder interval, reminder frequency, starting and ending time.
Please set the Silent Alarms on the app. When the setting time is
coming, it will display the alarm clock icon and vibrate continuously.
Tap the touch key to stop the alarm clock, or the alarm clock will stop
vibrating until it’s over the duration of the setting time.
You can set the alarm clock to vibrate 5 seconds,15 seconds, 30
seconds, or 60 seconds on the app.
10 11
Special Function Special Function
Running Mode
TheTicBand can identify whether the user is running or not
automatically.
In the mode of heart rate detection, theTicBand can identify the
user is running and turn on the heart rate detection. It will save a
piece of heart rate and calorie data every minute. If the mode of
heart rate detection is off, it only can identify the user is running, but
won’t start heart rate detection. It will only keep a piece of calorie
data per 1 minute.
You can check running data, including running time, calorie,
average heart rate, the maximum step frequency, average
frequency, total steps, heart rate curve and calorie curve on the app.
Note: If there is no heart rate data, the app won’t display heart rate
curve.

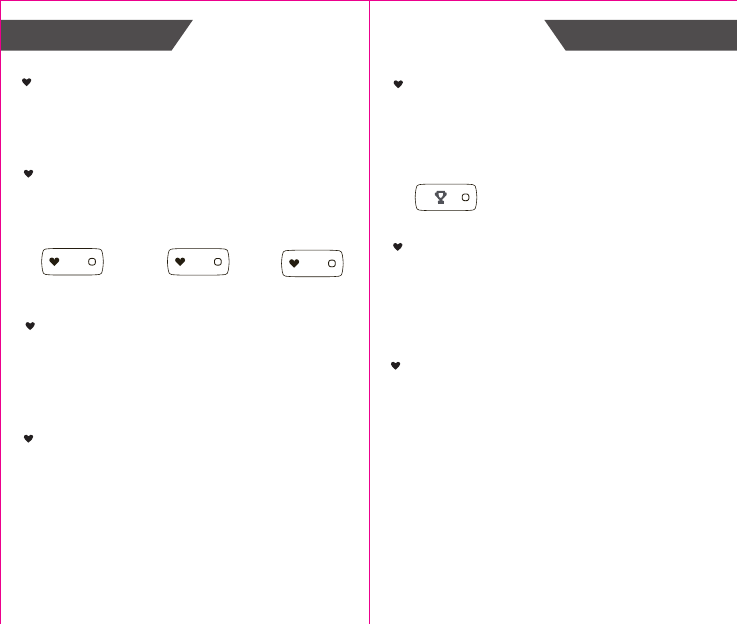

Goal Achievement Reminding
Sleeping Condition Monitor
Night Mode
Heart Rate Detection
Display Mode
Display Settings
You can select horizontal or vertical display on the app. The default
display is horizontal.
Text notification and call notification only support horizontal display.
Activate startup screen, battery charging, and update screen only
support vertical display. Other pages can support both horizontal and
vertical display.
Heart Rate Detection is OFF. Can’t detect heart rate. Detect heart rate.
95
OFF - - You can wear theTicBand to sleep, it will monitor your sleeping
condition. The sleeping data will upload to the app, you can check your
sleeping condition on the app.
You can set the goal achievement reminding on the app. There is a
goal celebration to encourage you to reach your goal. When you reach
the setting goal, it will vibrate twice, and display the encouragement
icon about 3s and then display goal steps about 2s. Then it will turn off
and log out the reminding mode. The default goal step is 6000 steps.
You can set it through the app.
The default state of night mode is OFF. You can set it on or off, and the
starting and ending time on the app. In night mode, you could not light
up theTicBand by rotating your wrist, but you could by touching the key
on the screen.
The default mode of heart rate detection is ON. If you set it off, it will
stop heart rate measurement. If you set it on, the indicator with green
light will be on for continuous heart rate detection.
You can decide which screen you want to display on theTicBand
through the app. The default pages (time, steps, calorie, distance, heart
rate) are on. You can select the order of displaying pages, and must
keep at least one page on.
12 13
Special Function Special Function
Troubleshooting
Solution
Problem Root Cause
Abnormal
measuring results:
Huge difference
between two recent
measurement.
No display on
OLED when the
device powers on.
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth.
The App is OFF. Press the icon to turn ON
your app.
Place your device which
supports the Bluetooth 4.0
technology close to the
TicBand.
Out of range of
Bluetooth
transmission.
Less than 10 steps
Walk in a normal way.
The power is not
enough.
Charge power in time.
Specifications
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed
by the manufacturer. Please refer to the above table for the descriptions on accuracy.
WARNING: No modification of this equipment is allowed.
Product Name
Dimension
TicBand
Whole size: Approx. 250mm x 17 mm x 10.8 mm
(including the wristband)
Weight Approx. 22 g (including the wristband)
Display White OLED
V.A.:22.8mm x 6.8mm
Steps 0-120000 steps, division 1 step
Calories
Battery Grade
Working Environment
Temperature: 0°C to 40°C
Relative Humidity: ≤90% RH
Atmospheric Pressure: 80 kPa ~ 106 kPa
Storage Environment Temperature: -20°C to 60°C
Relative Humidity: ≤90% RH
Power Source 3.8V / 75mAh polymer lithium battery
Running hour
Exercise Time 0-23 hours and 59 minutes, division 1 minute
Accessories 1. One Wrist Band
2. User Manual
1-7 grade, division 1 grade
0-12000.0 kcal, division 0.1 kcal
Distance 60.00 km
Heart rate Range: 30 beat/min~200 beat/min,
division 1 beat /min
Protection against
ingress of water IP68
Use the correct portable
fashion, avoid that the
TicBand has irregular
shaking.
Continue to walk more than
10 steps.
Incorrect portable
fashion make the
device has
irregular shaking.
Slide or wearing the
slippers to walk.
When the battery is fully charged, it can be used
about 5 days (heart rate function is open), or
about 1 month ( heart rate function is closed).
15
14
Troubleshooting Specifications
When carrying out usual maintenance, please ensure practice of the
following Do’s and Don’ts:
Mobvoi warrants its products free of defects in materials and workmanship
in normal use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse,
including but not limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions
stated in this user manual;
Malfunction or damage from failure to provide the recommended
maintenance;
Damage caused by improper use of power supply.
Maintenance
Warranty
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt.
Then use a dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in
avoidance of discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact
Mobvoi (Please refer to Warranty for contact information)
Charge the power once for every 3 months, or at least once for half a year,
if the device is not likely to be used for a long time.
Warning
TicBand Care
Built-in Battery Care
While yourTicBand is designed to be worn 24/7, its components are
electronic and susceptible to damage if used improperly. Please read the
safety guidelines on the following pages to ensure proper use and care.
• Do not expose your TicBand to liquid, moisture, humidity, or rain while
charging. Exposure of the TicBand to moisture while charging could result
in electric shock.
• Do not tamper with or abuse the TicBand. For example, without limitation,
do not drop,disassemble, open, crush, excessively bend, deform, puncture,
shred, microwave, incinerate, paint, or insert foreign objects into the
TicBand.
• Do not use abrasive cleaners to clean your TicBand.
• Do not expose your TicBand to extremely high or low temperatures.
• Do not leave your TicBand near open flames such as cooking burners,
candles, or fireplaces.
• Do not bring your TicBand into contact with any sharp objects. This could
cause scratches and damage.
• Do not insert anything into your TicBand unless otherwise specified in the
user instructions. This may damage the internal components.
• Do not attempt to repair, modify, or disassemble your TicBand; it does
not contain any user-serviceable components.
• Do not attempt to replace your TicBand’s battery. It is built-in and not
changeable.
• Only charge the battery in accordance with the user instructions supplied
with the TicBand.
• Avoid charging your TicBand in extremely high or low temperatures.
• Do not wear your TicBand while you are charging it.
• Do not attempt to disassemble the TicBand or force open the built-in
battery.
• Do not clean the TicBand when it is being charged. Always unplug the
charger first before cleaning the TicBand.
• Do not dispose of your TicBand in a fire. The battery could explode
causing injury or death.
Health Disclaimer
WARNING: THIS TicBand IS NOT A MEDICAL DEVICE. The TicBand
and its associated applications should not be used to diagnose, treat, or
prevent any disease or medical condition. Always seek the advice of a
qualified medical professional before making any changes to your
exercise, sleep or nutrition, as doing so may cause severe harm or death.
• Dispose of theTicBand, the TicBand’s battery in accordance with local
regulations. Do not dispose of the battery with regular household waste.
• Recycle your package in accordance with local regulations.
Other Notes
17
16
Maintenance Warning
Bluetooth®
The full text of the EU declaration of conformity is available at the following
internet address: https://en.ticstore.com/
To comply with EU RF exposure requirements, the device should be used
for wrist worn only.Other operating configurations should be avoided.
EU Frequency: 2.4-2.4835GHz
The maximum RF Power: <200mW
Manufacturer:
Shanghai Mobvoi Information Technology Company Limited
Address: Building 2-106, 1690 Cailun Road, China (Shanghai) free trade
area
Importer:
Trademarks and Permissions
CE statements
FCC statements
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
FCC RF exposure statement:
FCC RF Radiation Exposure Statement Caution: To maintain compliance
with the FCC's RF exposure guidelines.
FCC ID：2AHEA-LS418F
The device must not be co-located or operating in conjunction with any
other antenna or transmitter
RECYCLING: This product bears the selective sorting symbol
for waste electrical and electronic equipment(WEEE).
This means that this product must be handled pursuant to
European Directive 2012/19/EU in order to be recycled or
dismantled to minimize its impact on the environment.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
The Bluetooth® word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by Shanghai
Mobvoi Information Technology Company Limited is under license. Other
trademarks and trade names are those of their respective owners.
Hereby, Shanghai Mobvoi Information Technology Company Limited,
declares that this [TicBand,LS418-F] is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
19
18
Compliance statements Compliance statements
