Modern Concepts CR6035A Gig Turntable User Manual
Modern Marketing Concepts, Inc. Gig Turntable
User Manual
![](/img.php?id=3840625&img=bg1.png)
CR6035A
Gig Turntable
Instruction Manual
Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. – 6 p.m., EST, Monday – Friday
1-888-CROSLEY
www.crosleyradio.com
![](/img.php?id=3840625&img=bg2.png)
English
2
Safety Instructions
Read and understand this entire manual before using this product. Keep these
instructions for future reference.
1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated
on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has
two blades with one blade wider than the other. This plug will fit into the
power outlet only one way. If you are unable to insert the plug fully into the
outlet try reversing the plug. If the plug should still fail to fit, contact your
electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
9. Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating. Do not
block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of
time.
![](/img.php?id=3840625&img=bg3.png)
English
3
Items in this package
Before throwing away any packaging materials, please check thoroughly and
make sure you find the following items that come along with this package:
Turntable
Speakers
Turntable Slip Mat
45 RPM Adapter
3.5mm to RCA cable
Power Adaptor
Please contact Crosley Customer Service if there is any accessory missing from
the package. Retain the original packaging materials for exchange or return
purposes.
Specifications
Power AC power adaptor, DC output 12V 1A
Power consumption 12W
Speaker 3”, 8 Ω, 5 W x 2
Turntable speed 331/3, 45 RPM
Replacement needle Crosley NP5
Note:
Design and specifications are subject to change without notice.
To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, their powers will
automatically cut-off. To turn power back on and resume playing, you will need to
turn off the power and turn it on again.
![](/img.php?id=3840625&img=bg4.png)
English
4

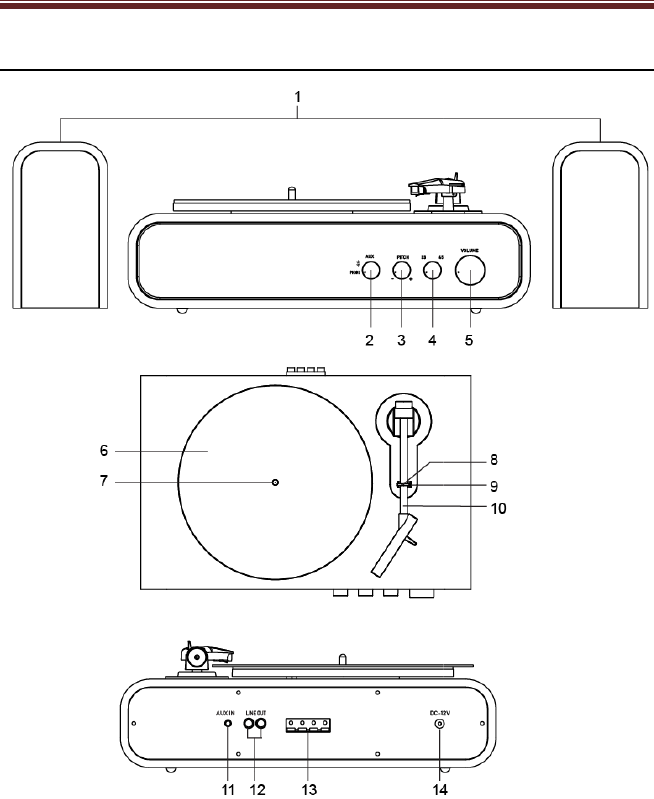

Product Description
1. Speakers
2. Function Knob
3. Pitch Control
4. Speed Switch
5. Power / Volume Knob
6. Turntable Platter
7. Turntable Spindle
8. Hold Down Clip
9. Tonearm Rest
10. Tonearm
11. Aux In Jack
12. RCA Jack
13. Spring clip speaker terminals
14. Power Jack
![](/img.php?id=3840625&img=bg5.png)
English
5
Initial Setup
Essential Setup
1. Place the unit on a flat and level surface. The selected location should be
stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Place the slip mat on top of the turntable platter.
4. Connect the speakers to the Spring clip speaker terminals of the turntable.
5. Connect AC adaptor to the Power Jack of the unit.
Note: Do not plug the AC power adaptor to power outlet before all the assembly is
completed. Before turning the power on, make sure again all the connection settings
are correct. Always turn off the power when connecting or disconnecting.
Stereo System Connection
Spring clip speaker terminals
The spring clip speaker terminals deliver amplified, speaker-level signals as
output and should be connected with the passive speakers.
RCA Jacks
The RCA Jacks output analog line-level signals and could be connected
directly with a pair of active/powered speakers or the appropriate input of your
stereo system.
The Red plug connects with the Right channel and the White plug connects
with the Left channel.
Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers.
If connected to the passive speakers, the volume level will be very low.
Aux Input Connection
You can connect an audio device to this unit and play your music through its
speakers. To do this, rotate the Function Knob to Aux In mode, connect the
3.5mm auxiliary cable between your audio device and the Aux In Jack of this
unit and start playing.
![](/img.php?id=3840625&img=bg6.png)
English
6
Turntable Operation
1. Rotate the Power / Volume Knob to turn on the power.
2. Set the Function Switch to PHONO position.
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the
turntable is being moved or cleaned.
6. Release the tonearm Hold Down Clip.
Note: when the turntable is not in use, remember to lock back hold down clip.
7. Lift up the tonearm and move it over the record where play is desired to
begin. Gently put down the tonearm and begin the playback.
8. When the record is finished playing, gently lift up the tone arm, and move it
back to the tonearm rest.
9. Lock the Hold Down Clip to secure the tonearm.
Platter Auto-stop
If the Auto-stop Switch is set to ON position, the platter will stop spinning
automatically when the record plays to the end. In some rare occasion, if the
turntable stops playing before the end of the record, set the switch to OFF
position the turntable should overcome this issue.
Pitch Control
The turntable speed can be increased or decreased by approximately 10% by
rotating the Pitch Control knob. To increase the speed, turn the Pitch Control
knob clockwise. To decrease the speed, turn the knob counter-clockwise.
Needle Replacement
Removing Needle
1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.
![](/img.php?id=3840625&img=bg7.png)
English
7
Installing Needle
1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the
front of the needle upward until it snaps into place.
Bluetooth Operation
1. Turn the Function Switch to Bluetooth mode , you will hear an activation
sound from the unit.
2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY
CR6035” and pair.
3. Once your device is successfully paired with the unit, you will hear a short
confirmation sound from the unit.
4. Play and stream music from your device to the unit.
Note: Bluetooth version - 4.1
Turntable Maintenance
1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the
turntable mat or a record’s edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush
and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber
cloth.
Note: Do not use cleanser that contains alcohol, benzene, or any other harsh chemicals
which might damage the paint and finish of the turntable.
** Crosley offers a product line of different cleaning accessories. Please
ask your retailer or check out our website www.crosleyradio.com for
more cleaning product information.
![](/img.php?id=3840625&img=bg8.png)
English
8
Troubleshooting
There is no power
Power adaptor is not connected correctly.
No power at the power outlet.
To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, their powers
will automatically cut-off. To turn power back on and resume playing, turn off
the power and turn it on again.
Power is on, but the platter does not turn
Turntable mode is not selected.
Turntable’s drive belt has slipped off.
Turntable is spinning, but there is no sound, or sound not loud enough
Stylus protector is still on.
Headphone are plugged in.
FCC Statements
FCC Caution:
1. This device complies with Part 15 of the FCC rules/ Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.
3. Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.This equipment should be installed and operated with minimum
distance 20 cm between the radiator &your body.
