FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

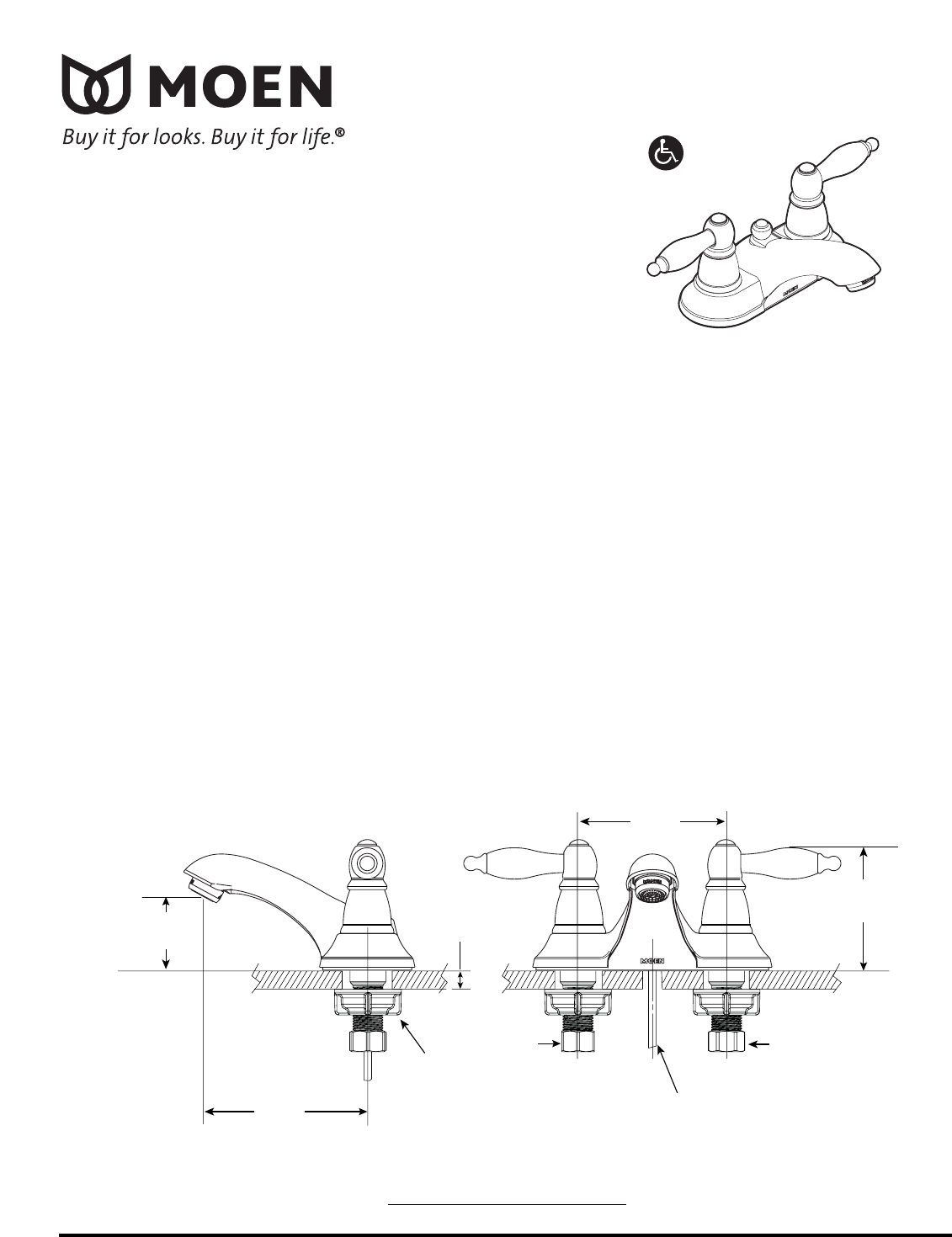

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

DESCRIPTION

•Metal construction with chrome plated finish

•1/2" IPS connections

•Includes hot and cold indicators

•Includes pop-up type waste assembly

OPERATION

•Lever style Porcelain handles

•Maximum handle rotation angle is 180˚ to full

on for either handle.

•Hot side counterclockwise to open (clockwise to close).

•Cold side clockwise to open (counterclockwise to close).

FLOW

•Aerator is limited to 2.2 gpm (8.3 L/min)

CARTRIDGE

•1224 Cartridge design

•Nonmetallic and stainless steel material

STANDARDS

•Third party certified to CSA B125 and

ASME A112.18.1M and all applicable requirements

referenced therein

•Certified to ANSI/NSF 61/9

•Complies with California Proposition 65 and with

the Federal Safe Water Drinking Act

WARRANTY

•Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

Two Handle Lavatory Faucet

with Waste Assembly

Models: 84429, 84430SLPC

NOTE: THIS FAUCET IS DESIGNED TO BE

INSTALLED THRU 3 HOLES,

1" (25mm) MIN. DIA.

4-3/4"

(121mm)

4"

(102mm)

3-3/8"

(80mm)

1-7/8"

(48mm)

3/4" (19mm)

MAX. DECK

THICKNESS

MOUNTING

NUT/WASHER

HOT

1/2" NPT

COLD

1/2" NPT

LIFT ROD

ADA
