Specifications

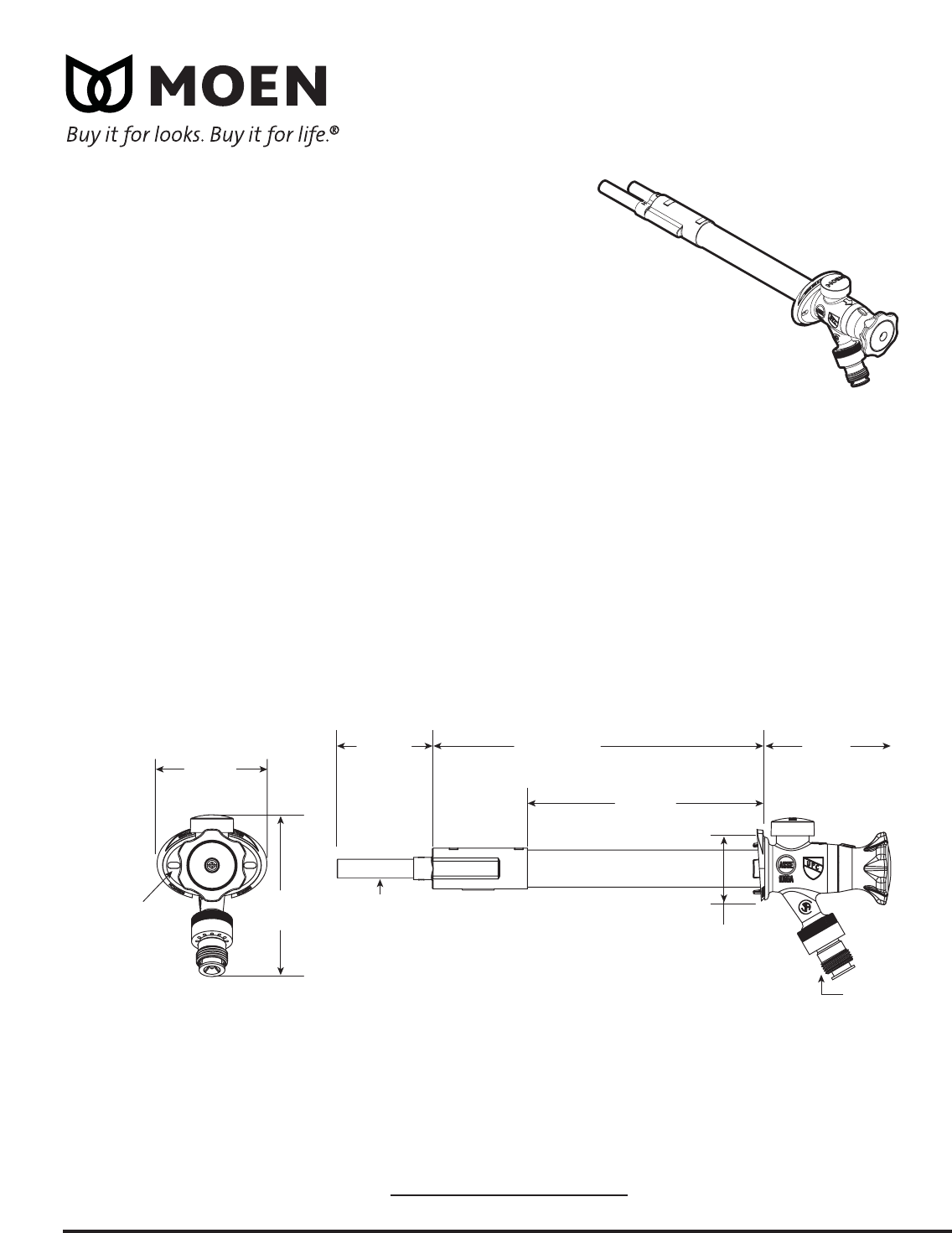

CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

?“

(?mm)

4-1/4“

(107mm)

3-1/4“

(82mm)

14-1/2“ (367mm)

or

18-1/2” (470mm)

2-1/8“

(54mm)

Copper Tubes

1/2” (mm)

Thread

3/4 - 11.5NH

per ANSI/ASME B2.4

1/4“ h. (7mm)

x

7/16” w. (11mm)

3-5/16“

(85mm)

8“ (203mm)

or

12” (305mm)

DESCRIPTION

•Unique single handle design delivers both cold and hot water

•Ergonomic handle design

•Easy to install

•Frost-free

•Anti-siphon

•Cartridge is serviceable from outside of the home

•Flow rate mixed: 12 gpm

•1/2” CC connection

STANDARDS

•Third party certified to: ASME A112.18.1/CSA B-125.1,

ASSE 1019 and all applicable specifications referenced therein

WARRANTY

•Lifetime limited warranty against leaks and drips Single Handle Hot & Cold Sil Faucet

Models: HC200508, HC200512

Rev. 2/07
