Specifications
®

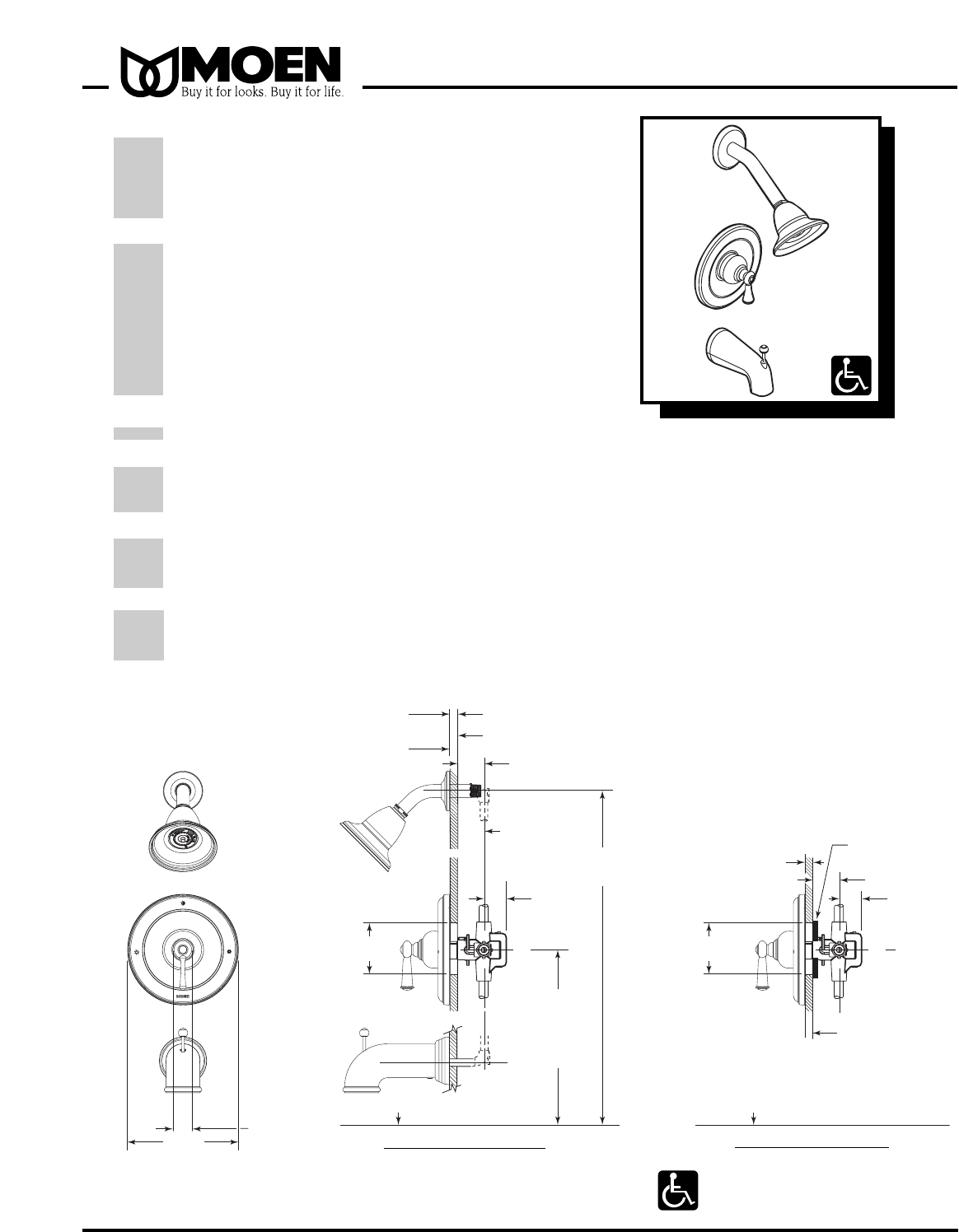

CRITICAL DIMENSIONS
(DO NOT SCALE)
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
DESCRIPTION
•Metal construction with chrome plated finish
•Pressure balancing cycle valve design with an
adjustable temperature limit stop
•1/2" IPS connections
•Includes showerhead, arm, flange, and diverter tub spout
OPERATION
•Lever style handles (Chrome & Porcelain)
•LifeShine®polished brass accent or chrome accent
•Handle operates counterclockwise through a 270˚ arc
with off at 6 o'clock and maximum hot at the 9 o'clock
position. Shut off in clockwise direction
•Adjustable temperature limit stop to control maximum
hot water temperature
•Pressure balancing mechanism maintains selected
discharge temperature to ± 2˚
FLOW
•Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
•1222 cartridge design
•Nonmetallic/nonferrous and stainless steel materials
•Accommodates back to back installations
STANDARDS
•Third party certified to CSA B-125,
ASME A112.18.1M, ANSI A117.1 and all applicable
requirements referenced therein
WARRANTY
•Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
•5 year warranty if used in commercial installations
7"
(178 mm)
ESC. DIAM.
3-1/2"
(90 mm)
2-1/4"
(57 mm)
6'-6"
(1981 mm)
Nomimal
C
L
Shower
45" (1143 mm)/
48" (1219 mm)
Tub/Shower &
Tub Only
32" (813 mm)
1-3/8"
(35 mm)
2-1/2" Max.
(63 mm)
1/2" (13 mm) Min. CC
5/8" (16 mm) Min. IPS
2" (51 mm) CC
1-7/8" (48 mm) IPS Max. Wall
Face of Stud
Finished Wall Line
Floor Line
3-1/2" (90 mm) Max.
2-1/4" (57mm) Min. C
L
1-3/8"
(35 mm)
1-1/2" (38mm)
3/6" (typ) (5mm)
Plaster Ground
Floor Line
Plastic
Tub/Shower
Surround
Single-Handle Tub/Shower
Model: L82385
Rev. 7/04
ADA
ADA symbol applies to shower
valve control only.
THIN WALL APPLICATION
THICK WALL APPLICATION
