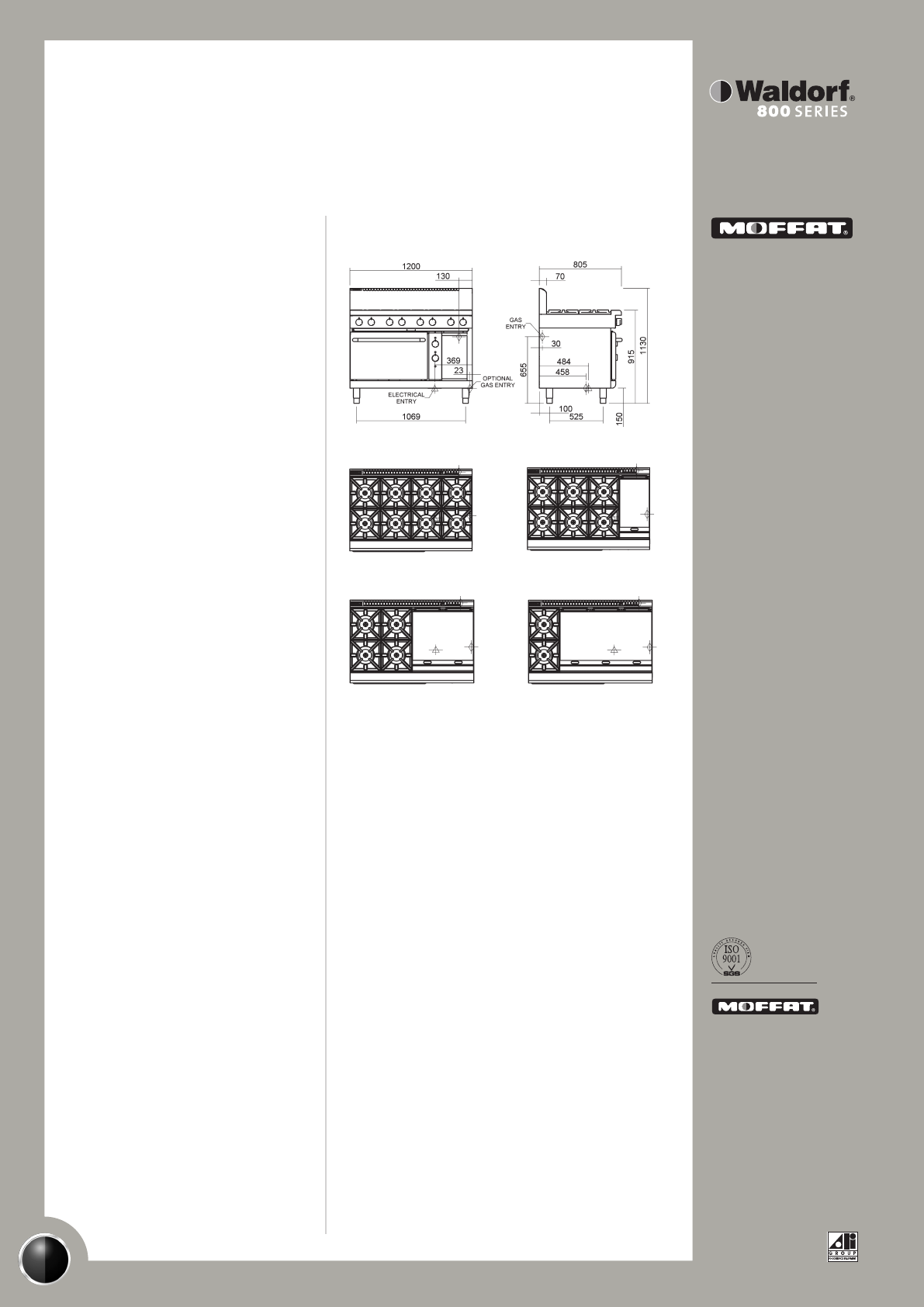

Technical data sheet for

GAS RANGE STATIC OVEN 1200mm

RN8810G, RN8813G, RN8816G, RN8819G

Heavy-duty construction

28 MJ/hr open burners

Flame failure standard

Pilot burners optional

300mm, 600mm, and 900mm griddle plate options

Optional simmer plates

GN 2/1 gas static oven

Drop down door

Storage cabinet on RH side

Stainless steel exterior

Easy clean

Easy service

Fully modular

Overall Construction

• Galvanized steel chassis

• Welded hob with 1.5mm 304 stainless steel bull nose

• Splashback and hob sides 1.2mm 304 stainless steel

• Front panels and oven sides 0.9mm 304 stainless steel

• Full 0.9mm stainless steel storage cabinet on RH side

• 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel

with adjustable feet

Cooktop

• Cast iron 28MJ/hr open burners with forged brass cap

• Vitreous enamelled cast iron potstands

• Vitreous enamelled open burner spill covers

• Cast iron simmer plates (optional extra)

• 12mm thick mild steel griddle plates

• 2.5mm 304 stainless steel griddle splash guards

• Vitreous enamelled spill trays

• Aluminised steel internal construction

Griddle sections are standard on RH side. Available on LH side or centre

to order or by conversion.

Oven

• Fully welded and vitreous enamelled oven liner

• GN 2/1 capacity with 4 position racking

• Heavy-duty easy remove heavy wire chrome rack supports

• Cast iron even heat oven sole plate

• 30MJ oven burner

• Pilot and flame failure with piezo ignition

• Welded frame drop down door with heavy-duty spring

hinge system

• 0.9mm 304 stainless steel door outer

• 1.0mm press formed vitreous enamelled door inner

• High density fibreglass insulated

• Stay cool stainless steel door handle with cast metal handle mounts

• Supplied with two chrome wire oven racks

Controls

• Large easy use control knob - heat resistant reinforced

• Easy view control settings on knob

Cooktop

• Variable high to low controls to open burners

• Open burners flame failure standard with pilot burners optional

• Variable high to low controls to griddles

• Griddles standard with pilot, flame failure and piezo ignition

Ovens (each)

• 80-300˚C thermostatic control

• Piezo ignition to pilot burner

• Flame failure

Cleaning and Servicing

• All models with easy clean stainless steel external finish

• Lift off burners heads and vitreous enamelled burner spill covers

• Vitreous enamelled spill trays under open burner and

griddle sections

• Bottom sill removable for oven burner and pilot access

• Removable oven racking and sole plate

• Easy clean vitreous enamel oven and door inner

• Door hinge spring adjustable on unit (door outer removed)

• Door disengages for lift off removal and increased service access

• All parts front accessible from installed position

• Access to all parts from front of unit

Australia

Moffat Pty Limited

Victoria/Tasmania

740 Springvale Road

Mulgrave, Victoria 3170

Telephone 03-9518 3888

Facsimile 03-9518 3833

vsales@moffat.com.au

New South Wales

Telephone 02-8833 4111

nswsales@moffat.com.au

South Australia

Telephone 03-9518 3888

vsales@moffat.com.au

Queensland

Telephone 07-3630 8600

qldsales@moffat.com.au

Western Australia

Telephone 08-9562 0263

jberent@moffat.com.au

New Zealand

Moffat Limited

Christchurch

Telephone 03-389 1007

sales@moffat.co.nz

Auckland

Telephone 09-574 3150

sales@moffat.co.nz

Australia

www.moffat.com.au

New Zealand

www.moffat.co.nz

ISO9001

All Waldorf products are designed and

manufactured by Moffat using the

internationally recognised ISO9001 quality

management system, covering design,

manufacture and final inspection, ensuring

consistent high quality at all times.

ISO9001

Quality

Management

Standard

Designed and manufactured by

In line with policy to continually develop and

improve its products, Moffat Limited reserves

the right to change specifications and design

without notice.

Technical data sheet for

GAS RANGE STATIC OVEN 1200mm

Specifications

Burners

Open Burners 28MJ/hr dual flame ring with

simmer rate

Griddle Burners 20MJ/hr per 300mm section

Oven 30MJ tubular under cast iron sole plate

Gas power

RN8810G 254 MJ/hr, 70.5kW

RN8813G 218 MJ/hr, 60.5kW

RN8816G 182 MJ/hr, 50.5kW

RN8819G 146 MJ/hr, 40.5kW

Griddle Plate

300mm Griddle cooking surface

292mm x 475mm, 1387cm2

600mm Griddle cooking surface

592mm x 475mm, 2812cm2

900mm Griddle cooking surface

892mm x 475mm, 4237cm2

Oven Dimensions

Width 665mm

Depth 590mm

Height 385mm

Rack size 660mm x 540mm

Rack positions 4

Gas connection

R 3/4 (BSP) male

130mm from RH side, 32mm from rear,

and 655mm from floor

All units supplied with Natural and LP gas

regulator

Dimensions

Width 1200mm

Depth 805mm

Height 915mm

Incl. splashback 1130mm

Packing data

1.37m3

Width 1240mm

Depth 865mm

Height 1255mm

Gas types

Available in Natural gas and LP gas

Please specify when ordering

Units supplied complete with gas type conversion

kits

Other gas types on request

Options at extra cost

Simmer plates (replaces Potstand)

Ribbed griddle plates

Joining caps
