Molex CVS Bochum NCUN-3 Bluetooth Car Kit NCKI-3 & NCKI-1 User Manual 1
Novero GmbH Bluetooth Car Kit NCKI-3 & NCKI-1 1
Contents
- 1. User Manual 1
- 2. User Manual 2
User Manual 1
Select your country
_select your country
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary

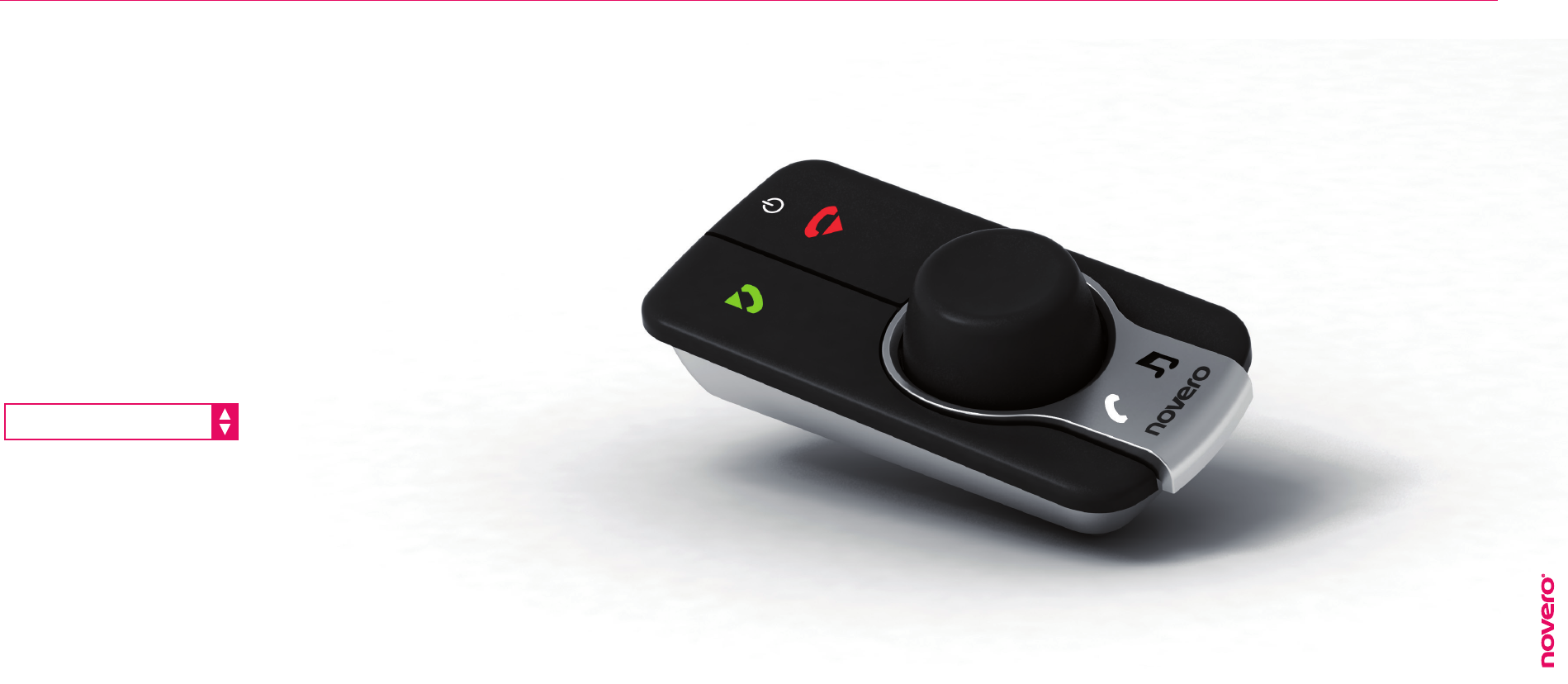

Welcome
Congratulations on your new TheTrustyOne
Universal Bluetooth Car Kit by novero.
TheTrustyOne is designed to serve as an in-car
extension of your regular mobile phone, only easier
to operate while in the car.
TheTrustyOne oers several features, which will
satisfy many dierent user needs. After a quick and
simple set-up, it is easy to make and receive
handsfree calls and play your favourite music on
either your phone or music player.
This user guide will help you get started as we
present you with all the great features and
conveniences that provide a truly customized user
experience.
Enjoy!
Box contents
_read more
Installation
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
• Handsfree unit
• Remote control
• Microphone
• System cable with DIN / ISO car connectors
• Quick user guide
• Quick installation guide
• CD with full user guide and installation guide
Box contents
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
To put safety first, always have a qualified professional install TheTrustyOne in your car. Please refer to
the installation guide for more information.
To ensure optimal performance with TheTrustyOne, make sure to adjust the microphone after
installation so that it points towards you. You may safely do this yourself.
Installation
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Shortcuts
Phone mode Music mode
Switch to
music mode
Reject call
End call
Answer call
Transfer call
Redial
Adjust volume
On / o
(> 1 sec)
Voice dial
(> 1 sec)
Mute / unmute
On / o
(> 1 sec)
Switch to
phone mode
Next track
Adjust volume
Previous track
Play
Pause
Voice dial
(> 1 sec)
TheTrustyOne has an intuitive interface that is easy to operate without taking your eyes or mind o
trac. Below, you will find an overview of the basic shortcuts.
For your safety
Please remember that
driving a car safely
requires your full
attention. Use your car
kit with consideration
and only when trac
conditions allow for
safe use.
Back
Press and hold to turn on
the car kit.
Press and hold to turn o
the car kit.
Turn power on / o
Turn power on Turn power o
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Tip
If you have previously
paired with a phone or
player, TheTrustyOne
will automatically try to
connect with it when it
is turned on.
If connection is
successful you will
hear a short beep.
If connection is
unsuccessful you will
hear a warning tone.
TheTrustyOne will automatically turn on when you start your car, and turn o when you switch o the
ignition. If the ignition signal is not connected to your car, the integrated motion sensor will automatically
turn on the car kit once you start driving.– You can also manually turn the power of TheTrustyOne on and o.
Getting started
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
To pair TheTrustyOne with your mobile device,
activate the Bluetooth feature of the device and
search for novero TheTrustyOne. See the user
guide for your mobile device for instructions.
When your mobile device recognizes novero
TheTrustyOne, select it and confirm your choice
with code or PIN=0000. Your mobile device will
confirm when pairing is complete.
Connect new mobile device
Tip
If you mark
TheTrustyOne as
trusted or authorized
on your mobile device,
TheTrustyOne will
automatically connect
without confirmation
on your device.
Getting started
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary

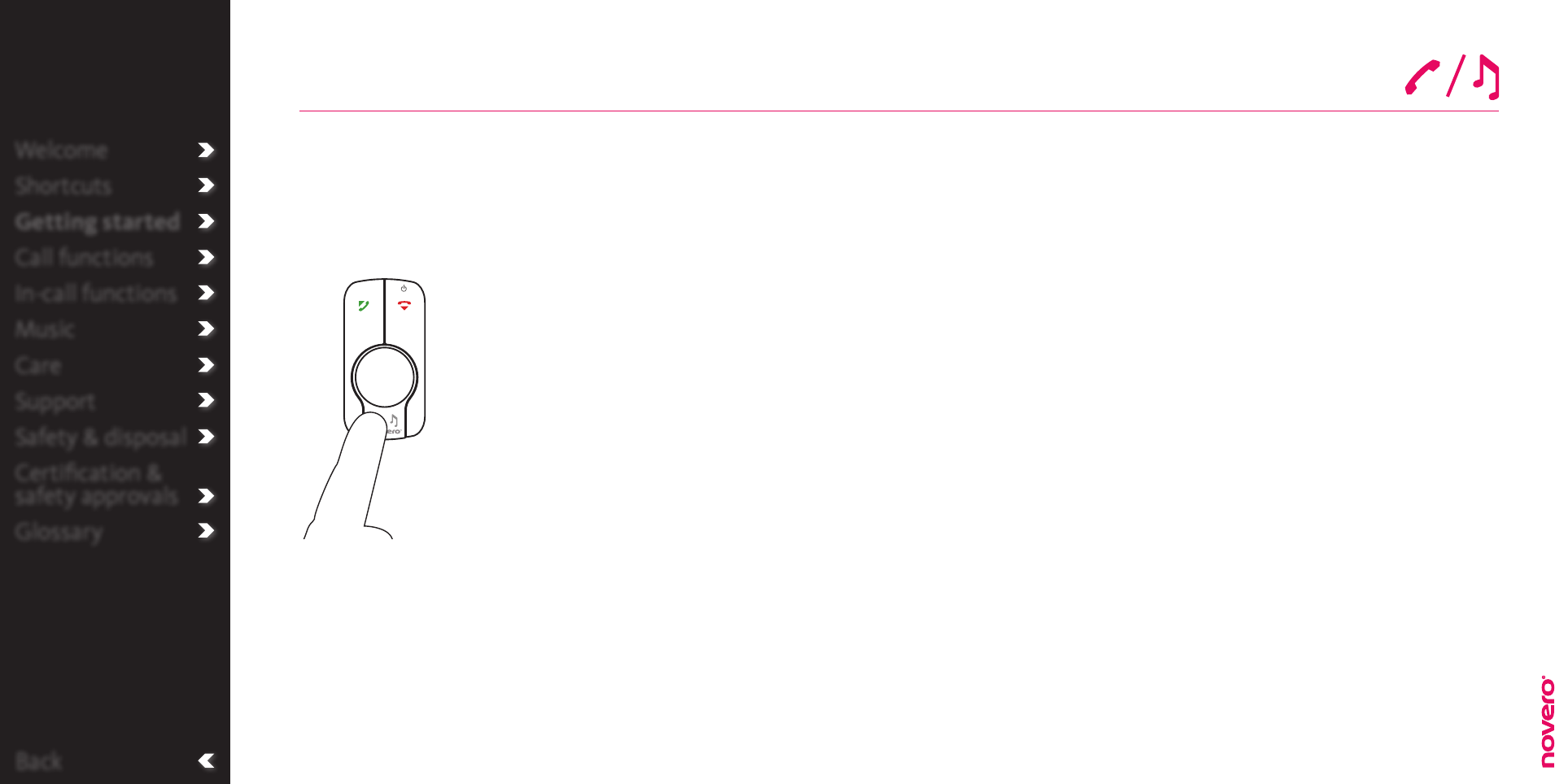

Press P/ M to switch from
phone mode to music mode
or vice versa.
TheTrustyOne automatically starts up in phone mode when turned on. If the connected phone is also a
music player – or if both a phone and a music player are connected to TheTrustyOne – it is very simple to
switch between the two modes.
Switch mode
Switch mode
Getting started
_read more
Welcome
Operation
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
With the basic call functions of TheTrustyOne, you can manage incoming calls with only the push – or
turn – of a button.
Press A to answer a new
call.
Press R to reject a new call. Press R to end an active
call.
Call functions
_read more
Turn E to:
• adjust the ring tone
volume of an incoming call
• adjust the loudspeaker
volume during an active
call.
Back
Basic call functions
Answer call Reject call End call Adjust volume
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Call functions
_read more
Voice recognition
Please refer to the user
guide for your phone
for information about
voice recognition
features.
Press and hold E in any
mode to activate voice
dialling.
Then, say the voice tag of the
number that you wish to call.
With TheTrustyOne, you can easily activate the voice recognition function of your phone, e.g. to make
a call.
Voice-dial
Activate voice dial
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
If you are mainly listening during a call, you can mute the microphone. To activate the microphone again
simply unmute.
Mute / unmute microphone
Press E to mute the
microphone during an
active call.
A and R blink when the
microphone is muted.
Press E to unmute the
microphone during an
active call.
Mute microphone Unmute microphone
In-call functions
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
For maximum flexibility, you can transfer an active call from your phone to TheTrustyOne or vice versa, if
e.g. you need to leave the car. A call can be transferred using TheTrustyOne as well as your phone.
Transfer call
Press A to transfer the
call to your phone. A beep
will confirm that the call is
transferred.
A and R blink when the
call is active on the phone.
Transfer call to phone
Press A to transfer the call
back to TheTrustyOne.
Transfer call back to
TheTrustyOne
Tip
You can also transfer
calls through your
phone. Follow the
instructions on your
phone.
In-call functions
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Play Pause Next / previous Adjust volume
With TheTrustyOne in music mode, you have all the essential tools to play your favourite music right at
hand. When entering music mode, TheTrustyOne automatically starts the music player.
Music
Press E to play. Press E to pause. Press F to skip to the next
track, or press B to skip to
the previous track.
Turn E to adjust the
volume.
Tip
Selection of titles or
playlists has to be made
through your music
player.
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
• Make sure that the power is turned o, when not
in use.
• Handle your car kit with care. – Do not knock it
or expose it to extreme temperatures, heavy
dust, dirt, moisture or any kind of liquid.
• Dispose of all product parts in accordance with
local standards and regulations to spare the
environment and promote sustainability.
Care
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Go through the list of suggestions below if you experience
any inconvenience with TheTrustyOne Universal Bluetooth
Car Kit.
• If your phone does not connect automatically when
you turn the ignition key:
Go to the Bluetooth menu of your phone and set
TheTrustyOne as authorized or trusted device to allow
automatic connections without user confirmation.
• If you do not hear a ringing tone:
Make sure that your phone is not in silent mode.
• If the person at the other end complains about the
audio quality:
Check that the microphone is pointing towards your
mouth.
• If you have problems voice-dialling:
TheTrustyOne provides one-click access to the voice
recognition functions of your phone. Please check the
user guide of your phone regarding its voice recognition
features. If you do not hear a tone, please try the feature
without driving and look at the phone display to
determine the recognition window.
• If you want to update the software of your car kit:
Go to www.novero.com and install the novero software
update tool. Please install it on a PC and then connect
TheTrustyOne with a USB cable through the micro-USB
connector on the remote control.
• If you do not find an answer to your question here:
Please go to www.novero.com. If you wish to call our
helpline, you will find the number for your country on our
website. Please be prepared to provide the model and SW
version of your phone, as this information will be helpful
to identify the root cause and a solution to the problem.
Support
Technical
specifications
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
• Bluetooth V2.0 + EDR, Handsfree Prole (HFP) V1.5, Advanced Audio Distribution Prole (A2DP) V1.2,
Audio Video Remote Control Prole (AVRCP) V1.3
• Adjustable directional microphone
• DSP with echo cancellation and noise reduction for full duplex communications
• Stereo Amplier, 20Hz … 20KHz, max. output power 4 x 2.5W@8Ω / 4 x 4.6W@4Ω / 7.2W@2Ω
• Internal mute relays and system cable with DIN / ISO connectors
• USB 2.0 Full Speed
Technical specifications
Support
_read more
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
1. Installation
• Always have a qualied professional handle the installation or any repairs on your car
kit. Please refer to the installation guide for more information.
• Make sure that the car kit components are fastened in places where
1) they are not close to an airbag or area where they could harm you in case of a
collision
2) they are in arm’s reach from the driver’s seat
3) they do not impair the operation of the vehicle.
2. Using TheTrustyOne
• Always be cautious about using your car kit or phone while engaging in any activity that
requires your full attention. Turn o your car kit and phone to keep you from being
distracted and avoid accidents.
• Always focus on road safety and obey all local laws while operating a motor vehicle. Do
not use your car kit if it interferes with your driving in any way.
• Always switch o your car kit if it may otherwise cause interference or danger. Please
respect ocial recommendations and restrictions.
• If you use a pacemaker, hearing aid or other electronic medical device, please consult
your physician before using the car kit.
• Never try to dismantle the product yourself. None of the internal components can be
replaced or repaired by users. – Only authorized dealers or service centres may open
the product. If any parts of your product require replacement for any reason, including
normal wear and tear or breakage, contact your dealer.
3. Keep out of reach of children
• The plastic bags, which this product and its parts are wrapped in, are not toys for
children. The bags themselves or the many small parts they contain may cause choking
if ingested.
4. ACA TS028 – Ignition of flammable atmospheres
• Do not use your car kit in environments with risk of ignition of ammable gases.
5. Disposing of TheTrustyOne
• Dispose of all product parts in accordance with local regulations. If in doubt, please
consult your local authorities.
• The product must be taken to separate collection at the product end-of-life. Do not
dispose of components from this product as unsorted municipal waste.
6. Warranty
• novero oers a limited manufacturer’s warranty of 12 months from the date of purchase.
In some cases / countries the warranty time can be extended to 24 months. Please visit
www.novero.com to find more details for warranty extension and warranty return
options.
Reproduction, transfer, distribution or storage of part or all of the contents in this
document in any form without the prior written permission of novero is prohibited.
novero® is a registered trademark. Other product and company names mentioned herein
may be trade marks or trade names of their respective owners.
novero products are trademarks or registered trademarks of novero GmbH.
©2009 novero
All rights reserved
For more information, please go to www.novero.com
Safety & disposal
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Declaration of Conformity
novero GmbH hereby declares that this NCUN-3 product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The product
is in conformity with the limits dened in Directive 2004/104/EC (amending Directives
72/245/EC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9. A copy of the Declaration of
Conformity can be found at www.novero.com/declaration_of_conformity
FCC/Industry Canada notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC ID: WJLNCUN-3
IC: 7847A-NCUN3
NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment. End users must follow the
specific operating instructions for satisfying exposure compliance. This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
NOTE: Changes or modications not expressly approved by novero could void the user’s
authority to operate the equipment.
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
The Bluetooth car kit supports Bluetooth Specication 2.0 with EDR, Handsfree Prole 1.5,
Advanced Audio Distribution Prole (A2DP) V1.2, Audio Video Remote Control Prole
(AVRCP) V1.3.
Remote control = NIDE-1
Microphone = NMIC-1
System cable = NCAB-2
The availability of particular products may vary by region. Please check with your local
novero dealer. Unauthorized changes or modications to this device may void the user’s
authority to operate the equipment.
Export controls: This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion contrary to law is
prohibited.
0560
Certification & safety approvals
Back
Welcome
Shortcuts
Getting started
Call functions
In-call functions
Music
Care
Support
Safety & disposal
Certification &
safety approvals
Glossary
Bluetooth is a radio technology that connects devices, such as mobile phones and car kits,
without wires or cords over a short distance (approx. 10 meters/33 feet).
Bluetooth is safe to use and secure, too. Once two Bluetooth devices have been paired, no
one can listen in and no other Bluetooth devices can interfere without authorisation.
Get more information at www.bluetooth.com
Bluetooth profiles are the dierent ways that Bluetooth devices communicate with
other devices. Bluetooth phones support the car kit profile, the handsfree profile or both.
In order to support a certain profile, a phone manufacturer must implement certain
mandatory features within the software of the phone.
Code or PIN is the code required to pair a Bluetooth device (e.g. a mobile phone) with
your car kit.
Device refers to both a telephone or music player which can be paired with
TheTrustyOne.
Mode is the state that TheTrustyOne is in, either telephone or music. The functions and
options vary according to mode.
Pairing creates a unique and encrypted connection between two Bluetooth devices.
Bluetooth devices will not work together if they have not been paired.
Voice dial enables you to dial a contact through voice recognition (saying the contact
name aloud).
Glossary
