Molex Technologies USA-MMC-DC Compenser USA-MMC-DC User Manual BA DC 070706

Novero Dabendorf GmbH Compenser USA-MMC-DC BA DC 070706

Manual

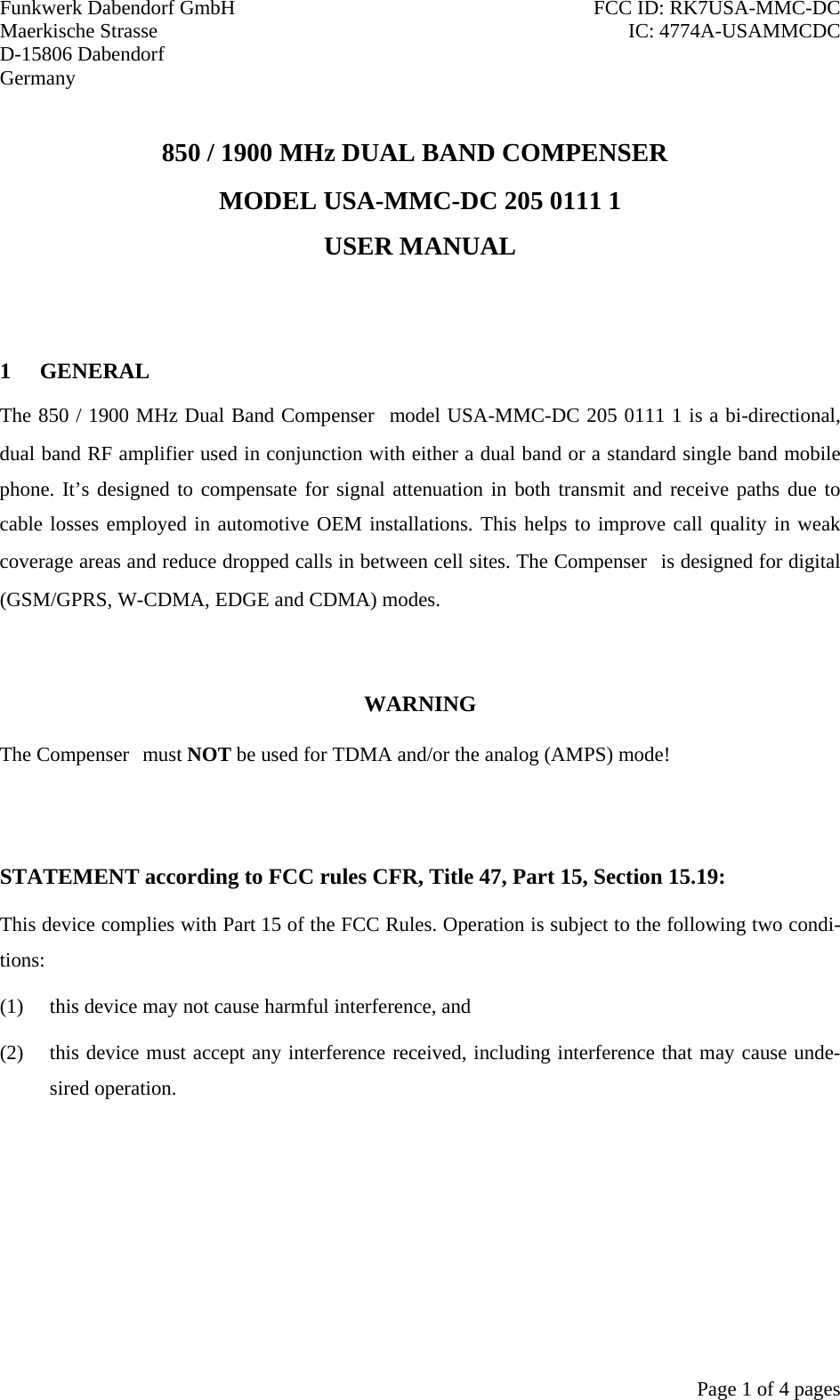

Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 1 of 4 pages 850 / 1900 MHz DUAL BAND COMPENSER MODEL USA-MMC-DC 205 0111 1 USER MANUAL 1 GENERAL The 850 / 1900 MHz Dual Band Compenser model USA-MMC-DC 205 0111 1 is a bi-directional, dual band RF amplifier used in conjunction with either a dual band or a standard single band mobile phone. It’s designed to compensate for signal attenuation in both transmit and receive paths due to cable losses employed in automotive OEM installations. This helps to improve call quality in weak coverage areas and reduce dropped calls in between cell sites. The Compenser is designed for digital (GSM/GPRS, W-CDMA, EDGE and CDMA) modes. WARNING The Compenser must NOT be used for TDMA and/or the analog (AMPS) mode! STATEMENT according to FCC rules CFR, Title 47, Part 15, Section 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde-sired operation.
Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 2 of 4 pages 2 INSTALLATION To meet the FCC’s and IC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user or nearby persons and the antenna. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. WARNING All installations are done at the OEM factory. No end-user installation or accessible part is involved. Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate this equipment. 3 I/O CONNECTION Mobile port: FAKRA RF type connector, cod. D, female Antenna port: FAKRA RF type connector, cod. D, male DC input and On/Off control: 4-pin automotive connector 4 SPECIFICATIONS FCC ID RK7USA-MMC-DC FCC Rule Parts 22H & 24E IC Certification Number 4774A-USAMMCDC IC Radio Standards Specification RSS-129 for 850MHz CDMA RSS-132 for 850MHz GSM/GPRS, EDGE and W-CDMA RSS-133 for 1900MHz GSM/GPRS, EDGE, W-CDMA and CDMA Operating Frequency Uplink (Tx) 824 … 849 MHz & 1850 … 1910 MHz Downlink (Rx) 869 … 894 MHz & 1930 … 1990 MHz

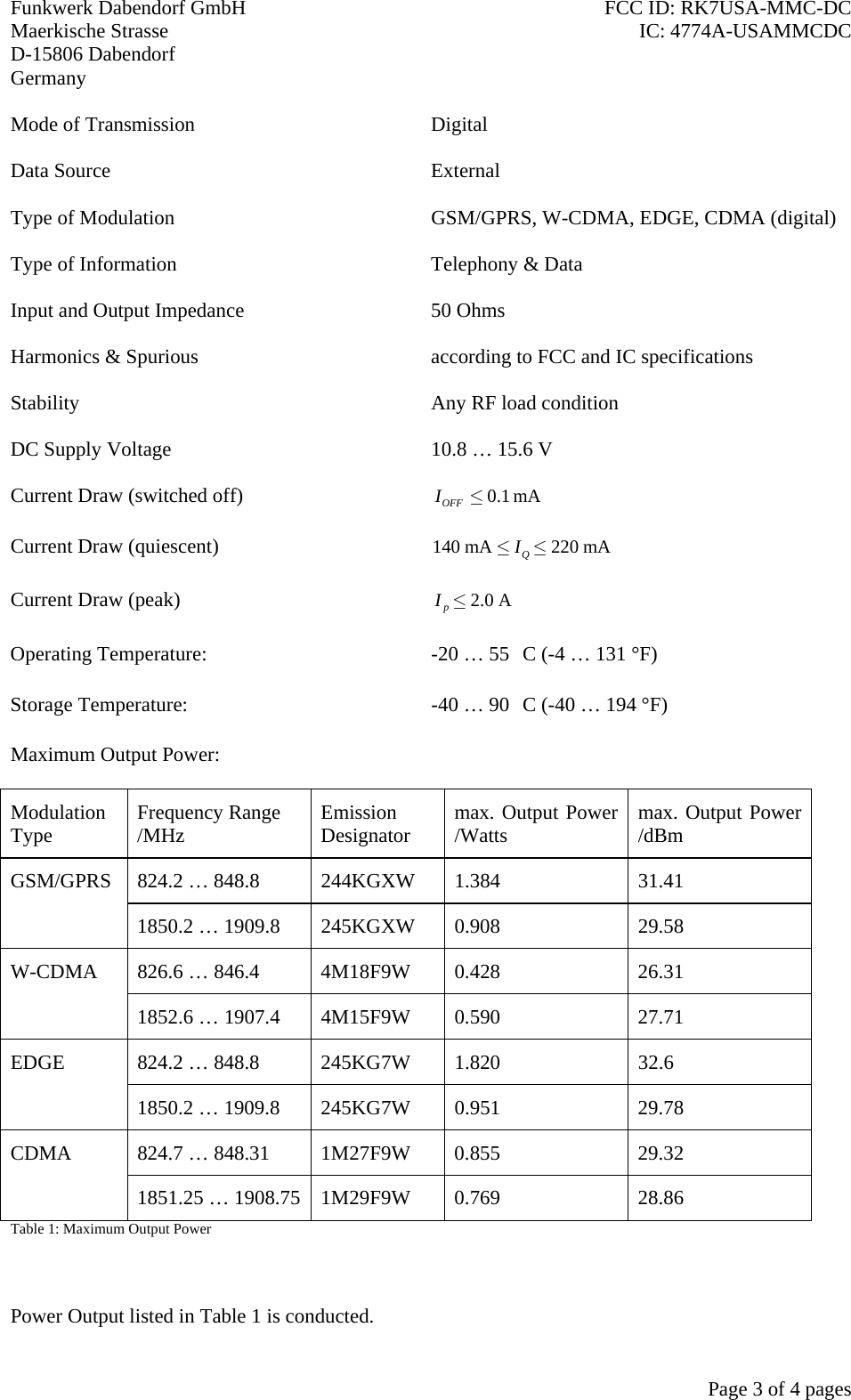

Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 3 of 4 pages Mode of Transmission Digital Data Source External Type of Modulation GSM/GPRS, W-CDMA, EDGE, CDMA (digital) Type of Information Telephony & Data Input and Output Impedance 50 Ohms Harmonics & Spurious according to FCC and IC specifications Stability Any RF load condition DC Supply Voltage 10.8 … 15.6 V Current Draw (switched off) 0.1mAOFFI≤ Current Draw (quiescent) 140 mA 220 mAQI≤≤ Current Draw (peak) 2.0 ApI≤ Operating Temperature: -20 … 55 C (-4 … 131 °F) Storage Temperature: -40 … 90 C (-40 … 194 °F) Maximum Output Power: Modulation Type Frequency Range /MHz Emission Designator max. Output Power /Watts max. Output Power /dBm 824.2 … 848.8 244KGXW 1.384 31.41 GSM/GPRS 1850.2 … 1909.8 245KGXW 0.908 29.58 826.6 … 846.4 4M18F9W 0.428 26.31 W-CDMA 1852.6 … 1907.4 4M15F9W 0.590 27.71 824.2 … 848.8 245KG7W 1.820 32.6 EDGE 1850.2 … 1909.8 245KG7W 0.951 29.78 824.7 … 848.31 1M27F9W 0.855 29.32 CDMA 1851.25 … 1908.75 1M29F9W 0.769 28.86 Table 1: Maximum Output Power Power Output listed in Table 1 is conducted.

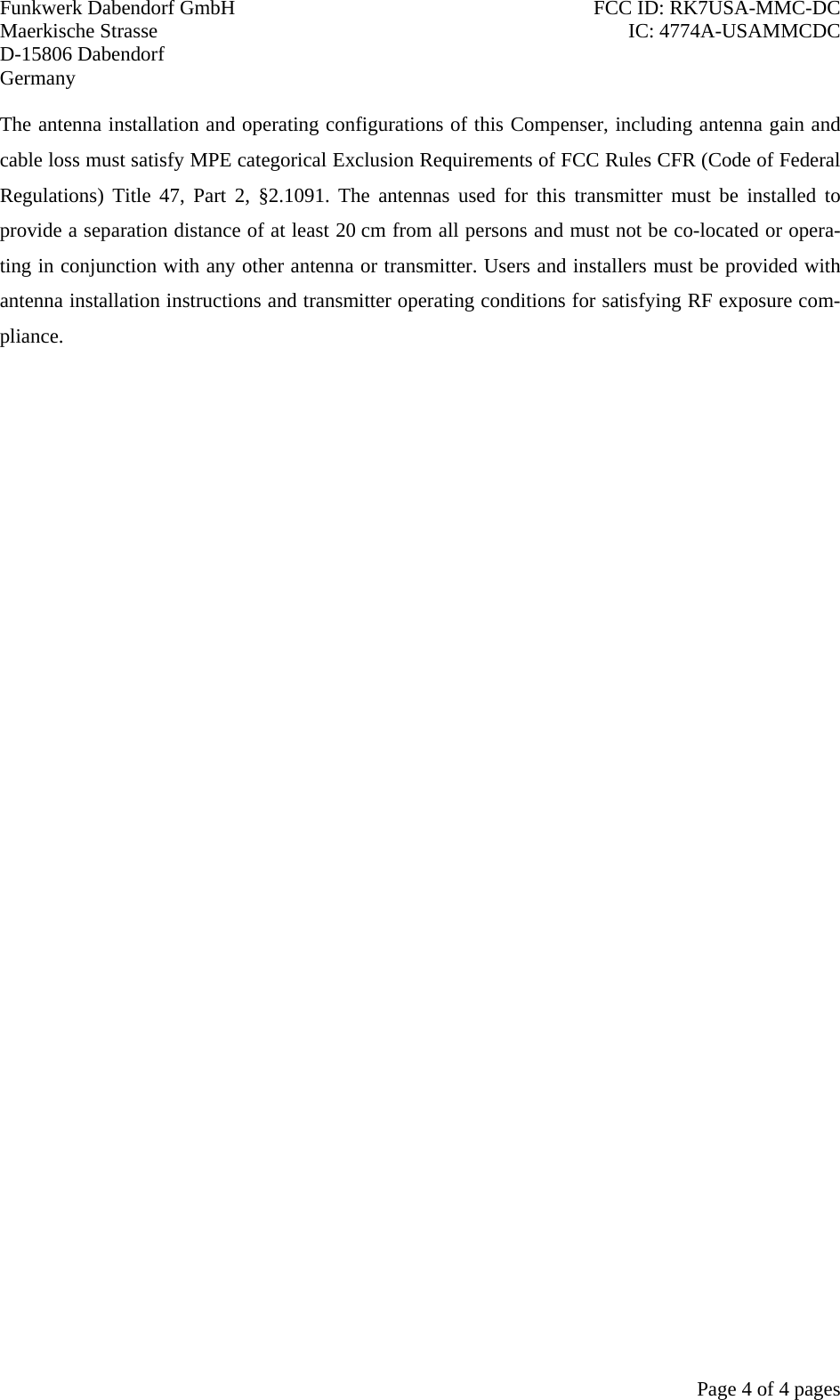

Funkwerk Dabendorf GmbH FCC ID: RK7USA-MMC-DC Maerkische Strasse IC: 4774A-USAMMCDC D-15806 Dabendorf Germany Page 4 of 4 pages The antenna installation and operating configurations of this Compenser, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of FCC Rules CFR (Code of Federal Regulations) Title 47, Part 2, §2.1091. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or opera-ting in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure com-pliance.
