Momax Technology IM2 MOMAX K-MIC PRO Wireless Karaoke Microphone User Manual
Momax Technology (Shenzhen) Limited MOMAX K-MIC PRO Wireless Karaoke Microphone
User manual
Version : 20170810
Brand : MOMAX
Model Name : KMIC PRO Mobile Karaoke Microphone
Model Number : IM2
Specification
Power Supply: Built-in
3.7V
Li-ion rechargeable battery
Capacity: 2500mAh
Battery Life: Approx. 4 hour (full charge)
Charging Time: Approx. 2 hours
Bluetooth
version: V4.1
Connectivity Range: Line of sight approx. 10m
(33 ft)
Compatible Devices: Work with most smartphones with Bluetooth function
Speaker Output Power: 5W
Frequency response: 40Hz
–
18KHz
Micro USB socket: for charging
3.5mm Port 1:
allow songs/voice to be captured for output or recording
3.5mm Port 2:
allow music to be played using headphones
Weight: Approx.
540g
Contains
1. Bluetooth Karaoke Mic w/ Speaker (KMIC Pro)
2. MicStand
3. Adapter
4. Mic Clip
5. Phone Mount
6. Micro USB Charging Cable
7. 3.5mm AUX IN Cable
8. Carrying Pouch
9. Instruction Manual and Warranty Card
Overview of KMIC Pro
1. Microphone
2. Volume Control Button
3. Echo Control Button
4. Switch on/off Button
5. 3.5mm port x 2 (phone jack, earphone jack)
6. Micro USB port
7. LED Circle Light
Version : 20170810
8. Speaker
9. Mic-phone stand (mic stand, mic clip, phone mount)
Instruction for Use
1. Press and hold for 2 seconds until you are alerted with a “Bu-beep” sound and circle light
turns ON. This indicates that the Bluetooth speaker is ready for “connection”.
2. Select “MOMAX IM2” on your Bluetooth device, once the Bluetooth speaker is “connected”, you
will hear a “beep” sound.
3. You can play music from either your music library or KTV apps of your Bluetooth device via the
speaker of KMIC Pro.
4. Press + or – of VOL to adjust the vocal volume on the KMIC Pro. There are 8 levels of vocal
volume.
5. To enjoy echo live sound effect, press + or – of ECH. There are 5 levels of echo volume.
6. To adjust the sound volume, use the volume control button on your Bluetooth device.
7. Press and hold for 2 seconds to switch off KMIC Pro. You will hear a “Beep-bu-bu” sound and
circle light turns off.
Features
SING with LYRICS: Equip mobile with karaoke apps
HANDS FREE: Make a recording or LIVE show at ease
2-IN-1 DESIGN: Mic stand with phone mount
360° ROTATION: Find you perfect angle to view your smartphone
AUDIO RECORDING in SILENT MODE: Plug in an“AUX IN” cable to connect the mobile device with
3.5mm port 1.Connect headphone with 3.5mm port 2. Enable recording function of your mobile
device.
Indicator Lights
When KMIC Pro is ON
Circle light is flashing in different colors
When the music is playing
Circle light is flashing in different colors
following to the beat of music
The battery is charging while KMIC Pro is OFF
Red light is ON in breathing feel
Battery is fully charged
Blue light is ON
Version : 20170810
Trouble Shooting
Circle light is not “ON” or
KMIC Pro is not operating
Make sure the Bluetooth speaker’s is “charged”.
Low or “no” sound
Check the Bluetooth speaker or our Bluetooth
device’s volume level
Music is playing on a device but isn’t
transferring to Bluetooth speaker
Make sure your Bluetooth is “connected”
Battery is fully charged
Blue light is ON
There are “beep” sound during music is playing
Low battery. Please charge the battery.
Notice of compliance
This product complies with all applicablestandards and regulations regarding exposure
toelectromagnetic fields.That includes CE, RoHS, BQB etc.
FCC ID: 2ANBQ-IM2
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Cautions
1. Do not dismantle or modify the product;
2. Do not store the product in wet conditions;
3. Do not keep or use the product near heat sources;
4. Do not let water or any other liquid flows into the inside part of the product’s interface. This
would cause damages to the product.
Disposal of ElectronicProducts
1. Do not place the product as household waste;
2. Please dispose of discarded electronic products properly according to local regulations;
3. MOMAX encourages you to participate in electronics recycling program.

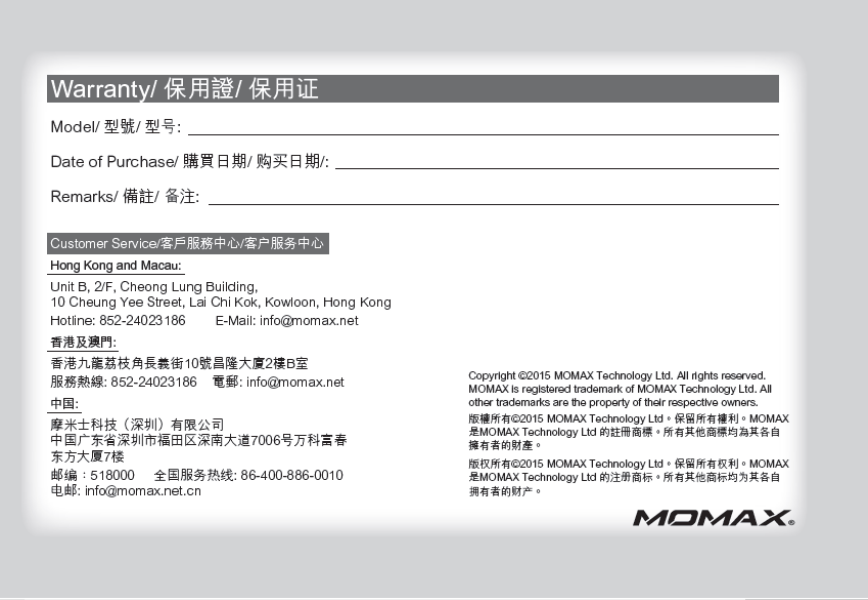

Warranty Conditions
Version : 20170810
(Copyright year change to 2017)
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
