Monnit RFSC1 Monnit Wireless Sensor Module User Manual MQS07 Monnit CGW2 Quick Start Rev2

Monnit Corporation Monnit Wireless Sensor Module MQS07 Monnit CGW2 Quick Start Rev2

Contents

Updated User Manual

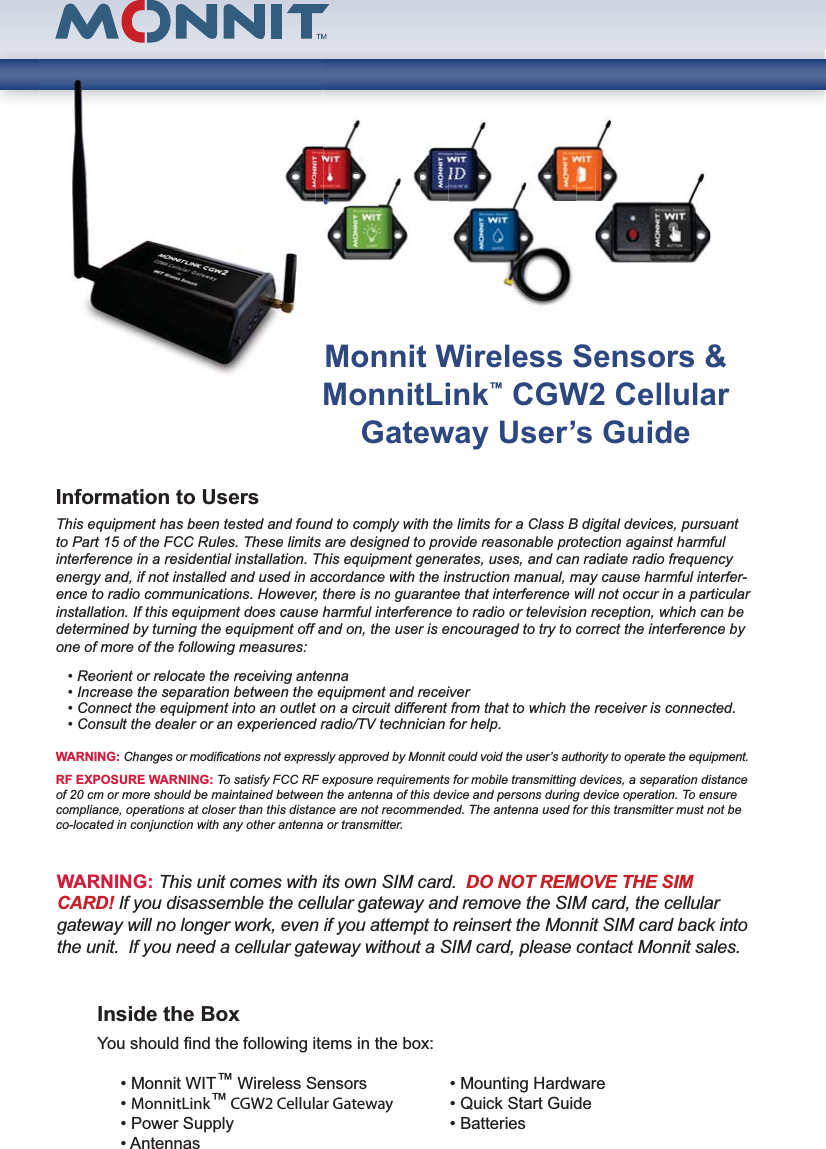

Information to UsersThis equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: Reorient or relocate the receiving antennaIncrease the separation between the equipment and receiverConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help. WARNING: RF EXPOSURE WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. Monnit Wireless Sensors & MonnitLink™ CGW2 Cellular Gateway User’s GuideWARNING: DO NOT REMOVE THE SIM CARD!   Inside the Box™MonnitLink™ CGW2 Cellular Gateway  

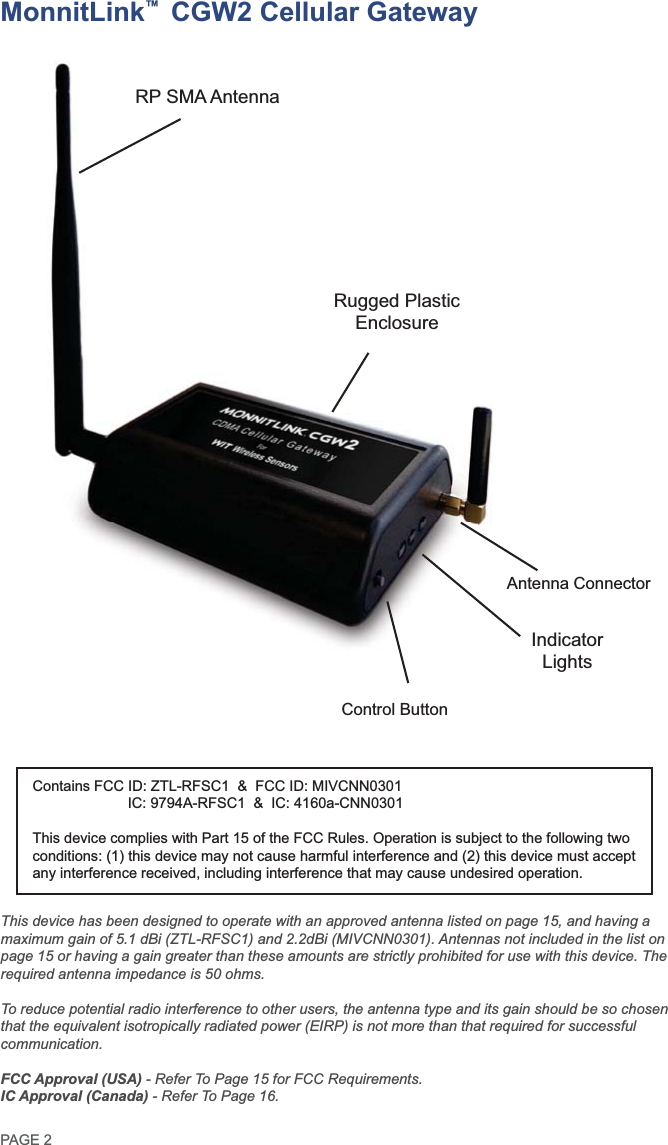

MonnitLink™ CGW2 Cellular GatewayThis device has been designed to operate with an approved antenna listed on page 15, and having a page 15 or having a gain greater than these amounts are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. FCC Approval (USA) - Refer To Page 15 for FCC Requirements.IC Approval (Canada) - Refer To Page 16.  

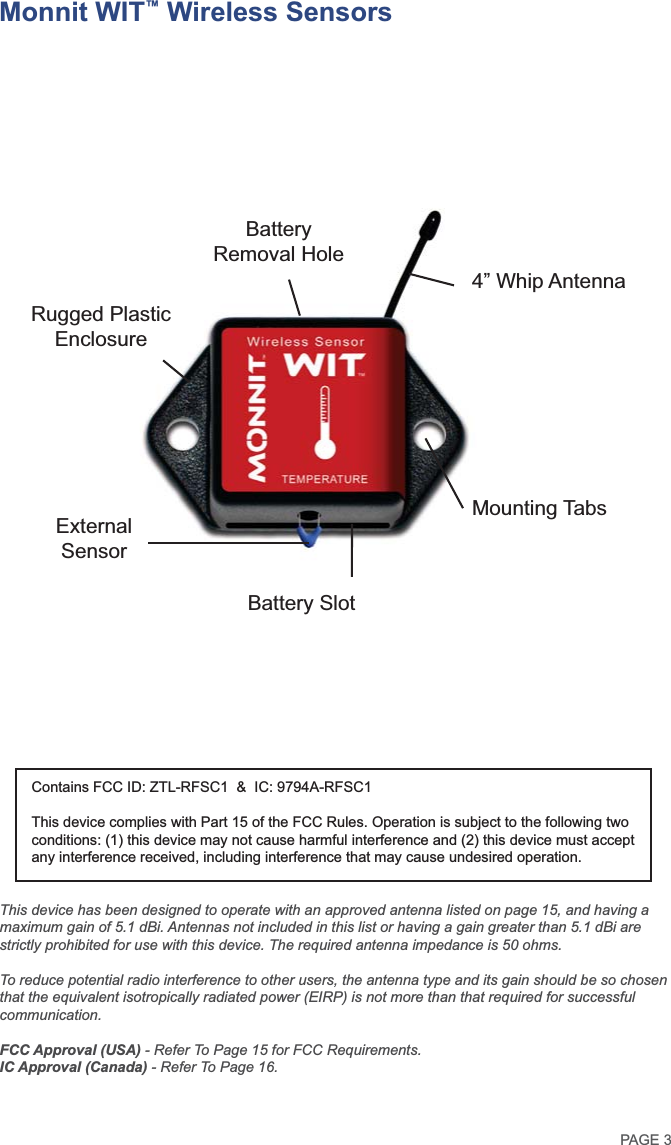

Monnit WIT™ Wireless SensorsThis device has been designed to operate with an approved antenna listed on page 15, and having a strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.FCC Approval (USA) - Refer To Page 15 for FCC Requirements.IC Approval (Canada) - Refer To Page 16.

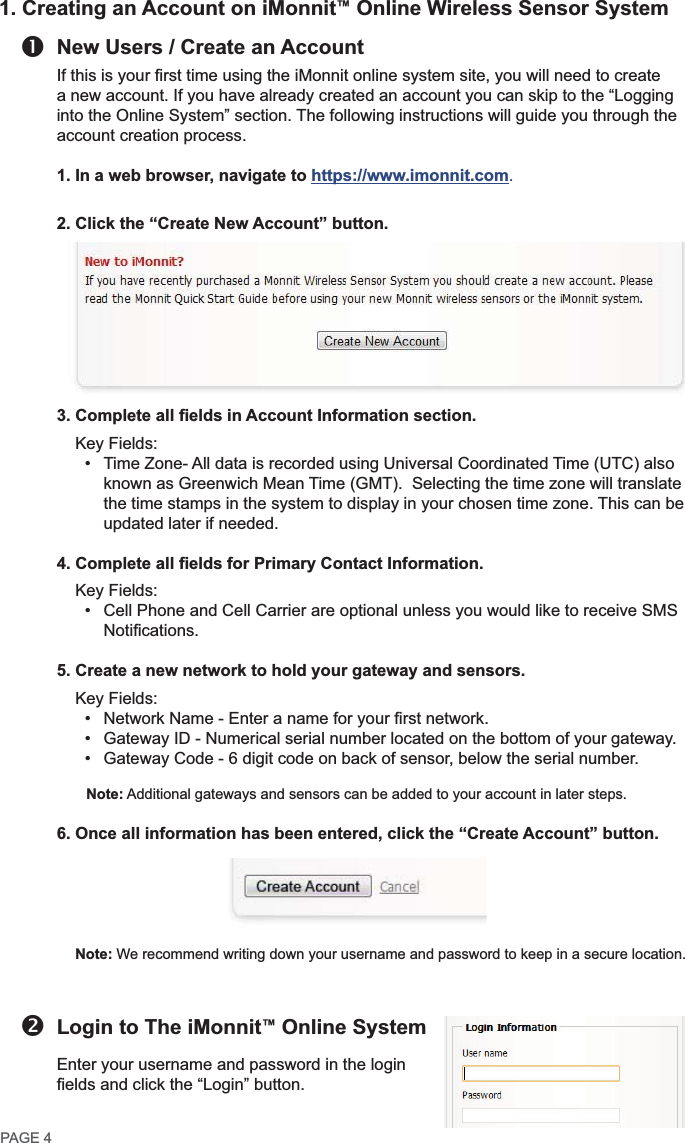

New Users / Create an Account 1. In a web browser, navigate to https://www.imonnit.com2. Click the “Create New Account” button.  5. Create a new network to hold your gateway and sensors.    Note:6. Once all information has been entered, click the “Create Account” button. Note:Login to The iMonnit™ Online System 1. Creating an Account on iMonnit™ Online Wireless Sensor Systemno

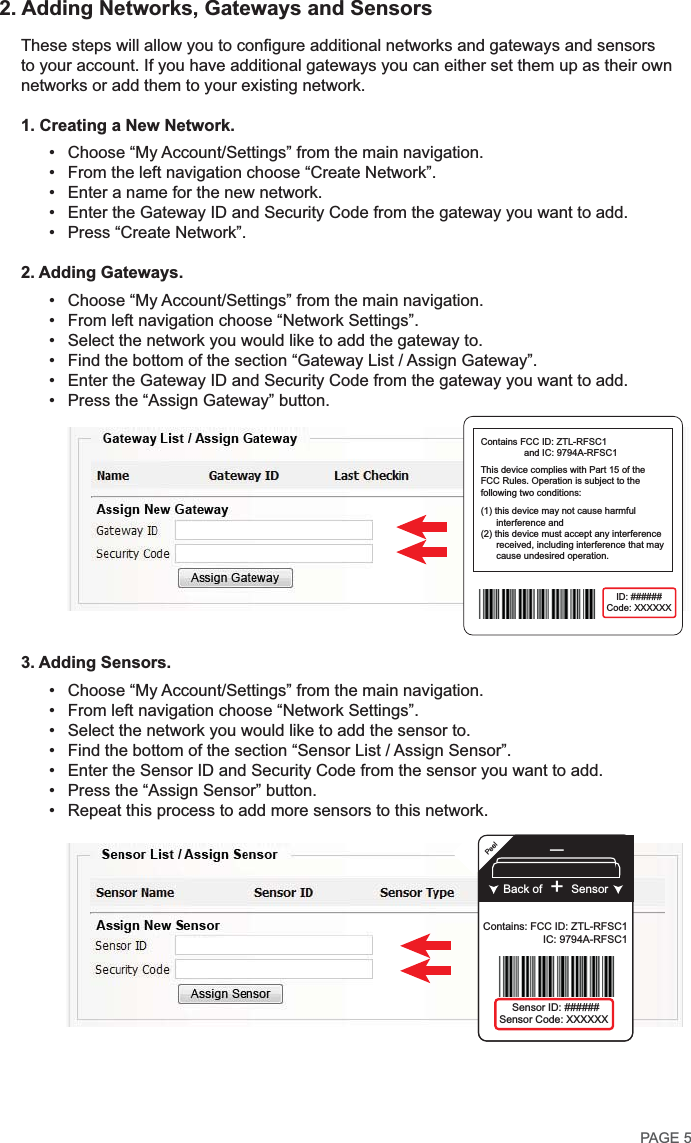

1. Creating a New Network.      2. Adding Gateways.       3. Adding Sensors.       2. Adding Networks, Gateways and Sensors+_Back of Sensor PeelContains: FCC ID: ZTL-RFSC1IC: 9794A-RFSC1Sensor ID: ######Sensor Code: XXXXXXContains FCC ID: ZTL-RFSC1 and IC: 9794A-RFSC1This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. ID: ######Code: XXXXXX

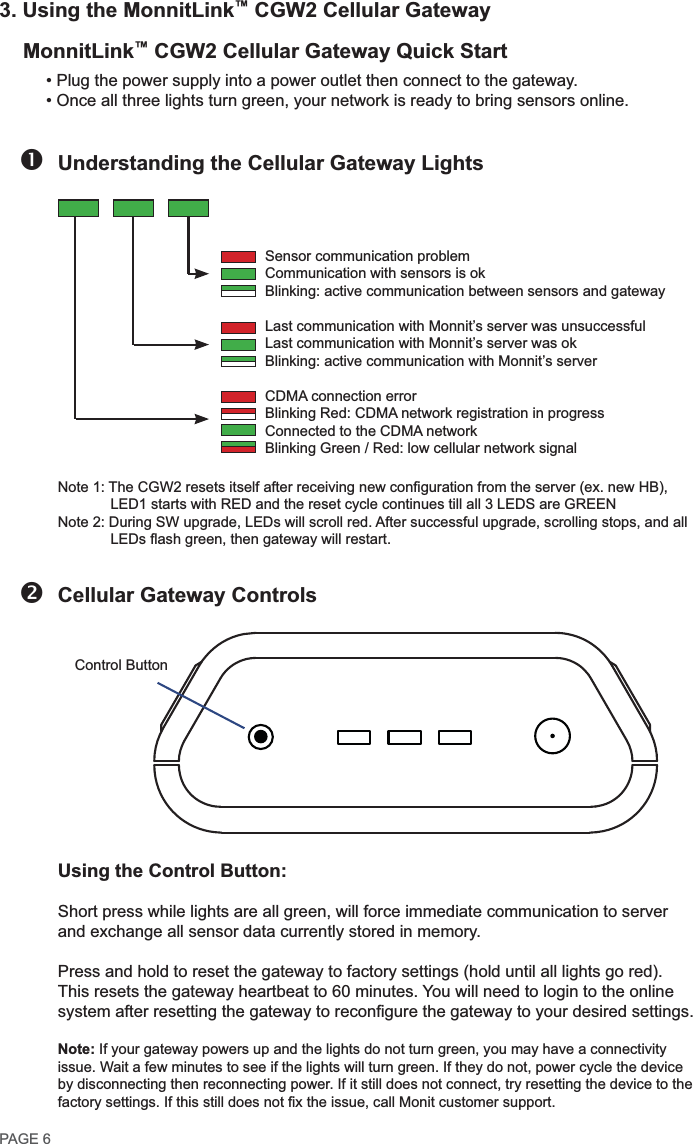

Understanding the Cellular Gateway Lights  Cellular Gateway ControlsUsing the Control Button:Note: no3. Using the MonnitLink™ CGW2 Cellular GatewayMonnitLink™ CGW2 Cellular Gateway Quick Start

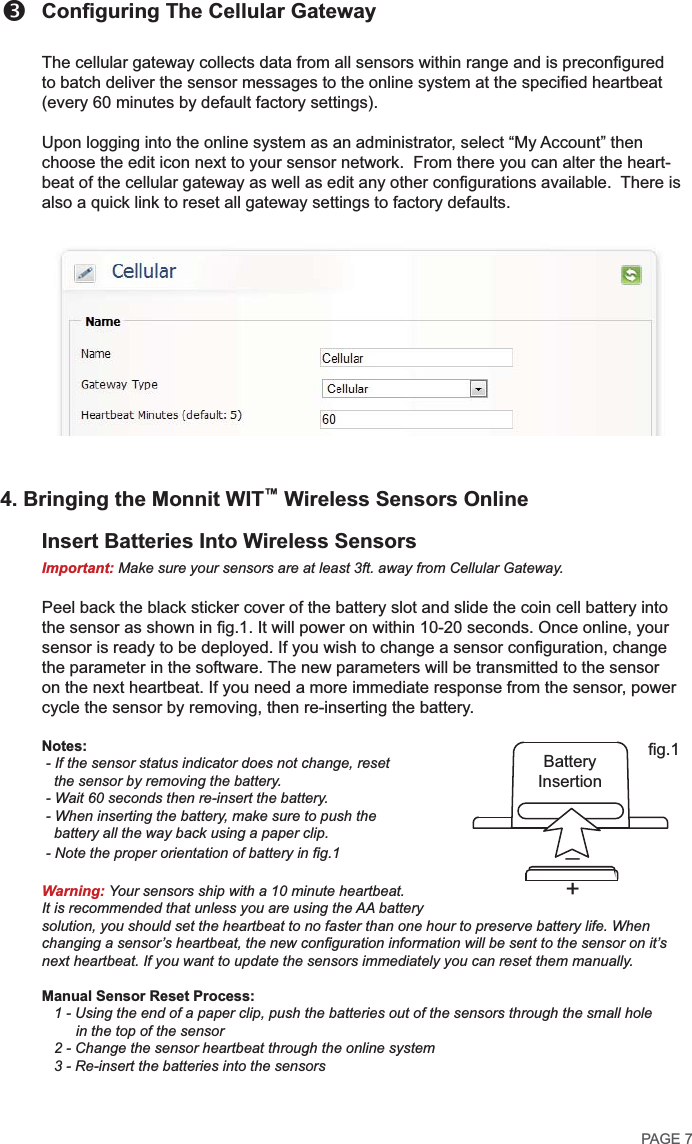

Insert Batteries Into Wireless SensorsImportant: Notes: - If the sensor status indicator does not change, reset the sensor by removing the battery. - Wait 60 seconds then re-insert the battery. - When inserting the battery, make sure to push the battery all the way back using a paper clip.Warning: Your sensors ship with a 10 minute heartbeat. solution, you should set the heartbeat to no faster than one hour to preserve battery life. When next heartbeat. If you want to update the sensors immediately you can reset them manually. Manual Sensor Reset Process: 1 - Using the end of a paper clip, push the batteries out of the sensors through the small hole in the top of the sensor 2 - Change the sensor heartbeat through the online systemp+_4. Bringing the Monnit WIT™ Wireless Sensors Online

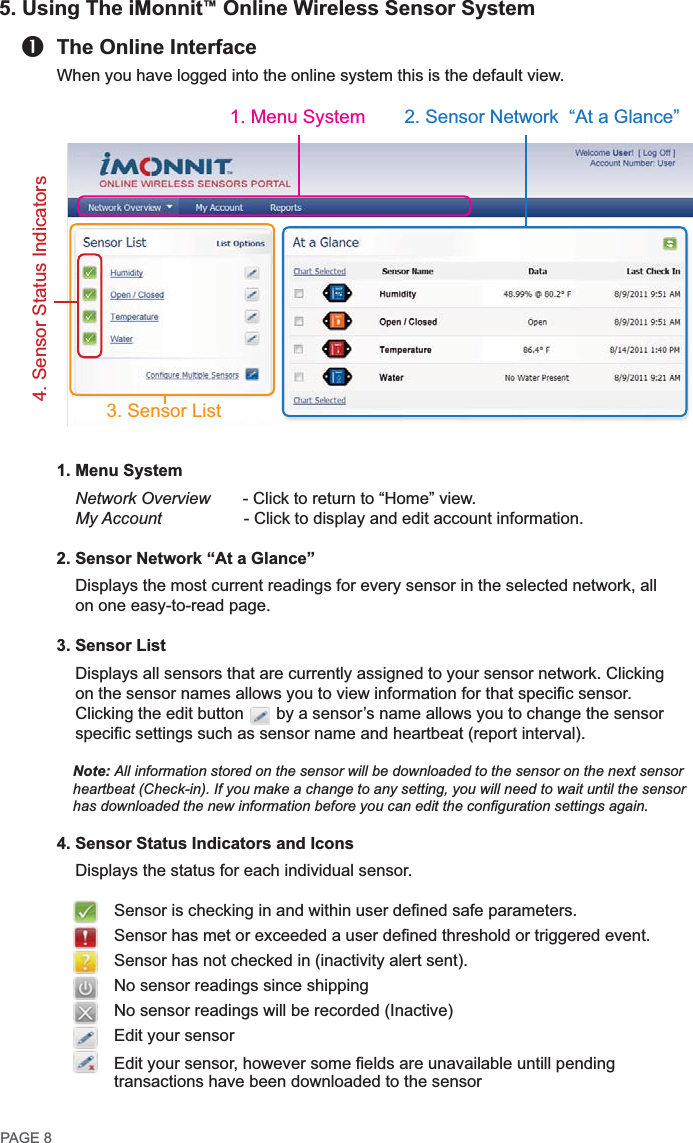

The Online Interface1. Menu System   2. Sensor Network “At a Glance”3. Sensor List Note:  heartbeat (Check-in). If you make a change to any setting, you will need to wait until the sensor 4. Sensor Status Indicators and Icons5. Using The iMonnit™ Online Wireless Sensor Systemn

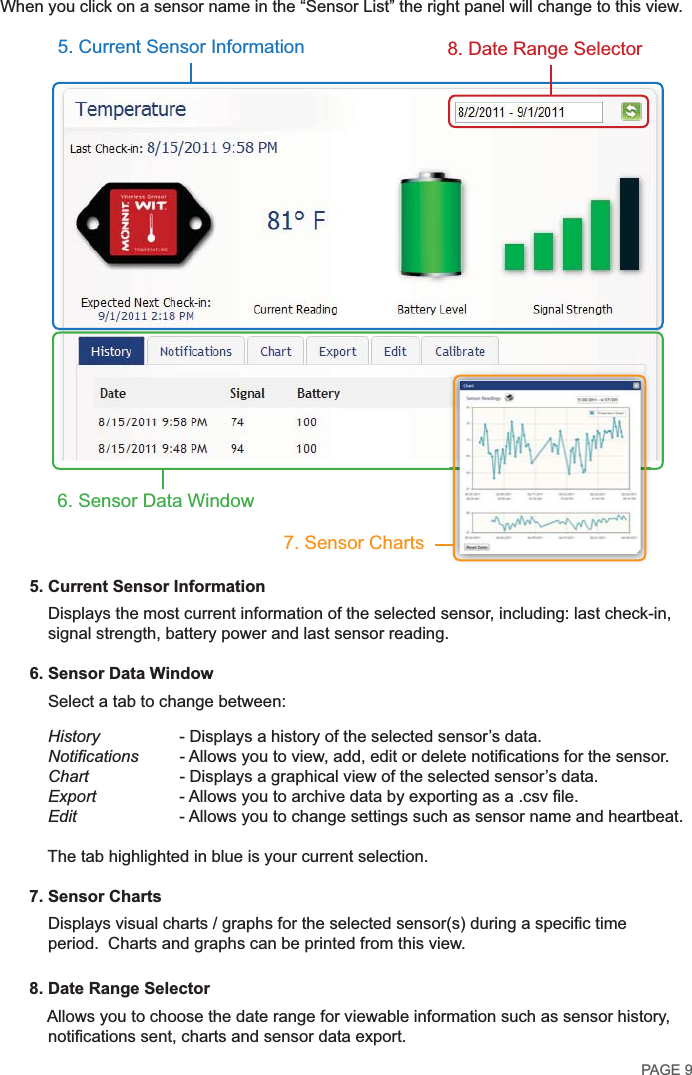

5. Current Sensor Information6. Sensor Data Window History    Chart  Export  Edit  7. Sensor Charts8. Date Range Selector

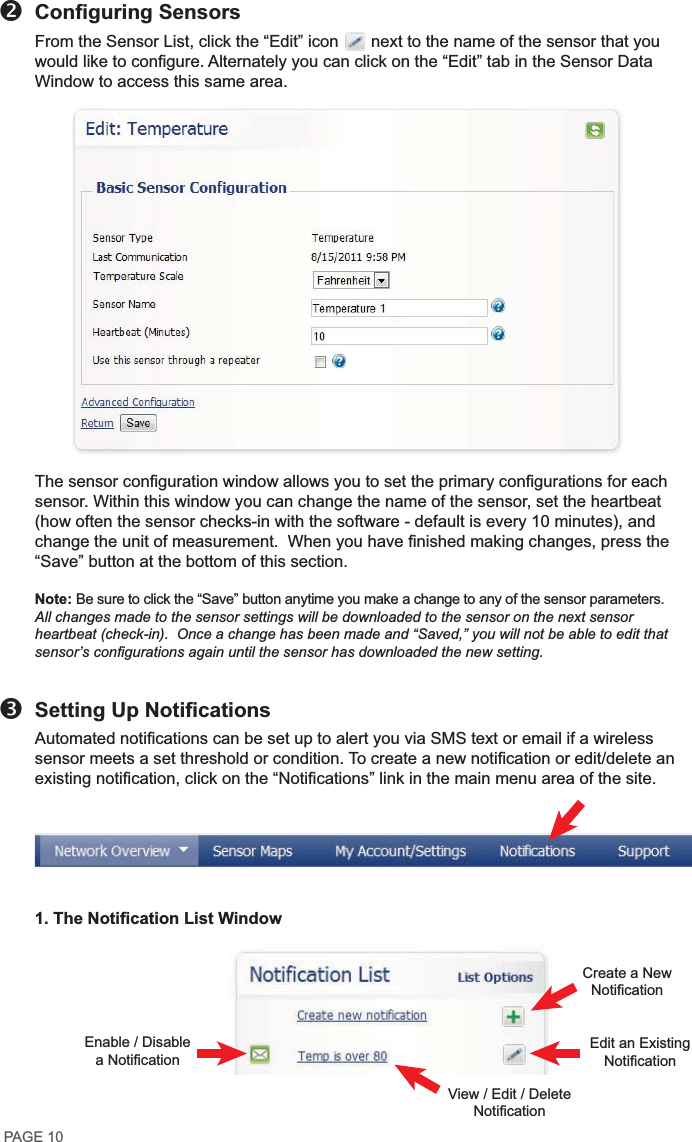

 Note:op

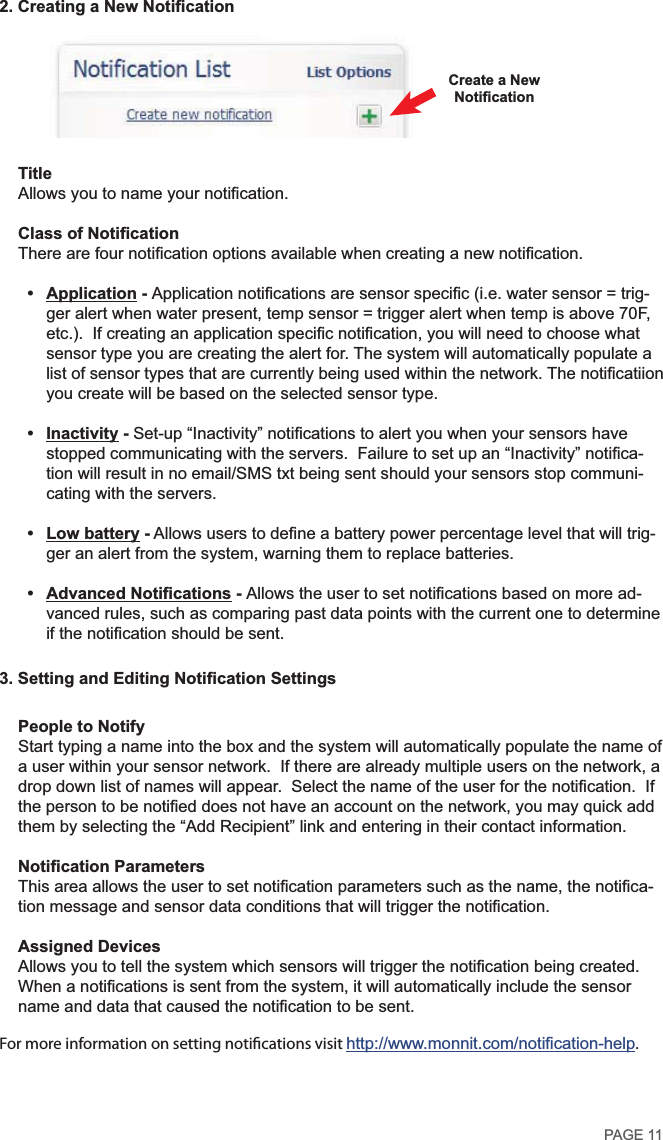

Title  Application -   Inactivity -   Low battery -   - People to NotifyAssigned Devices For more information on setting notications visit .Create a New 

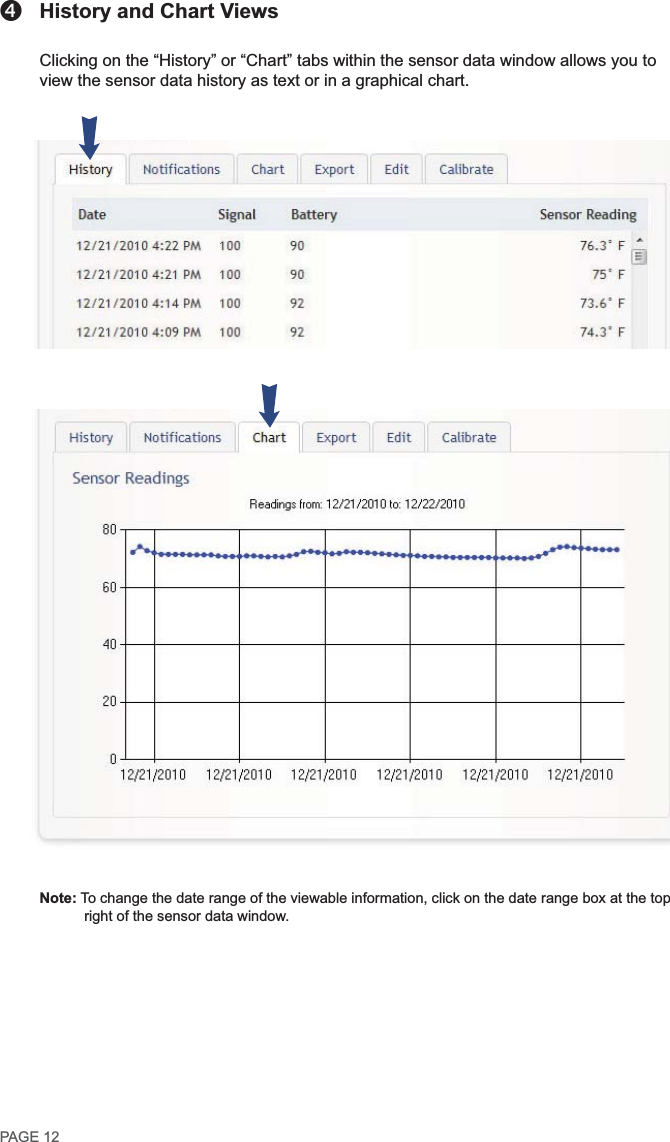

History and Chart ViewsNote:q

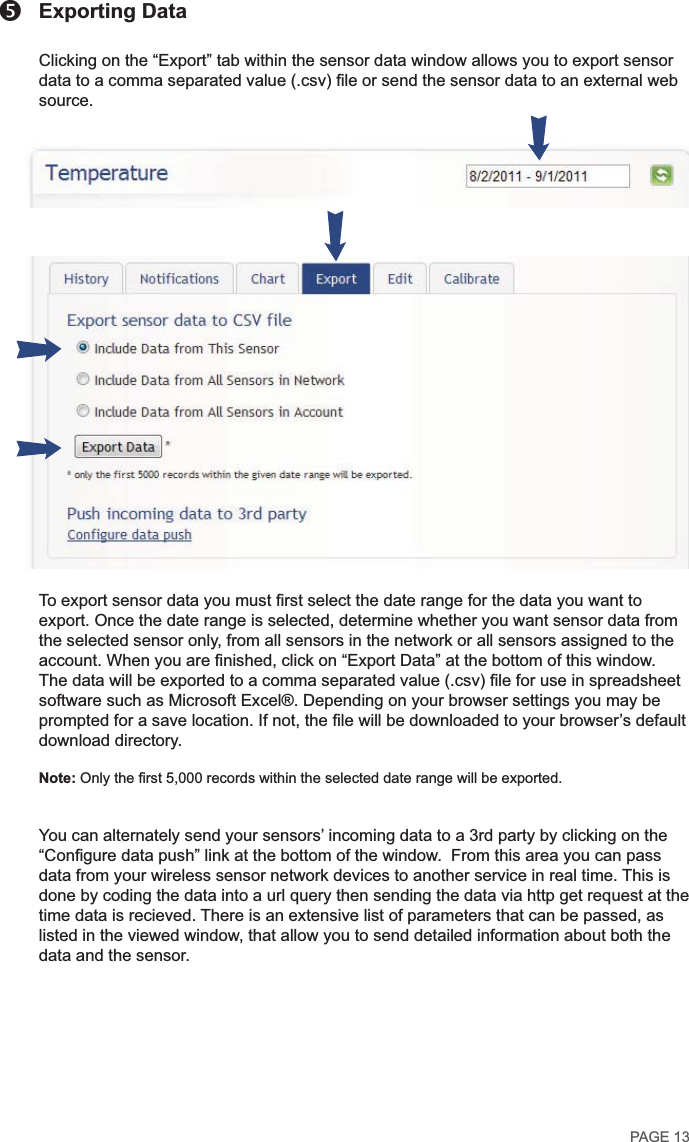

Exporting Data Note:r

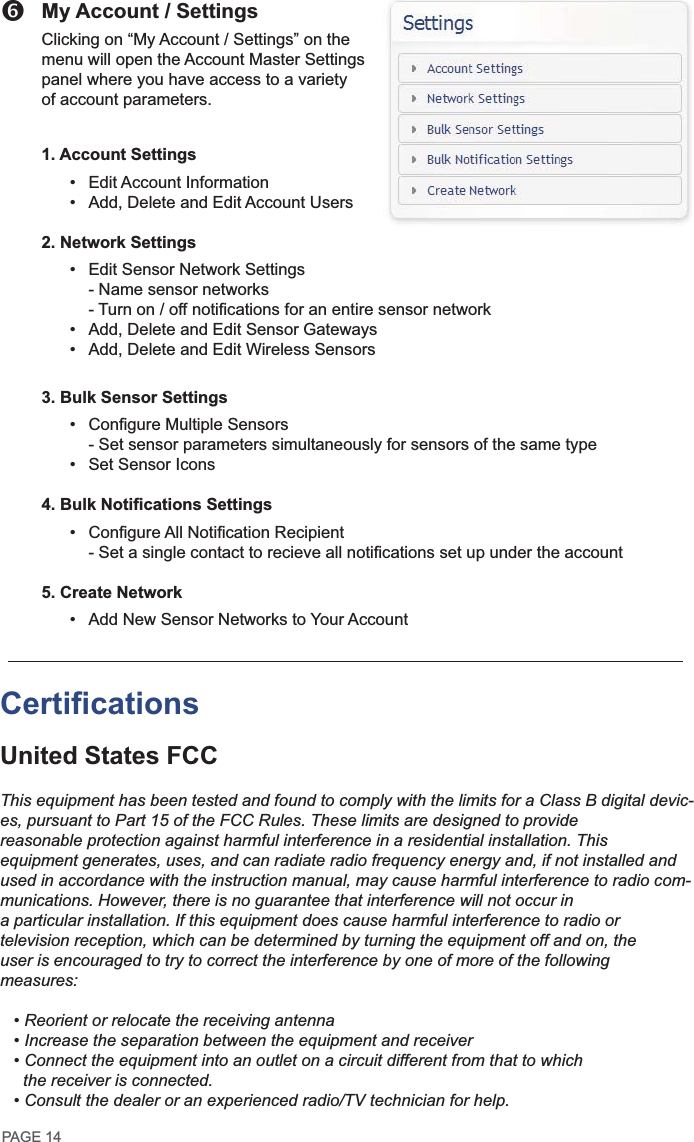

My Account / Settings 1. Account Settings  2. Network Settings     3. Bulk Sensor Settings     5. Create Network sUnited States FCC This equipment has been tested and found to comply with the limits for a Class B digital devic-es, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio com-munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: the receiver is connected. 

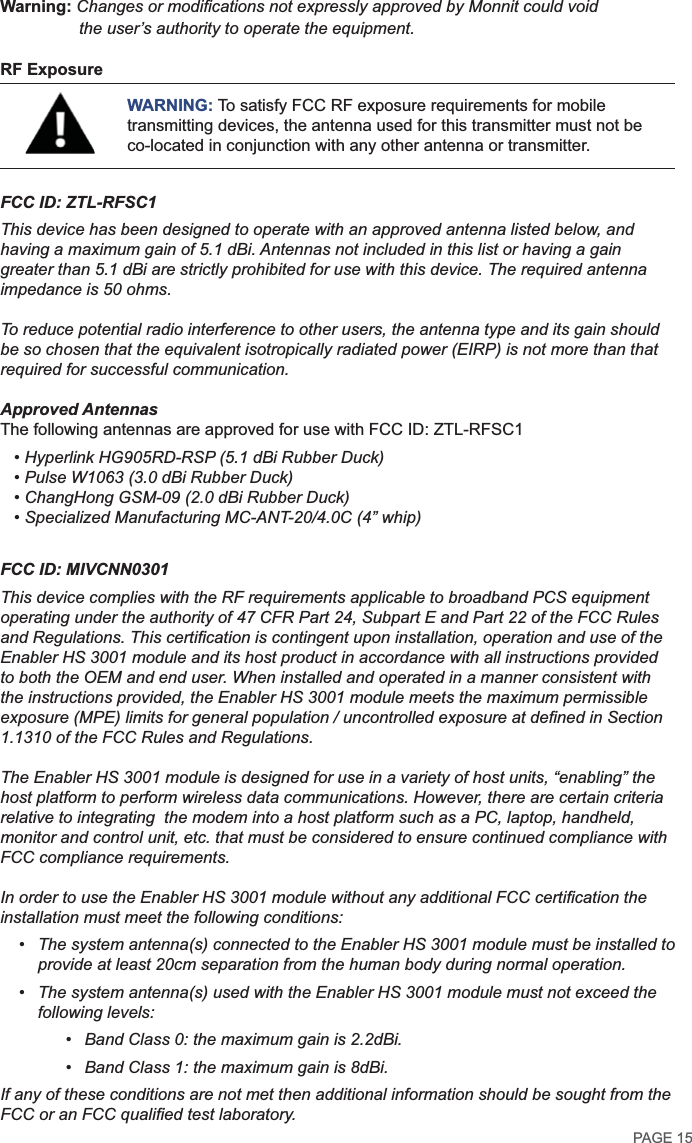

Warning:  RF Exposure FCC ID: ZTL-RFSC1This device has been designed to operate with an approved antenna listed below, and greater than 5.1 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Approved Antennas FCC ID: MIVCNN0301This device complies with the RF requirements applicable to broadband PCS equipment  host platform to perform wireless data communications. However, there are certain criteria relative to integrating the modem into a host platform such as a PC, laptop, handheld, monitor and control unit, etc. that must be considered to ensure continued compliance with FCC compliance requirements. installation must meet the following conditions: provide at least 20cm separation from the human body during normal operation. following levels: Band Class 0: the maximum gain is 2.2dBi. Band Class 1: the maximum gain is 8dBi.If any of these conditions are not met then additional information should be sought from the  WARNING:

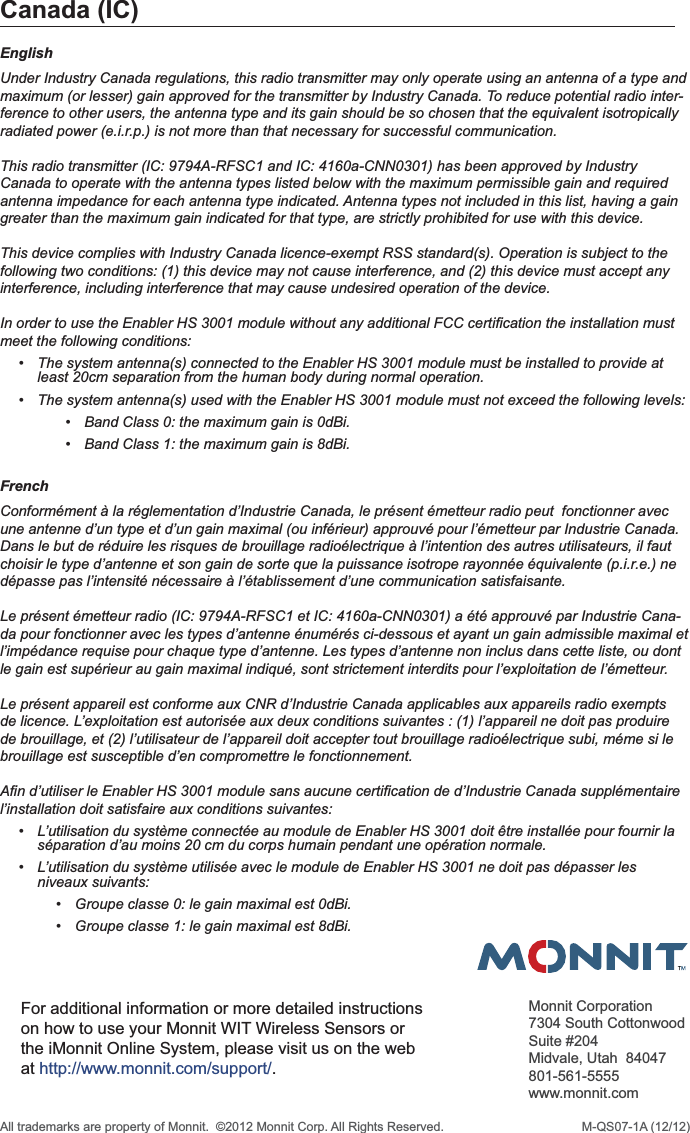

 Canada (IC) EnglishUnder Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio inter-ference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Canada to operate with the antenna types listed below with the maximum permissible gain and required greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. meet the following conditions: least 20cm separation from the human body during normal operation.  Band Class 0: the maximum gain is 0dBi. Band Class 1: the maximum gain is 8dBi. French -    niveaux suivants:  
