User Manual

Monnit Wireless Sensors

and iMonnit Online Monitoring System

User Guide

Monnit Wireless Sensors

and iMonnit Online Monitoring System

User Guide

Contents

FCC Information to Users

About Monnit

System Requirements

The Monnit Wireless Hardware

MonnitLink USB Sensor Network Software Installation

MonnitLink USB Driver Installation

Monnit Gateway Application Installation

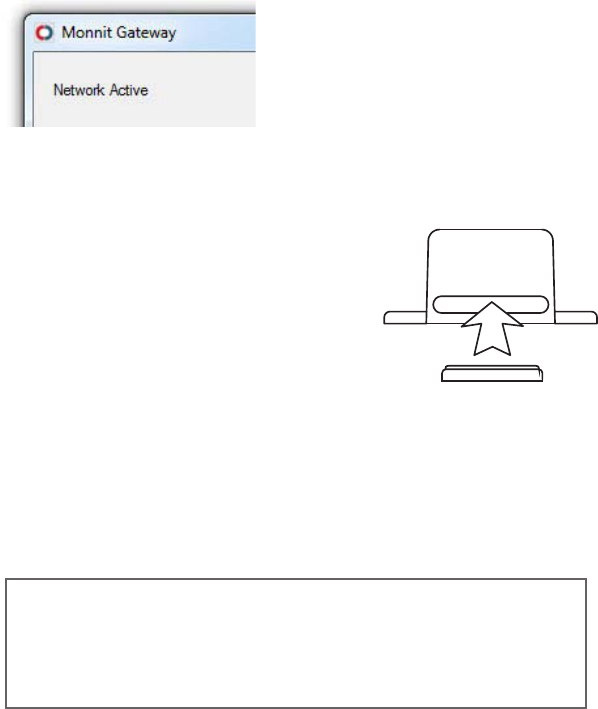

Hardware Installation (Bringing Sensors Online)

Using the iMonnit System

Logging into iMonnit.com

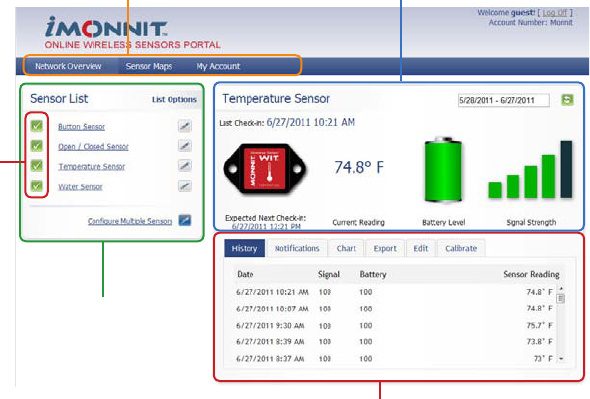

iMonnit User Interface (Overview)

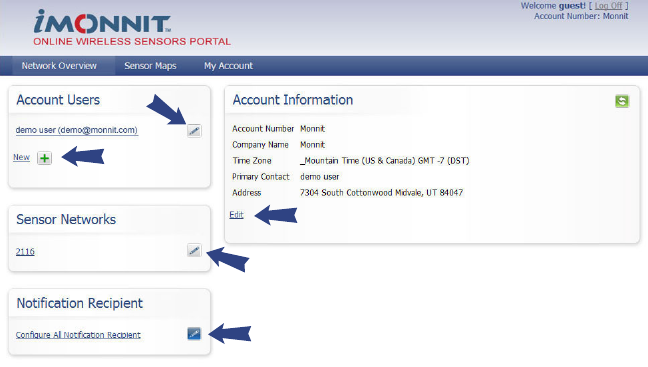

Using “My Account” (Account and Contacts)

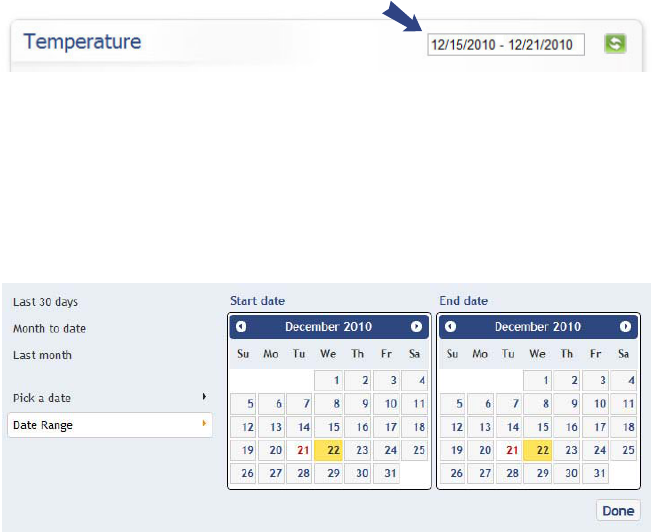

Selecting the Date Range

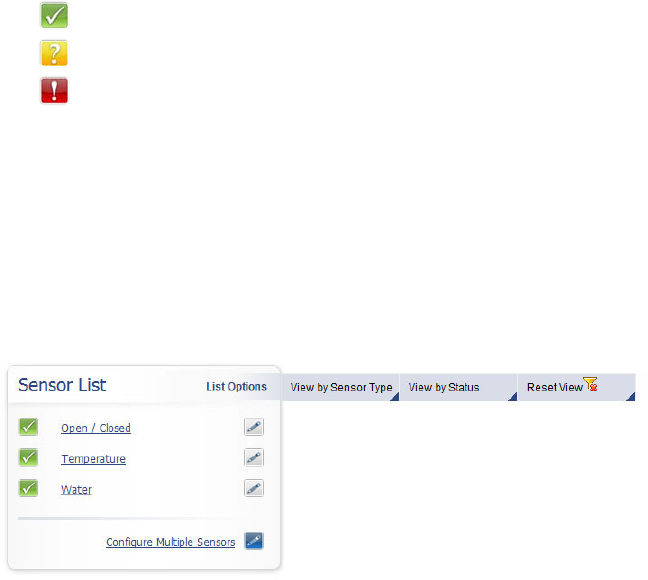

Using the Sensor List

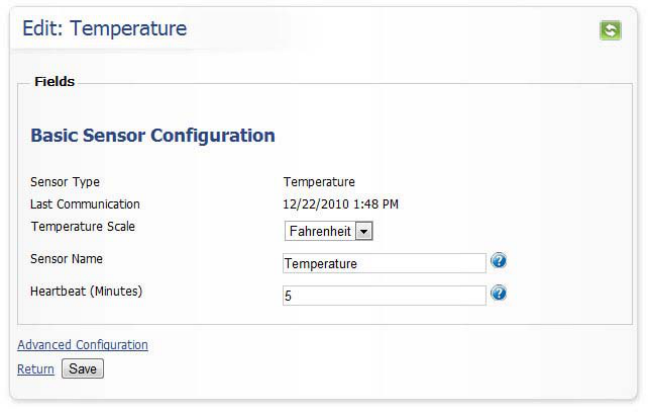

 ConguringSensors(Basic)

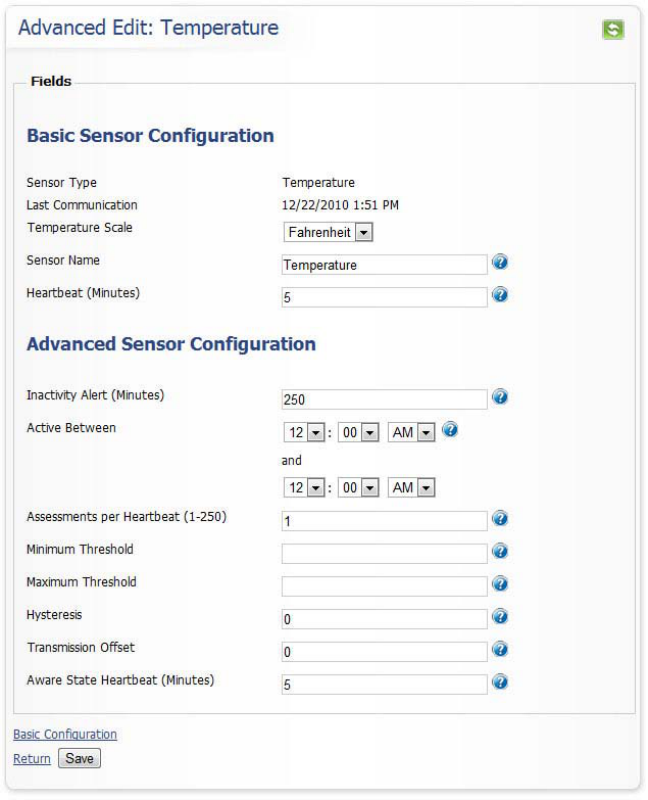

 ConguringSensors(Advanced)

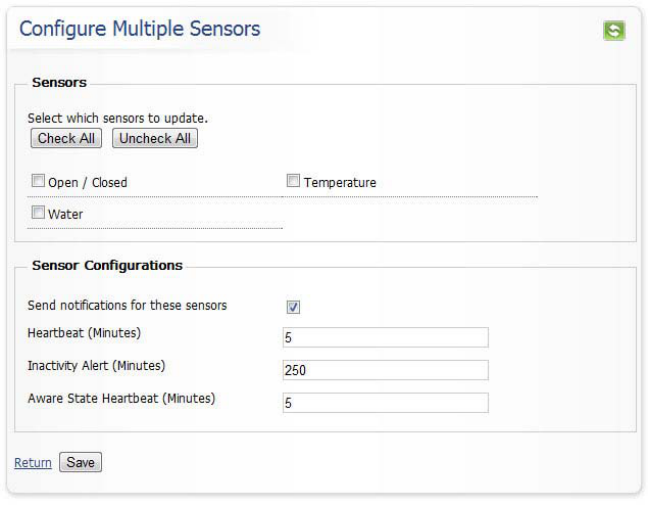

 CongureMultipleSensorsSimultaneously

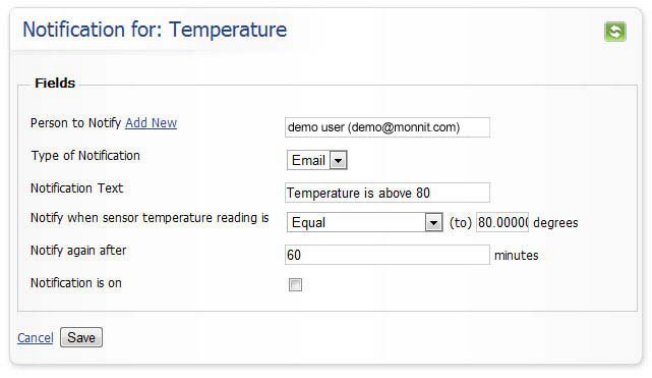

 SettingUpNoticationsandAlerts

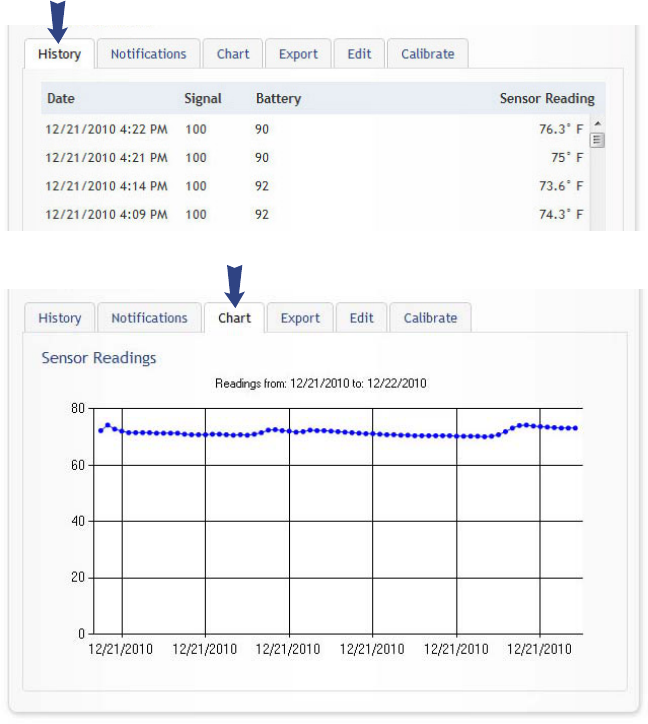

History and Chart Views

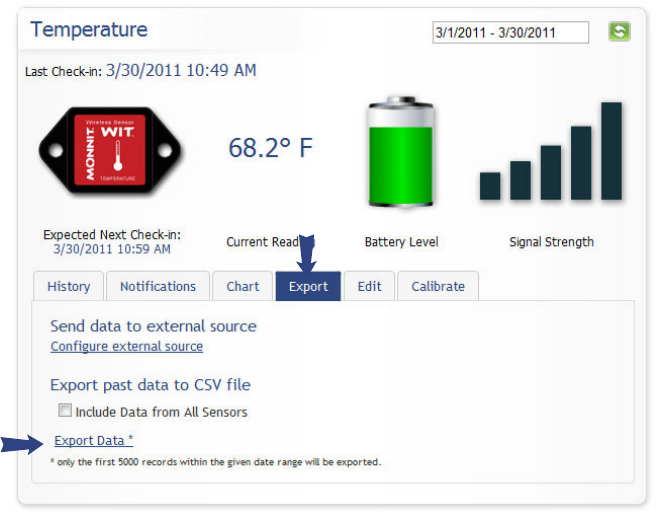

Exporting Data (To File)

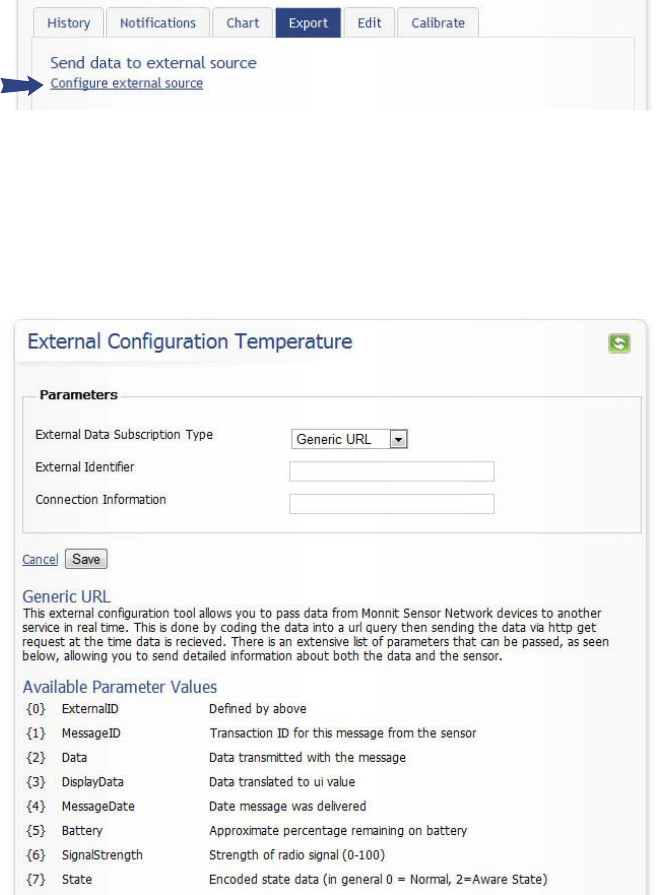

Exporting Data to an External Source

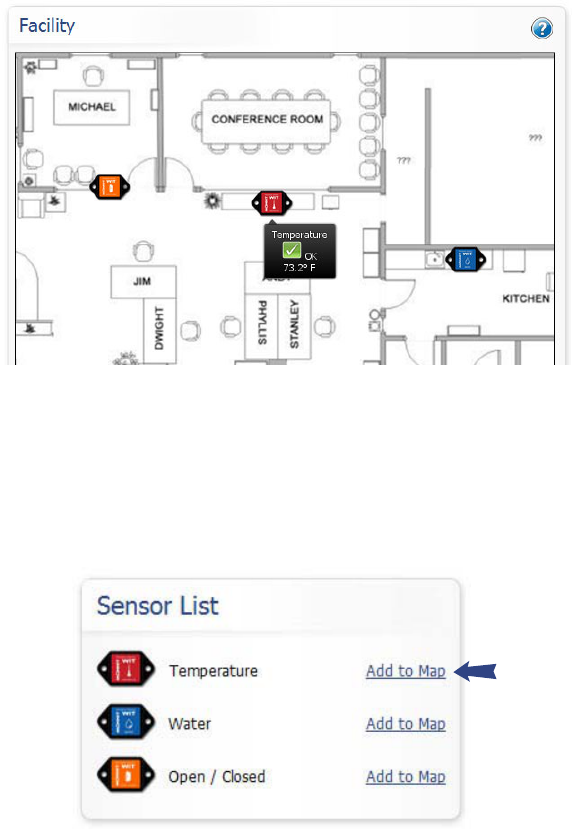

Sensor Maps

Reports

Error Reporting, Troubleshooting and Support

Warranty Information

FCC Information to Users

This equipment has been tested and found to comply with

the limits for a Class B digital devices, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of more

of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

Warning: Changes or modications not expressly

approved by Monnit could void the user’s

authority to operate the equipment.

RF Exposure

WARNING: To satisfy FCC RF exposure requirements for mobile transmitting

devices, a separation distance of 20 cm or more should be maintained between

the antenna of this device and persons during device operation. To ensure

compliance, operations at closer than this distance are not recommended. The

antenna used for this transmitter must not be co-located in conjunction with any

other antenna or transmitter.

About Monnit Corp.

Monnit is a leader in the design and manufacture of turnkey,

self-installing, low cost wireless sensor solutions targeted at

the commercial, industrial and consumer markets. Monnit’s

sensing solutions are designed to be easily installed and

used by anyone wanting to remotely monitor information and

activities, including: access, presence of water, luminosity,

temperature, humidity, and vibration in or around structures,

machinery, and various environments.

Please Read Before Proceeding

THE WIRELESS SENSORS ARE ACTIVE AND HAVE ALREADY BEEN

ASSIGNED TO YOUR CUSTOMER SENSOR NETWORK. YOUR WAR-

RANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO

DISASSEMBLE ANY OF THESE DEVICES.

Network and Computer Requirements

MonnitLink™ USB Gateway

Computer System Requirements

To use your wireless sensors with a MonnitLink USB

Gateway you will need a Windows PC with the following:

 •AMonnitLink™ USB Wireless Gateway

 •WindowsXPwith512MBMemory

(Windows 7 with 1024 MB Recommended)

 •20MBFreeDiskSpace

 •ASP.NET3.5

( http://www.asp.net/downloads/essential )

MonnitLink™ Ethernet Gateway

To use your wireless sensors with a MonnitLink Ethernet

Gateway you will need the following:

 •AMonnitLink™ Ethernet Wireless Gateway

 •An Internet enabled router with one available

Ethernet port or a direct internet ethernet

connection.

MonnitLink™ Cellular Gateway

To use your wireless sensors with a MonnitLink Cellular

Gateway you will need the following:

 •AMonnitLink™ Cellular Wireless Gateway

 •A MonnitLink™ Cellular Data Plan.

Monnit Wireless Hardware

Monnit wireless sensor networks consist of MonnitLink™

Wireless Gateways, Monnit WIT™ Wireless Sensors and

Monnit Sensor Monitoring Software such as iMonnit™ On-

line, Monnit Express™ PC Software and Monnit Enterprise™

Server Software.

The simplest way to get started with Monnit wireless sensors

is to select either a USB or Ethernet version of the gateway

and monitor your sensors online through the iMonnit Online

SensorMonitoringandNoticationSystem.

MonnitLink USB Gateways require the use of a personal

computerrunningwindowsXPorlaterandrequiresthatthe

computer remain running and connected to the internet in

able for the sensors to communicate to the online system. A

MonnitLink Ethernet Gateway is a standalone unit that oper-

ates continuously without the need for a computer and only

requires an Ethernet connection with access to the Internet.

A MonnitLink Cellular Gateway is a standalone unit that op-

erates continuously without the need for a computer and only

requires an Internet data plan available through Monnit.

6 |

RF Specications

Operating Frequency 902 MHz - 928 MHz

Power Output +8 dBm

Receiver Sensitivity -102 dBm

RF Range 250 - 300 ft. non-line-of-sight

Modulation Frequency Shift Keying (FSK)

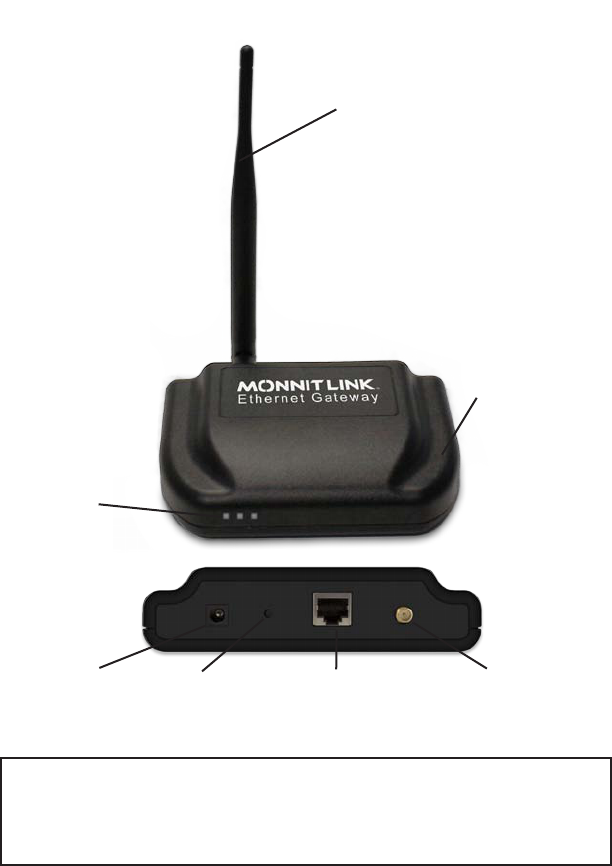

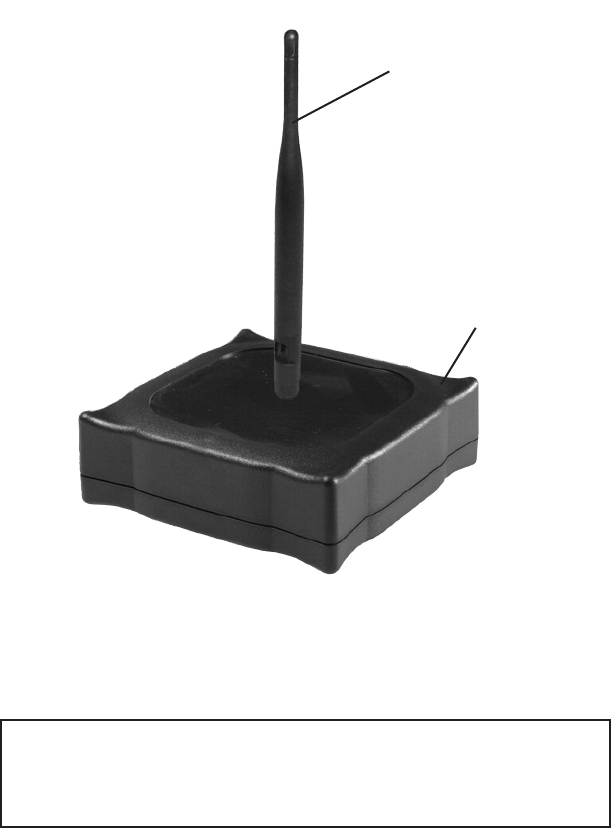

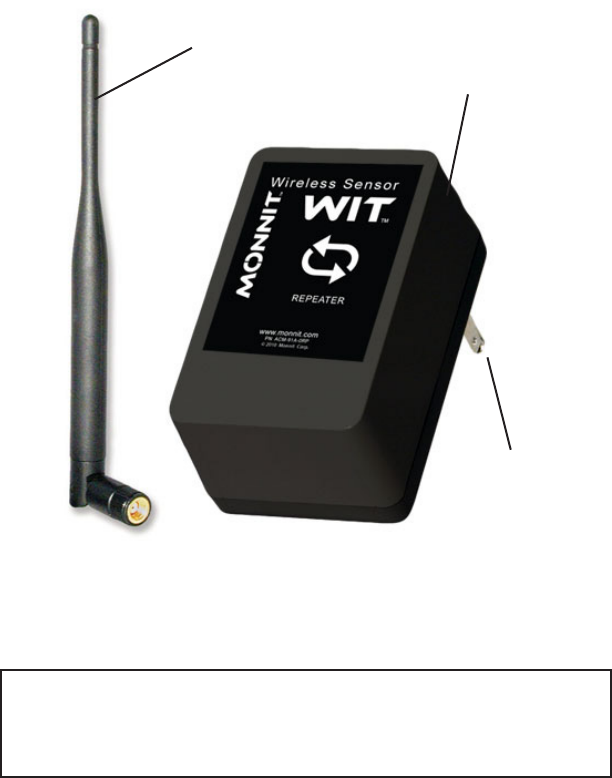

Rugged Plastic

Enclosure

RP SMA Antenna

Power Plug Control Button RP SMA Antenna ConnectorEthernet Port

MonnitLink™ Ethernet Gateway

Indicator

Lights

This device has been designed to operate with the antennas listed below, and having a maximum gain

of 5.0 dB. Antennas not included in this list or having a gain greater than 5.0 dB are strictly prohibited for

use with this device. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen

that the equivalent isotropically radiated power (EIRP) is not more than that required for successful

communication.

Approved Antenna:

• Hyperlink HG905RD-RSP (omnidirectional)

Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Rugged Plastic

Enclosure

RP SMA Antenna

MonnitLink™ Cellular Gateway

This device has been designed to operate with the antennas listed below, and having a maximum gain

of 5.0 dB. Antennas not included in this list or having a gain greater than 5.0 dB are strictly prohibited for

use with this device. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen

that the equivalent isotropically radiated power (EIRP) is not more than that required for successful

communication.

Approved Antenna:

• Hyperlink HG905RD-RSP (omnidirectional)

Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept

any interference received, including interference that may cause undesired operation.

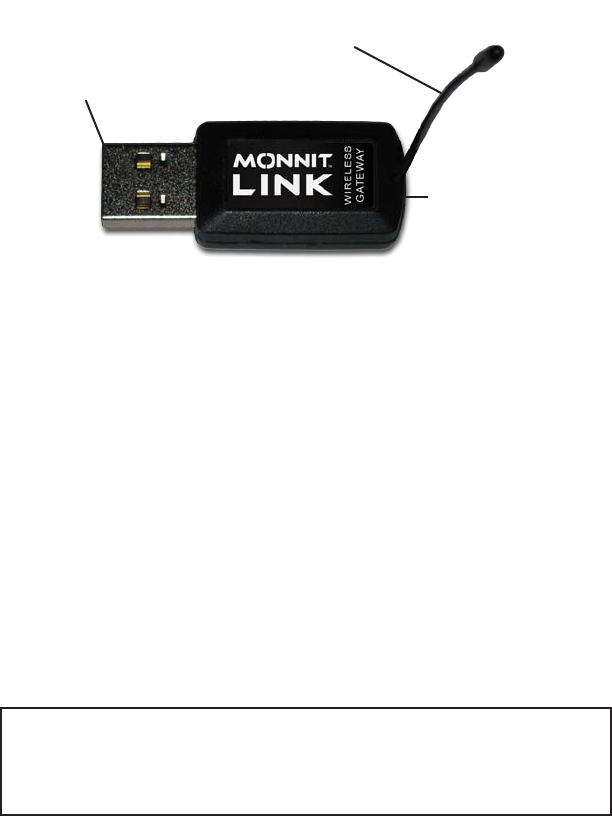

USB Interface

Rugged Plastic

Enclosure

4” Whip Antenna

MonnitLink™ USB Gateway

FCC ID: ZTL-RFUSB1 & IC: 9794A-RFUSB1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This device has been designed to operate with the attached non-removable antenna.

Rugged Plastic

Enclosure

Battery Slot

Mounting Tabs

Battery

Removal Hole

4” Whip Antenna

External

Sensor

Monnit WIT™ Wireless Sensors

Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This device has been designed to operate with the attached non-removable antenna.

Rugged Plastic

Enclosure

Monnit Wireless Repeater

This device has been designed to operate with the antennas listed below, and having a maximum gain

of 5.0 dB. Antennas not included in this list or having a gain greater than 5.0 dB are strictly prohibited for

use with this device. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen

that the equivalent isotropically radiated power (EIRP) is not more than that required for successful

communication.

Approved Antenna:

• Hyperlink HG905RD-RSP (omnidirectional)

Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept

any interference received, including interference that may cause undesired operation.

RP SMA Antenna

Power Plug

MonnitLink™ USB Sensor Networks

(The following information is for sensor networks using a MonnitLink™ USB

Gateway. If using a MonnitLink™ Ethernet or Cellular Gateway skip to page 12.)

Before inserting the MonnitLink™ USB Gateway into your comput-

er, you will need to install the USB Drivers and the Monnit Gate-

way Application which will allow your sensor network to communi-

cate with the iMonnit™ Online Sensor Monitoring System.

Note: If you purchased the Monnit Express™ standalone PC applica-

tion, then you will have received an email with download and installation

instructions. If you have lost the email please contact a Monnit represen-

tative to have the email resent.

MonnitLink™ USB Driver Installation

The latest MonnitLink™ USB drivers can be installed directly from

the web or downloaded for manual installation.

http://www.monnit.com/support/downloads.php

From the downloads page, click on MonnitLink™ USB Driver In-

stallertolaunchthewebinstallerdownload.Thedriverleshould

automaticallystartdownloading,ifpromptedtosavethele,select

a location that is easily accessible and click “Save”.

Whenthelehascompleteddownloading,browsetothefolder

wherethelewassaved.Doubleclickthe“Monnit-Driver-Setup.

exe”leandselect“Run”.Select“Next”thenfollowtheon-screen

guide to install the drivers.

Whenthesetuphasnished,theprogramwillautomaticallyde-

termine which drivers to install for your system and another guide

will launch to guide you through the installation of the drivers. Click

“Next” to install the drivers. When the drivers are done installing

you will see a success screen. Click “Finish” to exit the installation

program.

Note: Tomanuallyinstallthedriveryoucandownloadtheappropriatele

from the downloads page and follow the included instructions.

Monnit Gateway Application Installation

The Monnit Gateway Application allows your wireless sensors

to communicate with the iMonnit™ Online Sensor Monitoring and

NoticationSystem.(iMonnitallowsyoutoviewallyoursensor

data,sensorstatus’andcongureallsensorparametersaswell

assetupnoticationsoralertsviasmstextandemail.)

To install the software, open a web browser and navigate to

http://www.monnit.com/support/downloads.php. From the down-

loads page, click on “Monnit Gateway Application Installer” to

launchthewebinstallerdownload.Ifpromptedtosavethele,

select a location that is easily accessible and click “Save”.

Whenthelehascompleteddownloading,browsetothefolder

wherethelewassaved.Doubleclickthe“MonnitGatewaySetup.

msi” le,select“Run”whenpromptedthenfollowtheon-screen

instructions to complete the installation.

When installation is complete the program will automatically

launch. You can now begin using your Monnit wireless sensors

online.

Note: The Monnit Gateway application needs to be running on your

computer in order for the sensor data to be transmitted to the iMonnit

Online System. If the gateway is not running your sensor data is not

beingrecordedandnoticationsbasedonsensordatacannotbe

sent from the system.

Launch the Monnit Gateway Application:

From the Windows “Start Menu” under “All Programs” >

“Monnit” click on “Monnit Gateway”.

(Skip this step if using an Ethernet or Cellular Gateway)

Insert the MonnitLink™ USB Wireless Gateway:

With the Monnit™ Gateway application running, insert the

MonnitLink™ USB into your computer. The network status in

the software should change to active when the USB gateway

has been plugged in.

(Skip this step if using an Ethernet or Cellular Gateway)

Insert batteries into the sensors:

Peel back the black sticker cover of

the battery slot and slide the coin

cell battery into the sensor. It will

power on within 10-20 seconds.

Note: Note the proper orientation of

batterying.1.Wheninserting,make

sure to push the battery all the way back.

Check that Sensor Data is Being Recieved:

As the sensors power up, they will check into the Monnit-

Sphere Gateway and transmit their current reading. Your

gateway window should look similar to this:



Battery

Insertion

g.1

Bringing Sensors Online



(If the status does not change,

try unplugging and re-inserting

the USB gateway.)



06/24/201109:44:57.939:RX:SensorData:Device:10721SensorType:Temperature[2],

RSSI: -21 / -31, Volts: 2.96V, STS: 16, Data: 72.3° F

06/24/201109:44:57.375:RX:StatusIndication:Device:10721hasjoinednetwork

06/24/201109:44:42.274:RX:NetworkStatus:APN:2116,NetCNT:4,Channel:4,

NetID: 248, MODE: "ACTIVE/RESUME"

Network Active



Continued...

If a sensor does not join the network when a battery is

inserted, try cycling the power by removing and re-inserting

the battery. (You should wait 45 seconds before re-inserting

thebattery.)Onceyouhaveveriedthatyoursensorsareall

powered on and have checked into the MonnitSphere Gate-

way they are ready to be deployed. If you wish to change

asensorconguration,alloftheparametersareeditablein

the MonnitSphere online software. The new parameters will

be downloaded to the Wireless Gateway every 5 minutes,

then transmitted to the sensors on their next heartbeats. If

you need more immediate response from a sensor, you can

press the “Download Sensor Updates” button in the Monnit

Gateway applicaton, then cycle the sensor by removing, then

re-inserting the battery.



Open any Internet Browser and navigate to the iMonnit

website at www.imonnit.com.

Enteryourusernameandpasswordintheappropriateeld

and click the “Login” button to continue.

Your username and password are included on the informa-

tion sheet that shipped with your sensors.

Note: You will be prompted to change your password when you

Using the iMonnit™ Online System

Logging into iMonnit™

3. Sensor Status Indicators

5. Sensor Data Window

1. Menu System 4. Current Sensor Quick Stats

2. Sensor List

Menu System

Provides quick links to areas of the software for navigational

purpose.

Network Overview

Displays a list of all wireless sensor networks associated

with the account. Clicking on a network name will change the

current view to the selected network.

Sensor Maps

Visual Tool for uploading a building blueprint or schematic,

allowing you to visually place sensor tags on the map. Clicking on

the sensor graphics gives you a quick view of the latest sensor

reading and status.

My Account

Access and edit account information and system users.

Reports

Access reports for your account.

iMonnit User Interface (Overview)



Sensor List

Displays all sensors that are currently assigned to your sen-

sor network. Clicking on a sensor name allows you to select

which sensor information is viewable on-screen. Clicking

the edit button by a sensor’s name allows you to change the

sensorspecicsettingssuchassensornameandheartbeat

(reportinterval)aswellasadvancedsensorconguration

information that is stored on the sensor hardware.

Sensor Status Indicators

Displays the status for each individual sensor.

Current Sensor Quick Stats

Displays the most current information from the selected

sensor, including: sensor name, signal strength, battery

power and sensor reading / status.

Sensor Data Window

The sensor data window displays content according to the

selected sensor data tab. There are four different views

available.

History - Displays a history of the data sent from the selected

sensor.

Alerts - Allows you to view, create, edit or delete user

 customizablenoticationsfortheselectedsensor.

Chart - Displays a graphical view of the readings sent from

the selected sensor.

Export -Youcanarchivedatabyexportingasa.csvleor

send the sensor data to an external source.

Calibrate - Allows you to calibrate your sensors by correcting a

current reading, and applying the adjustment to all

future readings. (Only available on applicable sensors.)

Sensorischeckinginandwithinuserdenedsafeparameters.

Sensor has not checked in.

Sensorhasmetauserdenedthresholdortriggeredevent.









Edit Account Information

Allows you to change general account information such as; com-

pany name, address, time zone and primary contact.

Create New Account User

Allows you to create new users for the account by entering contact

information and sensor network permissions.

Edit Account User

Allows you to change contact information, change login password

and change sensor network permissions.

Edit Sensor Networks

Allows you to change the name of the sensor network and enable

ordisablenoticationsforallsensorslocatedinthatnetwork.

Congure All Notication Recipient

Allowsyoutocreateacontactthatwilloverwriteallexistingnoti-

cations for all sensors and networks within the account.

Note:Usingthisfunctionwilloverwriteallexistingnotications

setup in the account.

Using “My Account” (Account and Contacts)

Clicking on the “My Account” link in the navigation bar will open

the account settings page. From here you have the ability to edit

your account information, manage users, and create a master

recipient for all messages from the system.



















Selecting the Date Range

All of the sensor information viewed through the user interface is

selectable by a “Date Range”. The default view for the system is

the past 30 days. To change this simply click on the date range

box at the top of the sensor data window.

After clicking on the date range box, the following pop-up win-

dow will appear. You can click on any of the pre-determined date

congurationsintheleftcolumnorselect“PickaDate”toview

singledaydataforagivendateorselect“DateRange”todenea

specicrangeofdates.

Note: The current date is highlighted in yellow, while your selected dates

will be displayed in red.

Using the Sensor List

The sensor list provides a quick view of the status for all sensors

in the selected network as well as providing quick link access to

sensordataandcongurationwindows.

The following is a summary of the status indicators and what they

mean.

Clicking on the name of a sensor in the list opens the sensor dis-

play view and clicking on the “Edit” icon by each name opens the

sensorcongurationwindow.

List Options (Sorting the Sensor List)

For larger sensor networks, we have provided a way to easily sort your

sensor list to only show sensors by “Type” or “Status”.

Toactivateasortinglteronthelist,mouseover“ListOptions”

andselectthelteryouwouldliketoapply.Toresettothedefault

sensor list view select “Reset View”.

Sensorischeckinginandwithinuserdenedsafeparameters.

Sensor has not checked in for the past 3 heartbeats.

Sensorhasmetauserdenedthresholdortriggeredevent.

Conguring Sensors (Basic)

Click the “Edit” icon next to the name of the sensor that you would

liketocongure.(Youcanalsoclickonthe“Edit”tabinthesen-

sor information window.)

Thebasicsensorcongurationwindowallowsyoutosetthe

primarycongurationsforeachsensor.Thebasiccongurations

willsufceforthemajorityofusers.Withinthiswindowyoucan

name your sensor, set the heartbeat (how frequently the sensor

will take a reading and communicate with the MonnitSphere online

monitoringandnoticationsystem),andselecttheunitsofmea-

surementetc.Ifmoreadvancedcongurationsareneeded,click

on“AdvancedConguration”linkabovethe“Save”button.

Note: Be sure to click the “Save” button anytime you make a change to

anyofthecongurationelements.

Conguring Sensors (Advanced)

Alloftheadvancedcongurationsettingsaretransmittedtothe

sensor and stored on the sensor hardware. These settings allow

the sensor to act differently, independent of the software.

Advanced Sensor Setting Denitions

Inactivity Alert (Minutes)

The amount of time that elapses without a heartbeat before you are noti-

ed.Thedefaultis3timesthesetheartbeatinterval.

Active Between

The time of day the sensor is actively working. No communication will be

sent while sensor is hibernating.

Assessments per Heartbeat

How many times between heartbeats a sensor will check its measure-

ments against its thresholds to determine whether it will enter the aware

state.

Minimum Threshold

Any assessments below this value will cause the sensor to enter the

aware state.

Maximum Threshold

Any assessments above this value will cause the sensor to enter the

ware state.

Hysteresis

A buffer to prevent the sensor from bouncing between standard operation

and the aware state when the assessments are very close to a threshold.

For example, if a maximum threshold is set to 90° and the hysteresis is

set to 1°, when a sensor takes an assessment of 90.0° and enters the

aware state it will remain in the aware state until the temperature reading

drops to 89.0°. Similarly, at the minimum threshold the temperature will

have to rise 1° above the threshold to return to standard operation.

Transmission Offset

In large sensor networks, offset is used to prevent all sensors from trans-

mitting simultaneously; therefore minimizing communication disruption.

Aware State Heartbeat

How often the sensor communicates with the gateway while in the aware

state.

Congure Multiple Sensors Simultaneously

Youcanmakecertaincongurationstomultiplesensorsbyclick-

ingon“CongureMultipleSensors”atthebottomoftheSensor

List Window. Click the checkboxes in front of all sensors that you

would like to apply the settings to, then click “Save” to apply the

same settings for all selected sensors.

Note:Settingsconguredthroughthiswindowwilloverwriteanycustom

settings currently set for the selected sensors.

Setting Up Notications and Alerts

Clickingonthe“Notications”tabwithinthesensordatawindow

willbringupalistofsentnoticationsaswellasalistofall

currentlysetupnoticationsandalerts.

Tocreateanewnoticationoralert,clickonthe“New”icon

at the bottom right of the window. To edit or delete an existing

notication,clickonthe“Edit”iconorthe“Delete”icon.

Edit Delete

New

Creating a New Notication or Alert

Person to Notify

Start typing a name into the box and the system will show all users with

a similar name, if you need to create a new user click “Add New”.

TypeofNotication

Allowsyoutochoosethenoticationdeliverymethod(EmailorSMS.)

NoticationText

Thisisauserdenedmessagethatwillbeemailedortextedtothe

recipient when the conditions have been met.

Sensor Conditions for Alert

This area is dependant upon what type of sensor is being used. For

example a temperature sensor will ask for a condition that when met will

trigger the alert, such as a temperature above 80°.

Notify Again After

Allowsyoutodenehowfrequentlyyouwanttobenotiedifthesensor

condition is still met or exceeded. For example, if the temperature is still

above80°Icanbenotiedevery10minutesuntilIhaveaddressedthe

issue.

NoticationisOn

Allowsyoutoturnoffanoticationtemporarily,withoutdeletingit.

History and Chart Views

Clicking on the “History” or “Chart” tabs within the sensor data

window allows you to view the sensor data history as text or in a

graphical chart.

To change the date range of the viewable information, click on the

date range box at the top right of the sensor data window.

Exporting Data

Clicking on the “Export” tab within the sensor data window allows

youtoexportsensordatatoacommaseparatedvalue(.csv)le

or send the sensor data to an external web source.

Toexportsensordatatoacommaseparatedvalue(.csv)lefor

use in spreadsheet software such as Microsoft Excel®, click on

“Export Data” at the bottom of this window. The default value will

export data for the viewed sensor only, if you would like to include

data for all sensors in the viewed network, click the checkbox by

“Include Data from All Sensors”.

Note:Onlytherst5,000recordswithintheselecteddaterangewillbe

exported, you can adjust the date range to export more data if needed.

Exporting Data to an External Source

To send the sensor data to an external web source, click on “Con-

gureExternalSource”.

On this page you can select the “External Data Subscription Type”

which can be a Generic URL or an external service that is cur-

rently registered with the MonnitSphere System such as Sensing

Planet™. If you are using a registered external subscription ser-

viceenteryour“ExternalIdentier”and“ConnectionInformation”.

All available parameters are listed on the page.

Sensor Maps

By clicking on “Sensor Maps” in the main navigation bar you can

access MonnitSphere’s Visual Sensor Mapping Tool. This tool

allows you to upload a graphic of your building or sensor area,

and visually place sensor tags on the graphical map to remind

you where sensors have been placed. The tool also allows for one

click access to current sensor readings and status.

To create a new sensor map, click on the “New” icon. In the pop-

up window, type a name for your map and then click “Choose

File” to browse your computer for the graphic you would like to

upload. Click “Create” to save the map to your list. Once your

map is created, you can add sensors from your sensor list to the

map by clicking on “Add to Map” by each sensor.

Once the sensors have been added to the map they will disappear

from the sensor list and a sensor image will appear on the map.

You can move the sensor tags on the map by single click and

holding to drag. Right click on a sensor image for a context menu

to remove a sensor from the map.

Once the sensors have been placed where you like, you can view

a sensors status and last reading by mousing over the sensor

tag. Single clicking on a sensor image will open a pop-up window

showing it’s current readings and sensor history. You can close

thisviewbyclickingtheXintheupperrightcornerofthepop-up

window.

Reports

By clicking on “Reports” in the main navigation bar you can access

any standardized reports generated by the MonnitSphere software

system. To suggest a report idea email software@monnit.com with

a full description.

Error Reporting, Troubleshooting and Support

For technical support and troubleshooting tips please visit our support

library online at http://www.monnit.com/support/. If you are unable to

solve your issue using our online support, email Monnit support at

support@monnit.com with your contact information and a description

of the problem, and a support representative will call you within one

business day.

For error reporting, please email a full description of the error to

support@monnit.com.

Warranty Information

(a) Monnit warrants that Monnit-branded products will be free from defects in

materials and workmanship for a period of one (1) year from the date of delivery

withrespecttohardwareandwillmateriallyconformtotheirpublishedspecica-

tions for a period of one (1) year with respect to software. Monnit may resell sen-

sors manufactured by other entities and are subject to their individual warranties;

Monnit will not enhance or extend those warranties. Monnit does not warrant

that the software or any portion thereof is error free. Monnit will have no warranty

obligation with respect to Products subjected to abuse, misuse, negligence or

accident.IfanysoftwareorrmwareincorporatedinanyProductfailstoconform

tothewarrantysetforthinthisSection,Monnitshallprovideabugxorsoftware

patch correcting such non-conformance within a reasonable period after Monnit

receivesfromCustomer(i)noticeofsuchnon-conformance,and(ii)sufcient

information regarding such non-conformance so as to permit Monnit to create

suchbugxorsoftwarepatch.IfanyhardwarecomponentofanyProductfails

to conform to the warranty in this Section, Monnit shall, at its option, refund the

purchase price less any discounts, or repair or replace non-conforming Products

withconformingProductsorProductshavingsubstantiallyidenticalform,t,and

function and deliver the repaired or replacement Product to a carrier for land

shipment to customer within a reasonable period after Monnit receives from Cus-

tomer (i) notice of such non-conformance, and (ii) the non-conforming Product

provided; however, if, in its opinion, Monnit cannot repair or replace on com-

mercially reasonable terms it may choose to refund the purchase price. Repair

parts and replacement products may be reconditioned or new. All replacement

products and parts become the property of Monnit. Repaired or replacement

products shall be subject to the warranty, if any remains, originally applicable to

the product repaired or replaced. Customer must obtain from Monnit a Return

Material Authorization Number (RMA) prior to returning any Products to Monnit.

ProductsreturnedunderthisWarrantymustbeunmodied.

Customer may return all Products for repair or replacement due to defects in

originalmaterialsandworkmanshipifMonnitisnotiedwithinninety(90)daysof

customer’s receipt of the product. Monnit reserves the right to repair or replace

products at its own and complete discretion. Customer must obtain from Monnit

a Return Material Authorization Number (RMA) prior to returning any products to

Monnit.ProductsreturnedunderthisWarrantymustbeunmodiedandinoriginal

packaging. Monnit reserves the right to refuse warranty repairs or replacements

for any products that are damaged or not in original form. For products outside

the ninety-day warranty period repair services are available at Monnit at standard

labor rates for a period of one year from the Customer’s original date of receipt.

(b) As a condition to Monnit’s obligations under the immediately preceding para-

graphs, Customer shall return Products to be examined and replaced to Monnit’s

facilities, in shipping cartons which clearly display a valid RMA number provided

by Monnit. Customer acknowledges that replacement products may be repaired,

refurbished or tested and found to be complying. Customer shall bear the risk

of loss for such return shipment and shall bear all shipping costs. Monnit shall

deliver replacements for Products determined by Monnit to be properly returned,

shall bear the risk of loss and such costs of shipment of repaired products or

replacements, and shall credit Customer’s reasonable costs of shipping such

returned Products against future purchases.

be to repair or replace non-conforming products as set forth in the immediately

preceding paragraph, or to refund the documented purchase price for non-con-

forming Products to Customer. Monnit’s warranty obligations shall run solely to

Customer, and Monnit shall have no obligation to customers of Customer or other

users of the Products.

Limitation of Warranty and Remedies.

THE WARRANTY SET FORTH HEREIN IS THE ONLY WARRANTY APPLI-

CABLE TO PRODUCTS PURCHASED BY CUSTOMER. ALL OTHER WAR-

RANTIES,EXPRESSORIMPLIED,INCLUDINGBUTNOTLIMITEDTO

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULARPURPOSEAREEXPRESSLYDISCLAIMED.MONNIT’SLIABIITY

WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLI-

GENCEOROTHERWISESHALLNOTEXCEEDTHEPURCHASEPRICEPAID

BY CUSTOMER FOR THE PRODUCT. UNDER NO CIRCUMSTANCES SHALL

MONNIT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAM-

AGES. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION IN

LIMITING MONNIT’S LIABILITY. NO ACTION, REGARDLESS OF FORM, ARIS-

ING OUT OF THIS AGREEMENT MAY BE BROUGHT BY CUSTOMER MORE

THAN ONE YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED.

IN ADDITION TO THE WARRANTIES DISCLAIMED ABOVE, MONNIT SPECIFI-

CALLY DISCLAIMS ANY AND ALL LIABILITY AND WARRANTIES, IMPLIED OR

EXPRESSED,FORUSESREQUIRINGFAIL-SAFEPERFORMANCEINWHICH

FAILURE OF A PRODUCT COULD LEAD TO DEATH, SERIOUS PERSONAL

INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE SUCH AS,

BUT NOT LIMITED TO, LIFE SUPPORT OR MEDICAL DEVICES OR NUCLEAR

APPLICATIONS. PRODUCTS ARE NOT DESIGNED FOR AND SHOULD NOT

BE USED IN ANY OF THESE APPLICATIONS.

For additional information on Monnit Wireless

Sensors and Software, please visit us on the

web at www.monnit.com.

Monnit Corporation

7304 South Cottonwood

Suite #204

Midvale, Utah 84047

www.monnit.com

M-UG01-3A (7/11)

Monnit RFUSB1 MonnitLink USB Wireless Gateway User Manual

Monnit Corporation MonnitLink USB Wireless Gateway

User Manual

Navigation menu

Namespaces

Views

Navigation
