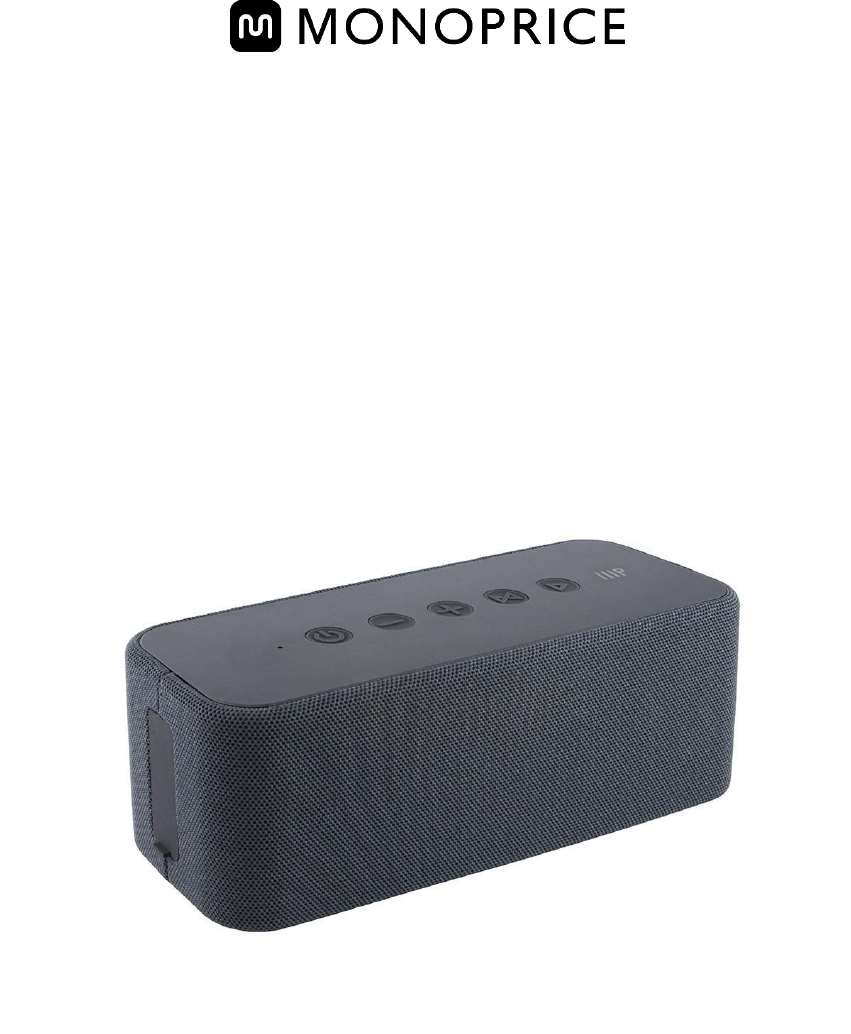

Monoprice Harmony
Bluetooth Wireless
Speaker
User Guide
MP33827
PACKAGE CONTENTS
1. Bluetooth Speaker x 1 pc
2. Micro USB cable x 1 pc
3. 3.5mm Audio cable x 1 pc
4. User manual x 1 pc
FUNCTIONS PANEL
1. : Power ON/Power OFF
2. : Volume Down/ Last Track
3. : Volume Up/Next Track
4. : Play/Pause/Hands Free
5. :BT disconnect /Switch Modes
6. : DC 5V IN Charging Port
7. : Aux in
8. ：SD card slot
9. ：Reset key
BLUETOOTH MODE:
1. Press and hold to turn the speaker ON/OFF. The speaker will emit tones. The
LED light will flash blue slowly.
2. Turn on the BT function of your mobile device and in your device’s Bluetooth settings
pair with “MP33827.” When connected, the LED indicator will turn to solid blue. Press and
hold to disconnect Bluetooth.
3. Press to Pause or Play media.
4. Press to decrease volume; press and hold it to play the last track.
5. Press to increase volume; press and hold it to play the next track.
6. When there is an incoming call, press to answer it, then press it again to hang
up. Press and hold it to reject the incoming call.
AUX IN MODE:
1. After the speaker is turned on, you can connect your mobile device to the speaker via
the AUX port. When in AUX mode, the LED indicator light will be solid blue.
2. Press button to Pause or Play media
3. Press button to decrease volume; turn to last track is not available
4. Press button to increase volume; turn to next track is not available
Note: Hands free function is not available in AUX mode.
TWS FUNCTION:
First time pairing Two speakers:
When you have 2 Harmony and/or HarmonyXL speakers and want to wirelessly pair them
for stereo sound, power on the 2 units.
Next, take the speaker you want to be the passive unit and press
On the other speaker, which will be the master speaker, double press , it will emit
tones to indicate that two-speaker pairing has been initiated. Wait about 3-5s for the units
to pair. When paired, the LED indicator on the passive speaker will turn to solid blue, while
the master speaker will flash slowly.
Next pair the master speaker to your device by selecting “MP33827” from the list of
discovered Bluetooth devices in your Bluetooth settings. Once connected, the master
speaker will emit tones.
Press on one of the speaker to turn it off, the other will be powered of at the same
time.
Auto Re-pairing of the same two speakers:
Power on the two speakers, wait around 5 seconds and the speaker will automatically
re-pair to each other. The master speaker will emit tones and LED indicator will turn to
flash slowly, while indicator on the other unit will turn solid blue. If your devise is on and
within BT range, the speakers will automatically reconnect to it. The master speaker will
emit tones when connected.
To un-pair speakers, double press on either speaker, the master speaker will emit
tones.
NOTE: This functionality is ONLY available with two speakers within a distance of 15ft
from each other. It only works when using Bluetooth as your audio source.
CHARGING:
The speaker has a built-in rechargeable battery. Before using the speaker for the first time,
please fully charge the battery via the USB cable. When charging, the LED light next to
the charging port will be red, and it will turn off when the speaker is full charged. It will take
3-4 hours to fully charge the speaker’s battery if fully depleted.
CAUTION:
Do not open the speaker’s housing or alter/attempt to fix internal components. This will put
you at risk for electric shock or burns. Do not expose the speaker to excessive amounts of
heat and do not store or operate near an open flame.
SPECIFICATIONS
BT Chipset
Actions ATS2825
BT version
V4.2+EDR
TWS
yes
BT profile
A2DP, AVRCP, HFP
BT Distance
>=10m
Driver power
10W x2
Driver size
1.75” x2
Impedance
4Ω
Response frequency
70Hz --20kHz
Signal Noise
≥ 60dB
THD
<1%
Built in Microphone
yes
Charging indicator
Red
Buttons and controls
Power
Last Track/V-
Next Track/V+
Play/Pause
TWS
Available modes
BT/Aux in
Output power (at 10%
10W x2
THD)
Input
5V, 2A
Battery type
lithium battery
Battery capacity
2000mAh /7.4V
Battery weight
46g
Playback time
Approx. 10 hours @ 60% volume
Charging time
3-4h
Unit size
198 x 68 x 75mm
Unit weight
634g
Accessories
USB charging cable, Aux in cable
Connection jacks
AC/DC input jack
DC 5V input jack
USB output jack
Micro USB
Aux in jack
yes
REGULATORY COMPLIANCE
Notice for FCC
Modifying the equipment without Monoprice’s authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radio Notice for FCC
This FCC Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly
approved by Monoprice, including the use of non-approved antennas, could void the
user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
The Bluetooth® word mark and logos are
registered trademarks of Bluetooth SIG, Inc.
