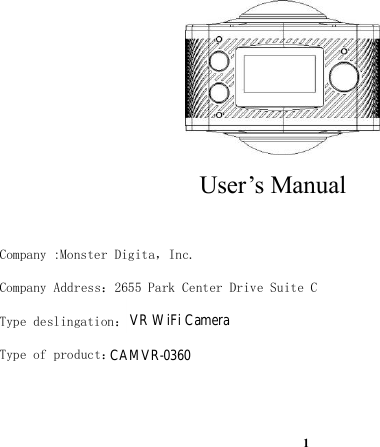

1User’s ManualCompany :Monster Digita，Inc.Company Address：2655 Park Center Drive Suite CType deslingation：VR CameraType of product：Sport Action CameraVR WiFi Camera CAMVR-0360
2Appearance and buttons321101. LCD display screen2. Power/Mode3.WIFI Indicator (red)4. Power indicator/Charging indicator(Blue)5.Wifi/Menu6.Busy (red)7.Shutter /OK key8.Camera Lens*2（220°）9. Triangle nut10. Access flap（USB, TF）11.Loudspeaker12.Microphone13. Lanyard hole14. Reset Button48121156713981477

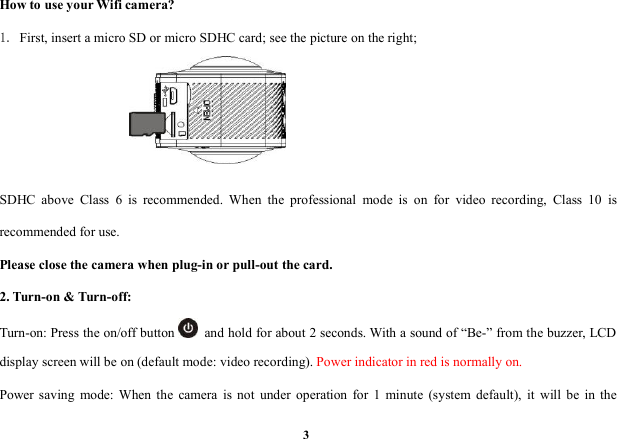

3How to use your Wifi camera?1. First, insert a micro SD or micro SDHC card; see the picture on the right;SDHC above Class 6 is recommended. When the professional mode is on for video recording, Class 10 isrecommended for use.Please close the camera when plug-in or pull-out the card.2. Turn-on & Turn-off:Turn-on: Press the on/off button and hold for about 2 seconds. With a sound of “Be-” from the buzzer, LCDdisplay screen will be on (default mode: video recording). Power indicator in red is normally on.Power saving mode: When the camera is not under operation for 1 minute (system default), it will be in the
4power saving mode. The LCD display screen will be off automatically. The camera can be activated when anybutton is pressed.Turn-off: Press the button and hold for about 3 seconds when the camera is not in operation. With a soundof “Be-” from the buzzer, the camera will be off.The camera will be automatically off when it is in power saving mode for 3 minutes (system default).“GOODBYE” will be on the LCD screen when it is off.3. Charge the cameraBuilt-in rechargeable lithium battery is used for the camera:The camera can be charged when it is connected to the computer USB with a USB cable. The powerindicator will be blue when it is charging. It shall take 4 hours because of the limited electric current of thecomputer. The blue light will be off when charging is completed.4. Function mode conversionThe camera has two modes, i.e. video recording and photograph shooting. They can be converted by pressing
5the button on/off /MODE or through APP.Video recording: (see the following pictures) press the shutter to start shooting and video recording. Thebuzzer will send out one sound when it starts; the busy button (red) will be twinkling during the video recordingprocess. LCD timer starts timing. Press the button again when video recording is over.Photograph shooting: Short press the take-photo button to shoot photographs after it is switched to thephoto-shooting mode. The buzzer will send out 1 sound and the busy button will be on once when 1 photo is shot.The counter will countdown the photos accordingly.
65. Menu operation:Press the WIFI button for 2 seconds to activate the menu:设置模式菜单Enter the menu, short press the WIFI button to move the cursor for selection; press the shutter buttonfor confirmation; extended press the WIFI button to cancel the setting or exit.Power Save: the power saving mode has 4 settings, i.e. OFF/1min/3min/5min. When the setting-time is up,the camera will enter power saving mode and the screen will be off.Date & Time: system time settingLanguage: language setting, English is by default.Date Stamp: date stamp setting, OFF/Date/Date & time are optional.Factory Reset: factory reset, YES/NO are optionalSystem: check for system information (software version number); check the information on the memory card(capacity and available space)Format: formatting the memory card, YES/NO are optional.
76. Watch Remote Controller:1. Watch remote controller is shownin the picture:1.power2.video button3.photo button4.button indicator(red)5.watchband6.watch clasp2. Instructions:The camera can be operated for starting up, video recording, photograph shooting and shutting down whenthe watch remote controller is used within the distance of 30 meters. Press the related button on the controller forvideos, photos or turning off.P.S.: the indicator on both sides will be on in red if any button is pressed.3. Turn-on & turn-off the cameraTurn-on: press button, stop pressing till the indicator is off. The camera is on with a sound sent out by

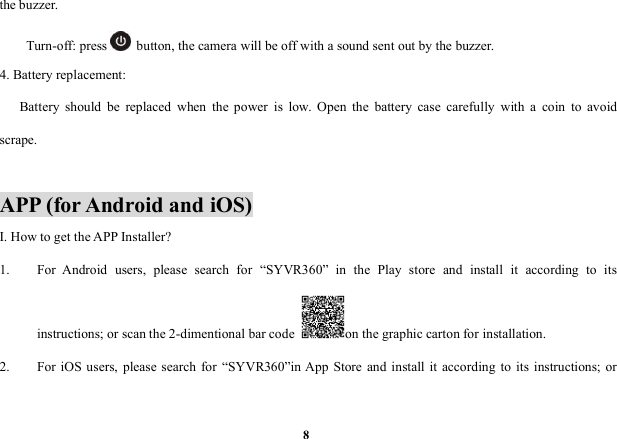

8the buzzer.Turn-off: press button, the camera will be off with a sound sent out by the buzzer.4. Battery replacement:Battery should be replaced when the power is low. Open the battery case carefully with a coin to avoidscrape.APP (for Android and iOS)I. How to get the APP Installer?1. For Android users, please search for “SYVR360” in the Play store and install it according to itsinstructions; or scan the 2-dimentional bar code on the graphic carton for installation.2. For iOS users, please search for “SYVR360”in App Store and install it according to its instructions; or
9scan the 2-dimentional bar code on the graphic carton for installation.II. APP Application1. After installing SYVR360 (provided by the supplier or Internet) on the mobile phone or tablet PC,the icon will be shown on the screen；2. Insert a card and turn the video camera on, press the Wi-Fi button to connect Wi-Fi, whose icon will be shownon the screen;3. Turn on Wi-Fi on the mobile phone or tablet PC, search for AP with the signal name of PDV3600SA (default),then connect it till the connection is successful.4. Click the App icon on the mobile phone or tablet PC and run related operation directly according to thereminder when the preview pictures transited to the mobile phone or tablet PC.Notice:1. Please insert a TF card to the video camera if you need to shoot or download pictures by mobile phone or
10tablet PC terminal.2.Wi-Fi indicator will be normally on when the mobile phone or tablet PC terminal is connected to the videocamera.When applied to the PC: _______The video camera has the plug and play function. When connected to a PC by the USB cable, it willautomatically switch to the mobile HDD mode.The removable disc icon will appear on “My Computer”. Your photos are stored in the folder I:\jpg (I isremovable disc for this device) in the removable disc. And your videos are stored in the folder I:\video;Notice: No need to install drivers to run its mobile HDD function if your operating system is windows 2000 orabove.

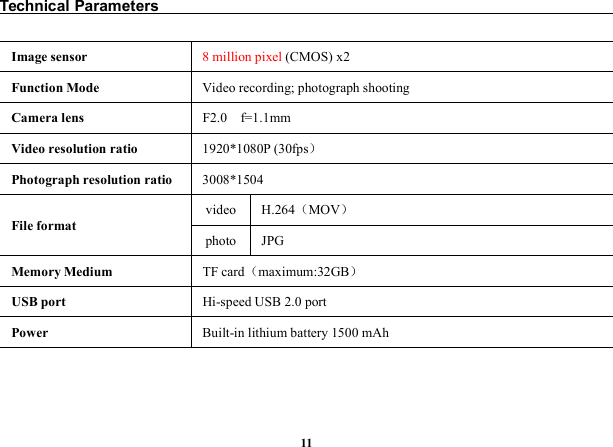

11Technical ParametersImage sensor 8 million pixel (CMOS) x2Function Mode Video recording; photograph shootingCamera lens F2.0 f=1.1mmVideo resolution ratio 1920*1080P (30fps）Photograph resolution ratio 3008*1504File formatvideo H.264（MOV）photo JPGMemory Medium TF card（maximum:32GB）USB port Hi-speed USB 2.0 portPower Built-in lithium battery 1500 mAh

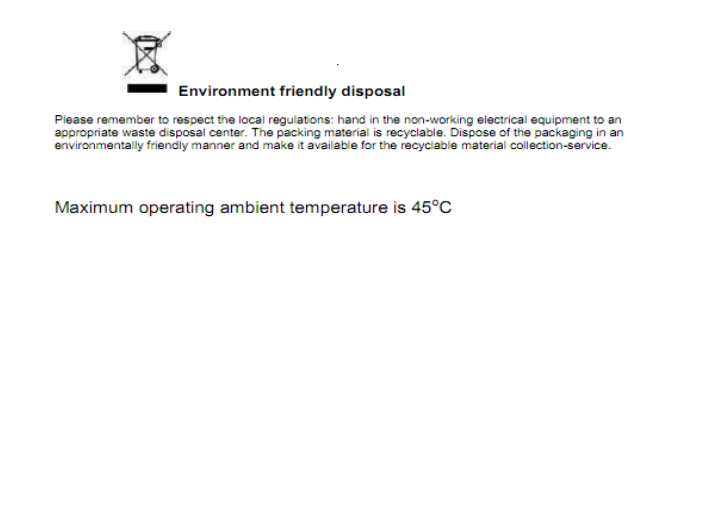

FCC Statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired operation. MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device. IC Statements: -English: This device complies with Industry Canada RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -French: Leprésent appareil est conforme aux CNR d'Industrie Canada applicable aux appareils radio Exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement."
