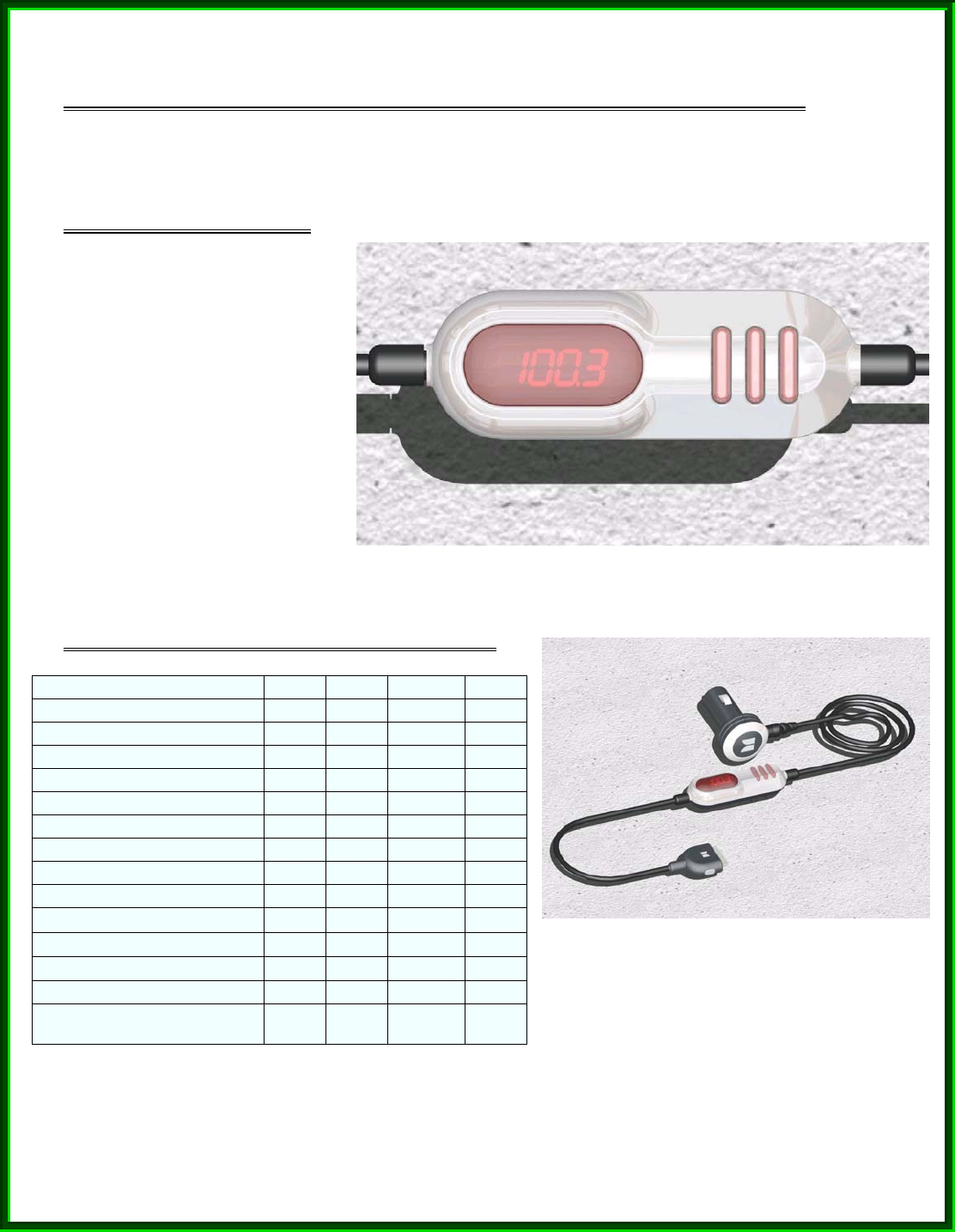

Monster Model # 169233-00 FM Stereo Full Spectrum Modulator Specifications
(FCC ID RJE169233-00)
2006 Monster LLC 7251 West Lake Mead Blvd Suite 342, Las Vegas NV, USA 89128 (415) 840-2000
Description
The Zune FM Stereo Full Spectrum Modulator provides a wireless audio link between the Microsoft Zune
digital music device and a vehicle FM stereo radio. It features a fully adjustable channel digital tuner with 3-
button control and a 3.5 digit LED display. It also includes a fast charger/power source for the Zune.
Features
♦ Digital tuner with crystal controlled
PLL
♦ 3 Memory frequency storage
locations
♦ 3.5 digit LED display with
brightness control
♦ Fully adjustable from 88.1 to
107.9MHz
♦ 3 button operation
♦ Microprocessor control
♦ Built-in antenna
♦ 10 to 30ft range
♦ High quality stereo audio
♦ Powered by 12V cigarette lighter
♦ Auto-reset fuse Control Unit
♦ FCC compliant
♦ Stylish design
Specifications
Parameter Min Typ Max Unit
Input Voltage 10 13.8 17 Vdc
Input Idle Current w/o Ipod 50 mA
Charger Output @ 0 mA 9.3 13.1 16.3 Volts
Charger Output @ 500mA 8.7 12.5 15.7 Volts
FM frequency 88.1 107.9 MHz
FM frequency steps 200 KHz
Stereo channel separation 25 40 dB
Audio frequency response 20 15K Hz
Signal distortion 0.5 %
Operating range 1 10 30 ft
Operating Temperature 0 50 °C
Storage Temperature -40 80 °C
Cable length iPod side 203 mm
Cable length cig. Lighter
side 660 mm
Apple and iPod are registered trademarks of Apple Corporation
