1. Scope:
The MONTEREY Keyboard K372 is 104/105 keys enhanced layout.
Especially with new key support for Microsoft Windows key. It is also
compatible with IBM PC AT or PS/2 and compatible personal computer.
2. Features:
² Fashion Styling
² 107/108 enhanced layout
² Mutifunction keys
² Microsoft Windows compatible
² IBM PC/AT, PS/2 compatible
² Laser engraved printing
² Compact low profile
3. Specification:
3.1 Electrical Specification
3.1.1. Power Requirement
Input Voltage: DC 4.75V to 5.25V
Input Current: 300 mA max.
3.1.2. Cable Connector

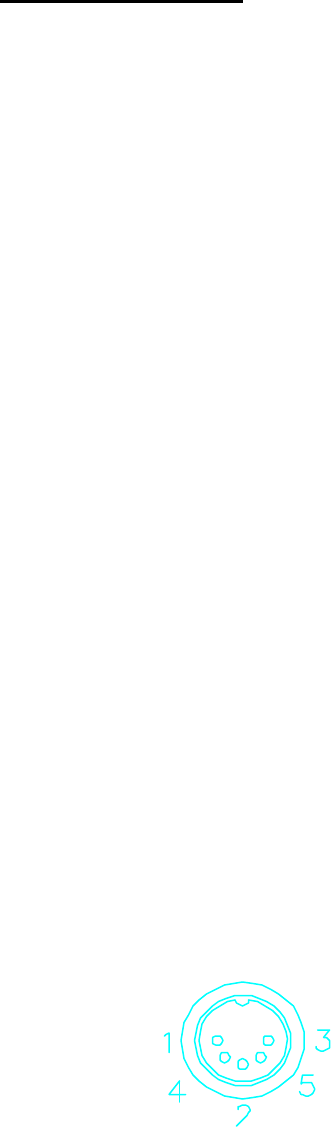

3.1.2.1 DIN standard 5 pin connector pin assignment
PIN SIGNAL
1Clock
2Data
3Reserve
4Ground
5VCC
Shield
Frame Ground
2
01/06/29
3.1.2.2 MINI DIN 6 pin connector pin assignment
PIN SIGNAL
1Data
2Reserve
3Ground
4VCC
5Clock
6Reserve
Shield Frame Ground
3.1.3. Contact Resistance : 500 ohm Max.
3.1.4. Insulation Resistance : 100 ohm, 250V DC
3.1.5. Bounce : ≦ 10 MilliSecond
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH
MODIFICATIIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
Designed to provide reasonable protection against harmful interference in a
Residential installation. This equipment generated, uses and can radiate radio
Frequency energy and, if not installed and used in accordance with the
Instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
Receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
