Monterey 46AK377 Keyboard User Manual

Monterey International Corporation Keyboard

users manual

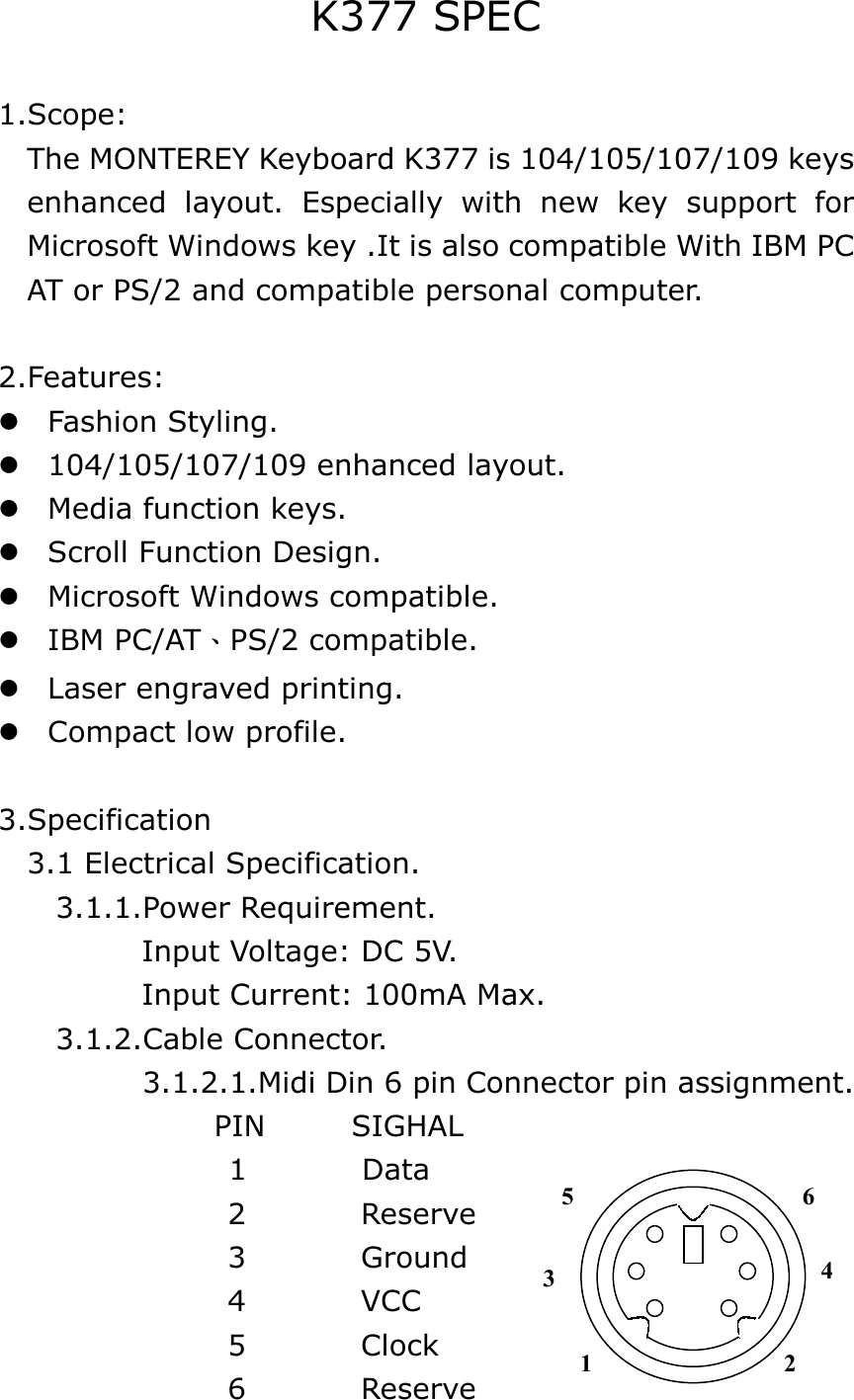

K377 SPEC 1.Scope: The MONTEREY Keyboard K377 is 104/105/107/109 keys enhanced layout. Especially with new key support for Microsoft Windows key .It is also compatible With IBM PC AT or PS/2 and compatible personal computer. 2.Features:  Fashion Styling.  104/105/107/109 enhanced layout.  Media function keys.  Scroll Function Design.  Microsoft Windows compatible.  IBM PC/AT、PS/2 compatible.  Laser engraved printing.  Compact low profile. 3.Specification 3.1 Electrical Specification. 3.1.1.Power Requirement. Input Voltage: DC 5V. Input Current: 100mA Max. 3.1.2.Cable Connector. 3.1.2.1.Midi Din 6 pin Connector pin assignment. PIN SIGHAL 1 Data 2 Reserve 3 Ground 4 VCC 5 Clock 6 Reserve 3 1 2 4 6 5

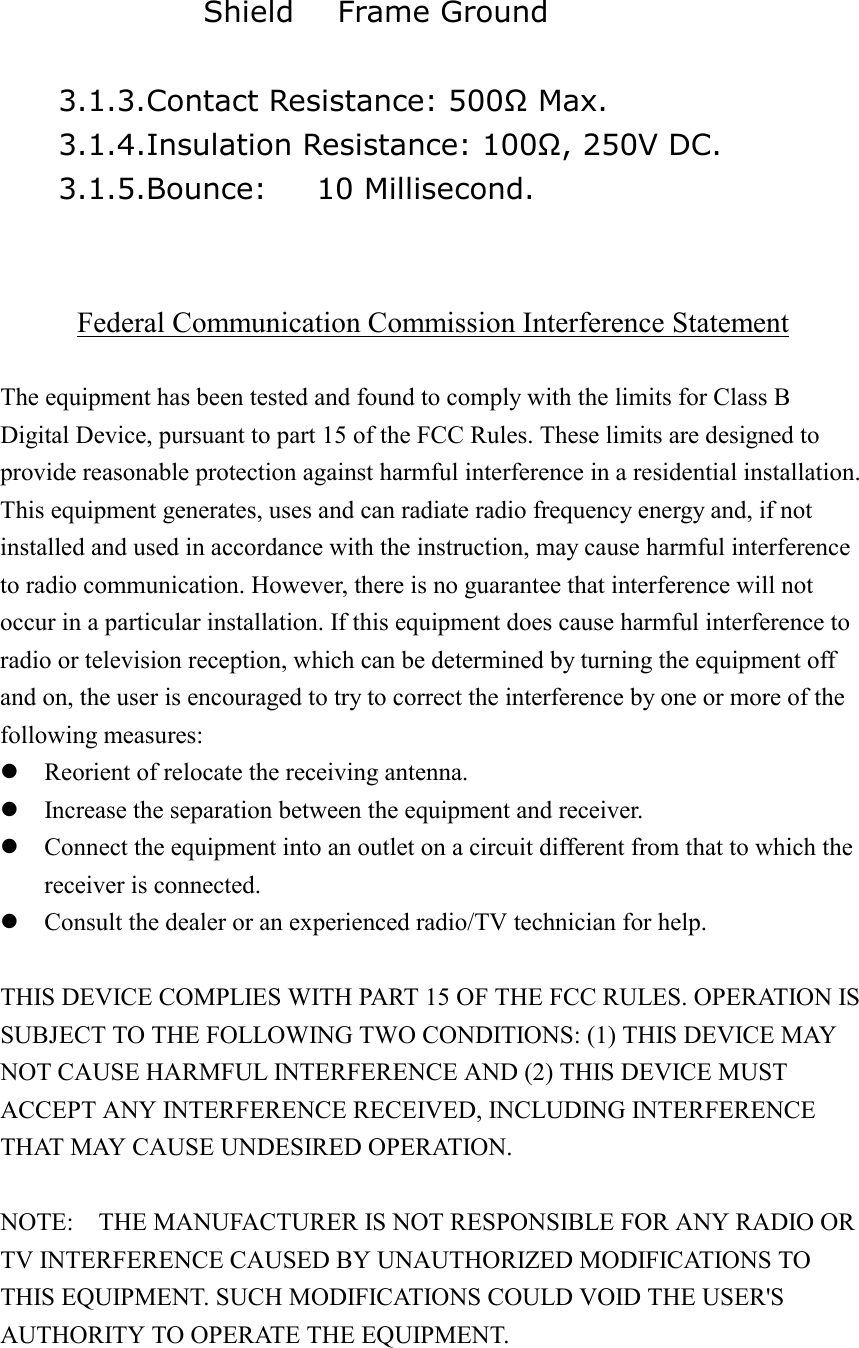

Shield Frame Ground 3.1.3.Contact Resistance: 500Ω Max. 3.1.4.Insulation Resistance: 100Ω, 250V DC. 3.1.5.Bounce:  10 Millisecond. Federal Communication Commission Interference Statement The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient of relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
