USER MANUAL
K7200 SPEC
1. Scope
The MONTEREY Keyboard K7200 is 104/105/106/107/109 key
enhanced layout. Especially with new key support for Microsoft
Windows key .It is also compatible With IBM PC AT or PS/2 and
compatible personal computer.
2. Features
2.1 Fashion Styling.
2.2 104/105/106/107/109 keys enhanced layout
2.3 Media function keys.
2.4 Microsoft Windows compatible.
2.5 IBM PC PS/2 compatible.
2.6 Laser engraved printing.
2.7 Compact low profile.
3. Specification
3.1 Electrical Specification
3.1.1.Power Requirement
Input Voltage: DC 5V
Input Current: 100mA Max
3.1.2.Cable Connector

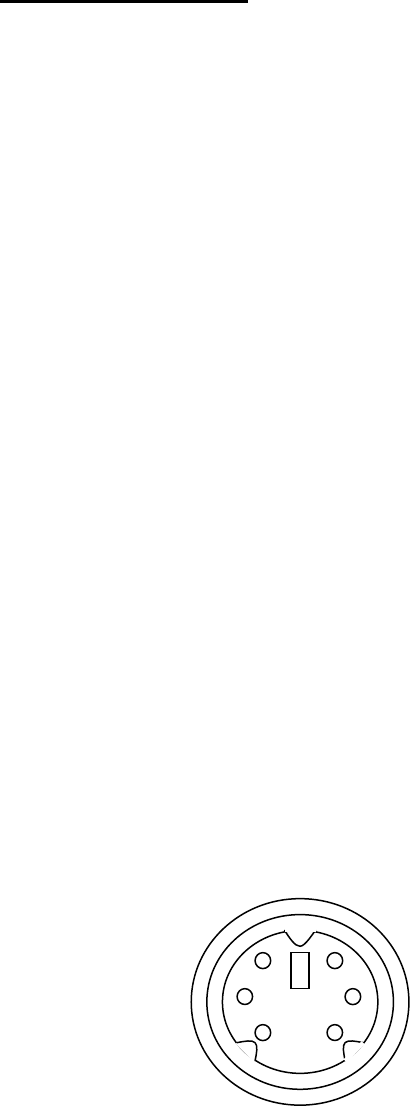

3.1.2.1.Midi Din 6 pin Connector pin assignment.
PIN SIGHAL
1 Data
2 Reserve
3 Ground
4 VCC
5 Clock
6 Reserve
Shield Frame Ground
3.1.3.Contact Resistance: 500Ω Max
3.1.4.Insulation Resistance: 100Ω, 250V DC
3.1.5.Bounce: 10 Millisecond≦
3
12
4
6 5
Federal Communication Commission Interference Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied power
cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
