Monterey 46AK7300 KEYBOARD User Manual K3200 PS2 English

Monterey International Corporation KEYBOARD K3200 PS2 English

USERS MANUAL

K7300 SPEC
1. Scope
The MONTEREY Keyboard K7300 is 104/105/106/107/109 key
enhanced layout. Especially with new key support for Microsoft
Windows key .It is also compatible With IBM PC AT or PS/2 and
compatible personal computer.
2. Features
2.1 Fashion Styling.
2.2 104/105/106/107/109 keys enhanced layout
2.3 Media function keys.
2.4 Microsoft Windows compatible.
2.5 IBM PC PS/2 compatible.
2.6 Laser engraved printing.
2.7 Compact low profile.
3. Specification
3.1 Electrical Specification
3.1.1.Power Requirement
Input Voltage: DC 5V
Input Current: 100mA Max
3.1.2.Cable Connector

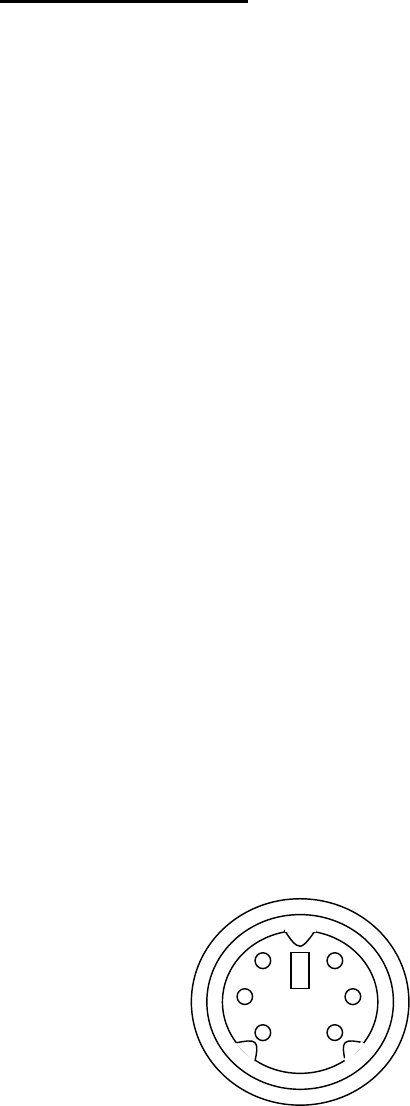

3.1.2.1.Midi Din 6 pin Connector pin assignment.
PIN SIGHAL
1 Data
2 Reserve
3 Ground
4 VCC
5 Clock
6 Reserve
Shield Frame Ground
3.1.3.Contact Resistance: 500Ω Max
3.1.4.Insulation Resistance: 100Ω, 250V DC
3.1.5.Bounce: 10 Millisecond≦
3
12
4
6 5
Federal Communication Commission Interference Statement
The equipment has been tested and found to comply with the limits for Class B Digital
Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
l Reorient of relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO 
OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. 
SUCH MODIFICATIONS
COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
