Motic China Group MOTICAMX Digital WI-FI Camera User Manual
Motic China Group Co.,Ltd Digital WI-FI Camera
User Manual
FCC ID: PVEMOTICAMX
This device complies with Part 15 of the FCC Rules
Updated: Nov. 2012
QUICK
START
GUIDE
Quick Start Guide
Thank you for purchasing this Moticam. This camera is a delicate instrument and should be
handled with care. When not in use, please store the camera in a safe place with the dust cap
attached. Do not let the camera get in cpntact with water or expose it to extreme tempertures
(below 0 or above 50 degrees Celsius). In order to receive the highest level of service, please
retain your receipt as proof of purchase and register your camera online at www.motic.com today.
Should you have any questions please do not hesitate to contact our customer service.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.

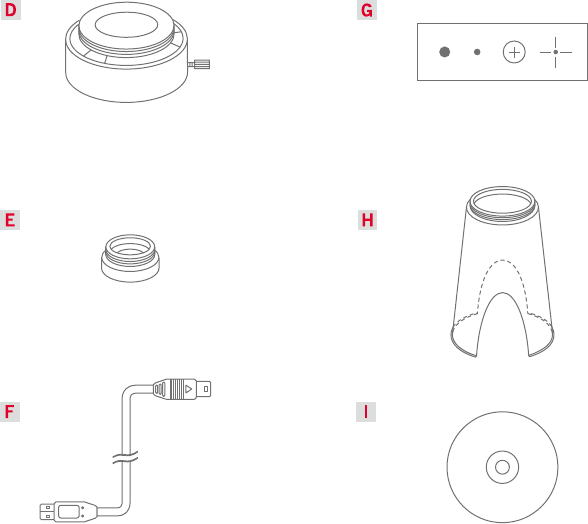

Motic software CD included
MotiConnect App for tablets downloadable
USB Cable and Charger
Motic software CD included
MotiConnect App for tablets downloadable
USB Cable and Charger
Connect to the Moticam X WiFi signal. Please see the following instructions.
Connect to the Moticam X WiFi signal. Please see the following instructions.
Connect to the Moticam X WiFi signal. Please see the following instructions.
Connect to the Moticam X WiFi signal. Please see the following instructions.
Connect to the Moticam X WiFi signal. Please see the following instructions.
Connect to the Moticam X WiFi signal. Please see the following instructions.
Connect to the Moticam X WiFi signal
1. Each Moticam X transmits its own WiFi signal. A further computer is not needed to
view live images of the Moticam X on your WiFi Devices.
2. For best performance, we recommend to use WiFi devices, such as tablets, with a
screen not smaller than 7 inches. For iOS devices we suggest using iOS 5 or higher
while for Android Devices we suggest using Version 4.0 or higher.
3. The Moticam X’s SSID signal name is printed on a label on the camera. To log into
your camera, simply connect your WiFi device to that signal. The password for the
Network by default is 12345678.
4. To operate and use the camera, please download our free App called MotiConnect
for iOS or Android devices.
5. You can also use certain web browsers such as Chrome, Firefox or Safari to view,
measure and capture without the need for the camera.
6. To view the camera stream on your browser, please type in the IP number also
shown on the label on the camera. For example 192.168.1.151. On your browser,
type 192.168.1.151:8080 and you will be connected straight to the camera.
7. The Moticam X can also be used with Motic Images Plus software for Windows
computers. If you have a WiFi enabled laptop, you can install Motic Images Plus
from the CD provided. To view the camera in our product’s MI Devices interface,
simply log your computer onto the Moticam X’s WiFi signal, then open the MI
Devices interface by clicking on the camera icon within Motic Images Plus and
select Moticam X from the drop down menu. Then click on Open.
FCC ID: PVEMOTICAMX
This device complies with Part 15 of the FCC Rules
Updated: Nov. 2012
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment。
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The antenna(s) used for this device must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.
