INSTRUCTION MANUAL
A preliminary draft of the User’s Manual follows this page.
The text on the following 140 pages will be added to the user manual.
APPLICANT: MOTOROLA,INC.
FCC ID: IHDP56HG1
EXHIBIT 8
1
HELLOMOTO
Introducing your new MOTO
RIZR
™ Z6c CDMA wireless phone!
Anywhere Entertainment
– Download and play V CAST music and videos on demand.
Smile for the Camera
– An easy to use 2 megapixel digital camera lets you take great quality pictures. Save
images on your phone or on a memory card. Or instead, make a mini-movie with the camcorder, if you prefer.
Connect on So Many Levels
– Whether it’s with work or friends, connect in a variety of ways – voice, messaging,
downloads, or swapping an optional memory card – you’ll be on top of all the latest news and views to share!
Handsfree Convenience
– Use your phone with Bluetooth® wireless headsets to hear calls or music.
2
Here’s a quick anatomy lesson.
Center Select Key
Open main menu & select menu items.
Right Soft Key
Clear/Back Key
Power/End Key
Turn on/off, hang up, exit menus.
Camera Key
Left Soft Key
Send Key
Make & answer calls.
Navigation Key
Scroll up, down, left, or right.
Push Bar
Push down to close slider.
Lock Key
Light Sensor
Automatically adjusts keypad
backlighting to conserve battery.
Microphone
3
}
Handsfree Speaker
(on back of phone)
Volume Keys
Set ring volume.
Smart/Seakerphone Key
Select menu items.
Push Bar
Push up to open slider.
Camera Lens
(on back of phone)
Lock Key
Lock the slider to prevent
accidental key presses, including
turning the power on/off.

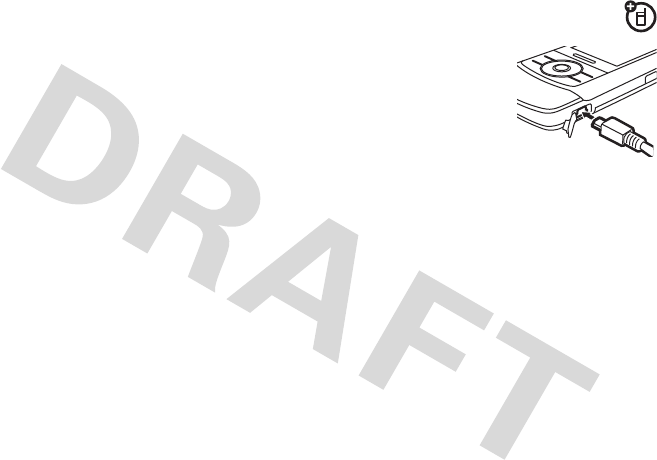

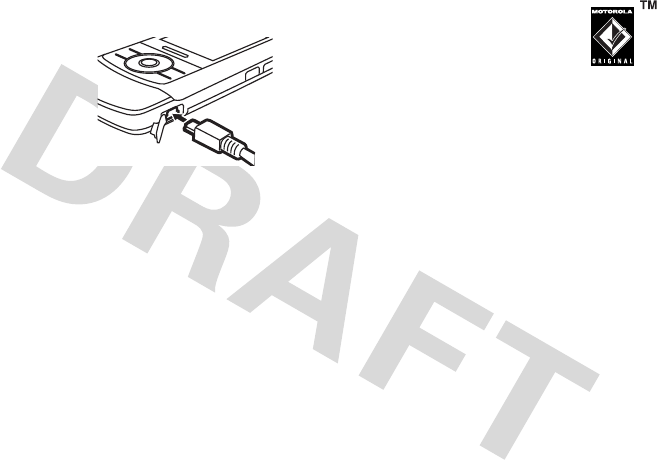

Mini-USB Port
Insert battery charger
& phone accessories.
Voice Command Key
Use voice commands to make
calls & perform basic phone
functions.
2.5mm Headset Jack

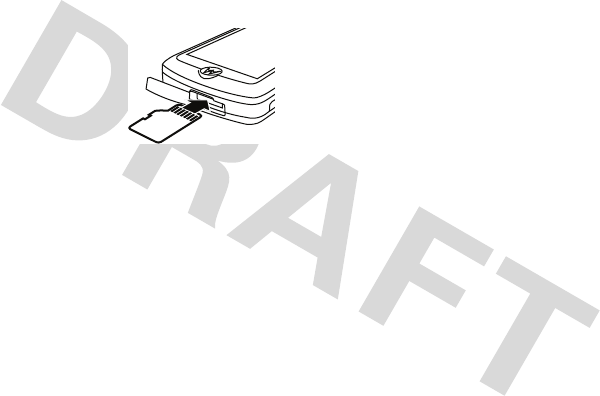

Memory Card Slot
(on top of phone)
>
Lock Alert
If lock appears when you try to turn on
your phone, use side lock key to
unlock the phone first.
g
Elbow Adapter
Included in box to
assist right-handed
users when phone is
connected to charger
or USB cable
4
N
N
b CONTACTS c
1. New Contact
2. Contact List
3. Groups
4. Speed Dials
B G HA D
Message
Contacts
Tue, Oct 23 12:45pm
MENU OK
1
❙❙❙
ò
❙❙❙
1X
EV
EV
1
❙❙❙
ò
❙❙❙
1X
EV
EV
Main Screen Contacts Menu

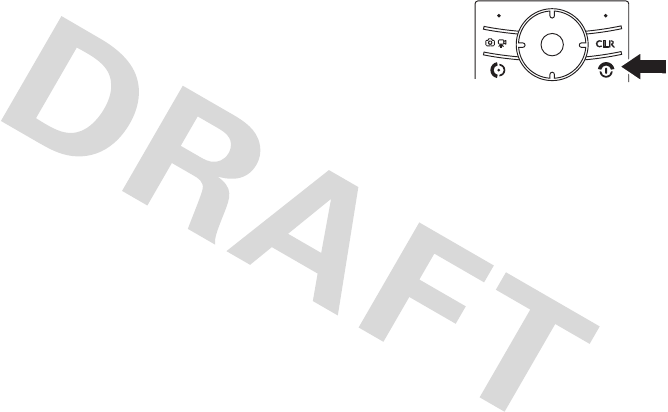

Press & hold the
Power/End Key
(
P
)
until the display
lights up, to turn on
your phone.
1
Press the
Center Select Key
(
s)
to select it.
4
Press the
Navigation Key
(
S)
up/down/left/right to
highlight a menu
feature.
3
Press the
Center
Select Key
(
s)
to open
the
Contacts Menu
.
2
5
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft and Windows are registered trademarks
of Microsoft Corporation; and Windows XP is a trademark of
Microsoft Corporation.
© Motorola, Inc., 2007.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 68095xxxxx-O
6
contents
contents
menu map . . . . . . . . . . . . . . . . 8
Use and Care . . . . . . . . . . . . . 10
essentials . . . . . . . . . . . . . . . . 11
about this guide . . . . . . . . . 11
Battery Use & Battery
Safety . . . . . . . . . . . . . . . . . 11
turn it on & off. . . . . . . . . . . 15
lock & unlock slider . . . . . . . 16
make a call . . . . . . . . . . . . . 16
answer a call . . . . . . . . . . . . 16
store a phone number . . . . 17
call a stored phone number 17
tips & tricks . . . . . . . . . . . . . . 18
basics . . . . . . . . . . . . . . . . . . . 19
main screen . . . . . . . . . . . . 19
enter text . . . . . . . . . . . . . . 22
adjust volume . . . . . . . . . . . 26
change sound settings . . . . 27
handsfree speaker. . . . . . . . 27
standalone mode . . . . . . . . 28
change lock code. . . . . . . . . 29
lock & unlock phone . . . . . . 30
manage memory. . . . . . . . . 31
TTY operation . . . . . . . . . . . 35
customize . . . . . . . . . . . . . . . . 37
sounds settings . . . . . . . . . . 37
get ringtones . . . . . . . . . . . . 39
talking phone settings . . . . . 40
answer options . . . . . . . . . . 40
wallpaper. . . . . . . . . . . . . . . 41
screensaver. . . . . . . . . . . . . 42
backlight . . . . . . . . . . . . . . . 43
brightness . . . . . . . . . . . . . . 43
AGPS & your location . . . . . 44
AGPS limitations & tips . . . . 44
calls . . . . . . . . . . . . . . . . . . . . . 46
redial a number . . . . . . . . . . 46
automatic redial . . . . . . . . . . 46
recent calls . . . . . . . . . . . . . 47
return missed calls . . . . . . . 48
speed dial . . . . . . . . . . . . . . 49
emergency calls . . . . . . . . . 50
AGPS during an
emergency call . . . . . . . . . . 50
voicemail . . . . . . . . . . . . . . . 51
in-call options. . . . . . . . . . . . 52
messages . . . . . . . . . . . . . . . . 53
send a multimedia
(picture/video) message . . . 53
receive a multimedia
(picture/video) message . . . 55
contents
7
connections . . . . . . . . . . . . . . 57
Bluetooth® connections . . . 57
cable connections . . . . . . . . 62
entertainment . . . . . . . . . . . . 63
get & play music . . . . . . . . . 63
record & play voice records. 77
record & play video clips . . . 78
take photos . . . . . . . . . . . . . 81
change camera orientation . 83
download pictures . . . . . . . . 84
other features. . . . . . . . . . . . . 85
advanced calling . . . . . . . . . 85
messages . . . . . . . . . . . . . . 86
contacts. . . . . . . . . . . . . . . . 89
personalizing . . . . . . . . . . . . 93
more personalizing features 99
call times & data volumes . 102
handsfree . . . . . . . . . . . . . 104
Bluetooth® wireless
connections. . . . . . . . . . . . 105
network . . . . . . . . . . . . . . . 107
personal organizer . . . . . . . 109
security . . . . . . . . . . . . . . . 112
fun & games . . . . . . . . . . . 113
service & repairs. . . . . . . . . . 116
SAR Data. . . . . . . . . . . . . . . . 117
Safety Information . . . . . . . . 120
Industry Canada Notice. . . . 124
FCC Notice . . . . . . . . . . . . . . 124
Warranty . . . . . . . . . . . . . . . . 125
Hearing Aids . . . . . . . . . . . . . 128
WHO Information . . . . . . . . . 129
Registration . . . . . . . . . . . . . 130
Export Law . . . . . . . . . . . . . . 130
Recycling Information . . . . . 131
Perchlorate Label . . . . . . . . . 131
Privacy and Data Security . . 132
Driving Safety . . . . . . . . . . . 133
index . . . . . . . . . . . . . . . . . . 135
8
menu map
menu map
main menu
B
GET IT NOW*
• Music & Tones
• Picture & Video
•Games
•News & Info
• Tools on the Go
• Extras
G
MESSAGING
• New Message
• Inbox
• Sent
•Drafts
•Voicemail
• E-mail*
• Mobile IM*
•Chat*
H
CONTACTS
• New Contact
• Contact List
• Groups
• Speed Dials
A
RECENT CALLS
•Missed
• Received
•Dialed
•All
•View Timers
D
SETTINGS & TOOLS
• (see next page)
* optional services
menu map
9
settings menu
My Account*
Tools
• Voice Commands
• Calculator
• Calendar
•Alarm Clock
• World Clock
• Notepad
Bluetooth Menu
• Add New Device
Sounds Settings
• Master Volume
• Call Sounds
• Alert Sounds
• Keypad Volume
• Service Alerts
• Power On/Off
• Talking Phone
* requires Mobile Web service
Display Settings
• Banner
• Backlight
• Brightness
• Wallpaper
• Screensaver
•Clock Format
• Camera Orientation
Phone Settings
• Standalone Mode
• Shortcut Keys
• Language
• Location
•Security
•System Select
•NAM Select
• Text Input
Call Settings
• Answer Options
• Auto Retry
• TTY Mode
• One Touch Dial
• Voice Privacy
• Call Restrictions
• DTMF Tones
Memory
• Save Options**
• Phone Memory
• Card Memory**
Phone Info
•My Number
•SW Version
• Icon Glossary
** available only when optional memory
card installed
10
Use and Care
Use and Care
Use and Ca re
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. If
it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
11
essentials
essentials
about this guide
Battery Use & Battery
Safety
• Motorola recommends you always use
Motorola-branded batteries and chargers.
The warranty does not cover damage caused
by non-Motorola batteries and/or chargers.
Caution:
Use of an unqualified battery or
charger may present a risk of fire, explosion,
leakage, or other hazard. Improper battery
symbols
This means a feature is
network/subscription dependent and may
not be available in all areas. Contact your
service provider for more information.
CAUTION:
Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
This means a feature requires an optional
accessory.
symbols
12
essentials
use, or use of a damaged battery, may result
in a fire, explosion, or other hazard.
•
Battery usage by children should be
supervised.
• Important:
Motorola mobile devices are
designed to work best with qualified batteries.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following
steps:
•
Remove the battery and inspect it to
confirm that it bears a Motorola “Original
Equipment” hologram;
•
If there is no hologram, the battery is not
a qualified battery;
•
If there is a hologram, replace the battery
and retry charging it;
•
If the message remains, contact a
Motorola Authorized Service Center.
•
New batteries or batteries stored for a long
time may take more time to charge.
• Charging precautions:
When charging your
battery, keep it near room temperature. Never
expose batteries to temperatures below 0°C
(32°F) or above 45°C (113°F) when charging.
Always take your mobile device with you
when you leave your vehicle
•
When storing your battery, keep it in a cool,
dry place.
•
It is normal over time for battery life to
decrease, and for the battery to exhibit shorter
runtime between charges or require more
frequent or longer charging times.
• Avoid damage to battery and mobile
device.
Do not disassemble, open, crush,
bend, deform, puncture, shred, or submerge
the battery or mobile device. Avoid dropping
the battery or mobile device, especially on a
13
essentials
hard surface. If your battery or mobile device
has been subjected to such damage, take it to
a Motorola Authorized Service Center before
using. Do
not
attempt to dry it with an
appliance or heat source, such as a hair dryer
or microwave oven.
• Use care when handling a charged
battery
—particularly when placing it inside a
pocket, purse, or other container with metal
objects. Contact with metal objects (such as
jewelry, keys, beaded chains) could complete
an electrical circuit (short circuit), causing the
battery to become very hot, which could
cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations. Contact
your local recycling center for proper battery disposal.
Warning:
Never dispose of batteries in a fire because
they may explode.
install the battery
12
34
14
essentials
charge the battery
New batteries are not
fully charged. Plug the
battery charger into
your phone and an
electrical outlet. Your
phone might take
several seconds to start
charging the battery.
If you are charging your phone while it is off, your
phone displays
Charge Complete
when finished. If you are
charging your phone while it is on, it displays a
temporary charge complete message, and the battery
symbol stops flashing when finished.
Tip:
Relax, you can’t overcharge your battery. It will
perform best after you fully charge and discharge it a
few times.
You can charge your battery by connecting
a cable from your phone’s mini-USB port
to a USB port on a computer. Both your
phone and the computer must be turned
on, and your computer must have the correct software
drivers installed. Cables and software drivers are
available in Motorola Original data kits, sold separately.
15
essentials
conserve battery charge
Using certain features can quickly deplete your
battery’s charge.
These features can include
downloading music, using the camera, replaying
video clips, and using Bluetooth® wireless
connections.
You can conserve your battery’s charge by doing the
following:
•
Turn Bluetooth power off when not in use (see
page 58).
•
Turn off wallpaper (see page 41) and
screensaver (see page 42).
•
Reduce backlight (see page 43).
turn it on & off
To turn on your
phone
, press and
hold the Power/End
key (
O
) until the
display turns on.
The phone may require several seconds to turn on. If
prompted, use the keypad to enter your four-digit
unlock code (which, by default, is the last four digits of
your phone number) and press the center select
key (
s
) (
OK
) to unlock the phone.
To turn off your phone
, press and hold the
Power/End key (
O
).
16
essentials
lock & unlock slider
You can lock your phone to keep from
accidentally pushing external keys
when the slider is closed. To lock the
phone, push the Lock Key up.
When the phone is
off and the
locked
, the phone will not turn on,
but will briefly display a white padlock
(
g
) to remind you that you have
locked the phone.
make a call
Open the slider, enter a phone number, and press the
Send key (
N
) to make a call.
To “hang up,” close the slider or press the Power/End
key (
O
).
Tip:
You can make a call with the slider closed. Select
a contact, then press the Send key (
N
) to call the
number.
answer a call
When your phone rings and/or vibrates, just open the
slider or press the Send key (
N
) to answer.
To “hang up,” press the Power/End key (
O
).
>
Side
Lock
Key
17
essentials
store a phone number
You can store a phone number in
Contacts
:
1
Use the keypad to enter a phone number in the
main screen and press the left soft key (
-
)
(
Save
).
2
Select
Create New Contact
by pressing the center
select key (
s
) (
OK
).
3
Use the navigation key to scroll to a type of entry
and press the center select key (
s
) (
OK
).
4
Use the keypad to enter a name and other details
for the phone number and press the center select
key (
s
) (
Save
) to store the number.
To edit or delete a
Contacts
entry, see page 90.
Tip:
You can set your phone to display a picture or play
a special ringtone for caller (see page 92).
call a stored phone
number
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the Contact List quickly.
2
Scroll to the
Contacts
entry.
3
Press the Send key (
N
) to call the entry.
18
tips & tricks
tips & tricks
From the main screen
(page 19), you can use the
following shortcuts:
To... Do this...
take a picture
Press the camera key (
b
) to
activate the camera.
make a video
clip
Press and hold the camera
(
b
)
key to activate
the camcorder.
play music
Press the smart/speakerphone
key (see page 2).
turn speaker-
phone on or off
Press and hold the
smart/speakerphone key
(see page 2).
see recent calls
Press the Send key (
N
).
open the
calendar
Press down on the navigation
key (
S
).
call voicemail
Press and hold
1
.
change
ring volume
Press the side volume keys
(see page 2).
use voice
commands
Press the voice command key
(see page 2). Then use the
on-screen prompts.
record voice
memos
Press and hold the voice
command key (see page 2).
To... Do this...
19
basics
basics
See page 2 for a basic phone diagram.
main screen
The main screen appears when you turn on the phone.
To dial a number from the main screen, press number
keys and the Send key (
N
).
Press the center select key (
s
) to open the main
menu. Soft key labels show current soft key functions.
(For soft key locations, see page 2.)
Tip:
You can quickly select a menu option by pressing
the number for that option. For example, from the
SETTINGS & TOOLS
menu, press
5
to select
Display Settings
.
Press up, down, left, or right on the navigation
key (
S
) to open these shortcuts:
1
N
❙❙❙
ò
❙❙❙
Right Soft Key
Label
Date & Time
Left Soft Key
Label
Message
Contacts
Tue, O ct 23 12:45pm
MENU
1X
EVEV
20
basics
Note:
These are the default main screen shortcuts. To
customize these shortcuts, see page 101.
You can set your phone to display or hide these menu
icons on the main screen (see page 101).
Your phone displays system status indicators:
navigation key direction & menu
up
LMobile Web
down
xCalendar
left
oMusic & Tones
right
BGET IT NOW
alert/indicator
0/J
Signal Strength
EVDO indicator shows when phone is in EVDO
coverage area (necessary for V CAST services). 1X
indicator shows when phone is in 1x-RTT coverage
area. The number of bars show the strength of each
signal.
2
Roaming
Indicates phone is roaming off your home network.
N
1
❙❙❙
ò
❙❙❙
1X
EVEV
System Status
Indicators
Message
Contacts
Tue, Oct 23 12:45pm
MENU
21
basics
5
SSL
Indicates application verification is via SSL during a
download session.
L
Data Call, Tethered, or Embedded
WAP/BREW Application
Shows during data call, tethered mode, or
WAP/BREW application.
M
Dormant
Indicates phone is dormant and PPP session is
active.
9
No Service
Phone is in area with no service coverage.
8
TTY
Phone is in TTY mode.
alert/indicator
t
Voice Call
Shows during an active voice call.
P
E911
Indicates
E911
is
On
.
O
Location On
Indicates
Location
is set to
On
.
N
Battery Level
Shows battery strength. The more bars, the greater
the charge.
n
All Sounds Off
Indicates
Master Volume
is set to
Off
.
o
Alarm Only
Indicates
Master Volume
is set to
Alarm Only
.
alert/indicator
22
basics
enter text
Some features allow you to enter text. This example
shows a
Contacts
entry screen:
r
Vibrate On
Indicates
Master Volume
is set to
Vibrate On
.
q
Speakerphone
Indicates speakerphone is on.
s
Missed Call
Indicates a call was missed.
g
Message
Shows when you receive a new message.
xCalendar Event
Shows number of calendar appointments.
y
New Voicemail
Shows when a voicemail message is received.
A
Alarm On
Shows when an alarm has been set.
alert/indicator
I
Bluetooth Connection Active
Indicates your phone is paired to another Bluetooth
device.
alert/indicator
N
SAVE
1
❙❙❙
ò
❙❙❙
1X
EVEV
Press the
navigation key
(S) to
scroll to more
options.
Press the center select key
(s) to save entry information.
Press the left
soft key (-) to
change entry
mode.
Highlighted
Option
First Name
John
x
Abc
Cancel
EDIT CONTACT
Mobile 1
Home
g
Last Name
Abc
23
basics
This example shows an entry screen for creating a
text message:
select entry mode
Multiple entry modes make it easy for you to enter
names, numbers, and messages. The default mode is
Abc
(tap mode, first character of a sentence in
uppercase).
To select an entry mode from the
CREATE TXT MESSAGE
screen
, press the left soft key (
-
) (
Abc
), then select
an entry mode.
To select an entry mode from the
CONTACT LIST
screen
,
press the left soft key (
-
) (
Edit
), and then press the
left soft key (
-
) (
Abc
).
When your cursor is in a text field, you can select one
of these entry modes:
Abc
Options
OK
Press the
right soft
key (+)
to view
Options
sub-menu.
Press the center select
key (s) to send message.
Press the left soft
key (-) to text
entry modes.
Cursor indicates
insertion point.
To:
0/160
CREATE TXT MSG
Text:
N
1
❙❙❙
ò
❙❙❙
1X
EVEV
entry modes
iTAP English
The phone predicts each word (in
English) as you press keys.
iTAP
Spanish
The phone predicts each word (in
Spanish) as you press keys.
Abc
Enter numbers and letters, first
character of a sentence in uppercase.
24
basics
Tip:
Press
*
in a text entry screen to toggle through
capitalization options:
tap mode
This is the standard mode for entering text on your
phone. Regular tap mode cycles through the letters,
numbers, and symbols of the key you press.
1
Press a key one or more times to select a letter,
number, or symbol.
2
Enter the remaining characters in the same way.
Tip:
Press
#
to enter a space.
When you enter text with tap mode, the soft key
functions change:
•
Press left or right on the navigation key (
S
)
to move the flashing cursor in a text message.
ABC
Enter numbers and letters, all characters
in uppercase (not available when editing
a contact).
123
Enter numbers only.
Symbols
Enter symbols.
abc
no uppercase letters
Abc
first letter of a sentence in uppercase
ABC
all uppercase letters
entry modes
N
Abc
Options
SEND
Character
displays at
insertion point.
To:
T
Press the left
soft key (-)
to change
the text
entry mode.
Press the
right
soft key
(+) to
open Options
menu.
Press the center select
key (s) to send message.
0/160
233-2233
CREATE TXT MSG
Text:
1
❙❙❙
ò
❙❙❙
1X
EVEV
25
basics
•
If you don’t want to save your text or text
edits, press the Power/End key (
O
) twice to
exit without saving.
iTAP® mode
iTAP software provides a predictive text entry method
that combines your key presses into common words.
When you enter three or more letters in a row, your
phone may guess the rest of the word. For example, if
you enter
prog
, your phone might show:
If you want a different word (such as progress),
continue pressing keys to enter the remaining letters.
If you enter a word the phone does not recognize, the
phone stores it as a new word option. When you fill
memory space for new word options, your phone
deletes the oldest words to add new ones.
•
Scroll up or down to view other possible
combinations, and select the one you want.
•
Press right on the navigation key (
S
) to enter
the highlighted combination when it spells a
word. A space is inserted automatically after
the word.
•
To enter numbers quickly, press and hold a
number key to temporarily switch to numeric
mode. Press the number keys to enter the
numbers you want.
•
Press
1
to enter punctuation or
other characters.
N
1
❙❙❙
ò
❙❙❙
1X
EVEV
Press the
navigation key
(S) right
to accept
program
.
Enter a space
after
prog
to keep
only
prog
.
To:
This is a prog ram
18/160
iTAPEn
Options
SEND
CREATE TXT MSG
Text:
233-2233
26
basics
numeric mode
After selecting numeric mode, press number keys to
enter the numbers you want. When you finish
entering numbers, press the left soft key (
-
) (
123
) to
switch to another entry mode.
symbol mode
After selecting the symbols mode, in the
SYMBOLS
screen, use the navigation key (
S
) to scroll to the
desired symbol and press the center select key (
s
)
(
OK
) to select it.
To search for additional symbols, press the right soft
key (
+
) (
Next
) to page down to the next set of
symbols. Press the left soft key (
-
) (
Prev
) to page up
to the previous set.
delete letters & words
Move the cursor to the right of the text you want to
delete, then:
•
Press and
release
B
to delete one letter at a
time.
•
Press and
hold
B
to delete an entire word.
adjust volume
Press the volume keys to:
•
turn off an incoming call alert
•
change the earpiece volume during calls with
the slider open
•
change the ringer volume from the main
screen (with slider open)
Tip:
Sometimes silence really is golden. That’s
why you can quickly set your ringer to
Vibrate
27
basics
Only
or
All Sounds Off
by holding the down volume
key while in the main screen.
change sound settings
Press the down volume
key to switch to lower
call sounds volume, then
switch to
Vibrate Only
, then
Alarm Only
, and, finally,
All
Sounds Off
. Press the up
volume key to cycle back from silent to vibrate and
then to the lowest call volume setting.
handsfree speaker
You can use your phone’s handsfree speaker to make
calls without holding the phone to your ear.
The handsfree speaker stays on until you press and
hold the smart/speakerphone key again or turn off the
phone.
Note:
The handsfree speaker won’t work when your
phone is connected to a handsfree car kit or headset.
slider open
To activate the
speakerphone
during a call
, press
and hold the smart/
speakerphone key.
You will hear an
audio alert and see the speakerphone indicator
q
.
Volume
Keys
Smart/
Speaker-
phone
Key
Volume
Keys
Smart/
Speaker-
phone
Key
28
basics
To end the call
, press the Power/End key (
O
). You
will hear an audio alert.
Note:
Closing the slider while using the speakerphone
does not end the call (see “slider closed” below).
To turn off the speakerphone
, press the
smart/speakerphone key, or press and hold the
Power/End key (
O
) to turn off the phone.
slider closed
1
Open the slider.
2
Press and hold the smart/speakerphone key to
turn on the speakerphone.
3
Enter the number you want to call and press the
Send key (
N
).
4
When the call connects, close the slider and
continue your conversation.
5
To end the call, press and hold the
smart/speakerphone key. You will see
Call Ended
and
hear an audio alert.
standalone mode
Note:
Consult airline staff about the use of
Standalone
Mode
in flight. Turn off your phone whenever instructed
to do so by airline staff.
Use standalone mode to turn off your phone’s calling
features in locations where wireless phone use is
prohibited.
You cannot make or receive calls or use
Bluetooth in standalone mode
, but you can use your
phone’s other non-calling features.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
29
basics
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Press center select key (
s
) to select
Standalone Mode
.
5
Select
On
and press the center select key (
s
)
(
OK
).
Your phone indicates that
Standalone Mode
is set to
On
by
displaying indicators and a message on the main
screen:
change lock code
Your phone’s four-digit
lock code
is originally set to the
last four digits of your phone number. To change lock
code:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Security
and press the center select
key (
s
) (
OK
).
5
When prompted, enter the lock code and press
the center select key (
s
) (
OK
).
6
Scroll to
Edit Code
and press the center select
key (
s
) (
OK
).
%OFF K
N
Standalone Mode
OK
30
basics
7
Enter the new four-digit lock code in the
New Code
entry area, then press down on the navigation key
(
S
) to move the cursor into the
Confirm Code
entry
area. Re-enter the new four-digit lock code.
8
Press the center select key (
s
) (
OK
).
lock & unlock phone
You can lock your phone to keep others from using it.
To lock or unlock your phone, you need the four-digit
lock code (which is originally set to the last four digits
of your phone number).
Note:
You can make emergency calls on a locked
phone (see page 50). A locked phone still rings or
vibrates for incoming calls or messages,
but you
need to unlock it to answer
.
To
manually lock
your phone:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Security
and press the center select
key (
s
) (
OK
).
5
When prompted, enter the lock code and press
the center select key (
s
) (
OK
).
6
Select
Lock Mode
by pressing the center select
key (
s
) (
OK
).
7
Scroll to
Lock
and press the center select key (
s
)
(
OK
).
To
automatically lock
your phone whenever you turn
it off:
1
Press the center select key (
s
) to open the
menu.
31
basics
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Security
and press the center select
key (
s
) (
OK
).
5
When prompted, enter the lock code and press
the center select key (
s
) (
OK
).
6
Select
Lock Mode
by pressing the center select
key (
s
) (
OK
).
7
Scroll to
On Power Up
and press the center select
key (
s
) (
OK
).
8
Press the Power/End key (
O
) to return to the
main screen.
To unlock the phone
, enter the four-digit lock code in
the
Enter Lock Code
entry area and press the center select
key (
s
) (
OK
).
Note:
You can lock the keys by using the switch on the
side of the phone. See page 16.
manage memory
You can store multimedia content such as songs and
photos on your phone’s internal memory or on a
removable microSD memory card.
Note:
If you download a copyrighted file to your phone
and store it on your memory card, you can use the file
only when your memory card is inserted in your
phone. You cannot send, copy, or change copyrighted
files.
32
basics
install memory card
1
Open the memory card slot cover on the top of
your phone.
2
With the gold contacts
up, slide the memory
card into the card slot
and press the card in
until it clicks.
3
Replace the memory
card slot cover.
Caution:
Do not remove your memory card while your
phone is using it or writing files to it.
To r e m o v e t h e
memory card
, lightly press the memory card once to
release it from the slot, and carefully slide it out.
set memory for multimedia
content
You can set whether multimedia content that you
download or create with your phone’s camera is
stored in phone memory or on the memory card.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Memory
and press the center select
key (
s
) (
OK
).
4
Scroll to
Save Options
and press the center select
key (
s
) (
OK
).
5
Scroll to
Pictures
,
Videos
, or
Sounds
, and press the
center select key (
s
) (
OK
).
6
Select
Phone Memory
or
Card Memory
and press the
center select key (
s
) (
OK
).
{
33
basics
view memory information
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Memory
and press the center select
key (
s
) (
OK
).
4
Select
Phone Memory
or
Card Memory
and press the
center select key (
s
) (
OK
).
5
Select
Phone Memory Usage
or
Card Memory Usage
;
My Pictures
,
My Videos
,
My Music
, or
My Sounds
; and press the center
select key (
s
) (
OK
).
move files from phone to memory
card
You can move files (such as photos, videos, sound,
and music files) to the memory card to free up phone
memory.
Note:
Moving a file to the memory card deletes it
from phone memory.
To move photos or video clips:
1
From the main screen, press right on the
navigation key (
S
) to open
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select key (
s
)
(
OK
).
3
Open the appropriate list (
My Pictures
or
My Videos
).
A memory card icon in the picture thumbnail or
next to a video file indicates that the file is stored
on the memory card.
34
basics
An
f
in the picture thumbnail indicates that the
came preloaded on your phone and
cannot be moved to the memory card
.
If the picture or video is not marked with a
memory card icon, it is stored on the phone.
4
Scroll to the file you want to move and press the
right soft key (
+
) (
Options
).
5
Select
Move
and press the center select key (
s
)
(
OK
).
6
When your phone asks if you want to move the
file, select
Yes
and press the center select
key (
s
) (
OK
) to confirm that you want to move
the file.
To move an audio clip that you recorded:
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Sounds
and press the center select key (
s
) (
OK
).
A memory card icon beside the file name of an
audio clip indicates that the audio clip is stored on
the memory card.
If the file name is not marked with a memory card
icon, the audio clip is stored on the phone.
3
Scroll to the file you want to move and press the
right soft key (
+
) (
Options
).
4
Select
Move
and press the center select key (
s
)
(
OK
).
Your phone asks if you want to move the file.
5
Select
Yes
and press the center select key (
s
)
(
OK
) to confirm that you want to move the file.
35
basics
TTY operation
You can use an optional teletypewriter (TTY) device
with your phone to send and receive calls. You must
plug the TTY device into the phone’s headset
connector and set the phone to operate in one of
three TTY modes.
Notes:
•
A TTY is a communication device used by
people who are hard of hearing or have a
speech impairment. TTY does not work from
mobile phone to mobile phone.
•
Use a TSB-121 compliant cable (provided by
the TTY manufacturer) to connect the TTY
device to your phone. Your phone has a
2.5mm jack.
•
Set the phone to Medium volume level for
proper operation. If you experience a high
number of incorrect characters, adjust the
volume as needed to minimize the error rate.
•
For optimal performance, your phone should
be at least 12 inches (30 centimeters) from the
TTY device. Placing the phone too close to the
TTY device may cause high error rates.
set TTY mode
ù
When you set your phone to a TTY mode, it
operates in that mode whenever a TTY device is
connected.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
) (
OK
).
36
basics
4
Select
TTY Mode
and press the center select
key (
s
) (
OK
).
TTY Mode
can include these options:
When your phone is in a TTY mode, your phone
displays the international TTY mode, the international
TTY symbol, and the mode setting during an active
TTY call.
return to voice mode
To return to standard voice mode, select
TTY OFF
from
the
TTY MODE
menu.
option
TTY Full
Transmit and receive TTY characters.
TTY + Talk
Receive TTY characters but transmit by
speaking into microphone.
TTY + Hear
Transmit TTY characters but receive by
listening to earpiece.
TTY Off
All TTY modes are turned off.
37
customize
customize
sounds settings
You can set how your phone alerts you to incoming
calls or other events.
master volume
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Select
Master Volume
by pressing the center select
key (
s
) (
OK
).
5
Press up or down on the navigation key (
S
) to
scroll to the desired setting:
High
,
Med High
,
Med
,
Med Low
,
Low
—Your phone rings for
incoming calls and other events, depending on
the detail settings.
Vibrate Only
—The phone vibrates to indicate an
incoming call.
Alarm Only
—Your phone plays an audible alarm to
alert you to events. You are not able to change
detail settings for events.
All Sounds Off
—The phone does not alert you to
incoming calls or other events.
6
With the desired setting highlighted, press the
center select key (
s
) (
SET
).
38
customize
7
Press the Power/End key (
O
) to return to the
main screen.
sounds for calls, events, & alerts
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
.
Set sounds for calls
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Select
Call Sounds
and press the center select
key (
s
) (
OK
).
5
Select
Call Ringtone
by pressing the center select
key (
s
) (
OK
), then scroll to a desired ringtone and
press the center select key (
s
) (
OK
).
Note:
Press the left soft key (
-
) (
Play
) to preview
the ringtone.
or
From
Call Sounds
, scroll to
Call Vibrate
and press the
center select key (
s
) (
OK
), then scroll to
On
or
Off
and press the center select key (
s
) (
OK
).
6
Press the Power/End key (
P
) to return to the
main screen.
Set sounds for events (such as incoming
messages) or alerts
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
39
customize
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Select
Alert Sounds
and press the center select
key (
s
) (
OK
).
5
Scroll to
TXT Message
,
Pic-Video Message
, or
Voicemail
, and
press the center select key (
s
) (
OK
).
6
Scroll to
Tone
and press the center select key (
s
)
(
OK
), then scroll to a desired ringtone and press
the center select key (
s
) (
OK
).
Note:
Press the left soft key (
-
) (
Play
) to preview
the ringtone.
or
From a
TXT Message
,
Pic-Video Message
, or
Voicemail
screen, scroll to
Vibrate
and press the center select
key (
s
) (
OK
), then scroll to
On
or
Off
and press the
center select key (
s
) (
OK
).
or
Scroll to
Reminder
and press the center select
key (
s
) (
OK
), then scroll to
Once
,
Every 2 Minutes
,
Every 15 Minutes
, or
Off
, and press the center select
key (
s
) (
OK
). (For all settings but
Off
, your phone
plays an audible beep at the interval you set.)
7
Press the Power/End key (
O
) to return to the
main screen.
get ringtones
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
Get New Ringtones
and press the center select
key (
s
) (
OK
).
3
On the
GET NEW RINGTONES
screen, select
Get New App
and press the center select key (
s
) (
OK
).
Your phone connects to the Get It Now site with
ringtone collections. Follow the prompts on the
40
customize
screen to browse ringtone lists and to select and
download a ringtone.
4
Press the Power/End key (
O
) to return to the
main screen.
Note:
Normal airtime and/or carrier usage charges
apply.
talking phone settings
You can set your phone to
speak aloud
when you
press keys, receive a call with caller ID available, or
scroll through recent calls or contacts:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Talking Phone
and press the center select
key (
s
) (
OK
).
5
Select
Keypad Digits
,
Contact List Entries
,
Recent Call Entries
, or
Caller ID Alert
and press the center select key (
s
)
(
OK
).
6
Select
On
and press the center select key (
s
)
(
OK
).
answer options
You can use different ways to answer an incoming call.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
) (
OK
).
41
customize
4
Select
Answer Options
and press the center select
key (
s
) (
OK
).
wallpaper
Set a photo, picture, or animation as a wallpaper
(background) image in your main screen:
Note:
To use a picture as wallpaper, it must be in your
phone’s memory and not on a memory card.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Wallpaper
and press the center select
key (
s
) (
OK
).
5
Scroll to a picture in
MY PICTURES
and press the
center select key (
s
) (
OK
).
or
options
Slide Open
Answer by opening the slider.
Any Key
Answer by pressing any key except
the Power/End key (
O
). Pressing
the Power/End key ignores the call.
Send Only
Answer by pressing the Send key
(
N
) only.
Auto with
Handsfree
Automatically answer incoming call
(works with headset, Bluetooth®
connections, and when phone is
operating in handsfree mode).
42
customize
Press
Options
, then select
Take New Picture
to take a
new photo to use as a wallpaper
or
select
Get New Pictures
to download a picture (see page 84).
6
Press the Power/End key (
O
) to return to the
main screen.
screensaver
Set a photo, picture, or animation as a screensaver for
your main screen
and
your phone’s display. The
screensaver appears only when the phone is being
charged.
Tip: To extend battery life, turn off the screensaver.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Screensaver
and press the center select
key (
s
) (
OK
).
5
Scroll to the picture in
MY PICTURES
, and press the
center select key (
s
) (
OK
).
or
Press the right soft key (
+
) (
Options
), then select
Take New Picture
to take a new photo to use as a
screensaver
or
select
Get New Pictures
to download a
picture (see page 84).
6
Press the Power/End key (
O
) to return to the
main screen.
43
customize
backlight
Set how long the backlights for the main screen and
the keypad remain on, or reduce backlight to extend
battery life:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Backlight
and press the center select
key (
s
) (
OK
).
5
Scroll to
Display
or
Keypad
and press the center select
key (
s
) (
OK
).
6
Select the desired duration or mode and press
the center select key (
s
) (
OK
).
brightness
Set the brightness of your main screen:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Select
Brightness
and press the center select
key (
s
) (
OK
).
5
Use the navigation key (
S
) to adjust the
brightness and press the center select key (
s
)
(
OK
).
44
customize
AGPS & your
location
Your phone can use the automatic location information
(ALI) feature, along with Assisted Global Positioning
System (AGPS) satellite signals, to tell the network
where you are physically located.
When ALI is set to
Location On
, your phone displays the
O
(ALI on) indicator. Services may use your known
location to provide useful information (for example,
driving directions, or the location of the nearest bank).
Your phone prompts you when the network or a
service asks for your location. You can refuse at this
point.
When ALI is set to
911 Only
, your phone displays the
P
(ALI off) indicator, and the phone does not send
location information unless you call the emergency
phone number (such as 911).
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Location
and press the center select
key (
s
) (
OK
).
5
Scroll to
Location On
or
911 Only
.
6
Press the center select key (
s
) (
OK
) to select the
setting.
AGPS limitations & tips
Your phone uses Assisted Global Positioning System
(AGPS) satellite signals to estimate your location. If
your phone cannot find strong satellite signals, your
AGPS might be slower, less accurate, or it might not
45
customize
work at all. AGPS provides only an approximate
location, often within 150 feet (45 meters) but
sometimes much farther from your actual location.
To improve AGPS accuracy:
•
Go outside and away from underground
locations, covered vehicles, structures with
metal or concrete roofs, tall buildings, and
foliage. Indoor performance might improve if
you move closer to window, but some
window sun-shielding films can block satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
might interfere with or block AGPS satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
might interfere with or block AGPS satellite
signals.
AGPS uses satellites controlled by the U.S.
government and subject to changes implemented in
accordance with the Department of Defense AGPS
user policy and the Federal Radio Navigation Plan.
These changes might affect AGPS performance.
46
calls
calls
To make and answer calls, see page 16.
redial a number
1
Press the Send key (
N
) to see the dialed calls
list.
2
Use the navigation key (
S
) to scroll to the entry
you want to call.
3
Press the Send key (
N
) to redial the number.
To redial a busy number
:
4
Press the Send key (
N
) from the main screen.
5
Use the navigation key (
S
) to scroll to the entry
you want to call.
6
Press the Send key (
N
).
automatic redial
When you receive a busy signal, your phone displays
Call Failed, Number Busy
.
With automatic redial, your phone automatically
redials the number for four minutes. When the call
goes through, your phone rings or vibrates once,
displays
Redial Successful
, and connects the call.
You must turn on automatic redial to use the feature:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
) (
OK
).
47
calls
4
Select
Auto Retry
and press the center select
key (
s
) (
OK
).
5
Select
On
and press the center select key (
s
)
(
OK
).
When automatic redial is turned off, you can manually
activate it to redial a number. When you hear a fast
busy signal and see
Call Failed
, press the Send key (
N
)
or
RETRY
to automatically redial.
recent calls
Your phone keeps lists of the calls you have received
and dialed, even if the calls didn’t connect. The most
recent calls are listed first. The oldest calls are deleted
as new calls are added.
Shortcut:
Press the Send key (
N
) from the main
screen to view the
All Calls
list.
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
Missed
,
Received
,
Dialed
, or
All
and press the
center select key (
s
) (
OK
) to select the list.
4
Scroll to an entry.
5
Press the Send key (
N
) to call the entry’s
number.
or
Press the left soft key (
-
) (
Message
) to send a
message to the entry’s number.
or
Press the center select key (
s
) (
OPEN
) to view
entry details.
or
Press the right soft key (
+
) (
Options
) to perform
other actions on the entry.
48
calls
The
Options
menu can include these options:
return missed calls
Your phone keeps a record of your missed calls, and
displays the
s
(missed call) indicator and
[Number] Missed Calls
.
1
When you see the missed call alert, select
View
Now
and press the center select key (
s
) (
OK
) to
see the missed calls list.
or
Select
View Later
and press the center select
key (
s
) (
OK
). The missed call indicator (
s
)
appears on the bottom of the main screen until
you view recent calls by pressing the Send
key (
N
).
2
Use the navigation key (
S
) to scroll to the call
you want to return.
3
Press the Send key (
N
) to make the call.
options
Save
Create or update a
Contacts
entry
for the call.
Details
View more details about
the entry.
Erase
Delete the selected entry (if the
entry is not locked).
Lock
Lock selected entry so it cannot
be erased.
Erase All
Delete all unlocked entries.
View Timers
Go to the
View Timers
screen to see
the length of each call.
49
calls
speed dial
Note:
Speed dial number 1 is already assigned to your
voice mail number.
To assign a speed dial number to an entry
:
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll to
Speed Dials
and press the center select key (
s
) (
OK
).
3
Scroll to an unassigned speed dial number and
press the center select key (
s
) (
SET
).
4
Scroll to a contact in the Contacts list and press
the center select key (
s
) (
OK
).
5
Select a number for that contact and press the
center select key (
s
) (
OK
).
6
Select
Yes
by pressing the center select key (
s
)
(
OK
).
To see an entry’s speed dial number
:
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the center select key (
s
) (
View
). The
speed dial number is displayed with the
U
icon.
To speed dial an entry
:
Call speed dial entries 1 through 9 by pressing and
holding the one-digit speed dial number for one
second.
For two-digit speed dial numbers, enter the first
number, then press and hold the second number for
one second.
50
calls
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911, that you can
call at any time, even when your phone is locked.
Note:
Check with your service provider, as emergency
numbers vary by country. Your phone may not work in
all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or
interference issues. Do not solely rely on your
wireless phone for essential communications such as
medical emergencies.
To make an emergency call:
Turn your phone on, exit
any open application such as games, dial the
emergency number, then press the Send key (
N
) to
call the emergency number.
AGPS during an
emergency call
When you make an emergency call, your phone can
use Assisted Global Positioning System (AGPS)
satellite signals to tell the emergency response center
your approximate location.
The AGPS feature has limitations, so always tell the
emergency response center your best knowledge of
your location. Remain on the phone for as long as the
emergency response center instructs you.
AGPS
might not work
for emergency calls:
•
Your phone’s AGPS feature must be turned on
(see page 44).
•
Your local emergency response center might
not process AGPS location information. For
details, contact your local authorities.
51
calls
For best results:
•
Go outside and away from underground
locations, covered vehicles, structures with
metal or concrete roofs, tall buildings, and
foliage. Indoor performance might improve if
you move closer to windows, but some
window sun shielding films can block satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
might interfere with or block AGPS satellite
signals.
If your phone cannot find strong AGPS satellite
signals, the location of the nearest cell tower in
contact with your phone is automatically provided to
the emergency response center.
voicemail
Your network stores the voicemail messages
you receive. When you
receive
a voicemail
message, your phone shows the voicemail message
indicator
y
.
Note:
Your service provider may include additional
information about using this feature.
Select
Listen Now
by pressing the center select key (
s
)
(
OK
) to dial voicemail.
or
Use the navigation key (
S
) to scroll to
Listen Later,
and
then press the center select key (
s
) (
OK
).
The voicemail message indicator (
y
) appears on the
bottom of the main screen until you listen to your
message.
To check voicemail messages later
, press and hold
1
to call your voicemail number.
52
calls
in-call options
During an active call, press
OPTIONS
to access these
options:
Note:
When you have a Bluetooth device connected
during a call, you may also see
Audio to Phone
and
Disconnect
Bluetooth
options. When you have TTY Mode on, you
may also see a
TTY Setup
option.
Messaging Main Menu
Contact List Notepad
Recent Calls Voice Record
Bluetooth Menu
53
messages
messages
send a multimedia
(picture/video)
message
A multimedia message contains embedded media
objects (possibly including photos, picture, sounds, or
voice records). You can send a multimedia message to
other Verizon Wireless multimedia messaging-capable
phones and to other email addresses.
create & send message
1
From the main screen, press the left soft key
(
-
) (
Message
) to open
GMESSAGING
.
2
Press center select key (
s
) to select
New Message
.
3
Use the navigation key (
S
) to scroll to
Picture Message
or
Video Message
and press the center
select key (
s
) (
OK
).
4
Press keypad keys to enter a phone number, then
press the center select key (
s
) (
OK
).
or
Press the right soft key (
+
) (
Add
) to select a
contact. Select
From Contacts
by pressing the center
select key (
s
). For each entry you want to add,
scroll to the entry and press the center select key
(
s
) (
MARK
). Press the left soft key (
-
) (
Done
)
when finished selecting entries.
or
54
messages
Press the right soft key (
+
) (
Add
) to select a
contact. Select
Recent Calls
and press the center
select key (
s
). For each entry you want to add,
scroll to the entry and press the center select key
(
s
) (
MARK
). Press the left soft key (
-
) (
Done
)
when finished selecting entries.
5
Scroll to the
Text
entry area and press keypad keys
to enter message text.
6
Scroll to the
entry area and press the left
soft key (
-
) (
Pics
).
or
Scroll to the
Video
entry box and press the left soft
key (
-
) (
Videos
).
7
Scroll to a picture and press the center select
key (
s
) (
OK
).
or
Scroll to a video clip and press the center select
key (
s
) (
OK
).
8
If sending a
message, scroll to the
Sound
entry area and press the left soft key (
-
)
(
Sounds
).Then scroll to a sound and press the
center select key (
s
) (
OK
).
9
Scroll to
Subject
.
10
Press keypad keys to enter the message subject.
or
Press the right soft key (
+
) (
Options
), scroll to
Add
Quick Text
and press the center select key (
s
) (
OK
).
Then select a
Quick Text
item as the message
subject.
11
Press the center select key (
s
) (
SEND
) to send
the message.
55
messages
message options
While creating a multimedia message, press the right
soft key (
+
) (
Options
) to select from the following
options:
receive a multimedia
(picture/video)
message
When you receive a multimedia message, your phone
displays a
NEW PIC/VIDEO MSG
notification, and plays an
alert sound.
To view the message immediately, scroll to
View Now
,
and press the center select key (
s
). To save it in
your
Inbox
to view later, scroll to
View Later
and press the
center select key (
s
).
option
Preview
View the current contents of the
message.
Save as Draft
Save the message to the
Drafts
folder.
Priority Level
Set to
High
or
Normal
.
Validity Period
Specify how long the message
stays in the
Outbox
folder.
Deferred Delivery
Send the message later at a time
and date that you set.
Remove Picture,
Remove Sound,
Remove Video
Remove a multimedia object
from the message.
Add Slide
Add a page to the message.
Cancel Msg
Cancel the message.
option
56
messages
To view messages in your Inbox:
1
From the main screen, press the left soft key
(
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Inbox
and
press the center select key (
s
) (
OK
).
3
Scroll to the desired message.
4
Press the center select key (
s
) (
Open
) to open
the message.
Multimedia messages that you receive can contain
different media objects:
•
Photos, pictures, and animations are displayed
as you read the message.
•
A sound file begins playing when its slide is
displayed. Use the volume keys to adjust the
volume as the sound file plays.
57
connections
connections
Bluetooth® connections
Your phone supports Bluetooth wireless connections.
You can connect your phone with a Bluetooth headset
or car kit to make handsfree calls.
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
Your phone currently supports the following profiles:
•
Headset
•
Handsfree
•
Dial Up Networking (DUN)
•
Serial Port Profile (SPP)
•
Advanced Audio Device Profile (A2DP—Stereo
Bluetooth Profile)
•
OBEX profiles—File Transfer Profile (FTP) and
Object Push Profile (OPP) for
device-generated content (image and video),
and vCard (OPP only)
For more information about Bluetooth wireless
connections supported by this device, go to FAQ
www.verizonwireless.com/bluetooth
.
For information about vehicle compatibility, go to
www.verizonwireless.com/bluetoothchart
.
Note:
All multimedia (video player, audio player,
shutter tone, V CAST) will play from the speakerphone
58
connections
when your phone is connected to another Bluetooth
device.
For maximum Bluetooth security
, you should
always connect Bluetooth devices in a safe, private
environment.
turn Bluetooth power on or off
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
) (
OK
).
4
Press the left soft key (
-
) to turn Bluetooth
power
On
or
Off
.
Note:
To extend battery life, use this procedure to set
Bluetooth power to
Off
when not in use. Your phone
will not connect to devices until you set Bluetooth
power back to
On
and connect your phone with the
device again.
pair with a headset, handsfree
device, or PC
Note: If you use your Motorola Bluetooth headset
with both an audio device and your phone, use
your phone’s Bluetooth menus to connect the
phone with the headset.
If you establish the
connection by pressing a button on the headset, or if
you allow the headset to connect automatically by
turning it on, you may experience unexpected results.
Before you try to connect your phone with another
Bluetooth device
, make sure your phone’s Bluetooth
power is
On
and the other device is in pairing or
bonding mode (see the user’s guide for the device).
You can connect your phone with only one device at a
time.
59
connections
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
) (
OK
).
4
Scroll to
Add New Device
and press the center select
key (
s
) (
OK
).
Note:
If your Bluetooth power is not turned on, your
phone will prompt you to turn it on.
Your phone lists the devices it finds within range. If
your phone is already connected to a device, your
phone identifies that device with a
I
(in-use)
indicator.
5
Scroll to a device in the list.
6
Press the center select key (
s
) (
Pair
) to connect
to the device.
7
If the device requests permission to bond with
your phone, press the center select key (
s
) (
YES
)
and enter the device PIN code to create a secure
connection with the device. (The PIN code is
typically set to 0000).
Note:
See the instructions that came with your
device for the device PIN code and other
information about the device.
When the connection is made, the Bluetooth indicator
I
or a
Bluetooth
message displays in the main screen.
Tip:
When Bluetooth power is on, your phone can
automatically connect to a handsfree device you have
used before. Just turn on the device or move it near
the phone.
60
connections
transfer files
You can use a Bluetooth connection to transfer files
between your computer and phone.
Note:
Your computer’s Bluetooth interface may be
different.
1
Pair your phone and computer (see “pair with a
headset, handsfree device, or PC”) and place
your phone in discoverable mode.
2 On your computer
, right-click the Bluetooth icon
in your System Tray.
3
Select “Send a File.”
4
Click “Browse” to locate your phone name, and
then click “Next.”
5
Click “Browse” to locate the file you want to
transfer, and then click “Next.”
6 On your phone
, when prompted, press the
center select key (
s
) (
ACCEPT
) to accept the file
transfer.
7
When you are finished transferring files, press the
Power/End key (
O
) on your phone to close the
connection.
Note:
Breaking the link with your computer does not
turn off Bluetooth power on your phone. You might
want to turn Bluetooth power off to conserve battery
charge.
connect with another phone
You can use a Bluetooth connection to transfer a
contact or file to another phone.
To transfer a contact to another phone
:
Note:
Make sure the phone receiving the entry has
Bluetooth power on and is in Find Me mode. The
receiving device must also be capable of receiving a
vCard. Not all Bluetooth devices have this capability.
61
connections
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
you want to transfer and press the right soft key
(
+
) (
Options
).
3
Scroll to
Send Name Card
and press the center select
key (
s
) (
OK
).
4
Scroll to
Bluetooth
and press the center select key
(
s
) (
OK
).
5
Press the center select key (
s
) (
SEND
).
6
Scroll to
[Add New Device]
or scroll to the device that
you want and press the center select key (
s
)
(
OK
).
Note:
If your phone does not already have Bluetooth
power turned on, it prompts you to turn it on.
7
If prompted, enter the default PIN code
0000
or
accept the transfer.
When the phones connect, and the sending phone
begins the transfer. The receiving phone is prompted
to accept the transfer. When the receiving phone
accepts the transfer, the entry transfers.
To transfer a file to another phone
:
Note:
Make sure the phone receiving the file has
Bluetooth power on and is in Find Me mode. The
receiving phone must be capable of receiving the
file type.
1
On your phone, select the file (such as a picture,
video, or sound) you want to transfer and press
the right soft key (
+
)(
Options
).
2
Use the navigation key (
S
) to scroll to
Send
and
press the center select key (
s
) (
OK
).
3
Scroll to
Bluetooth
and press the center select key
(
s
) (
OK
).
62
connections
4
Scroll to
[Add New Device]
or scroll to the device that
you want and press the center select key (
s
)
(
OK
).
Note:
If your phone does not already have Bluetooth
power turned on, it prompts you to turn it on.
5
When your phone prompts you to confirm that
you want to send the file, select
Yes
by pressing
the center select key (
s
) (
OK
).
6
If prompted, enter the default PIN code
0000
or
accept the transfer.
When the phones connect, and the sending phone
begins the transfer. The receiving phone is prompted
to accept the transfer. When the receiving phone
accepts the transfer, the file transfers.
cable connections
Your phone has a mini-USB
port so you can connect it to a
computer.
•
You must use the
cables in the Motorola
Original™ data kit (see the data kit user’s
guide for more information).
•
Connect the phone to a high-power USB port
on your computer (not a low-power one such
as the USB port on your keyboard or
bus-powered USB hub). Typically, USB
high-power ports are on your computer.
Note:
If you connect your phone to a
low-power USB port, the computer may not
recognize your phone.
•
Make sure both your phone and the computer
are turned on.
63
entertainment
entertainment
get & play music
Use the
Music & Tones
menu to:
•
get new music and tones
•
play music in your
MUSIC LIBRARY
•
record new sounds
•
set music or tones as your ringtone
Tip:
Get to
Music & Tones
quickly by pressing the
navigation key (
S
) left from the main screen (see
page 19).
download V CAST music
directly to phone
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Select
VCAST Music
by pressing the center select
key (
s
) (
OK
).
Note:
Your phone must be in an EVDO coverage area
to download music. If you are in an EVDO coverage
area, your phone displays the EV symbol with at least
one signal strength bar in the status area of the screen
(see page 19).
3
Browse or search the catalog to find the songs
you want.
64
entertainment
To preview a song, highlight the song and then
press the left soft key (
-
) (
Preview
).
4
To buy a song, highlight the song and select the
center select key (
s
) (
Buy
).
After you press
Buy
your phone shows song
details and price.
5
Press the center select key (
s
) (
BUY
) to confirm
your selection.
6
When you see a confirmation that your purchase
was successful and your music is available for
download, press the center select key (
s
) (
OK
)
to continue, or press the left soft key (
-
) to
download later.
7
When prompted to select a storage location,
scroll to
Phone Memory
or
Memory Card
and press the
center select key (
s
) to begin downloading.
Your phone displays a status indicator. After
downloading, you must wait for the phone to
acquire the content license.
8
Press the right soft key (
+
) (
Play
) to play the
downloaded song immediately.
or
Press the left soft key (
-
) (
Library
) to go to the
MUSIC LIBRARY
.
or
Press the center select key (
s
) (
OK
) to return to
the previously viewed music catalog.
transfer music from a
computer
You can transfer songs from a computer to your phone
with a USB cable connection. You can purchase these
songs from the V CAST Music Store or import them
from your CD collection.
65
entertainment
computer system requirements
To access the V CAST Music Store from a computer or
to transfer music from a computer to your phone, you
need the Windows® XP operating system, Windows
Media Player 10 or later version, and an active internet
connection.
If you have the Windows XP operating system and an
internet connection, you can download Windows
Media Player 10. From your computer’s Web browser,
go to
http://www.microsoft.com
.
buy music from V CAST Music Store
1
On your computer, launch Windows Media Player.
2
In the Windows Media Player window, select the
“V CAST Music” option.
3
Click on the “Log In” button, then log in by
entering your mobile phone number and
password.
If you have not registered yet, click on the
“Register” button, then follow the instructions to
register and get your password.
4
Browse or search the store to find the songs you
want.
To preview a song, click on the headset icon next
to the song title.
5
To buy a song, click on the “Purchase” or “Buy”
button next to the song title.
6
Repeat steps 4 and 5 to add more songs to your
shopping cart.
7
When you finish shopping, click on “MY
PURCHASES,” then follow the on-screen
instructions to complete your purchase(s) and
download the song(s) you have purchased.
Downloading can take several minutes. When
downloading is complete, click on the “Library” tab in
66
entertainment
the Windows Media Player window to see the songs
you purchased.
To transfer the songs to your phone, see “transfer
songs to your phone” on page 66.
import songs from an audio CD
1
On your computer, launch the Windows Media
Player.
2
Insert an audio CD into your computer’s CD ROM
drive.
3
Click on the “Rip” tab in the Windows Media
Player window.
4
Highlight the songs you want to import and click
on the “Rip Music” icon.
The songs are imported to the Windows Media
Player Library.
To transfer the songs to your phone, see “transfer
songs to your phone” on page 66.
If you do not see the songs you downloaded in the
Windows Media Player Library
:
1
On your computer, launch Windows Explorer.
2
In the Windows Explorer window, open the My
Documents folder, then open the My Music folder
and look for the songs you downloaded.
3
Right-click on each song and select “Add To Now
Playing List.”
The song will be added to the Windows Media
Player Library.
transfer songs to your phone
1 On your computer
, launch Windows Media
Player.
2 On your computer
, click on the “Library” tab in
the Windows Media Player window.
3 On your computer
:
67
entertainment
• If using Windows Media Player 10
, click on
the “Select list options” selection (to the right
of “Library Options”) in the Windows Media
Player window. Then select “Sync List” from
the pull-down menu.
• If using Windows Media Player 11
, click on
the “Sync” tab in the Windows Media Player
window.
4 On your computer
, drag the desired song(s)
from the Library to the Sync list in the Windows
Media Player window.
5
Connect the USB cable to your phone and to an
available USB port on your computer.
If this is the first time you have connected the
phone to a computer with a USB cable, additional
software drivers may be installed. (For more
information on using a USB cable connection, see
page 62.)
6 On your phone
from the main screen, press left
on the navigation key (
S
) to access
Music &Tones
.
7
Use the navigation key (
S
) to scroll to
Sync Music
and press the center select key (
s
) (
OK
).
Wait until the phone display shows
Connected
. (This
can take 30-60 seconds.)
8 On your computer
, click on the “Start Sync”
icon in the Windows Media Player window.
9 On your phone
, wait until the transfer is
complete, then press the Power/End key (
O
).
10
Disconnect the cable from the phone and the
computer.
You can now use your phone’s music player to play the
songs you transferred from your computer.
68
entertainment
play music—slider open
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
) (
OK
).
3
Use the navigation key (
S
) to scroll to a
category and press the center select key (
s
)
(
OK
).
4
Use the navigation key (
S
) to scroll to a song
and press the center select key (
s
) (
PLAY
) to
play it.
The
HOME
,
SEARCH
, and
HELP
options appear on all screens
in the Music Library.
The
Music Library
includes these options:
1. Genres
MUSIC LIBRARY
2. Artists
4. Songs
6. Inbox
8. Shuffle
3. Albums
5. Playlists
7. Play All
CatalogSync
OK
HOME SEARCH HELP
N
P
0
❙❙❙
Press left soft key to
download music from
V CAST Music
catalog.
Press right soft key to
synchronize
MUSIC LIBRARY
with digital music library
on another device.
Return to
MUSIC LIBRARY
screen.
View help
information.
Find music on phone
by artist, album,or
song title.
1X
EV
option
Genres
Find & play music from a specific genre
(type of music) such as rock, jazz, or
blues.
Artists
Find & play music by a specific artist.
69
entertainment
•
Press
B
from any Music Library screen to
return to the previous screen.
•
Press the Power/End key (
O
) from any
Music Library screen to return to the main
screen.
•
On screens that show a list of items (for
example, album titles), enter letters in the
Go To
area to jump directly to items beginning with
those letters.
music player controls
Use these keys to control the music player during
song playback
when the slider is open
:
Albums
Find & play music from a specific album.
Note:
Even if you have only one song
from an album, you will see a listing for
that album.
Songs
Find & play specific songs.
Playlists
Play songs from personalized playlists
that you create.
Inbox
View alert notifications received when
new music from a selected artist is
available for download.
Play All
Play all songs in the Music Library in list
order.
Shuffle
Play songs in the Music Library in
random order.
option
controls with slider open
pause/play
To pause, press &
release
the
center select key (
s
).
To resume play, press the
center select key (
s
) again.
fast forward
Press &
hold
the navigation key
(
S
)
right
.
70
entertainment
play an album
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
) (
OK
).
3
Select
Genres
,
Artists
, or
Albums
.
Note:
When you select an album from any genre,
artist, or album category, you can press the right soft
key (
+
) (
Options
) to select from these options:
skip to next
song
Press &
release
the navigation
key (
S
)
right
.
rewind
Press &
hold
the navigation key
(
S
)
left
.
skip back to
previous song
Within first two seconds of
song, press &
release
the
navigation key (
S
)
left
.
return to song
beginning
After first two seconds of song,
press &
release
the navigation
key (
S
)
left
.
turn off music
player
Press the Power/End key (
O
).
controls with slider open
option
Play album
Play the selected album, beginning
with the first song.
Erase album
Remove the selected album from the
Music Library.
71
entertainment
From the
GENRES
screen
:
1
Select the
genre
you want by pressing the center
select key (
s
) (
OK
).
2
Scroll to the
artist
you want and press the center
select key (
s
) (
OK
).
3
Scroll to the
album
you want to play and press
Options
.
4
Select
Play album
by pressing the center select
key (
s
) (
OK
).
(See below for other
OPTIONS
menu selections.)
From the
ARTISTS
screen
:
1
Use the navigation key (
S
) to scroll to the
artist
you want and press the center select key (
s
)
(
OK
).
2
Scroll to the
album
you want to play and press
Options
.
3
Select
Play album
by pressing the center select
key (
s
) (
OK
).
From the
ALBUMS
screen
:
1
Use the navigation key (
S
) to scroll to the
album
you want.
2
Select
Play album
by pressing the center select
key (
s
) (
OK
).
play a song
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
Reinitialize
Library
Database
Under normal conditions, the Music
Library is maintained automatically. If
the library behaves unexpectedly,
use this option to reinitialize it. This
option deletes the existing library and
creates a new one that contains all
currently installed music.
option
72
entertainment
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
) (
OK
).
3
Select
Genres
,
Artists
,
Albums
. or
Songs
.
From the
GENRES
screen
:
1
Use the navigation key (
S
) to scroll to the
genre
you want and press the center select key (
s
)
(
OK
).
2
Scroll to the
artist
you want and press the center
select key (
s
) (
OK
).
3
Scroll to the
album
you want and press the
center select key (
s
) (
OK
).
4
Scroll to the
song
you want to play and press the
center select key (
s
) (
Play
). (The song plays only
once.)
or
Press the right soft key (
+
) (
Options
) to select
another option (see page 74).
From the
ARTISTS
screen
:
1
Use the navigation key (
S
) to scroll to the
artist
you want and press the center select key (
s
)
(
OK
).
2
Scroll to the
album
you want and press the
center select key (
s
) (
OK
).
3
Scroll to the song you want to play and press
Play
(
s
). (The song plays only once, followed by
the next song in the list.)
or
Press the right soft key (
+
) (
Options
) to select
another option (see page 74).
From the
ALBUMS
screen
:
1
Use the navigation key (
S
) to scroll to the
album
you want and press the center select
key (
s
) (
OK
).
73
entertainment
2
Scroll to the song you want to play and press the
center select key (
s
) (
Play
). (The song plays only
once, followed by the next song in the list.)
or
Press the right soft key (
+
) (
Options
) to select
another option (see page 74).
From the
SONGS
screen
:
Use the navigation key (
S
) to scroll to the song you
want to play and press the center select key (
s
)
(
Play
). (The song plays only once, followed by the next
song in the list.)
or
Press the right soft key (
+
) (
Options
) to select another
option (see page 74).
play all songs on phone
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
) (
OK
).
3
Scroll to
Play All
and press the center select
key (
s
) (
OK
).
play music from a playlist
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
) (
OK
).
3
Scroll to
Playlists
and press the center select
key (
s
) (
OK
).
To play an entire playlist
, scroll to the playlist you
want, press the center select key (
s
) (
OK
), and then
74
entertainment
press the center select key (
s
) (
Play
) to start the first
song. The music player plays all songs in that playlist.
or
Press right soft key (
+
) (
Options
), then select
Play playlist
by pressing the center select key (
s
)(
OK
).
To play a song from a playlist
, scroll to the playlist
you want and press the center select key (
s
) (
OK
),
then scroll to the song you want to play and press the
center select key (
s
) (
Play
).
music library options menus
When you scroll to a song
and press
Options
, your
phone displays these options:
When you press
Options
while a song is playing
, your
phone displays these options:
option
Add To Playlist
Add the selected song to a playlist.
Move Song
Move the song from the memory
card to the phone or from the phone
to the card.
Erase Song
Delete the selected song.
Song Info
View the following information for
the song: title, artist, album title,
genre, copyright year, duration, and
track number (if available).
Reinitialize
Library
Database
Under normal conditions, the Music
Library is maintained automatically. If
the library behaves unexpectedly,
use this option to reinitialize it. This
option deletes the existing library and
creates a new one that contains all
currently installed music.
option
75
entertainment
Note:
The song is paused when you press
Options
.
play music—slider closed
To activate the music player or to resume playback
while the slider is closed
, press and hold the
smart/speakerphone key.
The music player begins playback in
Play All
mode (see
page 75).
listening tips
When you’re on the go, you can listen to your music
through a wired headset with a 2.5mm headset jack,
an EMU (Enhanced Mini USB) connector, or by using
Bluetooth
®
A2DP stereo headphones (see page 58).
Note:
You cannot charge your phone when an EMU
headset is connected.
When the phone’s slider is open and you are not using
a wired or wireless headset, music is played through
the phone’s speaker.
create a playlist
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Music
and press the center select key (
s
) (
OK
).
option
Play All
Play all songs in the Music Library in
list order.
Shuffle
Play songs in the Music Library in
random order.
Get V CAST
Music
Connect to the V CAST Music catalog
to download more songs.
Buy music by
artist
Connect to the V CAST Music catalog
and go directly to a list of music
available by the artist performing the
current song.
76
entertainment
3
Scroll to
Playlists
and press the center select
key (
s
)(
OK
).
4
If playlists already exist, press the right soft key
(
+
) (
Options
), then scroll to
Create playlist
and press
the center select key (
s
)(
OK
).
or
If no playlists exist, press the right soft key (
+
)
(
Create
).
5
Use the keypad to enter a title for the playlist on
the
CREATE PLAYLIST
screen and press the center
select key (
s
) (
OK
).
6
Press
B
to return to the
MUSIC LIBRARY
menu.
7
Select
Genres
,
Artists
, or
Albums
, navigate to the
ALBUMS
screen (see page 70), scroll to an album, and
press the center select key (
s
) (
OK
).
8
Scroll to a desired song and press
Options
.
9
Select
Add to Playlist
by pressing the center select
key (
s
) (
OK
).
10
Scroll to the desired playlist and press
ADD
(
s
).
11
Repeat steps 5 through 8 to add more songs.
12
When finished adding songs to the playlist, press
B
to return to the previous screen or the
Power/End key (
P
) to return to the main screen.
edit a playlist
1
Open a playlist (see page 73) and scroll to the
playlist you want to edit and press the right soft
key (
+
) (
Options
).
2
Use the navigation key (
S
) to scroll to
Edit playlist
and press the center select key (
s
) (
OK
).
3
Edit the playlist as desired.
To change the order of songs in your playlist,
scroll to a song and press the center select
key (
s
) (
Move
). Then scroll up or down to move
77
entertainment
the song up or down in the playlist. When
finished, press the center select key (
s
) (
Save
).
To delete a song, scroll to the song and press the
right soft key (
+
) (
Remove
).
4
Press
B
to return to the previous screen or
Power/End key (
O
) to return to the main screen.
record & play voice
records
You can create a voice record that you can play back
later as a reminder for yourself.
create voice record
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
2
Use the navigation key (
S
) to scroll to
My Sounds
and press the center select key (
s
) (
OK
).
3
Scroll to
Record New
and press the center select
key (
s
) (
OK
).
4
Press the center select key (
s
) (
OK
) to begin
recording, then press the center select key (
s
)
(
STOP
) when finished.
The voice record is automatically saved and displayed
in the
MY SOUNDS
list.
Tip:
To create a voice record quickly, press and hold
the voice key (on the right side of the phone), then
press the center select key (
s
) (
OK
) to begin
recording. Press the center select key (
s
) (
STOP
)
when finished. You can press the left soft key (
-
)
(
Save
) to save it, press the center select key (
s
) (
SEND
)
to send it, or press the right soft key (
+
) (
Erase
) to
erase it. Press the Power/End key (
O
) to exit.
play voice record
1
From the main screen, press left on the
navigation key (
S
) to access
Music &Tones
.
78
entertainment
2
Use the navigation key (
S
) to scroll to
My Sounds
and press the center select key (
s
) (
OK
).
3
Scroll to the file name of the desired voice record
and press the center select key (
s
) (
PLAY
).
Tip:
You can rename voice records. In
My Sounds
, your
phone displays an
æ
indicator beside the names of
voice records that you created. Scroll to the voice
record you want to rename, press the right soft key
(
+
) (
Options
), then scroll to and select
Rename
.
record & play video
clips
You can record a video clip with your phone and send
it in a multimedia message to other wireless phone
users.
Your camera lens is on the back of your phone when
the phone is open (see page 1).
To get the clearest
video clips, wipe the lens clean with a soft, dry
cloth before you capture a video clip.
record a video clip
To activate your phone’s camcorder:
1
Press and hold the camera key (
b
).
The active viewfinder image appears:
Note:
You can change the view from the default
portrait mode to landscape orientation by
pressing up on the navigation key (
S
). Press up
176x144
Rec
00:00
Videos
N
0
EV
1X
❙❙❙
P
<
Press the right
soft key (+)
to view
Options
menu.
Press the
left soft key
(-) to view
MY VIDEOS.
Press the center select key
(s) to
begin
recording.
Options
REC
79
entertainment
to switch back. “Up” changes depending on how
you are holding your phone.
2
Point the camera lens at the video subject.
Press left and right on the navigation key (
S
) to
zoom in and out.
3
Press the center select key (
s
) (
REC
) to begin
recording.
Press the right soft key (
+
) (
Pause
) to temporarily
stop recording. Press the right soft key (
+
)
(
Resume
) to continue.
4
Press the center select key (
s
) (
STOP
) to stop
recording.
5
Press the left soft key (
-
) (
Save
) to save the
video clip.
or
Press the center select key (
s
)(
SEND
) to save
the video clip and go to the
CREATE VIDEO MSG
screen.
or
Press the right soft key (
+
) (
Erase
) to delete the
video clip and return to the active viewfinder.
adjust camcorder settings
When the camcorder is active (but not recording),
press the right soft key (
+
) (
Options
) to select from
these options:
option
Full Screen
Change camera orientation and use the
full viewing screen.
Brightness
Adjust image brightness.
White
Balance
Adjust for different lighting.
80
entertainment
Tip:
By default, the recording duration is set to
Short
,
which is about 30 seconds long. You can
maximize
the recording length to an estimated 25 hours
by
lowering the resolution to
176x144
, selecting
Long
(Max Memory)
, and switching the storage device to a 2 GB
removable memory card.
play video clip
To play a video clip stored on your phone:
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select key (
s
)
(
OK
).
3
Scroll to
My Videos
and press the center select
key (
s
) (
OK
).
4
Scroll to the clip you want to play and press the
center select key (
s
) (
PLAY
).
Press the left soft key (
-
) (
Mute
) while the clip is
playing to mute the video clip sound. Press the
left soft key (
-
) (
Unmute
) to turn sound on again.
Duration
Specify standard lengths for video clips
of
Short
(default, about 30 seconds),
Medium
,
Fit to Video Msg
. (varies depending
on video settings), or
Long (Max Memory)
.
Resolution
Set recording resolution to
320x240
or
176x144
.
Color Effects
Scroll left or right to select
Normal
,
Antique
,
Black & White
, or
Negative
.
Switch
Storage
Device
Specify where you want to save video
clips (
Phone
or
Micro-SD Card
). This option is
available only when you have a memory
card inserted.
option
81
entertainment
take photos
Your phone has a 2 megapixel digital camera that can
take photos at up to 1200 x 1600 pixels resolution. You
can use camera mode when the slider is closed. You
can take a photo with your phone and send it in a
multimedia message to other wireless phone users.
Your camera lens is on the back of your phone (see
page 2).
To get the clearest photos, wipe the lens
clean with a soft, dry cloth before you capture a
photo.
take & send photo
5
To activate the camera, press the camera
key (
b
).
The active viewfinder image appears on your
phone’s screen in landscape mode by default:
Note:
You can change the view to portrait
orientation by pressing up on the navigation key
(
S
). In landscape mode, up is toward
B
.
Press left and right on the navigation key (
S
) to
zoom in and out.
Press the right soft key (
+
) (
Options
) to see more
options.
N
P
1
1600x1200
1X
EV
❙❙❙
❙❙❙
Press right soft key (+) to
view
Options
menu.
Press the left soft key (-)
to view
My Pics.
Press the
center select
key (s) to take
a photo.
Options
My Pics
TAKE
(
82
entertainment
6
Point the camera lens at the camera subject and
press the center select key (
s
) (
TAKE
).
7
Press the center select key (
s
) (
SEND
) to save the
photo and go to the
CREATE PICTURE MESSAGE
screen.
or
Press the left soft key (
-
) (
Save
) to save the
picture in
My Pics
.
or
Press the right soft key (
+
) (
Erase
) to delete the
photo and return to the active viewfinder.
adjust camera settings
When the camera is active, press the right soft key
(
+
) (
Options
) to select from these settings:
option
Resolution
Set resolution to
1600x1200
,
1280x960
,
640x480
,
320x240
, or
Picture ID
.
Landscape or Portrait
Orientation
Set camera orientation to
landscape.
Self Timer
Set the camera to take a photo
after a specific interval:
3 seconds
,
5
seconds,
or
10 seconds
. Or turn it off.
Brightness
Adjust image brightness by
scrolling left or right from
-2
to
2
.
83
entertainment
change camera
orientation
You can change your camera’s orientation to be in
landscape (default mode) or portrait mode:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Camera Orientation
and press the center select
key (
s
) (
OK
).
5
Select to
Landscape Orientation
or
Portrait Orientation
and
press the center select key (
s
) (
OK
).
Tip:
You can also change orientation when the camera
is active by pressing up on the navigation key (
S
) or
White Balance
Adjust for different lighting
conditions by scrolling left or
right to choose from
Auto
,
Sunny
,
Cloudy
,
Tungsten
,
Fluorescent
, or
Darkness
.
Shutter Sound
Activate a sound that plays
when you take a photo:
Shutter
,
Silent
,
Quack
, or
Boing
.
Color Effects
Scroll left or right to select
Normal
,
Antique
,
Black & White
, or
Negative
.
Fun Frame
Go to
ADD FRAME
to select a
custom frame for your photo.
Switch Storage Device
Specify where you want to save
video clips (
Phone
or
Micro-SD Card
).
This option is available only if
you have a memory card
inserted.
option
84
entertainment
pressing the right soft key (
+
) (
Options
) and selecting
Landscape Orientation
or
Portrait Orientation
.
download pictures
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select key (
s
)
(
OK
).
3
Scroll to
Get New Pictures
and press the center select
key (
s
) (
OK
).
4
With
Get New App
highlighted, press the center
select key (
s
) (
OK
) to connect to
Get It Now
.
Note:
Normal airtime and/or carrier usage charges
apply.
other features—advanced calling
85
other features
advanced calling
restrict calls
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Call Restrictions
and press the center select
key (
s
) (
OK
).
5
At
Enter Lock Code
, enter your code (by default, the
last four digits of your phone number unless you
have changed it) and press the center select
key (
s
) (
OK
).
6
Select
Outgoing Calls
or
Incoming Calls
and press the
center select key (
s
) (
OK
).
7
Select
All
to allow all calls,
Contacts
to allow calls
only to or from people in your Contacts, or
None
to
block or prevent all calls, and press the center
select key (
s
) (
OK
).
insert special characters
While entering a number, press the right soft
key (
+
) (
Options
) and select one of these options:
2-Sec Pause
—Your phone pauses for two seconds before
it dials the next digit.
86
other features—messages
Wait
—Your phone waits until the call connects, then
prompts you for confirmation before it dials the next
digit(s).
DTMF tones
Your phone can send Dual-tone multi-frequency
(DTMF) tones for calling card calls or to navigate
automated systems (such as banking by phone).
To set up DTMF tones
:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
DTMF Tones
and press the center select
key (
s
) (
OK
).
5
Select
Normal
or
Long
and press the center select
key (
s
) (
OK
).
To send DTMF tones during a call
, press number
keys.
messages
send a text message
1
From the main screen, press the left soft
key (
-
) (
Message
) to open
GMESSAGING
.
2
Select
New Message
by pressing the center select
key (
s
) (
OK
).
3
Select
TXT Msg
by pressing the center select
key (
s
) (
OK
).
4
Enter the phone number of the recipient or press
the right soft key (
+
) (
Add
) to select a contact.
other features—messages
87
5
Press down on the navigation key (
S
) to go the
the
Text
area and use the keypad to enter a
message.
When you are entering text, you can press the
right soft key (
+
) (
Options
) to perform other
actions with the message:
Add Graphic
,
Add Sound
,
Add
Quick Text
,
Priority Level
,
Validity Period
,
Deferred Delivery
,
Cancel
Message
, or
Add VCard
.
6
Send the message by pressing the center select
key (
s
) (
SEND
).
e-mail
To access your internet e-mail account to
exchange e-mail from your phone:
1
From the main screen, press the left soft key
(
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
E-mail
and
press the center select key (
s
) (
OK
).
3
Scroll to your e-mail account type and press the
center select key (
s
).
4
Enter your name or account name and password
to sign in.
mobile IM
To access your internet Instant Messaging
account to exchange messages in real time with
family and friends.
1
From the main screen, press the left soft key
(
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Mobile IM
and press the center select key (
s
) (
OK
).
3
Scroll to your e-mail account type and press the
center select key (
s
).
4
Enter your name or account name and password
to sign in.
88
other features—messages
chat
Access your internet chat account to chat in
real time with family and friends.
1
From the main screen, press the left soft key
(
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Chat
and
press the center select key (
s
) (
OK
).
3
Scroll to your e-mail account type and press the
center select key (
s
).
4
Enter your name or account name and password
to sign in.
view sent messages
1
From the main screen, press the left soft
key (
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Sent
and
press the center select key (
s
) (
OK
).
3
Scroll to the message you want to view and press
the center select key (
s
)(
Open
).
4
Press the right soft key (
+
) (
Options
) to perform
other actions on the message, such as
Forward
,
Lock
(to prevent deletion),
Save Quick Text
,
Add to Contacts
, or
Message Info
.
read received message
1
From the main screen, press the left soft
key (
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Inbox
and
press the center select key (
s
) (
OK
).
3
Scroll to the message you want to read and press
the center select key (
s
)(
Open
).
4
Press the right soft key (
+
) (
Options
) to perform
other actions on the message, such as
Forward
,
Reply
w. Copy
,
Save Quick Text
,
Lock
(to prevent deletion),
Message Info
, or
Compose Message
.
other features—contacts
89
view drafts
1
From the main screen, press the left soft
key (
-
) (
Message
) to open
GMESSAGING
.
2
Use the navigation key (
S
) to scroll to
Drafts
and
press the center select key (
s
) (
OK
).
3
Scroll to the message you want to view and press
the center select key (
s
)(
EDIT
).
To delete the message, press the left soft key
(
-
) (
Erase
).
Press the right soft key (
+
) (
Options
) to perform
other actions on the message, such as
Send
,
Lock
,
and
Erase Drafts
(to erase all drafts).
erase messages
1
From the main screen, press the left soft
key (
-
) (
Message
) to open
GMESSAGING
.
2
Press the right soft key (
+
) (
Options
).
3
Use the navigation key (
S
) to scroll to
Erase Inbox
,
Erase Drafts
,
Erase Sent
, or
Erase All
, and press the center
select key (
s
) (
OK
).
contacts
create entry
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Select
New Contact
by pressing the center select
key (
s
) (
OK
).
3
Enter contact information and press the center
select key (
s
) (
SAVE
).
edit entry
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
90
other features—contacts
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
) (
Edit
).
3
Edit the contact information and press the center
select key (
s
) (
SAVE
).
view entry
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
To view an entry, scroll to the entry and press the
center select key (
s
) (
VIEW
).
Press the right soft key (
+
) (
Options
), to perform
other actions, such as
Send TXT Msg
,
Send Picture Msg
,
Send Video Msg
, or
Call
.
erase entry
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the right soft key (
+
) (
Options
).
3
Scroll to
Erase
and press the center select key (
s
)
(
OK
).
set speed dial number
Assign a speed dial number to a
Contacts
entry:
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
) (
Edit
).
3
Scroll to the number to be assigned a speed dial
number and press the right soft key (
+
) (
Options
).
4
Select
Set Speed Dial
by pressing the center select
key (
s
) (
OK
).
5
Select an unassigned speed dial number and
press the center select key (
s
)(
SAVE
).
other features—contacts
91
6
Press the center select key (
s
)(
OK
) to set the
speed dial number.
set default number for entry
Set the default number for a
Contacts
entry with multiple
numbers:
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press
Edit
.
3
Scroll to the number to be set as the default
number and press the right soft key (
+
) (
Options
).
4
Scroll to
Set As Default
and press the center select
key (
s
) (
OK
).
assign ringtone to entry
When you assign a ringtone to a
Contacts
entry, your
phone plays that ringtone when you receive a call from
the entry.
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
) (
Edit
).
3
Scroll to
Ringtone
and press the left soft key (
-
)
(
Set
) to go to the
MY RINGTONES
menu.
4
Scroll to the desired ringtone and press the
center select key (
s
) (
OK
).
5
Press the center select key (
s
) (
SAVE
).
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
(see page 26).
92
other features—contacts
assign picture to entry
When you assign a picture to a Contacts entry, your
phone displays that picture when you receive a call
from the entry.
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
) (
Edit
).
3
Scroll to
and press the left soft key (
-
) (
Set
)
to go to
My Pictures
.
4
Scroll to a picture and press the center select
key (
s
) (
OK
).
5
Press the center select key (
s
) (
SAVE
).
download ringtone for an entry
You can download a ringtone to assign to a
Contacts
entry. When you receive a call from that entry, your
phone plays the ringtone you assigned.
1
From the main screen, press the right soft key
(
+
) (
Contacts
) to open the
Contact List
.
2
Use the navigation key (
S
) to scroll to the entry
and press the left soft key (
-
) (
Edit
).
3
Scroll to
Ringtone
and press the left soft key (
-
)
(
Set
) to go to the
My Ringtones
menu.
4
Select
Get New Ringtone
then
Get New App
, then proceed
to download and save a ringtone.
add entries to group
You can easily send a text message to many people at
once by creating a group and adding contact entries to
the group.
Tip:
You can add a
Contacts
entry to a group while
editing the entry by scrolling to
Group
and pressing
Set
.
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
other features—personalizing
93
2
Use the navigation key (
S
) to scroll to
Groups
and
press the center select key (
s
) (
OK
).
3
Scroll to the desired group name and press the
right soft key (
+
) (
Options
) or create a group by
pressing the left soft key (
-
)(
New
).
4
Scroll to
Add
and press the center select key (
s
)
(
OK
).
5
On the
Add Contacts
screen, scroll to each contact
you want to add and press the center select
key (
s
) (
MARK
).
When you are finished adding contacts to a group,
press the left soft key (
-
) (
Done
).
add group
Add a new group as an entry on the
Groups
screen:
1
Press the center select key (
s
) to open the
menu.
ECONTACTS
is automatically selected.
2
Use the navigation key (
S
) to scroll to
Groups
and
press the center select key (
s
) (
OK
).
3
Press the left soft key (
-
)(
New
).
4
Enter the name for the new group and press the
center select key (
s
) (
SAVE
).
personalizing
voice recognition
Your phone’s voice recognition feature lets you make
calls and complete other actions by speaking
commands to your phone.
voice recognition tips
•
When speaking the name of a
Contacts
entry,
say the name exactly as it is listed. For
example, to call the mobile number for an
entry named Bill Smith, say “Call Bill Smith
94
other features—personalizing
mobile.” (If the entry includes only one
number for Bill Smith, say “Call Bill Smith.”
•
Speak numbers at a normal speed and
volume, and pronounce each digit distinctly.
Avoid pausing between digits.
•
Your phone may be set to play voice command
instructions through the speakerphone when
you press the voice key, enabling you to see
the
VOICE COMMANDS
menu. If you then use the
Call
command to place a call, audio plays
through the phone’s earpiece when the call
connects. You can turn this feature off if
desired (see page 98).
voice commands
1
Press and release the voice key on the right side
of the phone.
Your phone
displays
and
says
Say a command
, then
displays a list of voice commands.
2
Say one of the commands listed in the following
table. Your phone performs the corresponding
action.
feature
Call <Name or #>
Place a call to:
•
a
Contacts
entry whose name you speak
or
•
a phone number you speak
For example, when prompted to say a command,
say “Call Bill Smith mobile” or “Call 8475551212.”
other features—personalizing
95
Send <Msg Type>
Send a text or multimedia message.
Say “Send text” or “Send picture,” then:
•
the name of a
Contacts
entry
or
•
a phone number
For instructions on sending a text or multimedia
message, see page 86.
Lookup <Name>
Look up a
Contacts
entry by saying its name.
Play <Playlist>
Play a playlist with the music player by saying the
name of one of your playlists.
feature
Go To <Menu>
Access the menu or perform the action you specify:
Contacts
—Browse your contacts.
Recent Calls
—Go to the recent calls list.
Messaging
—Access messages.
Get It Now
—Go to the Get It Now menu.
Settings & Tools
—See settings and tools.
News & Info
—Access the Web.
V CAST Videos
—Go to V CAST videos.
My Music
—Go to your
Music Library
.
Redial
—Redial the last number you called.
feature
96
other features—personalizing
voice recognition settings
To modify voice recognition settings:
1
Press and release the voice key on the right side
of the phone.
2
Press the right soft key (
+
) (
Settings
).
Check <Item>
View status of the item you say:
Status
—coverage, signal strength, and battery
charge
Voicemail
—new voicemail messages
Messages
—new received text or multimedia
messages
Missed Calls
—unanswered incoming calls
Time
—time and date
Battery
—battery charge
Signal Strength
—network connection strength
Volume
—ringer volume
feature
My Account
Launch Mobile Web and display your account
options.
Help Guide
Access help information for the voice recognition
feature.
feature
other features—personalizing
97
3
Use the navigation key (
S
) to scroll to the
desired option and press the center select
key (
s
) (
OK
).
voice recognition settings
Choice Lists
If your phone is not sure that it has correctly
identified a name or number that you speak, it can
display up to three choices and prompt you to
confirm the correct one.
You can control when choice lists appear:
Automatic
—Display a list of choices from multiple
alternatives.
Always On
—Always display a list of choices when
there are multiple alternatives.
Always Off
—Never display a choice list. The phone
chooses from the best alternatives.
Sensitivity
This setting allows you to fine tune the phone’s
ability to recognize voice commands.
If sensitivity is too strict
, your phone will often
reject voice commands and display “Please
repeat...” or “No match found.” Adjust the
sensitivity toward
Reject Less
.
If sensitivity is too forgiving
, you will often
experience false activations (indicating that the
phone detects a wrong match). Adjust the
Sensitivity
setting toward
Reject More
.
voice recognition settings
98
other features—personalizing
Digit Dialing
Adapt digit dialing to your voice:
Adapt Digits
—Adapt digits to improve recognition of
spoken phone numbers. Adaptation takes about
sixty seconds.
Reset Digits
—Erase any digital adaptation you did
previously and reset digit recognition to the factory
default. If you have not adapted digits, this option
appears in gray (not available).
voice recognition settings
Sound—
Customize the voice recognition interface by
turning playback on or off for prompts, names, and
numbers. You can also adjust the speed and volume
of name playback.
Prompts
—Turn playback on or off for prompts such as
“Please say a command.”
Digits
—Turn playback on or off for digits (for example,
when confirming a phone number).
Names
—Turn playback on or off for names.
Name Settings
—Adjust speed and volume of name
playback.
Speakerphone
—Set whether your phone plays
instructions through the speakerphone when you
press the voice key (see “voice recognition tips” on
page 93).
voice recognition settings
other features—more personalizing features
99
To access help information for a setting you speak,
press the left soft key (
-
) (
Info
).
more personalizing
features
keypad volume
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Keypad Volume
and press the center select
key (
s
) (
OK
).
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
.
power on/off sounds
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Power On/Off
and press the center select
key (
s
) (
OK
).
Note:
Master Volume
must be set to
High
,
Med High
,
Med
,
Med Low
, or
Low
.
languages
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
100
other features—more personalizing features
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Language
and press the center select
key (
s
) (
OK
).
5
Select
English
or
Spanish
and press the center select
key (
s
) (
SET
).
clock format
Set how your phone shows the current time on the
main screen (see page 19):
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Clock Format
and press the center select
key (
s
) (
OK
).
5
Select
Digital 12
for a 12-hour clock,
Digital 24
for a
24-hour clock,
Analog
for a dial clock, or
Off
for no
clock and press the center select key (
s
) (
OK
).
banner
Create a heading to display on your phone’s
main screen:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Display Settings
and press the center select
key (
s
) (
OK
).
4
Select
Banner
by pressing the center select
key (
s
) (
OK
).
5
Select
Personal Banner
or
ERI Banner
and press the center
select key (
s
) (
OK
).
other features—more personalizing features
101
6
Enter text and press the center select key (
s
)
(
OK
).
show or hide menu icons
Show or hide menu icons in the main screen that you
can use as shortcuts to those menus:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Shortcut Keys
and press the center select
key (
s
) (
OK
).
5
Scroll to and select
Show Shortcuts
, then select
Show
or
Hide
, and press the center select key (
s
) (
OK
).
change main screen keys
Change menus selected with the navigation keys in
the main screen:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Shortcut Keys
and press the center select
key (
s
) (
OK
).
5
Select
Up Key
,
Down Key
,
Right Key
, or
Left Key
, scroll to
and select the menu you want to assign to that
key, and press the center select key (
s
) (
OK
).
102
other features—call times & data volumes
call times & data
volumes
Network connection time
is the elapsed time from
the moment you connect to your service provider's
network to the moment you end the call by pressing
the Power/End key (
O
). This time includes busy
signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, contact
your service provider.
call times
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
) (
OK
).
4
Use the navigation key (
S
) to scroll through the
following categories:
Last Call
,
All Calls
,
Received Calls
,
Dialed Calls
,
Roaming Calls
, or
Lifetime Calls
, and press the
clear key (
B
) to return to the Recent Calls
menu.
set in-call timer
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Service Alerts
and press the center select
key (
s
) (
OK
).
other features—call times & data volumes
103
5
Scroll to
Minute Beep
, and press the center select
key (
s
) (
OK
).
data volumes
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
) (
OK
).
4
Use the navigation key (
S
) to scroll through the
following categories:
Last Call
,
Received Calls
,
Dialed Calls
,
Roaming Calls
,
Transmit KB
,
Received KB
,
Total KB
,
Last Reset
,
Lifetime Calls
, or
Lifetime Data Counter
, and press the clear
key (
B
) to return to the Recent Calls menu.
reset timer
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
) (
OK
).
4
Scroll to the timer you want to reset and press
the left soft key (
-
) (
Reset
).
5
Select
Yes
by pressing the center select key (
s
)
(
OK
).
To reset all timers, press the right soft key (
+
) (
Reset
All
).
view last reset
1
Press the center select key (
s
) to open
the menu.
104
other features—handsfree
2
Use the navigation key (
S
) to scroll to
ARECENT CALLS
.
3
Scroll to
View Timers
and press the center select
key (
s
) (
OK
).
4
Scroll to
Last Reset
to view details.
5
When you are finished, press the center select
key (
s
) (
OK
).
handsfree
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
accessory volume settings
(car kit or headset)
To adjust volume of headsets or car kit accessories
that are enable for Bluetooth wireless connections,
press your phone’s up or down volume key during an
active call.
other features—Bluetooth® wireless connections
105
Bluetooth® wireless
connections
make phone visible to other
device
Allow an unknown Bluetooth device to discover your
phone:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
) (
OK
).
4
Press the right soft key (
+
)(
Settings
).
5
Scroll to
Discovery Mode
and press the center select
key (
s
) (
OK
).
6
Scroll to
On
, and press the center select key (
s
)
(
OK
).
Note:
To ensure the best Bluetooth connection,
always connect to Bluetooth devices using your
phone’s menus rather than making your device
discoverable.
connect to recognized device
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
) (
OK
).
4
Scroll to the device name and press the center
select key (
s
) (
OK
).
Note:
Your phone will prompt you to turn
Bluetooth on if it is not already on.
If you have
106
other features—Bluetooth® wireless connections
previously connected
with the device, select the
device name and press the left soft key (
-
) (
On
)
to connect with the device.
5
If prompted, enter the passkey (
0000
by default)
and press the center select key (
s
) (OK).
connect to handsfree device
during a call
1
During a call, press the right soft key (+) (
Options
),
then select
Bluetooth Menu
.
2
Use the navigation key (
S
) to scroll to
[Add New
Device]
or select the name of your handsfree device
if you have paired with it previously.
3
Press the center select key (
s
) (
OK
).
4
If connecting to a new device, place the new
device in discoverable mode and press the center
select key (
s
) (
OK
) on your phone.
5
When your phone finds your handsfree device,
press the center select key (
s
) (
PAIR
).
disconnect from a device
Scroll to
Bluetooth
and select
Off
.
Note:
You cannot switch to a headset or car kit if you
are already connected to a Bluetooth device.
turn Bluetooth power on
1
Press the center select key (
s
) to open
the menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Bluetooth Menu
and press the center select
key (
s
) (
OK
).
4
Press the left soft key (
-
) (
On
).
Note:
Leaving Bluetooth on all the time requires
you to charge your battery more often.
other features—network
107
network
network settings
Adjust network settings:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Phone Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
System Select
and press the center select
key (
s
) (
OK
).
5
Select
Set Mode
by pressing the center select
key (
s
) (
OK
).
6
Select from the following options that may
appear:
Home Only
,
Automatic
,
Automatic A
, or
Automatic B
;
and press the center select key (
s
) (
OK
).
Note:
Your options may vary depending on your
service plan.
set call drop alerts
Set phone to beep whenever the network
drops a call. (Because digital networks are so quiet,
the call drop alert may be your only sign that a call was
dropped.)
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
108
other features—network
4
Scroll to
Service Alerts
and press the center select
key (
s
) (
OK
).
5
Scroll to
Network Lost Tone
and press the center select
key (
s
) (
OK
).
6
Select
ON
and press the center select key (
s
)
(
OK
).
set call connect alerts
Set your phone to beep whenever an outgoing
call is connected:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Service Alerts
and press the center select
key (
s
) (
OK
).
5
Scroll to
Call Connect
and press the center select
key (
s
) (
OK
).
6
Select
ON
and press the center select key (
s
)
(
OK
).
set roaming alerts
Set phone to beep whenever the phone begins
roaming:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Sounds Settings
and press the center select
key (
s
) (
OK
).
other features—personal organizer
109
4
Scroll to
Service Alerts
and press the center select
key (
s
) (
OK
).
5
Scroll to
ERI
and press the center select key (
s
)
(
OK
).
6
Select
ON
and press the center select key (
s
)
(
OK
).
personal organizer
add calendar appointment
1
From the main screen, press down on the
navigation key (
S
) to open the calendar.
2
Use the navigation key (
S
) to scroll to the
desired date and press the left soft key (
-
) (
Add
).
3
Enter new appointment name and details. To
change the time, recurrence, or alert type, scroll
to the line and press the left soft key (
-
) (
Set
).
4
To save the appointment, press the center select
key (
s
) (
SAVE
).
see calendar appointment
1
From the main screen, press down on the
navigation key (
S
) to open the calendar.
2
Use the navigation key (
S
) to scroll to the date
of the appointment and press the center select
key (
s
) (
VIEW
).
3
Press the center select key (
s
) (
VIEW
) again to
see appointment details.
set alarm
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
110
other features—personal organizer
3
Scroll to
Tools
and press the center select key (
s
)
(
OK
).
4
Scroll to
Alarm Clock
and press the center select
key (
s
) (
OK
).
5
Select an alarm to set and press the center select
key (
s
) (
OK
).
6
Set the alarm to on or off, choose the time,
number of times to ring, and the alarm tone, and
then press the center select key (
s
) (
OK
).
set alarm
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select key (
s
)
(
OK
).
4
Scroll to
Alarm Clock
and press the center select
key (
s
) (
OK
).
5
Scroll to an alarm and press the center select
key (
s
) (
OK
).
6
Select
On
, and set the alarm time, recurrence, and
alert sound by scrolling to the category and
pressing the left soft key (
-
) (
Set
).
7
Select
On
, and set the alarm time, recurrence, and
alert sound by scrolling to each line and pressing
the left soft key (
-
) (
Set
).
8
Press the center select key (
s
) (
SAVE
).
turn off alarm
When an alarm rings, press
Off
or the Power/End key
(
O
) to turn it off.
other features—personal organizer
111
view world clock
View current time in cities around the world:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select key (
s
)
(
OK
).
4
Scroll to
World Clock
and press the center select
key (
s
) (
OK
).
5
Use the navigation key (
S
) to scroll left or right
to the desired city or press the right soft key (
+
)
(
Cities
) to view a list of cities.
notepad
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select key (
s
)
(
OK
).
4
Scroll to
Notepad
and press the center select
key (
s
) (
OK
).
5
To create a note, press the left soft key (
-
) (
Add
).
6
Enter text and press the center select key (
s
)
(
SAVE
).
Your phone displays the first few words of your
note in a list of notes on the notepad.
112
other features—security
calculator
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Tools
and press the center select key (
s
)
(
OK
).
4
Scroll to
Calculator
and press the center select
key (
s
) (
OK
).
Use the keypad to enter numbers and use the
navigation key (
S
) for math functions. For more
operators, press the right soft key (
+
) (
Operator
).
To enter a decimal, press
*
. To change positive
or negative, press
#
.
security
voice privacy
Encrypt outgoing voice calls and use secure channels
when available:
1
Press the center select key (
s
) to open the
menu.
2
Use the navigation key (
S
) to scroll to
DSETTINGS & TOOLS
.
3
Scroll to
Call Settings
and press the center select
key (
s
) (
OK
).
4
Scroll to
Voice Privacy
and press the center select
key (
s
) (
OK
).
5
Select
On
and press the center select key (
s
)
(
OK
).
other features—fun & games
113
fun & games
Note:
A lock (
9
) icon next to a picture or sound
means that you cannot send, copy, or delete it.
launch game or application
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Select the game or application you want to
launch.
download game or
application
Download a
Get It Now
game or application:
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Games
and
press the center select key (
s
) (
OK
).
3
Select
Get New App
by pressing the center select
key (
s
) (
OK
).
4
Select a category, application, and pricing option.
Normal airtime and/or carrier usage charges apply.
114
other features—fun & games
Web sessions
To select or create a Web session so that you
can use the Web browser, press up on the navigation
key (
S
) to select
MOBILE WEB
from the main screen.
manage pictures
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select key (
s
)
(
OK
).
3
Scroll to
My Pictures
and press the center select
key (
s
) (
OK
) to view a list of pictures.
To view a picture, scroll to the picture title and press
the center select key (
s
) (
VIEW
).
While looking at a picture, press the right soft key
(
+
) (
Options
) to see the following options:
Send
,
Set As
,
To
PIX Place
,
Zoom
,
Edit
,
Rename
,
Lock
, or
File Info
.
Note:
The
OPTIONS
menu includes different options for
locked or preloaded images. You cannot set
copyrighted content as wallpaper, screensavers, or
picture IDs.
other features—fun & games
115
manage video clips
1
From the main screen, press right on the
navigation key (
S
) to access
BGETITNOW
.
2
Use the navigation key (
S
) to scroll to
Picture & Video
and press the center select key (
s
)
(
OK
).
3
Scroll to
My Videos
and press the center select
key (
s
) (
OK
) to view a list of pictures.
To play a video clip, scroll to the video clip title and
press the center select key (
s
) (
PLAY
).
Note:
The
OPTIONS
menu includes different options for
copyrighted videos. For example, you cannot send
copyrighted content to another person.
116
service & repairs
service & repairs
If you have questions or need assistance, we're here
to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options.
You can also contact the Motorola Customer Support
Center at 1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
SAR Data
117
Specific Absorption Rate Data
SAR Da ta
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.49 W/kg, and when worn on the body, as described in
this user guide, is 1.08W/kg.2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
118
SAR Data
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
119
Important Safety and
Legal Information
120
Safety Information
Safety and General Information
Safety Information
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola—or if you hang your
mobile device from a lanyard around your neck—keep the mobile
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2007.
Safety Information
121
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your health care provider.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
122
Safety Information
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue use if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
•
Do not place a mobile device in the airbag deployment
area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this user’s guide and/or at the Motorola
Web site:
www.motorola.com/callsmart
.
Note:
The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities for
more information.
Do not throw your battery or mobile device in
the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
Listening at full volume to music or voice
through a headset may damage your hearing.
032374o
032376o
032375o
032378o
Li Ion BATT
Safety Information
123
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use & Battery Safety”
section in this user’s guide.
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
124
Industry Canada Notice
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must accept
any interference, including interference that may cause undesired
operation of the device. See RSS-GEN 7.1.5.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
Warranty
125
•
Consult the dealer or an experienced radio/TV technician
for help.
Motorola Limited Warranty for the United States and
Canada
Warr anty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants
its telephones, pagers, messaging devices, and consumer and
professional two-way radios (excluding commercial, government
or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer
usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as defined
above, unless otherwise
provided for below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative Accessories
and Cases.
Decorative
covers, bezels,
PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear
buds and boom headsets
that transmit mono sound
through a wired
connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
126
Warranty
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries.
Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d) other acts which
are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of Non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone
other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products
Accessories or Software is excluded from coverage.
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made
that the software will meet your requirements or will work in
Consumer and
Professional Two-Way
Radio Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies
the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the
date of purchase.
Warranty
127
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund
the purchase price of any Products, Accessories or Software that
does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or
Other Information
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone
number designated above for the product with which they are
used.
128
Hearing Aids
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
Hearing Aid Compatibility with Mobile Phones
Hearin g Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also vary in the amount of interference they generate.
WHO Information
129
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
130
Registration
Product Registration
Registration
Online Product Registration:
direct.motorola.com/hellomoto/ Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Recycling Information
131
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the
product should not be disposed of with
household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
California Perchlorate Label
Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/ perchlorate
.”
There is no special handling required by consumers.
132
Privacy and Data Security
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device which updates the device’s
security, install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
this user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and then
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—In order to comply with
emergency caller location requirements of the FCC, certain
Motorola mobile devices incorporate Assisted Global
Positioning System (AGPS) technology. AGPS technology
also can be used in non-emergency applications to track
and monitor a user’s location—for example, to provide
driving directions. Users who prefer not to permit such
tracking and monitoring should avoid using such
applications.
If you have further questions regarding how use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Driving Safety
133
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
134
Driving Safety
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
index
135
index
A
accessories 11, 104
alarm clock 109
alert
set 26
sounds 38
turn off 26
answer a call 16
attach a number 85
B
backlight 43
banner 100
battery 13, 14
conserving 15
life, extending 58
battery charge indicator light 2
battery life, extend 11
Bluetooth connection
description 57, 105
indicator light 2
brightness 43
browser key 2
C
cables 62
calculator 112
calendar 109
call
answer 16
drop alerts 107
end 16
make 16
missed 48
restrict 85
sounds 38
timers 102
call timers 102
camcorder 78, 79
camera 3, 81
settings 82
camera key 3
car kit 104
center key 2
chat 88
clear/back key 2
clock 100
alarm 109
alarm, set 110
alarm, turn off 110
world 111
136
index
codes 29, 30
conserve battery 15
Contacts
assign picture 92
assign ringtone 91
create entry 89
create group 92, 93
download ringtone 92
edit entry 89
erase entry 90
set default number 91
set speed dial number 90
view entry 90
D
data volume 103
dial a phone number 16
dialed calls 47
display 4, 19
draft message 89
DTMF tones 86
E
earpiece volume 26
email 87
emergency number 50
end a call 16
end key 2, 16
enter text 22
erase messages 89
event sounds 38
export regulations 130
H
handsfree speaker 3, 27
headset 104
hearing aids 128
I
icons 19
indicators 19
iTAP text entry mode 25
K
keypad 99
L
languages 99
lens, cleaning 81
linking. See Bluetooth connection
lock
code 29
phone 30
slider 16
M
main screen 4, 19
main screen keys 101
make a call 16
master volume 37
megapixels 81
menu 4
icons 101
index
137
message 86
chat 88
draft 89
email 87
erase 89
Mobile IM 87
read 88
received 88
sent 88
message indicators
icons 19
mini-USB port 3
missed calls 48
Mobile IM 87
multimedia message 53
music
downloading 63
playlist 75
N
navigation key 2
network settings 107
notepad 111
numeric entry mode 26
O
optional
accessory 11
feature 11
options
camera 82
video 79
P
pairing. See Bluetooth connection
perchlorate label 131
personalize 93
phonebook 85, 89
photo 114
picture 114
playlists 75
power key 2, 15
push bar 2, 3
R
received
calls 47
message 88
recent calls 47
record video clip 78
records, voice 77
redial 46
reset timer 103
restrict calls 85
ring style, setting 26
ringer volume 26
roaming alert 108
S
safety information 120
safety tips 133
screensaver 42
send key 2, 16
138
index
sent message 88
service tones 108
set alarm clock 110
shortcuts 18
smart key 3
soft keys 2, 19
sounds
settings 27, 37
turn off 99
speak keypad digits 40
speakerphone 104
symbol entry mode 26
T
take notes 111
talking phone 40
tap text entry mode 24
text
entry 22
message 86
timers 102, 103
tips & tricks 18
transfer music from computer 64
turn off alarm clock 110
turn off sounds 99
turn on/off 15
U
unanswered calls 48
unlock
code 30
phone 30
slider 16
USB cables 62
V
V CAST
music 63
videos
clips 78, 115
settings 79
voice
command key 3
privacy 112
recognition 93
records 77
voicemail 51
volume 26, 99
volume keys 3
W
wallpaper 41
warranty 125
WHO information 129
world clock 111
U.S. patent Re. 34,976
