Motorola Mobility P56HK1 Portable Cellular/ PCS GSM Transceiver User Manual HARVEY UG
Motorola Mobility LLC Portable Cellular/ PCS GSM Transceiver HARVEY UG
Exhibit 8 Users Manual
1
HELLOMOTO
Introducing your new Motorola W230 wireless phone! It’s an affordable phone with a sleek design that’s sure to
get attention.
My Phone, My Way
– It’s your phone – make it that way. Customise your home screen with personal pictures,
change wallpapers, and use your favorite song as your ringtone.
Connect on So Many Levels
– Whether it’s with work or friends, stay connected with voice or messaging.
Rich Music Experience
– Use the music player to set your playlist for your morning commute. Insert an optional
memory card into the removable memory slot to save many more songs! Or, use the FM Radio to listen to your
favorite music or news programs.
Convenient Extras
– When you are away from your home or desk, make use of handy tools like Contacts,
Calculator, Alarm Clock, and others.
Fun
– When you have a little time to spare, play a game.
2
Here’s a quick anatomy lesson:
Centre Key
Right Soft Key
Power/End Key
Left Soft Key
Send Key
Navigation Key
Microphone

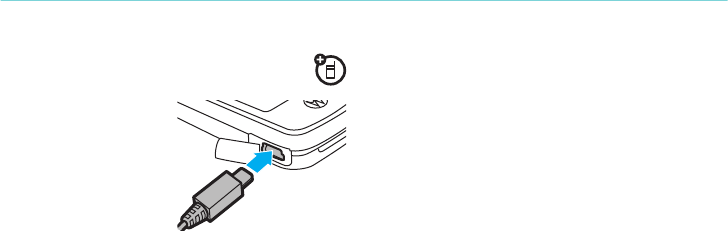

Charge phone, connect to computer
Listen to music
3
This is the standard main menu layout.
Your phone’s menu may be a little different.
Recent Messaging
Recent Calls
8:45am

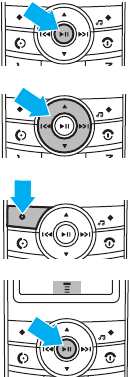

Press & hold the
Power Key
P
until
the display lights up
to turn on your
phone.
1
Press the
Centre Key
s
to select it.
4
Press the
Navigation Key
S
up/down/left/right to
highlight a menu
feature.
3
Press the
Centre Key
s
to open
the
Main Menu
.
2
4
A few menu basics:
1
Press the centre key
s
to open the Main Menu.
2
Press the navigation key
S
up, down, right or left to highlight a menu option.
3
Press the centre key
s
or
Select
to select the highlighted option.
4
In some views such as your
Message
Inbox
or
Contacts
list, the
M
symbol shows at
the bottom of the screen. This indicates that menu options are available. Press
the centre key
s
to display the menu options.
5
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft and Windows are registered trademarks
of Microsoft Corporation; and Windows XP is a trademark of
Microsoft Corporation.
© Motorola, Inc., 2007.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 6809512A61-O (?)
6
contents
contents
menu map . . . . . . . . . . . . . . . . 8
Safety Information . . . . . . . . 10
FCC Notice . . . . . . . . . . . . . . . 14
Use and Care . . . . . . . . . . . . . 15
get started . . . . . . . . . . . . . . . 16
about this guide . . . . . . . . . 16

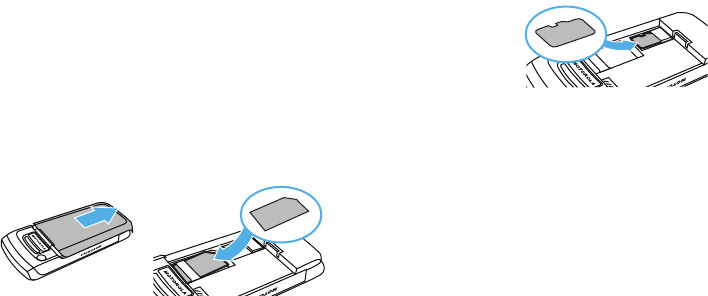

SIM card . . . . . . . . . . . . . . . 17
memory card . . . . . . . . . . . 17

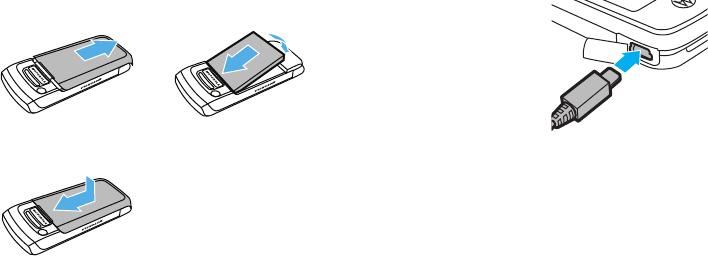

battery. . . . . . . . . . . . . . . . . 18
turn it on & off. . . . . . . . . . . 20
answer a call . . . . . . . . . . . . 20
make a call . . . . . . . . . . . . . 20
adjust volume . . . . . . . . . . . 20
change ring alert . . . . . . . . . 21
store a phone number . . . . 21
call a stored phone number 21
tips & tricks . . . . . . . . . . . . . . 22
basics . . . . . . . . . . . . . . . . . . . 23
home screen . . . . . . . . . . . . 23
enter text. . . . . . . . . . . . . . . 24
handsfree speaker. . . . . . . . 29
codes & passwords. . . . . . . 29
lock & unlock phone . . . . . . 30
memory card. . . . . . . . . . . . 30
customise . . . . . . . . . . . . . . . . 32
change home screen shortcuts
. . . . . . . . . . . . . . . . . . . . . . . 32
change main menu appearance
. . . . . . . . . . . . . . . . . . . . . . . 32
use shortcuts for lists . . . . . 33
ring styles & alerts . . . . . . . 33
answer options . . . . . . . . . . 34
wallpaper. . . . . . . . . . . . . . . 34
screen saver . . . . . . . . . . . . 34
display settings . . . . . . . . . . 35
backlight . . . . . . . . . . . . . . . 35
calls . . . . . . . . . . . . . . . . . . . . . 36
redial a number . . . . . . . . . . 36
recent calls . . . . . . . . . . . . . 36
return a missed call . . . . . . . 37
answer options . . . . . . . . . . 37
call waiting. . . . . . . . . . . . . . 37
speed dial . . . . . . . . . . . . . . 38
notepad . . . . . . . . . . . . . . . . 38
emergency calls . . . . . . . . . 38
messages . . . . . . . . . . . . . . . . 39
voicemail . . . . . . . . . . . . . . . 40
connections . . . . . . . . . . . . . . 41
cable connections . . . . . . . . 41
contents
7
entertainment . . . . . . . . . . . . 42
FM radio . . . . . . . . . . . . . . . 42
music player . . . . . . . . . . . . 43
other features. . . . . . . . . . . . . 45
phonebook . . . . . . . . . . . . . 45
messages . . . . . . . . . . . . . . 45
call times . . . . . . . . . . . . . . . 50
headset . . . . . . . . . . . . . . . . 51
personal organiser. . . . . . . . 52
security . . . . . . . . . . . . . . . . 53
fun & games . . . . . . . . . . . . 54
service & repairs . . . . . . . . . . 55
SAR Data . . . . . . . . . . . . . . . . 56
Hearing Aids. . . . . . . . . . . . . . 57
WHO Information. . . . . . . . . . 58
Registration . . . . . . . . . . . . . . 58
Recycling Information . . . . . . 59
Privacy and Data Security . . . 59
Driving Safety. . . . . . . . . . . . . 60
8
menu map
menu map
main menu
s
Recent Calls
• Received Calls
• Dialled Calls
• Notepad
• Call Times
• Call Cost*
• Data Times
• Data Volumes
e
Messages
•Create
• Inbox
•Draft
• Outbox
•Quick Notes
•Voicemail
• Browser Msgs
• Info Services
• MMS Templates
É
Extras
• Calculator
• MyMenu
•Alarm Clock
• Stop Watch
•Chat
• Dialling Services*
•STK*
• Calendar
n
Contacts
Q
Games
á
WebAccess
h
Multimedia
•Pictures
• Sounds
•FM Radio
This is the standard main menu layout.
Your phone’s menu may be a
little different
.
*
Network Dependent
l
Personalise
• Home Screen
• Main Menu
• Voice Dial Setup*
•Skin
• Greeting*
• Wallpaper
• Screen Saver
• Slide Tone
• Sound Settings
w
Settings
• (see next page)
menu map
9
settings menu
t
Easy/Complete Menu
t
Ring Style
•Style
•Style Detail
H
Call Divert
•Voice Calls
• Fax Calls
• Data Calls
• Cancel All
• Divert Status
U
In Call Setup
• In-Call Timer
• My Caller ID
• Answer Options
• Call Waiting
•Hearing Aid
w
Initial Setup
• Time and Date
• 1-Touch Dial
• Display Settings
• Backlight
•Scroll
• Language
•DTMF
• TTY Setup*
• Master Reset
• Master Clear
• Format Additional Storage Device
m
Phone Status
• My Numbers
• Active Line*
•
S
Headset
• Auto Answer
j
Network
•New Network
• Network Setup
• Avail. Networks
• My Network List
• Service Tone
• Call Drop Tone
• Band Selection
Æ
Security
• Phone Lock
• Lock Keypad
• Auto Key Lock
• Call Barring
• SIM PIN
• New Passwords
j
Easy Prefix
• Auto Change
•Pref.Op
10
Safety Information
Safety and General Information
Safety Information
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola—or if you hang your
mobile device from a lanyard around your neck—keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2007.
11
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your health care provider.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
12
When using your mobile device while driving, please:
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue use if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
•
Do not place a mobile device in the airbag deployment
area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this user’s guide and/or at the Motorola
Web site:
www.motorola.com/callsmart
.
Note:
The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities for
more information.
Do not throw your battery or mobile device in
the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
032374o
032376o
032375o
032378o
Li Ion BATT
13
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use & Battery Safety”
section in this user’s guide.
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service centre.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Listening at full volume to music or voice
through a headset may damage your hearing.
Symbol Definition
14
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
15
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
If it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
16
get started
get started
about this guide
This guide shows how to locate a menu feature as
follows:
Find it:
s
>
sRecent Calls
>
Received
This means that, from the home screen:
1
Press the centre key
s
to open the menu.
2
Scroll to
sRecent Calls
and press the centre
key
s
.
3
Scroll to
Received
Calls
and press the centre key
s
.
Tip:
Press the centre key
s
or
Select
to select a
highlighted option.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is
network/subscription dependent and may
not be available in all areas. Contact your
service provider for more information.
This means a feature requires an optional
accessory.
17
get started
SIM card
Your Subscriber Identity Module (SIM) card contains
personal information like your phone number and
address book entries. It can also contain your
voicemail and text message settings.
If you put your SIM card in another phone, that phone
uses your phone number.
Caution:
Don’t bend or scratch your SIM card. Keep it
away from static electricity, water, and dirt.
memory card
You can use a removable microSD memory card (up to
2 GB) with your phone to store and retrieve
multimedia objects such as pictures and music.
To install the memory
card, make sure the
memory card’s metal
contacts are facing
down. Slide the top of
the memory card under the metal band and into the
holder.
To remove the memory card, slide the card back out of
the holder.
Note:
If you download a copyrighted file and store it
on your memory card, you can use the file only while
your memory card is inserted in your phone. You
cannot send, copy, or change copyrighted files.
12
18
get started
battery
battery tips
Battery life depends on the network, signal strength,
temperature, features, and accessories you use.
•
Always use Motorola Original
batteries and chargers. The
warranty does not cover damage
caused by non-Motorola batteries
and/or chargers.
•
New batteries or batteries stored for a long
time may take more time to charge.
•
When charging your battery, keep it near room
temperature.
When storing your battery, keep it uncharged
in a cool, dark, dry place.
•
Never expose batteries to temperatures below
0°C (32°F) or above 45°C (113°F). Always take
your phone with you when you leave
your vehicle.
•
It is normal for batteries to gradually wear
down and require longer charging times. If you
notice a change in your battery life, it is
probably time to purchase a new battery.
Contact your local recycling centre for proper
battery disposal.
Warning:
Never dispose of batteries in a fire because
they may explode.
Before using your phone, read the battery safety
information in the “Safety and General Information”
section included in this guide.
032375o
19
get started
install the battery charge the battery
New batteries are not fully
charged. Plug the battery
charger into your phone and
an electrical outlet. Your
phone might take several
seconds to start charging
the battery. The phone
shows
Charge Complete
when finished.
Tip:
Motorola batteries have circuitry that protects the
battery from damage from overcharging.
12
3
20
get started
turn it on & off
To turn on your phone
,
press and hold
O
for a
few seconds or until the
display turns on.
If prompted, enter your
four-digit unlock code. Your phone’s four-digit
unlock
code
is originally set to
1234
or the last four digits of
your phone number.
To turn off your phone
, press and hold
O
for a few
seconds.
answer a call
When your phone rings and/or vibrates, just press
N
to answer.
To “hang up”, press
O
.
make a call
Enter a phone number and press
N
to make a call.
To “hang up,” press
O
.
Tip:
Is your caller saying they can’t hear you? Make
sure your finger is not covering the microphone (see
page 2).
adjust volume
You can adjust the volume, during a call, by pressing
S
right to increase and left to decrease the earpiece
volume.
To mute a call, press
s
and select
Mute
.
Power/End
Key
21
get started
change ring alert
Find it:
s
>
wSettings
>
Ring Style
Available options are
Loud Ring, Soft Ring, Vibrate, Vibrate & Ring,
Vibrate then Ring
or
Silent
.
store a phone number
You can store a phone number in
Contacts
:
1
Enter a phone number in the home screen, and
press
Store
.
2
Enter a name and other details for the phone
number. To select a highlighted item, press the
centre key
s
.
3
Press
Done
to store the number.
To store an email address for a new contact, press
s
>
nContacts
>
[New Entry]
>
New
>
Email
. Enter the
name and email address and then press
Done
.
call a stored phone
number
Find it:
s
>
nContacts
1
Scroll to the entry.
2
Press
N
to call the entry.
Shortcut:
In
Contacts
, enter the first letters of an entry
to get to it quickly.
22
tips & tricks
tips & tricks
From the home screen
(page 23), you can use the
following shortcuts:
To... Do this...
play music
Press the left soft key to activate
the music player.
lock/unlock
keypad
Press
s*
to lock or unlock.
see recently
dialled
numbers
Press
N
.
use
application
shortcuts
Press the left and right soft keys
or the navigation key
S
.
speed dial a
number
Press and hold the number key
assigned to the contact.
To... Do this...
23
basics
basics
See page 2 for a basic phone diagram.
home screen
When you turn on your phone, it displays the home
screen. To dial a number from the home screen, press
number keys and
N
.
Note:
Your home screen might look a little different
from this example.
Soft key labels show the current soft key functions.
For soft key locations, see page 2.
Press the navigation key
S
up, down, left, or right to
select items in the home screen.
Status indicators can appear across the top of the
home screen:
Right Soft Key
Label
Left Soft Key
Label
Recent Messaging
6Îì
WED 10/10/07
10:51am
L
h
J
e
&
&
&
&
indicator
6
Signal Strength
Vertical bars show the
strength of the network
connection.
W
Roaming
Indicates phone is in a digital
coverage area and is roaming
off network.
{
Missed Call
Indicates that you received
an unanswered call.
24
basics
enter text
Some screens allow you to use the keypad to enter
text, such as when you compose a message:
Z
Voice Call/
Incoming Call
Shows during an active voice
call.
ì
Battery Level
Shows battery charge level.
The more bars, the greater
the charge.
õ
Loud Ring
Indicates
Style
(in
Ring Styles
)
is set to
Loud
.
ô
Soft Ring
Indicates
Style
(in
Ring Styles
)
is set to
Soft
.
Í
All Sounds Off
Indicates
Style
(in
Ring Styles
)
is set to
Silent
.
Vibrate then Ring
Indicates
Style
(in
Ring Styles
)
is set to
Vibe then Ring
.
Î
Vibrate
Indicates
Style
(in
Ring Styles
)
is set to
Vibrate
.
Spkrphone On
Indicates speakerphone
is on.
indicator
ö
Q
New Text Message
Appears when you receive a
new text message.
t
New Voicemail
Message
Appears when you receive a
new voicemail message.
indicator
6ì
1 Msg 2984
Free for lunch?
Options Send To
Á
25
basics
set entry modes
Multiple text entry modes make it easy for you to
enter names, numbers, and messages:
To assign a Primary or Secondary text entry mode:
1
In a text entry screen, press
s
.
2
Scroll to
Entry Setup
and press
s
.
3
Scroll to
Primary Setup
or
Secondary Setup
and press
s
.
4
Scroll to one of the following choices and press
s
:
To select a text entry mode:
Press
s
in any text entry screen, scroll to and select
Entry Mode
, then scroll to and select the desired entry
mode.
entry mode
Primary
Enter text using a method that you set.
Number
Enter numbers only (see page 28).
Symbol
Enter symbols only (see page 29).
options
iTAP
Let the phone predict each word as you
press keys.
TAP
Enter letters and numbers by pressing
a key one or more times.
Tap Extended
Enter letters, numbers, and symbols by
pressing a key one or more times.
26
basics
capitalisation
Press
0
in any text entry screen to change the text
case. These indicators show capitalisation status:
text entry mode indicators
When you select the
Primary
or
Secondary
text entry mode,
the following indicators identify the text entry setting:
These indicators identify
Numeric
or
Symbol
entry mode:
capitalization status
í
no capital letters
L
all capital letters
ì
capitalise next letter only
primary secondary
gm
Tap, no capital
letters
hq
Tap, capitalise next
letter only
fl
Tap, all capital
letters
jp
iTAP®, no capital
letters
kn
iTAP, capitalise next
letter only
io
iTAP, all capital
letters
non-text entry mode
gm
number mode
[
symbol mode
primary secondary
27
basics
tap method
This is the standard method for entering text on your
phone.
Regular
Tap
method cycles through the letters and
numbers of the key you press. The
Tap Extended
method
cycles through letters, numbers,
and
symbols.
1
Press a key one or more times to scroll for a
letter, number, or symbol.
2
Repeat the step above to enter all characters.
Tip:
Press
*
to insert a space.
In a text entry screen you can press
#
to switch
entry modes. If
Tap
or
Tap Extended
is not available as the
Primary
or
Secondary
entry mode, see page “set entry
modes” on page 25.
•
Press a keypad key repeatedly to cycle
through its characters.
•
Press
S
left or right to move the flashing
cursor to the left or right in a text message.
•
If you don’t want to save your text or text
edits, press
O
and
Cancel Message
to exit
without saving.
28
basics
iTAP® method
The iTAP software combines your single key presses
into common words, and predicts each word as you
enter it. This can be faster than the Tap method.
1
Press
S
right or left to scroll through the
possible letter combinations, and highlight the
combination you want.
2
Press
Select
to enter the highlighted combination.
You can press keys to add more letters to the end
of the combination.
or
Press
*
to enter the highlighted combination
when it spells a word.
A space is inserted after the word.
For example, if you press
7764
, your phone
displays the corresponding letter combinations:
numeric method
In a text entry screen, press
#
to switch entry
methods until your phone displays the
gm
(numeric)
indicator.
Press keypad keys to enter numbers. When finished,
press
#
to switch entry modes.
6ì
433
ÁÛ Msg
This is a prog ram
Press
S
right
to accept
program
.
Press
S
right
or left to see
other word
suggestions.
Options Send To
29
basics
symbol method
In a text entry screen, press
#
to switch entry
methods until your phone displays the
[
(symbol)
indicator.
1
Press a key one or more times to show possible
symbol combinations at the bottom of the screen.
2
Scroll left or right to highlight a symbol and press
s
to enter it.
delete letters & words
Move the cursor to the right of the text you want to
delete and then:
•
Press
Delete
to delete one letter at a time.
•
Press and hold
Delete
to delete the
entire message.
handsfree speaker
You can use your phone’s handsfree speaker to make
calls without holding the phone to your ear.
To turn the speaker on, during a call, press
SPKR ON.
To
turn the speaker off, during a call, press
SPKR OFF.
codes & passwords
Your phone’s four-digit
unlock code
is originally set to
1234
or to the last four digits of your phone number.
The six-digit
security code
is originally set to
000000
.
Your service provider may reset these codes. If not,
you should change them to protect your personal
information. The unlock code must contain four digits.
The security code must contain six digits.
To change a code or password
:
Find it:
s
>
wSettings
>
Security
>
New Passwords
30
basics
Note:
If you forget your security code, contact your
service provider.
lock & unlock phone
You can lock your phone with a four-digit code to keep
others from using it. (To lock the external keys, see
page 16. For more types of locks, see “security” on
page 53.)
Note:
You can make emergency calls on a locked
phone (see page 38). A locked phone still rings or
vibrates for incoming calls or messages,
but you
need to unlock it to answer
.
To lock your phone
:
Find it:
s
>
wSettings
>
Security
>
Phone Lock
>
Lock Now
or
Automatic Lock
Enter the four-digit unlock code and press
OK
. Your
phone first displays
Phone Locked
, and then shows
Enter
Unlock Code
until the next time you unlock your phone.
To unlock your phone
, enter your four-digit code and
press
OK
.
memory card
You can store multimedia content, such as songs and
pictures, on your phone’s internal memory or on an
optional memory card.
Notes:
•
Your phone supports microSD memory cards
with up to 2 GB capacity (greater than 1 GB
capacity is guaranteed only for SanDisk
microSD cards).
•
If you download a copyrighted file and store it
on your memory card, you can use the file
only when your memory card is inserted in
your phone. You cannot send, copy, or change
copyrighted files.
31
basics
format memory card
Format a memory card before using it for the first
time. This essential procedure creates the “Mobile”
and “Motorola” directories. If you do not format a
memory card before using it for the first time, your
phone may not be able to read the contents of the
card.
Caution:
Formatting the memory card erases all
content on the card.
Find it:
s
>
wSettings
>
Initial Setup
1
Scroll to
Additional Storage Device
and press
Select
.
2
When prompted, press
Yes
to continue or
No
to
cancel formatting.
32
customise
customise
change home screen
shortcuts
Note:
This option might be unavailable if your service
provider shows scrolling headlines.
Find it:
s
>
lPersonalise
>
Home Screen
>
Home Keys
change main menu
appearance
To change your main menu appearance to either
icons or a text-based list
, press
s
>
lPersonalise
>
Main Menu
>
View
.
options
Icons
Show or hide the home screen shortcut
icons.
Up
,
Down
,
Left
,
Right
Choose the features that open when
you press the navigation key (
S
) up,
down, left, or right in the home screen.
Left Soft Key
Choose the feature that opens when
you press the left soft key.
Note:
This option might be unavailable
depending on your service provider.
Right Soft
Key
Choose the feature that opens when
you press the right soft key.
options
33
customise
use shortcuts for lists
To go quickly to an item in a list (such as a list of
contacts, songs, albums, or playlists),
press the first
letter
of the item. For example, in a list of songs, to go
to a song called
Paradigm
, press
P
(the
7
key).
ring styles & alerts
Your phone rings and/or vibrates to notify you of an
incoming call or to signal certain other events. This
ring or vibration is called an alert.
set a style
Find it:
s
>
wSettings
>
Ring Style
1
Select
Style
by pressing
s
.
2
Scroll to a ring style and press
s
.
set alerts
Set alerts for different events, such as getting a
message in your inbox or receiving a call.
Find it:
s
>
wSettings
>
Ring Style
1
Scroll to Style
Detail
and press
s
.
2
Scroll to an alert type and press
s
.
3
Scroll to the desired detail setting and press
s
.
Note:
Your phone plays a sample of each
highlighted setting. Ringtones usually play
through the speakerphone even if you’re using a
headset.
34
customise
answer options
Set your phone to either
Any Key
or
Send Key Only
answer
option.
Find it:
s
>
wSettings
>
In Call Setup
>
Answer Options
wallpaper
Set a picture or animation as a wallpaper (background)
image in your home screen.
Find it:
s
>
lPersonalise
>
Wallpaper
To select a wallpaper image
:
1
Scroll to
and press
s
.
2
Scroll to the picture you want and press
s
.
Select
(None)
to turn off wallpaper.
To adjust wallpaper image layout
:
1
Scroll to
Set Layout
and press
s
.
2
Scroll to
Tile
,
Centre
or
Fit-to-screen
, and press
s
.
screen saver
Set a picture as a screen saver image.The screen
saver displays when the phone is being charged and
there is no activity.
Find it:
s
>
lPersonalise
>
Screen Saver
To select a picture for a screen saver
:
1
Scroll to
Type
and select
Animation
.
2
Scroll to
Animation
and press
s
.
3
Scroll to the picture you want and press
s
.
Select
(None)
to turn off the screen saver.
To specify how long your phone must be inactive
before it displays the screen saver
:
1
Scroll to
Idle Time
and press
s
.
2
Select a time period and press
s
.
35
customise
display settings
Select a time period that the display light remains on.
Find it:
s
>
wSettings
>
InitialSetup
>
Display Settings
backlight
Select a time period that the display and keypad
backlight remain on.
Find it:
s
>
wSettings
>
InitialSetup
>
Backlight
36
calls
calls
To make and answer calls, see page 20.
redial a number
1
From the home screen, press
N
to see a list of
recent calls.
2
Scroll to the entry you want to call and press
N
.
recent calls
Your phone keeps lists of the calls you recently
received and dialled, even if the calls didn’t connect.
The lists are sorted from newest to oldest calls. The
oldest calls are deleted as new calls are added.
Find it:
N
1
Scroll to an entry.
Note:
A
%
next to a call means the call
connected.
2
Press
N
to call the number.
To see call details (such as time and date),
press
View
.
Press the centre key
s
while viewing a list of recent
calls to see these options:
option
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Show ID / Hide ID
Show or hide your phone number
when making a call.
37
calls
return a missed call
Your phone keeps a record of your unanswered calls,
and shows
X Missed Calls
, where
X
is the number of
missed calls.
1
Press
N
to see the
Recent Calls
list.
2
Scroll to the call you want to return and
press
N
.
answer options
You can change how you answer a call so that you can
press any key to answer:
Find it:
s
>
wSettings
>
In-Call Setup
>
Answer Options
Select
Multi-Key
to answer by pressing any key.
call waiting
If you
receive a second call
while you are
already on a call:
•
To answer the second call and put the first call
on hold, press
N
. To switch between the
calls, press
N
again.
•
To send the second call to your voicemail,
press
Ignore
.
Send Message
Open a new text message with
the number in the
To
field.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the
Contacts
or recent calls lists.
option
38
calls
speed dial
Each Contacts entry you store is assigned a unique
speed dial number.
Find it:
s
>
s
Contacts
>
[Entry]
>
View
To speed dial a number, simply enter the speed dial
number and press
#
>
N
.
Note:
Your service provider may have already
assigned speed dial number 1 to your voice mail
number.
notepad
The most recent set of digits that you entered are
stored in your phone’s notepad memory.
To retrieve a number in the notepad
:
Find it:
s
>
s
Recent Calls
>
NotePad
Press
N
to call the number or press
Store
to store the
number in Contacts.
emergency calls
Your service provider programs emergency phone
numbers, (such as 112 or 911), that you can call under
any circumstances, even when your phone is locked.
1
Enter the emergency number.
2
Press
N
.
Note:
Emergency numbers vary by country. Your
phone’s preprogrammed emergency number(s) may
not work in all locations, and sometimes an
emergency call cannot be placed due to network,
environmental, or interference issues.
39
messages
messages
You can send and receive SMS/EMS and MMS
multimedia messages as well as access your
voicemail from the Messages feature. Each message
type allows you to attach different objects. The
available options are displayed in the
Insert
menu.
send a message
Find it:
s
>
e Messages
>
Create
1
Select a message type and enter the message
text.
2
To insert a picture, sound, or other object, press
Insert
.
3
When you finish the message, press
OK
. Choose
one or more people to Send to.
4
Press
Done
>
Send
.
receive a message
When you receive a message, your phone plays an
alert and displays the
e
(new message) indicator and
a New Message notification.
Press
Read
to read the message immediately, or save it
in your Message Inbox for viewing later.
To read messages in your Message Inbox:
Find it:
s
>
e Messages
>
Inbox
1
Scroll to the message you want to read.
2
Press
Read
to open the message. For MMS
messages, your phone displays the media object,
then the message.
40
messages
voicemail
Your network stores the voicemail messages
you receive. To listen to your messages, call
your voicemail number.
When you
receive
a voicemail message, your phone
shows an indicator and
New Voicemail
.
To check voicemail messages:
Find it:
s
>
eMessages
>
Voicemail
>
N
Note:
Your service provider may have assigned speed
dial number 1 for calling voicemail and may provide
additional information about using voicemail.
connections—cable connections
41
connections
cable connections
You can use your phone’s
mini-USB port to connect
to a computer.
Note:
Motorola Original™
USB data cables and
supporting software may
be sold separately. Check your computer to determine
which cable you need.
If you use a USB cable connection:
•
Be sure to connect the phone to a high-power
USB port
on your computer
(not a low-power
one, such as the USB port on your keyboard or
bus-powered USB hub).
Note:
If you connect your phone to a
low-power USB port, the computer may not
recognize your phone.
•
Make sure both your phone and the computer
are turned on.
42
entertainment
entertainment
FM radio
Find it:
s
>
hMultimedia
>
FM Radio
Note:
A headset must be plugged in to activate the
FM
Radio
.
•
Press
S
left or right to adjust the frequency.
•
Press
S
up or down to adjust the volume.
•
Press
Options
>
Mute
to mute the radio.
use the radio presets
1
Tune in the desired frequency by pressing
S
left
or right or press
Options
>
Scan
to scan for all
available radio stations. You can also use the
keypad keys to enter a frequency by pressing
Options
>
Set Frequency
.
2
Press and hold keypad keys to save that number
as the preset.
select a radio preset
1
Press
Options
>
Station Presets
to view a list of all radio
presets.
2
Press
S
up or down to select a preset.
record FM radio clips
1
Press
Options
>
Record
.
2
Press
Options
>
Stop Recording
to stop the recording.
The clip is saved in
hMultimedia
>
Sounds
.
43
entertainment
select the radio output
You can play the radio through a headset or a speaker.
Simply press
Options
>
Use Speaker
or
Use Headset
.
music player
Use your phone to play music files:
Find it:
s
>
hMultimedia
>
Sounds
Note:
Your phone may not play MP3 files that have a
bit rate higher than 128 kbps. If you try to download or
play one of these files, your phone may display an
error message or ask you to delete the file.
Tip:
You can listen to music on the move. Connect a
headset for high quality music playback.
music player controls
function
scroll up/down
through song
list
Before music playback
, press
S
up
or
down
.
play
Press
s
.
pause/resume Press
s
.
fast forward Press &
hold
S
right
(for at
least two seconds).
skip to next
song
Press &
release
S
right
.
rewind Press &
hold
S
left
(for at least
two seconds).
return to start
of song
After first two seconds
of song,
press &
release
S
left
.
44
entertainment
playlists
Find it:
s
>
hMultimedia
>
Sounds
•To create
a new playlist, scroll to
[New Playlist
]
and press
Select
.
•To edit
an existing playlist, scroll to the playlist
and press
s
>
Edit
.
• To select and play a playlist
, scroll to the
playlist and press
Play
.
music player options
return to last
song
Within first two seconds
of
song, press &
release
S
left
.
turn off
Press
Back
.
function
option
New Playlist
- Create a new playlist.
iMelody
- Create a custom ringtone.
Categories
Create and manage categories
for your music files.
Sound Setup Auto Repeat
- Repeat the selected
song or all songs in the current
playlist.
View Free Space
View space remaining on your
phone.
45
other features
other features
phonebook messages
features
create entry
s
>
nContacts
>
[New Entry]
edit entry
s
>
nContacts
Scroll to the entry and press
s
>
Edit
to edit the
entry. Scroll up or down and press
s
to edit fields.
Press
OK
to save your changes.
delete entry
s
>
nContacts
Scroll to the entry and press
s
>
Delete
>
Select
.
features
send text message
s
>
eMessages
>
Create
Press
Insert
to perform various actions on the
message.
You can also select a contact first, press
s
, and
select
Send Message
to compose a message.
use MMS template
Select a multimedia template with preloaded
media:
s
>
eMessages
>
MMS Templates
46
other features
view sent messages
s
>
eMessages
>
Outbox
Scroll to the message and press
Read
.
Press
s
to perform various actions on the
message.
read received messages
s
>
eMessages
>
Inbox
Scroll to the message and press
Read
.
Press
s
to perform various actions on the
message.
features
drafts
View messages saved in
Drafts
folder:
s
>
eMessages
>
Draft
Scroll to the message and press
Select
.
Press
s
to perform various actions on the
message.
erase messages
Delete all messages or only messages from
one folder:
s
>
eMessages
>
s
>
Cleanup Messages
Select
All, Inbox
,
Outbox
, or
Drafts
.
set up voicemail
s
>
eMessages
>
s
>
Voicemail Setup
features
47
other features
more personalising features
view the message memory status
s
>
eMessages
>
s
>
Memory Status
features
ring volume
s
>
eMessages
>
s
>
Cleanup Messages
define answer option
s
>
wSettings
>
In Call Setup
>
Answer Options
>
Reminder
keypad volume
s
>
wSettings
>
tRing Style
> Style
Detail
>
Key Volume
features
colour setting
Colour Setting
options include
Mot, Solar
and
Jade.
s
>
lPersonalise
>
Colour Setting
my pictures
s
>
hMultimedia
>
Pictures
set screen saver
s
>
lPersonalise
>
Screen Saver
set time and date
s
>
wSettings
>
Initial Setup
>
Time and Date
reminders
Set your phone to play reminder alerts for picture,
text, or voicemail messages that you receive:
s
>
wSettings
>
tRing Style
> Style
Detail
>
Reminder
features
48
other features
greeting
Change the greeting that appears when you
turn on your phone:
s
>
lPersonalise
>
Greeting
change home screen soft key labels
s
>
lPersonalise
>
Home Screen
>
Home Keys
Note:
This feature’s availability depends on your
service provider.
text layout
Set home screen text to be left justified or
centered:
s
>
lPersonalise
>
Home Screen
>
Layout
features
clock view
Display an analog clock or digital time readout in the
home screen:
s
>
lPersonalise
>
Home Screen
>
Clock Set
menu view
Display the main menu as icons or a text list:
s
>
lPersonalise
>
Main Menu
>
View
show or hide menu icons
Show or hide menu feature icons in the home
screen:
s
>
lPersonalise
>
Home Screen
>
Home Keys
>
Icons
menu language
s
>
wSettings
>
InitialSetup
>
Language
features
49
other features
scroll
Set the scroll bar to stop or wrap around in menu
lists:
s
>
wSettings
>
InitialSetup
>
Scroll
master reset
Reset all options except unlock code, security code,
and lifetime timer:
s
>
wSettings
>
InitialSetup
>
Master Reset
To reset all options, you need to enter the
Security Code
(
000000
).
features
master clear
Reset all options except unlock code, security code,
and lifetime timer, and clear all user settings and
entries:
This option erases all user-entered information
stored in your phone memory, including
Contacts
entries and downloaded files. Once you erase the
information, it cannot be recovered. It resets all
options to their factory settings except for the
unlock code, security code, and lifetime timer.
s
>
wSettings
>
Initial Setup
>
Master Clear
To reset all options, you need to enter the
Security Code
(
000000
).
features
50
other features
call times
Network connection time
is the elapsed time from
the moment you connect to your service provider’s
network to the moment you end the call by pressing
O
. This time includes busy signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, please
contact your service provider directly.
features
set in-call timer
s
>
wSettings
>
In Call Setup
>
In-Call Timer
view call times
s
>
sRecent Calls
>
Call Times
Scroll to
Last Call
,
Dialled Calls
,
Received Calls
,
All Calls
, or
Lifetime
, and press
Select
.
view data times
s
>
sRecent Calls
>
DataTimes
view data volumes
s
>
sRecent Calls
>
DataVolumes
features
51
other features
headset
features
auto answer
Automatically answer calls when connected
to a headset:
s
>
wSettings
>
Headset
>
Auto Answer
change volume
Press
S
right to increase and left to
decrease the headset volume during a call.
features
network settings
View network information and adjust
network settings:
s
>
wSettings
>
Network
select a band
s
>
wSettings
>
Network
>
Band Selection
52
other features
personal organiser
features
add calendar event
s
>
ÉExtras
>
8Calendar
Scroll to the desired day and press
Select
, then scroll
to
[New]
and press
Select
.
view calendar event
View or edit event details:
s
>
ÉExtras
>
8Calendar
Scroll to the desired day and press
Select
, then scroll
to the event and press
View
.
event reminder
When an event reminder occurs, press
View
to view it. Press
Exit
to dismiss it.
copy calendar event
Copy a datebook event to another date
and/or time:
s
>
ÉExtras
>
8Calendar
Scroll to the desired day and press
Select
, then scroll
to the event and press
s
. Scroll to
Copy
and press
Select
.
set alarm
s
>
ÉExtras
>
Alarm Clock
calculator
Calculate numbers:
s
>
ÉExtras
>
Calculator
features
53
other features
security
convert currency
s
>
ÉExtras
>
Calculator
Press
s
, then scroll to
Convert
Currency
and press
Select
.
features
restrict calls
Restrict outgoing or incoming calls:
s
>
wSettings
>
Security
>
Call Barring
Select
Outgoing Calls
,
Incoming Calls
or
Cancel All
and press
Select
.
When prompted, enter the unlock code (
1234
or the
last four digits of your phone number) and press
Ok
.
features
DTMF tones
Your phone can send Dual Tone Multi Frequency
(DTMF) tones for calling card calls or other
automated touch-tone calls.
s
>
wSettings
>
Initial Setup
>
DTMF
Select
Short DTMF
or
Long DTMF
.
change unlock and security codes
s
>
wSettings
>
Security
>
New Passwords
>
Unlock Code
or
Security Code
Note:
The default code is
1234
or the last four digits
of your phone number.
features
54
other features
fun & games
features
manage sounds
Manage sounds and create playlists:
s
>
hMultimedia
>
Sounds
To play a sound, scroll to the sound title and
press
Play
.
To create a playlist, scroll to
[New Playlist]
and
press
Select
.
Enter a playlist name and select the audio files.
play a game
s
>
hGames
55
service & repairs
service & repairs
If you have questions or need assistance, we’re here
to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options.
You can also contact the Motorola Customer Support
Centre at 1-800-331-6456 (United States),
1-888-390-6456 (/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
56
service & repairs
Specific Absorption Rate Data
SAR Data
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.07 W/kg, and when worn on the body, as described in
this user guide, is 1.32 W/kg. (Body-worn measurements differ
among phone models, depending upon available accessories and
regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
Hearing Aids
57
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
Hearing Aid Compatibility with Mobile Phones
Hearing Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)
58
WHO Information
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Registration
Online Product Registration:
direct.motorola.com/hellomoto/ Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Recycling Information
59
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the product
should not be disposed of with household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Centre in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
60
Driving Safety
• Keep software up to date
—If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device which updates the device’s
security, install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
this user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and then
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—In order to comply with
emergency caller location requirements of the FCC, certain
Motorola mobile devices incorporate Assisted Global
Positioning System (AGPS) technology. AGPS technology
also can be used in non-emergency applications to track
and monitor a user’s location—for example, to provide
driving directions. Users who prefer not to permit such
tracking and monitoring should avoid using such
applications.
If you have further questions regarding how use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
Driving Safety
61
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
62
index
index
A
accessories 16
alarm clock 52
alert
set 33
answer a call 20, 37
attach a number 37
B
backlight 35
battery 19
charge indicator light 2
extending battery life 18
level indicator 24
C
cables 41
calculator 52
calendar 52
call
answer 20, 37
end 20
make 20
call times 50
call waiting 37, 38
camera 2
camera key 2
capitalise text 26
centre key 2
clear/back key 2
clock
analog 48
digital 48
codes 29, 30
contacts 37, 45
create entry 45
D
datebook 52
dial a phone number 20
dialled calls 36
display 3, 23
drafts folder 46
E
emergency number 38
end a call 20
end key 2, 20
event, calendar 52
index
63
F
file types 43
G
greeting 48
H
handsfree
speaker 2, 29
hearing aids 57
home screen 3, 23
shortcuts 32
soft key indicators 48
I
indicators
battery level 24
message 24
signal strength 23
sound on & vibrate on 24
sounds loud 24
sounds off (silent) 24
sounds soft 24
speakerphone 24
text entry mode 26
uanswered call 23
voice call 24
iTAP text entry method 28
K
keypad volume 47
L
layout
text 48
list shortcuts 33
lock
phone 30
M
make a call 20
master clear 49
master reset 49
menu 3, 32
icons, show or hide 48
language 48
scroll 49
show icons or list 48
menu icons 32
message
drafts 46
erase 46, 47
MMS template 45
text message 45
text template 45
view sent message 46
message indicator 24
mini-USB port 2
Missed Calls message 37
64
index
MMS template 45
music 43
music player 43
N
navigation key 2, 16, 23
network settings 51
notepad 38
numeric entry method 28
O
optional accessory 16
optional feature 16
P
passwords. See codes
phone
network settings 51
phonebook 45
power key 2, 20
R
received calls 36
recent calls 36
redial 36
reminders 47
return a call 37
ring style, setting 33
ring volume 47
S
safety information 10
safety tips 60
security code 29
send key 2, 20
shortcuts 22
lists 33
signal strength indicator 23
soft keys 2, 23
indicators 48
sound on & vibrate on indicator
24
sounds
loud indicator 24
soft indicator 24
sounds off (silent) indicator 24
speaker 29
speakerphone
automatic answer 51
speakerphone indicator 24
symbol entry mode 29
T
tap text entry method 27
templates 45
text entry 24
capitalisation 26
entry mode indicators 26
text layout 48
tips & tricks 22
