User’s Guide
i776
IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use
with the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58s, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty located
in this user’s guide for complete details.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: i776/i576
Model Number: H02XAH6JR6AN/5N
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and
section 15.109(a)
Class B Digital Device
FCC Notice to Users
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID: IHDP56HS1 on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may
want to limit your own or your children’s RF exposure by limiting
the length of calls or by using handsfree devices to keep mobile
phones away from your head and body.
Source: WHO Fact Sheet 193
Further information: http://www.who.int./peh-emf
Caring for the Environment by Recycling
This symbol on a Motorola product means the product should not
be disposed of with household waste.
Disposal of your Mobile Device and Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority.
Alternatively, you may return unwanted mobile devices and
electrical accessories to any Motorola Approved Service Center in
your region.
Details of Motorola approved national recycling schemes, and
further information on Motorola recycling activities can be found
at: www.motorola.com/recycling
1
HELLOMOTO

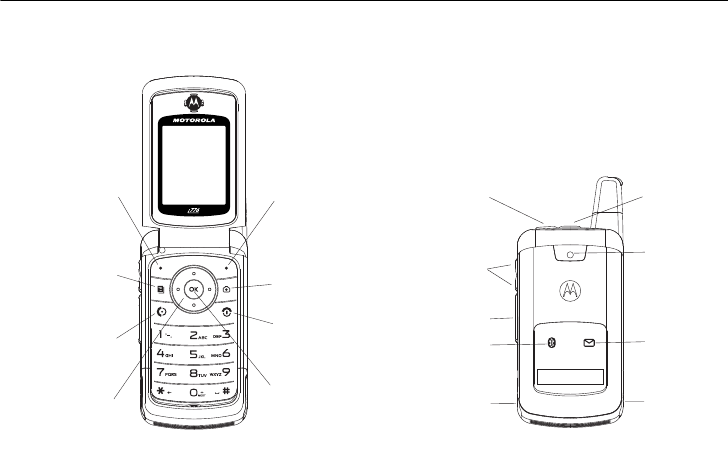

Introducing your new Motorola i776 phone. Here’s a quick anatomy lesson.
PTT Button
Audio Jack
Volume Keys
Smart Key
Mini USB
Connector
Camera Key
Speaker
On/Off Key
Bluetooth
Indicator
Messaging
Indicator
Camera
Left Soft Key
Perform function
in lower left
display.
Talk Key
Make &
answer calls.
Menu Key
From home screen,
open main menu.
4-Way
Navigation Key
Right Soft Key
Perform function
in lower right
display.
Power/Home/End Key
End calls, exit menu
system.
OK Key
In menus & lists,
press to select
highlighted option.
2
check it out
up, down, left or right ( )
1
2
Customizable O
key
to open the
Settings
screen
Press and hold the
Power Key
for a
few seconds, or until
the screen lights up,
to turn on your phone.
3
4Press the O
key
to select.
Press the Navigation Key
to highlight a menu feature.
that can be used
More Exit
Main Menu
Tu
L
D
q
0g
l
P
Main Menu
Home Screen
3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Note:
Do not ship your phone to the above address. If you need to
return your phone for repairs, replacement, or warranty service,
please contact the Motorola Customer Support Center at:
1-800-453-0920 (United States)
1-877-483-2840 (TTY/TDD United States for hearing impaired)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. Java and all other Java-
based marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
© Motorola, Inc., 2008.
Manual Number: NNTN7486A
Software Version: D8E.00.09
CP Version: 6D.05.04
USR Version: U8EA.32.01
Electrical Requirements:
Lithium Ion Battery 3.7V
Power Adapter: 100-240V ~ 50-60Hz, 120mA
Output of the Adapter: 5V 850mA
4
contents
contents
check it out . . . . . . . . . . . . . . . . 2
menu map . . . . . . . . . . . . . . . . . 6
Use and Care. . . . . . . . . . . . . . . 8
essentials . . . . . . . . . . . . . . . . . 9
about this guide . . . . . . . . . . 9
SIM card . . . . . . . . . . . . . . . 10
battery . . . . . . . . . . . . . . . . . 10
turn it on & off . . . . . . . . . . 15
enable security . . . . . . . . . 15
make a phone call . . . . . . . 15
answer a phone call . . . . . 15
make a private call . . . . . . 16
answer a private call . . . . 16
store a phone number
or private ID . . . . . . . . . . . . 17
call a stored phone
number or private ID. . . . . 17
your phone number and
Private ID . . . . . . . . . . . . . . 18
text messages . . . . . . . . . . 18
using your handset
as a modem . . . . . . . . . . . . 23
main attractions . . . . . . . . . . 24
media center . . . . . . . . . . . 24
camera . . . . . . . . . . . . . . . . 24
PTV features . . . . . . . . . . . 26
one touch PTT. . . . . . . . . . 33
PT manager . . . . . . . . . . . . 34
MMS . . . . . . . . . . . . . . . . . . 34
bluetooth
®
. . . . . . . . . . . . . 49
basics . . . . . . . . . . . . . . . . . . . 53
display . . . . . . . . . . . . . . . . 53
text entry . . . . . . . . . . . . . . 54
volume . . . . . . . . . . . . . . . . 56
navigation key . . . . . . . . . . 57
handsfree speaker . . . . . . 57
transmitters . . . . . . . . . . . . 57
use GPS with map
software. . . . . . . . . . . . . . . 58
calls . . . . . . . . . . . . . . . . . . . . . 60
recent calls . . . . . . . . . . . . 60
redial . . . . . . . . . . . . . . . . . 61
voice names . . . . . . . . . . . 61
caller ID. . . . . . . . . . . . . . . 62
call forward . . . . . . . . . . . 62
emergency calls . . . . . . . 63
international calls . . . . . . 63
speed dial . . . . . . . . . . . . . 64
turbo dial . . . . . . . . . . . . . . 64
voice mail . . . . . . . . . . . . . 65
selective dynamic
group (SDG) calls. . . . . . . 65
customize. . . . . . . . . . . . . . . . 70
ring tones . . . . . . . . . . . . . 70
wallpaper . . . . . . . . . . . . . 71
backlight . . . . . . . . . . . . . . 72
LED indicators . . . . . . . . . 72
datebook . . . . . . . . . . . . . . 72
hide or show
location information . . . . 73
other features . . . . . . . . . . . . 74
advanced calling . . . . . . . 74
5
contacts . . . . . . . . . . . . . . . 75
datebook . . . . . . . . . . . . . . . 75
GPS . . . . . . . . . . . . . . . . . . . 76
handsfree . . . . . . . . . . . . . . 77
personalize . . . . . . . . . . . . . 78
pc applications . . . . . . . . . 78
TTY . . . . . . . . . . . . . . . . . . . . 78
security . . . . . . . . . . . . . . . . 79
Safety and General
Information . . . . . . . . . . . . . . . 82
Service & Repairs . . . . . . . . . 88
Specific Absorption
Rate Data . . . . . . . . . . . . . . . . . 89
Limited Warranty Motorola
Communications Products
(International). . . . . . . . . . . . . 91
Hearing Aid Compatibility . . 95
Information From the World
Health Organization. . . . . . . . 97
Patent and Trademark
Information . . . . . . . . . . . . . . . 99
Privacy and
Data Security . . . . . . . . . . . . 100
Smart Practices
While Driving. . . . . . . . . . . . . 101
Index . . . . . . . . . . . . . . . . . . . . 103
6
menu map
menu map
main menu
p
Call Alert
L
Java Apps.
• Java System
u
Settings
• (see next page)
t
Ring Tones
• Vibrate All: On/Off
• Ringer
• Vibrate
• Silent
c
GPS
•Position
• Privacy
• Interface
P
Call Forward
D
Datebook
l
Memo
1
Net
J
My Info
•My Name
• Line 1
• Line 2
• Private ID
• Group ID
• Carrier IP
• IP1 Address
• IP2 Address
• Circuit Data
0
VoiceRecord
• [New VoiceRec]
B
Recent Calls
j
Media Center
H
Camera
K
Shortcuts
•[New Entry]
• 1)Shortcuts
• 2)Cntcs[New Contact]
• 3)Recent Calls
• 4)Contacts
• 5)Datebook
• 6)Messages
• 7)VoiceRecord
•8)Net
• 9)Call Forward
A
Contacts
• [New Contact]
•[New SDG List]
o
Profiles
M
Call Timers
•Last Call
• Phone Reset
• Phone Lifetime
•Prvt/Grp Reset
•Prvt/Grp Life
• Circuit Reset
•Circuit Lifetime
• Kbytes Reset
N
PT Manager
•Quick PTT
• Send Message
• Send Picture
• Send Event
• Send My Info
• Send Contact
• Configure
E
Messages
• [Create Message]
• [Create Txt Msg]
• [Create MMS Msg]
•Voice Mail
• Inbox
•Drafts
• Sent Items
• Net Alert
P
MOTOtalk
C
Bluetooth
• Hands Free
• Link to Devices
• Device History
• Setup
• Find Me
7
menu map
settings menu
Display/Info
• Wallpaper
•Text Size
• Theme
• Home Icons
• Backlight
•Clock
• Menu View
• Large Dialing
• Language
Phone Calls
• Set Line
•Any Key Ans
• Auto Redial
• Call Waiting
•Auto Ans
• Flip Activation
• Minute Beep
• Call Duration
• TTY
• Notifications
• DTMF Dialing
• Prepend
2-Way Radio
• Tkgrp Silent
•Tkgrp Area
• One Touch PTT
• Alert Type
• PTT Quick Notes
•On/Off PTT
• Store Rcvd Info
Personalize
• Menu Options
•Up Key
•Down Key
•Left Key
• Right Key
• Center Key
• Left Sftkey
• Right Sftkey
•Power Up
Volume
• Line 1
• Line 2
• Messages
• Earpiece
• Speaker
•Keypad
• Java Earpiece
• Java Spkr
•Data
Security
• Phone Lock
• Keypad Lock
• SIM PIN
•GPS PIN
• Change Passwds
Advanced
• Alert Timeout
• Headset/Spkr
• Connectivity
• Reset Defaults
• Return to Home
• Transmitters
• Phone Only
•Baud Rate
8
Use and Care
Use and Care
Use and Care

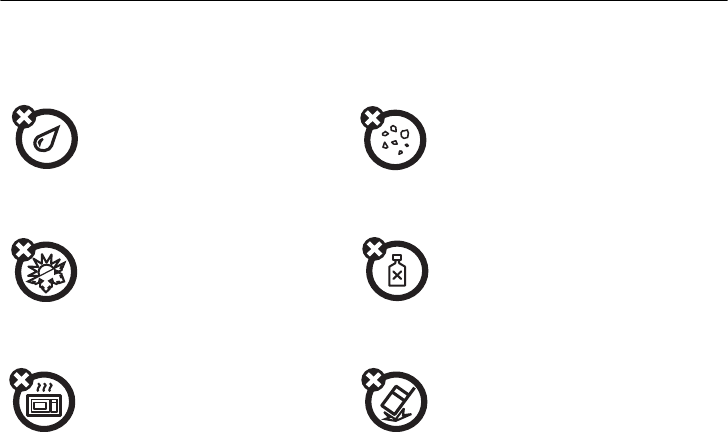

To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
Don’t expose your phone to dust,
dirt, sand, food, or other
inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
To clean your phone, use only a dry
soft cloth. Don’t use alcohol or
other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.
9
essentials
essentials
Caution:
Before using the phone for the first
time, read the Important Safety and Legal
information included in the gray edged pages
at the back of this guide.
about this guide
This guide shows how to locate a menu
feature as follows:
Find it:
M
>
Settings
This means that, from the home screen:
1
Press the menu button
M
to open the
Main Menu
.
2
Press the navigation key to scroll to
Settings
.
3
Press the center key
O
to select it.
symbols
This means a feature is network/
subscription dependent and may
not be available in all areas. Contact
your service provider for more
information.
This means a feature requires an
optional accessory.
10
essentials
SIM card
insert the SIM card
Turn off your phone and remove your battery
before you install or remove a SIM card.
Carefully slide the SIM chip into your phone,
until it lies flat in the SIM chip holder.
Warning:
To avoid loss or damage, do not
remove your SIM chip from your phone unless
absolutely necessary.
battery
Battery Use & Battery Safety
• Motorola recommends you always
use Motorola-branded batteries and
chargers.
The warranty does not cover
damage caused by non-Motorola
batteries and/or chargers. Caution: Use
of an unqualified battery or charger
may present a risk of fire, explosion,
leakage, or other hazard. Improper
battery use, or use of a damaged
battery, may result in a fire, explosion,
or other hazard.
•
Battery usage by children should be
supervised.
11
essentials
•
Important:
Motorola mobile devices are
designed to work best with qualified
batteries. If you see a message on your
display such as
Invalid Battery
or
Unable to
Charge
, take the following steps:
•
Remove the battery and inspect it
to confirm that it bears a Motorola
“Original Equipment” hologram;
•
If there is no hologram, the battery
is not a qualified battery;
•
If there is a hologram, replace the
battery and retry charging it;
•
If the message remains, contact a
Motorola Authorized Service
Center.
•
New batteries or batteries stored for a
long time may take more time to
charge.
•Charging precautions:
When charging
your battery, keep it near room
temperature. Never expose batteries to
temperatures below 0°C (32°F) or
above 45°C (113°F) when charging.
Always take your mobile
device with
you when you leave your vehicle
•
When storing your battery, keep it in a
cool, dry place.
•
It is normal over time for battery life to
decrease, and for the battery to exhibit
shorter runtime between charges or
require more frequent or longer
charging times.
•Avoid damage to battery and mobile
device.
Do not disassemble, open,
crush, bend, deform, puncture, shred,
or submerge the battery or mobile
device. Avoid dropping the battery or
mobile device, especially on a hard
surface. If your battery or mobile
device has been subjected to such
damage, take it to a Motorola
12
essentials
Authorized Service Center before
using.
Do
not
attempt to dry it with an
appliance or heat source, such as a hair
dryer or microwave oven.
•Use care when handling a charged
battery
: Particularly when placing it
inside a pocket, purse, or other
container with metal objects. Contact
with metal objects (e.g., jewelry, keys,
beaded chains) could complete an
electrical circuit (short circuit), causing
the battery to become very hot, which
could cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a
fire because they may explode.
battery installation
1
Slide the battery door up until it is
released.
2
Remove battery door.
13
essentials
battery charging
New batteries are not fully charged.

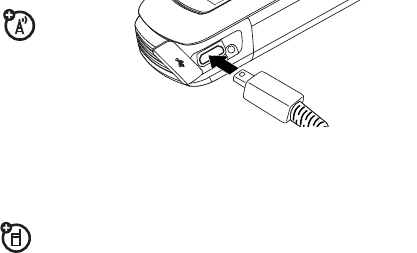

charge using the charger
1
Pull out the connector cover, and insert
the charger into the accessory connector
on your phone as shown.
2
Plug the other end of the charger into the
appropriate electrical outlet.

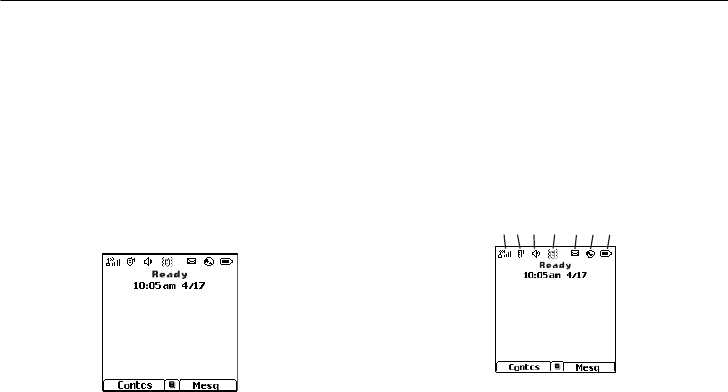

When you charge the battery, the battery level
indicator at the upper right of the screen
shows charging progress. At least one
segment of the indicator must be visible to
ensure full phone functionality while charging.
charge from your computer
You can partially charge your phone’s
battery by connecting a Motorola-approved
3
Insert battery as shown below. Push the
battery down until it snaps in place.
4
Replace the battery door.
14
essentials
USB cable from your phone’s mini-USB port
to a high power USB connector on a
computer (not a low-power one, such as the
USB connector on your keyboard or bus-
powered USB hub). Typically, USB high-power
connectors are located directly on your
computer.
Note:
The phone will be charged at a slower
rate than it is charged with the rapid charger.
Your computer must be turned on, and you
must have correct software drivers installed
on your computer. If the Phone is off when
the USB cable is connected between the
computer and the phone, the phone will
power up in charging mode. This mode allows
the phone to charge fastest and quickest.
Note:
If the battery is very low, the phone will
not turn On, but it will continue to charge at a
low rate. The phone will power up in charging
mode when the battery has been charged to
approximately 5% of its capacity. For faster
charging under a very low battery condition, it
is recommended to use the rapid charger
supplied with the handset.
If the phone is turned on while charging from
a computer, it will not fully charge the battery.
In this case, the battery charge will be
maintained approximately between 80% and
95% of the battery's capacity. Cables and
software drivers are available in Motorola
Original
TM
data kits, sold separately.
Tip:
Motorola batteries have circuitry that
protects the battery from damage from
overcharging. Of course, unplugging the
charger from the wall will prevent the battery
from overcharging.
15
essentials
turn it on & off
To turn on your
phone, press
and hold
E
for a
few seconds or
until the display
turns on.
To turn off your phone, press and hold
E
for
two seconds.
Note:
If you press
E
for more than four
seconds, the handset will power “On” on
“Transmitter Off” mode. See “transmitters”
on page 57.
enable security
You must enable security the first time you
power on you phone or within 10 days of first
activation.
1
Press
-
under
Ok
.
2
Your are prompted to enable security.
Press
-
under
Yes
. A series of screens
followed by the default home page
displays.
3
Press
O
to return to the home screen.
make a phone call
Enter a phone number and press
S
to make
a call or use a voice name. See “voice
names” on page 61.
Note:
For best call quality avoid covering the
internal antenna with your hand.
To hang up press
E
.
answer a phone call
When your phone rings and/or vibrates, you
have the following options to answer:
16
essentials
1

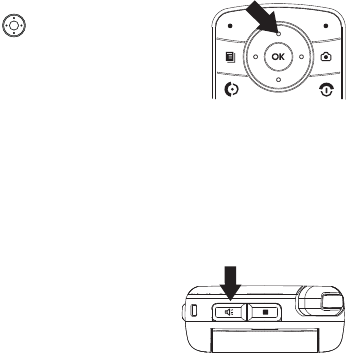

If you want to answer the call on the
handsfree speaker phone, press the
speaker key
s
.
2
If you want to hear the audio through the
ear speaker, press
S
.
To hang up press
E
.
make a private call
With Private calls service, you use your phone
as a long-range, digital 2-way radio using one-
to-one Private calls or one-to-many group
calls.
Your Private ID is the number at which you
receive one-to-one Private calls.
Talkgroup numbers are numbers through
which you receive one-to-many group calls.
1
To make a private call enter the Private ID
you want to call.
2
Press and hold the PTT button. Begin
talking after your phone emits a chirping
sound.
3
Release the PTT button to listen.
To end the call press
O
.
A Private call ends automatically if there is
no activity on the call for a few seconds.
Tip:
To let someone know you want to talk to
them on a Private call, press
-
under
Alert
.
answer a private call
1
When your phone emits a chirping sound
or vibrates to indicate you are receiving a
Private call, wait for the caller to finish
speaking.
2
Press and hold the PTT button and begin
talking after your phone emits a chirping
sound.
17
essentials
3
Release the PTT button to listen.
To end the call press
-
under
Exit
.
store a phone number
or private ID
You can store a phone number or Private ID in
Contacts
:
1
Press
M
>
Contacts
>
[New Contact]
.
2
Enter a name for the new entry. Each
entry’s name can contain up to 20
characters.
3
Select
Ringer
if you wish to assign a
specific ring tone to that phone number.
4
Select a type for the entry (
Mobile
,
Private
,
Work1
,
Work2
,
Home
,
Email
,
Fax
,
Pager
,
Talkgroup
,
SDG
,
IP
or
Other
). To store a Private ID,
choose
Private
.
5
Enter the number for the entry and press
-
under
Done
to save the entry.
Tip:
Before saving the entry, you can save
more information. You can store E-mail
addresses, IP addresses, or Talkgroup IDs.
You can assign each number a speed dial
number and voice name. You can also create
Contact entries that are groups of Private IDs
called Group IDs and/or SDG lists.
After you have saved the number, the new
Contacts entry is displayed.
call a stored phone
number or private ID
Shortcut:
From the home screen press
-
under
Contcs
or
Find it:
M
>
Contacts
18
essentials
1
Scroll to the
Contacts
entry.
Tip:
By pressing the first letter of the
name of the
Contacts
you want, you will be
taken to all the contact names starting
with the letter you pressed.
2
If the Contacts entry contains more than
one number, scroll left or right until the
type of the number you want to call is
displayed (
Mobile
,
Private
,
Work1
,
Work2
,
Home
,
etc.).
3
If you choose a phone number, press
S
to call the entry.
or
If you choose a Private ID, Talkgroup ID, or
SDG List, press and hold the PTT button
to call the number.
Tip:
If the Contacts entry you scrolled to
contains a Private ID, you can make an instant
Private call to that Private ID by pressing and
holding the PTT button, even if the Private ID
is not the type of number displayed.
your phone number and
Private ID
Find it:
M
>
My Info
Tip:
Want to see your phone number or
Private ID while you’re on a call? Press
M
>
My Info
.
text messages
If your service provider offers text messaging,
your phone sends text messages using
Mobile Originated Short Messaging Services
(MOSMS) and receives text messages from
other phones that are using MOSMS.
19
essentials
Note:
When a new message is available, the
Messaging LED indicator will be activated
above the external display.
set it up
Before you begin using text messaging, you
may need to set up your signature, service
center number, and expiration information.
Shortcut:
From the home screen press
-
under
Msgs
>
M
>
Text Msg Setup
.
or
Find it:
M
>
Messages
>
M
>
Text Msg Setup
The following options become available:
option
Signature:
Enter your signature (up to 11
characters long).
Delivery Rpt:
Set this option to
On
if you want
your phone to show you when the
message has been delivered.
Srvc Cntr No:
Enter the phone number of your
service center. If you do not know this
number, contact your service provider.
Expire After:
This is the amount of time
messages you send are saved at the
service center if they cannot be delivered.
After this period, they are discarded.
Scroll to select the number of days you
want your messages to be saved.
Cleanup:
Set this option to
On
if you want your
phone to delete sent messages.
If you set
Cleanup
to
On
, select
Clean Up After
to
set the number of days after which sent
messages are deleted or the number of
messages to be kept.
option
20
essentials
Press
-
under
Done
to save the information
you entered.
receive a text message
1
To view the message press
-
under
Read
.
2
To dismiss the message notification press
-
under
Exit
.
Note:
If your phone is powered off when you
receive a text message, your phone notifies
you the next time you power it on. If you are
out of your coverage area, your phone alerts
you when you return to your coverage area.
Tip:
While reading a text and numeric
message that contains a phone number, you
can press
S
to call that number.
read from the message center
1
From the home screen press
-
under
Msgs
>
Inbox
>
Text Inbox.
2
Select the message you want to read or
press the number of the message you
want to read. If the message fills more
than one screen, scroll to read it.
Tip:
Scrolling through one message lets
you view the next message.
3
To reply to the message, press
-
under
Reply
or to see all other choices, including
forwarding and deleting the message,
calling the sender, or storing the sender’s
number in
Contacts
, press
M
.
Quick Notes
: Quick notes are short, pre-written
text messages that you can create, edit,
and send in your text messages. You can
store up to 20 quick notes. A quick note
may be up to 30 characters long.
You can create a
[New Note]
or press
-
under
Edit
to change the pre-written quick notes.
option
21
essentials
create and send text messages
1
From the home screen press
-
under
Msgs
>
[Create Message]
>
[Create Txt Msg]
.
or
Select
Inbox
>
Text Inbox
, or
Outbox
>
Text Outbox
,
or
Drafts
>
Text Draft
.
2
To address the message use the keypad
to enter the phone number of the person
you want to send the message to and
press
O
.
or
Press
-
under
Browse
, and select
Recent
Calls
,
Contacts
or
Memo
to find the number you
want.
3
Select
Msg
and enter the text of the
message or to use a quick note press
-
under
Browse
and scroll to the quick note
you want.
4
Press
M
>
Set Send Method
and select
Text
,
Fax
,
x400
,
Paging
,
Email
,
ERMES
, or
Voice
.
5
If you want to send the message, press
-
under
Send
or to delete the message
without sending it, press
-
under
Cancel
.
Note:
If you want to request confirmation
of delivery press
M
>
Delivery Report
>
On
.
use drafts
When you save a message as a draft, it is
saved in the drafts folder.
Shortcut:
From the home screen press
-
under
Msgs
>
Drafts
>
Text Draft
.
1
Select the draft you want to edit. You also
have the choice to create new text
messages from this menu.
2
To edit the fields you want to change,
follow step 2 through step 5 in “create
and send text messages” above.
22
essentials
resend text messages
Shortcut:
From the home screen press
-
under
Msgs
>
Outbox
>
Text Outbox
.
1
Scroll to the message you want to resend
or press the number of the message you
want to resend.
2
Press
-
under
Resend
.
delete sent text messages
Shortcut:
From the home screen press
-
under
Msgs
>
Outbox
>
Text Outbox
.
1
Scroll to the message you want to delete.
2
Press
-
under
Delete
.
3
Press
-
under
Yes
to confirm.
delete all unlocked sent messages
Shortcut:
From the home screen press
-
under
Msgs
>
Outbox
>
Text Outbox
.
1
Press
M
>
Delete All
.
2
Press
-
under
Yes
to confirm.
manage memory
Your text inbox, outbox, and drafts folder have
a set amount of memory available for storing
messages.
The text inbox holds 20 messages. If the text
inbox is full, you cannot receive messages
until you delete some.
The outbox and drafts folder share memory
space. Togheter they can hold 30 messages.
If the outbox and drafts folder memory is full,
you cannot send messages or save drafts
until you delete some.
To view the amount of memory available in
your text inbox:
Shortcut:
From the home screen press
-
under
Msgs
>
M
>
Text Msg Setup
>
Mem Mtr-Inbox
.
To view the amount of memory available in
your outbox and drafts folder:
23
essentials
Shortcut:
From the home screen press
-
under
Msgs
>
M
>
Text Msg Setup
>
Mem Mtr-Other
.
using your handset
as a modem
You can use your handset as a modem with a
laptop, handheld device, or desktop
computer. In order to use your handset as a
modem, you must create a connection
between your handset and the other device.
connect with a USB cable
Use a USB cable to connect your
handset to a laptop, handheld device, or
desktop computer.
1
Pull out the connector cover, and insert
the charger into mini USB connector on
your phone as shown.
2
Insert the data plug into the data port of
the other device.
When used as a modem, your handset is
enabled for
Packet Data
transfer mode, which is
used for small file transfers such as email.
Note:
To use these services, you must install
the iDEN Wireless Data Services software
(available separately). For more information on
setting up your computer and your handset
for packet and circuit data calls, contact your
service provider.
24
main attractions
main attractions
media center
The media center lets you access pictures,
videos, and audio recordings stored in your
phone’s memory.
The following audio recordings can be
accessed through the media center:
•
Voice records
•
Musical ring tones in the list of ring
tones
•
Audio recordings saved from MMS
messages received
•
Audio recordings downloaded to your
phone
Items in the media center can be sent in
MMS messages and with Bluetooth. See
“MMS” on page 34 and “bluetooth®” on
page 49.
Pictures in the media center can be sent in
Private calls using Send via PTT. See “PTV
features” on page 26.
camera
The camera with a digital, external viewfinder
in your handset takes pictures and records
videos. You can save these pictures and
videos in your phone’s memory. You can
access these saved pictures and videos
through the media center.
25
main attractions
You can send the pictures you take either in
Private calls or with Bluetooth. You can also
assign them to Contacts entries, or set them
as your phone’s wallpaper.
access the camera
There are many ways to access the camera.
The simplest way is to press
e
.
To take pictures aim the camera lens on the
flip and press
-
under
Capture
or press
r
.
To save the picture, press
r
.
To discard the picture without saving it, press
-
under
Discard
.
From the camera viewfinder, you can press
M
to enter
Menu Options
.
The following options become available:
option
Media Center
:
Opens the Media Center
application.
Lighting
:
Turn on the spothlight On before
taking a picture in low light conditions. You
can set it up to be
Normal
or
Low Light
.
Self Timer
:
Delay capturing the picture for a
selected number of seconds. The values
are:
Off
(default),
10 seconds
,
15 seconds
, and
20
seconds
.
To turn off the timer before the picture is
captured, press
-
under
Cancel
.
Picture Quality
:
Adjust the picture quality to
Normal
or
Fine
.
Picture Size
:
Set up the picture size to
Xlarge
(640x480)
,
Large (320x240)
,
Medium (160x120)
,
Small
(128x96)
, or
Wallpaper (96x65)
. You can also set
picture size from the viewfinder by pressing
left and right.
option
26
main attractions
access the media center
You can access the media center from the
camera at any time by pressing
M
>
Media
Center
, except when you are using the
Camera
Setup
menu or viewing the memory screen.
The media center contains all your pictures,
music and video files located on your phone’s
memory. Use the
*
or the
#
to filter your
results.
customize the camera
Find it:
e
>
M
>
Camera Setup
The following options become available:
PTV features
With Push To View features, your phone
can send and receive the following
items through Private calls with other phones
that have this capability:
•
Short text messages
1
•
Pictures
1
•
Datebook events
•
My Info
•
Contact information
option
Ask for Name
:
If this option is
On
, you are
prompted to enter a name for each picture
before saving. Otherwise, pictures are
automatically saved with the date and a
number as their names.
Default Size
:
Sets the default value for the
Size
option.
Default Quality
: Sets the default value for the
quality of the picture.
1. Additional charges may apply.
option
27
main attractions
You can choose to send My Info and contact
information to any Private ID.
You can choose to send pictures, messages,
events to the Private ID you are engaged in a
a Private call with, Private IDs on the
Recent Calls
list, and Private IDs stored in
Contacts
.
When you make or receive a Private call, your
phone automatically determines whether the
phone you are engaged in a Private call with is
able to receive each of these items. Your
phone saves this information for as long as
the Private ID is on your
Recent Calls
list or is
saved in your
Contacts
. Your phone updates the
saved information each time you make or
receive a call to or from that Private ID.
You can turn your phone’s ability to send and
receive messages, pictures, events on and
off.
Note:
You cannot send PTT feature items
during Talkgroup calls or SDG calls.
send messages
The Push to Send Messages feature
lets you send short text messages
through Private calls.
When you send a message, it appears on the
display of the phone you are engaged in the
Private call with. The message won’t be
stored in the recent calls list.
begin a message and choose a
recipient
You can begin a message during a Private call,
from the
Contacts
list, the
Recent Calls
list, or from
the
PT Manager
.
begin a message during a Private call:
While in a Private call, press
M
>
Use PTT
Feature
>
Send Message
.
28
main attractions
begin a message from the Contact or
the Recent Calls list
1
From the
Contacts
or the
Recent Calls
list,
select the entry containing the Private ID
you want to send the message to.
2
Press
M
>
Use PTT Feature
>
Send Message
.
begin a message from the PT Manager
The
PT Manager
lets you select the Private ID
you want to send the message to from
Contacts
or the
Recent Calls
list.
Find it:
M
>
PT Manager
>
Send Message
Then select
A Contact
or
A Recent Call
to see a list
of entries from the
Contacts
or the
Recent Calls
list
that can receive messages.
create messages
After you have begun a message and chosen
a recipient, a screen appears that lets you
create the text of the message you want to
send. Your message may be up to 400
characters long.
You can choose from a list of ready-made
words or short phrases called Quick Notes.
You can use a Quick Note as it is or edit it
before you send it. Editing a Quick Note
changes the Quick Note for this message only
and will not change the Quick Note on the list.
send a completed message
After you have completed your message,
press the PTT button to send it.
receive messages
When you receive a message, a message
notification appears on the display. To view
the message press
O
.
To dismiss the message press
-
under
Dismiss
.
29
main attractions
reply to a message
1
View the message.
2
Press
-
under
Reply
.
3
Create the message and press the PTT
button to send it.
send pictures
You can send pictures stored in
Media
Center
through Private calls. The picture you
send appears on the Private call recipient’s
display.
If the recipient accepts the picture, their
phone saves the picture.
The first time you send a stored picture after
turning the phone on,
Picture Fees May Apply.
Continue?
appears and you are prompted to
respond.
Note:
You cannot make or receive Private
calls while transmitting or receiving a picture.
send a picture during a call
1
While in a Private call, press
-
under
or press
M
>
Use PTT Feature
>
Send
.
A list of pictures that can be included in a
Private call appears.
2
Select the picture you want to send.
3
Press the PTT button to send the picture.
4
Wait while the picture is transmitted. The
Private call is temporarily interrupted
while a picture is transmitted.
5
When prompted, press the PTT button to
resume the Private call.
start a call by sending a picture
from Media Center
Find it:
M
>
Media Center
1
Select the picture you want to send.
30
main attractions
2
Press
M
>
Use PTT Feature
>
Send Picture
.
A list of contacts that have Private IDs and
are able to receive pictures appears.
3
Select the name of the person you want
to send the picture to.
4
Press the PTT button to send the picture.
5
When prompted, press the PTT button to
resume the Private call.
from the PT Manager:
Find it:
M
>
PT Manager
>
Send Picture
1
Select
A Contact
, or
A Recent Call
to see a list of
entries that can receive pictures.
2
Select the entry containing the Private ID
you want to send the message to.
3
Select the picture you want to send.
4
Press the PTT button to send the picture.
5
Once picture has been sent, when
prompted press the PTT button to resume
the call.
receive a picture
When someone sends you a picture, your
phone emits a tone or vibrates and a message
appears asking if you want to accept the
picture.
Pictures you receive are saved to your phone’s
memory. They are accessible through
Media
Center
.
When you see a message asking if you want
to accept the picture, press
Yes
to accept or
No
to decline.
Tip:
If you want to stop the transmission
before it is finished, press
E
.
Note:
The first time you accept a stored
picture after turning the phone on,
Picture Fees
May Apply. Continue?
appears and you are
31
main attractions
prompted to respond. Press
-
under
Yes
to
accept the picture.
clear a picture from the display
If you want to clear a picture from your
phone’s display while still on a call, press
M
>
Clear Screen
.
The picture will not appear on the display
again the next time you receive a call from
person who sent it. This does not delete the
picture from
Media Center
.
send My Info
1
While in a Private Call press
M
>
Send via
PTT
, and push the PTT button to send.
or
2
From the home screen press
M
>
My Info
>
M
>
Send via PTT
and
push the PTT
button to send.
set my info sending option
You can control what portion of the
information in
My Info
is sent and
whether it is sent automatically in every call or
only when you choose to send it.
Find it:
M
>
PT Manager
>
Configure
>
PTT My Info
>
Info to Send
1
Select or remove the fields you want to
send.
2
Press
-
under
Done
.
The information your phone sends always
includes
My Name
and
Private
. You may also send
Line 1
,
Line 2
,
Carrier IP
, and
Circuit Data
depending on
your sending options.
automatic sending
To control whether you send your information
automatically:
Find it:
M
>
PT Manager
>
Configure
>
PTT My Info
>
Auto Send
32
main attractions
1
Select
On
or
Off
.
When you make a call in which your
information is sent automatically, the name
you entered in the
My Name
field of
My Info
appears on the display of the recipient’s
phone, even if your name and Private ID are
not stored in the recipient’s Contacts.
send contact information
1
While in a Private Call press
M
>
Use PTT
Feature
.
2
Select
Send Contact
and select the contact
information you want to send.
3
Push the PTT button to send.
or
1
From the home screen press
M
>
PT
Manager
>
Send Contact
.
2
Enter the Private ID number of the person
you want to send the Contact information
to or press
-
under
Browse
.
3
Select from
Recent Calls
,
Contacts
, or
Memo
.
4
Select the contact information you want
to send and push the PTT button.
turn PTT features on and off
You can turn your phone’s ability to send and
receive messages, pictures, and Datebook
events on and off.
You cannot turn your phone’s ability to send
and receive My Info and contact information
on and off.
Find it:
M
>
PT Manager
>
Configure
1
Select
On/Off PTT
.
2
Check or uncheck
Messages
,
Pictures
and/or
Events
.
33
main attractions
one touch PTT
Find it:
M
>
PT Manager
>
Configure
>
One Touch PTT
One Touch PTT
sets your phone to do any of the
following each time you press the PTT button
from the home screen:
quick PTT
Quick PTT lets you quickly make a call,
create an SDG list or make a SDG call when
access any Private IDs on your phone.
option
Off
: Nothing happens when you press the
PTT button from the home screen.
Quick PTT
: Go to Quick PTT. See “quick PTT”
on page 33.
Last Call
: Call the most recent Private ID or
Group on the recent calls list.
Assigned No.
: Call a Private ID you assign.
Enter the number using your keypad, or
press
-
under
Search
. Select
Contacts
,
Recent
Calls
, or
Memo
.
Note:
If you are entering a Talkgroup
number, enter
#
before the number.
PT Manager
: Go to PT Manager. See “PT
manager” on page 34.
Send Message
: Go to the first screen to send a
message.
Send Picture
: Go to the first screen to send
pictures. See “send pictures” on page 29.
Send Event
: Go the the first screen to send a
Datebook event.
Send My Info
: Go to the first screen to send My
Info. See “send My Info” on page 31.
Send Contact
: Go to the first screen to send a
contact. See “send contact information” on
page 32.
option
34
main attractions
To view a list of Contacts and SDG lists with
Private IDs in
Contacts
:
Find it:
M
>
PT Manager
>
Quick PTT
or
Find it:
M
>
Quick PTT
To move between
Contacts
,
Recent Calls
, or
Memo
,
use the left or right, or press
*
or
#
.
To make a Private call or SDG call:
1
Select the entries you want.
2
Press
Done
.
3
Push the PTT button.
PT manager
The
PT Manager
lets you quickly access PTT
features, and other Private call features, from
the main menu.
You can also access the Quick PTT feature and
set the One Touch PTT feature.
Find it:
M
>
PT Manager
1
Select
Quick PTT
to quickly find a contact
that has a Private ID.
or
2
Select
Send Message
,
Send Picture
,
Send Event
,
Send
My Info
, or
Send Contact
. After choosing what
PTT item you are sending, select a
contact and press the PTT button to send.
or
3
Select
Configure
to configure your
PTT Quick
Notes
,
PTT My Info
,
One Touch PTT
, or
On/Off PTT
.
MMS
Multi-Media Messaging Service (MMS) lets
you send and receive messages that may
include text, pictures and audio recordings.
35
main attractions
create a message
Shortcut:
From the home screen press
-
under
Msgs
>
[Create Message]
>
[Creat MMS Msg]
.
or
Find it:
M
>
Messages
>
[Create Message]
>
[Creat
MMS Msg]
1
Select
To
and add the phone number or
email address or select from
Contacts
or
Recent Calls
and press
-
under
Back
.
Tip:
To remove a phone number or email
address from the list of message recipients,
scroll to the phone number or email address
and press
-
under
Remove
.
When you are finished addressing the
message, press
-
under
Back
.
To enter or edit the body of the message:
2
Select
Mesg
and enter text or press
-
under
QNotes
to select a pre-written quick
note.
3
Press
-
under
Back
and
-
under
Send
.
more message options
To view more message fields in a message
you are creating, select
.....MORE.....
or press
-
under
More
.
option
Subject
: Create or edit the subject line.
Attach
: Attach a picture, audio file or voice
record.
Cc
: Send a copy of this message to
someone else.
Auto Replies
: Allows you to create a list of
possible short answers for the recipient to
choose when replying to your message.
Priority
: Set priority
Normal
or
High
.
Report
: Set receipt confirmation
On Delivery
.
36
main attractions
reply to a message
You can reply to a message while you are
viewing it, or while a previously viewed
message is highlighted in the message
center. You cannot reply to unread messages.
To reply to a message:
1
View the message you want to reply to.
2
To reply to the sender only, press
-
under
Reply
or if you wish to include all the
people copied in the message, press
-
under
Reply All
.
A list of short phrases appears. Select any
of these phrases to add it to your
messages or select
[Create Reply]
.
3
Edit any message fields you want to
change.
4
Press
-
under
Send
.
quick notes
When you are filling in the
Message
and
Subject
message fields, you can add ready-made
words or short phrases called Quick Notes.
After you add these words or phrases, you
can edit them as you would any other text.
1
While you are creating a message, scroll
to or select
Message
or
Subject
.
2
Press
-
under
QNotes
.
Select the Quick Note you want to insert
into the message.
3
Press
-
under
Send
.
Valid Until:
Set a date after which attempts to
deliver the message end, or press
-
under
No Date
.
option
37
main attractions
attach a picture, audio and
voice recording
You can attach one or more pictures, audio or
voice recordings from your phone into the
body of the message. You can include text in
the body of your message in addition to these
items.
While you are filling in the
Attach
field, press
[New]
>
Browse Pictures
or
Browse Audio
.
A list of available pictures, audio and voice
recordings appears.
Select the picture, audio or voice record you
want to attach.
Tip:
To view or listen to the item before
attaching it, highlight it and press
Preview
.
Note:
You can only attach audio files and
pictures if they are not forward locked and if
their DRM settings do not prevent you from
sending.
Forward locked items are usually copyright
protected, and you cannot share them with
anyone, such as in Private calls or by
uploading them from your phone.
create a new voice record
You can create a new voice record to send
with a message:
1
Press
M
or press
-
under
Attach
>
[New]
.
2
Select
Record Voice
.
3
Say the message you want to record into
the microphone.
4
When you are finished recording,
press
O
.
5
When you are finished, press
-
under
Done
.
The voice record is attached to the message
and saved to the list of voice records.
38
main attractions
remove an attachment
To remove an attachment in a message you
are creating:
1
Select
Attach
.
2
Scroll to the attachment you want to
remove.
3
Press
M
>
Unattach
.
drafts
While you are creating a message, you can
save it in the MMS drafts folder before you
send it.
You can view, edit, send, or delete saved
drafts.
save a message in the MMS
drafts folder
From the Message center press
M
>
Save
.
You can continue to create the message. The
version you saved in the MMS drafts folder
will not change.
send a draft
Shortcut:
From the home screen press
-
under
Msgs
>
Drafts
>
MMS Drafts
.
1
Select the draft you want to send.
2
Press
-
under
Send
.
edit a draft
Shortcut:
From the home screen press
-
under
Msgs
>
Drafts
>
MMS Drafts
.
Select the draft you want to edit and press
O
.
delete a draft
When you send a draft, it is removed from the
MMS drafts folder.
39
main attractions
To delete a message in the MMS drafts folder
without sending it, scroll to the message you
want to delete and press
-
under
Delete
and
-
under
Yes
.
MMS outbox
MMS messages you have sent or tried to
send are stored in the MMS Outbox.
forward items from the outbox
Shortcut:
From the home screen press
-
under
Msgs
>
Outbox
>
MMS Outbox
.
1
Scroll to the message you want to
forward.
2
Press
M
>
Forward
.
3
Edit and send your message.
resend
If a message was not sent from your handset,
you can resend it.
Shortcut:
From the home screen press
-
under
Msgs
>
Outbox
>
MMS Outbox
.
1
Scroll to the message you want to resend.
2
Press
Resend
.
Note:
If your message was sent successfully,
Resend
will not appear as an option.
check delivery status
If a message was successfully sent and you
set the message to give a report confirming
delivery, you can check the delivery status:
Shortcut:
From the home screen press
-
under
Msgs
>
Outbox
>
MMS Outbox
.
1
Scroll to the message you want to view.
2
Press
M
>
Delivery Status
.
40
main attractions
delete a message
1
Scroll to the message you want to delete.
2
Press
-
under
Delete
.
or
3
Press
M
>
Delete Multiple
.
4
Select the message or messages you
want to delete.
5
Press
-
under
Delete
to confirm.
receive a message
When you receive an MMS message, a
message notification appears on the display.
1
To view the message press
O
.
2
If the message fills more than one screen,
use the navigation key to scroll down
and read the remaining text.
message notifications
When you receive a message, your phone
notifies you with text on the display, a
notification tone or vibration.
You can access the message or dismiss the
notification.
If you dismiss the notification, the message is
not deleted. It can be accessed through the
message center.
If you are not on a phone call when you
receive a message, your phone sounds a
notification tone every 30 seconds until you
access the message or dismiss the alert.
If you are on a call when you receive a
message, your phone may sound a
notification tone during the call or after you
end the call, depending on how you set your
notification options.
41
main attractions
set notification options
To control whether your phone sounds
message notification tones while you are on a
phone call:
Find it:
M
>
Settings
>
Phone Calls
>
Notifications
.
Select from the following options:
Tip:
To set notification options during a call
press
M
>
Call Setup
>
Notifications
.
embedded objects and
attachments
Messages may contain pictures or audio
recordings as part of the body of the message
or as attachments.
If a message contains pictures or audio
recordings in the body of the message,
highlight each picture or audio recording to
view or play it.
If a message contains a picture or audio
recording as an attachment, open the
attachment to view the picture or play the
audio recording.
open attachments
1
View the message.
2
Highlight the attachment you want to
open and press
O
. Attachments appear at
the end of a message.
option
Receive All
: Tones sound during calls for all
types of messages.
Msg Mail Only
: Tones sound during calls for
mail messages; tones for all other types of
messages are held until you end calls.
Delay All
: Tones for all types of messages are
held until you end calls.
Note:
Delay All
is the default setting.
42
main attractions
Note:
Attachments that are of an unknown
type cannot be opened, but they can be
deleted.
view received messages from
the message center
Shortcut:
From the home screen press
-
under
Msgs
>
Inbox
>
MMS Inbox
.
use auto replies
If the message you are replying to was sent
with auto replies, it contains a numbered list
of possible replies for you to send. Press the
number of the reply you want to send. The
reply is sent immediately without further
action.
delete unread messages
1
Scroll to the message you want to delete.
2
Press
-
under
Delete
.
3
Press
-
under
Yes
to confirm.
forward a message
1
Press
M
>
Forward
.
2
Create and send your message.
Embedded objects and attachments are
included when you forward a message.
lock and unlock messages
Locked messages cannot be deleted until you
unlock them.
1
View the message you want to lock or
unlock.
2
Press
M
>
Lock Message
or
M
>
Unlock
Message
.
call a number in a message
If a message you receive contains a phone
number, Private number, or Talkgroup ID in
43
main attractions
the From field, the To field, the Cc field, the
subject line, or the body of the message, you
can call or send a call alert to that number.
send a call alert
1
View the message.
2
Highlight the Private number or Talkgroup
ID you want to alert.
3
Press
M
>
Alert
.
4
Push the PTT button.
make a group call
1
View the message.
2
Press
M
.
3
Highlight the Talkgroup ID you want to
call.
4
Select
Talkgroup
.
5
Push the PTT button.
store message information to
contacts
If a message you receive contains a phone
number, Private number, Talkgroup ID, or an
email address in the From field, the To field,
the Cc field, the subject line, or the body of
the message, you can store this information
to Contacts.
1
View the message.
2
Highlight the number or email address
you want to save.
3
Press
M
>
Save Number
or
M
>
Save Email
.
4
To store the number or email address as a
new entry, select
[New Contact]
.
To store the number or email address to
an existing entry, select the entry.
5
With the Contacts type field highlighted,
scroll left or right to display the Contacts
44
main attractions
type you want to assign the number or
email address.
6
Press
-
under
Done
.
go to a website
If a message contains one or more website
URLs, you can go to that website.
1
View the message.
2
Highlight the website URL you want to go
to.
3
Press
M
>
Go To Website
.
Note:
The entire URL must appear in the
message to allow you to open the website.
save an embedded picture or
audio recording
To save a picture or audio recording that is
part of the body of a message you receive:
1
View the message.
2
Highlight the picture or audio recording
you want to save.
3
Press
M
>
Save Picture
or
M
>
Save Audio
.
The item will save in the default storage
location.
Note:
Some types of pictures and audio
recordings can be viewed or played, but not
saved.
delete an embedded picture or
audio recording
To delete a picture or audio recording that is
part of the body of a message you receive:
1
View the message.
2
Highlight the picture or audio recording
you want to delete.
3
Press
M
>
Delete Picture
or
M
>
Delete Audio
.
45
main attractions
save attachments
1
View the message.
2
Highlight the attachment you want to
save.
3
Press
M
>
Save Attachment
.
Selected items save to the default storage
location.
Note:
Some types of pictures and audio
recordings can be viewed or played, but not
saved. You may save pictures and audio
recordings from slide shows individually as
you view or listen to them.
save a picture
1
View the slide show.
2
When the picture you want to save
appears, press
M
>
Save Picture
.
save audio
1
View the slide show.
2
Press
M
>
Save Audio
.
3
If the slide show contains more than one
audio recording, a list of the audio
recordings appears. Select the audio
recording you want to save.
message transmission
After you start to send a message you have
created or start to download a message you
have been sent, you can still stop the
message transmission from being completed
by pressing
E
.
customize MMS
Find it:
M
>
Messages
>
M
>
MMS Setup
This option is available from many context-
sensitive menus when you are using MMS.
46
main attractions
The MMS Setup menu lets you customize
MMS for your handset with the following
options:
option
Friendly Name
: Enter text here to create a
friendly name. Your friendly name is the
name displayed in the
From
field on other
iDEN handsets when they receive
messages from you.
Signature
: Enter text here to create a
signature. Your signature is text that is
automatically inserted at the end of all
messages you create. You can edit the text
before sending the message.
Quick Notes
: Lets you create new Quick Notes
and edit or delete Quick Notes you have
created.
Replies
: Lets you create new reply phrases
and edit or delete reply phrases you have
created.
Cleanup
: Controls how long messages remain
in the Inbox and Outbox before they are
deleted.
Downloads
: Controls whether your phone
automatically downloads new messages
when they arrive, or only after you respond
to a prompt or read the message from the
Inbox. Set this option to
Automatic
if you want
your phone to download new messages
automatically; set the option to
Manual
if you
want your phone to prompt you before
downloading new messages.
Memory Size
: Shows the total amount of
Used
,
Free
, and total
Capacity
of the phone’s
memory.
option
47
main attractions
new quick notes and reply
phrases
create quick notes
1
From the MMS Setup menu, select
Quick
Notes
or
Replies
.
2
Select
[New Quicknote]
or
[New Reply]
.
3
Enter text from the keypad.
edit quick notes
You can edit only Quick Notes and reply
phrases you have created.
1
From the MMS Setup menu, select
Quick
Notes
or
Replies
.
2
Select the Quick Note or reply phrase you
want to edit.
3
Edit the text.
delete only Quick Notes and reply
phrases you have created
1
From the
MMS Setup
menu, select
Quick Notes
or
Replies
.
2
Scroll to the Quick Note or reply phrase
you want to delete.
3
Press
-
under
Delete
.
4
Press
-
under
Yes
to confirm.
cleanup
The
Cleanup
option controls how long
messages remain in the
MMS Inbox
and
MMS
Outbox
before they are deleted. You set the
cleanup option for the Inbox and Outbox
separately.
The cleanup option deletes only read,
unlocked messages.
Find it:
M
>
Messages
>
M
>
MMS Setup
>
Cleanup
48
main attractions
1
Select
Inbox
or
Sent Items
.
2
Choose a cleanup option from the
following list:
3
Press
-
under
Yes
to automatically delete
messages now or press
-
under
No
to
delete messages later.
delete multiple or all messages
To delete multiple or all read, unlocked
messages from the MMS Inbox, all messages
in the MMS Drafts folder, or all successfully
sent messages in the MMS Outbox:
option
Off
: Messages are never automatically
deleted.
5 Messages
: If you have more than 5
messages, messages are deleted in the
order they were received, starting with the
oldest, until 5 are left.
10 Messages
: If you have more than 10
messages, messages are deleted in the
order they were received, starting with the
oldest, until 10 are left.
With these options, messages are deleted
in the order they were received, starting
with the oldest, until the selected number
are left.
1 Day
: Messages are deleted if they are older
than 1 day.
3 Days
: Messages are deleted if they are
older than 3 days.
With these options, messages are deleted
when you exit the message center after
setting the option.
Custom
: Lets you create a clean-up option of
up to 99 messages or 99 days.
option
49
main attractions
Find it:
M
>
Messages
1
Select
Inbox
,
Drafts
, or
Outbox
.
1
Press
M
>
MMS Inbox
,
MMS Drafts
, or
MMS
Outbox
>
M
>
Delete Multiple
, and check the
messages you want to delete.
or
2
Select
Delete All
and press
-
under
Yes
to
confirm.
bluetooth®
Your phone supports the use of wireless
Bluetooth headsets.
Find it:
M
>
Bluetooth
The Bluetooth connection menu contains an
option to search for audio devices.
turn Bluetooth
On or Off
You can turn your phone’s Bluetooth feature
on or off. While Bluetooth power is on, your
phone can communicate with other devices.
Find it:
M
>
Bluetooth
>
Setup
>
Power
>
On
1
Select
Name
if you wish to assign a name
to your handset.
2
Select
Find Me Time
to determine the
amount of time in which your handset can
be found by other Bluetooth devices.
Tip:
You can turn off Bluetooth if you want to
prolong battery life or if you enter an area
where Bluetooth is prohibited.
Note:
When the Bluetooth connection is
activated, a Bluetooth LED indicator will be lit
above the external display.
50
main attractions
make a Bluetooth connection
connect your phone with a Bluetooth
headset
Find it:
M
>
Bluetooth
>
Hands Free
>
[Find Devices]
1
Follow the instructions on your Bluetooth
headset to set it up to be found.
2
Once your Bluetooth headset is set to be
found press
O
on your handset. Your
phone will scan the Bluetooth headset
until it finds it. Press
O
when you see the
name of the Bluetooth headset on your
screen.
3
Your phone requires that you create a
bond in order to connect with a Bluetooth
headset. Press
-
under
Yes
when you
are prompted to bond with the headset.
4
Enter the Bluetooth pass key.
Some Bluetooth devices ship with
Bluetooth PINs. Please refer to your
Bluetooth device’s user guide to locate
this information.
If a device ships without a Bluetooth PIN,
then refer to its user guide to set the PIN
on that device. To establish a connection
to that device, enter the same PIN for
both your phone and the device. For
example, if you enter 1234 as the device’s
PIN, then enter 1234 as your phone’s PIN.
5
Press
-
under
Ok
.
Note:
This handset offers a bluetooth auto
pair feature with auto pair compatible
Motorola devices. When bonded via bluetooth
with a certain device, the pin will not be
required.
connect your phone with another
device
Find it:
M
>
Bluetooth
>
Link To Devices
51
main attractions
1
Select the device you want from the list of
found devices on your screen.
2
Create a bond if you are prompted to do
so.
Tip:
If you have previously connected to a
device, the device will be stored on your
phone so you can connect with it easily.
use Bluetooth during a call
You can connect with available Bluetooth
devices during a call.
Note:
If the
Handsfree Devices
list contains only
one device, then your phone will automatically
try to connect to that device.
1
While in a call, press
M
>
Use Bluetooth
.
2
Press
-
under
Yes
to power On
Bluetooth.
3
Select the audio device you want to
connect to from the list of
Handsfree Devices
.
send information via Bluetooth
You can use your phone to send Contacts
entries, or Datebook events to another
Bluetooth device.
The receiving device must be within 32 feet
(10 meters) of your phone in order to connect
with yours.
Note:
Files sent or received may be up
to 200 kb, depending on your service
provider.
send Contacts
Shortcut:
From the home screen press
-
under
Contcs
.
1
Select the contact you want to send.
2
Press
M
>
Send Via...
>
Bluetooth
.
3
Press
-
under
Yes
to power On
Bluetooth.
52
main attractions
4
Select the device you want to transfer the
contact information to.
or
Search for the device by selecting
[Find
Devices]
.
5
If prompted, bond with the device.
Your phone connects with the device and
transfers the contact.
send a Datebook event
Find it:
M
>
Datebook
1
Select the datebook event you want to
send.
2
Press
M
>
Send Via...
>
Bluetooth
.
If the event you select repeats, then you
will be prompted to choose whether to
send the selected instance of the event or
all instances of the event.
To send only the selected instance of the
event, select
This Event Only
.
or
To send all instances of the event, select
Repeat Events
.
3
Press
-
under
Yes
to power On
Bluetooth.
4
Select the device you want to transfer the
contact information to.
or
Search for the device by selecting
[Find
Devices]
.
5
If prompted, bond with the device.
Your phone connects with the device and
sends the datebook event.
53
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on
the phone. To dial a number from the home
screen, press number keys and
S
.
Note:
Your home screen may look different.
Soft key labels show the current soft key
functions. For soft key
-
locations, see
page 1.
status indicators
Status indicators are shown at the top of the
home screen:
1
Signal Strength Indicator:
Vertical bars show
the strength of the network connection. You
1. 2. 3. 4. 5. 6. 7.
54
basics
can’t make or receive calls when
1
or
0
shows.
2
Active Phone Line:
1 indicates phone line 1 is
ready to make calls.
3
Speaker Off:
Sounds associated with Private
calls and group calls are set to come through
the earpiece rather than through the speaker.
4
Ringer Off:
Your phone is set to not ring.
5
Message Indicator:
Shows when you
receive a text message.
6
Packet Data:
Your handset is ready to transfer
packet data or is transferring packet data.
7
Battery Charge Indicator:
A fuller battery
indicates a greater charge. Recharge the
battery when your phone shows
Low Battery
.
text entry
Some features let you enter text.
Your phone provides convenient ways to enter
words, letters, punctuation, and numbers
whenever you are prompted to enter text (for
example, when adding a Contacts entry or
when text messaging).
change the character input mode:
1
When you see a screen where you can
enter text, press
M
to change the
character input mode.
2
Select one of the following options:
entry modes
Alpha
Press a key several times for
each character.
Word
Enter words using a predictive
text entering system that lets
you enter a word with fewer
keypresses.
55
basics
Tip:
When entering text, press and hold
#
to
change letter capitalization (
Abc
>
ABC
>
abc
).
word mode
Word English Text Input lets you enter text
into your phone by pressing keys just once
per letter.
Word English Text Input analyzes the letters
you enter using an intuitive word database
and creates a suitable word. (The word may
change as you type.)
enter a word using Word Character
Input:
1
Select the
Word
character input mode.
2
Press the corresponding keys once per
letter to enter a word (for example, to
enter the word
Jeff
, press
5333
).
(If you make a mistake, press
-
under
Delete
or
*
to erase a single character.
Press and hold
-
under
Delete
or
*
to
delete an entire entry.)
3
To accept a word and insert a space,
press
#
.
alpha mode
enter characters by tapping the keypad:
1
Select the
Alpha
mode.
2
Press the corresponding keys repeatedly
until the desired letter appears. (For
example, to enter the word
Jeff
, press
5
once,
3
two times,
3
three times, and
3
three times again. If you make a
mistake, press
-
under
Delete
to erase a
Symbols
Enter symbols.
Numeric
Enter numbers by pressing the
numbers on the keypad.
entry modes
56
basics
single character. Press and hold
-
under
Delete
to erase an entire entry.)
By default, the first letter of an entry is
capitalized and the following letters are
lowercased. After a character is entered, the
cursor automatically advances to the next
space after two seconds or when you enter a
character on a different key.
Characters scroll in the following order:
volume
Press the volume keys up
or down to:
•
turn off an incoming
call alert
•
change the earpiece
volume during calls
•
change the ringer
volume from the
home screen
Tip:
Sometimes silence really is
golden. That’s why you can quickly set
characters
1
. ? ! , @ & : ; “ - ( ) ‘ ¿
¡ % £ $ ¥
2
A B C 2 Á Ã Â À Ç
3
D E F 3 É Ê È
4
G H I 4 Í Ì
5
J K L 5
6
M N O 6 Ó Õ Ô Ò
7
P Q R S 7 ß
8
T U V 8 Ú Ü Û Ù
9
W X Y Z 9
0
+ - 0 * / \ [ ] = > < # §
#
Space
*
Back
characters
57
basics
your ringer to
Vibrate All
by holding the
down volume key in the home screen.
navigation key
Press the navigation key
up, down, left, or right
to scroll to items in the
display. When you scroll
to something, press
O
.
handsfree speaker
You can use your phone’s hands-free speaker
to make calls without holding the phone to
your ear.
During a call press
the speaker key
s
to turn the hands-free
speaker on.
The hands-free speaker stays on until you
press the speaker key or end the call. The
next phone call will redirect the audio back to
the earpiece.
transmitters
Note:
Consult airline staff about the use of
the Tr an sm i tt er s feature during flight. Turn off
your phone whenever instructed to do so by
airline staff.
Transmitters turns off your phone’s calling
features in situations where wireless phone
use is prohibited, but you can use the phone’s
other non-calling features when Transmitters
turned Off.
Find it:
M
>
u
>
Advanced
>
Transmitters
>
Off
58
basics
use GPS with map
software
Your phone is enabled with a highly-capable
GPS receiver that sends location information
to a USB port on a PC, laptop, or PDA.
Note:
No serial port connectivity is provided
by your phone. Applications on the host
device which are expecting to receive the
GPS location information via a serial port must
instead use a Virtual Serial Comm Port.
The data sent to the host device is formatted
as prescribed in the National Marine
Electronics Association 0183 V3.0 (NMEA-
0183) standard. As such it supports the
following sentences: GGA, GLL, GSA, GSV,
RMC, and VTG.
This handset is not a full NMEA-0183
compliant device supporting electrical RS-422/
RS-232 connectivity as dictated by the NMEA-
0183 standard. Consequently it's unsuitable
for conventional marine NMEA-0183
equipment use. Its intended use is for normal
"terrestrial" mobile users who want to enable
their USB hosting computing devices such as
a PC, laptop or PDA with the phone's highly-
capable GPS functionality.
get connected
1
Slide open the
phone's bottom
connector and
insert a mini-
USB cable into
the phone's
bottom connector.
2
Insert the other end of the mini-USB cable
into a vacant USB receptacle of your host
device. A virtual USB Comm Port will be
created on your host device upon
successful enumeration of the phone as a
59
basics
USB Communications Device Class
device.
3
Ensure no application in your host device
is using the created COMM port. You
may need to ensure that the created
virtual COMM port settings are set as
follows:
•Bits per second
: 4800
•Data bits
: 8
•Parity
: None
•Stop bits
: 1
•Flow control
: None.
4
Start the GPS application on your host
device. Set the GPS application to start
accepting NMEA-0183 formatted data
from the created Virtual COMM port.
5
Set your phone to start sending NMEA-
0183 formatted location information.
Find it:
M
>
GPS
>
Interface
>
NMEA OUT
>
On
Your phone is now actively sending location
NMEA-0183 formatted GPS data to your USB
host device.
To stop your phone from sending location
data:
Find it:
M
>
GPS
>
Interface
>
NMEA OUT
>
Off
Note:
Each time you power your phone Off,
NMEA OUT is automatically set to Off and
you need to manually restart it using the
menu selections above.
Your USB host device will generally provide
charging power (5V, up to 500mA) to your
phone via the mini-USB cable therefore no
other charging power to it will normally be
required. However some laptops may require
that you provide external AC/DC power to the
laptop in order for it to provide full 500mA
charging current capability to the phone.
60
calls
calls
To make and answer calls, see page 15.
recent calls
The
Recent Calls
list contains information
associated with calls you have made and
received and call alerts you have received.
When you send or receive Private calls, the
Recent Call list contains the following PTT
items with those calls:
•
Messages
•
Pictures
•
Events
•
My Info
•
Contacts
The recent calls list displays up to 20 of the
most recent calls and call alerts.
Find it:
M
>
Recent Calls
Tip:
You can also access the Recent Calls list
by pressing the navigation key
down.
1
Scroll through the list.
2
Highlight the item you want to view or
perform some action on.
3
To view more details of the item press
O
.
store an item to contacts from
recent calls
Phone calls, Private calls, My Info received
from other phones, or Contacts entries
received from other phones can be stored to
the Contacts list from the Recent Calls list.
61
calls
Find it:
M
>
Recent Calls
1
Scroll to or select the item you want to
store.
2
Press
-
under
Save
to store the
information as a new entry in the
Contacts list.
or
3
If
Save
is not one or you options, press
M
>
Update Contacts
. And select the contact you
want to update.
4
Press
-
under
Done
to save your changes.
redial
To redial your last outgoing phone call, press
and hold
N
or push the PTT button if it was a
private call.
voice names
You can place calls by speaking comands to
your phone if you have previously assigned a
voice name to your contacts.
assign voice names to contacs
1
Press
-
under
Contcs
and select
[New
Contact]
.
2
Assing a name, phone number and select
[Options]
.
3
Select
Voice Name
and follow the prompt to
record the voice name.
4
Press
-
under
Back
and
-
under
Done
to
save the entry.
place a call using voice command
1
From the home screen press and hold the
speaker key
s
until you are prompted to
say the voice name.
The handset will automatically place the call.
62
calls
caller ID
Caller ID allows people to identify a
caller before answering the phone by
displaying the number of the incoming call. If
you do not want your number displayed when
you make a call, just follow these easy steps.
To block your phone number from being
displayed for a specific outgoing call:
1
Press
*67
..
2
Enter the number you want to call.
3
Press
S
.
To permanently block your number, call your
service provider’s Customer Care.
call forward
Call forwarding sends calls to the phone
numbers you specify. You can forward all calls
to one number or forward missed calls to
different numbers depending on the reason
you missed the call. You can forward phone
lines 1 and 2 independently.
Find it:
M
>
Call Forward
1
To forward all calls select
All Calls
and select
To
to enter the phone number you want all
your calls forwarded to.
or
2
You can specify a forwarding number for
each type of missed call by selecting
Detailed
and chosing the following options:
If Busy
: When your handset is on a call or
transferring data.
If No Answer
: When you do not answer on
the first 4 rings.
If Unreachable
: When your handset is out of
coverage or powered off.
63
calls
emergency calls
Your service provider programs one or more
emergency phone numbers that you can call
under any circumstances, even when your
phone is locked or the SIM card is not
inserted.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
Your phone supports emergency calling.
Emergency phone calls can be made even
when your SIM card is blocked or not in your
phone.
Dial 911 or your local emergency number to
be connected to an emergency response
center. If you are on an active call, you must
end it before making an emergency call.
When you make an emergency call, your
phone’s GPS Enabled feature can help
emergency service personnel find you, if you
are in a location where your phone's GPS
antenna has established a clear view of the
open sky and your local emergency response
center has the equipment to process location
information. Because of the limitations of this
feature, always provide your best knowledge
of your location to the emergency response
center when you make an emergency call.
Note:
Emergency calls cannot be placed
while the keypad is locked.
Note:
If you have not registered on the
network, emergency calls cannot be placed
while your SIM card is in your phone.
international calls
If your phone service includes international
dialing, press and hold 0 to insert your local
64
calls
international access code (indicated by +).
Then, press the keypad keys to dial the
country code and phone number.
You can aditionally enable a predefined prefix
to the dialing number by using
Prepend
dialing.
Find it:
M
>
Settings
>
Phone Calls
>
Prepend
1
Select
Prepend
and set it to
On
.
2
Select
Number
and add the prefix number of
your choice.
When the
Prepend
feature is set to
On
, the
predefined prefix is inserted to the front of
the number that you are dialing.
Except that the number is led by "*", "00",
"011" or the number contains "+".
Note:
You can also use
Prepend
temporarily
when the feature is set to
Off
. For example,
enter the phone number from the home
screen and press
M
>
Add Prepend
. The
temporary prepend will be inserted to the
number you are dialing.
speed dial
Each phone number stored in Contacts is
assigned a Speed Dial number, which you can
use to call that number.
1
From the home screen, use the keypad to
enter the Speed Dial number assigned to
the phone number you want to call.
2
Press
#
.
3
Press
S
.
turbo dial
The first nine entries in your contacts are set
for turbo dial. They can be called by pressing
and holding the speed dial number
(1 through 9).
65
calls
voice mail
Note:
To receive voice mail messages,
you must first set up a voice mail
account with your service provider.
receive a message
When you receive a voice mail message,
New
VoiceMail Message
appears on the display.
To check voicemail messages press
-
under
Call
.
To dismiss the message notification press
O
,
or
-
under
Back
.
If the caller leaves a message, this icon
y
appears on the display, reminding you that
you have a new message.
selective dynamic
group (SDG) calls
A SDG call is similar to a Private call, but
is made to all members of a SDG list at
once. A SDG list is a group of Private IDs that
you create using your phone. A SDG list must
contain at least 2 members and can contain
up to 20 members.
You can create a SDG list for one call only or
store it to Contacts so you can call it any time.
You can use Send via PTT to send SDG
lists to other phones that have this
capability.
create SDG lists in contacts
Shortcut:
From the home screen press
-
under
Contcts
.
1
Select
[New SDG List]
.
66
calls
Tip:
You can also create a SDG list by
selecting
[New Contact]
and assigning the
SDG contact type.
If you want to assign a name to the SDG
list, enter the name.
Note:
If you do not assign a name, the
SDG list is named “SDG” followed by the
number of members in the SDG list. For
example, “SDG (8)” for a SDG list with 8
members.
2
Add Private IDs. See “add private
numbers” below.
3
If you want to create a voice name for the
SDG list, select
[Options]
>
Voice Name
. As
directed by the screen prompts, say and
repeat the voice name you want to assign
to the SDG list. Speak clearly into the
microphone.
4
Press
-
under
Save
.
add private numbers
You can add Private IDs to a SDG list by
selecting them from Contacts, the recent
calls list, or memo. You can add all members
in an existing SDG list by selecting the list.
You can select more than one member from
Contacts and the recent calls list. A
checkmark appears next to each selected
item.
Tip:
To deselect a selected item, highlight it
and press
O
.
You can also enter Private IDs from the
keypad.
add members from Contacts,
the recent calls list, or Memo
1
While creating a SDG list, select
[Add
Member]
or select
[Add Number]
and press
-
under
Browse
.
67
calls
Tip:
To move between Contacts, the
recent calls list, and Memo, scroll left
or right.
2
Scroll to the members you want from
Contacts, the recent calls list, or Memo,
and press
O
. A checkmark appears next
to each selected member.
Tip:
To deselect a selected member, highlight
it and press
O
.
3
Press
-
under
Done
.
add members manually from
the keypad
1
While creating a SDG list, select
[Add
Number]
.
2
Enter the Private number using the
keypad.
remove members or SDG lists
remove a member from a SDG list
1
From Contacts, scroll to the SDG list you
want to delete the member from.
2
Press
-
under
Edit
.
3
Scroll to the member you want to remove.
4
Press
M
>
Remove Member
.
5
Press
-
under
Save
.
remove all members from a SDG list
1
From Contacts, scroll to the SDG list you
want to delete the member from.
2
Press
-
under
Edit
.
3
Press
M
>
Remove All
.
4
Press
-
under
Yes
to confirm.
delete a SDG list from Contacts
1
Scroll to the SDG list you want to delete.
68
calls
2
Press
M
>
Delete SDG List
.
make SDG Calls
1
From Contacts or the recent calls list,
scroll to or select the SDG list you want.
or
Press and hold
s
until a prompt appears
telling you to say the voice name. Say the
voice name assigned to the SDG list you
want.
or
From the home screen, press the number
on your keypad for the shortcut you
assigned to the SDG list you want.
or
Enter or select a Private ID and add more
Private IDs. “start a SDG call with a
private” below.
2
Push the PTT button.
start a SDG call with a private
You can start a SDG call with any Private ID
you want to call.
Note:
Choose the first Private ID that you
want in the SDG call:
1
From the home screen, enter the Private
ID.
or
From the
Contacts
list, scroll to an entry
containing the Private ID.
or
From
Recent Calls
list, scroll to an entry
containing the Private ID.
2
Press
M
>
Call SDG
.
3
Add more Private IDs. See “add private
numbers” on page 66.
If you want to save the SDG list you have
created press
M
>
Store SDG
.
69
calls
or
If you do not want to save the SDG list,
press
-
under
Done
.
4
Push the PTT button to make the call.
SDG call Information
While you are in a SDG call, the following
appears on the screen:
•
The name of the SDG list
•
The name or the Private ID of the
person speaking
•
The number of participants in the SDG
call
SDG Call Details
During a SDG call, you can view details about
the other SDG list members, such as their
name or Private ID, and their status on the
call. To view SDG call details, press
-
under
Details
.
In the SDG Call Details view, these icons
appear next to member names or Private IDs:
T
The member of the SDG list who is
speaking.
A
A member of the SDG list who is active
on the SDG call, but not speaking.
O
A member of the SDG list who has
exited the call.
U
A member of the SDG list who could not
be reached on the SDG call.
u
A member of the SDG list whose status
is unknown.
70
customize
customize
ring tones
To set the ring tone your phone makes when
you receive phone calls, call alerts, message
notifications, pictures sent using Send via PTT
or Datebook reminders:
Note:
Only ring tones stored in your phone’s
memory are available in the ring tones list.
Not all audio files can be assigned as ring
tones.
Find it: M > Ring Tones
1
Make sure
Vibrate All
is set to
Off
.
2
Scroll through the list of ring tones and
select the one you want to assign.
Vibrate
sets your phone to vibrate instead of
making a sound;
Silent
sets your phone to
neither vibrate nor make a sound.
Tip:
Highlighting a ring tone lets you hear
it.
3
Select the features you want to assign the
ring tone to.
4
When you are finished, press
Done
.
Note:
This icon
M
appears on the display if
you set your phone to
Silent
. This icon
Q
appears on the display if you set the phone to
Vibrate All
.
set your phone to vibrate
You can set your phone to vibrate instead of
making a sound when you receive all phone
calls, Private calls, group calls, call alerts,
71
customize
messages notifications, pictures sent using
Send via PTT, and Datebook reminders.
Find it:
M
>
Ring Tones
>
Vibrate All
1
Set this option to
On
or
Locked
.
Setting this option to
On
lets you turn
Vibrate
All
off by pressing the up volume control.
Setting this option to
Locked
requires you to
press and hold the up volume control to
turn
Vibrate All
off. The
Locked
option helps
prevent you from accidentally turning
Vibrate All
off.
To set
Vibrate All
to
On
or
Locked
using the volume
controls: Press the volume controls to turn
down the volume as far as possible to set
Vibrate All
to
On
. Continue to hold the down
volume control to set
Vibrate All
to
Locked
.
To set your phone to vibrate instead of making
a sound for some features but not others:
Find it:
M
>
Ring Tones
1
Make sure
Vibrate All
is set to
Off
.
2
Select
Vibrate
from the list of ring tones.
3
Select the features you want to set to
make no sound.
4
When you are finished, press
-
under
Done
.
wallpaper
Set a photo or picture as a wallpaper
(background) image in your phone’s home
screen or throughout all menu screens.
Find it:
M
>
Settings
>
Display/Info
>
Wallpaper
>
Wallpaper
.
To select a wallpaper image scroll through the
list of pictures and press
O
to select the
picture of your choice.
Note:
You can set the wallpaper to change
automatically after a certain period of time by
72
customize
turning on the
Auto Cycle
feature located in the
Wallpaper menu.
backlight
Set the amount of time that the display and
java apps. backlights remain on, or turn off the
backlight feature to extend battery life.
Find it:
M
>
Settings
>
Display/Info
>
Backlight
LED indicators
You can turn off the bluetooth and messaging
indicators on the external display.
Find it:
M
>
Settings
>
Display/Info
>
Bluetooth LED
or
Message LED
>
Off
datebook
Find it:
M
>
Datebook
>
M
>
Setup
You can view or change these options:
option
Start View
: Sets Datebook to start in day view,
week view, or month view when you
access Datebook.
Daily Begin
: Sets the beginning of your day.
This is the earliest time of day displayed in
week view, if you have a 12-hour day view.
Delete After
: Sets the amount of time
Datebook waits to delete an event after it
occurs.
Time Shift
: Lets you shift the times of all
Datebook events. This is useful if you are
traveling to a different time zone.
Alert Timeout
: Sets the amount of time a tone
continues to sound when you receive a
Datebook reminder.
Clock
: Controls whether the time and date
appear on the home screen; sets time and
date format.
73
customize
hide or show
location information
Your phone is equipped with a Location
feature for use in connection with location-
based services that may be available in the
future.
The Location feature allows the network to
detect your position. Turning Location off will
hide your location from everyone except for
your local emergency response center.
Note:
Turning Location on will allow the
network to detect your position using GPS
technology, making some applications and
services easier to use. Turning Location off
will disable the GPS location function for all
purposes except 911, but will not hide your
general location based on the cell site serving
your call. No application or service may use
your location without your request or
permission. GPS-enhanced 911 is not
available in all areas.
set your privacy options
Find it:
M
>
GPS
>
Privacy
Select
Restricted
,
Unrestricted
, or
Ask Access
.
74
other features - advanced calling
other features
advanced calling
feature
call waiting
Find it:
To accept the
second call and put
the active call on hold press
-
under
Yes
.
To accept the second call
and end the active call press
S
.
Your phone rings with the
second call for you to
answer.
3-way call
Make or receive a
phone call and press
M
>
3 Way
. Enter the
second phone number,
press
N
and
-
under
Join
.
Tip:
For quick ways to enter
the number, press
M
to
see the dialing menu.
You cannot make any other
calls after you have joined a
3-way call, even if one party
disconnects.
feature
75
other features - contacts
contacts datebook
feature
edit/delete
contact entry
Press
-
under
Contacts
.
Select a contact and press
M
>
Edit
. Change the
desired content and press
-
under
Done
.
set ringer ID
Press
-
under
Contacts
.
Select a contact and press
M
>
Edit
>
Ringer
. Select
desired ringer, press
-
under
Back
, and
-
under
Done
.
feature
create
datebook
events
To create a new Datebook
event press
M
>
D
>
[
New Event]
.
see datebook
event
To see a calendar event
press
M
>
D
> left or
right to see the day and
up or down to see the
events.
event
reminder
When an event reminder
occurs press
-
under
View
.
Press
-
under
Back
to close
the reminder.
76
other features - GPS
GPS
To improve GPS performance:
•
Stay in the open,
•
Move away from other electrical or
electronic devices
•
Remain stationary.
•
Avoid covering the antenna with your
hands.
receive
datebook
events via
PTT
To view the information
while still in the Private call
press
r
.
The 5 most recent events
received from a Private ID
are stored with the that
Private ID on the recent
calls list.
To store events to the
Datebook press
-
under
Save
while viewing the event
you want to store.
feature
feature
view
approximate
location
To see where you currently
are press
M
>
GPS
>
Position
.
Scroll to view the entire
screen.
To recalculate position press
Rfrsh
. This may take several
minutes.
77
other features - handsfree
handsfree
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can't concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products
set GPS
privacy
options
To set the level of privacy for
your GPS system press
M
>
GPS
>
Privacy
.
If your GPS PIN security
feature is enabled, enter your
GPS PIN and select the
privacy option you want.
change GPS
PIN
Note:
Your default GPS PIN is
0000.
To change your GPS PIN press
M
>
Settings
>
Security
>
Change
Passwds
>
GPS PIN
.
Enter the current GPS PIN and
enter the new 4- to 8-digit
GPS PIN. Re-enter the new 4-
to 8-digit GPS PIN to confirm.
feature
feature
speaker-
phone
To activate the
speakerphone while
driving press and hold
the speakerphone key
s
.
auto answer
To automatically answer
calls when connected to a
car kit or headset press
M
>
Settings
>
Phone Calls
>
Auto
Ans
. Select the amount of
rings before answering.
78
other features - personalize
personalize pc applications
TTY
feature
language
To set the language of your
menu press
M
>
Settings
>
Display/Info
>
Language
.
backlight time
length
To select how long the
display screen and keypad
are backlit press
M
>
Settings
>
Display/Info
>
Backlight
.
menu style
To show the Main Menu as
graphic icons or a text-based
list press
M
>
Settings
>
Display/Info
>
Menu View
.
clock display
To display the clock on your
home screen press
M
>
Settings
>
Display/Info
>
Clock
>
Display
>
On
.
feature
other PC
applications
For a list of complete PC
applications visit
www.motorola.com/support
feature
turn On TTY
feature
From the home screen
press
M
>
Settings
>
Phone
Calls
>
TTY
>
Use TTY
>
On
.
choose TTY
mode
From the home screen
press
M
>
Settings
>
Phone
Calls
>
TTY
>
Type
.
Select from
TTY
,
VCO
or
HCO
.
79
other features - security
security
Note:
You can make emergency calls on a
locked phone (see page 63). A locked phone
still rings or vibrates for incoming calls or
messages, but you need to unlock it to
answer.
change the
TTY baud
rate
From the home screen
press
M
>
Settings
>
Phone
Calls
>
TTY
>
Baud
.
Select
45.45
or
50.00
.
change TTY
mode
during a call
While in the TTY call, press
M
>
In Call Setup
>
TTY
>
Type
.
Select from
TTY
,
VCO
or
HCO
.
feature
phone lock
To lock the phone press
M
>
Settings
>
Security
>
Phone Lock
>
Lock Now
or
Auto Lock
.
feature
keypad lock
To lock the keypad press
M
>
Settings
>
Security
>
Keypad Lock
>
Lock Now
or
Auto Lock
.
Shortcut:
To lock the
keypad press
M
>
*
.
enable SIM
PIN
To enable SIM PIN, press
M
>
Settings
>
Security
>
SIM PIN
>
On
.
change SIM
PIN
To change the SIM PIN,
press
M
>
Settings
>
Security
>
Change Passwds
>
SIM PIN
.
feature
80
other features - security
81
Important Safety and
Legal Information
82
Safety Information
Safety and General Information
Safety Information
This section contains important information on the safe and
efficient operation of your phone. Read this information
before using your integrated multi-service portable radio.*
Exposure to Radio Frequency (RF)
Energy
Your phone contains a transmitter and receiver. When it is ON, it
receives and transmits RF energy. When you communicate with
your phone, the system handling your call controls the power level
at which your phone transmits.
Your Motorola phone is designed to comply with local regulatory
requirements in your country concerning exposure of human beings
to RF energy.
Portable Radio Product Operation and
EME Exposure
Your Motorola radio product is designed to comply with the
following national and international standards and guidelines
regarding exposure of human beings to radio frequency
electromagnetic energy (EME):
•
United States Federal Communications Commission, Code
of Federal Regulations; 47 CFR part 2 sub-part J.
•
American National Standards Institute (ANSI) / Institute of
Electrical and Electronics Engineers (IEEE). C95. 1-1992.
•
Institute of Electrical and Electronics Engineers (IEEE).
C95. 1-2005 Edition.*
•
International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998.
•
Ministry of Health (Canada). Safety Code 6. Limits of
Human Exposure to Radio frequency Electromagnetic
Fields in the Frequency Range from 3 kHz to 300 GHz,
1999.
•
Australian Communications Authority Radio
communications (Electromagnetic Radiation - Human
Exposure) Standard 2003.
•
ANATEL, Brazil Regulatory Authority, Resolution 303 (July
2, 2002) "Regulation of the limitation of exposure to
* The information provided in this document supersedes
the general safety information in user’s guides
published prior to May 1, 2006
Safety Information
83
electrical, magnetic, and electromagnetic fields in the
radio frequency range between 9 kHz and 300 GHz."
"Attachment to Resolution 303 from July 2, 2002."
Operational Precautions
To assure optimal radio product performance and to be sure that
human exposure to RF does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions:
Phone Operation
When placing or receiving a phone call, hold your radio product as
you would a wireline telephone.
Speak directly into the
microphone
.
Two-way radio operation
Your radio product has been designed and tested to comply with
national and international standards and guidelines regarding
human exposure to RF electromagnetic energy, when operated in
the two-way mode (at the face, or at the abdomen when using an
audio accessory) at usage factors of up to 50% talk/50% listen.
Transmit no more than the rated duty factor of 50% of the time. To
transmit (talk), push the PTT button. To receive calls, release the
PTT button. Transmitting 50% of the time or less, is important
because this radio generates measurable RF energy only when
transmitting (in terms of measuring for standards compliance).
When using your radio product as a traditional
two-way radio,
hold the radio product in a
vertical position with the microphone one
to two inches (2.5 to 5 cm) away from the
lips
.
If you wear a radio product on your body when
transmitting, always place the radio product in a Motorola
approved clip, holder, holster, case or body harness. If you do not
use a body-worn accessory supplied or approved by Motorola and
are not using the radio product in the intended use positions along
side the head in the phone mode or in front of the face in the
two-way radio mode, or if you hang your device from a lanyard
around your neck, keep the device at least 2.5 centimeters (1 inch)
from your body when transmitting.
Approved Accessories
For a list of approved Motorola accessories call 1-800-453-0920, or
visit our website at www.motorola.com/support.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed or
otherwise configured for RF energy compatibility. In some
circumstances your handset may cause interference with other
devices.
84
Safety Information
Follow Instructions to Avoid Interference
Problems
Turn OFF your radio product where posted notices instruct you to
do so.
In an aircraft, turn off your radio product whenever instructed to do
so by airline staff. If your radio product offers an airplane mode or
similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical devices, such as a pacemaker
or defibrillator, consult your physician before using this radio
product.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the phone more than 20 centimeters (8
inches) from the implantable medical device when the
phone is turned ON.
•
DO NOT carry the phone in a breast pocket;
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the phone immediately if you have any reason to
suspect that the interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your wireless phone with your implantable medical device, consult
your health care provider.
Hearing Aids
Some phones may interfere with some hearing aids. In the event of
such interference, you may want to consult your hearing aid
manufacturer or physician to discuss alternatives.
Other Medical Devices and Health Care Facilities
If you use any other personal medical devices, consult your
physician or the manufacturer or your device to determine if it is
adequately shielded from RF energy. Turn off your radio product
when instructed to do so in hospitals or health care facilities that
may be using equipment that is sensitive to external RF energy.
Bluetooth
This device supports Bluetooth 2.0 including EDR and A2DP Stereo
profiles. In order for Bluetooth devices to communicate with one
another, they must utilize the same Bluetooth profile. To determine
the profiles supported by other Motorola devices, visit
www.hellomoto.com/bluetooth. For other devices, contact their
respective manufacturer.
Certain Bluetooth features including those listed may not be
supported by all compatible Bluetooth-enabled devices, and/or the
functionality of such features may be limited in certain devices, or
by certain wireless carriers. Contact your wireless carrier about
feature availability and functionality.
Safety Information
85
Driving Precautions
Check the laws and regulations on the use of radio products in the
area where you drive. Always obey them.
When using your radio product while driving, please:
•
Give full attention to driving and to the road. Using a
phone may be distracting. Discontinue a call if you can’t
concentrate on driving.
•
Use hands free operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
•
Do not place a handset in the airbag deployment area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola Web site: www.motorola.com/callsmart.
Note:
The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Obey all posted signs when using phones in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust
or metal powders.
When you are in such area, turn off your handset, and do not
remove, install, or charge batteries unless it is a radio product type
especially qualified for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved). In such areas,
sparks can occur and cause an explosion or fire.
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use and Battery Safety”
section in this user’s guide.
Your battery, charger, or portable radio may contain symbols,
defined as follows:
Symbol Definition
Important safety information
follows.
Do not dispose of your battery
or phone in a fire.
032374o032374o
032376o032376o
86
Safety Information
Choking Hazards
Your portable radio or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your device and its accessories away from small children.
Glass Parts
Some parts of your phone may be made of glass. This glass could
break if the product is dropped on a hard surface or receives a
substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your phone until the glass is replaced by a
qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your phone.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Your battery or phone may
require recycling in
accordance with local laws.
Contact your local regulatory
authorities for more
information.
Do not throw your battery or
phone in the trash.
Your phone contains an
internal lithium ion battery.
Do not let your battery,
charger, or phone get wet.
Listening at full volume to
music or voice through a
headset may damage your
hearing.
Symbol Definition
032375o032375o
032378o
Li Ion BATT
032378o
Li Ion BATT
Safety Information
87
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Open Source Software Information
You may choose to obtain a copy of any source code being made
publicly available by Motorola directly from the Motorola website
opensource.motorola.com.
Additionally, for instructions on how to obtain a copy of any source
code being made publicly available by Motorola related to
software used in this Motorola mobile device, please send your
request in writing to:
MOTOROLA, Inc.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
USA.
Motorola has created the www.opensource.motorola.com to serve
as a portal for interaction with the software community-at-large.
To see additional information regarding licenses,
acknowledgments and required copyright notices for open source
packages used in this Motorola mobile device, follow these
instructions:
From the phone Main Menu, select
Games and Apps.
>
OpenSourceNotices
.
88
Export Law
Service & Repairs
If you have questions or need assistance, we’re here to help.
Go to www.motorola.com/support, where you can select from a
number of customer care options. You can also contact the
Motorola Customer Support Center at 1-800-453-0920 (United
States), 1-877-483-2840 (TTY/TDD United States for hearing
impaired).
Export Law Assurances
Export Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Export Law
89
Specific Absorption Rate Data
ALL MODELS WITH FCC IHDP56HS1 MEET THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted
levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of
age and health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
1
Tests for SAR are
conducted using standard operating positions reviewed by the FCC
with the phone transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels
so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station antenna, the
lower the power output.
Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that is does not exceed the limit
established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested
for use at the ear is
1.45
W/kg and when tested on the body, as
described in this user guide, is
1.35
W/kg during packet data
transmission. (Body-worn measurements differ among phone
models, depending upon available accessories and FCC
requirements.)
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications Industry Association
(CTIA) web-site at http://www.ctia.org or the Canadian Wireless
Telecommunications Association (CWTA) Web site:
http://www.cwta.ca
90
Export Law
1. In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kg (W/kg) averaged over
one gram of tissue. The standard incorporates a substantial margin
of safety to give additional protection for the public and to account
for any variations in measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for
this product.
Export Law
91
Limited Warranty Motorola Communications Products
(International)
What Does this Warranty Cover?
MOTOROLA warrants the MOTOROLA manufactured iDEN
Communication Products listed below (“Product”) against defects
in material and workmanship under normal use and service for a
period of time from the date of purchase as scheduled below:
Rechargeable Batteries will be replaced during the applicable
warranty period if:
•
the battery capacity falls below 80% of rated capacity, or
•
the battery develops leakage.
MOTOROLA, at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product
during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are
warranted for the balance of the original applicable warranty
period. All replaced parts of Product shall become the property of
MOTOROLA.
This express limited warranty is extended by MOTOROLA to the
original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for
the Product manufactured by MOTOROLA. MOTOROLA assumes
no obligations or liability for additions or modifications to this
warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between
Products Covered Length of Coverage
iDEN Suscriber
Digital Mobile and
Portable Units
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Product Accesories
(manufactured by or
under license from
MOTOROLA).
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Batteries. One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
92
Export Law
MOTOROLA and the original end user purchaser, MOTOROLA does
not warrant the installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary
equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product
with any ancillary equipment, and all such equipment if expressly
excluded from this warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims liability for range,
coverage, or operation of the system as a whole, or any portion of
the system not produced by MOTOROLA, under this warranty.
General Provisions:
This warranty sets forth the full extent of MOTOROLA’S
responsibilities regarding the Product, Repair, replacement or
refund of the purchase price, at MOTOROLA’S options, is the
exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INLCUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY TO
THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. IN NO
EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS
OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF
USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST
PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH
MAY BE DISCLAIMED BY LAW.
How to Get Warranty Service:
You must provide proof of purchase (bearing the date of purchase
and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA through one of
its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or
communication service provider), it can facilitate your obtaining
warranty service.
What This Warranty Does Not Cover:
•
Defects or damage resulting from use of the Product in
other than its normal and customary manner.
•
Defects or damage from misuse, accident, water, or
neglect.
•
Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or
adjustment.
•
Breakage or damage to antennas unless caused directly by
defects in material workmanship.
Export Law
93
•
A Product subjected to unauthorized Product
modifications, disassembles or repairs (including, without
limitation, the audition to the Product of non-MOTOROLA
supplied equipment).
•
Product which has had the serial number removed or made
illegible.
•
Rechargeable batteries if:
Any of the seals on the battery enclosure of cells are
broken or show evidence of tampering.
The damage or defect is caused by charging or using the
battery in equipment or service other than the Product for
which it is specified.
•
Freight costs to the repair depot.
•
A Product which, due to illegal or unauthorized alteration
of the software/firmware in the Product, does not function
in accordance with MOTOROLA’S published specifications
or the local type acceptance labeling in effect for the
Product at the time the Product was initially distributed
from MOTOROLA.
•
Scratches or other cosmetic damage to Product surfaces
that does not effect the operation of the Product.
•
Normal and customary wear and tear.
•
Exclusion for defects or damage arising from use of the
products in connection with non-MOTOROLA equipment.
Patent and Software Provisions:
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a patent, and Motorola will
pay those costs and damages finally awarded against the end user
purchaser in any such suit which are attributable to any such
claim, but such defense and payments are conditioned on the
following:
•
That MOTOROLA will be notified promptly in writing by
such purchaser of any notice of such claim;
•
That MOTOROLA will have sole control of the defense of
such suit and all negotiations for its settlement or
compromise; and
•
Should the Product or parts become, or in MOTOROLA’S
opinion be likely to become, the subject of a claim of
infringement of a patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure
for such purchaser the right to continue using the Product
or parts or to replace or modify the same so that it
becomes non-infringing or to grant such purchaser a credit
for the Product or parts as depreciated and accept its
return. The depreciation will be an equal amount per year
over the lifetime of the Product or parts as established by
MOTOROLA.
MOTOROLA will have no liability with respect to any claim of
patent infringement which is based upon the combination of the
94
Export Law
Product or parts furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will MOTOROLA have
any liability for the use of ancillary equipment or software not
furnished by MOTOROLA which is attached to or sued in
connection with the Product or any parts thereof. In no event shall
MOTOROLA be liable for any incidental, special or consequential
damages arising from any claim of patent infringement or alleged
infringement.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software, such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software
was originally embodied and such software in such Product may
not be replaced, copied, distributed, modified in any way, or used
to produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise or
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
Export Law
95
Hearing Aid Compatibility
A number of Motorola phones have been tested for hearing aid
compatibility. When some wireless phones are used with certain
hearing aids, users may detect a noise which can interfere with
the effectiveness of the hearing aid.
Some hearing aids are more “immune” than others to this
interference noise, and phones can also vary in the amount of
interference noise they may generate. ANSI standard C63.19 was
developed to provide a standardized means of measuring both
mobile phone and hearing aids to determine usability rating
categories for both.
Ratings have been developed for mobile phones to assist hearing
aid users find phones that may be compatible with their hearing
aid. Not all phones have been rated for compatibility with hearing
aids. Phones that have been rated have a label with the rating(s)
located on the box, and at www.motorola.com/accessibility.
These ratings are not guarantees of compatibility. Results will vary
depending on the user's hearing aid and individual type and degree
of hearing loss. If a hearing aid is particularly vulnerable to
interference, even a phone with a higher rating may still cause
unacceptable noise levels in the hearing aid Trying out the phone
with your hearing aid is the best way to evaluate it for your
personal needs.
“M” Rating
: Phones rated M3 or M4 meet FCC requirements for
hearing aid compatibility and are likely to generate less
interference to hearing aids than unrated phones. (M4 is the
“better” or higher of the two ratings.) On those models with an
extendable antenna, this rating is determined only with the
antenna extended.
“T” Rating
: Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing aid's telecoil (“T Switch” or
“Telephone Switch”) than unrated phones. (T4 is the “better” or
higher of the two ratings.) On those models with a telecoil mode
setting, this rating is determined only with the phone so set. For
setting instructions, see “Features for the Hearing Impaired” in the
section entitled “Advanced Calling Features”. Note that not all
hearing aids have telecoils in them.
Hearing aids may also be measured for immunity to interference
from wireless phones and may have ratings similar to wireless
phones. Ask your hearing health care professional for the rating of
your hearing aid. Add the rating of your hearing aid and your phone
to determine the estimated usability:
•
Any combined rating equal to or greater than six offers
excellent use.
•
Any combined rating equal to five is considered normal
use.
96
Export Law
•
Any combined rating equal to four is considered usable.
Thus, if you use an M3 phone with a M3 hearing aid you will have
a combined rating of six for “excellent use.” This methodology
applies equally for T ratings.
More information about hearing aid compatibility may be found at:
www.motorola.com/accessibility, www.fcc.gov, www.fda.gov, and
www.hearingloss.org/learn/cellphonetech.asp
WHO Information
97
Information From the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using hands-free
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information: http://www.who.int./peh-emf
Product Registration
Registration
Online Product Registration:
http://direct.motorola.com/hellomoto/
Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
98
Recycling
Wireless: The New Recyclable
Recycling
Your wireless phone can be recycled. Recycling your phone
reduces the amount of waste disposed in landfills and allows
recycled materials to be incorporated into new products.
The Cellular Telecommunications Industry Association (CTIA) and
its members encourage consumers to recycle their phones and
have taken steps to promote the collection and environmentally
sound recycling of end-of-life devices.
As a phone user, you have an important role in ensuring that this
device is recycled properly. When it comes time to give this phone
up or trade it in for a new one, please remember that the phone,
the charger, and many of its accessories can be recycled. It's easy.
To learn more about CTIA's Recycling Program for Used Wireless
Devices, please visit us at:
http://recycling.motorola.young-america.com/ index.html
California Perchlorate Label
Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.”
There is no special handling required by consumer.
Patent and Trademark
99
Patent and Trademark Information
Patent and Trademark
MOTOROLA, the Stylized M Logo and all other trademarks
indicated as such herein are trademarks of Motorola, Inc. ® Reg.
U.S. Pat. & Tm. Off. © 2008 Motorola, Inc. All rights reserved.
Microsoft and Microsoft Internet Explorer are registered
trademarks of Microsoft Corporation.
T9 is a trademark owned by Tegic Communications.
T9
®
Text Input Patent and Trademark Information.
This product is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541,
U.S. Pat. 6,011,554 and other patents pending.
Java and all other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other
countries.
All other product names or services mentioned in this manual are
the property of their respective trademark owners.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third
party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
100
Privacy and Data Security
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your phone may affect your
privacy or data security, please follow these recommendations to
enhance protection of your information:
• Monitor access:
Keep your phone with you and do not
leave it where others may have unmonitored access. Lock
your device’s keypad where this feature is available.
• Keep software up to date:
If Motorola or a
software/application vendor releases a patch or software
fix for your phone which updates the device’s security,
install it as soon as possible.
• Erase before recycling:
Delete personal information or
data from your phone prior to disposing of it or turning it in
for recycling. For step-by-step instructions on how to
delete all personal information from your device, please
contact your local service provider.
• Understanding AGPS:
In order to comply with
emergency caller location requirements of the FCC, certain
Motorola phones incorporate Assisted Global Positioning
System (AGPS) technology. AGPS technology also can be
used in non-emergency applications to track and monitor a
user’s location, for example, to provide driving directions.
Users who prefer not to permit such tracking and
monitoring should avoid using such applications.
If you have further questions regarding how use of your phone may
impact your privacy or data security, please contact Motorola at
privacy@motorola.com, or contact your service provider.
Driving Safety
101
Smart Practices While Driving
Driving Safet y
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of phones and
their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your phone lets you communicate by voice and data, almost
anywhere, anytime, wherever wireless service is available and
safe conditions allow. When driving a car, driving is your first
responsibility. If you choose to use your phone while driving,
remember the following tips:
• Get to know your Motorola phone and its features
such as speed dial and redial.
If available, these
features help you to place your call without taking your
attention off the road.
• When available, use a hands-free
device.
If possible, add an additional
layer of convenience to your phone with
one of the many Motorola Original
hands-free accessories available today.
• Position your phone within easy reach.
Be able to
access your phone without removing your eyes from the
road. If you receive an incoming call at an inconvenient
time, if possible, let your voice mail answer it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility, driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your phone to call for help.
Dial 911 or other local
emergency number in the case of fire, traffic accident, or
medical emergencies.**
102
Driving Safety
• Use your phone to help others in emergencies.
If you
see an auto accident, crime in progress, or other serious
emergency where lives are in danger, call 911 or other
local emergency number, as you would want others to do
for you.**
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
103
Index
Index
A
accessories 9, 77
active phone line 54
advanced calling 74
3-way calls 74
alert
set 56, 70
turn off 56
answer a call 15
auto replies 42
B
backlight 72, 78
battery 10, 12, 13
life, extend 10
battery indicator 54
Bluetooth
connect 50
send information 51
setting your phone 49
turning on or off 49
bluetooth 49
C
call
answer 15
end 15, 16
make 15
call forward 62
caller ID 62
Calls
SDG, see SDG calls
calls 60
camera 24
media center 25
self-timer 25
center key 57
center select key 9
clock 78
combined power/end/home
key 15, 16
contacts 75
D
datebook 75
receive events via PTT 76
setup 72
dial a phone number 15
dialed calls 60
display 53
Drafts 21
104
Index
E
earpiece volume 56
emergency number 63
end a call 15, 16
export regulations 88
F
frequently asked questions
service and repairs 88
G
GPS 76
GPS enabled
emergency calls 63
GPS, see GPS enabled
H
handsfree 77
handsfree speaker 57
Hearing Aid Compatibility 95
home screen 53
I
Icons
SDG 69
incoming call message 62
international calls 63
iTAP text entry mode 55
L
language 78
low battery message 54
M
make a call 15
media center 24
Memory
text messages 22
Menus
SDG list 65
Message center
text messages 20
message indicator 54
messages 78
MMS 34
modem
using your handset
as a 23
N
navigation key 9, 57
O
one touch PTT 33
optional accessory 9, 77
optional feature 9
P
packet data 54
PC applications 78
personalize 78
phone number 18
private calls
answer 16
105
Index
make 16
PT manager 34
PTT 26
Q
quick notes
create, edit 20, 21
R
radio frequency 82
received calls 60
recent calls 60
recycling 98
redial 61
ring style indicator 54
ring style, setting 56
ring tones
off 70
setting 70
vibrate 70, 71
ringer volume 56
S
safety
radio frequency 82
RF energy interference 83
safety information 82
safety tips 101
SDG calls
icons 69
lists, adding numbers 66
lists, creating 65
lists, deleting 67
lists, removing
members 67
making 68
making calls 68
starting 68
security 79
Selective Dynamic Group
Calls, see SDG calls
send key 15
SIM card 10
change SIM PIN 79
enable SIM PIN 79
soft keys 53
speaker 54, 76
speed dial 64
store your number 18
T
tap text entry mode 55
text entry 54
text messages 18, 23
creating 21
deleting 22
drafts 21
memory 22
message center 20
receiving 20
resend messages 22
sending 21
sent messages 22
setting up 19
transmitters 57
TTY calls 78
