User’s Guide
motorola Grant
Dummy Page - To be discarded before printing
ITC Notes:
Use this template with A6MotoLandscape StructApps. This template supports:
•
Spot color formatting.
To produce a B/W print , check the ‘Spot color as B/W’ checkbox in the Framemaker print dialog.
•
User's Guides with embedded Legal Guides, if needed.
All semantically-named elements within the Legal Guide content must have their Role attributes set to LG.
MOTOROLA Grant 25/06/09
1
HELLOMOTO
Introducing your new Motorola Grant wireless phone! It’s an easy-to-use music phone with a sleek design that’s
sure to get attention.
•
My Phone, My Way
– It’s your phone — make it that way. Customise your home screen (page 25) with
personal pictures, change wallpapers, and use your favourite song as your ringtone.
•
Connect on So Many Levels
– Whether it’s with work or friends, stay connected with voice (page 41)
and messaging (page 40).
•
Rich Music Experience
– Use the music player (page 43) to set your playlist for your morning commute.
Insert an optional memory card into the removable memory slot to save many more songs! Or, use the FM
Radio (page 42) to listen to your favourite music or news programs.
•
Camera
– Capture key moments with Photos (page 47) and Videos (page 49).
•
Convenient Extras
– When you are away from your home or desk, make use of handy tools like
Contacts, Calculator, Alarm Clock, Calendar, and others (page 58).
•
Fun
– When you have a little time to spare, play a game (page 65).
2
Here’s a quick anatomy lesson:
External Display Screen
Camera
2.5mm Headset Jack
Lanyard Hook
Mini USB Connector
Charge your battery and
connect to PC.
Volume Keys
Smart Key
Left Soft Key
Music Key
Microphone
Send Key
Navigation Key
Back/Clear key
Right Soft Key
Power/End Key
Centre Key
3
A few menu basics:
This is a typical home screen and main menu layout.
Your phone may be a little different
.
Browser Options
Messages
Contacts
12:08 am
12 :08 am
01/01/09
01 / 0 1 / 0 9
P
Home Screen Main Menu
Press & hold the
Power Key
until
the display lights up
to turn on your
phone.
1
Press the
Navigation
Key
S
up/down/left/right to
highlight a menu
feature.
3
Press the
Centre Key
s
to open
the
Main Menu
.
2
Press the
Centre Key
s
to select it.
4
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft and Windows are registered trademarks
of Microsoft Corporation; and Windows XP is a trademark of
Microsoft Corporation.
© Motorola, Inc., 2009.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 68XXXXX289-A
HELLOMOTO
5
contents
menu map . . . . . . . . . . . . . . . . 7
Safety Information. . . . . . . . . . 9
FCC Notice . . . . . . . . . . . . . . . 13
Use and Care . . . . . . . . . . . . . 14
EU Conformance . . . . . . . . . . 15
Recycling Information . . . . . . 16
get started . . . . . . . . . . . . . . . 17
about this guide. . . . . . . . . . 17

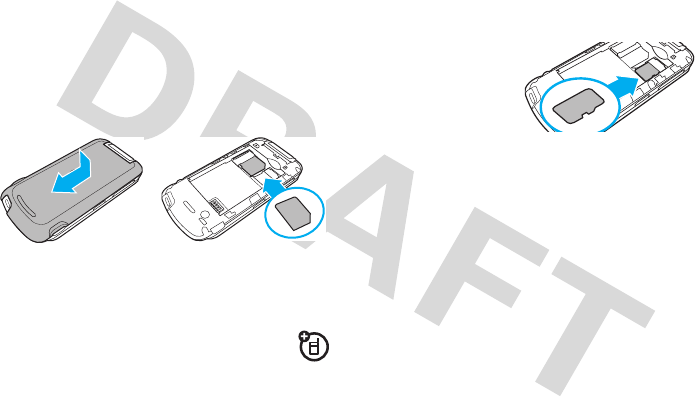

SIM card . . . . . . . . . . . . . . . 17
memory card. . . . . . . . . . . . 18
battery . . . . . . . . . . . . . . . . . 19
turn it on & off . . . . . . . . . . . 22
make a call . . . . . . . . . . . . . 22
answer a call . . . . . . . . . . . . 22
adjust volume . . . . . . . . . . . 23
change ring style . . . . . . . . . 23
store a phone number. . . . . 23
add a phone number to an
existing contact . . . . . . . . . . 23
replace a phone number to an
existing contact . . . . . . . . . . 24
call a stored phone number . 24
basics . . . . . . . . . . . . . . . . . . . 25
home screen . . . . . . . . . . . . 25
enter text . . . . . . . . . . . . . . . 26
side keys . . . . . . . . . . . . . . . 30
handsfree. . . . . . . . . . . . . . . 31
codes & passwords. . . . . . . 31
lock & unlock phone. . . . . . . 32
memory card . . . . . . . . . . . . 32
tips & tricks. . . . . . . . . . . . . . . 34
customise . . . . . . . . . . . . . . . . 35
change home screen shortcuts
35
change main menu appearance
35
ring styles & alerts . . . . . . . 36
answer options . . . . . . . . . 36
wallpaper . . . . . . . . . . . . . . 36
screen saver. . . . . . . . . . . . 36
calls . . . . . . . . . . . . . . . . . . . . 38
redial a number . . . . . . . . . 38
call history . . . . . . . . . . . . . 38
return a missed call . . . . . . 38
call waiting . . . . . . . . . . . . . 39
speed dial. . . . . . . . . . . . . . 39
emergency calls. . . . . . . . . 39
messages . . . . . . . . . . . . . . . 40
send a message. . . . . . . . . 40
receive a message. . . . . . . 40
voicemail . . . . . . . . . . . . . . 41
6
HELLOMOTO
entertainment . . . . . . . . . . . . 42
FM radio . . . . . . . . . . . . . . . 42
music player . . . . . . . . . . . . 43
Take & send photos . . . . . . 47
record & send a video. . . . . 49
WebAccess. . . . . . . . . . . . . 50
connections . . . . . . . . . . . . . . 52
cable connections . . . . . . . . 52
Bluetooth® wireless. . . . . . 54
other features . . . . . . . . . . . . 57
contacts . . . . . . . . . . . . . . . 57
more message features . . . 57
more personalising features 59
call times. . . . . . . . . . . . . . . 60
in call menu. . . . . . . . . . . . . 60
headset . . . . . . . . . . . . . . . . 61
network. . . . . . . . . . . . . . . . 62
personal organiser . . . . . . . 62
advanced calling . . . . . . . . . 63
security . . . . . . . . . . . . . . . . 65
fun & games . . . . . . . . . . . . 65
service & repairs . . . . . . . . . . 66
SAR Data . . . . . . . . . . . . . . . . 67
Hearing Aids. . . . . . . . . . . . . . 68
WHO Information. . . . . . . . . . 69
Registration . . . . . . . . . . . . . . 69
Privacy and Data Security . . . 70
Driving Safety. . . . . . . . . . . . . 71
index . . . . . . . . . . . . . . . . . . . . 73
menu map
7
menu map
main menu
Call History
• Received calls
• Dialled calls
• Call times
• Call cost *
Camera
My Music
• My Music
•FM radio
Extras
• Calculator
• Calendar
Contacts
Settings
• (see next page)
Messages
• Create message
• Inbox
•Draft
• Outbox
• Messages with Tags
• Quick notes
•Voicemail
• Info services
• MMS templates
• Message Settings
Games & Apps
WebAccess
• Start Browser
• Web Shortcut
•Go to URL
Bluetooth
Ring & Volume
• Change Ring Style
•Line 1
•Line 2
• Ring Volume
•Text msgs
•Voicemail
•Key volume
• Other settings
Clock
• Time and date
•Alarm clock
• Stop watch
Calendar
Airplane Mode
• Airplane Mode
• Prompt At Startup
Quick txt
Multimedia
• My Music
•FM radio
• Video Camera
Gallery
• All Pictures
• Videos
• Wallpapers
File Manager
•Pictures
• Sounds
• Videos
• Java
•vCard, vCal
• Others
* Network Dependent
This is the standard main menu layout.
Your phone’s menu may be a
little different
.
31
8
menu map
settings menu
Easy menu
Ring & Volume
Display settings
• Wallpaper
• Display timeout
• Screensaver
Keys
• Navikey Shortcuts
•Left soft key
• Right soft key
Phone settings
• Language
• Airplane Mode
•Storage
• Java Settings
•Greeting
• Device Information
• Restore all Settings
• Delete Phone Data
• Format additional storage device
* Network Dependent
This is the standard main menu layout.
Your phone’s menu may be a
little different
.
Call Settings
• Call Forward
• Headset
• My caller ID
• Open to answer
•Network *
• Easy prefix
• Other settings
Security
• SIM PIN
• Phone lock
• New passwords
• Lock Smart Key
• Restrict Calls *
Safety Information
9
Safety and General Information
Safety I nformation
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola—or if you hang your
mobile device from a lanyard around your neck—keep the mobile
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2007.
10
Safety Information
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your health care provider.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
Safety Information
11
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue use if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
•
Do not place a mobile device in the airbag deployment
area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this user’s guide and/or at the Motorola
Web site:
www.motorola.com/callsmart
.
Note:
The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities for
more information.
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
032374o
032376o
032375o
032378o
Li Ion BATT
12
Safety Information
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use & Battery Safety”
section in this user’s guide.
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service centre.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
Listening at full volume to music or voice
through a headset may damage your
hearing.
Symbol Definition
FCC Notice
13
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
14
Use and Care
Use and Care
Use and Ca re
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
If it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
EU Conformance
15
European Union Directives Conformance Statement
EU Confor mance
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on
the Web site.
0168
Product
Approval
Number
16
Recycling Information
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the
product should not be disposed of with
household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
17
get started
get started
about this guide
This guide shows how to locate a menu feature as
follows:
Find it:
s>
e Messages > Create message > New message
This means that, from the home screen:
1
Press the centre key
s
to open the main menu.
2
Scroll to
e Messages
and press the centre key
s
.
3
Scroll to
Create message
and press the centre key
s
.
4
Scroll to
New message
and press the centre key
s
.
SIM card
Your Subscriber Identity Module (SIM) card contains
personal information like your phone number and
contacts. It can also contain your voicemail and text
message settings.
symbol
This means a feature is
network/subscription dependent and may
not be available in all areas. Contact your
service provider for more information.
This means a feature requires an optional
accessory.
18
get started
If you put your SIM card in another phone, that phone
uses your phone number.
Caution:
Don’t bend or scratch your SIM card. Keep it
away from static electricity, water, and dirt.
Tip:
Ensure your SIM card is fully inserted into the
phone before installing the battery.
memory card
You can use a removable microSD memory
card (up to 2 GB) with your phone to store and
retrieve multimedia objects, such as music and
pictures.
Note:
We recommend that you use Motorola
approved memory cards only, such as SanDisk
memory cards. Other memory cards may not be
compatible with Grant.
To install the
memory card, make
sure the memory
card’s metal contacts
are facing down.
Slide the top of the memory card under the metal
band and into the holder. To remove the memory card,
slide the card back out of the holder.
Note:
If you download a copyrighted file and store it
on your memory card, you can use the file only while
your memory card is inserted in your phone. You
cannot send, copy, or change copyrighted files.
12
19
get started
battery
battery use and safety
•
Motorola recommends you always use
Motorola-branded batteries and chargers. The
warranty does not cover damage caused by
non-Motorola batteries and/or chargers.
Caution:
Use of an unqualified battery or
charger may present a risk of fire, explosion,
leakage or other hazard. Improper battery use,
or use of a damaged battery, may result in a
fire, explosion or other hazard.
•
Battery usage by children should be
supervised.
• Important:
Motorola mobile devices are
designed to work best with qualified batteries.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following
steps:
•
Remove the battery and inspect it to
confirm that it bears a Motorola “Original
Equipment” hologram;
•
If there is no hologram, the battery is not
a qualified battery;
•
If there is a hologram, replace the battery
and retry charging it;
•
If the message remains, contact a
Motorola Authorized Service Centre.
•
New batteries or batteries stored for a long
time may take more time to charge.
• Charging precautions
: When charging your
battery, keep it near room temperature. Never
expose batteries to temperatures below 0°C
(32°F) or above 45°C (113°F) when charging.
Always take your mobile device with you
when you leave your vehicle.
20
get started
•
When storing your battery, keep it in a cool,
dry place.
• Avoid damage to your battery and/or
mobile device
. Do not disassemble, open,
crush, bend, deform, puncture, shred, or
submerge the battery or mobile device. Avoid
dropping the battery or mobile device,
especially on a hard surface. If your battery or
mobile device has been subjected to such
damage, take it to a Motorola Authorized
Service Centre before using. Do not attempt
to dry it with an appliance or heat source, such
as a hair dryer.
• Use care when handling a charged
battery
—particularly when placing it inside a
pocket, purse, or other container with metal
objects. Contact with metal objects (such as
jewelry, keys, or beaded chains) could
complete an electrical circuit (short circuit),
causing the battery to become very hot, which
could cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations. Contact
your local recycling centre for proper battery
disposal.
Warning:
Never dispose of batteries in a fire because
they may explode.
Before using your phone, read the battery safety
information in the “Safety and General Information”
section included in this guide.
032375o
21
get started

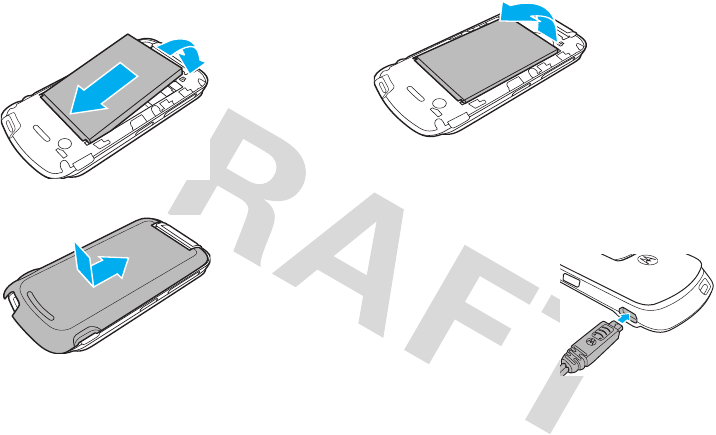

install the battery remove the battery
Note:
Your battery is intentionally tight fitting to
ensure consistent connection.
charge the battery
New batteries are not fully
charged. Plug the battery
charger into your phone and
an electrical outlet. Your
phone might take several
seconds to start charging
the battery. The phone shows
Charge Complete
when
finished.
1
2
22
get started
Note:
Motorola batteries have circuitry that protects
the battery from damage from overcharging.
Tip:
You can also use a PC USB port to charge your
phone battery. Before connecting your phone to your
PC, download and install the charging software driver
from
www.motorola.com/support/Grant
.
turn it on & off
To turn on your phone
,
press and hold for a
few seconds or until the
display turns on.
If prompted, enter your
four-digit unlock code. Your phone’s four-digit
unlock
code
is originally set to
1234
or the last four digits of
your phone number (see page 31).
To turn off your phone
, press and hold for a few
seconds.
make a call
Enter a phone
number and press
send key
to make a call.
To “hang up,” press
.
Tip:
Is your caller saying they can’t hear you? Make
sure your finger is not covering the microphone (see
page 2).
answer a call
When your phone rings and/or vibrates, open the flip
or press to answer. See page 36 for answer
options.
To “hang up”, press .
Power/End
Key
Send Key
23
get started
adjust volume
You can adjust the volume during a call by pressing the
up or down volume keys on the side of the phone, or
by pressing
S
up or down. To turn the handsfree
speaker on, select
Spkr on
.
change ring style
Find it:
s
>
Settings
>
Ring & Volume
>
Change Ring Style
Available options are
Loud Ring
,
Soft Ring
,
Vibrate
,
Vibrate & Ring
,
Vibrate then Ring
or
Silent
.
store a phone number
You can store up to 1000 phone numbers in
Contacts
:
1
Enter a phone number in the home screen, and
press
Save
.
2
To create a new contact, select
Create New
. Then
enter a name and other details for the phone
number. To select a highlighted item, press the
centre key
s
.
3
Press
Save
to store the number.
add a phone number to
an existing contact
You can add a phone number to an existing contact by
the following steps:
1
Enter a phone number in the home screen, and
press
Save
.
2
Select
Add to contact
.
3
Select the kind of the phone number you just
entered.
24
get started
replace a phone number
to an existing contact
You can replace a phone number to an existing contact
by the following steps:
1
Enter a phone number in the home screen, and
press
Save
.
2
Select
Replace Num/Email
.
3
Select the kind of the phone number you just
entered.
call a stored phone
number
Find it:
s
>
Contacts
1
Scroll to the entry.
2
Press the send key to call the entry.
Shortcut:
In Contacts, enter the first letters of an
entry to get to it quickly.
Note:
To search for a contact name by typing it in,
change the search method to
Find
:
Find it:
s
>
Contacts
>
Options
>
Phonebook Settings
>
Sort Order
25
basics
basics
See page 2 for a basic phone diagram.
home screen
When you turn on your phone, the home screen
displays. To dial a number from the home screen,
press number keys and .
Note:
Your home screen might look a little different
from this example.
Soft key labels show the current soft key functions.
For soft key locations, see page 2.
Press the navigation key
S
up, down, left, or right to
select items in the home screen.
Status indicators can appear across the top of the
home screen:
1Signal Strength Indicator
– shows the strength
of the wireless network connection.
My Music Contacts
12:08 am
12:08 am
01/01/09
01/01/09
P
Right Soft
Ke
y
Label
Left Soft
Ke
y
Label
1
1 2 3 4 5 6 7
P
26
basics
2EDGE/GPRS Indicator
– shows when
your phone is using a high-speed
Enhanced Data for GSM Evolution (EDGE)
network connection
,
or General Packet Radio
Service (GPRS) network connection
.
3Ring Style Indicator
– shows the ring style
setting:
= loud ring = soft ring
= vibrate = vibrate and ring
= vibrate then ring = silent
4Active Call Indicator
– shows
B
to
indicate an active call, or
E
to indicate
when call forwarding is on.
5Message Indicator
– shows when you
receive a new text or voice message.
Other indicators can include:
V
= email message
= voicemail message
= message full
= new message
Bluetooth Indicator
- shows Bluetooth:
&
(solid blue) = powered on
&
(solid green) = connected
&
(flashing blue) = discoverable mode
6Battery Level Indicator
- vertical bars show the
battery charge level. Recharge the battery when
your phone shows
Low Battery
.
enter text
Some screens allow you to use the keypad to enter
text, such as when you compose a message:
E
P
P
P
P
27
basics
set entry modes
Multiple text entry modes make it easy for you to
enter names, numbers, and messages.
To select a default entry mode
:
1
In a text entry screen, press
Option
.
2
Scroll to
Entry Setup
and press
s
.
3
Scroll to
Writing Methods
and press
s
.
4
Scroll to one of the following writing/entry
methods or add a new one by pressing
New Entry
.
5
Scroll to the desired writing/entry method and
press
s
.
To change the text entry mode
Press
#
in the text entry screen to change the entry
mode until the desired one is displayed.
Another way to select a text entry mode
Option
Free for lunch
14/1000
00:30
P
Writting/Entry methods
iTAP™
English
Enter letters and symbols by pressing a
key one or more times. Besides, let the
phone predict each word as you press
keys.
Number
Enter a number by pressing its button
on the keypad.
TAP English
Enter letters and symbols by pressing a
key one or more times.
28
basics
Press
Option
in any text entry screen, scroll to and
select
Entry Mode
, then scroll to and select the desired
entry mode.
capitalisation
Press
0
in any text entry screen to change the text
case. These indicators show capitalisation status:
text entry setting indicators
The following indicators identify the text entry setting:
These indicators identify
Numeric
or
Symbol
entry mode:
tap method
This is the standard method for entering text on your
phone.
indicators
í
no capital letters
L
all capital letters
ì
capitalise the next letter only
indicators
g
TAP, no capital letters
h
TAP, capitalise the next letter
f
TAP, all capital letters
j
iTAP™, no capital letters
k
iTAP™, capitalise the next letter
i
iTAP™, all capital letters
indicator
gm
number mode
[
symbol mode
indicators
29
basics
Regular
Tap
method cycles through the letters and
numbers of the key you press. The
Tap Extended
method
cycles through letters, numbers,
and
symbols.
1
Press a key one or more times to cycle through its
characters.
2
Repeat the step above to enter all characters.
Tip:
Press
*
to insert a space.
In a text entry screen you can press
#
to switch
entry modes.
iTAP™ method
The iTAP software combines your single key presses
into common words, and predicts each word as you
enter it. This can be faster than the
Tap
method.
1
Press
S
right or left to scroll through the
possible letter combinations, and highlight the
combination you want.
2
Press
Select
to enter the highlighted combination.
You can press keys to add more letters to the end
of the combination.
or
Press
*
to enter the highlighted combination
and insert a space.
For example, if you press
7764
, your phone
displays the corresponding letter combinations:
Free for lunch
00:30
P
9/1000
Press Select
to accept
lunch.
lunch
Luncg
lunci
Press
S
right
or left to see
other word
suggestions.
30
basics
numeric method
In a text entry screen, press
#
to switch entry
methods until your phone displays the
gm
(numeric)
indicator.
Press keypad keys to enter numbers. When finished,
press
#
to switch entry modes.
symbol method
In the text entry screen, press
#
to switch entry
methods until your phone displays the
[
(symbol)
indicator.
1
Press a key one or more times to show possible
symbol combinations at the bottom of the screen.
2
Scroll left or right to highlight a symbol and press
Select
to enter it.
delete letters & words
Move the cursor to the right of the text you want to
delete and then:
•
Press
Delete
to delete one letter at a time.
•
Press and hold
Delete
to delete the
entire message.
side keys
volume keys
Press the volume keys to:
•
Turn off an incoming call alert
•
Change earpiece or speakerphone volume
during a call
•
Change volume for a song
31
basics
smart key
The smart key gives you another way to access a
menu item of your choice from the home screen.
Also, during music playback, you can use it to pause
and resume music.
To change the menu item accessed by the smart
key
:
Find it:
s
>
lPersonalise
>
Home Screen
>
Home Keys
>
Smart Key
lock side keys
You can lock the side keys when the flip is closed, to
prevent accidental key presses when playing music.
To automatically lock the side keys when the
phone is idle and the phone flip is closed
:
Find it:
s
>
Settings
>
Security
>
Lock Smart Key
>
0
Second
,
5 Seconds
,
10 Seconds
or
30 Seconds
handsfree
You can use your phone’s handsfree speaker to make
calls without holding the phone to your ear. To turn the
speaker on, during a call, press
SPKR ON
. To turn the
speaker off, press
SPKR OFF
.
You can also use an optional 2.5mm wired headset to
go handsfree.
Note:
Mini USB headsets are not supported.
codes & passwords
Your phone’s four-digit
unlock code
is originally set to
1234
or to the last four digits of your phone number.
The six-digit
security code
is originally set to
000000
.
Your service provider may reset these codes. If not,
you should change them to protect your personal
information. The unlock code must contain four digits.
The security code must contain six digits.
32
basics
To change a code or password
:
Find it:
s
>
Settings
>
Security
>
New Passwords
Note:
If you forget your security code, contact your
service provider.
lock & unlock phone
You can lock your phone with a four-digit code to keep
others from using it. For more types of locks, see
“security” on page 65.
Note:
You can make emergency calls on a locked
phone (see page 39). A locked phone still rings or
vibrates for incoming calls or messages,
but you
need to unlock it to answer
.
To lock your phone
:
Find it:
s
>
Settings
>
Security
>
Phone Lock
>
Lock Now
or
Lock on power up
Enter the four-digit unlock code and press
Done
. Your
phone first displays
Phone Locked
, and then shows
Enter
Unlock Code
until the next time you unlock your phone.
To unlock your phone
, enter your four-digit code and
press
Done
.
memory card
You can store multimedia content, such as songs and
pictures, on your phone’s internal memory or on an
optional memory card.
Note:
If you download a copyrighted file and store it
on your memory card, you can use the file only while
your memory card is inserted in your phone. You
cannot send, copy, or change copyrighted files.
format memory card
You will need to format the memory card before using
it for the first time. This essential procedure creates
33
basics
the
Music
,
, and
Video
directories. If you do
not format a memory card before using it for the first
time, your phone may not be able to read the contents
of the card.
Note:
Folder names are region dependent.
Caution:
Formatting the memory card erases all
content on the card.
Find it:
s
>
Settings
>
Phone Settings
1
Scroll to
Format Additional Storage Device
and press
s
.
2
When prompted, press
Yes
to continue or
No
to
cancel formatting.
Tip:
To access data stored on your microSD memory
card, with your phone in the home screen, press
s
>
File Manager
> select the folder and then press
s
>
Switch Storage Devices
.
34
tips & tricks
tips & tricks
From the home screen
(page 25), you can use
shortcuts:
To... Do this...
play music
Press
[
to activate the music
library.
see recently
dialled
numbers
Press .
use
application
shortcuts
Press the left and right soft keys
or the navigation key
S
.
access
voicemail
Press and hold the
1
key to
access your voicemail messages.
change ring
style
Press and hold the
#
key to
change ring styles.
To... Do this...
35
customise
customise
change home screen
shortcuts
Find it:
s
>
Settings
>
Keys
change main menu
appearance
To change your main menu appearance
, press
s
>
Options
>
View
You can change the order of the main menu features:
1
Press
Options
>
Reorder
.
Scroll to the feature you want to move and then press
s
.
2
Scroll to the destination location, and then press
Done
.
options
NaviKey
Shortcuts
Choose the features that open when
you press the navigation key (
S
) up,
down, left, or right in the home screen.
Right Soft
Key
Choose the feature that opens when
you press the right soft key.
Left Soft Key
Choose the feature that opens when
you press the left soft key.
36
customise
ring styles & alerts
Your phone rings and/or vibrates to notify you of an
incoming call or to signal certain other events. This
ring or vibration is called an alert.
You can set alerts for different events, such as getting
a message in your inbox or receiving a call.
set a style
Find it:
s
>
Settings
>
Ring & Volume
1
Select the desired settings by pressing
s
.
2
Scroll to a ring style and press
s
.
Your phone plays a sample of each highlighted setting.
Ringtones play through the speakerphone, unless
you’re using a headset.
answer options
Set your phone to
Open to answer
.
Find it:
s
>
Settings
>
Call Settings
>
Open to Answer
wallpaper
Set a picture as a wallpaper (background) image in
your home screen.
Find it:
s
>
Settings
>
Display settings
>
Wallpaper
To select a wallpaper image
:
1
Scroll to
and press
s
.
2
Scroll to the picture you want and press
s
or
Select
(None)
to turn off wallpaper.
screen saver
Set a picture as a screen saver image. The screen
saver displays when the phone is being charged and
there is no activity.
37
customise
Find it:
s
>
Settings
>
Display settings
>
All Pictures
,
Clock
or
None
To specify how long your phone must be inactive
before it displays the screen saver
, press
s
>
Settings
>
Display settings
>
Display Timeout
.
Note:
To conserve battery life, turn off the screen
saver.
38
calls
calls
To make and answer calls, see page 22.
redial a number
1
From the home screen, press to see a list of
recently dialled calls.
2
Scroll to the entry you want to call and press .
call history
Your phone keeps lists of the calls you recently
received and dialled, even if the calls didn’t connect.
The lists are sorted from newest to oldest calls. The
oldest calls are deleted as new calls are added.
Find it:
s
>
Call history
1
Scroll to an entry.
2
Press to call the number.
To see call details (such as time and date),
press
s
.
Press
Options
to perform other operations on the
number (send a message, save to contacts), or to set
recent call options:
return a missed call
When you miss a call, your phone plays an alert and
displays the
{
(missed call) indicator and a missed
call notification. Press
View
to see the details and press
the send key to call the number.
To view your missed calls at any time:
Find it:
s
>
Call history > Received Calls
39
calls
To hear a voicemail message, see page 41.
call waiting
If you
receive a second call
while you are
already on a call:
•
To answer the second call and put the first call
on hold, press . To switch between the
calls, press
Switch
again.
•
To send the second call to your voicemail,
press
Ignore
.
speed dial
Your phone can store nine phone numbers that you
can call with a single key press. To
store
a speed dial
phone number:
s
>
Contacts
>
Options
>
Phonebook Settings
>
Speed Dial
To
call
a speed dial phone number, press and hold the
single-digit speed dial number from the home screen.
emergency calls
Your service provider programs emergency phone
numbers, (such as 112 or 911), that you can call under
any circumstances, even when your phone is locked.
1
Enter the emergency number.
2
Press .
Note:
Emergency numbers vary by country. Your
phone’s pre-programmed emergency number(s) may
not work in all locations, and sometimes an
emergency call cannot be placed due to network,
environmental, or interference issues.
40
messages
messages
You can send and receive SMS/EMS and MMS
multimedia messages as well as access your
voicemail from the Messages feature. Each message
type allows you to attach different objects.
Note:
Your phone can store a maximum of 1000
messages.
send a message
Find it:
s>
e Messages > Create message > New Message
1
To insert a picture, sound, or other object, press
Option
>
Insert
.
2
When you finish the message, press
s
. Choose
one or more people to send to.
3
Press
Send
.
quick text
You can quickly access the text entry screen by
Quick txt
option so that you can send messages faster.
Find it:
s
>
Quick txt
receive a message
When you receive a message, your phone plays an
alert and displays the
e
(new message) indicator and
a new message notification. Press
Read
to read the
message immediately, or save it in your message
inbox for viewing later. To read messages in your
message inbox:
Find it:
s
>
e
Messages
>
Inbox
41
messages
Scroll to the message you want to read. Press
Read
to
open the message. For MMS messages, your phone
displays the media object, then the message.
voicemail
Your network stores the voicemail messages
you receive.
When you
receive
a voicemail message, your phone
shows an indicator and
New Voicemail
. Press
Call
to call
your voicemail.
To check your voicemail messages at any time
:
Find it:
s
>
eMessages
>
Voicemail
>
Note:
Your service provider may have assigned speed
dial number
1
for calling voicemail and may provide
additional information about using voicemail.
42
entertainment
entertainment
FM radio
Find it:
s
>
My Music
>
FM
radio
To use the
FM Radio
you need to connect a stereo
headset to the 2.5 mm headset jack.
•
Press
S
left or right to change the
frequency.
•
Press the up or down volume keys on the side
of the phone, or press
S
up or down to
adjust the volume.
•
Press
Mute
to mute the radio.
use the radio presets
1
Tune in the desired frequency by pressing
S
left
or right, or press
Options
>
Scan
to scan for all
available radio stations. You can also use the
keypad keys to enter a frequency by pressing
Options
>
Set Frequency
.
2
Press and hold a number key to save that number
as the preset.
select a radio preset
1
Press
Options
>
Manage Presets
to view a list of all radio
presets.
2
Press
S
up or down to select a preset.
Tip:
If you know the number assigned to the preset
station, press the keypad number to select it.
43
entertainment
record FM radio clips
1
Press
Options
>
Record
.
Note:
The maximum recording length is 100
seconds.
2
Press
s
to stop the recording. The clip is saved
in
File Manager
>
Sounds
.
Note:
The unauthorised copying of copyrighted
materials is contrary to the provisions of the Copyright
Law of the United States and other countries. This
device is designed solely for copying non-copyrighted
materials, materials which you own the copyright, or
materials which you are authorised or legally permitted
to copy. If you are uncertain about your right to copy
any material, please consult your legal advisor.
Note:
Playback of recorded radio clips is in mono
sound format only.
share a radio station
Share your favourite radio stations with friends:
Find it:
Press
Options
>
Send Station Info
Use the message screen to send the station
frequency. Your friend can access the station with a
single click.
select the radio output
You can play the radio through a stereo headset or a
speaker. Press
Use Headset
or
Use Speaker
.
music player
Your phone can play music files:
Find it:
[
44
entertainment
To copy music files from a computer to your
phone
, see page 32.
Note:
Your phone may not play MP3 files that have a
bit rate higher than 320 kbps. If you try to download or
play one of these files, your phone may display an
error message or ask you to delete the file.
Tip:
Connect a stereo headset for high quality music
playback.
music player controls
My Music
Shuffle all
Songs
Artists
Albums
Playlists
Genre
Options
00:30
Press
Options
to open
submenu.
functions
scroll through song list
Before music playback
, press
S
up
or
down
.
play
Press
s
.
pause/resume
Press
s
.
fast forward
Press &
hold
S
right
(for at
least two seconds).
skip to next song
Press &
release
S
right
.
rewind
Press &
hold
S
left
(for at least
two seconds).
return to start of song
AFTER first two seconds
of
song, press &
release
s
left
.
return to last song
WITHIN first two seconds
of
song, press &
release
s
left
.
turn off
Press .
45
entertainment
Tip:
When listening to music on the move, use the
convenient controls on the side of the phone. The
smart key plays/pauses music playback and the
volume keys adjust the volume.
playlists
You can collect your favorite songs into playlists.
To create or edit a playlist:
Find it:
[
•To create
a new playlist, scroll to
Playlists
,
choose
New playlist
, and press the center key
s
.
•To edit
an existing playlist, scroll to the playlist
and press
Options
.
To select and play a playlist:
Find it:
[
>
playlists
music player options
From
My Music
screen, press
Options
to view the
following:
shuffle
Press
Options
>
Shuffle
>
On.
repeat song or playlist
Press
Options
>
Auto Repeat
>
None
,
One
or
All
.
functions
options
Music store
you can purchase and download
music online with ease. The
GPRS or an more advanced
telecommunications service is
required.
46
entertainment
get music
Copy music to your phone’s memory card.
Connect
1
With a memory card inserted and your phone in
the home screen, insert the USB cable in your
phone and your Windows PC.
Note:
Grant supports Microsoft® Windows®
2000 and Windows XP™. Other operating
systems may not be compatible with Grant.
2
On your phone, press
Yes
to connect your phone
as a storage device. Name the device “Grant
Mobile” and click
Finish
.
Note:
For USB cable connection details, see page
52.
3
Now you’ve connected, use Windows Media
Player or USB drag and drop to copy your music.
Windows Media Player
1
On your Windows PC, open Microsoft®
Windows® Media Player 11.
2
On the
Sync
tab, select
More Options
. Under
Device, select
Grant Mobile
.
Sound setup Auto Repeat
- Repeat the selected
song or all songs on the current
playlist.
Suffle
- Play songs on the current
list or a playlist in random order.
View Free Space
View remaining space on
your phone and/or the
plug-in memory card.
options
47
entertainment
3
Select
Properties
, check the “Create folder
hierarchy on device” box, and click
OK
.
USB drag and drop
1
Use the My Computer window to find
Removable Device.
2
Drag and drop your music, photos and other
stuff that you want to copy.
Two folders are available:
Music
and
.
To help manage your music, you can create
more folders in the
Music
folder.
3
When you’re done, use the
Safely Remove
Hardware
feature to finish.
Take & send photos
take a photo
Find it:
s
>
Camera
Your camera lens is on the back of your phone when
your phone is open.
With the viewfinder open, press
s
to capture your
image.
Adjusting the exposure affects the brightness of both
the viewfinder display and the captured photo.
Before your take the photo, you can press
Options
to
open the camera menu:
Options
130
2x
Right to switch to
video camera Up/Down t
o
zoom in/ou
t
Open the
camera menu
48
entertainment
To take a photo, frame your subject in the viewfinder
and press
s
.
Press
Options
to:
•
Store only
.
•
Apply As
a
Wallpaper
,
Screen Saver
, or
Contact
entry.
•
Send
in a message.
or
Press
Discard
to delete the photo and return to
the viewfinder.
options
Go to Pictures
See stored pictures.
Auto-timed Capture
Set a timer for the camera to take
a photo.
Auto-Save Enable
- after taking a picture by
pressing the center key, your file
will be saved automatically.
Disable
- the
Discard
option is
provided to delete the file
immediately after taking a
picture.
Picture setup
Provide advanced settings for
users to custom the setting
values of photo-taking and control
the quality of images.
View Free Space
View the remaining
space on your phone
and/or the plug-in
memory card.
options
49
entertainment
send a stored photo in a message
Find it:
s
>
Messages
>
Create message
>
New
message
>
Options
>
Insert
>
1
Scroll to the photo you want and press
s
.
2
Enter the message text and press
s
.
3
Scroll to a recipient address and press
s
or
Press
Options
, then select
Enter Number
or
Enter Email
and
enter the recipient’s phone number or email
address.
4
Press
Send
.
Note:
Your Phone may indicate this is a Multimedia
Msg. Some phones or networks do not support
picture messages. Press
Yes
to send the message.
To view or delete your photos, select
Gallery
from the
main menu of your phone (see page 9).
record & send a video
Find it:
s
>
Multimedia
>
Video Camera
Note:
The number of remaining minutes is an
estimate.
Before your record the video clip, you can press
Options
to open the video camera menu:
Options
00:25
Record
Press
s
to
start the video.
Open the video camera menu
Press
S
up or down to view settings.
Press left or right to change.
to camera
Left to switch
50
entertainment
If you want to send your video in a message, the video
length must be set to
MMS Short
. To set the length, press
Options
>
Video Camera Setup
>
Video Length
.
Press
s
to start recording the video in the
viewfinder.
Press
Stop
to stop recording the video.
Press
Options
to:
Save
the video clip
Discard
the photo
Preview
the video clip
•
Send
the video clip in a message.
To view or delete videos you’ve recorded,
select
Gallery
from the main menu of your phone.
WebAccess
Use your phone to access Web pages.
Find it:
s
>
WebAccess
options
Video Camera Setup
Provide further settings for
customizing the formats of video
clips.
Switch Storage
Devices
Choose to store your
videos in your
Phone Memory
or the plug-in
Memory Card
.
View Free Space
View the remaining space
on your phone and/or the
plug-in memory card.
entertainment
51
WebAccess options
open a web page
Press
s
>
WebAccess
>
Go to URL
1
Enter the web address and press
s
.
option
History
Access a list of recently viewed
Web sites.
New
Add a bookmark.
Web Session
Access a stored Web session.
Stored Pages
Go to a previously stored page.
General Setting
Clear history, reset cache or clear
cookies.
52
connections
connections
cable connections
You can use your phone’s
mini USB port to connect
to a computer.
Note:
Motorola Original™
USB data cables and
supporting software may
be sold separately. Check your computer to determine
which cable you need.
If you use a USB cable connection:
•
Be sure to connect the phone to a high-power
USB port
on your computer
(not a low-power
one, such as the USB port on your keyboard or
bus-powered USB hub).
Note:
If you connect your phone to a
low-power USB port, the computer may not
recognise your phone.
•
Make sure both your phone and the computer
are turned on and the phone is in the home
screen.
Note:
When your phone is plugged into a
computer and is being used for mass storage,
it cannot be used for anything else. To restore
the phone to normal use, disconnect it from
the PC.
•
Grant currently supports Microsoft®
Windows® 2000 and Windows XP™. Other
operating systems may not be compatible
with Grant.
connections
53
Attach the Motorola
Original USB cable to the
mini USB port on your
phone and to an available
USB port on your
computer. Select
Yes
to
connect the phone as a
storage device.
Note:
Selecting
No
will start charging the phone
battery.
On your computer:
1
Open your “My Computer” window, where your
phone’s memory card shows as a “Removable
Disk” icon.
2
Click on the “Removable Disk” icon to access the
memory card.
3
If necessary, in the “Removable Disk” (memory
card) window, create one or more folders for the
files you will copy onto the memory card.
4
To copy files between your computer and phone,
drag and drop into the appropriate folders.
5
When you’re finished, remove the device by
selecting the “Safely Remove Hardware” icon at
the bottom of your computer screen, then select
“USB Mass Storage Devices” and “Stop”.
Use these folders on your memory card for the file
types indicated:
•
music files (iMelody, MIDI and MP3):
\
Music
. To help manage your music,
you can also create new folders in the \
Music
folder.
•
picture files (JPG, PNG, or BMP): \
.
Note:
The maximum single picture file size is 100kB,
at a resolution of 640 x 640 dpi.
00:30
01/01/09
01/01/09
Connect phone as
storage device?
Yes
No
P
54
connections
file manager
Manage music and sound files, photos, videos, and
other files stored on your phone, and on an optional
removable microSD memory card.
Find it:
s
>
File Manager
Select a folder to see its contents.
To play a sound file or voice note, or view a photo or
video, just scroll to the file and select it.
Bluetooth® wireless
Your phone supports Bluetooth wireless connections.
You can connect your phone with a Bluetooth headset
to make handsfree calls. You can also connect your
phone with a phone or computer that supports
Bluetooth connections to exchange files.
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
For maximum Bluetooth security
, you should
always connect Bluetooth devices in a safe, private
environment.
turn Bluetooth power on or off
Find it:
s
>
Bluetooth
>
Turn on
Note:
To extend battery life, use this feature to set
Bluetooth power to
Off
when not in use. Your phone
will not connect to devices until you set Bluetooth
power back to
On
.
make phone visible to other
devices
Allow an unknown Bluetooth device to discover your
phone:
connections
55
s
>
Bluetooth
>
Options
>
Bluetooth Settings
>
Visible to Other
>
Show
.
pair with a handsfree device
Before you try to connect your phone with a
handsfree device, make sure both your phone’s
Bluetooth power is
On
and the handsfree device is
on
and
ready
in pairing or bonding mode. You can
connect your phone with only one device at a time:
Find it:
s
>
Bluetooth
>
Options
>
Search for
Your phone lists the devices it finds within
range.
1
Scroll to a device in the list and press
s
.
2
Enter the device passkey (such as
0000
) and press
Confirm
.
When your phone is connected, the Bluetooth
indicator shows in the home screen.
Shortcut:
When Bluetooth power is on, your phone
can automatically connect to a handsfree device you
have used before. Just turn on the device or move it
near the phone.
Tip:
Want to know more about your headset or
handsfree device? For specific information about a
device or for the device’s PIN code, refer to the
instructions that came with it.
copy files to another device
You can copy a media file, phonebook entry,
datebook event, or web shortcut from your
phone to a computer or other device.
Note:
You can’t copy some copyrighted objects.
1
If necessary, turn on your phone’s Bluetooth
power (see page 54).
2
Pair your phone with the other device (see page
55).
56
connections
3
On your phone, scroll to the object that you want
to copy to the other device.
4
Press
Options
, then select:
•
Send
>
To Bluetooth
for media files
•
Share Phonebook Entry Via
>
Bluetooth
for phonebook
entries
5
Select a recognized device name, press
s
, and
then press
Done
.
If your phone could not copy the file to the
other device
, make sure the device is
on
and
ready
in discoverable mode. Also, make sure the
device is not busy with another similar Bluetooth
connection.
Note:
Once you connect your phone to a Bluetooth
device, that device can start similar Bluetooth
connections with your phone. Your display shows the
Bluetooth indicator at the top when there is a
Bluetooth connection.
receive files from another device
If you do not see the Bluetooth indicator at
the top of your phone display, turn on your
phone’s Bluetooth feature:
Find it:
s
>
Bluetooth
>
Turn on
1
If necessary, turn on your phone’s Bluetooth
power (see page 54).
2
Pair your phone with the other device (see page
55).
3
Send the file from the device.
If your phone and the sending device don’t
recognize each other, place your phone in
discoverable mode so the sending device can
locate it (see page 54).
4
Press
Accept
to accept the file from the other
device.
Your phone notifies you when file transfer is complete.
If necessary, select
Yes
to view the file.
other features
57
other features
contacts more message features
features
create entry
s
>
Contacts
>press
Options
>
Create New
edit entry
s
>
Contacts
Scroll to the entry and press
s
>
Edit Contact
to edit
the entry. Scroll up or down and press
s
to edit
fields. Press
Save
to save your changes.
delete entry
s
>
Contacts
Scroll to the entry and press
s
>
Delete Contact
features
send text message
s
>
eMessages
>
Create message
>
New message
Press
Option
>
Insert
to view insert options.
You can also select a contact first. Press
s
, select
Send Message
, and then select
New message
to compose a
message.
use MMS template
Select a multimedia template with preloaded
media:
s
>
eMessages
>
Create message
>
MMS Templates
58
other features
view sent messages
s
>
eMessages
>
Outbox
Scroll to the message and press
s
.
Press
Option
to view message options.
read received messages
s
>
e Messages
>
Inbox
Scroll to the message and press
s
.
Press
Option
to view message options.
drafts
View messages saved in
Drafts
folder:
s
>
eMessages
>
Draft
Scroll to the message and press
s
.
Press
Option
to view message options.
features
erase messages
Delete all messages or only messages from one
folder:
s
>
eMessages
>
Option > Cleanup Messages
Select
All
,
Inbox
,
Browser Msgs
,
Info Services
,
Outbox
, or
Drafts
.
set up voicemail
s
>
eMessages
>
s > Message settings >
Voicemail Setup
view the message memory status
s
>
eMessages
>
Option > Memory Status
features
other features
59
more personalising
features
features
keypad volume
s
>
Settings
>
tRing Style
> Style
Detail
>
Key Volume
set time and date
s
>
Clock
>
Time and Date
greeting
Change the greeting that appears when you turn on
your phone:
s
>
Settings
>
Phone Settings
>
Greeting
clock view
Display an analog clock or digital time readout in the
home screen:
s
>
lPersonalise
>
Home Screen
>
Clock Set
menu language
s
>
Settings
>
Phone Settings
>
Language
reset settings
Reset default settings for all options except unlock
code, security code, and lifetime timer:
s
>
Settings
>
Phone Settings
>
Restore all Settings
To reset all options, you need to enter the
Security Code
(
000000
).
features
60
other features
call times
Network connection time
is the elapsed time from
the moment you connect to your service provider’s
network to the moment you end the call by pressing
. This time includes busy signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, please
contact your service provider directly.
in call menu
During a call you access the in call menu by pressing
Options
.
delete data
Caution: This option erases all user-entered
information stored in your phone memory,
including Contacts entries and downloaded
files
. Once you erase the information, it cannot be
recovered.
s
>
Settings
>
Phone Settings
>
Delete Phone Data
To reset all options, you need to enter the
Security Code
(
000000
).
features
feature
set in-call timer
s
>
Settings
>
Call Settings
>
Time Display
features
access a list of available phone lines
s
>
My Tel Numbers
Scroll to a line and press
Select
.
other features
61
headset
Note:
The use of wireless phone while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain area. Always obey
the laws and regulations on the use of these products.
mute the call
s
>
Mute
hold the call
s
>
Hold
make another call
s
>
New Call
access list of contacts
s
>
Contacts
access call history
s
>
Call history
features
features
auto answer
Automatically answer calls when connected
to a headset:
s
>
Settings
>
Call settings
>
Auto Answer
Note:
Both mono and stereo headsets are
supported for voice only.
change volume
Press up or down on the volume keys on the side of
the phone, or
S
right or left, to change the
headset volume during a call.
62
other features
network
personal organiser
features
network settings
View network information and adjust network
settings:
s
>
Settings
>
Call Settings
>
Network
select a band
s
>
Settings
>
Call Settings
>
Network
> Network setup
features
set calendar default view
s
>
Calendar
> press
Option
>
Week view
or
Month view
31
add calendar event
s
>
Calendar
Scroll to the desired day and press
Create New Event
,
then enter event details.
view calendar event
s
>
Calendar
> select the desired day >
s
event reminder
When an event reminder occurs, press
View
to view
it. Press
Exit
to dismiss it.
send calendar event to another device
Send a calendar event to another phone, computer,
or device:
s
>
Calendar
>
s
> event, press
Options
>
Send
>
Bluetooth
or
Send via MMS
features
31
31
31
63
other features
advanced calling
set alarm
s
>
Clock
>
Alarm Clock
>
Create Alarm
Note:
You can set the FM radio as your alarm
device by selecting
Alert Tone
>
Alert method
>
Radio
.
turn off alarm
When the display shows an alarm:
To turn off the alarm, press
Dismiss
or
0
.
To set an eight-minute delay, press
Snooze
.
calculator
s
>
Extras
>
Calculator
convert currency
s
>
Extras
>
Calculator
Press
s
and select
Options
>
Convert
Currency
.
features
features
speed dial
Your phone can store nine phone numbers that you
can call with a single keypress. To
store a speed
dial phone number:
s
>
Contacts
>
Options
>
Phonebook Settings
>
Speed Dial
> select one entry from the displayed list >
s
>
Assign Contact
,
Change Contact
or
Create New Contact
.
To call a speed dial number, press and hold the
single-digit speed dial number for one second.
64
other features
quick dial
Set your favourite contact numbers to three Quick
Dial options.
s
>
lPersonalise
>
Quick Dial
Scroll to the
Quick Dial
option (1, 2 or 3) that you want
to set and press
Change
. Press
Browse
>
Contacts
,
Dialled
Calls
or
Received Calls
to search for the number you
need. Press
OK
to accept the selected number.
hold a call
Press
Options
>
Hold
to put all active calls on hold.
mute a call
Press
Options
>
Mute
to put all active calls on mute.
features
call waiting
When you are on a call, you’ll hear an alert if
you receive a second call. Press
Send key
to answer
the new call.
•
To switch between calls, press
Switch
.
•
To connect the two calls, press
Link
.
•
To end the call on hold, press
Options
>
End Call
on Hold
.
To turn call waiting on or off:
s
>
Settings
>
Call Settings
>
In-Call Setup
>
Call Waiting
>
On
or
Off
.
new call
During a call:
Options
>
New Call
, press
Options
>
Browse Contacts
.
features
65
other features
security
fun & games
DTMF tones
Your phone can send Dual Tone Multi Frequency
(DTMF) tones for calling card calls or other
automated touch-tone calls.
s
>
Settings
>
Call Settings
>
Other settings
>
DTMF
>
select
Short
or
Long
features
SIM PIN
Caution:
If you enter an incorrect PIN code three
times before the correct code, your SIM card is
disabled, and your display shows
SIM Blocked
. Lock or
unlock the SIM card:
s
>
Settings
>
Security
>
SIM Lock
features
features
play a game or application
s
>
QGames & Apps
airplane mode
Turn off your phone’s calling features in locations
where wireless phone use is prohibited. This lets
you use the music player and other non-network
features while you are on an airplane, without
interfering with aeroplane communications.
s
>
Airplane Mode
>
On
To reactivate your phone’s calling features, turn off
the airplane mode.
66
service & repairs
service & repairs
If you have questions or need assistance, we’re here
to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options.
You can also contact the Motorola Customer Support
Centre at 1-800-331-6456 (United States),
1-888-390-6456 (/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
67
service & repairs
Specific Absorption Rate Data
SAR Data
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 0.87 W/kg, and when worn on the body, as described in
this user guide, is 0.37 W/kg. (Body-worn measurements differ
among phone models, depending upon available accessories and
regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
68
Hearing Aids
Hearing Aid Compatibility with Mobile Phones
Hearin g Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
WHO Information
69
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Registration
Online Product Registration:
direct.motorola.com/hellomoto/ Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
70
Privacy and Data Security
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device which updates the device’s
security, install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
this user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and then
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—In order to comply with
emergency caller location requirements of the FCC, certain
Motorola mobile devices incorporate
Assisted Global
Positioning System
(AGPS) technology. AGPS technology
also can be used in non-emergency applications to track
and monitor a user’s location—for example, to provide
driving directions. Users who prefer not to permit such
tracking and monitoring should avoid using such
applications.
If you have further questions regarding how use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Driving Safety
71
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voicemail answer it
for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
72
Driving Safety
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
73
index
index
A
accessories 17
alarm clock 64
alert 36
answer a call 22
B
band selection 63
battery 19
charge indicator light 2
remove 21
C
cable connections 52
cables 52
calculator 64
calendar
event 63, 64
event reminder 64
view 64
view event 64
call
answer 22
end 22, 23
make 22
call a stored phone number 23, 24
call times 61
call waiting 39
calls restrict 65, 66
capitalise text 28
centre key 2
change ring alert 23
change volume 63
charge battery 21
74
index
clear/back key 2
clock
analog 60
digital 60
codes 31, 32
contacts 58
create entry 58
delete entry 58
edit entry 58
controls
music library 44
currency converter 64
D
date 60
delete text 30
dial a phone number 22
dialled calls 38
display 25
drafts folder 59
DTMF tones 66
E
emergency number 39
end a call 22, 23
end key 2, 22, 23
event
calendar 63, 64
F
FM radio 42
format memory card 33
G
games 67
greeting 60
H
headset 62, 63
hearing aids 70
hold call 62
home screen 25
75
index
shortcuts 35
I
in call menu 62
in call timer 61
indicator lights 2
indicators
text entry mode 28
install battery 21
iTAP text entry method 29
K
keypad volume 60
L
lock phone 32
M
make a call 22
master reset 61
memory card 18, 32
format 33
menu 35
language 60
menu icons 35
messages
drafts 59
erase 59, 60
MMS 59
read 59
receive 40
send 40
text message 58
text template 59
view sent message 59
Missed Calls message 38
MMS 59
music player 43
mute 62
N
navigation key 2, 25
76
index
network settings 63
new call accept 62
numeric entry method 30
O
optional feature 17
P
passwords. See codes
personal organiser 63
phone lines 62
phone number call 23, 24
phone number store 23
phonebook 58
playlists 45
power key 2, 22
preset radio stations 42
Q
quick text 40
R
radio 42
receive a message 40
received calls 38
recent calls 38
record radio stations 43
redial 38
remove battery 21
reset 61
restrict calls 65, 66
return a call 38
ring alert 23
ring style, setting 36
S
safety information 7, 9
safety tips 73
screen saver 37
security 65, 66
security codes 31, 66
77
index
send a message 40
send key 2, 22
set a style 36
set time & date 60
shortcuts 34
SIM 17
smart key 31
soft keys 2, 25
speakerphone
automatic answer 63
storage 32
store phone number 23
symbol entry method 30
T
tap text entry method 28
template 59
text delete 30
text entry 26
capitalisation 28
entry mode indicators 28
time 60
tips & tricks 34
turn on/off 22
U
unlock
code 31, 32
phone 32
USB cables 52
USB drag and drop 47
V
voicemail 41
message indicator 41
setup 59
volume 23
change 63
keypad 60
W
wallpaper 36
www.motorola.com
68XXXXX289-A
