Exhibit 8 Users Manual

APPLICANT MOTOROLA INC. FCC ID: IHDP56KT1

INSTRUCTION MANUAL

A representative version of the user's manual follows:

Exhibit 8

1Congratulations

Congratulations

MOTOTM XT800

MOTO XT800 gives you a premium multimedia and

browsing experience with the very latest from

GoogleTM. Mobile entertainment has never been this

easy.

• HD video. Record and watch videos in high-quality

720p HD. Download or stream videos to watch on

your phone, or play them on your HDTV over an

HDMI cable connection.

• Browsing. Get more from the Web, with a huge

screen and full HTML. Search, browse, everything

you want to do, all made easier.

• Entertainment and more. Download thousands of

cool apps from Android MarketTM and the Motorola

app store, to play and surf to your heart’s content.

Caution: Before assembling, charging or using your

phone for the first time, please read the important

legal and safety information packaged with your

phone. Once your phone is up and running, press

Menu > Settings > About phone

>Safety & Regulatory to read the full information.

More information

Go to www.motorola.com/support.

Whether you want to read, watch, or play, we can help.

2Your phone

Your phone

Messaging

Phone MapsWebContacts

10:42 AM

OMTP 3.5mm

Headset Jack *

micro USB

Connector

Charge or

connect to PC.

Volume Keys

To u chscreen

mini HDMI

Connector

Home Key

Menu Key

Power Key

Press to put the

display to sleep,

hold to turn off.

Back Key

Camera

Key

Search Key

Press to search

for apps, files,

or text.

* If you use a wired headset with built-in microphone, you'll need to

use an OMTP (Open Mobile Terminal Platform) compliant headset

such as the Motorola OH15. Look for the OMTP logo shown

here, or go to

www.motorola.com/wired

for additional

information.

When you turn your phone, the screen adjusts for you.

Note: Your phone might look a little different.

3Contents

Contents

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 5

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Google Maps™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Latitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 33

WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

USB & memory card. . . . . . . . . . . . . . . . . . . . . . . . 36

Synchronize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 42

4Let’s go

Let’s go

let’s get you up and running

Assemble & charge

Caution: Please read the battery use and safety text at

the back of your Getting Started Guide.

1cover off 2UIM and/or SIM in

3microSD in

(already done)

4battery in

5cover on 6charge up

AUTOFOCUS

AUTOFOCUSAUTOFOCUS

AUTOFOCUS

Tu r n i t o n & off

To turn on your phone, press and

hold Power (on top of the

phone).

To turn off your phone, press and

hold Power , then tap Power off.

Unlock

To unlock your phone from

the startup screen, tap the

unlock icon and drag it to

the right in a clockwise

motion.

Sounds off & on

To turn phone sounds off

and on from the startup

screen, tap the sound icon

and drag it to the left in a

counter-clockwise motion.

HDMI

5Touchscreen & keys

Make & answer calls

To make a call, tap Phone, enter a number, then

tap Cto make the call over a CDMA network, or

tap Gto make the call over a GSM network.

To answer a call, tap Answer. To turn off the incoming

call alert, tap Ignore.

To end a call, tap End call.

WLAN connect

If you want to use a WLAN (WiFi Local Area Network)

connection for even faster Internet access,

press Menu > Settings > Wireless & networks

>WLAN settings. Tap WLAN to turn on WLAN power,

then tap Add WLAN network to search for and connect

to wireless networks. There’s more in “WLAN” on

page 35.

Cool content & more

Browse and download thousands of the coolest apps

on the planet from Android MarketTM. Learn more about

downloading new apps with “Android Market™” on

page 32.

Your phone comes with a microSD memory card

installed—you can load it up with photos, videos, and

music from your computer using “USB drag & drop”

on page 36.

Touchscreen & keys

a few essentials

Touch tips

Here are some tips on how to navigate around your

phone.

Tap

To choose an icon or option, tap

it. Try it: In the home screen, tap

Contacts.

Tap & hold

To open special options, tap and

hold an icon or other item. Try it:

In the home screen, tap

Contacts, then tap and hold a

contact to open options.

Phone MapsWebContacts

Phone Call log

1:54 PM

FavoritesContacts

22 contacts

Alex Pico

View contact

Call contact

Alex Pico

Text contact

Add to favorites

6Touchscreen & keys

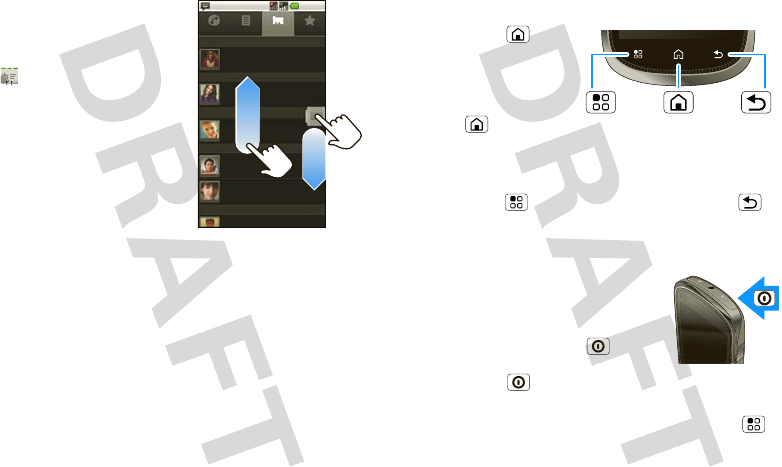

Drag

To scroll through a list or

move slowly, drag across

the touchscreen. Try it: In

the home screen, tap

Contacts, then drag

your Contacts list up or

down.

Tip: When you drag or flick

a list, a scroll bar appears

on the right. Drag the scroll

bar to move the list to a

letter A - Z.

Flick

To scroll through a list or move quickly, flick across the

touchscreen (drag quickly and release).

Tip: When you flick a long list, tap the screen to stop it

from scrolling.

Phone Call log

1:54 PM

FavoritesContacts

Mariana Bukvik

Luke Carmody

Nancy Anderson

Rich Aaronson

Robin Royce

Key tips

Menu, home, & back

Press Home to

close any app or

menu and return to

the home screen.

Press and hold

Home to show

the last few apps you

used, then tap an

app to open it.

Press Menu to open menu options, or Back to

go back.

Sleep & wake up

To save your battery, prevent

accidental taps, or when you want

to wipe smudges off your

touchscreen, put the touchscreen to

sleep by pressing Power . To

wake up the touchscreen, just

press Power again.

To change how long your phone waits before the

screen goes to sleep automatically, press Menu

>Settings > Sound & display > Screen timeout.

Home

Key

Back

Key

HDMI

7Home screen

Power key menu

Press and hold Power to open the power key

menu, where you can turn off the phone (Power off),

or turn Airplane mode or Silent mode on or off.

Adjust volume

Press the volume keys

to change the ring

volume (in the home

screen), or the earpiece

volume (during a call).

Spin the screen

The touchscreen can spin to stay right-side up when

you rotate your phone:

Find it: Menu > Settings > Sound & display

>Orientation

Volume Keys

Home screen

quick access to the things you need most

Quick start: Home screen

The home screen gives you all your latest information

in one place. It’s what you see when you turn on the

phone or press Home from a menu. It’s basically

like this:

Messaging

Phone MapsWebContacts

10:42 AM Status Indicators

App Tr ay

Drag up to see all your

applications.

Flick left or right to open

more panels of shortcuts &

widgets.

Shortcuts

Tap to open.

Status Bar

Flick or drag this bar down to

see details.

8Home screen

Flick the home screen left and right to see more

panels, where you can store additional shortcuts,

widgets, and more.

Shortcuts

Shortcuts are icons that open your favorite phone

applications, bookmarks, contacts, and music playlists.

The most frequently used shortcuts appear at the

bottom of your home screen.

To open a shortcut, tap it. To add more shortcuts to

your home screen, open the apps tray, then tap and

hold the shortcut you want. Or, press Menu > Add

>Shortcuts

You can add a folder to organize your shortcuts. Press

Menu > Add > Folders.

To move or delete a shortcut, tap and hold it until you

feel a vibration, then drag it to another spot, or drag it

to the trash at the bottom of the screen.

Widgets

Widgets are small Web-based apps that show you

news, weather, messages, and other updates.

To open a widget, tap it. To add more widgets to your

home screen, press Menu > Add > Widgets.

App tray

The app tray holds all of the applications that come

with your phone, and any applications you download

and install on your phone.

To open the app tray, tap and drag up. To

open an app, tap it. To close the app tray, tap

and drag down.

Phone status & notifications

At the top of the screen, icons on

the left side of the status bar

notify you about new messages

and events (flick or drag the bar

down for details). Icons on the

right tell you about phone status:

CDMA network

(full signal)

GSM network

(full signal)

Bluetooth™ active WLAN active

downloading flight mode

vibrate silent

mute call speakerphone

active

battery (charging) battery (full charge)

alarm set

10:42 AM

9Calls

Tip: To see today’s date, tap and hold the status

indicators.

Use the Search widget in the home screen to search

for apps, files, or text, on your phone or the Web.

Tap & enter text for a text

search.

Calls

it’s good to talk

Quick start: Calls

Dialing options

Find it: Home > Phone

Phone Call log

10:42 AM

FavoritesContacts

Dial

abc

def

mno

ghi

wxyz

abc

pqrs

Dial

Dan Smith

Mobile 314-555-1212

Kate Shunney

Mobile 214-555-1212

Alex Pico

Mobile 513-555-1212

jkl

tuv

Contact List

Tap to open, then tap an

entry to call.

Delete

Tap to delete a digit you

entered.

Call Log

Tap to open, then tap an

entry to call.

GSM Call

Tap to make your call over a

GSM network.

CDMA Call

Tap to make your call over a

CDMA network.

Favorites

Tap to open, then press

Menu to add or edit.

10 Calls

In-call options

During a call, press Menu to choose Hold, Add

call, or Bluetooth (to use a wireless headset).

Tip: You can press Home or Back to hide the

active call display. To reopen it, tap Phone.

10:50 AM

Mute Speaker

Number

pad

End call

GSM network

Press Menu for call options.

Connected

Alex Pico

Mobile 513-555-1212

Current call 03:19

Call Timer

Mute

Tap to mute or unmute the

call.

End Call

Tap to hang up.

Speakerphone

Tap to turn the speakerphone

on or off.

Dial Pad

Tap to open a dial pad, to

enter numbers during a call.

Make & answer calls

To make a call, tap Phone,

enter a number, then tap Cto

make the call over a CDMA

network, or tap G to make the

call over a GSM network.

Tip: To enter the international

dialing code, tap and hold .

To answer a call, tap Answer. To

turn off the incoming call alert,

tap Ignore.

End calls

Tap End call.

Note: When you hold the phone to your ear, the

display goes dark to avoid accidental taps. When you

move your phone away from your ear, the display lights

up again.

Tip: You can press Home or Back to hide the

active call display. To reopen it, tap Phone.

Favorites

Find it: Phone > Favorites

•To call a number, tap it.

•To add, edit, or clear entries, press Menu .

10:45 AM

Answer Ignore

GSM network

Incoming call

Alex Pico

Mobile 513-555-1212

11Calls

Handsfree

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal.

Always obey the laws and drive safely.

During a call:

•To use the speakerphone, tap Speaker.

•To use a Bluetooth™ device, press Menu

>Bluetooth.

Mute & hold

During a call:

•To mute the current call, tap Mute.

•To put a call on hold, press Menu > Hold.

Enter numbers during a call

To enter numbers during a call,

tap Number pad and then tap

the dial pad.

Recent calls

Find it: Phone > Call log

•Tap an entry to call it, send a text message, view call

details, or add the number to a firewall list of

blocked calls.

Mute Speaker

Number

pad

End call

•To filter the list, tap the view name (like All calls) at

the top.

•To clear the list, press Menu > Clear call log.

Conference calls

To start a conference call, call the first number. After

they answer, press Menu > Add call and call the

next number. When the next number answers,

press Menu > Join.

Your phone number

Find it: Menu > Settings > About phone > Status

>CDMA status or GSM status

The status page lists your phone number.

Your caller ID

To hide your number from the people you call,

press Menu > Settings > Call settings > CDMA

network call settings or GSM network call settings

>Additional call settings > Caller ID.

Emergency calls

Note: Your service provider programs one or more

emergency phone numbers (such as 911 or 112) that

you can call under any circumstances, even when your

phone is locked. Emergency numbers vary by country.

Your pre-programmed emergency number(s) may not

12 Calls

work in all locations, and sometimes an emergency

call cannot be placed due to network, environmental,

or interference issues.

1Tap Phone (if your phone is locked,

tap Emergency Call).

2Enter the emergency number.

3Tap Call to call the emergency number.

Note: Your mobile device can use AGPS satellite

signals to help emergency services find you (“GPS &

AGPS” on page 44).

Call forwarding & waiting

You can forward calls all the time, or only when your

phone is busy, unanswered, or unreachable (not on the

network):

Find it: Menu > Settings > Call settings > CDMA

network call settings or GSM network call settings

>Call forwarding

When you’re on a call and a second call comes in,

Call waiting lets you answer it by tapping Answer. You

can turn off Call waiting, to send second calls straight

to your voicemail:

Find it: Menu > Settings > Call settings > CDMA

network call settings or GSM network call settings

>Additional call settings > Call waiting

Restrict outgoing calls

To restrict your phone so that it can only dial a few

numbers:

Find it: Menu > Settings > Call settings > CDMA

network call settings or GSM network call settings

>Fixed dialing numbers

•To turn fixed dialing on, tap Enable FDN.

•To add or delete the allowed numbers, tap FDN list.

13Contacts

Contacts

contacts like you’ve never had before

Quick start: Contacts

Find it: Home > Contacts

Tip: To see more contacts, flick or drag up.

Phone Call log

1:54 PM

FavoritesContacts

Displaying 22 contacts

Dan Smith

Alex Pico

Kate Shunney

Keith Zang

Luke Carmody

Contacts List

Tap to view, call, or text a

contact. Tap & hold to edit,

delete, and more.

Menu Options

Press Menu to search,

add, share, import/export,

copy, or delete contacts.

Import contacts from your SIM

If you need to import contacts from your SIM card,

tap Home > Contacts, then press Menu

>More > Import/Export > Import from SIM card.

Home > Contacts, then press Menu

>More > Import/Export > Import from SIM card.

Call, text, or email contacts

Find it: Home > Contacts

To View contact, Call contact, Text contact, Add to

favorites, or other options, tap and hold the contact.

Edit or delete contacts

Find it: Home > Contacts

Tap the contact, then press Menu > Edit contact

or Delete contact.

Tip: When editing a contact, you can set a ringtone,

address, and other details that will be saved on your

phone.

Create contacts

Find it: Home > Contacts > Menu > New

contact

14 Messaging

Select the account to save the contact to, then type

the contact name and details.

1:54 PM

Given name

Family name

Phone

Mobile

Done Revert

Edit contact

Tap to set the number type.

Tap to select a picture for the

contact.

Tap to add more name

details.

Tap to add another phone

number.

When you’re finished,

tap Done.

Tap to remove this number.

To see more details, flick up.

Messaging

sometimes it’s best 2 text, or IM, or email . . .

Quick start: Messaging

Find it: Home > Messaging

Tip: To see more messages, flick or drag up.

3:31 PM

New message

Compose new message

Keith Zang (8)

3:28PMMeet you there @ 5:00. I’ll ...

+16175551234

1:05PM(Your new account) Here is ...

Mariana Bukvik(17)

102711Where are you?

Robin Royce(9)

9:24AMI did my good deed for the ...

Messaging

Rich Aaronson(5)

102711Wow! I can’t believe that ...

Clubsrus@clubsrus.com

102511(Welcome to our club) As a ...

Tap to create & send a

message.

Message List

Tap to open a message

thread. Tap & hold to add to

contacts, delete a thread,

and more.

15Messaging

Read & reply to messages

•To open a message and all of its replies, tap it.

•To respond to a message, just open it and enter

your response in the text box at the bottom.

•To open options, tap and hold a message.

Create messages

Find it: Home > Messaging > New message

Enter the recipient and message. In text messages

and emails, press Menu for options like Insert

smiley or Attach.

Send & receive attachments

To send a file in a message, open a new message and

press Menu > Attach.

When you receive a message with an attachment,

open the message and tap the file name to download

it. Then, tap the name again to open it. Some file

formats can be converted to HTML for faster viewing,

and your phone will show a button that says Get HTML

version.

Tip: To send and receive large attachments faster, use

a WLAN connection, in “WLAN” on page 35.

Set up an account

Find it: Home > Email

The email setup wizard will guide you through setting

up your email account.

Create a new email

Find it: Home > Email, press Menu

>Compose

Enter the recipient email address and message, then

tap Send.

Tip: Press Menu for options, like Attach or Add

Cc/Bcc.

Instant messages

To send and receive instant messages, you can use an

instant messaging app or your browser.

•To download and use an instant messaging app,

press Home > Market > Applications

>Communication, then choose an app for your

provider. Once you download the app, you’ll see it in

your app tray.

•If you don’t see an app for your IM provider, you can

use your Web browser. Press Home > Web

> Menu > Settings, then enter your provider’s

16 Text entry

Web site and tap Go. Once you’re there, follow the

link to sign in.

Note: Your IM options will depend on your IM provider.

To browse instant messaging apps from your

computer, go to www.android.com/market.

Text entry

think keyboard, now think smaller

Touchscreen text entry window

When you tap a text field, your phone opens a

touchscreen keypad or handwriting window. To close

the keypad or handwriting window, press Back .

Keypad

To change keypad settings, from the home screen,

press Menu > Settings > Language & keyboard

>Moto text input > Keyboard.

Delete

Tap to change text

entry mode.

Space

Tap to open a keypad for

symbols & numbers.

Tap to

change

language.

Text Field

Tap to open the

touchscreen

keypad.

Return

17Text entry

Handwriting

Write a character in the handwriting window, then wait

for your phone to recognize and place it in the text

field. If your phone places an incorrect character, tap

the character in the choice area that you want to

replace it.

To change handwriting settings, from the home

screen, press Menu > Settings > Language &

keyboard > Moto text input > Handwriting.

Tap to select a suggested character.

Write symbols & punctuation here.

Tap to see more suggested words.

Tap to change text entry mode.

Tap to select the

suggested word.

Write characters here.

Text entry settings

When you use the touchscreen text entry window,

your phone suggests words from your dictionary and

chosen language. Your phone also automatically enters

apostrophes in some words, like “don’t.”

Find it: Menu > Settings > Language & keyboard

•To change the language and the style for your

touchscreen text entry window, tap Select locale.

•To edit your dictionary, tap User dictionary.

•To change sounds, corrections, and other settings

for your keypad and handwriting window, tap Moto

text input.

18 Tips & tricks

Tips & tricks

a few handy hints

To . ..

Return to the

home screen

Press Home .

See recently

dialed numbers

Tap Phone > Call log.

Tur n ringer

on/off

Press the up or down volume

key repeatedly.

Sleep/wake

your phone

Press Power .

Set lock screen Press Menu > Settings

>Location & security > Security

lock.

Search Press Menu > Search.

Tur n airplane

mode on/off

Press and hold Power

>Airplane mode.

Tur n

Bluetooth™

power on/off

Press Menu > Settings

>Wireless & networks

>Bluetooth.

Tur n WLAN

on/off

Press Menu > Settings

>Wireless & networks > WLAN.

Personalize

add your personal touch

Add widgets

1Find an empty spot on your home screen where you

want to add a widget. You can flick left or right to

open other panels on the home screen.

2Tap and hold the empty spot until you see the Add

to Home screen menu.

3Tap Widgets.

4Tap the type of widget. If necessary, enter the

widget settings.

You can customize some widgets. Tap a widget to

open it, then press Menu .

To move a widget, tap and hold it, then drag the

widget where you want it.

Add shortcuts

Tap and hold an empty spot on the home screen until

you see the Add to Home screen menu, then tap

Shortcuts.

To move a shortcut, tap and hold it, then drag the

shortcut where you want it.

19Photos & videos

Change your wallpaper

Tap and hold an empty spot on the home screen until

you see the Add to Home screen menu, then tap

Wallpapers.

Ringtones

Personalize your ringtones:

Find it: Menu > Settings >Sound & display

>Phone ringtone or Notification ringtone

Sounds & display settings

Find it: Menu > Settings >Sound & display

Date & time

Set date, time, time zone, and formats:

Find it: Menu > Settings > Date & time

Language & region

Set menu language and region:

Find it: Menu > Settings > Language & keyboard

>Select locale

Photos & videos

see it, capture it, share it!

Photos

Take & share photos

Take that family photo, and post it online for everyone

to see. Your camera has a built-in flash, for perfect

photos every time.

Find it: Press Camera

Note: Photos are stored on your microSD memory

card. Picture Resolution is 5MP, unless you change it.

Drag up to change

to camcorder.

Tap to automatically

focus & shoot.

Flash

Mode

Tap the viewfinder

to see & use zoom

controls.

Thumbnail of

Last Photo

Tap to view.

Drag right to adjust

camera settings.

20 Photos & videos

To take the photo, lightly press Camera halfway

until the autofocus box turns green, then press all the

way to take the photo.

A thumbnail of the photo you’ve just taken is shown on

the right. Tap the thumbnail to view it.

•To set the photo as a wallpaper or contact photo,

press Menu > Set as.

•To send the photo in a message or post it online,

press Menu > Share. For more info on sharing

your photos, see “Share your photo gallery” on

page 20.

•To delete the photo, press Menu > Delete.

•For more options, press Menu > More.

Photo options

In the viewfinder, press Menu > Settings to open

the camera menu:

options

Store

location

Save the details of where the photo

was taken.

Picture size Set the resolution of your photo.


quality

Choose between Fine, Super fine,

and Normal.

Focus mode Choose between Auto and Infinity.

View your photos

Find it: Home > Media gallery

Play a slideshow

Press Home > Media gallery, tap a picture,

then Menu > More > Slideshow to start a

slideshow. To stop the slideshow, tap the display. To

return to the gallery, press Back .

Share your photo gallery

Find it: Home > Media gallery

10:44 AM

2011-08-29 13.37.46.jpg

All Pictures

2011-08-29 13.37.46

October 2009

Picture Date

Thumbnail

Tap to view photo.

Categories

Tap to list & select songs or

playlists.

Last Played

Tap to play again.

you want to play. Press Menu > Party shuffle to

randomly play all your songs, or tap Search to look for

asong.

Music player

Just tap a song or playlist to get going.

4:02 PM

The Tamers

Day & Age

Goodnight, Travel Well

4:030:49

Progress Bar

To t al Song T ime

Music Controls

Open Playlist

Mute On/Off

Repeat Off/All/Current

Shuffle On/Off

27Music

Music player controls

Hide, wake, turn off

Press Home to use another app. Your music

continues to play.

When you see in the status bar a song is playing,

flick down to see details. Tap the song to return to the

music controls.

To turn off your music tap .

controls

play/pause Tap / .

previous/next Tap / .

fast forward/

rewind

Tap & hold / .

volume Press the side volume keys.

view library Press Menu > Library.

turn shuffle

on/off

Press Menu > Party

shuffle.

add to playlist Press Menu > Add to

playlist.

use as ringtone Press Menu > Use as

ringtone.

delete Press Menu > Delete.

Playlists

To add a song from the music library to a playlist, tap

and hold the song then tap Add to playlist. Choose an

existing playlist, or tap New to create a new playlist.

To add a song to the playlist you're playing, press

Menu > Add to playlist in the music player.

To edit, delete and rename playlists, tap and hold the

playlist, in the music library.

28 Web

Web

you don’t need a computer, surf the web with your

phone

Quick start: Browser

Find it: Home > Web

Note: If you can’t connect, contact your service

provider.

4:12 PM

http://www.google.co...

New window

Refresh

Windows

Bookmarks

Forward

Web Images

New! Try My Location to nd restaurants, shops, and bars near

you!

iGoogle Preferences Help

View Google in Mobile Classic

Local News more

Google Search

Bookmarks

Tap to see your bookmarks.

Links

Tap to open.

Web Address

Tap to enter a URL.

Drag or flick to scroll.

Press to see options.

Connect

Your phone uses the mobile phone network (over the

air) to automatically connect to the Web.

Note: Your service provider may charge to surf the

Web or download data.

To use a wireless network, press Menu > Settings

>Wireless & networks. Tap WLAN to turn it on, then

tap WLAN settings to search for nearby wireless

networks. Tap a network to connect. There’s more

in “WLAN” on page 35.

29Web

Web touch tips

Zoom & magnify

In Web pages, when you scroll (drag or flick), zoom

icons appear at the bottom of your screen.

To zoom in, you can also double-tap the screen, or tap

the screen with two fingers and then slide them apart.

To zo o m out , double tap the screen again, or drag your

fingers together.

Select links

When you tap a link, your

phone outlines it. If you tap

and hold the link, your

phone shows options, like Open in new window or

Bookmark link.

Android | Official Website

Official site for the development of the open source project. Provides a directory

of applications and links to download the source of the project.

Market - Official Website - Android application developer site

www.android.com/ - Cached - Similar

Android (operating system) - Wikipedia, the free encyclopedia

Android is a software platform for mobile devices, running on the Linux operating

system. It was initially developed by Google and later the Open Handset ...

en.wikipedia.org/wiki/Android_(mobile_phone_platform) - Cached - Similar

What is Android? | Android Developers

Android is a software stack for mobile devices that includes an operating system,

middleware and key applications. The Android SDK provides the tools and ...

developer.android.com/guide/basics/what-is-android.html - Cached - Similar

Android Developers

The Android SDK has the tools, sample code, and docs you need to create ...

AndroidOpen Source Project gives you access to the entire platform source. ...

developer.android.com/ - Cached - Similar

More results from developer.android.com »

Open Handset Alliance

Android™ delivers a complete set of software for mobile devices: an ... Android is

built on the open Linux Kernel. Furthermore, it utilizes a custom virtual ...

www.openhandsetalliance.com/android_overview.html - Cached - Similar

Android Community - Tracking the Android Platform

myTouch 3G Android phone is getting its day in the sun on July 8 when T-Mobile

introduce it to the world – in NYC. We'll be there to bring you live coverage ...

androidcommunity.com/ - Similar

Welcome (Android Open Source Project)

Oct 21, 2008 ... Android is the first free, open source, and fully customizable

mobile platform. Android offers a full stack: an operating system, ...

source.android.com/ - Cached - Similar

Blog posts about android

SciPhone Dream G2 Android charger is best ever - Engadget - 14 hours ago

Google Android Mobile Phones are now in India - HTC Magic from Airtel - Digital

Inspiration - Technology Blog - 6 days ago

T-Mobile Will Drop Its Second Android Phone, The myTouch 3G, This ... -

TechCrunch - Jun 21, 2009

source/android.com/ - Options

Android Community - Tracking the Android

Platform

Apr 26, 2009 .. HTC and Google have released

Android 1.5 Cupcake for owners of the Android

Dev Phone, available as a free ..

androidcommunity.com/ - Options

application

developer

sreern

Magnify

Tap to open a

magnifying window

that you can drag.

Zoom In/Out

source/android.com/ - Options

Android Community - Tracking the Android

Platform

application developer screen

Browser options

Press Menu to see browser options:

Download apps

Warning: Apps downloaded from the Web can be

from unknown sources. To protect your phone and

personal data, only download apps from sources you

trust, like “Android Market™” on page 32.

options

New window Open a new window.

Bookmarks Show a list of your bookmarks.

Tap Add to add the current page

to your list.

Windows Show a list of open browser

windows.

Refresh Reload the current page.

Forward Move forward through pages

you’ve visited.

More Show browser options, like Add

bookmark, Find on page, Select

text, Page info, Share page,

Downloads, and Settings, and Exit

browser.

30 Google Maps™

Note: All downloaded apps are stored in your phone

memory.

To download apps:

1If you want to download apps from any Web page,

press Menu > Settings > Applications

>Unknown sources.

2To launch the browser, press Home > Web.

3Find the app you want to download and tap the

download link.

Manage your downloads

To view files or applications you have downloaded,

press Home > Web > >More

>Downloads.

To clear your download history, tap Clear list. To

cancel, tap Cancel all downloads.

Google Maps™

where you are, where you’re going

Quick start: Google Maps

Where am I? What's around here? Don't worry—let

Google Maps help you explore your surroundings and

find what you're looking for.

Find it: Home > Maps

4:37 PM

My Location

Accurate to 1800 meters

My Location Join Latitude More

Directions Layers

Map View

Drag or flick to scroll.

Tap to zoom.

Press to see options.

31Latitude

Google Maps opens by default in “Map mode.” Latitude

where are your friends & family?

Join Latitude

See where your friends and family are on Google

Maps™. Plan to meet up, check that your parents got

home safely, or just stay in touch.

Don’t worry, your location is not shared unless you

agree to it. You need to join Latitude, and then invite

your friends to view your location or accept their

invitations. When using Google Maps (in any mode

except in Street View), press Menu > Latitude.

Read the privacy policy and if you agree with it, tap

Agree & share.

Add & remove friends

Find it: Home > Maps Menu > Latitude

To add friends:

1Press Menu > Add friends.

2Tap Select from Contacts or Add via email address,

then tap a contact and Add friends > OK.

If your friends already use Latitude, they’ll receive an

email request and a notification. If they have not yet

joined Latitude, they’ll receive an email request that

invites them to sign in to Latitude with their Google

account.

32 Apps for all

To remove friends:

1Press Menu > Latitude to show your friend’s

list, then tap a friend in your list.

2Tap Remove.

Share location

When you receive a request to share location details

you can choose to:

•Accept and share back—see your friend’s location,

and your friend can see yours.

•Accept, but hide my location—see your friend's

location, but they can't see yours.

•Don't accept—location information is not shared

between you and your friend.

Hide your location

To hide your location from a friend, press Menu

>Latitude to show your friend’s list. Tap your contact

name, then press Menu > Privacy > Hide your

location.

Turn off Latitude

Press Menu > Latitude to show your friend’s list.

Tap M enu > Privacy > Turn off Latitude.

Apps for all

get the app you want

Android Market™

Find it: Home > Market

Get all the fun games and cool apps you want! Android

Market provides access to applications developed by

developers worldwide, so you can find the app you

want. If you need help or have questions about

Android Market, press Menu > Help.

Browse & install apps

Scroll to and tap the app you want to install. Then, tap

Install (if app is free) or Buy.

Warning: If an app you are downloading requires

access to your data or control of functions on your

phone, you’ll be asked to give your permission. After

selecting Install, the app will download. After

selecting Buy, you may be asked to sign in to an

additional Google™ account. Sign in and select

Purchase now to proceed. Follow the on-screen

instructions. To see the download progress, open the

notifications window.

33Bluetooth™ wireless

Manage & restore apps

Find it: Menu > Settings > Applications

>Manage applications

Tap an app to open the details screen—from here you

can review, uninstall, and more.

To reinstall any downloaded items, press Home

>Market > My downloads. All previously installed

apps are listed and available for download.

Bluetooth™ wireless

lose the wires and go wireless

Quick start: Bluetooth wireless

Find it: Menu > Settings > Wireless &

networks>Bluetooth settings

Turn Bluetooth power on or off

Find it: Menu > Settings > Wireless &

networks>Bluetooth

Note: To extend battery life, turn Bluetooth power off

when not in use.

3:34 PM

Bluetooth

Scan for devices

Device name

(your device name)

Discoverable

Make device discoverable

(found device name)

Pair with this device

Bluetooth devices

Bluetooth settings

Tap to turn on and scan.

Tap to re-scan.

Tap to connect.

Tap to change your device

name.

34 Bluetooth™ wireless

Connect new devices

Note: This feature requires an optional accessory.

To connect with a new device, you need to pair with it.

You only need to do this once for each device—to

connect again, see “Reconnect devices” on page 34.

1Make sure the device you are pairing with is in

discoverable mode.

Note: Refer to the guide that came with the device

for details.

2Press Menu > Settings > Wireless controls

>Bluetooth settings.

3Tap Bluetooth to turn on and scan. If Bluetooth is

already on, tap Scan for devices.

4Tap a device to connect.

5If necessary, tap OK, or enter the device passkey

(like 0000) to connect to the device. When the

device is connected, the Bluetooth indicator

appears in the status bar.

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal.

Always obey the laws and drive safely.

Reconnect devices

To automatically reconnect your phone with a paired

device, simply turn on the device.

To manually reconnect your phone with a paired

device, tap the device name in the Bluetooth devices

list.

Disconnect devices

To automatically disconnect your phone from a paired

device, simply turn off the device.

To manually disconnect your phone from a paired

device, tap the device name in the devices list, then

press Menu > Disconnect.

Edit properties

Press Menu > Settings > Wireless controls

>Bluetooth settings > Device name. Enter a name

and tap OK.

35WLAN

WLAN

home, office, or hotspot

Quick start: WLAN

Find it: Menu > Settings > Wireless &

networks>WLAN settings

Note: Your phone's WLAN features and power levels

are not allowed for outdoor operation in France. To

avoid unlawful interference with radio signals, do not

use the WLAN features in France unless you are

indoors.

Use a wireless network for fast Internet access and to

download data.

3:44 PM

WLAN

Network notification

Notiry me when an open network is

available

(found network name)

Secured with WEP

Add WLAN network

WLAN settings

WLAN networks

Tap to turn on and off.

Tap to connect (when WLAN

power is on).

Tap to manually add a new

WLAN network.

WLAN search & connect

To find networks in your range:

1Press Menu > Settings > Wireless & networks

>WLAN settings.

2Tap WLAN to turn on WLAN.

3Press Menu > Scan. Your phone lists the

networks it finds within range.

Tip: To see your phone’s MAC address or other

WLAN details, press Menu > Advanced.

4Tap a network to connect.

5If necessary, enter Network SSID, Security, and

Wireless password, and tap Connect. When your

phone is connected to the network, the wireless

indicator appears in the status bar.

Tip: When you are in range and WLAN is on, you will

automatically reconnect to available networks you’ve

connected to before.

36 USB & memory card

USB & memory card

connect your phone and computer, then drag & drop

USB drag & drop

Note: This feature requires an optional accessory.

You can transfer your pictures, videos, music,

ringtones, and more, from your computer to your

phone’s memory card.

1With a memory card inserted,

and your phone showing the

home screen, connect a

Motorola micro USB data cable

from your phone’s micro USB

port to a USB port on your

computer. Your phone should

show in the status bar.

Note: Make sure to connect the phone to a high

power USB port. Typically, these are located directly

on your computer.

2Your phone shows a USB connection dialog. Tap

USB drive. You can’t use the files on your memory

card while it is connected.

3On your computer, use the “My Computer”

window to find “Removable Disk”.

4Click on the “Removable Disk” icon to access the

memory card.

5Drag and drop your pictures, videos, music,

ringtones, and more, to your phone folder. To help

manage your files, you can create more folders in

your phone folder.

6When you’re done, use the “Safely Remove

Hardware” feature to finish.

Memory card

Note: You need the memory card installed for some

features on your phone, like Camera.

Manage files

Find it: Home > File manager > Memory card

Tap a file or folder to open, tap and hold a file to Delete

or Rename.

To manage your folders and move stuff around, use

your USB connection. See “USB drag & drop” on

page 36.

Remove or format your memory card

Before you remove or format your memory card you

need to unmount it. Press Menu > Settings > SD

card & phone storage > Unmount SD card.

To format your memory card, tap Format SD card.

Warning: All data on your memory card will be

deleted.

37Synchronize

Synchronize

keep up-to-date

Synchronize with Microsoft™ Office

Outlook

If you use Microsoft Office Outlook on your work

computer, your phone can synchronize emails, events,

and contacts with your Microsoft Exchange server.

Find it: Menu > Settings > Accounts > Menu

>New account >Corporate Sync

1Enter your username (username@company.com),

password, email address, and server details (server

address is the same URL you use to access your

company’s email using the Web on your computer).

Note: Contact your business IT department for

server details.

2Tap Next.

To o l s

stay on top of things

Alarm clock

Find it: Home > Alarm Clock

To turn on an alarm, tap the

check box.

When an alarm sounds, tap

Dismiss to turn it off or Snooze to

delay.

To add an alarm, press Menu

>Add alarm, then enter alarm

details.

To set a snooze period, tap the

alarm, then press Menu

>Snooze time.

38 Tools

Calendar

Find it: Home > Calendar

Your calendar events can be

viewed in different ways:

Press Menu > Month,

Agenda, Week, or Day. When

you highlight an event in the day

and week views, more details

appear.

Add calendar events

From any calendar view, press

Menu > New event. Enter

event details and tap Save.

Manage calendar events

To edit an event, press Menu > Edit event. Edit

event details, then when you’re done, tap Save.

To delete an event, press Menu > Delete event.

To go to today, press Menu > Today.

Calculator

Find it: Home > Calculator

Your calculator has two views: basic and advanced. To

change your views, press Menu > Advanced panel

or Basic panel. To clear history, press Menu

>Clear history.

FileManager

Use FileManager to view recent documents and files

on your memory card.

Find it: Home > File manager

39Management

Management

stay in control

Wireless manager

Find it: Menu > Settings > Wireless controls

Manage all your wireless connections: WLan,

Bluetooth™, and airplane mode.

Shortcut: Press and hold Power to display the

power menu—from here you can control Bluetooth

and WLan power, as well as turn the phone off and set

airplane mode.

Airplane mode

Use airplane mode to turn all your wireless

connections off—useful when flying. Press Power

>Airplane mode.

Update my phone

To keep your phone current, software updates may be

available. Press Menu > Settings > About phone

>System updates to see if your phone is up to date. If

it isn’t, tap Update.

Network

You should not need to change any network settings.

Contact your service provider for help.

Press Menu > Settings > Wireless controls

>Mobile networks to show options for roaming

networks, network selection, operator selection, and

access point names.

40 Security

Security

help keep your phone safe

Quick start: Security

Find it: Menu > Settings > Location & security

You have lots of ways to keep your phone safe.

For more information about locking your phone or call

cards, see the User’s Guide online at:

www.motorola.com/support.

3:54 PM

Set unlock pattern

Set up cards lock

Require pattern

Must draw pattern to unlock screen

Visible passwords

Show password as you type

Use visible pattern

Use tactile feedback

Location & security settings

Screen unlock pattern

Set up cards lock

Passwords

Tap to lock your CDMA and

GSM network call cards.

Tap to see the passwords

you enter.

Tap to set a pattern to unlock

your phone.

Screen unlock pattern

You can set up your phone so

that an unlock pattern must be

entered to unlock the phone.

Find it: Menu > Settings

>Location & security > Set

unlock pattern.

Follow the instructions to draw

your unlock pattern.

When prompted, draw the

pattern to unlock the phone.

Note: You can make emergency

calls on a locked phone

(“Emergency calls” on page 11).

A locked phone still rings, but you need to unlock it

to answer.

Note: If you forget your unlock pattern, you will need

to reset your phone to its initial factory settings. See

“Reset & clear” on page 41.

Lock your call cards

Enable card PIN codes

To lock your CDMA UIM card and/or GSM SIM card

(the next time you power up the phone you will need

to enter your PIN code), press Menu > Settings

41Troubleshooting

>Location & security > Set up cards lock. Select the

card type, then enter the card’s PIN code.

Caution: If you enter an incorrect PIN code three

times, the phone locks your call card and asks for your

PIN unlock code (PUK code). Enter your PUK code

when prompted. If you don’t remember your PUK

code, contact your service provider.

Change card PIN code

To change your PIN code, press Menu > Settings

>Location & security > Slot1 card lock setting or

Slot2 card lock setting > Change PIN code.

Reset & clear

To reset your phone to factory settings and erase all

the data on your phone, press Menu > Settings

>Privacy > Factory data reset > Reset phone.

Warning: All data on your phone will be deleted. Data

on your memory card will not be deleted.

Troubleshooting

we’re here to help

Crash recovery

In the unlikely event that your phone stops responding

to taps and key presses, try a quick reset. Remove the

back cover and battery (“Assemble & charge” on

page 4), then replace and turn on your phone as usual.

Service & repairs

If you have questions or need assistance, go to

www.motorola.com/support, where you can select

from a number of customer care options. You can also

contact the Motorola Customer Support Center at

1-800-331-6456 (United States), 1-888-390-6456

(TTY/TDD United States for hearing impaired), or

1-800-461-4575 (Canada).

Safety, Regulatory & Legal

Battery Use & Safety

Batter y Use & Safety

Important: Handle and store batteries properly to avoid injury or damage.

Most battery issues arise from improper handling of batteries, and particularly from

the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to

change the form of your battery.

• Don’t let the phone or battery come in contact with water.

Water can get

into the phone’s circuits, leading to corrosion. If the phone and/or battery get

wet, have them checked by your carrier or contact Motorola, even if they appear

to be working properly.

• Don’t allow the battery to touch metal objects.

If metal objects, such as

jewelry, stay in prolonged contact with the battery contact points, the battery

could become very hot.

• Don’t place your battery near a heat source.

Excessive heat can damage the

phone or the battery. High temperatures can cause the battery to swell, leak, or

malfunction. Therefore:

•

not

dry a wet or damp battery with an appliance or heat source, such as a

hair dryer or microwave oven.

•

Avoid leaving your phone in your car in high temperatures.

DOs

• Do avoid dropping the battery or phone.

Dropping these items, especially on

a hard surface, can potentially cause damage.

• Do contact your service provider or Motorola if your phone or battery

has been damaged from dropping or high temperatures.

Important: Use Motorola Original products for quality assurance and

safeguards.

To aid consumers in identifying authentic Motorola batteries from

non-original or counterfeit batteries (that may not have adequate safety protection),

Motorola provides holograms on its batteries. Consumers should confirm that any

battery they purchase has a “Motorola Original” hologram.

Motorola recommends you always use Motorola-branded batteries and

chargers.

Motorola mobile devices are designed to work with Motorola batteries.

If you see a message on your display such as

Invalid Battery

Unable to Charge

, take the following steps:

•

Remove the battery and inspect it to confirm that it has a “Motorola Original”

hologram;

•

If there is no hologram, the battery is not a Motorola battery;

•

If there is a hologram, replace the battery and retry charging it;

•

If the message remains, contact a Motorola authorized service center.

Important:

Motorola’s warranty does not cover damage to the phone caused by

non-Motorola batteries and/or chargers.

Warning:

Use of a non-Motorola battery or charger may present a risk of fire,

explosion, leakage, or other hazard.

Proper and safe battery disposal and recycling:

Proper battery disposal is not

only important for safety, it benefits the environment. Consumers may recycle their

used batteries in many retail or service provider locations. Additional information on

proper disposal and recycling may be found on the Web:

•

www.motorola.com/recycling

•

www.rbrc.org/call2recycle/

(in English only)

Disposal:

Promptly dispose of used batteries in accordance with local

regulations. Contact your local recycling center or national recycling

organizations for more information on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because they may explode.

Battery Charging

Batter y Chargi ng

Notes for charging your phone’s battery:

•

When charging your battery, keep it near room temperature. Never expose

batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when

charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long time may take more time to charge.

•

Motorola batteries and charging systems have circuitry that protects the battery

from damage from overcharging.

032375o

service & repairs

Specific Absorption Rate Data

SAR Data

This model wireless phone meets the

government’s requirements for exposure to radio

waves.

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed limits for exposure to

radio frequency (RF) energy set by the Federal Communications

Commission (FCC) of the U.S. Government and by the Canadian

regulatory authorities. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on standards that

were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The

standards include a substantial safety margin designed to assure

the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit

of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC and by the Canadian regulatory

authorities is 1.6 W/kg.

Tests for SAR are conducted using

standard operating positions accepted by the FCC and by Industry

Canada with the phone transmitting at its highest certified power

level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual SAR

level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate

at multiple power levels so as to use only the power required to

reach the network. In general, the closer you are to a wireless

base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S.

and Canada, it must be tested and certified to the FCC and Industry

Canada that it does not exceed the limit established by each

government for safe exposure. The tests are performed in

positions and locations (e.g., at the ear and worn on the body)

reported to the FCC and available for review by Industry Canada.

The highest SAR value for this model phone when tested for use at

the ear is 1.21W/kg, and when worn on the body, as described in

this user guide, is 0.69 W/kg. (Body-worn measurements differ

among phone models, depending upon available accessories and

regulatory requirements).

While there may be differences between the SAR levels of various

phones and at various positions, they all meet the governmental

requirements for safe exposure. Please note that improvements to

this product model could cause differences in the SAR value for

later products; in all cases, products are designed to be within the

guidelines.

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software

stored in semiconductor memories or other media. Laws in the United States and

other countries preserve for Motorola and third-party software providers certain

exclusive rights for copyrighted software, such as the exclusive rights to distribute

or reproduce the copyrighted software. Accordingly, any copyrighted software

contained in Motorola products may not be modified, reverse-engineered,

distributed, or reproduced in any manner to the extent allowed by law. Furthermore,

the purchase of Motorola products shall not be deemed to grant either directly or by

implication, estoppel, or otherwise, any license under the copyrights, patents, or

patent applications of Motorola or any third-party software provider, except for the

normal, non-exclusive, royalty-free license to use that arises by operation of law in

the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of

the Copyright Laws of the United States and other countries. This device is intended

solely for copying non-copyrighted materials, materials in which you own the

are uncertain about your right to copy any material, please contact your legal

advisor.

Open Source Software Information

OSS Information

For instructions on how to obtain a copy of any source code being made publicly

available by Motorola related to software used in this Motorola mobile device, you

may send your request in writing to the address below. Please make sure that the

request includes the model number and the software version number.

MOTOROLA, INC.

OSS Management

600 North US Hwy 45

Libertyville, IL 60048

USA

The Motorola website

opensource.motorola.com

also contains information

regarding Motorola's use of open source.

Motorola has created the

opensource.motorola.com

website to serve as a

portal for interaction with the software community-at-large.

To view additional information regarding licenses, acknowledgments and required

please press Menu Key >

Settings

About Phone

Legal & Safety

Open source licenses

. In addition, this Motorola device may include

self-contained applications that present supplemental notices for open source

packages used in those applications.

GPS & AGPS

Your mobile device can use Global Positioning System (GPS) signals for

location-based applications. GPS uses satellites controlled by the U.S. government

that are subject to changes implemented in accordance with the Department of

Defense policy and the Federal Radio Navigation Plan. These changes may affect

the performance of location technology on your mobile device.

Your mobile device can also use Assisted Global Positioning System (AGPS), which

obtains information from the cellular network to improve GPS performance. AGPS

uses your wireless service provider's network and therefore airtime, data charges,

and/or additional charges may apply in accordance with your service plan. Contact

your wireless service provider for details.

Your Location

Location-based information includes information that can be used to determine the

approximate location of a mobile device. Mobile phones which are connected to a

wireless network transmit location-based information. Devices enabled with GPS or

AGPS technology also transmit location-based information. Additionally, if you use

applications that require location-based information (e.g. driving directions), such

applications transmit location-based information. This location-based information

may be shared with third parties, including your wireless service provider,

applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS

technology in your mobile device to tell the emergency responders your approximate

location.

AGPS has limitations and

might not work in your area

. Therefore:

•

Always tell the emergency responder your location to the best of your ability; and

•

Remain on the phone for as long as the emergency responder instructs you.

Performance Tips

•

Go outside and away from underground locations, covered vehicles, structures

with metal or concrete roofs, tall buildings, and foliage. Indoor performance

might improve if you move closer to windows, but some window sun shielding

films can block satellite signals.

•

Move away from radios, entertainment equipment, and other electronic devices.

Navigation

Motorola strives to provide complete and accurate mapping information, directions,

and other navigational data, using a combination of governmental and private

location information sources. These sources may contain inaccurate or incomplete

data. In some countries, complete information may not be available. Therefore, you

should visually confirm that the navigational instructions are consistent with what

you see. All drivers should pay attention to road conditions, closures, traffic, and all

other factors that may impact driving. Always obey posted road signs.

Safety & General Information

Safety Information

This section contains important information on the safe and efficient

operation of your mobile device. Read this information before using your

mobile device.

Exposure to Radio Frequency (RF) Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives

and transmits RF energy. When you communicate with your mobile device, the

system handling your call controls the power level at which your mobile device

transmits.

Your mobile device is designed to comply with local regulatory requirements in your

country concerning exposure of human beings to RF energy.

Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF

energy does not exceed the guidelines set forth in the relevant standards, always

follow these instructions and precautions.

Product Operation

When placing or receiving a phone call, hold your mobile device just like you would

a landline phone.

If you wear the mobile device on your body, always place the mobile device in a

Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do

not use a body-worn accessory supplied or approved by Motorola, keep the mobile

device and its antenna at least 2.5 centimeters (1 inch) from your body when

transmitting.

Using accessories not supplied or approved by Motorola may cause your mobile

device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or

approved accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external

sources if inadequately shielded, designed, or otherwise configured for RF energy

compatibility. In some circumstances, your mobile device may cause interference

with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do

so.

In an aircraft, turn off your mobile device whenever instructed to do so by airline

staff. If your mobile device offers an airplane mode or similar feature, consult airline

staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or defibrillator,

consult your physician before using this mobile device.

Persons with implantable medical devices should observe the following precautions:

•

ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the

implantable medical device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to minimize the potential

for interference.

•

Turn OFF the mobile device immediately if you have any reason to suspect that

interference is taking place.

Read and follow the directions from the manufacturer of your implantable medical

device. If you have any questions about using your mobile device with your

implantable medical device, consult your healthcare provider.

Driving Precautions

Using a mobile device while driving may cause distraction. End a call if you can’t

concentrate on driving. Input information about your destination and route prior to

your drive. Do not input data while driving. Keep your eyes on the road while driving.

Listen to the audible directions, if available.

Also, using a mobile device or accessory may be prohibited or restricted in certain

areas. Always obey the laws and regulations on the use of these products.

Responsible driving practices can be found at

www.motorola.com/callsmart

(in English only).

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not always, posted and

can include fueling areas, such as below decks on boats, fuel or chemical transfer or

storage facilities, or areas where the air contains chemicals or particles, such as

grain dust, or metal powders.

When you are in such an area, turn off your mobile device, and do not remove,

install, or charge batteries. In such areas, sparks can occur and cause an explosion

or fire.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Batteries & Chargers

Caution:

Improper treatment or use of batteries may present a danger of fire,

explosion, leakage, or other hazard. For more information, see “Battery Use &

Safety.”

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in

accordance with local laws. Contact your local regulatory

authorities for more information.

Do not throw your battery or mobile device in the trash.

Do not let your battery, charger, or mobile device get wet.

Listening at full volume to music or voice through a headset may

damage your hearing.

032374o

032376o

032375o

Keep Your Mobile Device & Its Accessories Away

From Small Children

These products are not toys and may be hazardous to small children. For example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing hearing injury.

•

Improperly handled batteries could overheat and cause a burn.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if

the product is dropped on a hard surface or receives a substantial impact. If glass

breaks, do not touch or attempt to remove. Stop using your mobile device until the

glass is replaced by a qualified service center.

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to

flashing lights, such as when playing video games. These may occur even if a person

has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such

occurrences, please consult with your physician before playing video games or

enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur:

convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or

disorientation. It is always a good idea to hold the screen away from your eyes,

leave the lights on in the room, take a 15-minute break every hour, and stop use if

you are tired.

Caution About High Volume Usage

Warning:

Exposure to loud noise from any source for extended

periods of time may affect your hearing. The louder the volume sound

level, the less time is required before your hearing could be affected.

To protect your hearing:

•

Limit the amount of time you use headsets or headphones at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness

in your ears, ringing in your ears, or muffled speech, you should stop listening to the

device through your headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at

direct.motorola.com/hellomoto/nss/AcousticSafety.asp

(in English

only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering

finger-written characters, you may experience occasional discomfort in your hands,

arms, shoulders, neck, or other parts of your body. If you continue to have discomfort

during or after such use, stop use and see a physician.

[Oct0109]

FCC Notice to Users

FCC Notice

The following statement applies to all products that have received FCC

approval. Applicable products bear the FCC logo, and/or an FCC ID in the

format FCC-ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user.

Any changes or modifications could void the user’s authority to operate the

equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Use & Care

To care for your Motorola phone, please keep it away from:

liquids of any kind

Don’t expose your phone to water, rain, extreme humidity, sweat, or

other moisture. If it does get wet, don’t try to accelerate drying with the

use of an oven or dryer, as this may damage the phone.

extreme heat or cold

Avoid temperatures below 0°C/32°F or above 45°C/113°F.

microwaves

Don’t try to dry your phone in a microwave oven.

dust and dirt

Don’t expose your phone to dust, dirt, sand, food, or other inappropriate

materials.

cleaning solutions

To clean your phone, use only a dry soft cloth. Don’t use alcohol or other

cleaning solutions.

shock and vibration

Don’t drop your phone.

Motorola Limited Warranty for the United

States and Canada

Wa rr a n t y

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola, Inc. warrants its mobile

telephones (“Products”), Motorola-branded or certified accessories sold for use with

these Products (“Accessories”), and Motorola software contained on CD-ROMs or

other tangible media and sold for use with these Products (“Software”) to be free

from defects in materials and workmanship under normal consumer usage for the

period(s) outlined below. This limited warranty is a consumer's exclusive remedy,

and applies as follows to new Motorola Products, Accessories, and Software

purchased by consumers in the United States or Canada, which are accompanied by

this written warranty:

Products and Accessories

Products Covered Length of Coverage

Products and Accessories

defined above, unless otherwise

provided for below.

One (1) year

from the date of purchase by

the first consumer purchaser of the product

unless otherwise provided for below.

Decorative Accessories and

Cases.

Decorative covers,

bezels, PhoneWrap™ covers and

cases.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Monaural Headsets.

Ear buds

and boom headsets that transmit

mono sound through a wired

connection.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Products and Accessories

that are Repaired or

Replaced.

The balance of the original warranty or

for ninety (90) days

from the date

returned to the consumer, whichever is

longer.

Exclusions (Products and Accessories)

Normal Wear and Tear.

Periodic maintenance, repair and replacement of parts

due to normal wear and tear are excluded from coverage.

Batteries.

Only batteries whose fully charged capacity falls below 80% of their

rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse.

Defects or damage that result from: (a) improper operation,

storage, misuse or abuse, accident or neglect, such as physical damage (cracks,

scratches, etc.) to the surface of the product resulting from misuse; (b) contact with

liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,

extreme heat, or food; (c) use of the Products or Accessories for commercial

purposes or subjecting the Product or Accessory to abnormal usage or conditions; or

(d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories.

Defects or damage that result

from the use of non-Motorola branded or certified Products, Accessories, Software

or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages resulting from

service, testing, adjustment, installation, maintenance, alteration, or modification in

any way by someone other than Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products.

Products or Accessories with (a) serial numbers or date tags

that have been removed, altered or obliterated; (b) broken seals or that show

evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming

or non-Motorola housings, or parts, are excluded from coverage.

Communication Services.

Defects, damages, or the failure of Products,

Accessories or Software due to any communication service or signal you may

subscribe to or use with the Products Accessories or Software is excluded from

coverage.

Software

Products Covered Length of Coverage

Software.

Applies only to physical defects in the

media that embodies the copy of the software (e.g.

CD-ROM, or floppy disk).

Ninety (90) days

from

the date of purchase.

Exclusions (Software)

Software Embodied in Physical Media.

No warranty is made that the software

will meet your requirements or will work in combination with any hardware or

software applications provided by third parties, that the operation of the software

products will be uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in

physical media (e.g. software that is downloaded from the Internet), is provided “as

is” and without warranty.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price

of any Products, Accessories or Software that does not conform to this warranty. We

may use functionally equivalent reconditioned/refurbished/pre-owned or new

Products, Accessories or parts. No data, software or applications added to your

Product, Accessory or Software, including but not limited to personal contacts,

games and ringer tones, will be reinstalled. To avoid losing such data, software, and

applications, please create a back up prior to requesting service.

How to Obtain Warranty Service or Other

Information

You will receive instructions on how to ship the Products, Accessories or Software,

at your expense, to a Motorola Authorized Repair Center. To obtain service, you must

include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;

(b) a written description of the problem; (c) the name of your service provider, if

USA All Products, Accessories, and Software:

1-800-331-6456

Canada All Products:

1-800-461-4575

TTY

1-888-390-6456

applicable; (d) the name and location of the installation facility (if applicable) and,

most importantly; (e) your address and telephone number.

What Other Limitations are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE

THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS

LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS

PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO

EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF

THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,

SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR

APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR

SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of

incidental or consequential damages, or limitation on the length of an

implied warranty, so the above limitations or exclusions may not apply to

you. This warranty gives you specific legal rights, and you may also have

other rights that vary from state to state or from one jurisdiction to another.

Information from the World Health

Organization

WHO Informa tion

Present scientific information does not indicate the need for any special precautions

for the use of mobile phones. If you are concerned, you may want to limit your own

or your children’s RF exposure by limiting the length of calls or by using handsfree

devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information:

http://www.who.int/peh-emf

Caring for the Environment by Recycling

Recycli ng Inform ation

This symbol on a Motorola product means the product should not be

disposed of with household waste.

Disposal of your Mobile Device &

Accessories

Please do not dispose of mobile devices or electrical accessories (such

as chargers, headsets, or batteries) with your household waste. Do not

dispose of your battery or mobile device in a fire. These items should be

disposed of in accordance with the national collection and recycling

schemes operated by your local or regional authority. Alternatively, you may return

unwanted mobile devices and electrical accessories to any Motorola Approved

Service Center in your region. Details of Motorola approved national recycling

schemes, and further information on Motorola recycling activities can be found at:

www.motorola.com/recycling

Disposal of your Mobile Device Packaging &

Product Guide

Product packaging and product guides should only be disposed of in accordance with

national collection and recycling requirements. Please contact your regional

authorities for more details.

Privacy & Data Security

Priva cy & Data Secur ity

Motorola understands that privacy and data security are important to everyone.

Because some features of your mobile device may affect your privacy or data

security, please follow these recommendations to enhance protection of your

information:

• Monitor access

—Keep your mobile device with you and do not leave it where

others may have unmonitored access. Lock your device’s keypad where this

feature is available.

• Keep software up to date

—If Motorola or a software/application vendor

releases a patch or software fix for your mobile device that updates the device’s

security, install it as soon as possible.

032376o

• Secure Personal Information

—Your mobile device can store personal

information in various locations including your SIM card, memory card, and

phone memory. Be sure to remove or clear all personal information before you

recycle, return, or give away your device. You can also backup your personal data

to transfer to a new device.

Note:

For information on how to backup or wipe data from your mobile device,

go to

www.motorola.com/support

• Online accounts

—Some mobile devices provide a Motorola online account

(such as MOTOBLUR). Go to your account for information on how to manage the

account, and how to use security features such as remote wipe and device

location (where available).

• Location-based information

—Location-based information includes

information that can be used to determine the approximate location of a mobile

device. Mobile phones which are connected to a wireless network transmit

location-based information. Devices enabled with GPS or AGPS technology also

transmit location-based information. Additionally, if you use applications that

require location-based information (e.g. driving directions), such applications

transmit location-based information. This location-based information may be

shared with third parties, including your wireless service provider, applications

providers, Motorola, and other third parties providing services.

• Other information your device may transmit

—Your device may also transmit

testing and other diagnostic (including location-based) information, and other

non-personal information to Motorola or other third-party servers. This

information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may

impact your privacy or data security, please contact Motorola at

privacy@motorola.com

, or contact your service provider.

Smart Practices While Driving

Drivi ng Safety

Drive Safe, Call Smart

Check the laws and regulations on the use of mobile devices and their

accessories in the areas where you drive. Always obey them. The use of

these devices may be prohibited or restricted in certain areas—for

example, handsfree use only. Go to

www.motorola.com/callsmart

(in English only) for more information.

Your mobile device lets you communicate by voice and data—almost anywhere,

anytime, wherever wireless service is available and safe conditions allow. When

driving a car, driving is your first responsibility. If you choose to use your mobile

device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed

dial and redial.

If available, these features help you to place your call without

taking your attention off the road.

• When available, use a handsfree device.

If possible, add

an additional layer of convenience to your mobile device with

one of the many Motorola Original handsfree accessories

available today.

• Position your mobile device within easy reach.

Be able to

access your mobile device without removing your eyes from the road. If you

receive an incoming call at an inconvenient time, if possible, let your voicemail

answer it for you.

• Let the person you are speaking with know you are driving; if necessary,

suspend the call in heavy traffic or hazardous weather conditions.

Rain,

sleet, snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving.

Jotting down a

“to do” list or going through your address book takes attention away from your

primary responsibility—driving safely.

• Dial sensibly and assess the traffic; if possible, place calls when your

car is not moving or before pulling into traffic.

If you must make a call while

moving, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be

distracting.

Make people you are talking with aware you are driving and

suspend conversations that can divert your attention away from the road.

• Use your mobile device to call for help.

Dial 911 or other local emergency

number in the case of fire, traffic accident, or medical emergencies (wherever

wireless phone service is available).

• Use your mobile device to help others in emergencies.

If you see an auto

accident, crime in progress, or other serious emergency where lives are in

danger, call 911 or other local emergency number (wherever wireless phone

service is available), as you would want others to do for you.

• Call roadside assistance or a special non-emergency wireless

assistance number when necessary.

If you see a broken-down vehicle

posing no serious hazard, a broken traffic signal, a minor traffic accident where

no one appears injured, or a vehicle you know to be stolen, call roadside

assistance or other special non-emergency wireless number (wherever wireless

phone service is available).

Motorola, Inc.

Consumer Advocacy Office

600 N US Hwy 45

Libertyville, IL 60048

www.hellomoto.com

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain mobile phone features are dependent on the capabilities and settings of

your service provider’s network. Additionally, certain features may not be activated

by your service provider, and/or the provider’s network settings may limit the

feature’s functionality. Always contact your service provider about feature

availability and functionality. All features, functionality, and other product

specifications, as well as the information contained in this guide, are based upon

the latest available information and believed to be accurate at the time of printing.

Motorola reserves the right to change or modify any information or specifications

without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark

Office. The Bluetooth trademarks are owned by their proprietor and used by

Motorola, Inc. under license. Microsoft, Windows, Windows Me, and Windows

Vista are registered trademarks of Microsoft Corporation in the United States and

other countries. Macintosh is a registered trademark of Apple Computer, Inc.

Google, YouTube, Picasa, Gmail, and the Google logo are trademarks of Google, Inc.

is a Certification Mark of the Wireless Fidelity Alliance, Inc. All other product

or service names are the property of their respective owners.

Caution:

Changes or modifications made in the radio phone, not expressly approved

by Motorola, will void the user’s authority to operate the equipment.

Manual Number: 68XXXXX378-A

U.S. patent Re. 34,976

Motorola Mobility P56KT1 Portable Cellular/ PCS GSM/ CDMA Transceiver with WLAN and Bluetooth User Manual APPLICANT MOTOROLA INC

Motorola Mobility LLC Portable Cellular/ PCS GSM/ CDMA Transceiver with WLAN and Bluetooth APPLICANT MOTOROLA INC

Exhibit 8 Users Manual

Navigation menu

Namespaces

Views

Navigation
