1Congratulations

Congratulations

MOTOROLA QUENCH with MOTOBLUR

MOTOROLA QUENCH with MOTOBLUR is the first

touch tablet with social skills.

•Streamlined Messaging: Sync messages, feeds and

updates from your office to today’s most popular

social sites.

•Contacts Connected: Contact updates are delivered

automatically without your raising a finger.

•More Web: The enhanced browser lets you see

more of the Web, while pinch-and-zoom and

front-nav-pad features give you more control of it.

•Music Connectivity: The music player directly

connects online for instant music, such as Internet

radio; Widgets and applications let you share

preferences and see lyrics.

Caution: Before assembling, charging or using your

phone for the first time, please read the important

legal and safety information packaged with your

phone. Once your phone is up and running,

press Menu >

Settings

About phone

Safety

& regulatory

to read the full information.

More information

On your phone—Touch >

Help Center

You can also flick your home screen left or right to see

two widgets called Getting Started and Tips &

Tr i c k s . Touch them for helpful advice.

On your computer—Go to

www.motorola.com/support/quench.

After you create a MOTOBLUR account, you can also

www.motorola.com/mymotoblur

So, whether you want to read, watch, or play, we can

help.

2Your phone

Your phone

15 minutes ago

Barry Smyth

Check out my gig

on Friday night.

2 minutes ago

Browser

Market

Mar

ket

Mary Morgan

My coffee is

broken. Doesn’t

seem to be doing

the trick today.

5 minutes ago

Rocking out to "I Stand for

Nothing" by The Ropes, can't

wait for the show tomorrow.

11:35

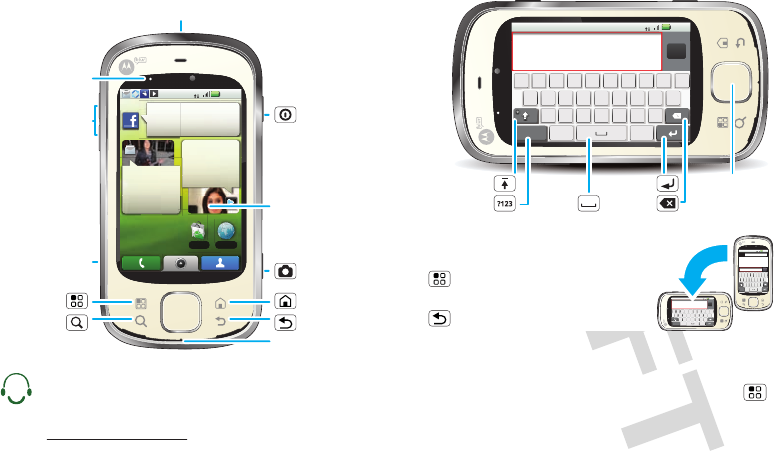

Power Key

Press to put the

display to sleep,

or hold to turn

off.

OMTP 3.5mm Headset Jack

Home Key

Back Key

Microphone

Key

Micro USB

Connector

Charge or

connect to PC.

Notification

LED

On=Charged

Flashing=

Charging or

notification

Volume Keys

To u chscreen

Camera

Key

Menu Key

*If you use a wired headset with built-in microphone, you'll

need to use an OMTP (Open Mobile Terminal Platform)

compliant headset such as the Motorola OH15. Look for

the OMTP logo shown here, or go to

www.motorola.com/wired for additional information.

Note: Your phone might look a little different.

Tip: To change the Notification LED, press Menu >

Settings

Display & security

Notification LED

Set your status

Post

Done

11:35

is heading to Matt's birthday party.

15 minutes ago

has hired Kat Bleser as his Music Advisor. And in return

she gets dating advice.

1 day ago

is so glad he doesn't have a paper to write!

2 days ago

ASDFGH JK

ZXCVBNM

ERTYUIOP

?123

Enter message here

Set your status

Post

Done

11:35

is heading to Matt's birthday party.

15 minutes ago

has hired Kat Bleser as his Music Advisor. And in return

she gets dating advice.

1 day ago

is so glad he doesn't have a paper to write!

2 days ago

ASDFGHJK

ZXCVBNM

ERTYUIOP

?123

Enter message here

Send

To:

?123 .,

ASDFGHJK

ZXCVBNM

ERTYUIOP

Enter message here

11:35

Delete

Return Touch Pad

Numbers/

Symbols

Shift

When you turn your phone, the keypad adjusts

for you.

Space

To open the display keypad, touch

a text field, or press and hold Menu.

To close the keypad, press Back.

3Let’s go

Contents

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 5

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

App menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Social networking . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 38

Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Memory card & file transfer . . . . . . . . . . . . . . . . . . 40

Synchronize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 50

Let’s go

let’s get you up and running

Assemble & charge

1cover off 2SIM in

3battery in 4microSD in

(already done)

5cover on 6charge up

4Let’s go

Caution: Please read the battery use and safety text in

the important legal and safety information packaged

with your phone.

Tip: To save battery life, see “Battery tips” on page 23.

Set up & go

Create or log into a MOTOBLUR account to get your

contacts, email, messages, and status information, for

all your accounts, all in one place, all the time. There’s

more in “Your MOTOBLUR account” on page 10.

Registration is secure, and should only take a few

minutes:

1Tu rn o n.

2Select a language.

3Register or log in.

If you have not

created a

MOTOBLUR account,

you’ll need to

name, your current

email address (where

MOTOBLUR can

send account

information), and a new MOTOBLUR password.

Tip: Turn your phone to type.

MOTOBLUR ID:

Enter email address

Your name:

e.g. John Smith

Password:

Password

NextBack

Creating your

MOTOBLUR account...

4Add your accounts to

MOTOBLUR.

To add an account, touch it.

Then, enter the user name or

email and password that you set

up on that account.

Tip: For more, or to add accounts anytime, go

to “Add account” on page 10.

5When your phone shows

your home screen, import

your SIM contacts: Touch

Contacts

, then

press Menu >

Settings

Import from SIM card

. Touch

to confirm.

Tu rn i t o n & o ff

To turn on your phone,

press Power (on the right

side).

To turn off your phone, press and

hold Power , then touch

Power off

in the menu that

opens.

Wi-Fi connect

If you want to use a Wi-Fi network for even faster

Internet access, press Menu >

Settings

Wireless controls

Wi-Fi settings

. Touch

Wi-Fi

acebook

ast

cas

Photobucke

ace

5Touchscreen & keys

search for and connect to wireless networks. There’s

more in “Wi-Fi” on page 39.

Cool content & more

Browse and download thousands of the coolest apps

on the planet from Android. On top of that, you get a

full HTML browser, so you can surf in style.

Download new apps with “Apps for all” on page 37.

Your phone comes with a microSD memory card

installed—you can load it up with photos, videos, and

music from your computer using “Transfer files with a

USB connection” on page 40.

Note: Do not remove your memory card while your

phone is using it or writing files on it.

Security

Your contacts are backed-up on MOTOBLUR, so don’t

worry. Even if you lose your phone, MOTOBLUR can

help you find it or wipe it. And when you get your next

MOTOBLUR product, your stored info makes it a snap

to set up with just a username and password.

Of course it doesn't stop there. There are plenty of

ways to protect your phone and your information,

in “Security” on page 45.

Touchscreen & keys

a few essentials

Touch tips

Here are some tips on how to navigate around your

phone.

Touch

To choose an icon or

option, Touch it. Try it: In

the home screen, touch

Contacts

Touch & hold

To open special options,

touch and hold an icon or

other item. Try it: In the

home screen, touch

Contacts

, then

touch and hold a contact to

open options.

Alex Pico

Delete contact

Alex Pico

View contact

Call

Send Text Message

Contacts: All contacts

6Touchscreen & keys

Drag

To scroll through a list or

move slowly, drag across

the touchscreen. Try it: In

the home screen, touch

Contacts

, then drag

your list up or down.

Tip: When you drag or flick

a list, a scroll bar appears

on the right. Drag the scroll

bar to move the list to a

letter A - Z.

Flick

To scroll through a list or move quickly, flick across the

touchscreen (drag quickly and release).

Tip: When you flick a long list, touch the screen to stop

it from scrolling.

Contacts

StatusHistory A-Z

Alex Pico

Mariana Bukvic

Luke Carmody

Dan Smith

Keith Zang

Kate Shunney

Touch pad

You can use the touch

pad to select small

items in the display (like

a small link on a Web

page), or control a game

without blocking your

view. Just flick across

the pad to scroll or

move, and press the pad

to select.

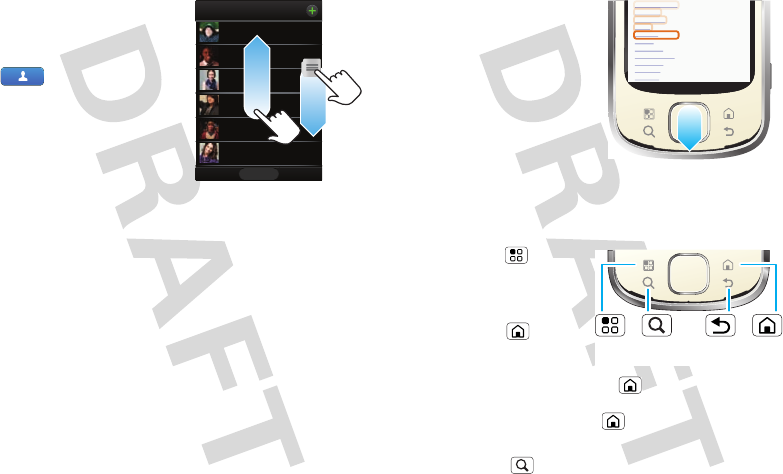

Key tips

Menu, home, search, & back

Press Menu to open

menu options in your

home screen, lists, and

other places.

Press Home to

close any menu or app

and return to the home

screen. Press and hold Home to show the last few

apps you used, then touch an app to open it. In the

home screen, press Home to open or close the

app menu.

Press Search to open “Search” on page 8.

Sauce Vin Blanc

Albufera

Allemande

Bercy

Poulette

Aurora

Hungarian

Sauce ravigote

Normandy

Suprême

Venetian

Bercy

Home

Key

Back

Key

7Home screen

Press Back to go to the previous screen.

Sleep & wake up

To save your battery, prevent

accidental touches, or when you

want to wipe smudges off your

touchscreen, put the touchscreen

to sleep by pressing Power . To wake up the

touchscreen, just press Power , Menu ,

Search , Home , or Back .

To change how long your phone waits before the

screen goes to sleep automatically, press Menu >

Settings

Display & security

Screen timeout

Tip: To make the screen lock when it goes to sleep,

use “Screen lock” on page 46.

Power key menu

Press and hold Power to open the menu where

you can turn off the phone (

Power off

), or turn off

features (

Airplane mode

Bluetooth

Wi-Fi

, or

GPS

Adjust volume

Press the volume keys to

change the ring volume (in

the home screen), or the

earpiece volume (during a

call).

Volume

Keys

Home screen

quick access to the things you need most

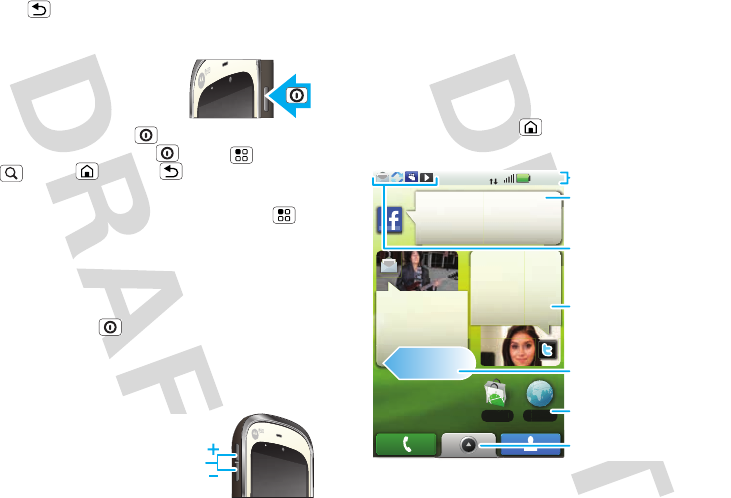

Quick start: Home screen

The home screen gives you all your latest information

in one place. It’s what you see when you turn on the

phone or press Home from a menu. It’s basically

like this:

15 minutes ago

Barry Smyth

Check out my gig

on Friday night.

2 minutes ago

Browser

Market

ark

Mary Morgan

My coffee is

broken. Doesn’t

seem to be doing

the trick today.

5 minutes ago

Rocking out to "I Stand for

Nothing" by The Ropes, can't

wait for the show tomorrow.

11:35

Status Indicators

Your Online Status

Touch to change your status.

Widgets

Touch to open, or touch &

hold to move or delete.

Flick left or right to open five

panels of widgets.

Shortcuts

Touch to open.

Open the main menu.

Notifications

Flick this bar down to see

details.

8Home screen

Use & change your home screen

On your home screen, shortcuts are icons that you

open your favorite apps, Web bookmarks, contacts,

mail labels, or music playlists. Widgets show you

news, weather, messages, and other updates.

Flick the home screen left or right to open other panels

of shortcuts and widgets.

•To open something, touch it. Press Home to

return to the home screen.

•To change a widget’s settings, open it and then

press Menu >

Setup

You can find details about the settings for

Happenings

(“Add account” on page 10),

Messages

(“Set up messaging” on page 19),

Music

(“Music”

on page 29),

Social Status

(“Update your status” on

page 10), or

News

Weather

(“Set up widgets” on

page 24).

•To add something or change your wallpaper, touch

and hold an empty spot until you see the

Add to

Home screen

menu.

You can add a folder to organize your shortcuts.

•To move or delete something, touch and hold it

until you feel a vibration, then drag it to another

spot, another panel, or the trash at the bottom of

the screen.

To search, use a Search widget on your home screen

or press Search .

Tip: In your app menu or

Contacts

, you can press and

hold Menu to open a display keypad, then type

contact details to search.

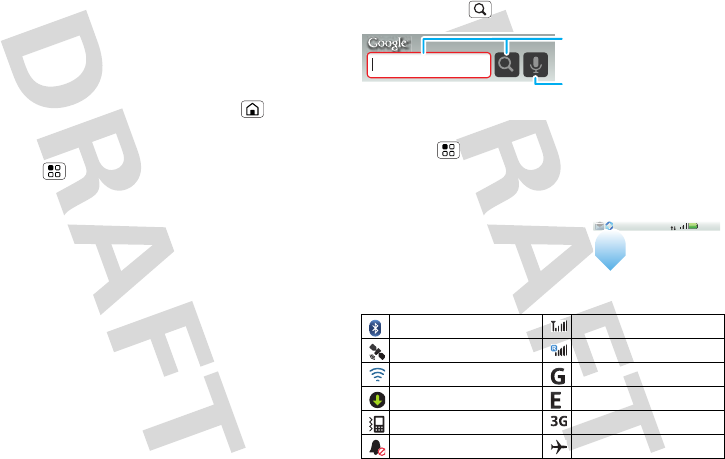

Phone status & notifications

At the top of the screen, icons

on the left notify you about new

messages or events (flick the bar

down for details). Icons on the

right tell you about phone status:

Bluetooth™ active network (full signal)

GPS active network (roaming)

Wi-Fi active GPRS (fast data)

downloading EDGE (faster data)

vibrate 3G (fastest data)

silent flight mode

Google Search

Touch the icon, then speak

for a voice search.

Type, then touch the icon for

a text search.

11:35

9App menu

Tip: To see today’s date, touch and hold the status

indicators.

mute call battery (charging)

speakerphone active battery (full charge)

Google™ sync

active

alarm set

App menu

Quick start: App menu

The app menu shows you all of

your applications. To open it from

the home screen, touch . To

close it, touch again.

Tip: To find an app in the menu, press and hold

Menu to open a display keypad, then type the app

name.

Recent apps

Press and hold Home to see the last few apps you

used, then touch the app you want. Press Home to

return to the home screen.

10 Social networking

Social networking

my life, your life

Your MOTOBLUR account

The first time you turned on your phone, you

registered for a MOTOBLUR account that manages

your messages, contacts, and more (“Set up & go” on

page 4). You can log into this account from a computer

to upload contacts, reset your password, get help, or

even locate your phone:

www.motorola.com/mymotoblur

What is MOTOBLUR?

Only MOTOBLUR synchs contacts, posts, feeds,

messages, e-mails, photos and much more—from

sources like Facebook, Twitter, MySpace, your work

e-mail, Picasa, Photobucket—and automatically serves

it up just the way you want it. No opening and closing

apps and menus, it’s all front and center on your home

screen and integrated throughout the entire phone so

you can communicate anyway you like.

Update your status

After you add a social networking account, you can

update and see your current status in a

Social Status

widget on your home screen.

To update your status, just touch your

Social Status

widget and enter text. If you have more than one

account, you can use the pull-down menu to limit

which accounts are updated. If you don’t see a

Social

Status

widget, flick your home screen left or right to

check all panels.

To add a

Social Status

widget:

1Touch and hold an empty spot on your home screen

to open the

Add to Home screen

menu.

2Touch

Widgets

Social Status

. The widget appears

in the empty spot, and will show your status the

next time your phone updates from the network.

Add account

Note: You can add your

Facebook

MySpace

Twitter

or other accounts to your phone. If you don’t have

accounts, you can visit their Web sites to set them up.

Find it: >

Accounts

Add account

To sign into your account, use the user name or email

and password that you set up on that account (the

same as on your computer).

When you sign into social networking accounts, you’ll

see your friends and contacts in your

Contacts

list, and

your status and updates can appear in

Social Status

and

Happenings

widgets.

11Calls

Twitter and MySpace messages will always appear

as “read” on your phone, but your phone notifies you

when you receive a new message. MySpace marks

your messages as “read” online.

For email accounts, see “Set up messaging” on

page 19.

Tip: To download updates faster, use “Wi-Fi” on

page 39.

View account updates & features

After you add a social networking account, you can see

and respond to friends’ updates with the

Happenings

widget on your home screen. If you don’t see one, set

one up in “Widgets” on page 24.

When you touch the

Happenings

widget to open an

update, you can touch to open the full update, then

touch the social network’s icon to open its Web site.

Note: Your network or other factors might affect the

speed of widget updates.

Edit & delete accounts

Find it: >

Accounts

Touch and hold an account, then touch

Open account

to edit it, or touch

Remove account

to remove it (along

with its contacts and messages).

Calls

it’s good to talk

Quick start: Calls

Find it:

Dialer

During a call, press Menu to choose

Hold

New

call

, or

Use Bluetooth

, or to wake up the touchscreen

Recent Frequent

Dialer

Spd Dial

GHI

ABC DEF

MNO

TUVPQRS WXY

123

JKL

Call

Speed Dial List

Touch to open and press

to add or edit.

Frequent Call List

Touch to open, then touch an

entry to call.

Delete

Touch to delete a digit you

entered.

Recent Calls

Touch to open, then touch an

entry to call.

Voice Dial

Open Your Contacts

Call

Enter a phone number and

touch here to call it.

12 Calls

if it’s dark. Your touchscreen goes dark to avoid

accidental touches.

Tip: You can press Home or Back to hide the

active call display. To reopen it, touch

Dialer

Make & answer calls

To make a call, touch

Dialer

, enter a number,

then touch

Call

Tip: To enter the international dialing code, touch and

hold . To add a pause or wait after numbers,

press Menu .

End call

SpeakerMute

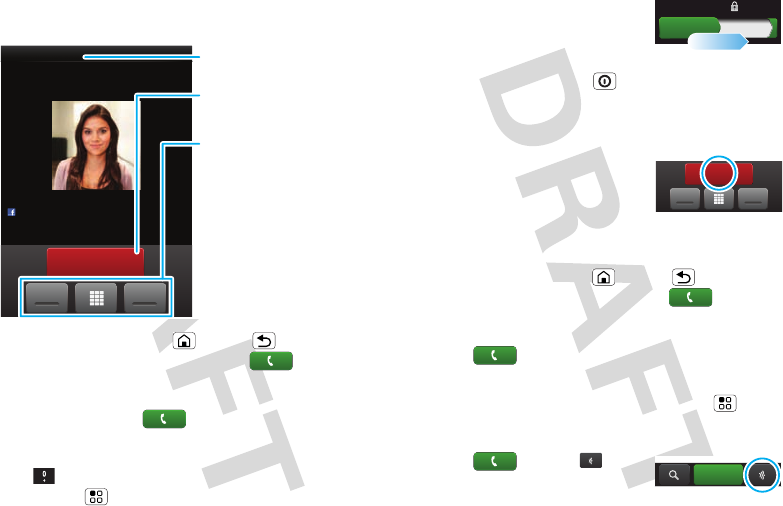

Active call ( 00:12 )

Mobile 1-555-555-5694

Sleep deprived ... cramming for

design exams next week.

Mary Morgan

Call Timer

End Call

Hang up.

Mute

Mute or unmute the call.

Speakerphone

Turn the speakerphone on or

off.

Dial Pad

Open a dial pad, to enter

numbers during a call.

To answer a call, drag

Answer

the right (when your phone is

unlocked,

Answer

is just a touch

button).

You can also press Power to ignore the call, or

press a volume key to silence the ring.

End calls

Touch

End call

Note: When you hold your phone

to your ear, the display goes dark

to avoid accidental touches.

When you move your phone away from your ear, the

display lights up again.

Tip: You can press Home or Back to hide the

active call display. To reopen it, touch

Dialer

Speed dial

Find it:

Dialer

Spd Dial

•To call a number, touch it.

•To add, edit, or clear entries, press Menu .

Voice dial

Find it:

Dialer

Say a number, or a name from

your

Contacts

Slide to Answer

Ignore call by pressing Lock button

End call

Mute Speaker

Call

13Calls

Handsfree

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal.

Always obey the laws and drive safely.

During a call:

•To use the speakerphone, touch

Speaker

•To use a Bluetooth™ device, press Menu >

Use

Bluetooth

Mute & hold

During a call:

•To mute the current call, touch

Mute

•To put a call on hold, press Menu >

Hold

Enter numbers during a call

To enter numbers during a call,

touch and then touch the dial

pad.

Recent calls

Find it:

Dialer

Recent

•To call a number, touch it.

•To send a text message, create a contact, view a

contact, add the call to speed dial, or other options,

touch and hold an entry.

End call

Mute Speaker

•To filter the list, touch the view name (like

All calls

)

at the top.

•To clear the list, press Menu .

Frequent calls

Find it:

Dialer

Frequent

•To call a number, touch it.

•To send a text message, view a contact, add the call

to speed dial, or other options, touch and hold an

entry.

Conference calls

To start a conference call, call the first number. After

they answer, press Menu >

New call

and call the

next number. When the next number answers,

press Menu >

Join

Your phone number

Find it: Menu >

Settings

About phone

Status

Phone number

Your caller ID

To hide your number from the people you call,

press Menu >

Settings

Call settings

Additional call settings

Caller ID

14 Calls

Call forwarding & waiting

You can forward calls all the time, or only when your

phone is busy, unanswered, or unreachable (not on the

network):

Find it: Menu >

Settings

Call settings

Call

forwarding

When you’re on a call and a second call comes in,

Call

waiting

lets you answer it by touching

Answer

. You

can turn off

Call waiting

, to send second calls straight

to your voicemail:

Find it: Menu >

Settings

Call settings

Additional call settings

Call waiting

Restrict outgoing calls

To restrict your phone so that it can only dial a few

numbers:

Find it: Menu >

Settings

Call settings

Fixed

dialing number

•To turn fixed dialing on, touch

FDN disabled

•To add or delete the allowed numbers,

touch

Manage FDN list

Emergency calls

Note: Your service provider programs one or more

emergency phone numbers (such as 911 or 112) that

you can call under any circumstances, even when your

phone is locked. Emergency numbers vary by country.

Your pre-programmed emergency number(s) may not

work in all locations, and sometimes an emergency

call cannot be placed due to network, environmental,

or interference issues.

1To u ch

Dialer

(if your phone is locked,

touch

Emergency Call

or press Menu >

Emergency call

2Enter the emergency number.

3To u ch

Call

to call the emergency number.

Note: Your mobile device can use AGPS satellite

signals to help emergency services find you (see the

important legal and safety information packaged with

your phone).

15Contacts

Contacts

contacts like you’ve never had before

Quick start: Contacts

Find it:

Contacts

Tip: To search the list, press and hold Menu to

open a display keypad, then type a name. When you

flick or drag this list, a scroll bar appears on the right.

Drag the scroll bar to move the list faster.

Contacts

StatusHistory A-Z

Alex Pico

Mariana Bukvic

Luke Carmody

Dan Smith

Keith Zang

Kate Shunney

Group

Press Menu to choose

which group to show (like

All, Favorites, or Facebook).

Create Contacts

Views

Touch a list view, or flick

the display right or left to

show:

History - recently used

A-Z - list without status

Status - list with status

Contacts List

Touch to view contact

information. Touch & hold

to edit, delete, and more.

Import contacts from your SIM

Note: You might have already done this during “Set up

& go” on page 4.

If you need to import the

contacts from your SIM card,

touch

Contacts

, then

press Menu >

Settings

Import from SIM card

Call, text, or email contacts

Find it:

Contacts

For

Call

Send Text Message

View contact

, or

other options, touch and hold the contact.

View & use contacts

With a MOTOROLA QUENCH with MOTOBLUR, you’ll

know what everybody’s up to and when. Every time

you pick up a call, check a message, or look up a

friend’s contact info, sure, you’ll see their name and

number, but you’ll see their social network status and

smiling face, too.

Find it:

Contacts

•To filter the contacts by group (

All

Facebook

, and so

on) touch the filter name at the top.

Tip: To change which account provides the pictures

for your

Contacts

, from the home screen

16 Contacts

press >

Accounts

> Menu >


source

•To change the list view, touch

History

(recently

used),

A-Z

(list without status), or

Status

(list with

status) at the bottom.

•To find a contact, just type the name.

Touch a contact to open their details. To start a call

or message, just touch their phone number or other

info. You can touch

History

Info

, or

Happenings

the bottom of the screen to see more.

Edit or delete contacts

Find it:

Contacts

Touch the contact, then press Menu >

Edit

Delete

. You can set a ringer, address, and other details

that will be saved on your phone and your MOTOBLUR

account.

Where are contacts edited or deleted? Your phone

edits the contacts in its memory, and also updates

your MOTOBLUR account. Your changes won’t affect

your SIM card.

Link contacts

You might have two

Contacts

for the same person,

maybe a Facebook friend who is also stored on your

SIM card, or one friend with two email addresses. To

combine these two contacts:

Find it:

Contacts

Touch a contact to open it, then press Menu >

Link contact

and touch the second entry. Your

MOTOBLUR account remembers this connection.

Create contacts

Find it:

Contacts

> Menu >

Add contact

When you’re finished, press Menu >

Save

Where are contacts saved? Your phone saves new

contacts in its memory, your MOTOBLUR account,

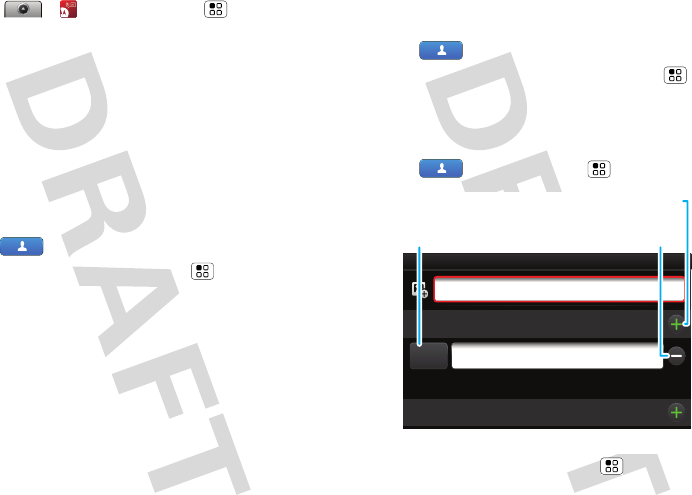

Adam Aaronson

Phone

First Last

Add contact

Mobile

Emails

Touch Mobile to choose a

different type for this

entry.

+ adds another entry.

- removes this entry.

To see more details, flick up.

17Contacts

and other accounts you select: In

Contacts

touch Menu >

Settings

to choose which accounts

get updated. New contacts won’t be on your SIM card,

but they will download to any new MOTOBLUR phone

when you log into your MOTOBLUR account.

Synchronize contacts

When you change one of your

Contacts

, your phone

automatically updates your MOTOBLUR account

online. Also, your phone updates your

Contacts

and

MOTOBLUR account whenever you change a friend in

your social networking accounts.

So, you don’t have to do anything to synchronize your

Contacts

with your other accounts! MOTOBLUR takes

care of it for you.

My details

Find it:

Contacts

> Menu >

View my

details

To edit details, touch them.

Groups

You can put your

Contacts

into groups that you create

(like “friends,” “family,” or “work”). Then, you can find

contacts faster by showing one group at a time.

To create a group in your

Contacts

, press Menu >

Add group

. Enter a group name, then touch

Add

to add

members.

To show only one group in your

Contacts

, touch

Contacts

at the top of your screen and choose the

group name.

18 Messaging

Messaging

sometimes it’s best to text, or IM, or email . . .

Quick start: Messaging

Find it: >

Messaging

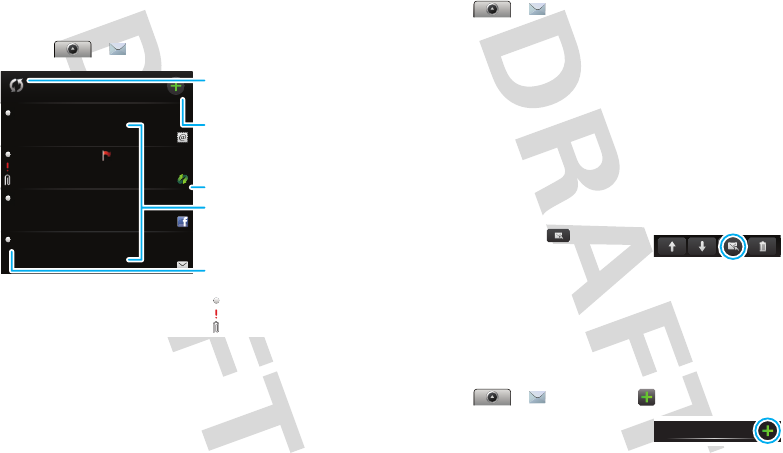

Universal Inbox

Tip: To see more messages, flick or drag up.

Read & reply to messages

Every text, email, friend-feed, wall post, and bulletin is

automatically delivered to you. The best part is you

don’t have to dig through any apps, screens or

8:34 PM

Alex Pico

Some guys have all the luck - me...

Right now, you’re busy flexing...

Sep 25

Keith Zang

Job

It’s only a freelance gig, but it pays...

Sep 25

Kate Shunney

I have so much energy today, I have

no IDEA why.

Universal Inbox (4)

Sep 25

Seth Rementer

The cinnamon bun place is right

next to the store. It’s like 8 hours...

Create Message

Touch to create a new

message, and see a list of

your drafts (indicated by the

number).

Message List

Touch to open a message.

Touch & hold to move,

delete, and more.

Check for Messages Now

Message Type

Message Status

Icons indicate:

unread

urgent

has attachments

menus—every message streams right to the phone,

viewable exactly the way you want.

Find it: >

Messaging

Universal Inbox

Note:

Universal Inbox

shows all of your messages

together—text, email, and social networking

messages. To show only one type of message, touch a

message account type instead of

Universal Inbox

•To open a message and all of its replies, touch it.

•To respond to a message, just open it and enter

your response in the text box at the bottom.

To forward a text message, touch and hold a

message in the conversation, then touch

Forward

message

For email, touch to choose

a reply or forward option.

•To open options, touch and

hold a message.

Tip: Tr y t he

Messages

widget in “Widgets” on

page 24.

Create messages

Find it: >

Messaging

Choose a message type. Then,

enter the recipient and message.

Messaging

19Messaging

In text messages and emails, press Menu to add

files or choose other options.

Send & receive attachments

To send a file in a message, open a new message,

press Menu , and choose the file.

When you receive a message with an attachment,

open the message and touch the file name to

download it. Then, touch the name again to open it.

Some file formats can be converted to HTML for faster

viewing, and your phone will show a button that

says

Get HTML version

Tip: To send and receive large attachments faster, use

a Wi-Fi connection, in “Wi-Fi” on page 39.

Set up messaging

To add email accounts, press >

Accounts

Add account

•

Corporate Sync

is for Exchange server work email

accounts. Enter details from your IT administrator.

Tip: You might need to enter your domain name

with your user name (like domain/username)

Note: Some work accounts might require you to

add a password lock to your phone, for security. To

stop an account from showing the contacts you

create on your phone, touch

Contacts

press Menu >

Settings

, then uncheck the

account under

New contacts

•

is for most personal email accounts. For

account details, contact the account provider.

Note: While you are using a Wi-Fi network, you

cannot access

Yahoo Mail

accounts. You can still

use your browser to see these accounts at

mail.yahoo.com.

To change your settings, touch >

Messaging

> Menu , then touch:

•

Manage accounts

to change your user name or

password (or server settings, for email).

•

Edit Universal Inbox

to choose which accounts

show messages in the

Universal Inbox

•

Messaging Settings

to set the notification for each

account type (along with other preferences, for

email).

To get Gmail™ in your Messages widget and

Universal Inbox

, you’ll need to add it as an

account: Touch >

Messaging

> Menu ,

then touch

Manage accounts

Add account

and enter your Gmail™ details. If you added your

Google

account too, turn off its email sync to avoid

duplicate email notices: Touch >

Accounts

touch your Google™ account, and touch the

checkmark to turn off

Gmail

20 Text entry

Tip: For social network accounts, see “Add account”

on page 10.

Instant messages

To send and receive instant messages, you can use an

instant messaging app or your browser.

If you don’t see an app for your IM provider, you can

use your Web browser. Touch >

Browser

Menu >

, then enter your provider’s Web site.

Once you’re there, follow the link to sign in.

Note: Your IM options will depend on your IM provider.

To browse instant messaging apps from your

computer, go to www.android.com/market.

Voicemail

When you have a new voicemail, shows at the top

of your screen. To hear the voicemail,

touch

Dialer

, then touch and hold .

If you need to change your voicemail number, in the

home screen press Menu >

Settings

Call

settings

Voicemail

Text entry

think keyboard, now think smaller

Touchscreen keypad

To open the touchscreen keypad, touch a text field or

press and hold Menu . To close it, press Back .

For bigger keys, turn your phone to put the screen in

landscape mode.

To change your

Input Method

, touch and hold a blank

spot in a text entry field. You can choose the standard

Android keyboard

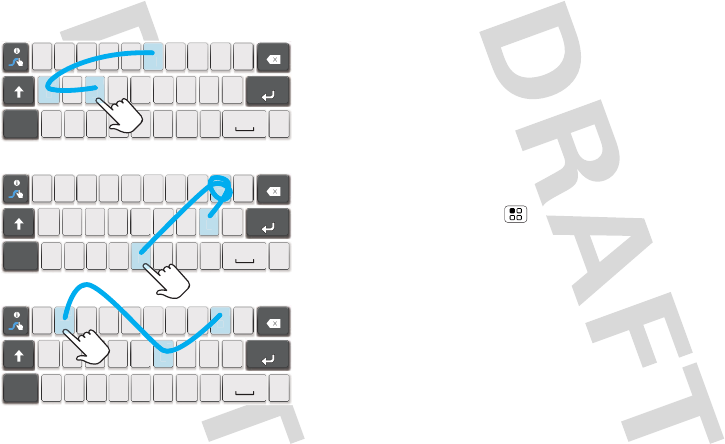

Swype

Send

?123

ASDFGHJ K

ZXCVBNM

ERTYUIOP

Enter message here

Delete

Return

Space

Numbers/Symbols

Touch once for numbers, and again for symbols.

Shift

Text Entry

Touch to open the

touchscreen keypad.

21Text entry

Swype™ text entry

Swype lets you enter a word with one continuous

motion. To enter a word, just drag your finger over the

letters.

Tips:

EN @# 123

%()

!7890

sdf gh jk

SYM

xcvbnm

‘

er tyuiop

8$456

:;“

EN @# 123

%()

!7890

sdf gh jk

SYM

xcvbnm

‘

er tyuiop

8$456

:;“

EN @# 123

%()

!7890

sdf gh jk

SYM

xcvbnm

‘

er tyuiop

8$456

:;“

(

;

(

For double

letters,

circle the

letter.

capitalize,

go above

the keypad.

book

Who

day

•To enter apostrophes in common words (like “I’ll”),

drag through the

as though it was an apostrophe.

•To enter several symbols, touch

SYM

•To correct a word, double-tap it. Swype shows a

small menu of other word options. Swype might

also show a menu if it can’t guess your word.

•If Swype doesn’t know a word, you can still touch

the letter keys to enter it. Swype remembers, so

next time you can just drag over the letters.

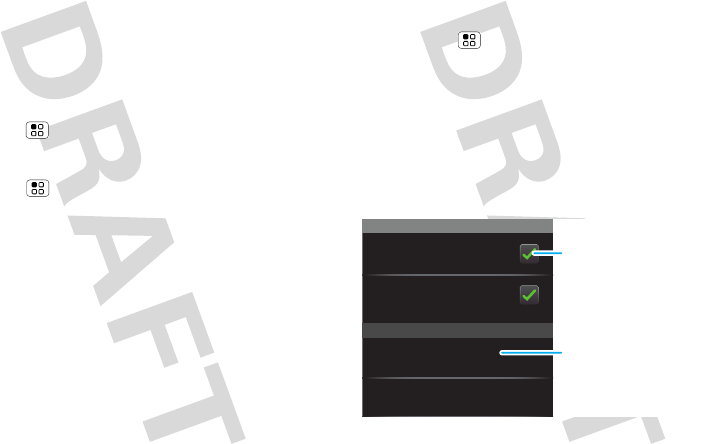

Text entry settings

When you enter text, your phone automatically

corrects or suggests words. To change these settings,

press Menu >

Settings

Locale & text

, then:

•To change your Swype settings, touch

Swype

•To edit your word suggestion dictionary, touch

User

dictionary

•To change the language and the style for your

touchscreen keypad, touch

Select locale

•To change the sounds, corrections, and other

settings for your touchscreen keypad, touch

Android

keyboard

22 Tips & tricks

Tips & tricks

a few handy hints

Shortcuts

To . ..

Return to the home

screen

Press Home .

Open option

menus

Touch and hold an item, or

press Menu , to see all of

your options.

See recently dialed

numbers

Touch

Dialer

Recent

Sleep/wake your

phone

Press Power .

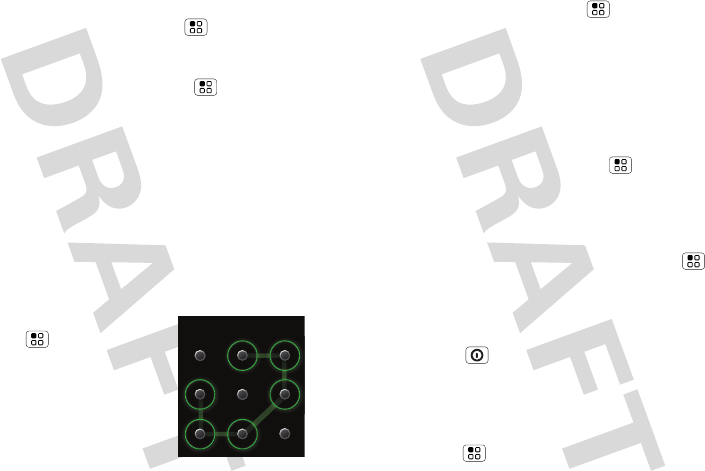

Set lock screen Press Menu >

Settings

Display & security

Screen

lock

Google™ search Press Search on the

keypad.

Google™ search by

voice

Press and hold Search on

the keypad.

Show last few apps

used

Press and hold Home .

Turn on/off airplane

mode,

Bluetooth™, Wi-Fi ,

or GPS

Press and hold Power ,

then touch the option.

Sync media to your

desktop / laptop

visit motorola.com/medialink

Sync contacts from

your desktop /

laptop to your phone

Use the MOTOBLUR portal:

www.motorola.com/mymoto

blur.

Show email or

updates from a

group of friends

Tou ch

Contacts

Menu >

Add group

Create a group, then open

the group (touch

Contacts

the top of your

Contacts

list).

Tou ch

History

to see this

group’s messages, or

Status

to see their updates.

Change which

messages appear in

the Universal Inbox

Open the Universal Inbox,

then press Menu >

Edit

Universal Inbox

To...

23Tips & tricks

Battery tips

Your phone is like a small computer, giving you a lot of

information and apps, at 3G speed, with a touch

display! Depending on what you use, that can take a

lot of power.

To start getting the most out of your battery,

press Menu >

Settings

Battery Manager

Add a shortcut on

your home screen

for an app or contact

Touch and hold an open area

on your home screen to open

the

Add to Home screen

menu, then choose

Shortcuts

. Then, you can

choose from the

Applications

Contacts

lists.

Move a widget or

shortcut

Touch and hold the widget or

shortcut until you feel a

vibration, then drag it to

where you want.

Delete a widget or

shortcut

Touch and hold a widget or

shortcut until you feel a

vibration, then drag it to the

trash can at the bottom of

your screen.

To . ..

Battery Profile

. Choose

Performance Mode

for

constant data transfer and battery use,

Battery Saver

Mode

when your battery is low, or

Smart Mode

if you

want to set

Battery Profile Options

that limit your data

and wireless connections during off-peak hours.

To save even more battery life between charges, you

could reduce:

•recording or watching videos, listening to music, or

taking pictures.

•widgets that stream information to your home

screen, like news or weather (“Use & change your

home screen” on page 8).

•unused online accounts that you registered with

MOTOBLUR (“Edit & delete accounts” on page 11).

•GPS, Wi-Fi, and Bluetooth™ use: Press and hold

Power to open the Power key menu, then touch

items to turn them off or on.

•Email updates: Touch

Messaging

> Menu >

Messaging Settings

Get new email

Every hour

Manually

•Google™ app updates: Press Menu >

Settings

Google synchronization

Background data

•network speed: Press Menu >

Settings

Wireless controls

Mobile networks

Select

network

2G Only saves battery

24 Personalize

•network searching: If you are out of coverage, to

keep your phone from looking for networks, press

and hold Power to open the Power key menu,

then touch

Airplane mode

•display brightness: Press Menu >

Settings

Display & security

Brightness

> (dimmer setting).

•display timeout delay: Press Menu >

Settings

Display & security

Screen timeout

> (shorter

setting).

Personalize

add your personal touch

Widgets

Create widgets

1Find an empty spot on your home screen where you

want to add a widget. You can flick left or right to

open other panels on your home screen.

2Touch and hold the empty spot until you see the

Add to Home screen

menu.

3Touch

Widgets

4Touch the type of widget. If necessary, enter the

widget settings.

Set up widgets

You can customize some widgets. Touch a widget to

open it, then press Menu :

•

Happenings

: Update your status, choose which

accounts appear in this widget, or manage your

accounts (the same as “Add account” on page 10).

•

Messages

: Change the widget name or choose how

long it shows new messages. To add email

accounts, “Set up messaging” on page 19.

25Personalize

•

Music

: Set this widget to an artist, album, song,

playlist, or just press Menu >

Party shuffle

There’s more about “Music” on page 29.

•

News

: Change the widget name, choose how long it

shows new stories, or choose a news source. To

choose a source, touch , then choose preset

Bundles

Channels

, or choose

Custom

to enter a

URL for a

Webpage

or an

RSS feed

•

Weather

: Change temperature units or add

locations. To add locations, touch , enter a city,

and touch

. When you open the weather

widget, flick left to see other locations you added.

Note: Some apps have custom widget types that you

can add and set up after you install the app.

Ringtones

To change your ringtone and notifications,

press Menu >

Settings

Sound & ringtones

To set vibrate for messages, touch >

Messaging

> Menu >

Messaging Settings

Text Messaging

, or

Social Messaging

Tip: To use a song as a ringtone, touch >

Music

My Music

Songs

, touch and hold the

song name, then touch

Set as ringtone

Sounds

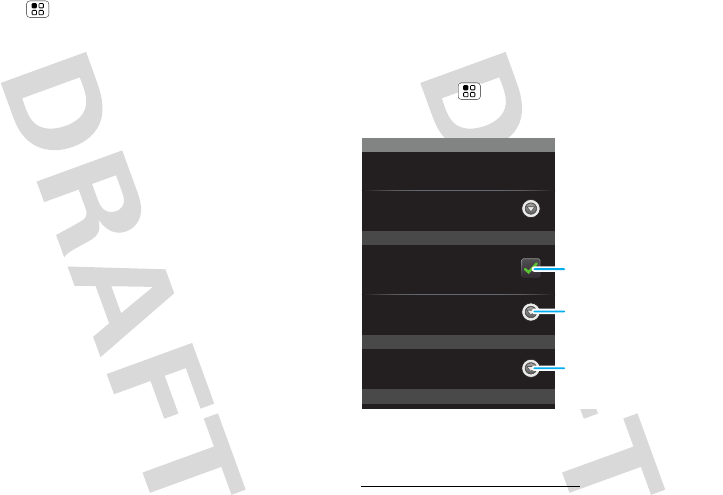

Display settings

features

set volume for media and videos

Menu >

Settings

Sound & ringtones

Media

volume

play sound on screen selection

Menu >

Settings

Sound & ringtones

Audible

selection

features

notification LED

Blinks to tell you that a notification has been

received. Menu >

Settings

Display & security

Notification LED

set display brightness

Menu >

Settings

Display & security

Brightness

set animation

Menu >

Settings

Display & security

Animation

26 Photos & videos

Quick launch shortcuts

To use a quick launch shortcut, press and hold

Search on the keypad, then press the assigned

key, like Search and B to launch the browser.

Date & time

Set date, time, time zone, and formats:

Find it: Menu >

Settings

Date & time

Language & region

Set your menu language and region:

Find it: Menu >

Settings

Locale & text

Select

locale

Photos & videos

see it, capture it, share it!

Photos

Take & share photos

Take that family photo, and post it online for everyone

to see.

Find it: Press Camera

Note: Photos are stored on your microSD memory

card. To change picture resolution, in the viewfinder

press Menu >

Settings

Picture Resolution

To take the photo, lightly press Camera halfway

until the autofocus box turns green, then press all the

way to take the photo.

Photo options

In the viewfinder, press Menu >

Settings

to open a

menu:

options

Store

location in

pictures

Save the details of where the photo

was taken.


Resolution

Set the resolution of your photo.

27Photos & videos

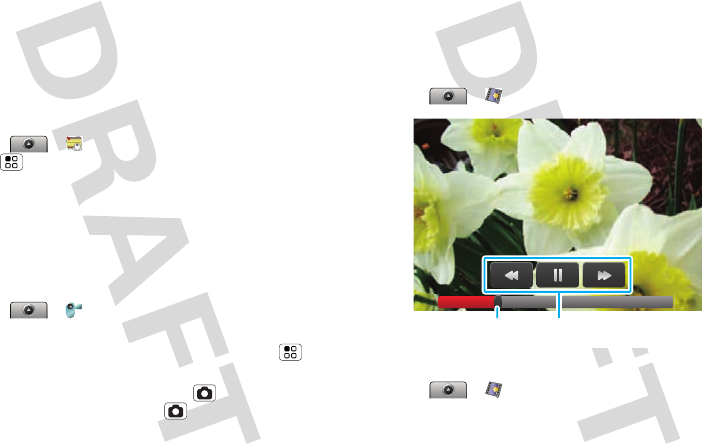

View your photos

Find it: >

Picture Gallery

Color Effects

Choose your color settings, like

None

Negative

, or

B/W

Reset

Settings

Undo all of your camera setting

changes.

Advanced

settings

Set the

Picture Quality

of your

photo, or choose your

White

Balance

light settings, like

Auto

Daylight

, or

Cloudy

options

All Pictures

(7 / 21)

2009-08-03 16.32.49

All Pic

)

(

My Pictures

All Pictures

Picture Dates

Touch on the left to open

the date list, then drag the

dates to find pictures.

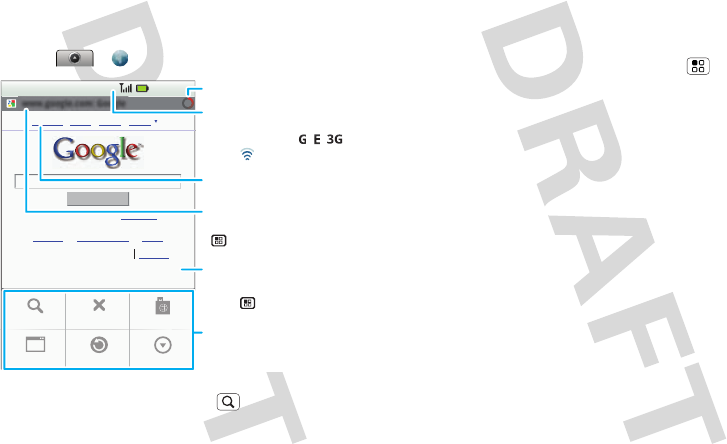

More from www.android.com »

Android Market

News results for android

Verizon Droid Success Limited by Android Market -

7 hours ago

The idon't ad campaign pits the Android-based Droid head-to-head

against the formidable iphone. Based on preliminary predictions ..

PC World - 1778 related articles »

Android | Official Website

Official site for the development of the open source project. Provides a

directory of applications and links to download the source ..

www.android.com/ - Options

More from www.android.com »

Android Market

Browse and search for applications on Android Market and publish your

own.

www.android.com/market/ - Options

More from www.android.com »

Google Projects for Android

Official website. Provides a project documentation and links to

download the Android SDK.

code.google.com/android/ - Options

More from www.android.com »

Android (operating system) - Wikipedia, the free

encyclopedia

This article is about the mobile operating system. For the type of robot,

see Android. For other uses, see Android (disambiguation). ...

en.wikipedia.org/wiki/Android/ - Options

More from www.android.com »

www.google.com: Google

News results for android

Verizon Droid Success Limited by Android Market -

7 hours ago

The idon't ad campaign pits the Android-based Droid head-to-head

against the formidable iphone. Based on preliminary predictions ..

PC World - 1778 related articles »

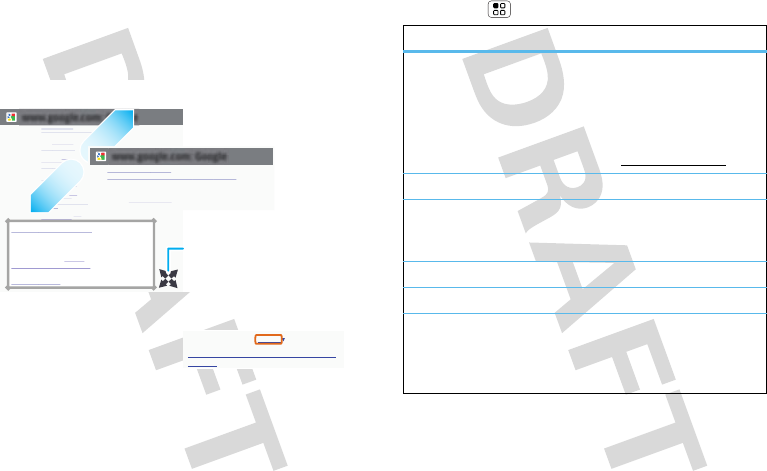

Magnify

Open a magnifying

window that you can drag.

Zoom

To zo o m in or out, slide

two fingers apart or

together.

source/android.com/ - Options

Android Community - Tracking the Android

Platform

application

developer

sreern

Browser options

Press Menu to see browser options:

Download apps

Warning: Apps downloaded from the Web can be

from unknown sources. To protect your phone and

options

Enter the Web address (URL) you

want.

Tip: Some sites are optimized for

mobile phones, and they use an

“m” in the URL instead of

“www” (like m.youtube.com).

Exit

Close the browser.

Bookmarks

Shows a list of your bookmarks.

Tou ch

Add bookmark...

to add the

current page to your list.

New window

Opens a new window.

Refresh

Reloads the current page.

Shows browser options, like

Find

on page

Select text

Page info

Downloads

, and

Settings

34 YouTube™

personal data, only download apps from sources you

trust, like “Apps for all” on page 37.

Note: All apps downloaded are stored in your phone

memory.

To download apps:

1If you want to download apps from any Web page,

press Menu >

Settings

Applications

Unknown sources

2To launch the browser, touch >

Browser

3Find the app you want to download and touch the

download link.

Manage your downloads

To view files or applications you have downloaded,

touch >

Browser

> >

Downloads

To clear your download history, press Menu >

Clear list

. To cancel, press Menu >

Cancel all

downloads

Yo u Tu b e ™

go and create your own classic

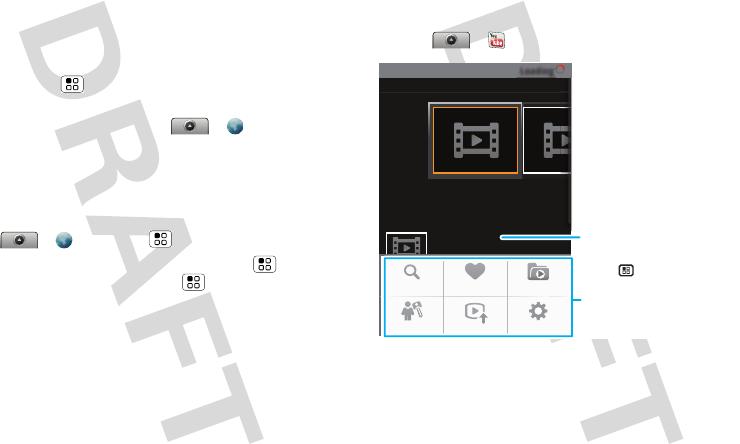

Quick start: YouTube

Find it: >

YouTube

The YouTube user-generated content Web site lets you

share videos with YouTube users everywhere. You

don’t need a YouTube account to browse and view

videos.

Featured

we’re here to help

Crash recovery

In the unlikely event that your phone stops responding

to touches and key presses, try a quick reset. Remove

the back cover and battery (“Assemble & charge” on

page 3), then replace and turn on your phone as usual.

Service & repairs

If you have questions or need assistance, go to

www.motorola.com/support, where you can select

from a number of customer care options. You can also

contact the Motorola Customer Support Center at

1-800-734-5870 (United States), 1-888-390-6456

(TTY/TDD United States for hearing impaired), or

1-800-461-4575 (Canada)

Safety, Regulatory & Legal

Battery Use & Safety

Batter y Use & Safety

Important: Handle and store batteries properly to avoid injury or damage.

Most battery issues arise from improper handling of batteries, and particularly from

the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to

change the form of your battery.

• Don’t let the phone or battery come in contact with water.

Water can get

into the phone’s circuits, leading to corrosion. If the phone and/or battery get

wet, have them checked by your service provider or contact Motorola, even if

they appear to be working properly.*

• Don’t allow the battery to touch metal objects.

If metal objects, such as

jewelry, stay in prolonged contact with the battery contact points, the battery

could become very hot.

• Don’t place your battery near a heat source.

Excessive heat can damage the

phone or the battery. High temperatures can cause the battery to swell, leak, or

malfunction. Therefore:

•

not

dry a wet or damp battery with an appliance or heat source, such as a

hair dryer or microwave oven.

•

Avoid leaving your phone in your car in high temperatures.*

DOs

• Do avoid dropping the battery or phone.

Dropping these items, especially on

a hard surface, can potentially cause damage.*

• Do contact your service provider or Motorola if your phone or battery

has been damaged from dropping or high temperatures.

* Note:

If the product guide expressly states that your

phone

is designed to resist

damage from exposure to certain rugged conditions, such as water immersion, rain,

dust, high and low temperatures, shock, or other conditions, do

not

exceed the

stated limits, and ensure the stated precautions are taken. Always make sure that

the battery compartment is closed and secure to avoid direct exposure of the battery

to any of these conditions.

Important: Use Motorola Original products for quality assurance and

safeguards.

To aid consumers in identifying authentic Motorola batteries from

non-original or counterfeit batteries (that may not have adequate safety protection),

Motorola provides holograms on its batteries. Consumers should confirm that any

battery they purchase has a “Motorola Original” hologram.

Motorola recommends you always use Motorola-branded batteries and

chargers.

Motorola mobile devices are designed to work with Motorola batteries.

If you see a message on your display such as

Invalid Battery

Unable to Charge

, take the following steps:

•

Remove the battery and inspect it to confirm that it has a “Motorola Original”

hologram;

•

If there is no hologram, the battery is not a Motorola battery;

•

If there is a hologram, replace the battery and retry charging it;

•

If the message remains, contact a Motorola authorized service center.

Important:

Motorola’s warranty does not cover damage to the phone caused by

non-Motorola batteries and/or chargers.

Warning:

Use of a non-Motorola battery or charger may present a risk of fire,

explosion, leakage, or other hazard.

Proper and safe battery disposal and recycling:

Proper battery disposal is not

only important for safety, it benefits the environment. Consumers may recycle their

used batteries in many retail or service provider locations. Additional information on

proper disposal and recycling may be found on the Web:

•

www.motorola.com/recycling

•

www.rbrc.org/call2recycle/

(in English only)

Disposal:

Promptly dispose of used batteries in accordance with local

regulations. Contact your local recycling center or national recycling

organizations for more information on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because they may explode.

Battery Charging

Batter y Charging

Notes for charging your phone’s battery:

032375o

•

When charging your battery, keep it near room temperature. Never expose

batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when

charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long time may take more time to charge.

•

Motorola batteries and charging systems have circuitry that protects the battery

from damage from overcharging.

Specific Absorption Rate (IEEE)

SAR (IEEE)

Your model wireless phone meets the governmental

requirements for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed and

manufactured to not exceed limits for exposure to radio frequency (RF) energy set by

the Federal Communications Commission (FCC) of the U.S. Government and by the

Canadian regulatory authorities. These limits are part of comprehensive guidelines

and establish permitted levels of RF energy for the general population. The

guidelines are based on standards that were developed by independent scientific

organizations through periodic and thorough evaluation of scientific studies. The

standards include a substantial safety margin designed for the safety of all persons,

regardless of age or health, and to account for any variations in measurements.

The exposure standard for mobile devices employs a unit of measurement known as

the Specific Absorption Rate (SAR). The IEEE SAR limit set by the FCC and by the

Canadian regulatory authorities is 1.6 watts per kilogram (W/kg), averaged over one

gram of tissue. Tests for SAR are conducted using procedures accepted by the FCC

and by Industry Canada with the mobile device transmitting at its highest certified

power level in all tested frequencies. Although the SAR is determined at the highest

certified power level, the actual SAR level of the mobile device while operating can

be below the maximum value. This is because the mobile device is designed to

operate at multiple power levels so as to use only the power required to reach the

network. In general, the closer you are to a wireless base station, the lower the

power output.

Before a mobile device is available for sale to the public in the U.S. and Canada, it

must be tested and certified to the FCC and Industry Canada that it does not exceed

the limit established by each government for safe exposure. The tests are performed

in positions and locations (e.g., at the ear and worn on the body) submitted to the

FCC and available for review by Industry Canada. The highest SAR value for this

mobile device when tested for use at the ear is 0.81 W/kg, and when worn on the

body, as described in this guide, is 0.98W/kg. The SAR value for this mobile device

in its data transmission mode (body-worn use) is 0.35W/kg. Body-worn

measurements can differ, depending upon available accessories and regulatory

requirements. The SAR information includes the Motorola testing protocol,

assessment procedure, and measurement uncertainty range for this product.

While there may be differences between the SAR levels of various mobile devices

and at various positions, they meet the governmental requirements for safe

exposure. Please note that improvements to this product model could cause

differences in the SAR value for later products; in all cases, products are designed to

be within the guidelines.

Additional information on SAR can be found on the Cellular Telecommunications

& Internet Association (CTIA) Web site:

http://www.phonefacts.net

or the Canadian Wireless Telecommunications Association (CWTA) Web site:

http://www.cwta.ca

European Union Directives Conformance

Statement

EU Conform ance

Hereby, Motorola declares that this product is in compliance with:

•

The essential requirements and other relevant provisions of Directive 1999/5/EC

•

All other relevant EU Directives

[Only Indoor Use

Allowed In France]

You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC

(to R&TTE Directive) at

www.motorola.com/rtte

. To find your DoC, enter the

Product Approval Number from your product’s label in the “Search” bar on the Web

site.

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software

stored in semiconductor memories or other media. Laws in the United States and

other countries preserve for Motorola and third-party software providers certain

exclusive rights for copyrighted software, such as the exclusive rights to distribute

or reproduce the copyrighted software. Accordingly, any copyrighted software

contained in Motorola products may not be modified, reverse-engineered,

distributed, or reproduced in any manner to the extent allowed by law. Furthermore,

the purchase of Motorola products shall not be deemed to grant either directly or by

implication, estoppel, or otherwise, any license under the copyrights, patents, or

patent applications of Motorola or any third-party software provider, except for the

normal, non-exclusive, royalty-free license to use that arises by operation of law in

the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of

the Copyright Laws of the United States and other countries. This device is intended

solely for copying non-copyrighted materials, materials in which you own the

are uncertain about your right to copy any material, please contact your legal

advisor.

Open Source Software Information

OSS Information

For instructions on how to obtain a copy of any source code being made publicly

available by Motorola related to software used in this Motorola mobile device, you

may send your request in writing to the address below. Please make sure that the

request includes the model number and the software version number.

MOTOROLA, INC.

OSS Management

600 North US Hwy 45

Libertyville, IL 60048

USA

The Motorola website

opensource.motorola.com

also contains information

regarding Motorola's use of open source.

Motorola has created the

opensource.motorola.com

website to serve as a

portal for interaction with the software community-at-large.

To view additional information regarding licenses, acknowledgments and required

please press Menu Key >

Settings

About Phone

Legal information

Open source licenses

. In addition, this

Motorola device may include self-contained applications that present supplemental

notices for open source packages used in those applications.

GPS & AGPS

Your mobile device can use Global Positioning System (GPS) signals for

location-based applications. GPS uses satellites controlled by the U.S. government

that are subject to changes implemented in accordance with the Department of

Defense policy and the Federal Radio Navigation Plan. These changes may affect

the performance of location technology on your mobile device.

Your mobile device can also use Assisted Global Positioning System (AGPS), which

obtains information from the cellular network to improve GPS performance. AGPS

uses your wireless service provider's network and therefore airtime, data charges,

and/or additional charges may apply in accordance with your service plan. Contact

your wireless service provider for details.

Your Location

Location-based information includes information that can be used to determine the

approximate location of a mobile device. Mobile phones which are connected to a

wireless network transmit location-based information. Devices enabled with GPS or

AGPS technology also transmit location-based information. Additionally, if you use

applications that require location-based information (e.g. driving directions), such

applications transmit location-based information. This location-based information

may be shared with third parties, including your wireless service provider,

applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS

technology in your mobile device to tell the emergency responders your approximate

location.

AGPS has limitations and

might not work in your area

. Therefore:

•

Always tell the emergency responder your location to the best of your ability; and

•

Remain on the phone for as long as the emergency responder instructs you.

Performance Tips

•

Go outside and away from underground locations, covered vehicles, structures

with metal or concrete roofs, tall buildings, and foliage. Indoor performance

might improve if you move closer to windows, but some window sun shielding

films can block satellite signals.

•

Move away from radios, entertainment equipment, and other electronic devices.

Navigation

Motorola strives to provide complete and accurate mapping information, directions,

and other navigational data, using a combination of governmental and private

location information sources. These sources may contain inaccurate or incomplete

data. In some countries, complete information may not be available. Therefore, you

should visually confirm that the navigational instructions are consistent with what

you see. All drivers should pay attention to road conditions, closures, traffic, and all

other factors that may impact driving. Always obey posted road signs.

Safety & General Information

Safety Information

This section contains important information on the safe and efficient

operation of your mobile device. Read this information before using your

mobile device.

Exposure to Radio Frequency (RF) Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives

and transmits RF energy. When you communicate with your mobile device, the

system handling your call controls the power level at which your mobile device

transmits.

Your mobile device is designed to comply with local regulatory requirements in your

country concerning exposure of human beings to RF energy.

Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF

energy does not exceed the guidelines set forth in the relevant standards, always

follow these instructions and precautions.

Product Operation

When placing or receiving a phone call, hold your mobile device just like you would

a landline phone.

If you wear the mobile device on your body, always place the mobile device in a

Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do

not use a body-worn accessory supplied or approved by Motorola, keep the mobile

device and its antenna at least 2.5 centimeters (1 inch) from your body when

transmitting.

Using accessories not supplied or approved by Motorola may cause your mobile

device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or

approved accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external

sources if inadequately shielded, designed, or otherwise configured for RF energy

compatibility. In some circumstances, your mobile device may cause interference

with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do

so.

In an aircraft, turn off your mobile device whenever instructed to do so by airline

staff. If your mobile device offers an airplane mode or similar feature, consult airline

staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or defibrillator,

consult your physician before using this mobile device.

Persons with implantable medical devices should observe the following precautions:

•

ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the

implantable medical device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to minimize the potential

for interference.

•

Turn OFF the mobile device immediately if you have any reason to suspect that

interference is taking place.

Read and follow the directions from the manufacturer of your implantable medical

device. If you have any questions about using your mobile device with your

implantable medical device, consult your healthcare provider.

Driving Precautions

Using a mobile device while driving may cause distraction. End a call if you can’t

concentrate on driving. Input information about your destination and route prior to

your drive. Do not input data or engage in text messaging while driving. Keep your

eyes on the road while driving. Listen to the audible turn-by-turn directions, if

available.

Also, using a mobile device or accessory may be prohibited or restricted in certain

areas. Always obey the laws and regulations on the use of these products.

Responsible driving practices can be found at

www.motorola.com/callsmart

(in English only).

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not always, posted and

can include fueling areas, such as below decks on boats, fuel or chemical transfer or

storage facilities, or areas where the air contains chemicals or particles, such as

grain dust, or metal powders.

When you are in such an area, turn off your mobile device, and do not remove,

install, or charge batteries. In such areas, sparks can occur and cause an explosion

or fire.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Batteries & Chargers

Caution:

Improper treatment or use of batteries may present a danger of fire,

explosion, leakage, or other hazard. For more information, see “Battery Use &

Safety.”

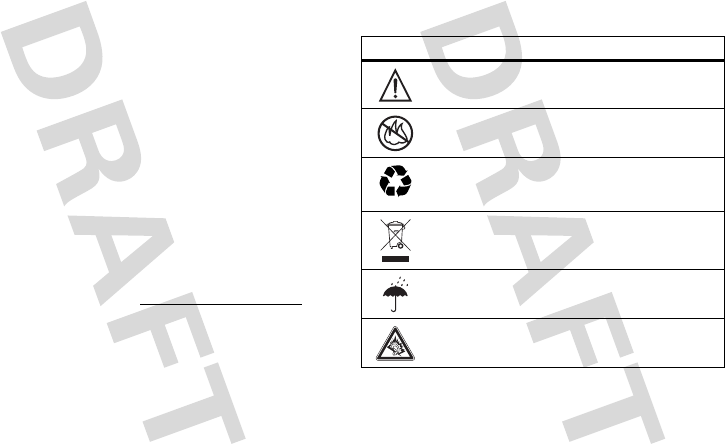

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in

accordance with local laws. Contact your local regulatory

authorities for more information.

Do not throw your battery or mobile device in the trash.

Do not let your battery, charger, or mobile device get wet.

Listening at full volume to music or voice through a headset may

damage your hearing.

032374o

032376o

032375o

Keep Your Mobile Device & Its Accessories Away

From Small Children

These products are not toys and may be hazardous to small children. For example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing hearing injury.

•

Improperly handled batteries could overheat and cause a burn.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if

the product is dropped on a hard surface or receives a substantial impact. If glass

breaks, do not touch or attempt to remove. Stop using your mobile device until the

glass is replaced by a qualified service center.

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to

flashing lights, such as when playing video games. These may occur even if a person

has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such

occurrences, please consult with your physician before playing video games or

enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur:

convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or

disorientation. It is always a good idea to hold the screen away from your eyes,

leave the lights on in the room, take a 15-minute break every hour, and stop use if

you are tired.

Caution About High Volume Usage

Warning:

Exposure to loud noise from any source for extended

periods of time may affect your hearing. The louder the volume sound

level, the less time is required before your hearing could be affected.

To protect your hearing:

•

Limit the amount of time you use headsets or headphones at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness

in your ears, ringing in your ears, or muffled speech, you should stop listening to the

device through your headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at

direct.motorola.com/hellomoto/nss/AcousticSafety.asp

(in English

only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering

finger-written characters, you may experience occasional discomfort in your hands,

arms, shoulders, neck, or other parts of your body. If you continue to have discomfort

during or after such use, stop use and see a physician.

[Nov0109]

FCC Notice to Users

FCC Notice

The following statement applies to all products that have received FCC

approval. Applicable products bear the FCC logo, and/or an FCC ID in the

format FCC-ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user.

Any changes or modifications could void the user’s authority to operate the

equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Use & Care

To care for your Motorola phone, please keep it away from:

liquids of any kind

Don’t expose your phone to water, rain, extreme humidity, sweat, or

other moisture. If it does get wet, don’t try to accelerate drying with the

use of an oven or dryer, as this may damage the phone.

extreme heat or cold

Avoid temperatures below 0°C/32°F or above 45°C/113°F.

microwaves

Don’t try to dry your phone in a microwave oven.

dust and dirt

Don’t expose your phone to dust, dirt, sand, food, or other inappropriate

materials.

cleaning solutions

To clean your phone, use only a dry soft cloth. Don’t use alcohol or other

cleaning solutions.

shock and vibration

Don’t drop your phone.

Motorola Limited Warranty for the United

States and Canada

Wa rr a n t y

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola, Inc. warrants its mobile

telephones (“Products”), Motorola-branded or certified accessories sold for use with

these Products (“Accessories”), and Motorola software contained on CD-ROMs or

other tangible media and sold for use with these Products (“Software”) to be free

from defects in materials and workmanship under normal consumer usage for the

period(s) outlined below. This limited warranty is a consumer's exclusive remedy,

and applies as follows to new Motorola Products, Accessories, and Software

purchased by consumers in the United States or Canada, which are accompanied by

this written warranty:

Products and Accessories

Products Covered Length of Coverage

Products and Accessories

defined above, unless otherwise

provided for below.

One (1) year

from the date of purchase by

the first consumer purchaser of the product

unless otherwise provided for below.

Decorative Accessories and

Cases.

Decorative covers,

bezels, PhoneWrap™ covers and

cases.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Monaural Headsets.

Ear buds

and boom headsets that transmit

mono sound through a wired

connection.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Products and Accessories

that are Repaired or

Replaced.

The balance of the original warranty or

for ninety (90) days

from the date

returned to the consumer, whichever is

longer.

Exclusions (Products and Accessories)

Normal Wear and Tear.

Periodic maintenance, repair and replacement of parts

due to normal wear and tear are excluded from coverage.

Batteries.

Only batteries whose fully charged capacity falls below 80% of their

rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse.

Defects or damage that result from: (a) improper operation,

storage, misuse or abuse, accident or neglect, such as physical damage (cracks,

scratches, etc.) to the surface of the product resulting from misuse; (b) contact with

liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,

extreme heat, or food; (c) use of the Products or Accessories for commercial

purposes or subjecting the Product or Accessory to abnormal usage or conditions; or

(d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories.

Defects or damage that result

from the use of non-Motorola branded or certified Products, Accessories, Software

or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages resulting from

service, testing, adjustment, installation, maintenance, alteration, or modification in

any way by someone other than Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products.

Products or Accessories with (a) serial numbers or date tags

that have been removed, altered or obliterated; (b) broken seals or that show

evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming

or non-Motorola housings, or parts, are excluded from coverage.

Communication Services.

Defects, damages, or the failure of Products,

Accessories or Software due to any communication service or signal you may

subscribe to or use with the Products Accessories or Software is excluded from

coverage.

Software

Products Covered Length of Coverage

Software.

Applies only to physical defects in the

media that embodies the copy of the software (e.g.

CD-ROM, or floppy disk).

Ninety (90) days

from

the date of purchase.

Exclusions (Software)

Software Embodied in Physical Media.

No warranty is made that the software

will meet your requirements or will work in combination with any hardware or

software applications provided by third parties, that the operation of the software

products will be uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in

physical media (e.g. software that is downloaded from the Internet), is provided “as

is” and without warranty.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price

of any Products, Accessories or Software that does not conform to this warranty. We

may use functionally equivalent reconditioned/refurbished/pre-owned or new

Products, Accessories or parts. No data, software or applications added to your

Product, Accessory or Software, including but not limited to personal contacts,

games and ringer tones, will be reinstalled. To avoid losing such data, software, and

applications, please create a back up prior to requesting service.

How to Obtain Warranty Service or Other

Information

You will receive instructions on how to ship the Products, Accessories or Software,

at your expense, to a Motorola Authorized Repair Center. To obtain service, you must

include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;

(b) a written description of the problem; (c) the name of your service provider, if

USA All Products, Accessories, and Software:

1-800-734-5870

Canada All Products:

1-800-461-4575

TTY

1-888-390-6456

applicable; (d) the name and location of the installation facility (if applicable) and,

most importantly; (e) your address and telephone number.

What Other Limitations are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE

THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS

LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS

PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO

EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF

THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,

SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR

APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR

SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of

incidental or consequential damages, or limitation on the length of an

implied warranty, so the above limitations or exclusions may not apply to

you. This warranty gives you specific legal rights, and you may also have

other rights that vary from state to state or from one jurisdiction to another.

Information from the World Health

Organization

WHO Information

Present scientific information does not indicate the need for any special precautions

for the use of mobile phones. If you are concerned, you may want to limit your own

or your children’s RF exposure by limiting the length of calls or by using handsfree

devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information:

http://www.who.int/peh-emf

Caring for the Environment by Recycling

Recycli ng Inform ation

This symbol on a Motorola product means the product should not be

disposed of with household waste.

Disposal of your Mobile Device &

Accessories

Please do not dispose of mobile devices or electrical accessories (such

as chargers, headsets, or batteries) with your household waste. Do not

dispose of your battery or mobile device in a fire. These items should be

disposed of in accordance with the national collection and recycling

schemes operated by your local or regional authority. Alternatively, you may return

unwanted mobile devices and electrical accessories to any Motorola Approved

Service Center in your region. Details of Motorola approved national recycling

schemes, and further information on Motorola recycling activities can be found at:

www.motorola.com/recycling

Disposal of your Mobile Device Packaging &

Product Guide

Product packaging and product guides should only be disposed of in accordance with

national collection and recycling requirements. Please contact your regional

authorities for more details.

Privacy & Data Security

Priva cy & Dat a Securit y

Motorola understands that privacy and data security are important to everyone.

Because some features of your mobile device may affect your privacy or data

security, please follow these recommendations to enhance protection of your

information:

• Monitor access

—Keep your mobile device with you and do not leave it where

others may have unmonitored access. Lock your device’s keypad where this

feature is available.

• Keep software up to date

—If Motorola or a software/application vendor

releases a patch or software fix for your mobile device that updates the device’s

security, install it as soon as possible.

•Secure personal information

—Your mobile device can store personal

information in various locations including your SIM card, memory card, and

032376o

phone memory. Be sure to remove or clear all personal information before you

recycle, return, or give away your device. You can also backup your personal data

to transfer to a new device.

Note:

For information on how to backup or wipe data from your mobile device,

go to

www.motorola.com/support

• Online accounts

—Some mobile devices provide a Motorola online account

(such as MOTOBLUR). Go to your account for information on how to manage the

account, and how to use security features such as remote wipe and device

location (where available).

• Location-based information

—Location-based information includes

information that can be used to determine the approximate location of a mobile

device. Mobile phones which are connected to a wireless network transmit

location-based information. Devices enabled with GPS or AGPS technology also

transmit location-based information. Additionally, if you use applications that

require location-based information (e.g. driving directions), such applications

transmit location-based information. This location-based information may be

shared with third parties, including your wireless service provider, applications

providers, Motorola, and other third parties providing services.

•Other information your device may transmit

—Your device may also transmit

testing and other diagnostic (including location-based) information, and other

non-personal information to Motorola or other third-party servers. This

information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may

impact your privacy or data security, please contact Motorola at

privacy@motorola.com

, or contact your service provider.

Smart Practices While Driving

Drivi ng Safety

Drive Safe, Call Smart

Check the laws and regulations on the use of mobile devices and their

accessories in the areas where you drive. Always obey them. The use of

these devices may be prohibited or restricted in certain areas—for

example, handsfree use only. Go to

www.motorola.com/callsmart

(in English only) for more information.

Your mobile device lets you communicate by voice and data—almost anywhere,

anytime, wherever wireless service is available and safe conditions allow. When

driving a car, driving is your first responsibility. If you choose to use your mobile

device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed

dial and redial.

If available, these features help you to place your call without

taking your attention off the road.

• When available, use a handsfree device.

If possible, add

an additional layer of convenience to your mobile device with

one of the many Motorola Original handsfree accessories

available today.

• Position your mobile device within easy reach.

Be able to

access your mobile device without removing your eyes from the road. If you

receive an incoming call at an inconvenient time, if possible, let your voicemail

answer it for you.

• Let the person you are speaking with know you are driving; if necessary,

suspend the call in heavy traffic or hazardous weather conditions.

Rain,

sleet, snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving.

Jotting down a

“to do” list or going through your address book takes attention away from your

primary responsibility—driving safely.

• Dial sensibly and assess the traffic; if possible, place calls when your

car is not moving or before pulling into traffic.

If you must make a call while

moving, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be

distracting.

Make people you are talking with aware you are driving and

suspend conversations that can divert your attention away from the road.

•Use your mobile device to call for help.

Dial 911 or other local emergency

number in the case of fire, traffic accident, or medical emergencies (wherever

wireless phone service is available).

•Use your mobile device to help others in emergencies.

If you see an auto

accident, crime in progress, or other serious emergency where lives are in

danger, call 911 or other local emergency number (wherever wireless phone

service is available), as you would want others to do for you.

•Call roadside assistance or a special non-emergency wireless

assistance number when necessary.

If you see a broken-down vehicle

posing no serious hazard, a broken traffic signal, a minor traffic accident where

no one appears injured, or a vehicle you know to be stolen, call roadside

assistance or other special non-emergency wireless number (wherever wireless

phone service is available).

Motorola, Inc.

Consumer Advocacy Office

600 N US Hwy 45

Libertyville, IL 60048

www.hellomoto.com

1-800-734-5870 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain mobile phone features are dependent on the capabilities and settings of

your service provider’s network. Additionally, certain features may not be activated

by your service provider, and/or the provider’s network settings may limit the

feature’s functionality. Always contact your service provider about feature

availability and functionality. All features, functionality, and other product

specifications, as well as the information contained in this guide, are based upon

the latest available information and believed to be accurate at the time of printing.

Motorola reserves the right to change or modify any information or specifications

without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark

Office. The MOTOBLUR Logo is a trademark of Motorola. The Bluetooth trademarks

are owned by their proprietor and used by Motorola, Inc. under license. Microsoft,

Windows, Windows Me, and Windows Vista are registered trademarks of Microsoft

Corporation in the United States and other countries. Facebook is a trademark of

Facebook, Inc. Google, YouTube, Picasa, Gmail, and the Google logo are trademarks

of Google, Inc. is a Certification Mark of the Wireless Fidelity Alliance, Inc.

Swype is a trademark of Swype, Inc. All other product or service names are the

property of their respective owners.

Caution:

Changes or modifications made in the radio phone, not expressly approved

by Motorola, will void the user’s authority to operate the equipment.

Bluetooth ID: B016118

MOTOROLA

QUENCH

with MOTOBLUR (MB501)

Manual Number: 68XXXXX382-A

Motorola Mobility P56KZ2 Portable Cellular/ PCS WCDMA/ GSM/ EDGE Transceiver with WLAN and Bluetooth User Manual Exhibit 8 Users Manual

Motorola Mobility LLC Portable Cellular/ PCS WCDMA/ GSM/ EDGE Transceiver with WLAN and Bluetooth Exhibit 8 Users Manual

Exhibit 8 Users Manual

Navigation menu

Namespaces

Views

Navigation
