MOTOROLA XT806

User’s Guide

1Congratulations

Congratulations

MOTOROLA XT806

Your MOTOROLA XT806 phone is loaded with

premium features, including a powerful set of business

tools, videos, music, browsing, and more—all in a

stylish, transparent flip design.

• Mobile video. Record and watch videos in

high-quality 720p HD. Download or stream videos to

watch on your phone, or play them on your HDTV

with DLNA sharing.

•Music. Tap, tap, play—instant music. Just open

your media player and select a playlist.

•Browse. Get more from the Web, with a huge

screen and full HTML. Search, browse, everything

you want to do, all made easier.

Caution: Before assembling, charging or using your

phone for the first time, please read the important

legal and safety information packaged with your

phone. Once your phone is up and running, touch

Menu > Settings > About phone > Safety

Information to read the full information.

More information

Go to www.motorola.com/support.

Whether you want to read, watch, or play, we can help.

2Your phone

Your phone

12:09 PM

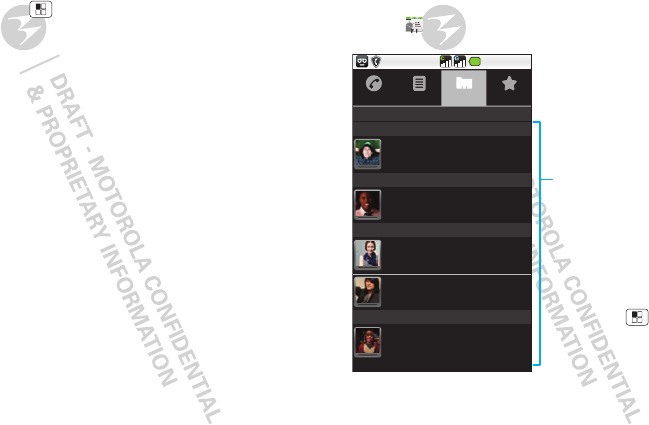

Web FileManaContacts

Quick No

Micro USB

Connector

Volume Keys

To u chscreen

Stylus

Power Key

Menu Key

Home Key

Smart Key

Search Key

Back Key

Camera Key

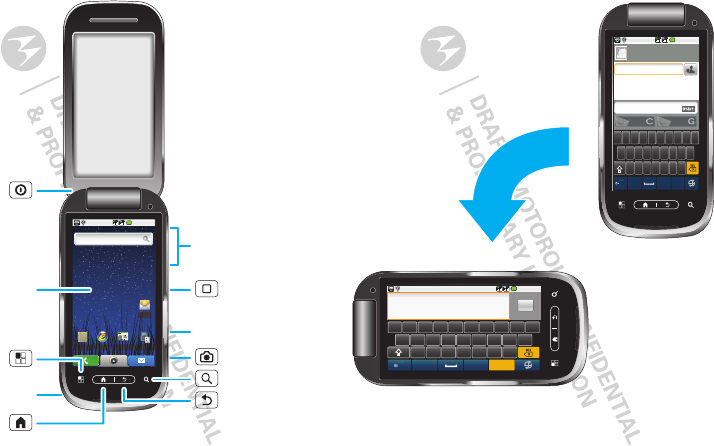

When you turn your phone, the screen adjusts for you.

Note: Your phone might look a little different.

qwe r t y u i op

asdfghjkl

EN 56

#@ @Next

xcvbnm

12:09 PM

Type to compose

compose

qwer t yu i op

asd f ghj k l

zxcvbnm

EN @Next

12:09 PM

3Let’s go

Contents

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 4

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 20

WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Media Share . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

USB & memory card. . . . . . . . . . . . . . . . . . . . . . . . 37

Synchronize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 43

Let’s go

let’s get you up and running

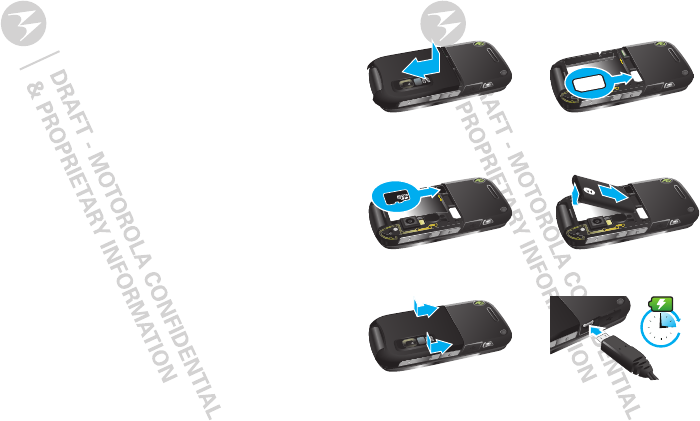

Assemble & charge

Caution: Please read “Battery Use & Safety” on

page 43.

1cover off 2UIM and/or SIM in

3microSD in

(already done)

4battery in

5cover on 6charge up

4Touchscreen & keys

Turn it on & off

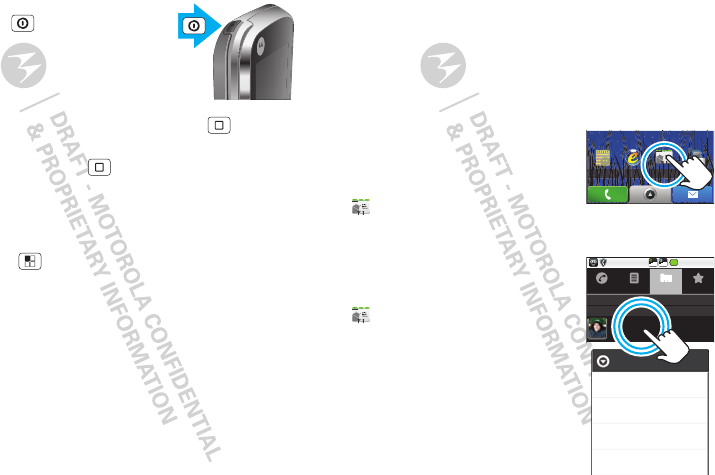

To turn on your phone, press and

hold Power (on top of the

phone).

To turn off your phone, close the

flip, then:

1Press the volume keys to scroll

to Power off, and press the Smart key to select

it.

2Press the Smart key to confirm.

WLAN connect

You can use a WLAN (Wi-Fi™ Local Area Network)

connection for even faster Internet access.

Touch Menu > Settings > Wireless & networks

>WLAN settings. Touch WLAN to turn it on and

search for nearby wireless networks. Touch a network

to connect. There’s more in “WLAN” on page 21.

Cool content & more

Your phone comes with a microSD memory card

installed—you can load it up with photos, videos, and

music from your computer using “USB drag & drop”

on page 37.

Touchscreen & keys

a few essentials

Touch tips

Here are some tips on how to navigate around your

phone.

Touch

To choose an icon or option,

touch it with your finger or tap it

with the stylus. Try it: In the

home screen, touch

Contacts.

Touch & hold

To open special options, touch

and hold an icon or other item.

Try it: In the home screen, touch

Contacts, then touch and

hold a contact to open options.

Web FileManaContacts

Quick No

Phone Call log

Displaying 22 contacts

Contacts Favorites

12:09 PM

Alex Pico

View contact

Call contact

Alex Pico

IP Call

Text contact

5Touchscreen & keys

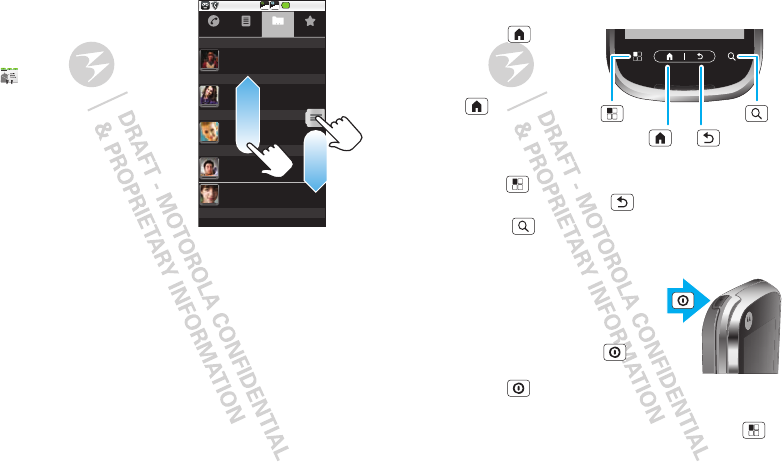

Drag

To scroll through a list or

move slowly, drag across

the touchscreen. Try it: In

the home screen, touch

Contacts, then drag

your contact list up or

down.

Tip: When you drag or flick

a list, a scroll bar appears

on the right. Drag the scroll

bar to move the list to a

letter A - Z.

Flick

To scroll through a list or move quickly, flick across the

touchscreen (drag quickly and release).

Tip: When you flick a long list, touch the screen to stop

it from scrolling.

Phone Call log Contacts Favorites

12:09 PM

Luke Carmody

Mariana Bukvik

Nancy Anderson

Rich Aaronson

Robin Royce

Key tips

Menu, home, back, & search

Touch Home to

close any app or menu

and return to the home

screen. Touch and hold

Home to show the

last few apps you

used, then touch an

app to open it.

Touch Menu to

open menu options, or Back to go back.

Touch Search for text search.

Sleep & wake up

To save your battery, prevent

accidental touchs, or when you

want to wipe smudges off your

touchscreen, put the touchscreen

to sleep by pressing Power . To

wake up the touchscreen, just

press Power again.

To change how long your phone waits before the

screen goes to sleep automatically, touch Menu

>Settings > Sound & display > Screen timeout.

Key Home

Key

Back

Key

6Home screen

Power key menu

Press and hold Power to open the power key

menu, where you can turn off the phone (Power off),

or turn Silent mode or Airplane mode on or off.

Adjust volume

Press the volume keys to change the

ringer volume (in the home screen),

or the earpiece volume (during a

call).

Spin the screen

The touchscreen can spin to stay

right-side up when you rotate your

phone:

Find it: Menu > Settings > Sound & display

>Orientation

Home screen

quick access to the things you need most

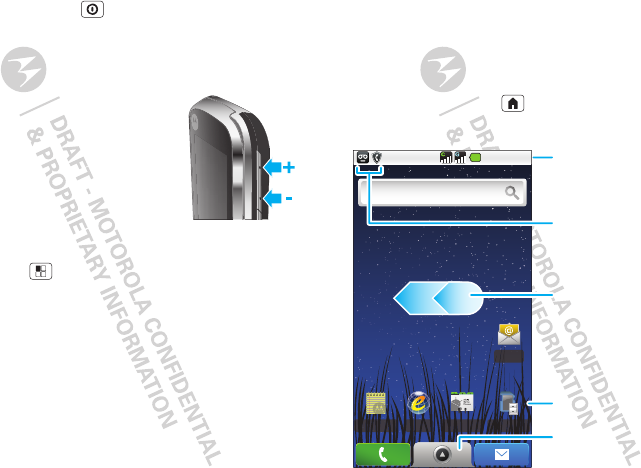

Quick start: Home screen

The home screen gives you all your latest information

in one place. It’s what you see when you turn on the

phone or touch Home from a menu. It’s basically

like this:

12:09 PM

Web FileManaContacts

Quick No

Status Indicators

Touch to open main menu.

Flick left or right to

open more panels.

Shortcuts

Touch to open.

Notifications

Flick this bar down to see

details.

7Home screen

Use & change your home screen

On your home screen, shortcuts are icons that open

your favorite apps, Web bookmarks, contacts, mail

labels, or music playlists. Widgets show you news,

weather, messages, and other updates.

Flick the home screen left or right to open other panels

of shortcuts and widgets.

•To open something, touch it. Home to return to

the home screen.

•To change a widget’s settings, open it and then

touch Menu > Settings.

You can find details about the settings for Calendar

(“Calendar” on page 38), FM Radio (“FM radio” on

page 36), Music (“Music” on page 31), or Weather

(“Widgets” on page 24).

•To add something or change your wallpaper, touch

and hold an empty spot until you see the Add to

Home screen menu.

You can add a folder to organize your shortcuts.

•To move or delete something, touch and hold it

until you feel a vibration, then drag it to another

spot, another panel, or the trash at the bottom of

the screen.

Running multiple apps

No need to close an app before opening another one.

Your phone runs multiple apps, all at once.

You can open a new app while running another. Touch

Home to return to the home screen, touch

to open the main menu, then touch the app you want.

To switch from one running app to another, touch and

hold Home to see what apps are already open,

then touch the one you want. You can view up to the

last six apps that you ran.

To search for apps, files, or text on your phone or the

Web, touch Search on the front of the phone, or

touch the search widget in the home screen.

Phone status & notifications

At the top of the screen, icons on

the left notify you about new

Touch & enter text for

a text search.

12:09 PM

8Main menu

messages or events (flick or drag the bar down for

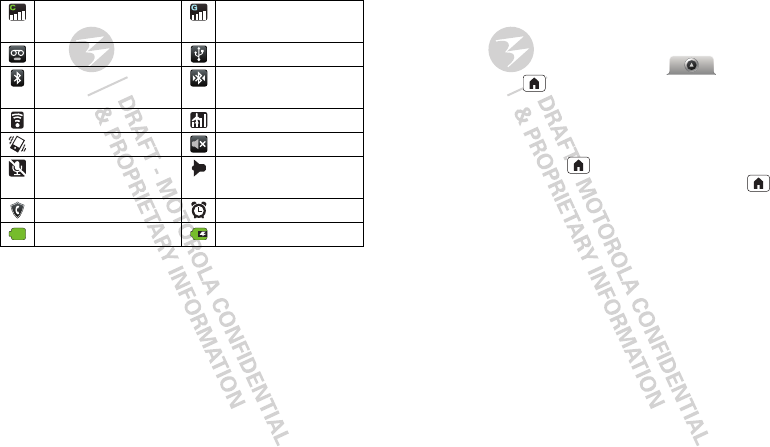

details). Icons on the right tell you about phone status:

Tip: To see today’s date, touch and hold the status

indicators.

CDMA network

(full signal)

GSM network

(full signal)

voicemail message USB connection

Bluetooth™ active Bluetooth

connected

WLAN active flight mode

vibrate mode silent mode

mute call speakerphone

active

firewall active alarm set

battery (full charge) battery (charging)

Main menu

all your apps in one place

Quick start: Main menu

The main menu shows you all of your applications. To

open it from the home screen, touch . To close

it, touch Home .

Note: Your main menu will vary.

Recent apps

Touch and hold Home to see the last few apps you

used, then touch the app you want. Touch Home

to return to the home screen.

9Calls

Calls

it’s good to talk

Quick start: Calls

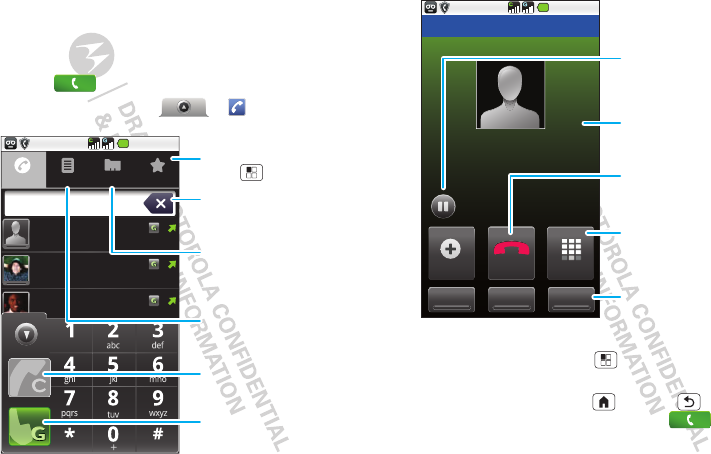

Dialing options

Find it: Phone

Tip: You can also touch > Phone.

Phone

Call log

Alex Pico

Contacts Favorites

2 mins ago

Mobile 513-555-1212

8 mins ago

212-555-1212

Dan Smith

Mobile 314-555-1212

12:09 PM

27 mins ago

Contact List

Touch to open, then touch an

entry to call.

Delete

Touch to delete a digit you

entered.

Call Log

Touch to open, then touch an

entry to call.

GSM Call

Touch to make your call over

a GSM network.

CDMA Call

Touch to make your call over

a CDMA network.

Favorites

Touch to open, then touch

Menu to add or edit.

In-call options

During a call, touch Menu to choose Hold, Add

call, or Bluetooth (to use a wireless headset).

Tip: You can touch Home or Back to hide the

active call display. To reopen it, touch Phone.

GSM network

00:03

212-555-1212

Connected

DialpadEndAdd call

Hold

Voice RecMute Speaker

12:09 PM

Call Timer

Hold

Touch to put the call on hold.

Dialpad

Touch to open a dialpad, to

enter numbers during a call.

Speakerphone

Touch to turn the

speakerphone on or off.

End Call

Touch to hang up.

10 Calls

Make & answer calls

To make a call,

touch Phone, enter a

number, then touch Cto make

the call over a CDMA network, or

touch G to make the call over a

GSM network.

Tip: To enter the international

dialing code, touch and hold .

To answer a call, touch Answer.

To turn off the incoming call alert,

touch Ignore.

End calls

Touch End call.

Note: When you hold the phone to your ear, the

display goes dark to avoid accidental touchs. When

you move your phone away from your ear, the display

lights up again.

Tip: You can touch Home or Back to hide the

active call display. To reopen it, touch Phone.

Favorites

Find it: Phone > Favorites

•To call a number, touch it.

•To search, add, or delete entries, touch Menu .

GSM network

212-555-1212212-555-1212

Incoming Call

Answer Ignore

12:09 PM

Handsfree

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal.

Always obey the laws and drive safely.

During a call:

•To use the speakerphone, touch Speaker.

•To use a Bluetooth™ device, touch Menu

>Bluetooth.

Mute & hold

During a call:

•To mute the current call, touch Mute.

•To put a call on hold, touch Menu > Hold.

Enter numbers during a call

To enter numbers during a call, touch Dialpad.

Recent calls

Find it: Phone > Call log

•Touch an entry to call it, send a text message, view

call details, or add the number to a firewall list of

blocked calls.

•To filter the list, touch the view name (like All calls)

at the top.

11Calls

•To delete a call from the list, touch Menu

>Delete.

Conference calls

To start a conference call, call the first number. After

they answer, touch Menu > Add call and call the

next number. When the next number answers, touch

Menu > Join.

Your phone number

Find it: Menu > Settings > About phone

>Status > CDMA status or GSM status

The status page lists your phone number.

Your caller ID

To hide your number from the people you call, touch

Menu > Settings > Call settings > CDMA

network call settings or GSM network call settings

>Additional call settings > Caller ID.

Emergency calls

Note: Your service provider programs one or more

emergency phone numbers (such as 911 or 112) that

you can call under any circumstances, even when your

phone is locked. Emergency numbers vary by country.

Your pre-programmed emergency number(s) may not

work in all locations, and sometimes an emergency

call cannot be placed due to network, environmental,

or interference issues.

1Open the phone, then touch Phone (if your

phone is locked, touch Emergency Call).

2Enter the emergency number.

3To u ch Call to call the emergency number.

Note: Your mobile device can use AGPS satellite

signals to help emergency services find you (“GPS &

AGPS” on page 48).

Call forwarding & waiting

You can forward calls all the time, or only when your

phone is busy, unanswered, or unreachable (not on the

network):

Find it: Menu > Settings > Call settings

>CDMA network call settings or GSM network call

settings > Call forwarding

When you’re on a call and a second call comes in,

call waiting lets you answer it by touching Answer.

You can turn off call waiting, to send second calls

straight to your voicemail:

Find it: Menu > Settings > Call settings

>CDMA network call settings or GSM network call

settings > Additional call settings > Call waiting

12 Contacts

Restrict outgoing calls

To restrict your phone so that it can only dial a few

numbers:

Find it: Menu > Settings > Call settings

>CDMA network call settings or GSM network call

settings > Fixed Dialing Numbers

•To turn fixed dialing on, touch Enable FDN.

•To add or delete the allowed numbers, touch FDN

list.

Contacts

contacts like you’ve never had before

Quick start: Contacts

Find it: Contacts

Phone Call log

Displaying 22 contacts

Contacts Favorites

12:09 PM

Alex Pico

Dan Smith

Kate Shunney

Keith Zang

Luke Carmody

Contacts List

Touch a contact to call or

email. Touch & hold to text,

add to favorites, edit, or

delete the contact.

Menu Options

Touch Menu to add,

share, copy, backup, or

delete contacts.

13Contacts

Import contacts from your SIM

If you need to import contacts from your SIM card,

touch Menu > More > Copy to Card/Device>G

card to Device.

Call, text, or email contacts

To call or email a contact, touch it.

To text a contact, touch and hold it.

Edit or delete contacts

Touch the contact, then touch Menu > Edit

contact or Delete contact.

Tip: When editing a contact, you can set a ringtone,

address, and other details that will be saved on your

phone.

Create contacts

Find it: Contacts >Menu >New contact

Select the account to save the contact to, then enter

the contact name and details.

Edit contact

Local contact

from local-contacts

Family name

Given name

Phone

Mobile

Home

Done Revert

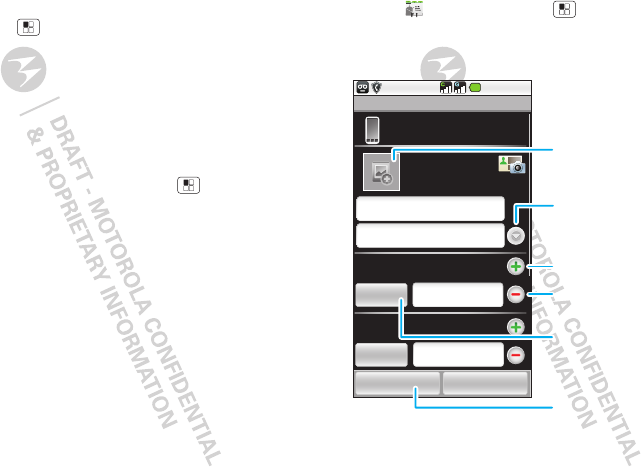

12:09 PM

Touch to set the number

type.

Touch to select a picture for

the contact.

Touch to add more name

details.

Touch to add another phone

number.

When you’re finished,

touch Done.

Touch to remove this

number.

To see more details, flick up.

14 Messaging

Groups

You can put your contacts into groups that you create

(like “friends,” “family,” or “work”). Then, you can find

contacts faster by showing one group at a time.

To create a group in your contacts, touch Menu

>Group management, then touch Menu > New

group. Enter a group name, then touch Done. To add

members to the group, touch it, then touch Menu

>Add member.

To show only one group in your contacts, touch

Menu > Group management, then touch the

group.

Messaging

sometimes it’s best 2 text, or IM, or email . . .

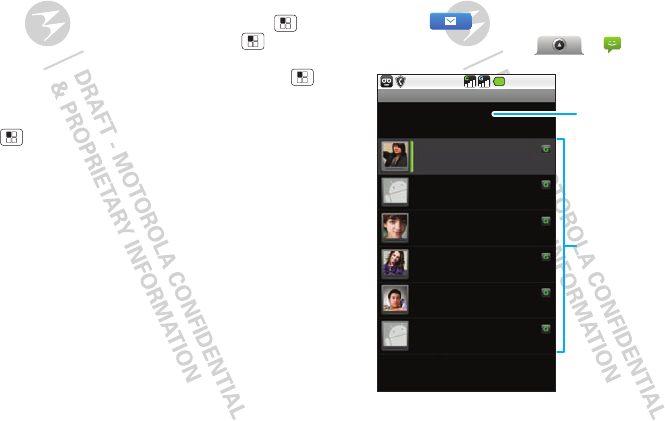

Quick start: Messaging

Find it: Messaging

Tip: You can also touch > Messaging.

Tip: To see more messages, flick or drag up.

New message

Compose new message

Keith Zang (8)

3:28PMMeet you there @ 5:00. I’ll ...

+16175551234

1:05PM(Your new account) Here is ...

Mariana Bukvik(17)

102711Where are you?

Robin Royce(9)

9:24AMI did my good deed for the ...

Messaging

Rich Aaronson(5)

102711Wow! I can’t believe that ...

Clubsrus@clubsrus.com

102511(Welcome to our club) As a ...

12:09 PM

Touch to create & send a

message.

Message List

Touch to open a message

thread. Touch & hold to add

to contacts, delete a thread,

and more.

15Messaging

Read & reply to messages

•To open a message and all of its replies, touch it.

•To respond to a message, open it and enter your

response in the text box at the bottom of the

screen.

•To open options, touch and hold a message.

Create messages

Find it: Messaging > New message

Enter the recipient and message. In text messages

and emails, touch Menu to add files or choose

other options.

Send & receive attachments

To send a file in a message, open a new message and

touch Menu > Attach.

When you receive a message with an attachment,

open the message and touch the file name to

download it. Then, touch the name again to open it.

Some file formats can be converted to HTML for faster

viewing, and your phone will show a button that

says Get HTML version.

Tip: To send and receive large attachments faster, use

a WLAN connection (“WLAN” on page 21).

Set up an account

Find it: Email

The email setup wizard will guide you through setting

up your email account. For account details, contact the

account provider.

Create a new email

Find it: Email, touch Menu > Compose

Enter the recipient email address and message, then

touch Send.

Tip: Touch Menu for options, like Attach or Add

Cc/Bcc.

Instant messages

You can use your phone’s browser to send and receive

instant messages.

Touch Web, touch the Web address field, enter

your IM provider’s Web site, and touch Go. Once

you’re there, follow the link to sign in.

Note: Your IM options depend on your IM provider.

16 Text entry

Text entry

think keyboard, now think smaller

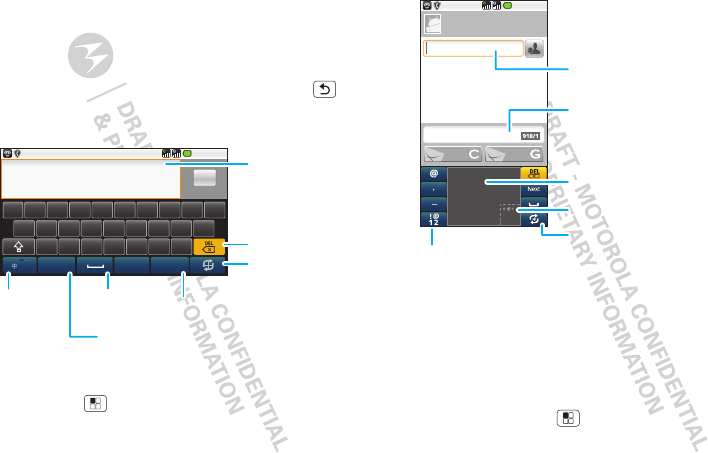

Touchscreen text entry window

When you touch a text field, your phone opens a

touchscreen keypad or handwriting window. To close

the keypad or handwriting window, touch Back .

Keypad

To change keypad settings, from the home screen,

touch Menu > Settings > Language & keyboard

>Moto input method > Keyboard.

qwe r t yu i op

asdfghjkl

EN 56

#@ @Next

xcvbnm

12:09 PM

Delete

Touch to change

text entry mode.

Space

Touch to open a keypad for

symbols & numbers.

Touch to

change

language.

Text Field

Touch to open the

touchscreen

keypad.

Go to next text field.

Handwriting

Write a character in the handwriting window, then wait

for your phone to recognize and place it in the text

field. If your phone places an incorrect character, touch

the character in the choice area that you want to

replace it.

To change handwriting settings, from the home

screen, touch Menu > Settings > Language &

keyboard > Moto input method > Handwriting.

Type to compose

compose

12:09 PM

Write characters here.

Touch to change text entry mode.

Touch to enter

special characters.

Touch to enter message.

Touch to enter address.

Write symbols and punctuation here.

17Web

Text entry settings

When you use the touchscreen text entry window,

your phone suggests words from your dictionary and

chosen language. Your phone also automatically enters

apostrophes in some words, like “don’t.”

Find it: Menu > Settings > Language &

keyboard

•To change the language and the style for your

touchscreen text entry window, touch Select

locale.

•To edit your dictionary, touch User dictionary.

•To change sounds, corrections, and other settings

for your keypad and handwriting window,

touch Moto input method.

Web

you don’t need a computer, surf the web with your

phone

Quick start: Browser

Find it: Web

Note: If you can’t connect, contact your service

provider.

12:09 PM

http://www.google.co...

New window

Refresh

Windows

Bookmarks

Forward

Web Images

New! Try My LocaƟon to ﬁnd restaurants, shops, and bars near

you!

iGoogle Preferences Help

View Google in Mobile Classic

Local News more

Google Search

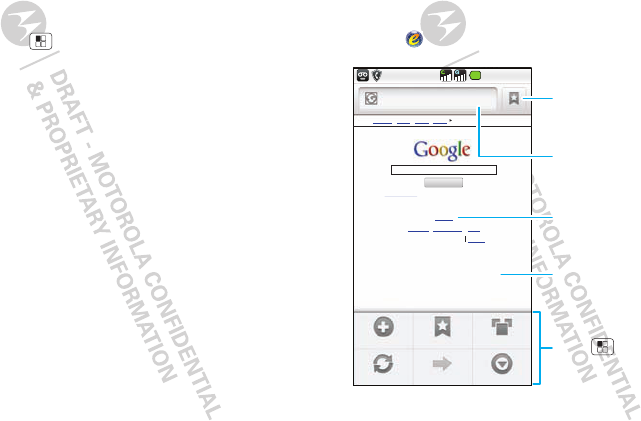

Bookmarks

Touch to see your

bookmarks.

Links

Touch to open.

Web Address

Touch to enter a URL.

Drag or flick to scroll.

Touch to see options.

18 Web

Connect

Your phone uses the mobile phone network (over the

air) to automatically connect to the Web.

Note: Your service provider may charge to surf the

Web or download data.

To use a wireless network, touch Menu

>Settings > Wireless & networks. Touch WLAN to

turn it on, then touch WLAN settings to search for

nearby wireless networks. Touch a network to

connect. There’s more in “WLAN” on page 21.

Web touch tips

Zoom & magnify

In Web pages, when you scroll (drag or flick), zoom

icons appear at the bottom of your screen.

To zoom in, you can also double-touch the screen, or

touch the screen with two fingers and then slide them

apart. To zoom out, double touch the screen again, or

drag your fingers together.

Select links

When you touch a link, your

phone outlines it. If you

touch and hold the link, your

phone shows options, like Open in new window or

Bookmark link.

Android | Official Website

Official site for the development of the open source project. Provides a directory

of applications and links to download the source of the project.

Market - Official Website - Android application developer site

www.android.com/ - Cached - Similar

Android (operating system) - Wikipedia, the free encyclopedia

Android is a software platform for mobile devices, running on the Linux operating

system. It was initially developed by Google and later the Open Handset ...

en.wikipedia.org/wiki/Android_(mobile_phone_platform) - Cached - Similar

What is Android? | Android Developers

Android is a software stack for mobile devices that includes an operating system,

middleware and key applications. The Android SDK provides the tools and ...

developer.android.com/guide/basics/what-is-android.html - Cached - Similar

Android Developers

The Android SDK has the tools, sample code, and docs you need to create ...

AndroidOpen Source Project gives you access to the entire platform source. ...

developer.android.com/ - Cached - Similar

More results from developer.android.com »

Open Handset Alliance

Android™ delivers a complete set of software for mobile devices: an ... Android is

built on the open Linux Kernel. Furthermore, it utilizes a custom virtual ...

www.openhandsetalliance.com/android_overview.html - Cached - Similar

Android Community - Tracking the Android Platform

myTouch 3G Android phone is getting its day in the sun on July 8 when T-Mobile

introduce it to the world – in NYC. We'll be there to bring you live coverage ...

androidcommunity.com/ - Similar

Welcome (Android Open Source Project)

Oct 21, 2008 ... Android is the first free, open source, and fully customizable

mobile platform. Android offers a full stack: an operating system, ...

source.android.com/ - Cached - Similar

Blog posts about android

SciPhone Dream G2 Android charger is best ever - Engadget - 14 hours ago

Google Android Mobile Phones are now in India - HTC Magic from Airtel - Digital

Inspiration - Technology Blog - 6 days ago

T-Mobile Will Drop Its Second Android Phone, The myTouch 3G, This ... -

TechCrunch - Jun 21, 2009

source/android.com/ - Options

Android Community - Tracking the Android

Platform

Apr 26, 2009 .. HTC and Google have released

Android 1.5 Cupcake for owners of the Android

Dev Phone, available as a free ..

androidcommunity.com/ - Options

application

developer

sreern

Magnify

Touch to open a

magnifying window

that you can drag.

Zoom In/Out

source/android.com/ - Options

Android Community - Tracking the Android

Platform

application developer screen

19Web

Browser options

Touch Menu to see browser options:

Download apps

Warning: Apps downloaded from the Web can be

from unknown sources. To protect your phone and

personal data, only download apps from sources you

trust.

options

New window Open a new window.

Bookmarks Show a list of your bookmarks.

Tou ch Add to add the current

page to your list.

Windows Show a list of open browser

windows.

Refresh Reload the current page.

Forward Move forward through pages

you’ve visited.

More Show browser options, like Add

bookmark, Find on page, Select

text, Page info, Share page,

Downloads, and Settings, and

Exit browser.

Note: All downloaded apps are stored in your phone

memory.

To download apps:

1If you want to download apps from any Web page,

touch Menu > Settings > Applications

>Unknown sources.

2To launch the browser, touch Web.

3Find the app you want to download and touch the

download link.

Manage your downloads

To view files or applications you have downloaded,

touch Web, then touch Menu > More

>Downloads.

To clear your download history, touch Clear list. To

cancel, touch Cancel all downloads.

20 Bluetooth™ wireless

Bluetooth™ wireless

lose the wires and go wireless

Quick start: Bluetooth wireless

Find it: Menu > Settings > Wireless &

networks>Bluetooth settings

Turn Bluetooth power on or off

Find it: Menu > Settings > Wireless &

networks>Bluetooth

Note: To extend battery life, turn off Bluetooth power

when not in use.

12:09 PM

Bluetooth

Scan for devices

Device name

(your device name)

Discoverable

Make device discoverable

(found device name)

Pair with this device

Bluetooth devices

Bluetooth settings

Touch to turn on and scan.

Touch to re-scan.

Touch to connect.

Touch to change your device

name.

Connect new devices

Note: This feature requires an optional accessory.

To connect with a new device, you need to pair with it.

You only need to do this once for each device—to

connect again, see “Reconnect devices” on page 21.

1Make sure the device you are pairing with is in

discoverable mode.

Note: Refer to the guide that came with the device

for details.

2Touch Menu > Settings > Wireless &

networks > Bluetooth settings.

3Touch Bluetooth to turn on and scan. If Bluetooth is

already on, touch Scan for devices.

4Touch a device to connect.

5If necessary, touch OK, or enter the device passkey

(like 0000) to connect to the device. When the

device is connected, the Bluetooth connected

indicator appears in the status bar.

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal.

Always obey the laws and drive safely.

21WLAN

Reconnect devices

To automatically reconnect your phone with a paired

device, simply turn on the device.

To manually reconnect your phone with a paired

device, touch the device name in the Bluetooth

devices list.

Disconnect devices

To automatically disconnect your phone from a paired

device, simply turn off the device.

To manually disconnect your phone from a paired

device, touch Menu > Settings > Wireless &

networks > Bluetooth settings, then touch the

device name in the devices list. Touch OK to confirm

that you want to disconnect.

Edit properties

Touch Menu > Settings > Wireless controls

>Bluetooth settings > Device name. Enter a name

and touch OK.

WLAN

home, office, or hotspot

Quick start: WLAN

You can use a WLAN (Wi-Fi™ Local Area Network)

connection for even faster Internet access and to

download data.

Find it: Menu > Settings > Wireless &

networks>WLAN settings

Note: Your phone's WLAN features and power levels

are not allowed for outdoor operation in France. To

avoid unlawful interference with radio signals, do not

use the WLAN features in France unless you are

indoors.

12:09 PM

WLAN

Network notification

Notiry me when an open network is

available

(found network name)

Secured with WEP

Add WLAN network

WLAN settings

WLAN networks

Touch to turn on and off.

Touch to connect (when

WLAN power is on).

Touch to manually add a new

WLAN network.

22 Tips & tricks

WLAN search & connect

To find networks in your range:

1Touch Menu > Settings > Wireless &

networks > WLAN settings.

2Touch WLAN to turn on WLAN.

3Touch Menu > Scan. Your phone lists the

networks it finds within range.

Tip: To see your phone’s MAC address or other

WLAN details, touch Menu > Advanced.

4Touch a network to connect.

5If necessary, enter Network SSID, Security, and

Wireless password, and touch Connect. When

your phone is connected to the network, the

wireless indicator appears in the status bar.

Tip: When you are in range and WLAN is on, you will

automatically reconnect to available networks you’ve

connected to before.

Tips & tricks

a few handy hints

Shortcuts

To...

Return to the

home screen

To u ch Ho m e .

See recently

dialed numbers

To u ch Phone > Call log.

Sleep/wake

your phone

Press Power .

See last few

apps used

In the home screen, touch and

hold Home .

Turn airplane

mode on/off

Press and hold Power

>Airplane mode.

Turn phone

sounds on/off

Press and hold Power

>Silent mode.

Set screen

timeout

To u ch M e n u > Settings

>Sound & display > Screen

timeout.

Turn

Bluetooth™

power on/off

To u ch M e n u > Settings

>Wireless & networks

>Bluetooth.

23Tips & tricks

Battery tips

Your phone is like a small computer, giving you a lot of

information and apps, at 3G speed, with a touch

display! Depending on what you use, that can take a

lot of power. So, if you want to save battery life

between charges, you could reduce:

Tur n WLAN on/

off

Touch Menu > Settings

>Wireless & networks

>WLAN.

Add a shortcut

on your home

screen

Touch and hold an open area on

your home screen to open the

Add to Home screen menu,

then touch Shortcuts. Choose an

application, bookmark, or

shortcut to add.

Move a

shortcut or

widget

Touch and hold the shortcut or

widget until you feel a vibration,

then drag it to where you want.

Delete a

shortcut or

widget

Touch and hold the shortcut or

widget until you feel a vibration,

then drag it to the trash at the

bottom of the screen.

To . .. •recording or watching videos, listening to music, or

taking pictures.

•widgets that stream information to your home

screen, like news or weather (“Use & change your

home screen” on page 7).

•Bluetooth™ use: touch Menu > Settings

>Wireless & networks > Bluetooth (turn off).

•WLAN use: touch Menu > Settings > Wireless

& networks > WLAN (turn off).

•GPS use: touch Menu > Settings > Location &

security > Enable GPS satellites (deselect).

•network searching: if you are out of coverage, to

keep your phone from looking for networks, press

and hold Power > Airplane mode.

•display brightness: touch Menu > Settings

>Sound & display > Brightness > (dimmer

setting).

•display timeout delay: touch Menu > Settings

>Sound & display > Screen timeout > (shorter

setting).

24 Personalize

Personalize

add your personal touch

Widgets

To create a new widget:

1Touch and hold an empty spot on your home screen

where you want to add a widget.

Tip: You can flick left or right to open other panels

on the home screen.

2Touch Widgets.

3Touch the widget. If necessary, enter the widget

settings.

You can customize some widgets. Touch a widget to

open it, then touch Menu .

To move a widget, touch and hold it, then drag the

widget where you want it.

To delete a widget, touch and hold it, then drag the

widget to the trash at the bottom of the screen.

Ringtones

To personalize your ringtone for incoming calls or

notifications:

Find it: In the home screen touch Menu

>Settings > Sound & display > Phone ringtone or

Notification ringtone

To set your phone to vibrate for incoming calls:

Find it: In the home screen touch Menu

>Settings > Sound & display > Phone vibrate

Wallpaper

To set a new wallpaper, touch and hold an empty spot

on the home screen, then touch Wallpapers.

Sounds

features

set volume for media and videos

Menu > Settings > Sound & display > Media

volume

play tones when using dial pad

Menu > Settings > Sound & display > Audible

touch tones

play sound on screen selection

Menu > Settings > Sound & display > Audible

selection

25Media Share

Display

Date & time

Set date, time, time zone, and formats:

Find it: Menu > Settings > Date & time

Language & region

Set your menu language and region:

Find it: Menu > Settings > Language &

keyboard > Select locale

features

set display brightness

Menu > Settings > Sound & display

>Brightness

set orientation

Menu > Settings > Sound & display>

Orientation

set animation

Menu > Settings > Sound & display

>Animation

Media Share

connect and enjoy

Note: Copyright—do you have the right? Always follow

the rules. See “Content Copyright” in your legal and

safety information.

Media Share gives you an easy way to share your

media content—photos, videos, and tunes—with

friends and family.

Share your media over DLNA devices: The Media

Share wizard guides you through the easy setup steps.

Swap photos & videos: Share any photos or videos

on your phone, even the ones you created. Or, if you

want, see your photos and videos in HD quality on an

HDTV or monitor.

More tunes: Enjoy favorites from your phone playlist

on your the sound system at home. Or get music from

your portable music player and add it to your phone’s

music library.

Connect

You must be connected to a network or another

device:

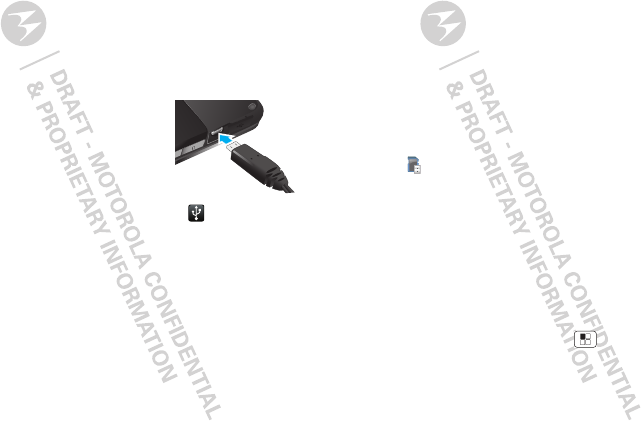

•Connect to your computer with a USB cable (see

“USB & memory card” on page 37.

26 Media Share

•Connect to a WLAN network or use your own

WLAN hotspot (see “WLAN” on page 21).

Media Share will guide you the rest of the way.

Your Media Share world

Note: If you’re using a WLAN connection, you must

allow access to other devices to download media from

your phone and to share your files. If you want to

access media files on other devices, they must allow

access.

To use Media Share, touch > Media

Share, then select the feature you want to use:

•Play media—Select media for playback on another

device in a WLAN network.

•Upload media—Select media files on your phone

to copy or move to another device.

•Download media—Select media files on another

device to download to your phone.

•Share media—Allow other devices to access

media files on your phone. Without downloading

any media from your phone, other people can view

your pictures or videos, or play your songs, on their

own devices.

HD viewing

You can create your own videos (see “HD videos” on

page 30) to view your wide screen HDTV or monitor in

the comfort of your home.

DLNA

DLNA lets you expand the ways you can enjoy your

photos and videos on a DLNA Certified HDTV or

monitor, using your own WLAN network.

Make sure your phone is connected to an active

WLAN network and has access to a DLNA Certified

device.

1Touch > Media Share.

2Touch Play media, Upload media, Download

media, or Share media. Then follow the

instructions you see on your phone.

27Photos & videos

Photos & videos

see it, capture it, share it!

Photos

Take & share photos

Take that family photo, and post it online for everyone

to see. Your camera has a built-in flash, for perfect

photos every time.

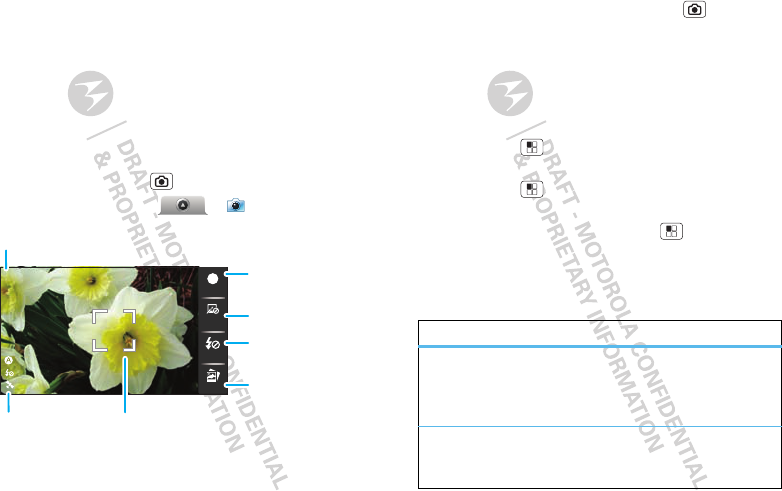

Find it: Press Camera

Tip: You can also touch > Camera.

Note: Photos are stored on your microSD memory

card. Picture Resolution is 5MP, unless you change it.

Scenes

Effects

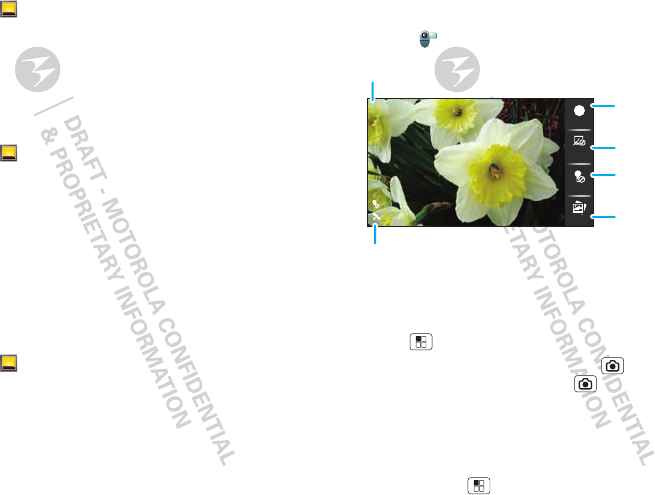

Gallery

Flash

Touch to set photo

effects.

Touch to see your

photos & videos.

Camera

Settings

Autofocus Box

Touch to set photo

type.

Touch to set flash

mode.

Shots Remaining

To take the photo, lightly press Camera halfway

until the autofocus box turns green, then press all the

way to take the photo.

Your phone shows a brief preview and then stores the

photo. To see the photo, touch Gallery in the

viewfinder and touch the photo thumbnail. Then:

•To set the photo as a wallpaper or contact photo,

touch Menu > More > Set as.

•To send the photo in a message or post it online,

touch Menu > Share. For more info on sharing

your photos, see “Share a photo” on page 29.

•To delete the photo, touch Menu > Delete.

Camera settings

Touch the viewfinder, then touch a tab to change

camera settings:

tabs

Scenes Set the type of photo you want to

take: Auto, Portrait, Landscape,

Sport, Night Portrait, Sunset,

Macro, Steady.

Effects Set a photo effect: Normal, Black

and White, Negative, Sepia,

Solarize.

28 Photos & videos

Photo options

In the viewfinder, touch Menu > Settings to open

the camera menu:

Flash Touch the Flash tab to toggle

between Flash On, Flash Off, and

Flash Auto.

Gallery Touch to see all your photos and

videos.

options

Store

location

Save details of where the photo

was taken.


resolution

Set the resolution of your photo.

Quick Send

Address

Set up one-click media sharing.

Review Time Set how long the photo preview

shows in the viewfinder.

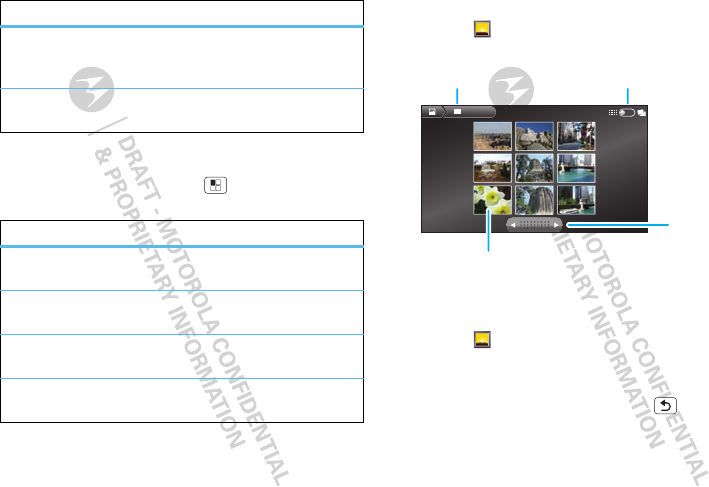

tabs View your photos

Find it: Gallery

Play a slideshow

Find it: Gallery

To start a slideshow, touch a photo, then touch

Slideshow. To stop the slideshow, touch the display.

To return to the gallery, touch Back .

Camera

Touch to scroll

left/right through

photo thumbnails.

Thumbnails

Touch a photo to view it.

Current folder

or category.

Drag left for thumbnails,

drag right for categories.

29Photos & videos

Share a photo

Find it: Gallery

To send your photo:

1Touch and hold a photo, then touch Share.

2Choose how you want to share—Messaging,

Bluetooth, Email, or Quick send.

Manage your photos

Find it: Gallery

Touch and hold a photo, then:

•To delete the photo, touch Delete.

•To set the photo as a contact picture or wallpaper,

touch More > Set as.

•To tag the photo, touch More > Tag.

Note: To copy photos to/from a computer, go to “USB

drag & drop” on page 37.

Edit your photos

Find it: Gallery

Touch and hold a photo, then touch More > Crop and

Edit > Crop or Edit.

To crop a photo, stretch and drag the crop square to

the image you want, then touch Save.

Videos

Record & share videos

Find it: Camcorder

Tip: To send your video in a message, set the video

quality to Low Definition by touching

Menu > Settings > Video Resolution.

To record the video, press Camera . To stop the

video recording, press Camera again.

Your phone shows a brief preview and then stores the

video. To see the video, touch Gallery in the

viewfinder, then touch the video thumbnail.

•To send the video in a message or post it online,

touch Menu > Share. For more information on

00:01:23

Scenes

Effects

Gallery

Light

Touch to set video

effects.

Touch to see your

videos & photos.

Camcorder

Settings

Touch to set video

type.

Touch to turn the

light on or off.

Recording T ime

30 Photos & videos

sharing your videos, see “Share your video gallery”

on page 30.

•To delete the video, touch Menu > Delete.

HD videos

You can capture HD-quality videos that you can watch

on an HDTV or monitor.

To record an HD quality video, be sure to select the

correct video resolution. From the active camcorder

viewfinder, touch Menu > Settings > Video

Resolution > High Definition (720P: 1280x720).

To enhance the video quality, touch Scenes or Effects

on the right side of the camcorder viewfinder. (You

may need to touch the screen to see these options.)

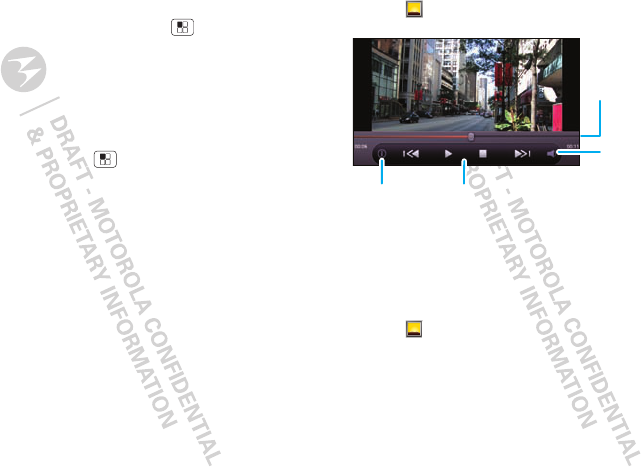

Play your videos

Find it: Gallery > video

Note: To see the controls while the video is playing,

touch the display.

Share your video gallery

Find it: Gallery

To send your video in a message or post online:

1Touch & hold a video, then touch Share.

2Choose how you want to share—Messaging,

Bluetooth, Email, or Quick send.

Progress Bar

Touch to turn sound

on/off.

Touch the display to

see & use video

playback controls.

Touch to see

video

information.

31Music

Manage your videos

Find it: Gallery

Touch and hold a video, then:

•To delete the video, touch Delete.

•To tag the video, touch More > Tag.

Note: To copy videos to/from a computer, go to “USB

drag & drop” on page 37.

Music

when music is what you need...

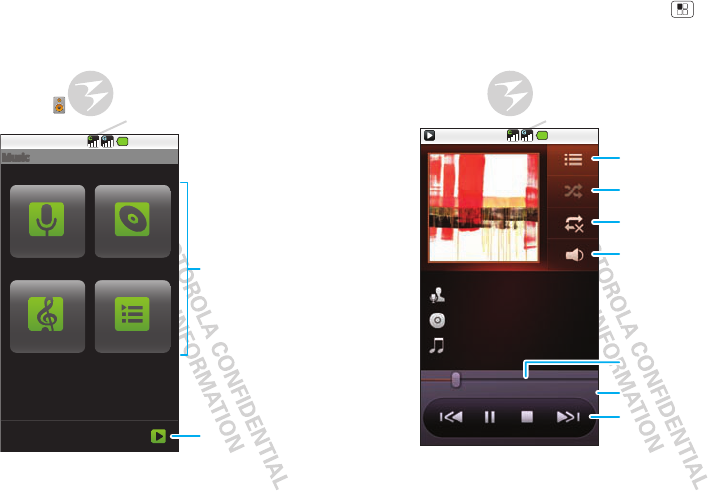

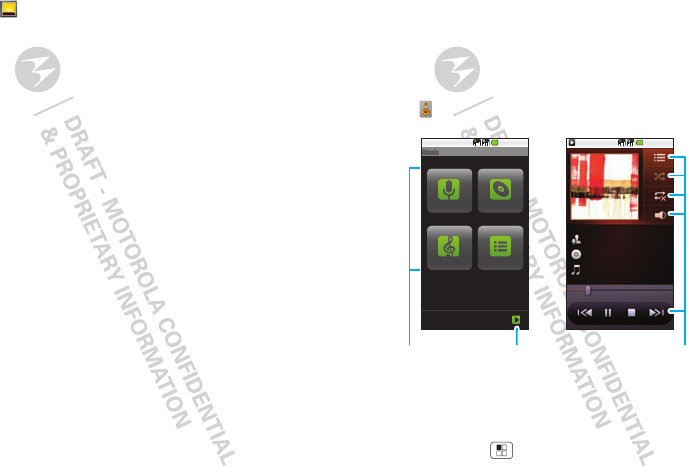

Quick start: Music

Touch, touch, play—instant music. Just open your

music library, then select what you want to play.

Find it: Music

Tip: When a song is playing, you can add it to a playlist

by touching Menu > Add to playlist.

Artists

Music

MusicMusic

Albums

Folders

Day & Age

The Tamers

Playlists

12:09 PM

The Tamers

Day & Age

Goodnight, Travel Well

4:030:49

12:09 PM

Music

Controls

we’re here to help

Crash recovery

In the unlikely event that your phone stops responding

to touchs and key presses, try a quick reset. Remove

the back cover and battery (“Assemble & charge” on

page 3), then replace and turn on your phone as usual.

Reset & clear

To reset your phone to factory settings and erase all

the data on your phone, touch Menu > Settings

>Privacy > Factory data reset > Reset phone.

Warning: All data on your phone will be deleted. Data

on your microSD memory card will not be deleted.

Service & Repairs

If you have questions or need assistance, we're here

to help.

Go to www.motorola.com/support, where you can

select from a number of customer care options. You

can also contact the Motorola Customer Support

Center at 1-800-331-6456 (United States),

1-888-390-6456 (TTY/TDD United States for hearing

impaired), or 1-800-461-4575 (Canada).

Safety, Regulatory & Legal

Battery Use & Safety

Batter y Use & Safety

Important: Handle and store batteries properly to avoid injury or damage.

Most battery issues arise from improper handling of batteries, and particularly from

the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to

change the form of your battery.

• Don’t let the mobile device or battery come in contact with water.*

Water

can get into the mobile device’s circuits, leading to corrosion. If the mobile device

and/or battery get wet, have them checked by your service provider or contact

Motorola, even if they appear to be working properly.*

• Don’t allow the battery to touch metal objects.

If metal objects, such as

jewelry, stay in prolonged contact with the battery contact points, the battery

could become very hot.

• Don’t place your mobile device or battery near a heat source.*

Excessive

heat can damage the mobile device or the battery. High temperatures can cause

the battery to swell, leak, or malfunction. Therefore:

• Don’t dry a wet or damp battery with an appliance or heat source

, such as

a hair dryer or microwave oven.

DOs

• Do avoid leaving your mobile device in your car in high temperatures.*

• Do avoid dropping the battery or mobile device.*

Dropping these items,

especially on a hard surface, can potentially cause damage.*

• Do contact your service provider or Motorola if your mobile device or

battery has been damaged from dropping or high temperatures.

* Note:

Always make sure that the battery compartment is closed and secure to

avoid direct exposure of the battery to any of these conditions.

Important: Use Motorola Original products for quality assurance and

safeguards.

To aid consumers in identifying authentic Motorola batteries from

non-original or counterfeit batteries (that may not have adequate safety protection),

Motorola provides holograms on its batteries. Consumers should confirm that any

battery they purchase has a “Motorola Original” hologram.

Motorola recommends you always use Motorola-branded batteries and

chargers.

Motorola mobile devices are designed to work with Motorola batteries.

If you see a message on your display such as

Invalid Battery

Unable to Charge

, take the following steps:

•

Remove the battery and inspect it to confirm that it has a “Motorola Original”

hologram;

•

If there is no hologram, the battery is not a Motorola battery;

•

If there is a hologram, replace the battery and try charging it again;

•

If the message remains, contact a Motorola authorized service center.

Important:

Motorola’s warranty does not cover damage to the mobile device caused

by non-Motorola batteries and/or chargers.

Warning:

Use of a non-Motorola battery or charger may present a risk of fire,

explosion, leakage, or other hazard.

Proper and safe battery disposal and recycling:

Proper battery disposal is not

only important for safety, it benefits the environment. Consumers may recycle their

used batteries in many retail or service provider locations. Additional information on

proper disposal and recycling may be found on the Web:

•

www.motorola.com/recycling

•

www.rbrc.org/call2recycle/

(in English only)

Disposal:

Promptly dispose of used batteries in accordance with local

regulations. Contact your local recycling center or national recycling

organizations for more information on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because they may explode.

032375o

Battery Charging

Batter y Charging

Notes for charging your product’s battery:

•

When charging your battery, keep it near room temperature. Never expose

batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when

charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long time may take more time to charge.

•

Motorola batteries and charging systems have circuitry that protects the battery

from damage from overcharging.

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel

of a vehicle. Using a mobile device or accessory for a call or other application while

driving may cause distraction. Using a mobile device or accessory may be prohibited

or restricted in certain areas, always obey the laws and regulations on the use of

these products.

While driving, NEVER:

•

Type or read texts.

•

Enter or review written data.

•

Surf the web.

•

Input navigation information.

•

Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

•

Keep your eyes on the road.

•

Use a handsfree device if available or required by law in your area.

•

Enter destination information into a navigation device

before

driving.

•

Use voice activated features (such as voice dial) and speaking features (such as

audible directions), if available.

•

Obey all local laws and regulations for the use of mobile devices and accessories

in the vehicle.

•

End your call or other task if you cannot concentrate on driving.

Remember to follow the “Smart Practices While Driving” in this guide and at

www.motorola.com/callsmart

(in English only).

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to

flashing lights, such as when playing videos or games. These may occur even if a

person has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such

occurrences, please consult with your physician before playing videos or games or

enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur:

convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or

disorientation. It is always a good idea to hold the screen away from your eyes,

leave the lights on in the room, take a 15-minute break every hour, and stop use if

you are tired.

Caution About High Volume Usage

Warning:

Exposure to loud noise from any source for extended

periods of time may affect your hearing. The louder the volume sound

level, the less time is required before your hearing could be affected.

To protect your hearing:

•

Limit the amount of time you use headsets or headphones at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness

in your ears, ringing in your ears, or muffled speech, you should stop listening to the

device through your headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at

direct.motorola.com/

hellomoto/nss/AcousticSafety.asp

(in English only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering

finger-written characters, you may experience occasional discomfort in your hands,

arms, shoulders, neck, or other parts of your body. If you continue to have discomfort

during or after such use, stop use and see a physician.

[Nov0109]

Small Children

Keep your mobile device and its accessories away from small children.

These products are not toys and may be hazardous to small children. For example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing hearing injury.

•

Improperly handled batteries could overheat and cause a burn.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if

the product is dropped on a hard surface or receives a substantial impact. If glass

breaks, do not touch or attempt to remove. Stop using your mobile device until the

glass is replaced by a qualified service center.

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not always, posted and

can include fueling areas, such as below decks on boats, fuel or chemical transfer or

storage facilities, or areas where the air contains chemicals or particles, such as

grain dust, or metal powders.

When you are in such an area, turn off your mobile device, and do not remove,

install, or charge batteries. In such areas, sparks can occur and cause an explosion

or fire.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol Definition

Important safety information follows.

032374o

Radio Frequency (RF) Energy

Exposure to RF Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives

and transmits RF energy. When you communicate with your mobile device, the

system handling your call controls the power level at which your mobile device

transmits.

Your mobile device is designed to comply with local regulatory requirements in your

country concerning exposure of human beings to RF energy.

RF Energy Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF

energy does not exceed the guidelines set forth in the relevant standards, always

follow these instructions and precautions:

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in

accordance with local laws. Contact your local regulatory

authorities for more information.

Do not dispose of your battery or mobile device with your

household waste. See “Recycling” for more information.

For indoor use only.

Listening at full volume to music or voice through a headset may

damage your hearing.

Symbol Definition

032376o

032375o

•

When placing or receiving a phone call, hold your mobile device just like you

would a landline phone.

•

If you wear the mobile device on your body, always place the mobile device in a

Motorola-supplied or approved clip, holder, holster, case, or body harness. If you

do not use a body-worn accessory supplied or approved by Motorola, keep the

mobile device and its antenna at least 2.5 centimeters (1 inch) from your body

when transmitting.

•

Using accessories not supplied or approved by Motorola may cause your mobile

device to exceed RF energy exposure guidelines. For a list of Motorola-supplied

or approved accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external

sources if inadequately shielded, designed, or otherwise configured for RF energy

compatibility. In some circumstances, your mobile device may cause interference

with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do

so.

In an aircraft, turn off your mobile device whenever instructed to do so by airline

staff. If your mobile device offers an airplane mode or similar feature, consult airline

staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or defibrillator,

consult your physician before using this mobile device.

Persons with implantable medical devices should observe the following precautions:

•

ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the

implantable medical device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to minimize the potential

for interference.

•

Turn OFF the mobile device immediately if you have any reason to suspect that

interference is taking place.

Read and follow the directions from the manufacturer of your implantable medical

device. If you have any questions about using your mobile device with your

implantable medical device, consult your healthcare provider.

46a

Specific Absorption Rate Data

SAR Data

This model wireless phone meets the

government’s requirements for exposure to radio

waves.

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed limits for exposure to

radio frequency (RF) energy set by the Federal Communications

Commission (FCC) of the U.S. Government and by the Canadian

regulatory authorities. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on standards that

were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The

standards include a substantial safety margin designed to assure

the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit

of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC and by the Canadian regulatory

authorities is 1.6 W/kg.

Tests for SAR are conducted using

standard operating positions accepted by the FCC and by Industry

Canada with the phone transmitting at its highest certified power

level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual SAR

level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate

at multiple power levels so as to use only the power required to

reach the network. In general, the closer you are to a wireless

base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S.

and Canada, it must be tested and certified to the FCC and Industry

Canada that it does not exceed the limit established by each

government for safe exposure. The tests are performed in

positions and locations (e.g., at the ear and worn on the body)

reported to the FCC and available for review by Industry Canada.

The highest SAR value for this model phone when tested for use at

the ear is 0.28 W/kg, and when worn on the body, as described in

this user guide, is 0.49 W/kg. (Body-worn measurements differ

among phone models, depending upon available accessories and

regulatory requirements).

While there may be differences between the SAR levels of various

phones and at various positions, they all meet the governmental

requirements for safe exposure. Please note that improvements to

this product model could cause differences in the SAR value for

later products; in all cases, products are designed to be within the

guidelines.

length of calls or using a handsfree device to keep the mobile device away from the

head and body.

Additional Information can be found on the Web sites of the World Health

Organization (

http://www.who.int/emf

) or Motorola Mobility, Inc. (

http://

www.motorola.com/rfhealth

Information from the World Health

Organization

WHO Information

“Present scientific information does not indicate the need for any special

precautions for the use of mobile phones. If you are concerned, you may want to

limit your own or your children’s RF exposure by limiting the length of calls or by

using handsfree devices to keep mobile phones away from your head and body.”

Source: WHO Fact Sheet 193

Further information:

http://www.who.int/peh-emf

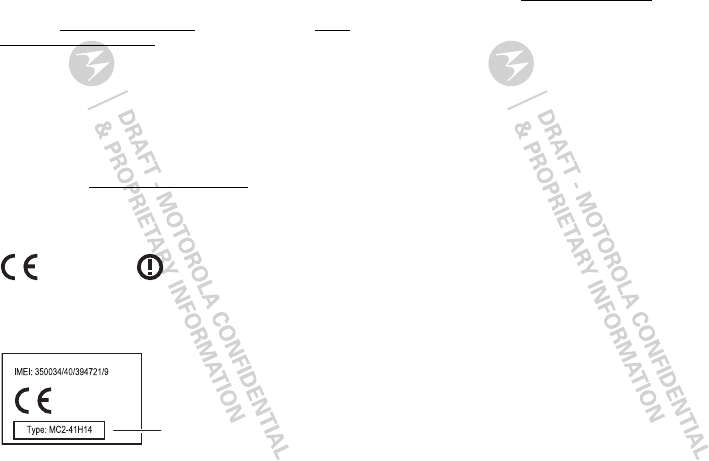

European Union Directives Conformance

Statement

EU Conformanc e

Hereby, Motorola declares that this product is in compliance with:

•

The essential requirements and other relevant provisions of Directive 1999/5/EC

•

All other relevant EU Directives

The above gives an example of a typical Product Approval Number.

0168

[Only Indoor Use Allowed In France

for Bluetooth and/or Wi-Fi]

0168

Product

Approval

Number

You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC

(to R&TTE Directive) at

www.motorola.com/rtte

. To find your DoC, enter the

Product Approval Number from your product’s label in the “Search” bar on the Web

site.

FCC Notice to Users

FCC Notice

The following statement applies to all products that have received FCC

approval. Applicable products bear the FCC logo, and/or an FCC ID in the

format FCC ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user.

Any changes or modifications could void the user’s authority to operate the

equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

GPS & AGPS

Your mobile device can use Global Positioning System (GPS) signals for

location-based applications. GPS uses satellites controlled by the U.S. government

that are subject to changes implemented in accordance with the Department of

Defense policy and the Federal Radio Navigation Plan. These changes may affect

the performance of location technology on your mobile device.

Your mobile device can also use Assisted Global Positioning System (AGPS), which

obtains information from the cellular network to improve GPS performance. AGPS

uses your wireless service provider's network and therefore airtime, data charges,

and/or additional charges may apply in accordance with your service plan. Contact

your wireless service provider for details.

Your Location

Location-based information includes information that can be used to determine the

approximate location of a mobile device. Mobile devices which are connected to a

wireless network transmit location-based information. Devices enabled with GPS or

AGPS technology also transmit location-based information. Additionally, if you use

applications that require location-based information (e.g. driving directions), such

applications transmit location-based information. This location-based information

may be shared with third parties, including your wireless service provider,

applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS

technology in your mobile device to tell the emergency responders your approximate

location.

AGPS has limitations and

might not work in your area

. Therefore:

•

Always tell the emergency responder your location to the best of your ability; and

•

Remain on the phone for as long as the emergency responder instructs you.

Performance Tips

•

Go outside and away from underground locations, covered vehicles, structures

with metal or concrete roofs, tall buildings, and foliage. Indoor performance

might improve if you move closer to windows, but some window sun shielding

films can block satellite signals.

•

Move away from radios, entertainment equipment, and other electronic devices.

Navigation

Navigat ion

When using navigation features, note that mapping information, directions and

other navigational data may contain inaccurate or incomplete data. In some

countries, complete information may not be available. Therefore, you should visually

confirm that the navigational instructions are consistent with what you see. All

drivers should pay attention to road conditions, closures, traffic, and all other factors

that may impact driving. Always obey posted road signs.

Smart Practices While Driving

Drivi ng Safety

Check the laws and regulations on the use of mobile devices and their ac-

cessories in the areas where you drive. Always obey them. The use of these

devices may be prohibited or restricted in certain areas—for example,

handsfree use only may be required. Go to

www.motorola.com/

callsmart

(in English only) for more information.

Your mobile device lets you communicate by voice and data—almost anywhere,

anytime, wherever wireless service is available and safe conditions allow. When

driving a car, driving is your first responsibility. If you choose to use your mobile

device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed

dial, redial and voice dial.

If available, these features help you to place your

call without taking your attention off the road.

• When available, use a handsfree device.

If possible, add an additional layer

of convenience to your mobile device with one of the many Motorola Original

handsfree accessories available today.

• Position your mobile device within easy reach.

Be able to access your

mobile device without removing your eyes from the road. If you receive an

incoming call at an inconvenient time, if possible, let your voicemail answer it for

you.

• Let the person you are speaking with know you are driving; if necessary,

suspend the call in heavy traffic or hazardous weather conditions.

Rain,

sleet, snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving.

Jotting down a

“to do” list or going through your address book takes attention away from your

primary responsibility—driving safely.

• Dial sensibly and assess the traffic; if possible, place calls when your

car is not moving or before pulling into traffic.

If you must make a call while

moving, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be

distracting.

Make people you are talking with aware you are driving and

suspend conversations that can divert your attention away from the road.

• Use your mobile device to call for help.

Dial 911 or other local emergency

number in the case of fire, traffic accident, or medical emergencies (wherever

wireless phone service is available).

• Use your mobile device to help others in emergencies.

If you see an auto

accident, crime in progress, or other serious emergency where lives are in

danger, call 911 or other local emergency number (wherever wireless phone

service is available), as you would want others to do for you.

• Call roadside assistance or a special non-emergency wireless

assistance number when necessary.

If you see a broken-down vehicle

posing no serious hazard, a broken traffic signal, a minor traffic accident where

no one appears injured, or a vehicle you know to be stolen, call roadside

assistance or other special non-emergency wireless number (wherever wireless

phone service is available).

Privacy & Data Security

Privac y & Data Secur ity

Motorola understands that privacy and data security are important to everyone.

Because some features of your mobile device may affect your privacy or data

security, please follow these recommendations to enhance protection of your

information:

• Monitor access

—Keep your mobile device with you and do not leave it where

others may have unmonitored access. Lock your device’s keypad where this

feature is available.

• Keep software up to date

—If Motorola or a software/application vendor

releases a patch or software fix for your mobile device that updates the device’s

security, install it as soon as possible.

• Secure Personal Information

—Your mobile device can store personal

information in various locations including your SIM card, memory card, and

phone memory. Be sure to remove or clear all personal information before you

recycle, return, or give away your device. You can also backup your personal data

to transfer to a new device.

Note:

For information on how to backup or wipe data from your mobile device,

go to

www.motorola.com/support

• Online accounts

—Some mobile devices provide a Motorola online account

(such as MOTOBLUR). Go to your account for information on how to manage the

account, and how to use security features such as remote wipe and device

location (where available).

• Applications

—Install third party applications from trusted sources only.

Applications can have access to private information such as call data, location

details and network resources.

• Location-based information

—Location-based information includes

information that can be used to determine the approximate location of a mobile

device. Mobile phones which are connected to a wireless network transmit

location-based information. Devices enabled with GPS or AGPS technology also

transmit location-based information. Additionally, if you use applications that

require location-based information (e.g. driving directions), such applications

transmit location-based information. This location-based information may be

shared with third parties, including your wireless service provider, applications

providers, Motorola, and other third parties providing services.

• Other information your device may transmit

—Your device may also transmit

testing and other diagnostic (including location-based) information, and other

non-personal information to Motorola or other third-party servers. This

information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may

impact your privacy or data security, please contact Motorola at

privacy@motorola.com

, or contact your service provider.

Use & Care

To care for your Motorola mobile device, please observe the following:

liquids

Don’t expose your mobile device to water, rain, extreme humidity,

sweat, or other liquids. If it does get wet, don’t try to accelerate drying

with the use of an oven or dryer, as this may damage the mobile device.

extreme heat or cold

Avoid temperatures below 0°C/32°F or above 45°C/113°F.

microwaves

Don’t try to dry your mobile device in a microwave oven.

dust and dirt

Don’t expose your mobile device to dust, dirt, sand, food, or other

inappropriate materials.

cleaning solutions

To clean your mobile device, use only a dry soft cloth. Don’t use alcohol

or other cleaning solutions.

shock and vibration

Don’t drop your mobile device.

protection

To help protect your mobile device, always make sure that the battery

compartment and any connector covers are closed and secure.

Recycling

Recycli ng

Mobile Devices & Accessories

Please do not dispose of mobile devices or electrical accessories (such as chargers,

headsets, or batteries) with your household waste, or in a fire. These items should

be disposed of in accordance with the national collection and recycling schemes

operated by your local or regional authority. Alternatively, you may return unwanted

mobile devices and electrical accessories to any Motorola Approved Service Center

in your region. Details of Motorola approved national recycling schemes, and further

information on Motorola recycling activities can be found at:

www.motorola.com/recycling

Packaging & Product Guides

Product packaging and product guides should only be disposed of in accordance with

national collection and recycling requirements. Please contact your regional

authorities for more details.

Software Copyright Notice

Software Copyright Not ice

Motorola products may include copyrighted Motorola and third-party software

stored in semiconductor memories or other media. Laws in the United States and

other countries preserve for Motorola and third-party software providers certain

exclusive rights for copyrighted software, such as the exclusive rights to distribute

or reproduce the copyrighted software. Accordingly, any copyrighted software

contained in Motorola products may not be modified, reverse-engineered,

distributed, or reproduced in any manner to the extent allowed by law. Furthermore,

the purchase of Motorola products shall not be deemed to grant either directly or by

implication, estoppel, or otherwise, any license under the copyrights, patents, or

patent applications of Motorola or any third-party software provider, except for the

normal, non-exclusive, royalty-free license to use that arises by operation of law in

the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of

the Copyright Laws of the United States and other countries. This device is intended

solely for copying non-copyrighted materials, materials in which you own the

are uncertain about your right to copy any material, please contact your legal

advisor.

Open Source Software Information

OSS Information

For instructions on how to obtain a copy of any source code being made publicly

available by Motorola related to software used in this Motorola mobile device, you

may send your request in writing to the address below. Please make sure that the

request includes the model number and the software version number.

MOTOROLA MOBILITY, INC.

OSS Management

600 North US Hwy 45

Libertyville, IL 60048

USA

The Motorola website

opensource.motorola.com

also contains information

regarding Motorola's use of open source.

Motorola has created the

opensource.motorola.com

website to serve as a

portal for interaction with the software community-at-large.

To view additional information regarding licenses, acknowledgments and required

please press Menu Key >

Settings

About Phone

Legal information

Open source licenses

. In addition, this Motorola device may include

self-contained applications that present supplemental notices for open source

packages used in those applications.

Motorola Limited Warranty for the United

States and Canada

Wa rr a n t y

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its

mobile telephones (“Products”), Motorola-branded or certified accessories sold for

use with these Products (“Accessories”), and Motorola software contained on

CD-ROMs or other tangible media and sold for use with these Products (“Software”)

to be free from defects in materials and workmanship under normal consumer usage

for the period(s) outlined below. This limited warranty is a consumer's exclusive

remedy, and applies as follows to new Motorola Products, Accessories, and

Software purchased by consumers in the United States or Canada, which are

accompanied by this written warranty:

Products and Accessories

Products Covered Length of Coverage

Products and Accessories

defined above, unless otherwise

provided for below.

One (1) year

from the date of purchase by

the first consumer purchaser of the product

unless otherwise provided for below.

Decorative Accessories and

Cases.

Decorative covers,

bezels, PhoneWrap™ covers and

cases.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Monaural Headsets.

Ear buds

and boom headsets that transmit

mono sound through a wired

connection.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Products and Accessories

that are Repaired or

Replaced.

The balance of the original warranty or

for ninety (90) days

from the date

returned to the consumer, whichever is

longer.

Exclusions (Products and Accessories)

Normal Wear and Tear.

Periodic maintenance, repair and replacement of parts

due to normal wear and tear are excluded from coverage.

Batteries.

Only batteries whose fully charged capacity falls below 80% of their

rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse.

Defects or damage that result from: (a) improper operation,

storage, misuse or abuse, accident or neglect, such as physical damage (cracks,

scratches, etc.) to the surface of the product resulting from misuse; (b) contact with

liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,

extreme heat, or food; (c) use of the Products or Accessories for commercial

purposes or subjecting the Product or Accessory to abnormal usage or conditions; or

(d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories.

Defects or damage that result

from the use of non-Motorola branded or certified Products, Accessories, Software

or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages resulting from

service, testing, adjustment, installation, maintenance, alteration, or modification in

any way by someone other than Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products.

Products or Accessories with (a) serial numbers or date tags

that have been removed, altered or obliterated; (b) broken seals or that show

evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming

or non-Motorola housings, or parts, are excluded from coverage.

Communication Services.

Defects, damages, or the failure of Products,

Accessories or Software due to any communication service or signal you may

subscribe to or use with the Products Accessories or Software is excluded from

coverage.

Software

Products Covered Length of Coverage

Software.

Applies only to physical defects in the

media that embodies the copy of the software (e.g.

CD-ROM, or floppy disk).

Ninety (90) days

from

the date of purchase.

Exclusions (Software)

Software Embodied in Physical Media.

No warranty is made that the software

will meet your requirements or will work in combination with any hardware or

software applications provided by third parties, that the operation of the software

products will be uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in

physical media (e.g. software that is downloaded from the Internet), is provided “as

is” and without warranty.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price

of any Products, Accessories or Software that does not conform to this warranty. We

may use functionally equivalent reconditioned/refurbished/pre-owned or new

Products, Accessories or parts. No data, software or applications added to your

Product, Accessory or Software, including but not limited to personal contacts,

games and ringer tones, will be reinstalled. To avoid losing such data, software, and

applications, please create a back up prior to requesting service.

How to Obtain Warranty Service or Other

Information

You will receive instructions on how to ship the Products, Accessories or Software,

at your expense, to a Motorola Authorized Repair Center. To obtain service, you must

include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;

(b) a written description of the problem; (c) the name of your service provider, if

USA All Products, Accessories, and Software:

1-800-331-6456

Canada All Products:

1-800-461-4575

TTY

1-888-390-6456

applicable; (d) the name and location of the installation facility (if applicable) and,

most importantly; (e) your address and telephone number.

What Other Limitations are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE

THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS

LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS

PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO

EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF

THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,

SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR

APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR

SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of

incidental or consequential damages, or limitation on the length of an

implied warranty, so the above limitations or exclusions may not apply to

you. This warranty gives you specific legal rights, and you may also have

other rights that vary from state to state or from one jurisdiction to another.

Motorola Mobility, Inc.

Consumer Advocacy Office

600 N US Hwy 45

Libertyville, IL 60048

www.hellomoto.com

1-800-734-5870 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain features, services and applications are network dependent and may not be

available in all areas; additional terms, conditions and/or charges may apply.

Contact your service provider for details.

All features, functionality, and other product specifications, as well as the

information contained in this guide, are based upon the latest available information

and believed to be accurate at the time of printing. Motorola reserves the right to

change or modify any information or specifications without notice or obligation.

MOTOROLA, the Stylized M Logo, MOTOBLUR and the MOTOBLUR logo are

trademarks or registered trademarks of Motorola Trademark Holdings, LLC. The

Bluetooth trademarks are owned by their proprietor and used by Motorola Mobility,

Inc. under license. is a Certification Mark of the Wireless Fidelity Alliance, Inc.

Google, YouTube, Picasa, Gmail, and the Google logo are trademarks of Google, Inc.

Microsoft, Windows, Windows Me, and Windows Vista are registered trademarks

of Microsoft Corporation in the United States and other countries. All other product

or service names are the property of their respective owners.

Caution:

Changes or modifications made in the radio phone, not expressly approved

by Motorola, will void the user’s authority to operate the equipment.

Product ID: Motorola XT806

Manual Number: 68XXXXX428-A

Motorola Mobility P56LA1 CDMA 800/GSM1900 TRANSCEIVER W/BT & WLAN User Manual

Motorola Mobility LLC CDMA 800/GSM1900 TRANSCEIVER W/BT & WLAN Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
