Exhibit 8 Users Manual

APPLICANT MOTOROLA INC. FCC ID: IHDP56LC2

INSTRUCTION MANUAL

A representative version of the user's manual follows:

Exhibit 8

1Congratulations

Congratulations

MOTOROLA JORDAN with MOTOBLUR

Jordan with MOTOBLUR makes it easier than ever to

navigate life by automatically delivering your most

important information to your homescreen, and

enabling you to filter out everything that’s not top

priority.

•Communication proof. The latest version of

MOTOBLUR syncs, streams, backs up & even filters

messages & updates so it’s easier to follow who &

what really matters.

•Everyday proof. It’s water-resistant, dustproof, and

soundproof, with a display that is resistant to impact

and scratch damage.

•Boredom proof. Enjoy browsing and movies on the

3.7” WVGA display, 5MP camera with flash, and all

the apps & games you can download from Android

Market™.

Caution: Before assembling, charging or using your

phone for the first time, please read the important

legal and safety information packaged with your

phone. Once your phone is up and running,

touch Menu > Settings > About phone

>Legal information to read the full information.

•Answers: Touch > Help centre.

You can also flick your home screen left or right to

see the Getting Started and Tips & Tricks widgets.

•Updates: Phone updates, PC software, online help

and more at www.motorola.com/xxxx.

•MOTOBLUR: After you create a MOTOBLUR

account, open it at

www.motorola.com/mymotoblur.

• Accessories: Find accessories for your phone at

www.motorola.com/products.

2Congratulations

Your phone

the important keys & connectors

Note: Your phone might look a little different.

about

n h

about

n h

Trevor Gilley

Black turtleneck

and a beret, and

Jones Lara

just found a bla...

298 minutes away

from cake.

11:35

Web2GoText mess

59º

LONDON

Back Key

Menu Key

To u chscreen

Volume Keys

Touch for menu

options, hold for

touchscreen

keypad.

Microphone

Home Key

Return to the

home screen.

Power Key

Press - sleep.

Hold - on/off.

Micro USB

Connector

Charge or

connect to PC.

Search Key

Touch for text

search, hold for

voice search.

3.5mm

Headset Jack

Contents

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Social networking. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Google Maps™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . 31

Wi-Fi™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

DLNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Memory card & file transfer. . . . . . . . . . . . . . . . . . . 47

Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . 55

3Let’s go

Let’s go

let’s get you up and running

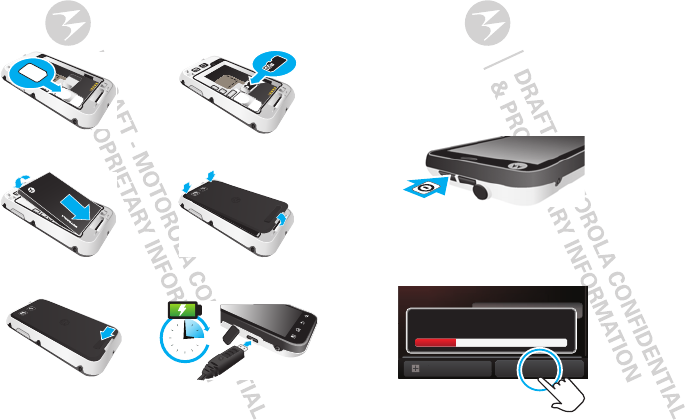

Assemble & charge

Caution: Please read “Battery Use & Safety” on

page 55.

1SIM in 2MicroSD in (may

already be inserted)

3Battery in 4Cover on

5Lock cover 6Charge up

Note: The cover must be locked for the phone to be

water resistant.

Set up & go

Create or log into a MOTOBLUR account to get your

contacts, email, messages, and status information, for

all your accounts, all in one place, all the time. There’s

more in “Your MOTOBLUR account” on page 10.

Registration is secure, and should only take a few

minutes:

1Turn on.

2Select a language.

3Register or log in.

If you have not created

a MOTOBLUR

account, you’ll need to

name, your current

email address (where

MOTOBLUR can send

account information),

and a new

MOTOBLUR account

password.

oose a

angua

Start

Emer

Password

Creating your MOTOBLUR account

4Let’s go

Note: This phone supports data-intensive apps and

services. It is strongly recommended that you

purchase a data plan that meets your needs. Contact

your service provider for details.

Turn it on & off

To turn on your phone, press and hold Power (on

the top of the phone).

To turn off your phone, press and hold Power , then

touch Power off.

4Add your accounts to

MOTOBLUR.

To add an account,

touch it. Then, enter

the user name or email

and password that you

set up on that account.

Tip: For more, or to

add accounts anytime,

go to “Add account”

on page 11.

11:35

Yahoo! MailSkyrock Google

PhotobucketPicasa Bebo

Corporate Sync

Facebook

MySpace

If you use any of the services below,

tap the icon to set it up.

Setup accounts

Last FM

Twitter Email

Lock & unlock

To lock the screen/phone:

•Press Power .

•Let the screen time out (don’t press anything).

To unlock the screen/phone:

•Press Power , then drag right.

If you've set a lock pattern or passcode, you'll be

asked to enter it.

For more security features, see “Security” on page 51.

Wi-Fi connect

If you want to use a Wi-Fi network for even faster

Internet access, touch Menu > Settings

>Wireless & networks > Wi-Fi settings.

Cool content & more

Browse and download from thousands of the coolest

apps on the planet from Android Market™ (see “Apps

for all” on page 30).

Your phone comes with a microSD memory card

installed—you can load it up with photos, videos, and

music from your computer using “Memory card & file

transfer” on page 47.

5Let’s go

Security

Your contacts are backed-up on MOTOBLUR, so don’t

worry. Even if you lose your phone, MOTOBLUR can

help you find it or wipe it. And when you get your next

MOTOBLUR product, your stored info makes it a snap

to set up with just a username and password.

Of course it doesn't stop there. There are plenty of

ways to protect your phone and your information,

in “Security” on page 51.

Rugged

JORDAN with MOTOBLUR is dustproof and

splash-proof because accidents happen. Now your

investment is safe and protected from life’s little

challenges like the odd coffee spill, that sudden rain

shower and other everyday mishaps.

Of course, your phone isn’t indestructible, so

remember to follow these important points:

•Always make sure that the battery compartment

and connector covers are closed and secure.

•Avoid prolonged or extreme exposure to rugged

conditions.

And finally, the details. Your phone will resist damage

from exposure to the following rugged conditions:

high/low temperatures, water, blowing rain, humidity,

salt fog, dust, shock, vibration, and low pressure (high

altitude).

6Touchscreen & keys

Touchscreen & keys

a few essentials

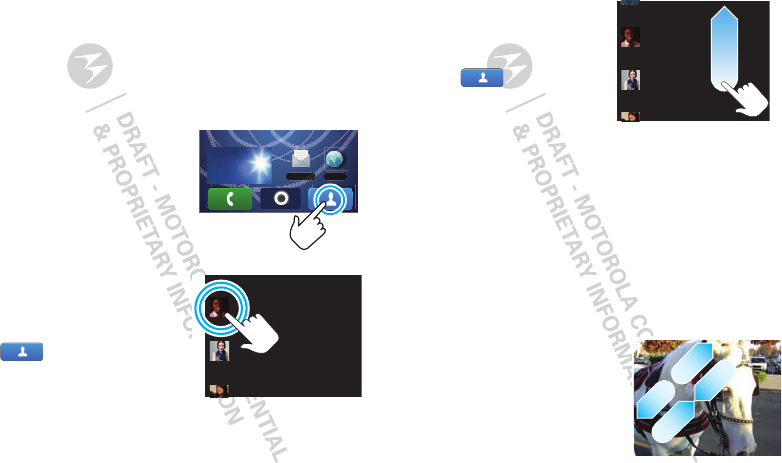

Touch tips

Here are some tips on how to navigate around your

phone.

To u ch

To choose an icon or

option, touch it.

Touch & hold

To open special options,

touch and hold an icon or

other item. Try it: From

the home screen, touch

Contacts, then

touch and hold a contact

to open options.

Web2Go

59º

LONDON

Text mess

Wallace Mans

Jennie Jenkins

Leo Heaton

Drag

To scroll through a list or

move slowly, drag across

the touchscreen. Try it:

From the home screen,

touch Contacts,

then drag your Contacts

list up or down.

Tip: When you drag or flick

a list, a scroll bar appears on the right. Drag the scroll

bar to move the list to a letter A - Z.

Flick

To scroll through a list or move quickly, flick across the

touchscreen (drag quickly and release).

Tip: When you flick a long list, touch the screen to stop

it from scrolling.

Pinch-to-zoom

Get a closer look at maps,

web pages, or photos. To

zoom in, touch the screen

with two fingers and then

slide them apart. To zoom out,

drag your fingers together.

Rick Wasser

Wallace Mans

Jennie Jenkins

LHt

7Touchscreen & keys

Key tips

Menu, home, back & search

Touch Home to close any menu or app and return

to the home screen.

From the home screen, touch and hold Home to

show the last few apps you used, then touch an app to

open it.

Touch Menu to open menu options, or touch

Back to go back.

Touch Search for text search, or touch and hold for

search.

Sleep & wake up

To save your battery, prevent accidental touches, or

when you want to wipe smudges off your

touchscreen, put the touchscreen to sleep by pressing

Power . To wake up the touchscreen, just press

Power .

To change how long your phone waits before the

screen goes to sleep automatically, touch Menu

>Settings > Sound & display > Screen timeout.

Tip: To make the screen lock when it goes to sleep,

use “Security lock” on page 51.

Power key menu

Press and hold Power to open the power key

menu, where you can turn off the phone (Power off),

or turn Fl ight mode or Silent mode on or off.

Adjust volume

Press the volume keys to change the ring volume

(from the home screen), the earpiece volume (during a

call), or the media volume (when listening to music or

watching a video clip).

8Home screen

Home screen

quick access to the things you need most

Quick start: Home screen

The home screen gives you all your latest information

in one place. It’s what you see when you turn on the

phone or touch Home from a menu. It’s basically

like this:

Note: Your home screen might look a little different.

11:35

Web2Go

59º

LONDON

Text mess

about an hour

298 minutes away

from cake.

Trevor Gilley

Black turtleneck

and a beret, and

Jones Lara

just found a bla...

Phone status

& notifications

Widgets

See your latest updates,

and more.

Flick left or right to

open more panels.

Shortcuts

Touch to open.

Flick down to see details.

Open the main menu.

Social status widget

Tell your friends what

you’re up to.

Use & change your home screen

On your home screen, shortcuts are icons that you

touch to open your favorite apps, Web bookmarks,

contacts, or music playlists. Widgets show you news,

weather, messages, and other updates.

Flick the home screen left or right to open other panels

of shortcuts and widgets.

•To open something, touch it. Touch Home to

return to the home screen.

•To change a widget’s settings, open it and then

touch Menu > Settings.

Tip: For each Messages or Happenings widget,

you can choose the accounts you want to show.

There’s more about social networking widgets in

“View account updates & features” on page 11 and

“Update your status” on page 11.

•To resize a widget, touch

and hold the widget until

you feel a vibration, then

drag to resize. Arrows

appear in the corners of

the widget. Drag the

arrows to resize.

Kristine Kelley

Not even ready to

go back to school

10 minutes ago

Kristine Kelle

iti Kll

Not even rea

back to schoo

nutes a

9Home screen

•To add something or change your wallpaper, touch

and hold an empty spot until you see the Add to

Home screen menu.

You can add a folder to organize your shortcuts.

•To move or delete something, touch and hold it

until you feel a vibration, then drag it to another

spot, another panel, or the trash on the lower right

of the screen.

Running multiple apps

No need to close an app before opening another one.

Your phone runs multiple apps, all at once.

You can open a new app while already running another.

Touch Home to return to the home screen. Touch

the app tab and then touch the app you want. To

switch from one running app to another, touch and

hold Home to see what apps are already open,

then touch the one you want. You can view up to the

last six apps that you ran.

To search, touch Search .

Notifications & phone status

At the top of the screen, icons on the left notify you

about new messages or events. Icons on the right tell

you about phone status.

Notifications

To access a message, email or meeting reminder

directly from the status bar, drag the status bar down

and touch the notification.

Touch the icon, then speak

for a voice search.

Type, then touch the icon for

a text search.

Alex Pico

Meeting

What time are we going out?

10:32

10:30 10:32

T-Mobile

10:30

Clear

Notifications

Alex Pico

Meeting

What time are we going out?

10:35

8 September 2010

8 September 2010 :35

10 Social networking

Tip: To see today’s date, touch and hold the status bar

at the top of the screen.

Status indicators

App menu

The app menu shows you all of your applications. To

open it from the home screen, touch the app tab. To

close it, touch the app tab again or touch Home .

Tip: To find an app in the main menu, touch and hold

Menu to open a display keypad, then type the app

name.

Bluetooth active network (full signal)

GPS active network (roaming)

Wi-Fi active downloading

volume voicemail message

vibrate 3G (fastest data)

silent flight mode

mute call battery (charging)

signal (roaming) battery (full charge)

speakerphone active alarm set

GPRS (fast data) EDGE (faster data)

Social networking

my life, your life

Your MOTOBLUR account

The first time you turned on your phone, you

registered for a MOTOBLUR account that manages

your messages, contacts, and more (“Set up & go” on

page 3). You can log into this account from a PC to

upload contacts, reset your password, get help, or

even locate your phone:

www.motorola.com/mymotoblur

What is MOTOBLUR?

MOTOROLA JORDAN with MOTOBLUR is a phone

with social skills.

Now, the only service that can sync all your friends,

emails, messages, and Facebook®, MySpace, Twitter

feeds and happenings with continuous updates and

back-ups, along with the ability to remotely locate and

wipe your phone if it is ever lost or stolen, just got

better.

Introducing the latest MOTOBLUR. MOTOBLUR

offers new features that give you more control,

including customizable filters that let you view your

messages and happenings any way you like, the ability

to move and resize preloaded widgets, and new ways

to manage your Battery Life.

11Social networking

Update your status

After you add a social networking account, you can

update and see your current status in a Social Status

widget on your home screen.

To update your status, just touch your Social Status

widget and enter text. If you have more than one

account, you can use the pull-down menu to limit

which accounts are updated. If you don’t see a Social

Status widget, flick your home screen left or right to

check all panels.

To add a Social Status widget:

1Touch and hold an empty spot on your home screen

to open the Add to Home screen menu.

2Tou ch Motorola widgets > Social status. The

widget appears in the empty spot, and will show

your status the next time your phone updates from

the network.

Add account

If you skipped setting up a MOTOBLUR account when

you first turned on your phone, you’ll need to set up a

MOTOBLUR account before you can add other

accounts. From your home screen, touch Set up Your

Blur account and follow the steps in “Set up & go” on

page 3.

Note: You can add your Facebook, MySpace, Twitter,

or other accounts to your phone. If you don’t have

accounts, you can visit their Web sites to set them up.

Find it: Menu > Settings > Accounts > Add

account

To sign into your account, use the user name or email

and password that you set up on that account (the

same as on your PC).

When you sign into social networking accounts, you’ll

see your friends and contacts in your Contacts list,

and your status and updates can appear in Social

Status and Happenings widgets.

Note: Twitter and MySpace messages will always

appear as “read” on your phone, but your phone

notifies you when you receive a new message.

MySpace marks your messages as “read” online.

For email accounts, see “Gmail™” on page 20.

Tip: To download updates faster, use “Wi-Fi™” on

page 33.

View account updates & features

After you add a social networking account, you can see

and respond to friends’ updates with the Happenings

widget on your home screen. If you don’t see one, set

one up in “Widgets” on page 38.

12 Calls

When you touch the Happenings widget to open an

update, you can touch on the social network’s icon to

open its Web site.

Note: Your network or other factors might affect the

speed of widget updates.

Edit & delete accounts

Find it: Menu > Settings > Accounts

Touch and hold an account, then touch Open account

to edit it, or touch Remove account to remove it

(along with its contacts and messages).

Calls

it’s good to talk

Quick start: Calls

Dialing options

Find it: Dialer

11:35

Recent

Dialer

123

456

789

ABC DEF

GHI JKL MNO

TUVPQRS WXYZ

FavouritesContacts

Delete

Voice Dial

Call

Enter a number, and touch

here to call it.

Favourites

Touch to open frequent calls,

then touch an entry to call.

Recent Calls

Touch to open, then touch an

entry to call.

Touch to delete a digit you

entered.

Add a Contact

Open Your Contacts

13Calls

In-call options

During a call, touch Menu to choose Hold, or to

adjust the Voice Qual ity settings. Your touchscreen

goes dark to avoid accidental touches. To wake it up,

press Power .

Tip: You can touch Home or Back to hide the

active call display. To reopen it, touch Dialer.

11:35

Connecting

Add call

Bluetooth

Clair McPhail

Mute

Dial padEnd call

Speaker

Mobile (555) 555-2505

End Call

Hang up.

Mute

Mute or unmute the call.

Dial Pad

Open a dial pad, to enter numbers

during a call.

Speakerphone

Turn speakerphone on or off.

Make & answer calls

To make a call, touch Dialer, enter a number,

then touch .

Tip: To enter an international dialing code, touch and

hold . To Add pause or Add wait after numbers,

touch Menu .

To answer a call when the

screen is locked, drag answer to

the right.

End calls

To u ch End call.

Voicemail

Find it: Dialer >

Add a contact

Find it: Dialer > enter phone number >

Favourites

Find it: Dialer >Favourites

•To call a number, touch it.

•To clear entries, touch Menu > Clear frequent

list

End call

14 Calls

Speed dial

Find it: Dialer >Menu >

Speed dial setup

•To assign a contact, touch a number. To remove a

contact from a speed dial, touch

•To use the speed dial number, touch Dialer,

enter a number, then touch Cal l.

Handsfree

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal.

Always obey the laws and drive safely.

During a call:

•To use the speakerphone, touch Speaker.

•To use a Bluetooth™ device, touch Bluetooth.

Mute & hold

During a call:

•To mute the current call, touch Mute.

•To put a call on hold, touch Menu > Hold.

Enter numbers during a call

To enter numbers during a call, touch and then

touch the dial pad.

Conference calls

To start a conference call, call the first number. After

they answer, touch Add call and call the next number.

When the next number answers, touch Menu >

Join.

Your phone number

Find it: From the home screen, touch Menu >

Settings > About phone > Status > My phone

number

Your caller ID

To hide your number from the people you call, from the

home screen touch Menu > Settings > Call

settings > Additional settings > Caller ID.

Call forwarding & waiting

You can forward calls all the time or only when your

phone is busy, unanswered, or unreachable (not on the

network):

Find it: From the home screen, touch Menu >

Settings > Call settings > Cal l forwarding

When you’re on a call and a second call comes in, Cal l

waiting lets you answer it by touching Answer. You

can turn off Call waiting to send second calls straight

to your voicemail:

15Calls

Find it: From the home screen, touch Menu >

Settings > Call settings > Additional settings >

Call waiting

Restrict outgoing calls

To restrict your phone so that it can only dial a few

numbers:

Find it: From the home screen, touch Menu >

Settings > Call settings > Fixed diall ing number

•To turn fixed dialing on, touch FDN disabled.

•To add or delete the allowed numbers,

touch Manage FDN list.

Emergency calls

Note: Your service provider programs one or more

emergency phone numbers (such as 911 or 112) that

you can call under any circumstances, even when your

phone is locked. Emergency numbers vary by country.

Your pre-programmed emergency number(s) may not

work in all locations, and sometimes an emergency

call cannot be placed due to network, environmental,

or interference issues.

1To u ch Dialer (if your phone is locked,

touch Emergency call or touch Menu >

Emergency call).

2Enter the emergency number.

3To u ch Call to call the emergency number.

Note: Your mobile device can use AGPS satellite

signals to help emergency services find you (see “GPS

& AGPS” on page 59).

16 Contacts

Contacts

contacts like you’ve never had before

Quick start: Contacts

Find it: Contacts

Tip: To search the list, touch Menu > Search, then

type a name. When you flick or drag this list, a scroll

11:35

Contacts: A-Z

Arthur Baudo

Barry Smyth

Cheyenne Medina

Christine Fanning

Jim Somers

Kat Bleser

Kristin Cullen

Contacts: All contacts

Group

Touch to select a group to

show.

Contacts List

Touch to view a contact.

Touch & hold to send email,

delete, and more.

Create a contact.

Touch Menu to select a Hide/show contacts,

My info and more.

Flick left or right to change views.

bar appears on the right. Drag the scroll bar to move

the list faster.

Import contacts from your SIM

Note: You might have already done this during “Set up

& go” on page 3.

If you need to import the contacts from your SIM card,

touch Contacts, then touch Menu > More

> Settings > Manage SIM card > Import SIM card.

Call, text, or email contacts

Find it: Contacts

For View contact, Send email, Delete contact or

Hide contact touch and hold the contact.

View & use contacts

With a MOTOROLA JORDAN with MOTOBLUR, you’ll

know what everybody’s up to and when. Every time

you pick up a call, check a message, or look up a

friend’s contact info, sure, you’ll see their name and

number, but you’ll see their social network status and

smiling face, too.

Find it: Contacts

•To filter the contacts by group (Al l contacts,

Facebook, and so on) touch Menu > Display

group.

17Contacts

Tip: To change which account provides the pictures

for your Contacts, from the home screen

touch Menu > Settings > Accounts >

Menu > Picture source.

•To find a contact, just type the name.

Touch a contact to open their details. To start a call

or message, just touch their phone number or other

info.

•To change the list view to History (recently used),

A-Z (list without status), or Status (list with status),

flick the screen to the left or right.

•To send a contact’s details in a message or over a

Bluetooth connection, touch and hold the contact,

then choose Share contact.

Edit or delete contacts

Find it: Contacts

Touch the contact, then touch Menu > Edit or

Delete. You can set a ringer, address, and other details

that will be saved on your phone and your MOTOBLUR

account.

Where are contacts edited or deleted? Your phone

edits the contacts in its memory, and also updates

your MOTOBLUR account. Your changes won’t affect

your SIM card.

Link contacts

You might have two Contacts for the same person,

maybe a Facebook friend who is also stored on your

SIM card, or one friend with two email addresses. To

combine these two contacts:

Find it: Contacts

Touch a contact to open it, then touch Menu >

Link contact and touch the second entry. Your

MOTOBLUR account remembers this connection.

Create contacts

Find it: Contacts > Menu > Add contact

Type the name and details.

When you’re finished, touch Save.

11:35

Add contact

Phone

Emails

Given name

amily nam

Save Discard changes

To see more details, flick up.

Touch to

open details.

18 Contacts

Where are contacts saved? Your phone saves new

contacts in its memory, your MOTOBLUR account,

and other accounts you select: In Contacts,

touch Menu > More > Settings to choose which

accounts get updated. New contacts won’t be on your

SIM card, but they will download to any new

MOTOBLUR phone when you log into your

MOTOBLUR account.

Synchronize contacts

When you change one of your Contacts, your phone

automatically updates your MOTOBLUR account

online. Also, your phone updates your Contacts and

MOTOBLUR account whenever you change a friend in

your social networking accounts.

So, you don’t have to do anything to synchronize your

Contacts with your other accounts! MOTOBLUR

takes care of it for you.

My details

Find it: Contacts > Menu > My info

To edit details, touch them.

Groups

You can put your Contacts into groups that you create

(like “friends,” “family,” or “work”). Then, you can find

contacts faster by showing one group at a time.

To create a group in your Contacts, touch Menu >

Display group > Create new group. Enter a group

name, then touch Add to add members.

To show only one group in your Contacts, touch

Contacts at the top of your screen and choose the

group name.

19Messaging

Messaging

sometimes it’s best to text, or IM, or email . . .

Quick start: Messaging

Find it: > Messaging > Universal Inbox

Tip: To see more messages, flick or drag up.

Read & reply to messages

Every text, email, friend-feed, wall post, and bulletin is

automatically delivered to you, ready for your

11:35

Great news, congratulations!

16:16

Universal Inbox

Hi. Meet at my house at...

8 Jul

John Harris

Summer news

Hope all is well. I’m currently the ...

1 Jul

It’s only a freelance gig, but it pays...

20 Jun

Martin Cairney

Good to hear from you...

6 Jul

Brendon Ansell

Message List

Touch to open a message.

Touch & hold to delete, and

more.

Touch to select multiple messages to move, delete, and more.

Or,

touch Menu > Select all or Deselect all.

Create a message.

Check for messages now.

Alex Pico

Keith Zang

immediate reply. The best part is you don’t have to dig

through any apps, screens or menus—every message

streams right to the phone, viewable exactly the way

you want. That’s the magic of MOTOBLUR.

Find it: > Messaging > Universal Inbox

Note: Universal Inbox shows all of your messages

together—text, email, and social networking

messages. To show only one type of message, touch a

message account type instead of Universal Inbox.

•To open a message and all of its replies, touch it.

•To respond to a message, just open it and enter

your response in the text box at the bottom.

•To open options, touch the checkbox next to the

message.

Tip: Add the Messages widget to your home screen,

see “Widgets” on page 38.

Create messages

Find it: > Messaging >

Choose a message type. Then, enter the recipient and

message. In text messages and emails, touch

Menu to add files or choose other options.

Send & receive attachments

To send a file in a message, open a new message,

touch Menu > Insert, and choose the file.

20 Messaging

When you receive a message with an attachment,

open the message and touch the file name to

download it. Then, touch the name again to open it.

Some file formats can be converted to HTML for faster

viewing, and your phone will show a button that

says Get HTML version.

Tip: To send and receive large attachments faster, use

a Wi-Fi connection, in “Wi-Fi™” on page 33.

Set up messaging

To add email accounts, from the home screen

touch Menu > Settings > Accounts > Add

account.

•Corporate Sync is for Exchange server work email

accounts. Enter details from your IT administrator.

Tip: You might need to enter your domain name

with your user name (like domain/username).

Note: Some work accounts might require you to

add a password lock to your phone, for security. To

stop an account from showing the contacts you

create on your phone, touch Contacts,

touch Menu > More > Settings, then uncheck

the account under New contacts.

•Email is for most personal email accounts. It is

really easy to set up and you can set up more than

one. For account details, contact the account

provider.

Note: While you are using a Wi-Fi network, you

cannot access Yahoo Mail accounts. You can still

use your browser to see these accounts at

mail.yahoo.com.

To change your account settings, from the home

screen touch > Messaging > Menu >

Manage accounts

Gmail™

To get Gmail™ in your Messages widget and

Universal Inbox, you’ll need to add it as an Email

account: Touch > Messaging > Menu ,

then touch Manage accounts > Add account >

Email and enter your Gmail™ details. If you added

your Google account too, turn off its email sync to

avoid duplicate email notices: Touch >

Accounts, touch your Google™ account, and touch the

checkmark to turn off Gmail.

Tip: For social network accounts, see “Add account”

on page 11.

Instant messages

To send and receive instant messages, you can use an

instant messaging app or your browser.

21Text entry

•To download and use an instant messaging app,

touch > Market > Appl ications >

Communication, then choose an app for your

provider. Once you download the app, you’ll see it in

“App menu” on page 10.

•If you don’t see an app for your IM provider, you can

use your Web browser. Touch > Browser,

then enter your provider’s Web site. Once you’re

there, follow the link to sign in.

Note: Your IM options will depend on your IM provider.

To browse instant messaging apps from your PC, go to

www.android.com/market.

Voicemail

When you have a new voicemail, shows at the top

of your screen. To hear the voicemail,

touch Dialer > .

If you need to change your voicemail number, from the

home screen touch Menu > Settings > Call

settings > Voicemail settings.

Tex t e n t ry

keys when you need them

Touchscreen keypad

You can open a display keypad by touching a text field.

To close the keypad, touch Back .

DEL

. ,

bvcxz

kljhgfdsa

qw e r t y u i o p

?123

Delete

Symbols/Numbers

Shift

Next Line

Space

Voice recognition

Touch this, then speak the recipient’s

name or the text message.

Touch & hold, then select Input

Method > Swype to switch to Swype

mode.

22 Text entry

Typing tips

To change your text entry settings and see the

dictionary of terms you’ve used, from the home

screen touch Menu > Settings > Language &

keyboard.

Text entry settings

When you use the touchscreen keypad, your phone

suggests words from your dictionary and chosen

To...

Enter a capital letter Touch Shift .

Enter only capital letters Touch Shift

twice.

Cut, Copy or Paste text you

selected

Touch and hold the

text box to open the

editing menu

Delete a character

(hold to delete more)

To u ch D e l e t e

Enter numbers and symbols Touch

Start a new line Touch

DEL

?123

language. Your phone also automatically enters

apostrophes in some words, like “dont.”

Find it: From the home screen, touch Menu >

Settings > Language & keyboard

•To edit your dictionary, touch User dictionary.

•To change the language and the style for your

touchscreen keypad, touch Select locale.

•To change the sounds, corrections, automatic

correction settings, and other settings for your

touchscreen keypad, touch Multi-touch keyboard.

23Text entry

Swype™ text entry

Swype lets you enter a word with one continuous

motion. To enter a word, just drag your finger over the

letters in the word.

How do I turn Swype on/off? Touch and hold >

Input method > Swype to turn it on. From the home

EN @ # 1 2 3 _%()

!7890 /?

SDFGH J K

SYM

XCVBNM

‘

ERTYUIOP

&$456

:;“

EN @ # 1 2 3 _%()

!7890 /?

SDFGH J K

SYM

XCVBNM

‘

ERTYUIOP

&$456

:;“

EN @ # 1 2 3 _%()

!7890 /?

SDFGH J K

SYM

XCVBNM

‘

ERTYUIOP

&$456

:;“

For double

letters,

circle the

letter.

capitalize,

go above

the keypad.

book

Who

day

?123

screen, touch Menu > Settings > Language &

keyboard > Input method > Multi-touch keyboard

to turn it off.

To change your Swype settings, touch Menu >

Settings > Language & keyboard > Swype.

Tips:

•To enter apostrophes in common words (like “I’ll”),

drag through the n as though it was an apostrophe.

•To enter several symbols, touch SYM.

•To correct a word, double-tap it. Swype shows a

small menu of other word options. Swype might

also show a menu if it can’t guess your word.

•If Swype doesn’t know a word, you can still touch

the letter keys to enter it. Swype remembers, so

next time you can just drag over the letters.

24 Web

Web

surf the web with your phone

Quick start: Browser

Find it: > Browser

Note: If you can’t connect, contact your service

provider.

Connect

Your phone uses the mobile phone network (over the

air) to automatically connect to the Web.

New window

iGoogle

Guildford

Settings Help

Refresh

Bookmarks

Forward

Windows

http://www.google.c..

11:35

Touch Menu for options.

Drag or flick to scroll.

Connection

Over the air:

Mobile Network: , ,

Wi-Fi:

Web Address

Touch to enter a URL.

Note: Your service provider may charge to surf the

Web or download data.

To use a wireless network, from the home screen

touch Menu > Settings > Wireless & networks.

To u ch Wi-Fi to turn it on, then touch Wi-Fi settings to

search for nearby wireless networks. Touch a network

to connect. There’s more in “Wi-Fi™” on page 33.

Web touch tips

Zoom & magnify

In Web pages, use double-touch to zoom in/out. You

can also use pinch-to-zoom to zoom in/out, see

“Pinch-to-zoom” on page 6.

Select links

When you touch a link, your

phone outlines it. If you

touch and hold the link, your

phone shows options, like Open in new window or

Bookmark l ink.

Android | Official Website

Official site for the development of the open source

project. Provides a directory of applications and links

to download the source ..

www.android.com/ - Options

we’re here to help

Crash recovery

In the unlikely event that your phone stops responding

to touchs and key presses, try a quick reset. Remove

the back cover and battery (“Assemble & charge” on

page 3), then replace and turn on your phone as usual.

Service & repairs

If you have questions or need assistance, we’re here

to help.

Go to www.motorola.com/support, where you can

select from a number of customer care options. You

can also contact the Motorola Customer Support

Center at 1-800-331-6456 (United States),

1-888-390-6456 (TTY/TDD United States for hearing

impaired), or 1-800-461-4575 (Canada).

Safety, Regulatory & Legal

Battery Use & Safety

Battery Use & Safet y

Important: Handle and store batteries properly to avoid injury or damage.

Most battery issues arise from improper handling of batteries, and particularly from

the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to

change the form of your battery.

• Don’t let the mobile device or battery come in contact with water.*

Water

can get into the mobile device’s circuits, leading to corrosion. If the mobile device

and/or battery get wet, have them checked by your service provider or contact

Motorola, even if they appear to be working properly.*

• Don’t allow the battery to touch metal objects.

If metal objects, such as

jewelry, stay in prolonged contact with the battery contact points, the battery

could become very hot.

• Don’t place your mobile device or battery near a heat source.*

Excessive

heat can damage the mobile device or the battery. High temperatures can cause

the battery to swell, leak, or malfunction. Therefore:

• Don’t dry a wet or damp battery with an appliance or heat source

, such as

a hair dryer or microwave oven.

DOs

• Do avoid leaving your mobile device in your car in high temperatures.*

• Do avoid dropping the battery or mobile device.*

Dropping these items,

especially on a hard surface, can potentially cause damage.*

• Do contact your service provider or Motorola if your mobile device or

battery has been damaged from dropping or high temperatures.

* Note:

Always make sure that the battery compartment is closed and secure to

avoid direct exposure of the battery to any of these conditions.

Important: Use Motorola Original products for quality assurance and

safeguards.

To aid consumers in identifying authentic Motorola batteries from

non-original or counterfeit batteries (that may not have adequate safety protection),

Motorola provides holograms on its batteries. Consumers should confirm that any

battery they purchase has a “Motorola Original” hologram.

Motorola recommends you always use Motorola-branded batteries and

chargers.

Motorola mobile devices are designed to work with Motorola batteries.

If you see a message on your display such as

Inval id Battery

Unable to Charge

, take the following steps:

•

Remove the battery and inspect it to confirm that it has a “Motorola Original”

hologram;

•

If there is no hologram, the battery is not a Motorola battery;

•

If there is a hologram, replace the battery and try charging it again;

•

If the message remains, contact a Motorola authorized service center.

Important:

Motorola’s warranty does not cover damage to the mobile device caused

by non-Motorola batteries and/or chargers.

Warning:

Use of a non-Motorola battery or charger may present a risk of fire,

explosion, leakage, or other hazard.

Proper and safe battery disposal and recycling:

Proper battery disposal is not

only important for safety, it benefits the environment. Consumers may recycle their

used batteries in many retail or service provider locations. Additional information on

proper disposal and recycling may be found on the Web:

•

www.motorola.com/recycling

•

www.rbrc.org/call2recycle/

(in English only)

Disposal:

Promptly dispose of used batteries in accordance with local

regulations. Contact your local recycling center or national recycling

organizations for more information on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because they may explode.

Battery Charging

Notes for charging your product’s battery:

•

When charging your battery, keep it near room temperature. Never expose

batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when

charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long time may take more time to charge.

032375o

•

Motorola batteries and charging systems have circuitry that protects the battery

from damage from overcharging.

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel

of a vehicle. Using a mobile device or accessory for a call or other application while

driving may cause distraction. Using a mobile device or accessory may be prohibited

or restricted in certain areas, always obey the laws and regulations on the use of

these products.

While driving, NEVER:

•

Type or read texts.

•

Enter or review written data.

•

Surf the web.

•

Input navigation information.

•

Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

•

Keep your eyes on the road.

•

Use a handsfree device if available or required by law in your area.

•

Enter destination information into a navigation device

before

driving.

•

Use voice activated features (such as voice dial) and speaking features (such as

audible directions), if available.

•

Obey all local laws and regulations for the use of mobile devices and accessories

in the vehicle.

•

End your call or other task if you cannot concentrate on driving.

Remember to follow the “Smart Practices While Driving” in this guide and at

www.motorola.com/callsmart

(in English only).

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to

flashing lights, such as when playing videos or games. These may occur even if a

person has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such

occurrences, please consult with your physician before playing videos or games or

enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur:

convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or

disorientation. It is always a good idea to hold the screen away from your eyes,

leave the lights on in the room, take a 15-minute break every hour, and stop use if

you are tired.

Caution About High Volume Usage

Warning:

Exposure to loud noise from any source for extended

periods of time may affect your hearing. The louder the volume sound

level, the less time is required before your hearing could be affected.

To protect your hearing:

•

Limit the amount of time you use headsets or headphones at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness

in your ears, ringing in your ears, or muffled speech, you should stop listening to the

device through your headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at

direct.motorola.com/hellomoto/nss/AcousticSafety.asp

(in English

only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering

finger-written characters, you may experience occasional discomfort in your hands,

arms, shoulders, neck, or other parts of your body. If you continue to have discomfort

during or after such use, stop use and see a physician.

[Nov0109]

Small Children

Keep your mobile device and its accessories away from small children.

These products are not toys and may be hazardous to small children. For example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing hearing injury.

•

Improperly handled batteries could overheat and cause a burn.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if

the product is dropped on a hard surface or receives a substantial impact. If glass

breaks, do not touch or attempt to remove. Stop using your mobile device until the

glass is replaced by a qualified service center.

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not always, posted and

can include fueling areas, such as below decks on boats, fuel or chemical transfer or

storage facilities, or areas where the air contains chemicals or particles, such as

grain dust, or metal powders.

When you are in such an area, turn off your mobile device, and do not remove,

install, or charge batteries. In such areas, sparks can occur and cause an explosion

or fire.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in

accordance with local laws. Contact your local regulatory

authorities for more information.

032374o

032376o

032375o

Radio Frequency (RF) Energy

Exposure to RF Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives

and transmits RF energy. When you communicate with your mobile device, the

system handling your call controls the power level at which your mobile device

transmits.

Your mobile device is designed to comply with local regulatory requirements in your

country concerning exposure of human beings to RF energy.

RF Energy Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF

energy does not exceed the guidelines set forth in the relevant standards, always

follow these instructions and precautions:

•

When placing or receiving a phone call, hold your mobile device just like you

would a landline phone.

•

If you wear the mobile device on your body, always place the mobile device in a

Motorola-supplied or approved clip, holder, holster, case, or body harness. If you

do not use a body-worn accessory supplied or approved by Motorola, keep the

mobile device and its antenna at least 2.5 centimeters (1 inch) from your body

when transmitting.

Do not dispose of your battery or mobile device with your

household waste. See “Recycling” for more information.

For indoor use only.

Listening at full volume to music or voice through a headset may

damage your hearing.

Symbol Definition

•

Using accessories not supplied or approved by Motorola may cause your mobile

device to exceed RF energy exposure guidelines. For a list of Motorola-supplied

or approved accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external

sources if inadequately shielded, designed, or otherwise configured for RF energy

compatibility. In some circumstances, your mobile device may cause interference

with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do

so.

In an aircraft, turn off your mobile device whenever instructed to do so by airline

staff. If your mobile device offers an airplane mode or similar feature, consult airline

staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or defibrillator,

consult your physician before using this mobile device.

Persons with implantable medical devices should observe the following precautions:

•

ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the

implantable medical device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to minimize the potential

for interference.

•

Turn OFF the mobile device immediately if you have any reason to suspect that

interference is taking place.

Read and follow the directions from the manufacturer of your implantable medical

device. If you have any questions about using your mobile device with your

implantable medical device, consult your healthcare provider.

Specific Absorption Rate (IEEE)

SAR (IEEE)

Your model wireless phone meets the governmental

requirements for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed and

manufactured to not exceed limits for exposure to radio frequency (RF) energy set by

the Federal Communications Commission (FCC) of the U.S. Government and by the

Canadian regulatory authorities. These limits are part of comprehensive guidelines

and establish permitted levels of RF energy for the general population. The

guidelines are based on standards that were developed by independent scientific

organizations through periodic and thorough evaluation of scientific studies. The

standards include a substantial safety margin designed for the safety of all persons,

regardless of age or health, and to account for any variations in measurements.

The exposure standard for mobile devices employs a unit of measurement known as

the Specific Absorption Rate (SAR). The IEEE SAR limit set by the FCC and by the

Canadian regulatory authorities is 1.6 watts per kilogram (W/kg), averaged over one

gram of tissue. Tests for SAR are conducted using procedures accepted by the FCC

and by Industry Canada with the mobile device transmitting at its highest certified

power level in all tested frequencies. Although the SAR is determined at the highest

certified power level, the actual SAR level of the mobile device while operating can

be below the maximum value. This is because the mobile device is designed to

operate at multiple power levels so as to use only the power required to reach the

network. In general, the closer you are to a wireless base station, the lower the

power output.

Before a mobile device is available for sale to the public in the U.S. and Canada, it

must be tested and certified to the FCC and Industry Canada that it does not exceed

the limit established by each government for safe exposure. The tests are performed

in positions and locations (e.g., at the ear and worn on the body) submitted to the

FCC and available for review by Industry Canada. The highest SAR value for this

mobile device when tested for use at the ear is 1.59 W/kg, and when worn on the

body, as described in this guide, is 0.72 W/kg. Body-worn measurements can differ,

depending upon available accessories and regulatory requirements. The SAR

information includes the Motorola testing protocol, assessment procedure, and

measurement uncertainty range for this product.

Additional Information can be found on the Web sites of the World Health

Organization (

http://www.who.int/emf

) or Motorola Mobility, Inc.

(

http://www.motorola.com/rfhealth

Information from the World Health

Organization

WHO Informat ion

“Present scientific information does not indicate the need for any special

precautions for the use of mobile phones. If you are concerned, you may want to

limit your own or your children’s RF exposure by limiting the length of calls or by

using handsfree devices to keep mobile phones away from your head and body.”

Source: WHO Fact Sheet 193

Further information:

http://www.who.int/peh-emf

European Union Directives Conformance

Statement

Hereby, Motorola declares that this product is in compliance with:

•

The essential requirements and other relevant provisions of Directive 1999/5/EC

•

All other relevant EU Directives

The above gives an example of a typical Product Approval Number.

You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC

(to R&TTE Directive) at

www.motorola.com/rtte

. To find your DoC, enter the

0168

[Only Indoor Use Allowed In France

for Bluetooth and/or Wi-Fi]

0168

Product

Approval

Number

Product Approval Number from your product’s label in the “Search” bar on the Web

site.

FCC Notice to Users

FCC Notice

The following statement applies to all products that have received FCC

approval. Applicable products bear the FCC logo, and/or an FCC ID in the

format FCC ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user.

Any changes or modifications could void the user’s authority to operate the

equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

GPS & AGPS

Your mobile device can use Global Positioning System (GPS) signals for

location-based applications. GPS uses satellites controlled by the U.S. government

that are subject to changes implemented in accordance with the Department of

Defense policy and the Federal Radio Navigation Plan. These changes may affect

the performance of location technology on your mobile device.

Your mobile device can also use Assisted Global Positioning System (AGPS), which

obtains information from the cellular network to improve GPS performance. AGPS

uses your wireless service provider's network and therefore airtime, data charges,

and/or additional charges may apply in accordance with your service plan. Contact

your wireless service provider for details.

Your Location

Location-based information includes information that can be used to determine the

approximate location of a mobile device. Mobile devices which are connected to a

wireless network transmit location-based information. Devices enabled with GPS or

AGPS technology also transmit location-based information. Additionally, if you use

applications that require location-based information (e.g. driving directions), such

applications transmit location-based information. This location-based information

may be shared with third parties, including your wireless service provider,

applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS

technology in your mobile device to tell the emergency responders your approximate

location.

AGPS has limitations and

might not work in your area

. Therefore:

•

Always tell the emergency responder your location to the best of your ability; and

•

Remain on the phone for as long as the emergency responder instructs you.

Performance Tips

•

Go outside and away from underground locations, covered vehicles, structures

with metal or concrete roofs, tall buildings, and foliage. Indoor performance

might improve if you move closer to windows, but some window sun shielding

films can block satellite signals.

•

Move away from radios, entertainment equipment, and other electronic devices.

Navigation

When using navigation features, note that mapping information, directions and

other navigational data may contain inaccurate or incomplete data. In some

countries, complete information may not be available. Therefore, you should visually

confirm that the navigational instructions are consistent with what you see. All

drivers should pay attention to road conditions, closures, traffic, and all other factors

that may impact driving. Always obey posted road signs.

Smart Practices While Driving

Driving Safety

Check the laws and regulations on the use of mobile devices and their ac-

cessories in the areas where you drive. Always obey them. The use of these

devices may be prohibited or restricted in certain areas—for example,

handsfree use only may be required. Go to

www.motoro-

la.com/callsmart

(in English only) for more information.

Your mobile device lets you communicate by voice and data—almost anywhere,

anytime, wherever wireless service is available and safe conditions allow. When

driving a car, driving is your first responsibility. If you choose to use your mobile

device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed

dial, redial and voice dial.

If available, these features help you to place your

call without taking your attention off the road.

• When available, use a handsfree device.

If possible, add an additional layer

of convenience to your mobile device with one of the many Motorola Original

handsfree accessories available today.

• Position your mobile device within easy reach.

Be able to access your

mobile device without removing your eyes from the road. If you receive an

incoming call at an inconvenient time, if possible, let your voicemail answer it for

you.

• Let the person you are speaking with know you are driving; if necessary,

suspend the call in heavy traffic or hazardous weather conditions.

Rain,

sleet, snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving.

Jotting down a

“to do” list or going through your address book takes attention away from your

primary responsibility—driving safely.

• Dial sensibly and assess the traffic; if possible, place calls when your

car is not moving or before pulling into traffic.

If you must make a call while

moving, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be

distracting.

Make people you are talking with aware you are driving and

suspend conversations that can divert your attention away from the road.

• Use your mobile device to call for help.

Dial 911 or other local emergency

number in the case of fire, traffic accident, or medical emergencies (wherever

wireless phone service is available).

• Use your mobile device to help others in emergencies.

If you see an auto

accident, crime in progress, or other serious emergency where lives are in

danger, call 911 or other local emergency number (wherever wireless phone

service is available), as you would want others to do for you.

• Call roadside assistance or a special non-emergency wireless

assistance number when necessary.

If you see a broken-down vehicle

posing no serious hazard, a broken traffic signal, a minor traffic accident where

no one appears injured, or a vehicle you know to be stolen, call roadside

assistance or other special non-emergency wireless number (wherever wireless

phone service is available).

Privacy & Data Security

Motorola understands that privacy and data security are important to everyone.

Because some features of your mobile device may affect your privacy or data

security, please follow these recommendations to enhance protection of your

information:

• Monitor access

—Keep your mobile device with you and do not leave it where

others may have unmonitored access. Lock your device’s keypad where this

feature is available.

• Keep software up to date

—If Motorola or a software/application vendor

releases a patch or software fix for your mobile device that updates the device’s

security, install it as soon as possible.

• Secure Personal Information

—Your mobile device can store personal

information in various locations including your SIM card, memory card, and

phone memory. Be sure to remove or clear all personal information before you

recycle, return, or give away your device. You can also backup your personal data

to transfer to a new device.

Note:

For information on how to backup or wipe data from your mobile device,

go to

www.motorola.com/support

• Online accounts

—Some mobile devices provide a Motorola online account

(such as MOTOBLUR). Go to your account for information on how to manage the

account, and how to use security features such as remote wipe and device

location (where available).

• Applications

—Install third party applications from trusted sources only.

Applications can have access to private information such as call data, location

details and network resources.

• Location-based information

—Location-based information includes

information that can be used to determine the approximate location of a mobile

device. Mobile phones which are connected to a wireless network transmit

location-based information. Devices enabled with GPS or AGPS technology also

transmit location-based information. Additionally, if you use applications that

require location-based information (e.g. driving directions), such applications

transmit location-based information. This location-based information may be

shared with third parties, including your wireless service provider, applications

providers, Motorola, and other third parties providing services.

• Other information your device may transmit

—Your device may also transmit

testing and other diagnostic (including location-based) information, and other

non-personal information to Motorola or other third-party servers. This

information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may

impact your privacy or data security, please contact Motorola at

privacy@motorola.com

, or contact your service provider.

Use & Care

Your mobile device is designed to resist damage from exposure to certain rugged

conditions, as stated in your product information. However, to help care for your

mobile device avoid prolonged or extreme exposure to those conditions and please

observe the following:

protection

To help protect your mobile device, always make sure that the battery

compartment and any connector covers are closed and secure.

drying

Don’t try to dry your mobile device using a microwave oven,

conventional oven, or dryer, as this may damage the mobile device.

cleaning

To clean your mobile device, use only a dry soft cloth. Don’t use alcohol

or other cleaning solutions.

Recycling

Mobile Devices & Accessories

Please do not dispose of mobile devices or electrical accessories (such as chargers,

headsets, or batteries) with your household waste, or in a fire. These items should

be disposed of in accordance with the national collection and recycling schemes

operated by your local or regional authority. Alternatively, you may return unwanted

mobile devices and electrical accessories to any Motorola Approved Service Center

in your region. Details of Motorola approved national recycling schemes, and further

information on Motorola recycling activities can be found at:

www.motorola.com/recycling

Packaging & Product Guides

Product packaging and product guides should only be disposed of in accordance with

national collection and recycling requirements. Please contact your regional

authorities for more details.

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software

stored in semiconductor memories or other media. Laws in the United States and

other countries preserve for Motorola and third-party software providers certain

exclusive rights for copyrighted software, such as the exclusive rights to distribute

or reproduce the copyrighted software. Accordingly, any copyrighted software

contained in Motorola products may not be modified, reverse-engineered,

distributed, or reproduced in any manner to the extent allowed by law. Furthermore,

the purchase of Motorola products shall not be deemed to grant either directly or by

implication, estoppel, or otherwise, any license under the copyrights, patents, or

patent applications of Motorola or any third-party software provider, except for the

normal, non-exclusive, royalty-free license to use that arises by operation of law in

the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of

the Copyright Laws of the United States and other countries. This device is intended

solely for copying non-copyrighted materials, materials in which you own the

are uncertain about your right to copy any material, please contact your legal

advisor.

Open Source Software Information

OSS Info rmation

For instructions on how to obtain a copy of any source code being made publicly

available by Motorola related to software used in this Motorola mobile device, you

may send your request in writing to the address below. Please make sure that the

request includes the model number and the software version number.

MOTOROLA MOBILITY, INC.

OSS Management

600 North US Hwy 45

Libertyville, IL 60048

USA

The Motorola website

opensource.motorola.com

also contains information

regarding Motorola's use of open source.

Motorola has created the

opensource.motorola.com

website to serve as a

portal for interaction with the software community-at-large.

To view additional information regarding licenses, acknowledgments and required

please press Menu Key >

Settings

About Phone

Legal & Safety

Open source l icenses

. In addition, this Motorola device may include

self-contained applications that present supplemental notices for open source

packages used in those applications.

Motorola Limited Warranty for the United

States and Canada

Warranty

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its

mobile telephones (“Products”), Motorola-branded or certified accessories sold for

use with these Products (“Accessories”), and Motorola software contained on

CD-ROMs or other tangible media and sold for use with these Products (“Software”)

to be free from defects in materials and workmanship under normal consumer usage

for the period(s) outlined below. This limited warranty is a consumer's exclusive

remedy, and applies as follows to new Motorola Products, Accessories, and

Software purchased by consumers in the United States or Canada, which are

accompanied by this written warranty:

Products and Accessories

defined above, unless otherwise

provided for below.

One (1) year

from the date of purchase by

the first consumer purchaser of the product

unless otherwise provided for below.

Exclusions (Products and Accessories)

Normal Wear and Tear.

Periodic maintenance, repair and replacement of parts

due to normal wear and tear are excluded from coverage.

Batteries.

Only batteries whose fully charged capacity falls below 80% of their

rated capacity and batteries that leak are covered by this limited warranty.

Abuse, Misuse and Accidents.

Defects or damage that result from abuse, misuse

or accidents, including but not limited to: (a) improper handling, usage, operation or

storage (e.g. operating the Product or Accessories outside their permitted or

intended uses including as set forth by Motorola in the Products or Accessories

specification sheets or other documentation, or failing to comply with the Products

or Accessories usage documentation); abuse/neglect (e.g. broken/bent/missing

clips/fasteners/connectors); (b) contact with liquids, water, rain, extreme humidity,

heavy perspiration or other moisture, sand, food, dirt or similar substances caused

from incorrectly securing the phone’s protective elements or subjecting the Products

or Accessories to conditions beyond any stated specification or limits; (c) use of the

Products or Accessories for commercial rental purposes; or (d) external causes or

Decorative Accessories and

Cases.

Decorative covers,

bezels, PhoneWrap™ covers and

cases.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Monaural Headsets.

Ear buds

and boom headsets that transmit

mono sound through a wired

connection.

Limited lifetime warranty

for the

lifetime of ownership by the first consumer

purchaser of the product.

Products and Accessories

that are Repaired or

Replaced.

The balance of the original warranty or

for ninety (90) days

from the date

returned to the consumer, whichever is

longer.

Products Covered Length of Coverage

acts which are not the fault of Motorola, including but not limited to flood, fire,

earthquake, tornado or other acts of God, are excluded from coverage.

Use of Non-Motorola Products and Accessories.

Defects or damage that result

from the use of non-Motorola branded or certified Products, Accessories, Software

or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages resulting from

service, testing, adjustment, installation, maintenance, alteration, or modification in

any way by someone other than Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products.

Products or Accessories with (a) serial numbers or date tags

that have been removed, altered or obliterated; (b) broken seals or that show

evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming

or non-Motorola housings, or parts, are excluded from coverage.

Communication Services.

Defects, damages, or the failure of Products,

Accessories or Software due to any communication service or signal you may

subscribe to or use with the Products Accessories or Software is excluded from

coverage.

Software

Exclusions (Software)

Software Embodied in Physical Media.

No warranty is made that the software

will meet your requirements or will work in combination with any hardware or

software applications provided by third parties, that the operation of the software

products will be uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in

physical media (e.g. software that is downloaded from the Internet), is provided “as

is” and without warranty.

Products Covered Length of Coverage

Software.

Applies only to physical defects in the

media that embodies the copy of the software (e.g.

CD-ROM, or floppy disk).

Ninety (90) days

from

the date of purchase.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price

of any Products, Accessories or Software that does not conform to this warranty. We

may use functionally equivalent reconditioned/refurbished/pre-owned or new

Products, Accessories or parts. No data, software or applications added to your

Product, Accessory or Software, including but not limited to personal contacts,

games and ringer tones, will be reinstalled. To avoid losing such data, software, and

applications, please create a back up prior to requesting service.

How to Obtain Warranty Service or Other

Information

You will receive instructions on how to ship the Products, Accessories or Software,

at your expense, to a Motorola Authorized Repair Center. To obtain service, you must

include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;

(b) a written description of the problem; (c) the name of your service provider, if

applicable; (d) the name and location of the installation facility (if applicable) and,

most importantly; (e) your address and telephone number.

What Other Limitations are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE

THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS

LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS

PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO

USA All Products, Accessories, and Software:

1-800-331-6456

Canada All Products:

1-800-461-4575

TTY

1-888-390-6456

EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF

THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,

SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR

APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR

SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of

incidental or consequential damages, or limitation on the length of an

implied warranty, so the above limitations or exclusions may not apply to

you. This warranty gives you specific legal rights, and you may also have

other rights that vary from state to state or from one jurisdiction to another.

Motorola Mobility, Inc.

Consumer Advocacy Office

600 N US Hwy 45

Libertyville, IL 60048

www.hellomoto.com

1-800-734-5870 (United States - Android products)

1-800-331-6456 (United States - all other products)

1-888-390-6456 (TTY/TDD United States for hearing impaired - all products)

1-800-461-4575 (Canada - all products)

Certain features, services and applications are network dependent and may not be

available in all areas; additional terms, conditions and/or charges may apply.

Contact your service provider for details.

All features, functionality, and other product specifications, as well as the

information contained in this guide, are based upon the latest available information

and believed to be accurate at the time of printing. Motorola reserves the right to

change or modify any information or specifications without notice or obligation.

MOTOROLA, the Stylized M Logo, MOTOBLUR and the MOTOBLUR logo are

trademarks or registered trademarks of Motorola Trademark Holdings, LLC. The

Bluetooth trademarks are owned by their proprietor and used by Motorola Mobility,

Inc. under license. is a Certification Mark of the Wireless Fidelity Alliance, Inc.

Java and all other Java-based marks are trademarks or registered trademarks of

Sun Microsystems, Inc. in the U.S. and other countries. Google, YouTube, Picasa,

Gmail, and the Google logo are trademarks of Google, Inc. Facebook is a registered

trademark of Facebook, Inc. Microsoft, Windows, Windows Me, and Windows Vista

are registered trademarks of Microsoft Corporation in the United States and other

their respective owners.

Caution:

Changes or modifications made in the radio phone, not expressly approved

by Motorola, will void the user’s authority to operate the equipment.

Product ID: Motorola X (XXxxx)

Manual Number: 68XXXXXXXX-X

Motorola Mobility P56LC2 Portable Cellular/ PCS GSM/ EDGE and Cellular WCDMA Transceiver with WLAN and Bluetooth User Manual Exhibit 8 Users Manual

Motorola Mobility LLC Portable Cellular/ PCS GSM/ EDGE and Cellular WCDMA Transceiver with WLAN and Bluetooth Exhibit 8 Users Manual

Exhibit 8 Users Manual

Navigation menu

Namespaces

Views

Navigation
