USERS MANUAL
![](/img.php?id=963557&img=bg1.png)
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. The use of wireless devices and their
accessories may be prohibited or restricted in certain areas.
Always obey the laws and regulations on the use of these
products. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. All other
product or service names are the property of their respective
owners.
© Motorola, Inc. 2008
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-877-MOTOBLU
1-888-390-6456 (TTY/TDD United States for
hearing impaired)
Guide Number: 6809521A5-A
Bluetooth QD ID: Bxxxxxx

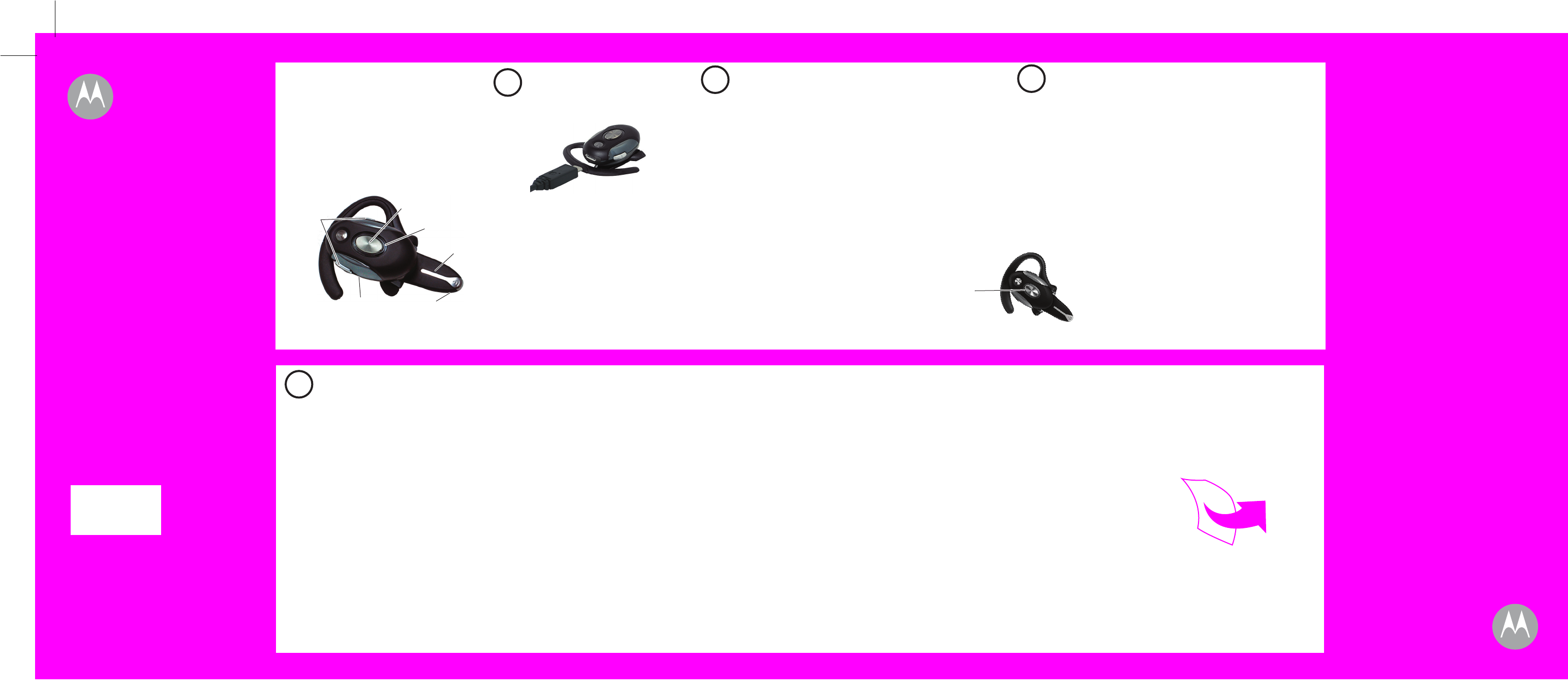

Quick Start Guide
motorola
H780
2
START BLUETOOTH
FEATURE
Your Phone
Press (Menu) > Settings > Connection >
Bluetooth Link > Setup.
Scroll to Power.
Select Change.
Scroll to On.
Press Select to turn on the Bluetooth
feature. The Bluetooth feature remains on
until you turn the feature off.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
1
2
3
4
5
Your phone's Bluetooth feature is off by default.
To use your headset, you must turn on the
Bluetooth feature in your phone.
For most Motorola phones (from home screen):
M
USING YOUR H780
See
Features and
Functions Guide
on the reverse side
for information on
using your H780
1
Charge your headset's battery for 2 hours:
CHARGE
Your Headset's Battery
Plug the Motorola charger into the end of
the headset.
The indicator light turns red when the battery
is charging. It may take up to 1 minute for
the indicator light to turn on. When the
headset's battery is fully charged (about 2
hours), the indicator light turns green.
Disconnect the charger.
1
2
Note: Headset is not functional while charging.
Note: This product uses a lithium ion, rechargeable,
non-replaceable battery. Under normal use, the expected life
of the rechargeable battery is approximately 400 charges.
Indicator Light
(steadily blue
for pairing mode)
3
PAIR
Your Headset and Phone
Before you can use your headset, you must pair
(link) it with your phone.
Step A - ENSURE HEADSET IS IN PAIRING
MODE
Power on the headset by sliding
Power switch to the On position (towards
Power symbol on headset). The indicator light
first flashes during power up, then initiates
easy pairing. After a few moments, the
indicator light will be steadily lit in blue to
indicate headset is in pairing mode.
Step B - SET YOUR PHONE TO LOOK FOR
YOUR HEADSET
3
4
5
1
2
For most Motorola phones:
On your Motorola phone, press (Menu) >
Settings > Connection > Bluetooth Link > Handsfree
> Look for Devices.
The phone lists Bluetooth devices it finds.
Select Motorola H780.
Select OK or Yes to pair your headset with
your phone.
Enter the passkey: 0000
Select OK.
When your headset successfully pairs with
your phone, the indicator light flashes
purple and blue.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
M
Your phone and headset are now paired and
ready to make and receive calls. To confirm they
are operating properly, make a call:
TEST AND USE
Place the headset over your ear.
On the phone, dial the number you want to
call and press SEND key on your phone.
If your phone and headset are successfully
paired, you will hear ringing on the headset.
4
1
2
3
After you have successfully paired your phone
and headset, you don't need to repeat these
steps. For daily use, ensure that your headset is
turned ON and that your phone's Bluetooth
feature is ON.
USING A SECOND PHONE?
Multipoint technology allows you to make and
receive calls from two Bluetooth enabled
devices like your personal and business phones.
To pair a second phone to your headset, follow
these steps:
Turn off any phones or devices that are
already paired with your headset.
Turn off your headset by closing the headset
boom.
Perform Step 2 (“Start Bluetooth Feature”),
and Step 3 (”Pair”), and Step 4 (”Test and
Use”) to pair your headset with your second
phone.
1
2
3
Use the following tips when using H780's
multipoint technology:
Incoming calls can be answered from both
phones:
– When answering a call, the idle phone is
disconnected from the headset.
– When the call ends, the idle phone is
automatically reconnected to the headset.
Last number redial dials the last outgoing call
made from either phone.
Voice dial is accessible from either phone via
different key actions:
– For your primary device (last paired
phone), tap the Call button until you hear
the tone.
– For your secondary device (other paired
phone), tap the Call button and either
Volume button until you hear the tone.
●
●
●
TIPS FOR USING H780
WITH TWO PHONES
Turn on first phone.
M
1
2
On your Motorola phone, press (Menu)
> Settings > Connection > Bluetooth Link >
Audio Devices.
The phone lists Bluetooth devices it finds.
Select Motorola H780.
Select OK or Yes.
a
b
c
Your headset is now connected to both
phones. The last paired phone (your second
phone) is now your primary phone for voice
dial functionality.
To reconnect your headset with your first phone
(and thus be connected to both phones), follow
these steps:
Use your first phone to connect to your
headset.
After you have successfully paired both phones
with your headset, you don't need to repeat
these steps. For daily use, ensure that your
headset is turned ON and that your phone's
Bluetooth feature is ON.
TROUBLESHOOTING
My headset will not enter pairing mode.
Make sure that any devices previously paired with the
headset are turned off. If the indicator light is flashing in
blue, first turn off the other device, then using the Power
switch, turn the headset off and on. The indicator light
becomes steadily lit in blue indicating the headset is now
in pairing mode.
My phone doesn't find my headset.
Make sure the indicator light on your headset is on (lit in
blue) and steady when your phone is searching for
devices (see step 3).
My headset worked before but now it's not working.
Make sure your phone is on and the Bluetooth feature is
turned on in your phone (see step 2). If the Bluetooth
feature was turned off or was turned on only temporarily,
you may need to restart the Bluetooth feature (see step 2)
and pair your phone and headset again (see step 3).
My headset will not pair with my phone.
Turn the headset on by using the Power switch. Press the
Call button and both Volume buttons for 5 seconds. The
indicator light turns solid blue. The headset is now in
pairing mode (see step 3B) to complete the pairing process.
Support.
If you need more help, contact us at
1-877-MOTOBLU or visit us at
www.hellomoto.com/Bluetoothsupport
Volume
Buttons Multi-Color
Indicator Light
Call
Button
Microphone
(on reverse side)
Speaker
(on reverse
side)
Boom
BEFORE YOU
BEGIN
Before using this product, read the Important Safety and
Legal Information pamphlet and follow its instructions.
Take a moment before you get started to
familiarize yourself with your new
H780 Headset.
DRAFT
DRAFT
![](/img.php?id=963557&img=bg2.png)
Power
Switch
Indicator
Light

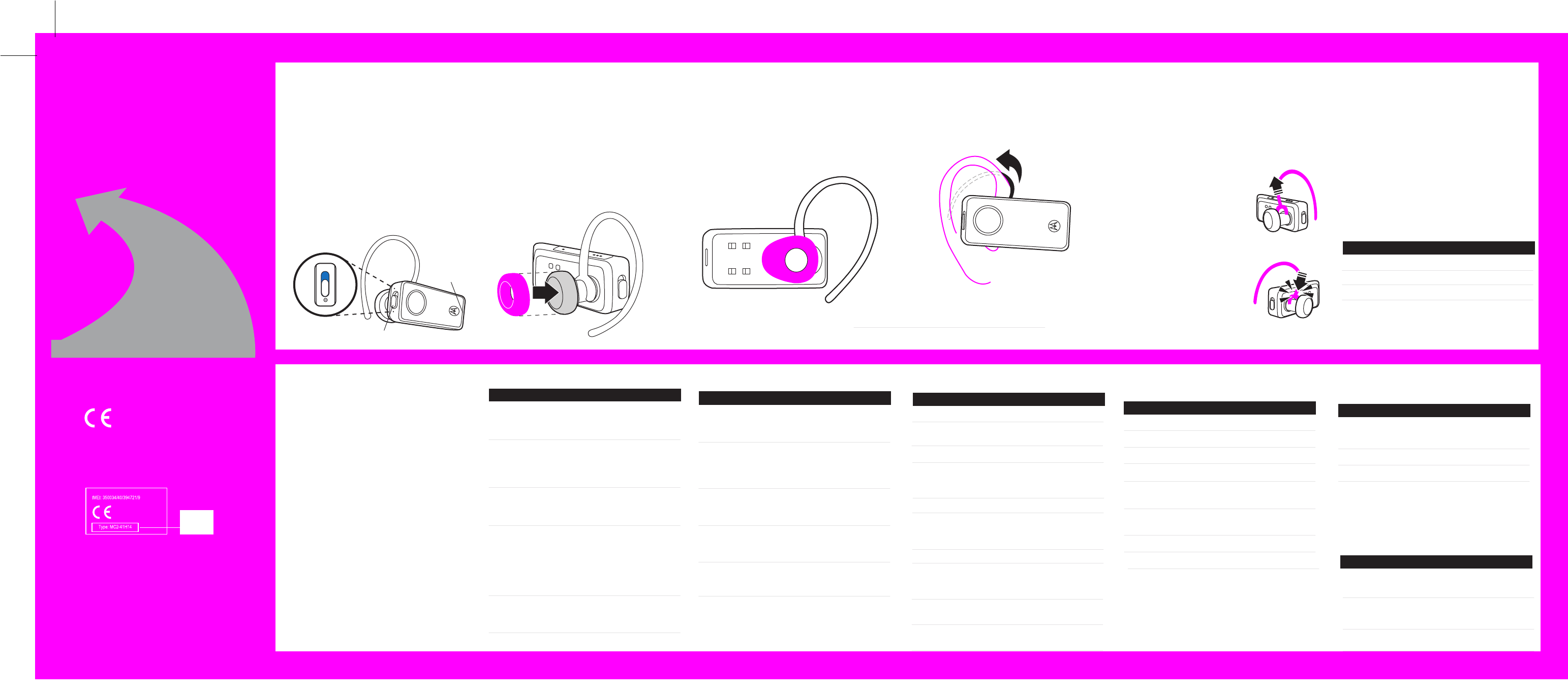

TURNING H780
ON AND OFF
To turn ON your H780, slide the Power
switch towards the power symbol, as
shown below. The indicator light first flashes
blue for several seconds, then:
To turn OFF your H780, slide the Power
switch off. The indicator light will turn off.
EAR CUSHIONS AND YOUR HEADSET
Your H780 headset is supplied with multiple ear
cushions. Your headset’s performance is greatly
dependent upon achieving a good fit on your
ear. Therefore, we recommend trying all the
supplied ear cushions with your headset.
The ear cushion is fitted onto the end of your
headset’s earpiece speaker like shown, and
placed onto your ear when using your headset.
WEARING THE
HEADSET
To wear your headset, flex the earhook and
loop it over your ear as shown.
Be sure to position the ear cushion into your
ear canal for optimal audio performance and
comfort.
CHANGING FOR USE
ON OTHER EAR
• The essential requirements and
other relevant provisions of Directive
1999/5/EC.
• All other relevant EU Directives.
European Union Directives
Conformance Statement
Product
Approval
Number
The above gives an example of a typical Product
Approval Number.
You can view your product’s Declaration of Conformity
(DoC) to Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte. To find your DoC, enter the
product Approval Number from your product’s label in
the “Search” bar on the web site.
Hereby, Motorola declares that this
product is in compliance with:
Gently lift and pull the
top of the earhook up
and off speaker stem, as
shown.
Flip the headset over.
Attach the earhook to
the speaker stem, as
shown.
1
2
3
You can wear your H780 headset on your left or
right ear. The headset comes ready for the right
ear. To change the headset for the left ear:
●flashes blue (if paired and connected with
another device).
becomes steadily blue (if ready to be
paired).
●
When fitting an oval-shaped ear cushion on
your headset, be sure the cushion is oriented,
as shown below (pointing towards the
microphone).
Product
Approval
Number
QUICK BATTERY
CHECK
While turned on and not on a call, you can
check your headset’s battery charge level by
pressing and holding both Volume
buttons.
Note: This feature does not work when headset is in
pairing mode.
The indicator light displays charge status
until you release the buttons.
Headset Indicator Available Talk Time
Red Less than 2 hours
Yellow 2 to 4 hours
Green Up to 6 hours
MAKING CALLS
Note: Your H780 supports both Handsfree and Headset
Profiles. Accessing call functions depends upon which
profile your phone supports. See your phone's user's guide
for more information.
Function Action
Make a voice dial call Tap the Call button
(Primary phone) and speak the
name after the tone
Make a voice dial call Tap the Call button
(Secondary phone) and either Voume
button and speak the
name after the tone
End a call Tap the Call button,
and hear a
high-to-low tone
Answer a call Open the boom or tap
the call button (if
boom is ready open),
hear the ring tone,
then a low-to-high
tone
Reject a call Press and hold either
Volume button until
you hear a tone
MAKING CALLS CONTINUED
Function Action
Redial last call Press and hold the
Call button until you
hear a tone
Answer a second Press and hold the
incoming call Call button (places
first call on hold), and
hear a tone
Reject second incoming Press and hold either
call Volume button until
you hear a tone
Transfer a call from the Slide the power
headset to the phone button to the OFF
position
Mute or unmute a call Tap both Volume
buttons until you hear
a mute tone
AUDIO TONES
Audio Tone Headset Status
Ring tone Incoming call
Short tone Phone network not
available
High to low tone End call
Two short tones when Volume at minimum
pressing Volume button or maximum
during a call
Ascending tone Mute enabled
Low tone Mute reminder
(repeated every
15 seconds)
Descending tone Mute disabled
Low to high tone Connection
confirmation/voice
activation
No audio indications; Out of range
deteriorating quality
Two tones Low battery
repeated every minute
INDICATOR LIGHT
With the Charger Plugged In
Headset Indicator Headset Status
Red Battery level less
than 50% charge
Yellow Battery level more
than 50% charge
Green Charging complete
With No Charger Plugged In
Headset Indicator Headset Status
Off Power off
Three blue flashes Powering on/off
Steady blue Pairing mode
Quick blue/purple flashes Pairing successful
Quick blue flash Incoming/outgoing call
on primary phone
Quick purple flash Incoming.outgoing call
on secondary phone
Slow blue pulse Connected (on a call)
Slow blue flash Standby (not on a call)
Note: After 20 minutes on a call or of inactivity, the light stops
flashing to conserve power, but the headset remains on.
Note: To disable the indicator light, press and hold both
Volume buttons while turnng headset on.
INDICATOR LIGHT
Note: Some features are phone/network dependent.
With No Charger Plugged In
Headset Indicator Headset Status
Red flash Idle (not connected
to phone)
Slow purple pulse Connected call muted
Quick red flash Low battery
Tip: Set your primary and secondary phones to different ring
tones to know which phone is ringing when wearing the
headset. See "Tips for using H710 with Two Phones" for
more information.
INDICATOR LIGHT CONTINUED
USING FAVORITE NUMBER
BUTTON
To program the Favorite Number button
with the current call number, press and hold
the Favorite Number button while in the call
until [xxx] tones are heard.
To place a call using the Favorite Number
button, press and hold the Favorite Number
button until you hear a tone.
IMPORTANT:
Be sure to first follow the
Quick Start Guide
on the reverse side
of this guide
to complete initial setup
of your H780.
Features and
Functions Guide
DRAFT
DRAFT
![](/img.php?id=963557&img=bg3.png)
FCC Notice to Users
The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC
ID in the format FCC-ID: IHDP6JT1 on the product label.
Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR
Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
‧ Reorient or relocate the receiving antenna.
‧ Increase the separation between the equipment and the receiver.
‧ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
‧ Consult the dealer or an experienced radio/TV technician for help.
