Motorola Mobility P6KN1 Bluetooth Mono Headset User Manual H525 ENG QSG
Motorola Mobility LLC Bluetooth Mono Headset H525 ENG QSG
Users Manaul
your headset
2
your heads et
Take a moment to familiarize yourself with your new
H525 Headset.
Earhook
Charging
Port
Volume
Buttons
Call
Button Power
Switch
Ear
Speaker
Indicator
Light
Microphone
charge it
3
cha rge i t

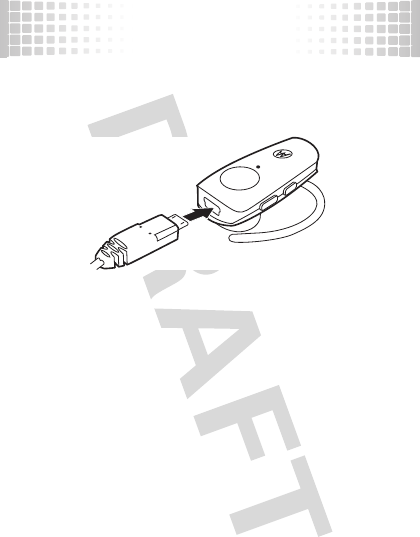

You’ll need to charge your headset before using it. Plug
the charger into the charging port on your headset and a
wall outlet.
The indicator light is red or purple while the battery is
charging. When the battery is fully charged, the indicator
light turns blue.
Note:
Headset is not functional while charging.
Note:
Your battery is designed to last the life of your
product. It should only be removed by a recycling facility.
Any attempt to remove or replace your battery will
damage your headphones.
pair & connect
4
pair & connect
initial pair & connect
Once charged, get your headset paired and connected to
your Bluetooth phone.
1
Turn off any Bluetooth devices previously paired
(linked) with your headset.
2
Turn on the Bluetooth feature on your phone.
3
Turn on your headset by sliding Power switch to on
position (orange not showing).
The indicator light becomes steadily lit in blue to
indicate headset is in discoverable mode.
4
Set your phone to search for Bluetooth devices.
5
Select
Motorola H525
from the search results on
your phone.
6
Select
Ok
or
Ye s
to pair your headset with your
phone.
7
If prompted, enter
0000
for the passkey.
The indicator light rapidly flashes blue and purple to
indicate successful pairing and connecting with your
phone.
pair & connect
5
reconnect
After initially pairing and connecting your phone and
headset, you don’t need to do it again.
For daily use, make sure your headset is turned on, and
your phone’s Bluetooth feature is on. Your headset and
phone will connect automatically!
test your connection
To test connection to your phone:
1
Place the headset over your ear.
2
On the phone, dial the number you want to call and
press
Call/Send
key.
If your phone and headset are successfully connected,
you hear ringing on the headset.
turn on & off
6
turn on & off
turn on
Slide the switch toward the microphone (orange not
showing). The indicator light flashes blue three times,
then flashes in blue and purple (if connected with a
device) or is steadily blue (if ready to be paired).
turn off
Slide the switch toward the charging plug (orange
showing). The indicator light flashes three times then
turns off.
Charging
Port Power
Switch
Indicator
Light
Microphone
put it on
7
put it on

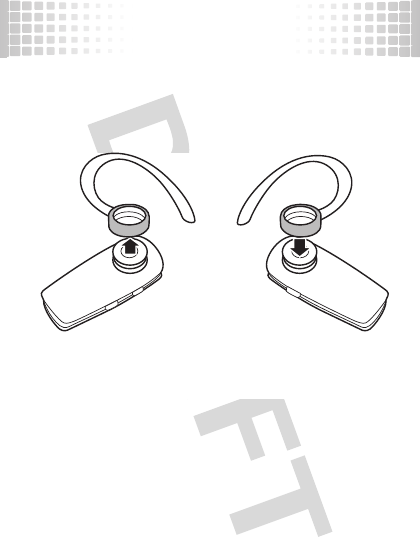

choose an ear
The headset comes ready for the right ear. To change the
headset for the left ear:
2
1
From Right Ear To Left Ear
put it on
8
change volume button
orientation
1
Turn the headset power off.
2
Press and hold the Volume button you want to
assign as the "volume up" button and slide the Power
switch on. The indicator light flashes blue three
times. When connected, it will flash blue/purple.
Indicator
Light
Volume
Buttons
put it on
9
wear it

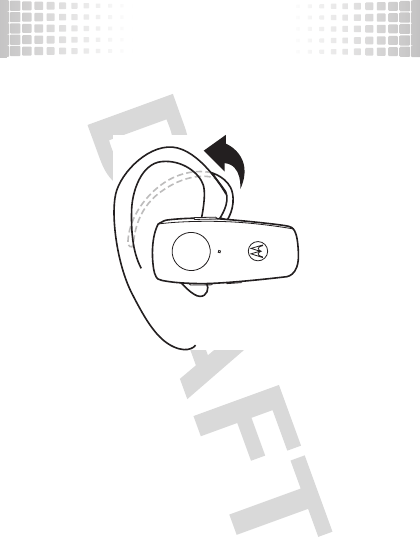

Flex the earhook and loop it over your ear as shown.
battery check
10
battery check
Press and hold both Volume buttons while not on a call.
To save battery power, turn off the headset when you
don't use it for an extended time by sliding the Power
switch towards the charging port.
indicator light available talk time
red less than 1.5 hours
purple between 1.5 to 3.5 hours
blue up to 5 hours
calls
11
calls
Note:
Your H525 supports both Handsfree and Headset
Profiles. Accessing call functions depends upon which
profile your phone supports. See your phone's user's
guide for more information.
Note:
Some features are phone/network dependent.
function action
receive a call tap the Call button
mute or unmute a call tap both Volume buttons
reject a call press and hold a Volume
button until the ringer stops
end a call tap the Call button
redial last call press and hold the Call button
until you hear two tones
make a voice dial call tap the Call button and wait
for voice prompt
reject second
incoming call
use phone to answer (follow
your phone’s instructions)
status indicators
12
status indicators
indicator light (with charger
plugged in)
headset indicator headset status
red charging (battery level less
than 50% charge)
purple charging (battery level more
than 50% charge)
blue charging complete
status indicators
13
indicator light (with charger not
plugged in)
Note:
After 20 minutes on a call or of inactivity, the light
stops flashing to conserve power, but the headset
remains on.
headset indicator headset status
off power off
three blue flashes powering on/off
steady blue pairing/connect mode
rapid blue/purple flashes connection successful
quick blue flash incoming/outgoing call
slow blue pulse connected (on a call)
slow blue flash standby (not on a call)
slow red flash idle (not connected to a
phone)
slow purple pulse connected (call muted)
steady red attempting to connect
quick red flash low battery
status indicators
14
audio tones
audio tone headset status
ascending tone powering on
two descending tones powering off
ring tone incoming call
two short tones when
pressing Volume
button
volume at maximum or
minimum
high/low tones
repeated every 60
seconds
low battery
no audio indications;
deteriorating quality
out of range
three ascending tones connected to phone
two rapid ascending
tones
mute enabled
two rapid descending
tones
mute disabled
low tone every 10
seconds
mute reminder
tips & tricks
15
tips & tricks
setup tips
If desired, your headset can be restored to original
factory settings. This action will erase all pairing
information stored in your headset. Thus, you will need
to pair your phone and headset again.
To restore your headset to original factory settings
,
press and hold both Volume buttons and the Call button
at the same time for 10 seconds.
troubleshooting
16
troubleshooting
My headset will not enter pairing mode.
Make sure that any devices previously paired with the
headset are turned off. If the indicator light is not steadily
lit in blue, turn off both the other device and headset,
wait 10 seconds, then turn headset back on. Wait for the
indicator light to become steadily lit in blue, indicating the
headset is now in pairing mode.
My phone doesn't find my headset.
Make sure the indicator light on your headset is on (lit in
blue) and steady when your phone is searching for
devices.
My headset worked before but now it's not working.
Make sure your phone is on and the Bluetooth feature is
turned on in your phone. If the Bluetooth feature was
turned off or was turned on only temporarily, you may
need to restart the Bluetooth feature and pair your phone
and headset again (see “pair & connect” on page 4).
Support
.
If you need more help, contact us at 1-877-MOTOBLU or
visit us at www.motorola.com/Bluetoothsupport
troubleshooting
17
Safety & General Information
Safety I nformation
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR DEVICE.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries,
antennas, and convertible covers, may cause your mobile device to exceed RF
energy exposure guidelines and may void your mobile device’s warranty. For a list of
approved Motorola accessories, visit our Web site at:
www.motorola.com
Batteries & Chargers
Your battery, charger, or mobile device may contain symbols, defined as follows:
Use & Safety for Battery-Powered Accessories
•
Do not store or use your battery-powered accessory (such as a Bluetooth®
headset or other device) in temperatures below -10°C (14°F) or above 60°C
(140°F).
•
Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C
(113°F).
•
Conditions inside a parked car can exceed this range. Do not store your
accessory in a parked car.
•
Do not store your accessory in direct sunlight.
Symbol Definition
Important safety information follows.
Do not let your battery, charger, or mobile device get wet.
032374o
18
•
Storing your fully charged accessory in high-temperature conditions may
permanently reduce the life of the internal battery.
•
Battery life may temporarily shorten in low-temperature conditions.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods of time may
temporarily or permanently affect your hearing. The louder the volume sound level,
the less time is required before your hearing could be affected. Hearing damage
from loud noise is sometimes undetectable at first and can have a cumulative effect.
To protect your hearing:
•
Start your volume control at a low setting and use as low a volume as possible.
•
Limit the amount of time you use headsets or headphones at high volume.
•
Where possible, use your headset in a quiet environment with low background
noise.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked by your
doctor.
Smart Practices While Driving
Using a mobile device while driving may cause distraction. End a call if you can’t
concentrate on driving. Also, using a mobile device or accessory may be prohibited
or restricted in certain areas. Always obey the laws and regulations on the use of
these products.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in English only).
19
Industry Canada Notice to Users
Indust ry Canada Not ice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference
that may cause undesired operation of the device. See RSS-GEN 7.1.5.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
20
Motorola Limited Warranty for the
United States and Canada
Warranty
What Does This Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its telephones,
pagers, messaging devices, and consumer and professional two-way radios
(excluding commercial, government or industrial radios) that operate via Family
Radio Service or General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and Motorola software
contained on CD-ROMs or other tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new Motorola Products,
Accessories and Software purchased by consumers in the United States or Canada,
which are accompanied by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of purchase by
the first consumer purchaser of the product
unless otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the lifetime
of ownership by the first consumer
purchaser of the product.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the lifetime
of ownership by the first consumer
purchaser of the product.
21
Exclusions
Normal wear and tear.
Periodic maintenance, repair and replacement of parts due
to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from coverage.
Use of non-Motorola Products and Accessories.
Defects or damage that result
from the use of Non-Motorola branded or certified Products, Accessories, Software
or other peripheral equipment are excluded from coverage.
Unauthorized service or modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered products.
Products or Accessories with (a) serial numbers or date tags that
have been removed, altered or obliterated; (b) broken seals or that show evidence of
Consumer and Professional
Two-way Radio Accessories.
Ninety (90) days
from the date of
purchase by the first consumer purchaser of
the product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty or
for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
Products Covered Length of Coverage
22
tampering; (c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Exclusions
Software embodied in physical media.
No warranty is made that the software
will meet your requirements or will work in combination with any hardware or
software applications provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT embodied in physical media.
Software that is not embodied in
physical media (e.g. software that is downloaded from the Internet), is provided “as
is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price
of any Products, Accessories or Software that does not conform to this warranty. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or applications added to your
Product, Accessory or Software, including but not limited to personal contacts,
Products Covered Length of Coverage
Software.
Applies only to physical defects in
the media that embodies the copy of the
software (e.g. CD-ROM, or floppy disk).
Ninety (90) days
from the
date of purchase.
23
games and ringer tones, will be reinstalled. To avoid losing such data, software and
applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or Software,
at your expense, to a Motorola Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name of your service provider, if
applicable; (d) the name and location of the installation facility (if applicable) and,
most importantly; (e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE
THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS
PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging Devices:
1-800-353-2729
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number designated
above for the product with which they are used.
24
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights, and you may also have
other rights that vary from state to state or from one jurisdiction to another.
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates and
allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service
of your Motorola Personal Communications Product you will need to provide a copy
of your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and Canada
may restrict the exportation or re-exportation of this product to certain destinations.
For further information contact the U.S. Department of Commerce or the Canadian
Department of Foreign Affairs and International Trade.
25
Caring for the Environment by
Recycling
Recycling Information
This symbol on a Motorola product means the product should not be
disposed of with household waste.
Disposal of your Mobile Device &
Accessories
Please do not dispose of mobile devices or electrical accessories (such
as chargers, headsets, or batteries) with your household waste. Do not
dispose of your battery or mobile device in a fire. These items should be
disposed of in accordance with the national collection and recycling
schemes operated by your local or regional authority. Alternatively, you may return
unwanted mobile devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved national recycling
schemes, and further information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device Packaging &
User’s Guide
Product packaging and user’s guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional
authorities for more details.
032376o
26
European Union Directives Conformance
Statement
EU Conformanc e
Hereby, Motorola declares that this product is in compliance
with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives

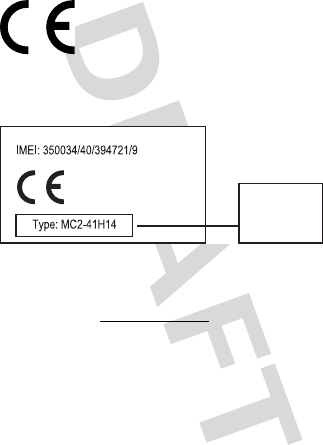

The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC
(to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
Product Approval Number from your product’s label in the “Search” bar on the Web
site.
Product
Approval
Number
27
Motorola, Inc.
Consumer Advocacy Office
600 N. US Hwy 45
Libertyville, IL 60048
www.motorola.com
1-877-MOTOBLU (Motorola Bluetooth Support)
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark
Office. The Bluetooth trademarks are owned by their proprietor and used by
Motorola, Inc. under license. All other product and service names are the property of
their respective owners.
© 2009 Motorola, Inc. All rights reserved.
Software Copyright Notice
The Motorola products described in this manual may include copyrighted Motorola
and third-party software stored in semiconductor memories or other media. Laws in
the United States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted software, such as the
exclusive rights to distribute or reproduce the copyrighted software. Accordingly,
any copyrighted software contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent allowed
by law. Furthermore, the purchase of the Motorola products shall not be deemed to
grant either directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third-party software
provider, except for the normal, non-exclusive, royalty-free license to use that arises
by operation of law in the sale of a product.
Bluetooth QD ID: Bxxxxxx
Manual Number: 68000xxxxxx-A
