Motorola Mobility P6LO1 Car Kit User Manual
Motorola Mobility LLC Car Kit
user manual
1Congratulations
Congratulations
Your MOTOROLA ROADSTER™ Bluetooth® Car Kit
allows you to make and receive calls and play music
from your phone while safely keeping your hands on
the steering wheel.
With the ROADSTER, you can:
•Simultaneously connect with two phones.
•Hear caller’s name or number, and use your voice to
answer or ignore calls.
•Switch between your FM radio and car kit speaker.
•Hear voice prompts to guide you on connections,
battery level, and other functions.
We’ve crammed all of the main features of your car kit
into this handy guide, and in a matter of minutes we’ll
show you just how easy your car kit is to use.
So go on, check it out.
More information
On the web: www.motorola.com/support
Caution: Before using your car kit for the first time,
please read the important Safety, Regulatory &
Legal information at the back of this guide.
2Your car kit
Your car kit
the important parts
Call
Button
Power
Switch
Status
Light
Mute
Button
Voice
Dial
Button
Charge
Light Micro USB
Charging
Connector
Music
Button
Volume /
FM Tune
Down
Button
Volume /
FM Tune
Up
Button
FM / Speaker
Button
Speaker

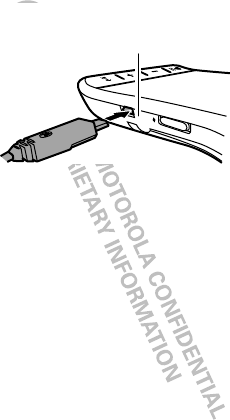

3Charge it
Charge it
let’s get you up and running
You can use your car kit while unplugged or plugged
into the charger.
Note: Your battery is designed to last the life of your
product. It should only be removed by a recycling
facility. Any attempt to remove or replace your battery
will damage your car kit.
Charge Light
Red = charging
Green = fully charged
4Basics
Basics
a few essentials to get your started

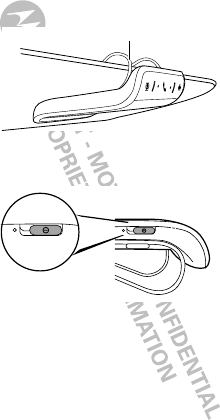

Install it
Turn it on & off
The car kit automatically turns off when your phone is
moved away from the car for more than 1 minute.
When you return (open the car door), the car kit turns
back on and reconnects to your phone.
Note: Moving the car kit or the power switch off and
on also turns it on.
Slide onto car visor
OnOff
5Basics
Listen to music
Note: This feature is phone dependent.
Your car kit allows you to stream Bluetooth music from
your phone.
Press to play/pause music from your phone on your
car kit speaker or car radio.
To stop music, press and hold until you hear a tone.
While a call is active, music pauses. When the call
ends, music resumes playing.
Note: The volume setting on your phone may impact
volume on your car kit.
Some call features
Voice commands
Answer or ignore calls using your voice—just say
“answer” or “ignore”.
Note: This feature does not work for second incoming
calls.
Hear caller’s name
If your phone knows your caller’s name, then you hear
“call from <name>” on an incoming call.
Note: If the caller is not in your phone’s contact list (or
your phone does not support this feature), then you
hear the incoming call’s number.
6Pair & connect
Pair & connect
connect and go
Pair & connect with your phone
1Turn off any Bluetooth devices previously paired
with your car kit.
2Turn on the Bluetooth feature on your phone.
3Turn on your car kit (see “Turn it on & off” on
page 4).
The status light becomes steadily lit in blue and you
hear “ready to pair”.
4Follow the voice prompts to connect your phone to
your car kit.
Note: When prompted for the passkey, enter 0000.
When your car kit successfully pairs with your phone,
you hear “pairing complete”.
Note: After pairing, you may be asked by your phone
to grant phonebook access to your car kit. If prompted,
say "always accept".
For daily use, make sure your car kit is turned on, and
your phone’s Bluetooth feature is on. Your car kit and
phone will connect automatically.
7Pair & connect
Pair & connect a second phone
1Turn off the first phone and any other Bluetooth
devices previously paired with your car kit.
2Turn your car kit off.
3Turn on the Bluetooth feature on your phone.
4Turn on your car kit.
The status light becomes steadily lit in blue and you
hear “ready to pair”.
5Follow the voice prompts to connect your phone to
your car kit.
Note: When prompted for the passkey, enter 0000.
When your car kit successfully pairs with your phone,
you hear “pairing complete”.
Note: After pairing, you may be asked by your phone
to grant phonebook access to your car kit. If prompted,
say "always accept".
To connect both phone(s) and/or music device, turn
these on and then turn your car kit off and on. When
you hear “<phone 1 name> connected”, and “<phone
2 name> connected”, your car kit is ready to go. The
last paired phone is your primary phone for calling
features.
8Pair & connect
Test your connection
1Ensure your car kit is turned on.
2On your phone, dial a phone number and press the
Call/Send key.
If successfully connected for calls, you hear ringing on
the car kit speaker or car radio.
9Audio mode
Audio mode
choose where to listen
Listen to calls and
music from your
phone on your car
radio (FM mode) or
car kit (speaker
mode).
Press to switch
between modes.
Note: Audio broadcast to your FM radio may be heard
by other radios (call audio on your internal speaker is
not affected).
Set FM mode frequency
Use and to select the FM radio frequency to
listen to your calls and music.
•Press and hold button to scan for next open
frequency.
•Tap button to increase or decrease current
frequency.
The selected frequency is saved when the car kit is
powered off or audio mode is switched to speaker.
Note: While in FM mode, adjust volume using the
controls on your car radio.
FM/Speaker
Button
10 Calls
Calls
it’s good to talk
Note: Some features are phone/network dependent.
Tip: When connected to two phones, follow the voice
prompts to perform functions such as voice dial and
redial on the desired phone.
To . . .
answer call Say “answer” or press .
ignore call Say “ignore” or press until you
hear a tone.
make a voice
dial call
Press and you hear a tone. Follow
prompts to make call.
redial last call Press .
mute or
unmute a call
Press and you hear “mute on” or
“mute off”. When mute is on, the
red light flashes on .
answer second
incoming call
Press . The first call is placed on
hold.
reject second
incoming call
Press until you hear a tone.
end a call Press .
11Status light
Status light
know your car kit
If status light shows... your headset is...
three blue flashes powering on/off
steady blue in pairing mode
rapid blue/purple flashes connecting to your
phone
quick blue flash receiving a call on phone
1, or making a call on
either phone
quick purple flash receiving or making a
call on phone 2
slow blue pulse on a call
slow blue flash in standby (not on a
call—connected to one
phone)
slow red flash idle (not connected to a
phone)
steady red trying to connect to your
phone
12 Status light
Note: The status light stops flashing to conserve
power after 20 minutes on a call or of inactivity, but the
car kit remains on.
rapid purple flashes play/pause or stopping
music
slow purple flash music playing
quick red flash in a low battery state
If status light shows... your headset is...
13Settings
Settings
make some changes
Press and hold while turning on your car kit to set
language and turn on/off these features:
•Reset to factory default.
Caution: This action erases all pairing information
stored in your car kit.
•Voice prompts
•Caller ID
•Multipoint (two phone) connections
Follow the voice prompts to make changes to these
settings.
14 Problems?
Problems?
we’ve got solutions
My car kit will not enter pairing mode
Make sure that any devices previously paired with the
car kit are turned off. If the status light is flashing in
blue, first turn off the other device, then turn the car kit
off and on. The status light becomes steadily lit in blue
and you hear “ready to pair”.
My phone doesn't find my car kit when searching
Make sure the status light on your car kit is steadily lit
in blue when your phone is searching for devices. If
not, turn off the car kit and press and hold while
turning on again and follow the voice prompts to reset
the car kit to factory default condition. The car kit
resets and you hear “ready to pair” and see the status
light steadily lit in blue.
My car kit worked before but now it's not working
Make sure your phone is on and the Bluetooth feature
is turned on in your phone. If the Bluetooth feature
was turned off or was turned on only temporarily, you
may need to restart the Bluetooth feature and pair your
phone and headset again (see “Pair & connect” on
page 6).
15Problems?
My car kit does not announce caller names during
incoming calls
Make sure your phone supports the Bluetooth
phonebook access (PBAP) profile and contains the
caller’s names in its phonebook. If so, turn off the car
kit and press and hold while turning on again and
follow the voice prompts to reset the car kit to factory
default condition. The car kit resets and you hear
“ready to pair” and see the status light steadily lit in
blue. After pairing, you should be asked by your phone
to grant phonebook access to your car kit. If prompted,
say "always accept".
16 Support
Support
we’re here to help
If you have questions or need assistance, contact us at
1-877-MOTOBLU, or visit us at
www.motorola.com/Bluetoothsupport or
www.motorola com/bluetoothconnect.
17
Safety, Regulatory & Legal
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR DEVICE.
Use & Safety for Battery-Powered Accessories
•
Do not store or use your battery-powered accessory (such as a Bluetooth®
headset or other device) in temperatures below -10°C (14°F) or above 60°C
(140°F).
•
Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C
(113°F).
•
Conditions inside a parked car can exceed this range. Do not store your accessory
in a parked car.
•
Do not store your accessory in direct sunlight.
•
Storing your fully charged accessory in high-temperature conditions may
permanently reduce the life of the internal battery.
•
Battery life may temporarily shorten in low-temperature conditions.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries,
antennas, and convertible covers, may cause your mobile device to exceed RF
energy exposure guidelines and may void your mobile device’s warranty. For a list of
approved Motorola accessories, visit our Web site at:
www.motorola.com
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel
of a vehicle. Using a mobile device or accessory for a call or other application while
driving may cause distraction. Using a mobile device or accessory may be prohibited
or restricted in certain areas, always obey the laws and regulations on the use of
these products.
While driving, NEVER:
•
Type or read texts.
18
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking features (such as
audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and accessories
in the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in English only).
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume sound
level, the less time is required before your hearing could be affected.
To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English
only).
19
Small Children
Keep your mobile device and its accessories away from small children.
These products are not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
European Union Directives Conformance
Statement
EU Conformanc e
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Do not dispose of your battery or product with your household
waste. See “Recycling” for more information.
For indoor use only.
032374o
032376o
20
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC
(to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
Product Approval Number from your product’s label in the “Search” bar on the Web
site.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
Product
Approval
Number
21
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference
that may cause undesired operation of the device. See RSS-GEN 7.1.5. This Class B
digital apparatus complies with Canadian ICES-003.
Privacy & Data Security
Privac y & Data Secur ity
Motorola understands that privacy and data security are important to everyone.
Because some features of your product may affect your privacy or data security,
please follow these recommendations to enhance protection of your information:
• Monitor access
—Keep your product with you and do not leave it where others
may have unmonitored access. Lock your product’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a software/application vendor
releases a patch or software fix for your product that updates the device’s
security, install it as soon as possible.
• Secure Personal Information
—Your product can store personal information
in various locations including a SIM card, memory card, and built-in memory. Be
sure to remove or clear all personal information before you recycle, return, or
give away your product.
Note:
For information on how to backup or wipe data from your product, go to
www.motorola.com/support
• Online accounts
—Some products provide a Motorola online account. Go to
your account for information on how to manage the account, and how to use
security features.
22
• Applications
—Install third party applications from trusted sources only.
Applications can have access to private information such as call data, location
details and network resources.
If you have further questions regarding how the use of your mobile device may
impact your privacy or data security, please contact Motorola at
privacy@motorola.com
, or contact your service provider.
Use & Care
Use & Care
To care for your Motorola product, please keep it away from:
liquids of any kind
Don’t expose your product to water, rain, extreme humidity, sweat, or
other moisture. If it does get wet, don’t try to accelerate drying with the
use of an oven or dryer, as this may damage the product.
extreme heat or cold
Avoid temperatures below -10°C (14°F) or above 60°C (140°F).
microwaves
Don’t try to dry your product in a microwave oven.
dust and dirt
Don’t expose your product to dust, dirt, sand, food, or other
inappropriate materials.
cleaning solutions
To clean your product, use only a dry soft cloth. Don’t use alcohol or
other cleaning solutions.
shock and vibration
Don’t drop your product.
23
Recycling
Recycli ng
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories (such as chargers,
headsets, or batteries) with your household waste, or in a fire. These items should
be disposed of in accordance with the national collection and recycling schemes
operated by your local or regional authority. Alternatively, you may return unwanted
mobile devices and electrical accessories to any Motorola Approved Service Center
in your region. Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional
authorities for more details.
Software Copyright Notice
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola and third-party software providers certain
exclusive rights for copyrighted software, such as the exclusive rights to distribute
or reproduce the copyrighted software. Accordingly, any copyrighted software
contained in Motorola products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the extent allowed by law. Furthermore,
the purchase of Motorola products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the copyrights, patents, or
patent applications of Motorola or any third-party software provider, except for the
normal, non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and Canada
24
may restrict the exportation or re-exportation of this product to certain destinations.
For further information contact the U.S. Department of Commerce or the Canadian
Department of Foreign Affairs and International Trade.
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates and
allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service
of your Motorola Personal Communications Product you will need to provide a copy
of your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty for the United
States and Canada
Wa rr a n t y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its
mobile telephones (“Products”), Motorola-branded or certified accessories sold for
use with these Products (“Accessories”), and Motorola software contained on
CD-ROMs or other tangible media and sold for use with these Products (“Software”)
to be free from defects in materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a consumer's exclusive
remedy, and applies as follows to new Motorola Products, Accessories, and
Software purchased by consumers in the United States or Canada, which are
accompanied by this written warranty:
25
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from coverage.
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of purchase by
the first consumer purchaser of the product
unless otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first consumer
purchaser of the product.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the
lifetime of ownership by the first consumer
purchaser of the product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty or
for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
26
Use of Non-Motorola Products and Accessories.
Defects or damage that result
from the use of non-Motorola branded or certified Products, Accessories, Software
or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming
or non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the software
will meet your requirements or will work in combination with any hardware or
software applications provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in
physical media (e.g. software that is downloaded from the Internet), is provided “as
is” and without warranty.
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
27
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price
of any Products, Accessories or Software that does not conform to this warranty. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or applications added to your
Product, Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data, software, and
applications, please create a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or Software,
at your expense, to a Motorola Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name of your service provider, if
applicable; (d) the name and location of the installation facility (if applicable) and,
most importantly; (e) your address and telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE
THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS
PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
USA All Products, Accessories, and Software:
1-800-331-6456
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
28
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights, and you may also have
other rights that vary from state to state or from one jurisdiction to another.
29
Copyright & Trademarks
Motorola Mobility, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Note:
Do not ship your product to the above address. If you need to return your
product for repairs, replacement, or warranty service, please contact the Motorola
Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not be
available in all areas; additional terms, conditions and/or charges may apply.
Contact your service provider for details.
All features, functionality, and other product specifications, as well as the
information contained in this guide, are based upon the latest available information
and believed to be accurate at the time of printing. Motorola reserves the right to
change or modify any information or specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC. The Bluetooth trademarks are owned by their
proprietor and used by Motorola Mobility, Inc. under license. All other product or
service names are the property of their respective owners.
© 2010 Motorola Mobility, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly approved
by Motorola, will void the user’s authority to operate the equipment.
Product ID: Motorola TZ700
Manual Number: 68014201001-A
30
