Bluetooth Headset
Quick Start Guide
DRAFT 1 - 06/18/2010
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
1Congratulations
Congratulations
Your Motorola HK100 headset is designed for quick
connections, clear calls, and lasting comfort.
We’ve crammed all of the main features of your
headset into this handy guide, and in a matter of
minutes we’ll show you just how easy your headset is
to use.
So go on, check it out.
more information
on the Web: www.motorola.com/support
Caution: Before using your headset for the first
time, please read the important Safety, Regulatory
& Legal information at the back of this guide
(page 11).
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION

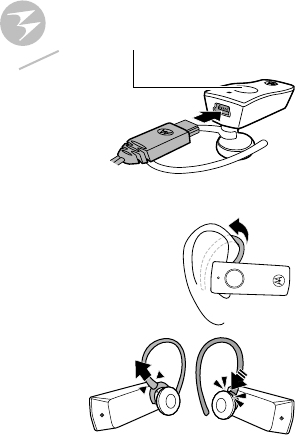

2Your headset

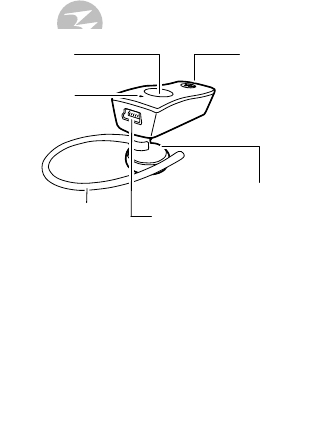

Yo u r h e a d s e t
the important parts
Call
Button
Earhook
Indicator
Light
Mini USB
Charging
Connector
Ear
Speaker
Microphone
(on side)
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
3Charge it
Charge it
let’s get you up and running
While your headset is charging, you won’t be able to
use it.
Note: Your battery is designed to last the life of your
product. It should only be removed by a recycling
facility. Any attempt to remove or replace your battery
will damage your headset.

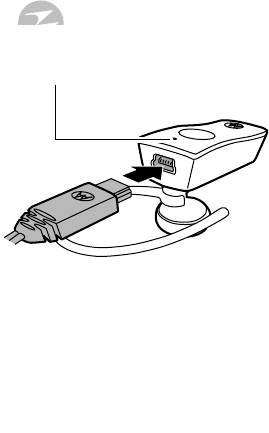

Indicator Light
Red/Purple - charging
Blue - fully charged
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
4Basics
Basics
a few essentials to get you started
Turn it on & off
Press and hold the Call
button until you hear
“power on” or “power
off”.
Wear it
Flex the ear hook and loop it over
your ear as shown.
Make sure the speaker aligns with
your ear canal, and the microphone
is pointing towards your mouth.
Your headset comes
ready for use on your
right ear. To change
for left ear, just pull
off the earhook, turn,
and reinstall.
Call Button
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
5Pair & connect
Pair & connect
connect and go
1Turn off any Bluetooth devices previously paired
with your headset.
2Turn on the Bluetooth feature on your phone.
3Turn on your headset (see “Turn it on & off” on
page 4).
The status light becomes steadily lit in blue.
Note: When prompted for the passkey, enter 0000.
When connected, you see the status light rapidly flash
in blue and purple.
For daily use, make sure your headset is turned on,
and your phone’s Bluetooth feature is on. Your headset
and phone will connect automatically.
Test your connection
1Place the headset on your ear.
2On the phone, dial the number you want to call and
press the Call/Send key.
If your phone and headset are successfully connected,
you hear ringing on the headset.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
6Pair & connect
Restore to factory settings
Caution: This action erases all pairing information
stored in your headset.
1Turn your headset off.
2Press and hold the Call button and wait for a tone
after hearing “power on”.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
7Calls
Calls
it’s good to talk
Note: Some call features are phone/network
dependent.
To . ..
answer call Press the Call button.
reject call Press and hold the Volume button
until you hear a tone.
make a voice
dial call
Press the Call button and you hear
a tone.
end a call Press the Call button.
answer or
reject second
call
Follow the phone’s instructions.
adjust call
volume
Use volume buttons on phone to
adjust volume.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
8Status light
Status light
know your headset
Note: After 20 minutes of inactivity, the status light
stops flashing to conserve power, but the headset
remains on.
Note: After 20 minutes of idle time (no connection to a
phone), the headset turns off.
if light shows... your headset is...
off off
three blue flashes powering on/off
steady blue in pairing/connect mode
rapid blue/purple
flashes
connecting to your phone
quick blue flash receiving or making a call
slow blue pulse connected (on a call)
slow blue flash in standby (not on a
call—connected to the phone)
slow red flash idle (not connected to a phone)
steady red trying to connect to your
phone
quick red flash in a low battery state
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
9Problems?
Problems?
we’ve got solutions
My headset will not enter pairing mode.
Make sure that any devices previously paired with the
headset are turned off. If the status light is flashing in
blue, first turn off the other device, then turn the
headset off and on. The status light becomes steadily lit
in blue.
My phone doesn't find my headset when searching.
Make sure the status light on your headset is steadily lit
in blue when your phone is searching for devices. If not,
press and hold the Call button and Volume button while
turning the power on until you see the status light
steady blue.
My headset will not pair with my phone.
If the status light is not steadily lit in blue when your
phone is searching for your headset, press and hold the
Call button and Volume button while turning the power
on until you see the status light steady blue. Then
follow pair & connect instructions on pages
5
.
My headset connected before, but now it's not
working.
Make sure the status light on your headset is steadily lit
in blue when your phone is searching for devices. If not,
press and hold the Call button and Volume button while
turning the power on until you see the status light
steady blue.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
10 Support
Support
we’re here to help
If you have questions or need assistance, contact us at
1-877-MOTOBLU, or visit us at
www.motorola.com/Bluetoothsupport or
www.motorola com/bluetoothconnect.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
11Support
Safety, Regulatory & Legal
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR DEVICE.
Use & Safety for Battery-Powered Accessories
•
Do not store or use your battery-powered accessory (such as a Bluetooth®
headset or other device) in temperatures below -10°C (14°F) or above 60°C
(140°F).
•
Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C
(113°F).
•
Conditions inside a parked car can exceed this range. Do not store your accessory
in a parked car.
•
Do not store your accessory in direct sunlight.
•
Storing your fully charged accessory in high-temperature conditions may
permanently reduce the life of the internal battery.
•
Battery life may temporarily shorten in low-temperature conditions.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries,
antennas, and convertible covers, may cause your mobile device to exceed RF
energy exposure guidelines and may void your mobile device’s warranty. For a list of
approved Motorola accessories, visit our Web site at:
www.motorola.com
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel
of a vehicle. Using a mobile device or accessory for a call or other application while
driving may cause distraction. Using a mobile device or accessory may be prohibited
or restricted in certain areas, always obey the laws and regulations on the use of
these products.
While driving, NEVER:
•
Type or read texts.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
12
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking features (such as
audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and accessories
in the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in English only).
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume sound
level, the less time is required before your hearing could be affected.
To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English
only).
Small Children
Keep your mobile device and its accessories away from small children.
These products are not toys and may be hazardous to small children. For example:
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
13
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.

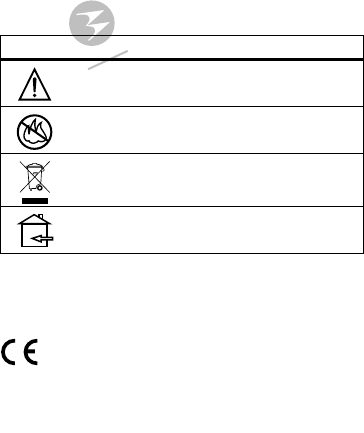

Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
European Union Directives Conformance
Statement
EU Conformanc e
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Do not dispose of your battery or product with your household
waste. See “Recycling” for more information.
For indoor use only.
032374o
032376o
0168
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
14

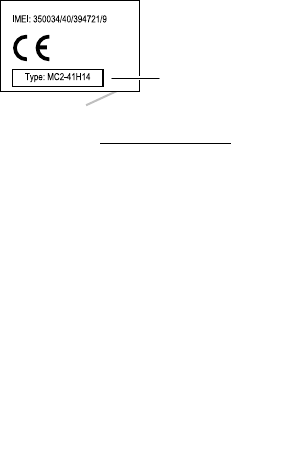

The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC
(to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
Product Approval Number from your product’s label in the “Search” bar on the Web
site.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
Product
Approval
Number
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
15
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference
that may cause undesired operation of the device. See RSS-GEN 7.1.5. This Class B
digital apparatus complies with Canadian ICES-003.
Privacy & Data Security
Privac y & Data Secur ity
Motorola understands that privacy and data security are important to everyone.
Because some features of your product may affect your privacy or data security,
please follow these recommendations to enhance protection of your information:
• Monitor access
—Keep your product with you and do not leave it where others
may have unmonitored access. Lock your product’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a software/application vendor
releases a patch or software fix for your product that updates the device’s
security, install it as soon as possible.
• Secure Personal Information
—Your product can store personal information
in various locations including a SIM card, memory card, and built-in memory. Be
sure to remove or clear all personal information before you recycle, return, or
give away your product.
Note:
For information on how to backup or wipe data from your product, go to
www.motorola.com/support
• Online accounts
—Some products provide a Motorola online account. Go to
your account for information on how to manage the account, and how to use
security features.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
16
•
Applications—Install third party applications from trusted sources only.
Applications can have access to private information such as call data, location
details and network resources.
If you have further questions regarding how the use of your mobile device may
impact your privacy or data security, please contact Motorola at
privacy@motorola.com
, or contact your service provider.
Recycling
Recycli ng
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories (such as chargers,
headsets, or batteries) with your household waste, or in a fire. These items should
be disposed of in accordance with the national collection and recycling schemes
operated by your local or regional authority. Alternatively, you may return unwanted
mobile devices and electrical accessories to any Motorola Approved Service Center
in your region. Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional
authorities for more details.
Software Copyright Notice
Soft ware Copyright Notice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola and third-party software providers certain
exclusive rights for copyrighted software, such as the exclusive rights to distribute
or reproduce the copyrighted software. Accordingly, any copyrighted software
contained in Motorola products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the extent allowed by law. Furthermore,
the purchase of Motorola products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the copyrights, patents, or
patent applications of Motorola or any third-party software provider, except for the
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
17
normal, non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and Canada
may restrict the exportation or re-exportation of this product to certain destinations.
For further information contact the U.S. Department of Commerce or the Canadian
Department of Foreign Affairs and International Trade.
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates and
allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service
of your Motorola Personal Communications Product you will need to provide a copy
of your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty for the United
States and Canada
Wa rr a n t y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its mobile
telephones (“Products”), Motorola-branded or certified accessories sold for use with
these Products (“Accessories”), and Motorola software contained on CD-ROMs or
other tangible media and sold for use with these Products (“Software”) to be free
from defects in materials and workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a consumer's exclusive remedy,
and applies as follows to new Motorola Products, Accessories, and Software
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
18
purchased by consumers in the United States or Canada, which are accompanied by
this written warranty:
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of purchase by
the first consumer purchaser of the product
unless otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first consumer
purchaser of the product.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the
lifetime of ownership by the first consumer
purchaser of the product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty or
for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
19
purposes or subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that result
from the use of non-Motorola branded or certified Products, Accessories, Software
or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming
or non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the software
will meet your requirements or will work in combination with any hardware or
software applications provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in
physical media (e.g. software that is downloaded from the Internet), is provided “as
is” and without warranty.
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
20
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price
of any Products, Accessories or Software that does not conform to this warranty. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or applications added to your
Product, Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data, software, and
applications, please create a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or Software,
at your expense, to a Motorola Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name of your service provider, if
applicable; (d) the name and location of the installation facility (if applicable) and,
most importantly; (e) your address and telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE
THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS
PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
USA All Products, Accessories, and Software:
1-800-331-6456
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
21
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights, and you may also have
other rights that vary from state to state or from one jurisdiction to another.
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
22
Copyright & Trademarks
Motorola, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Note:
Do not ship your product to the above address. If you need to return your
product for repairs, replacement, or warranty service, please contact the Motorola
Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not be
available in all areas; additional terms, conditions and/or charges may apply.
Contact your service provider for details.
All features, functionality, and other product specifications, as well as the
information contained in this guide, are based upon the latest available information
and believed to be accurate at the time of printing. Motorola reserves the right to
change or modify any information or specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark
Office. The Bluetooth trademarks are owned by their proprietor and used by
Motorola, Inc. under license. All other product or service names are the property of
their respective owners.
© 2010 Motorola, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly approved
by Motorola, will void the user’s authority to operate the equipment.
Product ID: Motorola HK100
Manual Number: 68000202977-A
DRAFT - MOTOROLA CONFIDENTIAL
& PROPRIETARY INFORMATION
23
