Stereo Bluetooth
Headphones
Quick Start Guide
DRAFT 5- 08/02/10
Congratulations 1
Congratulations
Your Motorola S10-HD Stereo Bluetooth®
Headphones take music to the next level.
We’ve crammed all of the main features of
your headphones into this handy guide, and in
a matter of minutes we’ll show you just how
easy your headphones are to use.
So go on, check it out.
More information
On the web: www.motorola.com/support
Caution: Before using your headset for the
first time, please read the important Safety,
Regulatory & Legal information at the back
of this guide.
Your headphones2
Your headphones

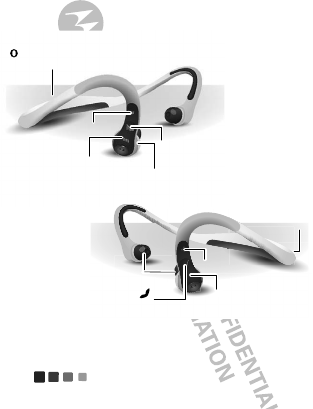

the important parts
Microphone
Õ
\
Forward
Ô
Back
Play/Pause
9
Volume Up
Ear Speakers
Call
Ï
Volume Down
MicroUSB
Charging
Port
(on back)
Power and Status Light
(underneath back)
Charge it 3
Charge it
let’s get you up and running
While your headphones are charging, you
won’t be able to use them.
Note: Your battery is designed to last the life of
your product. It should only be removed by a
recycling facility. Any attempt to remove or
replace your battery will damage your
headphones.
Status Light
Red = charging
Blue = fully charged
Basics4
Basics
a few essentials to get you started
Tu rn o n & o ff
Wear it
Use both hands to
gently rotate the
headphones over your
head, place ear hooks
over your ears, and
insert the speakers into
your ears for a snug fit.
Power
Press and hold to turn on/off.
Basics 5
When fitted properly, the back of your
headphones normally “float” over your neck.
Tip: Try out all the supplied ear cushions to get
a comfortable fit and optimal performance.
Pair & connect6
Pair & connect
connect and go
Pair & connect with your phone
1Turn off any Bluetooth devices previously
paired with your headphones.
2Turn on the Bluetooth feature on your
phone.
3Turn on your headphones (see “Turn on &
off” on page 4).
The status light becomes steadily lit in blue.
Note: When prompted for the passkey,
enter 0000.
When connected, you see the status light
rapidly flash in blue and red.
For daily use, make sure your headphones are
turned on, and your phone’s Bluetooth feature
is on. Your headphones and phone will connect
automatically.
Pair & connect 7
Test your connection
1Ensure your headphones are turned on.
2Play music on your phone.
If connected for music, you hear it on the
headphones.
3Dial a phone number and press the Call/
Send key.
If connected for calls, you hear ringing on
the headphones.
Listen to music8
Listen to music
when music is what you need
Note: Some features are phone/network
dependent.
Control your tunes
Use the music buttons on your headphones to
control music playback.
To. ..
play music Press
Å
.
pause/resume
music
Press
Å
.
go to next song Press
Ä
.
fast-forward song Press and hold
Ä
.
rewind song Press and hold
Ã
.
go to previous song Press
Ã
.
stop music Press and hold
Å
.
Listen to music 9
Crank it up
Press 9 (to increase) and Ï (to decrease)
buttons to adjust the volume.
Note: The volume setting on your phone may
impact volume on your headphones.
On a call?
When a call is active, your music either pauses
or is silenced. When the call ends, music
resumes playing.
Calls10
Calls
it’s good to talk
Note: Some features are phone/network
dependent.
To...
answer call Press .
reject call Press and hold
9
or
Ï
until
you hear a tone.
make a voice
dial call
Press and you hear a
tone. Follow prompts to make
call.
redial last call Press and hold until you
hear a tone.
mute or
unmute a call
Press
Å
.
end a call Press .
Status light 11
Status light
know your headphones
If status light
shows...
your headphones are...
three blue
flashes
powering on/off
steady blue in pairing mode
rapid blue/red
flashes
connecting to your phone
quick blue
flash
receiving or making a call
slow blue
pulse
on a call
slow red
pulse
call muted
Status light12
slow blue
flash
in standby (not on a
call—connected to phone)
slow red
flash
idle (not connected to a
phone)
steady red trying to connect to your
phone
quick purple
flash
playing/pausing music
quick red
flash
stopping music
slow purple
pulse
music playing
If status light
shows...
your headphones are...
Status light 13
Note: The status light stops flashing to
conserve power after 20 minutes on a call or of
inactivity, but the headphones remain on. The
status light is reactivated by pressing the
(power) key or by certain changes in
headphone activity.
very quick
red flash (and
repeating
short tones)
in a low battery state
(need recharge)
If status light
shows...
your headphones are...
Got an iPod®?14
Got an iPod®?
let’s get them together
Listen to your iPod wirelessly with your headphones
and the Motorola D670 Bluetooth Adapter for iPod.
1
Turn off any Bluetooth devices previously paired
with your headphones.
2
Turn headphones off then on using the
(power) key and wait for the status light to be
steadily lit in blue.
3
Turn on your iPod and place in pause mode.
4
Connect your D670 to your iPod.
5
Press your iPod’s Play/Pause button.
When the D670’s status light begins to pulse
slowly, you are paired and connected to your
headphones.
Note:
If you’re on a call longer than two minutes,
the D670 and iPod enter power saving mode. Press
Play/Pause twice on the iPod to wake up.
Tips & tricks 15
Tips & tricks
a few handy hints
Reconnect with your phone
To reconnect your headphones to your phone:
•Press to reestablish handsfree-phone
connection and make/receive calls.
•Press Å to reestablish streaming music
connection and restart music.
Reset to factory setting
Caution: This action erases all pairing
information stored in your headphones.
Press and hold the (power) and 9 keys
while headphones are on until the status light
is steadily lit in blue.
Tips & tricks16
Outdoor use
To help you avoid choppy or distorted music in
your headphones:
•Position your phone close to and within line
of sight of your headphone’s internal
antenna (located in the base behind your
head).
•Do not place your phone in your front pocket
or other location that can obscure its signal
connection to the headphone’s antenna.
•If your choice of phone location doesn’t
work, try moving it closer to the
headphones or turning it.
Problems? 17
Problems?
we’ve got solutions
My headphones will not enter pairing mode
Make sure that any devices previously paired
with your headphones are turned off. If the
status light is not steadily lit in blue, turn off
both the other device and headphones, wait 10
seconds, then turn headphones back on by
pressing and holding the (power) key until
the status light becomes steadily lit in blue.
My phone doesn't find my headphones
when searching
Make sure the status light on your headphones
is steadily lit in blue when your phone is
searching for devices. If not, press and hold the
(power) key until the status light is steadily
lit in blue.
Problems?18
My headphones worked before but now
they're not working
Make sure your phone is on and the Bluetooth
feature is turned on in your phone. If the
Bluetooth feature was turned off or was turned
on only temporarily, you may need to restart
the Bluetooth feature and pair your phone and
headset again (see “Turn on & off” on page 4).
Support 19
Support
we’re here to help
If you have questions or need assistance,
contact us at 1-877-MOTOBLU, or visit us at
www.motorola.com/Bluetoothsupport or
www.motorola com/bluetoothconnect.
20
Safety, Regulatory & Legal
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT
OPERATION. READ THIS INFORMATION BEFORE USING YOUR
DEVICE.
Use & Safety for Battery-Powered
Accessories
•
Do not store or use your battery-powered accessory (such as a
Bluetooth® headset or other device) in temperatures below
-10°C (14°F) or above 60°C (140°F).
•
Do not recharge your accessory in temperatures below 0°C (32°F)
or above 45°C (113°F).
•
Conditions inside a parked car can exceed this range. Do not
store your accessory in a parked car.
•
Do not store your accessory in direct sunlight.
•
Storing your fully charged accessory in high-temperature
conditions may permanently reduce the life of the internal
battery.
•
Battery life may temporarily shorten in low-temperature
conditions.
21
Approved Accessories
Use of accessories not approved by Motorola, including but not limited
to batteries, antennas, and convertible covers, may cause your mobile
device to exceed RF energy exposure guidelines and may void your
mobile device’s warranty. For a list of approved Motorola accessories,
visit our Web site at:
www.motorola.com
Driving Precautions
Responsible and safe driving is your primary responsibility when behind
the wheel of a vehicle. Using a mobile device or accessory for a call or
other application while driving may cause distraction. Using a mobile
device or accessory may be prohibited or restricted in certain areas,
always obey the laws and regulations on the use of these products.
While driving, NEVER:
•
Type or read texts.
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from
driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
22
•
Use a handsfree device if available or required by law in your
area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking
features (such as audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices
and accessories in the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Responsible driving practices can be found at
www.motorola.com/
callsmart
(in English only).
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for
extended periods of time may affect your hearing. The
louder the volume sound level, the less time is required
before your hearing could be affected. To protect your
hearing:
•
Limit the amount of time you use headsets or headphones at high
volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
23
If you experience hearing discomfort, including the sensation of pressure
or fullness in your ears, ringing in your ears, or muffled speech, you
should stop listening to the device through your headset or headphones
and have your hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English only).
Small Children
Keep your mobile device and its accessories away from small
children.
These products are not toys and may be hazardous to small
children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing
hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as
follows:
Symbol Definition
Important safety information follows.
032374o
24
European Union Directives
Conformance Statement
EU Conformanc e
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of
Directive 1999/5/EC
•
All other relevant EU Directives
Do not dispose of your battery or mobile device in a
fire.
Do not dispose of your battery or product with your
household waste. See “Recycling” for more
information.
For indoor use only.
Symbol Definition
032376o
25
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To
find your DoC, enter the Product Approval Number from your product’s
label in the “Search” bar on the Web site.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC logo,
and/or an FCC ID in the format FCC ID:xxxxxx on the product
label.
Motorola has not approved any changes or modifications to this device
by the user. Any changes or modifications could void the user’s authority
to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
Product
Approval
Number
26
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. See 47 CFR
Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for
help.
27
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may
not cause interference and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
See RSS-GEN 7.1.5. This Class B digital apparatus complies with
Canadian ICES-003.
Privacy & Data Security
Privac y & Data Secur ity
Motorola understands that privacy and data security are important to
everyone. Because some features of your product may affect your
privacy or data security, please follow these recommendations to
enhance protection of your information:
• Monitor access
—Keep your product with you and do not leave
it where others may have unmonitored access. Lock your
product’s keypad where this feature is available.
• Keep software up to date
—If Motorola or a software/
application vendor releases a patch or software fix for your
product that updates the device’s security, install it as soon as
possible.
• Secure Personal Information
—Your product can store
personal information in various locations including a SIM card,
memory card, and built-in memory. Be sure to remove or clear all
personal information before you recycle, return, or give away
your product.
28
Note:
For information on how to backup or wipe data from your
product, go to
www.motorola.com/support
• Online accounts
—Some products provide a Motorola online
account. Go to your account for information on how to manage
the account, and how to use security features.
• Applications
—Install third party applications from trusted
sources only. Applications can have access to private information
such as call data, location details and network resources.
If you have further questions regarding how the use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Use & Care
Use & Care
To care for your Motorola product, please keep it away from:
liquids of any kind
Don’t expose your product to water, rain, extreme humidity,
sweat, or other moisture. If it does get wet, don’t try to
accelerate drying with the use of an oven or dryer, as this
may damage the product.
29
extreme heat or cold
Avoid temperatures below -10°C (14°F) or above 60°C
(140°F).
microwaves
Don’t try to dry your product in a microwave oven.
dust and dirt
Don’t expose your product to dust, dirt, sand, food, or other
inappropriate materials.
cleaning solutions
To clean your product, use only a dry soft cloth. Don’t use
alcohol or other cleaning solutions.
shock and vibration
Don’t drop your product.
30
Recycling
Recycli ng
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories (such
as chargers, headsets, or batteries) with your household waste, or in a
fire. These items should be disposed of in accordance with the national
collection and recycling schemes operated by your local or regional
authority. Alternatively, you may return unwanted mobile devices and
electrical accessories to any Motorola Approved Service Center in your
region. Details of Motorola approved national recycling schemes, and
further information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in
accordance with national collection and recycling requirements. Please
contact your regional authorities for more details.
Software Copyright Notice
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party
software stored in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted software,
such as the exclusive rights to distribute or reproduce the copyrighted
software. Accordingly, any copyrighted software contained in Motorola
31
products may not be modified, reverse-engineered, distributed, or
reproduced in any manner to the extent allowed by law. Furthermore,
the purchase of Motorola products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third-party
software provider, except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the sale of a product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United
States of America and Canada. The Governments of the United States of
America and Canada may restrict the exportation or re-exportation of
this product to certain destinations. For further information contact the
U.S. Department of Commerce or the Canadian Department of Foreign
Affairs and International Trade.
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new
Motorola product. Registering permits us to contact you for product or
software updates and allows you to subscribe to updates on new
products or special promotions. Registration is not required for warranty
coverage.
32
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications Product
you will need to provide a copy of your dated sales receipt to confirm
warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty for the
United States and Canada
Wa rr a n t y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Mobility, Inc.
warrants its mobile telephones (“Products”), Motorola-branded or
certified accessories sold for use with these Products (“Accessories”),
and Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer usage for
the period(s) outlined below. This limited warranty is a consumer's
exclusive remedy, and applies as follows to new Motorola Products,
Accessories, and Software purchased by consumers in the United States
or Canada, which are accompanied by this written warranty:
33
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as defined
above, unless otherwise
provided for below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
34
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement
of parts due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80%
of their rated capacity and batteries that leak are covered by this limited
warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper
operation, storage, misuse or abuse, accident or neglect, such as
physical damage (cracks, scratches, etc.) to the surface of the product
resulting from misuse; (b) contact with liquid, water, rain, extreme
humidity or heavy perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for commercial purposes or
subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from
coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of non-Motorola branded or certified
Products, Accessories, Software or other peripheral equipment are
excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation, maintenance,
alteration, or modification in any way by someone other than Motorola,
or its authorized service centers, are excluded from coverage.
35
Altered Products.
Products or Accessories with (a) serial numbers or
date tags that have been removed, altered or obliterated; (b) broken
seals or that show evidence of tampering; (c) mismatched board serial
numbers; or (d) nonconforming or non-Motorola housings, or parts, are
excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication service or
signal you may subscribe to or use with the Products Accessories or
Software is excluded from coverage.
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that
the software will meet your requirements or will work in combination
with any hardware or software applications provided by third parties,
that the operation of the software products will be uninterrupted or error
free, or that all defects in the software products will be corrected.
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies the
copy of the software (e.g. CD-ROM, or
floppy disk).
Ninety (90) days
from
the date of purchase.
36
Software NOT Embodied in Physical Media.
Software that is not
embodied in physical media (e.g. software that is downloaded from the
Internet), is provided “as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the
purchase price of any Products, Accessories or Software that does not
conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or
parts. No data, software or applications added to your Product,
Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data,
software, and applications, please create a back up prior to requesting
service.
How to Obtain Warranty Service or Other
Information
USA All Products, Accessories, and Software:
1-800-331-6456
Canada All Products:
1-800-461-4575
37
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To
obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the
problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most
importantly; (e) your address and telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT
SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
TTY
1-888-390-6456
38
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation
on the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that
vary from state to state or from one jurisdiction to another.
39
Copyright & Trademarks
Motorola Mobility, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Note:
Do not ship your product to the above address. If you need to
return your product for repairs, replacement, or warranty service, please
contact the Motorola Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and
may not be available in all areas; additional terms, conditions and/or
charges may apply. Contact your service provider for details.
All features, functionality, and other product specifications, as well as
the information contained in this guide, are based upon the latest
available information and believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC. The Bluetooth
40
trademarks are owned by their proprietor and used by Motorola
Mobility, Inc. under license. iPod is a registered trademark of Apple, Inc.
All other product or service names are the property of their respective
owners.
© 2010 Motorola Mobility, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to operate
the equipment.
Product ID: Motorola S10-HD
Manual Number: 68014214001-A
