T56EH1 User Manual HTML Version

Exhibit 8 Users Manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EH1

EXHIBIT 8

INSTRUCTION MANUAL

A preliminary draft copy of the Users Manual follows:

START HERE >

V180

GSM

Welcome

Welcome to the world of Motorola digital wireless

communications! We are pleased that you have chosen the

Motorola V180 GSM wireless phone.

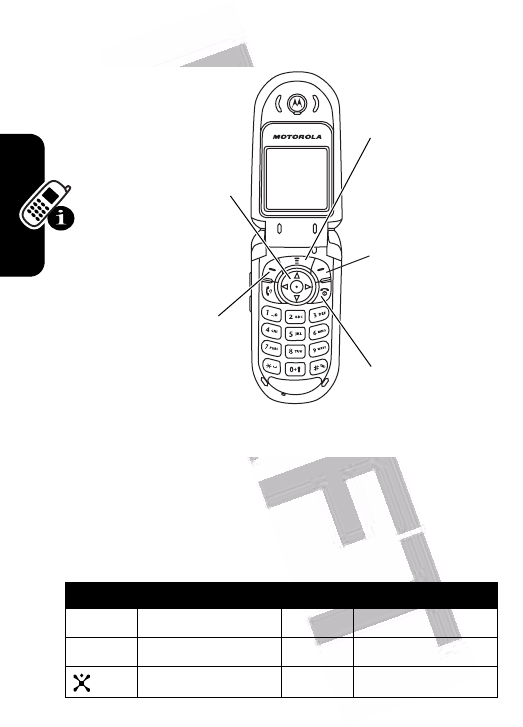

Headset Jack

Left Soft Key

Perform

function in

lower left

display.

Power & End Key

Turn phone on/off,

end calls, exit menu

system.

Menu Key

Right Soft Key

Perform function in

lower right display.

Answer &

Send Key

Make & answer

calls.

5-Way Navigation

Key

Scroll through &

select menu items.

Press center to

select.

Volume Keys

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States)

1-800-461-4575 (Canada)

www.motorola.com (United States)

www.motorola.ca (Canada)

MOTOROLA and the Stylized M Logo are registered in the US Patent &

Trademark Office. Java and all other Java-based marks are trademarks or

registered trademarks of Sun Microsystems, Inc. in the U.S. and other

countries. All other product or service names are the property of their

respective owners.

The information contained in Motorola's user's guides is believed to be

correct at the time of printing. Motorola reserves the right to change or

modify any information or specifications without notice. The contents of

Motorola’s user's guides are provided “as is.” Except as required by

applicable law, no warranties of any kind, either express or implied,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose, are made in relation to the accuracy,

reliability, or contents of this guide.

Contents

Safety and General Information

. . . . . . . . . . . . . . . . . . . . 6

Getting Started

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Battery Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing Your Phone’s Lens . . . . . . . . . . . . . . . . . . . . . 16

Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 17

Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Answering a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 19

Highlight Features

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

USB Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 20

Receiving a Multimedia Message . . . . . . . . . . . . . . . . . . 23

Learning to Use Your Phone

. . . . . . . . . . . . . . . . . . . . . . 24

Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 29

Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Entering Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the External Display . . . . . . . . . . . . . . . . . . . . . . . 43

Using the Handsfree Speaker. . . . . . . . . . . . . . . . . . . . . 44

Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 44

Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 45

If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 46

Using the Address Book . . . . . . . . . . . . . . . . . . . . . . . . . 47

Setting Up Your Phone

. . . . . . . . . . . . . . . . . . . . . . . . . . 50

Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 50

Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . 51

Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . 52

Setting Display Color. . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . 53

Setting Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . 54

Calling Features

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . 55

Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Using Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . 57

Calling an Emergency Number . . . . . . . . . . . . . . . . . . . 57

Dialing International Numbers. . . . . . . . . . . . . . . . . . . . 58

Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . 60

Using the Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Attaching a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Calling with Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . 61

Calling with 1-Touch Dial. . . . . . . . . . . . . . . . . . . . . . . . 62

Using Voicemail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Using Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Putting a Call On Hold. . . . . . . . . . . . . . . . . . . . . . . . . . 64

Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Phone Features

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Instant Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Chat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Personalizing Features . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Dialing Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Call Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Handsfree Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Data and Fax Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Network Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Personal Organizer Features . . . . . . . . . . . . . . . . . . . . . 82

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

News and Entertainment . . . . . . . . . . . . . . . . . . . . . . . . 84

Specific Absorption Rate Data

. . . . . . . . . . . . . . . . . . . . 87

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Safety and General Information

IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION.

READ THIS INFORMATION BEFORE USING YOUR PHONE.

The information provided in this document supersedes the general safety

information in user guides published prior to December 1, 2002.

Exposure To Radio Frequency (RF) Energy

Your phone contains a transmitter and a receiver. When it is ON, it

receives and transmits RF energy. When you communicate with your

phone, the system handling your call controls the power level at which

your phone transmits.

Your Motorola phone is designed to comply with local regulatory

requirements in your country concerning exposure of human beings to RF

energy.

Operational Precautions

To assure optimal phone performance and make sure human exposure to

RF energy is within the guidelines set forth in the relevant standards,

always adhere to the following procedures.

External Antenna Care

Use only the supplied or Motorola-approved replacement antenna.

Unauthorized antennas, modifications, or attachments could damage the

phone.

Do NOT hold the external antenna when the phone is IN USE. Holding

the external antenna affects call quality and may cause the phone to

operate at a higher power level than needed. In addition, use of

unauthorized antennas may result in non-compliance with the local

regulatory requirements in your country.

Phone Operation

When placing or receiving a phone call, hold your phone as you would a

wireline telephone.

Body-Worn Operation

To maintain compliance with RF energy exposure guidelines, if you wear a

phone on your body when transmitting, always place the phone in a

Motorola-supplied or approved clip, holder, holster, case, or body harness

for this phone, if available. Use of accessories not approved by Motorola

may exceed RF energy exposure guidelines. If you do not use one of the

body-worn accessories approved or supplied by Motorola, and are not

using the phone held in the normal use position, ensure the phone and its

antenna are at least 1 inch (2.5 centimeters) from your body when

transmitting.

Data Operation

When using any data feature of the phone, with or without an accessory

cable, position the phone and its antenna at least 1 inch (2.5 centimeters)

from your body.

Approved Accessories

Use of accessories not approved by Motorola, including but not limited to

batteries and antenna, may cause your phone to exceed RF energy

exposure guidelines. For a list of approved Motorola accessories, visit our

website at

www.Motorola.com

RF Energy Interference/Compatibility

Note:

Nearly every electronic device is susceptible to RF energy

interference from external sources if inadequately shielded, designed, or

otherwise configured for RF energy compatibility. In some circumstances

your phone may cause interference.

Facilities

Turn off your phone in any facility where posted notices instruct you to do

so. These facilities may include hospitals or health care facilities that may

be using equipment that is sensitive to external RF energy.

Aircraft

When instructed to do so, turn off your phone when on board an aircraft.

Any use of a phone must be in accordance with applicable regulations per

airline crew instructions.

Medical Devices

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of

6 inches (15 centimeters) be maintained between a handheld wireless

phone and a pacemaker.

Persons with pacemakers should:

•

ALWAYS keep the phone more than 6 inches (15 centimeters) from

your pacemaker when the phone is turned ON.

•

NOT carry the phone in the breast pocket.

•

Use the ear opposite the pacemaker to minimize the potential for

interference.

•

Turn OFF the phone immediately if you have any reason to suspect

that interference is taking place.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the

event of such interference, you may want to consult your hearing aid

manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of

your device to determine if it is adequately shielded from RF energy. Your

physician may be able to assist you in obtaining this information.

Use While Driving

Check the laws and regulations on the use of phones in the area where

you drive. Always obey them.

When using your phone while driving, please:

•

Give full attention to driving and to the road.

•

Use hands-free operation, if available.

•

Pull off the road and park before making or answering a call if driving

conditions so require.

Responsible driving best practices may be found in the “Wireless Phone

Safety Tips” at the end of this manual and at the Motorola website:

www.Motorola.com/callsmart.

Operational Warnings

For Vehicles With an Air Bag

Do not place a phone in the area over an air bag or in the air bag

deployment area. Air bags inflate with great force. If a phone is placed in

the air bag deployment area and the air bag inflates, the phone may be

propelled with great force and cause serious injury to occupants of the

vehicle.

Potentially Explosive Atmospheres

Turn off your phone prior to entering any area with a potentially explosive

atmosphere. Do not remove, install, or charge batteries in such areas.

Sparks in a potentially explosive atmosphere can cause an explosion or

fire resulting in bodily injury or even death.

Note:

The areas with potentially explosive atmospheres referred to above

include fueling areas such as below decks on boats, fuel or chemical

transfer or storage facilities, areas where the air contains chemicals or

particles, such as grain, dust, or metal powders. Areas with potentially

explosive atmospheres are often but not always posted.

Blasting Caps and Areas

To avoid possible interference with blasting operations, turn OFF your

phone when you are near electrical blasting caps, in a blasting area, or in

areas posted “Turn off electronic devices.” Obey all signs and instructions.

Batteries

Batteries can cause property damage and/or bodily injury such as burns if

a conductive material such as jewelry, keys, or beaded chains touch

exposed terminals. The conductive material may complete an electrical

circuit (short circuit) and become quite hot. Exercise care in handling any

charged battery, particularly when placing it inside a pocket, purse, or

other container with metal objects.

Use only Motorola original batteries

and chargers.

Your battery or phone may contain symbols, defined as follows:

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when

exposed to flashing lights, such as when watching television or playing

video games. These seizures or blackouts may occur even if a person

never had a previous seizure or blackout.

Symbol Definition

Important safety information will follow.

Your battery or phone should not be disposed of in a

fire.

Your battery or phone may require recycling in

accordance with local laws. Contact your local

regulatory authorities for more information.

Your battery or phone should not be thrown in the

trash.

Your phone contains an internal lithium ion battery.

032374o

032376o

032375o

032377o

032378o

Li Ion BATT

If you have experienced seizures or blackouts, or if you have a family

history of such occurrences, please consult with your doctor before

playing video games on your phone or enabling a flashing-lights feature

on your phone. (The flashing-light feature is not available on all products.)

Parents should monitor their children's use of video game or other

features that incorporate flashing lights on the phones. All persons should

discontinue use and consult a doctor if any of the following symptoms

occur: convulsion, eye or muscle twitching, loss of awareness, involuntary

movements, or disorientation.

To limit the likelihood of such symptoms, please take the following safety

precautions:

•

Do not play or use a flashing-lights feature if you are tired or need

sleep.

•

Take a minimum of a 15-minute break hourly.

•

Play in a room in which all lights are on.

•

Play at the farthest distance possible from the screen.

Repetitive Motion Injuries

When you play games on your phone, you may experience occasional

discomfort in your hands, arms, shoulders, neck, or other parts of your

body. Follow these instructions to avoid problems such as tendonitis,

carpal tunnel syndrome, or other musculoskeletal disorders:

•

Take a minimum 15-minute break every hour of game playing.

•

If your hands, wrists, or arms become tired or sore while playing,

stop and rest for several hours before playing again.

•

If you continue to have sore hands, wrists, or arms during or after

play, stop playing and see a doctor.

Getting Started

About This Guide

This guide describes the basic features of your Motorola

wireless phone.

Optional Features

This label identifies an optional network, SIM

card, or subscription-dependent feature that may

not be offered by all service providers in all

geographical areas. Contact your service provider

for more information.

Optional Accessories

This label identifies a feature that requires an

optional Motorola Original® accessory.

CAUTION:

Before using the phone for the

first time, read the

Important Safety and

Legal Information

included in the

gray-edged pages at the back of this guide.

032257o

032380o

Getting Started

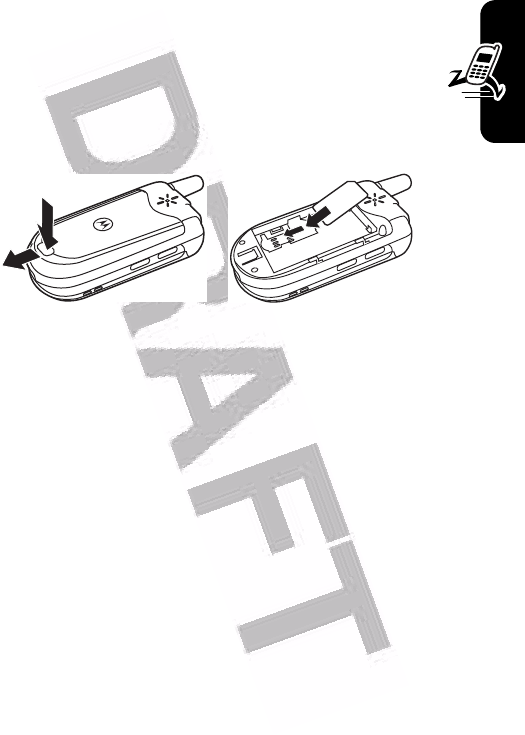

Installing the SIM Card

Your SIM (Subscriber Identity Module) card contains

your phone number, service details, and address book/

message memory.

Caution:

Do not bend or scratch your SIM card. Avoid

exposing your SIM card to static electricity, water, or dirt.

Battery Use

Battery performance depends on many factors, including

your wireless carrier’s network configuration; signal

strength; the temperature at which you operate your

phone; the features and/or settings you select and use;

items attached to your phone’s accessory connector; and

your voice, data, and other application usage patterns.

Caution:

To prevent injuries or burns, do not allow metal

objects to contact or short-circuit the battery terminals.

To maximize your battery’s performance:

•

Always use Motorola Original batteries and battery

chargers. The phone warranty does not cover damage

1 2

Getting Started

caused from using non-Motorola batteries and/or

battery chargers.

•

New batteries or batteries that have been stored

for a long time may require a longer charge time.

•

Maintain the battery at or near room temperature

when charging.

•

Do not expose batteries to temperatures below -10°C

(14°F) or above 45°C (113°F). Always take your

phone with you when you leave your vehicle.

•

When you do not intend to use a battery for a while,

store it uncharged in a cool, dark, dry place, such as a

refrigerator.

•

Batteries gradually wear down and require longer

charging times. This is normal. If you charge your

battery regularly and notice a decrease in talk time or

an increase in charging time, then it is probably time

to purchase a new battery.

The rechargeable batteries that power this phone

must be disposed of properly and may need to be

recycled. Refer to your battery’s label for battery

type. Contact your local recycling center for proper

disposal methods.

Warning:

Never dispose of batteries in a fire because they

may explode.

Installing the Battery

Note:

If necessary, remove the battery from its protective

clear plastic case.

Getting Started

Your phone is designed to use only Motorola

Original® batteries and accessories. We

recommend that you store batteries in their

protective cases when not in use.

Charging the Battery

New batteries are shipped partially charged. Before you

can use your phone, you need to install and charge the

battery as described below. Some batteries perform best

after several full charge/discharge cycles.

1 2

Getting Started

Tip:

You can safely leave the travel charger connected to

your phone after charging is complete. This will not

damage the battery.

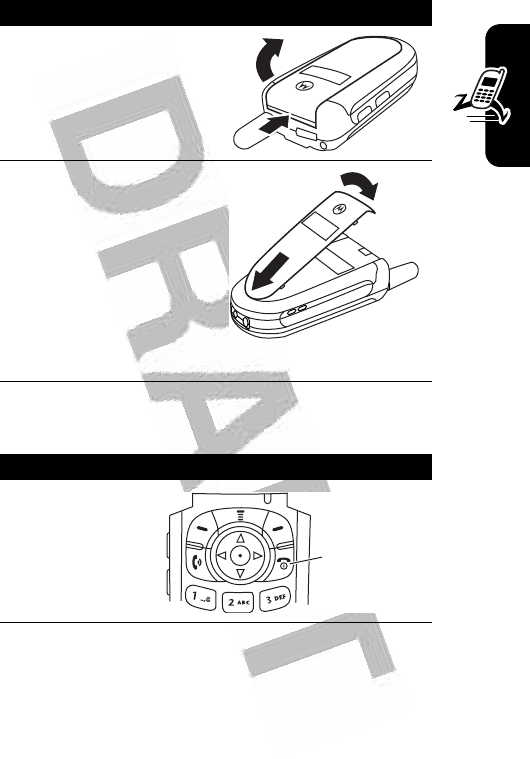

Changing Your Phone’s Lens

Always use Motorola Original® lenses. The phone

warranty does not cover damage caused from

using non-Motorola accessories.

Your phone has a removable lens that you can replace to

change its appearance.

Action

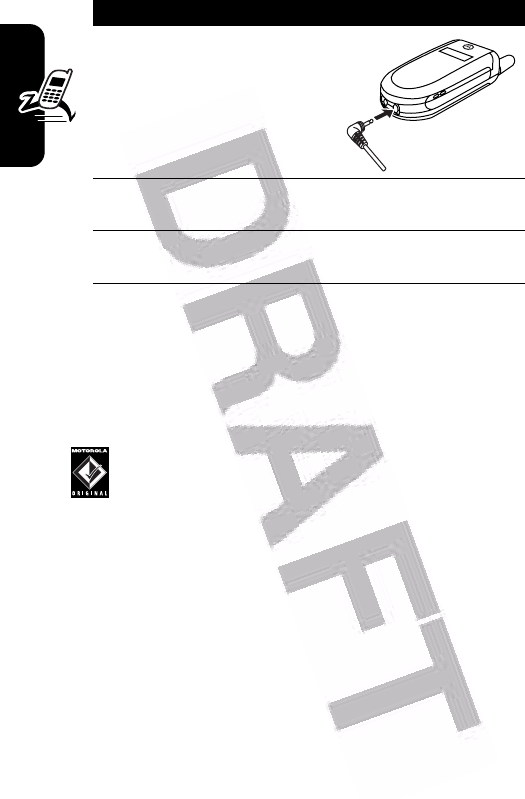

Plug the travel charger

into the bottom of your

phone.

Plug the other end of the travel charger into the

appropriate electrical outlet.

When your phone indicates

Charge Complete

, remove

the travel charger.

Getting Started

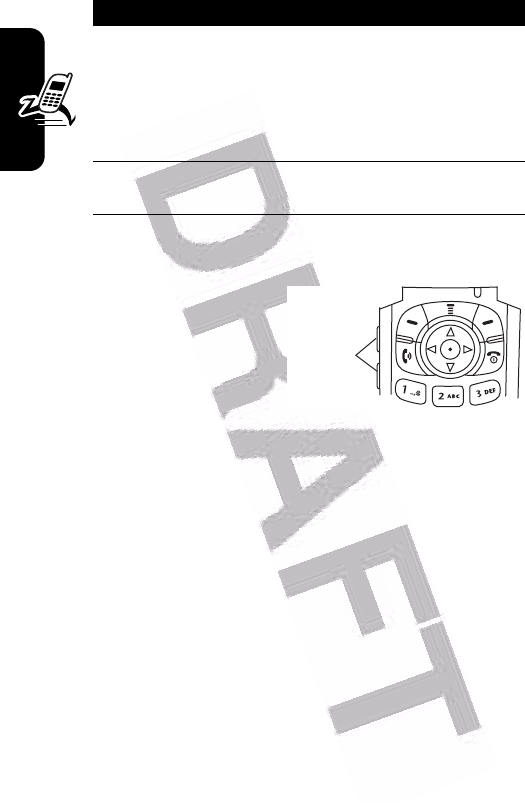

Turning Your Phone On

Action

Use your fingernail to

lift the top of the lens

and pull it away from

the phone.

Insert the tab at the

bottom of the new

lens into the bottom

of the phone flip,

then use your

thumbs to press

along the sides of the

lens as you press it

into place.

Action

Press and

hold

for 2

seconds to

turn on the

phone.

Power & End

Key

Getting Started

Adjusting Volume

Press the up and down

volume keys to:

•

increase or

decrease earpiece

volume during a call

•

increase or

decrease the ringer volume setting when the home

screen is visible

Tip:

At the lowest volume setting, press the down

volume key once to switch to vibrate alert. Press it

again to switch to silent alert. Press the up volume key

to switch back to vibrate alert, then ring alert.

•

turn off an incoming call alert by setting your ringer

volume to

Silent

If necessary, enter your SIM card PIN code and

press

(

) to unlock the SIM card.

Caution:

If you enter an incorrect PIN code 3

times in a row, your SIM card is disabled and

your phone displays SIM Blocked.

If necessary, enter your 4-digit unlock code and

press

(

) to unlock the phone.

Action

Volume

Keys

Getting Started

Making a Call

Answering a Call

When you receive a call, your phone rings and/or vibrates

and displays an incoming call message.

Viewing Your Phone Number

To view your phone number from the home screen, press

While you are on a call, press

My Tel. Numbers

Press To

keypad keys dial the phone number

make the call

end the call and “hang up” the

phone when you are finished

Press To

ANSWER

(

)

answer the call

end the call and “hang up” the

phone when you are finished

Highlight Features

You can do much more with your phone than make and

receive calls! This section describes some of your

phone’s highlight features.

USB Connectivity

Your phone features a USB

port for quick and easy

connection to a PC so you

can make data and fax calls

(see page 81.

Note:

USB data cables and

supporting software are sold

separately.

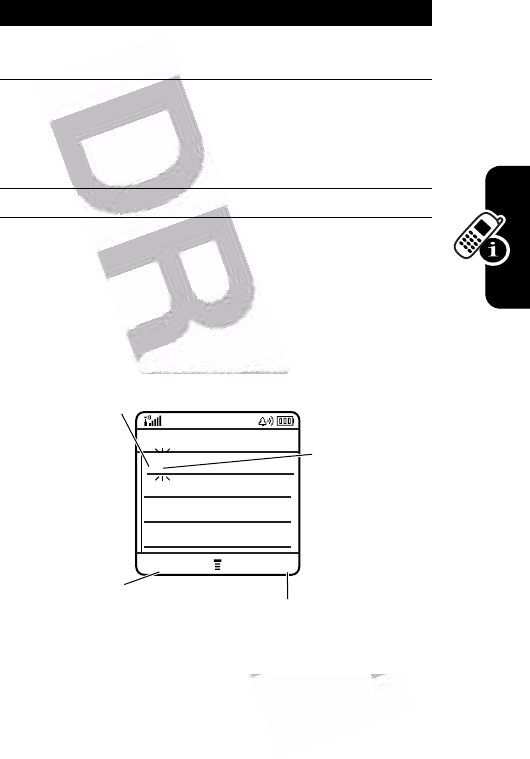

Sending a Multimedia Message

Multimedia Messaging Service

(MMS)

message contains one or more slides with text

and embedded media objects (including pictures,

animations, sounds, or voice records). You can

send the multimedia message to other wireless phone

users, and to email addresses.

Find the Feature

Messaging

New Message

New Multimedia Msg

032380o

Highlight Features

Note:

Depending on your service provider, your phone

may list the option shown above as

New Picture Msg

rather

than

New Multimedia Msg

Press To

keypad keys enter slide text

Tip:

You can press

to open the

MMS Menu

and

select

INSERT

(

) to insert


Voice Record

Sound

Soundtrack

New Page

Quick Note

, or

Contact Info

(

)store the message

scroll to a

Send To

option:

•

Highlight

[One Time Entry]

enter one or more phone

numbers and/or email

addresses.

•

Highlight

[New Address

Book Entry]

to enter a

number/address and add

it to the address book.

•

Or highlight an existing

Address Book entry.

SELECT

(

)select

[One Time Entry]

[New Address Book Entry]

and enter

a number/address. Press

DONE

(

) when you are

finished.

Highlight Features

ADD

(

)add an address book entry to

the list of recipients. Press

(

) when you are finished.

scroll to

Subject

CHANGE

(

)select

Subject

keypad keys enter the subject

(

)store the subject

CHANGE

(

)select

Attachments

scroll to


Sounds

SELECT

(

)select the file type

highlight the file you want

SELECT

(

)attach the file

BACK

(

)return to the message editor

scroll to

Receipt

CHANGE

(

)select

Receipt

ADD

(

) or

REMOVE

(

)

activate/deactivate the

delivery report

DONE

(

)return to the message editor

Press To

032380o

Highlight Features

Receiving a Multimedia

Message

When you receive an MMS message, your phone

displays the

(message waiting) indicator and a

New Message

notification, and sounds an alert.

MMS messages that you receive can contain the following

media objects:

•

Pictures, and animations are displayed as you read

the message.

•

A sound file begins playing when its slide is displayed.

•

Attached files are added to the end of the message.

To open the attachment, highlight the file indicator/

filename and press

VIEW

(

) (image file type),

PLAY

(

) (sound file), or

OPEN

(

) (object such as address

book or datebook entry, or unknown file type).

SEND

(

)

send the message

send the message, view

message details, save the

message in the drafts folder,

or cancel the message

Press To

READ

(

)open the message

Press To

032380o

Learning to Use Your Phone

Learning to Use Your

Phone

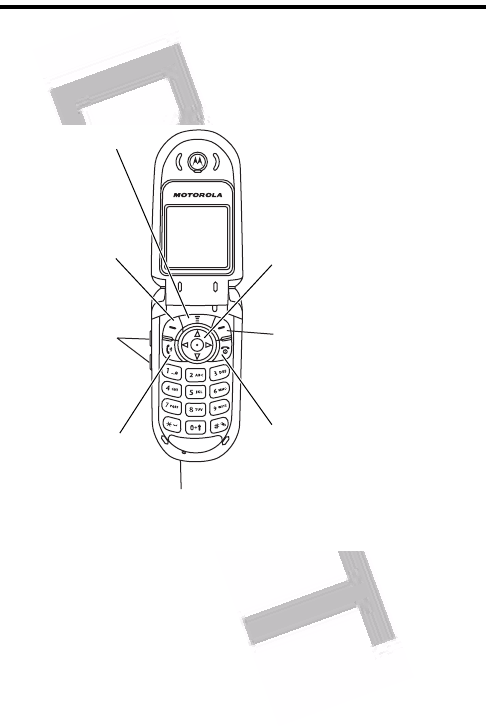

See page 1 for a basic phone diagram.

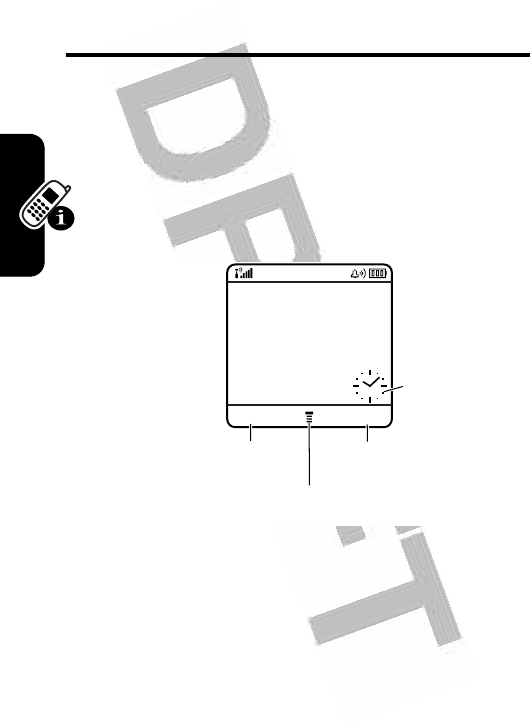

Using the Display

The home screen displays when you are

not

on a call

or using the menu. You must be in the home screen to

dial a phone number.

Note:

Your home screen may look different than the

display shown above, depending on your service provider.

The

(menu) indicator indicates that you can press the

menu key (

) to enter the main menu.

Labels at the bottom corners of the display show the

current soft key functions. Press the left soft key (

) or

040078o

PH.BOOK MESSAGE

Right Soft Key LabelLeft Soft Key Label

Menu Indicator

Clock

Service Provider

Learning to Use Your Phone

right soft key (

) to perform the function indicated by the

left or right soft key label.

Your phone can display an analog or digital clock in the

home screen (see page 74).

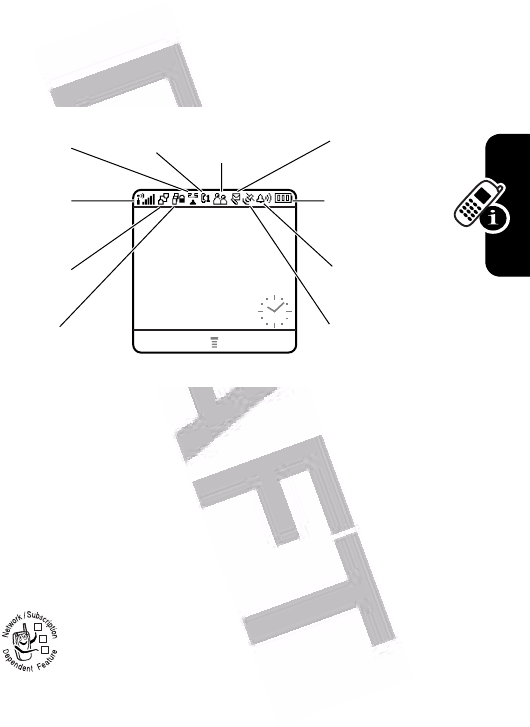

The following status indicators can display:

1. Signal Strength Indicator

Vertical bars show the strength of the network connection.

You cannot make or receive calls when the

(no signal)

indicator or

(no transmit) indicator displays.

2. GPRS Indicator

Shows that your phone is using a high-speed

General Packet Radio Service (GPRS) network

connection. GPRS allows faster data transfer

speeds. Indicators can include:

0323551o

PH.BOOK MESSAGES

Service Provider

040079o

10.

4. 7.

Roam

Signal

Strength

GPRS

Data

Transmission

Active

Line

Messaging

Presence Message

Battery

Level

Ring Alert

Location

032380o

Learning to Use Your Phone

3. Data Transmission Indicator

Shows connection and data transmission status. Indicators

can include:

4. Roam Indicator

Shows when your phone is seeking or using

another network outside your home network.

Indicators can include:

5. Active Line Indicator

Shows

to indicate the current active

phone line. Other indicators can include:

= GPRS PDP context

active

= GPRS packet data

available

= secure packet data

transfer

= insecure packet

data transfer

= secure application

connection

= insecure application

connection

= secure Circuit

Switch Data (CSD) call

= insecure CSD call

= 2.5G home

= 2.5G roam

= 2G home

;

= 2G roam

032380o

Learning to Use Your Phone

6. Messaging Presence Indicator

Shows when Instant Messaging (IM) is active.

Indicators can include:

Note:

Your Instant Messaging feature may have a different

name and may display different icons, depending on your

service provider.

When a Java application is active, the

(Java midlet)

indicator can display in this location.

7. Message Indicator

Displays when you receive a new message.

Indicators can include:

= line 1 active, call

divert on

= line 2 active, call

divert on

= alarm activated

= IM active

= available for IM

= busy

= invisible to IM

= available for phone

calls

= offline

032380o

Learning to Use Your Phone

When you enter a message, a number in this location

shows the number of characters left on the current

page (text message), or the message size (multimedia

message).

8. Location Indicator

Your phone may be able to send location

information to the network during an emergency

call. Indicators show when your phone is sending

location information:

9. Ring Style Indicator

Shows the ring style setting.

10. Battery Level Indicator

= text message

= voicemail message

= IM message

= active chat session

= voicemail and text

message

= location on

= location off

= loud ring

= soft ring

= vibrate

= vibrate and ring

= silent

032380o

Learning to Use Your Phone

Vertical bars show the battery charge level. Recharge the

battery when

Low Battery

displays and the battery alert

sounds.

Using the 5-Way Navigation

Key

Use the 5-way navigation

key (

) to scroll up,

down, left, or right

through the menu

system, highlight menu

items, change feature

settings, and play games.

Press the center select button to select a highlighted menu

item.

5-Way

Navigation

Key

Learning to Use Your Phone

Using Menus

From the home screen, press

to enter the main

menu.

Press

to scroll to and highlight a menu feature icon in

the main menu. The following icons represent features that

may appear in the main menu, depending on your service

provider and service subscription options.

Icon Feature Icon Feature

Recent Calls

Messaging

Games

MEdia Net

MEdia Mall

Left Soft Key

Perform left

function.

Menu Key

Enter menu system.

End Key

Exit menu without

making changes.

Right Soft Key

Perform right

function.

5-Way

Navigation Key

Scroll up, down,

left, or right.

Press center to

select.

Learning to Use Your Phone

Note:

Your Instant Messaging menu icon may be different

than the one shown above, depending on your service

provider.

Selecting a Menu Feature

To select a menu feature, starting from the home

screen:

This example shows that from the home screen, you must

press

, scroll to and select

Recent Calls

from the main

menu, then scroll to and select

Dialed Calls

. Press

to scroll,

and the left/right soft keys to select the functions listed in

the bottom left and right corners of the display.

My MEdia

Address Book

Settings

Find the Feature

Recent Calls

Dialed Calls

Icon Feature Icon Feature

Learning to Use Your Phone

Selecting a Feature Option

Some features require you to select an option from a list:

Press

to scroll up or down to highlight the option you

want.

•

In a numbered list, press a number key to highlight the

option.

•

In an alphabetized list, press a key repeatedly to cycle

through the letters on the key and highlight the closest

matching list option.

When an option displays a list of possible values, press

left or right to scroll through and select a value.

When an option displays a list of possible numeric values,

press a number key to set the value.

Press

BACK (-)

go back to

screen.

BACK VIEW

Dialed Calls

10) John Smith

9) Lisa Owens

8) Adda Thomas

7) Jack Bradshaw

Highlighted

Option

Press

VIEW (+)

view details of

highlighted

option.

Press

to open

sub-menu.

Learning to Use Your Phone

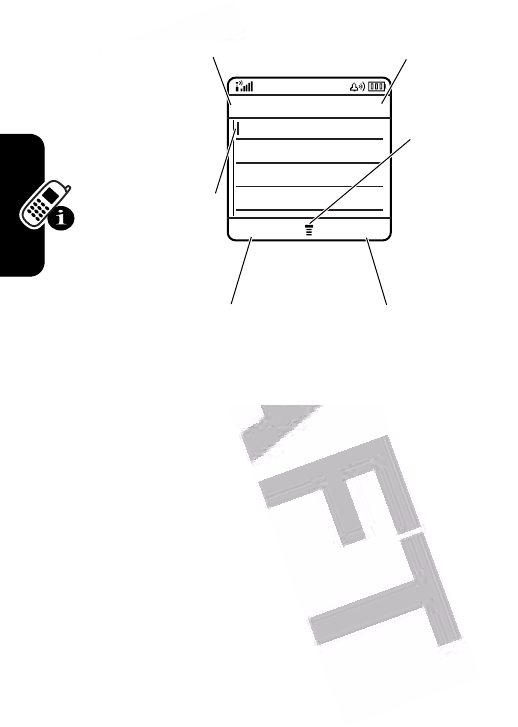

Entering Text

Some features require you to enter information.

CANCEL CHANGE

Press

CANCEL (-)

go back to

screen.

Highlighted

Option

Press

CHANGE (+)

to view

details of

highlighted

option.

Press

scroll down to

other options.

Entry Details

Name: John Smith

Category: General

No.: 2125551212

Type: Work

Learning to Use Your Phone

The message center lets you compose and send text

messages. A Character Counter indicates how many more

characters will fit in a message.

Choosing a Text Entry Mode

Multiple text entry modes make it easy for you to enter

names, numbers, and messages. The method you select

remains active until you select another method.

Press

in any text entry screen to select one of the

following entry modes:

Primary

The primary text entry mode (see

below to set).

Numeric

Enter numbers only (see

page 41).

CANCEL INSERT

ó Msg

450

For indicator

descriptions,

see following

section.

Flashing

cursor

indicates

insertion point.

Press

INSERT (+)

insert a quick note,

picture, or sound.

Press

open sub-

menu.

Press

CANCEL (-)

exit without making

changes.

Character

Counter

Learning to Use Your Phone

Alternatively, you can select a text entry mode in any text

entry screen by pressing

Entry Mode

Setting Up a Text Entry Mode

Press

Entry Setup

from any text entry screen.

Select

Primary Setup

Secondary Setup

, and choose:

Using Capitalization

Press

in any text entry screen to change text case. The

following indicators on your phone’s display show

capitalization status:

Symbol

Enter symbols only (see page 42).

Secondary

The secondary text entry mode

(see below to set).

iTAP

Let the phone predict each word

as you press keys (see page 39).

Tap

Enter letters and numbers by

pressing a key one or more times.

Tap Extended

Enter letters, numbers, and

symbols by pressing a key one or

more times.

None

Hide the Secondary setting

(available only for

Secondary Setup

= no capital letters

= capitalize next letter

only

= all capital letters

Learning to Use Your Phone

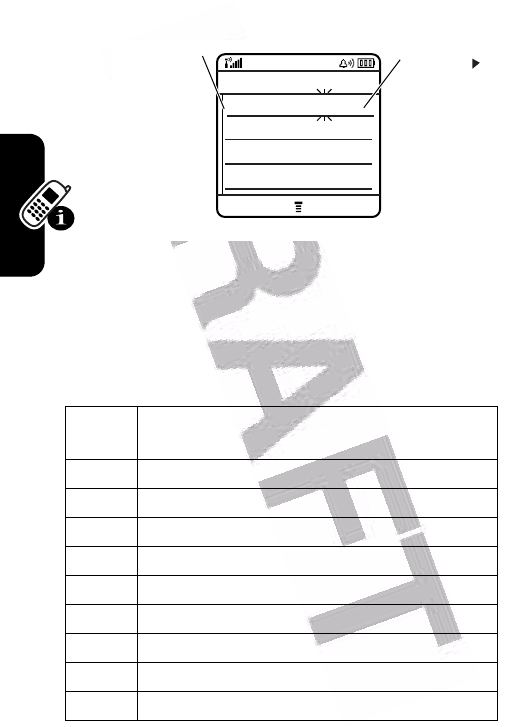

Text Entry Mode Indicators

When you select the

Primary

Secondary

text entry mode, the

following indicators identify the text entry setting:

The following indicators identify

Numeric

Symbol

entry

mode:

= numeric method

[

= symbol method

Using Tap Method

This is the standard method for entering text on your

phone.

Tap method cycles through the letters and number of the

key you press. Tap Extended method also cycles through

additional symbols as shown in the chart on page 38.

Primary Secondary Description

g m

Tap, no capital letters

h q

Tap, capitalize next letter

only

f l

Tap, all capital letters

j p

iTAP, no capital letters

k n

iTAP, capitalize next

letter only

i o

iTAP, all capital letters

Learning to Use Your Phone

In a text entry screen, you can press

to switch entry

modes. If

Tap

Tap Extended

is not available as the

Primary

Secondary

entry mode, see page 35.

When you enter text with

Tap

Tap Extended

method, the soft

key functions change.

Press To

a keypad key 1

or more times

select a letter, number, or

symbol

keypad keys enter remaining characters

Tip:

Press

right to

accept a word completion,

to insert a space.

(

)store the text

Character

displays at

insertion point.

DELETE OK

Ab ó

Msg

435

T |

After 2

seconds,

character is

accepted and

cursor moves

to next

position.

Press

DELETE

(-)

to delete

character to

left of insertion

point. Press

OK (+)

accept and store text.

Learning to Use Your Phone

When you enter 3 or more characters in a row, your phone

may guess the rest of the word. For example, if you enter

prog

you might see:

If you want a different word (such as

progress

), continue

pressing keypad keys to enter the remaining characters.

Character Chart

Use this chart as a guide for entering characters with

Tap Extended

method.

. ? ! , @ ' - _ : ; ( ) & " ~ 1 0 ¿ ¡ % £ $ ¥ ¤

+ x * / \ [ ] = > < # §

a b c 2 á à â ã ç æ

d e f 3 é è ê ë

g h i 4 í î ï

j k l 5

m n o 6 ñ ó ò ô õ œ

p q r s 7

t u v 8 ú ù û ü

w x y z 9

change text case, for capital letters

Character

displays at

insertion

point.

DELETE OK

Ab ó

Msg

435

This is a prog | ram

Press

program

, or

press

reject it and

enter a space

after

prog.

Learning to Use Your Phone

Note:

This chart may not reflect the exact character set

available on your phone. In an email address or URL

editor,

first shows common characters for that editor.

Tap Method Text Entry Rules

•

Press a keypad key repeatedly to cycle through its

characters.

•

Press

left or right to move the flashing cursor to

the left or right in a text message.

•

The first character of every sentence is capitalized. If

necessary, press

down to force the character to

lowercase before the cursor moves to the next

position.

•

If you enter or edit information and do not want to save

the changes, press

to exit without saving.

Using iTAP™ Method

iTAP

™

software provides a predictive text entry mode that

lets you enter a word using one key press per letter. This

can be faster than

Tap

method, because your phone

combines the keypresses into common words.

enter a space (hold to enter a return)

change text entry mode (hold for default)

Learning to Use Your Phone

For example, if you press

7764

, letter combinations

that match your key presses display:

If you want a different word (such as

Progress

), continue

pressing keypad keys to enter the remaining characters.

Entering Words

In a text entry screen, you can press

to switch entry

modes. An indicator shows which method is active (see

page 36). If

iTAP

method is not available as the

Primary

Secondary

entry mode, see page 35.

Press To

keypad keys (1

press per letter)

show possible letter

combinations at the bottom of

the display

left or right highlight the combination you

want

DELETE SELECT

ó Msg

435

Prog | ram

Prog Proh Spoi

Press

DELETE (-)

delete last

letter.

Press

Program

Press

SELECT (+)

lock highlighted

combination.

Press

highlight

another

combination.

Press

enter

Prog

and

a space.

Learning to Use Your Phone

If you enter a word your phone does not recognize, the

phone stores it to use as one of your word options. When

you fill memory space for unrecognized words, your phone

deletes the oldest words to add new words.

Note:

The iTAP method may not be available for all

languages.

Using Numeric Method

In a text entry screen, press

to switch entry modes until

the

(numeric) indicator displays.

Press keypad keys to enter the numbers you want. When

you finish entering numbers, press

to switch to another

entry mode.

SELECT

(

)

lock a highlighted

combination

You can press keypad keys to

add more letters to the end of

the combination.

enter the highlighted

combination when it spells a

word

A space is automatically

inserted after the word.

Press To

Learning to Use Your Phone

Using Symbol Method

In a text entry screen, press

to switch entry modes until

the

[

(symbol) indicator displays.

Symbol Chart

Use this chart as a guide for entering characters with

symbol method.

Press To

keypad keys (1

press per

symbol)

show possible symbol

combinations at the bottom of

the display

left or right highlight the combination you

want

SELECT

(

)

lock a highlighted

combination

You can press keypad keys to

add more symbols to the end

of the combination.

enter the highlighted

combination

. ? ! , @ ' - _ : ; ( ) & " ~ 1 0 ¿ ¡ % £ $ ¥ ¤

+ x * / \ [ ] = > < # §

@ _ \ ß

/ : ;

" & '

( ) [ ] { }

Learning to Use Your Phone

Note:

This chart may not reflect the exact character set

available on your phone. In an email address or URL

editor,

first shows common characters for that

editor.

Deleting Letters and Words

Use the 5-way navigation key to place the cursor to the

right of the text you want to delete, then:

Using the External Display

When the flip is closed, the

external display shows the time.

It also displays messages to

notify you of incoming phone

calls and other events.

¿ ¡ ~

< > =

$ £ ¥ ¤

# % *

+ - x * / = > < # §

enter a space (hold to enter a return)

change text entry mode (hold for default)

Action

Press

DELETE

(

) to delete 1 letter at a time.

Hold

DELETE

(

) to delete the entire message.

External

Display

Learning to Use Your Phone

Using the Handsfree Speaker

When you activate your phone’s integrated handsfree

speaker, you can talk to the other party without holding the

phone to your ear.

Press

SPEAKER

(

) to turn the handsfree speaker on or off

while dialing a call or during a call.

When you turn the handsfree speaker on, your phone

displays

Speaker On

in the home screen. The handsfree

speaker remains on until you press

SPEAKER

(

) again or

turn the phone off.

Note:

The handsfree speaker is disabled when you

connect your phone to a handsfree car kit or headset

accessory.

Changing a Code, PIN, or

Password

Your phone’s 4-digit unlock code is originally set to 1234,

and the 6-digit security code is originally set to 000000.

Your service provider may reset these codes before you

receive your phone.

If your service provider has not reset these codes, we

recommend that you change them to prevent others from

accessing your personal information. The unlock code

must contain 4 digits, and the security code must contain 6

digits.

You can also reset your SIM card PIN code, PIN2 code,

and/or call barring password if necessary.

To change a code or password:

Learning to Use Your Phone

Locking and Unlocking Your

Phone

You can lock your phone manually or set the phone to lock

automatically whenever you turn it off.

To use a locked phone, you must enter the unlock

code. A locked phone still rings or vibrates for incoming

calls or messages, but you must unlock it to answer.

You can make emergency calls on your phone even when

it is locked (see page 57).

Locking Your Phone Manually

Unlocking Your Phone

Your phone’s unlock code is originally set to 1234. Your

service provider may reset the unlock code to the last 4

digits of your phone number.

At the

Enter Unlock Code

prompt:

Find the Feature

Settings

Security

New Passwords

Find the Feature

Settings

Security

Phone Lock

Lock Now

Press To

keypad keys enter your unlock code

(

)lock the phone

Learning to Use Your Phone

Setting Your Phone to Lock Automatically

You can set your phone to lock every time you turn it off:

If You Forget a Code, PIN, or

Password

Your phone’s 4-digit unlock code is originally set to 1234,

and the 6-digit security code is originally set to 000000.

Your service provider may reset the unlock code to the last

4 digits of your phone number before you receive your

phone.

If you forget your unlock code, try entering 1234 or the last

4 digits of your phone number. If that does not work, at the

Enter Unlock Code

prompt:

Press To

keypad keys enter your unlock code

(

)unlock your phone

Find the Feature

Settings

Security

Phone Lock

Automatic Lock

Press To

keypad keys enter your unlock code

(

)activate automatic lock

Learning to Use Your Phone

If you forget your security code, SIM card PIN code, PIN2

code, or call barring password, contact your service

provider.

Using the Address Book

This section briefly describes basic address book

operations. For more information about using the address

book, see page 71.

Shortcut:

To open your address book from the home

screen, press

down.

Storing a Phone Number

Enter a phone number in the home screen, then press

STORE

(

) to create an address book entry with that

number. Fill in the other fields to complete the entry.

Select

to store another number (for example, a work

number) for the same

Name

Recording a Voice Name

Note:

This option is not available for entries stored on the

SIM card.

Press To

display the unlock code

bypass screen

keypad keys enter your security code

(

)submit your security code

Learning to Use Your Phone

When creating an address book entry, scroll to

Voice Name

and press

RECORD

(

). When you are ready, press

RECORD

(

) again and say the entry’s name (within 2

seconds). When prompted, press

RECORD

(

) and repeat

the name. Press

DONE

(

) to store the voice name.

Storing a Picture for Caller ID

Note:

This option is not available for entries stored on the

SIM card.

You can store a picture for an address book entry. The

picture displays when you receive calls from the entry.

When creating an address book entry, scroll to


and

press

CHANGE

(

). Press

to select a picture, and press

SELECT

(

) to store it for the entry.

Dialing a Number

Press

Address Book

> entry to call

Tip:

To quickly highlight entries in your

Address Book

list: If

your entries are sorted by

Speed No.

, press an entry’s speed

number to highlight it. For example, press

for entry

number 15. If your entries are sorted by

Name

Voice Name

, or

, enter the first letter of the entry’s name to highlight it.

For example, press

for the first entry that starts with

“K”.

Voice Dialing a Number

Press

Settings

Office Tools

, press

Dialing Services

Voice Dial

, and say the entry’s name (within 2

seconds).

Learning to Use Your Phone

Tip:

To create a shortcut to

Voice Dial

, press

Settings

Office Tools

Dialing Services

, scroll to

Voice Dial

, and hold the

. Your phone prompts you to save the shortcut. To use

a shortcut, press

and the shortcut key number.

Sorting Address Book Entries

Press

Address Book

, press

Setup

Sort by

, then

select whether you want to sort the address book list by

Name

Speed No.

Voice Name

, or

When sorting by name, you can view

All

numbers or just

the

Primary

number for each name. To set the primary

number for a name, see page 73.

Viewing Entries By Category

Press

Address Book

, press

Categories

, then select

whether you want to view

All

entries, entries in a predefined

category (

Business

Personal

General

VIPs

), or entries in a

category you created.

To set the category for an address book entry, see page

72.

Setting Up Your Phone

Setting the Time and Date

Your phone uses the time and date for the

Datebook

. Your

phone can synchronize its time and date with the network:

To set the time and date manually, set

Autoupdate

Off

and

then set the

Time

and

Date

options:

Setting a Ring Style

Your phone rings or vibrates to notify you of an incoming

call or other event. This ring or vibration is called an

alert

You can select one of five different ring styles. The ring

style indicator in the display shows the current ring style

(see page 28).

To set a ring style:

Find the Feature

Settings

Initial Setup

Time and Date

Autoupdate

Find the Feature

Settings

Initial Setup

Time and Date

Time

Date

Find the Feature

Settings

Ring Styles

Style

Setting Up Your Phone

Each ring style contains settings for specific event alerts,

ringer ID, and ringer and keypad volume. To change these

settings, press

Settings

Ring Styles

> style

Detail

Shortcut:

To change your ring volume from the home

screen, press

left or right.

Setting a Wallpaper Image

You can set a picture or animation as a wallpaper

(background) image in your phone’s home screen. The

wallpaper image appears as a faint watermark in text

and menu displays.

Press To

scroll to the ring style

SELECT

(

)select the ring style

Find the Feature

Settings

Personalize

Wallpaper

Press To

scroll to


CHANGE

(

)open the picture viewer

up or down scroll to a picture/animation

Scroll to

(None)

to turn off the

wallpaper image.

SELECT

(

)select the image

scroll to

Layout

CHANGE

(

)change the image layout

Setting Up Your Phone

Setting a Screen Saver Image

Set a picture or animation as a screen saver image.

The screen saver image displays when the phone is on

and no activity is detected for a specified time. The image

shrinks to fill the display, if necessary. An animation

repeats for one minute, then the first frame of the

animation displays.

Turn off the screen saver to extend battery life.

scroll to

Center

Tile

, or

Fit-to-

screen

Center

places the image in the

center of the display.

Tile

fills the display with

multiple copies of the image.

Fit-to-screen

resizes the image,

if necessary, to fit the display.

SELECT

(

)confirm the layout setting

BACK

(

)save wallpaper settings

Find the Feature

Settings

Personalize

Screen Saver

Press To

scroll to


CHANGE

(

)open the picture viewer

Press To

Setting Up Your Phone

Setting Display Color

Select the color palette that your phone uses to display

indicators, highlights, and soft key labels.

Adjusting the Backlight

Set the amount of time that the display and keypad

backlights remain on.

up or down scroll to a picture/animation

Scroll to

(None)

to turn off the

screen saver image.

SELECT

(

)select the image

scroll to

Delay

CHANGE

(

)set the delay interval

scroll to the inactivity interval

that starts the screen saver

SELECT

(

)confirm the delay setting

BACK

(

)save screen saver settings

Find the Feature

Settings

Personalize

Color Style

Find the Feature

Settings

Initial Setup

Backlight

Press To

Setting Up Your Phone

Setting Display Timeout

Set the display to turn itself off when no activity is detected

for a specified time.

Find the Feature

Settings

Initial Setup

Display Timeout

Calling Features

For basic instructions on how to make and answer calls,

see page 19.

Changing the Active Line

Change the active phone line to make and

receive calls from your other phone number.

Note:

This feature is available only for dual-line-

enabled SIM cards.

The active line indicator in the display shows the currently

active phone line (see page 26).

Redialing a Number

Find the Feature

Settings

Phone Status

Active Line

Press To

view the dialed calls list

scroll to the entry you want to

call

redial the number

032380o

Calling Features

Using Automatic Redial

When you receive a busy signal, your phone

displays

Call Failed, Number Busy

To redial the phone number:

Your phone redials the number. When the call goes

through, your phone rings or vibrates one time, displays

Redial Successful

, and then connects the call.

Using Caller ID

Incoming Calls

Calling line identification (Caller ID) displays the

phone number for incoming calls in your phone’s

display.

The phone displays the caller’s name (and picture, if

available) when the name is stored in your address

book, or

Incoming Call

when caller ID information is not

available.

You can also set your phone to play a distinctive ringer ID

and/or light ID for specific entries stored in your address

book. For more information, see page 72.

Press To

RETRY

(

)activate automatic redial

032380o

Calling Features

Outgoing Calls

You can show or hide your phone number as an

ID for the calls that you make.

You can override the default caller ID setting when you

make a call. While dialing (with digits visible in the display):

Canceling an Incoming Call

While the phone is ringing or vibrating:

Depending on your phone settings and/or

service subscription, the call may be diverted

to another number or sent directly to your

voicemail, or the caller may hear a busy signal.

Calling an Emergency Number

Your service provider programs one or more emergency

phone numbers, such as 911, that you can call under any

Find the Feature

Settings

In-Call Setup

My Caller ID

Press To

Hide ID/Show ID

hide or show your caller ID for

the next call

Press To

IGNORE

(

)cancel the incoming call

032380o

Calling Features

circumstances, even when your phone is locked or the SIM

card is not inserted.

Emergency numbers vary by country. Your phone’s

preprogrammed emergency number(s) may not work in all

locations, and sometimes an emergency call cannot be

placed due to network, environmental, or interference

issues.

Dialing International Numbers

Press and hold

to insert the local international

access code (

) for the country from which you

are calling.

Viewing Recent Calls

Your phone keeps lists of the calls you recently

received and dialed, even if the calls did not connect.

The lists are sorted from newest to oldest entries. The

oldest entries are deleted as new entries are added.

Shortcut:

Press

from the home screen to view the

dialed calls list.

Press To

keypad keys dial the emergency number

call the emergency number

Find the Feature

Recent Calls

032380o

Calling Features

The

Last Calls Menu

can include the following options:

Press To

scroll to

Received Calls

Dialed Calls

SELECT

(

)select the list

scroll to an entry

means the call connected.

call the entry’s number

Press and hold

for

2 seconds to send the

number as DTMF tones

during a call.

VIEW

(

)

view entry details

open the

Last Calls Menu

to view

the options avalable for the

entry

Option Description

Store

Create an address book entry with

the number in the

No.

field.

Delete

Delete the entry.

Delete All

Delete all entries in the list.

Hide ID/Show ID

Hide or show your caller ID for the

next call.

Send Message

Open a new text message with the

number in the

field.

Calling Features

Returning an Unanswered Call

When your phone is powered on, it keeps a record of your

unanswered calls and displays:

•

X Missed Calls

, where

is the number of missed calls

Using the Notepad

The most recent set of digits entered on the keypad are

stored in your phone’s notepad memory. This can be a

phone number that you called, or a number that you

entered but did not call. To retrieve the number stored in

the notepad:

Add Digits

Add digits after the number.

Attach Number

Attach a number from the address

book or recent calls lists.

Send Tones

Send the number to the network

as DTMF tones.

This option displays only during a

call.

Talk then Fax

Talk and then send a fax in the

same call (see page 81).

Press To

VIEW

(

)see the received calls list

select a call to return

make the call

Option Description

Calling Features

Attaching a Number

While dialing (with digits visible in the display):

Calling with Speed Dial

Each entry you store in your address book is assigned

a unique speed dial number.

To see an entry’s speed dial number, press

Address

Book

, scroll to the entry, press

VIEW

(

To speed dial an address book entry:

Find the Feature

Recent Calls

Notepad

Press To

call the number

open the

Dialing Menu

to attach a

number or insert a special

character

STORE

(

)create an address book entry

with the number in the

No.

field

Press To

Attach Number

attach a number from the

address book or recent calls

lists

Calling Features

Calling with 1-Touch Dial

To call address book entries 1 through 9, press and hold

the single-digit speed dial number for one second.

Tip:

You must specify which phone number list you want to

use with this feature: phone memory address book or SIM

card address book (see page 73).

Using Voicemail

Voicemail messages that you receive are stored

on the network. To listen to your messages, you

must call your voicemail phone number.

Your service provider may include additional

information about using this feature.

Listening to Voicemail Messages

The phone calls your voicemail phone number. If no

voicemail number is stored, your phone prompts you to

store a number.

Press To

keypad keys enter the speed dial number

for the entry you want to call

submit the number

call the entry

Find the Feature

Messaging

Voicemail

032380o

Calling Features

Receiving a Voicemail Message

When you receive a voicemail message, your phone

displays the

(voicemail message) indicator and a New

Voicemail notification.

The phone calls your voicemail phone number. If no

voicemail number is stored, your phone prompts you to

store a number.

Storing Your Voicemail Number

If necessary, use the following procedure to store your

voicemail phone number on your phone. Usually, your

service provider has already done this for you.

You cannot store a

(pause),

(wait), or

(number)

character in this number. If you want to store a voicemail

number with these characters, create an address book

entry for it. Then, you can use the entry to call your

voicemail.

Press To

CALL

(

)listen to the message

Find the Feature

Messaging

Voicemail Setup

Press To

keypad keys enter your voicemail number

(

)store the number

Calling Features

Using Call Waiting

When you are on a call, an alert tone sounds to

indicate that you have received another call.

You must turn on call waiting to use the feature. To turn call

waiting on or off:

Putting a Call On Hold

Press To

answer the new call

SWITCH

(

)

switch between calls

LINK

(

)

connect the 2 calls

End Call On Hold

end the call on hold

Find the Feature

Settings

In-Call Setup

Call Waiting

Press To

HOLD

(

) (if

available)

Hold

put the call on hold

032380o

Calling Features

Transferring a Call

You can announce that you are transferring an

active call to another party, or you can transfer the

call without announcing the transfer.

Announce the Call Transfer

Do Not Announce the Call Transfer

Find the Feature

Hold

Press To

keypad keys dial the number where you

are transferring the call

call the number and speak to

the person who answers

open the menu

scroll to

Transfer

SELECT

(

)select

Transfer

(

)confirm the transfer

Find the Feature

Transfer

Press To

keypad keys dial the number where you

are transferring the call

transfer the call

032380o

Phone Features

Menu Map

Main Menu

Address Book

Recent Calls

• Received Calls

• Dialed Calls

• Notepad

• Call Times

•Data Times

• Data Volumes

Messaging

• New Message

• Message Inbox

•Voicemail

•Browser Msgs

• Info Services

•Quick Notes

•Outbox

• Drafts

• MMS Templates

Games & Apps

MEdia Net

•Browser

• Web Shortcuts

• Stored Pages

•History

•Go To URL

•Browser Setup

• Web Sessions

MEdia Mall

My MEdia

• Themes

•Pictures

• Sounds

• MotoMixer

• Log In

• Offline Convs.

• Offline Settings

•Help

Settings

• (see next page)

* optional features

This is the standard main

menu layout. Menu

organization and feature

names may vary on your

phone. Not all features

may be available on your

phone.

Phone Features

Settings Menu

Office Tools

• SIM Tool Kit Apps *

• Calculator

• Datebook

• Shortcuts

•Alarm Clock

•Chat

• Dialing Services

•Fixed Dial

•Quick Dial

• Service Dial *

Personalize

• Home Screen

• Main Menu

•Color Style

•Greeting

• Wallpaper

• Screen Saver

•Quick Dial

Ring Styles

•Style

• style Detail

Call Divert

• Voice Calls

•Fax Calls

•Data Calls

• Cancel All

• Divert Status

In-Call Setup

• In-Call Timer

• Call Cost

• My Caller ID

• Talk and Fax

• Answer Options

• Call Waiting

Initial Setup

• Time and Date

•1-Touch Dial

• Display Timeout

• Backlight

•Scroll

• Language

•Contrast

•DTMF

•Master Reset

• Master Clear

Phone Status

•My Tel. Numbers

• Credit Info/Available *

• Active Line *

• Battery Meter

• Other Information

Headset

• Auto Answer

•Voice Dial

Car Settings

• Auto Answer

• Auto Handsfree

• Power-Off Delay

• Charger Time

Network

• New Network

• Network Setup

• Available Networks

• My Network List

• Service Tone

• Call Drop Tone

Security

• Phone Lock

• Lock Application

•Fixed Dial

• Call Barring

• SIM PIN

•New Passwords

• Certificate Mgmt

Java Settings

•Java System

• Delete All Apps

• App Vibration

• App Volume

* optional features

Phone Features

Calling Features

Messages

Feature Description

Conference

Call

During a call:

Hold

, dial next

number, press

, press

LINK

(

)

Call Diverting

Set up or cancel call

diverting:

Settings

Call Divert

Call Barring

Restrict outgoing or

incoming calls:

Settings

Security

Call Barring

Feature Description

Send Text

Message

Send a text message:

Messaging

Create Message

New Short Message

Send

Multimedia

Message

Send a multimedia

message:

Messaging

Create Message

New Multimedia Msg

032380o

Phone Features

Instant Messaging

Use MMS

Template

Open an MMS template

with preloaded media:

Messaging

Create Message

MMS Templates

Read Message

Read a new text or

multimedia message that

you have received:

Press

READ

(

Store Message

Objects

Go to a multimedia

message slide, then:

Store

Feature Description

messaging:

Find Others

Online

After you log in:

Select

Contact List

to see a

list of other users.

Start

Conversation

Start a conversation:

From your

Contact List

highlight a name in

Online Contacts

, press

SEND IM

(

Feature Description

032380o

Phone Features

Chat

Open Active

Conversation

Open a conversation in

progress:

From your

Contact List

highlight a name in

Conversations

press

VIEW

(

End

Conversation

From the conversation

display:

End Conversation

Log Out

Log out of instant

messaging:

Select

Log Out

from the

IM Online

menu.

Feature Description

Start Chat

Start a new chat session:

Settings

Office Tools

Chat

New Chat

Receive Chat

Request

When you receive a chat

request:

Press

(

) or

IGNORE

(

End Chat

During a chat session:

End Chat

Feature Description

032380o

Phone Features

Address Book

Feature Description

Create Entry

Create a new address book entry:

Address Book

New

Phone Number

Email Address

Create Group

Mailing List

Create a group mailing list as an

address book entry:

Address Book

New

Mailing List

Dial Number

Call a number stored in the

address book:

Address Book

, highlight the

address book entry, press

call

Voice Dial

Number

Voice dial a number stored in the

address book:

Settings

Office Tools

Dialing Services

Voice Dial

When prompted, say the entry’s

name (within 2 seconds).

Phone Features

Set Ringer ID

for Entry

Assign a distinctive ringer alert to

an address book entry:

Address Book

> entry

Edit

Ringer ID

> ringer name

Note:

The

Ringer ID

option is not

available for entries stored on the

SIM card.

Set Picture ID

for Entry

Assign a picture to display when

you receive calls from an entry:

Address Book

> entry

Edit


> picture

Note:

The


option is not

available for entries stored on the

SIM card.

Set Category

for Entry

Set the category for an address

book entry:

Address Book

> entry

Edit
