V190 GSM Asia User’s Guide
6/6/05
V190
GSM
1
HELLOMOTO
Introducing your new Motorola V190 GSM wireless phone.
Here’s a quick anatomy lesson.
For Push to Talk (PTT) details, see page 49.
Left Soft Key
Navigate menus.
Select menu items.
Read messages.
Open menus.
Volume Keys
Charge up.
Right Soft Key
Turn on & off,
hang up, exit menus.
Go handsfree.
or
Make & answer calls.
Go online.
Smart/PTT Key
2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Certain mobile phone features are dependent on the capabilities and
settings of your service provider’s network. Additionally, certain features
may not be activated by your service provider, and/or the provider's
network settings may limit the feature’s functionality. Always contact your
service provider about feature availability and functionality. All features,
functionality, and other product specifications, as well as the information
contained in this user's guide are based upon the latest available
information and are believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and other
countries. All other product or service names are the property of their
respective owners.
© Motorola, Inc., 2005.
Software Copyright Notice
The Motorola products described in this manual may include copyrighted
Motorola and third-party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for
Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of the Motorola products shall
3
not be deemed to grant either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents, or patent applications
of Motorola or any third-party software provider, except for the normal,
non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Manual Number: 68XXXXXX97-O
4
feature locator
feature locator
main menu
n
Phonebook
s
Recent Calls
• Received Calls
• Dialed Calls
• Notepad
•Call Times*
•Call Cost*
• Data Times *
• Data Volumes *
e
Messages
• Create Message
• Message Inbox
•Voicemail
•Browser Msgs
• Info Services *
•Quick Notes
• Outbox
•Drafts
• MMS Templates
É
Tools
• SIM Tool Kit Apps *
• Voice Message
• Calculator
• Datebook
•Shortcuts
•Alarm Clock
•Chat
• Dialing Services
• Fixed Dial
•Quick Dial
•Voice Dial
Q
Games & Apps
á
Web Access
•Browser
• Web Shortcuts
• Stored Pages
•History
•Go To URL
•Browser Setup
•Web Sessions*
h
Multimedia
•Pictures
• Sounds
• Videos *
ã
IM
• Log In
• Offline Convs.
• IM Account
• Offline Settings
•Help
w
Settings
• (see next page)
* optional features
This is the standard main
menu layout. Your phone’s
menu may be a little
different.
5
feature locator
settings menu
l
Personalize
• Home Screen
• Main Menu
• Color Style
•Greeting
• Wallpaper
• Screen Saver
t
Ring Styles
•Style
• style Detail
• Ring Lights
• Event Lights
Å
Sync *
H
Call Forward *
•Voice Calls
•Fax Calls
•Data Calls
•Cancel All
• Forward Status
U
In-Call Setup
• In-Call Timer
• Call Cost Setup *
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
Z
Initial Setup
•Time and Date
• 1-Touch Dial
• Display Timeout
• Backlight
• TTY Setup *
•Scroll
• Language
• Contrast
•DTMF
• Master Reset
• Master Clear
m
Phone Status
•My Tel. Numbers
• Credit Info/Available *
• Active Line *
•Battery Meter
• Other Information
S
Headset
• Auto Answer
• Voice Dial
J
Car Settings
• Auto Answer
• Auto Handsfree
• Power-Off Delay
• Charger Time
j
Network
•New Network
•Network Setup
•Available Networks
• My Network List *
•Service Tone*
• Network Jingle *
• Call Drop Tone
u
Security
• Phone Lock
•Lock PTT Key*
• Lock Application
•Fixed Dial
• Restrict Calls *
• Call Barring *
•SIM PIN
•New Passwords
• Certificate Mgmt *
6
PTT Settings *
•PTT Service
c
Java Settings
• Java System
• Delete All Apps
• App Vibration
•App Volume
•App Priority*
• App Backlight
• Set Standby App *
• DNS IP *
* optional features
6
contents
contents
feature locator . . . . . . . . 4
Safety Information . . . . 8

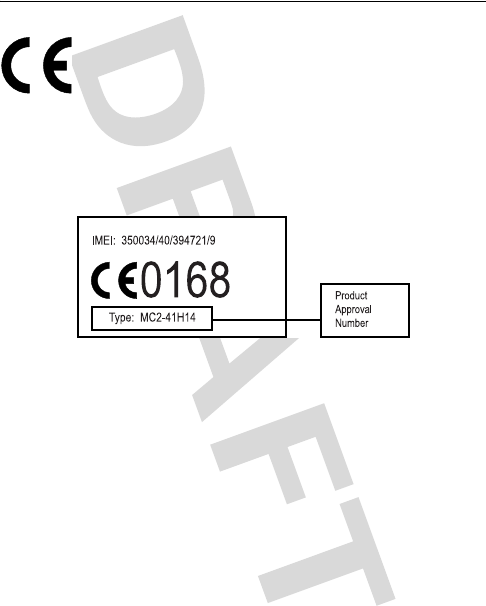

EU Conformance . . . . . 15
Recycling Information. 16
essentials. . . . . . . . . . . 17
about this guide. . . . . 17

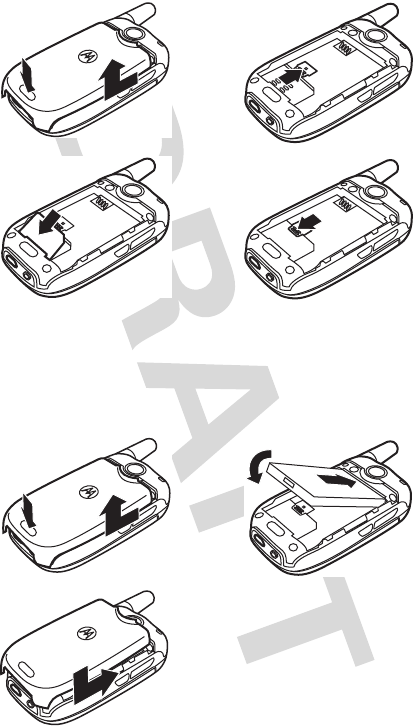

SIM card . . . . . . . . . . 17
battery . . . . . . . . . . . . 18
turn it on & off . . . . . . 20
make a call . . . . . . . . 21
answer a call . . . . . . . 21
your phone number. . 21
main attractions . . . . . 22
play videos . . . . . . . . 22
multimedia messages 23
cable connections . . . 25
basics . . . . . . . . . . . . . . 26
display . . . . . . . . . . . . 26
menus . . . . . . . . . . . . 29
text entry. . . . . . . . . . 31

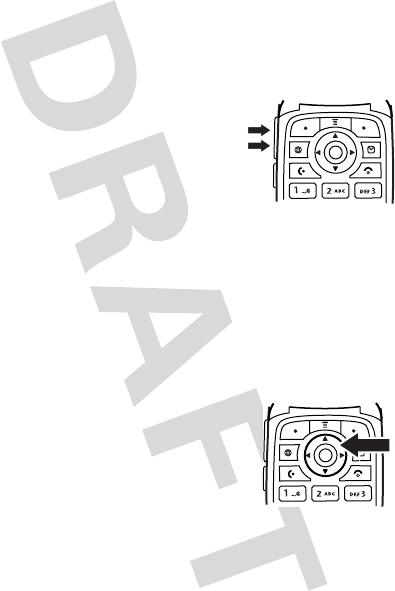

volume . . . . . . . . . . . 36
navigation key . . . . . . 36
external display . . . . . 37
handsfree speaker. . . 37
codes & passwords. . 37
lock & unlock phone . 38
customize . . . . . . . . . . 39
ring style . . . . . . . . . . 39
ring & event lights. . . 40
time & date . . . . . . . . 40
wallpaper. . . . . . . . . . 41
screen saver . . . . . . . 41
display appearance . . 42
answer options . . . . . 42
calls . . . . . . . . . . . . . . . 43
turn off a call alert . . . 43
recent calls . . . . . . . . 43
redial . . . . . . . . . . . . . 44
return a call . . . . . . . . 45
notepad . . . . . . . . . . . 45
hold or mute a call. . . 45
call waiting . . . . . . . . 46
caller ID . . . . . . . . . . . 46
emergency calls . . . . 47
international calls . . . 47
1-touch dial . . . . . . . . 47
voicemail . . . . . . . . . . 48
push to talk (PTT) . . . 49
7
contents
other features . . . . . . . . 54
advanced calling . . . . . 54
phonebook . . . . . . . . . 56
messages . . . . . . . . . . 60
instant messaging. . . . 62
chat . . . . . . . . . . . . . . . 64
personalizing . . . . . . . . 64
call times & costs . . . . 67
handsfree . . . . . . . . . . 68
data & fax calls . . . . . . 69
network. . . . . . . . . . . . 70
personal organizer. . . . 70
security . . . . . . . . . . . . 72
fun & games . . . . . . . . 72
service and repairs . . . . 75
SAR Data . . . . . . . . . . . . 76
Warranty . . . . . . . . . . . . 78
index . . . . . . . . . . . . . . . 84
8
Safety Information
Safety and General Information
Safety I nformation
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR PHONE.
1
Exposure To Radio Frequency (RF) Energy
Your phone contains a transmitter and a receiver. When it is ON, it receives
and transmits RF energy. When you communicate with your phone, the
system handling your call controls the power level at which your phone
transmits.
Your Motorola phone is designed to comply with local regulatory
requirements in your country concerning exposure of human beings to RF
energy.
Operational Precautions
To assure optimal phone performance and make sure human exposure to
RF energy is within the guidelines set forth in the relevant standards,
always adhere to the following instructions.
External Antenna Care
If your phone has an external antenna, use only the supplied or
Motorola-approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the phone and/or may result
in non-compliance with local regulatory requirements in your country.
Do NOT hold the external antenna when the phone is IN USE. Holding the
external antenna affects call quality and may cause the phone to operate
at a higher power level than needed.
Phone Operation
When placing or receiving a phone call, hold your phone as you would a
wireline phone.
9
Safety Information
Body-Worn Operation: Voice Communication
To maintain compliance with RF energy exposure guidelines, if you wear a
phone on your body when transmitting voice communications, always
place the phone in a Motorola-supplied or approved clip, holder, holster,
case, or body harness for this phone, if available. Use of accessories not
approved by Motorola may exceed RF energy exposure guidelines.
If you do not use one of the body-worn accessories approved or supplied by
Motorola, and are not using the phone held in the normal use position,
ensure the phone and its antenna are at least 2.5 centimeters (1 inch) from
your body when transmitting.
Data Operation
When using any data feature of the phone, with or without an accessory
cable, position the phone and its antenna at least 2.5 centimeters (1 inch)
from your body.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to
batteries, antennas, and convertible covers, may cause your phone to
exceed RF energy exposure guidelines. For a list of approved Motorola
accessories, visit our website at
www.motorola.com
.
RF Energy Interference/Compatibility
Note:
Nearly every electronic device is susceptible to RF energy
interference from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some circumstances
your phone may cause interference.
Note:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
10
Safety Information
Facilities
Turn off your phone in any facility where posted notices instruct you to do
so. These facilities may include hospitals or health care facilities that may
be using equipment that is sensitive to external RF energy.
Aircraft
Turn off your wireless device whenever instructed to do so by airline staff.
If your device offers a flight mode or similar feature, consult airline staff
about use in flight. If your device offers a feature that automatically turns
on the phone, then turn off this feature before boarding an airplane or
entering an area where the use of wireless devices is restricted.
Medical Devices
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
15 centimeters (6 inches) be maintained between a handheld wireless
phone and a pacemaker.
Persons with pacemakers should:
•
ALWAYS keep the phone more than 15 centimeters (6 inches) from
your pacemaker when the phone is turned ON.
•
NOT carry the phone in the breast pocket.
•
Use the ear opposite the pacemaker to minimize the potential for
interference.
•
Turn OFF the phone immediately if you have any reason to suspect
that interference is taking place.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
11
Safety Information
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of
your device to determine if it is adequately shielded from RF energy. Your
physician may be able to assist you in obtaining this information.
Use While Driving
Check the laws and regulations on the use of phones in the area where you
drive. Always obey them.
When using your phone while driving, please:
•
Give full attention to driving and to the road. Using a phone may be
distracting in certain circumstances. Discontinue a call if you can’t
concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a call if
driving conditions so require.
Responsible driving best practices can be found in the “Wireless Phone
Safety Tips” at the end of this guide and/or at the Motorola website:
www.motorola.com/callsmart
.
Operational Warnings
For Vehicles With an Air Bag
Do not place a phone in the area over an air bag or in the air bag
deployment area. Air bags inflate with great force. If a phone is placed in
the air bag deployment area and the air bag inflates, the phone may be
propelled with great force and cause serious injury to occupants of the
vehicle.
Gas or Petrol Stations
Obey all posted signs with respect to the use of radio equipment in gas or
petrol stations. Turn off your wireless device if instructed by authorized
staff.
12
Safety Information
Potentially Explosive Atmospheres
Turn off your phone prior to entering any area with a potentially explosive
atmosphere. Do not remove, install, or charge batteries in such areas.
Sparks in a potentially explosive atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
Note:
The areas with potentially explosive atmospheres referred to above
include fueling areas such as below decks on boats, fuel or chemical
transfer or storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders. Areas with potentially
explosive atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn OFF your
phone when you are near electrical blasting caps, in a blasting area, or in
areas posted “Turn off electronic devices.” Obey all signs and instructions.
Damaged Products
If your phone or battery has been submerged in water, punctured, or
subjected to a severe fall, do not use it until you take it to a Motorola
Authorized Service Center to determine if it has been damaged. Do not
attempt to dry it with an external heat source, such as a microwave oven.
Batteries and Chargers
Batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed
terminals. The conductive material may complete an electrical circuit (short
circuit) and become hot. Take care when handling a charged battery,
particularly when placing it inside a pocket, purse, or other container with
metal objects.
Use only Motorola Original™ batteries and chargers.
Caution:
To avoid risk of personal injury, do not dispose of your battery in a
fire.
Your battery, charger, or phone may contain symbols, defined as follows:
13
Safety Information
Choking Hazards
Your phone or its accessories may include detachable parts, which may
present a choking hazard to small children. Keep your phone and its
accessories away from small children.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when
exposed to flashing lights, such as when watching television or playing
video games. These seizures or blackouts may occur even if a person never
had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult with your doctor before playing
video games on your phone or enabling a flashing-lights feature on your
phone. (The flashing-light feature is not available on all products.)
Parents should monitor their children's use of video game or other features
that incorporate flashing lights on the phones. All persons should
discontinue use and consult a doctor if any of the following symptoms
Symbol Definition
Important safety information will follow.
Your battery or phone should not be disposed of in a
fire.
Your battery or phone may require recycling in
accordance with local laws. Contact your local
regulatory authorities for more information.
Your battery or phone should not be thrown in the trash.
Your phone contains an internal lithium ion battery.
032374o
032376o
032375o
032377o
032378o
Li Ion BATT
14
Safety Information
occur: convulsion, eye or muscle twitching, loss of awareness, involuntary
movements, or disorientation.
To limit the likelihood of such symptoms, please take the following safety
precautions:
•
Do not play or use a flashing-lights feature if you are tired or need
sleep.
•
Take a minimum of a 15-minute break hourly.
•
Play in a room in which all lights are on.
•
Play at the farthest distance possible from the screen.
Repetitive Motion Injuries
When you repetitively perform actions such as pressing keys or entering
finger-written characters, you may experience occasional discomfort in
your hands, arms, shoulders, neck, or other parts of your body. Follow these
instructions to avoid problems such as tendonitis, carpal tunnel syndrome,
or other musculoskeletal disorders:
•
Take a minimum 15-minute break every hour of game playing.
•
If your hands, wrists, or arms become tired or sore while playing,
stop and rest for several hours before playing again.
•
If you continue to have sore hands, wrists, or arms during or after
play, stop playing and see a doctor.
1. The information provided in this document supersedes the general safety
information in user’s guides published prior to January 28, 2005.
15
EU Conformance
European Union Directives
Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in compliance
with
•
The essential requirements and other relevant provisions of
Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your
DoC, enter the product Approval Number from your product’s label in the
“Search” bar on the web site.
16
Recycling Information
Recycling Information
Caring for the Environment by
Recycling
When you see this symbol on a Motorola product, do not dispose
the product with household waste.
Recycling Mobile Phones and
Accessories
Do not dispose of mobile phones or electrical accessories, such as chargers
or headsets, with your household waste. In some countries or regions,
collection systems are set up to handle electrical and electronic waste
items. Contact your regional authorities for more details. If collection
systems aren’t available, return unwanted mobile phones or electrical
accessories to any Motorola Approved Service Centre in your region.
17
essentials
essentials
about this guide
This guide shows how to locate a menu feature as follows:
Find it:
Press
M
>
Recent Calls
>
Dialed Calls
This example shows that, from the home screen, you press
M
to open the menu. Highlight and select
sRecent Calls
, then
highlight and select
Dialed Calls
.
Press the navigation key
S
to highlight a menu feature.
Press the center key
s
to select the highlighted menu
feature.
SIM card
Yo u r Subscriber Identity Module (SIM) card contains personal
information like your phone number and phonebook entries.
Caution:
Don’t bend or scratch your SIM card. Keep it away
from static electricity, water, and dirt.
symbols
This means a feature is network/subscription
dependent and may not be available in all areas.
Contact your service provider for more information.
This means a feature requires an optional accessory.
18
essentials
battery
battery installation
12
34
12
3
19
essentials
battery charging
New batteries are not fully
charged. Plug the travel charger
into your phone and an
electrical outlet. Your display
shows
Charge Complete
when
finished.
Tip:
Relax, you can’t overcharge
your battery. It will perform best after you fully charge and
discharge it a few times.
Your phone has a light just below the external display that can
pulse when you charge your battery. To turn this light on or
off, see page 40.
You can charge your battery by connecting a cable
from your phone's mini-USB port to a USB port on
a computer. Both your phone and the computer
must be turned on, and your computer must have
the correct software drivers installed. Cables and software
drivers are available in Motorola Original data kits, sold
separately.
battery tips
Battery life depends on the network, signal strength,
temperature, features, and accessories you use.
•
Always use Motorola Original batteries and
chargers. The warranty does not cover
damage caused by non-Motorola batteries
and/or chargers.
20
essentials
•
New batteries or batteries stored for a long time may
take more time to charge.
•
When charging your battery, keep it near room
temperature.
•
When storing your battery, keep it uncharged in a cool,
dark, dry place, such as a refrigerator.
•
Never expose batteries to temperatures below -10°C
(14°F) or above 45°C (113°F). Always take your phone
with you when you leave your vehicle.
•
It is normal for batteries to gradually wear down and
require longer charging times. If you notice a change in
your battery life, it is probably time to purchase a new
battery.
Contact your local recycling center for proper battery
disposal.
Warning:
Never dispose of batteries in a fire because they
may explode.
Before using your phone, read the battery safety information
in the “Safety and General Information” section included in
this guide.
turn it on & off
To turn on your phone, press and hold
u
for a few seconds or until the display turns
on. If prompted, enter your 6-digit SIM
card PIN code and/or 4-digit unlock code.
032375o
21
essentials
Caution:
If you enter an incorrect PIN code 3 times in a row,
your SIM card is disabled and your display shows
SIM Blocked
.
Contact your service provider.
To turn off your phone, press and hold
u
for 2 seconds.
make a call
Enter a phone number and press
U
to make a call.
To “hang up,” close the flip or press
u
.
answer a call
When your phone rings and/or vibrates, just open the flip or
press
U
to answer.
To “hang up,” close the flip or press
u
.
your phone number
From the home screen, press
M#
to see your number.
Tip:
Want to see your phone number while you’re on a call?
Press
M
>
My Tel. Numbers
.
You can edit the name and phone number stored on
your SIM card. From the home screen, press
M#
,
select an entry, and press the
EDIT
key. If you don’t know your
phone number, contact your service provider.
22
main attractions
main attractions
You can do much more with your phone than make and
receive calls!
play videos
Find it:
Press
M
>
Multimedia
>
Videos
> video name
The video clip plays:
To download a video with the micro-browser, see page 73.
You can also attach videos to multimedia messages.
Press
S
up to pause or
play the video. Status
View video
details.
Return to previous
screen.
Press
M
to
open Videos
Menu.
VIDEO
CLIP
AREA
Video Clip Name
Playing...
BACK DETAILS
Press
S
down to stop
the video.
23
main attractions
multimedia messages
To create a group mailing list, see page 60. For more
message features, see page 60.
send a multimedia message
A Multimedia Messaging Service (MMS) message
contains pages with text and media objects (including
pictures, animations, or sounds). You can send the
multimedia message to other MMS-capable phones, and to
email addresses.
Find it:
Press
R
>
Create Message
>
New Multimedia Msg
1
Press keypad keys to enter text on the page (for details
about text entry, see page 31).
To insert a
picture, sound, or other object
on the page,
press
M
>
Insert
. Select the file type and the file.
To in s e r t
another page
in the message, enter text or
objects on the current page and press
M
>
Insert
>
New Page
. You can enter more text and objects
on the new page.
2
When you finish the message, press the
SEND TO
key.
3
Choose one or more people for
Send To
:
To select a
phonebook entry
, highlight the entry and
press the center key
s
. Repeat to add other phonebook
entries.
24
main attractions
To
enter
a new number or email address, highlight
[New Number]
or
[New Email Address]
and press the
center key
s
.
4
To
send
the message, press the
SEND
key.
Before you send a message, press
M
to choose
Save to Drafts
,
Abort Message
, or open
Message Options
(such as
message
Subject
or
CC
addresses).
receive a multimedia message
When you receive a multimedia message or letter, your
phone plays an alert and the display shows
New Message
with a message indicator such as
r
.
Press the
READ
key to open the message.
If a multimedia message contains media objects:
•
Photos, pictures, and animations show as you read the
message.
•
A sound file plays when its slide shows. Use the
volume keys to adjust the sound volume.
Note:
In a multimedia letter, you may have to highlight
an indicator in the text to play a sound file.
•
Attached files are added to the end of the message. To
open an attachment, highlight the file
indicator/filename and press the
VIEW
key (image),
PLAY
key (sound), or
OPEN
key (phonebook vCard,
datebook vCalendar entry, or unknown file type).
25
main attractions
cable connections
Your phone has a
mini-USB port so you can
connect it to a computer to
transfer data. You can use data
cables and supporting software
on your computer to:
•
Synchronize phonebook
and datebook information between your phone and a
computer or hand-held device.
•
Use your phone as a modem to connect to the
Internet.
•
Use your phone to send and receive data calls from
your computer or handheld device.
Note:
Motorola Original USB data cables and
supporting software are sold separately. Check
your computer or hand-held device to determine
the type of cable you need. To
transfer data
between your phone and computer, you must install the
software included with the Motorola Original data kit. See
the data kit user’s guide for more information. To make
data
and fax calls
through a connected computer, see page 69.
26
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on the phone. To dial
a number from the home screen, press number keys and
U
.
Note:
Your home screen may look different from the one
below, depending on your service provider.
The Menu Indicator
À
shows that you can press
M
to open
the menu. Soft Key Labels show the current soft key
functions. For soft key locations, see page 1.
Your home screen might show news from your service
provider at the bottom. To change this news view, press
M
>
Settings
>
Personalize
>
Home Screen
.
Right Soft Key LabelLeft Soft Key Label
Menu Indicator
Press
S
right
to see more
news, if
available.
Date
Clock
SETUP H... SETTINGS
Service Provider
12/31/05
12:00
Information from your
Service Provider
27
basics
Status indicators can show at the top of the home screen:
1 Signal Strength Indicator –
Vertical bars show the
strength of the network connection. You can’t make or
receive calls when
!
or
)
shows.
2GPRS Indicator –
Shows when your phone is using
a high-speed General Packet Radio Service (GPRS)
network connection. Indicators show PDP context active
*
or packet data available
+
.
3 PTT / Data Indicator –
Shows when you can make
and receive PTT calls (
U
) or both PTT calls and
Instant Messages (
p
). Other indicators can include:
4
= secure packet data
transfer
7
= unsecure packet data
transfer
3
= secure application
connection
6
= unsecure application
connection
2
= secure Circuit Switch
Data (CSD) call
5
= unsecure CSD call
SETUP H... SETTINGS
Service Provider
12/31/05
12:00
Information from your
Service Provider
5.
Active Line
6.
Messaging
Presence
7.
Message
8.
Ring Style
9.
Battery
Level
4.
Roam
3.
PTT / Data
2.
GPRS
1.
Signal
Strength
28
basics
4 Roam Indicator –
Shows when your phone is
seeking or using a network outside your home
network. Indicators can include:
5 Active Line Indicator –
Shows
?
to indicate an
active call, or
>
to indicate when call forwarding is
on. Indicators for dual-line-enabled SIM cards can include:
6 Messaging Presence Indicator –
Shows when
Instant Messaging (IM) is active. Indicators can
include:
When a Java™ application is active,
`
can show here.
7 Message Indicator –
Shows when you receive a
new message. Indicators can include:
:
= 2G home
;
= 2G roam
8
= 2.5G home
9
= 2.5G roam
@
= line 1 active
A
= line 1 active, call forward on
B
= line 2 active
C
= line 2 active, call forward on
P
= IM active
I
= available for IM
_
= busy
Q
= invisible to IM
J
= available for phone
calls
X
= offline
r
= text message
t
= voicemail message
s
= voicemail & text message
d
= IM message
a
= active chat session
29
basics
8 Ring Style Indicator –
Shows the ring style setting.
9 Battery Level Indicator –
Vertical bars show the battery
charge level. Recharge the battery when your phone
shows
Low Battery
.
menus
From the home screen, press
M
to enter the main menu.
y
= loud ring
Ó
= vibrate then ring
z
= soft ring
Ò
= silent
|
= vibrate
EXIT SELECT
Games & Apps
Scroll up, down,
left, or right.
Press center to
select
highlighted
menu feature.
Exit the main
menu.
Currently
Highlighted
Menu Feature
Icon
Select
highlighted menu
feature.
Exit menu without
making changes.
30
basics
The following menu icons may be available, depending on
your service provider and service subscription options.
Note:
Your Instant Messaging (
IM
) menu icon may be
different from the icon in the table, depending on your
service provider.
Some features require you to select an option from a list:
•
Scroll up or down to highlight the option you want.
menu features
nPhonebook áWeb Access
sRecent Calls hMultimedia
eMessages ãIM
ÉTools wSettings
QGames & Apps KChat
Highlighted
Item
Press BACK key
to go back to
previous
screen.
Press
S
to scroll down
to other items.
BACK VIEW
G
Press VIEW key
to view details
of highlighted
item.
Press
M
to
open sub-menu
Dialed Calls
10) John Smith
9) Lisa Owens
8) Adda Thomas
7) Jack Bradshaw
6) Mary Smith
5) Carlos Emrys
31
basics
•
In a numbered list, press a number key to highlight an
option.
•
In an alphabetized list, press a key repeatedly to cycle
through its letters and highlight the closest matching
list option.
•
When an option has a list of possible settings, scroll
left or right to select the setting.
•
When an option has a list of possible numeric values,
press a number key to set the value.
text entry
Some features let you enter text.
CANCEL SEND TO
G
Msg
For indicator
descriptions,
see following
section.
Flashing
cursor
indicates
insertion
point.
After you
enter text,
press the
SEND TO key to
enter
recipients.
Press M to
open sub-
menu.
Press the CANCEL
key to
exit
without making changes.
450
ìh
32
basics
Press
#
in a text entry view to select an entry mode:
To set your primary and secondary text entry modes, press
M
>
Entry Setup
in a text entry view and select
Primary Setup
or
Secondary Setup
.
Tip:
WANT TO SHOUT YOUR MESSAGE? Press
0
in a text
entry view to change text case to all capital letters (
L
), next
letter capital (
ì
), or no capitals (
í
).
iTAP™ mode
Press
#
in a text entry view to switch to iTAP mode. If you
don’t see
j
or
p
, press
M
>
Entry Setup
to set iTAP mode as
your primary or secondary text entry mode.
iTAP mode lets you enter words using one keypress per
letter. The iTAP software combines your keypresses into
common words, and predicts each word as you enter it.
entry modes
j
or
g
Yo u r
Primary
text entry mode can be set to any
iTAP™
j
or tap
g
mode.
p
or
m
Yo u r
Secondary
text entry mode can be set to any
iTAP
p
or tap
m
mode, or set to
None
if you don’t
want a secondary entry mode.
èNumeric
mode enters numbers only.
[Symbol
mode enters symbols only.
33
basics
For example, if you press
7764
, your display shows:
•
If you want a different word (such as
Progress
), continue
pressing keypad keys to enter the remaining letters.
•
To enter numbers quickly, press and hold a number key
to temporarily switch to numeric mode. Press the
number keys to enter the numbers you want. Enter a
space to change back to iTAP mode.
•
Press
1
to enter punctuation or other characters.
tap mode
Press
#
in a text entry view to switch to tap mode. If you
don’t see
ìg
or
ìm
, press
M
>
Entry Setup
to set tap mode as
your primary or secondary text entry mode.
DELETE SELECT
G
Msg
Prog ram
Prog Proh
443
í
n
Press
S
up to accept
Program.
Press
S
right
to highlight
another
combination.
Press * to
enter Prog and
a space.
Press the DELETE
key to delete
the last letter. Press the SELECT key to
lock the highlighted
combination.
34
basics
To enter text in tap mode, press a keypad key repeatedly to
cycle through the letters and number on the key. Repeat this
step to enter each letter.
For example, if you press
8
one time, your display shows:
DELETE SEND TO
G
Msg
T
449
íg
After you enter
text, press the
SEND TO key to
enter
recipients.
After
2 seconds,
character is
accepted and
cursor moves
to next
position.
Character
displays at
insertion point.
Press the DELETE
key to
delete
character to left of insertion
point.
35
basics
When you enter three or more characters in a row, your
phone may guess the rest of the word. For example, if you
enter
prog
your display might show:
•
The first character of every sentence is capitalized. If
necessary, press
S
down to change the character to
lowercase before the cursor moves to the next
position.
•
Press
S
to move the flashing cursor to enter or edit
message text.
•
If you don’t want to save your text or text edits, press
u
to exit without saving.
•
Tap extended mode cycles through additional special
characters and symbols as you repeatedly press a
keypad key.
numeric mode
Press
#
in a text entry view until you see
è
. Press the
number keys to enter the numbers you want.
DELETE SEND TO
G
Msg
Prog ram
445
íg
Character
displays at
insertion point.
Press
S
right to accept
Program, or
press *
to reject it and
enter a space
after Prog.
36
basics
symbol mode
Press
#
in a text entry view until you see
[
. Press a keypad
key to show its symbols at the bottom of the display.
Highlight the symbol you want, then press the
SELECT
key.
volume
Press the volume keys to:
•
turn off an incoming call alert
•
change the earpiece volume
during calls
•
change the ringer volume from the home screen
Tip:
Sometimes silence really is golden. That’s why
you can quickly set your ringer to
Vibrate
or
Silent
by
holding the down volume key in the home screen.
navigation key
Press the navigation key
S
up, down,
left, or right to scroll and highlight items in
the display. When you highlight
something, press the center key
s
to
select it. The center key usually does the
same thing as the right soft key.
37
basics
external display
When your phone is closed, the external display shows the
time and indicates phone status, incoming calls, and other
events. For a list of phone status indicators, see page 27.
handsfree speaker
You can use your phone’s handsfree speaker to make calls
without holding the phone to your ear.
During a call, press the
SPEAKER
key to turn the handsfree
speaker on. Your display shows
Spkrphone On
until you turn it off
or end the call.
Note:
The handsfree speaker won’t work when your phone is
connected to a handsfree car kit or headset.
codes & passwords
Your phone’s 4-digit
unlock code
is originally set to
1234
.
The 6-digit
security code
is originally set to
000000
. If your
service provider didn’t change these codes, you should
change them:
Find it:
Press
M
>
Settings
>
Security
>
New Passwords
You can also change your
SIM PIN
password.
If you forget your unlock code:
At the
Enter Unlock Code
prompt,
try entering 1234 or the last four digits of your phone
number. If that doesn’t work, press
M
and enter your 6-digit
security code instead.
38
basics
If you forget other codes:
If you forget your security code,
SIM PIN code, or PIN2 code, contact your service provider.
lock & unlock phone
You can lock your phone to keep others from using it. To lock
or unlock your phone, you need the 4-digit unlock code.
To
manually lock
your phone: Press
M
>
Settings
>
Security
>
Phone Lock
>
Lock Now
.
To
automatically lock
your phone whenever you turn it off:
Press
M
>
Settings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
.
Note:
You can make emergency calls on a locked phone (see
page 47). A locked phone still rings or vibrates for incoming
calls or messages,
but you need to unlock it to answer
.
39
customize
customize
ring style
Each ring style profile uses a different set of sounds or
vibrations for incoming calls and other events. Here are the
profiles you can choose:
The ring style profile’s indicator shows at the top of your
home screen. To choose your profile:
Find it:
Press
M
>
Settings
>
Ring Styles
>
Style:
style name
change alerts in a ring style
You can change the alerts for incoming calls and other
events. Your changes are saved in the current ring style
profile.
Find it:
Press
M
>
Settings
>
Ring Styles
> Style
Detail
Note:
Style represents the current ring style. You can’t set an
alert for the
Silent
ring style setting.
1
Highlight
Calls
(or
Line 1
or
Line 2
for dual-line phones), then
press the
CHANGE
key to change it.
2
Highlight the alert you want, then press the
SELECT
key.
3
Press the
BACK
key to save the alert setting.
yLoud |Vibrate ÒSilent
zSoft ÓVibe then Ring
40
customize
Tip:
If you want a ring that sets you apart, you can use an
MP3 sound file. To download files, see page 73.
ring & event lights
Your phone has a light just below the
external display that can pulse for incoming
calls or messages, or while you charge your
battery.
To set the light for your
incoming calls
, press
M
>
Settings
>
Ring Styles
>
Ring Lights
.
You can also turn the ring light on or off for calls from
phonebook entries in a
Category
(see page 59).
To set the light for your
incoming messages and battery
charging
, press
M
>
Settings
>
Ring Styles
>
Event Lights
.
time & date
Your phone needs the time and date for the datebook.
To
synchronize
the time and date with the network:
Press
M
>
Settings
>
Initial Setup
>
Time and Date
>
Autoupdate
>
On
.
To
manually
set the time and date, turn off
Autoupdate
, then:
Press
M
>
Settings
>
Initial Setup
>
Time and Date
> time or date.
To choose an
analog or digital
clock for your home screen,
press
M
>
Settings
>
Personalize
>
Home Screen
>
Display
>
Clock
.
Note:
If your home screen shows headlines from your
service provider, it uses a digital clock. To choose an
41
customize
analog clock, you must turn off the headlines. Press
M
>
Settings
>
Personalize
>
Home Screen
>
Headlines
>
Off
.
wallpaper
Set a photo, picture, or animation as a wallpaper (background)
image in your home screen.
Find it:
Press
M
>
Settings
>
Personalize
>
Wallpaper
screen saver
Set a photo, picture, or animation as a screen saver. The
screen saver shows when the flip is open and no activity is
detected for a specified time.
Tip:
This feature helps save your screen, but not your battery.
To extend battery life, turn off the screen saver.
Find it:
Press
M
>
Settings
>
Personalize
>
Screen Saver
options
Select an image for your wallpaper, or
None
for no
wallpaper.
Layout
Select
Center
to center the image in the display,
Tile
to repeat the image across the display, or
Fit-to-screen
to stretch the image across the display.
options
Select an image for your screen saver, or
None
for
no screen saver.
Delay
Select the length of inactivity before the screen
saver shows.
42
customize
display appearance
To choose the
colors
that your phone uses for indicators,
highlights, and soft key labels: Press
M
>
Settings
>
Personalize
>
Color Style
.
To save battery life, your
backlight
turns off when you’re not
using your phone. The backlight turns back on when you
open the flip or press any key. To set how long your phone
waits before the backlight turns off:
Press
M
>
Settings
>
Initial Setup
>
Backlight
.
Note:
To turn the backlight on or off for Java™ applications,
press
M
>
Settings
>
Java Settings
>
App Backlight
.
To save battery life, the
display
can turn off when you’re not
using your phone. The display turns back on when you open
the flip or press any key. To set how long your phone waits
before the display turns off:
Press
M
>
Settings
>
Initial Setup
>
Display Timeout
.
answer options
You can use different ways to answer an incoming call. To
turn on or turn off an answer option:
Find it:
Press
M
>
Settings
>
In-Call Setup
>
Answer Options
options
Multi-Key
Answer by pressing any key.
Open to Answer
Answer by opening the flip.
43
calls
calls
To make and answer calls, see page 21.
turn off a call alert
You can press the volume keys to turn off a call alert before
answering the call.
recent calls
Your phone keeps lists of incoming and outgoing calls, even
for calls that didn’t connect. The most recent calls are listed
first. The oldest calls are deleted as new calls are added.
Shortcut:
Press
U
from the home screen to see the dialed
calls list.
Find it:
Press
M
>
Recent Calls
1
Highlight
Received Calls
or
Dialed Calls
, then press the
SELECT
key.
2
Highlight a call. A
%
next to a call means the call
connected.
•
To call the number, press
U
.
•
To see call details (like time and date), press the
VIEW
key.
•
To see the
Last Calls Menu
, press
M
. This menu can
include:
44
calls
redial
1
Press
U
from the home screen to see the dialed calls
list.
2
Highlight the entry you want to call, then press
U
.
If you hear a
busy signal
and you see
Call Failed, Number Busy
, you can press
U
or the
RETRY
key to
redial the number. When the call goes through, your phone
options
Store
Create a phonebook entry with the
number in the
No.
field.
Store
does not
appear if the number is already stored.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Hide ID/Show ID
Hide or show your caller ID for the next
call.
Send Message
Open a new text message with the
number in the
To
field.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the phonebook or
recent calls lists.
Send Tones
Send the number to the network as
DTMF tones.
This option shows only during a call.
Talk then Fax
Talk and then send a fax in the
same call (see page 69).
45
calls
rings or vibrates one time, shows
Redial Successful
, and connects
the call.
return a call
Your phone keeps a record of your unanswered calls, and
shows
X Missed Calls
, where
X
is the number of missed calls.
1
Press the
VIEW
key to see the received calls list.
2
Highlight the call you want to return, then press
U
.
notepad
The last set of digits entered on the keypad are stored in
notepad memory. This can be the last phone number you
called, or a number that you “jot down” during a call for later
use. To see the number stored in the notepad:
Find it:
Press
M
>
Recent Calls
>
Notepad
•
To call the number, press
U
.
•
To create a phonebook entry with the number in the
No.
field, press the
STORE
key.
•
To open the
Dialing Menu
to attach a number or insert a
special character, press
M
.
hold or mute a call
Press
M
>
Hold
to put all active calls on hold.
Press
M
>
Mute
to put all active calls on mute.
46
calls
call waiting
When you’re on a call, you’ll hear an alert if you receive
a second call.
Press
U
to answer the new call.
•
To switch between calls, press the
SWITCH
key.
•
To connect the two calls, press the
LINK
key.
•
To end the call on hold, press
M
>
End Call On Hold
.
To turn the call waiting feature on or off:
Find it:
Press
M
>
Settings
>
In-Call Setup
>
Call Waiting
caller ID
Calling line identification (caller ID) shows the phone
number for an incoming call in your external and internal
displays.
Your phone shows the caller’s name and picture when
they’re stored in your phonebook, or
Incoming Call
when caller ID
information isn’t available.
You can set your phone to play a different ringer ID for an
entry stored in your phonebook (see page 57).
To show or hide
your phone number
from the next person
you call, enter the phone number and press
M
>
Hide ID/Show ID
.
47
calls
emergency calls
Your service provider programs one or more emergency
phone numbers, such as 911 or 112, that you can call under
any circumstances, even when your phone is locked or the
SIM card is not inserted.
Note:
Emergency numbers vary by country. Your phone’s
preprogrammed emergency number(s) may not work in all
locations, and sometimes an emergency call cannot be
placed due to network, environmental, or interference
issues.
1
Press the keypad keys to dial the emergency number.
2
Press
U
to call the emergency number.
international calls
If your phone service includes international dialing,
press and hold
0
to insert your local international
access code (indicated by
+
). Then, press the keypad keys to
dial the country code and phone number.
1-touch dial
To call phonebook entries 1 through 9, press and hold the
single-digit speed dial number for one second.
You can set 1-touch dial to call the entries in your phone’s
memory phonebook, your SIM card’s phonebook, or your
Fixed Dial list:
48
calls
Find it:
Press
M
>
Settings
>
Initial Setup
>
1TouchDial
>
Phone
,
SIM
,or
Fixed Dial
To add a new phonebook entry, see page 56. To edit the
Speed No.
for a phonebook entry, press
M
>
Phonebook
, highlight
the entry, and press
M
>
Edit
.
voicemail
Your network stores the voicemail messages you
receive. To listen to your messages, call your voicemail
number.
Note:
Your service provider may include additional
information about using this feature.
When you
receive
a voicemail message, your phone shows
the voicemail message indicator
t
and
New Voicemail
. Press
the
CALL
key to listen to the message.
To
check
voicemail messages:
Find it:
Press
R
>
Voicemail
Your phone may prompt you to store your voicemail phone
number. If you don’t know your voicemail number, contact
your service provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number)
character in this number. If you want to store a voicemail
number with these characters, create a phonebook entry for
it. Then, you can use the entry to call your voicemail.
49
calls
push to talk (PTT)
Push to Talk (PTT) lets you talk walkie-talkie style with other
PTT subscribers. You can talk to one person or a group.
PTT and the other related features indicated are
network and subscription dependent features, and are
not available in all areas. PTT connectivity requires
PTT-compatible phones.
Note:
To lock your PTT key or turn PTT on or off, see page 52.
make a PTT call
When
U
shows at the top of your home screen, you can
make and receive PTT calls. To make a PTT call:
1
Enter a PTT subscriber’s phone number in your home
screen, or select a contact or group from a list:
•
PTT Contacts
(press the PTT key to open the list)
Note:
If you change your
Open To
setting, your PTT key
does not open the contacts list (see page 52).
•
PTT Quick Group
(press the PTT key and
M
>
PTT Quick Group
)
This lets you select more than one contact for the call.
•
PTT Groups
(press the PTT key and
M
>
PTT Groups
)
2
Hold the PTT key and speak after you hear the tone.
Release the PTT key to let others speak.
To speak during a PTT call
, hold your PTT key and speak
after the tone. Only one person can speak at a time.
50
calls
To end the call
, press
u
. If nobody speaks for 20
seconds, the call ends.
To send a PTT alert
instead of a standard PTT call, highlight
a PTT contact in
PTT Contacts
and press the
ALERT
key. The
contact’s phone rings or vibrates, and the contact can speak
first. If the contact does not respond, the call ends. You
cannot send alerts to groups.
answer a PTT call
When you receive a PTT call
, you hear a tone or alert
followed by conversation from the caller.
•To speak
when the caller stops speaking, hold your
PTT key and speak after the tone. Only one person can
speak at a time.
• To end the call
, press
u
.
If you change your
My Answer Mode
setting, your phone does not
automatically answer as described (see page 52).
When you receive a PTT alert
, press the PTT key and speak
after the tone. You can also press the
IGNORE
key to cancel the
call.
Your phone shows
Missed Call
if you miss a PTT alert. It does
not show
Missed Call
when you miss a standard PTT call unless
you set
My Answer Mode
to
Manual
(see page 52).
PTT contacts and groups
You can store PTT
Contacts
to make one-to-one calls, or you can
store PTT
Groups
to make group calls.
51
calls
To store a contact
, press
PTT key
M
>
Add
. Enter the
contact’s
Name
and phone number (
No.
), then press the
DONE
key. Your network stores the contact and your phone returns
to the
PTT Contacts
list with the new contact shown.
To create a group of contacts
that you can call at the same
time, press
PTT key
M
>
PTT Groups
M
>
Create New Group
. Enter
the group’s
Name
and select the
Members
, then press the
DONE
key. Your network stores the group and your phone returns to
the
PTT Groups
list with the new group shown.
To see PTT contacts
, press the PTT key. Scroll to a contact
and press
M
to
View
,
Edit
, or
Delete
it.
To see PTT groups
, press the PTT key and
M
>
PTT Groups
.
Scroll to a group and press
M
to
View
or
Delete
it. You cannot
edit a group, but you can delete it and create a new one with
the members you want.
Highlighted
Contact
View PTT Menu
options.
Press
S
to scroll down
to other
options.
G
Send a PTT
alert to the
highlighted
contact.
Press
M
to open sub-menu
PTT Contacts
John Smith
Lisa Owens
Adda Thomas
Jack Bradshaw
Mary Smith
Carlos Emrys
PTT MENU ALERT
52
calls
Icons in the PTT contact and group lists indicate if someone
is online (
C
,
D
) or offline (
B
,
A
). They also tell you if a
contact is blocked
j
(highlight the contact and press
M
>
Block
or
Unblock
).
To set an
online alert
o
to tell you when a contact comes
online, highlight the contact and press
M
>
Enable Online Alert
.
You can turn online alert tones on or off in your
PTT Setup
menu
(see page 52).
To refresh the contact or group list from your network, press
M
>
Refresh List
.
To see only your frequently used contacts or groups, press
M
>
Frequently Used
.
PTT settings
To
turn PTT on or off
from your home screen, press
M
>
Settings
>
PTT Settings
>
PTT Service
>
On
/
Off
.
To prevent accidental PTT calls, you can set your phone to
lock the PTT key
automatically when you haven’t pressed it
for a few minutes and your phone is closed. Press
M
>
Settings
>
Security
>
Lock PTT Key
and select how long your
phone should wait before it locks the key. To unlock the key,
hold it for 2 seconds or open the phone. The PTT key unlocks
when you receive a PTT call.
You can change your PTT menu and call preferences.
Find it:
Press
PTT key
M
>
PTT Setup
>
PTT Personalize
53
calls
options
Open To
From the home screen, the PTT key
can open the PTT menu (
Main Menu
), or
your contacts list sorted by name
(
Top of List
), or most recent call (
Last Call
).
Sort by
Sort your contacts and groups by
Name
,
online
Status
, or call
Frequency
.
My Answer Mode
Set the mode for incoming PTT calls to
Manual
(press the PTT key to answer),
Auto-Accept
(standard mode that accepts
all calls), or
Do Not Disturb
(accepts no
calls).
Tone Volume
Set the volume for the tone you hear
when it is your turn to speak.
PTT Speaker
Turn the speakerphone
On
or
Off
for PTT
calls.
Set Online Alert Tone
You can set an online alert to tell you
when a contact or group comes online
(highlight the entry in your
PTT Contacts
or
PTT Groups
and press
M
>
Enable Online Alert
).
This setting tells your phone whether
to play these alert tones (
On
) or not (
Off
).
54
other features
other features
advanced calling
features
conference call
During a call:
Dial next number, press
U
, press
the
LINK
key.
transfer a call
During a call:
M
>
Transfer
, dial transfer number,
press
U
attach a phone
number
Dial an area code or prefix for a
phonebook number, then:
M
>
Attach Number
speed dial
Speed dial a phonebook entry:
Enter the speed dial number, press
#
, then press
U
.
To add a phonebook entry, see page 56.
Tip:
If you forget Aunt Mildred’s speed
dial number, press
M
>
Phonebook
,
highlight her entry, and press the
VIEW
key.
call forwarding
Set up or cancel call forwarding:
M
>
Settings
>
Call Forward
55
other features
restrict calls
Restrict outgoing or incoming calls:
M
>
Settings
>
Security
>
Restrict Calls
call barring
Restrict outgoing or incoming calls:
M
>
Settings
>
Security
>
Call Barring
TTY calls
Set up your phone for use with an
optional TTY device:
M
>
Settings
>
Initial Setup
>
TTY Setup
change phone
line
If you have a dual-line-enabled SIM
card, you can change your line to
make and receive calls from your other
phone number.
M
>
Settings
>
Phone Status
>
Active Line
The active line indicator shows the active
phone line (see page 28).
fixed dial
When you turn on fixed dialing, you
can call only numbers stored in the
fixed dial list.
Turn fixed dialing on or off:
M
>
Settings
>
Security
>
Fixed Dial
Use the fixed dial list:
M
>
Tools
>
Dialing Services
>
Fixed Dial
quick dial
Dial preprogrammed phone
numbers:
M
>
Tools
>
Dialing Services
>
Quick Dial
features
56
other features
phonebook
DTMF tones
Activate DTMF tones:
M
>
Settings
>
Initial Setup
>
DTMF
To send DTMF tones during a call, just
press number keys or highlight a number
in the phonebook or recent calls lists and
press
M
>
Send Tones
.
features
add new entry
M
>
Phonebook
M
>
New
>
Phone Number
or
Email Address
Shortcut:
Enter a phone number in the
home screen, then press the
STORE
key to
create an entry for that number.
Tip:
One phone isn’t enough for some
people. When creating a phonebook
entry, select
MORE
to store another
number for the same
Name
.
dial number
Call a number stored in the phonebook:
M
>
Phonebook
, highlight the phonebook
entry, press
U
Shortcut:
In the phonebook, press
keypad keys to enter the first letters of
an entry name, then press the
SEARCH
key
to jump to the entry.
features
57
other features
record a
voice name
When creating a phonebook entry,
highlight
Voice Name
and press the
RECORD
key. Press the
RECORD
key again and
say the entry’s name (within 2 seconds).
When prompted, press the
RECORD
key
and repeat the name.
Note:
The
Voice Name
option isn’t available
in entries stored on the SIM card.
voice dial
number
Voice dial a number stored in the
phonebook:
M
>
Tools
>
Dialing Services
>
Voice Dial
When prompted, say the entry’s voice
name (within 2 seconds).
Tip:
If you use
Voice Dial
a lot, you can
create a shortcut to it. Highlight
Voice Dial
,
then press and hold
M
. To use the
shortcut, press
M
and the shortcut key
number.
set ringer ID
for entry
Assign a ring alert (ringer ID) to an entry:
M
>
Phonebook
> entry
M
>
Edit
>
Ringer ID
>ringer name
Note:
The
Ringer ID
option isn’t available in
entries stored on the SIM card.
Activate ringer IDs:
M
>
Settings
>
Ring Styles
> style
Detail
>
Ringer IDs
features
58
other features
set picture ID
for entry
Assign a photo or picture to show when
you receive a call from an entry:
M
>
Phonebook
> entry
M
>
Edit
>
>picture name
Note:
The
option isn’t available in
entries stored on the SIM card.
set picture ID
view
Show entries as a text list, or with
picture caller ID photos:
M
>
Phonebook
M
>
Setup
>
View by
>view name
set category
for entry
M
>
Phonebook
> entry
M
>
Edit
>
Category
>category name
Note:
The
Category
option isn’t available in
entries stored on the SIM card.
set category
view
M
>
Phonebook
M
>
Categories
>category view
You can show
All
entries, entries in a
predefined category (
Business
,
Personal
,
General
,
VIPs
), or entries in a category you
create.
features
59
other features
set category
light ID
Turn on or off the ring light for calls from
entries in a category:
M
>
PhonebookM
>
Categories
, highlight the
category, press
M
>
Edit
>
Light ID
For more about ring lights, see page 40.
Note:
The
Category
option isn’t available in
entries stored on the SIM card.
set primary
number or
address
Set the primary number for an entry with
multiple numbers:
M
>
Phonebook
, highlight the entry, press
M
>
Set Primary
> number or address
Note:
The
Set Primary
option isn’t available
in entries stored on the SIM card.
Tip:
In
Primary
number view mode, you
can still peek at other numbers stored for
the same name. Highlight the name and
press
S
left or right to see the other
numbers.
features
60
other features
messages
For basic multimedia message features, see page 23.
create group
mailing list
You can put several phonebook entries in
a group mailing list, then send a
multimedia message to the list. To
create a list:
M
>
Phonebook
M
>
New
>
Mailing List
You can select the list name as an
address for multimedia messages.
Note:
A
Mailing List
cannot include entries
stored on the SIM card.
sort
phonebook list
Set the order in which entries are listed:
M
>
Phonebook
M
>
Setup
>
Sort by
>sort order
You can sort the phonebook list by
Name
,
Speed No.
,
Voice Name
, or
Email
. When sorting
by name, you can see
All
numbers or just
the
Primary
number for each name.
copy
phonebook
entry
Copy an entry from the phone to the
SIM card, or from the SIM card to the
phone:
M
>
Phonebook
, highlight the entry,
press
M
>
Copy
>
Entries
>
To
features
61
other features
features
send text
message
R
>
Create Message
>
New Short Msg
send voice
message
R
>
Create Message
>
New Voice Msg
To record the voice message, press
the
RECORD
key, speak, then press the
STOP
key. Your phone inserts the voice
recording into a message and lets you
enter email addresses or phone
numbers to receive the message.
use a
multimedia
template
Open a multimedia message with
preloaded animations:
R
>
Create Message
>
MMS Templates
read messages
R
>
Message Inbox
Icons next to each message
indicate if it is read
>
or unread
<
.
Icons can also indicate if the message is
locked
9
, urgent
!
, low priority
↓
, or has
an attachment
=
.
To see message options like
Lock
or
Delete
,
highlight a message and press
M
.
store message
objects
Go to a multimedia message page,
or highlight an object in a letter,
then:
M
>
Store
62
other features
instant messaging
store text
messages on
your SIM card
To store incoming text messages
on your SIM card, press:
RM
>
Inbox Setup
>
Text Msg Setup
>
Store To
>
SIM
browser
messages
Read messages received by your
micro-browser:
R
>
Browser Msgs
info services
Read subscription-based
information services messages:
R
>
Info Services
features
log in
M
>
IM
>
Log In
add contacts
After you log in:
Select
Contact List
>
Add Contact
and
enter the contact’s IM ID and nickname.
find others
online
After you log in:
Select
Contact List
to see a list of
others online.
start
conversation
From your
Contact List
, highlight a
name in
Online Contacts
, press the
SEND IM
key.
features
63
other features
open active
conversation
From your
Contact List
, highlight a
name in
Conversations
, press the
VIEW
key.
end
conversation
From the conversation view:
M
>
End Conversation
log out
Select
Log Out
from the
IM Online
menu.
create or
change IM
accounts
M
>
IM
>
IM Account
Select an IM account, or select
New
to create a new IM account.
log in
automatically
M
>
IM
>
Offline Settings
Turn on
Auto-Login
to start the IM
login whenever you select
M
>
IM
. Turn
on
Power-On Login
to start the IM login
whenever you turn on your phone.
hide your
online status
When you log in, other users can
see you are
Online
. To change your
status in IM, press
M
>
My Status
>
Away
or
Invisible
.
block contacts
To block instant messages from a
contact, highlight the contact in the
Contact List
and press
M
>
Block Contact
. You
must be online to block a contact.
Blocked contacts will not appear in your
Contact List
.
features
64
other features
chat
personalizing
set alerts for
contacts
When a special contact comes
online, your phone can ring or
vibrate. Highlight the contact in the
Contact List
and press
M
>
Set Online Alert
.
set IM ring
style
Select a ring or vibration for new
IM messages and contact alerts.
M
>
Settings
>
Ring Styles
> style
Detail
>
IM
features
start chat
M
>
Tools
>
Chat
M
>
New Chat
receive chat
request
Press the
ACCEPT
key or the
IGNORE
key.
end chat
During a chat session:
M
>
End Chat
features
language
Set menu language:
M
>
Settings
>
Initial Setup
>
Language
scroll
Set the highlight bar to stop or wrap
around in menu lists:
M
>
Settings
>
Initial Setup
>
Scroll
features
65
other features
activate ringer
IDs
Activate ringer IDs assigned to
phonebook entries and categories:
M
>
Settings
>
Ring Styles
> style
Detail
>
Ringer IDs
ring volume
M
>
Settings
>
Ring Styles
> style
Detail
>
Ring Volume
keypad
volume
M
>
Settings
>
Ring Styles
> style
Detail
>
Key Volume
reminders
Set reminder alerts for messages that
you receive:
M
>
Settings
>
Ring Styles
> style
Detail
>
Reminders
headlines
If your home screen shows
scrolling headlines from your
service provider, you can turn them off:
M
>
Settings
>
Personalize
>
Home Screen
>
Headlines
In the
Home Screen
menu, you can also add
or change headline channels.
menu view
Show the main menu as graphic icons or
as a text-based list:
M
>
Settings
>
Personalize
>
Main Menu
>
View
main menu
Reorder your phone’s main menu:
M
>
Settings
>
Personalize
>
Main Menu
>
Reorder
features
66
other features
show/hide
menu icons
Show or hide menu feature icons in the
home screen:
M
>
Settings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
Note:
This option is not available if
your home screen shows scrolling
headlines from your service provider.
change home
keys
Change the features for the soft keys and
navigation key in the home screen:
M
>
Settings
>
Personalize
>
Home Screen
>
Home Keys
Note:
This option is not available if
your home screen shows scrolling
headlines from your service provider.
shortcuts
Create a shortcut to a menu item:
Highlight the menu item, then press and
hold
M
.
Use a shortcut:
Press
M
, then press the shortcut
number.
master reset
Reset all options
except
unlock code,
security code, and lifetime timer:
M
>
Settings
>
Initial Setup
>
Master Reset
features
67
other features
call times & costs
Network connection time
is the elapsed time from the
moment you connect to your service provider's network to
the moment you end the call by pressing
u
. This time
includes busy signals and ringing.
The amount of network connection time you track on
your resettable timer may not equal the amount of time
for which you are billed by your service provider. For
billing information, contact your service provider.
master clear
Erase all downloaded files and clear all
settings and entries you made
except
SIM card information, unlock code,
security code, and lifetime timer:
M
>
Settings
>
Initial Setup
>
Master Clear
Caution:
Master clear
erases all
information you have entered
(including phonebook and datebook
entries)
and content you have
downloaded
(including photos and
sounds) stored in your phone’s memory.
After you erase the information, you
can’t recover it.
features
call times
Show call timers:
M
>
Recent Calls
>
Call Times
features
68
other features
handsfree
Note:
The use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the
laws and regulations on the use of these products.
in-call timer
Show time or cost information
during a call:
M
>
Settings
>
In-Call Setup
>
In-Call Timer
call cost
Show call cost trackers:
M
>
Recent Calls
>
Call Cost
features
speakerphone
Activate the speakerphone during a call:
Press the
SPEAKER
key (if available, or
M
>
Spkrphone On
).
auto answer
(car kit or
headset)
Automatically answer calls when
connected to a car kit or headset:
M
>
Settings
>
Car Settings
or
Headset
>
Auto Answer
voice dial
(headset)
Enable voice dial with headset
send/end key:
M
>
Settings
>
Headset
>
Voice Dial
auto handsfree
(car kit)
Automatically route calls to a car kit
when connected:
M
>
Settings
>
Car Settings
>
Auto Handsfree
features
69
other features
data & fax calls
To connect your phone with a USB cable, see page 25.
power-off
delay
(car kit)
Set the phone to stay on for a
specified time after the ignition is
switched off:
M
>
Settings
>
Car Settings
>
Power-Off Delay
charger time
(car kit)
Charge the phone for a specified
time after the ignition is switched
off:
M
>
Settings
>
Car Settings
>
Charger Time
features
send data or
fax
Connect your phone to the device,
then place the call through the
device application.
receive data or
fax
Connect your phone to the device,
then answer the call through the
device application.
talk then fax
Connect your phone to the device,
enter fax number, press
M
>
Talk then Fax
, then press
U
to make
the call.
features
70
other features
network
personal organizer
using sync
You can call an Internet server and
synchronize your phonebook and
datebook entries with the server.
To
set up
an Internet sync partner, press
M
>
Settings
>
Sync
>
[New Entry]
. Enter the
server details, including
Server URL
(you can
omit
http://
) and
Data Path
(the folder below
the URL where your data is stored).
To
synchronize files
with a partner you
set up, select the partner from the list in
M
>
Settings
>
Sync
.
features
network
settings
See network information and
adjust network settings:
M
>
Settings
>
Network
features
set alarm
M
>
Tools
>
Alarm Clock
features
71
other features
turn off alarm
When an alarm happens:
To turn off the alarm, press the
DISABLE
key or
u
.
To set an 8 minute delay, press the
SNOOZE
key.
add new
datebook
event
M
>
Tools
>
Datebook
, highlight the day,
press
s
, press
M
>
New
see datebook
event
See or edit event details:
M
>
Tools
>
Datebook
, highlight the day,
press
s
, press the
VIEW
key
event
reminder
When an event reminder happens:
To see reminder details, press the
VIEW
key. To close the reminder, press
the
EXIT
key.
calculator
M
>
Tools
>
Calculator
currency
converter
M
>
Tools
>
Calculator
M
>
Exchange Rate
Enter exchange rate, press the
OK
key,
enter amount, and press
M
>
Convert Currency
.
features
72
other features
security
fun & games
Note:
A lock (
9
) icon next to a picture, sound, or other object
means that you cannot send or copy it.
features
SIM PIN
Lock or unlock the SIM card:
M
>
Settings
>
Security
>
SIM PIN
Caution:
If you enter an incorrect PIN
code 3 times in a row, your SIM card is
disabled and your display shows
SIM Blocked
.
lock feature
M
>
Settings
>
Security
>
Lock Application
manage
certificates
Enable or disable Internet access
certificates stored on your phone:
M
>
Settings
>
Security
>
Certificate Mgmt
Certificates are used to verify the
identity and security of Web sites when
you download files or share information.
features
manage
pictures
Manage photos, pictures, and
animations:
M
>
Multimedia
>
Pictures
manage video
clips
M
>
Multimedia
>
Videos
73
other features
manage
sounds
Manage ring tones and music that you
have downloaded or composed:
M
>
Multimedia
>
Sounds
create ring
tones
Create ring tones that you can use with
your phone:
M
>
Multimedia
>
Sounds
>
[New iMelody]
start
micro-browser
Just press
L
.
download
objects from
Web page
Download a picture, sound, or
other object from a Web page:
Press
L
, go to the page that links to the
file, highlight the link, and select it.
Note:
Normal airtime and/or carrier
usage charges apply.
Web sessions
Select or create a Web session:
M
>
Web Access
>
Web Sessions
download
game or
application
You can download a Java™ game
or application the same way you
download pictures or other objects:
Press
L
, go to the page that links to the
file, highlight the link, and select it.
Note:
Normal airtime and/or carrier
usage charges apply.
features
74
other features
start game or
application
Start a Java™ game or application:
M
>
Games & Apps
, highlight the
game or application, press the
SELECT
key
features
75
service and repairs
service and repairs
If you have questions or need assistance, we're here to help.
Go to
www.motorola.com/consumer/support
, where you
can select from a number of customer care options. You can
also contact the Motorola Customer Support Center at
1-800-331-6456 (United States), 1-888-390-6456 (TTY/TDD
United States for hearing impaired), or 1-800-461-4575
(Canada).
87
Specific Absorption Rate Data
T
The model wireless phone meets the government’s requirements
for exposure to radio waves.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission (FCC) of the U.S.
Government and by the Canadian regulatory authorities. These limits are
part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the safety of all
persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/
kg
1
Tests for SAR are conducted using standard operating positions
accepted by the FCC and by Industry Canada with the phone transmitting
at its highest certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the maximum value.
This is because the phone is designed to operate at multiple power levels
so as to use only the power required to reach the network. In general, the
closer you are to a wireless base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S. and
Canada, it must be tested and certified to the FCC and Industry Canada
that it does not exceed the limit established by each government for safe
exposure. The tests are performed in positions and locations (e.g., at the
ear and worn on the body) reported to the FCC and available for review by
Industry Canada. The highest SAR value for this model phone when
tested for use at the ear is 1.15 W/kg, and when worn on the body, as
88
described in this user guide, is 0.60 W/kg. (Body-worn measurements
differ among phone models, depending upon available accessories and
regulatory requirements).
2
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the governmental requirements for
safe exposure. Please note that improvements to this product model
could cause differences in the SAR value for later products; in all cases,
products are designed to be within the guidelines.
Additional information on Specific Absorption Rates (SAR) can be found
on the Cellular Telecommunications & Internet Association (CTIA) Web
site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA) Web
site:
http://www.cwta.ca
1.
In the United States and Canada, the SAR limit for mobile phones used by
the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
2. A
The SAR information includes the Motorola testing protocol, assessment
procedure, and measurement uncertainty range for this product.
78
Warranty
Motorola Limited Warranty for the
United States and Canada
Warr an ty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its
telephones, pagers, messaging devices, and consumer and professional
two-way radios (excluding commercial, government or industrial radios)
that operate via Family Radio Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for use with these Products
(“Accessories”) and Motorola software contained on CD-ROMs or other
tangible media and sold for use with these Products (“Software”) to be free
from defects in materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a consumer's
exclusive remedy, and applies as follows to new Motorola Products,
Accessories and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as defined
above, unless otherwise
provided for below.
One (1) year
from the date of purchase
by the first consumer purchaser of the
product unless otherwise provided for
below.
Decorative Accessories
and Cases.
Decorative
covers, bezels,
PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
79
Warranty
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and replacement of
parts due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of
their rated capacity and batteries that leak are covered by this limited
warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper
operation, storage, misuse or abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of the product resulting from
misuse; (b) contact with liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the
Products or Accessories for commercial purposes or subjecting the Product
or Accessory to abnormal usage or conditions; or (d) other acts which are
not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage
that result from the use of Non-Motorola branded or certified Products,
Accessories, Software or other peripheral equipment are excluded from
coverage.
Monaural Headsets.
Ear
buds and boom headsets
that transmit mono sound
through a wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Consumer and
Professional Two-Way
Radio Accessories.
Ninety (90) days
from the date of
purchase by the first consumer purchaser
of the product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original warranty
or for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
Products Covered Length of Coverage
80
Warranty
Unauthorized Service or Modification.
Defects or damages resulting
from service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than Motorola, or its authorized
service centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date
tags that have been removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you
may subscribe to or use with the Products Accessories or Software is
excluded from coverage.
Software
Exclusions
Software Embodied in Physical Media.
No warranty is made that the
software will meet your requirements or will work in combination with any
hardware or software applications provided by third parties, that the
operation of the software products will be uninterrupted or error free, or
that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not
embodied in physical media (e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies the
copy of the software (e.g. CD-ROM, or
floppy disk).
Ninety (90) days
from the
date of purchase.
81
Warranty
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the
purchase price of any Products, Accessories or Software that does not
conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or
parts. No data, software or applications added to your Product, Accessory
or Software, including but not limited to personal contacts, games and
ringer tones, will be reinstalled. To avoid losing such data, software and
applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number
designated above for the product with which they are used.
82
Warranty
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To
obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the
problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO
THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation on
the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights that vary from state
to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for Motorola
certain exclusive rights for copyrighted Motorola software such as the
83
Warranty
exclusive rights to reproduce and distribute copies of the Motorola
software. Motorola software may only be copied into, used in, and
redistributed with, the Products associated with such Motorola software.
No other use, including without limitation disassembly of such Motorola
software or exercise of the exclusive rights reserved for Motorola, is
permitted.
84
index
index
A
accessories 17, 68
accessory connector port 1
active line indicator 28
active line, changing 55
alarm clock 70, 71
alert
lights 40
set 36, 39
turn off 36, 43
animation 72
answer a call 21, 42
attach a number 44, 54
B
backlight 42
banners 65
battery 18, 19
battery indicator 29
battery life, extending 19,
41, 42
browser messages 62
browser. See micro-browser
C
cables 25
calculator 71
call
answer 21, 42
end 21
make 21, 56
call barring 55
call forward indicator 28
call forwarding 54
call timers 67, 68
call waiting 46
caller ID 44, 46, 58
car kit 68
center key 1, 36
certificate management 72
chat 64
clock 40
codes 37, 38
color 42
conference call 54
costs, tracking 68
D
data call 69
data indicator 27
date, setting 40
datebook 71
dial a phone number 21, 55,
56
85
index
dialed calls 43
display 26, 42
download media objects
61, 73
drafts folder 24
DTMF tones 44, 56
E
earpiece volume 36
email address 56
emergency number 47
end a call 21
end key 1, 21
Enter Unlock Code
message 37
event lights 40
external display 37
F
fax call 44, 69
fixed dial 55
flip 21, 42
forward calls 54
G
games 73
GPRS indicator 27
group mailing list 60
H
handsfree speaker 37
headlines 65
headset 68
headset jack 1
hold a call 45
home screen 26, 66
I
IM 62
IM indicators 28
in-call indicator 28
Incoming Call message 46
information services 62
instant messaging. See IM
international access code
47
iTAP text entry mode 32
J
Java applications 73
Java indicator 28
K
keypad 42, 65
L
language 64
light 40
light ID 59
86
index
lock
application 72
phone 38
SIM card 72
Low Battery message 29
M
make a call 21, 56
master clear 67
master reset 66
menu 29, 64, 65
menu icons 30, 65, 66
menu indicator 26
menu key 1, 17
message 61, 62
message indicator 24, 28
message reminders 65
micro-browser 62, 73
Missed Calls message 45
MMS, defined 23
MP3 sound files 40
multimedia message 23,
61, 62
music 73
mute a call 45
N
navigation key 1, 17, 36
network settings 70
news 26, 65
notepad 45
number. See phone number
numeric entry mode 35
O
1-touch dial 47
open to answer 42
optional accessory 17
optional feature 17
P
passwords. See codes
personalize 64
phone number 21, 55, 56
phonebook 44, 47, 54, 56
photo 72
picture 72
picture ID 46, 58
PIN code 20, 37, 72
PIN2 code 37
power key 1, 20, 21
PTT 49
calls, answering 50
calls, making 49
contacts and groups 50
icons 52
indicator 27
locking key 52
Quick Groups 49
settings 52
turning on or off 52
Push to Talk. See PTT
87
index
Q
quick dial 55
R
received calls 43
recent calls 43
redial 44
reminders 65
restrict calls 55
return a call 45
ring lights 40
ring style indicator 29
ring style, setting 36, 39
ring tone 73
ringer ID 46, 57, 65
ringer volume 36, 65
roam indicator 28
S
screen saver 41
security code 37
send key 1, 21
shortcuts 66
signal strength indicator 27
SIM 62
SIM Blocked message 21,
72
SIM card 17, 20, 37, 72
soft keys 1, 26, 66
speakerphone 68
speed dial 54
store your number 21
symbol entry mode 36
synchronizing 70
T
tap text entry mode 33
telephone number. See
phone number
text entry 31
text message 61, 62
time, setting 40
timers 67, 68
transfer a call 54
TTY device 55
turn on/off 20
U
unlock
application 72
phone 20, 37, 38
SIM card 72
unlock code 37, 38
USB cables 25
V
video clip 72
videos 22
voice dial 57, 68
voice message 61
voice name, recording 57
motorola.com
