Motorola Mobility T56GD2 Cellular WCDMA PCS GSM/EDGE Transceiver with BT User Manual
Motorola Mobility LLC Cellular WCDMA PCS GSM/EDGE Transceiver with BT
Exhibit 8 Users Manual
APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2
INSTRUCTION MANUAL
• A preliminary draft copy of the User’s Manual follows this cover page.
• The User’s Manual will have the following text added to it: See following page.
EXHIBIT 8
FCC Notice
FCC Notice To Users
FCC Notice
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
If your mobile device or accessory has a USB connector, or is
otherwise considered a computer peripheral device whereby it can
be connected to a computer for purposes of transferring data, then
it is considered a Class B device and the following statement
applies:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
motorola.com
3G
Cover.Print.Front.UG.landscape-V6.fm Page 1 Wednesday, July 12, 2006 10:45 AM
1
HELLOMOTO
Introducing your new Motorola 3G wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Go online.
Video Call Key
Volume Keys
Internal Camera Lens
Smart Key
Send Key
Make & answer calls.
Navigation Key
Navigate menus.
Center Key
Open menus, select menu items.
Right Soft Key
Clear/Back Key
Camera Key
Microphone
Power/End Key
Turn on/off, hang up, exit menus.
2

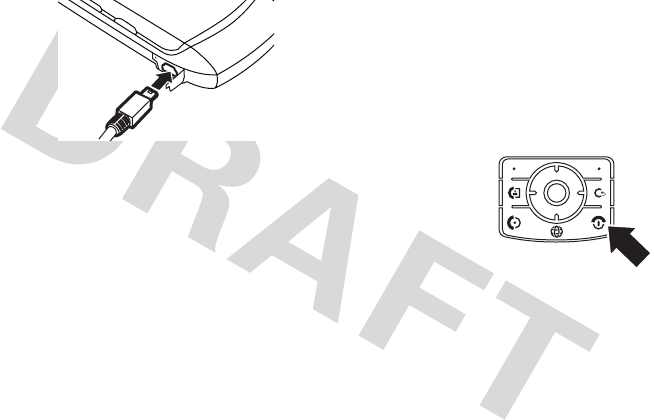

Accessory Connector Port
Insert battery charger
& phone accessories.

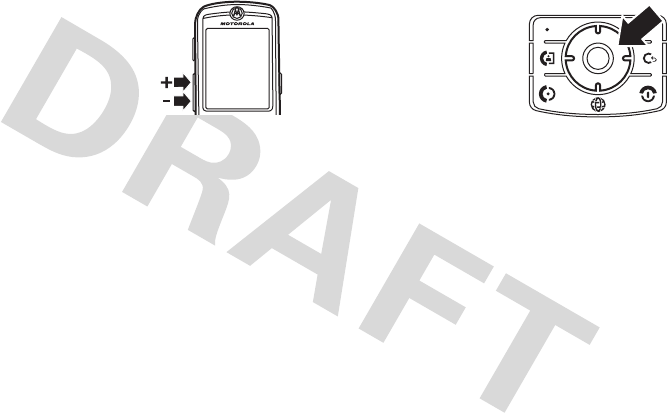

Volume Keys
Scroll and adjust volume.
Smart Key
Open the audio player and select options.
Camera Key
External Camera Lens
Camera LightExternal Display
See incoming call information, use as
camera viewfinder when flip is closed.
To u ch-Sensitive Audio Player Keys
Rewind
Play/Pause
Fast-forward
3
Press and hold the
Power
Key
O
for a few
seconds or until the
display lights up to turn
on your phone.
1
Press the Navigation Key
up, down, left, or right
(
S
) to highlight a menu
feature.
3
Press the Center Key
s
to select it.
4
Press the Center Key
s
key to open the
Main Menu
.
2
Service Provider
12/31/07
12:00
Options Main Menu Select
Web Access
Back
6
contents
caller ID . . . . . . . . . . . . 63
emergency calls . . . . . 63
voicemail . . . . . . . . . . . 64
other features . . . . . . . . 65
advanced calling . . . . . 65
phonebook. . . . . . . . . . 69
messages . . . . . . . . . . 74
instant messaging . . . . 77
personalizing . . . . . . . . 79
call times & costs . . . . 81
handsfree . . . . . . . . . . 82
data calls . . . . . . . . . . . 83
network . . . . . . . . . . . . 85
personal organizer . . . . 85
security . . . . . . . . . . . . 88
fun & games . . . . . . . . 88
service and repairs . . . . 92
SAR Data . . . . . . . . . . . . 93
Warranty. . . . . . . . . . . . . 94
WHO Information . . . . . 98
index. . . . . . . . . . . . . . . . 99
menu map
7
menu map
main menu
9
Video Camera
É
Tools
•USIM*
•Calculator
• Datebook
•Alarm Clock
• Dialing Services
• Fixed Dial *
• Service Dial *
•Quick Dial
• Activation List
• Messenger *
• World Clock
I
Camera
h
Multimedia
• Media Finder
•Music
• Pictures
• Videos
• Voice Records
• Ring Tones
• Wallpapers
• Themes
•Camera
• Video Camera
• Voice Record
á
Web Access
•Browser
• My Bookmarks
•History
•Go To URL
•Browser Setup
• Web Sessions *
Q
Games & Apps
e
Messages
• Create Message
•Voicemail
• Message Inbox
•EmailMsgs
• Hot Messages
•Browser Msgs
• Info Services *
• Outbox
•Drafts
• Templates
s
Recent Calls
• (press the
*
or
#
to scroll
through the call lists)
n
Phonebook
w
Settings
• (see next page)
L
Connection
• Bluetooth™ Link
• USB Settings
•MOTOSYNC™*
%
Airplane Mode
• Airplane Mode
• Prompt at Startup
* optional features
This is the standard main menu layout. Your
phone’s menu may be a little different.
8
menu map
settings menu
l
Personalize
• Home Screen
• Headlines
• Main Menu
•Voice Dial Setup
•Skin
• Greeting
• Wallpaper
• Screen Saver
t
Ring Styles
•Style
• style Detail
L
Connection
• Bluetooth™ Link
• USB Settings
•MOTOSYNC™*
H
Call Forward *
• Voice Calls
• Video Calls
•Cancel All
• Forward Status
U
In-Call Setup
• In-Call Timer
• Call Cost Setup *
• My Caller ID
• Answer Options
• Call Waiting
•MSG Alert
* optional features
Z
Initial Setup
• Time and Date
• Speed Dial
•AutoRedial
• Display Timeout
• Backlight
• Charging Lights
• TTY Setup *
•Scroll
• Text Marquee
• Language
•Battery Save
• Brightness
•DTMF
• Live Video Share Service *
• Master Reset
•Master Clear
m
Phone Status
•My Tel. Numbers
• Credit Info/Available *
• Active Line *
•Battery Meter
• User Accounts
• Download Location
• Storage Devices
• Voice Dial Languages
• Software Update *
• Other Information
S
Headset
• Auto Answer
• Ringer Options
•Voice Dial
J
Car Settings
• Auto Answer
• Auto Handsfree
• Power-Off Delay
• Charger Time
%
Airplane Mode
j
Network
•New Network
•Network Setup
• Available Networks
• My Network List *
• Service Tone
• Call Drop Tone
u
Security
• Phone Lock
• Keypad Lock
• Lock Application
• Show Private Entries
• Fixed Dial *
• Restrict Calls *
• Call Barring *
•SIM PIN
•SIM PIN2
• New Passwords
• Certificate Mgmt *
c
Java™ Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Priority *
• App Backlight
• Set Standby App *
•DNS IP*
Safety Information
9
Safety and General Information
Safet y Informa tion
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2006.
10
Safety Information
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so. These locations include hospitals or health
care facilities that may be using equipment that is sensitive to
external RF energy.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician before using this
device.
Persons with pacemakers should observe the following
precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from your pacemaker when the
mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the pacemaker to minimize the
potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Hearing Aids
Some mobile devices may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing
aid manufacturer or physician to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult your
physician or the manufacturer of your device to determine if it is
adequately shielded from RF energy.
Safety Information
11
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue a call if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola Web site:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in public areas,
such as health care facilities or blasting areas.
Automobile Air Bags
Do not place a mobile device in the air bag deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Damaged Products
If your mobile device or battery has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you take
it to a Motorola Authorized Service Center. Do not attempt to dry it
with an external heat source, such as a microwave oven.
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive
materials touch exposed battery terminals, this
could complete an electrical circuit (short circuit),
become very hot, and could cause damage or
injury. Be careful when handling a charged battery,
particularly when placing it inside a pocket, purse, or other
container with metal objects.
Use only Motorola Original
batteries and chargers.
Caution:
To avoid risk of personal injury, do not dispose of your
battery in a fire.
12
Safety Information
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities
for more information.
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
Listening at full volume to music or voice
through a headset may damage your
hearing.
032374o
032376o
032375o
032378o
Li Ion BATT
Safety Information
13
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
14
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
EU Conformance
15
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in compliance with
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
product Approval Number from your product’s label in the “Search”
bar on the web site.
16
Recycling Information
Recycling Information
Caring for the Environment by Recycling
This symbol on a Motorola product means the product
should not be disposed of with household waste.
Disposal of your Mobile Telephone and Accessories
Please do not dispose of mobile telephones or electrical
accessories, such as chargers or headsets, with your household
waste. In some countries or regions, collection systems have been
set up to handle waste electrical and electronic items. Please
contact your regional authorities for more details. If no suitable
scheme exists, you may return unwanted mobile telephones and
electrical accessories to any Motorola Approved Service Centre in
your region.
17
essentials
essentials
about this guide
This guide shows how to open a menu
feature as follows:
Find it:
s
>
eMessages
>
Create Message
This means that, from the home screen:
1
Press the center key
s
to open the
menu.
2
Press the navigation key
S
to scroll to
eMessages
, and press the center key
s
to select it.
3
Press the navigation key
S
to scroll to
Create Message
, and press the center key
s
to select it.
SIM card
Caution:
Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
Yo u r Subscriber Identity Module (SIM) card
contains personal information like your phone
symbols
This means a feature is network,
SIM card, or subscription
dependent and may not be available
in all areas. Contact your service
provider for more information.
This means a feature requires an
optional accessory.
18
essentials
number and phonebook entries. It can also
contain your voicemail, text message, and
Internet access settings. If you put your SIM
card in another phone, that phone uses your
phone number.
To insert and use a
memory card
, see
page 41.
Turn off your phone and remove your
battery before you install or remove a SIM
card.
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
•
New batteries or batteries stored for a
long time may take more time to
charge.
•
When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
12
19
essentials
•
Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
•
It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
battery installation
032375o
12
3
20
essentials
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone
and an
electrical outlet. Your phone might take
several seconds to start charging the battery.
Your display shows
Charge Complete
when
finished.
Tip:
Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
The battery charger shipped with this device
is designed for Motorola 3G mobile phones.
Other chargers might take longer to charge
your battery, or cause your calls to fail during
charging.
turn it on & off
Caution:
Some phones ask for your SIM card
PIN code when you turn them on. If you enter
an incorrect PIN code three times before the
correct code, your SIM card is disabled, and
your display shows
SIM Blocked
. Contact your
service provider.
To turn on your phone,
press and hold
O
for
a few seconds or until
the keypad or display
lights up. If prompted,
enter your eight-digit
SIM card PIN code and/or four-digit unlock
code.
To turn off your phone, press and hold
O
for
a few seconds.
21
essentials
make a call
Enter a phone number and press
N
to make
a call.
To “hang up,” close the flip or press
O
.
To make video calls, see page 37.
answer a call
When your phone rings and/or vibrates, just
open the flip or press
N
to answer.
To “hang up,” close the flip or press
O
.
store a phone number
You can store a phone number in your
Phonebook
:
1
Enter a phone number in the home
screen.
2
Press the
Store
key.
Select
Create New Contact
, if necessary.
3
Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s
.
4
Press the
Done
key to store the number.
To edit or delete a
Phonebook
entry, see
page 70.
To store an email address from the home
screen, press
s
>
nPhonebook
>
New Entry
.
Enter the new contact’s name and
Email
information.
Note:
Your phonebook can show you the
entries stored in your phone’s memory or on
your SIM card. To choose which entries you
see, press
s
>
nPhonebook
, then press
Options
>
View
. You can select
Phone & SIM Card
,
SIM Card
, or
Phone Contacts
.
22
essentials
call a stored phone
number
Find it:
s
>
nPhonebook
1
Scroll to the phonebook entry.
Shortcut:
In the phonebook, press
keypad keys to enter the first letters of an
entry you want.
2
Press
N
to call the entry.
your phone number
From the home screen, press
the clear key
D
then
#
to see your
number.
Tip:
Want to see your phone number while
you’re on a call? Press
Options
>
My Tel. Number
.
You can edit the name and phone
number stored on your SIM card. From
the home screen, press
D#
, select an
entry, press the
View
key, press the
Options
key,
and select
Edit
. If you don’t know your phone
number, contact your service provider.
23
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
SCREEN3™ headlines
A few minutes after you turn on your
phone, headlines begin scrolling at the
bottom of your home screen. These headlines
give you news, sports, weather, and other
information.
read headlines
To go to the next or previous headlines:
press
S
right or left.
To go to the next or previous headline
channels: hold
S
right or left.
To see the current headline’s details: press
the center key
s
. While viewing details:
•
To go to the next or previous headline’s
details, press
S
right or left.
•
If a full article is available, you can
press the
More
key to see it.
change headline settings
Find it:
s
>
wSettings
>
Personalize
>
Headlines
options
Headlines
Turn headlines on or off.
24
main attractions
Bluetooth™ wireless
Your phone supports Bluetooth wireless
connections. You can connect your phone
Add New
Channels
Open a list of channel
categories. To subscribe to a
channel, select it from a
category or select
Search Channels
to search for it.
Manage My
Channels
Open a list of the channels
to which you subscribe.
Select a channel to see its
details, see its license
information, cancel its
subscription, or remove it
from the list.
Note:
If you cancel a
subscription, the channel
stays in this list until you
remove it or the subscription
period ends.
What Are
Headlines?
Show a description of the
headline service.
options
Home Keys
Show or hide feature icons
in your home screen, or
change the features for the
soft keys and navigation key
in the home screen.
Display
Connections
Change your settings for
downloading headlines and
see details of your last
connection.
Note:
To manually update
your headline contents,
select
Connection Details
, then
Refresh
.
options
25
main attractions
with a Bluetooth headset or car kit to make
handsfree calls. You can also connect your
phone with a phone or computer that
supports Bluetooth connections to exchange
files.
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
For maximum Bluetooth security
, you
should always connect Bluetooth devices in a
safe, private environment.
use a headset or handsfree car
kit
Before you try to connect your phone with
a handsfree device
, make sure the device is
on
and
ready
in pairing or bonding mode
(see the user’s guide for the device).
Find it:
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Audio Devices
>
[Look For Devices]
Your phone lists the devices it finds within
range.
1
Scroll to a device in the list and press the
center key
s
.
2
Press the
Yes
or
OK
key to connect to the
device.
3
If necessary, enter the device passkey
(such as
0000
) and press the
OK
key.
26
main attractions
When your phone is connected, the
Bluetooth indicator
O
shows in the home
screen. You cannot play some copyrighted
files over a Bluetooth connection.
Shortcut:
When Bluetooth power is on, your
phone can automatically connect to a
handsfree device you have used before. Just
turn on the device or move it near the phone.
During a call or while playing a sound file, you
can press
Options
>
Use Bluetooth
to connect to a
headset or handsfree device you have used
before.
Tip:
Want to know more about your headset
or car kit? For specific information about a
device, refer to the instructions that came
with it.
copy files to another device
You can copy a media file, phonebook
entry, datebook event, or Web shortcut
from your phone to a computer or other
device.
Note:
You can’t copy some copyrighted
objects.
1
On your phone, scroll to the object that
you want to copy to the other device.
2
Press
Options
, then select:
•
Manage
>
Copy
for media files.
•
Send Contact
for phonebook entries.
•
Send
for datebook events.
3
Select a recognized device name, or
[Look For Devices]
to search for the device
where you want to copy the file.
27
main attractions
If your phone could not copy the file to the
other device
, make sure the device is
on
and
ready
in discoverable mode (see the user’s
guide for the device). Also, make sure the
device is not busy with another similar
Bluetooth connection.
Note:
Once you connect your phone to a
Bluetooth device, that device can start similar
Bluetooth connections with your phone. Your
display shows the Bluetooth indicator
O
at
the top when there is a Bluetooth connection.
To change a device’s
Access
setting, see
page 30.
receive files from another
device
If you do not see the
Bluetooth indicator
O
at the top of your
phone display, turn on your phone’s
Bluetooth feature by pressing
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Setup
>
Power
>
On
.
1
Place your phone near the device, and
send the file from the device.
If your phone and the sending device
don’t recognize each other, place your
phone in discoverable mode so the
sending device can locate it. Press
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Find Me
.
2
Press the
Accept
key on your phone to
accept the file from the other device.
Your phone notifies you when file transfer is
complete. If necessary, press the
Save
key to
save the file.
28
main attractions
send files to a printer
You can use a Bluetooth connection to
send a picture, message, phonebook
entry, or datebook view from your phone to a
printer.
Note:
You cannot print message
Templates
or a
phonebook
Mailing List
.
1
On your phone, scroll to the object that
you want to print, then press
Options
>
Print
.
In the datebook, you can print the month,
week, or day.
Tip:
If you see it, you can print it. After
you capture a picture in the camera, you
can press the
Options
key and select
Print
.
2
If available, choose additional objects or
print options.
3
Select a recognized printer name listed in
the
Printers
menu, or
[Look For Devices]
to
search for the printer where you want to
print the object.
Note:
If you see
Service Not Supported
when
you try to print, select
Options
>
Manage
>
Copy
>
Bluetooth
instead. Always use this
option to print 4x6 photos.
advanced Bluetooth features
A device is recognized after you connect to it
once (see page 25).
features
make phone
visible to
other
device
Allow a Bluetooth
device to discover
your phone:
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Setup
>
Find Me
29
main attractions
connect to
recognized
device
Connect your phone
to a recognized
handsfree device:
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Audio Devices
>device name
drop
connection
with
headset or
handsfree
device
Scroll to the device
name and press the
Drop
key.
features
switch to
headset or
handsfree
device
during call
During a call, press
Options
>
Use Bluetooth
to
switch to a recognized
headset or car kit.
Your phone connects
automatically, or shows a list
of devices you can select.
play sound
files on a
recognized
headset
While playing a sound
file, press
Options
>
Use Bluetooth
to switch
to a recognized headset.
Your phone connects
automatically, or shows a list
of devices you can select.
You cannot play some
copyrighted files over a
Bluetooth connection.
features
30
main attractions
move
multimedia
object to
device
Caution:
Moving an object
deletes
the original object
from your phone.
Scroll to the object,
press
Options
>
Manage
>
Move
, select
the device name.
copy
multimedia
object to
device
Scroll to the object,
press
Options
>
Manage
>
Copy
, select
the device name.
features
edit device
properties
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Device History
Scroll to the device name
and press the
center key
s
.
Note:
The
Access
setting can
restrict how this device
connects to your phone. You
can choose
Automatic
(always
connects),
Always Ask
(asks
you before connecting),
Just Once
,
Never
, or
Custom
.
set
Bluetooth
options
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Setup
features
31
main attractions
audio player
Your phone can play and store MP3 and
AAC song files. You can use a
removable memory card with your phone to
store more songs (see page 41).
Find it:
s
>
hMultimedia
>
MediaFinder
>
Music
Press
S
up or down to scroll to an option,
and press the center key
s
to select it:
When you select a song:
• Play or pause
the song by pressing
the center key
s
.
• Skip back or forward
by pressing
S
left or right.
options
All Songs
Show and play individual songs.
Note:
All of your phone’s songs
appear in this list. Some songs
do not have any
Artist
,
Album
, or
Genre
information, so they don’t
appear in those lists.
Recently
Played
Show songs you played
recently.
Playlists
Create or play a playlist (see
page 32).
Artists
Select an artist to show or play
their songs.
Albums
Select an album to show or play
its songs.
Genres
Select a type of music to show
or play songs.
Composers
Select a composer to show or
play songs.
options
32
main attractions
•Change volume
by pressing the
volume keys.
• Hide the player
by pressing
Options
>
Hide
. This lets you use other phone
features while the song plays.
Tip:
You can listen to tunes on your way. You
can use Bluetooth™ A2DP stereo
headphones (page 24), and use airplane mode
to make your phone safe to use even while
you’re on a plane (page 91).
Your phone also has a
Ring Tones
player. To use
it, press
s
>
hMultimedia
>
MediaFinder
>
Ring Tones
.
load music files
To download songs to your phone, see
page 89. To copy files between your phone
and a computer, see page 44.
Note:
Your phone may not play MP3 files that
have a bit rate higher than 128 kbps. If you try
to download or play one of these files, your
phone might show you an error or ask you to
delete the file. Metadata information is
not
supported for
MP4
formatted files.
create a playlist
Find it:
s
>
hMultimedia
>
MediaFinder
>
Music
>
Playlists
>
Create New Playlist
Open a song list, and press the center key
s
to select each song you want. After you press
the
Done
key, enter a name for your list.
To hear your playlist, highlight it under
Playlists
and press
Options
>
Play
.
33
main attractions
play music with your phone
closed
You can close your phone while you listen to
music. When your phone is closed, the
external display shows the song artist, title,
and time. While a song is playing:
• Press the volume keys
to adjust
playback volume.
• Hold the smart key
to lock or unlock
the side keys.
• Press the smart key
to open the audio
player menu. Press your volume keys
to scroll through the menu, and press
the smart key to select a menu item.
Tip:
To lock your phone’s external keys while
the phone is closed, see page 54.
take & send a photo
To view, edit, or delete photos you’ve taken,
see page 88.
Your camera lens is on the back of your phone
when the phone is open.
34
main attractions
1
Press
s
>
I
>
Camera
to see the camera
viewfinder.
2
Press the center key
s
to take the photo
in the viewfinder. You can:
•
Press the
Options
key to store or discard
the photo.
If you press
Options
>
Print
, you can print
the picture over a Bluetooth™
connection (see page 28).
•
Press the
Send
key to send the photo in
a message.
Your phone might tell you that this is a
MultimediaMsg
, since it has a picture in it.
Some other phones or networks do not
support picture messages. Press the
Yes
key to send the message.
•
Press
D
to discard the photo and
return to the active viewfinder.
232
Press
S
up or down to
view camera
settings.
Press left or
right to
change.
Exit the
camera.
Focus point
BackOptions
Zoom
1x
Open the camera menu.
Camera
Mode (photo
or video)
Camera Light
(on or off)
Resolution
Remaining
photos
Storage
(phone or
memory card)
Timer
35
main attractions
Before you capture the photo, you can press
Options
to open the camera menu:
self portrait
If you close your phone while the viewfinder
is active, the external display shows the
image. Press the volume keys to zoom, or
options
Go To Pictures
See stored pictures and
photos.
Go To Video Mode
Switch to the video
camera.
Internal / External
View
Switch to the camera
facing you (
Internal
) or facing
away from you (
External
).
Light On / Off
Turn the camera light on or
off.
Note:
The light stays on
until you take a picture,
receive a phone call, or
select
Light Off
.
Auto-Timed Capture
Set a timer for the camera
to take a photo.
CameraSetup
Open the setup menu to
adjust photo settings.
Switch Storage
Device
Choose to store
videos on your
phone or a memory
card.
Free Space
See how much memory
remains.
Note:
Your service
provider may store some
content in user memory
before you receive the
phone.
options
36
main attractions
press the smart key to capture and store the
image.
record & send a video
To view, edit, or delete videos you’ve
recorded, see page 89.
Your camera lens is on the back of your
phone, when your phone is open.
Press
s
>
9Video Camera
to see the video
viewfinder.
Zoom
1x
51
Press
S
up
or down to
view camera
settings.
Press left or
right to
change.
Open the video
camera menu.
Exit the
camera.
Focus point
Options Back
Camera
Mode (photo
or video)
Camera Light
(on or off)
Minutes
remaining
Storage
(phone or
memory card)
37
main attractions
Note:
The number of minutes remaining is an
estimate.
If you want to send your video in a message,
the video length must be set to
MMS
. To set
length, press
Options
>
Video CameraSetup
>
Video Length
.
1
Press the center key
s
to start recording
the video in the viewfinder.
2
Press the
Stop
key to stop recording the
video. You can:
•
Press the
Options
key to preview, store,
or discard the video.
To play a stored video from the home
screen, press
s
>
hMultimedia
>
MediaFinder
>
Videos
> video name.
•
Press the
Send
key to send the
video in a message.
Enter text and press
Send To
, then scroll
to a recipient address and press the
center key
s
to select it. Press the
Options
key to enter a new number. To
send the message, press the
Send
key.
Note:
Some other phones or networks
do not support messages with videos.
•
Press
D
to discard the video and
return to the active viewfinder.
video calls
If you call someone else who has a 3G
video phone, you can see each other
while you talk. If your phone is roaming on a
non-3G network
, video calls will not work
(see the Roam indicator on page 47).
38
main attractions
Note:
Your phone’s external
camera light
blinks during a video call, to let people around
you know that they might be in your video.
make a video call
1
Enter a phone number and press
d
to
see the video call preview.
2
Press
d
to make the call.
During the call:
•
Press the
Stop Video
key to change the
call to a voice call with the
speakerphone on.
•
If you accept another
incoming voice
call
, your phone changes this video call
to a voice call.
•
If you accept another
incoming video
call
, your phone ends this video call.
3
To end the call, press
O
.
Tip:
Want to add video during a call? Press
Options
>
Share Live Video
during a voice call to
make it a video call.
turn video calling on or off
If you turn off video calling, your phone
will not accept video calls.
Find it:
s
>
wSettings
>
Initial Setup
>
Live Video Share Service
>
On
or
Off
After you change this setting, turn your phone
off and back on to complete the change.
text messages
To create a group mailing list, see page 72.
For more message features, see page 74.
39
main attractions
send a text message
A text message can contain text and
pictures, sounds, or other media
objects. You can add multiple pages to a
message, and you can put text and media
objects on each page. You can send a
message to other compatible phones, or to
email addresses.
Find it:
s
>
eMessages
>
Create Message
>
Message
1
Press keypad keys to enter text on the
page (for details about text entry, see
page 49).
To insert a
picture, sound, or other
object
on the page, press
Options
>
Insert
.
Select the file type and the file.
To in s e r t
another page
in the message,
enter text or objects on the current page
and press
Options
>
Insert
>
New Page
. You can
enter more text and objects on the new
page.
2
When you finish the message, press the
key.
3
To
send
the message, press the
Send
key.
receive a text message
When you receive a message, your
phone plays an alert, and the display
shows
New Message
with a message indicator,
such as
É
.
Press the
Read
key to open the message.
If a multimedia message contains media
objects:
•
Photos, pictures, and animations show
as you read the message.
40
main attractions
•
A sound file plays when its slide
shows. Use the volume keys to adjust
the sound volume.
•
Attached files are added to the end of
the message. To open an attachment,
scroll to the file indicator/filename and
press the
View
key (image),
Play
key
(sound), or
Open
key (phonebook vCard,
datebook vCalendar entry, or unknown
file type).
manage text messages
You can sort and move your messages.
Find it:
s
>
eMessages
>
Message Inbox
Scroll to a message and press the
Options
key.
Your options include:
options
Sort by
Sort messages by
Time
,
Sender
,
Priority
, or other details.
Note:
You can also sort the
messages in your
Email Msgs
and
Outbox
lists.
Move to Hot
Messages
Move the selected message
your
Hot Messages
list, where you
can keep your most important
messages. To see your
Hot Messages
list:
s
>
eMessages
>
Hot Messages
41
main attractions
memory card
You can use a removable memory card
with your phone to store and retrieve
multimedia objects (such as photos and
sounds).
Note:
If you download a copyrighted file and
store it on your memory card, you can use the
file only while your memory card is inserted in
your phone. You cannot send, copy, or change
copyrighted files.
install a memory card
1
Remove the
battery door.
2
Push the card
into the metal
holder until it
clicks into
place.
To remove the memory card
, push it in
until it clicks again. It begins to slide out,
and you can slide it the rest of the way
out.
3
Replace the battery door.
Mark /
Unmark as
SPAM
Mark the selected message
with a SPAM icon.
Note:
To turn on a SPAM filter,
press
s
>
eMessages
, then
press >
Options
>
Setup
>
Message Setup
>
SPAM Filter
>
On
.
This automatically adds a SPAM
icon and turns off notification for
new messages from anyone not
in your phonebook.
options
42
main attractions
see and change memory card
information
To
see the files
stored on your memory card
and on your phone, open a file list such as
Pictures
(see page 88). Icons can indicate if a
file is stored in your phone memory ( ) or on
your memory card ( ).To copy or move a file
from your phone to your memory card,
highlight it in the list and press and press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You
cannot copy or move some copyrighted files.
To
copy files
between your memory card and
a computer, you can use a cable connection
(see page 44) or a Bluetooth connection (see
page 26).
To see your
memory card name, available
memory,
and other information about the
card:
Find it:
s
>
wSettings
>
Phone Status
>
Storage Devices
1
Press
S
to scroll to the memory card
that is installed.
2
Press the center key
s
to see the
memory card information. Your phone
stores any content that you add, like ring
tones or games, in user memory. Your
service provider may store some content
in user memory before you receive the
phone.
or
Press
Options
to see the
Storage Device
menu,
which lets you
Format
or
Rename
the memory
card.
store and use protected content
If you try to play a copyrighted file, it might
ask you to download a license. Some licenses
43
main attractions
only let you play a file for a certain number of
times or days. You cannot send, copy, or
change copyrighted files.
For example, a license may allow you to play
the content of your download five times or
use the content for three days before it
expires.
To download a file, see page 89. To activate
downloaded copyrighted files:
Find it:
s
>
ÉTools
>
Activation List
> file type
>file
You can see file’s
Status
,
Type
,
Activation
, and
Counts Remaining
.
cable connections
Yo u r
phone
has a mini-USB
port so you can
connect it to a
computer to
transfer data.
Note:
Motorola Original USB data
cables and supporting software
may be sold separately. Check your
computer or hand-held device to
determine the type of cable you need. To
make
data calls
through a connected
computer, see page 83.
44
main attractions
connect your memory card to a
computer
You can use a cable connection to access your
phone’s memory card with a PC.
Note:
When your phone is connected to a
computer, you can only access the memory
card through the computer.
On your phone:
Press
s
>
wSettings
>
Connection
>
USB Settings
>
Default Connection
>
Memory Card
.
This directs the USB connection to
your memory card. Attach the
Motorola Original USB cable to the
accessory port on your phone and
to an available USB port on your computer.
Then follow these steps:
On your computer:
1
Open your “My Computer” window,
where your phone’s memory card shows
as a “Removable Disk” icon.
2
Click on the “Removable Disk” icon to
access the files on your phone’s memory
card.
3
To store the desired files onto the
memory card, drag and drop them as
follows:
MP3 or AAC files:
> mobile > audio
screen savers:
> mobile > picture
wallpapers:
> mobile > picture
video clips:
> mobile > video
4
When you finish, remove the device by
selecting the “Safely Remove Hardware”
icon in the system tray at the bottom of
your computer screen. Then select “USB
Mass Storage Devices” and “Stop”.
45
main attractions
5
Select “USB Mass Storage Device” then
“OK”.
On your phone:
To return to
Data
as your USB default
connection, press
s
>
wSettings
>
Connection
>
USB Settings
>
Default Connection
>
DataConnection
.
phone updates
Sometimes we think of ways to make
your phone’s software faster or more
efficient after you’ve purchased your phone.
You can find out if your phone can be updated
and register for free update notifications at:
http://www.hellomoto.com/support/
update
Note:
Software updates do not affect your
phonebook entries or other personal entries.
If you receive a software update but choose to
install it later, see page 85.
46
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on
the phone.
Note:
Depending on your service
provider, your home screen might look
different from the one shown. It might show
headlines from your service provider at the
bottom. To change this headline view, press
s
>
wSettings
>
Personalize
>
Headlines
.
To dial a number from the home screen, press
number keys and
N
.
Press the center key
s
to open the menu.
Soft Key Labels show the current soft key
functions. For soft key locations, see page 1.
Clock
Press
S
right to see
more
headlines, if
available.
Right Soft Key
Label
Left Soft Key
Label
Service Provider
12:00
Headlines and graphics from
your Service Provider
Options Main Menu
47
basics
Status indicators can show at the top of the
home screen:
1 Signal Strength Indicator –
Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when
1
or
0
shows.
2 GPRS Indicator –
Shows when
your phone is using a high-speed
General Packet Radio Service (GPRS)
network connection. Indicators show PDP
context active
H
or packet data available
B
.
3 Data Indicator –
Shows connection
status.
4Roam Indicator –
Shows when
your phone is seeking or using a
040079b
5. Active
Line
6. Message
7. Ring Style
8. Battery
Level
4. Roam
3. Data
2. GPRS
1. Signal
Strength
Service Provider
12:00
News and graphics from
your Service Provider
Options Main Menu
L
= secure
packet data
transfer
K
= unsecure
packet data
transfer
N
= secure
application
connection
M
= unsecure
application
connection
S
= secure
Circuit Switch Data
(CSD) call
T
= unsecure
CSD call
O
= Bluetooth™ connection is active
48
basics
network outside your home network.
Indicators can include:
5 Active Line Indicator –
Shows
h
to indicate an active call, or
g
to indicate when call forwarding is on.
Indicators for dual-line-enabled SIM cards
can include:
When an alarm is activated,
l
can show
here.
6 Message Indicator –
Shows when
you receive a new message.
Indicators can include:
7 Ring Style Indicator –
Shows the ring
style setting.
8 Battery Level Indicator –
Vertical bars
show the battery charge level. Recharge
the battery when your phone shows
Low Battery
.
b
= 2G home
c
= 2G roam
a
= 2.5G home
Z
= 2.5G roam
Y
= 3G home
X
= 3G roam
f
= line 1
active
i
= line 1 active, call
forward on
e
= line 2
active
j
= line 2 active, call
forward on
É
= text
message
Ë
= voice
message
é
= IM message
õ
= loud ring
Ì
= vibrate & ring
ô
= soft ring
Í
= silent
Î
= vibrate
49
basics
text entry
Some features let you enter text.
Press
#
in a text entry view to select an
entry mode:
To set your primary and secondary text entry
modes, press
Options
>
Text Setup
in a text entry
view and select
Primary Setup
or
Secondary Setup
.
iTAP™ and Tap mode tips
•
Press
0
in a text entry view to
change text case to all capital letters
For indicator
descriptions,
see following
section.
Flashing
cursor
indicates
insertion point.
After you
enter text,
press the
Send To
key to
enter
recipients.
Press the
Options
key to open the
sub-menu.
Msg
Options Send To
ÂÆ
SMS:0
entry modes
Û
or
Ô
Your
Primary
text entry mode can
be set to any iTAP™
Û
or tap
Ô
mode.
Ú
or
Õ
Your
Secondary
text entry mode can
be set to any iTAP
Ú
or tap
Õ
mode, or set to
None
if you don’t
want a secondary entry mode.
ÃNumeric
mode enters numbers only.
ÄSymbol
mode enters symbols only.
50
basics
(
á
), no capitals (
Á
), or next letter
capital (
Â
).
•
To enter numbers quickly, press and
hold a number key to temporarily
switch to numeric mode. Press the
number keys to enter the numbers you
want. Enter a space to change back to
iTAP or Tap mode.
•
Press
1
to enter punctuation or other
characters.
•
Press
S
to move the flashing cursor
to enter or edit message text.
•
Press
D
to delete the character to the
left of the cursor. Hold
D
to delete the
word.
•
To cancel your message, press
O
.
iTAP™ mode
Press
#
in a text entry view to switch to
iTAP mode. If you don’t see
Û
or
Ú
, press
Options
>
Text Setup
to set iTAP mode as your
primary or secondary text entry mode.
iTAP mode lets you enter words using one
keypress per letter. The iTAP software
combines your keypresses into common
words, and predicts each word as you enter it.
51
basics
For example, if you press
7764
,
your display shows:
If you want a different word (such as
Progress
),
continue pressing keypad keys to enter the
remaining letters.
Tip:
Don’t worry if you forget how iTAP
works. In a text entry display, you can press
Options
>
Text Setup
>
Text Tutorial
to see an
explanation.
tap and tap extended modes
Press
#
in a text entry view to switch to tap
mode. If you don’t see
ÂÔ
or
ÂÕ
, press
Options
>
Text Setup
to set tap mode as your
primary or secondary text entry mode.
To enter text in
Tap
mode, press a keypad key
repeatedly to cycle through the letters and
number on the key. Repeat this step to enter
each letter. The
Tap Extended
mode works the
same way, but includes more special
characters and symbols.
ÁÚ
Send To
Prog ram
Options
Msg
SMS:7
Press
Options
key to open
message
options.
Press
S
right to accept
Program
.
Press
*
to
enter a space
at the cursor.
Hold
S
up or
down to see a
list of word
options.
Press
Send To
key when the
message is complete.
52
basics
For example, if you press
7
one time, your
display shows:
The first character of every sentence is
capitalized. If necessary, press
S
down to
change the character to lowercase before the
cursor moves to the next position.
numeric mode
Press
#
in a text entry view until you see
Ã
. Press the number keys to enter the
numbers you want.
Shortcut:
You can press and hold a number
key to temporarily switch to numeric mode
from iTAP™ or Tap modes. Press the number
keys to enter the numbers you want. Enter a
space to change back to iTAP mode.
symbol mode
Press
#
in a text entry view until your phone
shows a list of symbols. Scroll to the symbol
you want, then press the center key
s
.
Msg
ÁÔ
SMS:6
Character
displays at
insertion
point.
After you enter text, press the
Send To
key to
enter recipients.
Press the
Options
key to
open message
options.
After
2 seconds,
your phone
suggests a
word. Press
S
right to
accept it, or
press
*
to
enter a space
at the cursor.
Options Send To
P age
53
basics
volume
Press the volume keys to:
•
turn off an incoming
call alert
•
change the earpiece
volume during calls
•
change the ringer volume from the
home screen
Tip:
Sometimes silence really is
golden. That’s why you can quickly set
your ringer to
Vibrate
or
Silent
by holding
the down volume key while you are in
the home screen. You can also switch
to
Silent
or back by holding
#
in the
home screen.
navigation key
Press the
navigation key
S
up,
down, left, or right to
scroll to items in the
display. When you scroll
to an item, press the
center key
s
to select it.
smart key
The smart key gives you another way to do
things. For example, when you scroll to a
menu item, you can press the smart key to
select it (instead of pressing the
center key
s
). The smart key usually does
the same thing as pressing the
center key
s
. To find the smart key, see
page 1. To change what the smart key does in
the home screen, see page 80.
54
basics
external display
When you close your phone, the external
display shows the date, status indicators, and
notifications for incoming calls and other
events. For a list of phone status indicators,
see page 47.
lock external keys
You can lock your phone’s external keys (such
as the volume keys and voice key) to prevent
accidental key presses when your phone is
closed.
To
lock
your external keys, press
s
>
wSettings
>
Security
>
KeypadLock
>
Sidekey Lock
. You can close your phone.
To
unlock
your external keys, open your
phone and press the
Unlock
key, then the
OK
key.
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
During a call, press the
Options
key and select
Speakerphone On
to turn the handsfree speaker
on. Your display shows
Speakerphone On
until you
turn it off or end the call.
Note:
The handsfree speaker won’t work
when your phone is connected to a handsfree
car kit or headset.
codes & passwords
Your phone’s four-digit
unlock code
is
originally set to
1234
. The six-digit
security
code
is originally set to
000000
. If your
service provider didn’t change these codes,
you should change them:
55
basics
Find it:
s
>
wSettings
>
Security
>
New Passwords
You can also change your
SIM PIN
or call
barring passwords.
If you forget your unlock code:
At the
Enter Unlock Code
prompt, try entering 1234 or the
last four digits of your phone number. If that
doesn’t work, press
s
and enter your
six-digit security code instead.
If you forget other codes:
If you forget your
security code, SIM PIN code, PIN2 code, or
call barring password, contact your service
provider.
lock & unlock phone
You can lock your phone to keep others from
using it. To lock or unlock your phone, you
need the four-digit unlock code.
To
manually lock
your phone:
Press
s
>
wSettings
>
Security
>
Phone Lock
>
Lock Now
.
To
automatically lock
your phone whenever
you turn it off: Press
s
>
wSettings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
.
Note:
You can make emergency calls on a
locked phone (see page 63). A locked phone
still rings or vibrates for incoming calls or
messages,
but you need to unlock it to
answer
.
56
customize
customize
ring style
Each ring style profile uses a different set of
sounds or vibrations for incoming calls and
other events. Here are the profiles you can
choose:
The ring style profile’s indicator shows at the
top of your home screen. To choose your
profile:
Find it:
s
>
wSettings
>
Ring Styles
>
Style:
style name
Shortcut:
In the
home screen
, press the
volume keys up or down to quickly change
your ring style profile. With your
phone
closed
, press a volume key to see your ring
style profile, press the smart key to change it,
then press a volume key to store the change.
Tip:
Do you get a lot of text messages? If you
don’t want to hear incoming message alerts
during phone calls, press
s
>
wSettings
>
In-Call Setup
>
MSG Alert
>
Not in Call
.
change alerts in a ring style
You can change the alerts for incoming calls
and other events. Your changes are saved in
the current ring style profile.
õLoud ÎVibrate ÍSilent
ôSoft ÌVibe & Ring
57
customize
Find it:
s
>
wSettings
>
Ring Styles
>style
Detail
Note:
Style represents the current ring style.
You can’t set an alert for the
Silent
ring style
setting.
1
Scroll to
Calls
(or
Line 1
or
Line 2
for dual-line
phones), then press the
Change
key to
change it.
2
Scroll to the alert you want, then press
the center key
s
.
3
Press the
Back
key to save the alert setting.
time & date
Your phone can automatically update your
time zone, time, and date. It uses the time
and date for the datebook.
To
synchronize
the time zone, time,
and date with the network: Press
s
>
wSettings
>
Initial Setup
>
Time and Date
>
Autoupdate
>
Time & Time Zone
. If you don’t want
your phone to automatically update your time
zone and date, choose
Time Only
instead.
To
manually
set the time zone, time, and
date, turn off
Autoupdate
, then: Press
s
>
wSettings
>
Initial Setup
>
Time and Date
>
Time Zone
,time or date. To jump to a city in
the time zone list, enter the first letter of its
name by pressing keypad keys.
Tip:
To choose three time zones for easier
access, press
s
>
ÉTools
>
World Clock
.
When you open
World Clock
, you can press the
Options
key to see the
MapView
of time zones.
To choose an
analog or digital
clock for your
home screen, press
s
>
wSettings
>
Personalize
>
Home Screen
>
Clock
.
Note:
If your home screen shows
headlines from your service provider, it
uses a digital clock. To choose an analog
58
customize
clock, you must turn off the headlines. Press
s
>
wSettings
>
Personalize
>
Headlines
.
wallpaper
Set a photo, picture, or animation as a
wallpaper (background) image in your home
screen.
Note:
Your theme can set your wallpaper
(page 59).
Find it:
s
>
wSettings
>
Personalize
>
Wallpaper
screen saver
Set a photo, picture, or animation as a screen
saver. The screen saver shows when the flip
is open and no activity is detected for a
specified time.
Note:
Your theme can set your screen saver
(page 59).
Tip:
This feature helps save your screen, but
not your battery. To extend battery life, turn off
the screen saver.
options
Press
S
up or down to select a
picture, or select
None
for no
wallpaper.
Layout
Select
Center
to center the image in
the display,
Tile
to repeat the
image across the display, or
Fit-to-screen
to stretch the image
across the display.
options
59
customize
Find it:
s
>
wSettings
>
Personalize
>
Screen Saver
themes
A phone theme is a group of image and
sound files that you can apply to your
phone. Most themes include a wallpaper
image, screen saver image, and ring tone.
Your phone may come with some themes,
and you can download more.
To
apply
a theme, press
s
>
hMultimedia
>
Themes
> theme.
To
download
a theme, see page 89.
To
delete
a theme, press
s
>
hMultimedia
>
Themes
, scroll to the theme, and
press
Options
>
Delete
or
Delete All
.
Note:
You can delete only downloaded
themes.
display appearance
Note:
The
Battery Save
feature tells your phone
not to light the display or keypad unless you’re
in a dark place. To turn on this feature, press
s
>
wSettings
>
Initial Setup
>
Battery Save
>
On
.
To choose a phone
skin
that sets the look and
feel of your phone’s display: Press
s
>
wSettings
>
Personalize
>
Skin
. Your theme
can set your phone skin (page 59).
To set your display
brightness
: Press
s
>
wSettings
>
Initial Setup
>
Brightness
.
options
Press
S
up or down to select a
picture or animation, or select
None
for no screen saver.
Delay
Select the length of inactivity
before the screen saver shows.
60
customize
To save battery life, your keypad
backlight
turns off when you’re not using your phone.
The backlight turns on when you open the flip
or press any key. To set how long your phone
waits before the backlight turns off:
Press
s
>
wSettings
>
InitialSetup
>
Backlight
.
Note:
To turn the backlight on or off for Java™
applications, press
s
>
wSettings
>
JavaSettings
>
App Backlight
.
To save battery life, the
display
can turn off
when you’re not using your phone. The
display turns back on when you open the flip
or press any key. To set how long your phone
waits before the display turns off:
Press
s
>
wSettings
>
InitialSetup
>
Display Timeout
.
answer options
You can use different ways to answer an
incoming call. To turn on or turn off an answer
option:
Find it:
s
>
wSettings
>
In-Call Setup
>
Answer Options
options
Multi-Key
Answer by pressing any key.
Open to Answer
Answer by opening the flip.
61
calls
calls
To make and answer calls, see page 21.
turn off a call alert
You can press the volume keys to turn off a
call alert before answering the call.
recent calls
Your phone keeps lists of incoming and
outgoing calls, even for calls that didn’t
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Shortcut:
Press
N
from the home screen to
see a list of recent calls.
Find it:
s
>
sRecent Calls
>
Received Calls
or
Dialed Calls
Scroll to a call. A
%
next to a call means the
call connected.
•
To call the number, press
N
.
•
To see call details (like time and date),
press the center key
s
.
•
To see the
Last Calls Menu
, press
Options
.
This menu can include:
options
Store
Create a phonebook entry
with the number in the
No.
field.
Store
does not appear if
the number is already
stored.
62
calls
redial
1
Press
N
from the home screen to see a
list of recent calls.
2
Scroll to the entry you want to call, then
press
N
.
If you hear a
busy signal
, and you see
Call Failed
, you can press
N
or the
Retry
key to redial the number. When the call goes
through, your phone rings or vibrates one
time, shows
RedialSuccessful
, and connects the
call.
return a call
Your phone keeps a record of your
unanswered calls, and shows
X Missed Calls
,
where
X
is the number of missed calls.
1
Press the
View
key to see the received
calls list.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Hide ID /
Show ID
Hide or show your caller ID
for the next call.
Send Message
Open a new text message
with the number in the
To
field.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the
phonebook or recent calls
lists.
Send Tones
Send the number to the
network as DTMF tones.
Note:
This option shows
only during a call.
options
63
calls
2
Scroll to the call you want to return, then
press
N
.
caller ID
Calling line identification (caller ID)
shows the phone number for an
incoming call in your external and internal
displays.
Your phone shows the caller’s name and
picture when they’re stored in your
phonebook, or
Incoming Call
when caller ID
information isn’t available.
You can set your phone to play a different
ringer ID for an entry stored in your
phonebook (see page 71).
To show or hide
your phone number
from
the next person you call, enter the phone
number and press
Options
>
Hide ID/Show ID
.
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or
112, that you can call under any
circumstances, even when your phone is
locked or the SIM card is not inserted.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
1
Press the keypad keys to dial the
emergency number.
2
Press
N
to call the emergency number.
64
calls
voicemail
Your network stores the voicemail
messages you receive. To listen to your
messages, call your voicemail number.
Note:
Your service provider may include
additional information about using this
feature.
When you
receive
a voicemail message, your
phone shows the voicemail message
indicator
Ë
and
New Voicemail
. Press the
Call
key to listen to the message.
To
check
voicemail messages:
Find it:
s
>
eMessages
>
Voicemail
Your phone may prompt you to store your
voicemail phone number. If you don’t know
your voicemail number, contact your service
provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number) character in this number. If you want
to store a voicemail number with these
characters, create a phonebook entry for it.
Then you can use the entry to call your
voicemail.
other features—advanced calling
65
other features
advanced calling
features
voice dial a number not stored in the
phonebook (digit dial)
Press and hold
N
.
When prompted, say “
digit dial
” (within
two seconds). When prompted again, say
the digits you want to dial (within two
seconds per digit).
Your phone recognizes the digits you want
to dial. To voice dial a phonebook entry, see
page 69.
attach a phone number
Dial an area code or prefix for a
phonebook number, then press
Options
>
Attach Number
.
features
66
other features—advanced calling
notepad
The last number you entered is stored in
the notepad. You can use the notepad to
“jot down” a number during a call for later
use. To see the notepad:
Press
s
>
sRecent Calls
>
Notepad
.
•
To call the number, press
N
.
•
To create a phonebook entry with the
number in the
No.
field, press the
Store
key.
•
To open the
Dialing Menu
to attach a
number or insert a special character,
press
Options
.
features
international calls
If your phone service includes
international dialing, press and hold
0
to
insert your local international access code
(indicated by
+
). Then, press the keypad
keys to dial the country code and phone
number.
hold a call
Press
Options
>
Hold
to put all active calls on
hold.
mute a call
Press the
Mute
key (if available) or
Options
>
Mute
to put all active calls on mute.
features
other features—advanced calling
67
call waiting
When you’re on a call, you’ll hear an
alert if you receive a second call.
Press
N
to answer the new call.
•
To switch between calls, press the
Switch
key.
•
To connect the two calls, press the
Link
key.
•
To end the call on hold, press
Options
>
End Call On Hold
.
To turn the call waiting feature on or off,
press
s
>
wSettings
>
In-Call Setup
>
Call Waiting
>
On
or
Off
.
features
conference call
During a call:
Dial next number, press
N
, press the
Link
key.
transfer a call
During a call:
Options
>
Transfer
, dial transfer number, press
N
call forwarding
Set up or cancel call forwarding:
s
>
wSettings
>
Call Forward
You can set how long your phone waits
before it forwards a call (
5
,
10
,
15
,
20
, or
25
seconds).
features
68
other features—advanced calling
restrict calls
Restrict outgoing or incoming calls:
s
>
wSettings
>
Security
>
Restrict Calls
Tell your phone to allow
All
,
None
, or only the
calls from your
Phonebook
.
call barring
Restrict outgoing or incoming calls:
Restrict your voice or video calls to block all
calls, international calls, or all calls except
ones on your home network.
s
>
wSettings
>
Security
>
Call Barring
TTY calls
Set up your phone for use with an
optional TTY device:
s
>
wSettings
>
InitialSetup
>
TTY Setup
features
fixed dial
When you turn on fixed dialing, you
can call only numbers stored in the fixed
dial list.
Turn fixed dialing on or off:
s
>
wSettings
>
Security
>
Fixed Dial
Use the fixed dial list:
s
>
ÉTools
>
Dialing Services
>
Fixed Dial
service dial
Your service provider might give you
phone numbers for taxi companies or other
services. These phone numbers are stored
on your SIM card. To see them:
s
>
ÉTools
>
Dialing Services
>
Service Dial
features
other features—phonebook
69
phonebook
quick dial
Dial preprogrammed phone numbers:
s
>
ÉTools
>
Dialing Services
>
Quick Dial
DTMF tones
Activate DTMF tones:
s
>
wSettings
>
Initial Setup
>
DTMF
To send DTMF tones during a call, just
press number keys or scroll to a number in
the phonebook or recent calls lists and
press
Options
>
Send Tones
.
features
features
voice dial a phonebook entry (name dial)
Voice dial a number stored in the
phonebook:
Press and hold
N
.
When prompted, say “
name dial
” (within
two seconds). When prompted again, say
the entry’s name (within two seconds).
Your phone matches your voice to a
phonebook entry name. To voice dial a
number not stored in the phonebook, see
page 65.
70
other features—phonebook
speed dial a phonebook entry
You can assign the keys
1
through
9
to
phonebook entries. Then, when you press
and hold a key, your phone calls the entry.
Note:
Your service provider might have
assigned some keys, such as
1
for your
voicemail number. You can only speed dial
phonebook entries that are stored on your
phone (not on your SIM card).
To
assign a speed dial key
, press
s
>
nPhonebook
and scroll to the phonebook
entry. Then, press
Options
>
Add to Speed Dial
and pick a speed dial key.
To
use a speed dial key
, just press and
hold the key in your home screen.
features
edit or delete a phonebook entry
Edit a number stored in the phonebook:
s
>
nPhonebook
, scroll to the phonebook
entry, and press
Options
. You can select
Edit Contact
,
Delete
, or other options.
Shortcut:
In the phonebook, press keypad
keys to enter the first letters of an entry you
want. You can also press
*
and
#
to see
the entries you use frequently, or entries in
other categories.
features
other features—phonebook
71
set ringer ID for a phonebook entry
Assign a ring alert (ringer ID) to an entry:
s
>
nPhonebook
> entry, then press
Options
>
Edit Contact
>
Ringer ID
> ringer name
Note:
The
Ringer ID
option isn’t available for
entries stored on the SIM card.
Activate ringer IDs:
s
>
wSettings
>
Ring Styles
> style
Detail
>
Ringer IDs
set picture ID for a phonebook entry
Assign a photo or picture to show when you
receive a call from an entry:
s
>
nPhonebook
> entry, then press
Options
>
Edit Contact
>
> picture name
Note:
The
option isn’t available for
entries stored on the SIM card.
features
set picture ID view for phonebook
Show entries as a text list, or with picture
caller ID photos:
s
>
nPhonebook
, then press
Options
>
Setup
>
View by
> view name
set category for a phonebook entry
s
>
nPhonebook
> entry, then press
Options
>
Edit Contact
>
Category
> category name
Note:
The
Category
option isn’t available for
entries stored on the SIM card.
When you open your phonebook, press
*
or
#
to see your categories.
features
72
other features—phonebook
set category view for phonebook
s
>
nPhonebook
, then press
Options
>
Filter by
>
Category
>category name
Yo u c a n s h ow
All
entries, entries in a
predefined category (
Business
,
Personal
,
General
,
VIPs
), or entries in a category you create.
Shortcut:
When you open your phonebook,
press
*
or
#
to see your categories.
features
create group mailing list
You can put several phonebook entries in a
group mailing list, then send a message to
the list. To create a list:
s
>
nPhonebook
, then press
Options
>
Create New
>
Message List
You can select the list name as an address
for multimedia messages.
Note:
A
Message List
cannot include entries
stored on the SIM card.
sort phonebook list
Set the order in which entries are listed:
s
>
nPhonebook
, then press
Options
>
Setup
>
Sort by
>sort order
You can sort the phonebook list by
First Name
or
Last Name
.
features
other features—phonebook
73
copy one phonebook entry
Copy an entry from the phone to the SIM
card, or from the SIM card to the phone:
s
>
nPhonebook
, scroll to the entry, press
Options
>
Copy to SIM Card
or
Copy to Phone
copy multiple phonebook entries
Copy multiple phonebook entries between
the phone and SIM card:
s
>
nPhonebook
, scroll to one entry, press
Options
>
Select Multiple to
, then select
Copy to SIM Card
or
Copy to Phone
features
send phonebook entry to another device
Send a phonebook entry to another phone,
computer, or device:
s
>
nPhonebook
, scroll to the entry, press
Options
>
Send Contact
For more information about copying files to
another device, see page 26.
print phonebook entry over
Bluetooth™ connection
You can use a Bluetooth wireless
connection to send a phonebook entry from
your phone to a printer.
s
>
nPhonebook
Scroll to the entry you want to print, and
press
Options
>
Select Multiple to
>
Print
.
You cannot print a
Mailing List
. For more about
Bluetooth connections, see page 24.
features
74
other features—messages
messages
For basic text message features, see page 38.
Your phone reads message settings from the
USIM card. If you put another USIM card in
your phone, your phone sends and receives
messages for the phone number on the new
card.
features
send email
s
>
eMessages
>
Email Msgs
>
Create Email
Note:
To use email, you might need to
enter a
User ID
and
Password
in your email
settings (see page 77).
send voice message
s
>
eMessages
>
Create Message
>
New Voice Msg
To record the voice message, press the
Record
key, speak, then press the
Stop
key.
Your phone inserts the voice recording into
a message and lets you enter email
addresses or phone numbers to receive the
message.
features
other features—messages
75
read and manage messages
s
>
eMessages
>
Message Inbox
Icons next to each message indicate if it is
read
>
or unread
<
. Icons can also
indicate if the message is locked
9
,
urgent
!
, or low priority
↓
, or if it has an
attachment
=
.
To
Reply
,
Forward
,
Lock
, or
Delete
a message,
scroll to it and press
Options
.
To open a message, press
s
. Then, you
can press
Options
to use or store any
phone numbers, email addresses,
Web sites, or files in the message.
features
read and manage email
s
>
eMessages
>
Email Msgs
To
Reply
,
Forward
,
Lock
, or
Delete
a message,
scroll to it and press
Options
.
To open a message, press
s
. Then, you
can press
Options
to use or store any
phone numbers, email addresses,
Web sites, or files in the message.
store message objects
Go to a multimedia message page, or
scroll to an object in a message, then:
Options
>
Store
features
76
other features—messages
print message over Bluetooth™
connection
You can use a Bluetooth wireless
connection to send a message from your
phone to a printer.
s
>
eMessages
>
Message Inbox
,
Email Msgs
,
Outbox
, or
Drafts
Scroll to the message you want to print and
press
Options
>
Print
.
You cannot print message
Templates
. For
more about Bluetooth connections, see
page 24.
features
store text messages on your SIM
card
To store incoming text messages on your
SIM card, press:
s
>
eMessages
, then press
Options
>
Setup
>
Message Setup
>
Text Msg Setup
>
Default Storage
>
SIM Card
.
features
other features—instant messaging
77
instant messaging
edit email settings
You can edit the settings for your
Email connections. To use email, you need
to store your email
User ID
and
Password
.
s
>
eMessages
, then press
Options
>
Email Msg Setup
>
Account Settings
If you have more than one email account,
select an account to edit.
Your phone shows a list of email settings.
Here is where you store your email
User ID
and
Password
.
Note:
To create a new account, select
New Entry
in the
Account Settings
list. Your display
shows a folder for each email account under
s
>
eMessages
>
Email Msgs
.
features
browser messages
Read messages received by your
micro-browser:
s
>
eMessages
>
Browser Msgs
info services
Read subscription-based information
services messages:
s
>
eMessages
>
Info Services
features
log in
s
>
ÉTools
>
Messenger
Select an IM account, or select
[New Account]
to set up an IM account.
features
78
other features—instant messaging
add contacts
After you log in:
Press
Options
>
Add Contact
and enter the
contact’s name, mobile number, IM ID, and
alias.
find others online
After you log in:
Select
Online Contacts
to see a list of others
online.
start conversation
Scroll to a name in
Online Contacts
and
press the
Send IM
key.
open active conversation
Scroll to a name in
Conversations
and
press the
Select
key.
features
insert items during a conversation
From the conversation view:
Options
>
Insert
You can insert an
Emoticon
,
Quick IM
(such as
Are
you there?
), or
Contact Info
(selected from your
phonebook).
end conversation
From the conversation view:
Options
>
End Conversation
log out
Select
Log Out
from the
IM Online
menu.
features
other features—personalizing
79
personalizing
features
language
Set menu language:
s
>
wSettings
>
Initial Setup
>
Language
scroll
Set the scroll bar to
Up/Down
or
Wrap Around
in
menu lists:
s
>
wSettings
>
Initial Setup
>
Scroll
text marquee
Set the speed for scrolling text in your
display:
s
>
wSettings
>
Initial Setup
>
Text Marquee
Note:
This setting only appears if your
phone has SCREEN3 headlines from your
service provider.
activate ringer IDs
Activate ringer IDs assigned to phonebook
entries and categories:
s
>
wSettings
>
Ring Styles
> style
Detail
>
Ringer IDs
ring volume
s
>
wSettings
>
Ring Styles
> style
Detail
>
Ring Volume
keypad volume
s
>
wSettings
>
Ring Styles
> style
Detail
>
Key Volume
reminders
Set reminder alerts for messages that you
receive:
s
>
wSettings
>
Ring Styles
> style
Detail
>
Reminders
features
80
other features—personalizing
headline view
If your home screen shows scrolling
headlines from your service provider, you
can turn them on or off:
s
>
wSettings
>
Personalize
>
Headlines
menu view
Show the main menu as graphic icons or as
a text-based list:
s
>
wSettings
>
Personalize
>
Main Menu
>
View
main menu
Reorder your phone’s main menu:
s
>
wSettings
>
Personalize
>
Main Menu
>
Reorder
features
show/hide menu icons
Show or hide menu feature icons in
the home screen:
s
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
Note:
This option is not available if your
home screen shows scrolling headlines
from your service provider.
change home keys
Change features for the soft keys,
navigation key, and smart key in the home
screen:
s
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
Note:
This option is not available if your
home screen shows scrolling headlines
from your service provider.
features
other features—call times & costs
81
call times & costs
Network connection time
is the elapsed
time from the moment you connect to your
service provider's network to the moment
you end the call by pressing
O
. This time
includes busy signals and ringing.
The amount of network connection time
you track on your resettable timer may not
equal the amount of time for which you
are billed by your service provider. For
billing information, contact your service
provider.
master reset
Reset all options
except
unlock code,
security code, and lifetime timer:
s
>
wSettings
>
Initial Setup
>
Master Reset
master clear
Caution:
Master clear
erases all
information you have entered
(including
phonebook and datebook entries)
and
content you have downloaded
(including
photos and sounds) stored in your phone’s
memory. After you erase the information,
you can’t recover it.
s
>
wSettings
>
Initial Setup
>
Master Clear
features
features
call times
Show call timers:
s
>
sRecent Calls
>
Call Times
in-call timer
Show time or cost information during
a call:
s
>
wSettings
>
In-Call Setup
>
In-Call Timer
82
other features—handsfree
handsfree
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
call cost
Show call cost trackers:
s
>
sRecent Calls
>
Call Cost
features
features
speakerphone
Activate the speakerphone during a
call:
Press the
Speaker
key (if available, or
Options
>
Spkrphone On
).
auto answer
(car kit or headset)
Automatically answer calls when
connected to a car kit or headset:
s
>
wSettings
>
Car Settings
or
Headset
>
Auto Answer
voice dial
(headset)
Enable voice dial with headset
send/end key:
s
>
wSettings
>
Headset
>
Voice Dial
other features—data calls
83
data calls
To connect your phone with a USB cable, see
page 43.
auto handsfree
(car kit)
Automatically route calls to a car kit
when connected:
s
>
wSettings
>
Car Settings
>
Auto Handsfree
features
send data
Connect your phone to the device,
then place the call through the device
application.
features
receive data
Connect your phone to the device,
then answer the call through the device
application.
features
84
other features—data calls
setting up Exchange ActiveSync
You can use the Internet to
synchronize your phone’s phonebook and
datebook entries with an email account on a
Microsoft® Exchange 2003 Server.
You need to know the email account’s
user
name
and
password
, the Microsoft®
Exchange
server name
, and the
user
domain name
. Confirm that the
Mobility
option is enabled on the email account, and
that
data service
is activated with your
phone service provider.
To
set up
an ActiveSync partner, press
s
>
wSettings
>
Connection
>
MOTOSYNC
>
Exchange
, press the
Options
key, then >
Setup
.
Enter the server details, including
Server Name
,
Domain
, and the
Web Session
to use.
To set up a
Web Session
, see page 90.
features
using Exchange ActiveSync
Once you set up an Exchange
ActiveSync partner, you can schedule your
phone to synchronize with the account
automatically.
To
schedule
synchronization, press
s
>
wSettings
>
Connection
>
MOTOSYNC
>
Exchange
, press the
Options
key, then
>
Auto Sync Setup
. Enter the time and days you
want your phone to synchronize.
features
other features—network
85
network personal organizer
features
network settings
See network information and adjust
network settings:
s
>
wSettings
>
Network
software update
Your service provider can send
updated phone software over the air to your
phone. When your phone receives a
software update, you can choose to install it
later. To install the software update later:
s
>
wSettings
>
Phone Status
>
Software Update
>
Install Now
features
set alarm
s
>
ÉTools
>
Alarm Clock
turn off alarm
When an alarm happens:
To turn off the alarm, press the
Disable
key or
O
. To set an eight-minute delay, press the
Snooze
key.
Note:
The
Snooze
key is available only if the
phone is already powered on when the
alarm sounds.
86
other features—personal organizer
add new datebook event or task
Your datebook can store events (with a start
and end time that can repeat) or tasks (with
a due date).
s
>
ÉTools
>
Datebook
, scroll to the day,
press
s
, press
Options
>
Create New Event
or
Create New Task
see datebook event or task
See or edit event or task details:
s
>
ÉTools
>
Datebook
, scroll to the day,
press
s
, press the
View
key
If you do not see tasks listed, press
Options
>
View
>
Organized Tasks
.
Tip:
Want to get to the point? To see a list
of your upcoming events, open the
datebook and press
Options
>
View
>
Organized Events
.
features
change datebook settings
s
>
ÉTools
>
Datebook
, then press
Options
>
Setup
You can choose the
Default View
that appears
when you open your datebook, and you can
show or hide the
Tasks On DayView
. You can
tell your phone to
Power On
if it is turned off
when a datebook alert occurs. Turn on
LunarCalendar
if you do not want to use a solar
calendar.
event reminder
When an event reminder happens:
To see reminder details, press the
View
key.
To close the reminder, press the
Back
key.
features
other features—personal organizer
87
send datebook event to another device
Send a datebook event to another phone,
computer, or device:
s
>
ÉTools
>
Datebook
, scroll to the day,
press
s
, scroll to the event, press
Options
>
Send
print datebook month, week, or
day over Bluetooth™ connection
You can use a Bluetooth wireless
connection to send a datebook month,
week, or day from your phone to a printer.
s
>
ÉTools
>
Datebook
Go to the month, week, or day view and
press
Options
>
Print
.
For more about Bluetooth connections, see
page 24.
features
create voice record
s
>
ÉMultimedia
>
Voice Record
When prompted, speak into the phone.
Note:
Recording phone calls is subject to
varying state and federal laws regarding
privacy and recording of conversations.
Always obey the laws and regulations on
the use of this feature.
play voice record
Play back a voice record:
s
>
hMultimedia
>
MediaFinder
>
Voice Record
>voice record
calculator
s
>
ÉTools
>
Calculator
features
88
other features—security
security
fun & games
Note:
Icons next to a picture, sound, or other
object can indicate if the file is locked (
9
), or
if it is stored on your phone ( ) or on your
memory card ( ).
For basic information on the camera, see
page 33.
currency converter
Enter exchange rate, press the
OK
key, enter
amount, and press
Options
>
Convert Currency
.
features
SIM PIN
Caution:
If you enter an incorrect PIN code
three times before the correct code, your
SIM card is disabled and your display shows
SIM Blocked
.
Lock or unlock the SIM card:
s
>
wSettings
>
Security
>
SIM PIN
lock feature
s
>
wSettings
>
Security
>
Lock Application
features
features
view, delete, or manage pictures
Manage photos, pictures, and animations:
s
>
hMultimedia
>
MediaFinder
>
Pictures
To
copy or move
a file from your
memory card ( ) to your phone
memory ( ), highlight it in the list and
press and press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy
or move some copyrighted files.
other features—fun & games
89
view, delete, or manage video clips
s
>
hMultimedia
>
MediaFinder
>
Videos
To
copy or move
a file from your
memory card ( ) to your phone
memory ( ), highlight it in the list and
press and press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy
or move some copyrighted files.
hear, delete, or manage sounds
Manage your ring tones and music:
s
>
hMultimedia
>
Sounds
To
copy or move
a file from your
memory card ( ) to your phone
memory ( ), highlight it in the list and
press and press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy
or move some copyrighted files.
features
start micro-browser
Just press
L
.
Your phone reads micro-browser settings
from the USIM card. When you remove the
USIM card, your phone clears the browser
cache. To edit your settings, see page 90.
download objects from Web page
Download a picture, sound, or other
object from a Web page:
Press
L
, go to the page that links to the
file, scroll to the link, and select it.
Note:
Normal airtime and/or carrier usage
charges apply.
features
90
other features—fun & games
Web sessions
A Web Session stores settings that
your phone uses to access the Internet. To
select or create a Web session:
s
>
áWeb Access
>
Web Sessions
clear micro-browser history
Clear the micro-browser’s history,
cache, or cookies:
s
>
áWeb Access
>
Browser Setup
>
Clear History
,
Reset Cache
, or
ClearCookie
features
download game or application
You can download a Java™ game or
application the same way you download
pictures or other objects:
Press
L
, go to the page that links to the
file, scroll to the link, and select it.
Note:
Normal airtime and/or carrier usage
charges apply.
start game or application
Start a Java™ game or application:
s
>
QGames & Apps
, scroll to the game or
application, press the center key
s
Note:
To install and run games stored on
your memory card, press
s
>
QGames & Apps
>
[Install New]
.
features
other features—fun & games
91
airplane mode
You can switch your phone to airplane mode
to prevent it from communicating with the
network. This lets you use games or other
applications while you are on an airplane,
without interfering with airplane
communications.
s
>
%Airplane Mode
>
Airplane Mode
>
On
You can make the airplane mode option
appear whenever you turn on your phone:
s
>
%Airplane Mode
>
Prompt At Startup
>
On
features
92
service and repairs
service and repairs
If you have questions or need assistance,
we're here to help.
Go to
www.motorola.com/consumer/support
,
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at
1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
SAR Data
93
Specific Absorption Rate Data
SAR Da ta
This model meets international guidelines for
exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were
developed by the independent scientific organization ICNIRP and
include safety margins designed to assure the protection of all
persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The ICNIRP SAR limit for mobiles devices
used by the general public is 2 W/kg and the highest SAR value for
this device when tested at the ear was ___ W/kg.
1
As mobile
devices offer a range of functions, they can be used in other
positions, such as on the body as described in this user guide.
2
In
this case, the highest tested SAR value is ___ W/kg.
1
As SAR is measured utilizing the device’s highest transmitting
power, the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes to
the power level of the device to ensure it only uses the minimum
level required to reach the network.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
The World Health Organization has stated that present scientific
information does not indicate the need for any special precautions
for the use of mobile devices. They note that if you want to reduce
your exposure then you can do so by limiting the length of calls or
using a “hands-free” device to keep the mobile phone away from
the head and body.
Additional Information can be found on the websites of the World
Health Organization (
http://www.who.int/emf
) or
Motorola, Inc.
(
http://www.motorola.com/rfhealth
).
1. The tests are carried out in accordance with international guidelines for
testing. The limit incorporates a substantial margin for safety to give
additional protection for the public and to account for any variations in
measurements. Additional related information includes the Motorola
testing protocol, assessment procedure, and measurement uncertainty
range for this product.
2. Please see the Safety and General Information section about body worn
operation.
SAR Data
Specific Absorption Rate Data
SAR Da ta
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 0.56 W/kg, and when worn on the body, as described in
this user guide, is 0.73 W/kg. The SAR value for this product in its
data transmission mode (body-worn use) is 0.34 W/kg. (Body-worn
measurements differ among phone models, depending upon
available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
SAR Data
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
94
Warranty
Motorola Limited Warranty for the United States and
Canada
Warran ty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants
its telephones, pagers, messaging devices, and consumer and
professional two-way radios (excluding commercial, government
or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer
usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as
defined above, unless
otherwise provided for
below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Warranty
95
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries.
Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d) other acts which
are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of Non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone
other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products
Accessories or Software is excluded from coverage.
Software
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies
the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
96
Warranty
Exclusions
Software Embodied in Physical Media.
No warranty is made
that the software will meet your requirements or will work in
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund
the purchase price of any Products, Accessories or Software that
does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or
Other Information
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone
number designated above for the product with which they are
used.
Warranty
97
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
98
WHO Information
Information from the World Health Organization
WHO Info rmation
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
index
99
index
A
accessories 17, 82
accessory connector port 1
active line indicator 48
airplane mode 91
alarm clock 85
alarm indicator 48
alert
set 53, 56
turn off 53, 56, 61
animation 88
answer a call 21, 60
attach a number 62, 65
audio player 31
B
backlight 59, 60
battery 19, 20
extending battery life 18
battery indicator 48
battery life, extending 58,
59, 60
Bluetooth connection
datebook entry, printing
87
datebook entry, sending
87
description 24
messages, printing 76
phonebook entries,
printing 73
phonebook entries,
sending 73
restricting access 30
brightness 59
browser messages 77
browser. See micro-browser
C
cables 43
calculator 87
call
answering 21, 60
barring 55, 68
end 21
ending 21, 38
forwarding 67
making 21
timers 81
waiting 67
call forward indicator 48
100
index
caller ID 62, 63, 71
camera 33
car kit 82
categories 72
center key 1, 53
center select key 17
channels for headlines 24
clock 57
codes 54, 55
conference call 67
copy files 26
copyrighted files 42
costs, tracking 82
D
data call 83
data indicator 47
date, setting 57
datebook 86
dial a phone number 21, 68,
69
dialed calls 61
digit dial 65
digital audio 31
display 3, 24, 46, 59, 80
downloaded files
from Web pages 89
in messages 75
DTMF tones 62, 69
E
earpiece volume 53
email
reading and managing 75
sending 74
settings 77
emergency number 63
emoticon 78
end a call 21
end key 1, 21
ending a call 38
Enter Unlock Code message
55
external display 35, 54
F
fax call 83
fixed dial 68
flip 21, 60
forward calls 67
G
games 90
GPRS indicator 47
group mailing list 72
H
handsfree speaker 54
headlines 23, 46, 80
headset 82
headset jack 1
index
101
hold a call 66
home screen 3, 46, 80
hot message 40
I
IM 77
in-call indicator 48
Incoming Call message 63
information services 77
instant messaging. See IM
international access code 66
iTAP text entry mode 50
J
Java applications 90
K
keypad 60, 79
L
language 79
licenses 42
linking. See Bluetooth
connection
lock
application 88
phone 55
SIM card 88
Low Battery message 48
M
make a call 21
master clear 81
master reset 81
Media Finder 31
memory card 41
menu 3, 17, 46, 79, 80
menu icons 80
message 74, 75, 76
message alerts 56
message indicator 39, 48
message reminders 79
micro-browser 77, 89, 90
Missed Calls message 62
MMS, defined 39
MP3 sound files 31, 32
multimedia message 38, 75,
76
music 89
mute a call 66
N
name dial 69
navigation key 1, 17, 53
network settings 85
notepad 66
number. See phone number
numeric entry mode 52
O
object exchange 26
102
index
open to answer 60
optional accessory 17
optional feature 17
P
pairing. See Bluetooth
connection
passwords. See codes
personalize 79
phone number 22
phonebook 62, 65, 69, 70
photo 33, 88
picture 88
picture ID 63, 71
PIN code 20, 55, 88
PIN2 code 55
power key 1, 20
printing 28
Q
quick dial 69
R
received calls 61
recent calls 61
redial 62
reminders 79
restrict calls 68
return a call 62
ring style indicator 48
ring style, setting 53, 56
ring tone 89
ringer ID 63, 71, 79
ringer volume 53, 79
roam indicator 47
S
safety information 9
screen saver 58
SCREEN3. See headlines
scrolling 79
security code 54
send key 1, 21
service dial 68
signal strength indicator 47
SIM Blocked message 20,
88
SIM card 17, 20, 55, 68, 76,
88
skin 59
smart key 53, 80
smiley. See emoticon
soft keys 1, 46, 80
software update 85
speakerphone 82
speed dial 70
store your number 22
symbol entry mode 52
synchronizing 84
T
tap text entry mode 51
telephone number. See
phone number
index
103
text entry 49
text marquee 79
text message 75, 76
theme 59
time zone 57
time, setting 57
timers 81
transfer a call 67
TTY device 68
turn on/off 20
U
unlock
application 88
phone 20, 55
SIM card 88
unlock code 54, 55
USB cables 43
V
video clip 89
videos 36, 38
voice dial 65, 69, 82
voice message 74
voice record 87
voicemail 64
voicemail message indicator
48, 64
volume 53, 79
W
wallpaper 58
warranty 94
Web pages 89
Web sessions 90
Y
your phone number 22
U.S. patent Re. 34,976
