Exhibit 8 Users Manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GK1

INSTRUCTION MANUAL

• A preliminary draft copy of the User’s Manual follows this cover page.

• The User’s Manual will have the following text added to it:

"NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

. Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and receiver.

. Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

. Consult the dealer or an experienced radio/TV technician for help."

EXHIBIT 8

motorola.com

W220

GSM 900/1800

HELLOMOTO

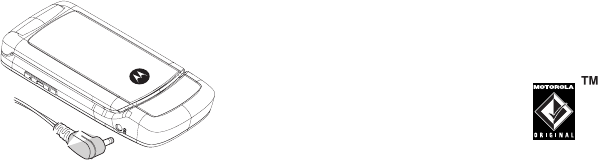

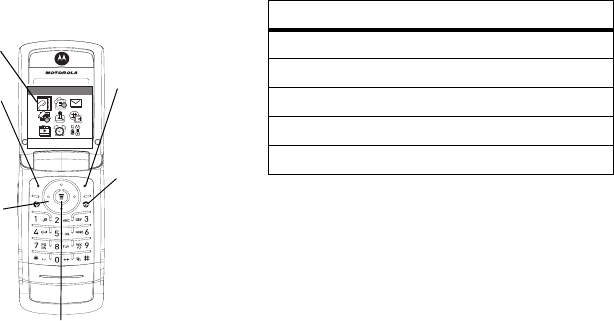

Introducing your new Motorola W220 GSM wireless phone. Here’s a quick anatomy lesson.

Headset Jack

Power Connector

Insert charger.

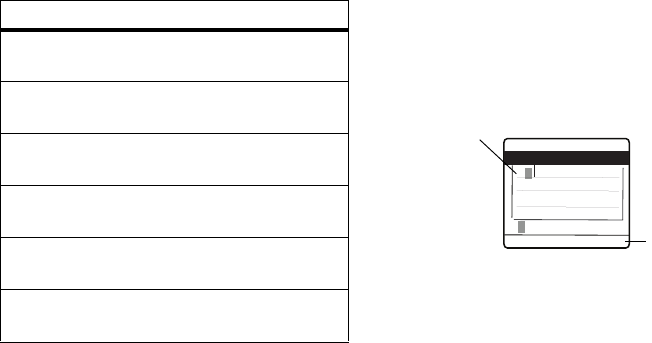

Navigation Key

Press

to scroll through menus and lists.

Menu Key

Opens a sub-menu when

appears on the display, or selects

a highlighted feature.

Right Soft Key

Performs functions in lower right

display.

Left Soft Key

Performs functions in lower left

display.

Send/Answer Key

Make and answer calls. Press

when idle to see the list of recently

dialed calls.

Power/End Key

Turns phone on/off, ends calls, exits

menus.

Volume Key

Note:

Your phone may not appear exactly as the

phone image above.

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.hellomoto.com

Certain mobile phone features are dependent on the capabilities

and settings of your service provider’s network. Additionally,

certain features may not be activated by your service provider,

and/or the provider's network settings may limit the feature’s

functionality. Always contact your service provider about feature

availability and functionality. All features, functionality, and other

product specifications, as well as the information contained in this

user's guide are based upon the latest available information and

are believed to be accurate at the time of printing. Motorola

reserves the right to change or modify any information or

specifications without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US

Patent & Trademark Office. 2006 All other product or service

names are the property of their respective owners.

Manual Number: 68XXXXX149-O

contents

menu map. . . . . . . . . . . . 5

Use and Care . . . . . . . . . 7

essentials . . . . . . . . . . . . 8

about this guide . . . . . . 8

SIM card . . . . . . . . . . . . 9

battery . . . . . . . . . . . . . 9

battery tips . . . . . . . . . 10

turn it on & off . . . . . . . 11

make a call . . . . . . . . . 12

answer a call. . . . . . . . 12

adjust the volume. . . . 12

view your phone

number. . . . . . . . . . . . 12

main attractions . . . . . . 13

use the FM radio . . . . 13

send a multimedia

message. . . . . . . . . . . 16

receive a multimedia

message. . . . . . . . . . . 16

basics. . . . . . . . . . . . . . . 18

display . . . . . . . . . . . . 18

menus . . . . . . . . . . . . 23

text entry . . . . . . . . . . 25

navigation key. . . . . . . 31

codes & passwords . . 32

lock & unlock your

phone . . . . . . . . . . . . . 32

customize . . . . . . . . . . . 34

ring style. . . . . . . . . . . 34

time & date. . . . . . . . . 34

wallpaper . . . . . . . . . . 35

display appearance . . . 35

answer options. . . . . . 36

calls . . . . . . . . . . . . . . . . 37

turn off a call alert . . . . 37

recent calls . . . . . . . . . 37

redial. . . . . . . . . . . . . . 38

return a call. . . . . . . . . 38

notepad . . . . . . . . . . . 38

hold a call . . . . . . . . . . 39

call waiting . . . . . . . . . 39

caller ID . . . . . . . . . . . 39

emergency calls . . . . . 40

international calls . . . . 40

1-touch dial . . . . . . . . . 40

voicemail. . . . . . . . . . . 41

other features . . . . . . . . 43

advanced calling . . . . . 43

phonebook . . . . . . . . . . 45

chat . . . . . . . . . . . . . . . 47

contents

personalizing . . . . . . . . 47

phone alerts . . . . . . . . 50

miscellaneous . . . . . . . 51

call times and costs . . 52

handsfree . . . . . . . . . . 52

network . . . . . . . . . . . 53

security . . . . . . . . . . . . 55

games . . . . . . . . . . . . . 56

service and repairs . . . . 58

Specific Absorption Rate

Data . . . . . . . . . . . . . . . . 59

European Union Directives

Conformance

Statement . . . . . . . . . . . 61

index. . . . . . . . . . . . . . . . 62

menu map

main menu

Phonebook

Recent Calls

• Received Calls

• Dialed Calls

• Notepad

• Erase All

• Call Time*

• Call Cost*

• GPRS Data Counter*

• GPRS Connection Time*

Messages

• Create Message

• Message Inbox

• Outbox

•Drafts

•Voicemail*

• Browser Msgs*

•Quick Notes

• MMS Templates

Tools

• Calculator

• Calendar

• Shortcuts

•Chat*

• SIM Toolkit *

• Lantern

Game

WebAccess

•Browser

• Web Shortcuts

•Go to URL

•History

• Web Sessions

• Web Settings

Multimedia

•Pictures

• Sounds

•FM Radio

Alarm Clock

Settings

• (see next page)

network or subscription dependent

features

This is the standard main menu

layout. Your phone’s menu may be a

little different.

settings menu

Personalize

• Home Screen

• Color Style

• Wallpaper

•Quick Dial

Ring Styles

•Style

•(Style) Detail

Call Forward*

• When Busy

• No Reply

• Not Reachable

• Not Available

• All Calls

• Cancel All

In-Call Setup

• Dialing Prefix*

• In-Call Timer

• Call Cost Setup

• Show Number

• Call Waiting*

• Anykey Answer

• Open to Answer

• Session Information

• Auto Redial

Headset & Car Setting

• Auto Answer

Initial Setup

• Time and Date

• Backlight

• Language

• Contrast

• Input Mode

• Connection Indication

• Status Indicator

• Master Reset

• Master Clear

Auto Power Off

Phone Status

• My Tel. Number

• Active Line*

• Battery Meter

Security

• Phone Lock

• Lock Application

• Fixed Dial*

• Call Barring*

• SIM PIN

• New Passwords

Network

•New Network

•Network Setup

• Available Networks

• Service Tone

Lantern

• 30 seconds

• 1 Minute

• 2 Minutes

* network or subscription dependent

features

This is the standard settings menu

layout. Your phone's menu may be a

little different.

menu map

Use and Care

To care for your Motorola phone, please keep it away from:

liquids of any kind dust and dirt

Don’t expose your phone to

water, rain, extreme humidity,

sweat, or other moisture.

Don’t expose your phone to

dust, dirt, sand, food, or other

inappropriate materials.

extreme heat or cold cleaning solutions

Avoid temperatures below

-10°C/14°F or above 45°C/113°F.

To clean your phone, use only a

dry soft cloth. Don’t use alcohol

or other cleaning solutions.

microwaves the ground

Don’t try to dry your phone in a

microwave oven.

Don’t drop your phone.

essentials

DRAFT

essentials

about this guide

This guide shows how to locate a menu

feature as follows:

Find it:

Press

Recent Calls

Dialed Calls

This example shows that, from the home

screen, you press

to open the menu,

highlight and select

Recent Calls

, and then

highlight and select

Dialed Calls

Press

to scroll to and highlight a menu

feature. Press

SELECT

to select the

highlighted menu feature.

CAUTION: Before using the phone for the

first time, read the

Important Safety and

Legal Information

included in the

gray-edged pages at the back of this guide.

032257o

symbols

This means a feature is network,

SIM card, or subscription

dependent and may not be

available in all areas. Contact

your service provider for more

information.

This means a feature requires an

optional accessory.

essentials

DRAFT

SIM card

Your Subscriber Identity Module (SIM) card

contains your phone number, service details,

and phonebook/message memory.

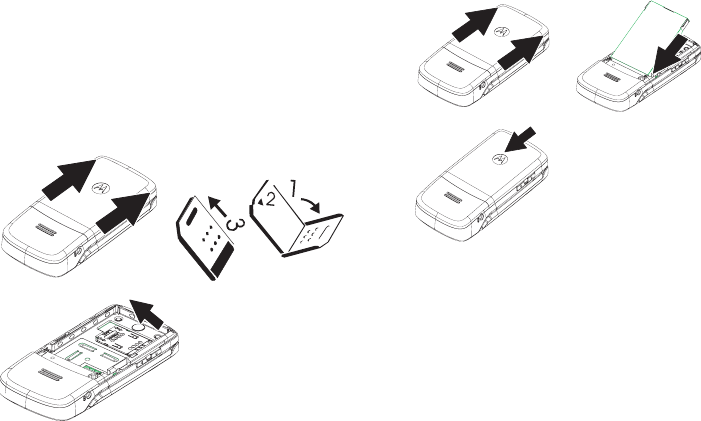

install your SIM card

Caution:

Do not bend or scratch your SIM

card. Avoid exposing your SIM card to static

electricity, water, or dirt.

battery

battery installation

SIM

essentials

DRAFT

battery charging

New batteries

are shipped

partially

charged.

Before you can

use your

phone, install

and charge the

battery as described below. Some batteries

perform best after several full charge/

discharge cycles.

Plug the travel charger into your phone and an

electrical outlet. The battery status indicator is

lit during charging and goes off when

charging is complete.

Tip:

You can safely leave the travel charger

connected to your phone after charging is

complete. This will not damage the battery.

battery tips

Battery life depends on the network, signal

strength, temperature, features, and

accessories you use.

•

Always use Motorola

Original batteries and

chargers. The warranty does

not cover damage caused by

non-Motorola batteries and/or chargers.

•

New batteries or batteries stored for a

long time may take more time to

charge.

•

When charging your battery, keep it

near room temperature.

•

When storing your battery, keep it

uncharged in a cool, dark place.

•

Never expose batteries to

temperatures below -10°C (14°F) or

above 45°C (113°F). Always take your

essentials

DRAFT

phone with you when you leave your

vehicle.

•

It is normal for batteries to gradually

wear down and require longer charging

times. If you notice a change in your

battery life, it is probably time to

purchase a new battery.

Contact your local recycling center for

proper battery disposal.

Warning:

Never dispose of batteries in a fire

because they may explode.

Before using your phone, read the battery

safety information in the “Safety and General

Information”section included in the gray-

edged pages at the back of this guide.

turn it on & off

Press and

hold

turn on the

phone. If

prompted,

enter your

SIM card

PIN code and press

to unlock the SIM card.

Caution:

If you enter an incorrect PIN code 3

times in a row, your SIM card is disabled and

your phone displays

SIM Blocked

. Contact your

service provider.

If necessary, enter your 4-digit unlock code

and press

to unlock the phone.

Note:

The phone unlock code can be 4 to 8

digits long. The default unlock code is 1234

(default code may be different in some

regions – contact your service provider).

Power /End

Key

essentials

DRAFT

make a call

Enter a phone number and press

to make

a call.

To end the call, press

or close the phone.

answer a call

When your phone rings and/or vibrates, just

press

to answer.

To end the call, press

or close the phone.

adjust the volume

Press the

volume keys to:

•turn off an

incoming call

alert (press up

or down)

•increase and

decrease the earpiece volume

•change the ringer volume from the home

screen

•change the FM Radio volume

view your phone

number

Press

Settings

Phone Status

My Tel. Number

Volume

Key

main attractions

DRAFT

main attractions

You can do much more with your phone than

make and receive calls!

use the FM radio

You can listen to and program up to nine of

your favorite FM radio stations.

turn on the FM radio

Find it:

Press

Multimedia

FM radio

The FM radio will automatically tune in the

lowest available frequency when you use it for

the first time. After that, it will tune in the

frequency last used. Press

up and down

or use the side volume key to increase or

decrease the volume.

Press

MUTE

to make the output volume silent.

Note:

The earpiece must be inserted into the

phone for the FM radio to function. If you try

to turn it on without inserting the earpiece,

your phone will display

Please Insert The Earpiece

Note:

The headset also acts as an antenna, so

the FM Radio receiver performance is

MUTE HIDE

87.5

MHz

23456789

〉〉

main attractions

DRAFT

dependent on the type of headset device

connected. If a non-Motorola 3.5 mm headset

is connected to the phone through the

adapter (2.5 - 3.5 mm), or the headset is

curled up or kinked, performance may be

affected.

tune the FM radio

Press

Multimedia

and scroll to FM

radio.

Press

left or right to increase or

decrease the frequency. Each keypress

will increase or decrease the frequency

by 0.1 MHz.

Press and hold

left or right to activate

the scanning feature. The FM radio will

scan to the next usable frequency. You

can continue scanning by pressing

again. Press

SELECT

Save Channel

to save the

channel.

use the radio presets

You can store up to nine preset radio stations.

set the radio presets

Tune in the desired frequency by pressing

left or right.

Press and hold

to save that

number as the preset.

select a radio preset

Press

to select the corresponding

radio preset.

FM radio selection

You can manually set the radio frequency and

display or edit the frequency list.

display the FM

adio

election

Press

to display FM radio selection.

main attractions

DRAFT

There are five items in the “FM Radio

Selection”:

Save Channel

Set Frequency

Channel List

Speaker On

, and

FM Radio Off

set frequency

Press

and scroll to

Set Frequency

. Press

SELECT.

Use the number keys to enter the desired

frequency. Press

to enter a decimal

point.

Press

isplay or edit the channel list

Press

and scroll to

Channel List.

Press

SELECT

Press the keypad keys to select the

desired channel or press

to scroll to

the desired channel, then press

EDIT.

Use the number keys to enter the

Channel

Name

and

Frequency

Press

SAVE

FM Radio

Save Channel

Set Frequency

Channel List

Speaker On

FM Radio Off

SELECT BACK

OK BACK

Frequency (MHz)

103.3

Channel List

1 88.0MHz (Eagles)

2 88.0MHz

3 88.0MHz

4 88.0MHz

BACK EDIT

main attractions

DRAFT

play FM radio through speaker

or headset

Press

and scroll to

Speaker On

then press

SELECT

. To play the FM Radio through the

headset, press

and scroll to

Headset On

, then

press

SELECT

Note:

The headset must be inserted into the

phone for the FM radio to play through the

Speaker.

turn off FM radio

Press

and scroll to

FM Radio Off

Press

SELECT.

send a multimedia

message

A Multimedia Messaging Service

(MMS) message contains one or more

pages with text and embedded media objects

(pictures or sounds). You can send the

multimedia message to other wireless

phones with MMS.

Find it:

Press

Messages

Create Message

New Multimedia Msg

Press

to enter text message.

Press

OPTIONS

to open the

MMS Menu

Press

SEND

to send multimedia message.

receive a multimedia

message

When you receive a multimedia

message, your phone displays the

indicator and

New Message

, and sounds an alert.

Press

VIEW

to open the message.

Multimedia messages that you receive can

contain different media objects:

main attractions

DRAFT

•

Photos and animations are displayed as

you read the message.

•

A sound file or video clip begins playing

when its page is displayed.

Note:

In a multimedia message, you may

have to highlight an indicator to play a sound

file or video clip.

basics

DRAFT

basics

See page 1 for a basic phone diagram.

display

The home screen displays when you turn on

the phone or when you are on a call. You must

be in the home screen to dial a phone

number.

Press the navigation key

left, right, up, or

down to select one of the menu feature icons.

If you select a menu icon by mistake, press

to return to the home screen.

Note:

Your home screen may look different

from the display shown in the previous

illustration. For example, your service provider

may hide the menu icons to allow a better

view of the wallpaper image. You can still

select the menu icons when they are hidden

from view. To show or hide the menu icons,

see page 47.

When the

is displayed, you can press

to enter the sub-menu.

Labels at the bottom corners of the display

show the current soft key functions. Press the

left or right soft key to perform the function

indicated by the label.

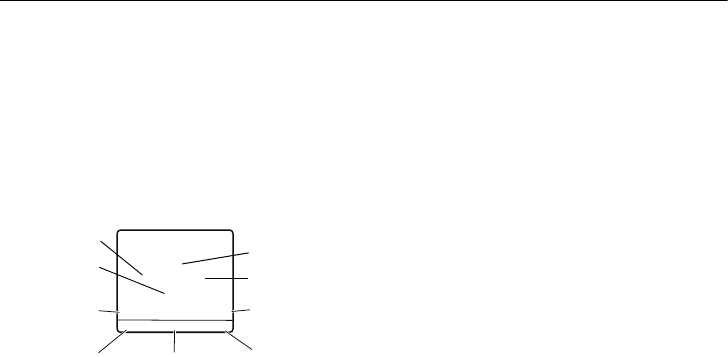

Service Provider

2005/8/1`5 14:16

sà

MEDIA SHORTCUT

Time

Right Soft

Key Label

Press

to open

sub-menu.

Left Soft

Key Label

Date

Phonebook

Recent Calls Ring Styles

Browser

basics

DRAFT

Your phone can display the time and date in

the home screen. For time & date setup, see

page 47.

status indicators

Status indicators may be shown at the top of

the home screen:

1 Signal Strength Indicator –

Vertical bars

show the strength of the network

connection.

You can't make or receive calls when

is displayed.

2GPRS

Indicator

–

GPRS-net connected

and GPRS packet message can be sent.

3 Data Transmission

Indicator

–

Via

network (phone-to-computer data transfer

is not supported).

4Roam Indicator

–

Appears when your

phone uses another network system

outside your home network.

5 Active Line Indicator –

Shows

indicate an active call.

6 Message Indicator –

Shows when you

receive a new message, or when

Service Provider

2005/8/1`5 14:16

+6 ãf

MEDIA SHORTCUT

sà

Signal

Strength

GPRS

WAP

Roam

Active Line

Message

Battery

Indicator

Ring

Style

= line 1 active

= line 2 active

basics

DRAFT

message memory is full. Indicators can

include:

7 Ring Style Indicator –

Shows the ring

style setting.

8 Battery Indicator

–

Vertical bars show the

battery charge level. Recharge the battery

when your phone shows

Low Battery

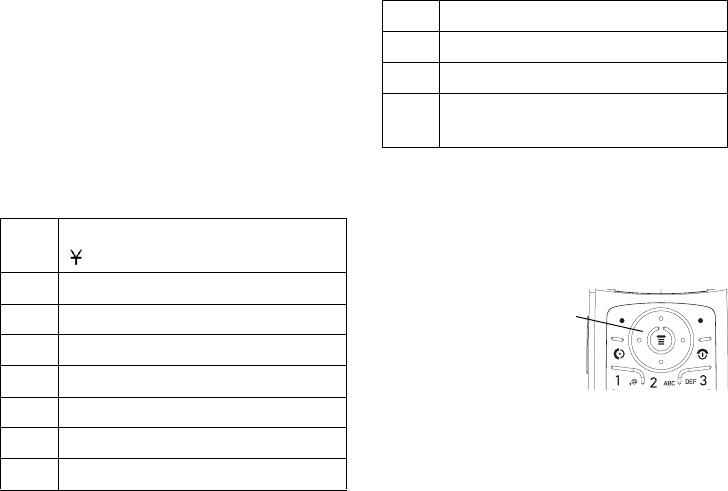

The following table describes other indicators

your phone can display:

= new text

message

= new

multimedia

message

= voicemail

message

= active chat

session

= Loud

†

= Vibe & Ring

= Soft

= Silent

= Vibrating

alert/indicator

+ GPRS service

Shows when the GPRS-net is connected

and GPRS packet messages can be sent.

using GPRS

Shows when GPRS PDP is connected or

uncoded web

Indicates an Uncoded Web server

connection is present.

holding web

Indicates a Holding Web server connection

is present.

basics

DRAFT

coded web

Indicates a Coded Web server connection is

present.

roaming

Indicates roaming on other networks is

enabled.

call forward

Indicates that Call forward is enabled and all

unanswered calls will be forwarded.

holding

call

Indicates the current call is on hold.

alert/indicator

silent mode

Indicates Silent mode is enabled.

alarm on

Shows when an alarm has been set.

cde

web server transferring

Indicates Web Server is receiving &

sending messages.

alert/indicator

basics

DRAFT

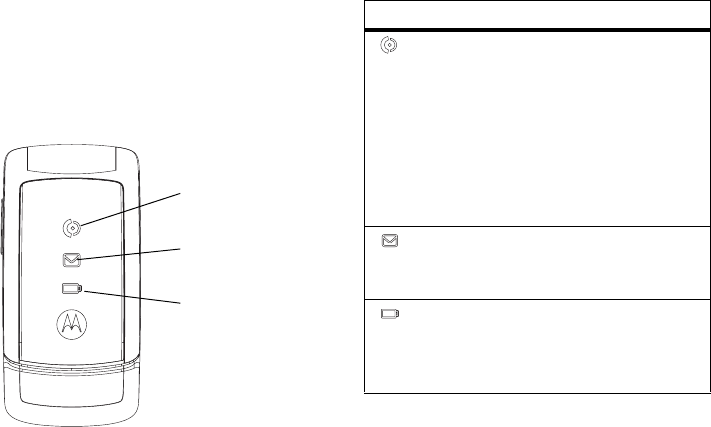

status icons

The status icons show the status of incoming

calls, messages, and the battery.

Note:

You can turn off the status icons. Press

Settings

> I

nitial Setup

Status Indicator

Off

Call Icon

Message Icon

Battery Icon

alert/icon

call icon

Icon rapidly flashes green for incoming calls

from a known caller, and slowly flashes

green for 30 minutes when there is a

missed call from a known caller.

Icon rapidly flashes orange for incoming

calls from an unknown caller, and slowly

flashes orange for 30 minutes when there

is a missed call from an unknown caller.

message icon

Icon flashes blue for 30 minutes when

there is a new text or voice message.

battery icon

Icon flashes orange when the battery

power is low, and is continually lit when the

battery is charging.

basics

DRAFT

menus

From the home screen, press

to enter the

main menu.

Note:

The menu icons shown above may not

be available depending on your service

provider and service subscription options.

Press

to scroll to and highlight a menu

feature icon in the main menu.

select a menu feature

The following example shows how to select a

menu feature, starting from the home screen:

Find it:

Press

Recent Calls

Dialed Calls

This example shows that from the home

screen, you must press

, scroll to and

select

sRecent Calls

from the main menu, then

scroll to and select

Dialed Calls

. Press

scroll, and use the left or right soft keys to

Phonebook

EXIT

SELECT

Navigation Key

Press

to scroll

through menus and

lists.

Menu Key

Press to enter the sub-menu or select a

highlighted feature.

Right Soft Key

Performs functions

in lower right display.

Left Soft Key

Performs functions

in lower left display.

Power/End Key

Turns phone on/off,

ends calls, exits

menus.

Selected Menu

Item

icon feature icon feature

nPhonebook áWebAccess

sRecent Calls hMultimedia

eMessages AAlarm Clock

ÉTools wSettings

QGames

basics

DRAFT

select the functions displayed in the bottom

corners of the display.

select a feature option

Some features require you to select an option

from a list.

Press

up or down to highlight the option

you want.

•

In a numbered list, press a number key

to highlight the option.

•

When an option has a list of possible

values, press

left or right to scroll

through and select a value.

•

When an option has a list of possible

numeric values, press a number key to

set the value.

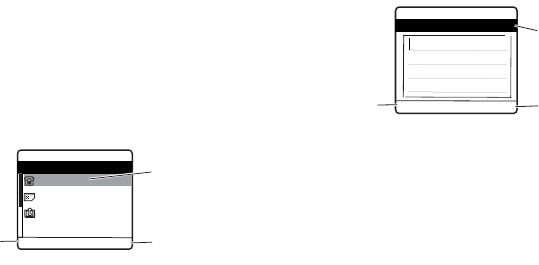

Dialed Calls

3) Abcde

2) Fghi

1) Jkl

0936123456

ÒD

OPTIONS BACK

Highlighted

Option

Press

OPTIONS

to open

submenu.

Press

BACK

to return to the

screen.

Press

to view details

of highlighted operation.

basics

DRAFT

text entry

Here are some examples of text entry in your

phone. You can use different text entry

modes.

You can make changes to

Phonebook

entries in

terms of contact name, contact number, and

speed dial number..

You can create a new message by entering

text in the message center. The character

counter indicates how many more characters

will fit in the message.

text entry mode

Multiple text entry modes make it easy for

you to enter names, numbers, and messages.

The mode you select remains active until you

select another mode. To change entry modes,

press

Entry Details

0936123456

Abcde

511#

4ÒD

OPTIONS BACK

Highlighted

Option

Press

OPTIONS

open submenu. Press

BACK

to exit

without making

changes.

Press

to change

the information.

Msg 160(1)

ÒD

OPTIONS BACK

ìg

Press

OPTIONS

to to

open submenu.

Press

BACK

return to the

screen.

Character

Counter

Press

to insert a

Quick

Note


Animation

Sound.

basics

DRAFT

set up a text entry mode

To se t yo ur

Primary

and

Secondary

text entry

modes, press

OPTIONS

Input Setup

in a text

entry view and select

Primary Setup

Secondary

Setup

capitalization

Press

in any text entry screen to change

the text case. The following indicators show

capitalization status:

entry modes

Yo u r

Primary

text entry mode

can be set to any iTAP

TAP

mode.

Yo u r

Secondary

text entry mode

can be set to any iTAP

TAP

mode, or set to

Disable

you don’t want a secondary

entry mode.

ÃNumeric

mode enters numbers

only.

TAP English

Enter letters and numbers

by pressing a key one or

more times (see page 27).

iTAP English

Lets the phone predict each

word as you press keys (see

page 29).

= no capital

letters

= all capital

letters

= capitalize next

letter only

basics

DRAFT

text entry indicators

When you select the

Primary

Secondary

text

entry mode, the following indicators identify

the text entry setting:

tap mode

Press

in a text entry view to switch to

TAP

mode. If you don’t see

Abc1

Abc2

, press

OPTIONS

> I

nput Setup

to set

TAP

mode as your

Primary

Secondary

text entry mode.

To enter text in

TAP

mode, press a keypad key

repeatedly to cycle through the letters and

number on the key. Repeat this step to enter

each letter.

Tip:

Press

up to accept a word

completion; press

to insert a space.

When you enter 3 or more characters in a

row, your phone may guess the rest of the

primary

secondary

TAP, no capital

letters

TAP, capitalize next

letter only

TAP, all capital

letters

iTAP, no capital

letters

iTAP, capitalize next

letter only

iTAP, all capital

letters

Msg 158(1)

ÒD

OPTIONS DELETE

íg

p q r s 7 β

Character displays

at insertion point.

After 2 seconds,

the character is

accepted and the

cursor moves to

the next position.

Press

DELETE

to erase the

character to

the left of the

insertion

point.

basics

DRAFT

word. For example, if you enter

Pro

you might

see:

If you want a different word (such as

Progress

continue pressing keypad keys to enter the

remaining characters.

Tip:

Press and hold

DELETE

to clear the whole

page of text entered.

character chart

Use this chart as a guide for entering

characters.

Msg 157(1)

Products

ÒD

OPTIONS DELETE

íg

Character

displays at

insertion

point.

Press

up to

accept Products,

or press

down to reject it &

enter space after

pro

. ? ! , @ ' - _ : ; ( ) & " ~ 1 0 ¿ ¡ % £ $

+ x * / \ [ ] = > < # §

a b c 2 ä å á à ã â æ

d e f 3 é è ê

g h i 4 í î

j k l 5

m n o 6 ñ ö ø ó ò õ

p q r s 7 ß

t u v 8 ü ú ù

w x y z 9

change text case, for capital letters

enter a space (hold to enter a return)

change text entry method (hold for

default)

basics

DRAFT

Note:

This chart may not reflect the exact

character set available on your phone.

tap method text entry rules

•

Press a keypad key repeatedly to cycle

through its characters.

•

Press

left or right to move the

flashing cursor to the left or right in a

text message.

•

The first character of every sentence is

capitalized.

•

If you enter or edit information and do

not want to save the changes, press

to exit without saving.

iTAP® mode

Press

in a text entry view to switch to

iTAP

mode. If you don’t see

, press

OPTIONS

Input Setup

to set

iTAP

mode as your

Primary

Secondary

text entry mode.

iTAP

mode lets you enter words using one key

press per letter. The

iTAP

software combines

your key presses into common words, and

predicts each word as you enter it.

For example, if you press

the letter combinations that match your key

presses display the word

Product

If you want a different word (such as

Progress

continue pressing keypad keys to enter the

remaining characters.

Msg 156(1)

Products

ÒD

OPTIONS DELETE

íj

Prod

Prof Proe Pro3

Press

DELETE

delete last letter

entered.

Press

up to

Products

Press

enter

Prod

space.

Press

right to highlight

another combination.

Press

lock

highlighted

combination

basics

DRAFT

Tip:

You can turn on/off the function of

Word

Completion

by pressing

Settings

Initial Setup

Input Mode

Word Completion

To enter numbers quickly, press and hold a

number key to temporarily switch to

Numeric

mode. Press the number keys to enter the

numbers you want. Press

to change back

iTAP

mode.

Press

to enter punctuation or other

characters.

Press

to show possible letter

combinations at the bottom of the display.

Press

left or right highlight the

combination you want.

Press

to enter the highlighted

combination when a word appears in the

display. A space is automatically inserted

after the word.

If you enter a word that your phone does not

recognize, the phone stores it to use as one

of your word options. When you fill the

available memory space for unrecognized

words, your phone deletes the oldest words

to add new words.

numeric mode

In a text entry screen, press

to switch

entry modes until the

(numeric) indicator

displays.

Press keypad keys to enter the numbers you

want. When you finish entering numbers,

press

to switch to another entry method.

symbol mode

In a text entry screen, press

to switch the

text entry modes until the

[

(symbol)

indicator displays.

Press keypad keys repeatedly to cycle through

its symbols.

basics

DRAFT

If you do not press a key for 2 seconds, the

highlighted symbol is accepted, and the

cursor moves to the next position.

When you finish entering symbols, press

to switch to another entry mode.

symbol chart

Use this chart as a guide for entering

characters with the

Symbol

mode.

Note:

This chart may not reflect the exact

character set available on your phone.

navigation key

Press the

navigation

key

scroll up,

down, left,

or right to highlight menu items, to change

feature settings, and to play games. Press the

left soft key or

to select a highlighted

menu item.

. ? ! , @ ' - _ : ; ( ) & " ~ 1 0 ¿ ¡ %

+ x * / \ [ ] = > < # §

@ _ \

/ : ;

δ Δ ε φ Φ

" & '

ν Γ η ι

( ) [ ] { }

κ λ Λ

¿ ¡ ~

μ ν ω Ω

< > =

π Π ρ σ Σ

$ £ ¥ ¤

€ θ Θ τ υ

# % *

ζ ξ Ξ Χ ψ Ψ

0+ - Χ * / \ [ ] = > < # §

enter a space (hold to enter a return)

change text entry method (hold for

default)

Navigation

Key

basics

DRAFT

Note:

usually performs the same function

as the left soft key.

codes & passwords

Your phone’s 4-digit

unlock code

is originally

set to

1234

. If your service provider didn’t

change the code, you should change it:

Press

Settings

Security

New Passwords

If you forget your unlock code:

At the

Enter

Unlock Code

prompt, try entering

1234

or the last four digits of your phone number.

If you forget other codes:

If you forget your

security code, SIM PIN code, PIN2 code, or

call barring password, contact your service

provider.

lock & unlock your

phone

You can lock your phone to keep others from

using it. To lock or unlock your phone, you

need the 4-digit unlock code.

manually lock

your phone:

Press

Settings

Security

Phone Lock

Lock Now

automatically lock

your phone whenever

you turn it off:

Press

Settings

Security

Phone Lock

Automatic Lock

Note: You can make emergency calls on a

locked phone (see page 40). A locked phone

still rings or vibrates for incoming calls or

messages,

but you need to unlock it to

answer.

basics

DRAFT

unlock your phone

Your service provider may reset the unlock

code to the last 4 digits of your phone

number.

At the

Enter Unlock Code

prompt:

Press keypad keys to enter your unlock

code.

Press

to unlock your phone.

customize

DRAFT

customize

ring style

Your phone rings or vibrates to notify you of

incoming calls and other events.

You can select one of the five ring style

profiles:

The current ring style indicator will be

shown at the top of your phone display.

To set a ring style:

Find it:

Press

Settings

Ring Styles

Style

Press

to scroll to the ring style.

Press

SELECT

to select the ring style.

Each ring style consists of the following

style detail settings:

Ringing Volume

Ringing Tone

Incoming Call Alert

Message Alert Tone

Key Tone Volume

Key Tone Type

Reminders

Startup Music

, and

Power Off

Music.

To change these settings, press

Settings

Ring Styles

> style Detail.

Note:

You can't set an alert for the

Silent

style profile.

time & date

You must set the time and date to use the

datebook.

Find it:

Press

Settings

Initial Setup

Time and Date

= Loud

†

= Vibe & Ring

= Soft

= Silent

customize

DRAFT

wallpaper

You can set a preloaded or downloaded

photo or picture as a wallpaper

(background) image on your phone’s home

screen. The wallpaper image appears as a

faint watermark in text and menu displays.

Find it:

Press

Settings

Personalize

Wallpaper

display appearance

This section explains how to adjust the

display contrast, color, and backlight.

contrast

Find it:

Press

Settings

Initial Setup

Contrast

Press

right to increase the contrast.

Press

left to decrease the contrast.

color

Select the color style that sets the look and

feel of your phone.

Find it:

Press

Settings

Personalize

Color Style

Press

to scroll to a

Color Style.

Press

to select the

Color Style

options


Select an image for your

wallpaper, or

Off

for no wallpaper.

Layout

Select

Center

to center the image

in the display,

Tile

to repeat the

image across the display, or

Fit-

to-screen

to stretch the image

across the display.

customize

DRAFT

Press

BACK

to return to previous menu.

backlight

You can set the amount of time your

phone's display and keypad backlight

remain lit.

Find it:

Press

Settings

Initial Setup

Backlight

Press

up or down to scroll to a time-

out setting.

Press

to select the setting.

Press

BACK

to return to previous menu.

Note:

To save battery life, a shorter

backlight display time should be chosen.

The display and keypad backlight will be lit

when you press any key.

answer options

As an alternative to opening the flip to

answer an incoming call, you can use

Anykey

Answer

To activate or deactivate this option:

Find it:

Press

Settings

In-Call Setup

Press

to scroll to

Anykey Answer

Press

to select the option.

calls

DRAFT

calls

For basic instructions on how to make and

answer calls, see page 12.

turn off a call alert

While the phone is ringing or

vibrating:

Press

IGNORE

to cancel the incoming call.

Alternatively, you can press the side volume

key up or down to turn off the call alert (if the

answer call option is not set to

Anykey Answer

Depending on your phone settings and/or

service subscription, the call may be

forwarded to your voice mail, another number,

or the caller may hear a busy signal.

recent calls

Your phone keeps lists of the calls you

recently received and dialed, even for calls

that did not connect or are missed. The most

recent calls are listed first. The oldest calls are

deleted as new calls are added.

Tip:

Press

from the home screen to view

the list of dialed calls.

Find it:

Press

Recent Calls

Press

to scroll to

Received Calls

Dialed Calls

Press

SELECT

to select the list.

Press

to scroll to an entry. A

represents calls that are connected.

calls

DRAFT

To call the number, press

To see the call details, press

OPTIONS

VIEW

redial

Press

to view the dialed calls list.

Press

to scroll to the entry you want

to call.

Press

to redial the number.

return a call

Your phone keeps a record of your

unanswered calls and displays:

X Missed Calls

, where

is the number of

missed calls

Press

DETAIL

to see the list of received

calls.

Press

to select a call to return.

Press

to make the call.

notepad

The most recent set of digits entered on the

keypad are stored in your phone’s notepad

memory. These digits can be a phone number

that you called, or a number that you entered

but did not call. To retrieve the number stored

in the notepad:

Find it:

Press

Recent Calls

Notepad

Press

to call the number.

Press

SAVE

to create a phonebook entry with

the number in the

No.

field.

calls

DRAFT

hold a call

Press

HOLD

(if available)

to put the call on hold.

Press

Hold

call waiting

When you are on a call and a second

call comes in, an alert tone sounds to indicate

that you have a call waiting.

Press

to answer the new call.

Press

SWITCH

to switch between calls.

Press

LINK

to connect the 2 calls.

Press

End Calls

to end all calls,

currently connected call, or the call on

hold.

You must turn on call waiting to use this

feature. To turn call waiting on or off:

Press

Settings

In-Call Setup

Call Waiting

caller ID

incoming calls

Calling Line Identification (Caller ID)

displays the phone number of the

incoming calls in your phone’s display.

The phone displays the caller’s name when

the name is stored in your phonebook, or the

incoming caller's phone number when Caller

ID information is not available.

calls

DRAFT

outgoing calls

You can show or hide your phone

number from the called party for the

calls you make.

Find it:

Press

Settings

In-Call Setup

Show Number

emergency calls

Your service provider programs one or more

emergency phone numbers, such as 112, 911,

or 000 that you can call under any

circumstances, even when your phone is

locked or the SIM card is not inserted.

Emergency numbers vary by country. Your

phone’s preprogrammed emergency

number(s) may not work in all locations.

Sometimes an emergency call cannot be

placed due to network, environmental, or

interference issues.

Press keypad keys to dial the emergency

number.

Press

to call the emergency number.

international calls

If your phone service includes international

dialing, press and hold

to insert your local

international access code (indicate by +).

Then, press the keypad keys to dial the

country code and phone number.

1-touch dial

To call phonebook entries 1 through 9, press

and hold the single-digit speed dial number for

one second. If no speed dial number is

assigned to the digit, you will be prompted to

assign a number.

calls

DRAFT

voicemail

Voicemail messages that you receive

are stored on the network, not on your phone.

To listen to your messages, you must call your

voicemail phone number.

Your service provider may include additional

information about using this feature.

listen to voicemail messages

Find it:

Press

Messages

Voicemail

The phone calls your voicemail phone

number. If no voicemail number is stored,

your phone prompts you to store a number.

Tip:

Press and hold

to automatically

access your voicemail.

receive voicemail

When you receive a voicemail message, your

phone displays the

indicator and

New Voicemail

Press

CALL

to listen to the message.

The phone calls your voicemail phone

number. If no voicemail number is stored,

your phone prompts you to store a number.

store your voicemail number

If necessary, use the following procedure to

store your voicemail phone number on your

phone. Usually your service provider has

already done this for you.

calls

DRAFT

Find it:

Press

Messages

OPTIONS

Voicemail Setup

Press keypad keys to enter your voicemail

number.

Press

SAVE

to store the number.

You cannot store a

(pause) character in this

number. If you want to store a voicemail

number with these characters, create a

phonebook entry for it. Then you can use the

entry to call your voicemail.

other features

DRAFT

other features

advanced calling

feature description

conference

call

During a call:

Hold

, dial next

number, press

, press

LINK

call

forwarding

Set up or cancel call

forwarding:

Settings

Call Forward

call barring

Restrict outgoing or

incoming calls:

Settings

Security

Call Barring

fixed dial

When you turn on

fixed dialing, you can

call only numbers

stored in the fixed dial list.

Turn fixed dialing on or off:

Settings

Security

Fixed Dial

Use the fixed dial list:

Settings

Security

Fixed

Dial

Number Listl

transfer a

call

During a call press

New

Call

, dial the number and

press

. When connected,

press

Transfer

feature description

other features

DRAFT

auto redial

When you receive a

busy signal, your

phone displays

Number

Busy

. Set up your phone to

automatically redial the

number:

Settings

In-Call Setup

Auto Redial

When the call goes through,

your phone rings or vibrates

once, and connects.

feature description

speed dial

Speed dial a phonebook

entry:

Enter the speed dial

number, press

, then

press

to call.

See an entry’s speed dial

number:

Phonebook

, scroll to the

entry, press

feature description

other features

DRAFT

phonebook

feature description

create entry

Create a new phonebook

entry:

Phonebook

OPTIONS

New

Shortcut:

Key in number

using Keypad keys, then

press

SAVE

SIM/Phone Memory

dial number

Call a number stored in the

phonebook:

Phonebook

, highlight the

phonebook entry, press

to call.

set category

for entry

Set the category for a

phonebook entry:

Phonebook

> desired

entry >

OPTIONS

Change Group

Note:

The

category

phonebook entry 45

index

center select button 31

character chart 28

chat 47

clock

setting 34

codes

changing 32

default 32

color, setting 35

conference call 43

contrast, setting 35

date, setting 34

datebook 53

dialed calls list 37

dialing a number 12, 43

display

backlight 36

color 35

contrast 35

description 18

home screen 18

language 47

personalizing 47

emergency number 40

end key 1

Enter Unlock Code message

5-way navigation key 31

fixed dial 43

forwarding calls 43

headset jack 1

hold a call 39

home keys, personalizing 47

home screen

defined 18

incoming call

forwarding 43

Incoming Call message 39

indicators

message waiting 16

text case 27

text entry method 27

voicemail message 41

international access code 40

iTAP software 29

key

center select button 31

end 1

5-way navigation 31

index

left soft key 1, 18, 47

menu 1

power 1

right soft key 1, 18, 47

send 1

volume control 1, 12

keypad

volume, setting 50

language, setting 47

left soft key

functions 1, 18

personalizing 47

lock

application 55

phone 32

SIM card 55

making a call 12

master clear 49

master reset 49

entering text 25

icons, changing in home

screen 47

language, setting 47

using 23

menu key 1

message

chat 47

MMS template 46

MMS, defined 16

multimedia message 46

reading 46

text 46

message waiting indicator

micro-browser

browser setup 56

using 56

Web sessions 56

MMS template 46

MMS. See message

multimedia message

receiving 16

sending 16, 46

multimedia messaging

service. See

message

network settings 53

notepad 38

numbers, entering 30

1-touch dial

using 40

optional feature, defined 8

index

phone

answer options 36

clear stored information

codes 32

date, setting 34

language, setting 47

locking 32

network settings 53

reset all options 49

ring style 34, 50

security code 32

time, setting 34

turning on/off 11

unlock code 32

unlocking 11, 32

phone number

international access code

redialing 38

storing in phonebook 45

phonebook

category for entry 45

category view 45

dialing a number 45

1-touch dial 40

picture ID 39

sorting entries 46

storing an entry 45


downloading 56

picture ID 39


downloading 56

viewing 57

wallpaper 35

picture ID 39

PIN code

changing 32

entering 55

PIN2 code, changing 32

power key 1

predictive text entry 29

primary text entry method

received calls list 37

recent calls 37

redial

busy number 38

right soft key

functions 1, 18

personalizing 47

ring style, setting 34, 50

ring tone

creating 50

downloading 56

managing 57

ringer volume, setting 50

index

secondary text entry method

security code

changing 32

default 32

send key 1

service dial 43

shortcuts 48

silent alert, setting 34, 50

SIM Blocked message 11,

SIM card

defined 9

installing 9

locking 55

PIN code entry 11

PIN code, changing 32

PIN2 code, changing 32

precautions 9

SIM Blocked message 11,

SIM PIN code

changing 32

entering 55

SIM PIN2 code, changing 32

soft keys

functions 18

illustration 1

personalizing 47

sound

creating 50

downloading 56

managing 57

speakerphone

handsfree 52

standby time, increasing 36

symbol chart 31

symbols, entering 30

tap method text entry 27

text

capitalization, changing 26

character chart 28

entering 25

entry method, selecting

entry method, setup 26

iTAP software predictive

text entry 29

numeric method 30

symbol chart 31

symbol method 30

tap method 27

text case indicator 27

text entry method

selecting 25

setup 26

text entry method indicator

index

time, setting 34

timers 52

travel charger 10

unlock

application 55

phone 32

unlock code

changing 32

default 32

entering 11

vibrate alert

setting 34, 50

video clip

downloading 46

voicemail 41

voicemail message indicator

volume

keypad 50

ringer 50

volume keys 12

wallpaper 35

Web pages 56

Web sessions 56

U.S. patent Re. 34,976

index

Important Safety and

Legal Information

Cover.Print.Front.Legal.Landscape.Eng.fm Page 1 Thursday, March 30, 2006 2:10 PM

A-2

Software Copyright Notice

The Motorola products described in this manual may include

copyrighted Motorola and third-party software stored in

semiconductor memories or other media. Laws in the United

States and other countries preserve for Motorola and third-party

software providers certain exclusive rights for copyrighted

software, such as the exclusive rights to distribute or reproduce

the copyrighted software. Accordingly, any copyrighted software

contained in the Motorola products may not be modified,

reverse-engineered, distributed, or reproduced in any manner to

the extent allowed by law. Furthermore, the purchase of the

Motorola products shall not be deemed to grant either directly or

by implication, estoppel, or otherwise, any license under the

copyrights, patents, or patent applications of Motorola or any

third-party software provider, except for the normal, non-exclusive,

royalty-free license to use that arises by operation of law in the

sale of a product.

Manual Number: 6809497A59-B

A-3

Contents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Exposure to Radio Frequency (RF) Energy . . . . . . . . . . . . . . .A- 4

Operational Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 4

RF Energy Interference/Compatibility . . . . . . . . . . . . . . . . . .A- 5

Driving Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 6

Operational Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 6

Choking Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 7

Glass Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 7

Seizures/Blackouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 8

Caution About High Volume Usage. . . . . . . . . . . . . . . . . . . .A- 8

Repetitive Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A- 8

Industry Canada Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10

Hearing Aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-14

WHO Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-15

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-15

Export Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-16

Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-16

Driving Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-17

A-4

Safety Information

Safety and General Information

Safe ty Infor mation

This section contains important information on the safe and

efficient operation of your mobile device. Read this

information before using your mobile device.

Exposure to Radio Frequency (RF)

Energy

Your mobile device contains a transmitter and receiver. When it is

ON, it receives and transmits RF energy. When you communicate

with your mobile device, the system handling your call controls the

power level at which your mobile device transmits.

Your Motorola mobile device is designed to comply with local

regulatory requirements in your country concerning exposure of

human beings to RF energy.

Operational Precautions

For optimal mobile device performance and to be sure that human

exposure to RF energy does not exceed the guidelines set forth in

the relevant standards, always follow these instructions and

precautions.

External Antenna Care

If your mobile device has an external antenna, use only a

Motorola-supplied or approved replacement antenna. Use of

unauthorized antennas, modifications, or attachments could

damage the mobile device and/or may result in your device not

complying with local regulatory requirements in your country.

DO NOT hold the external antenna when the mobile device is IN

USE. Holding the external antenna affects call quality and may

cause the mobile device to operate at a higher power level than

needed.

Product Operation

When placing or receiving a phone call, hold your mobile device

just like you would a landline phone.

If you wear the mobile device on your body, always place the

mobile device in a Motorola-supplied or approved clip, holder,

* The information provided in this document supersedes the general

safety information in user’s guides published prior to May 1, 2006.

A-5

Safety Information

holster, case, or body harness. If you do not use a body-worn

accessory supplied or approved by Motorola, keep the mobile

device and its antenna at least 2.5 centimeters (1 inch) from your

body when transmitting.

When using any data feature of the mobile device, with or without

an accessory cable, position the mobile device and its antenna at

least 2.5 centimeters (1 inch) from your body.

Using accessories not supplied or approved by Motorola may

cause your mobile device to exceed RF energy exposure

guidelines. For a list of Motorola-supplied or approved

accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference

from external sources if inadequately shielded, designed, or

otherwise configured for RF energy compatibility. In some

circumstances your mobile device may cause interference with

other devices.

Follow Instructions to Avoid Interference

Problems

Turn off your mobile device in any location where posted notices

instruct you to do so. These locations include hospitals or health

care facilities that may be using equipment that is sensitive to

external RF energy.

In an aircraft, turn off your mobile device whenever instructed to

do so by airline staff. If your mobile device offers an airplane mode

or similar feature, consult airline staff about using it in flight.

Pacemakers

If you have a pacemaker, consult your physician before using this

device.

Persons with pacemakers should observe the following

precautions:

•

ALWAYS keep the mobile device more than

20 centimeters (8 inches) from your pacemaker when the

mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the pacemaker to minimize the

potential for interference.

•

Turn OFF the mobile device immediately if you have any

reason to suspect that interference is taking place.

Hearing Aids

Some mobile devices may interfere with some hearing aids. In the

event of such interference, you may want to consult your hearing

aid manufacturer or physician to discuss alternatives.

A-6

Safety Information

Other Medical Devices

If you use any other personal medical device, consult your

physician or the manufacturer of your device to determine if it is

adequately shielded from RF energy.

Driving Precautions

Check the laws and regulations on the use of mobile devices in the

area where you drive. Always obey them.

When using your mobile device while driving, please:

•

Give full attention to driving and to the road. Using a

mobile device may be distracting. Discontinue a call if you

can’t concentrate on driving.

•

Use handsfree operation, if available.

•

Pull off the road and park before making or answering a

call if driving conditions so require.

Responsible driving practices can be found in the “Smart Practices

While Driving” section at the end of this guide and/or at the

Motorola Web site:

www.motorola.com/callsmart

Operational Warnings

Obey all posted signs when using mobile devices in public areas,

such as health care facilities or blasting areas.

Automobile Air Bags

Do not place a mobile device in the air bag deployment area.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often but not

always posted, and can include fueling areas such as below decks

on boats, fuel or chemical transfer or storage facilities, or areas

where the air contains chemicals or particles, such as grain, dust,

or metal powders.

When you are in such an area, turn off your mobile device, and do

not remove, install, or charge batteries. In such areas, sparks can

occur and cause an explosion or fire.

Damaged Products

If your mobile device or battery has been submerged in water,

punctured, or subjected to a severe fall, do not use it until you take

it to a Motorola Authorized Service Center. Do not attempt to dry it

with an external heat source, such as a microwave oven.

A-7

Safety Information

Batteries and Chargers

If jewelry, keys, beaded chains, or other conductive

materials touch exposed battery terminals, this

could complete an electrical circuit (short circuit),

become very hot, and could cause damage or

injury. Be careful when handling a charged battery,

particularly when placing it inside a pocket, purse, or other

container with metal objects.

Use only Motorola Original

batteries and chargers.

Caution:

To avoid risk of personal injury, do not dispose of your

battery in a fire.

Your battery, charger, or mobile device may contain symbols,

defined as follows:

Choking Hazards

Your mobile device or its accessories may include detachable

parts, which may present a choking hazard to small children. Keep

your mobile device and its accessories away from small children.

Glass Parts

Some parts of your mobile device may be made of glass. This glass

could break if the product is dropped on a hard surface or receives

a substantial impact. If glass breaks, do not touch or attempt to

remove. Stop using your mobile device until the glass is replaced

by a qualified service center.

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile

device in a fire.

Your battery or mobile device may require

recycling in accordance with local laws.

Contact your local regulatory authorities

for more information.

032374o

032376o

032375o

Do not throw your battery or mobile device

in the trash.

Your mobile device contains an internal

lithium ion battery.

Do not let your battery, charger, or mobile

device get wet.

Listening at full volume to music or voice

through a headset may damage your

hearing.

Symbol Definition

032378o

Li Ion BATT

A-8

Industry Canada Notice

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts

when exposed to flashing lights, such as when playing video

games. These may occur even if a person has never had a previous

seizure or blackout.

If you have experienced seizures or blackouts, or if you have a

family history of such occurrences, please consult with your

physician before playing video games or enabling a flashing-lights

feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following

symptoms occur: convulsion, eye or muscle twitching, loss of

awareness, involuntary movements, or disorientation. It is always

a good idea to hold the screen away from your eyes, leave the

lights on in the room, take a 15-minute break every hour, and stop

use if you are very tired.

Caution About High Volume Usage

Listening at full volume to music or voice through a

headset may damage your hearing.

Repetitive Motion

When you repetitively perform actions such as pressing keys or

entering finger-written characters, you may experience occasional

discomfort in your hands, arms, shoulders, neck, or other parts of

your body. If you continue to have discomfort during or after such

use, stop use and see a physician.

Industry Canada Notice to Users

Industry Canada Notice

Operation is subject to the following two conditions: (1) This

device may not cause interference and (2) This device must accept

any interference, including interference that may cause undesired

operation of the device. See RSS-GEN 7.1.5.

A-9

FCC Notice

FCC Notice To Users

FCC N otic e

Motorola has not approved any changes or modifications to this

device by the user. Any changes or modifications could void the

user’s authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation. See 47 CFR Sec. 15.19(3).

If your mobile device or accessory has a USB connector, or is

otherwise considered a computer peripheral device whereby it can

be connected to a computer for purposes of transferring data, then

it is considered a Class B device and the following statement

applies:

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the

receiver.

•

Connect the equipment to an outlet on a circuit different

from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician

for help.

A-10

Warranty

Motorola Limited Warranty for the United States and

Canada

Warran ty

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola, Inc. warrants

its telephones, pagers, messaging devices, and consumer and

professional two-way radios (excluding commercial, government

or industrial radios) that operate via Family Radio Service or

General Mobile Radio Service, Motorola-branded or certified

accessories sold for use with these Products (“Accessories”) and

Motorola software contained on CD-ROMs or other tangible media

and sold for use with these Products (“Software”) to be free from

defects in materials and workmanship under normal consumer

usage for the period(s) outlined below. This limited warranty is a

consumer's exclusive remedy, and applies as follows to new

Motorola Products, Accessories and Software purchased by

consumers in the United States or Canada, which are accompanied

by this written warranty:

Products and Accessories

Products Covered Length of Coverage

Products and

Accessories

defined above, unless

otherwise provided for

below.

One (1) year

from the date of

purchase by the first consumer

purchaser of the product unless

otherwise provided for below.

Decorative

Accessories and

Cases.

Decorative

covers, bezels,

PhoneWrap™ covers

and cases.

Limited lifetime warranty

for the

lifetime of ownership by the first

consumer purchaser of the product.

Monaural Headsets.

Ear buds and boom

headsets that transmit

mono sound through a

wired connection.

Limited lifetime warranty

for the

lifetime of ownership by the first

consumer purchaser of the product.

A-11

Warranty

Exclusions

Normal Wear and Tear.

Periodic maintenance, repair and

replacement of parts due to normal wear and tear are excluded

from coverage.

Batteries.

Only batteries whose fully charged capacity falls below

80% of their rated capacity and batteries that leak are covered by

this limited warranty.

Abuse & Misuse.

Defects or damage that result from:

(a) improper operation, storage, misuse or abuse, accident or

neglect, such as physical damage (cracks, scratches, etc.) to the

surface of the product resulting from misuse; (b) contact with

liquid, water, rain, extreme humidity or heavy perspiration, sand,

dirt or the like, extreme heat, or food; (c) use of the Products or

Accessories for commercial purposes or subjecting the Product or

Accessory to abnormal usage or conditions; or (d) other acts which

are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories.

Defects or

damage that result from the use of Non-Motorola branded or

certified Products, Accessories, Software or other peripheral

equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages

resulting from service, testing, adjustment, installation,

maintenance, alteration, or modification in any way by someone

other than Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products.

Products or Accessories with (a) serial

numbers or date tags that have been removed, altered or

obliterated; (b) broken seals or that show evidence of tampering;

non-Motorola housings, or parts, are excluded from coverage.

Communication Services.

Defects, damages, or the failure of

Products, Accessories or Software due to any communication

service or signal you may subscribe to or use with the Products

Accessories or Software is excluded from coverage.

Software

Consumer and

Professional

Two-Way Radio

Accessories.

Ninety (90) days

from the date of

purchase by the first consumer

purchaser of the product.

Products and

Accessories that are

Repaired or

Replaced.

The balance of the original

warranty or for ninety (90) days

from the date returned to the

consumer, whichever is longer.

Products Covered Length of Coverage

Software.

Applies only to physical

defects in the media that embodies

the copy of the software (e.g.

CD-ROM, or floppy disk).

Ninety (90) days

from

the date of purchase.

A-12

Warranty

Exclusions

Software Embodied in Physical Media.

No warranty is made

that the software will meet your requirements or will work in

combination with any hardware or software applications provided

by third parties, that the operation of the software products will be

uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media.

Software that is

not embodied in physical media (e.g. software that is downloaded

from the internet), is provided “as is” and without warranty.

Who Is Covered?

This warranty extends only to the first consumer purchaser, and is

not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund

the purchase price of any Products, Accessories or Software that

does not conform to this warranty. We may use functionally

equivalent reconditioned/refurbished/pre-owned or new Products,

Accessories or parts. No data, software or applications added to

your Product, Accessory or Software, including but not limited to

personal contacts, games and ringer tones, will be reinstalled. To

avoid losing such data, software and applications please create a

back up prior to requesting service.

How to Obtain Warranty Service or

Other Information

You will receive instructions on how to ship the Products,

Accessories or Software, at your expense, to a Motorola

Authorized Repair Center. To obtain service, you must include: (a) a

copy of your receipt, bill of sale or other comparable proof of

purchase; (b) a written description of the problem; (c) the name of

your service provider, if applicable; (d) the name and location of the

installation facility (if applicable) and, most importantly; (e) your

address and telephone number.

USA Phones

1-800-331-6456

Pagers

1-800-548-9954

Two-Way Radios and Messaging Devices

1-800-353-2729

Canada All Products

1-800-461-4575

TTY

1-888-390-6456

For

Accessories

and

Software

, please call the telephone

number designated above for the product with which they are

used.

A-13

Warranty

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE

REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS

EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL

MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE

PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,

OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR

OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,

ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE

DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or

exclusion of incidental or consequential damages, or

limitation on the length of an implied warranty, so the

above limitations or exclusions may not apply to you. This

warranty gives you specific legal rights, and you may also

have other rights that vary from state to state or from one

jurisdiction to another.

Laws in the United States and other countries preserve for

Motorola certain exclusive rights for copyrighted Motorola

software such as the exclusive rights to reproduce and distribute

copies of the Motorola software. Motorola software may only be

copied into, used in, and redistributed with, the Products

associated with such Motorola software. No other use, including

without limitation disassembly of such Motorola software or

exercise of the exclusive rights reserved for Motorola, is

permitted.

A-14

Hearing Aids

Hearing Aid Compatibility with Mobile Phones

Hearing Aids

Some Motorola phones are measured for compatibility with

hearing aids. If the box for your particular model has “Rated for

Hearing Aids” printed on it, the following explanation applies.

When some mobile phones are used near some hearing devices

(hearing aids and cochlear implants), users may detect a buzzing,

humming, or whining noise. Some hearing devices are more

immune than others to this interference noise, and phones also

vary in the amount of interference they generate.

The wireless telephone industry has developed ratings for some of

their mobile phones, to assist hearing device users in finding

phones that may be compatible with their hearing devices. Not all

phones have been rated. Phones that are rated have the rating on

their box or a label on the box.

The ratings are not guarantees. Results will vary depending on the

user’s hearing device and hearing loss. If your hearing device

happens to be vulnerable to interference, you may not be able to

use a rated phone successfully. Trying out the phone with your

hearing device is the best way to evaluate it for your personal

needs.

M-Ratings:

Phones rated M3 or M4 meet FCC requirements and

are likely to generate less interference to hearing devices than

phones that are not labeled. M4 is the better/higher of the two

ratings.

T-Ratings:

Phones rated T3 or T4 meet FCC requirements and are

likely to be more usable with a hearing device’s telecoil (“T

Switch” or “Telephone Switch”) than unrated phones. T4 is the

better/higher of the two ratings. (Note that not all hearing devices

have telecoils in them.)

Hearing devices may also be measured for immunity to this type of

interference. Your hearing device manufacturer or hearing health

professional may help you find results for your hearing device. The

more immune your hearing aid is, the less likely you are to

experience interference noise from mobile phones.

A-15

WHO Information

Information from the World Health Organization

WHO Inf ormati on

Present scientific information does not indicate the need for any

special precautions for the use of mobile phones. If you are

concerned, you may want to limit your own or your children’s RF

exposure by limiting the length of calls or by using handsfree

devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information:

http://www.who.int./peh-emf

Product Registration

Registration

Online Product Registration:

direct.motorola.com/hellomoto/

Motosupport/source/registration.asp

Product registration is an important step toward enjoying your new

Motorola product. Registering helps us facilitate warranty service,

and permits us to contact you should your product require an

update or other service. Registration is for U.S. residents only and

is not required for warranty coverage.

Please retain your original dated sales receipt for your records. For

warranty service of your Motorola Personal Communications

Product you will need to provide a copy of your dated sales receipt

to confirm warranty status.

Thank you for choosing a Motorola product.

A-16

Export Law

Export Law Assurances

Export Law

This product is controlled under the export regulations of the

United States of America and Canada. The Governments of the

United States of America and Canada may restrict the exportation

or re-exportation of this product to certain destinations. For further

information contact the U.S. Department of Commerce or the

Canadian Department of Foreign Affairs and International Trade.

Wireless: The New Recyclable

Recycling

Your wireless mobile device can be recycled. Recycling your

mobile device reduces the amount of waste disposed in landfills

and allows recycled materials to be incorporated into new

products.

The Cellular Telecommunications Industry Association (CTIA) and

its members encourage consumers to recycle their mobile devices

and have taken steps to promote the collection and

environmentally sound recycling of end-of-life devices.

As a mobile device user, you have an important role in ensuring

that this device is recycled properly. When it comes time to give

this mobile device up or trade it in for a new one, please remember

that the mobile device, the charger, and many of its accessories

can be recycled. It's easy. To learn more about CTIA's Recycling

Program for Used Wireless Devices, please visit us at::

recycling.motorola.young-america.com/

index.html

A-17

Driving Safety

Smart Practices While Driving

Drivin g Safety

Drive Safe, Call Smart

Check the laws and regulations on the use of mobile

devices and their accessories in the areas where you drive.

Always obey them. The use of these devices may be

prohibited or restricted in certain areas. Go to

www.motorola.com/callsmart

for more

information.

Your mobile device lets you communicate by voice and

data—almost anywhere, anytime, wherever wireless service is

available and safe conditions allow. When driving a car, driving is

your first responsibility. If you choose to use your mobile device

while driving, remember the following tips:

• Get to know your Motorola mobile device and its

features such as speed dial and redial.

If available,

these features help you to place your call without taking

your attention off the road.

• When available, use a handsfree

device.

If possible, add an additional

layer of convenience to your mobile device

with one of the many Motorola Original

handsfree accessories available today.

• Position your mobile device within easy reach.

able to access your mobile device without removing your

eyes from the road. If you receive an incoming call at an

inconvenient time, if possible, let your voice mail answer

it for you.

• Let the person you are speaking with know you are

driving; if necessary, suspend the call in heavy

traffic or hazardous weather conditions.

Rain, sleet,

snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while

driving.

Jotting down a “to do” list or going through your

address book takes attention away from your primary

responsibility—driving safely.

• Dial sensibly and assess the traffic; if possible,

place calls when your car is not moving or before

pulling into traffic.

If you must make a call while

moving, dial only a few numbers, check the road and your

mirrors, then continue.

• Do not engage in stressful or emotional

conversations that may be distracting.

Make people

you are talking with aware you are driving and suspend

conversations that can divert your attention away from the

road.

A-18

Driving Safety

• Use your mobile device to call for help.

Dial 911 or

other local emergency number in the case of fire, traffic

accident, or medical emergencies.*

• Use your mobile device to help others in

emergencies.

If you see an auto accident, crime in

progress, or other serious emergency where lives are in

danger, call 911 or other local emergency number, as you

would want others to do for you.*

• Call roadside assistance or a special

non-emergency wireless assistance number when

necessary.

If you see a broken-down vehicle posing no

serious hazard, a broken traffic signal, a minor traffic

accident where no one appears injured, or a vehicle you

know to be stolen, call roadside assistance or other

special non-emergency wireless number.*

* Wherever wireless phone service is available.

Motorola Mobility T56GK1 Dual-Band GSM Portable Transceiver User Manual W220

Motorola Mobility LLC Dual-Band GSM Portable Transceiver W220

Exhibit 8 Users Manual

Navigation menu

Namespaces

Views

Navigation
