1
HELLOMOTO
Introducing your new Motorola V323i CDMA wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Camera Key
Make &
answer calls.
Volume Keys
Smart/
Speakerphone
Key
Right Soft Key
Clear/Back Key
Turn on & off,
hang up, exit
menus.
Center Key
In idle display: open
main menu.
In menus: select
options.
& @ã É
New Message
Ã
External Display
View caller ID & status
icons.
Camera Lens
Take photos to send
to others & use on
your phone.
Headset Jack
Self Portrait Mirror
Ring Lights
Indicate incoming
calls & other events.
2
Home Screen
Main Menu
7/7/05
3O\ruôÉ
6:35am
Contacts Recent
e
h
M
J
p
s
n
t
SELECT EXIT
JÜ
8k
Voice Records
h
u
1
2

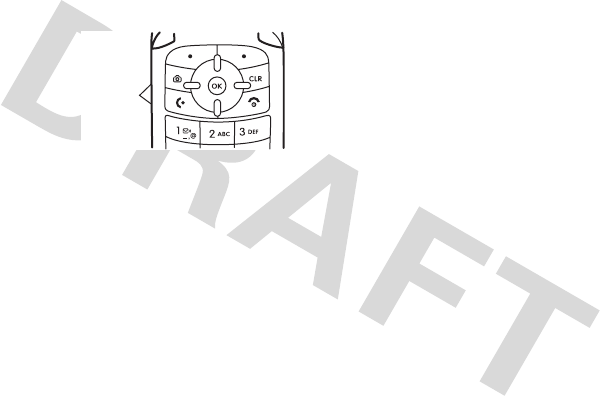

Press the Navigation Key
up, down, left, or right
(
S
)
to highlight a menu feature.
3
4
Press and hold the
Power Key
for a
few seconds, or until
the screen lights up,
to turn on your
phone.
Press the r key
to select.
Press the r key
to open the
Main Menu
.
3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. Java and all other
Java-based marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
© Motorola, Inc., 2006.
Manual Number: 6809502A05-O
4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 12
answer a call . . . . . . . . 12
adjust volume . . . . . . . 12
change the call alert. . . 13
store a phone number . 13
call a stored phone
number . . . . . . . . . . . . 14
view your phone
number . . . . . . . . . . . . 14
main attractions . . . . . . 15
take & send a photo . . 15
send a multimedia
message . . . . . . . . . . . 17
receiving a
multimedia message . . 19
cable connections . . . . 20
Bluetooth
connections . . . . . . . . . 20
TTY operation . . . . . . . 22
basics . . . . . . . . . . . . . . . 24
display . . . . . . . . . . . . . 24
text entry . . . . . . . . . . . 27
handsfree speaker. . . . 33
external display . . . . . . 33
codes & passwords. . . 34
lock & unlock phone . . 35
customize. . . . . . . . . . . . 36
store your name &
phone number . . . . . . . 36
ring styles & alerts. . . . 36
set answer options . . . 37
set wallpaper . . . . . . . . 37
set screen saver . . . . . 38
backlight . . . . . . . . . . . 38
AGPS & your
location . . . . . . . . . . . . 39
AGPS limitations
& tips . . . . . . . . . . . . . . 39
conserving battery
power . . . . . . . . . . . . . 40
calls. . . . . . . . . . . . . . . . . 41
change active line . . . . 41
turn off a call alert . . . . 41
contents
5
redial a number. . . . . . 41
automatic redial . . . . . 41
recent calls . . . . . . . . . 42
return a missed call . . 43
notepad . . . . . . . . . . . 43
attach number . . . . . . 43
emergency calls . . . . . 44
AGPS during an
emergency call . . . . . . 44
speed dial . . . . . . . . . . 45
voicemail . . . . . . . . . . 46
other features . . . . . . . . 47
advanced calling . . . . . 47
contacts . . . . . . . . . . . 49
messages . . . . . . . . . . 52
personalize . . . . . . . . . 54
call times . . . . . . . . . . 58
handsfree . . . . . . . . . . 59
data & fax calls . . . . . . 61
network . . . . . . . . . . . 61
personal organizer . . . 62
security. . . . . . . . . . . . 63
fun & games. . . . . . . . 64
service & repairs. . . . . . 65
Specific Absorption
Rate Data. . . . . . . . . . . . 66
6
menu map
menu map
main menu
w
Settings
• (see next page)
h
Media Gallery
•Camera
•Pictures
• Sounds
• Video Camera
t
Ring Styles
•Style
•Style Detail
• Ring Lights
• Event Lights
J
Brew
Ü
Voi c e Re cords
n
Contacts
8
Datebook
e
Messaging
•Voicemail
• New TXT Msg
• Inbox
•Drafts
•Saved
•Quick Notes
• Sent
• Settings
f
Extras
• Recent Calls
• Tools
This is the standard main menu layout. Your
phone’s menu may be a little different.
menu map
7
settings menu
Personalize
• Home Screen
• Main Menu
•Voice Dial Setup
•Skin
• Greeting
• Wallpaper
• Screen Saver
• Sound Settings
In-Call Setup
• In-Call Timer
• Answer Options
•MSG Alert
Security
• Phone Lock
• Lock Keypad
• Lock Application
• Restrict Calls
•New Passwords
• Data Connection
Initial Setup
• SpeakerPhone
• Auto PIN Dial
• Auto Redial
• Backlight
• TTY Setup
•Scroll
• Language
• Battery Save
• Brightness
•DTMF
• Hyphenation
• Master Reset
• Master Clear
Network Options
• Current Network
• Analog Only
• Set Mode
• Service Tone
• Call Drop Tone
Car Settings
• Auto Answer
• Auto Handsfree
• Power-off Delay
• Charger Time
Headset
• Auto Answer
• Voice Dial
Location
• Location On
•911 Only
Connection
• Incoming Call
• Bluetooth Link
Phone Status
• My Tel. Number
• Active Line
• Battery Meter
• Other Information
8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
9
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it:
Press
r
>
hMedia Gallery
>
Pictures
This means that, from the home screen:
1
Press
r
to open the menu.
2
Press the navigation key
S
to scroll to
hGallery
, and press
r
to select it.
3
Press the navigation key
S
to scroll to
Pictures
, and press
r
to select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is
network/subscription dependent
and may not be available in all areas.
Contact your service provider for
more information.
This means a feature requires an
optional accessory.
10
essentials
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
•
New batteries or batteries stored for a
long time may take more time to
charge.
•
When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
•
Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
•
It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
032375o
11
essentials
battery installation
1
2
3
4
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone and an electrical outlet. Your
phone might take several seconds to start
charging the battery. Your display shows
Charge Complete
when finished.
Tip:
Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
12
essentials
turn it on & off
To tu r n o n yo u r
phone, press and
hold
O
for a few
seconds or until
the display turns
on. If prompted,
enter your four-digit unlock code.
To turn off your phone, press and hold
O
for
two seconds.
make a call
Enter a phone number and press
N
to make
a call.
To “hang up,” close the flip or press
O
.
answer a call
When your phone rings and/or vibrates, just
open the flip or press
N
to answer.
To “hang up,” close the flip or press
O
.
adjust volume
Press the
volume keys up
or down to:
•
increase
or
decrease
earpiece volume during a call
•
increase or decrease the ringer volume
setting when the home screen is
visible (with the flip open)
•
turn off an incoming call alert
Power
Key
Volume
Keys
13
essentials
change the call alert
flip open
From the home
screen, press
the down
volume key to
switch to lower
call alert
volume, then vibrate, and finally silent alert.
Press the up volume key to cycle back from
silent alert to vibrate and thend to the lowest
alert volumen setting.
flip closed
Press the up or down volume key, then press
the smart/speakerphone key to scroll through
the alert styles:
Loud
,
Soft
,
Vibrate
,
Vibrate then Ring
,
and
Silent
. The alert styles are shown on the
phone’s external display.
After scrolling to the desired alert style, press
the up or down volume key to save the setting
and return to the home screen.
store a phone number
You can store a phone number in
Contacts
:
1
Enter a phone number in the home
screen.
2
Press the
Store
key.
3
Enter a name and other details for the
phone number. To select a highlighted
item, press
r
.
4
Press the
Done
key to store the number.
To edit or delete a
Contacts
entry, see page 142.
To store an email address, press
r
>
nContacts
>
[New Entry]
>
Email Address
.
Enter the new contact’s name and email
address information.
Volume
Keys
14
essentials
call a stored phone
number
Find it:
Press
r
>
nContacts
1
Scroll to the
Contacts
entry.
Shortcut:
In
Contacts
, press keypad keys to
enter the first letters of an entry you want.
You can also press
*
and
#
to see the
entries you use frequently, or entries in
other categories.
2
Press
N
to call the entry.
view your phone
number
Find it:
Press
r
>
wSettings
>
Phone Status
>
My Tel. Number
Tip:
Want to see your phone number while
you’re on a call? Press
Options
>
My Tel. Number
.
15
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
take & send a photo
You can take a photo with your phone and
sent it in a multimedia message to other
wireless phone users.
To activate your phone’s camera:
1
Press the camera key
e
.
Your phone displays the active viewfinder
image:
2
Point the camera lens at the photo
subject, then press
e
to take a photo.
ß
480x640
Press right soft
key to return to
previous screen.
Press left soft
key to view
Options menu.
Options Exit
N
Zoom
1x
621
Displays when
you press
S
to
change photo
settings.
16
main attractions
Press
S
up and down to select one of
these settings:
•
Zoom
—Press
S
left and right to
increase or decrease image size.
•
Style
—Press
S
left or right to scroll to
Color
,
Black and White
,
Antique
, or
Negative
.
•
Lighting Conditions
—Press
S
left or right
to scroll to
Automatic
,
Sunny
,
Cloudy
,
Indoor (Home)
,
Indoor (Office)
, or
Night
.
Press
Options
to open the
Pictures
menu and
adjust camera settings (see page 16).
3
Press
e
to store the photo.
or
Press
Options
to view the
Store Options
menu
selections:
Store Only
,
Apply as Wallpaper
,
Apply
as Screen Saver
,
Apply as Contacts Entry
.
or
Press
Send
to go to the
Send Options
menu
and send the photo in a multimedia
message or send it to an online album.
adjust camera settings
When the camera is active, press
Options
to
open the
Pictures
menu, which can include
these options:
options
Go To Pictures
View pictures and photos
stored on your phone.
Auto-Timed
Capture
Set a timer for the camera
to take a photo.
Camera Setup
Change resolution, image
quality, or shutter tone.
Capture Title
Assign a name to a captured
photo.
17
main attractions
send a multimedia
message
A multimedia message contains embedded
media objects (possibly including photos,
pictures, animations, sounds, and voice
records). You can send a multimedia message
to other wireless phones with multimedia
messaging capabilites and to email
addresses.
create & send message
Note:
You can send the message after
entering a recipient phone number or email
address and the message text. You do not
need to complete the other entry fields.
Find it:
Press
r
>
e
>
Messaging
>
Create Message
1
Scroll to
New Picture Message
and press
Select
.
2
Enter message text.
Press
OPTIONS
to open the
MMS Menu
(see “mms message options” on
page 19).
3
With
Insert
highlighted, press
Select
to open
the
Insert Options
menu.
4
Scroll to one of the following options and
press
Select
:
•
—Insert a saved picture or photo.
•
New Picture
—Take a new photo to insert
into the message (see “take & send a
photo” on page 15.
•
Voice Record
—Insert a voice record.
•
Sound
—Insert a saved sound.
View Free Space
See how much memory
remains for storing pictures.
options
18
main attractions
•
Quick Text
—Insert a prewritten message.
Your phone comes with several quick
text messages, and you can create
additional ones.
5
After you add a multimedia object, press
Send To
.
6
Scroll to an entry to receive the message
and press
r
.
or
Scroll to [
New Number]
and press
r
to enter
a phone number. On the
To:
screen, enter
the number and press
Ok
, or press
Options
to select a number from
Contacts
.
or
Scroll to
[New Email Address]
and press
r
to
enter an email address.
7
Press
SEND
to send the message.
or
Press
OPTIONS
to open the
Send To Menu
,
which can include these options:
•
Message Options
—Open the
Message Options
menu to copy other recipients, enter a
message subject, add attachments, set
message priority, or request a
message delivery report.
•
Message Details
—View detailed
information about the message.
•
Save to Drafts
—Save the message to the
Drafts
folder.
•
Abort Message
—Cancel the message and
return to the
Message Center
.
19
main attractions
mms message options
While creating a multimedia message, press
Options
to open the
MMS Menu
:
receiving a
multimedia message
When you receive a multimedia message or
letter, your phone sounds an alert and displays
the
<
(message waiting) indicator and a
New
Message
notification.
To view a multimedia message
, press
READ
.
•
Photos, pictures, and animations are
displayed when you read the message.
options
Insert
Insert a multimedia object.
Message Options
Open the
Message Options
menu to copy other
recipients, enter a message
subject, add attachments,
set message priority, or
request a message delivery
report.
Set Page Timing
Specify how long each
multimedia object is
displayed.
Message Details
View detailed information
about the message.
Entry Mode
Select a text entry mode
(see page 27).
Entry Setup
Specify default primary and
secondary entry modes (see
page 27).
Cancel Message
Cancel the message and
return to the
Message Center
.
options
20
main attractions
•
A sound file begins playing when the
message text is displayed. Use the
volume keys to adjust the volume.
Note:
You may have to select an
indicator embedded in the message
text to play a sound file.
If the message includes an attached file
,
select the file indicator or filename and press
VIEW
(for an image file),
PLAY
(for a sound file),
or
OPEN
(for an object such as a
Contacts
or
datebook entry or an unknown file type).
cable connections
Your phone has a mini-USB port so you can
connect it to a computer.
If you use a USB cable connection:
•
Make sure to connect the phone to a
high-power USB port on your computer
(not a low-power one such as the USB
port on your keyboard or bus-powered
USB hub). Typically, USB high-power
ports are located directly on your
computer.
Note:
If you connect your phone to a
low-power USB port, the computer
may not recognize your phone.
•
Make sure both your phone and the
computer are turned on.Bluetooth®
connections
Bluetooth® connections
Your phone supports Bluetooth connections.
You can connect your phone to a Bluetooth
headset or car kit, or connect to another
device to exchange and synchronize files.
Your phone currently supports the following
Bluetooth profiles:
21
main attractions
•
headset (optional Motorola Original™
accessory)
•
Handsfree Car Kit (optional Motorola
Original accessory)
For more Bluetooth wireless connections
support, go to
www.motorola.com/Bluetoothsupport
.
Note:
All multimedia (video player, audio
player, shutter tones) will play from the
speakerphone when your phone is connected
to another Bluetooth device.
turn Bluetooth power on/off
Set Bluetooth power to be on whenever your
phone is on.
Find it:
Press
r
>
wSettings
>
Connection
>
Bluetooth Link
1
Scroll to
Power
and press
Change
.
2
Scroll to
On
and press
Select
.
To extend battery life, use the above
procedure and set Bluetooth power to
Off when not in use. If you turn Bluetooth
power Off, your phone will not connect to
accessories until you turn Bluetooth power
On and reconnect to the accessories.
pair with headset, handsfree
device, or computer
Before you try to connect to another
Bluetooth device,
make sure your phone’s
Bluetooth power is
On
and the device is in
pairing mode (see the user guide for the
device you are attempting to pair with). You
cannot perform pairing while your phone is
connected to another device.
To pair your phone to a headset accessory,
handsfree car kit, or PC that supports
Bluetooth wireless connections:
22
main attractions
Find it:
Press
r
>
wSettings
>
Connection
>
Bluetooth Link
>
Handsfree
>
[Lookf For Devices]
Your phone displays a list of device(s) located
within range of the phone. If your phone is
already connected to a device, your phone
lists that device and identifies it with a
\
(in-use indicator). Once a connection is
established with a device, no other device can
connect to your phone until the currently
connected device is disconnected.
1
Highlight a device in the list of devices
your phone found.
2
Press
r
to connect the device.
3
If the device requests permission to bond
with your phone, select
YES
and enter the
device PIN code to create a secure
connection with the device.
Note:
The default PIN code is 0000.
When the connection is made, the
à
(Bluetooth) indicator or a
Bluetooth
message
displays in the home screen.
For specific information about an accessory,
refer to the instructions that came with it.
TTY operation
You can use an optional TTY device with your
phone to send and receive calls. You must
plug the TTY device into the phone’s headset
connector and set the phone to operate in
one of three TTY modes.
Note:
Use a TSB-121 compliant cable
(provided by the TTY manufacturer) to
connect the TTY device to your phone.
Note:
Set the phone to level 4 (middle setting)
for proper operation. If you experience a high
number of incorrect characters, adjust the
volume as needed to minimize the error rate.
23
main attractions
Note:
For optimal performance, your phone
should be at least 12 inches (30 centimeters)
from the TTY device. Placing the phone too
close to the TTY device may cause high error
rates.
set TTY mode
ù
When you set your phone to a TTY mode,
it operates in that mode whenever the TTY
device is connected:
Find it:
Press
r
>
w
>
Settings
>
Initial Setup
1
Scroll to
TTY Setup
and press
CHANGE
.
2
Scroll to the desired TTY mode and press
SELECT
.
TTY Setup
can include these options:
When your phone is in a TTY mode, your
phone displays the international TTY mode,
the international TTY symbol, and the mode
setting during an active TTY call.
return to voice mode
To return to standard voice mode, select
Voice
from the
TTY Setup
menu.
option
Voice
Return to standard voice mode.
TTY
Transmit and receive TTY
characters.
VCO
Receive TTY characters but
transmit by speaking into
microphone.
HCO
Transmit TTY characters but
receive by listening to earpiece.
option
24
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on
the phone. To dial a number from the home
screen, press number keys and
N
.
Note:
Your home screen may look different
from the one below.
Soft key labels show the current soft key
functions. For soft key locations, see page 1.
3O\ ruõÉ
Me
J
Right Soft Key
LabelLeft Soft Key
Label
Clock
Contacts Recent
6:35am
7/7/05
h
25
basics
Status indicators can show at the top of the
home screen:
system status indicators
option
6 Signal
Strength Indicator
Vertical bars show the
strength of the network
connection.
W
Roaming
Indicator
Indicates phone is in a
digital coverage area and is
roaming off network.
032419o
3O\ruõÉ
System
Status
Indicators
11/7/06
e
h
M
J
Contacts Recent
6:35am
D
Digital
Indicator
Indicates phone is in a
CDMA digital coverage
area.
F
Analog
Indicator
Indicates phone is in an
analog coverage area.
I
1X Indicator
Indicates phone is in a
1x-RTT coverage area.
5
SSL
Indicator
Indicates application
verification is via SSL during
a download session.
6
Voice Privacy
Indicator
Indicates Voice Privacy is
set to On and is enabled
during active call.
option
26
basics
L
Data Call,
Tethered, or
Embedded
WAP/BREW
Application
Indicator
Shows during data call,
tethered mode, or
WAP/BREW application.
9
No Service
Indicator
Phone is in area with no
service coverage.
8
TTY Indicator
Phone is in TTY mode (see
page 22).
t
Voice Call
Indicator
Shows during an active
voice call.
P
E911 Indicator
Shows when
E911
is
On
.
O
Location On
Indicator
Shows when
Location
is set to
On
.
9
Keypad Lock
Indicator
Shows when keypad lock is
set to
On
.
option
ì
Battery
Level Indicator
Shows battery charge level.
The more bars, the greater
the charge.
Í
All Sounds
Off
Indicates
Master Volume
is set
to
Off
.
o
Alarm Only
Indicates
Master Volume
is set
to
Alarm Only
.
Î
Vibrate On
Indicates
Master Volume
is set
to
Vibrate On
.
Ì
Sound On,
Vibrate On
Indicates
Master Volume
is set
to
Sound On
and
Vibrate On
.
<
Message
Indicator
Displays when you receive a
new message.
option
27
basics
menu shortcuts
Your phone displays four menu icons in the
middle of the home screen.
Press
S
left, right, up, or down to open the
menu for the corresponding icon.
You can change the menu icons that appear in
the home screen or set your phone not to
display icons in the home screen (see xx).
text entry
Some features let you enter text. The
following is a sample of a screen for entering
information for a
Contacts
entry:
032419o
3O\
11/7/06
e
h
M
J
ruõÉ
Contacts Recent
6:35am
3
ôÉ
t
Entry Details
Done Cancel
Press
Done
to save all changes.
Highlighted
Option
Press
Cancel
to exit
without
making
changes.
Name: John Smith
No.: 2125551212
Type: Mobile
Speed No.: 6
Category: General
28
basics
The following is a sample screen for
composing a message:
choose a text entry mode
Multiple text entry modes make it easy for
you to enter names, numbers, and messages.
The mode you select stays active until you
choose another mode.
To select an entry mode
, press
*
in a text
entry view:
Tip:
You can also select a text entry method
from any text entry screen by pressing
Options
>
Entry Mode
.
Options Cancel
uõÉ
3
O
Flashing cursor
indicates
insertion point.
Press
Cancel
to exit without
making changes.
160
Abc 1 Msg
Press
Options
to view
Message Menu.
entry mode
Primary
The primary text entry mode.
Numeric
Enter numbers only (see page 32).
Symbol
Enter symbols only (see page 32).
Seconday
The secondary text entry mode.
29
basics
set up a text entry method
From any text etnry screen, press
Options
>
Entry Setup
, select
Primary Setup
or
Secondary Setup
,
and choose:
Note:
Your phone may not contain all of the
languages listed above.
When you select the
Primary
or
Secondary
text
entry method, the following indicators identify
the text
entry method
iTAP
English
Let the phone predict each
English word as you press keys.
iTAP
Français
Let the phone predict each
French word as you press keys.
iTAP
Español
Let the phone predict each
Spanish word as you press keys.
iTAP
Portuguêse
Let the phone predict each
Portuguese word as you press
keys.
Tap
Enter letters and numbers by
pressing a key one or more
times.
Tap
Extended
Enter letters, numbers, and
symbols by pressing a key one or
more times.
None Hide the Secondary
setting (only
available for
Secondary Setup
).
primar
y
secon
dary
gm
Tap, no capital letters
ùú
Tap, capitalize next letter
only
fl
Tap, all capital letters
entry method
30
basics
The
W
indicator identifies
Numeric
entry
method. The
[
indicator identifies
Symbol
entry method.
tap method
This is the standard method for entering text
on your phone.
Regular
Tap
method cycles through the letters
and numbers of the key you press. The
Tap
Extended
method cycles through letters,
numbers,
and
symbols.
1
Press a keypad key one or more times to
select a letter, number, or symbol.
2
Enter the remaining characters.
Tip:
Press
S
right or
*
to insert a space.
When you enter text with the
Tap
or
Tap Extended
method, the soft key functions change.
When you enter three or more characters in a
row, your phone may guess the rest of the
jp
iTAP, no capital letters
kn
iTAP, capitalize next letter
only
io
iTAP, all capital letters
primar
y
secon
dary
Select Cancel
Ug
Msg
T
uõÉ
5O\
Character
displays at
insertion point.
After
2 seconds,
character is
accepted and
cursor moves to
next position.
Press
Cancel to
cancel entry &
return to previous
screen.
Press
Select
to accept
and store text.
159
31
basics
word. For example, if you enter
prog
, you might
see:
If you want a different word, continue
pressing keys to enter the remaining
characters.
•
The first character of every sentence is
capitalized. If necessary, press
S
down to change the character to
lowercase before the cursor moves to
the next position.
•
Press
S
to move the flashing cursor
to enter or edit message text.
•
If you don’t want to save your text or
text edits, press
O
to exit without
saving.
iTAP® method
The iTAP method lets you enter words using
one key press per letter. The iTAP software
combines your key presses into common
words, and predicts each word as you enter it.
1
Press keypad keys to show possible letter
combinations at the bottom of the screen.
2
Scroll left or right to highlight the
combination you want.
3
Press
Select
to lock a highlighted
combination.
You can press keys to add more letters to
the end of the combination.
or
Select Cancel
uôÉ
5O\
143
Press
S
right
to accept
Program
, or
press
*
to
reject it and
enter a space
after
prog
.
Ug
Msg
This is a prog ram
32
basics
Press
*
to enter the highlighted
combination when it spells a word. A
space is inserted after the word.
For example, if you press
7764
, your
phone displays leter combinations that match
your key presses:
If you enter a word your phone does not
recognize, your phone stores the word to use
as a future word option. When you run out of
phone memory for unrecognized words, your
phone deletes the oldest word to add new
words.
numeric method
When using the numeric method, press the
number keys to enter the numbers you want.
symbol method
When using the symbol entry method:
1
Press keypad keys to show possible letter
combinations at the bottom of the screen.
2
Scroll left or right to highlight the symbol
you want.
3
Press
Select
to enter the highlighted
symbol.
Select Cancel
uôÉ
5O\
143
Press
S
up
to accept
program.
Ug
Msg
This is a prog ram
Press
S
right
to highlight
another
combination.
Press Select
to lock
highlighted
combination.
Press Cancel to
delete last letter.
prog proh proi
33
basics
handsfree speaker
Note:
You must open your phone’s flip to use
the speakerphone
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
During a call
(with the flip
open), press
and hold the
smart/speakerp
hone key to
turn the
handsfree speaker on. Your phone displays
Speaker Phone and plays a soft audio alert.
The handsfree speaker stays on until you
press and hold the smart/speakerphone key
again or turn off the phone.
Note:
The handsfree speaker won’t work
when your phone is connected to a handsfree
car kit or headset.
external display
When you close your phone, you can use the
external display for the following:
•
View time and phone status
information.
•
Set phone alert styles.
•
View message notifications.
To set the phone alert style using the
external display
:
1
Press the volume keys up or down to
scroll through styles.
2
Press the smart/speakerphone key to
select the displayed style.
Volume
Keys
Smart/
Speakerphone
Key
34
basics
3
Press the volume keys up or down to
return to the home screen.
To view an unanswered call when you see
X Missed Calls
in the external display
:
Note:
Because the microphone and earpiece
are unavailable when the phone is closed, you
must use a headset or other handsfree device
with this feature.
1
Press the smart/speakerphone key to
view the received calls list.
2
Press the volume keys up or down to
scroll through and select a call.
3
Press the smart/speakerphone key to
view the selected call.
codes & passwords
Your phone’s four-digit
unlock code
is
originally set to
1234
. The six-digit
security
code
is originally set to
000000
. If your
service provider didn’t change these codes,
you should change them:
Press
r
>
wSettings
>
Security
>
New Passwords
.
If you forget your unlock code:
At the
Enter Unlock Code
prompt, try entering 1234 or the
last four digits of your phone number. If that
doesn’t work:
1
Press
r
to display the unlock code
bypass screen.
2
Enter your six-digit security code and
press
OK
.
If you forget your security code
, contact
your service provider.
35
basics
lock & unlock phone
You can lock your phone to keep others from
using it. To lock or unlock your phone, you
need the four-digit unlock code.
Note:
You can make emergency calls on a
locked phone (see page 44). A locked phone
still rings or vibrates for incoming calls or
messages,
but you need to unlock it to
answer
.
To
manually lock
your phone:
Press
r
>
wSettings
>
Security
>
Phone Lock
>
Lock Now
. Enter the four-digit unlock code,
then press
OK
.
To
automatically lock
your phone whenever
you turn it off:
Press
r
>
wSettings
>
Security
>
Phone Lock
>
Automatic Lock
. Enter the four-digit unlock
code, press the
OK
key, then select
On
.
36
customize
customize
store your name &
phone number
Find it:
Press
r
>
wSettings
>
Phone Status
>
My Tel. Number
If you don’t know your phone number, contact
your service provider.
ring styles & alerts
Your phone rings and/or vibrates to notify you
of an incoming call or to signal certain other
events. This ring or vibration is called an alert.
set a style
Find it:
Press
r
>
tRing Styles
1
Scroll to
Style
and press
Change
.
2
Scroll to the desired ring style and press
Select
.
set alerts
Your phone includes alerts for
Calls
,
Inbox
,
Voicemail
,
Alarms
,
Data Calls
,
Fax Calls
, and
Reminders
.
You can specify a detailed setting for each
type of alert:
Find it:
Press
r
>
tRing Styles
1
Scroll to Style
Detail
and press
Change
.
2
Scroll to the desired alert type and press
Change
.
37
customize
3
Scroll to the desired detail setting and
press
Select
.
4
Repeat steps 2 and 3 for each alert you
want to set.
set answer options
You can use different ways to answer an
incoming call. To turn on or turn off an answer
option:
Press
r
>
wSettings
>
In-Call Setup
>
Answer Options
.
set wallpaper
Set a photo, picture, or animation as a
wallpaper (background) image in your home
screen.
Note:
Yo u r theme can set your wallpaper
(page 38).
Press
r
>
wSettings
>
Personalize
>
Wallpaper
.
options
Multi-Key
Answer by pressing any key.
Open To Answer
Answer by opening the flip.
options
Press
S
up or down to select a
picture, or select
None
for no
wallpaper.
Layout
Select
Center
to center the image in
the display,
Tile
to repeat the
image across the display, or
Fit-to-screen
to resize the image, if
needed, to fit on the screen.
38
customize
set screen saver
Set a photo, picture, or animation as a screen
saver image.
The screen saver image displays when the flip
is open and no activity is detected for a
specified time period. The image shrinks to fill
the display, if necessary. An animation
repeats for one minute, then the first frame of
the animation displays.
Tip:
Turn off the screen saver to extend
battery life.
Find it:
Press
r
>
wSettings
>
Personalize
>
Screen Saver
To select a picture to use as a screen saver
:
1
Scroll to
and press
Change
to view
available pictures.
2
Scroll to the image you want and press
SELECT
.
Select
[None]
to turn off the screen saver.
To specify how long your phone must be
inactive before it displays the screen saver
:
1
Scroll to
Delay
and press
Change
.
2
Scroll to
1 minute
,
2 minutes
,
5 minutes
, or
10
minutes
, and press
Select
.
Select
Off
if you don’t want your phone to
display a screen saver.
backlight
Set the amount of time that the display
and keypad backlights remain on, or turn
off backlights to extend battery life.
Find it:
Press
r
>
wSettings
>
Initial Setup
>
Backlight
.
39
customize
AGPS & your
location
Your phone can use the automatic location
information feature, along with Assisted
Global Positioning System (AGPS) satellite
signals, to tell the network where you are
physically located.
When ALI is set to
Location On
, your phone
displays the
ä
(ALI on) indicator. Services
may use your known location to provide
useful information (for example, driving
directions, or the location of the nearest
bank). Your phone prompts you when the
network or a service asks for your location.
You can refuse at this point.
When ALI is set to
911 Only
, your phone
displays the
ã
(ALI off) indicator, and the
phone does not send location information
unless you call the emergency phone number
(such as 911).
Press
r
>
w
>
Settings
>
Location
>
Location On
or
911 Only
.
AGPS limitations & tips
Your phone uses assisted-Global Positioning
System (AGPS) satellite signals to estimate
your location. If your phone cannot find strong
satellite signals, your AGPS might be slower,
less accurate, or it might not work at all. AGPS
provides only an approximate location, often
within 150 feet (45 meters) but sometimes
much farther from your actual location.
To improve AGPS accuracy:
•
Go outside and away from
underground locations, covered
vehicles, structures with metal or
concrete roofs, tall buildings, and
40
customize
foliage. Indoor performance might
improve if you move closer to window,
but some window sun-shielding films
can block satellite signals.
•
Move away from radios, entertainment
equipment, and other electronic
devices that might interfere with or
block AGPS satellite signals.
•
Move away from radios, entertainment
equipment, and other electronic
devices that might interfere with or
block AGPS satellite signals.
•
Extend your phone antenna.
•
Hold your phone away from your body,
and point the phone antenna toward
the sky. Do not cover the antenna area
with your fingers.
AGPS uses satellites controlled by the U.S.
government and subject to changes
implemented in accordance with the
Department of Defense AGPS user policy and
the Federal Radio Navigation Plan. These
changes might affect AGPS performance.
conserving battery
power
Your phone includes an ambient light sensor
and
Battery Save
feature to help you extend
battery life. When you set
Battery Save
to
On
,
your phone automatically turns off the keypad
backlight when sufficient ambient light is
available. Inhibiting or covering the sensor
may cause intermittent backlight functioning.
Press
r
>
w
>
Settings
>
Initial Setup
>
Battery Save
.
41
calls
calls
To make and answer calls, see page 12.
change active line
Change the active phone line to make and
receive calls from your other phone number.
Press
r
>
w
>
Settings
>
Phone Status
>
Active Line
.
turn off a call alert
You can press the volume keys to turn off a
call alert before answering the call.
redial a number
1
Press
N
from the home screen.
2
Scroll to the entry you want to call and
press
N
.
automatic redial
When you receive a
busy signal
your
phone displays
Call Failed, Number Busy
, you
can press
N
or the
Retry
key to redial the
number.
When you set
Auto Redial
to
On
, your phone
automatically redials a busy number for four
minutes. When the call connects, your phone
rings or vibrates once, displays
Redial Successful
,
and completes the call.
Press
r
>
w
>
Settings
>
Initial Setup
>
Auto Redial
.
42
calls
When automatic redial is turned off, you can
manually activate the feature to redial a phone
number. When you hear a fast busy signal and
see
Call Failed
, press
N
or
RETRY
.
recent calls
Your phone keeps lists of incoming and
outgoing calls, even for calls that didn’t
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Tip:
Press
N
from the home screen to view
the dialed calls list.
Find it:
Press
r
>
fExtras
>
Recent Calls
1
Scroll to
Received
or
Dialed
and press
SELECT
.
2
Scroll to a call entry.
Note:
Scroll to a call. A
%
next to a call
means the call connected.
3
To call the number, press
N
.
To see call details (like time and date),
press
VIEW
.
To open the
Last Calls Menu
(see the table
following these steps), press
r
.
The
Last Calls Menu
can include these options:
option
Store
Create a
Contacts
entry with
the number in the
No.
field.
Store
does not appear if the
number is already stored.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Send Message
Open a new text message
with the number in the
To
field.
Add Digits
Add digits after the number.
43
calls
return a missed call
Your phone keeps a record of your
unanswered calls, and shows
X Missed Calls
,
where
X
is the number of missed calls.
1
Press the
View
key to see the received
calls list.
2
Scroll to the call you want to return, then
press
N
.
notepad
The most recent set of digits that you enter
are stored in your phone/s notepad memory.
These digits can be a number that you called
ar a number that you entered and want to
save for later.
To retrieve a number stored in the notepad
:
1
Press
r
>
fExtras
>
Recent Calls
>
Notepad
.
2
Press
N
to call the number.
or
Press
Options
to open the
Options
menu to
attach a number or insert a special
character.
Press
Store
to create a
Contacts
entry with
the number in the
No.
field.
attach number
While dialing (with digits visible on the
screen), press
r
>
Attach Number
to attach a
number from
Contacts
or the recent calls list.
Attach Number
Attach a number from the
Contacts
or recent calls lists.
option
44
calls
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or
112, that you can call under any
circumstances, even when your phone is
locked.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
1
Enter the emergency number.
2
Press
N
to call the emergency number.
AGPS during an
emergency call
When you make an emergency call, your
phone can use Assisted Global Positioning
System (AGPS) satellite signals to tell the
emergency response center your approximate
location.
The AGPS feature has limitations, so always
tell the emergency response center your best
knowledge of your location. Remain on the
phone for as long as the emergency response
center instructs you.
AGPS
might not work
for emergency calls:
•
Your phone’s AGPS feature must be
turned on (see page 39).
•
Your local emergency response center
might not process AGPS location
45
calls
information. For details, contact your
local authorities.
For best results:
•
Go outside and away from
underground locations, covered
vehicles, structures with metal or
concrete roofs, tall buildings, and
foliage. Indoor performance might
improve if you move closer to
windows, but some window sun
shielding films can block satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic
devices that might interfere with or
block AGPS satellite signals.
If your phone cannot find strong AGPS
satellite signals, the location of the nearest
cell tower in contact with your phone is
automatically provided to the emergency
response center.
speed dial
Each entry you store in
Contacts
is assigned a
unique speed dial number.
Tip:
To see an entry’s speed dial number,
press
r
>
nContacts
, then scroll to the entry
and press
VIEW
.
Note:
Your service provider may have already
assigned speed dial number 1 to your voice
mail number.
To speed dial a number:
1
Enter the speed dial number for the entry
you want to call and press
#
.
2
Press
N
to call the number.
46
calls
voicemail
Your network stores the voicemail
messages you receive. To listen to your
messages, call your voicemail number.
Note:
Your service provider may include
additional information about using this
feature.
When you
receive
a voicemail message, your
phone shows the voicemail message
indicator
t
and
New Voicemail
. Press
Call
to
listen to the message.
To
check
voicemail messages:
Press
r
>
eMessaging
>
Voicemail
>
CALL
.
Enter your four-digit unlock code if necessary
and press
r
.
Your phone may prompt you to store your
voicemail phone number. If you don’t know
your voicemail number, contact your service
provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number) character in this number. If you want
to store a voicemail number with these
characters, create a
Contacts
entry for it. Then,
you can use the entry to call your voicemail.
other features—advanced calling
47
other features
advanced calling
features
voice dial
Press and release the voice key (on the
right side of the phone), then (within two
seconds) say:
•
“Name dial,” followed by the name of
a
Contacts
entry.
or
•
“Digit dial,” followed by a number.
You can use
Digit Dial
for numbers stored in
Contacts
.
auto PIN dial
Some networks require an
authenticating PIN code to allow outgoing
calls. Use
Auto PIN Dial
to dial your PIN code
automatically.
To a c t i va t e
Auto PIN Dial
and save your PIN
code:
r
>
w
>
Settings
>
Initial Setup
>
Auto PIN Dial
features
48
other features—advanced calling
DTMF tones
r
>
w
>
Settings
>
Initial Setup
>
DTMF
To send DTMF tones .during a call, press
the number keys.
To send stored numbers as DTMF tones
during a call, highlight a number in
Contacts
or
the recent calls lists, then press
r
>
Send Tones
.
features
insert special characters
While entering a number, press the
OPTIONS
key. Then select one of the
following:
Insert Pause
—Your phone waits until the call
connects before it dials the next digit(s) in
the series.
Insert Wait
—Your phone waits until the call
connects, then prompts you for
confirmation before it dials the next digit(s).
Insert ‘n‘
—Your phone prompts you to enter a
number.
features
other features—contacts
49
contacts
features
create entry
r
>
nContacts
>
[New Entry]
>
Phone Number
create mailing list
Create a mailing list as a single
Contacts
entry:
r
>
nContacts
>
[New Entry]
>
Mailing List
You can add or delete entries to or from a
mailing list. Use a group name provided
byyour phone or create your own name.
When you send a message to a mailing list,
the message goes to all
Contacts
entries in
that list.
set ringer ID for an entry
Assign a ring alert (ringer ID) to an entry:
r
>
nContacts
> entry
Press
Options
, then scroll to
Edit
and press
Select
. Next, scroll to
Ringer ID
and press
r
.
Scroll to the desired ringer_name and press
Select
, then press
Done
to save the setting.
Activate ringer IDs:
r
>
tRing Styles
> style
Detail
>
Ringer IDs
features
50
other features—contacts
set picture ID for an entry
Assign a photo or picture to show when you
receive a call from an entry:
r
>
nContacts
> entry
Press
Options
, then scroll to
Edit
and press
Select
. Next, scroll to
and press
r
.
Scroll up or down to the desired picture and
press
Select
, then press
Done
to save the
setting.
set primary number
Set the primary number for a
Contacts
entry
with multiple numbers:
r
>
nContacts
> entry
Press
Options
, then scroll to
Set Primary
and
press
Select
.
features
view all or primary numbers
View all numbers or only primary numbers
for entries
r
>
nContacts
Press
Options
, then scroll to
Contacts Setup
and
press
Select
. Scroll to
View
and press
Change
,
then select
All Contacts
or
Primary Contacts
. Press
Done
to save your selection.
edit entry
r
>
nContacts
> entry
Press
Options
, then scroll to
Edit
and press
Select
.
delete entry
r
>
nContacts
> entry
Press
Options
, then scroll to
Delete
and press
Select
.
features
other features—contacts
51
copy entry
r
>
nContacts
> entry
Press
Options
, then scroll to
Copy Entry
and
press
Select
. Enter a location number (in
Contacts
) and press
Ok
.
copy multiple entries
r
>
nContacts
> entry
Press
Options
, then scroll to
Copy Entries
and
press
Select
. Enter the range of entries to
copy in the
From[start]
and
From[end]
fields.
Next, enter a location number where you
want the entries to be copied in the
To[start]
field. Press
Done
to copy the entries.
features
set category for an entry
r
>
nContacts
> entry
Press
Options
, then scroll to
Edit
and press
Select
. Scroll to
Category
, then scroll left or right
to the category you want. Press
Done
to save
your selection.
set category view for entries
You can show
All
entries, entries in a
predefined category, or entries in a
category you create.
r
>
nContacts
Press
Options
, then scroll to
Categories
and
press
Select
. Scroll to the desired category
and press
r
. Press
Exit
to save your
selection.
Shortcut:
To see other categories in
Contacts
,
press
*
or
#
.
features
52
other features—messages
messages
sort entries
Set the order in which entries are listed:
r
>
nContacts
> entry
Press
Options
, then scroll to
Setup
and press
Select
. Next, scroll to
Sort by
and press
Change
.
Scroll to
Name
,
Speed No
., or
Email
and press
Select
. Press
Done
to save your setting.
set speed dial number
r
>
nContacts
> entry
Press
Options
, then scroll to
Edit
and press
Select
. Next, scroll to
Speed No.
and press
r
.
Enter the speed dial number and press
Ok
,
then press
Done
to save the setting.
features
features
send text message
r
>
eMessaging
>
Create Message
>
New Text Message
use MMS template
Open an MMS template with
preloaded media:
r
>
eMessaging
>
Create Message
>
Picture Msg Templates
view sent messages
r
>
eMessaging
>
Outbox
53
other features—personalize
DRAFT
personalize
speech commands
Advanced Speech Recognition enables you to
place calls and access some menu options by
speaking commands to your phone.
1
Press and release the voice key on the
right side of the phone.
features
quick text
Quick text is a prewritten message
that you can quickly select and send. Your
phone comes with several quick notes, and
you can create additional ones.
To send or create a quick text message:
r
>
eMessaging
>
Quick Text
read received messages
r
>
eMessaging
>
Inbox
>received_message, then press
Open
(
r
)
view sent messages
r
>
eMessaging
>
Outbox
drafts
View messages saved in
Drafts
folder:
r
>
eMessaging
>
Drafts
> draft_message
erase messages
Delete all messages or only
messages from the
Outbox
or
Drafts
folder:
r
>
eMessaging
Press
Options
, then scroll to and select
Erase Messages
.
features
54
other features—personalize
DRAFT
Your phone displays and speaks
Say a
command
, followed by a list of voice
commands.
Note:
If the speakerphone is not turned
on and you want to activate it, press the
smart/speakerphone key.
2
Say one of the following commands:
Name
Dial
,
Digit Dial
,
Voicemail
,
Redial
, or
Received
.
Tip:
Speak numbers at a normal speed
and volume, pronouncing each digit
distinctly. Avoid pausing between digits.
Your phone opens the corresponding
menu or performs the corresponding
action.
adapt advanced speech
recognition to your voice
For most people, Advanced Speech
Recognition works well for voice dialing
without any initial setup. However, if the
phone is frequently unable to recognize
numbers correctly when you use voice
dialing, you may be able to improve your
results by adapting it to your voice.
Note:
If the phone is used by several people,
reset voice dialing to the original setting
before proceeding. This ensures that you are
not saving your settings over someone else’s
Find it:
r
>
w
>
Settings
>
Personalize
>
Voice Dial Setup
>
Adapt Digits
1
Press
START
.
2
When the phone prompts you to say the
first digit sequence, wait for the beep,
then repeat the digits in a normal tone of
voice.
3
If the recording sounds acceptable (no
mistakes or background noises), say
“Yes” or press
YES
.
or
55
other features—personalize
DRAFT
If the recording is not acceptable, say
“No” or press
NO
. When prompted to say
the digits again, wait for the beep and say
the digits again. The phone will prompt
you to repeat this process with up to
twelve additional sets of digits.
4
When the phone prompts, “More
Adaptation?”, press
YES
to continue or
NO
to end the process.
When the adaptation process is complete,
the phone will say “Adaptation Complete.”
Tip:
When adapting speech recognition to
your voice:
•
Choose a quiet place for recording.
•
Wait for the beep before you speak.
•
Speak at a normal speed and volume,
pronouncing each digit distinctly. Avoid
pausing between digits.
•
If you make a mistake while recording
a sequence of digits, or if an
unexpected noise spoils the recording,
record that sequence again.
To reset speech recognition to the factory
defaults
:
Find it:
r
>
w
>
Settings
>
Personalize
>
Voice Dial Setup
>
Reset Digits
more personalizing features
features
ring volume
r
>
tRing Styles
> Style
Detai
l >
Ring Volume
keypad volume
r
>
tRing Styles
> Style
Detai
l >
Key Volume
56
other features—personalize
DRAFT
reminders
Set your phone to play reminder alerts for
picture, text, or voicemail messages that
you receive:
r
>
tRing Styles
> Style
Detai
l >
Reminders
message alerts
Set whether or not you are alerted to
messages while you are on a call:
r
>
tRing Styles
> Style
Detai
l >
Reminders
skin
Choose a phone skin that sets the look and
feel of your phone’s screen:
r
>
wSettings
>
Personalize
>
Skin
features
greeting
Change the greeting that appears
when you turn on your phone:
r
>
wSettings
>
Personalize
>
Greeting
change home screen soft key
labels
r
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
>
Left Soft Key
or
Right Soft Key
banner
Create a heading to display on your phone’s
home screen:
r
>
wSettings
>
Personalize
>
Main Menu
> Banner
text layout
Set home screen text to be left justified or
centered:
r
>
wSettings
>
Personalize
>
Home Screen
>
Layout
features
57
other features—personalize
DRAFT
clock view
Display an analog clock or digital time
readout in the home screen:
r
>
wSettings
>
Personalize
>
Home Screen
>
Clock
menu view
Display the main menu as icons or a text
list:
r
>
wSettings
>
Personalize
>
Main Menu
>
View
show or hide menu icons
Show or hide menu feature icons in the
home screen:
r
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
menu language
r
>
wSettings
>
Initial Setup
>
Language
features
scroll
Set the scroll bar to stop or wrap around in
menu lists:
r
>
wSettings
>
Initial Setup
>
Scroll
master reset
Reset all options except unlock code,
security code, and lifetime timer:
r
>
wSettings
>
Initial Setup
>
Master Reset
To reset all options, you need to enter the
Security Code
(000000).
features
58
other features—call times
DRAFT
call times
Network connection time
is the elapsed
time from the moment you connect to your
service provider’s network to the moment
you end the call by pressing
O
. This time
includes busy signals and ringing.
The amount of network connection time
you track on your resettable timer may not
equal the amount of time for which you
are billed by your service provider. For
billing information, please contact your
service provider directly.
master clear
Reset all options except unlock code,
security code, and lifetime timer, and clear
all user settings and entries:
Warning:
This option erases all user-
entered information stored in your phone
memory, including
Contacts
entries and
downloaded files. Once you erase the
information, it cannot be recovered. It
resets all options to their factory settings
except for the unlock code, security code,
and lifetime timer.
r
>
wSettings
>
Initial Setup
>
Master Clear
To reset all options, you need to enter the
Security Code
(000000).
features
features
set in-call timer
r
>
wSettings
>
In-Call Setup
>
In-Call Timer
59
other features—handsfree
DRAFT
handsfree
Note:
The use of wireless devices and their
accessories may be prohibited or restricted in
certain areas. Always obey the laws and
regulations on the use of these products.
view call times
r
>
fExtras
>
Recent Calls
>
Call Times
Scroll to
Last Call
,
Dialed
,
Received
,
Roam Calls
,
Home
Calls
,
CSD Calls
,
All Calls
, or
Lifetime Calls
, and press
Select
.
view data times
r
>
fExtra
s >
Recent Calls
>
Data Times
view data volumes
r
>
fExtra
s >
Recent Calls
>
Data Volumes
features
features
accessory volume settings
(car kit or headset)
Adjust volume levels of car kit accessory:
During an active call, press your phone’s up
or down volume keys.
external speakerphone
Activate a connected external
speakerphone during a call:
Press the smart/speakerphone key on the
left side of the phone.
60
other features—handsfree
DRAFT
auto answer
(car kit or headset)
Automatically answer calls when connected
to a car kit or headset:
r
>
wSettings
>
Car Settings
or
Headset
>
Auto Answer
voice dial
(headset)
Enable voice dial with headset send/end
key:
r
>
wSettings
>
Headset
>
Voice Dial
auto handsfree
(car kit)
Automatically route calls to a car kit when
connected:
r
>
wSettings
>
Car Settings
>
Auto Handsfree
features
power-off delay
(car kit)
Set the phone to stay on for a period of
time after the ignition is switched off:
r
>
wSettings
>
Car Settings
>
Power-off Delay
charger time
(car kit)
Charge your phone for a period of time after
the ignition is switched off:
r
>
wSettings
>
Car Settings
>
Charger Time
features
61
other features—data & fax calls
DRAFT
data & fax calls
network
features
data settings
Specify call type for next call:
r
>
wSettings
>
Connection
>
Incoming Call
Scroll to
Next Call
and press
Change
, then select
Normal
,
Data In Only
, or
Fax In Only
.
send data or fax
Connect your phone to the device,
then place the call through the device
application.
receive data or fax
Connect your phone to the device,
then answer the call through the device
application.
talk then fax
Connect your phone to the device,
then press
r
>
Dialing Menu
>
Talk Then Fax
.
Press
N
to make the call.
Features
network settings
View network information and adjust
network settings:
r
>
wSettings
>
Network Options
features
62
other features—personal organizer
DRAFT
personal organizer
features
add datebook event
r
>
8Datebook
> day
Press
Options
, then scroll to
New
and press
Select
.
view datebook event
View or edit event details:
r
>
8
Datebook
> day
Press
r
, then scroll to the event and
press
r
.
event reminder
Press
View
to view an event reminder.
Press
Exit
to dismiss an event reminder.
copy datebook event
Copy a datebook event to another
date and/or time:
r
>
8
Datebook
> day
Press
r
, then scroll to the event and press
Options
. Scroll to
Copy
and press
Select
.
set alarm
r
>
fExtra
s >
Tools
>
Alarm Clock
turn off alarm
To turn off an alarm, press
Disable
or
O
.
To set an 8-minute delay, press
SNOOZE
.
features
63
other features—security
DRAFT
security
create voice record
Note:
Recording phone calls is
subject to varying state and federal laws
regarding privacy and recording of
conversations.
Press and hold the voice key and begin
recording. Release the voice key when
finished.
play voice record
r
>
ÜVoice Records
Scroll to the voice_record you wish to play
and press
r
.
calculator
Calculate numbers:
r
>
fExtra
s >
Tools
>
Calculator
features
convert currency
r
>
fExtra
s >
Tools
>
Calculator
Press
Options
, then scroll to
Exchange Rate
and
press
Select
. Enter the desired exchange rate
and press
Ok
. Enter the amount to be
converted, then press
Options
. Scroll to
Convert
Currency
and press
Select
.
features
lock application
Lock phone applications:
r
>
wSettings > Security > Lock Application
When prompted, enter the unlock code and
press
Ok
. Then scroll to the application you
wish to lock and press
Change
.
features
64
other features—fun & games
DRAFT
fun & games
restrict calls
Restrict outgoing or incoming calls:
r
>
wSettings > Security > Restrict Calls
change unlock and security codes
r
>
wSettings > Security > New Passwords
>
Unlock Code
or
Security Code
control access to location function
Set up a location code to control access to
the
Location
function (see “hide or show
location information” on page 47):
r
>
wSettings > Security > New Passwords
>
Location Code
features
features
launch micro-browser
Start a micro-browser session:
r
>
J
Brew
manage pictures
r
>
hMedia Gallery
>
Pictures
manage sounds
Manage sounds and create playlists:
r
>
hMedia Gallery
>
Sounds
65
service & repairs
service & repairs
If you have questions or need assistance,
we’re here to help.
Go to
www.motorola.com/consumer/support
,
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at
1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
66
service & repairs
Specific Absorption Rate Data
SAR Da ta
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.60 W/kg, and when worn on the body, as described in
this user guide, is 1.49 W/kg. The SAR value for this product in its
data transmission mode (body-worn use) is 1.49 W/kg. (Body-worn
measurements differ among phone models, depending upon
available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
67
service & repairs
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
68
service & repairs
69
Important Safety and
Legal Information
70
service & repairs
Safety and General Information
Safe ty Infor mation
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure To Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2006.
71
service & repairs
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our website at
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so. These locations include hospitals or health
care facilities that may be using equipment that is sensitive to
external RF energy.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician before using this
device.
Persons with pacemakers should observe the following
precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from your pacemaker when the
mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the pacemaker to minimize the
potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Hearing Aids
Some digital mobile devices may interfere with some hearing aids.
In the event of such interference, you may want to consult your
hearing aid manufacturer or physician to discuss alternatives.
72
service & repairs
Other Medical Devices
If you use any other personal medical device, consult your
physician or the manufacturer of your device to determine if it is
adequately shielded from RF energy.
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue a call if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola website:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in public areas,
such as health care facilities or blasting areas.
Automobile Air Bags
Do not place a mobile device in the air bag deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Damaged Products
If your mobile device or battery has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you take
it to a Motorola Authorized Service Center. Do not attempt to dry it
with an external heat source, such as a microwave oven.
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive
materials touch exposed battery terminals, this
could complete an electrical circuit (short circuit),
become very hot, and could cause damage or
injury. Be careful when handling a charged battery,
particularly when placing it inside a pocket, purse, or other
73
service & repairs
container with metal objects.
Use only Motorola Original
batteries and chargers.
Caution:
To avoid risk of personal injury, do not dispose of your
battery in a fire.
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities
for more information.
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
032374o
032376o
032375o
032378o
Li Ion BATT
Listening at full volume to music or voice
through a headset may damage your
hearing.
Symbol Definition
74
service & repairs
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
75
service & repairs
Motorola Limited Warranty for the United States and
Canada
War r an t y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants
its telephones, pagers, messaging devices, and consumer and
professional two-way radios (excluding commercial, government
or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer
usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as
defined above, unless
otherwise provided for
below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
76
service & repairs
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries.
Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d) other acts which
are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of Non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone
other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products
Accessories or Software is excluded from coverage.
Software
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies
the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
77
service & repairs
Exclusions
Software Embodied in Physical Media.
No warranty is made
that the software will meet your requirements or will work in
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund
the purchase price of any Products, Accessories or Software that
does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or
Other Information
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone
number designated above for the product with which they are
used.
78
service & repairs
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
79
service & repairs
Hearing Aid Compatibility with Mobile Phones
Hearing Aid Compatibility
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
80
service & repairs
Information from the World Health Organization
WHO Info rmation
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Product Registration
Online Product Registration:
http://www.motorola.com/warranty
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
81
service & repairs
Export Law Assurances
Export Law Assurances
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Wireless: The New Recyclable
Wireless: The New Recyclable
Your wireless phone can be recycled. Recycling your wireless
phone reduces the amount of waste disposed in landfills and
allows recycled materials to be incorporated into new products.
The Cellular Telecommunications Industry Association (CTIA) and
its members encourage consumers to recycle their phones and
have taken steps to promote the collection and environmentally
sound recycling of end-of-life wireless devices.
As a wireless phone user, you have an important role in ensuring
that this phone is recycled properly. When it comes time to give
this phone up or trade it in for a new one, please remember that
the phone, the charger, and many of its accessories can be
recycled. It's easy. To learn more about CTIA's Recycling Program
for Used Wireless Devices, please visit us at
http://promo.motorola.com/recycle/
phones/whyrecycle.html
82
service & repairs
Smart Practices While Driving
Smart Practices While Driving
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Contact
www.motorola.com/callsmart for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree device.
If possible,
add an additional layer of convenience to your mobile
device with one of the many Motorola Original
™
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
83
service & repairs
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
84
index
index
1X indicator 25
A
accessories 9, 57
accessory connector port 1
alarm clock 59, 60
alarm only indicator 26
alert
set 36
turn off 41
all sound off indicator 26
analog indicator 25
animation 54, 61
answer a call 12, 37
attach a number 43, 48
B
backlight 38
banner 54
battery 11
extending battery life 10
battery level indicator 26
C
calculator 59
calendar 60
call
answer 12, 37
end 12
make 12
call timers 56, 57
caller ID 50
car kit 57
center key 1
center select key 9
codes 34, 35
Contacts 43, 48, 49
copy entry 51
create entry 49, 50
create mailing list 49
primary number 50
set category view 51
set entry category 51
set entry view 50
set speed dial 52
sort entries 52
D
data call 58
index
85
data call/tethered/embedded
WAP/BREW indicator
26
data volumes, tracking 57
dial a phone number 12
dialed calls 42
digital indicator 25
display 24
DTMF tones 48
E
E911 indicator 26
emergency number 44
end a call 12
end key 1, 12
Enter Unlock Code message
34
export regulations 77
external display 33
F
fax call 58
flip 12, 37
flip tone 55
G
greeting 54
H
handsfree speaker 33
headset 57
headset jack 1
hearing aid compatibility 75
home screen 24, 55
I
indicators
1X 25
alarm only 26
all sounds off 26
analog 25
battery level 26
data
call/tethered/embe
dded WAP/BREW
26
digital 25
E911 26
keypad lock 26
location on 26
message 26
no service 26
roaming 25
signal strength 25
sound on & vibrate on 26
SSL 25
TTY 26
vibrate on 26
voice call 26
voice privacy 25
iTAP text entry method 31
86
index
K
keypad 54
keypad lock indicator 26
L
language 54
location on indicator 26
lock
application 61
phone 35
M
make a call 12
master clear 56
master reset 56
menu 55
menu icons 55
message
MMS template 52
quick text 53
text message 52
view sent message 52
message indicator 26
message reminders 55
Missed Calls message 43
MMS template 52
music 61
N
navigation key 1, 9
network settings 58
no service indicator 26
notepad 43
number. See phone number
numeric entry method 32
O
open to answer 37
optional accessory 9
optional feature 9
P
passwords. See codes
personalize 54
phone number 14
photo 61
picture 61
picture ID 50
power key 1, 12
product registration 76
Q
quick text 53
R
received calls 42
recent calls 42
recycling 77
redial 41
reminders 55
return a call 43
index
87
ring style, setting 36
ring tone 61
ringer ID 49, 54
ringer volume 54
roaming indicator 25
S
safety information 66
safety tips 78
security code 34
send key 1, 12
signal strength indicator 25
smart key 55
soft keys 1, 24, 55
sound on & vibrate on
indicator 26
speakerphone 57
SSL indicator 25
store your number 14
symbol entry mode 32
T
tap text entry method 30
telephone number. See
phone number
text entry 27
timers 56, 57
TTY indicator 26
turn on/off 12
U
unlock
application 61
phone 34, 35
unlock code 34, 35
V
vibrate on indicator 26
voice call indicator 26
voice dial 47
voice memo 59, 60
voice privacy indicator 25
voicemail 46
voicemail message indicator
46
volume 54
W
wallpaper 37
warranty 71
WHO information 76
Y
your phone number 14
U.S. patent Re. 34,976
