Motorola Mobility T56JT2 Portable Cellular/ PCS GSM Transceiver with Bluetooth User Manual
Motorola Mobility LLC Portable Cellular/ PCS GSM Transceiver with Bluetooth
Exhibit 8 Users Manual
Getting Started Guide
TM
MOTO
ZINE
ZN5
Dummy Page - To be discarded before printing
use this template with UKA7MotoQSG StructApps
xPIXL ZN5
GSM EMEA/Asia
Getting Started
Guide
DRAFT 07/05/08
1
HELLOMOTO
See It, Take It!
Yo u r M OTO
ZINE
™ ZN5 phone is made to
take photos and videos!
•
Take great looking
photos
with the 5-megapixel
digital xenon flash camera (page 15), then
share
them with your friends (page 17).
• Upload
photos to Kodak Gallery Link (page 22).
•
Capture key moments in
video
, and then upload
to a blog (page 27).
•
Press the camera and video
mode keys
to
instantly access viewing and camera functions
(page 16 and 25).
For more information:
To read instructions on your
phone, press
Main Menu
>
mOffice Tools
>
Help
. For manuals,
web tutorials, software support, and more, visit
www.motorola.com/support
Note: Before using the phone for the first
time, review the Important Safety and Legal
Information in the back of this guide.
Periodically review this information so you
remember how to safely use your phone.
Note: Before using the phone for the first
time, review the Important Safety and Legal
Information in the back of this guide.
Periodically review this information so you
remember how to safely use your phone.
2
Tip:
Press the centre key
s
to open the main menu
and select menu options. Press the clear/back key
ò
to
delete characters, or to go back one menu.
ò
Make & answer
calls.
Volume & Zoom
Keys
Left Soft Key
Lanyard Hook
Micro-USB Port
Scroll up/down/
left/right.
Turn on/off, hang
up, exit menus.
Right Soft Key
Back/Clear Key
Lock/Unlock
Keypad
3.5mm Headset/
TV Out Jack
Battery Charge
Indicator Light Bluetooth Headset
Indicator Light
Open menu, select
menu items.
Camera Key
Review Key
Delete Key Preview/Toggle
Key
Simple Share Key
î
ü
3
contents
menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
get started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
insert your SIM card. . . . . . . . . . . . . . . . . . . . . . . . . 7
insert a memory card. . . . . . . . . . . . . . . . . . . . . . . . 8
insert the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
charge the battery . . . . . . . . . . . . . . . . . . . . . . . . . . 9
lock/unlock key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
turn phone on & off . . . . . . . . . . . . . . . . . . . . . . . . . 11
make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
answer a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
end a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
store a phone number . . . . . . . . . . . . . . . . . . . . . . . 12
call a stored phone number . . . . . . . . . . . . . . . . . . . 12
SIM and phone contacts . . . . . . . . . . . . . . . . . . . . . 13
your phone number . . . . . . . . . . . . . . . . . . . . . . . . . 13
find information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
take a photo & send it . . . . . . . . . . . . . . . . . . . . . . . 15
edit a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
camera settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
kodak gallery link . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
kodak gallery link . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4
videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
record a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
upload video to a blog . . . . . . . . . . . . . . . . . . . . . . 27
play a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
send a message. . . . . . . . . . . . . . . . . . . . . . . . . . . 30
receive a message . . . . . . . . . . . . . . . . . . . . . . . . . 30
email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
check your email account. . . . . . . . . . . . . . . . . . . . 31
personalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
home screen shortcuts . . . . . . . . . . . . . . . . . . . . . 32
main menu appearance . . . . . . . . . . . . . . . . . . . . . 33
wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
ringtone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
animated screensavers . . . . . . . . . . . . . . . . . . . . . 34
web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
perform a Google search . . . . . . . . . . . . . . . . . . . . 36

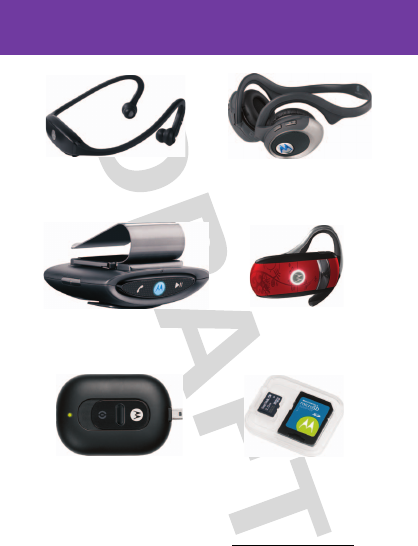

accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Legal and Safety Information . . . . . . . . . . . . . . . . . 38
5
menu map
main menu
Ò
Gallery Link
m
Office Tools
•Alarm Clock
• Calendar
•World Clock
•Sync
• Download
Manager
• File Manager
•SIM
Applications *
•Calculator
• Dialling Services
• Task List
•Notes
•Help
q
Recent Calls
1
Web Access
•Browser
• My Bookmarks
• My Web Pages
•History
•Go to URL
•Browser Setup
g
Messages
• Create Message
• Inbox
• My Folders
• Templates
•Drafts
• Outbox
• Create Postcard
•Email
• Call Voicemail
j
Multimedia
• Media Finder
•Camera
• Video Camera
•FM Radio
• Voice Recorder
T
Games
L
Phonebook
u
Settings
• (see next page)
This is the standard main menu
layout.
* optional features
6
settings menu
• Profiles
• Themes
• Home Screen
• Navigation Keys
• Change Wallpaper
•WiFi
• Current Connection
• Available Networks
• Saved Networks
• Quick Connect
• Set Up WiFi
• Connections
• Bluetooth®
• USB Setting
• Voice Networks
• Data Connections
•TV Out
• Call Settings
• Speed Dial
• Call Forward
•In-Call Setup
• Dialling Setup
•CallBarring*
• Fixed Dialling*
•My SIM Number
• Active Line *
• Phone Settings
• Display Settings
• Airplane Mode
• Battery Meter
•Time & Date
• Language
• Talking Phone
•Text Entry
•Reset
•View Memory
• Properties
• Legal Notices
• Java™ System
•OTA Updates
• Headset Settings
•Security
• Phone Lock
• Application Lock
• SIM Lock
• Change Passwords
• Certificates
•Network
• Current Network
• Scan Avail.
Networks
•Find New Network
• My Network List
•Search Setup
• Service Tone
* optional features
7
get started
get started

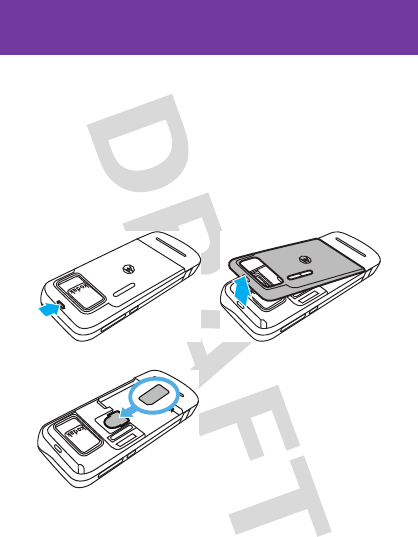

insert your SIM card
Caution:
Don’t bend or scratch your SIM card. Keep it
away from static electricity, water, and dirt.
Yo u r Subscriber Identity Module (SIM) card stores your
phone number and other information.
12
3
8
get started

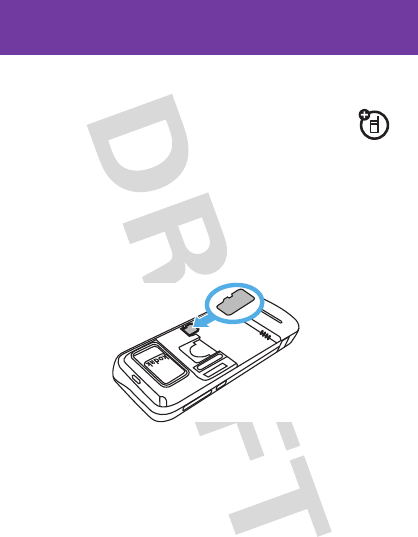

insert a memory card
You can store music, photos, and other
multimedia files on an optional removable
microSD memory card.
Caution:
Don’t bend or scratch your memory card. Keep
it away from static electricity, water, and dirt. Turn off
your phone before you install or remove the memory
card.
Note:
Your phone can use a memory card with up to
4 GB capacity (greater than 1 GB storage guaranteed
only for SanDisk microSD cards).
9
get started
insert the battery
charge the battery
New batteries are not fully
charged. Open the protective
cover on your phone’s
micro-USB port, and insert
the battery charger
connector into your phone.
Plug the other end of the
battery charger into an
electrical outlet. The battery charge indicator light (see
page 2) shows when the battery is charging. The display
shows
Charge Complete
when finished.
12
10
get started
Note:
For battery use and battery safety information, see
the back of this guide.
extend battery life
•
To ma k e yo u r
display
turn off sooner, press
s
>
uSettings
>
Phone Settings
>
Display Settings
>
Display Timeout
>
5 Seconds
.
•
To turn off the
screensaver
, press
s
>
uSettings
>
Phone Settings
>
Display Settings
>
Screensaver
>
Off
.
•
To turn off the
animated screensaver
, press
s
>
uSettings
>
Themes
>
Options
>
Edit
, scroll to and
select the
images
tab
$
, scroll to and select
Screensaver
, scroll to
None
, press
s
to select it and
then
Save
.
•
To turn off
Bluetooth®
power when you’re not
using it, press
s
>
uSettings
>
Connections
>
Bluetooth
, press
Options
>
Setup Bluetooth
>
Bluetooth Power
>
Off
or select
Shortcuts
>
Turn
Off Bluetooth
from the homescreen.
11
get started
lock/unlock key
The lock/unlock side key lets you lock and unlock the
keypad. Slide down to lock and up to unlock, see page 2.
turn phone on & off
Press and hold the power/end key
O
for a few seconds, or until the
display turns on or off.
make a call
Enter a phone number and press the send key
N
.
Tip:
To
voice dial
a call, see your User’s Guide.
answer a call
When your phone rings and/or vibrates press
N
to
answer.
end a call
To “hang up,” press
O
.
ò
12
get started
store a phone number
To store a phone number in your
Phonebook
:
1
Enter a phone number in the home screen.
2
Press
Save
.
3
Enter a name for the phone number, and enter other
information as desired.
4
Press
Save
to store the contact.
Tip:
To learn more about storing contacts on your phone,
see your User’s Guide.
call a stored phone number
To call a number stored in your contacts list:
Find it:
s
>
LPhonebook
1
Scroll to the contact.
Shortcut:
In the contacts list, press keypad keys to
enter the first letters of the contact you want.
Press
s
to go to the contact.
2
Press
N
to call the contact.
13
get started
SIM and phone contacts
You can store a new contact in
phone memory
, or store
the contact both in phone memory and on your
SIM
card
. When you choose to store a contact to both
locations, only the contact’s name and phone number are
stored on the SIM card.
Note:
If you’ve got contacts stored on your SIM card, but
the contacts aren’t visible when you open the contact
list, you need to copy the contacts into phone memory.
Press
Options
>
Import Contacts
>
SIM Card
>
Options
>
Select All
>
Import
.
your phone number
To see your phone number:
Find it:
s
>
uSettings
>
Call Settings
>
My SIM Number
To see your phone number while you’re on a call, press
Options
>
My Tel. Numbers
.
To store or edit your name and phone number on your
SIM card, select the field you want to edit. If you don’t
know your phone number, contact your service provider.
14
find information
find information
We’ve crammed all the main features of your phone into
this handy guide. If you want more information, you can
use the following:
• on the phone
- You will find help. To read
instructions on your phone, press
Main Menu
>
mOffice Tools
>
Help
.
• on the Web
- You will find the User’s Guide, web
tutorials, software support, and more! Visit
www.motorola.com/support
• on the Experience CD
- You will find useful
software, such as, Kodak EasyShare and
Motorola Phone Tools software. Use Kodak
EasyShare software to quickly transfer pictures
from your phone to your PC via USB. Then you
can organize, edit, print, and share your photos.
Use Motorola Phone Tools software to transfer
and sync files from your PC to your phone. See
the Motorola Phone Tools user’s guide for more
information.
15
camera
camera
take a photo & send it
Find it:
n
Open the lens cover to launch the camera. The phone’s
display acts as the camera viewfinder.
Note:
It is assumed
Auto-Save
is turned off. To turn
Auto-Save
on see page 17.
356
î
ü
Mode Indicator
(Photo or Video) Flash
Press
S
up/down to see camera
settings, press left/right to change.
Remaining
photos
Autofocus box
Options
Back
Auto
Flash
Resolution Camera key
Preview/
toggle key
Review key
Delete key
Simple share key
Zoom Keys
16
camera
1
Gently press and hold the camera key halfway until
the autofocus box turns green. The photo in the
viewfinder is in focus.
Note:
If the autofocus box turns red, release the
camera key and try again.
2
Fully press the camera key to take the photo.
•
To store the photo, press
s
.
•
To send the photo in a message, press
Send
.
•
To discard the photo, press
ò
.
•
To select other photo options, press
Options
. You
can choose to save, discard, send (in a message,
email, Postcard, or via Bluetooth), apply (as
wallpaper, screensaver or contact), edit, or print
(via Bluetooth, USB or memory card).
3
Press camera mode keys:
•
î
- to review photo
•
ü
- to toggle between photos and viewfinder
•
ï
- to delete photo
•
®
- to activate
Simple Share
feature (see page 17).
17
camera
view a photo
To view a stored photo that you’ve taken simply press
î
or from the viewfinder press
ü
:
Find it:
s
>
jMultimedia
>
Media Finder
>
Pictures
>
Captured Pictures
> photo
share a photo
To activate the
Simple Share
feature press
®
.
Then set how you want to share the photo (
MMS
,
Email
,
Bluetooth
or
Kodak Gallery
), then select
Yes
if you want to use
this method all the time.
Enter your text, if necessary, then press
Send to
and
specify message recipients for the photo.
The change your
Simple Share Settings
:
Find it:
s
>
jMultimedia
>
Camera
, press
Options
>
Camera Settings
,press
Select
>
Simple Share Settings
auto-save
Your phone can automatically save the photos you take.
To turn auto-save feature on or off:
18
camera
Find it:
s
>
jMultimedia
>
Camera
, press
Options
>
Camera Settings
,press
Select
>
Auto-Save
>
Enable
or
Disable
Then set the storage location for auto-saved photos:
Find it:
s
>
jMultimedia
>
Camera
, press
Options
>
Camera Settings
,press
Select
>
Storage Location
>
Phone
or
Memory Card
view slideshow
To view a slideshow of the photos that you’ve taken
simply press
î
>
Options
>
Slideshow
or from the viewfinder
press
ü
>
Options
>
Slideshow
.
panorama mode
You can take panoramic photos.
Find it:
s
>
jMultimedia
>
Camera
, press
Options
>
Panorama
,press
Select
Press
n
to take a photo, then move the viewfinder until
the red box turns green and automatically takes more
photos.
19
camera
edit a photo
1
Press
î
or from the viewfinder press
ü
.
2
Select the photo you want, then press
Options
>
Edit
>
Options
:
•
Rotate
- press
S
left or right to rotate your photo
90 degrees anti-clockwise or clockwise.
•
Crop
- set the size to crop your photo.
•
Mirror
- press
S
left or right to mirror horizontal
your photo.
•
Resize
- the width or height of your photo.
•
Style
- set a style for your photo (
Options
>
Grayscale
,
Sepia
,
Negative
,
Reddish
,
Greenish
,
Bluish
,
Brightness
,
Contrast
,
Sharpen
or
Blur
.
•
Add elements
- select
Options
to add
Graphic
,
Border
,
Text
or
Timestamp
elements to your photo.
3
After making your changes to the photo, press
Save
.
4
At the prompt “Are you sure you want to overwrite
moto_0034.jpg file?”, press
Yes
.
20
camera
Note:
You can also enhance the quality of your photo,
press
Options
>
Apply Kodak Perfect Touch
.
camera settings
When the camera viewfinder is active, you can use the
navigation key
S
to adjust camera settings.
Press
S
up or down to scroll to a setting, then
press
S
left or right to change it:
settings
Low Light Mode
Press
S
left/right to select
On
or
Off
.
Focus
Press
S
left/right to select
Automatic
,
Landscape
or
Macro
.
White Balance
Press
S
left/right to select
Automatic
,
Fluorescent
,
Tungsten
,
Daylight
, or
Cloudy
.
Flash
Press
S
left/right to select
Auto
,
On
,
Off
or
Red Eye
.
21
camera
When the viewfinder is active, press
Options
to select
camera options:
Tag
Select a predefined text tag to apply
to the photos you take. (To create a
tag, press
Options
>
Camera Settings
>
Tag
>
Create New Tag
.)
options
Go To MyMedia
View, edit, and delete stored pictures
and photos.
Video Mode
Switch to the video camera.
Panorama
Take panoramic photos, see page 18.
Auto-Timer
Set a timer for the camera to take a
photo.
Multi-Shot
Set the camera to take multiple photos
in sequence.
Camera Settings
Customise camera settings.
settings
22
kodak gallery link
kodak gallery link
kodak gallery link
Use Kodak Gallery Link to upload your photos
from your phone to the Kodak Gallery Web site.
Share and print your photos from the Kodak
Gallery Web site.
Find it:
s
>
Ò Gallery Link
1
Press
Add Account
>
Create New
2
You will be asked to enter an email address,
password, and to select a region, in the ‘Create
Account’ screen.
3
After your account is setup press
Upload to Gallery
>
Select
to send a photo to Kodak Gallery.
Tip:
To send more than one photo press
Options
>
Select Multiple
. You can set
Simple Share
to
Kodak
Gallery
see page 17.
Note:
Sending photos uses the data network
on your phone. The preferred method of
sending photos is to use a WiFi network. See
your User’s Guide for WiFi setup details. If you send
photos over the GPRS network, separate data
23
kodak gallery link
charges may apply. Contact your service provider for
details.
4
Visit the Kodak Gallery Web site
www.kodakgallery.eu.com
to view and manage your
photos.
24
videos
videos
record a video
Your phone’s display acts as the video camera
viewfinder.
Find it:
s
>
jMultimedia
>
Video Camera
Tip:
To record a video, make sure the lens cover is open.
ü
Mode Indicator
(Photo or Video) Audio Remaining
time
Options
Back
Resolution
ZoomCamera key
Preview/toggle key Delete key
25
videos
Note:
It is assumed
Auto-Save
is turned off. To turn
Auto-Save
on see page 17.
1
To begin video recording, press
n
.
2
Press
s
to pause/resume video recording.
•
To stop the video, press
n
.
•
To send the video in a message, press
Send
.
•
To discard the video, press
ò
.
•
To select other video options, press
Options
. You
can choose to save, discard, send (in a message,
email, or via Bluetooth), or preview.
3
Press video mode keys:
•
ü
- to toggle between captured videos,
viewfinder and play video.
•
ï
- to delete video.
Tip:
Press the volume/zoom keys on the side of your
phone to zoom in and out.
26
videos
Note:
To send your video in an MMS text message, the
video length must be set to
MMS Short
or
MMS Long
. To set
length, press
s
>
jMultimedia
>
Video Camera
, press
Options
>
Camera Settings
, press
Select
>
Video Settings
>
Video Length
.
When the video camera viewfinder is active, press
Options
to set video recording options:
options
Go To MyMedia
View, manage, and delete stored
videos.
Picture Mode
Switch to the photo camera.
Audio On/Off
Turn audio recording on/off.
Camera Settings
Customise camera settings.
27
videos
upload video to a blog
Upload a video you’ve recorded to your video blog site:
1
Launch your phone’s browser, press
s
>
1Web Access
>
Browser
.
2
Go to a video blogging service Web site.
3
Log in to your account.
4
Scroll to
Upload Videos
and press
s
.
5
Follow the browser prompts to scroll to the video
you want to upload, then press
s
.
6
Scroll to
Upload
and press
s
.
Your phone uploads the video to the blog.
28
videos
play a video
Your phone can play the following types of video files:
MPEG4 + AAC, H.263 + AAC, and Real Video + Audio.
Find it:
s
>
jMultimedia
>
Media Finder
>
Videos
>
All Videos
Press
s
to start the video.
video name
00:06 00:12
10/15/2008-78KB
Timer
Shows %
Played
Return to previous
screen.
Select & adjust video
camera options.
Options Back
Press
S
to
pause/play, stop, or
skip to previous/next
video.
Press
s
to switch
between actual size
& full screen view.
29
videos
When a video is playing, press
Options
to select video
options.
Note:
Your phone’s options may vary. Most options apply
only to videos you record, and are not available for
pre-installed videos.
options
Slideshow
Show the video in full screen landscape
(Press
s
to return to 100%).
Manage
Show video
Properties
, such as file name,
type, and size.
Delete
Delete the video.
Zoom
Show the video 100%, or scale the video
to fit the viewing area.
Send to
Send the video in a message or email, or
send it to your memory card or another
device over a Bluetooth connection.
Use Bluetooth
/
Use Handset
Switch audio between a Bluetooth
headset and the handset speaker.
Setup
Adjust video settings.
30
messages
messages
send a message
To send a message to a compatible phone or to
an email address:
Find it:
s
>
gMessages
>
Create Message
1
Press keypad keys to enter text on the page.
Tip:
Press
#
to switch text entry modes. Press
0
to
switch capitalisation modes. Press
*
to enter a space.
2
Press
Send To
to select message recipients.
3
Press
Send
to send the message.
receive a message
When you receive a message, your phone plays an
alert, and the display shows
New Message
with the
new message indicator
]
.
To
read
the message, press
View
. To
answer
the
message, press
Options
>
Reply
.
31
email
email
check your email account
Check your personal Web-based
email
account
(such as Hotmail, Gmail, or Yahoo).
Note:
You must have browser service activated on your
phone to use this feature.
Find it:
s
>
gMessages
>
Email
1
Enter your email address and password.
2
Press
Log In
.
32
personalise
personalise
home screen shortcuts
From the home screen, you can press the
navigation key up, down, left, or right as shortcuts
to your favourite features. You can change the
shortcuts to suit your needs.
To
change
navigation key shortcut icons in the home
screen:
Find it:
s
>
uSettings
>
Home Screen
>
NaviKey Shortcuts
>
Left
,
Right
,
Up
, or
Down
Select a direction, then choose the feature you want to
open when you press the navigation key in that direction.
To
show or hide
navigation key shortcut icons in the
home screen:
Find it:
s
>
uSettings
>
Home Screen
>
NaviKey Shortcuts
>
Icon Display
>
Show
or
Hide
Tip:
You can press
S
to select the features in the home
screen even when the icons are hidden.
33
personalise
main menu appearance
You can personalise the main menu to appear as a grid of
graphic icons, a text-based list, or a set of spinning menu
icons that you can scroll through:
Find it:
From the main menu, press
Options
>
View By
>
Grid
or
List
or
Spinner
You can change the order of the main menu features.
Press
Options
>
Reorder
, scroll to the feature you want to
move, press
Grab
, scroll to the destination location, press
Insert
.
wallpaper
Change the background wallpaper image in the home
screen:
Find it:
s
>
uSettings
>
Home Screen
>
Change Wallpaper
,
scroll to an image, press
Select
34
personalise
ringtone
Change your ringtone:
Find it:
s
>
uSettings
>
Themes
, press
Options
>
Edit
>
Ringtone
>
Ringtones
>
Preloaded Ringtones
, scroll to a ringtone
and press
Select
To learn more about using themes, see your
User’s Guide.
animated screensavers
Personalise your phone with floating animated
screensavers in the display:
Find it:
s
>
uSettings
>
Themes
, press
Options
>
Edit
1
Press
S
right to select the
images
tab
$
.
2
Select
Screen Saver
and then highlight an animated
screensaver.
3
Press
s
to preview the screensaver or
Select
to
select it.
4
Press
Save
to save your setting.
35
personalise
The
Screen Saver
appears in the display after the timeout
period.
Find it:
s
>
uSettings
>
Phone Settings
>
Display Settings
>
Screensaver
Find it:
s
>
uSettings
>
Phone Settings
>
Display Settings
>
Display Timeout
36
web
web
perform a Google search
Use your phone’s browser to perform a Web
search using the Google Web site.
Note:
You must have browser service activated on your
phone to use this feature.
Find it:
s
>
1Web Access
>
Browser
1
Press
Options
>
My Bookmarks
.
2
Scroll to and select the
Google
bookmark.
3
Select the Google text entry window.
4
Enter a search topic in the text entry window.
5
Scroll to and select the Google Search button.
The browser displays the results of your search.
To learn more about using the phone browser, see your
User’s Guide.
37
accessories
accessories
To see more accessories, visit
www.hellomoto.com
S9 Bluetooth®
Stereo Headphones
HT820 Bluetooth®
Stereo Headphones
T505 Bluetooth®
Handsfree Car Kit
H800 Bluetooth®
Headset
P790 Power POD
Portable Charger
microSD Memory Card
(up to 4GB)
38
Legal and Safety Information
www.hellomoto.com
Certain mobile phone features are dependent on the capabilities and
settings of your service provider’s network. Additionally, certain features
may not be activated by your service provider, and/or the provider's
network settings may limit the feature’s functionality. Always contact your
service provider about feature availability and functionality. All features,
functionality, and other product specifications, as well as the information
contained in this user's guide are based upon the latest available
information and are believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
Software Copyright Notice
The Motorola products described in this manual may include copyrighted
Motorola and third-party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for
Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of the Motorola products shall
not be deemed to grant either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents, or patent
applications of Motorola or any third-party software provider, except for
the normal, non-exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
Manual Number: 68XXXXX284-A
39
battery use & safety
IMPORTANT: HANDLE AND STORE BATTERIES PROPERLY TO
AVOID INJURY OR DAMAGE.
Most battery issues arise from improper
handling of batteries, and particularly from the continued use of damaged
batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise
attempt to change the form of your battery.
• Don’t let the phone or battery come in contact with water.
Water can get into the phone’s circuits, leading to corrosion. If
the phone and/or battery get wet, have them checked by your
carrier or contact Motorola, even if they appear to be working
properly.
• Don’t allow the battery to touch metal objects.
If metal
objects, such as jewelry, stay in prolonged contact with the
battery contact points, the battery could become very hot.
• Don’t place your battery near a heat source.
Excessive heat
can damage the phone or the battery. High temperatures can
cause the battery to swell, leak, or malfunction. Therefore:
•
Do
not
dry a wet or damp battery with an appliance or heat
source, such as a hair dryer or microwave oven.
•
Avoid leaving your phone in your car in high temperatures.
DOs
• Do avoid dropping the battery or phone.
Dropping these
items, especially on a hard surface, can potentially cause
damage.
• Do contact your service provider or Motorola if your
phone or battery has been damaged from dropping or high
temperatures.
IMPORTANT: USE MOTOROLA ORIGINAL PRODUCTS FOR QUALITY
ASSURANCE AND SAFEGUARDS.
To aid consumers in identifying
40
authentic Motorola batteries from non-original or counterfeit batteries
(that may not have adequate safety protection), Motorola provides
holograms on its batteries. Consumers should confirm that any battery they
purchase has a “Motorola Original” hologram.
Motorola recommends you always use Motorola-branded batteries
and chargers.
Motorola mobile devices are designed to work with
Motorola batteries. If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm that it has a
“Motorola Original” hologram;
•
If there is no hologram, the battery is not a Motorola battery;
•
If there is a hologram, replace the battery and retry charging it;
•
If the message remains, contact a Motorola Authorized Service
Center.
Important:
Motorola’s warranty does not cover damage to the phone
caused by non-Motorola batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger may present a risk of
fire, explosion, leakage, or other hazard.
PROPER AND SAFE BATTERY DISPOSAL AND RECYCLING
Proper battery disposal is not only important for safety, it benefits the
environment. Consumers may recycle their used batteries in many retail or
service provider locations. Additional information on proper disposal and
recycling may be found on the Web:
•
www.motorola.com/recycling
•
www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries in accordance
with local regulations. Contact your local recycling center or
national recycling organizations for more information on how to
dispose of batteries.
Warning:
Never dispose of batteries in a fire because they may explode.
41
service & repairs
If you have questions or need assistance, we’re here to help.
Go to
www.motorola.com/consumer/support
, where you can select from a
number of customer care options. You can also contact the Motorola
Customer Support Center at 1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for hearing impaired), or
1-800-461-4575 (Canada).
Specific Absorption Rate Data
AR Data
42
Specific Absorption Rate Data
The model wireless phone meets the government’s requirements
for exposure to radio waves.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission (FCC) of the U.S.
Government and by the Canadian regulatory authorities. These limits are
part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the safety of all
persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/
kg
1
Tests for SAR are conducted using standard operating positions
accepted by the FCC and by Industry Canada with the phone transmitting
at its highest certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the maximum value.
This is because the phone is designed to operate at multiple power levels
so as to use only the power required to reach the network. In general, the
closer you are to a wireless base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S. and
Canada, it must be tested and certified to the FCC and Industry Canada
that it does not exceed the limit established by each government for safe
exposure. The tests are performed in positions and locations (e.g., at the
ear and worn on the body) reported to the FCC and available for review by
Industry Canada. The highest SAR value for this model phone when
tested for use at the ear is 1.54 W/kg, and when worn on the body, as
42a
described in this user guide, is 1.12 W/kg. (Body-worn measurements
differ among phone models, depending upon available accessories and
regulatory requirements).
2
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the governmental requirements for
safe exposure. Please note that improvements to this product model
could cause differences in the SAR value for later products; in all cases,
products are designed to be within the guidelines.
Additional information on Specific Absorption Rates (SAR) can be found
on the Cellular Telecommunications & Internet Association (CTIA) Web
site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA) Web
site:
http://www.cwta.ca
1.
In the United States and Canada, the SAR limit for mobile phones used by
the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
2. A
The SAR information includes the Motorola testing protocol, assessment
procedure, and measurement uncertainty range for this product.
43
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions of
Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your
DoC, enter the Product Approval Number from your product’s label in the
“Search” bar on the Web site.
0168
Product
Approval
Number
44
OPEN SOURCE SOFTWARE INFORMATION
OSS Information
For instructions on how to obtain a copy of any source code being made
publicly available by Motorola related to software used in this Motorola
mobile device you may send your request in writing to:
The Motorola website
opensource.motorola.com
also contains information
regarding Motorola’s use of open source.
Motorola has created the
opensource.motorola.com
to serve as a portal for
interaction with the software community-at-large.
To view additional information regarding licenses, acknowledgments and
required copyright notices for open source packages used in this Motorola
mobile device, please select “
Legal Notices
” from
Phone Settings
.
MOTOROLA, INC.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
USA
45
Safety and General Information
Safety I nformation
This section contains important information on the safe and
efficient operation of your mobile device. Read this information
before using your mobile device.
Exposure to Radio Frequency (RF) Energy
Your mobile device contains a transmitter and receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your
mobile device, the system handling your call controls the power level at
which your mobile device transmits.
Your Motorola mobile device is designed to comply with local regulatory
requirements in your country concerning exposure of human beings to RF
energy.
Operational Precautions
For optimal mobile device performance, and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in the
relevant standards, always follow these instructions and precautions.
Product Operation
When placing or receiving a phone call, hold your mobile device just like
you would a landline phone.
If you wear the mobile device on your body, always place the mobile device
in a Motorola-supplied or approved clip, holder, holster, case, or body
harness. If you do not use a body-worn accessory supplied or approved by
Motorola—or if you hang your mobile device from a lanyard around your
neck—keep the mobile device and its antenna at least 2.5 centimeters
(1 inch) from your body when transmitting.
Using accessories not supplied or approved by Motorola may cause your
mobile device to exceed RF energy exposure guidelines. For a list of
Motorola-supplied or approved accessories, visit our Web site at:
www.motorola.com
.
46
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from
external sources if inadequately shielded, designed, or otherwise
configured for RF energy compatibility. In some circumstances your mobile
device may cause interference with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct
you to do so.
In an aircraft, turn off your mobile device whenever instructed to do so by
airline staff. If your mobile device offers an airplane mode or similar
feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile device.
Persons with implantable medical devices should observe the following
precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches)
from the implantable medical device when the mobile device is turned
ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to minimize the
potential for interference.
•
Turn OFF the mobile device immediately if you have any reason to
suspect that interference is taking place.
Read and follow the directions from the manufacturer of your implantable
medical device. If you have any questions about using your mobile device
with your implantable medical device, consult your healthcare provider.
47
Driving Precautions
The use of wireless phones while driving may cause distraction.
Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey the laws and
regulations on the use of these products.
Responsible driving practices can be found in the “Smart Practices While
Driving” section in this guide (or separate guide).
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always,
posted and can include fueling areas, such as below decks on boats, fuel
or chemical transfer or storage facilities, or areas where the air contains
chemicals or particles, such as grain dust, or metal powders.
When you are in such an area, turn off your mobile device, and do not
remove, install, or charge batteries. In such areas, sparks can occur and
cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as
follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
032374o
032376o
48
Batteries & Chargers
Caution:
Improper treatment or use of batteries may present a
danger of fire, explosion, leakage, or other hazard. For more
information, see the “battery use & safety” section in this guide.
Keep Your Mobile Device and Its Accessories Away From Small
Children
These products are not toys and may be hazardous to children. For
example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing
injury.
•
Improperly handled batteries could overheat and cause a burn.
Glass Parts
Some parts of your mobile device may be made of glass. This glass could
break if the product is dropped on a hard surface or receives a substantial
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local regulatory
authorities for more information.
Do not throw your battery or mobile device in the trash.
Do not let your battery, charger, or mobile device get wet.
Listening at full volume to music or voice through a
headset may damage your hearing.
Symbol Definition
032375o
49
impact. If glass breaks, do not touch or attempt to remove. Stop using your
mobile device until the glass is replaced by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when
exposed to flashing lights, such as when playing video games. These may
occur even if a person has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult with your physician before
playing video games or enabling a flashing-lights feature (if available) on
your mobile device.
Discontinue use and consult a physician if any of the following symptoms
occur: convulsion, eye or muscle twitching, loss of awareness, involuntary
movements, or disorientation. It is always a good idea to hold the screen
away from your eyes, leave the lights on in the room, take a 15-minute
break every hour, and stop use if you are tired.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for
extended periods of time may affect your hearing. The
louder the volume sound level, the less time is required
before your hearing could be affected. To protect
your hearing:
•
Limit the amount of time you use headsets or headphones at high
volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure
or fullness in your ears, ringing in your ears, or muffled speech, you should
stop listening to the device through your headset or headphones and have
your hearing checked.
50
For more information about hearing, see our Web site at
www.motorola.com/hearingsafety
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering
finger-written characters, you may experience occasional discomfort in
your hands, arms, shoulders, neck, or other parts of your body. If you
continue to have discomfort during or after such use, stop use and see a
physician.
[Mar0108]
Use and Care
Use an d Care
To care for your Motorola phone, please keep it away from:
liquids of any kind
Don’t expose your phone to water, rain, extreme
humidity, sweat, or other moisture. If it does get wet,
don’t try to accelerate drying with the use of an oven or
dryer, as this may damage the phone.
extreme heat or cold
Avoid temperatures below 0°C/32°F or above 45°C/
113°F.
microwaves
Don’t try to dry your phone in a microwave oven.
dust and dirt
Don’t expose your phone to dust, dirt, sand, food, or
other inappropriate materials.
51
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received
FCC approval. Applicable products bear the FCC logo, and/or an
FCC ID in the format FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by
the user. Any changes or modifications could void the user’s authority to
operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. See 47 CFR
Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
cleaning solutions
To clean your phone, use only a dry soft cloth. Don’t use
alcohol or other cleaning solutions.
the ground
Don’t drop your phone.
52
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Information from the World Health Organization
WHO Informat ion
Present scientific information does not indicate the need for any special
precautions for the use of mobile phones. If you are concerned, you may
want to limit your own or your children’s RF exposure by limiting the length
of calls or by using handsfree devices to keep mobile phones away from
your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the product should not
be disposed of with household waste.
Disposal of your Mobile Device and Accessories
Please do not dispose of mobile devices or electrical accessories (such as
chargers, headsets, or batteries) with your household waste. These items
should be disposed of in accordance with the national collection and
recycling schemes operated by your local or regional authority.
Alternatively, you may return unwanted mobile devices and electrical
accessories to any Motorola Approved Service Center in your region.
Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
53
Disposal of your Mobile Device Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements. Please
contact your regional authorities for more details.
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important to
everyone. Because some features of your mobile device may affect your
privacy or data security, please follow these recommendations to enhance
protection of your information:
• Monitor access
—Keep your mobile device with you and do not leave
it where others may have unmonitored access. Lock your device’s
keypad where this feature is available.
• Keep software up to date
—If Motorola or a software/application
vendor releases a patch or software fix for your mobile device that
updates the device’s security, install it as soon as possible.
• Erase before recycling
—Delete personal information or data from
your mobile device prior to disposing of it or turning it in for recycling.
For step-by-step instructions on how to delete all personal information
from your device, see the section entitled “master clear” or “delete
data” in the user’s guide.
Note:
For information on backing up your mobile device data before
erasing it, go to
www.motorola.com
and navigate to the “downloads”
section of the consumer Web page for “Motorola Backup” or “Motorola
Phone Tools.”
• Understanding AGPS
—To provide location information for
emergency calls, certain Motorola mobile devices incorporate Assisted
Global Positioning System (AGPS) technology. AGPS technology also
can be used in non-emergency applications to track and monitor a user’s
location—for example, to provide driving directions. Users who prefer
not to permit such tracking and monitoring should avoid using such
applications.
54
If you have further questions regarding how the use of your mobile device
may impact your privacy or data security, please contact Motorola at
privacy@motorola.com
, or contact your service provider.
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
Check the laws and regulations on the use of mobile devices and
their accessories in the areas where you drive. Always obey them.
The use of these devices may be prohibited or restricted in certain
areas
—
for example, handsfree use only. Go to
www.motorola.com/
callsmart
(in English only) for more information.
Your mobile device lets you communicate by voice and data—almost
anywhere, anytime, wherever wireless service is available and safe
conditions allow. When driving a car, driving is your first responsibility. If
you choose to use your mobile device while driving, remember the
following tips:
• Get to know your Motorola mobile device and its features such
as speed dial and redial.
If available, these features help you to place
your call without taking your attention off the road.
• When available, use a handsfree device.
If possible, add an additional layer of
convenience to your mobile device with one of
the many Motorola Original handsfree
accessories available today.
• Position your mobile device within easy reach.
Be able to access
your mobile device without removing your eyes from the road. If you
receive an incoming call at an inconvenient time, if possible, let your
voicemail answer it for you.
• Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous
weather conditions.
Rain, sleet, snow, ice, and even heavy traffic can
be hazardous.
55
• Do not take notes or look up phone numbers while driving.
Jotting
down a “to do” list or going through your address book takes attention
away from your primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when
your car is not moving or before pulling into traffic.
If you must
make a call while moving, dial only a few numbers, check the road and
your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may
be distracting.
Make people you are talking with aware you are driving
and suspend conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or other local
emergency number in the case of fire, traffic accident, or medical
emergencies.*
• Use your mobile device to help others in emergencies.
If you see
an auto accident, crime in progress, or other serious emergency where
lives are in danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special non-emergency wireless
assistance number when necessary.
If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you know to be
stolen, call roadside assistance or other special non-emergency wireless
number.*
* Wherever wireless phone service is available.
56
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their proprietor
and used by Motorola, Inc. under license. Java and all other Java-based
marks are trademarks or registered trademarks of Sun Microsystems, Inc.
in the U.S. and other countries. Microsoft and Windows are registered
trademarks of Microsoft Corporation; and Windows XP and Windows
Media are trademarks of Microsoft Corporation. Macintosh is a registered
trademark of Apple Computer, Inc. All other product or service names are
the property of their respective owners. is a Certification Mark of the
Wireless Fidelity Alliance, Inc. KODAK, EASYSHARE and PERFECT TOUCH
are trademarks of Kodak.
© 2008 Motorola, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the
equipment.
www.motorola.com
@6809507A69O@
00072336 MG FL MAY/07
Printed in USA
xxxxxxxxxxx-O
