Motorola Mobility T56JU1 Portable Cellular/ PCS GSM Transceiver with Bluetooth User Manual
Motorola Mobility LLC Portable Cellular/ PCS GSM Transceiver with Bluetooth
Exhibit 8 Users Manual
![](/img.php?id=997043&img=bg1.png)
User’s Guide
MOTO EM325
™
![](/img.php?id=997043&img=bg3.png)
1
HELLOMOTO
Introducing your new
MOTO
™
EM325 wireless phone! It’s a slim, easy-to-use music phone with a sleek design
that’s sure to get attention.
•My Phone, My Way
– Customise your home screen (page 31) with personal pictures taken with your
phone’s
camera
, and download a chart-topping track and use as your ringtone.
•Connect on So Many Levels
– Whether it’s with work or friends, stay connected with voice (page 24) and
messaging (page 47).
•Rich Music Experience
– Use the music player (page 50) to set your playlist for your morning commute.
Or, use the FM Radio (page 53) to listen to your favourite music or news programs. With a stereo wired
headset or high quality
Bluetooth®
stereo headset, listening has never been easier.
•Camera
– Capture key moments with
photos
(page 54).
• Convenient Extras
– When you are away from your home or desk, make use of handy tools like
Phonebook, Calculator, Alarm Clock, Calendar, and others (page 66).
•Fun
– When you have a little time to spare, why not surf the web (page 58) or play a game (page 59).
![](/img.php?id=997043&img=bg4.png)
2
Here’s a quick anatomy lesson:
Right Soft Key
Clear Key
Scroll up,
down, left, right
or press centre
to select.
Left Soft Key
Volume Keys
Send Key Power/End Key
Navigation Key
Microphone
Music Key
![](/img.php?id=997043&img=bg5.png)
3
Camera Lens
Volume Keys

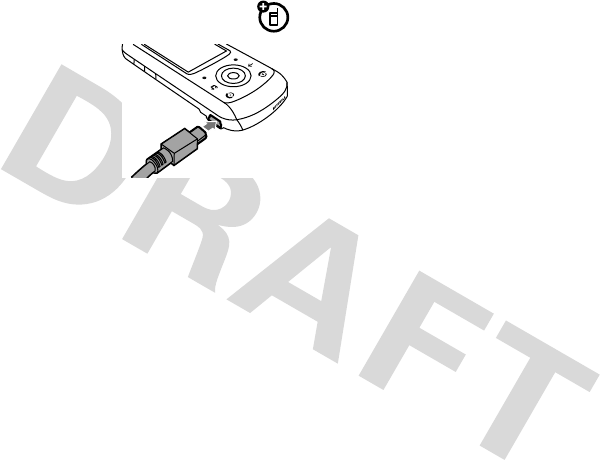

Mini USB Connector
Charge your phone and
connect to your PC.
3.5 mm Headset Jack
Note
: Mini USB
headsets are not
supported.
Battery Cover
Low Battery
Charging Indicator
![](/img.php?id=997043&img=bg6.png)
4
A few menu basics:
This is a typical home screen and main menu layout.
Your phone may be a little different
.
&
&
&
&
6Hì
10/10/08 10:51am
Home Screen Main Menu
Press and hold the
Power
Key
O
for a few
seconds, or until the
display lights up, to turn
on your phone.
1
Press the Navigation Key
up, down, left,
or
right
(
S
) to highlight a menu
feature.
3
Press the Centre Key
(
s
) to select it.
4
Press the
Centre Key
(
s
)
to open the
Main Menu
.
2
Menu
Shortcut ExitSelect
Phonebook
![](/img.php?id=997043&img=bg7.png)
5
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider’s network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user’s guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft and Windows are registered trademarks
of Microsoft Corporation; and Windows XP is a trademark of
Microsoft Corporation.
© Motorola, Inc., 2008. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 68XXXXX320-A
![](/img.php?id=997043&img=bg8.png)
6
contents
contents
menu map . . . . . . . . . . . . . . . . 8
Safety Information . . . . . . . . 10
FCC Notice . . . . . . . . . . . . . . . 14
Use and Care . . . . . . . . . . . . . 15
EU Conformance . . . . . . . . . . 16
Recycling Information . . . . . . 17
get started . . . . . . . . . . . . . . . 18
about this guide . . . . . . . . . 18
SIM card . . . . . . . . . . . . . . . 19
memory card . . . . . . . . . . . 19
battery. . . . . . . . . . . . . . . . . 20
turn it on & off. . . . . . . . . . . 24
make a call . . . . . . . . . . . . . 24
answer a call . . . . . . . . . . . . 24
change ring alert . . . . . . . . . 24
store a number . . . . . . . . . . 25
call a stored number . . . . . . 25
your phone number. . . . . . . 25
basics . . . . . . . . . . . . . . . . . . . 26
home screen . . . . . . . . . . . . 26
status indicators . . . . . . . . . 26
volume keys . . . . . . . . . . . . 27
handsfree . . . . . . . . . . . . . . 27
memory card. . . . . . . . . . . . 27
codes & passwords. . . . . . . 28
lock & unlock phone . . . . . . 28
lock & unlock keypad. . . . . . 29
tips & tricks . . . . . . . . . . . . . . 30
customise . . . . . . . . . . . . . . . . 31
change home screen. . . . . . 31
ring styles & alerts . . . . . . . 31
answer options . . . . . . . . . . 32
wallpaper. . . . . . . . . . . . . . . 32
screen saver . . . . . . . . . . . . 33
colour style . . . . . . . . . . . . . 33
backlight . . . . . . . . . . . . . . . 33
more customising features . 33
master reset . . . . . . . . . . . . 34
master clear. . . . . . . . . . . . . 35
calls . . . . . . . . . . . . . . . . . . . . . 36
redial a number . . . . . . . . . . 36
recent calls . . . . . . . . . . . . . 36
return a missed call . . . . . . . 37
call waiting. . . . . . . . . . . . . . 37
quick dial . . . . . . . . . . . . . . . 37
notepad . . . . . . . . . . . . . . . . 38
emergency calls . . . . . . . . . 38
call times . . . . . . . . . . . . . . . 38
in-call menu . . . . . . . . . . . . 39
headset . . . . . . . . . . . . . . . . 40
![](/img.php?id=997043&img=bg9.png)
contents
7
advanced calling . . . . . . . . . 41
text entry . . . . . . . . . . . . . . . . 43
set entry modes . . . . . . . . . 43
tap method . . . . . . . . . . . . . 45
iTAP™ method . . . . . . . . . . 45
numeric method . . . . . . . . . 46
delete letters & words. . . . . 46
symbol method . . . . . . . . . . 46
messages . . . . . . . . . . . . . . . . 47
send a message . . . . . . . . . 47
quick text. . . . . . . . . . . . . . . 47
receive a message . . . . . . . 48
voicemail . . . . . . . . . . . . . . . 48
more message features . . . 49
entertainment . . . . . . . . . . . . 50
music player . . . . . . . . . . . . 50
FM radio . . . . . . . . . . . . . . . 53
camera . . . . . . . . . . . . . . . . 54
pictures . . . . . . . . . . . . . . . . 55
voice notes . . . . . . . . . . . . . 57
WebAccess . . . . . . . . . . . . . 58
fun & games . . . . . . . . . . . . 59
connections . . . . . . . . . . . . . . 60
Bluetooth® wireless . . . . . . 60
cable connections . . . . . . . . 63
USB setting . . . . . . . . . . . . . 65
tools. . . . . . . . . . . . . . . . . . . . . 66
personal organiser . . . . . . . . 66
phonebook. . . . . . . . . . . . . . 67
network . . . . . . . . . . . . . . . . 67
service & repairs. . . . . . . . . . . 68
SAR Data. . . . . . . . . . . . . . . . . 69
Hearing Aids . . . . . . . . . . . . . . 70
WHO Information . . . . . . . . . . 71
Registration . . . . . . . . . . . . . . 71
Privacy and Data Security . . . 72
Driving Safety. . . . . . . . . . . . . 73
index . . . . . . . . . . . . . . . . . . . . 75
![](/img.php?id=997043&img=bga.png)
8
menu map
menu map
main menu
L
Phonebook
q
Recent Calls
• Received Calls
• Dialled Calls
• Notepad
•Erase All
• Call Time
• Call Cost *
• GPRS Data Counter
• GPRS Connection Time
g
Messages
• Create Message
• Message Inbox
• Outbox
•Drafts
• Voicemail
• Browser Msgs
•Quick Notes
• MMS Templates
m
To o l s
•Calculator
• Shortcuts
•Chat *
• SIM Toolkit *
• Calendar
• Lantern
T
Games & Apps
1
WebAccess
•Browser
• Web Shortcuts
•Go To URL
•History
• Web Sessions
• Web Settings
* Network Dependent
This is the standard main menu layout.
Your phone’s menu may be different
.
j
Multimedia
• Camera
• Music Library
•Pictures
•Voice Notes
•FM Radio
• My Picture
A
Alarm Clock
u
Settings
• (see next page)
![](/img.php?id=997043&img=bgb.png)
menu map
9
settings menu
b
Personalise
• Home Screen
• Colour Style
• Wallpaper
• Screen Saver
• Slide Tone
•Quick Dial
æ
USB
• USB Modem
•USB Disk
E
Bluetooth Link
• Find Me
• Add Audio Device
• Setup
N
Ring Styles
•Style
•Style Detail
g
Call Forward
• When Busy
• No Reply
• Not Reachable
• Not Available
• All Calls
•Cancel All
g
In-Call Setup
• Dialling Prefix
• In-Call Timer
• Call Cost Setup *
• Show Number
• Call Waiting
• Anykey Answer
• Session Information
• Auto Redial
S
Headset & Car Setting
• Auto Answer
%
Airplane Mode
• Airplane Mode
• Prompt at Power Up
i
Initial Setup
• Time and Date
• Slide Closed
• Backlight
• Language
• Brightness
• Input Mode
• Connection Indicator
• Master Reset
• Master Clear
• Format Memory Card
* Network Dependent
j
Phone Status
• My Tel. Number
• Active Line *
• Battery Meter
• Storage Devices
l
Security
• Phone Lock
• Keypad Lock
• Lock Application
• Fixed Dial *
• Call Barring
• Call Restriction
• SIM PIN
•New Passwords
m
Network
*
•New Network
•Network Setup
• Available Networks
• Service Tone
• Call Drop Tone
n
Lantern
• 30 Seconds
• 1 Minute
• 2 Minutes
![](/img.php?id=997043&img=bgc.png)
10
Safety Information
Safety and General Information
Safet y In formati on
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance, and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
![](/img.php?id=997043&img=bgd.png)
Safety Information
11
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from the implantable medical
device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your healthcare provider.
Driving Precautions
The use of wireless phones while driving may cause distraction.
Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Responsible driving practices can be found in the “Smart Practices
While Driving” section in this guide (or separate guide).
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not
always, posted and can include fueling areas, such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
![](/img.php?id=997043&img=bge.png)
12
Safety Information
Symbol Key
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Batteries & Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “battery use & safety” section in
the user’s guide.
Keep Your Mobile Device and Its
Accessories Away From Small
Children
These products are not toys and may be hazardous to children. For
example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing
hearing injury.
•
Improperly handled batteries could overheat and cause a
burn.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device
in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities for
more information.
Do not throw your battery or mobile device in
the trash.
Do not let your battery, charger, or mobile
device get wet.
Listening at full volume to music or voice
through a headset may damage your hearing.
032374o
032376o
032375o
![](/img.php?id=997043&img=bgf.png)
Safety Information
13
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for
extended periods of time may affect your hearing.
The louder the volume sound level, the less time is
required before your hearing could be affected. To
protect your hearing:
•
Limit the amount of time you use headsets or headphones
at high volume.
•
Avoid turning up the volume to block out noisy
surroundings.
•
Turn the volume down if you can’t hear people speaking
near you.
If you experience hearing discomfort, including the sensation of
pressure or fullness in your ears, ringing in your ears, or muffled
speech, you should stop listening to the device through your
headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
www.motorola.com/hearingsafety
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Mar0108
![](/img.php?id=997043&img=bg10.png)
14
FCC Notice
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
![](/img.php?id=997043&img=bg11.png)
Use and Care
15
Use and Care
Use and Ca re
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
If it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
![](/img.php?id=997043&img=bg12.png)
16
EU Conformance
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on
the Web site.
0168
Product
Approval
Number
![](/img.php?id=997043&img=bg13.png)
Recycling Information
17
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the
product should not be disposed of with
household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
![](/img.php?id=997043&img=bg14.png)
18
get started
get started
about this guide
This guide shows how to locate a menu feature as
follows:
Find it:
s
>
qRecent Calls
>
Received Calls
This means that, from the home screen:
1
Press the centre key
s
to open the main menu.
2
Scroll to
qRecent Calls
and press the centre
key
s
.
3
Scroll to
Received
Calls
and press the centre key
s
.
Tip:
Press the centre key
s
or
Select
to select a
highlighted option.
symbols
This means a feature is
network/subscription dependent and may
not be available in all areas. Contact your
service provider for more information.
This means a feature requires an optional
accessory.
![](/img.php?id=997043&img=bg15.png)
19
get started
SIM card
Yo u r Subscriber Identity Module (SIM) card contains
personal information like your phone number and
contacts. It can also contain your voicemail and text
message settings.
If you put your SIM card in another phone, that phone
uses your phone number.
Caution:
Don’t bend or scratch your SIM card. Keep it
away from static electricity, water, and dirt.
Tip:
Make sure your SIM card is fully inserted into the
phone before installing the battery.
memory card
You can use a removable microSD memory
card (up to 2 GB) with your phone to store and
retrieve multimedia objects, such as music and
pictures.
Note:
Motorola approved SanDisk cards are
recommended for cards greater than 1 GB.
install the memory card
To install the memory
card, make sure the
memory card’s metal
contacts are facing
down. Slide the top of
the memory card under the metal band and into the
holder.
12
![](/img.php?id=997043&img=bg16.png)
20
get started
remove the memory card
To remove the memory card, gently but firmly push
down on the card and slide out.
battery
battery use and safety
IMPORTANT: HANDLE AND STORE BATTERIES
PROPERLY TO AVOID INJURY OR DAMAGE.
Most
battery issues arise from improper handling of
batteries, and particularly from the continued use of
damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred,
or otherwise attempt to change the form of
your battery.
• Don’t let the phone or battery come in
contact with water.
Water can get into the
phone’s circuits, leading to corrosion. If the
phone and/or battery get wet, have them
checked by your carrier or contact Motorola
even if they appear to be working properly.
• Don’t allow the battery to touch metal
objects.
If metal objects, such as jewelry, stay
in prolonged contact with the battery contact
points, the battery could become very hot.
• Don’t place your battery near a heat
source.
Excessive heat can damage the
phone or the battery. High temperatures can
cause the battery to swell, leak, or
malfunction. Therefore:
•
Do
not
dry a wet or damp battery with an
appliance or heat source, such as a hair
dryer or microwave oven.
•
Avoid leaving your phone in your car in
high temperatures.
![](/img.php?id=997043&img=bg17.png)
21
get started
DOs
• Do avoid dropping the battery or phone.
Dropping these items, especially on a hard
surface, can potentially cause damage.
• Do contact your service provider or
Motorola if your phone or battery has been
damaged from dropping or high
temperatures.
IMPORTANT: USE MOTOROLA ORIGINAL
PRODUCTS FOR QUALITY ASSURANCE AND
SAFEGUARDS.
To aid consumers in identifying
authentic Motorola batteries from non-original or
counterfeit batteries (that may not have adequate
safety protection), Motorola provides holograms on its
batteries. Consumers should confirm that any battery
they purchase has a “Motorola Original” hologram.
Motorola recommends you always use
Motorola-branded batteries and chargers.
Motorola
mobile devices are designed to work with Motorola
batteries. If you see a message on your display such
as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm
that it has a “Motorola Original” hologram;
•
If there is no hologram, the battery is not a
Motorola battery;
•
If there is a hologram, replace the battery and
retry charging it;
•
If the message remains, contact a Motorola
Authorized Service Center.
Important:
Motorola’s warranty does not cover
damage to the phone caused by non-Motorola
batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger
may present a risk of fire, explosion, leakage, or other
hazard.
PROPER AND SAFE BATTERY DISPOSAL AND
RECYCLING
![](/img.php?id=997043&img=bg18.png)
22
get started
Proper battery disposal is not only important for
safety, it benefits the environment. Consumers may
recycle their used batteries in many retail or service
provider locations. Additional information on proper
disposal and recycling may be found on the Web:
•
www.motorola.com/recycling
•
www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries
in accordance with local regulations. Contact
your local recycling center or national
recycling organizations for more information on how to
dispose of batteries.
Warning:
Never dispose of batteries in a fire because
they may explode.
install the battery
1
2
![](/img.php?id=997043&img=bg19.png)
23
get started
remove the battery
Note:
Your battery is intentionally tight fitting to
ensure consistent connection.
charge the battery
New batteries are not fully
charged. Plug the battery
charger into your phone
and an electrical outlet.
Your phone might take
several seconds to start
charging the battery. The
low battery charging indicator will light and remain ON,
until the battery has enough charge to power up the
phone display.
The phone shows
Charging Complete
when finished.
Notes for charging your phone’s battery:
•
When charging your battery, keep it near room
temperature. Never expose batteries to
temperatures below 0°C (32°F) or above 45°C
(113°F) when charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long
time may take more time to charge.
•
Motorola batteries and charging systems have
circuitry that protects the battery from
damage from overcharging.
Note:
You can also use a PC USB port to charge your
phone battery. Before connecting your phone to your
PC, download and install the charging software driver
from
www.motorola.com/support
.
![](/img.php?id=997043&img=bg1a.png)
24
get started
turn it on & off
To turn on your phone
,
press and hold
O
for a
few seconds or until the
display turns on.
If prompted, enter your
four-digit unlock code. Your phone’s four-digit
unlock
code
is originally set to
1234
or the last four digits of
your phone number (see page 28).
To turn off your phone
, press and hold
O
for a few
seconds.
make a call
Enter a phone number and press
N
to make a call.
See page 36 for more calling features.
To hang up, press
O
.
Tip:
Is your caller saying they can’t hear you? Make
sure your finger is not covering the microphone (see
page 2).
answer a call
When your phone rings and/or vibrates, press
N
or
slide open to answer. See page 32 for answer options.
To hang up, press
O
.
change ring alert
Find it:
s
>
uSettings
>
N
Ring Styles
Available options are
Loud
,
Soft
,
Vibrating
,
Vibe & Ring
, or
Silent
(see page 31).
![](/img.php?id=997043&img=bg1b.png)
25
get started
store a number
You can store up to 1000 phone numbers in
Phonebook
:
1
Enter a number in the home screen, and press
Save
.
2
Enter a name and other details for the phone
number.
3
Press
Save
to store the number.
call a stored number
Find it:
s
>
L
Phonebook
1
Scroll to the entry.
2
Press
N
to call the entry.
Shortcut:
In
Phonebook
, enter the first letters of an entry
to get to it quickly.
Tip:
Set the
Phonebook
icon as a
Home Screen
navigation key for even faster access (see page 31).
your phone number
Find it:
s
>
uSettings
>
m Phone Status
>
My Tel.
Number
Tip:
Want to see your phone number while you’re on a
call? Press
Options
>
My Tel. Number
.
![](/img.php?id=997043&img=bg1c.png)
26
basics
basics
See page 2 for a basic phone diagram.
home screen
When you turn on your phone, the home screen
displays.
Note:
Your home screen might look a little different
from this example.
Soft key labels show the current soft key functions.
For soft key locations, see page 2.
Press the navigation key
S
up, down, left, or right to
select items in the home screen.
status indicators
Status indicators can appear at the top of the phone:
Right Soft
Key Label
Left Soft
Key Label
Shortcut Menu
6
H
ì
10/10/08 10:51am
&
&
&
&
H
Active Line
Bluetooth New
Message
Ring
Style
Battery
Level
Roaming Active
WAP
Active
Signal
Strength
GPRS Active
Changes to
when connected.
![](/img.php?id=997043&img=bg1d.png)
27
basics
volume keys
Press the volume keys on the side of the phone to:
•
Change earpiece or speakerphone volume
during a call.
•
Change ringtone volume (if the phone is in idle
state, not in a call and not playing music).
•
Change volume when playing music.
Note:
When listening to music using a
Bluetooth stereo device (headset or car
stereo), use the volume control keys
on the
device
to increase/decrease music volume
handsfree
You can use your phone’s handsfree speaker to make
calls without holding the phone to your ear. To turn the
speaker on during a call, press
Speaker
. To turn the
speaker off, press
Speaker
again.
You can also use an optional 3.5 mm wired headset, or
Bluetooth
®
headset, to go handsfree.
Note:
Mini USB headsets are not supported.
memory card
You can store multimedia content, such as songs, and
photos, on your phone’s internal memory or on an
optional memory card.
Note:
You cannot download a copyrighted file and
store it on your memory card.
format memory card
You need to format a memory card,
using the phone
,
before using it for the first time. This creates the
necessary folders and ensures your phone can read
the contents of the card. Your phone will prompt you if
you need to format your memory card.
![](/img.php?id=997043&img=bg1e.png)
28
basics
Note:
To manualy format the memory card press
s
>
u
Settings
>
iInitial Setup
>
Format Memory Card
.
Caution:
Formatting the memory card erases all
content on the card.
Note:
To access music stored on your microSD
memory card, press
[
. To access pictures stored on
your microSD memory card, press
s
>
j
Multimedia
>
Pictures
>
All Pictures
, then press
Options
>
Switch Storage
>
Memory Card
. All music files are displayed no matter
where they are stored. Picture files must be stored in
the memory card
mobile
\
folder. If there are
no files stored on your memory card, your phone will
automatically switch to its internal memory.
codes & passwords
Your phone’s four-digit
security code
is originally set
to
1234
or to the last four digits of your phone number.
Your service provider may reset this codes If not, you
should change it to protect your personal information.
The unlock code must contain four digits.
To change a code or password
:
Find it:
s
>
uSettings
>
l
Security
>
New Passwords
Note:
If you forget your security code, contact your
service provider.
lock & unlock phone
You can lock your phone with a four-digit code to keep
others from using it.
Note:
You can make emergency calls on a locked
phone (see page 38). A locked phone still rings or
vibrates for incoming calls or messages.
To lock your phone
:
Find it:
s
>
uSettings
>
lSecurity
>
Phone Lock
>
Lock Now
or
Automatic Lock
![](/img.php?id=997043&img=bg1f.png)
29
basics
Enter the four-digit unlock code and press
OK
. Your
phone first displays
Phone Locked
, and then shows
Phone
Lock Code
until the next time you unlock your phone.
To unlock your phone
, enter your four-digit code and
press
OK
.
To change phone lock code:
Find it:
s
>
uSettings
>
lSecurity
>
New Passwords
>
Phone Lock Code
lock & unlock keypad
The keypad will automatically lock
when the slider is
closed
, if the
Keypad Lock Timer
is
On
.
To turn the timer on, press
s
>
u
Settings
>
lSecurity
>
Keypad Lock
>
Timer
>
2 Seconds
,
4 Seconds
or
8 Seconds
.
To unlock your keypad
with the slider closed
, press
any key and select
Unlock
>
OK
.
To lock your keypad
with the slider open
, press and
hold
*
.
![](/img.php?id=997043&img=bg20.png)
30
tips & tricks
tips & tricks
From the home screen
(page 26), you can use
shortcuts:
To... Do this...
take a photo
Press
s
>
j
Multimedia
>
Camera
to activate the camera and press
s
to take a photo.
see recently
dialled
numbers
Press
N
.
use
application
shortcuts
Press the left and right soft keys
or the navigation key
S
.
access
voicemail
Press and hold
1
.
change ring
style
Press and hold
#
.
access music
player
Press
[
.
access FM
radio
Press and hold
[
.
To... Do this...
![](/img.php?id=997043&img=bg21.png)
31
customise
customise
change home screen
Find it:
s
>
uSettings
>
b
Personalise
>
Home Screen
>
Home Keys
ring styles & alerts
Your phone rings and/or vibrates to notify you of an
incoming call or to signal certain other events. This
ring or vibration is called an alert.
set a style
There are times when you want to hear your ringtone,
and there are times when you don’t.
Find it:
s
>
uSettings
>
NRing Styles
Choose from the pre-programmed styles, including
Vibrate
and
Silent
.
options
Show Icons
Show or hide the home screen shortcut
icons.
Up
,
Down
,
Left
,
Right
Choose the features that open when
you press the navigation key (
S
) up,
down, left, or right in the home screen.
![](/img.php?id=997043&img=bg22.png)
32
customise
set alerts
Set alerts for different events, such as getting a
message in your inbox or receiving a call.
Find it:
s
>
uSettings
>
NRing Styles
1
Scroll to Style
Detail
and press
s
.
2
Scroll to an alert type and press
s
.
3
Scroll to the desired detail setting and press
s
.
Note:
Your phone plays a sample of each
highlighted setting. Ringtones play through the
speakerphone, unless you’re using a headset.
answer options
Set your phone to
Anykey Answer
.
Find it:
s
>
uSettings
>
gIn-Call Setup
>
Anykey
Answer
wallpaper
Set a picture as a wallpaper (background) image in
your home screen.
Find it:
s
>
uSettings
>
bPersonalise
>
Wallpaper
To select a wallpaper image
:
1
Scroll to
and press
s
.
2
Scroll to the picture you want and press
s
or
Select
Off
to turn off wallpaper.
Note:
Your phone shows a sample of each
highlighted image.
To adjust wallpaper image layout
:
1
Scroll to
Layout
and press
s
.
2
Scroll to
Centre
,
Tile
or
Fit-to-screen
, and press
s
.
![](/img.php?id=997043&img=bg23.png)
33
customise
screen saver
Set a picture as a screen saver image. The screen
saver displays when there is no phone activity.
Find it:
s
>
uSettings
>
bPersonalise
>
Screen Saver
To select a screen saver
:
1
Scroll to
or
Photo Album
and press
s
.
2
Scroll to the image you want and press
s
or
Select
Off
to turn off the screen saver.
Note:
Your phone shows a sample of each
highlighted image.
colour style
To choose a
Colour Style
(or skin) that sets the look and
feel of your phone’s display, press
s
>
uSettings
>
bPersonalise
>
Colour Style
.
backlight
To select a time period that the backlight remains on,
press
s
>
uSettings
>
i
InitialSetup
>
Backlight
.
more customising
features
features
ring volume
s
>
u
Settings
>
N Ring Styles
> Style
Detail
>
Ringing
Volume
slide tone
s
>
uSettings
>
b
Personalise
>
Slide Tone
keypad volume
s
>
uSettings
>
N
Ring Styles
> Style
Detail
>
Key Tone
Volume
![](/img.php?id=997043&img=bg24.png)
34
customise
master reset
reminders
Set your phone to play reminder alerts for unread
messages, missed calls, or voicemail messages
that you receive:
s
>
uSettings
>
NRing Styles
> Style
Detail
>
Reminders
set time and date
s
>
uSettings
>
i
Initial Setup
>
Time and Date
slide closed
Set your phone to continue or end a task when the
slide is closed:
s
>
uSettings
>
iInitial Setup
>
Slide Closed
text layout
Set home screen text to be
Left Justified
,
Centered
or
Off
:
s
>
uSettings
>
bPersonalise
>
Home Screen
>
Layout
features
clock view
Show or hide a digital clock on the home screen:
s
>
uSettings
>
b
Personalise
>
Home Screen
>
Clock
menu language
s
>
uSettings
>
i
Initial Setup
>
Language
features
master reset
Reset all options except unlock code, security code,
and lifetime timer:
s
>
uSettings
>
i
Initial Setup
>
Master Reset
To reset all options, you need to enter the
Security Code
(
default 1234
).
features
![](/img.php?id=997043&img=bg25.png)
35
customise
master clear
features
master clear
Reset all options except unlock code, security code,
and lifetime timer, and clear all user settings and
entries.
This option erases all user-entered information
stored in your phone memory, including
Contacts entries and downloaded files
. Once you
erase the information, it cannot be recovered. It
resets all options to their factory settings except for
the unlock code, security code, and lifetime timer.
s
>
uSettings
>
i
Initial Setup
>
Master Clear
To reset all options, you need to enter the
Security Code
(
default 1234
).
![](/img.php?id=997043&img=bg26.png)
36
calls
calls
To make and answer calls, see page 24.
redial a number
1
From the home screen, press
N
to see a list of
recently dialled calls.
2
Scroll to the entry you want to call and press
N
.
recent calls
Your phone keeps lists of the calls you recently
received and dialled, even if the calls didn’t connect.
The lists are sorted from newest to oldest calls. The
oldest calls are deleted as new calls are added.
Find it:
s
>
q Recent Calls
>
Received Calls
or
Dialled Calls
1
Scroll to an entry.
Note:
A
%
next to a call means the call
connected.
2
Press
N
to call the number.
To see call details (such as time and date),
press
Options
>
View
.
Press
Options
(left soft key) while viewing a list of recent
calls to see these options:
option
View
View the entry.
Delete
Delete the entry.
Call
Call the entry.
![](/img.php?id=997043&img=bg27.png)
37
calls
return a missed call
When you miss a call, your phone plays an alert,
displays the
{
(missed call) indicator on the home
screen. Press
View
to see the details and press
N
to
call the number.
To view your missed calls at any time:
Find it:
s
>
q Recent Calls
>
Received Calls
To hear a voicemail message, see page 48.
call waiting
If you
receive a second call
while you are
already on a call:
•
To answer the second call and put the first call
on hold, press
N
or the
Answer
soft key. To
switch between the calls, press
Switch
again.
•
To send the second call to your voicemail,
press
Ignore
.
quick dial
Your phone can store nine phone numbers that you
can call with a single key press. To
store
a quick dial
phone number:
Find it:
s
>
uSettings
>
bPersonalise
>
Quick Dial
To
call
a quick dial phone number, press and hold the
single-digit quick dial number from the home screen.
Send Message
Create a new text message with
the number in the
To
field.
Save
Save the entry in the
Phonebook
.
Block
Block calls from a phone number.
Custom Block List
View a list of blocked phone
numbers. Unblock numbers.
option
![](/img.php?id=997043&img=bg28.png)
38
calls
notepad
The most recent set of digits that you entered are
stored in your phone’s notepad memory.
To retrieve a number in the notepad
:
Find it:
s
>
q
Recent Calls
>
Notepad
Press
N
to call the number or press
Save
to store the
number in
Phonebook
.
emergency calls
Your service provider programs emergency phone
numbers (such as 112 or 911) that you can call under
any circumstances, even when your phone is locked.
1
Enter the emergency number.
2
Press
N
.
Note:
Emergency numbers vary by country. Your
phone’s pre-programmed emergency number(s) may
not work in all locations, and sometimes an
emergency call cannot be placed due to network,
environmental, or interference issues.
call times
Network connection time
is the elapsed time from
the moment you connect to your service provider’s
network to the moment you end the call by pressing
O
. This time includes busy signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
service provider. For billing information, please
contact your service provider directly.
features
set in-call timer
s
>
uSettings
>
g
In-Call Setup
>
In-Call Timer
![](/img.php?id=997043&img=bg29.png)
39
calls
in-call menu
During a call you access the in-call menu by pressing
Options
.
call cost setup
s
>
uSettings
>
gIn-Call Setup
>
Call Cost Setup
view call times
s
>
qRecent Calls
>
Call Time
Scroll to
Last Call
,
Dialled Calls
,
Received Calls
,
All Calls
, or
Lifetime
, and press
Select
.
features
show available phone line
Options
>
My Tel Number
Scroll to a line and press
Select
.
features
hold the call
Options
>
Hold
mute the call
Options
>
Mute
use Bluetooth
Options
>
Bluetooth Link
show contacts
Options
>
Phonebook
make another call
Options
>
New Call
show dialled calls
Options
>
Dialled Calls
show received calls
Options
>
Received Calls
features
![](/img.php?id=997043&img=bg2a.png)
40
calls
headset
show messages
Options
>
Messages
show calendar
Options
>
Calendar
change dialling prefix
Options
>
Dialling Prefix
features
features
auto answer
Automatically answer calls when connected
to a headset:
s
>
uSettings
>
S
Headset & Car Setting
>
Auto Answer
Note:
Both mono and stereo headsets are
supported for voice only.
change volume
Press volume keys on the side of the phone up or
down to change the headset volume during a call.
Note:
When listening to music using a Bluetooth
stereo device (headset or car stereo), use the
volume control keys
on the device
to
increase/decrease music volume
![](/img.php?id=997043&img=bg2b.png)
41
calls
advanced calling
features
international calls
If your phone service includes international
dialling, press and hold
0
to insert your local
international access code (indicated by
+
). Then,
press the keypad keys to dial the country code and
phone number.
call forward
Set up or cancel call forward:
s
>
uSettings
>
g
Call Forward
speed dial
Each
Phonebook
entry you store is assigned a unique
speed dial number. To display the speed dial
number allocated to a contact number:
s
>
L
Phonebook
> entry
To speed dial a number, enter the speed dial
number and press
#
then
N
.
restrict calls
Restrict outgoing or incoming calls:
s
>
uSettings
>
lSecurity
>
Call Barring
Select
Outgoing Calls
,
Incoming Calls
or
Cancel All
and press
Select
.
When prompted, enter the unlock code (supplied by
your service provider) and press
OK
.
features
![](/img.php?id=997043&img=bg2c.png)
42
calls
airplane mode
Turn off your phone’s calling features in locations
where wireless phone use is prohibited. This let’s
you use the music player and other non-network
features while you are on an airplane, without
interfering with airplane communications.
s
>
uSettings
>
%Airplane Mode
To reactivate your phone’s calling features, turn off
airplane mode.
features
![](/img.php?id=997043&img=bg2d.png)
43
text entry
text entry
Some screens allow you to use the keypad to enter
text, such as when you compose a message.
set entry modes
Multiple text entry modes make it easy for you to
enter names, numbers, and messages:
To assign a Primary or Secondary text entry mode
:
1
In a text entry screen, press
Options
.
2
Scroll to
Input Setup
and press
s
.
3
Scroll to
Primary
or
Secondary
and press
s
.
4
Scroll to one of the following choices and press
s
:
To change the text entry mode:
Press
#
repeatedly in a text entry screen until the
desired mode is displayed.
entry mode
Primary
Secondary
Enter text using a method that you set.
Number
Enter numbers only (see page 46).
Symbol
Enter symbols only (see page 46).
options
iTAP™
Let the phone predict each word as you
press keys.
TAP
Enter letters and numbers by pressing
a key one or more times.
![](/img.php?id=997043&img=bg2e.png)
44
text entry
To select or edit a text entry mode:
Press
Options
>
Input Mode
, in a text entry screen, and
select the desired entry mode.
capitalisation
Press
0
in any text entry screen to change the text
case. These indicators show capitalisation status:
text entry mode indicators
When you select the
Primary
or
Secondary
text entry mode,
the following indicators identify the text entry setting:
These indicators identify
Numeric
or
Symbol
entry mode:
indicator
í
no capital letters
L
all capital letters
ì
capitalise next letter only
primary secondary
gm
Tap, no capital letters
hq
Tap, capitalise next letter
fl
Tap, all capital letters
jp
iTAP™, no capital letters
kn
iTAP, capitalise next letter
io
iTAP, all capital letters
indicator
gm
number mode
[
symbol mode
![](/img.php?id=997043&img=bg2f.png)
45
text entry
tap method
Regular
Tap
method cycles through the letters and
numbers of the key you press.
1
Press a key one or more times to cycle through its
characters.
2
Repeat the step above to enter all characters.
Tip:
Press
*
to insert a space.
In a text entry screen you can press
#
to switch
entry modes. If
Tap
is not available as the
Primary
or
Secondary
entry mode, see page 43.
iTAP™ method
The iTAP software combines your single key presses
into common words, and predicts each word as you
enter it. This can be faster than the
Tap
method.
1
Press
S
right or left to scroll through the
possible letter combinations, and highlight the
combination you want.
2
Press
s
to enter the highlighted combination.
You can press keys to add more letters to the end
of the combination.
or
Press
*
to enter the highlighted combination
and insert a space.
![](/img.php?id=997043&img=bg30.png)
46
text entry
For example, if you press
7764
, your phone
displays the corresponding letter combinations:
numeric method
In a text entry screen, press
#
to switch entry
methods until your phone displays the
gm
(numeric)
indicator.
Press keypad keys to enter numbers. When finished,
press
#
to switch entry modes.
delete letters & words
Move the cursor to the right of the text you want to
delete and then:
•
Press
v
to delete one letter at a time.
•
Press and hold
v
to delete the
entire message.
symbol method
In the text entry screen, press
#
to switch entry
methods until your phone displays the
[
(symbol)
indicator.
1
Press a key one or more times to show possible
symbol combinations at the bottom of the screen.
2
Scroll left or right to highlight a symbol and press
s
to enter it.
6
ì
SMS: 746
Options Send
prog proh spoi
This is a program
146(1)
Press
Sup
to accept
program,
press down to reject
and continue.
Press
S
right
or left to see
other word
suggestions.
Msg
Abc
q
![](/img.php?id=997043&img=bg31.png)
47
messages
messages
You can send and receive text (SMS/EMS) and
multimedia (MMS) messages, as well as
access your voicemail from the Messages feature.
Each message type allows you to attach different
objects. The available options show in the
Insert
menu.
Note:
Your phone can store a maximum of 750 SMS
messages, shared between the
Inbox
,
Outbox
and
Draft
folders.
send a message
Find it:
s>
g Messages > Create Message
1
Select a message type and enter the message
text.
2
To insert a picture, sound, or other object, press
Options > Insert
.
3
When you finish typing the message, press
Send
.
Choose one or more people to send
to.
4
Press
Send
(left soft key).
quick text
Set your home screen to access the
t
Quick text
option
so that you can send messages faster.
Find it:
s
>
uSettings
>
bPersonalise
>
Home Screen >
Home keys > Up
,
Down
,
Left
or
Right > Quick TEXT
After setup you can quickly access the text entry
screen by pressing the navigation key direction you
set for
t
Quick TEXT
.
![](/img.php?id=997043&img=bg32.png)
48
messages
receive a message
When you receive a message, your phone plays an
alert, and displays a new message notification on the
home screen. Press the
View
softkey to read the
message immediately, or save it in your message
inbox for viewing later. To read messages in your
message inbox:
Find it:
s
>
g
Messages
>
Message Inbox
Scroll to the message you want to read. Press
Select
to
open the message. For MMS messages, your phone
displays the media object, then the message.
voicemail
Your network stores the voicemail messages
you receive.
When you
receive
a voicemail message, your phone
shows an indicator and
New Voicemail
. Press
Call
to call
your voicemail.
To check your voicemail messages
:
Find it:
s
>gMessages
>Voicemail
>s
Note:
Your service provider may have assigned speed
dial number
1
for calling voicemail and may provide
additional information about using voicemail.
To set up voicemail
s
>
gMessages
>
Options
>
Voicemail Setup
![](/img.php?id=997043&img=bg33.png)
49
messages
more message features
features
use MMS template
Select a preloaded multimedia template:
s
>
gMessages
>
MMS Templates
view sent, received and draft messages
s
>
gMessages
>
Message Inbox,
Outbox
or
Drafts
erase messages
Delete all messages or only messages from one
folder:
s
>
gMessages
>
Options
>
Cleanup Messages
Select
All
,
Inbox
,
Outbox
, or
Drafts
.
view the message memory status
s
>
gMessages
>
Options > Memory Meter > SMS Status
or
MMS Status
![](/img.php?id=997043&img=bg34.png)
50
entertainment
entertainment
music player
Use your phone to play MP3, MIDI, AAC, AMR and
WAV music file types:
Find it:
s
>
j
Multimedia
>
Music Library
>
All Songs
>
song
Shortcut:
Press
[
to access
Music Library
directly.
Note:
Your phone may not play MP3 files that have a
bit rate higher than 320 kbps. If you try to download or
play one of these files, your phone may display an
error message or ask you to delete the file.
Tip:
Connect a stereo headset for high quality music
playback.
From the
Music Player
, open one of the following:
Band Name
Tra ck N a me
03:43:00
Options Back
2/3
SHINY TOY GUNS
WE ARE PILOTS
tab
Now Playing
Select the track that is currently
playing.
All Songs
Select a track to show or play songs.
Playlists
Play and manage your playlists.
![](/img.php?id=997043&img=bg35.png)
51
entertainment
music player controls
Tip:
You can listen to music as you travel. Use
Bluetooth® A2DP enabled devices, such as stereo
headphones, for enhanced music quality and use
Bluetooth AVRCP enabled devices, such as car
stereos, to control playback. When listening to music
using a Bluetooth stereo device (headset or car
stereo), use the volume control keys
on the device
to
increase/decrease music volume.
playlists
Find it:
s
>
j
Multimedia
>
Music Library
>
Playlists
Artists
Select an artist to show or play their
songs.
Albums
Select an album to show or play its
songs.
Genres
Select a genre of music to show or
play its songs.
function
scroll through song
list
Before music playback,
press
S
up or down.
play/pause/resume
Press
s
.
fast forward
Press & hold
S
right (for
at least two seconds).
next/previous song
Press & release
S
right/left.
tab
rewind
Press & hold
S
left (for at
least two seconds).
hide
Press
Options
>
Hide
to
minimize the music player
turn off
Press
Back
.
function
![](/img.php?id=997043&img=bg36.png)
52
entertainment
•
To create a new playlist, press
Create New Playlist
.
•
To select and play a playlist, scroll to the
playlist and press
Options
>
Play
.
music playlist options
get music
Copy music to your phone’s memory card.
Connect:
With a memory card inserted and your phone in the
home screen, insert the USB cable in your phone and
your Windows
™
PC.
Note:
Your phone operates with Microsoft™
Windows™ XP™ and Windows™ Vista™. Other
operating systems may not be compatible with
your phone.
Note:
For USB cable connection details, see page 63.
USB drag and drop:
1
Use the My Computer window to find
“Removable Device”.
2
Drag and drop music files that you want to
save anywhere on the memory card.
Note:
A file name (including the path) must be
less than 255 characters. For example, if you copy
songs into a folder you create that is named
“MyMotoSongs,” the name of any song PLUS the
option
Play
Play a track or playlist.
Create New
Make a new playlist.
Manage Rename
or
Delete
a playlist.
Music Setup
Select
Shuffle
or
Repeat
.
View Free Space
View the storage space available.
![](/img.php?id=997043&img=bg37.png)
53
entertainment
name of the folder “MyMotoSongs” must be less
than 255 characters..
3
When you’re done, use the
Safely Remove
Hardware
feature to finish.
FM radio
Find it:
Press and hold
[
To use the
FM Radio
you need to connect a stereo
headset to the
3.5 mm headset jack
.
•
Press
S
up or down to change the
frequency.
•
Press
S
left or right to scan for preset radio
stations.
•
Press the up or down volume keys on the side
of the phone to adjust the volume.
•
Press
s
to mute the radio.
Tip:
To set the FM radio to play as your alarm sound,
press
s
>
A
Alarm Clock
and select the
FM Radio
option
to choose your favourite channel.
set radio presets
1
Tune in the desired frequency by pressing
S
up
or down, or press
Options
>
Scan
to scan for all
available radio stations.
2
Press and hold a number key to save that number
as the preset.
87.5 FM (1)
Options Back
![](/img.php?id=997043&img=bg38.png)
54
entertainment
use radio presets
From the main FM radio screen, press a key pad
number to jump to a preset station.
To manage your station presets:
1
Press
Options
>
Manage Presets
to store, rename or
delete radio presets.
2
Press
S
up or down to select a preset.
camera
Your camera lens is on the back of your phone (see
page 3).
To get the clearest pictures, wipe the lens
clean with a soft dry cloth before taking a picture.
take a photo
Press
s
>jMultimedia
>Camera
to access the camera,
then press
s
to capture your image. To save your
picture, press
s
.
Note:
Slide your phone open to take photos.
Options
Zoom 1x
Back
Resolution
Storage
Location
Press
S
left/right
to change selected
setting
Press
S
up or down
to view camera
settings.
![](/img.php?id=997043&img=bg39.png)
55
entertainment
photo options
Before you take your photo, press
Options
to open the
camera menu:
After you capture your photo, you can press
Options
to
open the
Picture Options
menu:
pictures
Find it:
s
>
j
Multimedia
>
My Picture
Use the
My Picture
feature to edit or crop your photos.
options
Go to Picture
Switch to the
Pictures
menu.
Auto-Timed Capture
Turn the auto-timed capture to
5 sec
or
10 sec
.
Camera Setup
Set the
Resolution
,
Quality
,
Shutter
Sound
or
Status Icon
.
Switch Storage
Store your photos to the
Phone
Memory
and
Memory Card
.
Free Space
Shows the
Total Space, Used Space
and
Free Space
on your storage
device.
options
Store Only
Save the photo and return to
the viewfinder.
Discard
Discard the photo and return to
viewfinder.
Apply as
Set the photo as a wallpaper
(background) image or a screen
saver image.
Detail
Show the photo
File Type
,
File Size
and
Resolution
details.
MMS Postcard
Send your photo as an MMS.
![](/img.php?id=997043&img=bg3a.png)
56
entertainment
edit pictures
Find it:
s
>
j
Multimedia
>
My Picture
>
Editor
Press
Options
to open and edit your picture.
options
Open
Open an existing picture or
take a new one.
Save
Save your image with a unique
file name.
Options
100%
Back
Zoom
Setting
Pen
Colour
Entry
Type
Pen
Step
Drawing
Mode
Pen Attribution
Change the pen mode (
mode
,
color
,
size
,
and
step
).
Zoom In
Zoom in on an area of your
image.
Zoom Out
Zoom out to see more of your
image.
Stamp Options
Creates a small image stamp
of your picture.
Rotate
Rotate your image (
Clockwise 90°
,
Counterclockwise 90°
or
180°
).
Picture Size
Set the dimensions of your
image.
Clear Screen
Remove the current image
from the screen.
options
![](/img.php?id=997043&img=bg3b.png)
57
entertainment
crop pictures
Find it:
s
>
j
Multimedia
>
My Picture
>
Cropper
To crop a stored picture select
. To create a new
picture for cropping, select
Camera
.
Press
Options
to see the
Crop
menu.
voice notes
Find it:
s
>
j
Multimedia
>
Voice Notes
Use the
Voice Notes
feature to record reminders or voice
notes to send in a message. Press
s
to start and
pause recording. When you have finished recording
press
Stop
. Enter a name for your file and press
s
to
save the file.
options
Open
Open another stored picture or
take a new one with the
Camera
.
Save
Save your image
Crop size
Enter the crop size.
Crop shape
Select the crop shape.
Options Back
Standby
00:00:00
![](/img.php?id=997043&img=bg3c.png)
58
entertainment
Press
Options
to open the voice notes menu.
WebAccess
Use your phone to access Web pages.
Find it:
s
>
1WebAccess
WebAccess options
open a Web page
1
Scroll to
Go to URL
and press
Select
. Enter the Web
address, such as
www.motorola.com
.
2
Press
s
when complete.
options
Open
Open a sound clip.
Switch Storage
Change the storage location of
your clips
View Free Space
View the storage space
available on the selected
location.
option
Browser
Open the Web browser.
Web Shortcuts
Open or create shortcut to a Web
page.
Go To URL Enter a Web page URL
(address).
History
Access a list of recently viewed
Web sites.
Web Sessions
Access a stored Web session.
Web Settings
Clear history, reset cache or clear
cookies.
option
![](/img.php?id=997043&img=bg3d.png)
59
entertainment
manage bookmarks
To see your bookmarks press
1
WebAccess
>
Web
Shortcuts
. To manage your bookmarks press
Options
to
open the bookmarks menu:
fun & games
Note:
To access pictures stored on your microSD
memory card, press
s
>
j
Multimedia
>
Pictures
, then
press
Options
>
Switch Storage
. Your phone will only
recognise pictures stored in the
mobile
\
folder
on the memory card. If there are no files stored on
your memory card then your phone will automatically
switch to its internal memory.
options
New bookmark
Add a new bookmark.
Edit
Edit a bookmark.
Goto
Open your bookmark.
Erase
Delete a bookmark.
features
play a game
s
>
TGames & Apps
manage pictures
s
>
jMultimedia
>
Pictures
manage music and sounds
s
>
jMultimedia
>
Music Library
manage ringtones
s
>
uSettings
>
NRing Styles
features
![](/img.php?id=997043&img=bg3e.png)
60
connections
connections
Bluetooth® wireless
Your phone supports Bluetooth wireless connections
with audio devices, such as a handsfree headset or
music system.
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
For maximum Bluetooth security
, you should
always connect Bluetooth devices in a safe, private
environment.
connect to an audio device
Before you try to connect your phone with
an audio device
, make sure the device is
on
and
ready
in pairing or bonding mode (see the user’s
guide for the device).
Find it:
s
>
uSettings
>
EBluetooth Link
>
Add Audio
Device
If Bluetooth is off, you will be prompted to turn it on.
Your phone lists the devices it finds within range:
1
Scroll to a device in the list and press the
centre key
s
.
2
If necessary, press the
Yes
or
OK
key to connect to
the device.
![](/img.php?id=997043&img=bg3f.png)
61
connections
3
If necessary, enter the device passkey (default
0000
) and press the
OK
key.
When your phone is connected, the Bluetooth
indicator
O
is highlighted in the status bar.
Note:
When listening to music using a Bluetooth
stereo device (headset or car stereo), use the volume
control keys
on the device
to increase/decrease
music volume.
Shortcut:
When your phone’s Bluetooth power is on,
your phone can automatically connect to a handsfree
device you have used before. Just turn on the device,
or move it near the phone. If the device doesn’t
connect, turn it off and back on.
send files to another device
You can send a media file, contacts entry,
agenda event and more from your phone to a
computer or other device.
Note:
You can’t copy some copyrighted objects.
1
On your phone, scroll to the object that you want
to copy to the other device.
2
Press
Options
>
Copy to Bluetooth Device
to send a picture
file. Press
Options
>
Send via Bluetooth
to send a music
file.
3
Select a recognised device name, or
New Device
to
search for the device where you want to copy the
file.
If your phone could not send the file to the other
device
, make sure the device is
on
and
ready
in
discoverable mode (see the user’s guide for the
device). Also, make sure the device is not busy with
another similar Bluetooth connection.
Note:
Once you connect your phone to a Bluetooth
device, that device can start similar Bluetooth
connections with your phone.
![](/img.php?id=997043&img=bg40.png)
62
connections
receive files from another device
If you do not see the Bluetooth
indicator
O
in the status bar, turn on your
phone’s Bluetooth feature by pressing
s
>
uSettings
>
EBluetooth Link
>
Setup
>
Power On
.
1
Place your phone near the device, and send the
file from the device.
If your phone and the sending device don’t
recognise each other, place your phone in
discoverable mode so the sending device can
locate it: and press
s
>
uSettings
>
E
Bluetooth
Link
>
Find Me
.
2
Press the
Grant
key on your phone to accept the file
from the other device.
Your phone notifies you when file transfer is
complete.
advanced Bluetooth features
Note:
A device is recognised after you have paired or
bonded with it (see page 60).
features
change your phone’s name
s
>
uSettings
>
E
Bluetooth Link
>
Setup
>
Name
make phone visible to other devices
Allow a Bluetooth device to discover your
phone:
s
>
uSettings
>
EBluetooth Link
>
Find Me
copy picture to a device
Scroll to the picture, press
Options
>
Copy to
Bluetooth Device
>
Look for Devices
, select the device name.
You cannot copy some copyrighted files.
![](/img.php?id=997043&img=bg41.png)
63
connections
cable connections
You can use your phone’s
mini USB port to connect
to a computer.
Note:
Motorola Original™
USB data cables and
supporting software may
be sold separately Check your computer to determine
which cable you need.
If you use a USB cable connection:
•
Be sure to connect the phone to a high-power
USB port
on your computer
(not a low-power
one, such as the USB port on your keyboard or
bus-powered USB hub.
Note:
If you connect your phone to a
low-power USB port, the computer may not
recognise your phone.
•
Make sure both your phone and the computer
are turned on and that the phone is in the
home screen.
Note:
When your phone is plugged into a
computer and is being used for mass storage,
it cannot be used for anything else. To restore
the phone to normal use, disconnect it from
the PC.
•
Make sure your phone’s USB setting is set to
USB Disk
: press
s
>
uSettings
>
æUSB
>
USB
Disk.
•
Your phone currently supports Microsoft®
Windows™ XP and Windows Vista™. Other
operating systems may not be compatible
with your phone.
Attach the Motorola Original USB cable to the mini
USB port on your phone and to an available USB port
on your computer. The battery will start charging.
![](/img.php?id=997043&img=bg42.png)
64
connections
On your computer:
1
Open your “My Computer” window, where your
phone’s memory card shows as a “Removable
Disk” icon.
2
Click on the “Removable Disk” icon to access the
memory card.
3
If necessary, in the “Removable Disk” (memory
card) window, create one or more folders for the
files you will copy onto the memory card.
4
To copy files between your computer and phone,
drag and drop into the appropriate folders.
5
When you’re finished, remove the device by
selecting the “Safely Remove Hardware” icon at
the bottom of your computer screen, then select
“USB Mass Storage Devices” and “Stop”.
Use these folders on your memory card for the file
types indicated:
Note:
To help manage your files, you can also create
new folders in the existing folders.
•
music files (MP3, MIDI, AMR, AAC
and WAV): use
mobile
\
Music
, or place
music files anywhere on the memory card
(see page 52).
•
picture files (JPG, PNG, or BMP):
mobile
\
.
Tip:
Pictures must be stored in the
mobile
\
folder on the memory card. To find picture files on
your phone press
s
>
j
Multimedia
>
Pictures
>
All
Pictures
. Press
Options
>
Switch Storage
>
Memory Card
to switch
storage location.
Note:
The maximum single picture file size is 600 kB,
1280 x 1024 pixels. Also, a file name (including the
path) must be less than 255 characters. For example,
![](/img.php?id=997043&img=bg43.png)
65
connections
if you copy songs into a folder you create that is
named “MyMotoSongs,” the name of any song PLUS
the name of the folder “MyMotoSongs” must be less
than 255 characters
USB setting
Set your phone’s mini USB connection to function as a
modem or storage device:
Find it:
s
>
uSettings
>
æ
USB
>
USB Modem
or
USB Disk
Note:
Your USB connection must be set to
USB Disk
before copying files from your PC to your phone (see
page 63).
![](/img.php?id=997043&img=bg44.png)
66
tools
tools
personal organiser
features
add calendar event
s
>
mTools
>
Calendar
Scroll to the day and press
s
, then scroll to
[Add
New]
and press
Select
.
view and edit calendar event
s
>
mTools
>
Calendar
Scroll to the day and press
s
, then scroll to the
event and press
Select
.
event reminder
When an event reminder occurs, press
s
to view
it. Press
Exit
to dismiss it.
copy calendar event
Copy a datebook event to another date and/or time:
s
>
mTools
>
Calendar
Scroll to the day and press
s
, then scroll to the
event and press
Select
>
Options
>
Copy
.
set alarm
s
>
AAlarm Clock
Tip:
Set the FM radio to play as your alarm sound.
features
![](/img.php?id=997043&img=bg45.png)
67
tools
phonebook network
calculator
s
>
mTools
>
Calculator
convert currency
s
>
mTools
>
Calculator
Press
Options
and select
Convert
.
features
create entry
s
>
L
Phonebook
>
[New Entry]
delete entry
s
>
LPhonebook
Scroll to the entry and press
Options
>
Delete.
features
edit entry
s
>
LPhonebook
Scroll to the entry and press
Options
>
Edit
to edit the
entry. Scroll up or down and press
s
to edit fields.
Press
s
to save your changes.
features
network settings
View network information and adjust network
settings:
s
>
uSettings
>
m
Network
features
![](/img.php?id=997043&img=bg46.png)
68
Recycling Information
service & repairs
If you have questions or need assistance, we’re here
to help.
Go to
www.motorola.com/support
, where you can
select from a number of customer care options. You
can also contact the Motorola Customer Support
Centre at 1-800-331-6456 (United States),
1-888-390-6456 (/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
![](/img.php?id=997043&img=bg47.png)
69
service & repairs
Specific Absorption Rate Data
SAR Data
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 0.55 W/kg, and when worn on the body, as described in
this user guide, is 0.61 W/kg. (Body-worn measurements differ
among phone models, depending upon available accessories and
regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
![](/img.php?id=997043&img=bg48.png)
70
Hearing Aids
Hearing Aid Compatibility with Mobile Phones
Heari ng Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
![](/img.php?id=997043&img=bg49.png)
70A
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
![](/img.php?id=997043&img=bg4a.png)
WHO Information
71
Information from the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Registration
Online Product Registration:
direct.motorola.com/hellomoto/ Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
![](/img.php?id=997043&img=bg4b.png)
72
Privacy and Data Security
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date
—If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device which updates the device’s
security, install it as soon as possible.
• Erase before recycling
—Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For step-by-step instructions on
how to delete all personal information from your device,
see the section entitled “master clear” or “delete data” in
this user’s guide.
Note:
For information on backing up your mobile device
data before erasing it, go to
www.motorola.com
and then
navigate to the “downloads” section of the consumer Web
page for “Motorola Backup” or “Motorola Phone Tools.”
• Understanding AGPS
—In order to comply with
emergency caller location requirements of the FCC, certain
Motorola mobile devices incorporate Assisted Global
Positioning System (AGPS) technology. AGPS technology
also can be used in non-emergency applications to track
and monitor a user’s location—for example, to provide
driving directions. Users who prefer not to permit such
tracking and monitoring should avoid using such
applications.
If you have further questions regarding how use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
![](/img.php?id=997043&img=bg4c.png)
Driving Safety
73
Smart Practices While Driving
Dri vin g Sa fety
Drive Safe, Call Smart
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voicemail answer it
for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
![](/img.php?id=997043&img=bg4d.png)
74
service & repairs
• Use your mobile device to
help others in emergencies.
If
you see an auto accident, crime
in progress, or other serious
emergency where lives are in
danger, call 911 or other local
emergency number, as you would
want others to do for you.*
• Call roadside assistance or a
special non-emergency
wireless assistance number
when necessary.
If you see a
broken-down vehicle posing no
serious hazard, a broken traffic
signal, a minor traffic accident
where no one appears injured, or
a vehicle you know to be stolen,
call roadside assistance or other
special non-emergency wireless
number.*
* Wherever wireless phone service is
available.
![](/img.php?id=997043&img=bg4e.png)
index
75
index
A
add calendar event 66
advanced
Bluetooth features 62
calling 41
airplane mode 42
alerts 31
answer a call 24
answer options 32
automatic answer 40
B
backlight 33
battery 20
charge 23
cover 3
install 22
remove 23
Bluetooth 39
advanced features 62
change name 62
connection
description 60
indicator 61
copy multimedia 62
receive files 62
send files 61
visibility 62
bookmarks 59
C
cable connections 63
calculator 67
calendar 40
calendar event
add 66
copy 66
reminder 66
view 66
call
advanced 41
answer 24
end 24
forward 41
international 41
make 24
recent 36
restrict 41
stored number 25
times 38
view times 39
![](/img.php?id=997043&img=bg4f.png)
76
index
waiting 37
camera lens 3
capitalise text 44
centre key 2
change
ring alert 24
volume 27, 40
charge battery 23
clear 35
clear/back key 2
codes 28
colour setting 33
contacts 67
create entry 67
delete entry 67
edit entry 67
list 39
controls, music player 51
convert currency 67
copy
calendar event 66
files 61
music 52
costs, tracking 39
currency converter 67
customise 31
D
date 34
delete text 46
dial a phone number 24
dialled calls 36
list 39
dialling prefix 40
digital clock 34
display 26
drag and drop files 52
E
edit pictures 56
emergency number 38
end a call 24
end key 2, 24
erase messages 49
F
FM radio 53
format memory card 27
forward calls 41
G
games 59
get music 52
H
handsfree 27
headset 40
hold call 39
home screen 26
shortcuts 31
![](/img.php?id=997043&img=bg50.png)
index
77
I
in-call
cost 39
menu 39
timer 38
indicator
status 26
text entry mode 44
install
battery 22
memory card 19
SIM card 19
international access code 41
iTAP text entry method 45
K
keypad
lock and unlock 29
volume 33
L
language menu 34
layout text 34
linking. See Bluetooth connection
lock
keypad 29
phone 28
M
make a call 24
make a second call 39
manage
pictures 59
ringtones 59
sounds 59
master
clear 35
reset 34
memory card 19, 27
format 27
install 19
remove 20
menu
language 34
messages
access 40
delete text 46
erase 49
MMS 49
numeric entry 46
receive 48
send 47
symbol entry 46
tap text entry 45
text capitalisation 44
text entry mode indicators 44
text template 49
view sent message 49
microphone 2
mini USB port 3
![](/img.php?id=997043&img=bg51.png)
78
index
Missed Calls message 37
MMS 49
music
copy 52
player 50, 51
playlist 52
mute 39
my number 25
my picture 55
N
navigation key 2, 26
network
airplane mode 42
settings 67
notepad 38
number
redial 36
store 25
numeric entry method 46
O
object exchange 61
options, music playlist 52
P
pairing. See Bluetooth connection
passwords. See codes
personal organiser 66
phone lines 39
phone lock
change code 29
phonebook 67
create entry 67
delete entry 67
edit entry 67
photos 54
pictures 59
edit 56
playlists 51
power key 2, 24
preset radio stations 53
Q
quick text 47
R
radio 53
receive a message 48
received calls 36
list 39
recent calls 36
redial 36
reminder 34, 66
remove
battery 23
memory card 20
reset 34
restrict calls 41
return a call 37
ring
alert 24
![](/img.php?id=997043&img=bg52.png)
index
79
style, setting 31
volume 33
ringtones 59
S
screen saver 33
security codes 28
send
key 2, 24
message 47
set
alerts 32
colour 33
style 31
text entry mode 43
time & date 34
setup
voicemail 48
shortcuts 30
SIM card
install 19
skin 33
slide
tone 33
slide closed 34
soft keys 2, 26
sound 59
speaker
handsfree 27
speed dial 41
status indicators 26
storage 27
stored
files 59
number 25
style setting 31
symbol entry method 46
T
tap text entry method 45
template 49
text
delete 46
entry
capitalisation 44
mode indicators 44
layout 34
text entry 43
time 34
tips & tricks 30
turn phone on/off 24
U
unlock
code 28
keypad 29
phone 28
USB
cables 63
drag and drop 52
V
view
![](/img.php?id=997043&img=bg55.png)
www.motorola.com
PMS 8480
74.51/51.37/38.43/13.33
www.motorola.com
