Motorola Mobility T56KT1 Cellular/PCS GSM/GPRS Transceiver Module User Manual G30 Cell Engine Module Description
Motorola Mobility LLC Cellular/PCS GSM/GPRS Transceiver Module G30 Cell Engine Module Description
Users Manual
Technical Information
Motorola G30 Developer’s Guide
Module Hardware Description
DECEMBER 15, 2009
6802986C55-A
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Notice
While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting
from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this
document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for
inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the
right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of
revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or
circuit described herein; neither does it convey license under its patent rights or the rights of others.
It is possible that this publication may contain references to, or information about Motorola products (machines and programs),
programming, or services that are not announced in your country. Such references or information must not be construed to mean
that Motorola intends to announce such Motorola products, programming, or services in your country.
Copyrights
This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted
Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola and its licensors certain exclusive rights for copyrighted material, including the exclusive
right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any
copyrighted material of Motorola and its licensors contained herein or in the Motorola products described in this instruction
manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of
Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel,
or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale
of a product.
Computer Software Copyrights
The Motorola and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted
Motorola and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and other 3rd Party supplied SW certain exclusive rights for copyrighted
computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program.
Accordingly, any copyrighted Motorola or other 3rd Party supplied SW computer programs contained in the Motorola products
described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express
written permission of Motorola or the 3rd Party SW supplier. Furthermore, the purchase of Motorola products shall not be deemed
to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of
Motorola or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation
of law in the sale of a product.
VENDOR COPYRIGHT
Apache Software Foundation Copyright 2004-2005 All Rights Reserved
Usage and Disclosure Restrictions
License Agreements
The software described in this document is the property of Motorola, Inc. and its licensors. It is furnished by express license
agreement only and may be used only in accordance with the terms of such an agreement.
Copyrighted Materials
Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software
or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, without prior written permission of Motorola, Inc.
High Risk Materials
Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed,
manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe
controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life
Support, or Weapons Systems (High Risk Activities"). Motorola and its supplier(s) specifically disclaim any expressed or implied
warranty of fitness for such High Risk Activities.
Trademarks
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are
the property of their respective owners.
© Copyright 2009 Motorola, Inc.
This page intentionally left blank.
December 15, 2009 G30 - Module Hardware Description i
Manual Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Target Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Manual Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Applicable Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Regulatory Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Regulatory Statement (Safety). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
FCC Notice to Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Antenna and Transmission Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Contact Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Text Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Field Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Caring for the Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
Warranty Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
How to Get Warranty Service? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii
Claiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii
Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix
What is Not Covered by the Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix
Installed Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
Out of Warranty Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxi
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Regulatory and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
European Union Directives Conformance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CFR 47 Part 15.19 specifies label requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CFR 47 Part 15.21 Information to user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CFR 47 Part 15.105 Information to the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 2: Hardware Interface Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

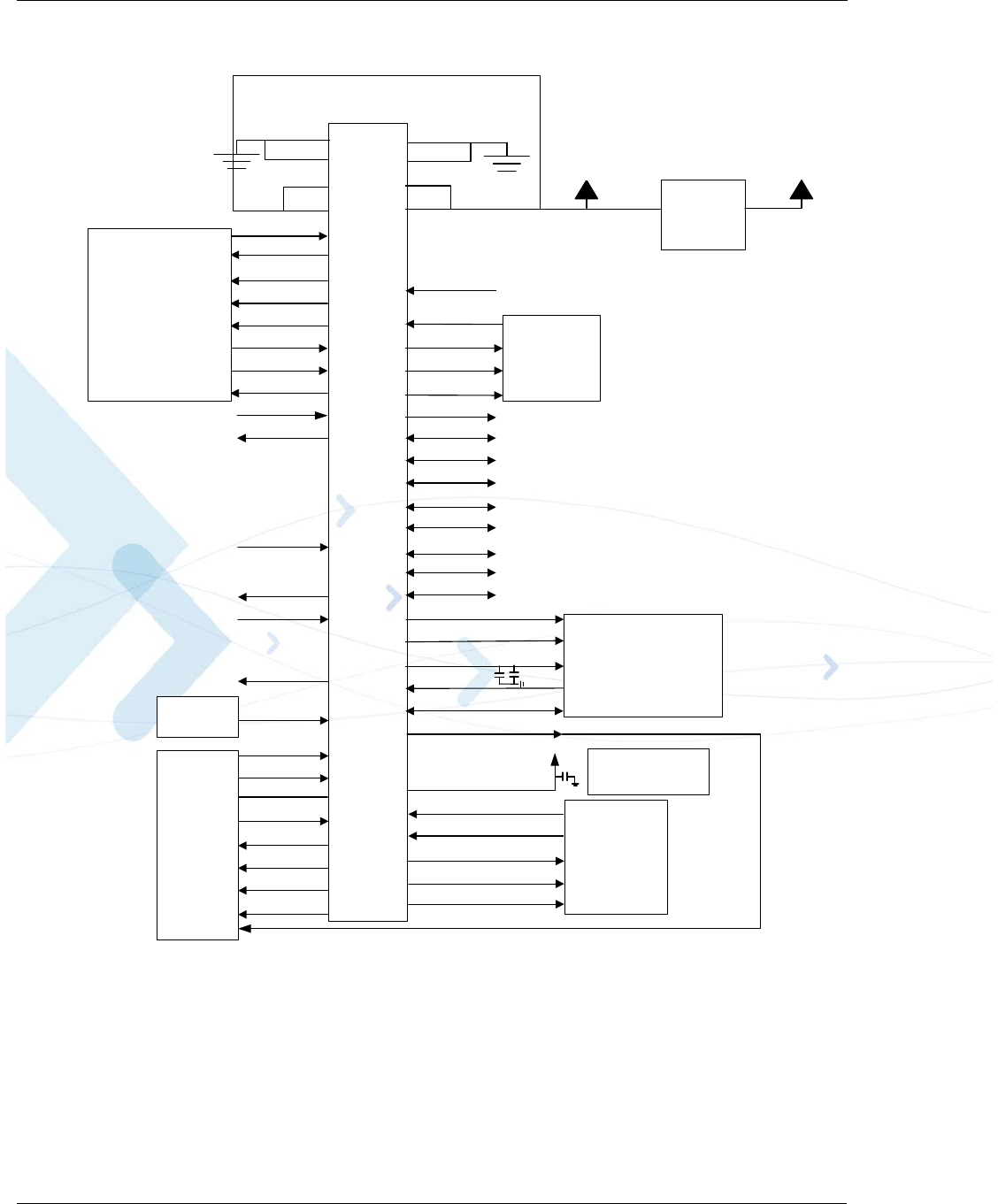

Architecture Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Baseband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
RF Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power Supply Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power On/Off Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Turning the G30 On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Supply Turn-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

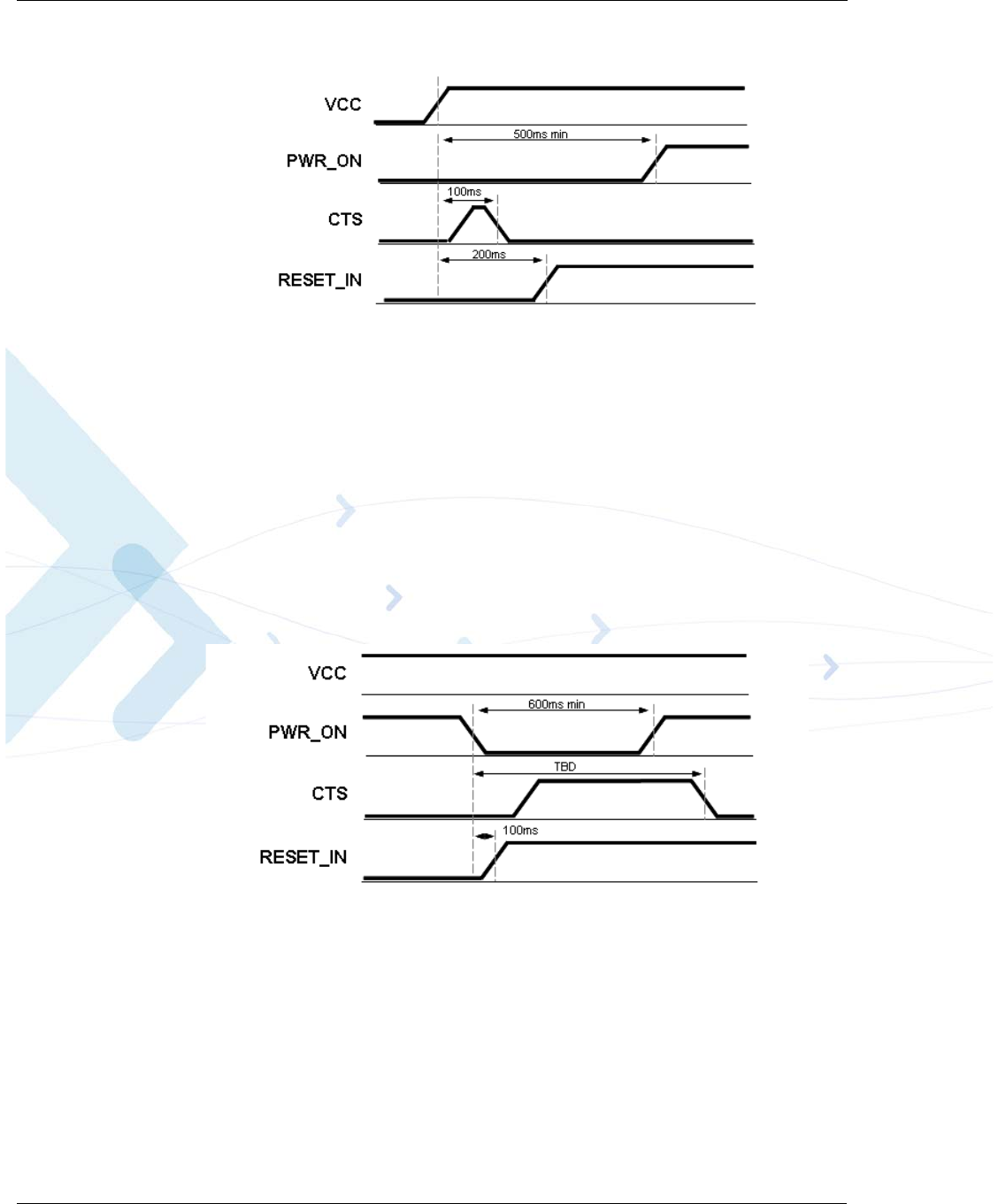

Turning the G30 On Using PWR_ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table of Contents
Table of Contents
ii G30 - Module Hardware Description December 15, 2009
Turning the G30 Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

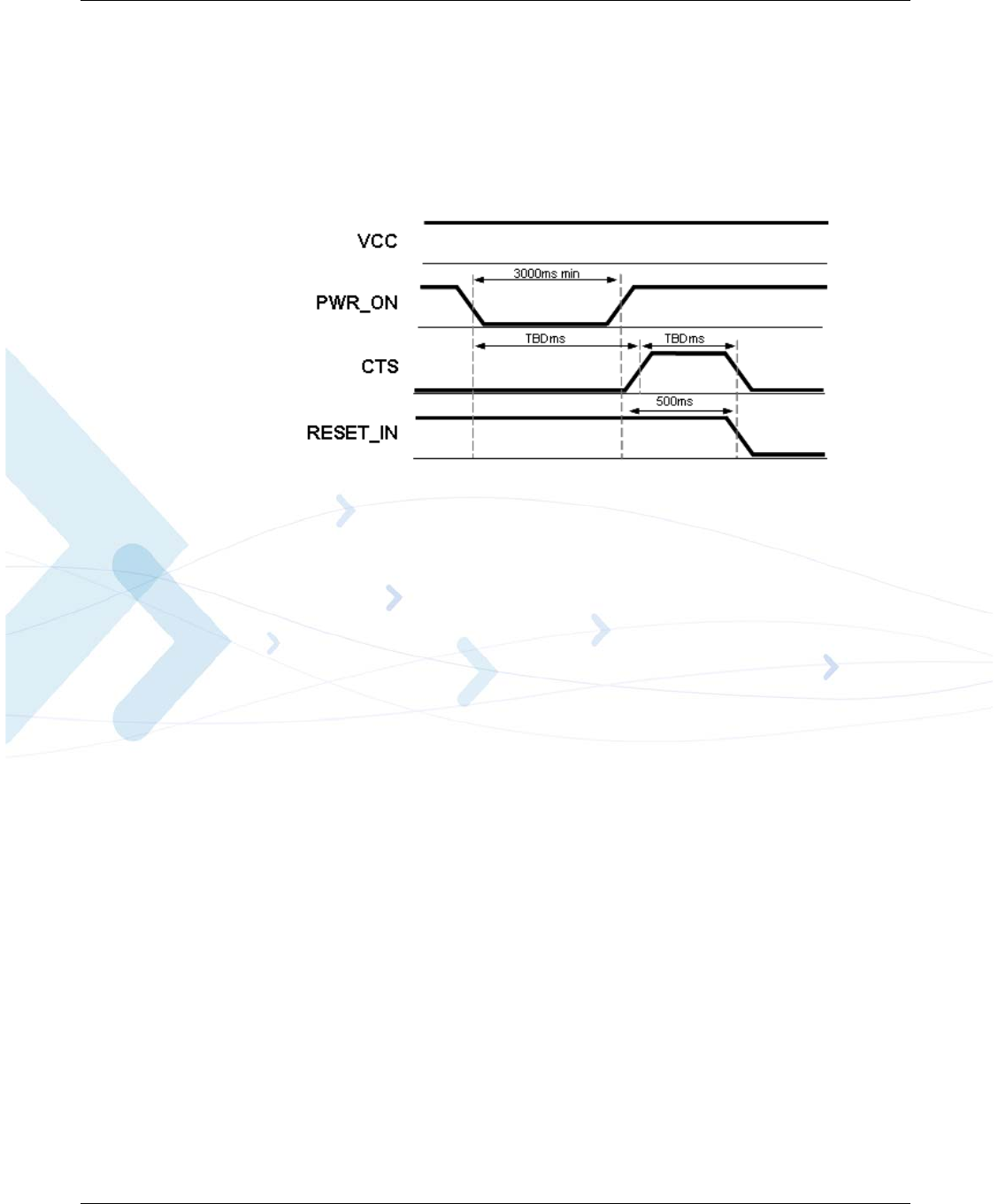

Turning the G30 Off Using PWR_ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Loss shut down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Turning the G30 Off Using AT+MRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Low Power Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Activating Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

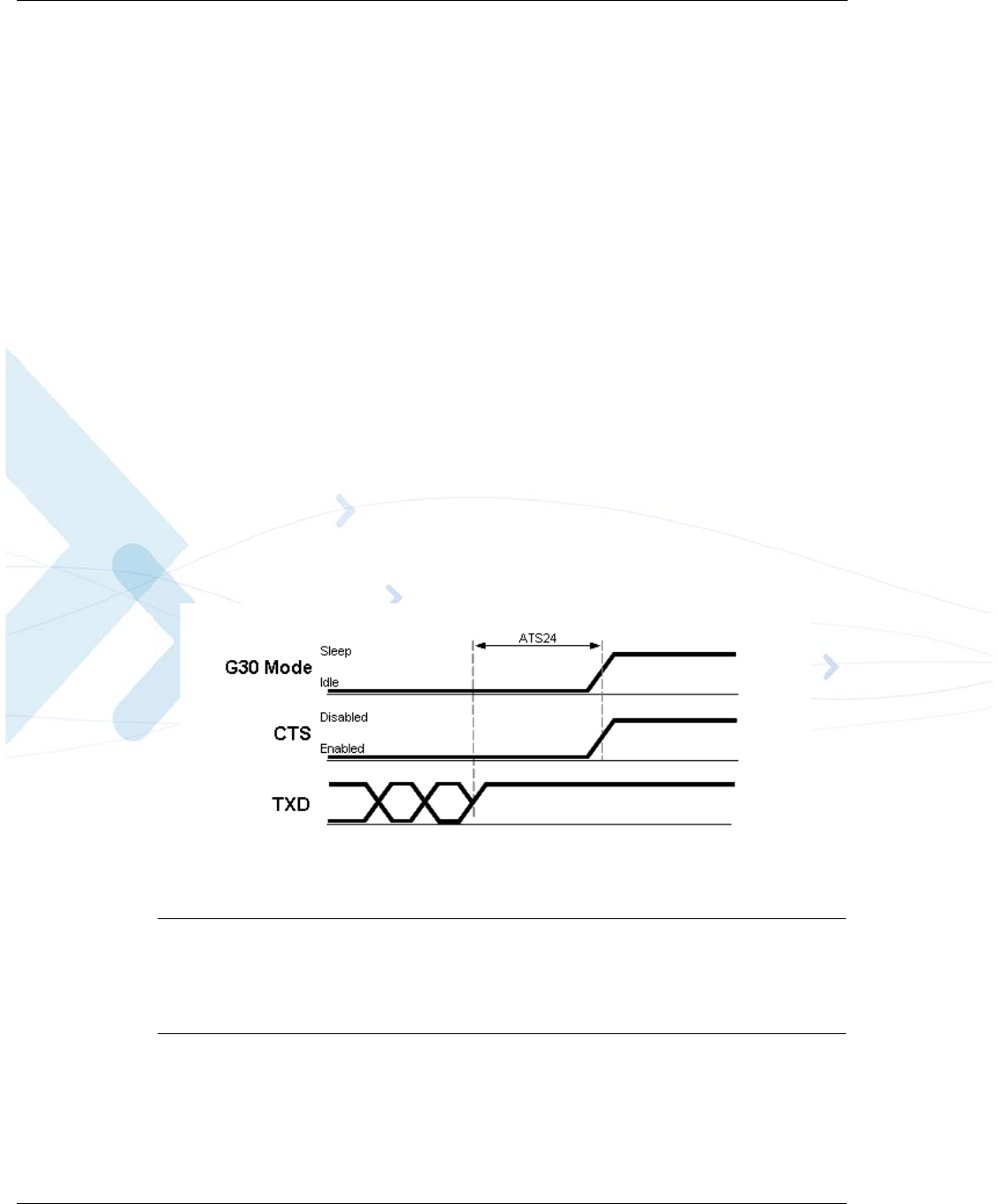

Serial Interface During Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Terminating Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Temporary Termination of Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Permanent termination of Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Real Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Serial Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Serial Peripheral Interface (SPI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
I2C Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SIM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
External SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

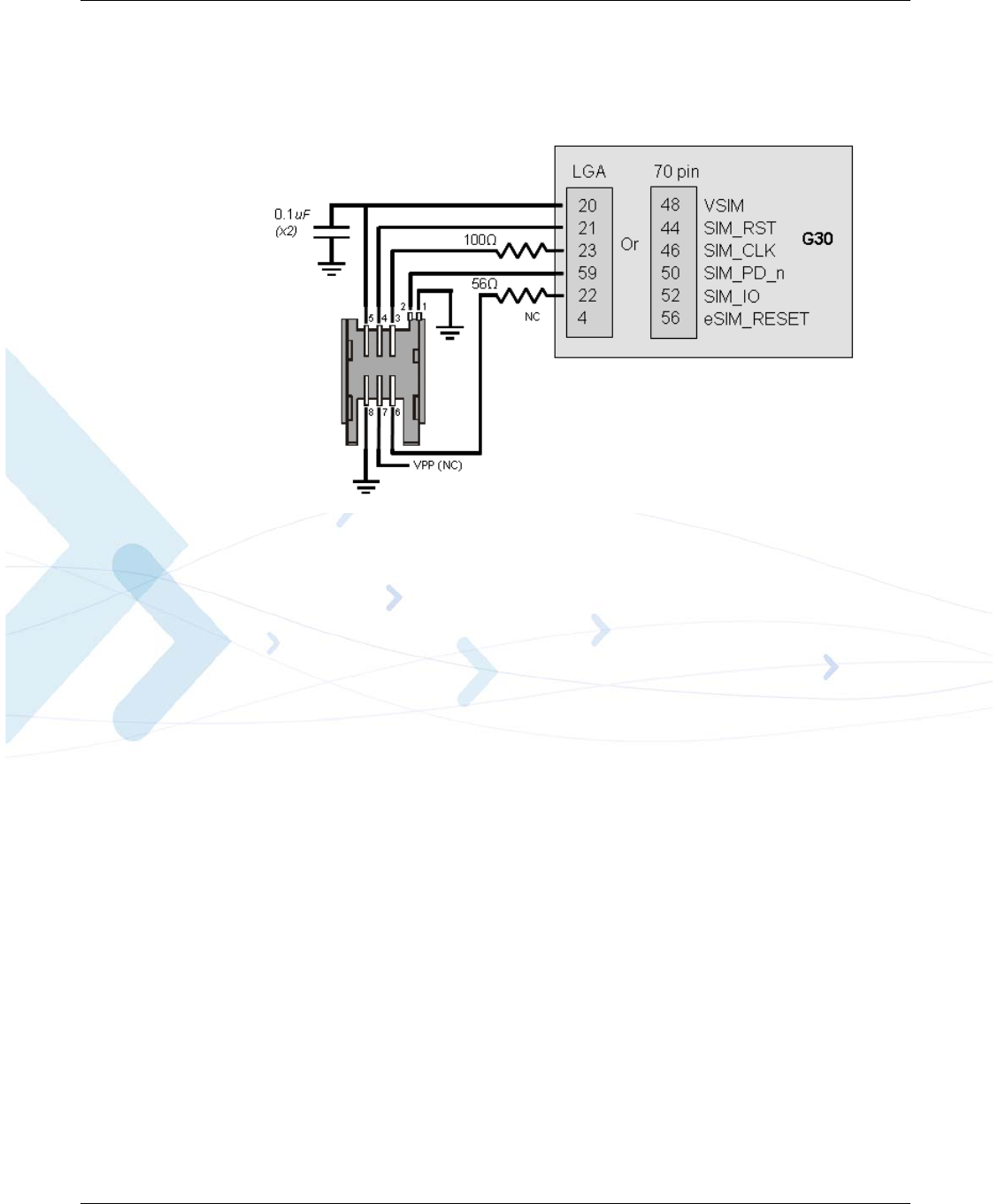

External SIM Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
External SIM Design Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Embedded SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
eSIM Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Handset Microphone Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

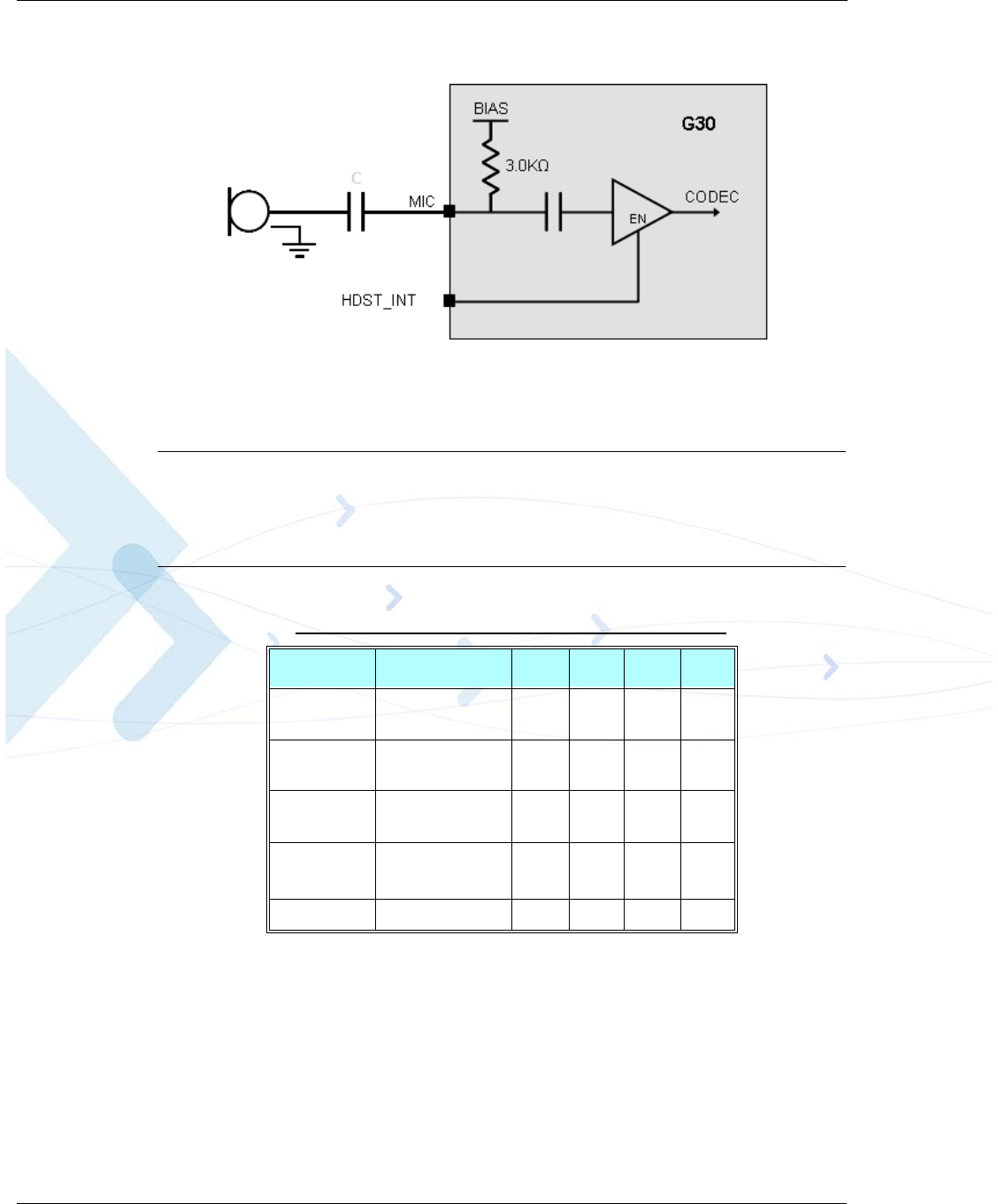

Headset Microphone Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Differential Speaker (Handset) Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

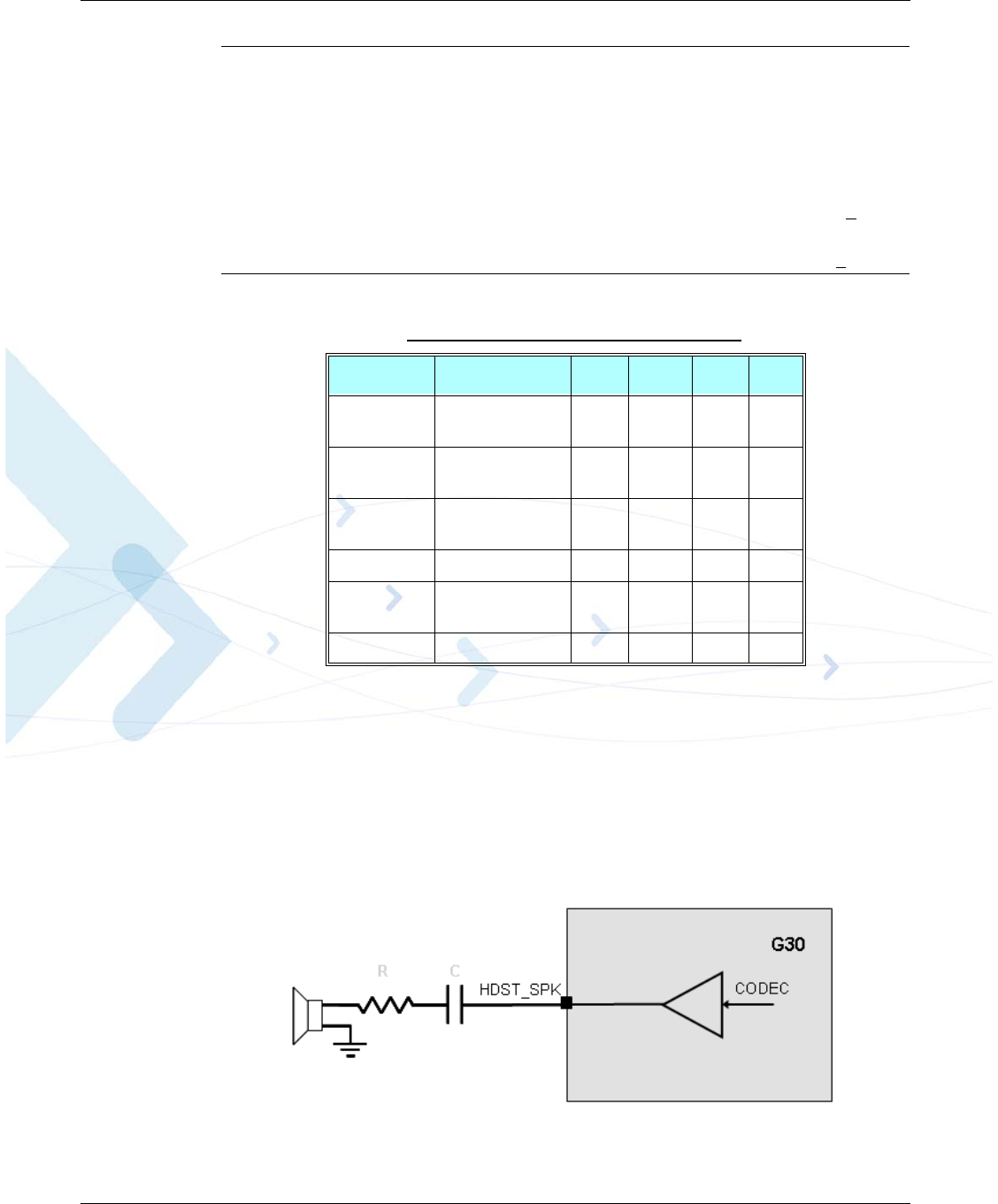

Mono Speaker (Headset) Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Headset Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Digital Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Voiceband Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Advanced Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Audio Programming Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Audio Algorithms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Gain Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Audio Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Analog Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
A/D Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Power Supply A/D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
General Purpose A/D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Controls and Indicators Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
VREF Reference Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
VRTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Wakeup Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Antenna Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
GPRS Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
General Purpose I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Antenna Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Chapter 3: Electrical and Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Operating Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Supply/power Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table of Contents
December 15, 2009 G30 - Module Hardware Description iii
Digital Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Audio Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
ADC Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Application Interface Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Chapter 4: Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

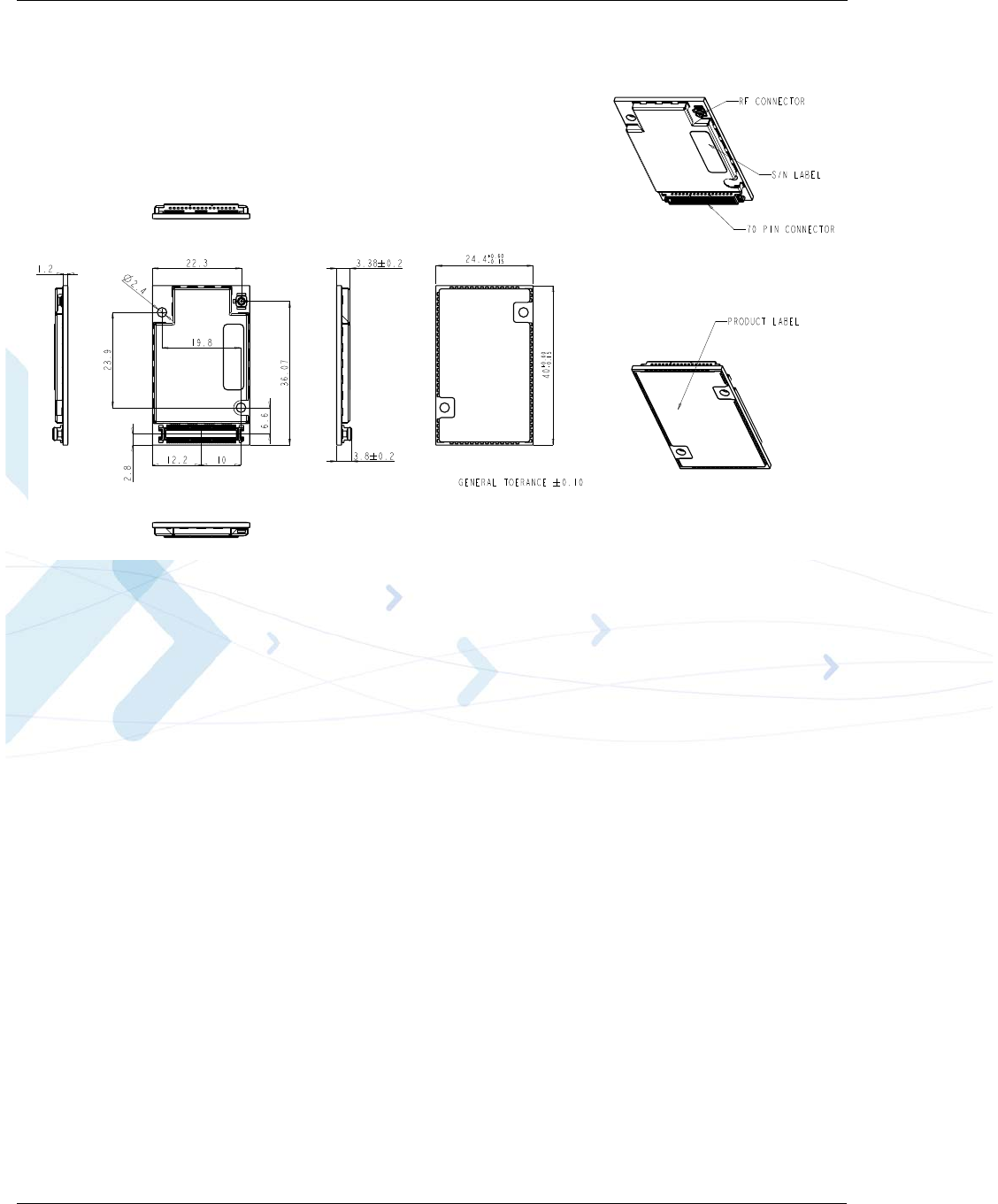

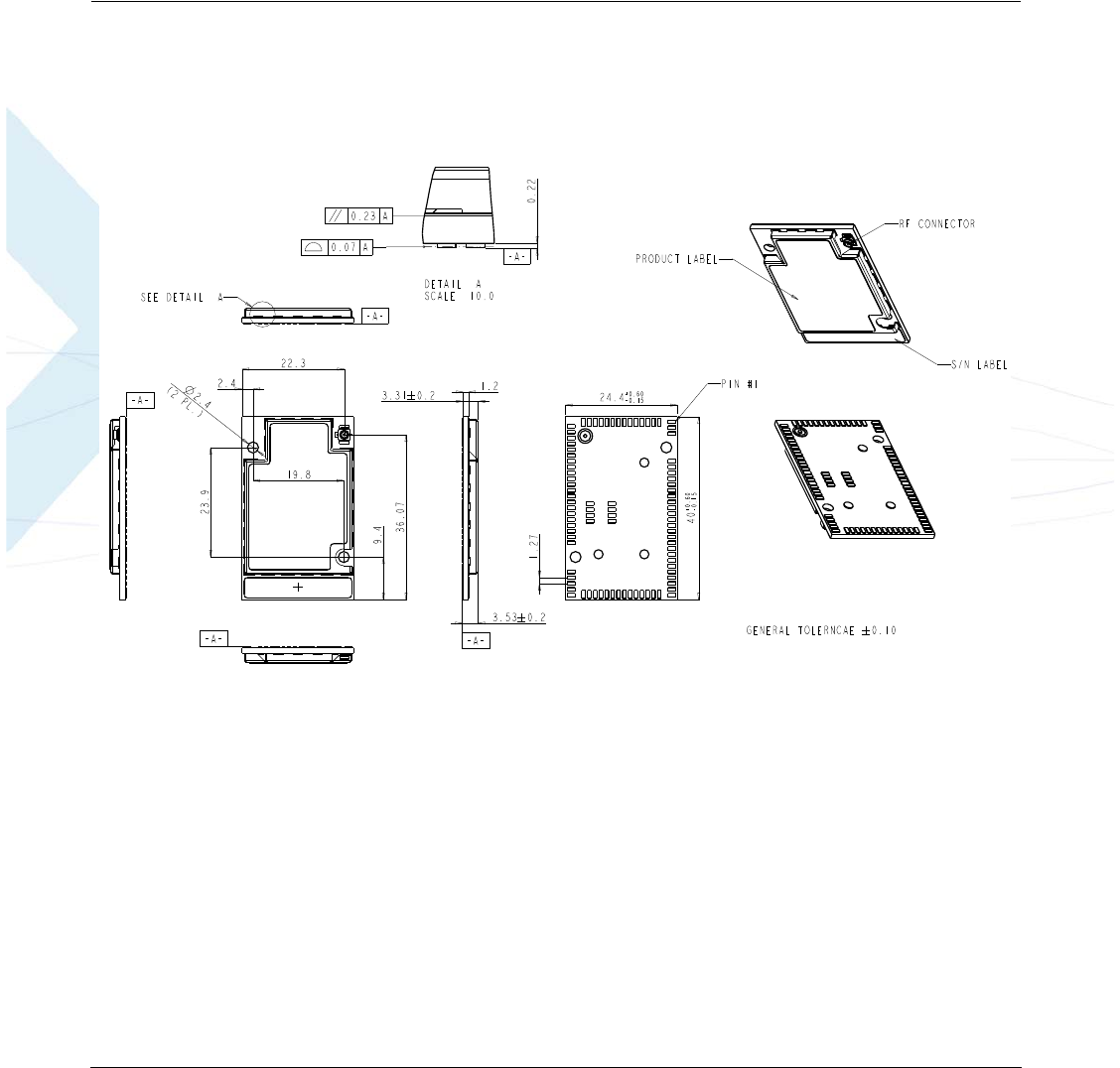

Board Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

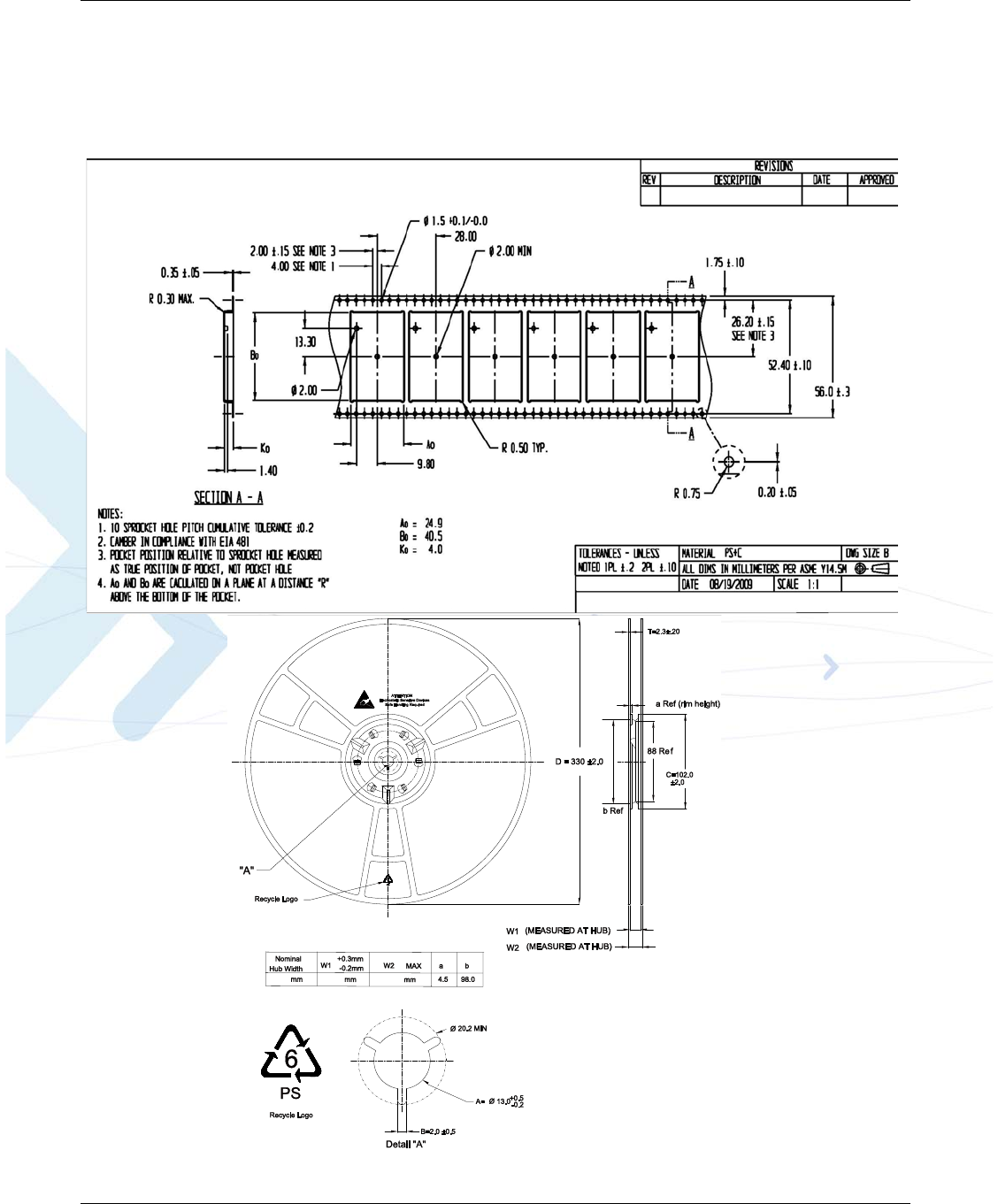

LGA Tape & Reel Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Interface Connector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

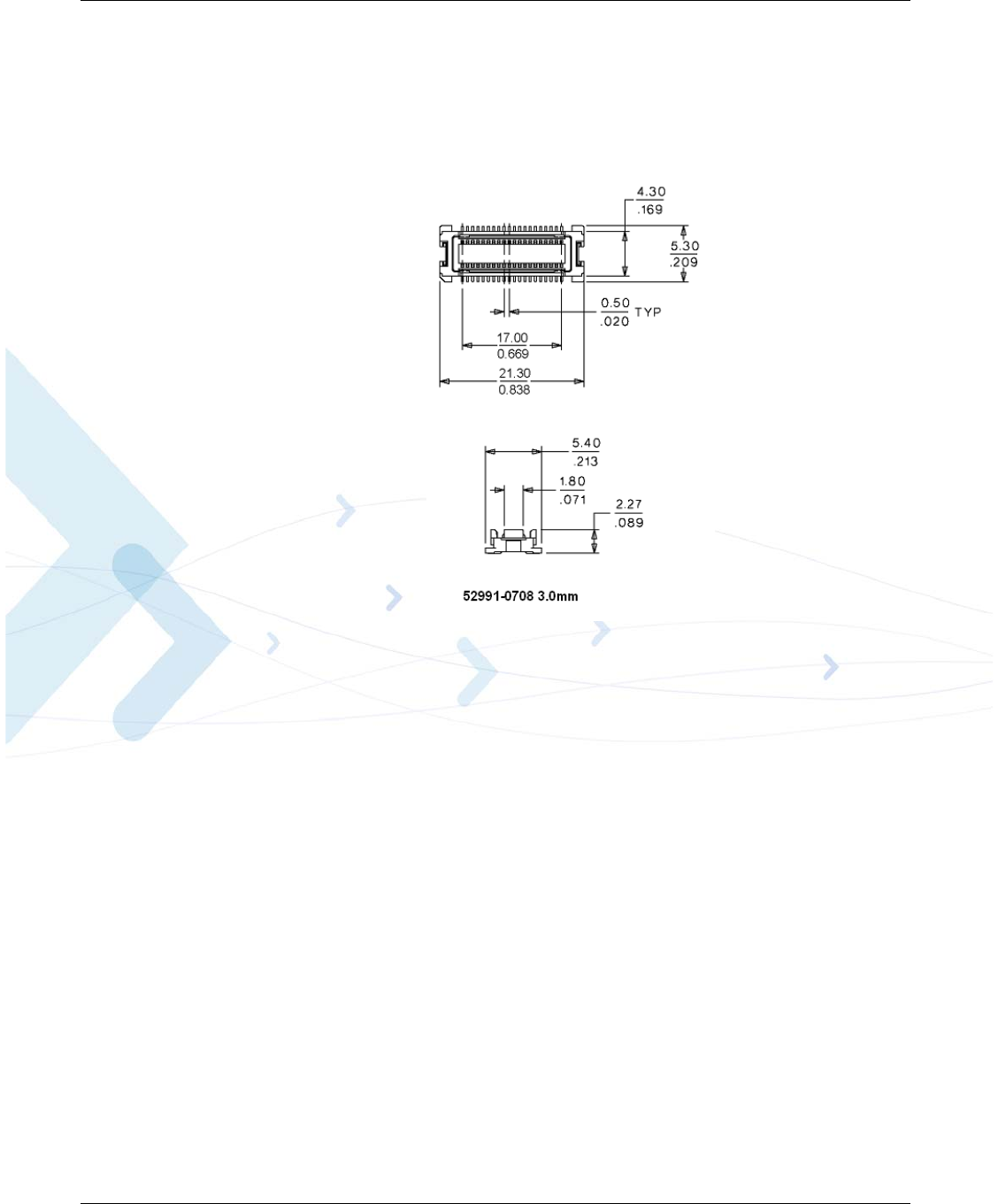

Mating Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

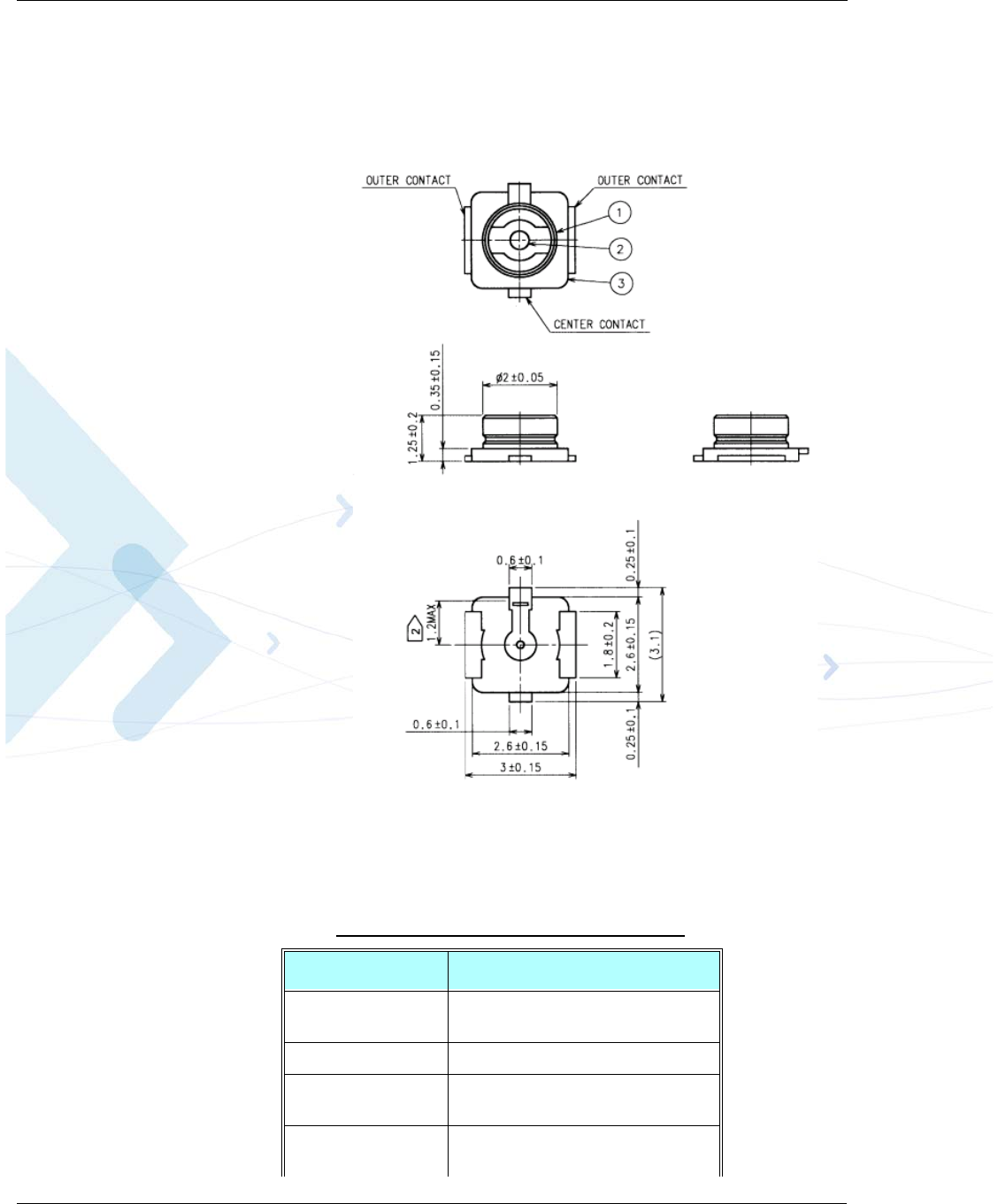

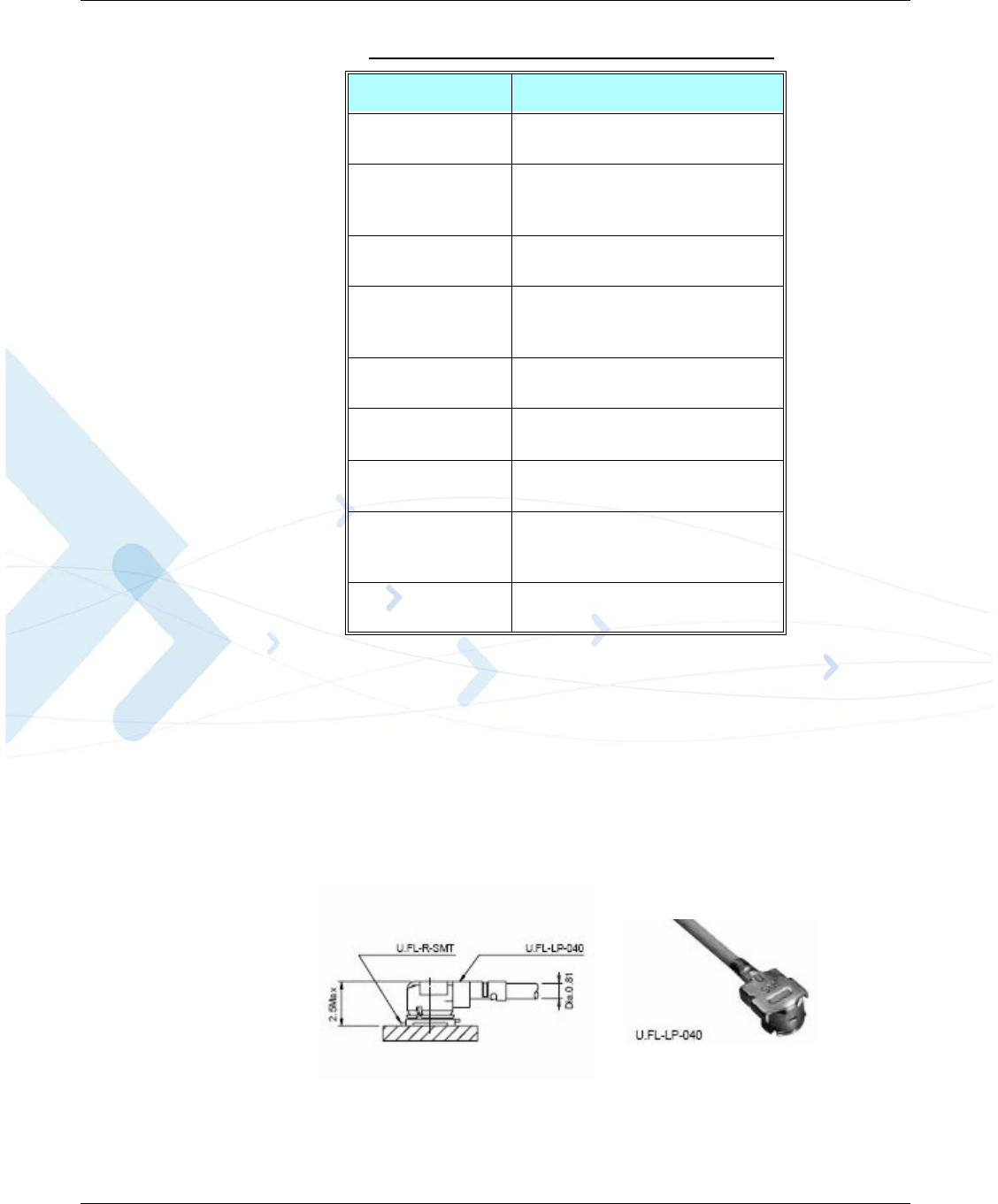

U.FL Connector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Mating Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
G30 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

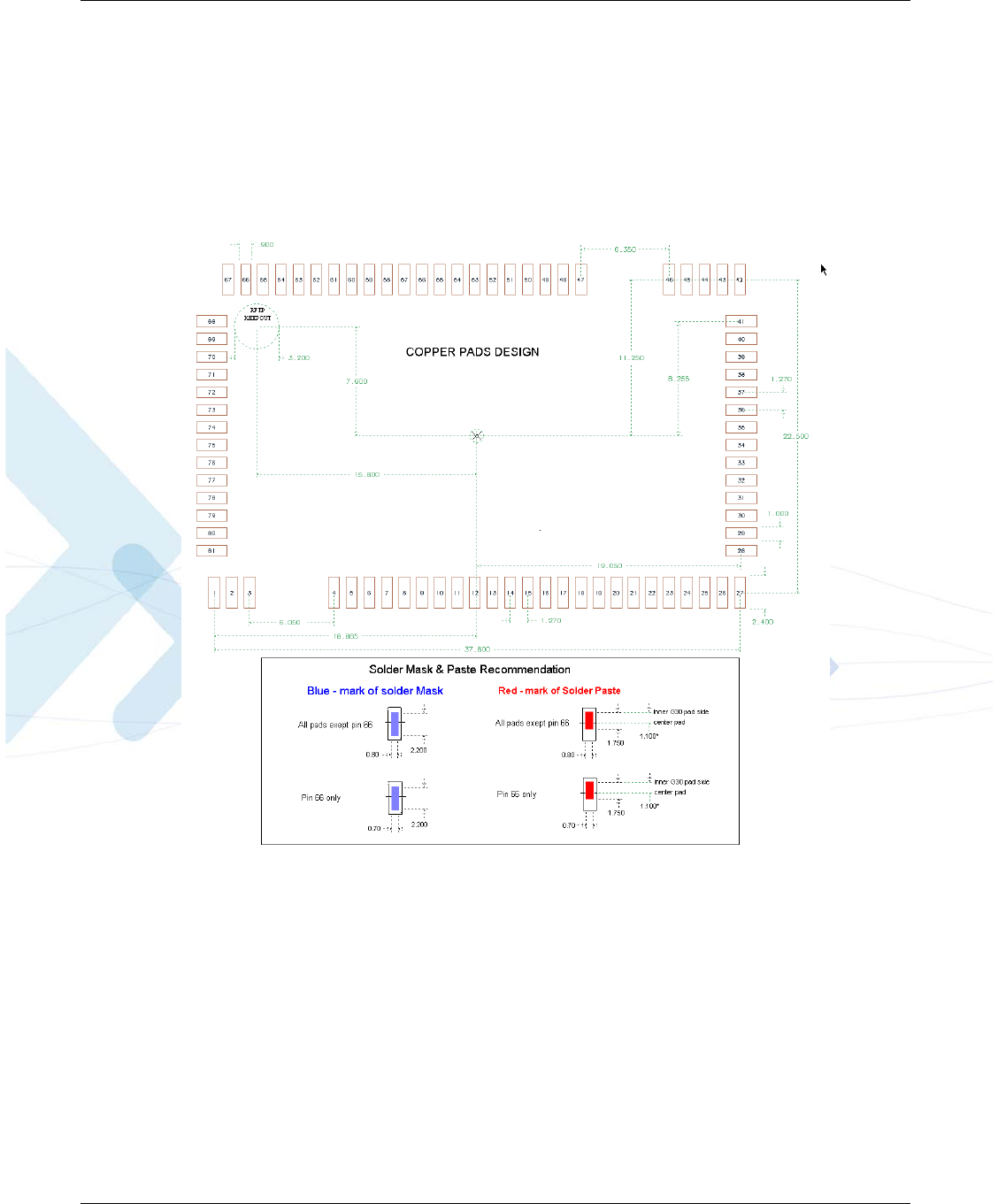

Layout Recommendation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Soldering Footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
RF Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Soldering Re-flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Chapter 5: Service and Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Ordering Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Who to Contact? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Required Query Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Testing a Standalone Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Test Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Acronyms and Abbreviations
Index
Table of Contents
iv G30 - Module Hardware Description December 15, 2009
This page intentionally left blank.
December 15, 2009 G30 - Module Hardware Description v
2-1 G30 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

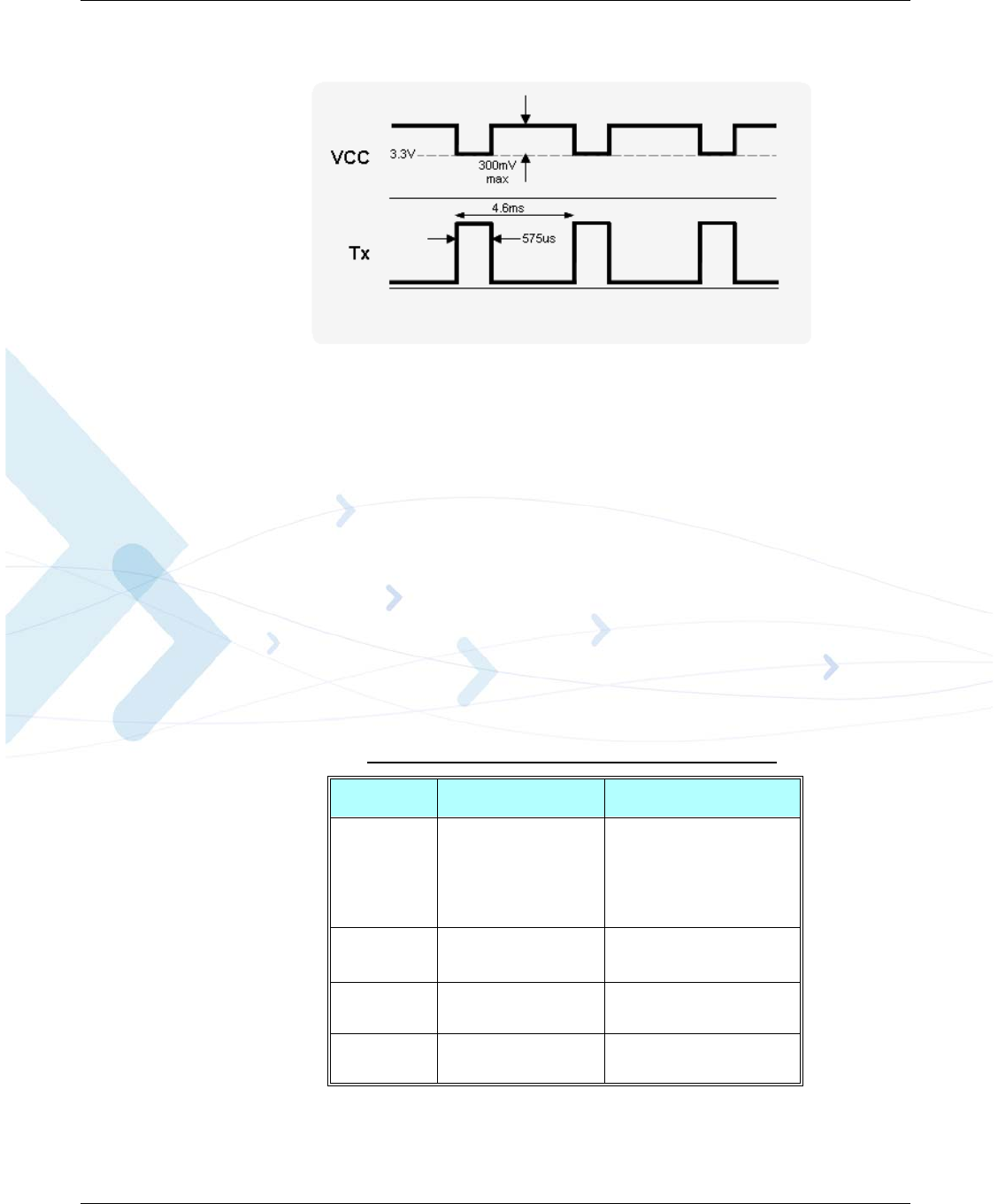

2-2 Transmission Power Drops. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2-3 Power Supply Turn-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2-4 PWR_ON Power On Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2-5 PWR_ON Power Off Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2-6 ATS24 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

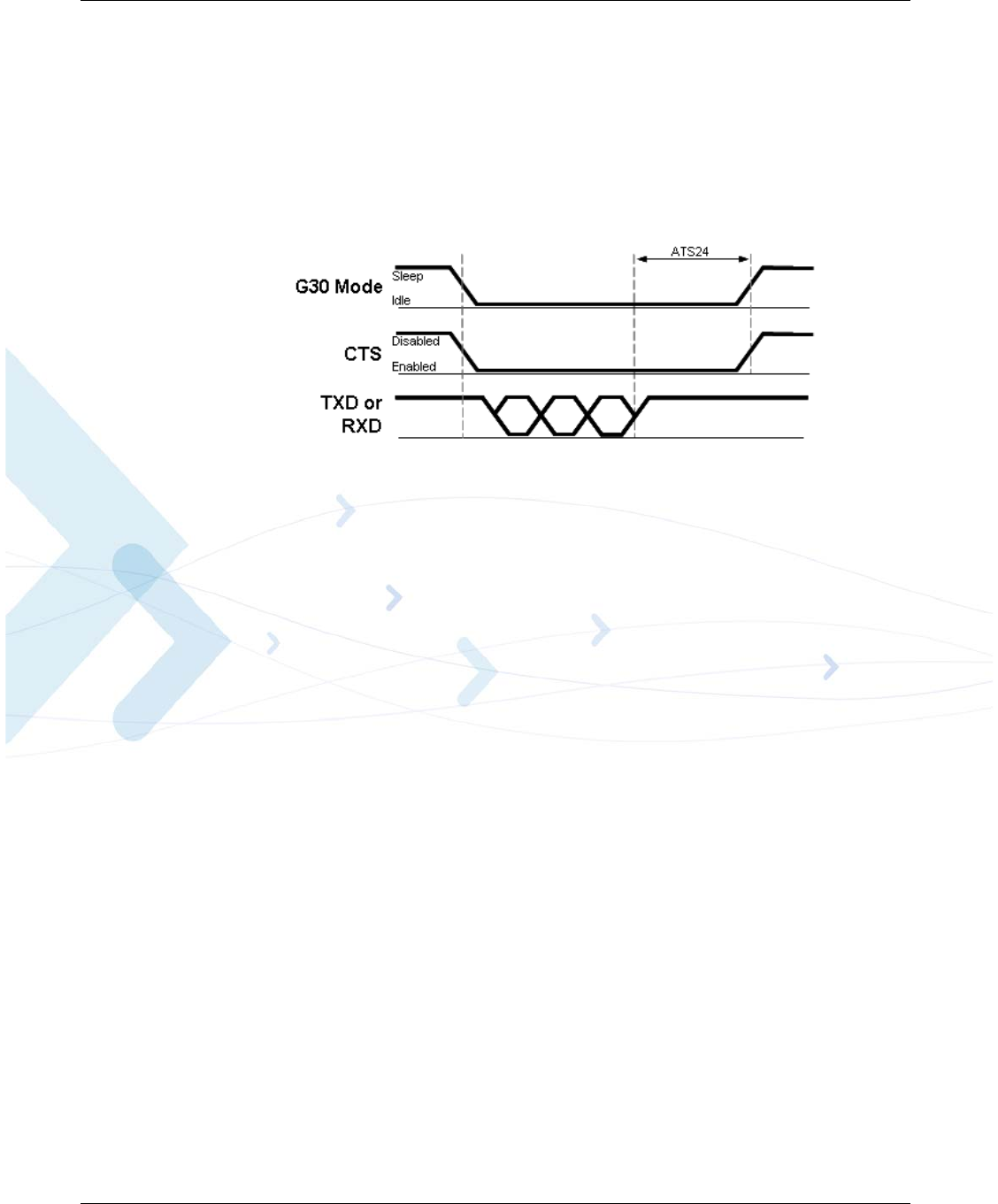

2-7 CTS Signal During Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2-8 WKUPI Signal Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2-9 Serial Interface Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2-10 UART Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2-11 G30 External SIM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

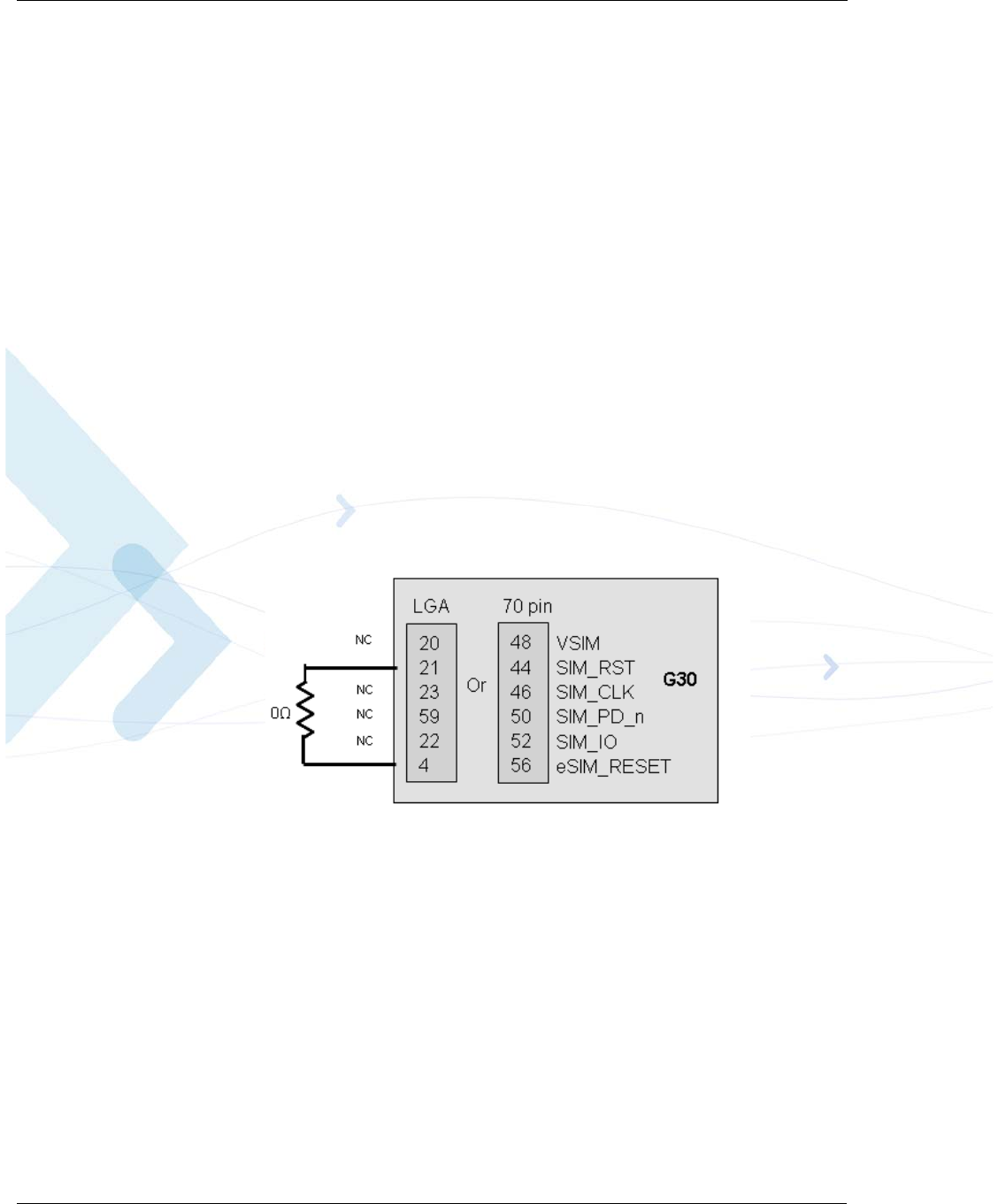

2-12 G30 eSIM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2-13 Audio Interface Topology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2-14 Handset Microphone Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2-15 Headset Microphone Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

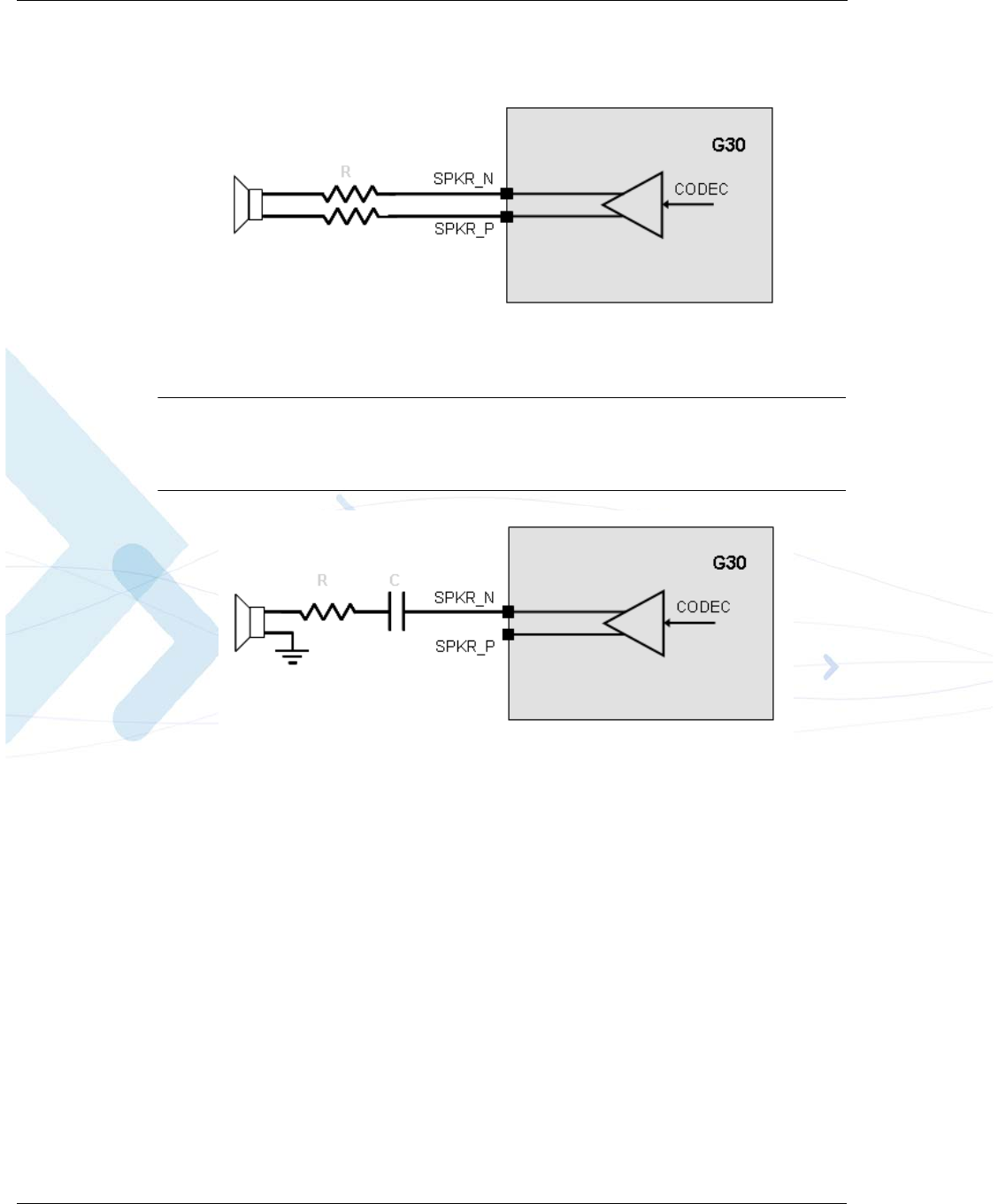

2-16 Differential Speaker Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2-17 Single-ended Speaker Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2-18 Mono Speaker (Headset) Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2-19 Voiceband Mode PCM Bus Coding Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2-20 Audio Programming Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

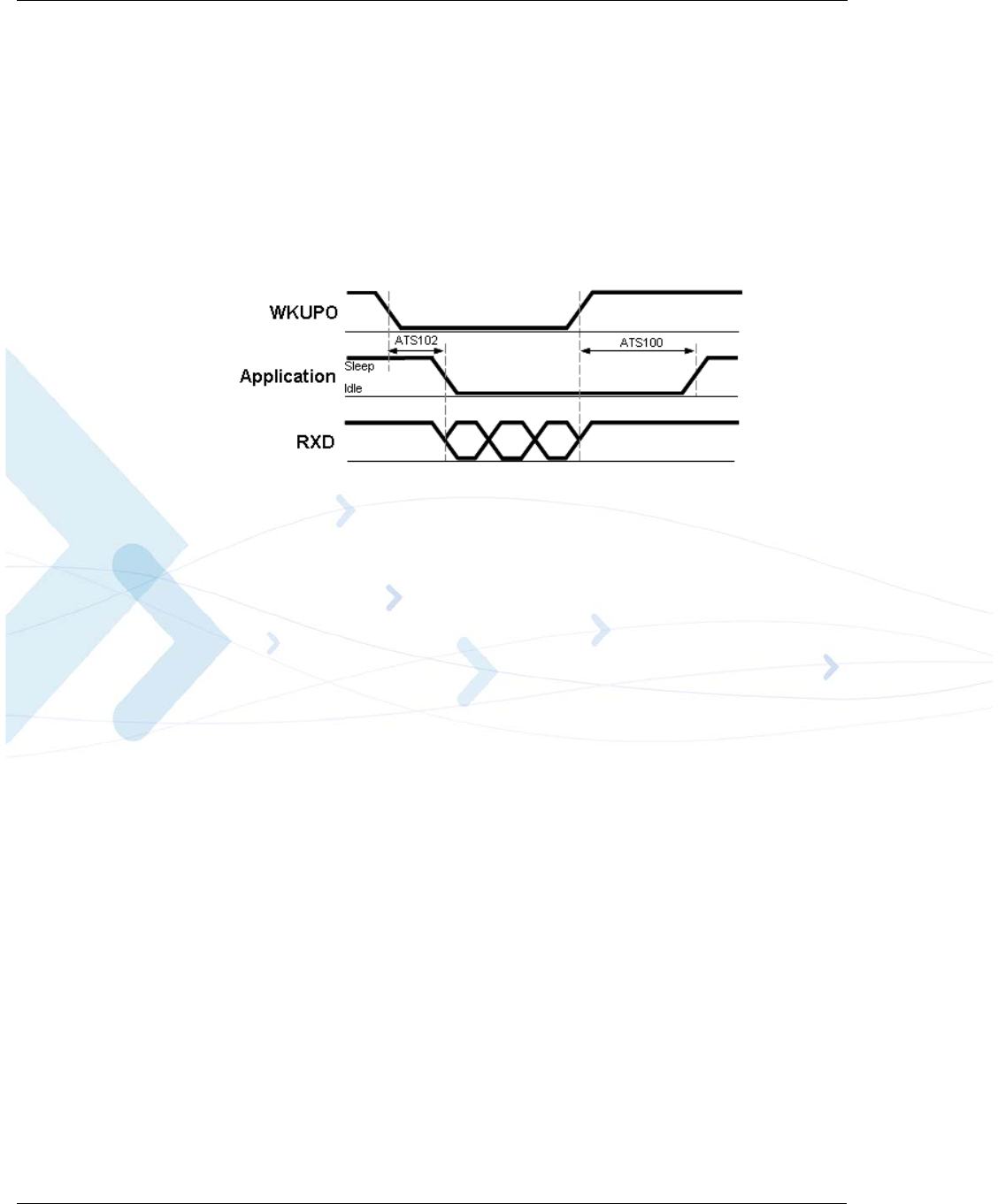

2-21 WKUPO Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3-1 G30 - 70 Pin Connector Quick Integration Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

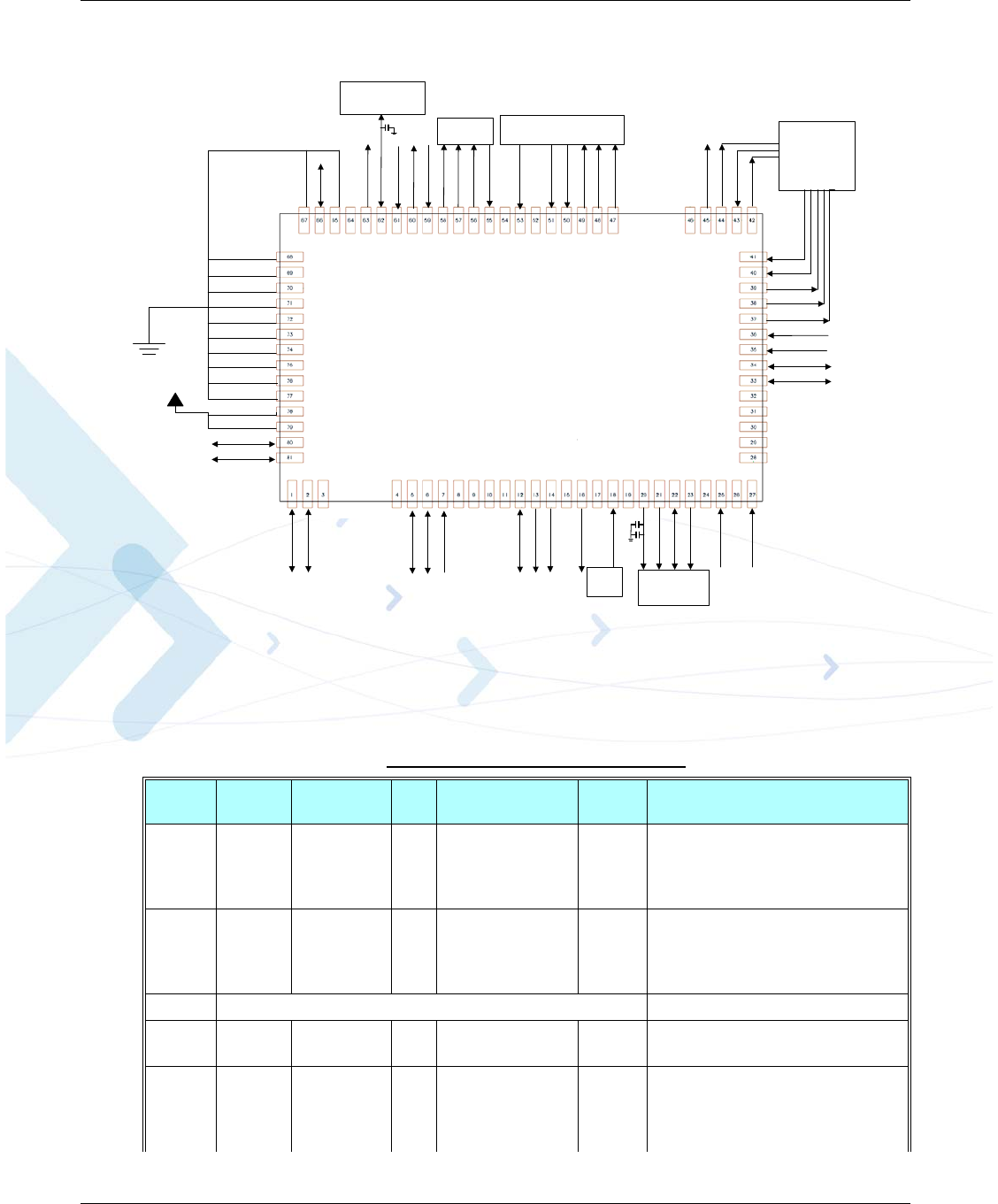

3-2 G30 - 81 Pin LGA Interface Quick Integration Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 63
4-1 G30 Mechanical Characteristics - 81 Pin LGA Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
4-2 G30 Mechanical Characteristics - B2B Connector (70 Pin). . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4-3 LGA Tape & Reel Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

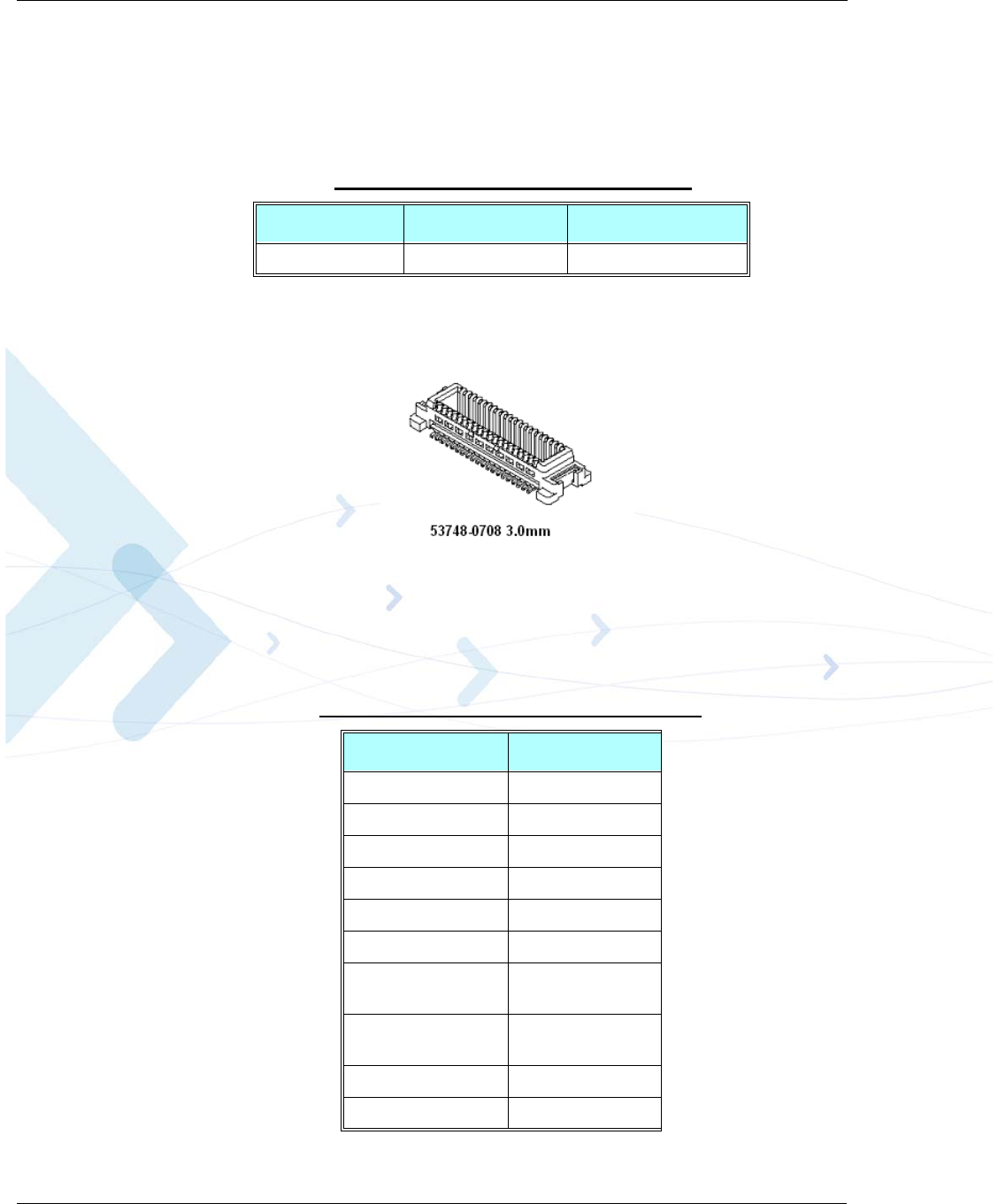

4-4 G30 Interface Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
4-5 Mating Connector Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4-6 U.FL Connector Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4-7 U.FL Mating Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

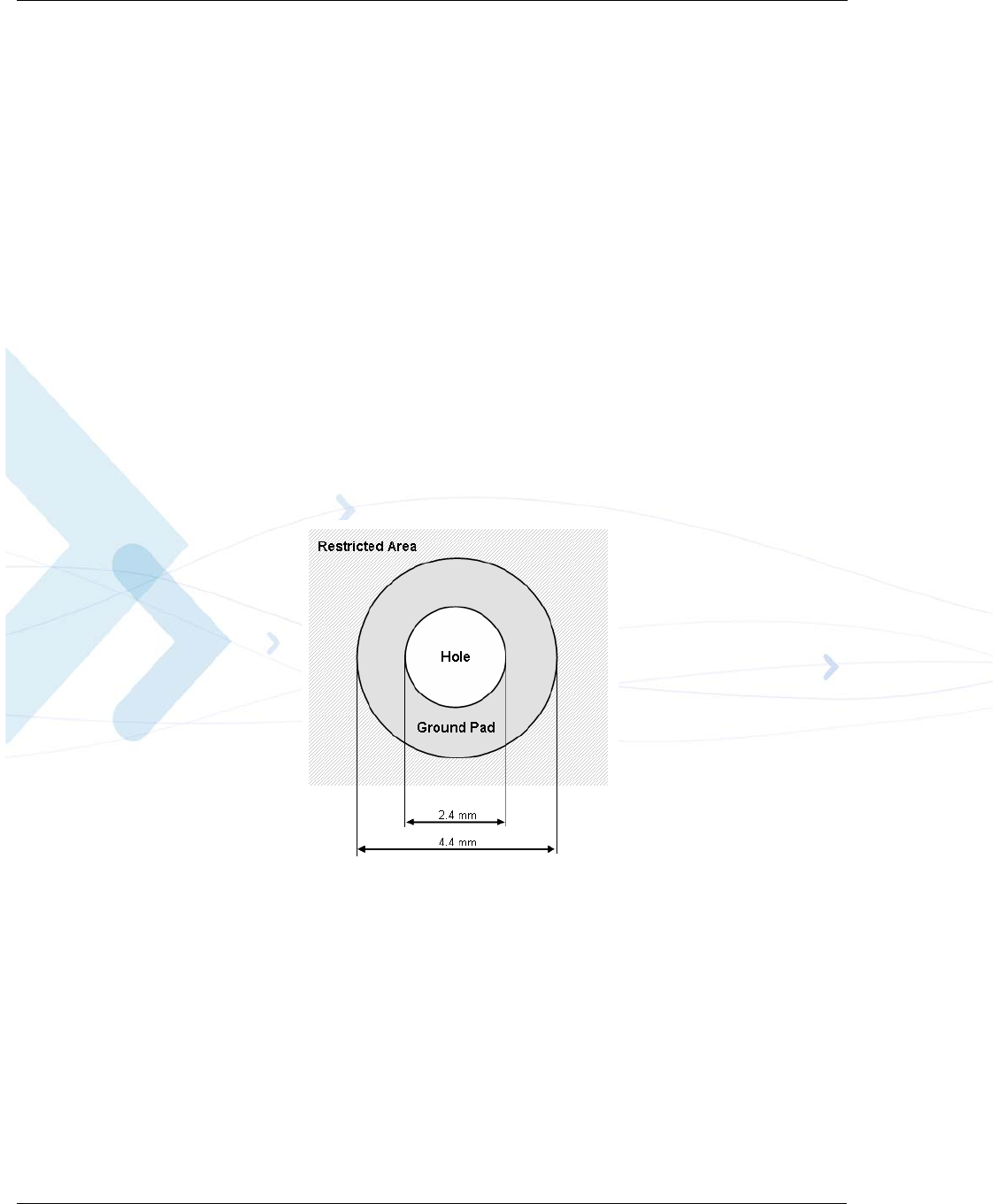

4-8 G30 Mounting Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4-9 G30 Soldering Footprint (Top View) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
5-1 Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
List of Figures
December 15, 2009 G30 - Module Hardware Description vii
1-1 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2-1 G30 Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2-2 Power Supply Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2-3 Recommended Power Supply Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2-4 G30 Current Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2-5 SPI Interface Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2-6 I2C Interface Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2-7 SIM Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2-8 Handset Microphone Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2-9 Headset Microphone Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2-10 Speaker Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2-11 Mono Speaker Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2-12 Digital Audio modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2-13 Basic Mode Audio Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2-14 Advanced Mode Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2-15 Speech Processing Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2-16 Gain Control Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2-17 Supply A/D Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2-18 GPAD Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2-19 Controls and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2-20 VREF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2-21 Antenna Interface Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3-1 Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3-2 Input Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3-3 Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3-4 Input Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3-5 Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3-6 Pad Pull-up and Pull-down Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3-7 Audio Transmit Path Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3-8 Microphone Supply Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3-9 G30 Low Power Single-ended Audio Receive Path Characteristics . . . . . . . . . . . . . . . . . . . . 58
3-10 G30 High Power Differential Audio Receive Path Characteristics . . . . . . . . . . . . . . . . . . . . . 59
3-11 Input Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3-12 Environmental Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3-13 Interface Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
4-1 G30 interface connector option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
4-2 Interface Connector Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
4-3 U.FL Connector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
List of Tables
December 15, 2009 G30 - Module Hardware Description ix
Preface
Manual Scope
This manual provides the electrical, mechanical and environmental requirements for properly
integrating the G30 module in a host application.
This manual gives a complete set of hardware features and functions that may be provided by
G30. The availability of any feature or function, which is described in this manual, depends on
the hardware revision and software version of a specific G30 model.
The parameters and values provided in this manual are defined under typical conditions. These
values may vary when subject to different conditions, such as SW version, network status,
application settings and environmental conditions.
Target Audience
This manual is intended for all members of the integration team who are responsible for
integrating the G30 module into the host OEM device, including representatives from hardware,
software and RF engineering disciplines.
Manual Organization
This manual contains the following chapters:
•Chapter 1—introduces the G30 unit and provides important safety instructions.
•Chapter 2—provides a detailed hardware description of the blocks and components
comprising the G30.
•Chapter 3—describes the pin assignments for G30 connectors.
•Chapter 4—describes G30 mechanical specifications and requirements.
•Chapter 5—provides contact information for Motorola Service Support and Customer
Assistance.
Applicable Documents
•G30 Developer's Kit - 6802986C48
•G30 AT Commands - 6802986C33
Regulatory Requirements
x G30 - Module Hardware Description December 15, 2009
Regulatory Requirements
The Federal Communications Commission (FCC) requires application for certification of digital
devices in accordance with CFR Title 47, Part 2 and Part 15. This includes MPE calculation. As
the G30 modem is not a standalone transceiver but is an integrated module, the G30 cannot be
tested by itself for EME certification. It is, however, the integrator’s responsibility to have the
completed device tested for EME certification.
Caution: Unauthorized repairs or modifications could result in permanent damage to the
equipment and void your warranty and your authority to operate this device under
Part 15 of the FCC Rules.
Regulatory Statement (Safety)
The following safety precautions must be observed during all phases of the operation, usage,
service or repair of any cellular terminal or mobile incorporating the G30 module. Manufacturers
of the cellular terminal are advised to convey the following safety information to users and
operating personnel, and to incorporate these guidelines into all manuals supplied with the
product. Failure to comply with these precautions violates safety standards of design,
manufacture and intended use of the product. Motorola assumes no liability for customer failure
to comply with these precautions.
•G30 module should not be assembled when voltage is supplied (applicable for 70 pin
connector model only)
•G30 module must be operated at the voltages described in the technical documentation
•G30 module must not be mechanically nor electrically changed. Use of connectors should
follow the guidance of the technical documentation
•G30 module is designed to meet the EMC requirements of EN 301 489-07
•When integrating the G30 module into a system, Motorola recommends testing the system to
EN 301 489-07
•You must not remove any label from the G30 module
•Systems using the G30 module are subject to mandatory EMC/RF/Safety (including EME)
testing under R&TTE directive 1999/5/EC (to://www.newapproach.org/Directives/). Other
directives, such, 2002/95/EC (RoHS), WEEE Directive 2002/96/EC should also apply to a
system using the G30 module.
FCC Notice to Users
Motorola has not approved any changes or modifications to this device by the user. Any changes
or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. See 47 CFR
Sec. 15.19(3).
If your mobile device or accessory has a USB connector, or is otherwise considered a computer
peripheral device whereby it can be connected to a computer for purposes of transferring data,
then it is considered a Class B device and the following statement applies:
Preface
December 15, 2009 G30 - Module Hardware Description xi
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Precautions
Interface connector and some of the module circuits are not shielded. Be sure to take appropriate
precautionary measures in order to avoid ESD while handling the module. ESD can damage the
G30 modules. Integrators need to design ESD protection on all external interfaces.
Antenna and Transmission Safety Precautions
User Operation
Do not operate your unit when a person is within 8 inches (20 centimeters) of the antenna. A
person or object within 8 inches (20 centimeters) of the antenna could impair call quality and may
cause the phone to operate at a higher power level than necessary.
Important: The unit must be installed in a manner that provides a minimum separation distance
of 20 cm or more between the antenna and persons and must not be co-located or
operate in conjunction with any other antenna or transmitter to satisfy FCC RF
exposure requirements for mobile transmitting devices.
Important: To comply with the FCC RF exposure limits and satisfy the categorical exclusion
requirements for mobile transmitters, the requirements described in the following
section, “Antenna Installation” , must be met.
Standards
xii G30 - Module Hardware Description December 15, 2009
Antenna Installation
•The antenna installation must provide a minimum separation distance of 20 cm from users
and nearby persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
•Antenna installation should be done by a professional installer and should meet all FCC
requirement as given in FCC part 15.
•Combined cable loss and antenna gain
• R&TTE requirements
• 900 MHz GSM band: The combined cable loss and antenna gain must not exceed
4.08 dBi
• 1800 MHz DCS band: The combined cable loss and antenna gain must not exceed
9.47 dBi
• FCC requirements
• 800 MHz cellular band: The combined cable loss and antenna gain must not exceed
2.85 dBi
• 1900 MHz PCS band: The combined cable loss and antenna gain must not exceed
2.5 dBi
OEM installers must be provided with antenna installation instruction and transmitter operating
conditions for satisfying RF exposure compliance.
Section 15.203 - Antenna Requirements
An intentional radiator shall be designed to ensure that no antenna other than that furnished by the
responsible party shall be used with the device. The use of a permanently attached antenna or of
an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to
comply with the provisions of this Section. The manufacturer may design the unit so that a
broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical
connector is prohibited. This requirement does not apply to carrier current devices or to de-vices
operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this
requirement does not apply to intentional radiators that must be professionally installed, such as
perimeter protection systems and some field disturbance sensors, or to other intentional radiators
which, in accordance with Section 15.31(d), must be measured at the installation site. However,
the installer shall be responsible for ensuring that the proper antenna is employed so that the
limits in this Part are not exceeded.
Standards
Electromagnetic Compatibility: Principles and Applications by David A Weston, published by
Marcel Dekker, Inc., 270 Madison Avenue, New York, NY 10016 USA.
GSM 07.07 - prETS 300 916, Digital cellular telecommunication system (Phase 2+); AT
command set for GSM Mobile Equipment (ME), Version 5.2.0 or higher, Reference
RE/SMG-040707QR1.
GSM 07.05, Digital cellular telecommunication system (Phase 2+); Use of Data Terminal
Equipment - Data Circuit terminating; Equipment (DTE-DCE) interface for Short Message
Service (SMS) and Cell Broadcast Service (CBS), Version 5.3.0, August, 1997, Reference
TS/SMG-040705QR2.
Preface
December 15, 2009 G30 - Module Hardware Description xiii
GSM 03.40, Digital cellular telecommunication system (Phase 2+); Technical realization of the
Short Message Service (SMS) Point-to-Point (PP), Version 5.3.0, July 1996, Reference
TS/SMG-040340QR2.
GSM 04.11 Digital cellular telecommunication system (Phase 2+); Point-to-Point (PP) Short
Message Service (SMS) support on mobile radio interface, Version 5.1.0, March 1996, Reference
TS/SMG-030411QR.
GSM 03.38, Digital cellular telecommunication system (Phase 2+); Alphabets and
language-specific information, Version 5.3.0, July 1996, Reference TS/SMG-040338QR2.
GSM 11.10-1, Digital cellular telecommunication system (Phase 2); Mobile Station (MS)
Conformance specification; Part 1: Conformance specification. Draft pr ETS 300 607-1, March
1998, Reference RE/SMG-071110PR6-1.
GSM Specifications are orderable from Global Engineering Documents, 15 Inverness Way East,
Englewood, Colorado 80112-5704 USA 303-792-2181 800-624-3974.
ETSI Standard PCS - 11.10-1.
GSM 02.30 Supplementary services.
GSM 03.90 USSD stage 2.
GSM 11.14 SIM toolkit.
ITU-T V.25ter
GSM Data Adapter for Motorola Handsets, AT command reference, Rev 2, June 9 1997.
ETSI standard SMG31.
GSM 05.02.
ETSI 07.60.
ETSI 0.7.07 Ver. 7.5.0.
Contact Us
We at Motorola want to make this guide as helpful as possible. Keep us informed of your
comments and suggestions for improvements.
For general contact, technical support, report documentation errors and to order manuals, use this
email address:
M2M.CustomerCare@motorola.com
Motorola appreciates feedback from the users of our information.
Text Conventions
The following special paragraphs are used in this guide to point out information that must be read.
This information may be set-off from the surrounding text, but is always preceded by a bold title
in capital letters:
Note
Note: Presents additional, helpful, noncritical information that you can use.
Text Conventions
xiv G30 - Module Hardware Description December 15, 2009
Warning
Warning: Presents information to warn you of a potentially hazardous situation in which there
is a possibility of personal injury.
Important
Important: Presents information to help you avoid an undesirable situation
or provides additional information to help you understand a topic or concept.
Caution
Caution: Presents information to identify a situation in which damage to software, stored
data, or equipment could occur, thus avoiding
the damage.
Preface
December 15, 2009 G30 - Module Hardware Description xv
Field Service
For Field Service requests, use this email address:
n2csfs01@motorola.com
General Safety
Remember!. . . safety depends on you!
The following general safety precautions must be observed during all phases of operation,
service, and repair of the equipment described in this manual. Failure to comply with these
precautions or with specific warnings elsewhere in this manual violates safety standards of
design, manufacture, and intended use of the equipment. Motorola, Inc. assumes no liability for
the customer’s failure to comply with these requirements. The safety precautions listed below
represent warnings of certain dangers of which we are aware. You, as the user of this product,
should follow these warnings and all other safety precautions necessary for the safe operation of
the equipment in your operating environment.
Ground the instrument
To minimize shock hazard, the equipment chassis and enclosure must be connected to an
electrical ground. If the equipment is supplied with a three-conductor AC power cable, the power
cable must be either plugged into an approved three-contact electrical outlet or used with a
three-contact to two-contact adapter. The three-contact to two-contact adapter must have the
grounding wire (green) firmly connected to an electrical ground (safety ground) at the power
outlet. The power jack and mating plug of the power cable must meet International
Electrotechnical Commission (IEC) safety standards.
Note: Refer to “Grounding Guideline for Cellular Radio Installations”–Motorola part no.
68P081150E62.
Do not operate in an explosive atmosphere
Do not operate the equipment in the presence of flammable gases or fumes. Operation of any
electrical equipment in such an environment constitutes a definite safety hazard.
Do not service or adjust alone
Do not attempt internal service or adjustment unless another person, capable of rendering first aid
is present.
Keep away from live circuits
Operating personnel must:
•not remove equipment covers. Only Factory Authorized Service Personnel or other qualified
maintenance personnel may remove equipment covers for internal subassembly, or
component replacement, or any internal adjustment
Caring for the Environment
xvi G30 - Module Hardware Description December 15, 2009
•not replace components with power cable connected. Under certain conditions, dangerous
voltages may exist even with the power cable removed
•always disconnect power and discharge circuits before touching them
Do not substitute parts or modify equipment
Because of the danger of introducing additional hazards, do not install substitute parts or perform
any unauthorized modification of equipment. Contact Motorola Warranty and Repair for service
and repair to ensure that safety features are maintained.
Dangerous procedure warnings
Warnings, such as the example below, precede potentially dangerous procedures throughout this
manual. Instructions contained in the warnings must be followed. You should also employ all
other safety precautions that you deem necessary for the operation of the equipment in your
operating environment.
Warning example:
Warning: Dangerous voltages, capable of causing death, are present in this equipment. Use
extreme caution when handling, testing,
and adjusting.
Caring for the Environment
The following information is provided to enable regulatory compliance with the European Union
(EU) Directive 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) when using
Motorola equipment in EU countries.
Disposal of Motorola equipment in EU countries
Please do not dispose of Motorola equipment in landfill sites.
In the EU, Motorola in conjunction with a recycling partner will ensure that equipment is
collected and recycled according to the requirements of EU environmental law.
Please contact the Customer Network Resolution Center (CNRC) for assistance. The 24 hour
telephone numbers are listed at
http://mynetworksupport.motorola.com
Select Customer Network Resolution Center contact information.
Alternatively if you do not have access to CNRC or the internet, contact the Local Motorola
Office.
Preface
December 15, 2009 G30 - Module Hardware Description xvii
Disposal of Motorola equipment in non-EU countries
In non-EU countries, dispose of Motorola equipment in accordance with national and regional
regulations.
Turkey
Limitation of Liability
The Products are not designed, intended, or authorized for use as components in systems intended
for surgical implant into the body; in other applications intended to support or sustain life; for the
planning, construction, maintenance, operation or use of any nuclear facility; for the flight,
navigation, communication of aircraft or ground support equipment; or in any other application in
which the failure of the Product could create a situation where personal injury or death may occur.
If CUSTOMER should use any Product or provide any Product to a third party for any such use,
CUSTOMER hereby agrees that MOTOROLA is not liable, in whole or in part, for any claims or
damages arising from such use, and further agrees to indemnify and hold MOTOROLA harmless
from any claim, loss, cost or damage arising from such use.
EXCEPT AS SPECIFICALLY STATED ABOVE, THE PRODUCTS ARE PROVIDED "AS IS"
AND MOTOROLA MAKES NO OTHER WARRANTIES EXPRESS, IMPLIED,
STATUTORY, OR OTHERWISE REGARDING THE PRODUCTS. MOTOROLA
SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF
DEALING OR USAGE OF TRADE.
Under no circumstances shall MOTOROLA be liable to CUSTOMER or any other party for any
costs, lost revenue or profits or for any other special, incidental or consequential damages, even if
MOTOROLA has been informed of such potential loss or damage. And in no event shall
MOTOROLA's liability to CUSTOMER for damages of any nature exceed the total purchase
price CUSTOMER paid for the Product at issue in the dispute, except direct damages resulting
from patent and/or copyright infringement, which shall be governed by the "INDEMNITY"
Section of this Agreement.
The preceding states MOTOROLA's entire liability for MOTOROLA's breach or failure to
perform under any provision of this Agreement.
Warranty Notification
Motorola guarantees to you, the original purchaser, the OEM module and accessories which you
have purchased from an authorized Motorola dealer (the “Products”), to be in conformance with
the applicable Motorola specifications current at the time of manufacture for a term of fifteen (15)
months from Product manufacture date (Warranty Term).
$UWLFOH RI WKH
(XURSHDQ 8QLRQ (8 'LUHFWLYH (& :DVWH (OHFWULFDO DQG (OHFWURQLF
(TXLSPHQW :(((
7KH *RYHUQPHQW RI 7XUNH\ UHTXHVWV D VWDWHPHQW RI FRQIRUPLW\ ZLWK WKH ((( UHJXODWLRQ
EH SURYLGHG ZLWK WKLV HTXLSPHQW 7KLV VWDWHPHQW RI ((( FRQIRUPLW\ LQ 7XUNLVK LV (((
<|QHWPHOL÷LQH 8\JXQGXU
How to Get Warranty Service?
xviii G30 - Module Hardware Description December 15, 2009
You must inform Motorola of the lack of conformity to the applicable specifications of any of the
Products within a period of two (2) months from the date on which you detect a defect in
material, workmanship or lack of conformity and in any event within a term not to exceed the
Warranty Term, and must immediately submit the Product for service to Motorola's Authorized
Repair or Service Center. Motorola shall not be bound by Product related statements not directly
made by Motorola nor any warranty obligations applicable to the seller.
A list of the Motorola Call Center numbers is enclosed with this Product.
During the Warranty term, Motorola will, at its discretion and without extra charge, as your
exclusive remedy, repair or replace your Product which does not comply with this warranty; or
failing this, to reimburse the price of the Product but reduced to take into account the use you
have had of the Product since it was delivered. This warranty will expire at the end of the
Warranty Term.
This is the complete and exclusive warranty for a Motorola OEM module and accessories and in
lieu of all other warranties, terms and conditions, whether express or implied.
Where you purchase the product other than as a consumer, Motorola disclaims all other
warranties, terms and conditions express or implied, such as fitness for purpose and satisfactory
quality.
In no event shall Motorola be liable for damages nor loss of data in excess of the purchase price
nor for any incidental special or consequential damages* arising out of the use or inability to use
the Product, to the full extent such may be disclaimed by law.
This Warranty does not affect any statutory rights that you may have if you are a consumer, such
as a warranty of satisfactory quality and fit for the purpose for which products of the same type
are normally used under normal use and service, nor any rights against the seller of the Products
arising from your purchase and sales contract.
(*)including without limitation loss of use, loss of time, loss of data, inconvenience, commercial
loss, lost profits or savings.
How to Get Warranty Service?
In most cases the authorized Motorola dealer which sold and/or installed your Motorola OEM
module and original accessories will honor a warranty claim and/or provide warranty service.
Alternatively, for further information on how to get warranty service please contact Customer
care group (refer to “Service and Testing” ).
Claiming
In order to claim the warranty service you must return the OEM module and/or accessories in
question to Motorola's Authorized Repair or Service Center in the original configuration and
packaging as supplied by Motorola. Please avoid leaving any supplementary items like SIM
cards. The Product should also be accompanied by a label with your name, address, and telephone
number; name of operator and a description of the problem.
In order to be eligible to receive warranty service, you must present your receipt of purchase or a
comparable substitute proof of purchase bearing the date of purchase. The module should also
clearly display the original compatible electronic serial number (IMEI) and mechanic serial
number [MSN]. Such information is contained with the Product.
You must ensure that all and any repairs or servicing is handled at all times by a Motorola
Authorized Service Center in accordance with the Motorola Service requirements.
Preface
December 15, 2009 G30 - Module Hardware Description xix
In some cases, you may be requested to provide additional information concerning the
maintenance of the Products by Motorola Authorized Service Centers only, therefore it is
important to keep a record of any previous repairs, and make them available if questions arise
concerning maintenance.
Conditions
This warranty will not apply if the type or serial numbers on the Product has been altered, deleted,
duplicated, removed, or made illegible. Motorola reserves the right to refuse free-of-charge
warranty service if the requested documentation can not be presented or if the information is
incomplete, illegible or incompatible with the factory records.
Repair, at Motorola's option, may include reflashing of software, the replacement of parts or
boards with functionally equivalent, reconditioned or new parts or boards. Replaced parts,
accessories, batteries, or boards are warranted for the balance of the original warranty time
period. The Warranty Term will not be extended. All original accessories, batteries, parts, and
OEM module equipment that have been replaced shall become the property of Motorola.
Motorola does not warrant the installation, maintenance or service of the products, accessories,
batteries or parts.
Motorola will not be responsible in any way for problems or damage caused by any ancillary
equipment not furnished by Motorola which is attached to or used in connection with the
Products, or for operation of Motorola equipment with any ancillary equipment and all such
equipment is expressly excluded from this warranty.
When the Product is used in conjunction with ancillary or peripheral equipment not supplied by
Motorola, Motorola does not warrant the operation of the Product/peripheral combination and
Motorola will not honor any warranty claim where the Product is used in such a combination and
it is determined by Motorola that there is no fault with the Product. Motorola specifically
disclaims any responsibility for any damage, whether or not to Motorola equipment, caused in
any way by the use of the OEM module, accessories, software applications and peripherals
(specific examples include, but are not limited to: batteries, chargers, adapters, and power
supplies) when such accessories, software applications and peripherals are not manufactured and
supplied by Motorola.
What is Not Covered by the Warranty
This warranty is not valid if the defects are due to damage, misuse, tampering, neglect or lack of
care and in case of alterations or repair carried out by unauthorized persons.
The following are examples of defects or damage not covered by this product warranty
1. Defects or damage resulting from use of the Product in other than its normal and customary
manner.
2. Defects or damage from misuse, access to incompatible sources, accident or neglect.
3. Defects or damage from improper testing, operation, maintenance, installation, adjustment,
unauthorized software applications or any alteration or modification of any kind.
4. Breakage or damage to antennas unless caused directly by defects in material or
workmanship.
5. Products disassembled or repaired other than by Motorola in such a manner as to adversely
affect performance or prevent adequate inspection and testing to verify any warranty claim.
Installed Data
xx G30 - Module Hardware Description December 15, 2009
6. Defects or damage due to range, coverage, availability, grade of service, or operation of the
cellular system by the cellular operator.
7. Defects or damage due to moist, liquid or spills of food.
8. Control unit coil cords in the Product that are stretched or have the modular tab broken.
9. All plastic surfaces and all other externally exposed parts that are scratched or damaged due
to customer normal use.
Depending on operating conditions and your usage habits, wear and tear might take place of
components including mechanical problems related to Product housing, paint, assembly,
sub-assemblies, displays and keyboards and any accessories which are not part of the Product's
in-box configuration. The rectification of faults generated through wear and tear and the use of
consumable items like batteries beyond their Optimum Performance Time as indicated in the
product manual is considered to be your responsibility and therefore Motorola will not provide
the free Warranty repair service for these items
Installed Data
Please make and retain a note of all data you have inserted into your Product for example names,
addresses, phone numbers, user and access codes, notes etc. before submitting your Product for a
Warranty service as such data may be deleted or erased as part of the repair or service process.
Please note if you have downloaded material onto your product, these may be deleted or erased as
part of the repair process or testing process. Motorola shall not be responsible for such matters.
The repair or testing process should not affect any such material that was installed by Motorola
on your Product as a standard feature.
Out of Warranty Repairs
If you request Motorola to repair your Product any time after the Warranty term or where this
warranty does not apply due to the nature of the defect or fault, then Motorola may in its
discretion carry out such repairs subject to you paying Motorola its fees for such a repair or it may
refer you to an authorized third party to carry out such repairs.
Preface
December 15, 2009 G30 - Module Hardware Description xxi
Revision History
Manual Number
6802986C55-A
Manual Title
G30 - Module Hardware Description
Version Information
The following table lists the manual version, date of version, and remarks about
the version.
Revision History
Version Date Issue Remarks
ADecember 15, 2009 Initial Release
Revision History
xxii G30 - Module Hardware Description December 15, 2009
This page intentionally left blank.
December 15, 2009 G30 - Module Hardware Description 1
Chapter 1: Introduction
The G30 is the newest member of Motorola's embedded cellular modules family.
Designed with quad band GSM capabilities, which supports four GSM bands -
850/900/1800/1900 MHz, and with GPRS multislot class 10, G30 can operate on any
GSM/GPRS/EGPRS network to provide voice and data communications.
The G30 is similar to a condensed cellular phone core, which can be integrated into any system or
product that needs to transfer voice or data information over a cellular network. Thus, it
significantly enhances the system's capabilities, transforming it from a standalone, isolated
product to a powerful high-performance system with global communications capabilities.
The G30 is designed as a complete GSM communications solution with all the controls,
interfaces and features to support a broad range of applications:
•A powerful audio interface
•A large set of indicators and control signals
•Several advanced power-saving modes
•A variety of serial communications solutions.
All these features and interfaces are easily controlled and configured using a versatile AT
command interface that provides full control over the G30 operation.
The G30 comes with several hardware configurations (models) that gives the development
engineer the option to select the best cost effective solution for their application.
The hardware configuration is the combination of the following factors:
•User interface: 81 pin LGA interface for solder mounting, or 70 pin connector interface with
screw mounting
•Memory: 64Mb/16Mb or 128Mb/32Mb Flash/PSRAM internal memory
•RF Interface: U.FL connector or SMT pad (part of the LGA module)
•SIM interface: External SIM card interface, or internal Embedded SIM (eSIM)
The G30 series was designed for Zero time, Zero effort integration, getting you to market faster
than ever. The G30 features both an 81 pin LGA interface form factor and an optional 70-pin B2B
connector for various design possibilities. The optional connectorized platform maintains the
same mounting design as the award winning G24 module, so you can leverage the G30’s rich
feature set but remain with your connectorized design. The G30 Series also shares a unified
software interface with the G24 family, including compatible AT commands and TCP/IP stacks.
Product Specifications
2 G30 - Module Hardware Description December 15, 2009
Product Specifications
Important: For safety regulations and requirements, see “Regulatory Requirements” on page x,
“Regulatory Statement (Safety)” on page x and “Antenna and Transmission Safety
Precautions” on page xi in “Preface” .
Note: Motorola reserves the right to change the specifications without prior notice.
Table 1-1: Product Specifications
Product Features
Operating systems: GSM 850/GSM 900
DCS 1800/PCS 1900
Physical Characteristics
Size (with 3 mm connector): 24.4x40x.3.5mm
Mounting: SMT (LGA module) or two Ø2.4 mm holes (70 pin con-
nector interface model)
Weight: <6 grams
December 15, 2009 G30 - Module Hardware Description 3
Environmental
Operational temperature: -30°C to +85°C
Storage temperature: -40°C to +85°C
Performance
Operating voltage: 3.4 - 4.2 V
Current consumption: In AT mode: < 1.6 mA @ DRX9 (Sleep mode)
Maximum Tx output power: GSM 850/GSM 900: Power class 4 (33 ± 2dBm)
DCS 1800/PCS 1900: Power class 1 (30 ± 2 dBm)
GSM 850/GSM 900: GPRS 2 slot up (33 ± 2 dBm)
DCS 1800/PCS 1900: GPRS 2 slot up (30 ± 2 dBm)
Interfaces
Connectors: SMT pads or via a single 70-pin, board to board
RF U.FL or via SMT pads
SIM Card: External SIM connectivity
1.8 V / 3.0 V SIM Card support
Embedded SIM
Connectivity: UART:
BR from 2400 bps to 230400 bps
Auto BR up to 230400 bps
I2C (Master):
DAI or SPI (Master, AT command selection)
RTC supply: RTC supply output/Backup voltage supply input
Reset: External Reset input
Data Features
GPRS: Multislot Class 10
DL up to 85.6 Kbit/s
UL up to 42.8 Kbit/s
Mobile station class B
CS1 to CS 4 supported
Internal TCP/IP
Embedded FTP
CSD: CS data calls (Transparent / Non-Transparent) up to 9.6
kbps
Modem type V.32, V.110
SMS: MO/MT Text and PDU modes
Cell broadcast (SMS CB)
Reception of SMS during circuit-switched calls
Reception of SMS via GSM or GPRS
FAX Bearer service fax
Group 3. Class 2.0
Table 1-1: Product Specifications (Cont.)
Product Specifications
4 G30 - Module Hardware Description December 15, 2009
Voice Features
Telephony
Digital/Analog audio
Headset Mode
Handset Mode
Hands Free Mode
Ringer Mode Supporting Midi files
Vocoders EFR/HR/FR/AMR
DTMF support
Audio control: Echo canceller, noise reduction, side tone and gain control,
Tx / Rx digital filter control
Table 1-1: Product Specifications (Cont.)
December 15, 2009 G30 - Module Hardware Description 5
GSM Supplementary Service
Call Hold/Resume (CH)
Call Waiting (CW)
Multi-Party (MTPY)
Call Forwarding (CF)
Call Divert
Explicit Call Transfer (ECT)
Call Barring (CB)
Call Completion to Busy
Subscriber (CCBS)
Advice of Charge (AoC)
Calling Line Identification
Presentation (CLIP)
Calling Line Identification
Restriction (CLIR)
Connected Line
Identification Presentation
(COLP)
Unstructured Supplementary
Services Data (USSD)
Network Identify and Time
Zone (NITZ)
Character Set
GSM GSM default alphabet (GSM03.38)
HEX Character strings consist only of hexadecimal numbers
from 00 to FF; e.g. "032FE6" equals three 8-bit characters
with decimal values 3, 47 and 230; no conversions to the
original ME character set shall be done
IRA International Reference Alphabet (ITU-T T.50)
8859-1 ISO 8859 Latin 1 character set
UCS2 16-bit universal multiple-octet coded character set
(USO/IEC10646); UCS2 character strings are converted to
hexadecimal numbers from 0000 to FFFF. Only the strings
found in quotation marks are UCS2 coded, the rest of
commands or responses, remains in IRA alphabet
AT Command Set
GSM 07.05
GSM 07.07
Motorola proprietary AT
commands
Table 1-1: Product Specifications (Cont.)
Regulatory and Approvals
6 G30 - Module Hardware Description December 15, 2009
Regulatory and Approvals
•R&TTE
•GCF
•FCC/CE
•PTCRB
•IC
•RoHS
•Anatel Brazil
European Union Directives Conformance Statement
The above gives an example of a typical Product Approval Number.
You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (the
R&TTE Directive) at www.motorola.com/rtte - to find your DoC, enter the product Approval
Number from your product's label in the "Search" bar on the Web site.
Important: The following paragraphs must be addressed by the integrator to ensure their host is
in compliance to the G30 FCC grant and/or the FCC grant of the host device.
CFR 47 Part 15.19 specifies label requirements
The following text may be on the product, user's manual, or container.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Hereby, Motorola declares that this product is in compliance with
•The essential requirements and other relevant provisions of
Directive 1999/5/EC
•All other relevant EU Directives
0682
IMEI: 350034/40/394721/9
Type: G30
Product
Approval
Number
December 15, 2009 G30 - Module Hardware Description 7
CFR 47 Part 15.21 Information to user
The user's manual or instruction manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. In cases where the manual is
provided only in a form other than paper, such as on a computer disk or over the Internet, the
information required by this section may be included in the manual in that alternative form,
provided the user can reasonably be expected to have the capability to access information in that
form.
CFR 47 Part 15.105 Information to the user
(b) For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Regulatory and Approvals
8 G30 - Module Hardware Description December 15, 2009
This page intentionally left blank.
December 15, 2009 G30 - Module Hardware Description 9
Chapter 2: Hardware Interface Description
The following paragraphs describe in details the hardware requirements for properly interfacing
and operating the G30 module.
Architecture Overview
Figure 2-1 below illustrates the primary functional components of the G30.
Figure 2-1: G30 Block Diagram
Voice
band
Handset
Microphone
Headset
Microphone
Power-on
External
Reset
Handset/Loud
Speaker
Power
Supply
Power
Supply
Coin Cell
(Backup)
Headset
Speaker
Audio Amplifier
MCU
DSP
RAM/ROM
MCP Memory
NOR/PSRAM
81-pin LGA/70-pin Connector Interface
SPI/I2S/DAI
Interface GPIO I2C ADC Capture
CompareExternal
Interupt
PMU
Power
Management
Unit
GSM/GPRS
Single Chip
RF
Transceiver
LNA
26MHz
XTAL
32kHz
XTAL
SIM
Card
Serial
Interface
SIM
Card UART RTC
SSC/I2S GPIO I2C ADC Capture
Compare ExtInt
External
Bus
Unit
RF
Timing
PA
Control
ADC NTC
VRF0 VRF1 VRF2
PWR_ON
RESET_IN
Baseband Supply
RF Supply
Peripherals Supply
VCC
VRTC
SPKR_N
SPKR_P
MIC_HDST, AGND2
HDST_SPKR
MIC, AGND1
RXD_DAI
TXD_DAI
CLK_DAI
WA0_DAI
GPIOx SCL
SDA ADC1
ADC2
VMEM
Control and Clock
Data
Address
VC1, VC2
VRAMP
TXON_PA, VMODE_EN
ANT
50 Ohm
Antenna
Interface
TX 850/900
TX 1800/1900
RX 850
RX 900
RX 1800
RX 1900
SAW Filters/Duplexer
RX 1800/1900
RX 850/900
RF Matching
RF Matching
PA
Antenna
Switch
4-Bands GSM FEM
VSIM
SIM_IO
SIM_CLK
SIM_RST
RXD
RTS
DCD
DSR
TXD
CTS
DTR
RI
eSIM
Embedded
SIM
eSIM_RESET
Architecture Overview
10 G30 - Module Hardware Description December 15, 2009
The G30 consists of the following blocks:
Baseband
The baseband IC is combined with the RF transceiver and the power management unit (PMU).
This chipset provides all baseband and low power RF band functionality for GPRS/GSM, and
includes:
•Micro-controller Unit (MCU) for system and user code execution.
•Digital Signal Processor (DSP) for voice and data processing.
•Serial communications interfaces.
•UART
•SPI /I2S (via M2M Zone Platform)
•SIM card
•I2C (via M2M Zone Platform)
•Power Management IC (PMIC).
•Internal regulators
•External VRTC regulator
•Voltage reference (applies for 70 pin connector interface model only)
•Analog audio interface management.
•Handset
•Headset
•Hands Free
•General purpose and dedicated A/D signals.
•A/D
•Voltage sensor
•Temperature sensor
•Real Time Clock (RTC) subsystem.
•RF transceiver.
The G30 base band system provides all necessary interfaces for hardware or software designing
and debugging, which are available by means of the 81 board to board pads or the 70 pin
connector interface.
RF Block
The G30 RF section is designed with minimum discrete parts, making it more reliable.
The RF block consists of:
•RF Transceiver/Receiver block in the same single chip IC as the MCU
•2 Rx Filters
•RF power amplifier and Front End Module in single chip IC
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 11
Operating Modes
G30 incorporates several operating modes. Each operating mode is different in the active features
and interfaces.
Table 2-1 summarizes the general characteristics of the G30 operating modes and provides
general guidelines for operation.
Table 2-1: G30 Operating Modes
Mode Description Features
Not Powered VCC supply is disconnected.
VRTC is disconnected.
The G30 is Off.
Any signals connected to the interface con-
nector must be set low or tri-state.
RTC Mode Valid VRTC supply.
VCC supply is disconnected.
The G30 Interfaces are Off. Only the internal
RTC timer is operating. Any signals con-
nected to the interface connector must be set
low or tri-stated.
Off Mode Valid VCC supply.
RESET_IN signal is enabled (low).
The G30 Interfaces are Off. Only the internal
RTC timer is operating. Any signals
connected to the interface connector must be
set low or tri-stated.
In this mode, the G30 waits for PWR_ON
signal to turn ON.
Idle Mode RESET_IN signal is disabled (high).
CTS and DSR signals are enabled (low).
The G30 is fully active, registered to the
GSM network and ready to communicate.
This is the default power-up mode.
Sleep Mode RESET_IN signal is high.
CTS signal is disabled.
The G30 is in low power mode.
The application interfaces are disabled, but,
G30 continues to monitor the GSM network.
CSD call or
GPRS data RESET_IN signal is high.
TXEN signal is high.
A GSM voice or data call is in progress.When
the call terminates, G30 returns to the last
operating state (Idle or Sleep).
Power Supply
12 G30 - Module Hardware Description December 15, 2009
Power Supply
The G30 power supply must be a single external DC voltage source of 3.3V to 4.2V. The power
supply must be able to sustain the voltage level during a GSM transmit burst current surge, which
may reach 2.0A.
The G30 interface contacts for the main power supply, are described in Table 2-2. All these
contacts must be used for proper operation.
Power Supply Design
Special care must be taken when designing the power supply of the G30. The single external DC
power source indirectly supplies all the digital and analog interfaces, but also directly supplies the
RF power amplifier (PA). Therefore, any degradation in the power supply performance, due to
losses, noises or transients, will directly affect the G30 performance.
The burst-mode operation of the GSM transmission and reception, draws instantaneous current
surges from the power supply, which causes temporary voltage drops of the power supply level.
The transmission bursts consume the most instantaneous current, and therefore cause the largest
voltage drop. If the voltage drops are not minimized, the frequent voltage fluctuations may
degrade the G30 performance.
Table 2-2: Power Supply Signals
Pin #
(LGA interface)
Pin #
(70 pin
connector
interface)
Signal Name Description
65, 67-77 1-4 GND Main ground connection for G30
module.
78, 79 5-8 VCC DC supply input for G30 module.
VIN = 3.3 V to 4.2 V
IRMS = 350 mA during multislot
transmission
IMAX = 2 A during transmit
bursts
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 13
Figure 2-2 illustrates the power supply behavior during GSM transmission.
Figure 2-2: Transmission Power Drops
Note: 1 TX slot is shown.
It is recommended that the voltage drops during a transmit burst will not exceed 300mV,
measured on the G30 interface connector. In any case, the G30 supply input must not drop below
the minimum operating level during a transmit burst. Dropping below the minimum operating
level may result in a low voltage detection, which will initiate an automatic power-off.
To minimize the losses and transients on the power supply lines, it is recommended to follow
these guidelines:
•Use a 1000 uF, or greater, low ESR capacitor on the G30 supply inputs. The capacitor should
be located as near to the G30 interface connector as possible.
•Use low impedance power source, cabling and board routing.
•Use cabling and routing as short as possible.
•Filter the G30 supply lines using filtering capacitors, as described in Table 2-3.
Table 2-3: Recommended Power Supply Filtering
Capacitor Usage Description
1000 uF GSM Transmit current
serge
Minimizes power supply
losses during transmit
bursts.
Use maximum possible
value.
10 nF, 100 nF Digital switching noise Filters digital logic noises
from clocks and data sources.
8.2 pF, 10 pF 1800/1900 MHz GSM
bands
Filters transmission EMI.
33 pF, 39 pF 850/900 MHz GSM
bands
Filters transmission EMI.
Power Supply
14 G30 - Module Hardware Description December 15, 2009
Power Consumption
Table 2-4 specifies typical G30 current consumption ratings in various operating modes. The
current ratings refer to the overall G30 current consumption over the VCC supply.
Table 2-4: G30 Current Ratings
Parameter Description Conditions Min Typ Max Unit
IOFF RTC mode 90 µA
IIDLE Idle mode 28 mA
ISLEEP Low power mode DRx 9 2 mA
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 15
Power On/Off Operation
The G30 power on and off process includes two primary phases, which are indicated at the
interface connector by the hardware input signal RESET_IN, and the output signal CTS.
The RESET_IN is usually an input signal to the G30, and its main function is to initiate HW reset
to the G30. However, this signal can also serve as "live indication" signal, and indicate whether
G30 is powered on or off.
Note: When RESET_IN is used as "Live Indication", verify that the signal is connected to an
input device (via a input buffer), with NO pull-up or pull-down resistors.
When this signal is enabled (low), G30 is powered-off. When it is disabled (high), G30 is
powered-on.
The CTS signal indicates the serial communications interface (UART) status. When this signal is
high, the G30 serial interface is disabled. When it is low, the serial interface is enabled, and G30
is ready to communicate.
When G30 is powered on, and after the CTS is enabled (Low), The G30 initiates an unsolicited
"Wait...At command Ready" massage via the UART serial interface, followed by "+PBREADY"
massage (once all G30 internal tests are done).
For more information, refer to "G30 AT Commands Reference Manual, P/N 6802986C33".
Important: Applying voltage to ADC lines before power up is forbidden and may cause G30
power up issues.
Important: Do not operate the G30 out of its electrical or environmental limits. Refer to the
specifications chapter for details of these limits.
Turning the G30 On
When the G30 power supply is stable above the minimum operating level and G30 is powered
off, only the internal RTC timer is active.
When G30 is turned on, by any of the methods described below, it will first perform an automatic
internal system-test, during which basic functions are verified. The system-test duration is
typically 1600 milliseconds. When the system-test has completed G30 resumes normal operation.
During the internal system-test process G30 may toggle several interface signals, which are
visible to the application. These signals do not represent any valid state or data, and should be
ignored by the customer application until the system-test has completed.
Power Supply Turn-on
When connecting the power supply for the first time, or when reconnecting it after a power
supply loss, G30 will power-on. The G30 is turned-on automatically when external power is
applied above the minimum operating level.
Power On/Off Operation
16 G30 - Module Hardware Description December 15, 2009
Figure 2-3 illustrates the G30 power on upon application of a power supply.
Figure 2-3: Power Supply Turn-on
Turning the G30 On Using PWR_ON
The PWR_ON input signal is set high by an internal pull-up resistor whenever a power supply is
applied to G30. Therefore, it is recommended to operate this signal using an open collector/drain
circuit connection.
Asserting the PWR_ON signal low for a minimum of 600 milliseconds (0.6 seconds) and a
maximum of 1.5 seconds will cause the G30 to turn-on.
Asserting the PWR_ON signal low for more than 1.5 seconds may cause the G30 to interpret the
signal as a power-off command, and turn off immediately after turning on.
Figure 2-4 illustrates the power-on process using the PWR_ON signal.
Figure 2-4: PWR_ON Power On Timing
Turning the G30 Off
There are several ways to turn the G30 off:
•Asserting the PWR_ON signal low for a minimum of 3 seconds.
•Low power automatic shut down.
•AT command.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 17
Turning the G30 Off Using PWR_ON
The PWR_ON signal is set high using an internal pull up resistor when power is applied to G30.
Asserting the PWR_ON signal low for a minimum of 3 seconds will turn G30 off. This will
initiate a normal power-off process, which includes disabling of all applications interfaces
(UART, SIM card, audio, etc.) and closing the network connection.
Figure 2-5 illustrates the power-off timings when using the PWR_ON signal.
Figure 2-5: PWR_ON Power Off Timing
Power Loss shut down
A low power shut down occurs when G30 senses the external power supply is below the minimal
operating limit. The module will respond by powering down automatically without notice.
This form of power-down is not recommended for regular use since the unexpected power loss
may result in loss of data.
Turning the G30 Off Using AT+MRST
The AT+MRST command initiates a G30 system reset operation, which powers off the G30. This
command emulates the PWR_ON signal operation for power off.
Low Power Mode
18 G30 - Module Hardware Description December 15, 2009
Low Power Mode
The G30 incorporates an optional low power mode, called Sleep Mode, in which it operates in
minimum functionality, and therefore draws significantly less current. During low power mode
the G30 network connection is not lost. G30 continues to monitor the GSM network constantly
for any incoming calls or data.
During low power mode, all of the G30 interface signals are inactive and are kept in their
previous state, prior to activating low power mode. To save power, all the G30 internal clocks and
circuits are shut down, and therefore serial communications is limited.
Activating Low Power Mode
By default, the G30 powers on in Idle mode. In this mode the G30 interfaces and features are
functional and the module is fully active.
Low power mode is activated by the ATS24 command. The value set by this command
determines the inactive state duration required by G30, in seconds, after which G30 will enter
sleep mode.
For example:
ATS24 = 1 activates low power mode after 1 second of inactivity.
ATS24 = 5 activates low power mode after 5 seconds of inactivity.
ATS24 = 0 disables low power mode (default).
Figure 2-6 illustrates the ATS24 command operation.
Figure 2-6: ATS24 Operation
Important: G30 will not enter low power mode in any case when there is data present on the
serial interface or incoming from the GSM network or an internal system task is
running. Only when processing of any external or internal system task has
completed, and G30 is inactive for the duration of ATS24, it will enter low power
mode.
Serial Interface During Low Power Mode
During low power mode the G30 serial interfaces are disabled. This is indicated by the CTS
signal high state.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 19
The G30 wakes up periodically from low power mode to page the GSM network for any
incoming calls or data. After this short paging is completed, G30 returns to low power mode.
During this short awake period, the serial interfaces are enabled and communications with the
module is possible.
The CTS signal is alternately enabled and disabled synchronously with the network paging cycle.
CTS is enabled whenever G30 awakes to page the network. This indicates the G30 serial
interfaces are active (see Figure 2-7).
Figure 2-7: CTS Signal During Sleep Mode
The periodical enabling and disabling of the CTS signal during low power mode can be
controlled by the AT+MSCTS command.
Setting AT+MSCTS=1 permanently disables the serial interface during low power mode, even
during a network page by G30. The CTS signal is disabled, and therefore the serial interfaces are
blocked.
Terminating Low Power Mode
Terminating the low power mode, or wake-up, is defined as the transition of the G30 operating
state from Sleep mode to Idle mode. There are several ways to wake-up G30 from low power
mode as described below.
Important: During power saving mode the G30 internal clocks and circuits are disabled, in
order to minimize power consumption. When terminating the power saving mode,
and switching to Idle mode, G30 requires a minimal delay time to reactivate and
stabilize its internal circuits before it can respond to application data.
This delay is typically of TBD milliseconds, and is also indicated by the CTS
signal inactive (high) state. The delay guarantees that data on the serial interface is
not lost or misinterpreted.
Low Power Mode
20 G30 - Module Hardware Description December 15, 2009
Temporary Termination of Low Power Mode
Temporary termination of low power mode occurs when G30 switches from Sleep mode to Idle
mode for a defined period, and then returns automatically to Sleep mode.
Low power mode may be terminated temporarily by several sources, some of which are user
initiated and others are initiated by the system.
Using the WKUPI signal
The WKUPI signal is an active low input, that is set high by default. By asserting this signal low
the application can wake-up G30 from low power mode and switch to Idle mode.
G30 will remain in Idle mode, awake and fully active, as long as WKUPI signal remains low.
When this signal is disabled and set high again, G30 will return to Sleep mode automatically,
according to the ATS24 settings (see Figure 2-8).
Figure 2-8: WKUPI Signal Operation
The WKUPI signal is the recommended method to temporarily wake-up G30 from low power
mode. It provides the application full control of the G30 operating mode and guarantees that data
on the serial interface will not be lost or misinterpreted.
The WKUPI signal must be used to wake up G30 from low power mode if the serial interface has
been disabled by the AT+MSCTS command.
Incoming Network Data
During low power mode, G30 continues monitoring the GSM network for any incoming data,
message or voice calls.
When G30 receives an indication from the network that an incoming voice call, message or data
is available, it automatically wakes up from low power mode to alert the application. When G30
has completed to process all the tasks related to the incoming data, it will automatically return to
low power mode according to the ATS24 settings.
Depending on the type of network indication and the application settings, G30 may operate in
several methods, which are configurable by AT commands, to alert the application of the
incoming data:
•Enable the WKUPO signal to wake-up the application from low power.
•Send data to the application over the serial interface.
•Enable the serial interface's Ring Indicator (RI) signal.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 21
Data on the Serial interface
While G30 is temporarily awake in Idle mode, data may be transmitted on the serial interface. In
case data is being transmitted in any direction, G30 will not return to low power mode. This is
regardless of the original wake-up reason or source. G30 will remain awake while data is
transferred.
Only when the serial interface transfer is completed and the data has been processed, G30 will
return to low power mode automatically, according to the ATS24 settings (see Figure 2-9).
Figure 2-9: Serial Interface Data
Permanent termination of Low Power Mode
The G30 low power mode is enabled and disabled by the ATS24 command.
To permanently terminate the G30 low power mode, the ATS24 = 0 command must be used.
Setting ATS24 = 0 disables the currently active low power mode and switches G30 to Idle mode.
G30 will not return to low power mode until an ATS24 > 0 commands is set again.
This command can be sent only when the serial interface is active.
In case the serial interface is disabled, it must first be activated before sending this command. To
reactivate the serial interface, a temporary termination of the low power mode is required, as
described in “Temporary Termination of Low Power Mode” on page 20.
Following the temporary low power mode termination, the serial interface will activate and the
ATS24 = 0 command can be received by G30.
Real Time Clock
22 G30 - Module Hardware Description December 15, 2009
Real Time Clock
G30 incorporates a Real Time Clock (RTC) mechanism that performs many internal functions,
one of which is keeping time. The RTC subsystem is embedded in the PMU and operates in all of
the G30 operating modes (Off, RTC, Idle, Sleep), as long as power is supplied above the
minimum operating level.
The G30 time and date can be set using the following methods:
•Automatically retrieved from the GSM network.
In case G30 is operated in a GSM network that supports automatic time zone updating, it will
update the RTC with the local time and date upon connection to the network. The RTC will
continue to keep the time from that point.
•Using the AT+CCLK command.
Setting the time and date manually by this AT commands overrides the automatic network
update.
Once the time and date are manually updated, the RTC timer will keep the time and date
synchronized regardless of the G30 operating state.
When the power supply is disconnected from G30 and no voltage is supplied to the VRTC pin,
the RTC timer will reset and the current time and date will be lost. On the next G30 power-up the
time and date will need to be set again automatically or manually.
Note: A 47uF capacitor should be connected between ground and VRTC signal (pin 62 of the
81-pin LGA interface/pin 60 of the 70-pin connector).
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 23
Serial Interfaces
G30 includes three completely independent serial communications interfaces, which may be used
by the application for several purposes.
UART
The G30 UART is a standard 8-signal bus. The primary UART is used for all the communications
with G30 - AT commands interface, GPRS data and CSD data, programming and software
upgrades.
The UART signals are active low CMOS level signals. For standard RS232 communications with
a PC, an external transceiver is required.
G30 is defined as a DCE device, and the user application is defined as the DTE device. These
definitions apply for the UART signals naming conventions, and the direction of data flow, as
described in Figure 2-10.
Figure 2-10: UART Interface Signals
The G30 UART supports baud rates 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600,
115200, and 230400 bps.
Auto baud rate detection is supported for baud rates up to 230400 bps.
All flow control handshakes are supported: hardware, software, or none.
Parity bit and Stop bit definitions are also supported.
The UART default port configuration is 8 data bits, 1 stop bit and no parity, with hardware flow
control and auto baud rate detect enabled.
Important: The G30 UART will not send data over the serial interface in case the DTR and/or
RTS input signals are disabled (set high). Therefore, regardless of the handshake
method, it is still required to enable these signals for proper operation, by asserting
them low.
Serial Interfaces
24 G30 - Module Hardware Description December 15, 2009
Serial Peripheral Interface (SPI)
The G30 provides a synchronous SPI-compatible serial interface, implemented with the
synchronous serial controller hardware block of the G30. The SPI is a master-slave protocol: the
module runs as a SPI master device.
The SPI interface includes basically the following signals to transmit and receive data and to
synchronize them:
•MOSI (master output, slave input) signal which is an output for the module while it runs as
SPI master;
•MISO (master input, slave output) signal which is an input for the module while it runs as
SPI master;
•Clock signal which is an output for the module while it runs as SPI master;
•Optional chip select signal which is an output for the module while it runs as SPI master.
Note: The SPI interface is internally connected to the I2S digital audio interface, and is
controlled by means of software settings. Hence SPI interface is available only if the I2S
digital audio interface is disabled.
The SPI interface can be used as a data event logger by connecting SPI signals to an external
SPI-UART dedicated interface, and enabling the data logging interface by SW.
Note: In case that the M2M zone platform is being used, the SPI interface can be configured as
GPIOs, disabling the I2S digital audio and SPI interface.
The board to board pins related to SPI interface description are given in Table 2-5:
Table 2-5: SPI Interface Connections
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
762SPI_IRQ I SPI Interrupt Input Generic digital interfaces
voltage domain.
Output driver class C.
PU/PD class B.
Value at reset: T/PD.
I/O Capture/Compare
I/O GPIO
60 68 SPI_MOSI O
SPI sync data (MOSI)
Short to pin 5
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
Value at reset: T.
63 70 SPI_CS O
SPI chip select
Short to pin 58
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
Value at reset: T.
45 66 SPI_CLK O
SPI Clock
Short to Pin 57
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
Value at reset: T.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 25
I2C Bus Interface
The module provides an I2C bus interface which includes a serial data line and a clock line on the
board to board pins. The G30 I2C acts as master only. The I2C bus interface is available to the
user only with M2M Zone Platform.
The I2C signals are pulled-up, using internal 4.7 kOhm resistors.
Note: Do not connect any pull-up resistors when using signals as I2C interface.
Note: The I2C Bus interface can only be activated by M2M Zone Platform. Otherwise, the I2C
signals are configured as GPIOs.
The board to board pins related to I2C bus interface description is given in Table 2-6:
SIM Interface
The G30 incorporates a SIM interface, which conforms to the GSM 11.11 and GSM 11.12
standards, that are based on the ISO/IEC 7816 standard. These standards define the electrical,
signaling and protocol specifications of a GSM SIM card.
61 64 SPI_MISO I
SPI sync data (MISO)
Short to pin 55
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
Value at reset: T.
Table 2-5: SPI Interface Connections (Cont.)
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
Table 2-6: I2C Interface Connections
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
33 34 GPIO4/SCL O I2C bus clock line I2C interface voltage
domain.
PU drain.
Value at reset: T/OD.
I/O GPIO
34 32 GPIO3/SDA I/O I2C bus data line I2C interface voltage
domain.
PU drain.
Value at reset: T/OD.
I/O GPIO
SIM Interface
26 G30 - Module Hardware Description December 15, 2009
Both 1.8 V and 3 V SIM types are supported; activation and deactivation with automatic voltage
switch from 1.8 V to 3 V is implemented.
G30 is designed to support two SIM card options with the same SIM signals: External SIM card,
or an on board Embedded SIM (eSIM), depending on the G30 model.
Table 2-7 details the SIM interface signals.
External SIM Card
G30 does not incorporate an on-board SIM card tray for SIM placement. The external SIM must
be located on the user application board, external to the G30. The G30 SIM interface includes all
the necessary signals, which are routed to the interface connector, for a direct and complete
connection to an external SIM.
G30 supports dynamic detection of the SIM card, through a dedicated SIM detection signal. G30
will detect a SIM card insertion or removal upon power up or during operation by the transitions
on the SIM_PD_N signal.
Table 2-7: SIM Interface Signals
Pin #
(LGA interface)
Pin #
(70 pin
connector
interface)
Signal Name Description
20 48 VSIM 2.85V/1.8V Supply to the SIM
21 44 SIM_RST Active low External SIM reset
signal
22 52 SIM_IO Serial input and output data
23 46 SIM_CLK Serial 3.25 MHz clock
59 50 SIM_PD_n Active low SIM card presence
detection
456eSIM_RESET Active low Embedded SIM reset
signal
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 27
External SIM Connection
Figure 2-11 illustrates a typical external SIM interface connection to G30. This connection type is
implemented on the G30 Developer Board, using an FCI SIM tray, PN 7111S1615A05.
Figure 2-11: G30 External SIM Interface
External SIM Design Guidelines
The SIM interface and signals design is extremely important for proper operation of G30 and the
SIM card. There are several design guidelines that must be followed to achieve a robust and
stable design that meets the required standards and regulations.
•Using the SIM detection signal, SIM_PD_N, is mandatory in case the SIM card is accessible
to the user and may be removed during G30 operation. To avoid any damage to the SIM or
G30, the SIM interface signals must be deactivated before the SIM card contacts are
mechanically removed from the SIM tray contacts. Therefore, the SIM_PD_N detection
signal must be disabled before the SIM is removed from its tray.
•The SIM should be located, and its signals should be routed, away from any possible EMI
sources, such as the RF antenna and digital switching signals.
•The SIM interface signals length should not exceed 100 mm between the G30 interface
connector and the SIM tray. This is to meet with EMC regulations and improve signal
integrity.
•To avoid crosstalk between the SIM clock and data signals (SIM_CLK and SIM_DIO), it is
recommended to rout them separately on the application board, and preferably isolated by a
surrounding ground plane.
•The SIM card signals should be protected from ESD using very low capacitance protective
elements (zener diodes, etc.).
•The G30 interface does not support SIM programming through the VPP signal. This signal
should not be connected to G30.
SIM Interface
28 G30 - Module Hardware Description December 15, 2009
Embedded SIM
The G30 incorporates an Embedded SIM (depending on G30 model).
Embedded SIM (e.g. eSIM or chip SIM), is a secured micro controller IC, with the same pinout
interface, and the same operation as an external SIM card.
The eSIM main advantage is it robustness, making it an ideal solution for the M2M, and
automotive application.
Since an eSIM is actually an IC soldered on the G30, it can withstand wider temperature range
than a regular external SIM card that is usually made of plastic, and gets twisted and bowed at
high temperature, causing disconnection inside the SIM tray.
For the same reason, the eSIM is more durable to vibration then a regular external SIM card. Hard
vibration on an application with a SIM card socket may result in with an intermitted connection
between the SIM card socket and the SIM card.
Note: When Embedded SIM is used, it is recommended to connect the SIM_PD_n signal to
ground. However, in case the SIM detection is disabled by SW (+MSMPD command),
this signal can be left disconnected.
eSIM Connection
Figure 2-12 illustrates a typical eSIM interface connection to G30.
Figure 2-12: G30 eSIM Interface
Note: When Embedded SIM is used, SIM_RST signal must be connected to eSIM_RESET
signal via an optional 0 ohm resistor.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 29
Audio Interface
The G30 audio interface supports several audio devices and operating modes.
The audio interface's operating modes, active devices, amplification levels and speech processing
algorithms are fully controlled by the host application, through advanced programming options
and a versatile AT commands set.
The G30 supports the following audio devices:
•Two single-ended and biased mono analog microphone inputs for use in a variety of modes.
•A single differential mono analog speaker output for use in a variety of modes.
•A digital serial interface using I2S coding.
•A single-ended mono analog speaker output for use in a variety of modes.
Figure 2-13 shows the audio interface topology.
Figure 2-13: Audio Interface Topology
Handset Microphone Port
The handset microphone port is the G30 power-up default active audio input for voice calls. It is
located on pin 51 at the G30 81 pin LGA interface, named MIC.
It is designed as a single-ended input and should be referenced to the G30 analog ground.
The microphone input includes all the necessary circuitry to support a direct connection to an
external microphone device. It incorporates an internal bias voltage of 2.0V through a 3kΩ
resistor, and has an impedance of 1kΩ.
Audio Interface
30 G30 - Module Hardware Description December 15, 2009
Figure 2-14 shows the microphone circuit and Table 2-8 gives the microphone specifications.
Figure 2-14: Handset Microphone Circuit
Important: The microphone circuit design depends on the type of microphone device.
A series capacitor is required in case a passive microphone is used, or the
application provides a separate bias voltage to an active microphone circuit.The
internal G30 biasing circuit may also be used with an active microphone, which
corresponds to the microphone port specifications.
Headset Microphone Port
The headset microphone port is designed for use with, but not limited to, a headset audio device.
It is located at pin 53 on the G30 81 pin LGA interface, named MIC_HDST.
It is designed as a single-ended input and should be referenced to the G30 analog ground.
The microphone input includes all the necessary circuitry to support a direct connection to a
headset microphone device. It incorporates an internal bias voltage of 2.0V through a 3.0kΩ
resistor, and has an impedance of 1kΩ.
Table 2-8: Handset Microphone Port Specifications
Parameter Conditions Min Typ Max Unit
Input Voltage No load
AT+MMICG=0
2.0 VPP
Gain Programmable in
3 dB steps
045dB
AC Input
Impedance
1kΩ
Bias voltage RBIAS = 3.0 kΩ
IBIAS = 1 mA
1.8 2.0 2.2 V
Bias Current 1 mA
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 31
Figure 2-15 shows the microphone circuit and Table 2-9 gives the microphone specifications.
Figure 2-15: Headset Microphone Circuit
Important: The headset microphone circuit design depends on the type of microphone device.
A series capacitor is required in case a passive microphone is used, or the
application provides a separate bias voltage to an active microphone circuit.
The internal G30 biasing circuit may also be used with an active microphone, which
corresponds to the headset microphone port specifications.
Differential Speaker (Handset) Port
The analog differential speaker port is the G30 power-up default active output for voice calls and
DTMF tones. It is located at pins 48 and 49 on the G30 81 pin LGA interface, named SPKR_N
and SPKR_P respectively.
It is designed as a differential output with 8Ω impedance, but may also be used as a single-ended
output referenced to the G30 analog ground.
The differential speaker output is used for the handset audio path.
Table 2-9: Headset Microphone Port Specifications
Parameter Conditions Min Typ Max Unit
Input Voltage No load
AT+MMICG=0
2.0 VPP
Gain Programmable in
1 dB steps
045dB
AC Input
Impedance
1kΩ
Bias voltage RBIAS = 3.0 kΩ
IBIAS = 1 mA
1.8 2.0 2.2 V
Bias Current 1 mA
Audio Interface
32 G30 - Module Hardware Description December 15, 2009
Figure 2-16 shows a differential speaker circuit, Figure 2-17 shows a single-ended speaker circuit
and Table 2-10 gives the speaker specifications.
Figure 2-16: Differential Speaker Circuit
Important: For safety regulations it is important to place series resistors on the speaker output
lines, as illustrated in Figure 2-16. The resistors value should be R = 0Ω at the
design stage, but may be changed to a different value during audio safety testing, in
case speaker level limitation is required.
Figure 2-17: Single-ended Speaker Circuit
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 33
Important: When implementing a single ended speaker design, it is required to place a series
capacitor and resistor on the speaker output line, as illustrated in Figure 2-17.
The capacitor should be of low tolerance with values of C = 10-22 uF.
The resistor value depends on the speaker application:
- For a handset device, the resistor value should be R = 0Ω at the design stage, but
may be changed to a different value during audio safety testing, in case speaker
level limitation is required.
- For a headset device, safety regulations require the resistors value to be R > 2RLΩ,
where RL is the speaker impedance (e.g. 32Ω).
For example, when using a 32Ω speaker the series resistance would be R > 64Ω.
Mono Speaker (Headset) Port
The mono speaker port can be used for voice calls and DTMF tones. It is located at pin 47 on the
G30 81 pin LGA interface, named HDST_SPK.
It is designed as a single-ended output with 32Ω impedance, referenced to the G30 analog ground.
Figure 2-18 shows the headset speaker circuit and Table 2-11 gives the headset speaker
specifications.
Figure 2-18: Mono Speaker (Headset) Circuit
Table 2-10: Speaker Port Specifications
Parameter Conditions Min Typ Max Unit
Output
Voltage
No load
Single ended
2.7 VPP
Gain Programmable in
3 dB steps
-15 +9 dB
AC Output
Impedance
8Ω
DC Voltage VCC/2 V
THD 8 Ω load
300 Hz - 4 kHz
1%
Isolation Speech, f> 4 kHz 60 dB
Audio Interface
34 G30 - Module Hardware Description December 15, 2009
Important: When implementing a single ended loudspeaker design, it is required to place a
series capacitor and resistor on the alert output line, as illustrated in Figure 2-18.
The capacitor should be of low tolerance with values of C = 10-22 uF.
The resistor value should be R = 0Ω at the design stage, but may be changed to a
different value during audio safety testing, in case that alert level limitation is
required.
Headset Detection
The G30 operates by default in the basic audio mode with the differential speaker (handset) audio
path, for DTMF tones, speech, rings, and alert tones active.
The headset (mono speaker) path is an alternate audio path in basic mode. It is designed for, but
not limited to, a personal hands-free audio device, a headset, using the headset microphone input
device and the headset speaker output device. When this path is selected, the differential speaker
is disabled, and all the audio sounds are passed through to the headset path.
The HDST_INT signal is used to switch between handset and headset audio paths in basic audio
mode. This signal is set high by default at power up. Asserting the HDST_INT signal low enables
the headset audio path and disables the handset path. Setting this signal high will disable the
headset path and enable the handset path.
The G30 supports dynamic switching between the handset and headset audio paths, during
operation and call handling.
Important: The HDST_INT signal does not operate in advanced audio mode. This signal's
functionality is overridden by the AT+MAPATH command settings.
Table 2-11: Mono Speaker Port Specifications
Parameter Conditions Min Typ Max Unit
Output Volt-
age
No load
Single ended
TBD VPP
Gain Programmable in
3 dB steps
-18 0 dB
AC Output
Impedance
32 Ω
DC Voltage TBD V
THD 32 Ω load
300 Hz - 4 kHz
1%
Isolation 60 dB
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 35
Digital Audio Interface
The G30 digital audio interface is a serial Pulse Code Modulation (PCM) bus, which uses linear
2's compliment coding. G30 is the PCM bus master, supplying the clock and sync signals to the
application.
The G30 digital interface is a 4 signal PCM bus, which includes a bit clock output signal for the
bus timing, a frame sync output signal for audio sampling timing, and serial data input and output
signals.
Important: The PCM bus signals are shared internally by the analog audio interface and the
digital audio interface. Therefore, when using the analog audio interface the PCM
bus signals must be tri-stated or disconnected at the interface connector.
The digital audio interface supports 2 types of audio data formats, which define the PCM bus
configuration and data rates:
•Normal I2S mode.
•PCM mode.
The PCM bus configuration is defined by the audio data format that is sounded through the digital
audio path, as described in Table 2-12.
Note: Switching between Audio Modes is done using AT+MAI2SY command. For detailed
information, refer to G30 AT Commands Reference Manual (P/N 6802986C33).
Voiceband Audio
This digital voice audio format is used for speech during voice calls and for mono rings and
alerts.
The I2S bus signal's configuration for voiceband audio is:
•I2S_CLK - 512 kHz serial clock
•I2S_FS - 8 kHz bit-wide frame-sync
•I2S_DOUT - 16-bit linear audio data output
I2S capture - TBD
•I2S_DIN - 16-bit linear audio data input
The PCM bus signal's configuration for voiceband audio is:
•PCM_CLK - 144 kHz serial clock
Table 2-12: Digital Audio modes
Audio Mode Frame Sync
Sampling Bit Clock
PCM 8 kHz 144 kHz
I2S8 kHz 512 kHz
Audio Interface
36 G30 - Module Hardware Description December 15, 2009
•PCM_FS - 8 kHz bit-wide frame-sync
•PCM_DOUT - 16-bit linear audio data output
•PCM_DIN - 16-bit linear audio data input
The 16-bit serial data is transferred in both directions after each sync signal's falling edge. The
sync signal pulse duration is two clock periods, after which the serial data is transferred in both
directions for 16 consecutive clock periods.
Following the 16-bit data transfer, the serial input and output data signals inactivate until the next
sync pulse, which occurs every 125 µS (8 kHz). It is recommended the serial data signals will be
High-Z during the inactive period.
Figure 2-19 illustrates the PCM bus format of the voiceband audio configuration.
Figure 2-19: Voiceband Mode PCM Bus Coding Format
Operating Modes
The G30 audio interface includes 2 modes of operation. Each operating mode defines the audio
input and output devices to be used for each audio sound type and their programmable settings.
Basic Mode
Basic audio mode is the G30 default power-up audio configuration. Several audio paths are
available in this mode, and their settings can be programmed through the AT command set.
Table 2-13 describes the available audio paths in Basic mode.
Table 2-13: Basic Mode Audio Paths
Audio Path Input Signal Output Signal Description
Handset MIC SPKR_N, SPKR_P Default audio path for speech and
DTMF tones and ring.
Headset HDST_INT HDST_SPK Alternate path for headset device.
Enable by setting HDST_INT inter-
face signal low.
Digital PCM_DIN PCM_DOUT Enable digital path by
AT+MADIGITAL=1
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 37
Advanced Mode
Advanced audio mode utilizes G30's unique set of AT commands for advanced audio
programming. The expanded AT command set enables to define a specific audio path and setting,
which are not part of the default configuration, for each type of audio sound (speech, DTMF
tones, rings and alerts).
Unlike basic audio mode, which provides predefined audio paths, the advanced audio mode
provides full control over the G30 audio interface and its parameters, and differentiates between
each type of audio sound.
Table 2-14 describes the advanced mode audio programming features. These features are only a
part of the complete advanced audio AT command set.
Audio Programming Interface
The G30 incorporates a unique audio programming interface, through AT commands, which
controls the following audio features:
•Audio Path - Defines the input and output devices for speech, DTMF tones, rings and alerts.
•Audio Gain - Defines the amplification (gain) level for input and output audio devices.
•Audio Algorithm - Defines the speech processing features for voice calls.
Table 2-14: Advanced Mode Commands
Command Description
AT+MAPATH Sets the input device for voice, and the output
devices for voice, DTMF tones, rings and
alerts.
AT+MAFEAT Enables and disables the speech processing
algorithms - Echo suppression, noise sup-
pression and sidetone.
AT+MAVOL Sets the gain (amplification) level of the
selected analog output device.
AT+MMICG Sets the gain (amplification) level of the
selected analog input device.
AT+MMICV Sets the MIC bias voltage.
AT+MADIGITAL Switches between analog and digital audio
paths.
Audio Interface
38 G30 - Module Hardware Description December 15, 2009
Figure 2-20 describes the audio programming interface options, which are defined by AT
commands.
Figure 2-20: Audio Programming Interface
Audio Algorithms
The G30 audio interface features advanced speech processing algorithms for echo suppression,
noise suppression and side-tone feedback
Enabling or disabling the algorithms can be configured separately for each audio path and
operating mode through the AT command interface.
The G30 also supports full rate (FR), half rate (HR), enhanced full rate (EFR) and adaptive
multi-rate (AMR) speech coding algorithms, which are used by the GSM network. These
algorithms are configured and operated by the GSM network provider.
Table 2-15 gives the speech processing features.
Table 2-15: Speech Processing Features
Feature AT Command Default
Setting Description
Basic Advanced
Echo Suppression
ATS96 AT+MAFEAT Disabled
Controls the echo and noise suppres-
sion.
Noise Suppression
Sidetone ATS94 AT+MAFEAT Enabled Controls the sidetone.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 39
Gain Control
The amplification (gain) level for each input and output device can be configured through AT
commands. Both basic and advanced audio modes provide AT commands to set the desired gain
levels for each audio path and audio sound type.
Table 2-16 gives the gain control features.
Audio Design
The audio quality delivered by G30 is highly affected by the application audio design,
particularly when using the analog audio interface. Therefore, special care must be taken when
designing the G30 audio interface. Improper design and implementation of the audio interface
will result in poor audio quality.
Poor audio quality is a result of electrical interferences, or noises, from circuits surrounding the
audio interface. There are several possible sources for the audio noise:
•Transients and losses on the power supply
•EMI from antenna radiations
•Digital logic switching noise
Most of the audio noise originates from the GSM transmit burst current surges (217 Hz TDMA
buzz), which appear on the main power supply lines and antenna, but also indirectly penetrate the
internal application's supplies and signals. The noises are transferred into the G30's audio circuits
through the microphone input signals and then are amplified by the G30's internal audio
amplifiers.
To minimize the audio noise and improve the audio performance the microphone and speaker
signals must be designed with sufficient protection from surrounding noises.
The following guidelines should be followed to achieve best audio performance:
•Reference the microphone input circuits to the G30 AGND interface signal.
•If using single-ended audio outputs, they should be referenced to the G30 AGND interface
signal.
•Keep the audio circuits away from the antenna.
•Use RF filtering capacitors on the audio signals, as described in Table 2-3.
•The audio signals should not be routed adjacent to digital signals.
Table 2-16: Gain Control Features
Device Gain Command Default
Gain Description
Basic Advanced
Microphone
AT+MMICG AT+MMICG
8 Sets input speech gain level.
Headset Micro-
phone
8 Sets input speech gain level.
Mono Speaker AT+CLVL
AT+MAVOL
4 Sets voice and DTMF gain.
Differential Speaker AT+CRSL 4 Sets rings and alerts gain.
Audio Interface
40 G30 - Module Hardware Description December 15, 2009
•Isolate the audio signals by a surrounding ground plane or shields.
•Filter internal supplies and signals that may indirectly affect the audio circuits, from noises
and voltage drops.
Analog Ground
The G30 interface incorporates a dedicated analog ground contacts, AGND pads 52, 54 (of the 81
pin LGA interface), which are internally connected to the G30's ground. The AGND signal is
intended to provide a separate ground connection for the application's external audio devices and
circuits.
This signal provides an isolated ground connection directly from G30, which is separated from
the noisy digital ground of the application. It is recommended to connect this signal to analog
audio devices and circuits used by the application. Using a separate analog ground minimizes
audio noises and improves the audio circuit's immunity from external interferences.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 41
A/D Interface
The G30 includes 3 Analog to Digital Converter (ADC) signals with 12-bit resolution, for
environmental and electrical measurements. The ADC signals measure an analog DC voltage
level on their inputs which is converted to a 12-bit digital value for further processing by G30 or
the user application.
The A/D signals operation and reporting mechanism is defined by the AT+MMAD command.
Each A/D can be defined to provide several reports:
•A single measurement.
A single A/D measurement will take place and will be reported upon activation of the AT
command.
•An automatic periodical measurement.
The A/D measures its input signal at a rate that is defined by the user application. Every
measurement will generate an unsolicited message over the serial interface.
•An automatic periodical measurement with predefined limits.
The A/D measures its input signal at a rate that is defined by the user. The user also defines
upper and/or lower limits for the A/D measurements. Each measurement is compared to
these limits, and an unsolicited message is generated only if these limits are exceeded.
Important: In case the defined periodical measurement rate is equal to, or shorter than, the
defined sleep mode delay settings (ATS24), G30 will not enter low power mode.
Important: Applying voltage to ADC lines before power up is forbidden and may cause G30
power up issues.
Power Supply A/D
The main power supply (VCC) is constantly monitored internally by the G30 through a dedicated
A/D signal, which is not accessible on the interface connector.
The measured VCC level can be read and monitored by the user application through the
AT+MMAD command, which returns the measured VCC level in Volts times 100.
For example, a measured supply level of 3.65 Volts will be presented as 365 by the MMAD
command.
A/D Interface
42 G30 - Module Hardware Description December 15, 2009
Important: During GSM transmissions the power supply may suffer voltage drops. This can
cause frequent and wide changes in the power supply A/D measurements. This
should be taken into account when designing and operating the G30 power supply
A/D interface.
Table 2-17 gives the supply A/D specifications.
General Purpose A/D
The G30 provides 2 general purpose A/D (GPAD) signals for customer application use. Each A/D
signal can monitor a separate external voltage and report its measured level independently to the
application, through the AT command interface.
The GPAD signals measure a DC voltage level of 0 - 1.92 V, which is converted internally to a
12-bit digital value. The user application can monitor the A/D voltage level through the
AT+MMAD command, which returns the measured DC level in Volts times 100.
For example, a measured analog DC level of 1.75 Volts will be presented as 175 by the MMAD
command.
Table 2-18 gives the GPAD specifications.
Table 2-17: Supply A/D Specifications
Parameter Conditions Min Typ Max Unit
Measurement
Range
3.0 4.5 V
Resolution 10 mV
Table 2-18: GPAD Specifications
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
36 37 ADC1 I Analog-to-Digital
Converter Input
Resolution: 12 bits
Voltage span: 0V-1.92V
35 43 ADC2 I Analog-to-Digital
Converter Input
FResolution: 12 bits
Voltage span: 0V-1.92V.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 43
Controls and Indicators Interface
The G30 incorporates several interface signals for controlling and monitoring the module's
operation. The following paragraphs describes these signals and their operation.
Table 2-19 gives a description of the controls and indicators signals.
Table 2-19: Controls and Indicators
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
27 25 RESET_IN OC External reset input External reset signal
voltage domain.
27 VREF O Reference voltage supply Max current source
30mA.
62 60 VRTC I/O Real Time Clock Supply
Output/Input
VRTC = 2.0 V (typical)
2mA
Connect a 47uF capacitor
to ground.
14 26 WKUPO I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
O Wake-Up Out
25 16 WKUPI I/O Capture/Compare Generic digital interfaces
voltage domain.
Output driver class C.
PU/PD class B.
IWake-Up In
13 41 ANT_DET I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
O Antenna Detect
16 49 GPRS I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
OGPRS
80 28 GPIO1 I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
Value at reset: T.
81 30 GPIO2 I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
34 32 GPIO3/SDA I/O I2C bus data line I2C interface
voltage domain.
PU drain.
I/O GPIO
Controls and Indicators Interface
44 G30 - Module Hardware Description December 15, 2009
Reset
To reset the module, RESET_IN must be used (see Table 2-19). This pin performs an external
reset, also called hardware reset. Driving the RESET_IN pin low causes an asynchronous reset of
the entire device except for the Real Time Clock block (RTC). The device then enters its
power-on reset sequence.
Note: As an external reset input, it is recommended that RESET_IN signal will be connected
via a push button, or an open-drain transistor, or an open-collector transistor. In this way,
when RESET_IN signal is not used, It will be at High-Z state. In any case, it is forbidden
to connect this signal directly to any input voltage level.
VREF Reference Regulator
The G30 incorporates a regulated voltage output, VREF. The regulator provides a 2.85V output
for use by the customer application. This regulator can source up to 30 mA of current to power
any external digital circuits.
33 34 GPIO4/SCL O I2C bus clock line I2C interface
voltage domain.
PU drain.
Value at reset: T/OD.
I/O GPIO
136GPIO5 I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
238GPIO6 I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
540GPIO7 I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
642GPIO8 I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
Table 2-19: Controls and Indicators (Cont.)
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 45
Important: The VREF regulator is powered from the G30's main power supply, and therefore
any current sourced through this regulator originates from the G30 VCC supply.
The overall VCC current consumed by G30 is directly affected by the VREF
operation. The G30 current consumption rises with respect to the current sourced
through VREF.
Table 2-20 gives the VREF specifications.
VRTC
The G30 incorporates a real time block and is operated by the VRTC power located on pin 62 of
the 81-pin LGA interface, or pin 60 of the 70-pin connector interface. For detailed explanation,
refer to “Real Time Clock” on page 22.
Note: A 47uF capacitor should be connected between ground and VRTC signal (pin 62 of the
81-pin LGA interface/pin 60 of the 70-pin connector).
Wakeup Out
Some applications incorporate their own power saving mode, in which they operate with minimal
functionality, including disabling of interfaces and serial communications.
The wakeup-out (WKUPO) signal is an active low output, which is designed to support a low
power mode feature in the host application. This signal is used by G30 to indicate that it requires
to communicate with the host application through the serial interface, due to an incoming call or
data, or an unsolicited event. Applications that incorporate a low power mode should use this
signal as an indication to switch from low power mode to normal operation, and activate the serial
interface.
The wakeup-out mechanism, using the WKUPO signal, is controlled by 2 AT commands (see
Figure 2-21):
•ATS102 - Defines the delay time in milliseconds that G30 will wait, after asserting the
WKUPO signal low, before sending data on the serial interface. This delay is required to
allow the application enough time to reactivate from low power mode and switch to normal
mode.
If ATS102=0, which is the default value, the WKUPO signal and mechanism is disabled.
Table 2-20: VREF Specifications
Parameter Conditions Min Typ Max Unit
VOUT IOUT = 30 mA -3% 2.8 +3% V
IOUT 30 mA
Load regula-
tion
7mV
Line regula-
tion
10 mV
PSRR 50 Hz - 20 kHz 35 dB
Controls and Indicators Interface
46 G30 - Module Hardware Description December 15, 2009
In case the serial interface incorporates hardware flow control signals, the data will be sent
according to their state, after the ATS102 delay time has expired.
•ATS100 - Defines the application minimal wakeup duration, in seconds, for a single wakeup
event. This time definition is required to avoid frequent unnecessary wakeup events and
consequent ATS102 delays.
The application may return to low power mode after the serial interface has been inactive for
the duration set by ATS100. This duration is measured from the last data sent or received on
the serial interface.
Figure 2-21: WKUPO Operation
The following guidelines apply to the wakeup-out mechanism:
•G30 will set the WKUPO signal low to indicate that in has data to send through the serial
interface.
•G30 will start sending the data to the application after the delay defined by ATS102.
•The WKUPO signal will remain low while data is being sent to the host application.
•The host application should keep its serial interface active, and not switch to low power
mode, while the WKUPO signal is low.
•G30 will set the WKUPO signal high when it has completed sending the data.
•The application serial interface must stay active, and not switch to low power mode, for the
duration set by ATS100, after WKUPO is set high.
•G30 will not set the WKUPO signal low if it needs to send additional data during the
ATS100 delay time.
•The application may switch to low power mode after the WKUPO signal is set high and the
serial interface has been inactive for the duration set by ATS100.
Antenna Detection
The G30 incorporates an internal antenna detection circuit, which senses the physical connection
and removal of an antenna or antenna circuit on the G30 antenna connector. The antenna
detection state is reported to the application through the ANT_DET output signal, and may also
be queried by the ATS97 command.
The detection circuit senses DC resistance to ground on the G30 antenna connector.
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 47
A DC resistance below 100kohm (+10%) is defined as a valid antenna connection, and the
ANT_DET output signal is set high.
Note: Antenna detect indicator is valid after 2 second from power-up only.
GPRS Detection
The GPRS output signal indicates the network GPRS connection status. When G30 is connected
to a GPRS network, this signal is enabled. When G30 is not connected to the GPRS network this
signal is disabled.
General Purpose I/O
The G30 incorporates 8 general purpose IO signals for the user application. Each GPIO signal
may be configured and controlled by AT command. These signals may be used to control or set
external application circuits, or to receive indications from the external application.
Antenna Interface
48 G30 - Module Hardware Description December 15, 2009
Antenna Interface
Important: G30 has two basic hardware models that are differ from one another in the antenna
interface.
The first uses antenna interface with a U.FL connector, and the second uses RF B2B
pads in accordance with the table below.
When a U.FL connector module is used, the RF B2B pads are not connected, but the
design guidelines must be followed.
The board to board SMD pad 53 (ANT signal) has an impedance of 50Ω and it provides the RF
antenna interface (see table below). The two pads close to the ANT pin (pads 52 and 54) are
ground pads and must be used to provide the connection of the RF antenna to the grounding
plane.
Caution: B2B pins 65, 66 are for factory use only. Do not connect. Any use may result in
permanent damage to the module. Special layout design rules must be followed,
refer to “Layout Recommendation” on page 69.
If the module is soldered on a customized board, special care must be taken on the layout design
for the RF antenna pad which needs to be designed for 50Ω impedance and suitable copper keep
out must be implemented below the RF test point.
The antenna or antenna application must be installed properly to achieve best performance.
Table 2-21 gives the antenna interface specifications.
Pin #
(LGA
interface)
Pin #
(70 pin
connector
interface)
G30
Signal Name G30
I/O Function Remarks
53 NA ANT I/O RF antenna 50Ω nominal impedance.
(Applicable for G30 with-
out U.FL connector
model)
65,67 NA GND N/A RF isolated Ground Route Ground according
to “RF Recommenda-
tion” on page 78.
NA ANT I/O RF Antenna (U.FL connec-
tor)
50Ω nominal impedance.
(Applicable for G30 with
U.FL connector model)
Table 2-21: Antenna Interface Specifications
Parameter Conditions Specifications
GSM 850
TX 824 - 849 MHz
RX 869 - 894 MHz
Chapter 2: Hardware Interface Description
December 15, 2009 G30 - Module Hardware Description 49
It is the Integrator's responsibility to design the antenna or antenna assembly used with the G30.
This will highly affect the RF performance of the G30 (dropped calls, battery consumption etc.).
The following guidelines should be followed:
•Make sure that the antenna or antenna assembly matches the Antenna Interface
Specifications.
•Use low loss RF cable and connectors keeping cable runs to a minimum.
GSM 900
TX 880 - 915 MHz
RX 925 - 960 MHz
DCS 1800
TX 1710 - 1785 MHz
RX 1805 - 1880 MHz
PCS 1900
TX 1850 - 1910 MHz
RX 1930 - 1990 MHz
Gain For antenna gain refer to
“Antenna Installation”
Impedance 50Ω
VSWR Less than: 2.5:1
Table 2-21: Antenna Interface Specifications (Cont.)
Parameter Conditions Specifications
Antenna Interface
50 G30 - Module Hardware Description December 15, 2009
This page intentionally left blank.
December 15, 2009 G30 - Module Hardware Description 51
Chapter 3: Electrical and Environmental Specifications
Absolute Maximum Ratings
Table 3-1 gives the maximum electrical characteristics of the G30 interface signals.
Caution: Exceeding the values may result in permanent damage to the module.
Table 3-1: Maximum Ratings
Description Name Limit Values
Min Max
Module Supply
(AC Max = 0.35 Vpp) VCC -0.15 V 4.5 V
Generic digital interfaces -0.30 V 3.60 V
I2C interface -0.30 V 3.60 V
SIM interface -0.30 V 3.60 V
RESET_IN signal 0.15 V 2.5 V
Audio pins
ADC pins -0.15 V 3.0 V
Operating Parameters
52 G30 - Module Hardware Description December 15, 2009
Operating Parameters
Supply/power Pins
Digital Pins
Table 3-2: Input Characteristics
Supply Description Name Limit Values
Min Typ Max
Module Supply VCC 3.3 V 3.8 V 4.2 V
RTC Supply VRTC 1.86 V 2.0 V 2.14 V
Table 3-3: Output Characteristics
Supply Description Name Limit Values
Min Typ Max
SIM Supply VSIM
1.75 V 1.80 V 1.85V
2.76 V 2.85 V 2.94 V
RTC Supply VRTC 1.86 V 2.00 V 2.14 V
Reference voltage supply VREF 2.76 V 2.85 V 2.94 V
Table 3-4: Input Characteristics
Voltage Domain Parameter Limit Values Unit Remarks
Min Typ Max
Generic digital
interfaces
L-level input -0.20 0.55 V Voltage Domain =
VIO = 2.85 V
H-level input 2.05 3.30 V Voltage Domain =
VIO = 2.85 V
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 53
I2C interface
L-level input -0.30 0.82 V In accordance with
I2C bus specification.
H-level input 2.05 3.30 V In accordance with
I2C bus specification.
Hysteresis 0.15 V In accordance with
I2C bus specification.
SIM interface
L-level input
0.37 V VSIM = 1.80 V
0.60 V VSIM = 2.85 V
H-level input
1.22 V VSIM = 1.80 V
1.95 V VSIM = 2.85 V
RESET_IN signal
L-level input 0.37 V
H-level input 1.6 V
Table 3-4: Input Characteristics (Cont.)
Voltage Domain Parameter Limit Values Unit Remarks
Min Typ Max
Operating Parameters
54 G30 - Module Hardware Description December 15, 2009
Table 3-5: Output Characteristics
Voltage Domain Parameter Limit Values Unit Remarks
Min Typ Max
Generic digital
interfaces
L-level output
for output driver
class B slow
0.00 0.80 V IOL = +15.0 mA
L-level output
for output driver
class B
0.00 0.35 V IOL = +5.0 mA
L-level output
for output driver
class C
0.00 0.35 V IOL = +4.0 mA
L-level output
for output driver
class D
0.00 0.35 V IOL = +2.0 mA
L-level output
for output driver
class E and F
0.00 0.35 V IOL = +1.5 mA
H-level output
for output driver
class B slow
2.05 2.85 V IOH = -15.0 mA
H-level output
for output driver
class B
2.05 2.85 V IOH = -5.0 mA
H-level output
for output driver
class C
2.05 2.85 V IOH = -4.0 mA
H-level output
for output driver
class D
2.05 2.85 V IOH = -2.0 mA
H-level output
for output driver
class E and F
2.05 2.85 V IOH = -1.5 mA
I2C interface L-level output 0.00 0.40 V IOL = +3.0 mA
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 55
SIM interface
L-level output
0.00 0.20 V VSIM = 1.80 V
IOL = +1.0 mA
0.00 0.35 V VSIM = 1.80 V
IOL = +1.5 mA
0.00 0.20 V VSIM = 2.85 V
IOL = +1.0 mA
0.00 0.35 V VSIM = 2.85 V
IOL = +1.5 mA
H-level output
1.60 1.80 V VSIM = 1.80 V
IOH = -1.0 mA
1.45 1.80 V VSIM = 1.80 V
IOH = -1.5 mA
2.65 2.85 V VSIM = 2.85 V
IOH = -1.0 mA
2.50 2.85 V VSIM = 2.85 V
IOH = -1.5 mA
Table 3-5: Output Characteristics (Cont.)
Voltage Domain Parameter Limit Values Unit Remarks
Min Typ Max
Operating Parameters
56 G30 - Module Hardware Description December 15, 2009
Audio Pins
Table 3-6: Pad Pull-up and Pull-down Characteristics
Voltage Domain Parameter Limit Values Unit Remarks
Min Typ Max
Generic digital
interfaces
or
SIM interface
Pull-up input
current for pull
class A
-450 uA
Pull-up input
current for pull
class B
-100 uA
Pull-up input
current for pull
class C
-30 uA
Pull-down input
current for pull
class A
450 uA
Pull-down input
current for pull
class B
100 uA
Pull-down input
current for pull
class C
30 uA
Table 3-7: Audio Transmit Path Characteristics
Parameter Limit Values Unit Remarks
Min Typ Max
Differential input voltage 1.03 Vpp
Differential input impedance 50 kΩ
Input capacitance 5 10 pF
Signal to distortion 65 dB
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 57
Signal-to-noise ratio
75 dB
Gain stage = +12dB
Bandwidth = 300-3900Hz
(GSM mode)
72 dB
Gain stage = +12dB
Bandwidth = 300-7000Hz
(WAMR mode)
Power supply rejection
66 85 dB
Gain stage = +24dB
UVDD(t) =
2.5V+0.15V•sin(2π•1kHz•t)
62 dB
Gain stage = +18dB
UVDD(t) =
2.5V+0.15V•sin(2π•1kHz•t)
45 dB
Gain stage = +0dB
UVDD(t) =
2.5V+0.15V•sin(2π•1kHz•t)
Cross talk (between Rx and Tx
channel) -65 dB
UTX(t) = 1.075V+
URX(t) =
0.775V•sin(2π•1kHz•t)
Cut-off frequency of anti-alias
filter 16 kHz
Absolute gain drift ±2 %
Variation due to change in
supply,
temperature and life time.
Table 3-8: Microphone Supply Characteristics
Parameter Limit Values Unit Remarks
Min Typ Max
Output voltage of pin VMIC 2.20 V Settable to: 1.8 V, 2.0 V, 2.2
V typ.
Microphone supply current 2.0 mA
Power supply rejection of micro-
phone supply 75 dB
Gain stage = +0dB in
crosstalk free conditions at
board level
UVDD(t) =
2.6V+0.10V•sin(2π•1kHz•t)
Table 3-7: Audio Transmit Path Characteristics (Cont.)
Parameter Limit Values Unit Remarks
Min Typ Max
Operating Parameters
58 G30 - Module Hardware Description December 15, 2009
Table 3-9: G30 Low Power Single-ended Audio Receive Path Characteristics
Parameter Limit Values Unit Remarks
Min Typ Max
Maximum single-ended output
voltage 1.65 1.85 2.05 Vpp Full scale single-ended open
circuit voltage.
Internal output resistance 1.7 4 Ω
Output load resistance 16 Ω
Single-ended output load capaci-
tance 10 nF
Signal to noise 70 80 dB
Load = 16Ω, Gain stage =
+0dB,
Input signal = 0dBFS, Code
0, A-weighted
Signal to distortion
60 70 dB
Load = 16Ω, Gain stage =
+0dB,
Input signal = 0dBFS
60 70 dB
Load = 16Ω, Gain stage =
+0dB,
Input signal = -1dBFS
60 dB
Load = 16Ω, Gain stage =
+0dB,
Input signal = -6dBFS
Power supply rejection 60 66 dB
Gain stage = +0dB,
UVDD(t) =
2.5V+0.15V•sin(2π•1kHz•t)
Passband ripple 0.5 dB f < 0.45 fs
Stopband attenuation 50 dB f > 0.55 fs
Absolute gain drift ±2 %
Variation due to change in
supply,
temperature and life time.
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 59
ADC Pins
Table 3-10: G30 High Power Differential Audio Receive Path Characteristics
Parameter Limit Values Unit Remarks
Min Typ Max
Maximum differential output
voltage 10.4 Vpp Overdrive
Gain stage = +9dB
Output load resistance 8 Ω
Single-ended output load capaci-
tance 10 nF
Inductive load 400 uH Between output pins and
GND with series resistance
Signal to noise 70 80 dB
Load = 16Ω, Gain stage =
+0dB,
Input signal = 0dBFS, Code
0, A-weighted
Signal to distortion 50 dB Load = 8Ω, 350mW
Power supply rejection 60 dB 1kHz
Table 3-11: Input Characteristics
Parameter Limit Values Unit Remarks
Min Typ Max
Resolution 12 Bits
Differential linearity error ±0.5 LSB
Integral linearity error ±4 LSB
Offset error ±10 LSB ADC input = 0V
Absolute gain drift ±2 %
Variation due to change in
supply, temperature and life
time.
Input voltage span 0 1.92 V
Throughput rate 4 Hz With current ADC SW
driver.
Operating Parameters
60 G30 - Module Hardware Description December 15, 2009
Input resistance 1 MΩWith respect to AGND.
If mode OFF is selected.
Input resistance in measurement
mode 288 480 672 kΩ
With respect to AGND.
Variation due to process tol-
erances and change in sup-
ply, temperature, and life
time.
Internal voltage 0.46 0.48 0.50 V
With respect to AGND.
Variation due to process tol-
erances and change in sup-
ply, temperature, and life
time.
Input leakage current 0.1 uA
Table 3-11: Input Characteristics (Cont.)
Parameter Limit Values Unit Remarks
Min Typ Max
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 61
Environmental Specifications
Table 3-12 gives the environmental operating conditions of the G30 module.
Caution: Exceeding the values may result in permanent damage to the module.
Application Interface Specifications
Table 3-13 summarizes the DC electrical specifications of the application interface connector
signals.
Important: Interface signals that are not used by the customer application must be left
unconnected. G30 incorporates the necessary internal circuitry to keep unconnected
signal in their default state. Do not connect any components to, or apply any voltage
on, signals that are not used by the application.
Important: Signals that are defined as "Do Not Use", or DNU, must remain externally
unconnected in any case. These signals are reserved for future use.
Figure 3-1 and Figure 3-2 give a brief description of the 70 pins connector and the 81 pin LGA
interface irrespectively for quick integration.
Table 3-12: Environmental Ratings
Parameter Conditions Min Max Unit
Ambient Operating
Temperature -30 85 °C
Storage Temperature -40 85 °C
ESD
At antenna connector
Contact
Air
At interface pads/con-
nector
± 8
± 15
± 1
KV
Application Interface Specifications
62 G30 - Module Hardware Description December 15, 2009
Figure 3-1: G30 - 70 Pin Connector Quick Integration Connections
Host
VCC
GND 1 2 GND
GND 3 4 GND
VCC 5 6 VCC
VCC 7 8 VCC
RTS 9 10
RXD 11 12
DSR 13 14
CTS 15 16 WKUPI
DCD 17 18 RXD_DAI
DTR 19 20 TXD_DAI
TXD 21 22 CLK_DAI
RI 23 24 WA0_DAI
RESET_IN 25 26 WKUPO
2.85Vdc/Imax30mA VREF 27 28 GPIO1
29 30 GPIO2
31 32 GPIO3/SDA
33 34 GPIO4/SCL
35 36 GPIO5
ADC1 37 38 GPIO6
39 40 GPIO7
ANT_DET 41 42 GPIO8
ADC2 43 44 SIM_RST
45 46 SIM_CLK
47 48 VSIM
GPRS 49 50 SIM_PD_n
51 52 SIM_IO
PWR_ON 53 54 HDST_SPK
HDST_INT 55 56 NC (eSIM_RESET)
MIC_HDST 57 58
AGND 59 60
NC
MIC 61 62
63 64
65 66
SPKR_N 67 68
SPKR_P 69 70
70 Pin
MOLEX
connector
G30 VCC
3.3V – 4.2V
Regulator
Digital
Audio
External SIM
connection
UART
Transceiver
Typ 2.85Vdc
Max 3.3Vdc Input
AUDIO
Inteface
ON/OFF
control
2x100nF
NC
NC
NC
SPI_IRQ
SPI_CLK
SPI_MOSI
SPI_MISO
SPI_CS
SPI Logger
NC
NC
NC
NC
NC
SPKR_N
SPKR_P
NC
NC
VRTC
Output : 2V 4mA
Input : connect
CoinCell
47uF
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 63
Figure 3-2: G30 - 81 Pin LGA Interface Quick Integration Connections
Note: Refer to “Interface Connector Specifications” on page 72.
GPIO5
GPIO6
GPIO7
ANT_DET
GPIO8
NC (eSIM_RESET)
NC
SPI_IRQ
NC
NC
NC
NC
GPIO9
WKUPO
NC
GPRS
NC
PWR_ON
ON/OFF
control
NC
SIM_PD_n
SIM_RST
SIM_CLK
SIM_IO
VSIM
2x100nF
External SIM
connection
NC
WKUPI
NC
RESET_IN
NC
NC
NC
NC
NC
GPIO3/SDA
GPIO4/SCL
ADC2
ADC1
RTS
RXD
DSR
CTS
DCD
DTR
TXD
RI
UART
Transceiver
Typ 2.85Vdc
Max 3.3Vdc
Input
SPI_CLK
HDST_SPK
NC
HDST_INT
MIC_HDST
AGND
MIC
SPKR_N
SPKR_P
AGND
AUDIO
Inteface
RXD_DAI
TXD_DAI
CLK_DAI
WA0_DAI
Digital
Audio
SPI_MOSI
SPI_MISO
SPI_CS
VRTC
Output : 2V 4mA
Input : connect
CoinCell
NC
GND
GND
ANT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VCC
VCC
G30 VCC
3.3V – 4.2V
GPIO1
GPIO2
47uF
Table 3-13: Interface Specifications
Pin No. @70 Pin
Conn. Name I/O Function Value @
Reset Characteristics
(See “Operating Parameters”)
136GPIO5 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
238GPIO6 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B
3 Not Connected
456eSIM_RESET I Embedded SIM reset T If eSIM is being used short this pin to
pin 21
540GPIO7 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
Application Interface Specifications
64 G30 - Module Hardware Description December 15, 2009
642GPIO8 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
762SPI_IRQ
I SPI Interrupt Input
Generic digital interfaces
voltage domain.
Output driver class C.
PU/PD class B.
I/O Capture/Compare
I/O GPIO
I
H
100K PU
8-11 Not Connected
12 GPIO9 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
13 41 ANT_DET
I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
O Antenna Detect
L - No
Antenna
H - Valid
Antenna
14 26 WKUPO
I/O GPIO Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
O Wake-Up Out H
15 Not Connected
16 49 GPRS
I/O GPIO
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
OGPRS
L - Valid
GPRS
connec-
tion
H - No
GPRS
connec-
tion
17 Not Connected
18 53 PWR_ON I Power-on/off input T/PD RTC interface.
19 Not Connected
20 48 VSIM O SIM supply output
VSIM = 1.80 V typical
if SIM card = 1.8V type
or
VSIM = 2.85 V typical
if SIM card = 3.0V type
21 44 SIM_RST O External SIM reset L
SIM interface
voltage domain.
Output driver class E.
PU/PD class B.
Table 3-13: Interface Specifications (Cont.)
Pin No. @70 Pin
Conn. Name I/O Function Value @
Reset Characteristics
(See “Operating Parameters”)
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 65
22 52 SIM_IO I/O SIM data H
4.7K PU
SIM interface
voltage domain.
Output driver class E.
PU/PD class B.
23 46 SIM_CLK O SIM clock L
SIM interface
voltage domain.
Output driver class E.
PU/PD class B.
24 Not Connected
25 16 WKUPI
I/O Capture/Compare Generic digital interfaces
voltage domain.
Output driver class C.
PU/PD class B.
IWake-Up In
I
H
100K PU
26 Not Connected
27 25 RESET_IN OC External reset input
I
H
19K PU
External reset signal
voltage domain.
28-32 Not Connected
33 34 GPIO4/SCL
OI2C bus clock line I2C interface
voltage domain.
PU drain.
Value at reset: T/OD.
I/O GPIO
I
H
100K PU
34 32 GPIO3/SDA
I/O I2C bus data line I2C interface
voltage domain.
PU drain.
I/O GPIO
I
H
100K PU
35 43 ADC2 I Analog-to-Digital
Converter Input LResolution: 12 bits
Voltage span: 0V-1.92V
36 37 ADC1 I Analog-to-Digital
Converter Input LResolution: 12 bits
Voltage span: 0V-1.92V
37 23 RI
O Ring Indicator H Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
I/O GPIO
38 17 DCD O Data Carrier Detect H Generic digital interfaces
voltage domain.
Output driver class B.
PU/PD class B
Table 3-13: Interface Specifications (Cont.)
Pin No. @70 Pin
Conn. Name I/O Function Value @
Reset Characteristics
(See “Operating Parameters”)
Application Interface Specifications
66 G30 - Module Hardware Description December 15, 2009
39 13 DSR O Data Set Ready L
Generic digital interfaces
voltage domain.
Output driver class B slow.
PU/PD class A.
40 19 DTR I Data terminal ready
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class C.
PU/PD class B.
41 9 RTS I Ready to send 4.7K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class C.
42 15 CTS O Clear To Send
Generic digital interfaces
voltage domain.
Output driver class E.
PU/PD class C.
43 21 TXD I Transmitted Data
GPIO 200K PU
Generic digital interfaces
voltage domain.
Output driver class E.
PU/PD class C.
44 11 RXD O Received Data
GPIO T
Generic digital interfaces
voltage domain.
Output driver class E.
PU/PD class C.
45 66 SPI_CLK O SPI Clock
Short to Pin 57 T
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
46 Not Connected
47 54 HDST_SPK O
Low power sin-
gle-ended
analog audio output
Used in handset or
in headset mode
48 63,67 SPKR_N O
High power differen-
tial
analog audio output
Used in ring tones or
in hands free mode
49 65,69 SPKR_P O
High power differen-
tial
analog audio output
Used in ring tones or
in hands free mode
50 55 HDST_INT
IHeadset detection
input Generic digital interfaces
voltage domain.
Output driver class E.
PU/PD class B.
IExternal interrupt
input
I/O GPIO
Table 3-13: Interface Specifications (Cont.)
Pin No. @70 Pin
Conn. Name I/O Function Value @
Reset Characteristics
(See “Operating Parameters”)
Chapter 3: Electrical and Environmental Specifications
December 15, 2009 G30 - Module Hardware Description 67
51 61 MIC I Headset microphone
analog bias
Single ended supply output
and signal input for Handset
microphone.
Used in handset or
in hands free mode
52 59 AGND1 I Handset microphone
analog reference
Local ground
of the Handset microphone
53 57 MIC_HDST I Headset microphone
analog bias
Single ended supply output
and signal input for microphone. Used
in headset mode
54 59 AGND2 I Headset microphone
analog reference
Local ground
of the Headset microphone
55 18 RXD_DAI I I2S receive data
Short to pin 61 47K PU
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
56 24 WA0_DAI O I2S word alignment
Short to pin 60 T
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
57 22 CLK_DAI O I2S clock
Short to pin 45 T
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
58 20 TXD_DAI O I2S transmit data
Short to pin 63 T
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
59 50 SIM_PD_n I SIM present detect OD/L
SIM interface
voltage domain.
Output driver class E.
PU/PD class B.
60 68 SPI_MOSI O
SPI sync data
(MOSI)
Shorted to pin 56
T
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B
61 64 SPI_MISO I
SPI sync data
(MISO)
Shorted to pin 55
47K PU
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
62 60 VRTC I/0 Real Time Clock
Supply Output/Input
VRTC = 2.0 V (typical) 2mA
Connect a 47uF capacitor to ground.
63 70 SPI_CS O SPI chip select
Short to pin 58 T
Generic digital interfaces
voltage domain.
Output driver class D.
PU/PD class B.
64 Not Connected
Table 3-13: Interface Specifications (Cont.)
Pin No. @70 Pin
Conn. Name I/O Function Value @
Reset Characteristics
(See “Operating Parameters”)
Application Interface Specifications
68 G30 - Module Hardware Description December 15, 2009
Note: PU - Pull up, PD - Pull down, I - Input, H - High logic state, L - Low logic state
65 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
66 N.C ANT I/O RF antenna 50 Ohm nominal impedance
67 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
68 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
69 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
70 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
71 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
72 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
73 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
74 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
75 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
76 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
77 1,2,3,4 GND NA Ground GND pins are internally
shorted between them.
78 5,6,7,8 VCC I Voltage Supply Input VCC pins are internally
shorted between them.
79 5,6,7,8 VCC I Voltage Supply Input VCC pins are internally
shorted between them.
80 28 GPIO1 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
81 30 GPIO2 I/O GPIO
I
H
100K PU
Generic digital interfaces
voltage domain.
Output driver class F.
PU/PD class B.
27 VREF O Reference voltage
supply 2.85V Max current source 30mA
82-89 Not Connected
RF TP Not Connected – Refer to “RF Recommendation” on
page 78.
Table 3-13: Interface Specifications (Cont.)
Pin No. @70 Pin
Conn. Name I/O Function Value @
Reset Characteristics
(See “Operating Parameters”)
Board Dimensions
70 G30 - Module Hardware Description December 15, 2009
Figure 4-2: G30 Mechanical Characteristics - B2B Connector (70 Pin)
Interface Connector Specifications
72 G30 - Module Hardware Description December 15, 2009
Interface Connector Specifications
The G30 uses a single 70-pin, 0.5 mm pitch, board to board connector for the application
interface, as described in Table 4-1.
Figure 4-4 shows the G30 interface connector.
Figure 4-4: G30 Interface Connector
Table 4-2 describes the G30 interface connector characteristics.
Table 4-1: G30 interface connector option
G30 Connector Mating Connector Stacking Height
Molex 53748-0708 Molex 52991-0708 3.0 mm
Table 4-2: Interface Connector Specifications
Parameter 53748 (3.0 mm)
Contacts 70
Rows 2
Pitch 0.5 mm
Maximum Current 500 mA
Maximum Voltage 50 V
Contact Resistance 50 mΩ maximum
Insulation
Resistance 100 MΩ minimum
Durability 50 mated cycles
maximum
Stacking Height 3.0 mm
Mates with Molex 52991-0708
Chapter 4: Mechanical Specifications
December 15, 2009 G30 - Module Hardware Description 73
Mating Connector
The mating connector incorporate the same electrical and mechanical characteristics as the
corresponding G30 interface connectors, which are described in Table 4-2.
Figure 4-5 provides a reference drawing of the mating connectors mechanical dimensions.
Figure 4-5: Mating Connector Dimensions
For more information on the G30 mating connector, please refer to the Molex web site at
http://www.molex.com/molex/index.jsp.
U.FL Connector Specifications
74 G30 - Module Hardware Description December 15, 2009
U.FL Connector Specifications
The G30 uses a standard U.FL receptacle connector for the radio interface.
Figure 4-6 shows the U.FL connector dimensions.
Figure 4-6: U.FL Connector Dimensions
Table 4-3 describes the U.FL connector characteristics.
Table 4-3: U.FL Connector Specifications
Parameter Specifications
Characteristic
Impedance 50 Ohms
Frequency Range DC to 6 GHz
VSWR (mated pair) 1.30 max DC to 3 GHz
1.40 max 3 to 6 GHz (cable dependent)
Insertion Loss
(connectors only) 0.24 dB max DC to 6 GHz
Chapter 4: Mechanical Specifications
December 15, 2009 G30 - Module Hardware Description 75
Mating Connector
The RF mating connector should be a standard U.FL plug connector or cable assembly, which
corresponds to the G30 U.FL connector specifications.
Only Hirose U.FL mating cable may be mated with G30. A family of Hirose mating cables are
available.
Such a cable assembly example is the Hirose U.FL-LP-040 is U.FL-R-SMT, which is illustrated
in Figure 4-7.
Figure 4-7: U.FL Mating Connector
Rated voltage 60 VAC (rms) - standard receipt (Styles
A, B)
Dielectric
Withstanding
Voltage
200 VAC, 50 Hz for 1 min (at sea level)
Insulation
Resistance 500 Megaohms min
Contact Resistance
(connectors only) 20 milliohms max (Center)
10 milliohms max (Outer, Plug)
10 milliohms max (Outer, Receptacle)
Durability 30 cycles - standard receipt (Styles A,
B)
Disengagement
Force 2N min perpendicular
4N min orthogonal
Center Contact
Retention force 0.15N min
Tape/Reel
Packaging
(receptacle)
12mm carrier per EIA-481
Operating
Temperature 40°C to + 90°C
Table 4-3: U.FL Connector Specifications (Cont.)
Parameter Specifications
G30 Mounting
76 G30 - Module Hardware Description December 15, 2009
For more details regarding Hirose mating cable assemblies, refer to
http://www.hirose.co.jp/cataloge_hp/e32119372.pdf.
G30 Mounting
Note: This section applies to G30 70 pin connector Model only.
The G30 incorporates 2 mechanical holes for installing the module onto the application board.
The holes are 2.4 millimeters in diameter, which accommodates several types of mechanical
elements.
Several mechanical approaches may be applied to mount and fasten G30 to the application board.
Using M2 screws with suitable washers to mount the module onto spacers, a bracket or chassis is
a recommended design.
Special attention must be paid to the area surrounding the G30 mounting holes. A grounding pad
of 4.4 millimeters in diameter surrounds these holes. The diameter and area of this pad must not
be exceeded by any mechanical or electrical element. Several electrical components, which are
not shielded, are located near the holes. These components must not be in contact with the
mounting elements or with other parts of the application board, and care must be taken to avoid
any damage.
Figure 4-8 depict the G30 mounting area.
Figure 4-8: G30 Mounting Area
The holes are used for mechanical mounting of G30 to the application board but also for
grounding support. Using conductive elements to install G30, significantly improves the overall
grounding of the module and therefore improves the G30 performance and stability.
It is required to use screws or other mechanical elements to fasten G30 to the application board,
but it is highly recommended to use conductive elements to improve the module's performance.
The preferred mounting screw head types are:
• "Allen" head with a champer - the best choice.
• "Star" head - good.
• "Philips" head - may cause damage to nearby components.
Chapter 4: Mechanical Specifications
December 15, 2009 G30 - Module Hardware Description 77
Layout Recommendation
Note: This section applies to G30 LGA Model only.
Soldering Footprint
Figure 4-9 gives a layout recommendation for the G30.
Figure 4-9: G30 Soldering Footprint (Top View)
Note: • Routing signals other then GND (Ground) within inner soldering footprint area of G30
(under G30) not recommended.
• Vias inside pads are not recommended.
• Verify GND pads are well tied to ground plane layer by vias.
Soldering Re-flow
78 G30 - Module Hardware Description December 15, 2009
RF Recommendation
Note: The restrictions below are valid for both U.FL connector and RF PAD.
•Avoid ANY routing below RF Test-Point Round circle, and RF pad, Pin-66.
•Keep the RF TP area and its clearance area cleared from Routing and GND (internal layers
also), at least 0.45mm below the G30.
•RF PAD must be connected with a 50 ohm controlled impedance Line.
•Keep the RF PAD area cleared from GND (internal layers also), at least 0.45mm below the
G30.
•Cover all Pads area with inner GND Layer below the 0.45mm routing clearance.
Soldering Re-flow
G30 LGA recommended soldering re-flow condition are max TBD C for 5 second duration.
Note: Any G30 LGA removal must be performed according to IPC-7711 standard "Rework of
Electronic Assemblies" chap 3.9.1 or 3.9.2 regarding “BGA/CSP Removal”. The
IPC-7711 can be found at www.ipc.org.
December 15, 2009 G30 - Module Hardware Description 79
Chapter 5: Service and Testing
Ordering Information
G30 different hardware models are given in the following table for ordering purposes:
Note: * Dummy module is used by customer’s factory for automatic pick and place
adjustments/training. The dummy module includes the PCB and shields only, in the
81-pin LGA interface form factor.
Service
This section provides contact information for any possible queries that may arise, for example:
•Have questions?
•Having trouble getting the Developer Board set up?
•Technical questions?
•Configuration questions/problems?
•Technical operating problems?
Tier Model No. U.FL eSIM 70 Pin
basic
F9000AAA - - -
F9100AAA + - -
F9200AAA + - +
advanced
F9300AAA* - + -
F9400AAA* + + -
F9500AAA* + + +
premium
F9000ABA - - -
F9100ABA + - -
F9200ABA + - +
F9300ABA - + -
F9400ABA + + -
F9500ABA + + +
dummy* F9000ZZZ - - -
Service
80 G30 - Module Hardware Description December 15, 2009
•Need documentation?
Who to Contact?
The Customer Care Group is ready to assist you on integration issues.
Direct Customer
Use this following email address to contact customer assistance:
M2M.CustomerCare@motorola.com
Note: The support services provided by Motorola are subject to the agreement between the
customer and Motorola and may be at an additional charge to the customer. Motorola will
inform the customer in advance of any such charge.
Indirect Customer
Please contact your Motorola licensed distributor.
Required Query Information
Every new call/problem report, directly from a Direct Customer or from a distributor, should be
directed to the help desk email address noted above in “Who to Contact?” . It is recommended to
report each individual issue in a separate email. The following information is required when
reporting a problem:
•Customer name and address
•Customer contact information for this request, including:
–Name
–Telephone
–Fax number
–Mobile number
–Email address
•Product name (G30)
•Software version of the unit (ATI8 command) or model number
•PCB version (located on the PCB near the RF connector)
•Severity of the problem
•Problem description, including:
–Operator name
–Type of SIM card (for example, Test, Pre-paid, or 3v)
–Setup Configuration (such as Developer Board, handset, host, connections, and so on)
–Detailed scenario from startup
–Log of all the commands and the responses, beginning from startup
•Answers to the following questions:
–Was the same scenario tested on the Developer Board and the PC to reproduce the problem?
–How many units do you have, and how many of them have this problem?
–How often does the problem recur?
In addition to the information requested above, send the following AT commands and the
HyperTerminal log with the responses:
•AT+CMEE=2 // to get textual error message
•AT+CPIN? // to get SIM card status
•AT+CREG? // to see if the TXVR is registered to the network
•AT+CSQ // to get the signal strength (RX level)
•AT+CGSN // to read the IMEI number of the unit
Chapter 5: Service and Testing
December 15, 2009 G30 - Module Hardware Description 81
•ATI3 // to get the software version of the TXVR
•AT\S // to get the setting of basic AT commands
•AT+CMER=0,0,1,1 // to get messages and indicators from the handset display to the DTE
Testing a Standalone Unit
82 G30 - Module Hardware Description December 15, 2009
Testing a Standalone Unit
This section describes how to perform a G30 functionality test, whose purpose is to:
•Introduce the user to the G30
•Explain how to work with the G30 unit
•Describe how to evaluate basic G30 features
The test setup provides a wide platform through which a G30 unit can be evaluated. The specific
test procedure described below covers only a few of the G30’s many features. Using this setup,
you can perform several additional tests on the G30.
The test is performed using two modems, one of which is the G30. The modems communicate
with each other through a single computer, which also controls their operation.
The test requires knowledge about the operation of the G30 Developer’s Kit, terminal
applications and AT commands. Refer to relevant documentation for assistance.
To perform the test, you need the following:
•A G30 OEM cellular engine unit
•A G30 Developer's Kit
•A desktop or laptop computer, which includes:
–A free serial communications port (RS232)
–A connected and active line modem (internal or external)
–A terminal application (such as HyperTerminal)
Test Setup
To Setup the G30 Test
Follow this procedure (Figure 5-1) to set up your equipment before performing the test:
1. Verify that the computer you intend to use for the test is equipped with a working
line modem
You can use a second G30 unit instead of the line modem. When doing so, you must repeat
the setup procedure that follows for the additional G30.
2. Set up the G30 and the Developer Board as described in “Initial Setup” in
“Chapter 2: Developer Board and Interfaces Description” in the “G30 Developer’s Kit”
(Motorola part no. 6802986C48)
3. Verify that the G30 has adequate reception from the local GSM network
4. Connect the Developer Board’s RS232 port to the computer’s serial port
5. Open a terminal application window (such as HyperTerminal) and configure it to operate
with the serial port occupied by the G30
Chapter 5: Service and Testing
December 15, 2009 G30 - Module Hardware Description 83
6. Open a second terminal window and configure it to operate with the serial port occupied by
the line modem
Figure 5-1: Test Setup
Test Procedure
To Perform the G30 Test
Follow the procedure below to perform the G30 test:
1. Verify that the line modem is functioning and communicating with the computer by entering
the AT command at in the modem’s terminal window
This common AT command prompts a properly working modem to reply OK.
2. Verify that the G30 is functioning and communicating with the computer by performing the
following AT commands in the G30 terminal window:
•ati7—prompts G30 identification
The G30 will reply G30 OEM Module.
•ati8—prompts the G30 software version
3. Make a CSD call from the G30 to the line modem or the reverse using the atd and ata
commands in the appropriate window
4. Verify that a connection between the two modems is established
5. Select any file to transfer between the two modems
The file can be any existing file, or a new file created specifically for the test.
6. Send the file either from the G30, or to the G30, through the terminal application using the
terminal application’s send/receive file options
7. When the file transfer is complete, use the ath command in any of the terminal windows to
terminate the call
This step completes the test. You can now continue to perform additional tests using the same
setup, or change the setup as required.
C omputer Developer B oard
with G30 unit
Li ne Modem
(internal or external)
To telephone line
wall outlet RS232
Port
Serial
Port
Serial
Port
Serial
Cable
Testing a Standalone Unit
84 G30 - Module Hardware Description December 15, 2009
December 15, 2009 G30 - Module Hrdware Description Acr & Abbr-1
Acronyms and Abbreviations
Abbreviation Full Name
AAMR Adaptive Multi Rate
AAOC Advice of Charge
BBR Baud Rate
Bbps Bits Per Second
CCSD Circuit Switched Data
CCTS Clear to Send
DDCD Data Carrier Detect
DDCE Data Communication Equipment (such as modems)
DDCS Digital Cellular System (GSM in the 1800MHz band)
DDOC Department of Communications (Canada)
DDRX Discontinuos Reception
DDSP Digital Signal Processor
DDSR Data Set Ready
DDTE Data Terminal Equipment (such as terminals, PCs and so on)
DDTMF Dual Tone MultiFrequency
DDTR Data Terminal Ready
DDTX Discontinuos Transmission
EEFR Enhanced Full Rate
EEGPRS Enhanced General Packet Radio Service
EEGSM Extended Global System for Mobile Communications
EEIRP Effective Isotropic Radiated Power
A
B
C
D
E
Acr & Abbr-2 G30 - Module Hrdware Description December 15, 2009
EEMC Electromagnetic Compatibility
EEOTD Enhanced Observed Time Difference
EEPOS Electronic Point of Sale
EERP Effective Radiated Power
EESD Electrostatic Discharge
EETSI European Telecommunication Standards Institute
FFCC Federal Communications Commission (U.S.)
FFR Full Rate
FFTA Full Type Approval
GGCF GSM Certification Forum
GGPIO General Purpose Input/Output
GGPRS General Packet Radio Service
GGSM Global System for Mobile Communications
HHR Half Rate
IIC Integrated Circuit
LLNA Low-noise Amplifier
MMMCX Miniature Micro Coax
MMO Mobile Originated
MMT Mobile Terminated
OOEM Original Equipment Manufacturer
PPCB Printed Circuit Board
PPCL Power Class Level
PPCM Pulse Code Modulation
PPCS Personal Communication System (also known as GSM 1900)
PPD Pull Down
PPDA Personal Data Assistant
Abbreviation Full Name
F
G
H
I
L
M
O
P
Acronyms and Abbreviations
December 15, 2009 G30 - Module Hrdware Description Acr & Abbr-3
PPDU Packet Data Unit
PPLL Phase-locked Loop
PPTCRB PCS-1900 Type Certification Review Board (GSM North America)
PPU Pull Up
RR&TTE Radio and Telecommunications Terminal Equipment
RRMS Root Mean Square
RRI Ring Indicator
RRTS Request To Send
SSAR Specific Absorption Rate
SSIM Subscriber Identity Module
SSMS Short Message Service
SSPI Serial Peripheral Interface
TTDMA Time Division Multiple Access
TTIS Transmitter Isotropic Sensitivity
TTRP Transmitter Radiated Power
Abbreviation Full Name
R
S
T
Acr & Abbr-4 G30 - Module Hrdware Description December 15, 2009
UUART Universal Asynchronous Receiver Transmitter
UUSB Universal Serial Bus
UUSSD Unstructured Supplementary Services Data
VVCC Voltage Common Collector
VVSWR Voltage Standing Wave Ratio
Abbreviation Full Name
U
V
December 15, 2009 G30 - Module Hardware Description Index-1
Index
A
Antenna Installation, xii
Approvals
Regulatory, 6
B
Block Diagram Description, 9
E
Environmental
Specifications, 3
G
G30
Abbreviations, 2
Antenna Installation, xii
Block Diagram Description, 9
Product Specifications, 2
Regulatory Approvals, 6
Safety Precautions, xi
Standards, xii
Terms and Abbreviations, 2
Testing, 82
User Operation, xi
O
Organization of Manual, xxi
P
Physical Specifications, 2
Precautions, xi
Product Specifications, 3
R
Regulatory Approvals, 6
S
Safety Precautions, xi
Specifications, 2
Environmental, 3
Physical, 2
Standards, xii
T
Terms, 2
Testing, 82
Test Procedure, 83
Test Setup, 82
U
User Operation, xi
Index U - U
Index-2 G30 - Module Hardware Description December 15, 2009
@6802986C55@
6802986C55-A
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.
All other product or service names are the property of their respective owners.
©Copyright 2007 Motorola, Inc.
Java™Technology and/or J2ME™: Java and all other Java–based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
UNIX® : UNIX is a registered trademark of The Open Group in the United States and other countries.
