Touch
Welcome
Personalize
Home
Let’s go
Your phone
SOMETHING TO
FLIP OVER.
MOTOROLA FLIPOUT™ with MOTOBLUR™
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.
The MOTOBLUR Logo is a trademark of Motorola. The Bluetooth trademarks are owned by
their proprietor and used by Motorola, Inc. under license. Facebook is a trademark of
Facebook, Inc. Google, YouTube, Picasa, Gmail, and the Google logo are trademarks of
Google, Inc. is a Certification Mark of the Wireless Fidelity Alliance, Inc. All other
product or service names are the property of their respective owners.
© 2010 Motorola, Inc. All rights reserved.
Changes or modifications made in the radio phone, not expressly approved by Motorola,
will void the user’s authority to operate the equipment.
Note: The images in this guide are examples only.
Motorola FLIPOUT with MOTOBLUR (MB511)
Manual Number: 68000202577-A
Social skills
Introducing the MOTOROLA FLIPOUT™ with
MOTOBLUR™ - an innovative phone that's as unique as
you are. Most intriguing is how its touch screen rotates on
a hinge to expose a QWERTY keypad with a separate
number row for easy.
MOTOBLUR is the only service that can sync all your
friends, emails, messages, Orkut, Facebook™, MySpace,
Twitter and happenings with continuous updates and
back-ups.
8:52
Browser
Messaging
John Moon
Decompression party
after the test - my place...
Soooo ready to just
chill ALL summer!
Camera
10 minutes ago
8
:
5
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
p
arty
y pla
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
.
.
.
.
.
.
.
.
st
Yo ur phone
Most of what you need is in the touchscreen and three
simple keys on the front:
•Menu: Open menu options.
•Home: Go to the home screen and apps menu.
•Back: Go back one screen.
Home Key
Back Key
Menu
Key
To u ch-
screen
Power Key
Volume Keys
Micro USB Connector
Charge or connect to PC. Touch to return
to home screen.
3.5mm
Headset
Jack
If you want a full keyboard (good for texting, or searching in
your Contacts list), just open the phone.
When you open or turn your phone,
the screen adjusts for you.
Scroll & SelectEnter
OK
Space
Alternate
Shift
Delete
Search
Symbols
Star t here
Let’s get you up and running.
Tip: Your phone comes with a microSD memory card
already installed. Make sure it’s inserted. Some apps, like
camera and camcorder, need the memory card to work.
Caution: Before assembling, charging or using your
phone for the first time, please read the important
Safety, Regulatory & Legal information provided with
your phone.
1
2
3
Cover off. Battery in.
Cover on.
SIM in.
5
4
Charge.
Create or log into a MOTOBLUR account. Enter your name,
an email address (where MOTOBLUR can send account
information), and a MOTOBLUR account password.
Registration is secure, and should only take a few minutes.
To use MOTOBLUR, read the terms and conditions during
registration and touch Agree.
Note: This phone supports data-intensive apps and
services. It is strongly recommended that you purchase a
data plan that meets your needs. Contact your service
provider for details.
1
2
3
Please choose a language
g
g
g
g
g
g
g
g
g
g
g
g
English
StartEmergency Call
To make an emergency call during
setup, press the “Menu” key.
Welcome to MOTOBLUR
Password:
MOTOBLUR ID:
Enter email address
NextBack
Login to your MOTOBLUR account
Forgot Password?
Enter password
Logging into MOTOBLUR
Touch tips
It’s all in the touch:
•Touch: Choose an icon or option.
•Touch & Hold: Open options.
•Drag: Scroll or move slowly.
•Flick: Scroll or move quickly.
•Pinch-to-zoom:Get a closer look at maps, web pages,
or photos.
N Clark
S
E Ohio St
N Rush St
N Wabash Ave
N Dearbor
n
E Grand Av
N Micigan Ave
Grand Red
M
Ontario St E Ontario St
N
C
C
C
l
l
a
a
r
r
k
k
E
O
O
O
h
h
h
o
S
S
t
N
R
R
u
u
s
s
h
h
S
S
t
N
W
W
W
a
a
b
b
b
a
as
s
h
h
A
A
A
A
v
v
v
e
N
E
G
G
r
r
a
a
n
n
d
d
A
A
A
v
M
N
M
M
i
i
c
c
i
i
g
g
a
a
n
A
A
A
A
A
v
v
e
GG
r
r
r
a
n
n
d
d
d
R
R
e
e
d
d
M
O
O
n
n
t
a
a
a
r
r
i
i
o
S
S
t
E
O
O
O
O
O
n
n
t
t
t
a
a
r
ri
i
i
o
S
S
t
Market
E Ohio St
N Park St
N New St
E Grand Ave
E Randolph St
rD submuloC N
Randolph
St Metra
E S WaterSt
p
p
h
h
r
r
a
n
n
d
o
S
S
S
t
t
M
M
e
e
t
t
a
n
d
d
o
k
E
MM
E
E
E
E
R
R
R
a
a
n
n
d
d
d
o
o
o
l
l
l
h
h
p
ph
S
S
t
t
t
p
h
h
h
a
Messaging
St
Wacker Dr
M
n
St
W Lake St
E Wacker Pl
State/Lake
Lake Randolph/
Wabash
M
M
E Randolph St
Touch to open.
Touch & hold
to show options.
Drag or flick to
scroll.
To zoom in or out,
slide two fingers
apart or together.
Home screen
The home screen gives you all your latest information in
one place. It’s what you see when you turn on the phone or
touch Home from a menu.
Use the widgets, shortcuts and panels to see what’s
important to you—whether it’s home, work or play. To
make the home screen yours, see “Personalize”
8:52
Browser
Messaging
John Moon
Decompression party
after the test - my place...
Soooo ready to just
chill ALL summer!
Camera
10 minutes ago
Status
Indicators
Widgets
Touch to open, or
touch & hold to
move or delete.
Flick left or right
to open more.
Shortcuts
Touch to
open.
Notifications
Flick down to
see details.
Open the
main menu.
Personalize
Go ahead, add your personal touch. Change your widgets,
wallpaper, ringtone, and more—make it yours.
•Home screen: To add something or change your
wallpaper, touch and hold an empty spot until you see
the Add to Home screen menu.
Tip: To move or delete something, touch and hold it,
then drag it to another spot, another panel, or the trash
can.
•Ringtones & sounds: Touch Menu > Settings >
Sound & display.
8:52
Browser
Messaging Camera
Add to Home screen
Motorola widgets
Downloaded widgets
Shortcuts
Sound & display settings
Set volume for incoming calls and
notifications
Ringer volume
Set volume for music and videos
Media volume
Set your default incoming call ringtone
Phone ringtone
Notification ringtone
Sound settings
Press the menu key to
open the settings menu.
Touch and hold an empty
spot to open the home
screen menu.
Wireless
More
Tips
Web & maps
Media
Messages
Updates
Contacts
Calls
Apps
Apps
You can find all of your apps in one place. From the home
screen, just touch or touch Home to open and
close the app menu.
Tip: To find an app in the menu, open your phone and
type the app name.
Want more? No problem: To download more apps,
touch > Market.
Note: You might not have some features. For details, ask
your service provider.
Applications
Search
My downloads
S
S
c
c
h
Applications Games Downloads
Best Application
Leni’s Application
Open the app tray
and touch Market
Calls
Your dial pad and call lists are just a touch or two away—no
menus needed. Just touch Dialer in the home screen.
Tip: During a call, touch Home or Back to hide the
active call display and use other apps. To reopen it,
touch Dialer.
#
ABC
2
DEF
3
MNO
6
TUV
8
WXY
9
+
0
5
JKL
Call
GHI
4
11:46
*
PQRS
7
1
Delete
Touch to delete a digit you
entered.
Recent Calls
Call
Enter a phone number and
touch here to call it.
Search Contacts
Changes to Add Contact if a
digit is entered above.
More Options
Touch for voice dail, speed
dial and frequent calls.
Contacts
Now you have contacts like you’ve never had before,
downloaded from your accounts and backed up on
MOTOBLUR. View, search, and use them your way.
touch Contacts in the home screen.
Tip: When you flick or drag this list, a scroll bar appears on
the right. Drag the scroll bar to move the list faster. To
search the list, just open your phone and type a name.
8:52
Contacts A-Z
Contacts: All contacts
Alex Pico
Dan Smith
Kate Shunney
Group
Press Menu to choose
which group to show (like
All, Favorites, or Facebook).
Contacts List
Touch to view contact
information. Touch & hold to
send email, delete, and more.
Touch to add a contact.
Updates
Find out what everyone is doing. Touch your Happenings
or Messages widgets to see the newest update, then:
•See more: Flick left to see more updates or messages.
•See details: Touch . Then, in Happenings, you touch
the social network’s icon for more access.
•Update status: From the home screen, update all your
social networks (Orkut, Twitter, Facebook) all at once.
Tip: To add social network or email accounts,
touch Menu > Settings > Accounts > Add account
and sign in with that account’s user name or email.
8:52
Browser
Messaging
John Moon
Decompression party
after the test - my place...
Soooo ready to just
chill ALL summer!
Camera
10 minutes ago
Browser
Messaging
Browser
Market
e
r
minute
s
Happenings
1 of 6
20 min ago
Status update
Jess Eskridge Soooo ready
Comments (0)
to just chill ALL summer!
Jess
Eskridge
8
Messages
All of your messages stay in one place—text, IM, email,
Facebook, and more. Touch > Messaging >
Universal Inbox.
Tip: To type in a message, open your phone or touch a text
field to open the touchscreen keypad.
8:34 PM
Alex Pico
Some guys have all the luck - me...
Right now, you’re busy flexing...
Sep 25
Keith Zang
Job
It’s only a freelance gig, but it pays...
Universal Inbox (4)
Message List
Touch to open a message.
Touch & hold to move,
delete, and more.
Touch to select multiple messages to move, delete, and more.
Or,
touch Menu > Select all or Unselect all.
Touch to add a contact.
Check for messages now.
Media
See it, capture it, share it! Then, relax with some music.
•Photos: Touch > Camera. To take the photo,
touch .
•Videos: Touch > Camcorder. To start the video,
touch . Touch to stop the video.
•To see the photos and videos you’ve taken,
touch > Gallery.
•Music: To uch > Music to access apps like My
Music, Radio, Music Videos, Community, and Song
Identification.
2356
3MP
Zoom In
Zoom Out
Capture
Location found. searching for
city
Tap to zoom or
take the photo.
Autofocus
(Photos)
Music
Controls
Touch the
screen to see
the controls.
See song lyrics
in real time.
Web & maps
Browse, download, and search (of course). FInd out where
you are or where you’re going.
•Browser: Touch > Browser and surf using the
super fast 3G and Wi-Fi connections.
•Maps: Tou ch > Maps to use the Google Maps™
you know and love.
Note: You might not have some features. For details,
ask your service provider.
8:52
www.google.com: Google
Web
Google Search
My Location: Off - Turn On
Images Local
View Google in: Mobile
©2009 Google
Classic
Sign in --Preferences Help
News more
New Window Bookmarks
Refresh More
Windows
Forward
Connection
Over the air:
Mobile Network: , ,
Wi-Fi:
8:52
My Location
Accurate to 1800 meters
Search
My Location Join Latitude More
Directions Layers
Press to open options.
Wireless
Lose the wires—touch Menu > Settings > Wireless &
networks.
•Bluetooth™: For handsfree calls and wireless music,
touch Bluetooth settings and connect to your
accessory.
•Wi-Fi™: For fast internet access, touch Wi-Fi settings
and connect to a home, office or hotspot network. For
connection details, touch Menu > Advanced.
Wi-Fi networks
Wi-Fi settings
Notify me when an open network is
available
Network notification
(add Wi-Fi network)
Add Wi-Fi network
Wi-Fi
(another network 2)
Bluetooth settings
Device name
Make device discoverable
Discoverable
Bluetooth
Tap to turn on & scan.
Smithy
Tips
Here are some good things to know:
•Set lock screen: Touch Menu > Settings >
Location & security > Screen lock.
•Control Bluetooth™, Wi-Fi™, & GPS: Touch and hold
an empty spot on your home screen, then touch
Motorola widget and select a widget.
•See Recent Apps: Touch and hold Home .
•Search: Open your phone and press Search on the
keypad.
www.google.com: Google
News results for android
Verizon Droid Success Limited by Android Market -
7 hours ago
The idon't ad campaign pits the Android-based Droid head-to-head
against the formidable iphone. Based on preliminary predictions ..
PC World - 1778 related articles »
Android | Official Website
Official site for the development of the open source project. Provides a
directory of applications and links to download the source ..
www.android.com/ - Options
More from www.android.com »
Android Market
Browse and search for applications on Android Market and publish your
own.
www.android.com/market/ - Options
More from www.android.com »
Google Projects for Android
Official website. Provides a project documentation and links to
download the Android SDK.
code.google.com/android/ - Options
More from www.android.com »
Android (operating system) - Wikipedia, the free
encyclopedia
This article is about the mobile operating system. For the type of robot,
see Android. For other uses, see Android (disambiguation). ...
en.wikipedia.org/wiki/Android/ - Options
More from www.android.com »
Android | Official Website
Official site for the development of the open source
project. Provides a directory of applications and links
to download the source ..
www.android.com/ - Options
More from www.android.com »
Android Market
Quick Search Box
Type, then touch the icon
for a text search.
Magnify
Touch to open a
magnifying
window that you
can drag.
Zoom In/Out
In the browser:
Want m ore?
There’s more help, more accessories, more free stuff.
We’re here to help.
•Help: Check out the help center on your phone—
touch > Help Center.
•Accessories: Find more for your phone at
www.motorola.com/products
.
•Load your files: Download Media Link at
www.motorola.com/medialink
.
•MOTOBLUR: Go see your MOTOBLUR account at
www.motorola.com/mymotoblur
.
Safety, Regulatory &
Legal Information
1
Safety, Regulatory & Legal
Battery Use & Safety
Batter y Use & Safety
Important: Handle and store batteries properly to avoid injury or damage.
Most battery issues arise from improper handling of batteries, and particularly from
the continued use of damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise attempt to
change the form of your battery.
• Don’t let the phone or battery come in contact with water.
Water can get
into the phone’s circuits, leading to corrosion. If the phone and/or battery get
wet, have them checked by your service provider or contact Motorola, even if
they appear to be working properly.*
• Don’t allow the battery to touch metal objects.
If metal objects, such as
jewelry, stay in prolonged contact with the battery contact points, the battery
could become very hot.
• Don’t place your battery near a heat source.
Excessive heat can damage the
phone or the battery. High temperatures can cause the battery to swell, leak, or
malfunction. Therefore:
•
Do
not
dry a wet or damp battery with an appliance or heat source, such as a
hair dryer or microwave oven.
•
Avoid leaving your phone in your car in high temperatures.*
DOs
• Do avoid dropping the battery or phone.
Dropping these items, especially on
a hard surface, can potentially cause damage.*
• Do contact your service provider or Motorola if your phone or battery
has been damaged from dropping or high temperatures.
* Note:
If the product guide expressly states that your
phone
is designed to resist
damage from exposure to certain rugged conditions, such as water immersion, rain,
dust, high and low temperatures, shock, or other conditions, do
not
exceed the
stated limits, and ensure the stated precautions are taken. Always make sure that
2
the battery compartment is closed and secure to avoid direct exposure of the battery
to any of these conditions.
Important: Use Motorola Original products for quality assurance and
safeguards.
To aid consumers in identifying authentic Motorola batteries from
non-original or counterfeit batteries (that may not have adequate safety protection),
Motorola provides holograms on its batteries. Consumers should confirm that any
battery they purchase has a “Motorola Original” hologram.
Motorola recommends you always use Motorola-branded batteries and
chargers.
Motorola mobile devices are designed to work with Motorola batteries.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm that it has a “Motorola Original”
hologram;
•
If there is no hologram, the battery is not a Motorola battery;
•
If there is a hologram, replace the battery and retry charging it;
•
If the message remains, contact a Motorola authorized service center.
Important:
Motorola’s warranty does not cover damage to the phone caused by
non-Motorola batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Proper and safe battery disposal and recycling:
Proper battery disposal is not
only important for safety, it benefits the environment. Consumers may recycle their
used batteries in many retail or service provider locations. Additional information on
proper disposal and recycling may be found on the Web:
•
www.motorola.com/recycling
•
www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries in accordance with local
regulations. Contact your local recycling center or national recycling
organizations for more information on how to dispose of batteries.
Warning:
Never dispose of batteries in a fire because they may explode.
032375o
3
Battery Charging
Batter y Charging
Notes for charging your phone’s battery:
•
When charging your battery, keep it near room temperature. Never expose
batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when
charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take more time to charge.
•
Motorola batteries and charging systems have circuitry that protects the battery
from damage from overcharging.
Specific Absorption Rate (IEEE)
SAR (IEEE)
Your model wireless phone meets the governmental
requirements for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed and
manufactured to not exceed limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the U.S. Government and by the
Canadian regulatory authorities. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed for the safety of all persons,
regardless of age or health, and to account for any variations in measurements.
The exposure standard for mobile devices employs a unit of measurement known as
the Specific Absorption Rate (SAR). The IEEE SAR limit set by the FCC and by the
Canadian regulatory authorities is 1.6 watts per kilogram (W/kg), averaged over one
gram of tissue. Tests for SAR are conducted using procedures accepted by the FCC
and by Industry Canada with the mobile device transmitting at its highest certified
power level in all tested frequencies. Although the SAR is determined at the highest
certified power level, the actual SAR level of the mobile device while operating can
be below the maximum value. This is because the mobile device is designed to
operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station, the lower the
power output.
4
Before a mobile device is available for sale to the public in the U.S. and Canada, it
must be tested and certified to the FCC and Industry Canada that it does not exceed
the limit established by each government for safe exposure. The tests are performed
in positions and locations (e.g., at the ear and worn on the body) submitted to the
FCC and available for review by Industry Canada. The highest SAR value for this
mobile device when tested for use at the ear is 0.59 W/kg , and when worn on the
body, as described in this guide, is 0.52 W/kg . The SAR value for this mobile device
in its data transmission mode (body-worn use) is 0.39 W/kg . Body-worn
measurements can differ, depending upon available accessories and regulatory
requirements. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this product.
While there may be differences between the SAR levels of various mobile devices
and at various positions, they meet the governmental requirements for safe
exposure. Please note that improvements to this product model could cause
differences in the SAR value for later products; in all cases, products are designed to
be within the guidelines.
Additional information on SAR can be found on the Cellular Telecommunications
& Internet Association (CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA) Web site:
http://www.cwta.ca
6
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC
(to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
Product Approval Number from your product’s label in the “Search” bar on the Web
site.
Software Copyright Notice
Soft ware Copyright Notice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola and third-party software providers certain
exclusive rights for copyrighted software, such as the exclusive rights to distribute
or reproduce the copyrighted software. Accordingly, any copyrighted software
contained in Motorola products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the extent allowed by law. Furthermore,
the purchase of Motorola products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the copyrights, patents, or
patent applications of Motorola or any third-party software provider, except for the
normal, non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Content Copyright
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the provisions of
the Copyright Laws of the United States and other countries. This device is intended
0168
Product
Approval
Number
7
solely for copying non-copyrighted materials, materials in which you own the
copyright, or materials which you are authorized or legally permitted to copy. If you
are uncertain about your right to copy any material, please contact your legal
advisor.
Open Source Software Information
OSS Info rmat ion
For instructions on how to obtain a copy of any source code being made publicly
available by Motorola related to software used in this Motorola mobile device, you
may send your request in writing to the address below. Please make sure that the
request includes the model number and the software version number.
MOTOROLA, INC.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
USA
The Motorola website
opensource.motorola.com
also contains information
regarding Motorola's use of open source.
Motorola has created the
opensource.motorola.com
website to serve as a
portal for interaction with the software community-at-large.
To view additional information regarding licenses, acknowledgments and required
copyright notices for open source packages used in this Motorola mobile device,
please press Menu Key >
Settings
>
About Phone
>
Legal information
>
Open source licenses
. In addition, this
Motorola device may include self-contained applications that present supplemental
notices for open source packages used in those applications.
GPS & AGPS
GPS & AGPS
Your mobile device can use Global Positioning System (GPS) signals for
location-based applications. GPS uses satellites controlled by the U.S. government
that are subject to changes implemented in accordance with the Department of
Defense policy and the Federal Radio Navigation Plan. These changes may affect
the performance of location technology on your mobile device.
Your mobile device can also use Assisted Global Positioning System (AGPS), which
obtains information from the cellular network to improve GPS performance. AGPS
8
uses your wireless service provider's network and therefore airtime, data charges,
and/or additional charges may apply in accordance with your service plan. Contact
your wireless service provider for details.
Your Location
Location-based information includes information that can be used to determine the
approximate location of a mobile device. Mobile phones which are connected to a
wireless network transmit location-based information. Devices enabled with GPS or
AGPS technology also transmit location-based information. Additionally, if you use
applications that require location-based information (e.g. driving directions), such
applications transmit location-based information. This location-based information
may be shared with third parties, including your wireless service provider,
applications providers, Motorola, and other third parties providing services.
Emergency Calls
When you make an emergency call, the cellular network may activate the AGPS
technology in your mobile device to tell the emergency responders your approximate
location.
AGPS has limitations and
might not work in your area
. Therefore:
•
Always tell the emergency responder your location to the best of your ability; and
•
Remain on the phone for as long as the emergency responder instructs you.
Performance Tips
•
Go outside and away from underground locations, covered vehicles, structures
with metal or concrete roofs, tall buildings, and foliage. Indoor performance
might improve if you move closer to windows, but some window sun shielding
films can block satellite signals.
•
Move away from radios, entertainment equipment, and other electronic devices.
Navigation
Navigation
Motorola strives to provide complete and accurate mapping information, directions,
and other navigational data, using a combination of governmental and private
location information sources. These sources may contain inaccurate or incomplete
data. In some countries, complete information may not be available. Therefore, you
should visually confirm that the navigational instructions are consistent with what
9
you see. All drivers should pay attention to road conditions, closures, traffic, and all
other factors that may impact driving. Always obey posted road signs.
Safety & General Information
Safety Information
This section contains important information on the safe and efficient
operation of your mobile device. Read this information before using your
mobile device.
Exposure to Radio Frequency (RF) Energy
Your mobile device contains a transmitter and receiver. When it is ON, it receives
and transmits RF energy. When you communicate with your mobile device, the
system handling your call controls the power level at which your mobile device
transmits.
Your mobile device is designed to comply with local regulatory requirements in your
country concerning exposure of human beings to RF energy.
Operational Precautions
For optimal mobile device performance, and to be sure that human exposure to RF
energy does not exceed the guidelines set forth in the relevant standards, always
follow these instructions and precautions.
Product Operation
When placing or receiving a phone call, hold your mobile device just like you would
a landline phone.
If you wear the mobile device on your body, always place the mobile device in a
Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do
not use a body-worn accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your body when
transmitting.
Using accessories not supplied or approved by Motorola may cause your mobile
device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or
approved accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from external
sources if inadequately shielded, designed, or otherwise configured for RF energy
10
compatibility. In some circumstances, your mobile device may cause interference
with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to do
so.
In an aircraft, turn off your mobile device whenever instructed to do so by airline
staff. If your mobile device offers an airplane mode or similar feature, consult airline
staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or defibrillator,
consult your physician before using this mobile device.
Persons with implantable medical devices should observe the following precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the
implantable medical device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to minimize the potential
for interference.
•
Turn OFF the mobile device immediately if you have any reason to suspect that
interference is taking place.
Read and follow the directions from the manufacturer of your implantable medical
device. If you have any questions about using your mobile device with your
implantable medical device, consult your healthcare provider.
Driving Precautions
Using a mobile device while driving may cause distraction. End a call if you can’t
concentrate on driving. Input information about your destination and route prior to
your drive. Do not input data or engage in text messaging while driving. Keep your
eyes on the road while driving. Listen to the audible turn-by-turn directions, if
available.
Also, using a mobile device or accessory may be prohibited or restricted in certain
areas. Always obey the laws and regulations on the use of these products.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in English only).
11
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always, posted and
can include fueling areas, such as below decks on boats, fuel or chemical transfer or
storage facilities, or areas where the air contains chemicals or particles, such as
grain dust, or metal powders.
When you are in such an area, turn off your mobile device, and do not remove,
install, or charge batteries. In such areas, sparks can occur and cause an explosion
or fire.
Symbol Key

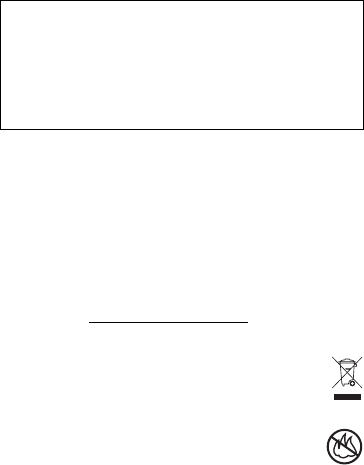

Your battery, charger, or mobile device may contain symbols, defined as follows:

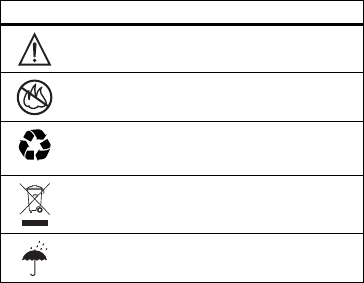

Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local regulatory
authorities for more information.
Do not throw your battery or mobile device in the trash.
Do not let your battery, charger, or mobile device get wet.
032374o
032376o
032375o
12
Batteries & Chargers
Caution:
Improper treatment or use of batteries may present a danger of fire,
explosion, leakage, or other hazard. For more information, see “Battery Use &
Safety.”
Keep Your Mobile Device & Its Accessories Away
From Small Children
These products are not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Glass Parts
Some parts of your mobile device may be made of glass. This glass could break if
the product is dropped on a hard surface or receives a substantial impact. If glass
breaks, do not touch or attempt to remove. Stop using your mobile device until the
glass is replaced by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when exposed to
flashing lights, such as when playing video games. These may occur even if a person
has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family history of such
occurrences, please consult with your physician before playing video games or
enabling a flashing-lights feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following symptoms occur:
convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or
disorientation. It is always a good idea to hold the screen away from your eyes,
Listening at full volume to music or voice through a headset may
damage your hearing.
Symbol Definition
13
leave the lights on in the room, take a 15-minute break every hour, and stop use if
you are tired.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume sound
level, the less time is required before your hearing could be affected.
To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English
only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering
finger-written characters, you may experience occasional discomfort in your hands,
arms, shoulders, neck, or other parts of your body. If you continue to have discomfort
during or after such use, stop use and see a physician.
[Nov0109]
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
14
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Use & Care
Use & Care
To care for your Motorola phone, please keep it away from:
liquids of any kind
Don’t expose your phone to water, rain, extreme humidity, sweat, or
other moisture. If it does get wet, don’t try to accelerate drying with the
use of an oven or dryer, as this may damage the phone.
extreme heat or cold
Avoid temperatures below 0°C/32°F or above 45°C/113°F.
microwaves
Don’t try to dry your phone in a microwave oven.
15
dust and dirt
Don’t expose your phone to dust, dirt, sand, food, or other inappropriate
materials.
cleaning solutions
To clean your phone, use only a dry soft cloth. Don’t use alcohol or other
cleaning solutions.
shock and vibration
Don’t drop your phone.
Latin America Warranty, Except Mexico
Warranty (Except Mexico)
Latin America Warranty Motorola Inc.
Subscribers/Cellular Division
Through its own service centers and/or its authorized service centers, Motorola
provides a 1-year warranty that covers the cellular phone, all its parts and labor
against any defect and operation as long as the “Product” has been operated and
handled under normal conditions. The term of 1 year begins when the “Product” is
purchased.
Conditions
1. For warranty service, return the “Product” and this warranty to the place of pur-
chase or to any Motorola authorized service center.
If additional information is needed, please contact any of our service centers:
Motorola de México, S.A.
Bosques Alisos No. 125
Bosques de las Lomas
CP 05120 México, D.F.
Telephone: 257-6700
16
If the cellular phone has been installed in a vehicle, take the vehicle to the service
center to analyze the equipment, or the installation on the vehicle. This warranty
does not cover the installation of the cellular phone.
2. Motorola Inc., through its own service centers and/or their authorized service cen-
ters, will repair or replace the cellular phone at no charge. This warranty covers
shipping expenses, only if it is needed to make the repair.
Motorola Inc. through its own service centers and/or their authorized service cen-
ters, at its own discretion, will repair, replace, or reimburse the purchase price of
the defective cellular phone only during the warranty period, as long as the “Prod-
uct,” in accordance with the conditions established in this warranty, is returned
to a Motorola service center or to a Motorola authorized service center. All the
accessories, batteries, parts, small boards or equipment of the cellular telephone
that by virtue of being defective are replaced in fulfillment of this warranty, will
automatically become property of Motorola Inc.
3. To receive warranty service, present your cellular phone or accessory to any Mo-
torola service center or Motorola authorized service center, along with your re-
ceipt of purchase or comparable substitute that indicates the date of purchase,
serial number of the transceiver, and/or electronic serial number.
4. The repair time will not be greater than 30 days, starting from the day the equip-
Motorola Industrial Ltda.l
V Chedid Jafet
222-Bloco D-1 Andar
Vila Olimpia 04551-065
Sao Paulo, Brazil
Telephone: 0800-773 1244
Motorola de Colombia Ltda.
Carrera 7 7152
Torre B Piso 13 Oficina 1301
Torre del Banco Ganadero
Santa Fe de Bogotá, Colombia
Telephone: 01800 700 1504
17
ment was received at the service center.
5. To purchase parts, spare parts, accessories and service not covered by this war-
ranty, contact one of the service centers listed in section 1, or any authorized ser-
vice center in your locality.
6. This warranty is not valid in the following cases:
•
Defects or damages derived from abnormal use.
•
Defects or damages derived from accident or negligence.
•
Defects or damages derived from tests, unsuitable operation, maintenance,
installation and adjustments, or derived from any alteration or modification of
any type.
•
Damage caused to antennas, unless they are consequences of defects in
material or workmanship.
•
When the cellular phone has been disassembled and/or repaired so that its
operation has been affected or that it can not be tested to verify any claim that
grants this warranty.
•
Any cellular phone with a serial number that has been removed, altered, or
obliterated.
•
Defects or damages caused by food spills or liquids.
•
When the cables of the control unit have been stretched or the module
tongue-piece has broken.
•
When the surface of the “Product” and its pieces have been scratched or
damaged due to normal use.
•
Leather cases.
•
Rented cellular phones.
•
When the “Product” has been altered or repaired by non-Motorola authorized
service centers.
•
When the “Product” has not been operated in agreement with the instructions
that accompany the “Product.”
7. The batteries (Nickel-Cadmium) are warranted only if their capacity is reduced by
80% below its predicted capacity. This warranty is null for all types of batteries if:
•
The batteries are charged by a charger that has not been approved by Motorola.
•
Any of the battery seals are broken or tampered with.
18
•
The batteries were used or installed in non-Motorola equipment.
Limited Warranty (Mexico)
Warranty (Mexico)
For Motorola personal communication products and accessories
purchased in Mexico
I. Concepts Covered by this Warranty
This warranty covers all the parts, components, accessories and labor of the
Motorola “Product” from defects in materials and workmanship under normal
consumer usage.
The Motorola “Products” that are protected under this warranty can be: (a) cellular
telephones, (b) radar sets, (c) two-way radios, and (d) wireless telephones.
Motorola de Mexico S.A., at its option, will at no charge repair, replace, or refund
the purchase price of any “Product” that does not conform to this warranty.
Motorola may use functionally equivalent reconditioned/refurbished/pre-owned or
new products, accessories, or parts. Updates in software are not covered.
“Product”:
Brand: Motorola Model:
Number of Mechanical Series:
Number of Electronic Series:
Name of Distributor:
Street and Number:
Town:
Municipality:
Postal Code, City, State, or Country:
Telephone:
Date of Delivery or Installation:
19
II. Length of Warranty Coverage
The length of coverage is one (1) year from the date the new “Product” was
purchased from an authorized distributor.
III. Place where consumers can make the
warranty effective, obtain parts, components, and
accessories
Motorola de México, S.A.
Bosques de Alisos 125
Col. Bosques de las Lomas
Del. Cuajimalpa
Te:(55) 5257-6700
IV. Procedure to Make the Warranty Effective
For warranty service, return the “Product” (with its components and accessories,
such as batteries, antennas, and charger) to the place of purchase, to the address
above, or to an authorized service center, or call 01 800 021 0000. To request a
refund, you must present this warranty, sealed by the place of purchase, along with
the “Product.”
V. Warranty Limitations or Exceptions
The warranty is not valid when:
•
The “Product” has been used in conditions different from the normal ones.
•
The “Product” has not been operated as described in the operating instructions.)
•
The “Product” has been altered or repaired by someone other than Motorola, or
its authorized service centers.
If repairs are not covered by this warranty, Motorola, at the request of the purchaser,
will provide information regarding availability, prices, and other conditions for the
repair of the “Product.”
To obtain information on products that need repairs not covered by this warranty,
please call 01 800 021 0000.
Product Model: Date of Purchase:
20
Note:
In other countries, consult the laws and local regulations under the warranty
and its local Motorola office.
Information from the World Health
Organization
WHO Information
Present scientific information does not indicate the need for any special precautions
for the use of mobile phones. If you are concerned, you may want to limit your own
or your children’s RF exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int/peh-emf
Caring for the Environment by Recycling
Recycli ng Inform ation
This symbol on a Motorola product means the product should not be
disposed of with household waste.
Disposal of your Mobile Device &
Accessories
Please do not dispose of mobile devices or electrical accessories (such
as chargers, headsets, or batteries) with your household waste. Do not
dispose of your battery or mobile device in a fire. These items should be
disposed of in accordance with the national collection and recycling
schemes operated by your local or regional authority. Alternatively, you may return
Seal of the authorized or established distributor where the “Product” was
purchased:
032376o
21
unwanted mobile devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved national recycling
schemes, and further information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device Packaging &
Product Guide
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional
authorities for more details.
Privacy & Data Security
Privac y & Data Secur ity
Motorola understands that privacy and data security are important to everyone.
Because some features of your mobile device may affect your privacy or data
security, please follow these recommendations to enhance protection of your
information:
• Monitor access
—Keep your mobile device with you and do not leave it where
others may have unmonitored access. Lock your device’s keypad where this
feature is available.
• Keep software up to date
—If Motorola or a software/application vendor
releases a patch or software fix for your mobile device that updates the device’s
security, install it as soon as possible.
• Secure personal information
—Your mobile device can store personal
information in various locations including your SIM card, memory card, and
phone memory. Be sure to remove or clear all personal information before you
recycle, return, or give away your device. You can also backup your personal data
to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile device,
go to
www.motorola.com/support
• Online accounts
—Some mobile devices provide a Motorola online account
(such as MOTOBLUR). Go to your account for information on how to manage the
account, and how to use security features such as remote wipe and device
location (where available).
22
• Location-based information
—Location-based information includes
information that can be used to determine the approximate location of a mobile
device. Mobile phones which are connected to a wireless network transmit
location-based information. Devices enabled with GPS or AGPS technology also
transmit location-based information. Additionally, if you use applications that
require location-based information (e.g. driving directions), such applications
transmit location-based information. This location-based information may be
shared with third parties, including your wireless service provider, applications
providers, Motorola, and other third parties providing services.
• Other information your device may transmit
—Your device may also transmit
testing and other diagnostic (including location-based) information, and other
non-personal information to Motorola or other third-party servers. This
information is used to help improve products and services offered by Motorola.
If you have further questions regarding how the use of your mobile device may
impact your privacy or data security, please contact Motorola at
privacy@motorola.com
, or contact your service provider.
Smart Practices While Driving
Drivi ng Safety
Drive Safe, Call Smart
Check the laws and regulations on the use of mobile devices and their
accessories in the areas where you drive. Always obey them. The use of
these devices may be prohibited or restricted in certain areas—for
example, handsfree use only. Go to
www.motorola.com/callsmart
(in English only) for more information.
Your mobile device lets you communicate by voice and data—almost anywhere,
anytime, wherever wireless service is available and safe conditions allow. When
driving a car, driving is your first responsibility. If you choose to use your mobile
device while driving, remember the following tips:
• Get to know your Motorola mobile device and its features such as speed
dial and redial.
If available, these features help you to place your call without
taking your attention off the road.
23
• When available, use a handsfree device.
If possible, add
an additional layer of convenience to your mobile device with
one of the many Motorola Original handsfree accessories
available today.
• Position your mobile device within easy reach.
Be able to
access your mobile device without removing your eyes from the road. If you
receive an incoming call at an inconvenient time, if possible, let your voicemail
answer it for you.
• Let the person you are speaking with know you are driving; if necessary,
suspend the call in heavy traffic or hazardous weather conditions.
Rain,
sleet, snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving.
Jotting down a
“to do” list or going through your address book takes attention away from your
primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your
car is not moving or before pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may be
distracting.
Make people you are talking with aware you are driving and
suspend conversations that can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local emergency
number in the case of fire, traffic accident, or medical emergencies (wherever
wireless phone service is available).
• Use your mobile device to help others in emergencies.
If you see an auto
accident, crime in progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number (wherever wireless phone
service is available), as you would want others to do for you.
• Call roadside assistance or a special non-emergency wireless
assistance number when necessary.
If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor traffic accident where
no one appears injured, or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency wireless number (wherever wireless
phone service is available).
24
Motorola, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Motorola Argentina S.A.
Suipacha 1111 - Piso 18
C1008AAW Buenos Aires
ARGENTINA
Certain mobile phone features are dependent on the capabilities and settings of
your service provider’s network. Additionally, certain features may not be activated
by your service provider, and/or the provider’s network settings may limit the
feature’s functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other product
specifications, as well as the information contained in this guide, are based upon
the latest available information and believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or specifications
without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark
Office. The MOTOBLUR Logo is a trademark of Motorola. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under license. Microsoft,
Windows, Windows Me, and Windows Vista are registered trademarks of Microsoft
Corporation in the United States and other countries. Facebook is a trademark of
Facebook, Inc. Google, YouTube, Picasa, Gmail, and the Google logo are trademarks
of Google, Inc. is a Certification Mark of the Wireless Fidelity Alliance, Inc. All
other product or service names are the property of their respective owners.
© 2010 Motorola, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly approved
by Motorola, will void the user’s authority to operate the equipment.
MOTOROLA
FLIPOUT
with MOTOBLUR (MB511)
Manual Number: 68014689001-A
www.motorola.com
