Motorola Mobility T56LU4 Portable Cellular/ PCS GSM/ EDGE Transceiver with WLAN and Bluetooth User Manual Exhibit 8 Users Manual
Motorola Mobility LLC Portable Cellular/ PCS GSM/ EDGE Transceiver with WLAN and Bluetooth Exhibit 8 Users Manual
Exhibit 8 Users Manual
APPLICANT MOTOROLA INC. FCC ID: IHDT56LU4
INSTRUCTION MANUAL
A representative version of the user's manual follows:
Exhibit 8
MOTOROLA CHARM with MOTOBLUR
GET ON TRACK
1Welcome
Welcome
MOTOROLA MB502 with MOTOBLUR
The MB502’s compact design offers pocketability, easy
handling, and many of the smartphone features its
bulkier competitors are touting.
•The sleek design and pinch-to-zoom touch screen
keeps your social life at your fingertips.
•The BACKTRACK™ navigation pad provides
unobstructed navigation without blocking the
screen.
•View your messages and status updates from your
latest MOTOBLURHappenings and Messages
widgets.
Caution: Before assembling, charging or using your
phone for the first time, please read the important
legal and safety information at the back of this
guide. Once your phone is up and running,
press Menu > Settings > About phone >
Safety information or Legal information to read
the full information.
More
•Answers: Touch > Help Center.
You can also flick your home screen left or right to
see the Getting Started and Tips & Tricks widgets.
•Updates: Phone updates, PC software, online help
and more at www.motorola.com/mycharm.
•MOTOBLUR: After you create a MOTOBLUR
account, open it at
www.motorola.com/mymotoblur.
• Accessories: Find accessories for your phone at
www.motorola.com/products.
2Welcome
Your phone
the important keys & connectors
8:52
Jones Lara
just found a black...
26 minutes ago
Browser
Messaging
Trevor Gilley
Black turtleneck
and a beret, and
298 minutes away from cake.
46°
4
6
°
NEW YORK
3.5mm Headset Jack
Home Key
Back Key
Menu Key To u chscreen
Power Key
Volume Keys
Press to open
menu options.
Press to return
to the home
screen.
Micro USB
Connector
Charge or
connect to PC.
Microphone
Press to go back.
Press to put the display to
sleep, or hold to turn off.
Note: Your phone might look a little different.
8:52
Jones Lara
just found a black...
26 minutes ago
Browser
Messaging
Trevor Gilley
Black turtleneck
and a beret, and
298 minutes away from cake.
46°46
°
NEW YORK
Delete
Enter
Shift
Space
Symbols
Scroll/Select
Search
Press for text,
hold for voice.
Messages
Camera
Alternate
Touch pad on back
3Let’s go
Contents
Your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 6
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Apps & updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Social networking . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Memory card & file transfer . . . . . . . . . . . . . . . . . . 40
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 48
Let’s go
let’s get you up and running

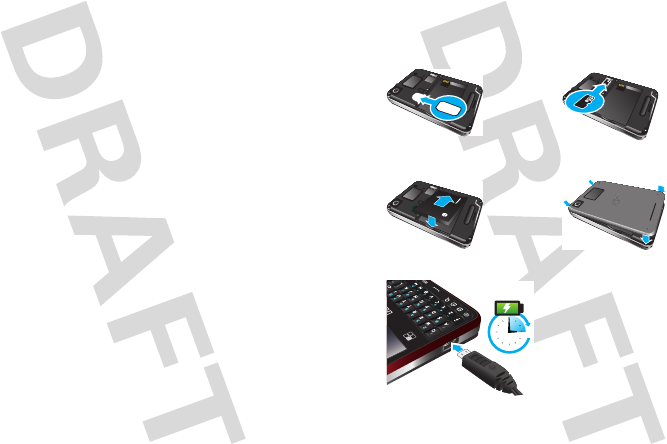

Assemble & charge
Caution: Please read “Battery Use & Safety” on
page 48.
1SIM in 2MicroSD in (may
already be inserted)
3Battery in 4Cover on
5Charge up
3H
4Let’s go
Tip: To save battery life, see “Battery tips” on page 26.
Set up & go
Note: To use MOTOBLUR, please read the terms and
conditions during registration and, if you agree, choose
to continue.
Create or log into a MOTOBLUR account to get your
contacts, email, messages, and status information, for
all your accounts, all in one place, all the time. There’s
more in “Your MOTOBLUR account” on page 13.
Registration is secure, and should only take a few
minutes:
Note: This phone supports apps and services that use
a lot of data, so make sure your data plan meets your
needs. For details, contact your service provider.
1Tu rn o n .
2Select a language.
3Register or log in.
If you have not
created a
MOTOBLUR
account, you’ll need
to register: Enter
your name, your
current email
address (where
MOTOBLUR can
send account information), and a new MOTOBLUR
password.
4Add your accounts to MOTOBLUR.
To add an account, touch it. Then, enter the user
name or email and password that you set up on that
account.
Tip: For more, or to add accounts anytime, go
to “Add account” on page 13.
5When your phone shows your home screen, import
your SIM contacts: Touch Contacts, then
touch Menu > Settings > Import from SIM
card. Touch OK to confirm.
Back Next
Forgot password
Password:
Enter password
MOTOBLUR ID:
user@domain.com
5Let’s go
Turn it on & off
To turn on your phone,
press Power on top of
your phone.
To turn off your phone, press
and hold Power , then
touch Power off in the menu that opens.
Wi-Fi™ connect
If you want to use a Wi-Fi network for even faster
Internet access, touch Menu > Settings >
Wireless & networks > Wi-Fi settings. Touch Wi-Fi
to search for and connect to wireless networks.
There’s more in “Connect Wi-Fi networks” on
page 39.
Cool content & more
Note: You might not have some features. For details,
ask your service provider.
Browse and download thousands of the coolest apps
on the planet from Android. On top of that, you get a
full HTML browser, so you can surf in style.
Download new apps with “Apps & updates” on
page 12. Your phone comes with a microSD memory
card installed—you can load it up with photos, videos,
and music from your computer using “Memory card &
file transfer” on page 40.
Note: Do not remove your memory card while your
phone is using it or writing files on it.
Security
Your contacts are backed-up on MOTOBLUR, so don’t
worry. Even if you lose your phone, MOTOBLUR can
help you find it or wipe it. And when you get your next
MOTOBLUR product, your stored info makes it a snap
to set up with just a username and password.
Of course, it doesn't stop there. There are plenty of
ways to protect your phone and your information,
in “Security” on page 44.
6Touchscreen & keys
Touchscreen & keys
a few essentials
Touch tips
• Touch: Choose an icon or option.
• Touch & Hold: Open options.
•Drag: Scroll or move slowly.
•Flick: Scroll or move quickly.
•Pinch: Zoom in on maps, Web pages, or photos.
IM Browser
IM Browser
Kristen Cullen
Decompression party
after the test - my place...
10 minutes ago
11:35 AM
Soooo ready to just
chill ALL summer!
11:35
IM Browser
t
en Cullen
t
Kris
o
mpress
i
on party
o
Dec
o
the test - my place...
r
a
f
te
r
n
utes ago
in
1
0 m
11:
3
5 AM
Soooo rea
d
y to just
c
hill ALL summer
!
11
:
3
5
To zoom pictures, Web pages, or maps, pinch two fingers
together or apart.
Touch to open.
Touch & hold to move
items (or open options,
in lists).
Drag or flick to open
panels (or scroll, in
lists).
If your screen goes to sleep, press Power .
BACKTRACK™ pad
You can also flick and
double-tap the square
touch pad on the back of
the display!
Tip: Touch and hold to
show a focus icon that
you can move to select small links on Web pages. To
turn off this touch pad, touch Menu > Settings >
Sound & display > TouchPad.
Key tips
Menu, home, & back
Touch Menu to open menu options in your home
screen, lists, and other places.
Touch Home to close any menu or app and return
to the home screen. Touch and hold Home to
show the last few apps you used, then touch an app to
open it. In the home screen, touch Home to open
or close the app menu.
Touch Back to go to the previous screen.
7Touchscreen & keys
Sleep & wake up
To save your battery, prevent
accidental touches, or when
you want to wipe smudges
off your touchscreen, put the
touchscreen to sleep by
pressing Power . To wake
up the touchscreen, just press Power again.
To change how long your phone waits before the
screen goes to sleep automatically, touch Menu >
Settings > Sound & display > Screen timeout.
Tip: To make the screen lock when it goes to sleep,
use “Screen lock” on page 44.
Power key menu
Press and hold Power to open a menu where you
can turn off sound (Silent mode), network and
wireless connections (Airplane mode), or the phone
(Power off).
Adjust volume
Press the volume keys on the side of the phone to
change the ring volume (in the home screen), or the
earpiece volume (during a call).
Spin the screen
In many apps, the touchscreen can spin to stay
right-side up when you rotate your phone:
Find it: Menu > Settings > Sound & display >
Orientation
8Home screen
Home screen
quick access to the things you need most
Quick start: Home screen
The home screen gives you all your latest information
in one place. It’s what you see when you turn on the
phone or touch Home from a menu.
Use the widgets, shortcuts and panels to see what’s
important to you—whether it’s home, work or play.
Use & change your home screen
On your home screen, shortcuts are icons that open
your favorite apps, Web bookmarks, contacts, mail
IM Browser
IM Browser
Kristen Cullen
Decompression party
after the test - my place...
10 minutes ago
11:35 AM
Soooo ready to just
chill ALL summer!
11:35
Flick left or right to
open panels. Touch the
bar at the top to jump
to panels.
Phone Status
Open the app menu.
Widgets
Touch to open. Touch &
hold to move or delete.
Flick icons
down to see
notifications.
labels, or music playlists. Widgets show you news,
weather, messages, and other updates.
Flick the home screen left or right to open other panels
of shortcuts and widgets.
•To open something, touch it. Touch Home to
return to the home screen.
•To change a widget’s settings, open it and then
touch Menu > Settings.
Tip: For each Messages or Happenings widget,
you can choose the accounts you want to show.
There’s more about social networking widgets in
“View account updates & features” on page 14 and
“Update your status” on page 14.
•To resizeMotorola
widgets, touch and hold a
corner until you feel a
vibration, then drag.
•To add something or
change your wallpaper,
touch and hold an empty
spot until you see the Add
to Home screen menu.
You can add a folder to organize your shortcuts.
•To move or delete something, touch and hold it
until you feel a vibration, then drag it to another
Kristine Kelley
Not even ready to
go back to school
10 minutes ago
Kristine Kelle
y
iti K ll
Not even rea
dy
to
go
back to schoo
l
1
10
m
i
nutes a
go
9Home screen
spot, another panel, or the trash at the bottom of
the screen.
Search
To search, use a Search widget (if you have one on
your home screen), or just start typing—your phone
searches the Web, your apps, and your Contacts!
You can set SafeSearch to filter out explicit images
(Moderate) or explicit images and text (Strict). After
you do a voice search, just touch Menu > Settings
> SafeSearch and choose a setting.
Phone status & notifications
At the top of the screen, icons on the left notify you
about new messages or events (flick the bar down for
details). Icons on the right tell you about phone status:
Bluetooth™ active network (full signal)
GPS active network (roaming)
Wi-Fi™ active GPRS (fast data)
downloading EDGE (faster data)
Touch the icon, then
speak for a voice
search.
Type, then touch the
icon for a text search.
Tip: To see today’s date, touch and hold the status
indicators.
vibrate 3G (fastest data)
silent flight mode
mute call battery (charging)
speakerphone active battery (full charge)
Google™ sync
active
alarm set
10 Personalize
Personalize
add your personal touch
Widgets
Note: You might not have this feature. For details, ask
your service provider.
To add a widget:
1Find an empty spot on your home screen where you
want to add a widget. You can flick left or right to
open other panels on your home screen.
2Touch and hold the empty spot until you see the
Add to Home screen menu.
3Touch Motorola widgets or Downloaded widgets.
4Touch the type of widget. If necessary, enter the
widget settings.
Some widgets have settings you can change. Touch a
widget to open it, then touch Menu .
Ringtones
To change your ringtone and notifications,
touch Menu > Settings > Sound & display.
To set vibrate for messages, touch > Messaging
> Menu > Messaging Settings > Text
Messaging, Email, or Social Messaging.
Tip: To use a song as a ringtone, touch >
Music> Songs, touch and hold the song name,
then touch Set as ringtone.
Sounds
features
set volume for media and videos
Menu > Settings > Sound & display > Media
volume
play tones when using dial pad
Menu > Settings > Sound & display > Audible
touch tones
play sound on screen selection
Menu > Settings > Sound & display > Audible
selection
clarify sound during calls
Menu > Settings > Call settings > Voice
Quality
11Personalize
Display settings
Quick launch shortcuts
To use a quick launch shortcut, press and hold
Search on the keypad, then press the assigned
key, like Search and B to launch the browser.
Date & time
Set date, time, time zone, and formats:
Find it: Menu > Settings > Date & time
features
notification LED
Blinks to tell you that a notification has been
received. Menu > Settings > Sound & display
> Notification LED
set display brightness
Menu > Settings > Sound & display >
Brightness
set orientation
Menu > Settings > Sound & display>
Orientation
set animation
Menu > Settings > Sound & display >
Animation
Language & region
Set your menu language and region:
Find it: Menu > Settings > Language &
keyboard > Select locale
12 Apps & updates
Apps & updates
get the app you want
Quick start: Apps & updates
You can find all of your apps in one place. From the
home screen, just touch or touch Home to open
and close the app menu.
Want more? No problem: To download more apps,
touch > Market.
Your phone can tell you when there’s an updated app
or other phone software. To install the update, just
follow the instructions on your screen.
Browse & install apps
Note: You might not have this feature. For details, ask
your service provider.
Get all the fun games and cool apps you want! Android
Market™ provides access to applications developed by
developers worldwide, so you can find the app you
want. If you need help or have questions about
Android Market, touch Menu > Help.
Find it: > Market
Scroll to and touch the app you want to install. Then,
touch Install (if app is free) or Buy.
Recent apps
Touch and hold Home to see the last few apps you
used, then touch the app you want. Touch Home
to return to the home screen.
Manage & restore apps
Find it: Menu > Settings > Applications >
Manage applications
Touch an app in the list, then touch Uninstall (for apps
you downloaded), Clear cache, or other options.
To reinstall apps from Android Market, touch >
Market > My downloads. Previously installed
apps are listed and available for download.
Update my phone
You can check, download, and install phone software
updates using your phone, or using your computer:
•Using your phone:
You may get an automatic notification of an available
update on your phone. Simply follow the
instructions to download and install.
To manually check for updates, touch Menu >
Settings > About phone > System updates.
Your phone downloads any updates over your
mobile network. Remember, these updates can be
quite large (25MB or more) and may not be available
13Social networking
in all countries. If you don’t have an unlimited data
plan, or mobile network updates are not available in
your country, you can update using a computer.
•Using your computer:
On your computer, go to
www.motorola.com/mycharm and check the
“Software” links. If an update is available, simply
follow the installation instructions.
Social networking
my life, your life
Your MOTOBLUR account
The first time you turned on your phone, you
registered for a MOTOBLUR account that manages
your messages, contacts, and more (“Set up & go” on
page 4). You can log into this account from a computer
to upload contacts, reset your password, get help, or
even locate your phone:
www.motorola.com/mymotoblur
What is MOTOBLUR?
Only MOTOBLUR syncs contacts, posts,
feeds, messages, emails, photos and
much more—from sources like Facebook™, Twitter,
MySpace, your work email, Picasa™, and
Photobucket™—and serves them up just the way you
want them. No opening and closing apps and menus,
it’s all front and center on your home screen and
throughout the entire phone, so you can communicate
anyway you like.
Add account
Note: You can add your Facebook, MySpace, Twitter,
or other accounts to your phone. If you don’t have
accounts, you can visit their Web sites to set them up.
14 Social networking
Find it: > Accounts > Add account
To sign into your account, use the user name or email
and password that you set up on that account (the
same as on your computer).
When you sign into social networking accounts, you’ll
see your friends and contacts in your Contacts list,
and your status and updates can appear in Social
Status and Happenings widgets.
Twitter and MySpace messages will always appear
as “read” on your phone, but your phone notifies you
when you receive a new message. MySpace marks
your messages as “read” online.
For email accounts, see “Set up messaging” on
page 22.
Tip: To download updates faster, see “Connect Wi-Fi
networks” on page 39.
Update your status
After you add a social networking account, you can
update and see your current status in a Social Status
widget on your home screen.
To update your status, just touch your Social Status
widget and enter text. If you have more than one
account, you can use the pull-down menu to limit
which accounts are updated. When you open the
widget, a number on the right side means you have
unread status comments (touch it to open them).
To add a Social Status widget:
1Flick your home screen left or right to open the
panel you want. Touch and hold an empty spot to
open the Add to Home screen menu.
2Touch Motorola Widgets > Social Status. The
widget appears in the empty spot, and will show
your status the next time your phone updates from
the network.
View account updates & features
After you add a social networking account, you can see
and respond to friends’ updates with the Happenings
widget on your home screen. If you don’t see one, set
one up in “Widgets” on page 10.
When you touch the Happenings widget to open an
update, you can touch to open the full update, then
touch the social network’s icon to open its Web site.
Note: Your network or other factors might affect the
speed of widget updates.
Edit & delete accounts
Find it: > Accounts
15Calls
Touch and hold an account, then touch Open account
to edit it, or touch Remove account to remove it
(along with its contacts and messages).
Calls
it’s good to talk
Quick start: Calls
Find it: Dialer
You can tell your phone to pause, or wait for your
confirmation, when it dials a number. Just enter some
digits, then touch Menu to add a pause or wait.
#
ABC
2
DEF
3
MNO
6
TUV
8
WXY
9
+
0
5
JKL
Call
GHI
4
*
PQRS
7
1
11:35
Mobile 1-555-555-5694
Sleep deprived ... cramming for
design exams next week.
Mary Morgan
Active call 00:06
End call
SpeakerMute
Delete
Recent Calls
Call a number you
entered.
Search/Add Contacts
Call Timer
End Call
Hang up.
Enter numbers during a call.
Mute/Unmute
Speakerphone
16 Calls
During a call, touch Menu to choose Hold, New
call, or Use Bluetooth, or to wake up the
touchscreen. Your touchscreen sleeps to avoid
accidental touches.
Tip: You can touch Home or Back to hide the
call display. To reopen it, touch Dialer.
Make & answer calls
To make a call, touch Dialer, enter a number, then
touch Call.
Tip: To enter the international dialing code, touch and
hold . To add a pause or wait after numbers,
touch Menu .
To answer a call, drag Answer to
the right (when your phone is
unlocked, Answer is just a touch
button).
You can also press Power to ignore the call, or
press a volume key to silence the ring.
End calls
Touch End call.
Note: When you hold
your phone to your ear,
the display goes dark to
Stretch to
Answer
Press Power/Lock button to ignore
End call
SpeakerMute
avoid accidental touches. When you move your phone
away from your ear, the display lights up again.
Tip: You can touch Home or Back to hide the
active call display. To reopen it, touch Dialer.
Speed dial
Find it: Dialer > Spd Dial
•To call a number, touch it.
•To add, edit, or clear entries, touch Menu .
Handsfree
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
During a call:
•To use the speakerphone, touch Speaker.
•To use a Bluetooth™ device, touch Menu > Use
Bluetooth.
Mute & hold
During a call:
•To mute the current call, touch Mute.
•To put a call on hold, touch Menu > Hold.
17Calls
Enter numbers during a call
To enter numbers
during a call, touch ,
then touch the dial pad.
Recent calls
Find it: Dialer > Recent
•To call a number, touch it.
•To send a text message,
create a contact, view a
contact, add the call to speed
dial, or other options, touch
and hold an entry.
•To filter the list, touch the view name (like All calls)
at the top.
•To clear the list, touch Menu .
Frequent calls
Find it: Dialer > Frequent
•To call a number, touch it.
•To send a text message, view a contact, add the call
to speed dial, or other options, touch and hold an
entry.
End call
SpeakerMute
03:33
555-1212
1:05 PM
All calls
5551212
Add to contacts
Conference calls
To start a conference call, call the first number. After
they answer, touch Menu > New call and call the
next number. When the next number answers,
touch Menu > Join.
Your phone number
Find it: Menu > Settings > About phone >
Status > Phone number
Your caller ID
Note: You might not have this feature. For details, ask
your service provider.
To hide your number from the people you call,
touch Menu > Settings > Call settings >
Additional settings > Caller ID.
Call forwarding & waiting
You can forward calls all the time, or only when your
phone is busy, unanswered, or unreachable (not on the
network). To set call forwarding, touch Menu >
Settings > Call settings > Call forwarding.
When you’re on a call and a second call comes in, Call
waiting lets you answer it by touching Answer. You
can turn off Call waiting, to send second calls straight
to your voicemail. To turn call waiting on or off, touch
18 Calls
Menu > Settings > Call settings > Additional
settings > Call waiting.
Restrict outgoing calls
To restrict your phone so that it can only dial a few
numbers:
Find it: Menu > Settings > Call settings > Fixed
dialing number
•To turn fixed dialing on, touch FDN disabled.
•To add or delete the allowed numbers,
touch Manage FDN list.
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers (such as 911 or 112) that
you can call under any circumstances, even when your
phone is locked. Emergency numbers vary by country.
Your pre-programmed emergency number(s) may not
work in all locations, and sometimes an emergency
call cannot be placed due to network, environmental,
or interference issues.
1Touch Dialer (if your phone is locked,
touch Emergency Call or touch Menu >
Emergency call).
2Enter the emergency number.
3Touch Call to call the emergency number.
Note: Your mobile device can use AGPS satellite
signals to help emergency services find you (see “GPS
& AGPS” on page 54).
19Contacts
Contacts
contacts like you’ve never had before
Quick start: Contacts
Find it: Contacts
To edit a contact, open it and touch Menu > Edit.
Tip: To search the list, just type a name. When you
flick or drag this list, a scroll bar appears on the right.
Drag the scroll bar to move the list faster.
Import contacts from your SIM
Note: You might have already done this during “Set up
& go” on page 4.
Contacts: A-Z
Barry Smyth
Kat Bleser
Jim Somers
Contacts: All contacts
Arthur Baudo
Touch to choose which
group to show.
Touch to view contact information. Touch & hold to send
email, delete, and more.
Add a contact.
Flick left or right to
change views.
If you need to import the contacts from your SIM card,
touch > Manage SIM card > Import SIM card.
Call, text, or email contacts
Find it: Contacts
For Call, Send Text Message, Email, View contact,
or other options, touch and hold the contact.
To voice dial a contact, touch > Voice
Commands, then say “Call” followed by numbers or a
contact name (you can only voice dial a contact’s
Home, Work, or Mobile numbers).
View & use contacts
With a MOTOROLA MB502 with MOTOBLUR, you’ll
know what everybody’s up to and when. Every time
you pick up a call, check a message, or look up a
friend’s contact info, sure, you’ll see their name and
number, but you’ll see their social network status and
smiling face, too.
Find it: Contacts
•To filter the contacts by group (All, Facebook, and
so on) touch the filter name at the top.
Tip: To change which account provides the pictures
for your Contacts, from the home screen touch >
Accounts > Menu > Picture source.
20 Contacts
•To change the list view, touch History (recently
used), A-Z (list without status), or Status (list with
status) at the bottom.
•To find a contact, just type the name.
Touch a contact to open their details. To start a call
or message, just touch their phone number or other
info. You can touch History, Info, or Happenings at
the bottom of the screen to see more.
•To send a contact’s details in a message or over a
Bluetooth connection, touch and hold the contact,
then choose Share contact.
Edit or delete contacts
Find it: Contacts
Touch the contact, then touch Menu > Edit or
Delete. You can set a ringer, address, and other details
that will be saved on your phone and your MOTOBLUR
account.
Where are contacts edited or deleted? Your phone
edits the contacts in its memory, and also updates
your MOTOBLUR account. Your changes won’t affect
your SIM card.
Link contacts
You might have two Contacts for the same person;
maybe a Facebook friend who is also stored on your
SIM card, or one friend with two email addresses. To
combine these two contacts:
Find it: Contacts
Touch a contact to open it, then touch Menu >
Link contact and touch the second entry. Your
MOTOBLUR account remembers this connection.
Create contacts
Find it: Contacts > Menu > Add contact
When you’re finished, touch Menu > Save.
Where are contacts saved? Your phone saves new
contacts in its memory, your MOTOBLUR account,
and other accounts you select: In Contacts,
touch Menu > Settings to choose which accounts
get updated. New contacts won’t be on your SIM card,
but they will download to any new MOTOBLUR phone
when you log into your MOTOBLUR account.
Synchronize contacts
Note: You might not have this feature. To get more
details or synchronize contacts in your service provider
account, ask your service provider.
When you change one of your Contacts, your phone
automatically updates your MOTOBLUR account
online. Also, your phone updates your Contacts and
21Messaging
MOTOBLUR account whenever you change a friend in
your social networking accounts.
So, you don’t have to do anything to synchronize your
Contacts with your other accounts! MOTOBLUR
takes care of it for you.
My details
Find it: Contacts > Menu > My info
To edit details, touch them.
Groups
You can put your Contacts into groups that you create
(like “friends,” “family,” or “work”). Then, you can find
contacts faster by showing one group at a time.
To create or show a group in your Contacts, touch
Contacts at the top of your screen and choose the
group name.
Messaging
sometimes it’s best to text, or IM, or email . . .
Quick start: Messaging
Find it: > Messaging > Universal Inbox
•To see other messages in your inbox, flick or drag
up.
•To forward, save attachments,
and more, open a message,
then touch and hold it to
open options.
•To enter names and text with
voice recognition when your phone
is closed, just touch a text box, then
8:34 PM
Alex Pico
Some guys have all the luck - me...
Right now, you’re busy flexing...
Sep 25
Keith Zang
Job
It’s only a freelance gig, but it pays...
Universal Inbox (4)
Touch a message to
open it. Touch & hold
for options.
Select multiple messages to move,
delete, and more.
Create a message.
Check for messages
now.
<Subject: Multimedia message>
7:30 PM
?123
zxc
22 Messaging
touch the voice recognition icon on the touchscreen
keypad.
Read & reply to messages
Every text, email, friend-feed, wall post, and bulletin is
automatically delivered to you, ready for your
immediate reply with the slide-out keypad. The best
part is you don’t have to dig through any apps, screens
or menus—every message streams right to the phone,
viewable exactly the way you want.
Find it: > Messaging > Universal Inbox
Note: Universal Inbox shows all of your messages
together—text, email, and social networking
messages. To show only one type of message, touch a
message account type instead of Universal Inbox.
•To open a message and all of its replies, touch it.
•To respond to a message, just open it and enter
your response in the text box at the bottom.
To forward a text message, touch and hold a
message in the conversation, then touch Forward
message.
For email, touch to choose
a reply or forward option.
•To open options, touch and
hold a message.
Tip: Tr y t he Messages widget in “Widgets” on
page 10.
Create messages
Find it: > Messaging >
Choose a message type. Then,
enter the recipient and message.
In text messages and emails,
touch Menu to add files or choose other options.
Send & receive attachments
To send a file in a message, open a new message,
touch Menu , and choose the file.
When you receive a message with an attachment,
open the message and touch the file name to
download it. Then, touch the name again to open it.
Some file formats can be converted to HTML for faster
viewing, and your phone will show a button that
says Get HTML version.
Tip: To send and receive large attachments faster, see
“Connect Wi-Fi networks” on page 39.
Set up messaging
To add email accounts, touch > Accounts > Add
account.
Messaging
23Messaging
•Corporate Sync is for Microsoft™ Exchange server
work email accounts. Enter details from your IT
administrator.
Tip: You might need to enter your domain name
with your user name (like domain/username).
Note: Some work accounts might require you to
add a password lock to your phone, for security. To
stop an account from showing the contacts you
create on your phone, touch Contacts,
touch Menu > Settings, then uncheck the
account under New contacts.
•Email is for most personal and other accounts that
aren’t on a Microsoft® Exchange Server. For
account details, contact the account provider.
To change your settings, touch > Messaging >
Menu , then touch:
•Manage accounts to change your user name or
password (or server settings, for email).
•Edit Universal Inbox to choose which accounts
show messages in the Universal Inbox.
•Messaging Settings to set the notification for each
account type (along with other preferences, for
email).
To get Gmail™ in your Messages widget and
Universal Inbox, you’ll need to add it as an Email
account: Touch > Messaging > Menu , then
touch Manage accounts > Add account > Email and
enter your Gmail™ details. If you added your Google
account too, turn off its email sync to avoid duplicate
email notices: Touch > Accounts, touch your
Google™ account, and touch the checkmark to turn off
Gmail.
Tip: For social network accounts, see “Add account”
on page 13.
Instant messages
Note: You might not have this feature. For details, ask
your service provider.
To send and receive instant messages, you can use
the IM app, Google Talk™, another instant messaging
app, or your browser.
Find it: > IM
•To use Google Talk, touch > Talk. To find out
more, visit www.google.com/talk
•You can also use your Web browser. Just enter your
IM provider’s Web site. Once you’re there, follow
the link to sign in.
•To search for instant messaging apps, touch >
Market. Your IM options will depend on your IM
provider.
24 Text entry
Voicemail
When you have a new voicemail, shows at the top
of your screen. To hear the voicemail, flick down the
notification bar and touch the .
If you need to change your voicemail number, in the
home screen touch Menu > Settings > Call
settings > Voicemail settings.
Text entry
think keyboard, now think smaller
Typing tips
To...
Enter symbols chosen from
a list
Touch Symbols
Enter alternate characters
in the corners of keys
To uch A l t e r n a t e
Enter several alternate
characters, until you press
Alternate again
To uch A l t e r n a t e
twice
Enter one capital letter Touch Shift
Enter only capital letters,
until you press Shift
again
To uch S h i ft t wi c e
Select text Hold Shift +
press Scroll
Cut, Copy, or Paste text
you selected
Touch and hold the
text box to open the
editing menu
Delete a character (hold to
delete more)
To uch D el e t e
25Tips & tricks
Text entry settings
When you enter text, your phone automatically
corrects or suggests words. To change these settings,
touch Menu > Settings > Language & keyboard,
then:
•To edit your word suggestion dictionary, touch User
dictionary.
•You can activate a touchscreen keyad that will open
any time you touch a text box. To activate it, or to
change its options, touch Android keyboard.
•To change the automatic correction settings for your
full keypad, touch Device keyboard.
Delete the current line Touch Alternate +
Delete
Jump to the beginning/end
of a line
Touch Alternate +
Scroll
Start a new line (email or
social networking) or send
the message (text
messages)
Touch Enter
To . ..
Tips & tricks
a few handy hints
Shortcuts
To...
Return to the home
screen
To u ch H o m e .
Open option
menus
Touch and hold an item, or
touch Menu , to see all of
your options.
See recently dialed
numbers
Touch Dialer > Recent.
Sleep/wake your
phone
Press Power .
Set lock screen Touch Menu > Settings
> Location & security >
Screen lock.
Google™ search Press Search on the
keypad.
Show last few apps
used
Touch and hold Home .
26 Tips & tricks
Use voice
commands
Touch > Voice
Commands, then say a
command listed on the
screen. You can only voice
dial a contact’s Home, Work,
or Mobile numbers.
Sync media to your
desktop / laptop
visit
motorola.com/mymedialink
Sync contacts from
your desktop /
laptop to your phone
Use the MOTOBLUR portal:
www.motorola.com/mymoto
blur.
Show email or
updates from a
group of friends
Touch Contacts >
Menu > Add group.
Create a group, then open
the group (touch Contacts at
the top of your Contacts
list). Touch History to see
this group’s messages, or
Status to see their updates.
Change which
messages appear in
the Universal Inbox
Open the Universal Inbox,
then touch Menu > Edit
Universal Inbox.
To . ..
Battery tips
Your phone is like a small computer, giving you a lot of
information and apps, at 3G speed, with a touch
display! Depending on what you use, that can take a
lot of power.
To start getting the most out of your battery,
touch Menu > Settings > Battery Manager >
Add a shortcut on
your home screen
for an app or contact
Touch and hold an open area
on your home screen to open
the Add to Home screen
menu, then choose
Shortcuts. Then, you can
choose from the
Applications or Contacts
lists.
Move a widget or
shortcut
Touch and hold the widget or
shortcut until you feel a
vibration, then drag it to
where you want.
Delete a widget or
shortcut
Touch and hold a widget or
shortcut until you feel a
vibration, then drag it to the
trash can at the bottom of
your screen.
To...
27Tips & tricks
Battery Profile. Choose Performance Mode for
constant data transfer and battery use, Battery Saver
Mode when your battery is low, or Smart Mode if you
want to set Battery Profile Options that limit your
data and wireless connections during off-peak hours.
In Battery Manager, you can also see what’s been
using the most battery.
To save even more battery life between charges, you
could reduce:
•recording or watching videos, listening to music, or
taking pictures.
•widgets that stream information to your home
screen, like news or weather (“Use & change your
home screen” on page 8).
•unused online accounts that you registered with
MOTOBLUR (“Edit & delete accounts” on page 14).
•Wi-Fi™ and Bluetooth™ use: Touch Menu >
Settings > Wireless & network settings, then
touch items to turn them off or on.
•GPS use: Touch Menu > Settings > Location &
security > Use GPS satellites.
•Email updates: Touch Messaging > Menu >
Messaging Settings > Email > Get new email >
Every hour or Manually.
•network speed: Touch Menu > Settings >
Wireless & networks > Mobile networks >
Select network > 2G Only saves battery.
•network searching: If you are out of coverage, to
keep your phone from looking for networks, press
and hold Power to open the Power key menu,
then touch Airplane mode.
•display brightness: Touch Menu > Settings >
Sound & display > Brightness > (dimmer setting).
•display timeout delay: Touch Menu > Settings >
Sound & display > Screen timeout > (shorter
setting).
28 Photos & videos
Photos & videos
see it, capture it, share it!
Photos
Take & share photos
Take that family photo, and post it online for everyone
to see.
Find it: Press and hold Camera
Note: Photos are stored on your microSD memory
card. To change picture resolution, in the viewfinder
touch Menu > Settings > Picture Resolution.
To take the photo, touch Capture.
245
3MP
New York, New York 10006
United States
Zoom in
Zoom Out
Capture
GPS On
Resolution (touch to change)
Tag (location or custom tags)
3MP
Photos Remaining
(depends on photo
resolution and memory
card)
Capture or zoom.
After you take the photo, you’ll see it briefly on the
screen—touch it to choose options like Share, Set As,
Upload, and Delete.
Photo options
In the viewfinder, touch Menu > Settings to open
a menu:
View your photos
Find it: > Gallery
Gallery
Camera roll
87 items
My Tags
1 tag
Folders
3 folders
All Photos
87 photos
Photos you took
Folders you created
Scroll down for all photos, videos, and more.
Photos you tagged
29Photos & videos
To zoom a picture,
pinch two fingers
together or apart on
the touchscreen.
Play a slideshow
Touch >
Gallery, touch a
picture, then
touch to start a
slideshow. To stop
the slideshow, touch
the display. To return
to the gallery,
touch Back .
Share your photo gallery
Find it: > Gallery
To send your photo in a message or post it online:
1Touch and hold a photo, then touch Share.
2Choose how you want to share—like Email,
MySpace, Social sharing or Text Messaging.
Tip: With Social sharing, you can post a photo to
more than one social network at the same time.
Manage your photos
Find it: > Gallery
Touch and hold a photo, then:
•To delete the photo, touch Delete.
•To set the photo as a contact picture, social network
profile picture, or wallpaper, touch Set as.
•To open file details, touch Picture Info.
Tip: To copy photos to/from a computer, go
to “Memory card & file transfer” on page 40.
Edit your photos
Find it: > Gallery > picture > Menu > Edit
To crop a photo, touch the crop tool, stretch and drag
the crop square to the image you want, then touch the
crop save icon.
30 Photos & videos
Videos
Record & share videos
Find it: > Camcorder
Tip: To send your video in a message, set the video
quality to Low (for MMS messages):
Touch Menu > Settings > Video quality.
To record the video, press Camera . To stop the
video recording, press Camera again.
You will see a thumbnail of your video in the bottom
right corner. Touch the thumbnail, then:
•To see all your videos, touch Gallery.
•To play the video, touch Play.
CIF New York, New York 10006
United States
Zoom in
Zoom Out
Record
00:30:10
Resolution (touch to change)
Tag (location or custom tags)
CIF
Minutes Remaining
(depends on video
resolution and memory
card)
Record or zoom.
•To send the video in a message or post it online,
touch Share. For more info on sharing your photos,
see “Share your video gallery” on page 30.
•To delete the video, touch Delete.
Play your videos
Find it: > Gallery > video
Share your video gallery
Find it: > Gallery
To send your video in a message or post online:
1Touch & hold a video, then touch Share.
2Choose how you want to share.
Manage your videos
Find it: > Gallery
To delete a video, touch and hold a video, then touch
Delete.
31Music
Music
when music is what you need...
Quick start: Music
Just open your music library, then select what you
want to play.
Find it: > Music > My Music
Your music is stored by artists, albums, songs, and
playlists. Touch a category, then touch the song or
playlist you want to play.
Tip: When a song is playing, you can touch Menu
to add it to a playlist or see other options.
To listen to music during a flight, turn off all your
network and wireless connections: Press and hold
Power > Airplane mode.
Music Artist
Album Title
Song Title
1:14 3:45
Playlists, Shuffle, and
Repeat
Music Controls
To t al Song T ime
Progress Bar
Set up music
What music transfer tools do I need?
To put music on your computer and then load it on
your phone, you need:
•Microsoft™ Windows™ PC or
Apple™ Macintosh™.
•USB data cable.
•memory card. Your music is stored on your memory
card. Your phone supports removable microSD
memory cards up to 32 GB capacity. To make sure
your memory card is installed, go to “Assemble &
charge” on page 3.
Tip: To see the available memory on your memory
card, touch Menu > Settings > SD card &
storage.
What music file formats can I play?
Your phone can play many types of files: MP3, M4A,
AAC, ACC+, MIDI, and WAV.
Note: Your phone does not support any DRM
protected files.
What headphones can I use?
Your phone has a 3.5mm headset jack for wired stereo
listening. You can go wireless with Bluetooth™ stereo
32 Music
headphones or speakers (see “Connect Bluetooth
devices” on page 39).
Get music
Rip a CD
Not literally. If you’re new to digital music transfer, this
means transferring music from a music CD to your
computer.
To rip a music CD on your computer, you can use
Microsoft™ Windows™ Media Player. You can
download Windows Media Player from
www.microsoft.com.
1On your computer, open Windows Media Player.
2Insert a music CD into the computer’s CD
ROM drive.
Note: Make sure you change the format to MP3 in
“Rip > Format > Rip Settings.”
3In the Windows Media Player window, click on the
“Rip” tab.
4Highlight the songs you want to import, and click
“Start Rip“.
The songs are imported to the Windows Media Player
Library.
Transfer using Windows Media Player
Transfer music files from a computer to your memory
card.
Note: Copyright—do you have the right? Always follow
the rules in your phone’s safety, regulatory, and legal
information, packaged with your phone.
1With a memory card inserted, and your phone
showing the home screen, connect a Motorola
micro USB data cable from your phone’s micro USB
port to a USB port on your computer. Your phone
should show in the status bar.
Note: Your phone supports Microsoft™ Windows™
XP, Windows Vista™, and Apple™ Macintosh™.
Other operating systems may not be compatible.
2Your phone shows a USB connection dialog. Touch
USB drive. You can’t use the files on your memory
card while it is connected.
3On your computer, open Windows Media Player.
4On the “Sync” tab, select “More Options.” Under
“Device,” select your phone.
5Select “Properties,” check the “Create folder
hierarchy on device” box, and click “OK.”
6Drag your music files over to the “Sync List” and
press “Start Sync.”
33Music
Transfer using USB
To use a USB cable, see “Memory card & file transfer”
on page 40.
Play music
Music library
Open your music library, then select what you want to
play.
Find it: > Music
Your music is stored by artists, albums, songs, and
playlists. Touch a category, then touch the song or
playlist you want to play. Touch Menu > Party
shuffle to randomly play all your songs, or touch
Search to look for a song.
Music player controls
controls
play/pause Touch / .
previous/next Touch / .
fast forward/rewind Touch & hold / .
view playlist Touch .
shuffle Touch .
repeat Touch .
Hide, wake, turn off
Touch Home to use another app. Your music
continues to play.
When you see in the status bar a song is playing,
flick down to see details. Touch the song to return to
the music controls.
To turn off your music touch .
Playlists
To add a song from the music library to a playlist, touch
and hold the song then touch Add to playlist. Choose
an existing playlist, or touch New to create a new
playlist.
volume Press the side volume keys.
view library To uch M e n u > Library.
turn shuffle on/off To u ch M e n u > Party
shuffle.
add to playlist To uch M e n u > Add to
playlist.
use as ringtone To uch M e n u > Use as
ringtone.
delete To u ch M e n u > Delete.
controls
34 Web
To add a song to the playlist you're playing,
touch Menu > Add to playlist in the music player.
To edit, delete and rename playlists, touch and hold the
playlist in the music library.
Web
you don’t need a computer, surf the web with your
phone
Quick start: Browser
Note: You might not have this feature. For details, ask
your service provider.
Find it: > Browser
To enter a Web page address in the browser or your
home screen, just start typing.
Pages with RSS news feeds show on the right side
of the address bar. To add the feed to a News widget,
touch Menu > More > RSS Feeds, then choose
the widget.
Note: If you can’t connect, contact your service
provider.
Bookmarks
Forward More
Refresh
New Window Windows
11:35
Search or type URL Go
Connection:
, ,
or Wi-Fi
Press to open the
address bar and menu.
Voice SearchText Search
35Web
Connect
Your phone uses the mobile phone network (over the
air) to automatically connect to the Web.
Note: Your service provider may charge to surf the
Web or download data.
To use a wireless network, touch Menu > Settings
> Wireless & networks. Touch Wi-Fi to turn it on,
then touch Wi-Fi settings to search for nearby
wireless networks. Touch a network to connect.
There’s more in “Connect Wi-Fi networks” on
page 39.
Web touch tips
When you touch a link, your
phone outlines it. If you
touch and hold the link, your
phone shows options, like Open in new window or
Bookmark link.
www.google.com: Google
www.google.com: Google
News results for android
Verizon Droid Success Limited by Android Market -
7 hours ago
The idon't ad campaign pits the Android-based Droid head-to-head
against the formidable iphone. Based on preliminary predictions ..
PC World - 1778 related articles »
Zoom
To zoom in or out,
pinch two fingers
together or apart.
source/android.com/ - Options
Android Community - Tracking the Android
Platform
application
developer
sreern
Browser options
Touch Menu to see browser options:
Download apps
Warning: Apps downloaded from the Web can be
from unknown sources. To protect your phone and
personal data, only download apps from sources you
trust, like “Apps & updates” on page 12.
Note: All apps downloaded are stored in your phone
memory.
To download apps:
1To launch the browser, touch > Browser.
2Find the app you want to download and touch the
download link.
options
Bookmarks Shows a list of your bookmarks.
Touch Add bookmark... to add
the current page to your list.
New window Opens a new window.
Refresh Reloads the current page.
More Shows browser options, like Find
on page, Select text, Page info,
Share page, Downloads, and
Settings.
36 Location
Manage your downloads
To view files or applications you have downloaded,
touch > Browser > > More > Downloads.
To clear your download history, touch Menu >
Clear list. To cancel, touch Menu > Cancel all
downloads.
YouTube™
Note: You might not have this feature. For details, ask
your service provider.
The YouTube user-generated content Web site lets you
share videos with YouTube users everywhere. You
don’t need a YouTube account to browse and view
videos.
Find it: > YouTube
Note: If you don’t have a YouTube account, visit
www.youtube.com to find out more. To create an
account or sign in, touch Menu > My account.
To Search, Upload, or Share videos, touch Menu .
Location
toss away your maps
MOTONAV™
Your phone comes with a trial version of MOTONAV
GPS navigation system, which shows you the way
with accurate maps and routing.
Find it: Home > Motonav
Turn-by-turn directions. You’ll never wonder where to
turn.
3-d lane guidance. Preview your route and
destination. You can look around to see landmarks and
turns.
Connected navigation. Get live traffic reports and
alerts. Select alternate routes.
Note: Availability may vary by market.
Navigation linked to contacts. Store an address or
location information, you’re two clicks away from
seeing it on a map.
For step-by-step instructions, go to
http://www.motorola.com/motoextras/mobile.
Google Maps™
Note: You might not have this feature. For details, ask
your service provider.
37Location
Where am I? What's around here? Let Google Maps
help you explore your surroundings and find what
you're looking for.
Find it: > Maps
Google Maps opens by default in “Map mode.”
Latitude
Join Latitude
See where your friends and family are on Google
Maps™. Plan to meet up, check that your parents got
home safely, or just stay in touch.
Don’t worry, your location is not shared unless you
agree to it. You need to join Latitude, and then invite
your friends to view your location or accept their
invitations. When using Google Maps (in any mode
except in Street View), touch Menu > Join
N Clark St
Wacker Dr
M
44 West Street
A
E Randolph St
N Micigan Ave
loC N
W Lake St W Lake St
E Wacker Pl
State/Lake
Lake
Randolph
St Metra
Randolph/
Wabash
Washington-Blue
E S WaterSt
M
M
M
Search Directions Layers
My Location Join Latitude More
Drag or flick to scroll.
Touch to show zoom.
Press to open a
menu where you can
search, get directions,
find your location, and
more.
Latitude. Read the privacy policy and, if you agree
with it, choose to continue.
Add & remove friends
Find it: > Maps > Menu > Latitude
To add friends:
1Touch Menu > Add friends.
2Touch Select from Contacts or Add via email
address, then touch a contact and Add friends.
If your friends already use Latitude, they’ll receive an
email request and a notification. If they have not yet
joined Latitude, they’ll receive an email request that
invites them to sign in to Latitude with their Google
account.
To remove friends:
1Touch Menu > Latitude to show your friends
list, then touch a friend in your list.
2Touch Remove.
Share location
When you receive a request to share location details
you can choose to:
•Accept and share back—see your friends location,
and your friend can see yours.
38 Wireless
•Accept, but hide my location—see your friend's
location, but they can't see yours.
•Don't accept—location information is not shared
between you and your friend.
Hide your location
To hide your location from a friend, touch Menu >
Latitude to show your friends list. Touch your contact
name, then touch Menu > Privacy > Hide your
location.
Turn off Latitude
Touch Menu > Latitude to show your friends list.
Touch Menu > Privacy > Turn off Latitude.
Wireless
lose the wires and go wireless
Quick start: Wireless
To connect a Bluetooth™ headset or car kit, touch
Menu > Settings > Wireless & networks >
Bluetooth settings
To use a Wi-Fi™ network for fast Internet access and
to download data, touch Menu > Settings >
Wireless & networks > Wi-Fi settings.
Note: Your phone's Wi-Fi features and power levels
are not allowed for outdoor operation in France. To
avoid unlawful interference with radio signals, do not
use the Wi-Fi features in France unless you are
indoors.
Bluetooth devices
Bluetooth settings
(your phone’s name)
Device name
Pair with this device
(found device name)
Make device discoverable
Discoverable
Scan for devices
Bluetooth
Turn on & scan.
Change your phone’s
Bluetooth name.
Connect.
Let Bluetooth devices
find your phone.
39Wireless
Turn Bluetooth power on or off
Find it: Menu > Settings > Wireless & networks
> Bluetooth
Note: To extend battery life, turn Bluetooth power
off when not in use.
Connect Bluetooth devices
Note: This feature requires an optional accessory.
To connect with a new device, you need to pair with it.
You only need to do this once for each device—to
connect again, just turn on the device.
1Make sure the device you are pairing with is in
discoverable mode.
Note: Refer to the guide that came with the device
for details.
2Touch Menu > Settings > Wireless &
networks > Bluetooth settings.
3Touch Bluetooth to turn on and scan. If Bluetooth
power is already on, touch Scan for devices.
4Touch a device to connect.
5If necessary, touch OK, or enter the device passkey
(like 0000) to connect to the device. When the
device is connected, the Bluetooth indicator
appears in the status bar.
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
After you connect:
•To reconnect with a device, simply turn on the
device or touch the device name in the Bluetooth
devices list.
•To disconnect a device, simply turn off the device,
or touch the device name in the devices list and
touch Menu > Disconnect.
Turn Wi-Fi power on or off
Find it: Menu > Settings > Wireless & networks
> Wi-Fi
Note: To extend battery life, turn off Wi-Fi power when
not in use.
Connect Wi-Fi networks
To find networks in your range:
1Touch Menu > Settings > Wireless &
networks > Wi-Fi settings.
2Touch Wi-Fi to turn on and scan. If Wi-Fi is already
on, touch Menu > Scan. Your phone lists the
networks it finds within range.
Tip: To see your phone’s MAC address or other
Wi-Fi details, touch Menu > Advanced.
40 Memory card & file transfer
3Touch a network to connect. If necessary, enter
pass codes from the network administrator and
touch Connect.
When your phone is connected to a Wi-Fi network,
appears in the status bar
Tip: Your phone automatically reconnects networks
you have used when they are in range and Wi-Fi power
is on.
Phone Network
You should not need to change any network settings.
Contact your service provider for help.
Touch Menu > Settings > Wireless & networks >
Mobile networks to show options for roaming
networks, network selection, operator selection, and
access point names.
Airplane Mode
Use airplane mode to turn all your wireless
connections off—useful when flying. Press Power
> Airplane mode.
Memory card & file transfer
copy photos, music, and more to your phone
Memory card
Note: You need the memory card installed for some
features on your phone, like Camera.
To insert a memory card, see “Assemble & charge” on
page 3.
To open and manage memory card files on your
phone, use “Quickoffice” on page 43.
Note: Do not remove your memory card while your
phone is using it or writing files on it.
Warning: When you format a memory card, all data
on the card is deleted.
To remove or format your memory card, you need to
unmount it. Touch Menu > Settings > SD card &
phone storage > Unmount SD card. Then, to format
your memory card, touch Format SD card.
View & transfer files
Your can use Motorola Phone Portal (MPP) to connect
your phone and computer with a cable or a Wi-Fi
network.
41Memory card & file transfer
When you connect your phone or type the MPP URL
into your computer’s browser, you’ll see the MPP
home screen.
Note: MPP works best with Internet Explorer 7 or
newer, with Java script and cookies enabled.
Show All recent activity, or only
your SMS (text messages) or
Calls.
Open your recent activity
(Home), Contacts, Photos,
Settings, File Manager, or
Support.
Choose your language.
Open details about your phone’s
network signal, battery, or
memory.
Connect through a Wi-Fi network
Note: Most public Wi-Fi networks (like the ones at
coffee shops) don’t let devices connect to each other.
In that case, you need a USB cable connection.
1Touch > Phone Portal
2 If your phone is
connected to a
Wi-Fi network, it
shows an MPP URL.
Use a computer on
the network to enter
the URL in a
browser. It opens the
MPP home screen!
Tip: When your phone’s Wi-Fi is on, it automatically
reconnects to nearby networks it has used. To turn
Wi-Fi on or off, touch Menu > Settings >
Wireless & networks > Wi-Fi
If your phone is not connected to a Wi-Fi
network, it asks you to connect. Touch OK to open
the Wi-Fi settings screen, then turn on Wi-Fi and
touch a network to connect.
For network passwords, ask other network users or
administrators. For your phone’s MAC address and
Wi-Fi details, touch Menu > Advanced.
http://###.###.#.###:###
42 Tools
When your phone is connected ( appears in the
status bar), touch Back to close the settings.
Soon, MPP shows a URL at the bottom of your
screen. Using a computer on the same Wi-Fi
network, just type the URL into the browser to open
the MPP home screen!
Connect through a USB cable
1Turn on your phone and
computer, and connect
them with a USB-to-micro
USB cable.
Your computer might guide
you through installing
Motorola drivers.
2Once your computer has the correct Motorola
drivers, it opens the MPP home page in your
browser. A Motorola icon appears in your task
bar, in the lower right of your computer screen.
If you have Motorola MediaLink, it will launch
instead of MPP. To use MPP, right-click in your
task bar, select “when the phone connects, launch,”
and choose MPP. Disconnect and reconnect your
phone to launch MPP.
To o l s
stay on top of things
Alarm clock
Find it: > Alarm & Timer
To turn on an alarm, touch the
check box.
When an alarm sounds, drag
Dismiss to turn it off or touch the
screen to delay.
To add an alarm, touch Menu
> Add alarm, then enter alarm
details.
To set a snooze period, in the
Alarm Clock list touch Menu
> Snooze time.
To use the timer, just open the alarm clock, touch
Timer at the top of the screen, and use your keypad to
enter countdown time.
Calendar
Find it: > Calendar
Wake up!
4:00am
Sleep in
7:00am Tuesday
Alarm
9:00am Tue, Fri
43Tools
Your calendar events can be
viewed in different ways:
Touch Menu > Agenda, Day,
or Week. When you highlight an
event in the day and week views,
more details appear.
Add calendar events
From any calendar view,
touch Menu > New event.
Enter event details and touch
Save.
Manage calendar events
To edit an event, touch and hold it, then touch Edit
event. When you’re done, touch Save.
To delete an event, touch and hold it, then
touch Delete event.
To go to today, touch Menu > Today.
Calculator
Find it: > Calculator
Your calculator has two views: basic and advanced. To
change your views, touch Menu > Advanced
panel or Basic panel. To clear history,
touch Menu > Clear history.
Sun Mon Tue Wed Thu Sat
28 29 30 31 123
456 8910
11 12 13 15 16 17
18 19 20 22 23 24
25 26 27 29 30 31
123 567
7
14
21
28
4
Fri
January 2009
Quickoffice
Use Quickoffice to view recent documents and files on
your memory card.
Find it: > Quickoffice
Touch a file or folder to open, or touch and hold a file
for options.
To manage your folders and transfer files, see
“Memory card & file transfer” on page 40.
44 Security
Security
help keep your phone safe
Quick start: Security
Find it: Menu > Settings > Location & security
You have lots of ways to keep your phone safe.
If you lose your phone, you can log into your
MOTOBLUR account from a computer to locate your
phone or clear the data on it:
www.motorola.com/mymotoblur.
Security
Display a screen preventing accidental
touches
Set up SIM card lock
Screen lock
Location & security settings
SIM card lock
Security lock
Passwords
Credential storage
Show password as you type
Visible passwords
Use secure credentials
Set SIM card lock and
change SIM PIN.
You’ll need to slide the
“unlock” icon when
you turn on your
screen.
You’ll enter a code
when you turn on your
screen.
Screen lock
Set your phone to display a lock screen, and prevent
accidental key presses, touch Menu > Settings >
Location & security > Screen lock. You can also set a
security lock to prevent others from using your phone.
To set your security level, touch Menu > Settings
> Location & security > Security lock > Security
lock type. Some work accounts might require you to
add a password lock to your phone, for security.
•Pattern lock: draw a pattern to unlock.
•Passcode lock: enter a code to unlock.
Note: You can make emergency calls on a locked
phone (“Emergency calls” on page 18). A locked
phone still rings, but you need to unlock it to
answer.
Lock pattern
To set the lock pattern,
touch Menu > Settings >
Location & security > Security
lock > Security lock type >
Pattern lock.
Follow the instructions to draw
your lock pattern.
When prompted, draw the
pattern to unlock the phone.
Draw an unlock pattern
45Security
Passcode lock
To set the passcode, touch Menu > Settings >
Location & security > Security lock > Security lock
type > Passcode lock.
Enter a passcode, then confirm it.
When prompted, enter the passcode to unlock the
phone.
Personalize your lock screen
To change your timeout, touch Menu > Settings >
Sound & display > Screen timeout. If you don't
touch the screen or press any keys for this amount of
time, the screen locks automatically. To unlock, see
“Lock & unlock” on page 45.
To change your lock screen picture, touch Menu >
Settings > Sound & display > Wallpaper settings.
Lock & unlock
To lock the screen/phone:
•Press Power .
•Let the screen time out (don’t press anything).
•Switch the power off.
To unlock the screen/phone:
•Touch Menu or switch the phone on to display
the lock screen.
•Touch Menu to unlock—if you've set a lock
pattern or passcode, you'll be asked to enter it.
Forgot your pattern or passcode?
In the passcode unlock screen, touch Menu >
Forgot passcode? to unlock your phone with your
MOTOBLUR email address and MOTOBLUR
password.
In the pattern unlock screen, after you enter an
incorrect pattern five times, you can touch Forgot
passcode? to unlock your phone with your
MOTOBLUR email address and MOTOBLUR
password.
Lock your SIM
Enable SIM PIN
To lock your SIM (the next time you power up the
phone you will need to enter your SIM PIN),
touch Menu > Settings > Location & security >
Set up SIM card lock > Lock SIM card. Enter your
SIM PIN code.
Caution: If you enter an incorrect PIN code three
times, your phone locks your SIM card and asks for
your PIN unlock code, contact your service provider.
46 Security
Change SIM PIN
To change your SIM PIN, touch Menu > Settings
> Location & security > Set up SIM card lock >
Change SIM PIN.
PUK code
To unlock your SIM PIN, you need to enter your PIN
unlock code (PUK code) when prompted.
Note: Your PUK code is provided by your service
provider.
Reset
To reset your phone to factory settings and erase all
the data on your phone, touch Menu > Settings >
SD card & phone storage > Factory data reset >
Reset phone.
Warning: All downloaded apps and user data on your
phone will be deleted. Data on your memory card will
not be deleted.
Lost, stolen, broken, cleared
Don't you just hate it when your life is on your phone
and it all goes wrong? Lose it, break it, reset it, or even
worse—stolen! Relax, MOTOBLUR can help find your
phone, clear it (if you need to) and best of all, restore
all your stuff.
Note: You cannot track or clear your phone if it is
turned off.
Track your phone
To locate your phone:
1Log into your MOTOBLUR account:
www.motorola.com/mymotoblur.
2On the phone profile page, follow the link to locate
your phone.
MOTOBLUR locates your phone using GPS and
AGPS (see the important legal and safety
information packaged with your phone).
Remote clear
To wipe your phone data:
1Log into your MOTOBLUR account:
www.motorola.com/mymotoblur.
2On the phone profile page, follow the link to delete
data.
Warning: All downloaded apps and user data on
your phone will be deleted. Data on your memory
card will not be deleted.
Restore your phone
If you lose your phone don’t worry, your contacts are
backed-up on MOTOBLUR.
47Troubleshooting
Note: If you recover your phone after a remote clear,
you need to complete a factory reset: Hold the
Camera key and press Power to turn on your
phone. When you see a blue screen, press Press
Alternate +L and Alternate +W. Now, press
Power and log into MOTOBLUR.
If you get your next MOTOBLUR product, just log into
your existing MOTOBLUR account on your phone to
recover all your stuff automatically.
To recover your Android Market apps, see “Manage &
restore apps” on page 12.
Troubleshooting
we’re here to help
Crash recovery
In the unlikely event that your phone stops responding
to touches and key presses, try a quick reset. Remove
the back cover and battery (“Assemble & charge” on
page 3), then replace and turn on your phone as usual.
Service & repairs
Go to www.motorola.com/support, where you can
select from a number of customer care options. You
can also contact the Motorola Customer Support
Center at 0800 666 8676 (Argentina), (800-201-442
(Chile), 01-800-700-1504 (Colombia), 01 800 021 0000
(México), 0800-100-4289 (Venezuela), or 0-800-52-470
(Perú).
48
Safety, Regulatory & Legal
Battery Use & Safety
Batter y Use & Safety
Important: Handle and store batteries properly to avoid injury or damage.
Most battery issues arise from improper handling of batteries, and particularly from
the continued use of damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise attempt to
change the form of your battery.
• Don’t let the mobile device or battery come in contact with water.*
Water
can get into the mobile device’s circuits, leading to corrosion. If the mobile device
and/or battery get wet, have them checked by your service provider or contact
Motorola, even if they appear to be working properly.*
• Don’t allow the battery to touch metal objects.
If metal objects, such as
jewelry, stay in prolonged contact with the battery contact points, the battery
could become very hot.
• Don’t place your mobile device or battery near a heat source.*
Excessive
heat can damage the mobile device or the battery. High temperatures can cause
the battery to swell, leak, or malfunction. Therefore:
• Don’t dry a wet or damp battery with an appliance or heat source
, such as
a hair dryer or microwave oven.
DOs
• Do avoid leaving your mobile device in your car in high temperatures.*
• Do avoid dropping the battery or mobile device.*
Dropping these items,
especially on a hard surface, can potentially cause damage.*
• Do contact your service provider or Motorola if your mobile device or
battery has been damaged from dropping or high temperatures.
* Note:
Always make sure that the battery compartment is closed and secure to
avoid direct exposure of the battery to any of these conditions.
Important: Use Motorola Original products for quality assurance and
safeguards.
To aid consumers in identifying authentic Motorola batteries from
non-original or counterfeit batteries (that may not have adequate safety protection),
Motorola provides holograms on its batteries. Consumers should confirm that any
battery they purchase has a “Motorola Original” hologram.
Motorola recommends you always use Motorola-branded batteries and
chargers.
Motorola mobile devices are designed to work with Motorola batteries.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm that it has a “Motorola Original”
hologram;
•
If there is no hologram, the battery is not a Motorola battery;
•
If there is a hologram, replace the battery and try charging it again;
•
If the message remains, contact a Motorola authorized service center.
Important:
Motorola’s warranty does not cover damage to the mobile device caused
by non-Motorola batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Proper and safe battery disposal and recycling:
Proper battery disposal is not
only important for safety, it benefits the environment. Consumers may recycle their
used batteries in many retail or service provider locations. Additional information on
proper disposal and recycling may be found on the Web:
•
www.motorola.com/recycling
•
www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries in accordance with local
regulations. Contact your local recycling center or national recycling
organizations for more information on how to dispose of batteries.
Warning:
Never dispose of batteries in a fire because they may explode.
Battery Charging
Batter y Chargi ng
Notes for charging your product’s battery:
•
When charging your battery, keep it near room temperature. Never expose
batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when
charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take more time to charge.
032375o
49
•
Motorola batteries and charging systems have circuitry that protects the battery
from damage from overcharging.
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel
of a vehicle. Using a mobile device or accessory for a call or other application while
driving may cause distraction. Using a mobile device or accessory may be prohibited
or restricted in certain areas, always obey the laws and regulations on the use of
these products.
While driving, NEVER:
•
Type or read texts.
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking features (such as
audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and accessories
in the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Remember to follow the “Smart Practices While Driving” in this guide and at
www.motorola.com/callsmart
(in English only).
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when exposed to
flashing lights, such as when playing videos or games. These may occur even if a
person has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family history of such
occurrences, please consult with your physician before playing videos or games or
enabling a flashing-lights feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following symptoms occur:
convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or
disorientation. It is always a good idea to hold the screen away from your eyes,
leave the lights on in the room, take a 15-minute break every hour, and stop use if
you are tired.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume sound
level, the less time is required before your hearing could be affected.
To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English
only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering
finger-written characters, you may experience occasional discomfort in your hands,
arms, shoulders, neck, or other parts of your body. If you continue to have discomfort
during or after such use, stop use and see a physician.
[Nov0109]
Small Children
Keep your mobile device and its accessories away from small children.
These products are not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
50
Glass Parts
Some parts of your mobile device may be made of glass. This glass could break if
the product is dropped on a hard surface or receives a substantial impact. If glass
breaks, do not touch or attempt to remove. Stop using your mobile device until the
glass is replaced by a qualified service center.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always, posted and
can include fueling areas, such as below decks on boats, fuel or chemical transfer or
storage facilities, or areas where the air contains chemicals or particles, such as
grain dust, or metal powders.
When you are in such an area, turn off your mobile device, and do not remove,
install, or charge batteries. In such areas, sparks can occur and cause an explosion
or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local regulatory
authorities for more information.
032374o
032376o
032375o
Radio Frequency (RF) Energy
Exposure to RF Energy
Your mobile device contains a transmitter and receiver. When it is ON, it receives
and transmits RF energy. When you communicate with your mobile device, the
system handling your call controls the power level at which your mobile device
transmits.
Your mobile device is designed to comply with local regulatory requirements in your
country concerning exposure of human beings to RF energy.
RF Energy Operational Precautions
For optimal mobile device performance, and to be sure that human exposure to RF
energy does not exceed the guidelines set forth in the relevant standards, always
follow these instructions and precautions:
•
When placing or receiving a phone call, hold your mobile device just like you
would a landline phone.
•
If you wear the mobile device on your body, always place the mobile device in a
Motorola-supplied or approved clip, holder, holster, case, or body harness. If you
do not use a body-worn accessory supplied or approved by Motorola, keep the
mobile device and its antenna at least 2.5 centimeters (1 inch) from your body
when transmitting.
Do not dispose of your battery or mobile device with your
household waste. See “Recycling” for more information.
For indoor use only.
Listening at full volume to music or voice through a headset may
damage your hearing.
Symbol Definition
51
•
Using accessories not supplied or approved by Motorola may cause your mobile
device to exceed RF energy exposure guidelines. For a list of Motorola-supplied
or approved accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from external
sources if inadequately shielded, designed, or otherwise configured for RF energy
compatibility. In some circumstances, your mobile device may cause interference
with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to do
so.
In an aircraft, turn off your mobile device whenever instructed to do so by airline
staff. If your mobile device offers an airplane mode or similar feature, consult airline
staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or defibrillator,
consult your physician before using this mobile device.
Persons with implantable medical devices should observe the following precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the
implantable medical device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to minimize the potential
for interference.
•
Turn OFF the mobile device immediately if you have any reason to suspect that
interference is taking place.
Read and follow the directions from the manufacturer of your implantable medical
device. If you have any questions about using your mobile device with your
implantable medical device, consult your healthcare provider.
Specific Absorption Rate (IEEE)
SAR (IEEE)
Your model wireless phone meets the governmental
requirements for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed and
manufactured to not exceed limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the U.S. Government and by the
Canadian regulatory authorities. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed for the safety of all persons,
regardless of age or health, and to account for any variations in measurements.
The exposure standard for mobile devices employs a unit of measurement known as
the Specific Absorption Rate (SAR). The IEEE SAR limit set by the FCC and by the
Canadian regulatory authorities is 1.6 watts per kilogram (W/kg), averaged over one
gram of tissue. Tests for SAR are conducted using procedures accepted by the FCC
and by Industry Canada with the mobile device transmitting at its highest certified
power level in all tested frequencies. Although the SAR is determined at the highest
certified power level, the actual SAR level of the mobile device while operating can
be below the maximum value. This is because the mobile device is designed to
operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station, the lower the
power output.
Before a mobile device is available for sale to the public in the U.S. and Canada, it
must be tested and certified to the FCC and Industry Canada that it does not exceed
the limit established by each government for safe exposure. The tests are performed
in positions and locations (e.g., at the ear and worn on the body) submitted to the
FCC and available for review by Industry Canada. The highest SAR value for this
mobile device when tested for use at the ear is 0.46 W/kg, and when worn on the
body, as described in this guide, is 0.50 W/kg. The SAR value for this mobile device
in its data transmission mode (body-worn use) is 0.16 W/kg. Body-worn
measurements can differ, depending upon available accessories and regulatory
52
requirements. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this product.
While there may be differences between the SAR levels of various mobile devices
and at various positions, they meet the governmental requirements for safe
exposure. Please note that improvements to this product model could cause
differences in the SAR value for later products; in all cases, products are designed to
be within the guidelines.
Additional information on SAR can be found on the Cellular Telecommunications
& Internet Association (CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA) Web site:
http://www.cwta.ca
Information from the World Health
Organization
WHO Information
“Present scientific information does not indicate the need for any special
precautions for the use of mobile phones. If you are concerned, you may want to
limit your own or your children’s RF exposure by limiting the length of calls or by
using handsfree devices to keep mobile phones away from your head and body.”
Source: WHO Fact Sheet 193
Further information:
http://www.who.int/peh-emf
European Union Directives Conformance
Statement
EU Conformanc e
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
0168
[Only Indoor Use Allowed In France
for Bluetooth and/or Wi-Fi]
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC
(to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
Product Approval Number from your product’s label in the “Search” bar on the Web
site.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
0168
Product
Approval
Number
53
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference
that may cause undesired operation of the device. See RSS-GEN 7.1.5. This Class B
digital apparatus complies with Canadian ICES-003.
GPS & AGPS
GPS & AGPS
Your mobile device can use Global Positioning System (GPS) signals for
location-based applications. GPS uses satellites controlled by the U.S. government
that are subject to changes implemented in accordance with the Department of
Defense policy and the Federal Radio Navigation Plan. These changes may affect
the performance of location technology on your mobile device.
Your mobile device can also use Assisted Global Positioning System (AGPS), which
obtains information from the cellular network to improve GPS performance. AGPS
uses your wireless service provider's network and therefore airtime, data charges,
and/or additional charges may apply in accordance with your service plan. Contact
your wireless service provider for details.
Your Location
Location-based information includes information that can be used to determine the
approximate location of a mobile device. Mobile devices which are connected to a
wireless network transmit location-based information. Devices enabled with GPS or
AGPS technology also transmit location-based information. Additionally, if you use
applications that require location-based information (e.g. driving directions), such
applications transmit location-based information. This location-based information
may be shared with third parties, including your wireless service provider,
applications providers, Motorola, and other third parties providing services.
Emergency Calls
When you make an emergency call, the cellular network may activate the AGPS
technology in your mobile device to tell the emergency responders your approximate
location.
AGPS has limitations and
might not work in your area
. Therefore:
•
Always tell the emergency responder your location to the best of your ability; and
•
Remain on the phone for as long as the emergency responder instructs you.
Performance Tips
•
Go outside and away from underground locations, covered vehicles, structures
with metal or concrete roofs, tall buildings, and foliage. Indoor performance
might improve if you move closer to windows, but some window sun shielding
films can block satellite signals.
•
Move away from radios, entertainment equipment, and other electronic devices.
Navigation
Navigat ion
When using navigation features, note that mapping information, directions and
other navigational data may contain inaccurate or incomplete data. In some
countries, complete information may not be available. Therefore, you should visually
confirm that the navigational instructions are consistent with what you see. All
drivers should pay attention to road conditions, closures, traffic, and all other factors
that may impact driving. Always obey posted road signs.
Smart Practices While Driving
Drivi ng Safety
Check the laws and regulations on the use of mobile devices and their ac-
cessories in the areas where you drive. Always obey them. The use of these
devices may be prohibited or restricted in certain areas—for example,
handsfree use only may be required. Go to
www.motoro-
la.com/callsmart
(in English only) for more information.
Your mobile device lets you communicate by voice and data—almost anywhere,
anytime, wherever wireless service is available and safe conditions allow. When
54
driving a car, driving is your first responsibility. If you choose to use your mobile
device while driving, remember the following tips:
• Get to know your Motorola mobile device and its features such as speed
dial, redial and voice dial.
If available, these features help you to place your
call without taking your attention off the road.
• When available, use a handsfree device.
If possible, add an additional layer
of convenience to your mobile device with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be able to access your
mobile device without removing your eyes from the road. If you receive an
incoming call at an inconvenient time, if possible, let your voicemail answer it for
you.
• Let the person you are speaking with know you are driving; if necessary,
suspend the call in heavy traffic or hazardous weather conditions.
Rain,
sleet, snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving.
Jotting down a
“to do” list or going through your address book takes attention away from your
primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your
car is not moving or before pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may be
distracting.
Make people you are talking with aware you are driving and
suspend conversations that can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local emergency
number in the case of fire, traffic accident, or medical emergencies (wherever
wireless phone service is available).
• Use your mobile device to help others in emergencies.
If you see an auto
accident, crime in progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number (wherever wireless phone
service is available), as you would want others to do for you.
• Call roadside assistance or a special non-emergency wireless
assistance number when necessary.
If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor traffic accident where
no one appears injured, or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency wireless number (wherever wireless
phone service is available).
Privacy & Data Security
Priva cy & Data Secur ity
Motorola understands that privacy and data security are important to everyone.
Because some features of your mobile device may affect your privacy or data
security, please follow these recommendations to enhance protection of your
information:
• Monitor access
—Keep your mobile device with you and do not leave it where
others may have unmonitored access. Lock your device’s keypad where this
feature is available.
• Keep software up to date
—If Motorola or a software/application vendor
releases a patch or software fix for your mobile device that updates the device’s
security, install it as soon as possible.
• Secure Personal Information
—Your mobile device can store personal
information in various locations including your SIM card, memory card, and
phone memory. Be sure to remove or clear all personal information before you
recycle, return, or give away your device. You can also backup your personal data
to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile device,
go to
www.motorola.com/support
• Online accounts
—Some mobile devices provide a Motorola online account
(such as MOTOBLUR). Go to your account for information on how to manage the
account, and how to use security features such as remote wipe and device
location (where available).
•
Applications—Install third party applications from trusted sources only.
Applications can have access to private information such as call data, location
details and network resources.
• Location-based information
—Location-based information includes
information that can be used to determine the approximate location of a mobile
device. Mobile phones which are connected to a wireless network transmit
location-based information. Devices enabled with GPS or AGPS technology also
transmit location-based information. Additionally, if you use applications that
55
require location-based information (e.g. driving directions), such applications
transmit location-based information. This location-based information may be
shared with third parties, including your wireless service provider, applications
providers, Motorola, and other third parties providing services.
• Other information your device may transmit
—Your device may also transmit
testing and other diagnostic (including location-based) information, and other
non-personal information to Motorola or other third-party servers. This
information is used to help improve products and services offered by Motorola.
If you have further questions regarding how the use of your mobile device may
impact your privacy or data security, please contact Motorola at
privacy@motorola.com
, or contact your service provider.
Use & Care
Use & Care
To care for your Motorola mobile device, please observe the following:
liquids
Don’t expose your mobile device to water, rain, extreme humidity,
sweat, or other liquids. If it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may damage the mobile device.
extreme heat or cold
Avoid temperatures below 0°C/32°F or above 45°C/113°F.
microwaves
Don’t try to dry your mobile device in a microwave oven.
dust and dirt
Don’t expose your mobile device to dust, dirt, sand, food, or other
inappropriate materials.
cleaning solutions
To clean your mobile device, use only a dry soft cloth. Don’t use alcohol
or other cleaning solutions.
shock and vibration
Don’t drop your mobile device.
protection
To help protect your mobile device, always make sure that the battery
compartment and any connector covers are closed and secure.
Recycling
Recycli ng
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories (such as chargers,
headsets, or batteries) with your household waste, or in a fire. These items should
be disposed of in accordance with the national collection and recycling schemes
operated by your local or regional authority. Alternatively, you may return unwanted
mobile devices and electrical accessories to any Motorola Approved Service Center
in your region. Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional
authorities for more details.
California Perchlorate Label
Perchlorat e Label
Some mobile phones use an internal, permanent backup battery on the printed
circuit board that may contain very small amounts of perchlorate. In such cases,
California law requires the following label:
56
Perchlorate Material – special handling may apply when the battery is recycled or
disposed of. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
There is no special handling required by consumers.
Hearing Aid Compatibility with Mobile
Phones
Hearing Aid Compatibilit y
Some Motorola phones are measured for compatibility with hearing aids. If the box
for your particular model has “Rated for Hearing Aids” printed on it, the following
explanation applies.
When some mobile phones are used near some hearing devices (hearing aids and
cochlear implants), users may detect a buzzing, humming, or whining noise. Some
hearing devices are more immune than others to this interference noise, and phones
also vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of their mobile
phones, to assist hearing device users in finding phones that may be compatible
with their hearing devices. Not all phones have been rated. Phones that are rated
have the rating on their box or a label on the box. To maintain the published Hearing
Aid Compatibility (HAC) rating for this mobile phone, use only the original equipment
battery model.
The ratings are not guarantees. Results will vary depending on the user’s hearing
device and hearing loss. If your hearing device happens to be vulnerable to
interference, you may not be able to use a rated phone successfully. Trying out the
phone with your hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and are likely to
generate less interference to hearing devices than phones that are not labeled. M4
is the better/higher of the two ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are likely to be more
usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than
unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Hearing devices may also be measured for immunity to this type of interference.
Your hearing device manufacturer or hearing health professional may help you find
results for your hearing device. The more immune your hearing aid is, the less likely
you are to experience interference noise from mobile phones.
Software Copyright Notice
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola and third-party software providers certain
exclusive rights for copyrighted software, such as the exclusive rights to distribute
or reproduce the copyrighted software. Accordingly, any copyrighted software
contained in Motorola products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the extent allowed by law. Furthermore,
the purchase of Motorola products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the copyrights, patents, or
patent applications of Motorola or any third-party software provider, except for the
normal, non-exclusive, royalty-free license to use that arises by operation of law in
the sale of a product.
Content Copyright
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the provisions of
the Copyright Laws of the United States and other countries. This device is intended
solely for copying non-copyrighted materials, materials in which you own the
copyright, or materials which you are authorized or legally permitted to copy. If you
are uncertain about your right to copy any material, please contact your legal
advisor.
Open Source Software Information
OSS Information
For instructions on how to obtain a copy of any source code being made publicly
available by Motorola related to software used in this Motorola mobile device, you
may send your request in writing to the address below. Please make sure that the
request includes the model number and the software version number.
MOTOROLA, INC.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
57
USA
The Motorola website
opensource.motorola.com
also contains information
regarding Motorola's use of open source.
Motorola has created the
opensource.motorola.com
website to serve as a
portal for interaction with the software community-at-large.
To view additional information regarding licenses, acknowledgments and required
copyright notices for open source packages used in this Motorola mobile device,
please press Menu Key >
Settings
>
About Phone
>
Legal & Safety
>
Open source licenses
. In addition, this Motorola device may include
self-contained applications that present supplemental notices for open source
packages used in those applications.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and Canada
may restrict the exportation or re-exportation of this product to certain destinations.
For further information contact the U.S. Department of Commerce or the Canadian
Department of Foreign Affairs and International Trade.
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates and
allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service
of your Motorola Personal Communications Product you will need to provide a copy
of your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Service & Repairs
If you have questions or need assistance, we're here to help.
Go to
www.motorola.com/repair
, where you can select from a number of
customer care options. You can also contact the Motorola Customer Support Center
at 1-800-331-6456 (United States), 1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575 (Canada).
Motorola Limited Warranty for the United
States and Canada
Wa rr a n t y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its mobile
telephones (“Products”), Motorola-branded or certified accessories sold for use with
these Products (“Accessories”), and Motorola software contained on CD-ROMs or
other tangible media and sold for use with these Products (“Software”) to be free
from defects in materials and workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a consumer's exclusive remedy,
and applies as follows to new Motorola Products, Accessories, and Software
purchased by consumers in the United States or Canada, which are accompanied by
this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of purchase by
the first consumer purchaser of the product
unless otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™ covers and
cases.
Limited lifetime warranty
for the
lifetime of ownership by the first consumer
purchaser of the product.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the
lifetime of ownership by the first consumer
purchaser of the product.
58
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that result
from the use of non-Motorola branded or certified Products, Accessories, Software
or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming
or non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty or
for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
Products Covered Length of Coverage
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the software
will meet your requirements or will work in combination with any hardware or
software applications provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in
physical media (e.g. software that is downloaded from the Internet), is provided “as
is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price
of any Products, Accessories or Software that does not conform to this warranty. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or applications added to your
Product, Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data, software, and
applications, please create a back up prior to requesting service.
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
59Troubleshooting
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or Software,
at your expense, to a Motorola Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name of your service provider, if
applicable; (d) the name and location of the installation facility (if applicable) and,
most importantly; (e) your address and telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE
THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS
PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights, and you may also have
other rights that vary from state to state or from one jurisdiction to another.
USA All Products, Accessories, and Software:
1-800-331-6456
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
Copyright & Trademarks
Motorola, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Note:
Do not ship your product to the above address. If you need to return your product
for repairs, replacement, or warranty service, please contact the Motorola Customer
Support Center at:
1-800-734-5870 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not be
available in all areas; additional terms, conditions and/or charges may apply. Contact your
service provider for details.
All features, functionality, and other product specifications, as well as the information
contained in this guide, are based upon the latest available information and believed to
be accurate at the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.
MOTOBLUR and the MOTOBLUR logo are trademarks of Motorola, Inc. The Bluetooth
trademarks are owned by their proprietor and used by Motorola, Inc. under license.
is a Certification Mark of the Wireless Fidelity Alliance, Inc. Google, YouTube,
Picasa, Gmail, and the Google logo are trademarks of Google, Inc. Facebook is a
trademark of Facebook, Inc. Microsoft, Windows, Windows Me, and Windows Vista are
registered trademarks of Microsoft Corporation in the United States and other countries.
All other product or service names are the property of their respective owners.
© 2010 Motorola, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly approved by
Motorola, will void the user’s authority to operate the equipment.
Bluetooth ID: B016119
Product ID: MOTOROLA
CHARM
with MOTOBLUR (MB502)
Manual Number: 68000202552-A
