Motorola Mobility T56MZ3 Quad-Band GSM/GPRS/EDGE (downlink only) and Dual-Band WCDMA Mobile Phone User Manual
Motorola Mobility LLC Quad-Band GSM/GPRS/EDGE (downlink only) and Dual-Band WCDMA Mobile Phone
user manual
1
User Manual
Internal Name: Bunting 3G
Model Name: WX306
2
WELCOME
Whether you‟re a talker, a texter, or just love listening to music or
taking photos and videos on the move, the WX306 does it all.
Note: WX306 uses a single SIM card.
We‟ve crammed all the main features of your phone into this handy
guide—you can even take the guide with you.
If you‟d like even more information about how to use your new WX306,
visit www.motorola.com/support.
So, let‟s go.
Note: Your phone may not appear exactly as the images in this guide.
However, all key locations, sequences, and functions are the same.
Caution: Before assembling, charging, or using your phone for the first
time, please read the important safety, regulatory and legal information
in this guide.
3

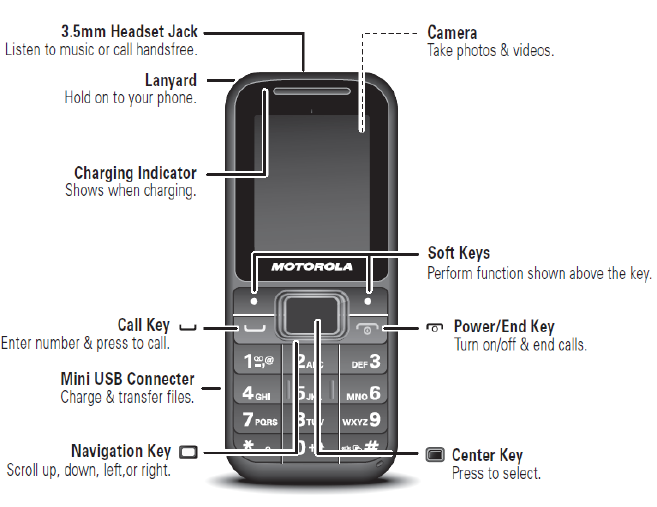

YOUR PHONE
Messages
4
MESSAGES
Send an SMS or MMS
Press > Messaging > Write message > Text message or
Multimedia message.
Enter your message.
Tip: Press Options > Input method to switch text entry modes.
Press to switch input modes. Press to enter a space.
Press .
Select Enter number, enter a number and press , or select
Add from Phonebook and scroll to a contact. Press to
select a contact.
Press .
Read messages
When you receive a message you will see on your screen. Press
View > to open the message.
5
CALLS
Make calls
Enter a number and press .
Answer calls
When your phone rings or vibrates, press .
End a call
Press
Redial number
From the home screen, press to see a list of All calls.
Scroll to the entry you want and press .
6
Emergency calls
To call an emergency number, enter the
emergency number and press .
Your service provider programs one or more
emergency phone numbers that you can call
under any circumstances, even when your phone is locked.
Emergency numbers vary by country. Your pre-programmed
emergency number(s) may not work in all locations, and sometimes an
emergency call cannot be placed due to network, environmental, or
interference issues.
7
TIPS&TRICKS
Ring style
To quickly switch your ring style, press and hold from the home
screen.
Voicemail
Press and hold . If your voicemail number is preset, you will
connect.
Backlight time
To set how long your backlight stays on, press > Settings >
Phone settings > LCD backlight.
Music
8
MUSIC
To use the music player, insert a microSD memory card (optional).
The music player supports MP3, MIDI, and AMR music formats.
Play music
Press > Multimedia > Media player
Controls
function
play/pause Press .
next/previous Press right or left.
song
volume Press up or down.
Tip: To view music stored on your microSD memory card, press >
File manager > Memory card. To transfer music to/from your
memory card, plug your USB cable into your phone & computer, then
drag & drop files.
9
MENU APP
Multimedia
• Camera
• Image viewer
• FM radio
• Sound recorder
• Schedule FM record
• Picture share
• Media player
Phonebook
Call center
• Call history
Messaging
• Write message
• Inbox
• Drafts
• Outbox
• Sent messages
• Delete messages
• Email
• Broadcast message
• Templates
• Message settings
Browser
Fun & Games
File manager
• Phone
• Memory card
Tools
• STK
• Alarm
• World clock
• Calendar
• Calculator
• Tasks
• Currency converter
Settings
• Phone settings
• Call settings
• Network settings
• Security settings
• Connectivity
• Master Clear
• Shortcuts
• Connection manager
10
LET’S GO
Cover off. SIM in.
microSD in. Battery in.
11
Cover on. Charge up.
12
BASICS
Turn it on & off
Press and hold for a few seconds to
turn the phone on/off.
Menu navigation
Press the center key to open the main
menu.
Tip: You can also press Menu (right soft key).
Press the navigation key up, down, right
or left to highlight a menu option.
Press to select the highlighted option.
Personalize
13
PERSONALIZE
Set your wallpaper
Change the wallpaper to one that makes you smile.
Press > Settings > Phone settings > Display > Wallpaper
Set time & date
Press > Settings > Phone settings > Time and date
Set auto power
Choose when to receive calls and messages—really useful stuff:
Press > Settings > Phone settings > Schedule power off
Contacts
14
CONTACTS
Save contacts
Enter the number on the home screen and press
Options > Save to Phonebook.
Enter the contact details and press Yes to save.
Tip: Press > Phonebook > Options >Phonebook
settings > Preferred storage to choose where to save your
contacts (To SIM, or To phone).
Call contacts
Press > Phonebook.
Press up or down, to scroll through the list to highlight
the contact‟s number.
Press .
15
PHONTS& VIDEOS
Take photos & videos
To use the camera or video recorder, press > Multimedia >
Camera.
Press to take your photo. Then to:
• Send photos by Bluetooth press Options > Forward > Via
Bluetooth.
• Send photos by MMS press Options > Forward > As multimedia
message.
• To delete the photo, press Options > Delete
• To return to the viewfinder, press Back.
Tip: To set where your photos are stored press Settings> camera>
settings > Adv.settings > Storage > Phone or Memory card.
To set where your videos are stored press Settings >Adv.settings >
Storage > Phone or Memory card.
To transfer photos or videos to/from your memory card, plug your
USB cable into your phone & computer, then drag & drop files.
Ra
16
RADIO
Listen to the radio
Plug a headset into your phone.
Note: The FM radio works only when the headset is plugged in.
Press > Multimedia> FM radio from the home screen.
To tune in a station, press left or right or press Options > Auto
search.
To adjust volume, press up or down.
To turn off the radio, press Options > Close.
Bluetooth
17
WEB
Surf the web
Note: If you can‟t connect, contact your service provider.
Use your phone‟s browser to surf your favorite Web sites.
Press > Browser.
• To go to your home page, press Homepage.
• To go to a Web page, press Input address.
• To bookmark a page, press Options > Add to bookmarks.
18

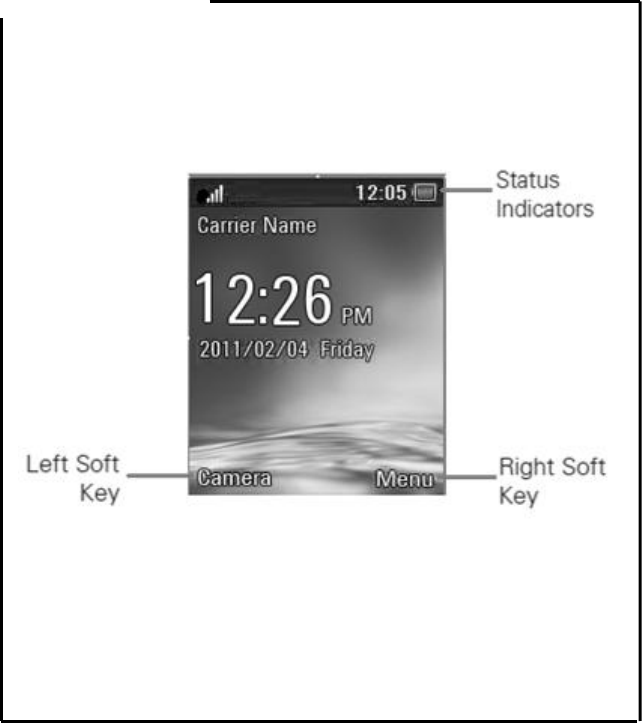

DISPLAY
The home screen displays when you turn on the phone.
Status indicators can appear across the top of the home screen:
Note: Your phone‟s home screen may be different than the one
shown.
19
Safety, Regulatory & Legal
Battery Use & Safety
Important: Handle and store batteries properly to avoid injury or
damage.
Most battery issues arise from improper handling of batteries, and
particularly from the continued use of damaged batteries.

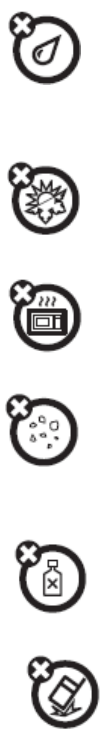

DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise attempt
to change the form of your battery.
• Don’t let the mobile device or battery come in contact with
liquids.*
Liquids can get into the mobile device‟s circuits, leading to corrosion.
• Don’t allow the battery to touch metal objects. If metal objects,
such as jewelry, stay in prolonged contact with the battery contact
points, the battery could become very hot.
• Don’t place your mobile device or battery near a heat source.*
High temperatures can cause the battery to swell, leak, or malfunction.
• Don’t dry a wet or damp battery with an appliance or heat source,
such as a hair dryer or microwave oven.
DOs
• Do avoid leaving your mobile device in your car in high
20
temperatures.*
• Do avoid dropping the mobile device or battery.* Dropping these
items, especially on a hard surface, can potentially cause damage.*
• Do contact your service provider or Motorola if your mobile
device or battery has been damaged by dropping, liquids or high
temperatures.
* Note: Always make sure that the battery compartment and any
connector covers are closed and secure to avoid direct exposure of the
battery to any of these conditions, even if your product information
states that your mobile device can resist damage from these
conditions.
Important: Motorola recommends you always use
Motorola-branded batteries and chargers for quality assurance
and safeguards. Motorola‟s warranty does not cover damage to the
mobile device caused by non-Motorola batteries and/or chargers. To
help you identify authentic Motorola batteries from
non-original or counterfeit batteries (that may not have adequate safety
protection), Motorola provides holograms on its batteries. You should
confirm that any battery you purchase has a “Motorola Original”
hologram. If you see a message on your display such as Invalid
Battery or Unable to Charge, take the following steps:
• Remove the battery and inspect it to confirm that it has a
“Motorola Original” hologram;
• If there is no hologram, the battery is not a Motorola battery;
21
• If there is a hologram, replace the battery and try charging it again;
• If the message remains, contact a Motorola authorized service
center.
Warning: Use of a non-Motorola battery or charger may present a risk
of fire, explosion, leakage, or other hazard.
Proper and safe battery disposal and recycling: Proper battery
disposal is not only important for safety, it benefits the environment.
You can recycle your used batteries in many retail or service provider
locations. Additional information on proper disposal and recycling can
be found at www.motorola.com/ recycling
Disposal: Promptly dispose of used batteries in accordance with local
regulations. Contact your local recycling center or national recycling
organizations for more information on how to dispose of batteries.
Warning: Never dispose of batteries in a fire because they may
explode.
Battery Charging
Notes for charging your product’s battery:
• During charging, keep your battery and charger near room
temperature for
efficient battery charging.
• New batteries are not fully charged.
• New batteries or batteries stored for a long time may take more time
to charge.
22
• Motorola batteries and charging systems have circuitry that protects
the battery from damage from overcharging.
Third Party Accessories
Use of third party accessories, including but not limited to batteries,
chargers, headsets, covers, cases, screen protectors and memory
cards, may impact your mobile device‟s performance. In some
circumstances, third party accessories can be dangerous and may
void your mobile device‟s warranty. For a list of Motorola accessories,
visit www.motorola.com/products
Driving Precautions
Responsible and safe driving is your primary responsibility when
behind the wheel of a vehicle. Using a mobile device or accessory for a
call or other application while driving may cause distraction. Using a
mobile device or accessory may be prohibited or restricted in certain
areas, always obey the laws and regulations on the use of these
products.
While driving, NEVER:
• Type or read texts.
• Enter or review written data.o
• Surf the web.
• Input navigation information.
• Perform any other functions that divert your attention from driving.
23
While driving, ALWAYS:
• Keep your eyes on the road.
• Use a handsfree device if available or required by law in your area.
• Enter destination information into a navigation device before driving.
• Use voice activated features (such as voice dial) and speaking
features (such as audible directions), if available.
• Obey all local laws and regulations for the use of mobile devices and
accessories in the vehicle.
• End your call or other task if you cannot concentrate on driving.
Remember to follow the “Smart Practices While Driving” in this guide
and at www.motorola.com/callsmart (in English only).
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing videos or
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult with your physician before
playing videos or games or enabling a flashing-lights feature (if
available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always a
24
good idea to hold the screen away from your eyes,
leave the lights on in the room, take a 15-minute break every hour, and
stop use if you are tired.
Caution About High Volume Usage
Warning: Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume sound
level, the less time is required before your hearing could be affected.
To protect your hearing:
• Limit the amount of time you use headsets or headphones at high
volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can‟t hear people speaking near you.
If you experience hearing discomfort, including the sensation of
pressure or fullness in your ears, ringing in your ears, or muffled
speech, you should stop listening to the device through your headset
or headphones and have your hearing checked.
For more information about hearing, see our website at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English
only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering fingerwritten characters, you may experience occasional
25
discomfort in your hands, arms, shoulders, neck, or other parts of your
body. If you continue to have discomfort during or after such use, stop
use and see a physician.
Children
Keep your mobile device and its accessories away from small
children.
These products are not toys and may be hazardous to small children.
For example:
• A choking hazard may exist for small, detachable parts.
• Improper use could result in loud sounds, possibly causing hearing
injury.
• Improperly handled batteries could overheat and cause a burn.
Similar to a computer, if a child does use your mobile device, you may
want to monitor their access to help prevent exposure to inappropriate
apps or content.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product receives a substantial impact. If glass breaks,
do not touch or attempt to remove. Stop using your mobile device until
the glass is replaced by a qualified service center.
26
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always,
posted and can include fueling areas, such as below decks on boats,
fuel or chemical transfer or storage facilities, or areas where the air
contains chemicals or particles, such as grain dust, or metal powders.
When you are in such an area, turn off your mobile device, and do not
remove, install, or charge batteries unless it is a radio product type
especially qualified for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved). In such areas, sparks
can occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined
as follows:
Symbol Definition
Import safety information follows.
Do not dispose of your battery or mobile device in a fire
27
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local
regulatory authorities for more information.
Do not dispose of your battery or mobile device with your
household waste .See “Recycling” for more information.
Do not use tools.
For indoor use only.
Warnings:
•Changes or modifications not expressly approved by the party
responsible for compliance could void the user„s authority to operate
the equipment.
•The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
28
Radio Frequency (RF) Energy
Exposure to RF Energy
Your mobile device contains a transmitter and receiver. When it is ON,
it receives and transmits RF energy. When you communicate with your
mobile device, the system handling your call controls the power level at
which your mobile device transmits.
Your mobile device is designed to comply with local regulatory
requirements in your country concerning exposure of human beings to
RF energy.
RF Energy Operational Precautions
For optimal mobile device performance, and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in the
relevant standards, always follow these instructions and precautions:
• When placing or receiving a phone call, hold your mobile device just
like you would a landline phone.
• If you wear the mobile device on your body, always place the mobile
device in a Motorola-supplied or approved clip, holder, holster, case, or
body harness. If you do not use a body-worn accessory supplied or
approved by Motorola, keep the mobile device and its antenna at least
2.5 cm (1 inch) from your body when transmitting.
• Using accessories not supplied or approved by Motorola may cause
your mobile device to exceed RF energy exposure guidelines. For a list
of Motorola-supplied or approved accessories, visit our website at:
29
www.motorola.com.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or otherwise
configured for RF energy compatibility. In some circumstances, your
mobile device may cause interference with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to do so
by airline staff. If your mobile device offers an airplane mode or similar
feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or
defibrillator, consult your physician before using this mobile device.
Persons with implantable medical devices should observe the following
precautions:
• ALWAYS keep the mobile device more than 20 centimeters (8 inches)
from the implantable medical device when the mobile device is turned
ON.
• DO NOT carry the mobile device in the breast pocket.
• Use the ear opposite the implantable medical device to minimize the
potential for interference.
• Turn OFF the mobile device immediately if you have any reason to
30
suspect that interference is taking place.
Specific Absorption Rate (IEEE)
YOUR MOBILE DEVICE MEETS FCC LIMITS FOR EXPOSURE TO
RADIO
WAVES.
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves (radio frequency
electromagnetic fields) adopted by the Federal Communications
Commission (FCC). These limits include
a substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit for mobile
devices is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions with
the device transmitting at its highest certified power level in all tested
frequency bands. The highest SAR values under the FCC guidelines
for your device model are listed below:
Head SAR
GSM 850/900/1800/1900, UMTS 900/2100, Bluetooth 1.35W/Kg
Body-worn SAR
GSM 850/900/1800/1900, UMTS 900/2100, Bluetooth 0.644W/Kg
31
During use, the actual SAR values for your device are usually well
below the values stated. This is because, for purposes of system
efficiency and to minimize interference on the network, the operating
power of your mobile device is automatically decreased when full
power is not needed for the call. The lower the power output of the
device, the lower its SAR value.
Body-worn SAR testing has been carried out using an approved
accessory or at a separation distance of 2.5 cm (1 inch). To meet RF
exposure guidelines during body-worn operation, the device should be
in an approved accessory or positioned at least 2.5 cm (1 inch) away
from the body. If you are not using an approved accessory, ensure that
whatever product is used is free of any metal and that it positions the
phone at least 2.5 cm (1 inch) away from the body.
The World Health Organization has stated that present scientific
information does not indicate the need for any special precautions for
the use of mobile devices.
They recommend that if you are interested in further reducing your
exposure then you can easily do so by limiting your usage or simply
using a hands-free kit to keep the device away from the head and
body.
Additional information can be found at www.who.int/emf (World Health
Organization) or www.motorola.com/rfhealth (Motorola Mobility, Inc.).
32
Specific Absorption Rate (ICNIRP)
YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES
FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves (radio frequency
electromagnetic fields) recommended by international guidelines. The
guidelines were developed by an independent scientific organization
(ICNIRP) and include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known
as the
Specific Absorption Rate, or SAR. The SAR limit for mobile devices is
2 W/kg.
Tests for SAR are conducted using standard operating positions with
the device transmitting at its highest certified power level in all tested
frequency bands. The highest SAR values under the ICNIRP
guidelines for your device model are listed below:
Head SAR
GSM 850/900/1800/1900, UMTS 900/2100, Bluetooth 1.13W/Kg
Body-worn SAR
GSM 850/900/1800/1900, UMTS 900/2100, Bluetooth 1.11W/Kg
33
During use, the actual SAR values for your device are usually well
below the values stated. This is because, for purposes of system
efficiency and to minimize interference on the network, the operating
power of your mobile device is automatically decreased when full
power is not needed for the call. The lower the power output of the
device, the lower its SAR value.
Body-worn SAR testing has been carried out using an approved
accessory or at a separation distance of 2.5 cm (1 inch). To meet RF
exposure guidelines during body-worn operation, the device should be
in an approved accessory or positioned at least 2.5 cm (1 inch) away
from the body. If you are not using an approved accessory, ensure that
whatever product is used is free of any metal and that it positions the
phone at least 2.5 cm (1 inch) away from the body.
The World Health Organization has stated that present scientific
information does not indicate the need for any special precautions for
the use of mobile devices.
They recommend that if you are interested in further reducing your
exposure then you can easily do so by limiting your usage or simply
using a hands-free kit to keep the device away from the head and
body.
Additional information can be found at www.who.int/emf (World Health
Organization) or www.motorola.com/rfhealth (Motorola Mobility, Inc.).
34
Information from the World Health
Organization
“A large number of studies have been performed over the last two
decades to assess whether mobile phones pose a potential health risk.
To date, no adverse health effects have been established for mobile
phone use.”
Source: WHO Fact Sheet 193
Further information: http://www.who.int/emf
FCC Notice to Users
The following statement applies to all products that bear the FCC
logo on the product label.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. See 47
CFR Sec. 15.105(b).
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
35
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
See 47 CFR Sec. 15.19(a) (3).
Motorola has not approved any changes or modifications to this device
by the user. Any changes or modifications could void the user‟s
authority to operate the equipment. See 47 CFR Sec. 15.21.
Smart Practices While Driving
Check the laws and regulations on the use of mobile devices and
their accessories in the areas where you drive. Always obey them.
The use of these devices may be prohibited or restricted in
certain areas—for example, handsfree use only may be required.
Go to www.motorola.com/ callsmart (in English only) for more
information.
36
Your mobile device lets you communicate by voice and data—almost
anywhere, anytime, wherever wireless service is available and safe
conditions allow. When driving a car, driving is your first responsibility.
If you choose to use your mobile
device while driving, remember the following tips:
• Get to know your Motorola mobile device and its features such
as speed dial, redial and voice dial. If available, these features help
you to place your call without taking your attention off the road.
• When available, use a handsfree device. If possible, add an
additional layer of convenience to your mobile device with one of the
many Motorola Original handsfree accessories available today.
• Position your mobile device within easy reach. Be able to access
your mobile device without removing your eyes from the road. If you
receive an incoming call at an inconvenient time, if possible, let your
voicemail answer it for you.
• Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous weather
conditions. Rain, sleet, snow, ice, and even heavy traffic can be
hazardous.
• Do not take notes or look up phone numbers while driving.
Jotting down a “to do” list or going through your address book takes
attention away from your primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when
your car is not moving or before pulling into traffic. If you must
37
make a call while moving, dial only a few numbers, check the road and
your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may
be distracting. Make people you are talking with aware you are
driving and suspend conversations that can divert your attention away
from the road.
• Use your mobile device to call for help. Dial 911 or other local
emergency number in the case of fire, traffic accident, or medical
emergencies (wherever wireless phone service is available).
• Use your mobile device to help others in emergencies. If you see
an auto accident, crime in progress, or other serious emergency where
lives are in danger, call 911 or other local emergency number
(wherever wireless phone service is available), as you would want
others to do for you.
• Call roadside assistance or a special non-emergency wireless
assistance number when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you know to be
stolen, call roadside assistance or other special non-emergency
wireless number (wherever wireless phone service is available).
Privacy & Data Security
Motorola understands that privacy and data security are important to
everyone.
38
Because some features of your mobile device may affect your privacy
or data security, please follow these recommendations to enhance
protection of your information:
• Monitor access—Keep your mobile device with you and do not leave
it where others may have unmonitored access. Use your device‟s
security and lock features, where available.
• Keep software up to date—If Motorola or a software/application
vendor releases a patch or software fix for your mobile device that
updates the device‟s security, install it as soon as possible.
• Secure Personal Information—Your mobile device can store
personal information in various locations including your SIM card,
memory card, and phone memory. Be sure to remove or clear all
personal information before you recycle, return, or give away your
device. You can also backup your personal data to transfer to a new
device.
Note: For information on how to backup or wipe data from your mobile
device, go to www.motorola.com/support
• Online accounts—Some mobile devices provide a Motorola online
account (such as MOTOBLUR). Go to your account for information on
how to manage the account, and how to use security features such as
remote wipe and device location (where available).
• Applications and updates—Choose your apps and updates
carefully, and install from trusted sources only. Some apps can impact
your phone‟s performance and/or have access to private information
39
including account details, call data, location details and network
resources.
• Location-based information—Location-based information includes
information that can be used to determine the approximate location of
a mobile device. Mobile phones which are connected to a wireless
network transmit location-based information. Devices enabled with
GPS or AGPS technology also transmit location-based information.
Additionally, if you use applications that require location-based
information (e.g. driving directions), such applications transmit
location-based information. This location-based information may be
shared with third parties, including your wireless service provider,
applications providers, Motorola, and other third parties providing
services.
• Other information your device may transmit—Your device may
also transmit testing and other diagnostic (including location-based)
information, and other non-personal information to Motorola or other
third-party servers.
This information is used to help improve products and services offered
by Motorola.
If you have further questions regarding how the use of your mobile
device may impact your privacy or data security, please contact
Motorola at privacy@motorola.com, or contact your service provider.
Use & Care
40
To care for your Motorola mobile device, please observe the following:
liquids
Don‟t expose your mobile device to water, rain, extreme
humidity, sweat, or other liquids. If it does get wet, don‟t try to
accelerate drying with the use of an oven or dryer, as this may
damage the mobile device.
extreme heat or cold
Don‟t store or use your mobile device in temperatures below
-10°C (14°F) or above 60°C (140°F). Don‟t recharge
your mobile device in temperatures below 0°C (32°F) or
above 45°C (113°F).
microwaves
Don‟t try to dry your mobile device in a microwave oven.
dust and dirt
Don‟t expose your mobile device to dust, dirt, sand, food, or
other inappropriate materials.
cleaning solutions
To clean your mobile device, use only a dry soft cloth. Don‟t
use alcohol or other cleaning solutions.
shock and vibration
41
Don‟t drop your mobile device.
protection
To help protect your mobile device, always make sure that
the battery compartment and any connector covers are
closed and secure.
Recycling
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household waste,
or in a fire. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved Service
Center in your region. Details of Motorola approved national recycling
schemes, and further information on Motorola recycling activities can
be found at: www.motorola.com/ recycling.
Packaging & Product Guides
Product packaging and product guides should only be disposed of in
accordance with national collection and recycling requirements. Please
contact your regional authorities for more details.
Software Copyright Notice
42
Motorola products may include copyrighted Motorola and third-party
software stored in semiconductor memories or other media. Laws in
the United States and other countries preserve for Motorola and
third-party software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce the
copyrighted software. Accordingly, any copyrighted software contained
in Motorola products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the extent allowed by law.
Furthermore, the purchase of Motorola products shall not be deemed
to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of
Motorola or any third-party software provider, except for the normal,
non-exclusive, royalty-free license to use that arises by operation of
law in the sale of a product.
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the
provisions of the Copyright Laws of the United States and other
countries. This device is intended solely for copying non-copyrighted
materials, materials in which you own the copyright, or materials which
you are authorized or legally permitted to copy. If you are uncertain
about your right to copy any material, please contact your legal
advisor.
43
Service & Repairs
If you have questions or need assistance, we're here to help.
Go to www.motorola.com/support, where you can select from a
number of customer care options. You can also contact the Motorola
Customer Support Center at 0800 666 8676 (Argentina), 800-201-442
(Chile), 01-800-700-1504 (Colombia), 01 800 021 0000 (México),
0800-100-4289 (Venezuela), or 0-800-52-470 (Perú).
Latin America Warranty, Except Mexico
Latin America Warranty Motorola Mobility Inc.
Subscribers/Cellular Division
Through its own service centers and/or its authorized service centers,
Motorola provides a 1-year warranty that covers the cellular phone, all
its parts and labor against any defect and operation as long as the
“Product” has been operated and handled under normal conditions.
The term of 1 year begins when the “Product” is purchased.
Conditions
1 For warranty service, return the “Product” and this warranty to the
place of purchase or to any Motorola authorized service center.
If additional information is needed, please contact any of our service
centers:
Motorola Comercial, S.A. de C.V.
44
Bosques Alisos No. 125
Bosques de las Lomas
CP 05120 México, D.F.
Telephone: 257-6700
Motorola Industrial Ltda.
Av. Chedid Jafet
222-Bloco D-1 Andar
Vila Olimpia 04551-065
Sao Paulo, Brazil
Telephone: 0800-773 1244
Motorola Mobility Colombia S.A.S.
Carrera 7 7152
Torre B Piso 13 Oficina 1301
Torre del Banco Ganadero
Santa Fe de Bogotá, Colombia
Telephone: 01800 700 1504
If the cellular phone has been installed in a vehicle, take the vehicle to
the service center to analyze the equipment, or the installation on the
vehicle. This warranty does not cover the installation of the cellular
phone.
2 Motorola Mobility Inc., through its own service centers and/or their
authorized service centers, will repair or replace the cellular phone at
no charge. This warranty covers shipping expenses, only if it is needed
45
to make the repair.
Motorola Mobility Inc. through its own service centers and/or their
authorized service centers, at its own discretion, will repair, replace, or
reimburse the purchase price of the defective cellular phone only
during the warranty period, as long as the “Product,” in accordance
with the conditions established in this warranty, is returned to a
Motorola service center or to a Motorola authorized service center. All
the accessories, batteries, parts, small boards or equipment of the
cellular telephone that by virtue of being defective are replaced in
fulfillment of this warranty, will automatically become property of
Motorola Mobility, Inc.
3 To receive warranty service, present your cellular phone or
accessory to any Motorola service center or Motorola authorized
service center, along with your receipt of purchase or comparable
substitute that indicates the date of purchase, serial number of the
transceiver, and/or electronic serial number.
4 The repair time will not be greater than 30 days, starting from the day
the equipment was received at the service center.
5 To purchase parts, spare parts, accessories and service not covered
by this warranty, contact one of the service centers listed in section 1,
or any authorized service center in your locality.
6 This warranty is not valid in the following cases:
• Defects or damages derived from abnormal use.
• Defects or damages derived from accident or negligence.
46
• Defects or damages derived from tests, unsuitable operation,
maintenance, installation and adjustments, or derived from any
alteration or modification of any type.
• Damage caused to antennas, unless they are consequences of
defects in material or workmanship.
• When the cellular phone has been disassembled and/or repaired so
that its operation has been affected or that it can not be tested to verify
any claim that grants this warranty.
• Any cellular phone with a serial number that has been removed,
altered, or obliterated.
• Defects or damages caused by food spills or liquids.
• When the cables of the control unit have been stretched or the
module tongue-piece has broken.
• When the surface of the “Product” and its pieces have been
scratched or damaged due to normal use.
• Leather cases.
• Rented cellular phones.
• When the “Product” has been altered or repaired by non-Motorola
authorized service centers.
• When the “Product” has not been operated in agreement with the
instructions that accompany the “Product.”
7 The batteries (Nickel-Cadmium) are warranted only if their capacity is
reduced by 80% below its predicted capacity. This warranty is null for
all types of batteries if:
47
• The batteries are charged by a charger that has not been approved
by Motorola.
• Any of the battery seals are broken or tampered with.
• The batteries were used or installed in non-Motorola equipment.
“Product”:
Brand: Motorola Model:
Number of Mechanical Series:
Number of Electronic Series:
Name of Distributor:
Street and Number:
Town:
Municipality:
Postal Code, City, State, or
Country:
Telephone:
Date of Delivery or Installation:
Limited Warranty (Mexico)
For Motorola personal communication products and accessories
purchased in Mexico
I. Concepts Covered by this Warranty
This warranty covers all the parts, components, accessories and labor
of the Motorola “Product” from defects in materials and workmanship
under normal consumer usage.
48
Motorola Comercial, S.A. de C.V., at its option, will at no charge repair,
replace, or refund the purchase price of any “Product” that does not
conform to this warranty. Motorola may use functionally equivalent
reconditioned/refurbished/ pre-owned or new products, accessories, or
parts. Updates in software are not covered.
The Motorola “Products” that are protected under this warranty can
be :( a) cellular telephones, (b) radar sets, (c) two-way radios, and (d)
wireless telephones.
II. Length of Warranty Coverage
The length of coverage is one (1) year from the date the new “Product”
was purchased from an authorized distributor.
III. Place where consumers can make the warranty
effective, obtain parts, components, and accessories
Motorola Comercial, S.A. de C.V.
Bosques de Alisos 125
Col. Bosques de las Lomas
Del. Cuajimalpa Te:(55) 5257-6700
IV. Procedure to Make the Warranty Effective
For warranty service, return the “Product” (with its components and
accessories,such as batteries, antennas, and charger) to the place of
purchase, to the address above, or to an authorized service center, or
call 01 800 021 0000. To request a refund, you must present this
warranty, sealed by the place of purchase, along with the “Product.”
V. Warranty Limitations or Exceptions
49
The warranty is not valid when:
• The “Product” has been used in conditions different from the normal
ones.
• The “Product” has not been operated as described in the operating
instructions.)
• The “Product” has been altered or repaired by someone other than
Motorola, or its authorized service centers.
If repairs are not covered by this warranty, Motorola, at the request of
the purchaser, will provide information regarding availability, prices,
and other conditions for the repair of the “Product.”
To obtain information on products that need repairs not covered by this
warranty, please call 01 800 021 0000.
Product Model:
Date of Purchase:
Seal of the authorized or established distributor where the
“Product” Was purchased:
Note: In other countries, consult the laws and local regulations under
the warranty and its local Motorola office.
Copyright & Trademarks
Motorola Mobility Argentina S.A.
Suipacha 1111 - Piso 18
50
C1008AAW Buenos Aires
ARGENTINA
www.motorola.com
Certain features, services and applications are network dependent and
may not be available in all areas; additional terms, conditions and/or
charges may apply.
Contact your service provider for details.
All features, functionality, and other product specifications, as well as
the information contained in this guide, are based upon the latest
available information and believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
Note: The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC. All other product or
service names are the property of their respective owners.
© 2011 Motorola Mobility, Inc. All rights reserved.
Caution: Motorola does not take responsibility for changes/modification
to the transceiver.
