User’s Guide
XT1254
by Motorola
2014.08.07
FCC DRAFT
2014.08.07
FCC DRAFT
1Check it out
Check it out
When you’re up and running, be sure to explore what your
phone can do.
•Watch: Experience crisp, clear photos, movies, and videos
on your 5.2" ultra high-definition display. See “Photos &
videos” on page 42.
•Speed: Browse and navigate at 4G LTE network speeds.
See “Browse” on page 40 and “Locate & navigate” on
page 48.
•Connect: Reach out and connect with Wi-Fi networks,
Bluetooth® devices, or just by touching NFC phones. See
“Connect & transfer” on page 49.
Tip: You don’t need to carry this guide with you. You can view
all of these topics in your phone—from the home screen tap
Apps >
Help
.
Contents
At a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control & customize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Organize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Socialize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Browse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Play Books . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Play Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Locate & navigate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connect & transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Want more? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Safety, Regulatory, & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
2014.08.07
FCC DRAFT
2At a glance
At a glance
First look
Your new XT1254 by MOTOROLA has it all—a big,
bright, ultra high-definition display, blazing speed and
performance, with two full days of battery life. Use the included
Moto Turbo Charger for a lightning fast recharge.
Note: Your phone may look a little different.
11:35
Play Store
744°
11
:
35
Sep 26
100%
PlaPlaPlaPlaPlaPlaPlaPlaPlaPlaPlaPlaPlaPlaPlaPlaaaPy Sy Sy Sy Sy Sy Sy Sy Sy Sy Sy Sy Sy Sy Sy Sy Syy SyyyStortortortortortortortortortortortortortortortortortortoreeeeeeeeeeeeeeeeee
Play StoreGoogle Tools
Micro USB/
Charger
3.5mm
Headset Jack
Front Camera
Volume Keys
(Pull out to
access the
nano SIM
card tray.)
Power Key
Microphones
Back
Home
Recent
Apps
NFC Antenna
(on back)
21 MP Camera
with Dual LED
Flash (on back)
Speaker
Tips & tri cks
•Start: Ready to start? See “Start” on page 4.
•Top topics: Just want a quick list of what your phone can
do? See “Top topics” on page 3.
•Help: All your questions about your new phone answered
right on your phone. Tap Apps >
Help
. Want even
more? See “Get help & more” on page 60.
Note: Certain apps and features may not be available in all
countries.
This product meets the applicable national or
international RF exposure guidance (SAR guideline)
when used normally against your head or, when worn
or carried, at a distance of 1.5 cm from the body. The SAR
guideline includes a considerable safety margin designed to
assure the safety of all persons, regardless of age and health.
Caution: Before using your phone, please read the safety,
regulatory, and legal information provided with your
product.
2014.08.07
FCC DRAFT
3At a glance
Top topics
Check out what your phone can do.
•Personalize your home screen: see “Redecorate your
home screen” on page 10.
•Make a quick change: see “Quick settings” on page 21.
•Go online: see “Browse” on page 40.
•Explore: see “Google Play™” on page 8.
•Find apps: see “Download apps” on page 15.
•Be social: see “Socialize” on page 39.
•Play it safe: see “Protect” on page 56.
•Find it yourself: see “Locate & navigate” on page 48.
•Take a photo: see “Take ph ot os ” on page 43.
•Connect to Wi-Fi: see “Wi-Fi Networks” on page 51.
•Watch a movie: see “Play Movies & TV” on page 44.
•Protect your phone: see “Screen lock” on page 58.
•Walk through interactive tutorials: see “Help & more” on
page 11.
•Get all the help you need: see “Get help & more” on
page 60.
Tips & tri cks
•Interactive: To get started quickly, tap Apps >
Help
for interactive tutorials.
• Google™ help: In Google Mobile, you can tap Menu
>
Help
. You can also view the Google Help Centers online at
www.google.com/support.
2014.08.07
FCC DRAFT
4Start
Start
Put in the SIM
The SIM card is pre-installed in your phone. If you need to
replace your SIM, pull the volume keys/SIM tray out of the
phone as shown.
Tips & tricks
•SIM tray: The SIM tray is integrated with the volume keys. To
remove the SIM tray, slide your fingernail under the volume
keys on the side of your phone and pull out.
• Inserting the SIM: Make sure the angled corner of the
nano SIM matches the angled corner of the SIM tray. Keep
the SIM flat in the tray when sliding it into your phone.
3. Slide the tray
back into your
phone.
2. Put the nano SIM
card into the tray.
1. Pull out the volume
keys/SIM tray with your
ngernail.
Power on & charge up
To turn on your phone, press and hold the Power key until the
screen turns on.
When you need to charge the phone fast, your Moto Turbo
Charger is up to the challenge. Add an extra six hours of
battery life with just 15 minutes of charging.
Tips & tri cks
•Power key: To make the screen sleep or wake up, press the
Power key. To turn your phone on or off, press and hold the
Power key.
Power
Key
3
H
2014.08.07
FCC DRAFT
5Start
• Battery: Squeeze every bit of juice out of your battery. See
“Battery life” on page 5.
Battery life
Your phone is like a small computer, giving you tons of
information and apps, at lightning fast speed. Depending on
what you use, that can take a lot of power.
To see what’s using up battery power, tap Apps
>
Settings
>
Battery
.
Tips & tricks
To save even more battery life between charges, you could
reduce:
•Wi-Fi and Bluetooth® use: Tap Apps >
Settings
, then
tap the switch next to
Wi-Fi
or
Bluetooth
to turn them
when you don’t need them.
•GPS use: Tap Apps >
Settings
>
Location
>
Mode
>
Battery saving
to turn off GPS tracking.
•Display brightness: Tap Apps >
Settings
>
Display
>
Brightness
> (slide dimmer setting left), if you don’t want
to use the automatic light sensor.
•Display timeout delay: Tap Apps >
Settings
>
Display
>
Sleep
> (shorter setting).
•Widgets that stream information to your home screen, like
news or weather.
OFF
•Unused online accounts that you registered: Tap Apps
>
Settings
. Go to the
ACCOUNTS
section, and tap the
one you want to remove. Tap it again, then tap
Menu >
Remove account
.
•Recording or watching videos, listening to music, or taking
pictures.
2014.08.07
FCC DRAFT
6Start
Wireless charging
Charge your phone without wires. Just place it on an optional
Qi (pronounced “chee”) charging pad accessory. Inductive
charging coils in the phone receive electricity wirelessly from
the charging pad.

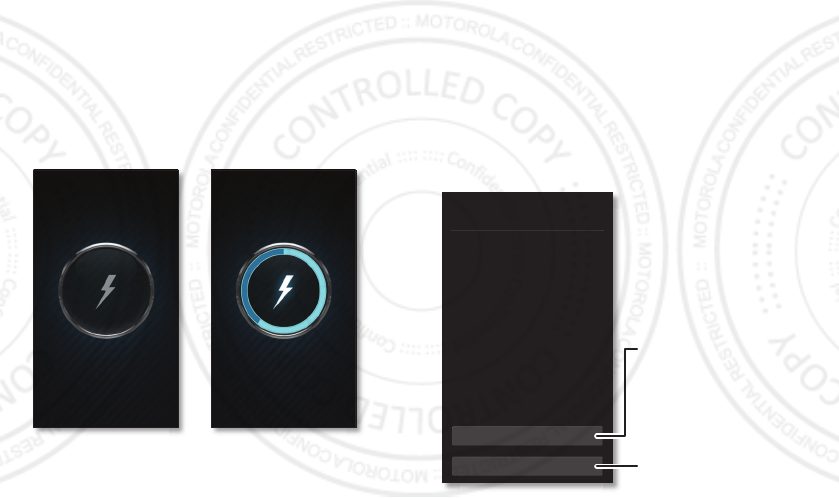

Follow the instructions on your screen, and align the circle on
the screen with the circle on the pad for best results.
Your phone shows battery charging status as it charges.
Wireless charger detected.
Align above icon with the indicator on
your charging pad.
Charging 61%
Alignment Screen Charging Screen
Sign in
If you use Gmail™, you already have a Google™ account—if
not, you can create an account now. Signing into your Google
account lets you use Google apps, see your contacts,
appointments, photos, and more.
Just select your language and follow the screen prompts to get
started.
Yes
No
Got Google?
Do you have a Google Account?
If you use Gmail or Google Apps, answer
Yes.
Contacts, appointments,
photos, & more—sign in
to see it all.
Or, tap here to create
a new Google account.
2014.08.07
FCC DRAFT
7Start
Tips & tricks
•Wi-Fi network: For faster Internet access or to conserve
data use, flick the status bar down, tap , then touch and
hold
Wi-Fi
. There’s more in “Wi-Fi Networks” on page 51.
• Accounts: To add, edit, or delete accounts, tap Apps
>
Settings
. Go to the
ACCOUNTS
section, and tap
Add account
. Or, tap an account > Menu >
Remove
account
to delete it from your phone, if allowed. To set up
email accounts, see “Email” on page 33.
For help with your Google account, visit
www.google.com/accounts.
•Contacts: To get your contacts from your old phone, you
have options. If your old phone was also Android™ and you
used the Android Backup and Restore feature, your contacts
automatically appear on your new phone. Otherwise, use
the Motorola Migrate app in “Old phone to new phone” on
page 7. Or, visit www.motorola.com/transfercontacts.
Note: This phone supports apps and services that may use a lot
of data, so make sure your data plan meets your needs.
Contact your service provider for details.
Old phone to new phone
Copying your personal stuff from your old phone to your new
phone with Motorola Migrate is easy.
•From Android™: On your old phone, download the
Motorola Migrate app from Google Play™. Then on your
new phone, tap Apps >
Motorola Migrate
>
Android
to get started.
•From iPhone: On your new phone, tap Apps
>
Motorola Migrate
>
iPhone
to get started.
Next
Motorola Migrate
Make the switch from old to new.
Which phone are you moving your stuff
from?
Copy your stuff from your old phone to
your new one in just a few minutes.
Want to transfer from this phone instead?
Android
Tip: If you don’t copy your
content right after setting up
your phone, you can always
do it later.
Select your old phone.
2014.08.07
FCC DRAFT
8Start
Tips & tricks
•While you’re migrating to your phone, you can keep using
the phone.
•If you didn’t migrate when setting up your new phone, you
can always do it later.
•Signing into your Google account copies your apps if they
are backed up to the cloud.
•For phones that support copying music, not all music can be
copied. (If you want to know more, you can search online to
learn about digital rights management or DRM-protected
files.)
Google Play™
Google Play is a digital content experience from Google
where you can find and enjoy your favorite movies, books,
magazines, and Android apps and games.
Note: Content may not be available in all countries.
Apps
Play Store
Play Games
Pl G
Play Movies & TV
M
i
&
Play Books
2014.08.07
FCC DRAFT
9Home screen & apps
Tips & tricks
• Download Android apps: Tap Apps >
Play Store
.
•Find out more about Google products: See
www.google.com/about/products.
•Log in or open a Google account: Visit
www.google.com/accounts.
• Google help: See www.google.com/support.
•Access all of your files in the cloud: Check out “Yo u r clo u d”
on page 55.
Home screen & apps
Quick start: Home screen & apps
The home screen is what you see when you first turn on your
phone. From here, you can explore apps and more.
•Search: Type text in the Google™ Search box at the top of
your home screen, or tap to search by voice.
• Apps & widgets: To see your apps, tap Apps . To see
your widgets, touch and hold an empty spot on the home
screen, then tap
WIDGETS
.
11:35
Play Store
74
4
°
11
:
35
Sep 26
100%
PlPl
Pl
Pl
Pl
Pl
PlPl
Pl
P
Pl
Pl
Pl
Pl
Pl
Pl
Pl
Pl
ay
ay
ay
ay
ay
ay
a
ay
ay
ay
ay
ay
ay
ay
ay
ay
ay
y
y
y
y
y
ay
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
to
to
t
to
t
to
to
toto
to
to
to
to
to
to
to
o
o
o
o
o
rere
e
re
re
re
re
re
re
re
re
re
re
re
r
r
r
r
r
re
Play StoreGoogle Tools
Flick down to see
notications & settings.
Shortcut
Quick access to an app.
Search by typing, or
tap for a voice search.
Favorites
Tap Apps to
see all your apps.
Touch & hold an empty
spot to add widgets or
change wallpaper.
2014.08.07
FCC DRAFT
10 Home screen & apps
Tips & tricks
•Return: To return to the home screen from any location,
tap Home .
•Pages: To see more pages of shortcuts and widgets
(if available), swipe the home screen left.
• Settings: To quickly open settings, flick the status bar down
and tap >
Settings
.
• Uninstall: To uninstall apps, tap Apps , touch and hold an
app, then drag it to
Uninstall
(if available).
Redecorate your home screen
For quick access to your favorite things, customize your home
screen the way you want.
• Change wallpaper: Touch and hold an empty spot on your
home screen, then tap
WALLPAPERS
to choose your
wallpaper.
• Add shortcuts: Tap Apps , touch and hold an app, then
drag it to one of your home screen pages. To see all your
apps, tap Apps .
Tip: To download apps, tap Apps >
Play Store
.
• Add widgets: Touch and hold an empty spot on the home
screen, tap
WIDGETS
, touch and hold a widget, then drag it
to your home screen.
Tip: Some apps include widgets.
•Create shortcut groups: You can group app shortcuts
together on your home screen to organize them.
To create a shortcut group on your home screen, drag one
shortcut onto another. Add more shortcuts by dragging
them onto the first shortcut. To name the group, tap it and
enter a name below the apps.
• Resize widgets: You can resize some widgets—touch and
hold a widget until you feel a vibration, then release. Drag
the white circles at the edges to resize.
• Move or delete widgets & shortcuts: To uc h a nd ho ld a
widget or shortcut until you feel a vibration, then drag it to
another spot, another page, or
Remove
at the top of the
screen.
Note: Removing a shortcut from your home screen doesn’t
uninstall the app from your phone.
For more about personalizing your phone, like setting
individual ringtones for your contacts, see “Control &
customize” on page 17.
2014.08.07
FCC DRAFT
11Home screen & apps
Help & more
How do you do it? Watch a tutorial. Read a how-to. Find out
anything about your phone.
Find it: Apps >
Help
Help
Getting started
Explore
First things first
Optimize battery life
Discover apps
Personalize your device
Learn about Motorola features
How-to videos
Show me how (step-by-step)
New to Android?
Browse all help
Find tutorials, FAQs,
videos, & more.
Set up help tips & notications.
Search for help.
Search
At the top of the home screen, tap the Google Search box for a
text search, or tap for Google Voice Search™.
As you type, suggestions appear below the search field:
•To search for a suggestion, tap it.
•To search for text in the search field, tap on the
touchscreen keyboard.
Ti p: To close the touchscreen keyboard, tap Back .
Google Now™
Google Now brings you just the right information at just the
right time, before you even ask. Weather, traffic, transit
schedules, even the latest scores come automatically,
appearing throughout the day just as you need them.
2014.08.07
FCC DRAFT
12 Home screen & apps
To get started, touch and hold Home , then flick up to the
Google icon .
To turn Google Now on/off, set your preferences, or learn
more, open Google Now, scroll to the bottom of the screen,
and tap Menu >
Settings
.
More
Nearby events
The Bordertown Devils
University Auditorium
in 3 days, 8:00PM
Concerts
Capital Cities
Merrill Civic Center East, Morrison...
Tomorrow
Concerts
Search

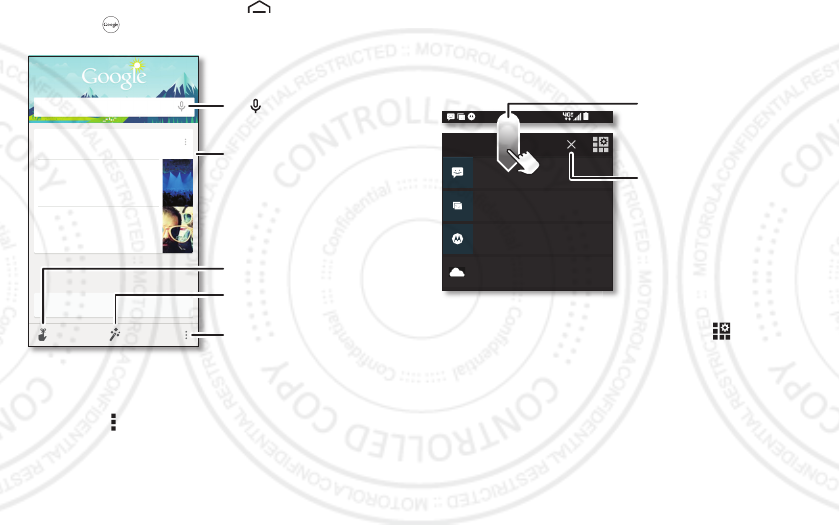

Stu that’s important
to you shows up here.
Customize Google Now.
Turn Google Now o & on,
adjust settings, & more.
Set reminders.
Tap to start
a voice search.
Status & notifications
At the top of the screen, icons on the left notify you about new
messages or events. If you don’t know what an icon means,
flick the status bar down for details.
Tip : To quickly change common settings, tap in the upper
right (or flick the status bar down with two fingers instead of
one). For more, see “Quick settings” on page 21.
11:35
3 new messages
Yahoo!
8:29 AM
Protect your phone
Touch to enable lost phone features
9/25/14
11:35
Fri, September 26
312-555-1234
1 new message
9:56 AM
74° - Scattered Clouds
11:35 AM
5 Cards
Clear your notications.
Flick down to see
settings & notications.
Tip: To clear just one,
flick it to the left or right.
2014.08.07
FCC DRAFT
13Home screen & apps

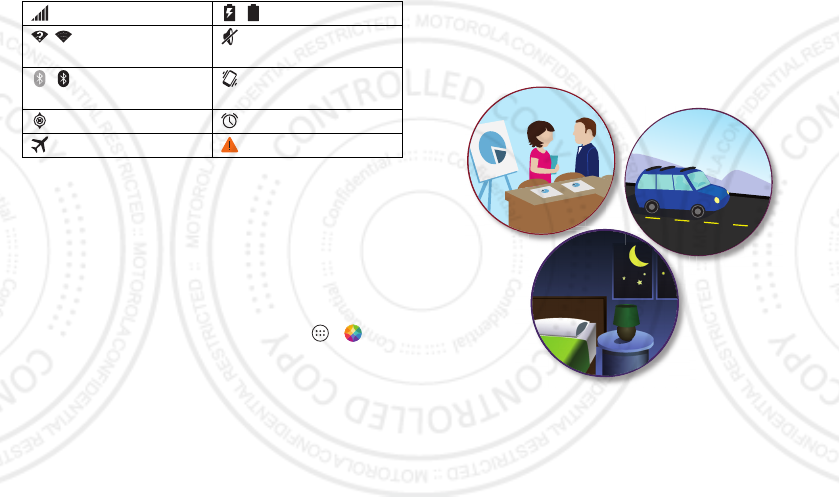

Icons on the right tell you about phone status:
Note: Apps you download on Google Play™ Store might show
other icons in the status bar to alert you to specific events.
Discover Your XT1254
Your XT1254 knows whether you’re in the car, in a
meeting, or at home, and adapts to you. The XT1254
responds to your voice and hand gestures, and shows you
important info when the display is off.
Tip: To adjust these features any time, tap Apps >
Moto
.
network strength / battery charging/full
/Wi-Fi
in range/connected
silent
/Bluetooth® on
(clear)/connected (solid)
vibrate
GPS active alarm set
airplane mode warning
Moto Assist
Based on where you are and what you are doing, Moto Assist
suggests ways to help you throughout your day. For example,
Moto Assist can keep your phone quiet at night when you are
asleep.
Moto Voice
Your XT1254 is always ready for you. Use your voice to
control your phone, even when it’s not within reach.
2014.08.07
FCC DRAFT
15Home screen & apps
Motorola Connect
Use your Google account to connect your phone to your
computer. See call, contact, and messaging info on your
computer. Know who’s calling before you reach for your
phone. Send and receive text messages from your desk using a
simple add-on to your desktop Chrome™ browser.
Find it: Apps >
Motorola Connect
Download apps
Google Play™
Get music, movies, books, apps, games, and more.
Find it: Apps >
Play Store
•Find: To search, tap in the top right.
•Download: To download an app you found, tap it to see
details and then tap
INSTALL
, or the price.
•Share: To share an app you found on Play Store, tap it to see
details and then tap .
• Reinstall: To show or reinstall apps you downloaded from
Play Store, tap
Play Store
(in the upper left) >
My Apps
.
•Use a computer: To find and manage apps from any
computer, go to http://play.google.com using your
Google account and password.
There, you can browse apps on the big screen, manage your
apps across multiple devices (like a phone and tablet), and
even set new apps to download to your devices.
• Enjoy music, books & movies: You can also use Google
Play Store to access the “Play Music”, “Play Books”, and
“Play Movies & TV” apps.
• Get help: To get help and more, tap Menu in the top right.
Apps from the web
You can get apps from online app stores using your browser.
Tip : Choose your apps and updates carefully, as some may
impact your phone’s performance—see “Choose carefully”
on page 15.
Note: When installing an app, make sure you read the alerts
that tell you what information the app will access. If you don’t
want the app to have access to this information, cancel the
installation.
To let your phone install apps that are not on Google Play, tap
Apps >
Settings
>
Security & Screen Lock
and check
Unknown sources
.
To download files from your browser, see “Downloads” on
page 41.
Choose carefully
Apps are great. There's something for everyone. Play,
communicate, work, or have fun. But remember, choose your
apps carefully. Here are a few tips:
•To help prevent spyware, phishing, or viruses from affecting
your phone or privacy, use apps from trusted sites, like
Google Play Store.
2014.08.07
FCC DRAFT
16 Home screen & apps
•In Google Play Store, check the app’s ratings and comments
before installing.
•If you doubt the safety of an app, don’t install it.
•Like all apps, downloaded apps will use up memory, data,
battery, and processing power—some more than others.
For example, a simple battery level widget will use less than
a streaming music player app. After installing an app, if
you’re not happy with how much memory, data, battery or
processing power it’s using, uninstall it. You can always
install it again later.
•Just like web browsing, you may want to monitor children’s
access to apps to help prevent exposure to inappropriate
content.
•Certain apps may not provide completely accurate
information. Take care, especially when it comes to personal
health.
Take c a re of your apps
From your home screen tap Apps , then swipe left to scroll
through apps. To close the apps screen, tap Home or
Back .
• Uninstall apps: Tap A pps >
Settings
>
Apps
. Swipe
left to
ALL
, tap an app, then tap
Disable
or
Uninstall
(if
available).
Disable
removes the app from your menu—to
Enable
it,
reopen this window and tap
Enable
(disabled apps are at the
bottom of the list).
If an app locks up your phone as soon as you turn it on,
restart in Safe Mode: Turn off your phone, then turn it back
on—when you see the “Motorola” logo during power-up,
press and hold the Volume Down key until you see the home
screen, with
Safe Mode
in the lower left. Then, try removing
the app.
• Reinstall apps: To reinstall apps from Google Play Store, tap
Apps >
Play Store
, then tap
Play Store
(in the upper
left) >
My Apps
. The apps you downloaded are listed and
available for download.
• Share, show, or clear app details: Tap Ap ps
>
Settings
>
Apps
. A bar at the bottom tells you how
much app storage space you have left. Swipe left or right to
see the list of
DOWNLOADED
,
RUNNING
, or
ALL
apps, then
tap an app in the list to show its details and storage usage.
Yo u c a n t a p
Clear data
,
Clear cache
, or other options.
2014.08.07
FCC DRAFT
17Control & customize
Tip: To quickly show these app details from your app
screen: Touch and hold an app, then drag it to
App info
.
•Show app data usage: To show which apps are using the
most data, tap Apps >
Settings
>
Data usage
. For
more, see “Data use” on page 53.
Update your phone
Use your phone or computer to check, download, and install
phone software updates:
•Using your phone:
If your phone notifies you about an update, follow the
instructions to download and install it.
To manually check for updates, tap Apps >
Settings
>
About phone
>
System updates
.
Your phone downloads updates over your Wi-Fi connection
(if available) or mobile network. We recommend that you
download updates over a Wi-Fi connection. Remember,
these updates can be quite large (25MB or more) and may
not be available in all countries. If the mobile network
updates are not available in your country, update using a
computer.
•Using your computer:
On your computer, go to www.motorola.com/update.
Control & customize
Quick start: Control & customize
Ta ke co nt ro l of yo ur p ho n e:
• Add shortcuts: Tap Apps , touch and hold an app, then
drag it to your home screen.
•Add widgets: Touch and hold the home screen,
tap
WIDGETS
, touch and hold a widget, then drag it to your
home screen.
11:35
Play Store
74
4
°
11
:
35
Sep 26
100%
PlPl
Pl
Pl
Pl
Pl
PlPl
Pl
P
Pl
Pl
Pl
Pl
Pl
Pl
Pl
Pl
ay
ay
ay
ay
ay
ay
a
ay
ay
ay
ay
ay
ay
ay
ay
ay
ay
y
y
y
y
y
ay
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
to
to
t
to
t
to
to
toto
to
to
to
to
to
to
to
o
o
o
o
o
rere
e
re
re
re
re
re
re
re
re
re
re
re
r
r
r
r
r
re
Play StoreGoogle Tools
Tap a shortcut to open.
Touch & hold to move or delete.
Tap a widget to open or
modify it. Touch & hold to
move it, remove it, & more.
Drag shortcuts on top of
each other to make a group.
2014.08.07
FCC DRAFT
18 Control & customize
•Customize: Change Wi-Fi, brightness, and more—flick the
status bar down and tap . Tap
Settings
for more
settings.
Tips & tricks
•Tap: Choose an icon or option.
•Touch and hold: Open options for items in lists.
•Drag: Move items on the home screen.
•Flick: Quickly open or delete items.
•Swipe: Scroll through lists or between screens.
• Pinch or double-tap: Zoom in and out on websites, photos,
and maps.
• Twist: Twist a map with two fingers to rotate it, and pull two
fingers down to tilt it.
•Speak: Tap in a search window, or on a touchscreen
keyboard.
• Uninstall: To uninstall apps, tap Apps , touch and hold an
app, then drag it to
Uninstall
. (You can’t remove some
apps.)
• Contact ringtone: To set a personal ringtone for a contact,
tap Apps >
People
, tap the contact, then tap Menu
>
Set ringtone
.
• Quick settings: To ch an ge
Wi-Fi
,
Bluetooth
,
Brightness
,
Airplane mode
, and other settings, flick the status bar down
and tap . For even more settings, tap
Settings
.
• Home screen: For more about changing your home screen,
see “Redecorate your home screen” on page 10.
On, off, lock & unlock
Your touchscreen is on when you need it and off when
you don’t. To turn the screen on, press the Power key.
• Screen off & on: Press the Power key to turn the screen off
& on.
Thanks for finding my phone!
11:35
FRI, SEPTEMBER 26
Add your owner info or
a message for anyone
who nds your phone.
Swipe left to open the camera.
Flick up to open Google Now.
Drag to the
outer circle to unlock
your screen.
2014.08.07
FCC DRAFT
19Control & customize
Note: During a call, your touchscreen might stay dark if the
proximity sensor just above the top of the screen is covered.
Don't use covers or screen protectors (even clear ones) that
cover this sensor.
• Screen lock: To unlock the screen, tap and drag to the
outer circle that appears. To use a password, pattern, PIN, or
facial recognition security to unlock your screen, tap
Apps >
Settings
>
Security & Screen Lock
>
Screen
lock
(see “Screen lock” on page 58).
• Owner info: To add a message to your lock screen in case
you lose your phone, tap Apps >
Settings
>
Security
& Screen Lock
>
Owner info
. (To set your message, just tap
Back .)
Tip: Don’t put your mobile number as your contact info
unless you can access your voicemail from another device.
• Screen timeout: To change your timeout (screen locks
automatically), tap Apps >
Settings
>
Display
>
Sleep
.
Touch
Find your way around:
•Back: Tap Back to go to the previous screen.
•Home: Tap Home to return to the home screen.
• Recent apps: Tap Recent to show your recent apps,
and tap an app to reopen it. To remove an app from the list,
flick it left or right. To scroll the list, swipe up or down.
•Menu: When Menu appears in the corner of the screen,
you can tap it to open options for the current screen.
Lost or stuck? If you’re not sure what to do next, try one of
these:
•To open a text message, show contact details, or open items
in a list, tap the message, contact, or item.
•To show options for a list item (if available), touch and hold
the item.
•To show a menu for the current screen, tap Menu in the
corner of the screen (if available).
•To return home to the home screen, tap Home .
•To go back just one screen, tap Back .
•To close a touchscreen keyboard, tap Back .
•To reopen an app you closed, tap Recent and tap the
app in the list.
•To reboot an unresponsive phone, press and hold the Power
key until the screen goes dark and your phone restarts.
2014.08.07
FCC DRAFT
20 Control & customize

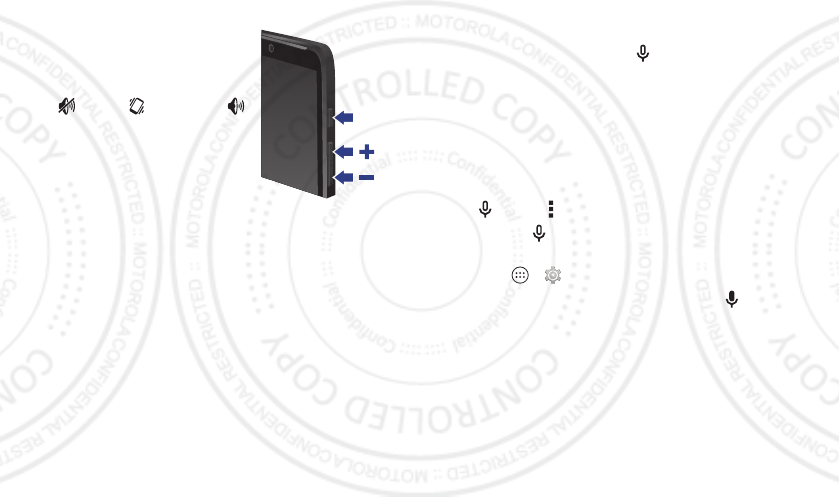

Press
Power key
Press and hold the Power key to
choose
Power off
,
Airplane mode
(no wireless connections—see
“Airplane mode” on page 56),
silent , vibrate , or sound on .
To conserve battery power, prevent
accidental touches, or when you
want to wipe smudges off your
touchscreen, put the touchscreen to
sleep by pressing the Power key. To
wake up the touchscreen, just press the Power key again.
Tip: To add more security to your phone, see “Protect” on
page 56.
Volume keys
Your volume keys help in a few ways:
• Ringer volume: Press the keys in the home screen. Press
them when your phone is ringing to silence it.
• Earpiece volume: Press the keys during a call.
•Music/video volume: Press the keys during a song or
video.
Power
Key
Speak
Just tell your phone what you want.
Tip : Speak naturally but clearly, like using a speakerphone.
• Dialing and commands: Ta p . To d ia l, s ay “ Ca ll”
followed by a contact name or phone number. Or, say a
command like “Send text,” “Go to” an app, or “Help” for
voice command help.
Ti p: If a contact has more than one number, you can say
which number to call. For example, “Call Joe Black Mobile”
or “Call Suzi Smith Work.”
To choose the confirmations and prompts you want to hear,
tap > Menu >
Settings
>
Voice
.
•Search: Tap in the home screen to search by voice.
To change your voice search and text-to-speech settings,
tap Apps >
Settings
>
Language & input
.
• Text entry: On a touchscreen keyboard, tap , then speak
your message or search text. You can also speak
punctuation.
Tip : To make your phone read out loud, see “Ta lk Ba ck ” on
page 22.
2014.08.07
FCC DRAFT
21Control & customize
Customize
Customize your phone’s sounds and appearance:
• Ringtone and notifications: To choose ringtones or
notifications, tap Apps >
Settings
>
Sound
.
• Vibrate or silent: To make your phone vibrate for incoming
calls, tap Apps >
Settings
>
Sound
>
Vibrate when
ringing
. To turn off ringtones for incoming calls, tap Apps
>
Settings
>
Sound
>
Phone ringtone
>
None
.
•Ringtone for a contact: To set a personal ringtone for a
contact, tap Apps >
People
, tap the contact, then tap
Menu >
Set ringtone
.
•Volume: To set volume, just press the side volume keys
while in the home screen (ringtone volume), during a call
(earpiece volume), or while playing music or a video (media
volume).
• Message alert: To change your new message notification
settings, tap Apps >
Messaging
>Menu
>
Settings
, and check
Notifications
.
• Display settings: To change brightness, animation, and
other display settings, tap Apps >
Settings
>
Display
.
•Rotate: In many apps, the touchscreen switches from
portrait to landscape when you rotate your phone. To turn
this on or off, tap Apps >
Settings
>
Display
>
Auto-rotate screen
.
• Wallpaper: To change your wallpaper, touch and hold an
empty spot on your home screen, then tap
WALLPAPERS
.
For more, see “Redecorate your home screen” on
page 10.
• Language and region: To set your menu language and
region, tap Apps >
Settings
>
Language & input
>
Language
.
Quick settings
For quick access to
Wi-Fi
,
Bluetooth
,
Brightness
,
Airplane
mode
, and other settings, flick the status bar down and tap .
For even more settings, tap
Settings
.
Need help finding this screen? See “Status & notifications”
on page 12.
Note: Your quick settings may look a little different.
• Quick settings shortcut: To directly open the quick
settings screen, flick the status bar down with two fingers.
Airplane mode Bluetooth Off
FRI, SEPTEMBER 26
11:35
Location
Charged
Brightness
Network
Signal
Freddy’s
Wi-Fi
Settings
See all of your settings.
Go back to notications.
Set your owner prole.
2014.08.07
FCC DRAFT
22 Control & customize
• Bluetooth and Wi-Fi shortcuts: To quickly turn Bluetooth or
Wi-Fi power on and off, touch and hold the setting icon until
you feel a vibration.
• Owner profile: To set up your owner profile, tap Apps
>
People
>
Set up my profile
. (You may need to scroll to
the top of the screen.)
Accessibility
See, hear, speak, feel, and use. Accessibility features are there
for everyone, helping to make things easier.
Find it: Apps >
Settings
>
Accessibility
Note: For general information, accessories, and more, visit
www.motorola.com/accessibility.
Voice recognition
Just tell your phone what you’d like to do—dial, browse,
search, send a text, and more. Check it out—tap at the top
of the home screen for voice search. Or, say “OK Google Now”
to launch always-on smart voice commands.
Ta l kB a ck
Use TalkBack to read your screen out loud—your navigation,
your selections, even your books.
To turn on Tal kB ac k, ta p Ap ps >
Settings
>
Accessibility
>
TalkBack
, then tap at the top to turn it .
Note: You might need to download text-to-speech software
(data charges may apply).
OFF
ON
To u s e Ta l kB ac k:
• Menus and screens: Tap an item in a menu or screen. Your
phone speaks the name.
• Dialer & text entry: Start typing. Your phone speaks each
number or letter.
• Notifications: Drag the status bar down. Your phone speaks
all of the notifications.
•Books & more: Open a book, file, message, and more. Your
phone reads the text out loud (app dependent).
•Browsers: Enable web pages in your browser to be read out
loud. Move between pages, paragraphs, lines, words, or
characters.
Tip : Navigate through your apps and menus to hear how voice
readouts work on your phone.
To pause/resume TalkBack:
•Wave your hand over the proximity sensor at the top of the
phone. To activate this feature, tap Apps >
Settings
>
Accessibility
>
TalkBack
>
SETTINGS
>
Use proximity
sensor
.
•When Explore by Touch is on, swipe down then right to
open the global context menu, then use the menu to pause
Ta l k B a c k .
2014.08.07
FCC DRAFT
23Control & customize
Explore by Touch
Use Explore by Touch to expand TalkBack, and have your
touches read out loud as you move your finger around the
screen.
To turn on Explore by Touch when TalkBack is active, tap
Apps >
Settings
>
Accessibility
>
TalkBack
>
SETTINGS
>
Explore by touch
.
Tip: When you turn on TalkBack for the first time, your phone
asks if you want to
Enable Explore by Touch?
Tap
OK
to turn it
on.
Explore by Touch changes your phone’s touch gestures so the
location of your touches can be read out loud.
•Touch something on the screen to hear a description or text
readout.
• Double-tap anywhere on the screen to open or activate the
last touched item.
•Swipe using two fingers to scroll through lists or between
screens.
Shortcut gestures let you navigate your phone with simple
swipe gestures (for example, swipe up then left in a single
motion to go to the home screen). To see or change these
shortcuts, tap Apps >
Settings
>
Accessibility
>
TalkBack
>
SETTINGS
>
Manage gestures
.
Note: The way these gestures are interpreted is specific to
TalkBack. Other accessibility services may use the same
gestures for different actions.
To learn more about navigating your phone with Explore by
Touch, tap Apps >
Settings
>
Accessibility
>
TalkBack
>
SETTINGS
>
Launch “Explore by touch” tutorial
.
To turn off Explore by Touch when TalkBack is active, tap
Apps >
Settings
>
Accessibility
>
TalkBack
>
SETTINGS
, and uncheck
Explore by touch
.
Braille
Combine your Braille display with TalkBack for braille and
speech feedback.
1Download the BrailleBack app from Google Play™ Store
(tap Apps >
Play Store
), and install it on your phone.
2Tap Apps >
Settings
>
Accessibility
>
BrailleBack
.
3Turn on your Braille display and put it in Bluetooth® pairing
mode.
4On your phone, tap Apps >
Settings
>
Bluetooth
,
then tap the Bluetooth power switch to turn it and
scan.
5Tap the name of your Braille display to pair it with the phone.
Accessibility shortcut
Use simple gestures to quickly activate Talkback and other
accessibility features on your phone. For more information, tap
Apps >
Settings
>
Accessibility
>
Accessibility
shortcut
.
Caller ID
When you want to hear who’s calling:
ON
2014.08.07
FCC DRAFT
24 Control & customize
• Read out loud: Have your caller announced—tap Apps
>
Settings
>
Accessibility
>
Talkback
>
SETTINGS
>
Speak Caller ID
.
•Ringtones: Assign a unique ringtone to a contact—tap
Apps >
People
, tap the contact, then tap Menu
>
Set ringtone
.
Volume & vibrate
Find it: Apps >
Settings
>
Sound
>
Volumes
or
Vibrate
when ringing
•
Volumes
opens sliders that let you set different volumes for
your music or videos, ringtone, text or email notifications,
and alarms.
•
Vibrate when ringing
determines whether your phone
vibrates for incoming calls (even if the ringer is silent).
Zoom
Get a closer look.
• Pinch to zoom: Pinch to zoom on maps, web pages, and
photos—to zoom in, tap the screen with two fingers and
then drag them apart. To zoom out, drag your fingers
together.
Ti p: To z oo m in , yo u c an a ls o do ubl e- ta p.
• Screen magnification: Triple tap the screen for full screen
magnification, or triple tap and hold to temporarily
magnify—tap Apps >
Settings
>
Accessibility
>
Magnification gestures
.
• Big text: Show bigger text throughout your phone—tap
Apps >
Settings
>
Accessibility
>
Large text
.
•Browser: Choose text scaling and other accessibility
settings for your browser—tap Apps >
Chrome
>Menu >
Settings
>
Accessibility
.
Ti p: Use
Force enable zoom
to allow zooming on all
webpages.
Display brightness
Your phone automatically adjusts the screen brightness when
you’re in bright or dark places. But you can set your own
brightness level instead:
Find it: Apps >
Settings
>
Display
>
Brightness
, and
adjust the slider to set brightness level
2014.08.07
FCC DRAFT
25Control & customize
Note: Setting brightness to a high level decreases your
phone’s battery life. To maximize battery life, tap
AUTO
to
activate automatic brightness.
Touchscreen & keys
To hear or feel when you touch the screen, tap Apps
>
Settings
>
Sound
:
•Touchscreen: To hear a click when you touch something on
the screen, select
Touch sounds
.
•Keys: To feel a vibration when you touch a screen keyboard
key, select
Vibrate on touch
.
• Screen lock: To hear a click when you lock or unlock the
screen, select
Screen lock sound
.
Messages
To make text entry even easier, use features like
auto-capitalization, auto-correction, and more—tap Apps
>
Settings
>
Language & input
, then tap next to a
keyboard type. Of course if you don’t want to type at all, then
use your voice—tap on the touchscreen keyboard.
Hearing aids
To help get a clear sound when using a hearing aid or cochlear
implant, your phone may have been rated for use with hearing
aids. If your phone’s box has “Rated for Hearing Aids” printed
on it, then please read the following guidance.
Note: Ratings are not a guarantee of compatibility (visit
www.motorola.com/hacphones). You may also want to
consult your hearing health professional, who should be able to
help you get the best results.
• Settings: Tap
Phone
>Menu >
Settings
>
Hearing
aids
.
• Call volume: During a call, press the side volume keys to set
a call volume that works for you.
• Position: During a call, hold the phone to your ear as
normal, and then rotate/move it to get the best position for
speaking and listening.
TTY
You can use your phone in TTY mode with standard teletype
machines. Tap
Phone
>Menu >
Settings
>
TTY mode
and select the mode you need:
•
TTY full
: Type and read text on your TTY device.
•
TTY HCO
: Hearing-Carry-Over—type text on your TTY
device and listen to voice replies on your phone’s speaker.
2014.08.07
FCC DRAFT
26 Calls
•
TTY VCO
: Voice-Carry-Over—speak into your phone and
read text replies on your TTY device.
Note: You’ll need a cable/adapter to connect your TTY device
to the headset jack on your phone.
Refer to your TTY device guide for mode and usage
information.
Apps
Want more? No problem. Google Play™ Store provides
access to thousands of apps, many with useful accessibility
features.
Find it: Apps >
Play Store
Calls
Quick start: Calls
Dial contacts, recent calls, or numbers, all from one app.
Find it:
Phone
•To call a contact or recent call, tap it.
•To open the dialpad, tap . Enter a number, then tap to
call it.
Gracie Jo
Home
Jim Somers
Mobile
Lauren
Mobile
Type a name or phone number
Speed Dial ALL CONTACTS
Abe Baudo
Mobile
5 mins ago
Search your contacts.
During a call:
Hang up.
Tap to call the last call.
See all your contacts.
Open dialpad to dial a number.
Call History Options
Dialpad
Speaker Add caller
Mute
2014.08.07
FCC DRAFT
27Calls
Tips & tricks
• During a call: Your touchscreen goes dark to avoid
accidental touches. To wake it up, move it away from your
face or press the Power key.
•Multi-task: While you’re on a call, tap Home to hide the
call screen and look up a phone number, address, or open
other apps. To reopen the call screen, flick the status bar
down the status bar and tap
Ongoing call
.
• People: To search your contacts, tap
ALL CONTACTS
.
• Favorite contact: Have someone you call all the time?
Touch and hold an empty spot on the home screen,
tap
WIDGETS
, then touch and hold the
Direct dial
widget.
Drag it to your home screen, then select the contact. Tap the
widget to dial the person.
•Voicemail: appears in the status bar when you have new
voicemail. To hear it, tap
Phone
> , then touch and
hold
1
.
Make, answer & end calls
When you make or answer a call, you have options:
• Make a call: Tap
Phone
, to see your recent calls,
favorites, and frequently-called contacts. Select a contact or
number to call it.
To dial a number, tap , enter a number, then tap to
call it.
To enter the international dialing code (+), touch and hold
0
.
To add a pause or wait after numbers, tap Menu .
• Answer a call: Tap an d drag to .
With call waiting on, tap and drag to to answer the
new call, then tap
Hold current call + Answer
or
End current
call + Answer
.
• Ignore a call: Tap and drag to to send the call to your
voicemail. You can also press the Power key to ignore the
call, or press a volume key to silence the ringer.
• Respond with a text: To send a pre-set message to an
incoming call, tap and drag to . Select a message to
immediately send it.
• End a call: Tap .
• During a call: Tap
Mute
at the bottom of the call screen
to mute the call. To hide the call screen, tap Home . To
reopen it, flick down the status bar and tap
Ongoing call
.
Note: When you hold your phone to your ear, the
touchscreen goes dark to avoid accidental touches. When
2014.08.07
FCC DRAFT
28 Calls
you move your phone away from your ear, the screen lights
up again.
During a call, your touchscreen might stay dark if the sensor
just above it is covered. Don't use covers or screen
protectors (even clear ones) that cover this sensor.
Recent calls
View your calls (with newest first), and then call, text, or store
them:
Find it:
Phone
>
•To call a number, tap on the right.
•To send a text message, store the number, or other options,
tap an entry.
•To remove an entry from the call log, tap it, then tap Menu
>
Remove from call log
.
•To cl ea r th e li s t, ta p Me nu >
Clear call log
.
3-way calls
During a call, you can start another call, switch between them,
or join them in a 3-way call:
•To answer a second call, tap and drag to . To ignore it,
tap and drag to .
The first call goes on hold if you answer the second call. To
switch between calls, tap .
•To dial a second call, tap , enter a number, then tap to
call it.
The first call goes on hold when you tap . To join the calls
after the second call answers, tap .
Your phone number
Find it: Apps >
Settings
>
About phone
>
Status
>
My
phone number
.
Emergency calls
Note: Your service provider programs one or more emergency
phone numbers you can call under any circumstances, even
when your phone is locked. Emergency numbers vary by
country. Your pre-programmed emergency number(s) may not
work in all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or interference
issues.
1Ta p
Phone
(if your phone is locked, tap
Emergency Call
or tap Menu >
Emergency call
).
2Enter the emergency number.
3Tap to call the emergency number.
Note: Your phone can use location based services (GPS and
AGPS) to help emergency services find you. See “Location
Services” in your legal and safety information.
2014.08.07
FCC DRAFT
29Contacts
Contacts
Quick start: Contacts
Combine information from your Google™ contacts and social
networks for quick access to everyone you know.
Find it: Apps >
People
ME
A
Set up my profile
107 contacts
Abe Baudo
Astrid Fanning
Anna Medina
Allie Smyth
Tap to view contact
information, call, send a
text message, & more.
Create & view
groups of contacts.
Search your contacts.
Sort contacts, change
settings, accounts, & more.
Add a contact.
•Create: Tap at the bottom of the screen.
• Edit or delete: Tap a contact, then tap Menu >
Edit
or
Delete
.
• Call, text, or email: Tap a contact, then tap an option.
Tips & tri cks
•Groups: To show or create a group of contacts, tap , then
tap the group or at the bottom of the screen.
• Search contacts: From the home screen, tap the Google
search box and enter a contact’s name. In the
People
list, tap
.
•Send contacts: Tap a contact, then tap Menu >
Share
to
send it in a message or over a Bluetooth® connection.
•Shortcuts: Touch and hold an empty spot on the home
screen, tap
WIDGETS
, then touch and hold the
Contact
widget. Drag it to your home screen, then select the contact
you want to make a shortcut for.
•Synchronize: On your phone, tap Apps >
Settings
.
Go to the
ACCOUNTS
section, choose your Google
account, then tap your account name to sync it if it has not
been updated recently. You can also see these contacts at
www.gmail.com.
For help with transferring contacts, see “Old phone to new
phone” on page 7 or go to
www.motorola.com/TransferContacts.
2014.08.07
FCC DRAFT
30 Contacts
Create contacts
Find it: Apps >
People
>
Tap a text box to type the name and details. When you’re
finished, tap
DONE
at the top.
Note: To import contacts or change where they’re stored, see
“Get contacts” on page 31.
Call, text, or email contacts
Find it: Apps >
People
Tap a contact to see more options. Depending on the
information you have for that person, you can call, text, or send
email. You can also use voice recognition (see “Speak” on
page 20).
Favorites
Set your most-used contacts as favorites, so you can get to
them faster.
•To set a favorite, tap Apps >
People
, select a contact
and tap .
•To see your favorites, tap Apps >
People
>.
Starred contacts appear at the top of your screen when you
open the calling screen.
Edit, delete, or hide contacts
Find it: Apps >
People
•To edit a contact, tap it, then tap Menu >
Edit
. Tap a field to
edit it. Tap to choose the contact’s picture.
•To set a personal ringtone for the contact, tap it, then tap
Menu >
Set ringtone
.
•To delete the contact, tap it, then tap Menu >
Delete
.
Contacts from social networks will be hidden if you select
Delete
. To view these contacts, or delete them permanently,
use the social network's app or website.
•To hide the contacts from an account or group in your
People
list, tap Menu >
Contacts to display
. Tap an
account type to show it. Tap
Customize
to uncheck
accounts you always want to hide.
2014.08.07
FCC DRAFT
31Contacts
Get contacts
Get all your contacts in one place.
•To add your social networking contacts, tap Apps
>
Settings
, go to the
ACCOUNTS
section, and tap
Add account
.
•To add your email contacts, see “Email” on page 33.
Tip: If you add a
Corporate Sync
account, you can send
messages to your coworkers, even if you don’t have them
stored in your contacts.
•To import contacts from your SIM card (if that didn’t happen
automatically), tap Apps >
People
>Menu
>
Import/export
>
Import from SIM card
. Tap
OK
to
confirm.
•To import contacts from your computer, upload the contacts
to your Google™ account at http://contacts.google.com.
On your phone, tap Apps >
People
>Menu
>
Accounts
>
Auto-sync app data
. You can also see these
contacts at http://mail.google.com.
For help with transferring contacts, see “Old phone to new
phone” on page 7 or go to
www.motorola.com/TransferContacts.
Share contacts
Send a contact with a Bluetooth® connection, email, or
Google Drive™:
Find it: Apps >
People
To send a contact, tap it, then tap Menu >
Share
and choose
how you want to send it.
Note: You can’t send your social network contacts.
Groups
Create groups of
Contacts
(like “friends,” “family,” or
“coworkers”), then find contacts faster by showing one group.
Find it: Apps >
People
>
To create or show a group, tap , then tap at the bottom of
the screen.
My details
Find it: Apps >
People
To store your user profile, tap
Set up my profile
under
ME
at
the top of the contact list.
2014.08.07
FCC DRAFT
32 Messages
Messages
Quick start: Messages
Stay in touch with messages and pictures.
Find it: Apps >
Messaging
•Create: Tap at the bottom of the screen.
• Attach: When you’re typing a message, tap to attach a
picture, video, or file.
•Send: Tap to send the message.
Please take a look at the latest revisions an..
10:23am
555-555-1234 (4)
10:23pm, Dec 17, 2013
Astrid Fanning (18)
Don’t forget to bring the book when you co...
8:18am
900-555-2525 (1)
Lunch tomorrow?
6:56pm, Dec 17, 2013
Daniel Lester (6)
Meet me outside the theatre at 8:00. And b...
2:23pm, Dec 17, 2013
Mary Morgan (5)
I’m fine with that. Let me know when you h...
3:06pm, Dec 16, 2013
Abe Baudo (22)
Messaging
Tap a sender’s picture to
add them to your contacts.
Tap a conversation to open it.
Touch & hold to delete the
message & more.
Create a message.
Change notications
& see other options.
Tips & tri cks
• Forward a message: In a conversation, touch and hold a
message for more options, such as forwarding it.
• Save attachments: Touch and hold a picture to save it. To
see the picture, tap Apps >
Gallery
>
Download
.
•Voice entry: Just tap a text box, then tap on the
keyboard.
Ti p: If you don’t see on the keyboard, tap Apps
>
Settings
>
Language & input
>
Google voice typing
to
activate voice entry.
• Text your best friend: Use a widget to text your favorite
contact quickly. Touch and hold an empty spot on the home
screen, tap
WIDGETS
, touch and hold the
Direct message
widget to drag it to your home screen, then select the
contact.
2014.08.07
FCC DRAFT
33Messages
Read, reply, forward & delete text messages
Find it: Apps >
Messaging
•Open: Tap a conversation to open it.
• Attachments: When you open a message with an
attachment, tap the attachment to open it, or touch and hold
it to save it.
• Reply: Open a conversation, then enter your response in
the text box at the bottom.
•Forward: Open a conversation, touch and hold the
message you want, then tap
Forward
.
• Delete: Touch and hold a conversation, then tap at the
bottom. Or, open the conversation, touch and hold one
message, then tap
Delete
.
• Settings: Tap Menu >
Settings
to change your
notifications and other options.
Set your default messaging app
You can also use Google Hangouts™ to send and receive your
text messages.
To s et
Hangouts
or
Messaging
as your default
messaging app:
Find it: Apps >
Settings
>
More
>
Default SMS app
For more about Google Hangouts, see “Chat using Google
Hangouts™” on page 34.

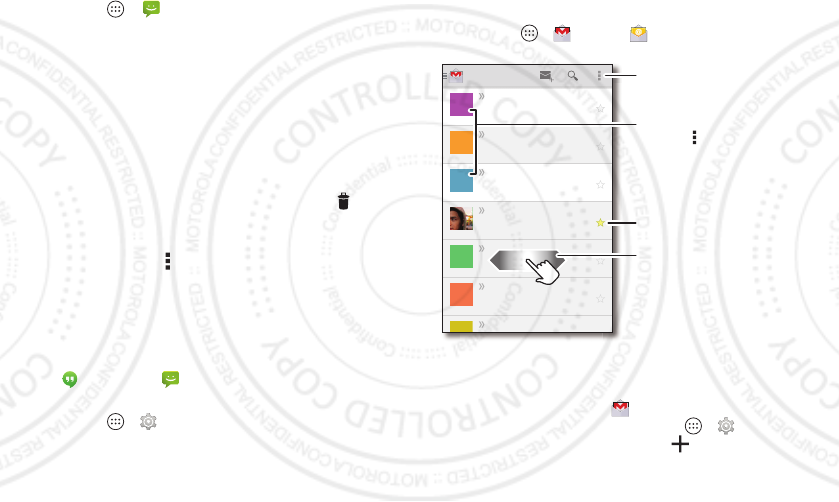

Email
Send and receive email. Set up and manage accounts.
Find it: Apps >
Gmail
or
Email
• Add Gmail™ accounts: The first time you turned on your
phone, you probably set up or logged in to your Google™
account—that sets up the
Gmail
app for one account. To
add more Google accounts, tap Apps >
Settings
, go
to the
ACCOUNTS
section, then tap
Add account
>
Google
.
Inbox
you@gmail.com
1:51PM
Anna Medina
Copy Revisions - Take a look at
the latest print proofs (attached) ...
A
Dec 17
Melissa Marin
Fall Vacation - Have you decided
where you’re going to take the kid...
M
Dec 16
customersupport@...
10:17AM
Unit 94 Schools
Schedule for week of Dec. 23 -
Here’s the schedule of activities fo...
U
8:44AM
Motorola Mobility...
Motorola Mobility shared a post
on Google+ - Motorola Mobility shared a ...
M
Dec 17
Account notify @C...
Account Change Notifications Now
Available Online - Please log in to...
A
Dec 17
Abe Baudo
Did you see this? - [image] [image]
Hard to believe they could do this...
A
C
Open settings & options.
Swipe left or right to
archive a message thread.
“Star” a message to add it
to the Starred Gmail label.
Choose multiple messages, then
tap Menu at the top to select
an option.
2014.08.07
FCC DRAFT
34 Messages
• Add email accounts: To ad d pe rso na l
Email
accounts,
follow the prompts when you first open the app, or tap
Apps >
Settings
, go to the
ACCOUNTS
section, then
tap
Add account
>
Email
. For Microsoft® Exchange
server work email accounts, tap
Add account
>
Corporate
, and enter details from your IT administrator.
• Change account settings: To change Gmail™ account
settings, tap Apps >
Settings
>
Google
.
To change email account settings, tap Apps
>
Settings
>
Email
>
Account settings
.
• Delete accounts: To delete a Gmail or email account, tap
the account name, then tap Menu >
Remove account
.
Chat using Google Hangouts™
Sign in with your Google account to stay in touch with friends
and family.
Find it: Apps >
Hangouts
• Start a new hangout: Tap
+
(or swipe left), then tap a name
in your list of friends. You can send a text message, or tap
to make a video call.
• Change settings: Tap Menu to see your old hangouts,
change your profile pic, other settings, and more.
• Chat from a computer: You can chat from a computer, too.
Find out more at www.google.com/hangouts.
Wireless Emergency Alerts
Wireless Emergency Alerts, also known
as CMAS or PLAN, is a U.S. national
emergency alert system. Emergency
alerts can pop up to tell you about a
national or local crisis. After you close an alert, you can reopen
it by touching Apps >
Settings
>
More
>
Emergency
Alerts
.
Tip : Emergency alerts have a special sound and vibration that
is two seconds long, followed by one second, then another one
second.
To choose which types of alerts you receive, tap Apps
>
Settings
>
More
>
Emergency Alerts
. The U.S. and local
governments send these alerts through your service provider.
So you will always receive alerts for the area where you are, and
you won’t receive alerts if you’re outside of the U.S.
For more, visit www.ctia.org/consumer_info/safety/.
A
LERTS
WIRELESS
CAPABLE
EMERGENCY
TM
2014.08.07
FCC DRAFT
35Type
Type

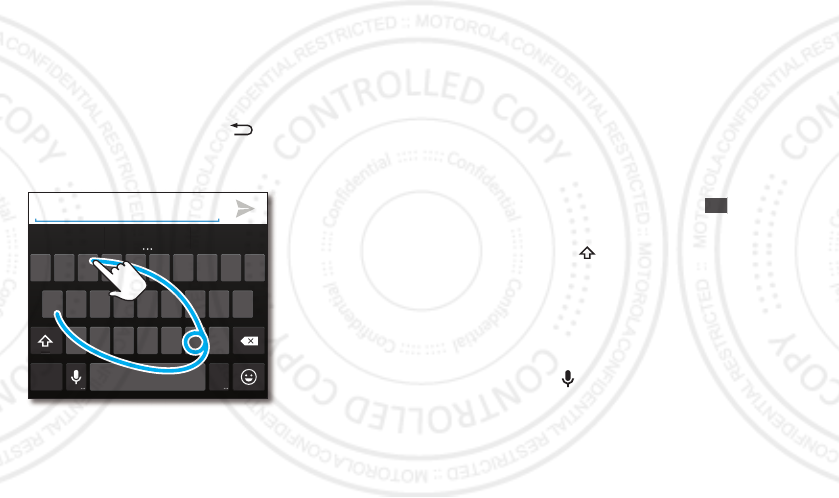

Quick start: Type
When you tap a text box, like in a message or search, you have
keyboard options.
•Type or gesture: Enter letters by touching them one at a
time. Or, enter a word by tracing a path through the letters.
•Close the keyboard: Tap Bac k .
Anne
ertyuiopqw
asdf ghj k l
?123 .
zxcvbnm
4123 098765
And AnnexAnne See a dierent
keyboard? It varies
by app. This one is
for texting.
Tips & tri cks
• Keyboard changes: Your touchscreen keyboard changes
depending on whether you’re entering a text message,
email, or other text.
• Move the cursor: Tap a spot in the text to place the cursor,
then drag the arrow under the cursor to move it.
• Your dictionary: To add a word you enter often, enter it, tap
the word in the word list below the text box, then tap there
again to add it to your dictionary.
•Symbols: Touch and hold a key to enter the small number or
symbol at the top of it.
To enter several numbers or symbols, tap .
• Double letters: Circle a letter to enter two of them.
• Capital letters: Tap or drag it to the letter you want to
capitalize.
• Special characters: Touch and hold a letter to choose from
other special characters.
•Word prediction: While you’re typing, word suggestions
appear above the keyboard. Tap one to select it.
•Voice entry: Tap on the touchscreen keyboard, then say
what you want to type. You can speak as long as you like,
pause whenever you want, and dictate punctuation to
create correct sentences.
?123
?123
2014.08.07
FCC DRAFT
36 Type
•Vibrate: Don’t like the vibrating keys when you type? Tap
Apps >
Settings
>
Language & input
. Then tap
next to
Google Keyboard
>
Vibrate on keypress
.
Text entry set tings & dictionary
Choose your keyboard style and edit the dictionary of words
your phone suggests:
Find it: Apps >
Settings
>
Language & input
•To choose your touchscreen keyboard, tap
Default
. To allow
voice entry from the keyboard, tap
Google voice typing
.
•To change the preferences for your keyboard, tap . You
can change the language, automatic punctuation, and
more.
•To add or edit the words that your phone suggests and
recognizes, tap
Personal dictionary
.
Cut, copy & paste
Cut, copy, and paste names, phone numbers, addresses,
quotes, or anything else in a text box.
1To highlight a word, touch and hold it.
To highlight more words, drag the selector arrow at the
edge of the highlight.
2Tap the icons to cut or copy.
Ti p: Touch and hold icons to show labels.
3Open the text box where you want to paste the text (even if
it’s in a different app).
4Tap in the text box, then touch and hold to show the
PASTE
option. Tap
PASTE
to paste the text.
Anne Hotel Send
Text selection Copy
Cut
Select All
2014.08.07
FCC DRAFT
37Organize
Organize
Clock
Find it: Apps >
Clock
> (in the lower left)
•Alarm: Tap an alarm to edit it, or tap to add a new alarm.
When an alarm sounds, touch and drag to to turn it
off, or touch and drag to to snooze for ten minutes.
• Settings: To change your alarm sound, snooze delay, or
other settings, tap Menu >
Settings
.
•Timer: For a timer, tap .
•Stopwatch: For a stopwatch , tap .
• World clock: For other time zones, tap .
Tip: To find out what an icon means, touch and hold it. To set
your current date, time, time zone, and formats, tap Apps
>
Settings
>
Date & time
.
Calendar
See events stored on your phone and in your online calendars,
all together in one place.
Find it: Apps >
Calendar
• Change the view: Tap the date at the top left to choose
Day
,
Week
,
Month
, or
Agenda
.
• Go to today’s date: Tap at the top of the screen.
• Add events: From any view, tap Menu >
New event
, enter
event details, then tap
DONE
.
31 612345
21 2722 23 24 25 26
28 429 30 123
511778910
14 2015 16 17 18 19
7138 9 10 11 11
SUN FRITHUWEDTUEMON SAT
September 2014 26
6
6
6
6
6
6
6
6
2
3
4
5
20
0
0
0
0
0
0
6
17
18
19
13
3
3
3
3
3
3
3
9
10
11
11
FR
FR
FR
I
I
I
TH
TH
TH
U
U
U
WE
WE
WE
D
D
D
E
SA
SA
SA
T
T
T
T
T
T
New event
Settings
Calendars to display
Search
Refresh Calendar Menu
Change the calendar view.
Other calendar events
appear in dierent colors.
Scroll up/down to
see other months.
2014.08.07
FCC DRAFT
38 Organize
• Show, edit, or delete events: Tap an event to open it, then
tap edit or delete .
• Show, hide, or add calendars: Tap M en u >
Calendars to
display
to show or hide calendars from your Google™
account. You can use a computer to add or remove
calendars on your Google account at
www.google.com/calendar.
Tip: Add a
Calendar
widget to your home screen. Touch and
hold an empty spot on the home screen, tap
WIDGETS
, then
touch and hold the
Calendar
widget to drag it to your home
screen.
Corporate sync
If you use Microsoft® Office Outlook on your work computer,
your phone can synchronize email, events, and contacts with
your Microsoft Exchange server.
•To add your
Corporate
account, see “Email” on page 33.
•To choose what to sync from your
Corporate
account, tap
Apps >
Settings
>
Corporate
, tap your account, then
check options like
Calendar
,
Contacts
, or
Email
.
Quickoffice™
Use Quickoffice to view and edit files.
Find it: Apps >
Quickoffice
Tap a file or folder to open it, or touch and hold a file for
options. You can edit most documents, spreadsheets, and
presentations:
•Place your cursor by touching the text.
•Select text by double-tapping it.
•To open a keyboard, format text, save the file, or choose
other options, tap Menu .
Office network
To connect your office network with a Virtual Private Network
connection, see “Virtual Private Networks (VPN)” on
page 55.
Google Drive™
All your photos, videos, documents, and more safely in one
place—private unless you choose to share. Available on
Google Drive from all your devices.
Find it: Apps >
Drive
Print
To print your photos, documents, and more from your phone,
check if your printer’s manufacture has an app on Google Play
Store. Then tap Apps >
Settings
>
Printing
to get
started.
You can also send your photos, docs, and more to any Android
device in your cloud or to Google Drive. Just download the
Cloud Print app from Google.
2014.08.07
FCC DRAFT
39Socialize
Socialize

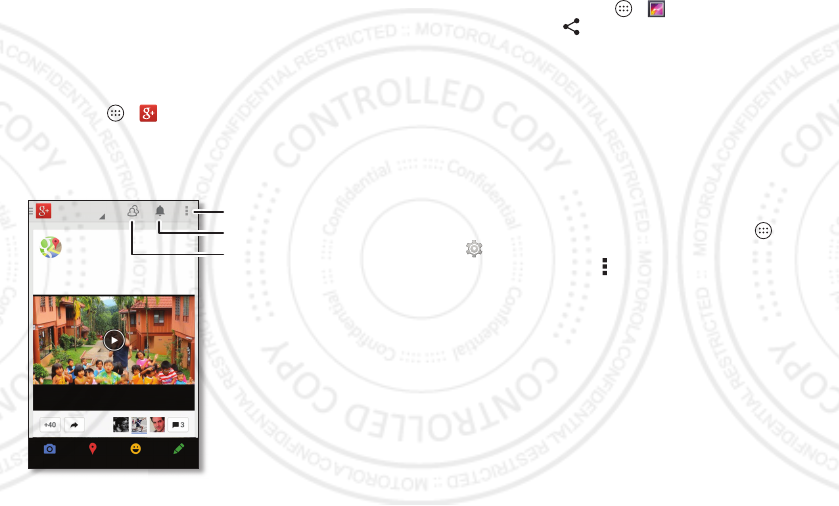

Quick start: Socialize
Google+™ makes connecting on the web more like
connecting in the real world. Share your thoughts, links, and
photos with the right circles.
Find it: Apps >
Google+
What’s hot
Photo WriteMoodLocation
Google Maps
25 mins ago
Did you dance today?
Today may be International Dance Day, but for +...
Around the World, One Dance at a Time
Open options.
See notications.
See & nd friends.
We’re making changes all
the time. Your screen may
look a little dierent.
Probably cooler.
Tips & tri cks
• Upload photos: Tap Apps >
Gallery
and tap a photo
or video. Choose >
Google+
and select your account.
•Add a widget: Use a widget to quickly read your Google+
posts. Touch and hold an empty spot on the home screen,
tap
WIDGETS
, then touch and hold the
Google+ Posts
widget to drag it to your home screen.
•Help: For more about Google+, visit www.google.com/+.
• Other social networks: You can also use Facebook®,
Twitter, and more. Open Google Play™ Store to find the
latest official apps and widgets.
•Remove accounts: To delete an account (along with its
contacts and messages on your phone), tap Apps
>
Settings
, go to the
ACCOUNTS
section, select the
account, then tap Menu >
Remove account
.
2014.08.07
FCC DRAFT
40 Browse
Browse
Quick start: Chrome™
Find it: Apps >
Chrome
• Go to a webpage: Tap the address bar at the top of a page
and enter an address.
• Add a bookmark: Open the address bar (drag down if you
don’t see it), then tap Menu > .
• Open a bookmark: Open the address bar, then tap Menu
>
Bookmarks
.
Images
Web
Sign in
www.google.com
Chicago, IL - Update
Open options.
Show other browser tabs,
or open a new one.
Tap a link to open it.
Touch & hold for more options.
Tips & tri cks
•Webpage shortcut: To add a webpage shortcut to your
home screen, go to the webpage and tap Menu >
Add to
homescreen
.
• Internet search shortcut: In the home screen, tap the
Google™ search box at the top and enter a website
address.
Note: If you can’t connect, contact your service provider.
• Mobile sites: Some websites automatically show you a
“mobile” version of their page—if you want to show the
standard computer versions of all websites, tap Menu
>
Request desktop site
.
•Reload: If a page doesn’t load correctly, tap .
• Clear history: In the browser, tap Menu >
Settings
>
Privacy
>
CLEAR BROWSING DATA
at the bottom of the
page. Then choose history, cache, cookies, and other
options.
•Help: For more about Google Chrome, visit
www.supportgoogle.com/chrome.
Web connection
To access the web, your phone uses your Wi-Fi network (or
your mobile phone network if no Wi-Fi network is connected).
Note: Your service provider may charge to surf the web or
download data over your mobile phone network.
2014.08.07
FCC DRAFT
41Browse
To connect to a Wi-Fi network, see “Wi-Fi Networks” on
page 51.
Bookmarks
To bookmark a page in your browser, tap Menu > .
To go to a bookmark, tap Menu >
Bookmarks
, then tap the
bookmark.
Downloads
Warning: Apps downloaded from the web can be from
unknown sources. To protect your phone and personal data,
download apps only on Google Play™.
To download a file, picture, or webpage, tap Apps
>
Chrome
and go to the website:
•Files: Tap the download link. To show the file or app, tap
Apps >
Downloads
.
• Pictures: Touch and hold it to choose
Save image
. To see
the picture, tap Apps >
Gallery
>
Download
.
To download apps or phone updates, see “Download apps”
on page 15 or “Update your phone” on page 17.
Browser options
To change your browser security settings, text size, and other
options, tap Menu >
Settings
.
Safe surfing & searching
Keep track of what your browser and searches show:
• Incognito: To open a tab that won’t appear in your browser
or search history, tap Apps >
Chrome
>Menu
>
New Incognito tab
.
• Clear history: To clear your browser history and other saved
information, tap Apps >
Chrome
>Menu
>
Settings
>
Privacy
>
CLEAR BROWSING DATA
.
•Auto complete: When you enter your name in an online
form, your browser can automatically enter your address
information. If you don’t want that, tap Apps
>
Chrome
>Menu >
Settings
>
Autofill forms
, then
tap the switch at the top to turn it .
•Pop-ups: To stop pop-up windows from opening, tap
Apps >
Chrome
>Menu >
Settings
>
Content
settings
>
Block pop-ups
.
OFF
2014.08.07
FCC DRAFT
42 Photos & videos
Photos & videos
Quick start: Photos & videos
Take super clear photos with a twist of your wrist and a tap on
the screen.
• Launch it: Even when your phone is asleep, twist your wrist
twice, quickly, to launch camera anytime.
• Record 4K video: Capture and play back movie-quality 4K
video content.
Get camera help.
Swipe right to open eects &
settings.
Rotate the dial to
see more options.
Tap anywhere to take the
photo. Touch & hold to take
multiple shots.
Tip : Ta p A pps >
Camera
, swipe the screen right and tap
to turn Quick Capture on or off
Tips & tri cks
• Take a photo: Open the camera, then tap anywhere on the
screen or press the volume keys to take the photo.
• Take a selfie: Tap in the camera screen to switch to the
front camera, to take a self portrait.
• Record a video: Tap in the camera screen to temporarily
switch to the video camera and start recording. Then
tap to stop recording.
• Capture a still shot during a video: Tap anywhere on the
screen while recording to save a photo.
• View, share, or delete: To open your gallery, swipe the
camera screen left. Pick a photo or video. Choose to
share, to delete, or Menu for more options, like
Crop
or
Edit
.
• Change settings: To open camera options, swipe the
camera screen right.
• Zoom: Drag the camera screen up or down using one
finger.
• Multi-shot: When you’re ready, touch and hold the camera
screen to take a burst of photos.
• Panorama: To take a panoramic shot, swipe the camera
screen right to open settings, then tap . Use the
on-screen guide to slowly pan your phone.
2014.08.07
FCC DRAFT
43Photos & videos
•Clarify: For the clearest photos and videos, clean the
camera lens with a soft, dry cloth.
•Print: Want to print your photos? Check out “Print” on
page 38.
Take photos
Find it: Apps >
Camera
Tap anywhere on the camera screen to take the photo.
Record videos
Find it: Apps >
Camera
, then tap
The camera temporarily turns into a video camera and
immediately starts recording. Tap to stop recording.
Tip: To send a video in a text message, swipe the camera
screen left to open your gallery, tap the video, then
choose to share.
The perfect shot
Point, tap, and you’re done. But when you want something a
little different, play with these camera options.
Tip : To open camera options, swipe the camera screen right.
Options
HDR
Turn on HDR (high dynamic range)
effect for better pictures in
challenging lighting situations.
Flash
Set
On
,
Off
, or
Auto Flash
.
Auto-focus
Set the camera to focus on the object
you tap in the screen.
Slow motion
Take a slow motion video.
Panorama
Take a wide-angle shot. Use the
on-screen guide to slowly pan while
you are taking the photo.
Geo-Tag
Tag your photos with a location.
Widescreen
Take a widescreen photo.
Shutter tone
Turn the shutter click on or off.
Quick Draw
Catch it fast. When your phone is
asleep, twist your wrist twice, quickly,
to launch the camera anytime.
2014.08.07
FCC DRAFT
44 Photos & videos
Edit, share, or delete photos & videos
Find it: Apps >
Gallery
• Play, share, or delete: Tap a thumbnail to open it, then
choose to share, to delete, or Menu for more.
Tip: To select multiple files, open a folder, touch and hold a
photo, then tap others.
• Highlight reel: You can create a highlight reel of photos and
videos from events you record, add music, and share it with
your friends. Swipe right on the gallery screen and
tap
Highlights
to get started.
• Zoom: Open a photo in
your gallery, then drag
two fingers apart or
together on the screen.
Tip: Tu rn your ph one
sideways for a
widescreen view.
• Wallpaper or contact
photo: Open a picture,
then tap Menu >
Set picture as
.
•Edit: Open a picture, then tap Menu >
Edit
.
• Slideshow: Open a folder, then tap Menu >
Slideshow
. To
stop the slideshow, tap the screen.
Tip: To show the slideshow on a television or other device,
see “Connect & transfer” on page 49.
Capture your screen
Share a screen capture of your favorite playlist, your new high
score, or a friend’s contact information. If you can show it on
your phone, you can share it with your friends.
To capture your phone’s screen, press and hold both the Power
and the Volume Down keys at the same time.
To see the screen capture, tap Apps >
Gallery
>
Albums
>
Screenshot
.
Play Movies & TV
Find and rent movies and TV shows to watch on your phone,
tablet, or computer:
Find it: Apps >
Play Movies & TV
.
To shop, rent, or watch on a computer, go to
www.google.com/play and choose “Movies & TV”.
Yo uTu b e ™
Watch videos from YouTube users everywhere—or log in to
your account to share your own.
Find it: Apps >
YouTube
2014.08.07
FCC DRAFT
45Play Music
Play Music
Quick start: Music
Music everywhere—stream it, buy it, save it, play it. Listen and
create playlists anytime.
Find it: Apps >
Play Music
To get your music on Google Play™ using a computer, visit
www.google.com/music.
Ta p
Listen Now
to see recommendations and more.
Got it
Listen Now makes it easy to figure out what
to play next. The more you play, the better
Listen Now gets at surfacing good stuff.
Welcome to Listen Now
Listen Now
Xtra Crispy
Xtra Crispy
Recently played
ALL MUSIC
Bordertown Devils
Lost Highway
Recently played
ll d
Xtra Crispy
Xtra Crispy
Tap to play the song,
or swipe left or right to
see others in your queue.
Fine tune audio settings & more.
Tap an album to see more info.
Search for & download music.
Go to your music library
or playlists.
Tips & tri cks
•Volume: Press the volume keys.
• Hide the music player: To use another app while your
music plays, tap Home . To return to the music player,
flick the status bar down and tap the song title.
• Home screen: Control music playback from the home
screen by adding the
Google Play Music
widget.
•Shop: Tap
Shop
to get more music. (If you don’t see the
Shop option, tap the upper left of the screen first.)
• Playlists: Tap Menu next to a song in your library to add it
to a playlist or show other options. To edit, rename, or delete
a playlist, touch and hold its name in the music library.
• During a flight: Press and hold the Power key >
Airplane
mode
to turn off all your network and wireless connections
and listen to music during a flight.
• File types: Your phone can play MP3, M4A, AAC, AAC+,
MIDI, and WAV files.
Note: Copyright—do you have the right? Always follow the
rules. See “Content Copyright” in your legal and safety
information.
2014.08.07
FCC DRAFT
46 Play Books
Play Books
Quick start: Books
Read your favorite books, magazines, and newspapers when
and where you want.
Find it: Apps >
Play Books

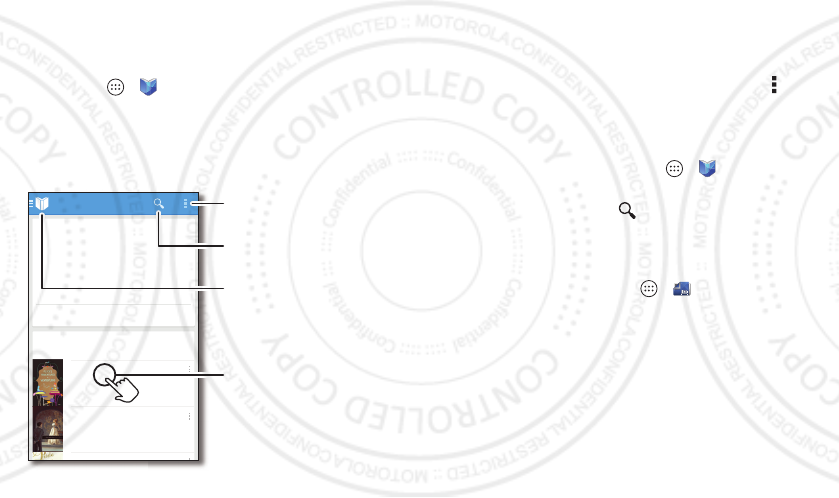

Read Now
Shop books
Shop for free and paid books, or check out
My Library for a few classics. Books you’re
reading or have recently bought appear
here.
Ready to read?
Recommended for you
Alice’s Adventures in Wonderla...
Lewis Carroll
Top book $0.00
Great Expectations
Charles Dickens
Top book $0.00
Pride and Prej dice
Choose options, like
hearing a book read aloud.
Tap a book to see more info.
Go to your library
or shop for books.
Search for & download books.
Tips & tri cks
•Turn pages: While reading the book, turn the pages by
swiping them.
• Recent page: When you open a book, it shows the last page
you were reading.
• Table of contents: Tap a book page, then tap Menu to
open the table of contents or change the view.
•Close: To return to your book list, tap the book title at the
top.
•Shop: To shop for books, tap Apps >
Play Books
>
Shop
.
Browse by category, or tap and search for a title or
author. Tap a book to show details. Then, tap the book’s
price to buy it (or tap
OPEN
to open a free book). After you
confirm a purchase, the book is added to your library.
• Magazines & more: Tap Apps >
Play Newsstand
.
2014.08.07
FCC DRAFT
47Play Games
Play Games
Quick start: Games
Download and play the latest fun games.
Find it: Apps >
Play Games
>
Explore
My games
Featured games
Players
SEE MORE
SEE MORE
SEE MORE
You haven’t played any games
yet. Try playing a game with
achievements, leaderboards, or
multiplayer features.
You haven’t played a game with
anyone yet. Try challenging a
friend to a match.
Sonic Dash
Get games
Add friends
Play Games
Find friends to challenge.
Play now or look for new games.
Search for & download games.
Get more games.
Bye bye, boredom.
Tips & tri cks
• Challege friends: You can play against people in your
Google+™ circles. Scroll down to
Players
and choose a
person or tap
Add friends
.
• Find more friends: Scroll down to
Gamers you may know
and choose a person, or tap
MORE
.
2014.08.07
FCC DRAFT
48 Locate & navigate
Locate & navigate
Quick start: Locate & navigate
Find a nearby cafe, get directions or step-by-step GPS voice
navigation using the Google Maps™ you know and trust.
Find it: Apps >
Maps
>
Enter what you want to find, then tap it to see more information
and options.
Search Search by voice for
an address or location.
See your current location.
Find nearby food,
drinks, & attractions.
Get directions &
navigation instructions.
Swipe right for places,
settings, help, & more.
Tips & tri cks
• Find an address: Tap and enter an address or something
you’re looking for, like “restaurant.” The map moves to show
the address or local suggestions. Tap the address info at the
bottom for more details. Or tap an Explore or Services
option.
•Get directions: Tap , then enter a place or address.
• Save an address: Tap the address info at the bottom of the
screen, then tap by its name. To see your saved places,
swipe the map screen right and tap
Your places
.
• Find nearby food, drinks, and attractions: Ta p at th e
bottom, then tap an option (eat, drink, play, or see).
• Zoom: To zoom in or out, drag two fingers together or apart
on the screen.
• Turn and tilt: Rotate two fingers on the map to turn it, or
drag down/up to tilt.
• Identify address: Touch and hold a spot on the map to
show the nearest address.
• Get map help: Swipe the map to the right and tap
Help
.
2014.08.07
FCC DRAFT
49Connect & transfer
Get directions with Navigation (Beta)
Get spoken turn-by-turn directions to any destination.
Tap , type or select your destination, then tap
Start
.
Navigation shows a map and starts telling you directions.
• Mute the spoken directions: Tap Men u >
Mute voice
guidance
.
• Stop navigation directions: Tap
X
at the bottom. To
resume, tap
Start
.
• Cancel the navigation program: Stop the navigation
directions (tap
X
at the bottom), then tap
X
at the top right.
Note: Using a mobile device or accessory while driving may
cause distraction and may be illegal. Always obey the laws and
drive safely.
For more, go to www.google.com/mobile/navigation.
Connect & transfer
Quick start: Connect & transfer
Connect accessories, computers, networks, and more.
Find it: Apps >
Settings
ON
ON
Settings
WIRELESS & NETWORKS
DEVICE
Wi-Fi
More...
Bluetooth
Data usage
Sound
Apps
Display
Storage
Battery
Change Wi-Fi settings.
Change Bluetooth settings.
Turn Wi-Fi or Bluetooth
power or .
ON
OFF
Turn on portable Wi-Fi hotspot,
NFC, and more.
2014.08.07
FCC DRAFT
50 Connect & transfer
Tips & tricks
• Quick settings: Get to the most used settings quickly. Flick
down the status bar and tap . See “Quick settings” on
page 21.
• Bluetooth® devices: To connect a Bluetooth headset,
keyboard, or other device, tap
Bluetooth
.
•Wi-Fi networks: To connect, tap
Wi-Fi
.
• Wi-Fi hotspot: To make your phone a hotspot, tap
More
>
Tethering & Mobile Hotspot
, then check
Portable Wi-Fi
Hotspot
. You can change hotspot security.
• USB cable: Your phone’s micro USB port lets you exchange
media and other files with a connected computer. To
change the type of USB connection, tap Apps
>
Settings
>
Storage
>Menu >
USB computer
connection
.
• Automatic connections: When Bluetooth or Wi-Fi power is
, your phone automatically reconnects to available
devices or networks it has used before.
• Airplane mode: Need to shut down wireless connections
quickly? Flick the status bar down and tap >
Airplane
mode
.
Or, touch and hold the Power key >
Airplane mode
.
•Print: Want to print your photos, docs, or other things?
Check out “Print” on page 38.
ON
Bluetooth® wireless
Turn Bluetooth power on/off
Find it: Apps >
Settings
, then tap the
Bluetooth
switch
to turn it
Tip : To extend battery life or stop connections, turn the
Bluetooth switch when you’re not using it.
Connect devices
The first time you connect a Bluetooth device, follow these
steps:
1Make sure the device you are pairing with is in discoverable
mode (for details, refer to the guide that came with the
device).
2Tap Apps >
Settings
>
Bluetooth
.
3Make sure the switch at the top is , then tap
SEARCH
FOR DEVICES
.
4Tap a found device to connect it (if necessary, tap
Pair
or
enter a passkey like
0000
).
Ti p: Tap next to a device to rename it.
When the device connects, the Bluetooth status indicator
turns solid .
To automatically disconnect or reconnect a device anytime,
just turn it off or on.
ON
OFF
ON
2014.08.07
FCC DRAFT
51Connect & transfer
Note: Using a mobile device or accessory while driving may
cause distraction and may be illegal. Always obey the laws and
drive safely.
Manage devices
To manually reconnect your phone with a paired device, tap
the device name in the
AVAILABLE DEVICES
list.
To manually disconnect your phone from a paired device, tap
the device name in the devices list, then tap
OK
.
To remove a paired device, tap next to the device name in
the
PAIRED DEVICES
list, then tap
Unpair
.
To change the name your phone shows to other devices, tap
Apps >
Settings
>
Bluetooth
, turn Bluetooth power on,
then tap Menu >
Rename phone
. Enter a name and
tap
Rename
.
Let devices find your phone
To let a Bluetooth device discover your phone:
1Tap Apps >
Settings
>
Bluetooth
.
2Tap your phone’s name at the top to switch between
Not
visible to other Bluetooth devices
and
Visible to all nearby
Bluetooth devices
(for two minutes).
Transfer files
• Photos or videos: Open the photo or video, then
tap >
Bluetooth
.
• People: Ta p A pp s >
People
, tap a person, then
tap Menu >
Share
>
Bluetooth
.
Wi-Fi Networks
Turn Wi - Fi pow e r on /off
Find it: Apps >
Settings
, then tap the
Wi-Fi
switch to
turn it .
Note: To extend battery life, turn the Wi-Fi switch when
you’re not using it.
Connect to networks
To find networks in your range:
1Tap Apps >
Settings
>
Wi-Fi
.
Ti p: To show your phone’s MAC address and Wi-Fi settings,
tap Menu >
Advanced
.
2Make sure the switch at the top is , then tap Menu
>
SCAN
.
3Tap a found network to connect it (if necessary,
enter
Network SSID
,
Security
, and
Wireless password
, and
tap
Connect
).
When your phone connects, the Wi-Fi status
indicator appears in the status bar.
Note: If you see a question mark in the Wi-Fi status
indicator , flick the status bar down, tap the network, and
enter the network’s password.
ON
OFF
ON
2014.08.07
FCC DRAFT
52 Connect & transfer
Tip: When Wi-Fi power is on, your phone automatically
reconnects to available networks it has used before.
Wi-Fi hotspot
Your can make your phone a Wi-Fi hotspot to provide portable,
convenient internet access to other Wi-Fi enabled devices.
Note: Keep it secure. To protect your phone and hotspot from
unauthorized access, it is strongly recommended that you set
up hotspot security (WPA2 is the most secure), including
password.
Find it: Apps >
Settings
>
More
>
Tethering & portable
hotspot
and check
Portable Wi-Fi hotspot
1Your phone turns off
Wi-Fi
power and uses the mobile
network for internet access. Tap
Set up Wi-Fi Hotspot
to set
up security:
• Network SSID: Enter a unique name for your hotspot.
•Security: Select the type of security you want:
Open
or
WPA2
. For
WPA2
, enter a unique password that others
will need to access your Wi-Fi hotspot.
Note:
WPA2
is recommended by IEEE.
•
Hotspot frequency band
: If you notice interference
after your hotspot has been active for a while, try
different channels.
• Password: Create a password with at least eight
characters.
2Ta p
Save
when the settings are complete.
When your Wi-Fi hotspot is active, other Wi-Fi enabled devices
can connect by entering your hotspot’s
SSID
, selecting a
Security
type, and entering the correct
Wireless password
.
Wi-Fi modes
For those who like to get a bit more technical, your phone
supports the following Wi-Fi modes: 802.11a,b,g,n.
USB cables
Note: Copyright—do you have the right? Always follow the
rules. See “Content Copyright” on page 67.
To load music, pictures, videos, documents, or other files from
your computer, connect your phone to your computer with a
USB cable. To change the type of USB connection (if
necessary), tap Apps >
Settings
>
Storage
>Menu
>
USB computer connection
.
Note: Make sure to connect the phone to a high power USB
port. Typically, these are located directly on your computer.
Note: The first time you use a USB connection, your computer
may indicate that drivers are being installed. Follow any
prompts you see to complete the installation. This may take a
few minutes.
•For Microsoft® Windows®: On your computer, choose
Start, then select Windows Explorer from your list of
programs. In Windows Explorer, your phone will appear as a
connected drive (mass storage device) where you can drag
and drop files, or it will appear as an MTP or PTP device that
lets you use Windows Media Player to transfer files. For
2014.08.07
FCC DRAFT
53Connect & transfer
more instructions or driver files, visit
www.motorola.com/support.
•For Apple™ Macintosh™: Use Android File Transfer,
available at www.android.com/filetransfer.
Share your data connection
Your computer can access the internet through your phone’s
mobile network—you just need a USB cable.
Tip: To share a Wi-Fi connection, see “Wi-Fi hotspot” on
page 52.
1Connect your phone to your computer using a USB cable.
Note: If your computer is running something older than
Microsoft® Windows® 7 or Apple™ Macintosh™ OSX, it
might require special configuration.
2On your phone, tap Apps >
Settings
, then make sure
the
Wi-Fi
switch is set to .
3In
Settings
, tap
Tethering & Mobile Hotspot
, then check
USB tethering
to start the connection.
To stop the connection, uncheck
USB tethering
, then
disconnect your phone from your computer.
Data use
You can track the amount of data uploaded and downloaded
by your phone.
Find it: Apps >
Settings
>
Data usage
OFF
Your phone shows a data usage graph. Below the graph, apps
are listed from highest to least data usage. Apps that use a lot of
data might also use a lot of battery power.
Some apps transfer data in the background when you're not
viewing them—to stop an app from doing this, tap it and then
check
Restrict background data
.
To turn off background data use for all apps, just tap Menu
>
Restrict background data
.
Sep 12
-
19: about 68.65MB used, as measured by
your phone. Your carrier’s data usage accounting
may differ.
Mobile data ON
Set mobile data limit
Alert me about data usage
Sep 19
-
Sep 26
Data usage cycle
limit
5.0GB
warning
3.0GB
Data usage
25.19MBGoogle Play Store
14 46MB
Email
Turn o roaming or auto sync,
set data restrictions, & more.
Set a data limit.
Drag the white bars to
change date ranges.
Drag bars to change your
warning (orange) or limit (red).
Tap an app to show or
restrict background data.
2014.08.07
FCC DRAFT
54 Connect & transfer
Note: Usage information is provided to help you manage your
phone. This may not match the amounts charged by your
service provider, as they’re not measured in the same way.
NFC
Near Field Communication technology lets you instantly share
content (like web links, contacts, and photos), information, and
more, by touching the back of your phone to another
NFC-enabled device.
Find it: Apps >
Settings
>
More
>
NFC
Share with Android Beam™
Use Android Beam to share content on your phone with
another NFC-enabled phone or tablet.
Note: The other device must support NFC, too.
1Open the screen that contains the map page or browser
page you want to share.
2Touch the back of your phone to the back of the
other device.
When the devices connect, you’ll see
Touch to Beam
on
your phone.
3Tap your screen to share your content.
Receive with NFC
Receive web links, e-coupons, brochures, maps, and more
from an NFC tag. Look for the NFC logo on posters, signs,
store displays, and other areas. Just touch the back of your
phone to the logo to receive its tag information.
Bluetooth & Wi-Fi one-touch setup
Just touch the back of your phone to an NFC-enabled
Bluetooth device or Wi-Fi access point to automatically pair or
connect with the device.
Mobile payment
You can use any secure payment app to pay for your purchase
(where available).
Look for the NFC logo to confirm that you can make a mobile
payment. Touch the back your phone to the payment device to
pay for your purchase.
2014.08.07
FCC DRAFT
55Connect & transfer
Security
Wireless connections and content sharing all demand security:
•Range: NFC only works over a short range (about
4 cm/1.5 inches), so it's unlikely you’ll connect by
mistake—if you did, you would still have to accept the
connection to send or receive information.
• Encryption: Your phone uses the latest security, encryption,
and authentication features to protect your personal
information for mobile payments and content sharing.
Yo u r c l o u d
One account with access to everything, everywhere—phone,
tablet, computer.
Sync your Google™ account
When you log in to the same Google account, all devices can
get to all the same apps, movies, books, and music from
Google Play™—plus you share the same Gmail™, Google
Calendar™, and Google Monile™. To add accounts to your
phone, tap Apps >
Settings
, go to the
ACCOUNTS
section, and tap
Add account
>
Google
.
Phone & tablet
Your Android™ phone and tablet can work together to help
you get the most out of both:
• Transfer media and files: Copy files to your phone and
transfer them to other devices—see “Transfer files” on
page 51.
• Phone hotspot: If you have a Wi-Fi tablet, turn your phone
into a Wi-Fi hotspot to let your tablet access the Internet
anywhere—see “Wi-Fi hotspot” on page 52.
• Bluetooth® accessories: If you have a Bluetooth keyboard
or other accessories to use with your tablet, remember you
can use them with your phone too. To connect them, see
“Bluetooth® wireless” on page 50.
Virtual Private Networks (VPN)
A VPN lets you access files on a secured network (like an office
network with a firewall). Contact the network administrator to
ask for VPN settings, and any additional apps or other
requirements.
To enter VPN settings, tap Apps >
Settings
>
More
>
VPN
. Choose the type of VPN and enter settings from the
network administrator. The network is stored in the
VPN
list so
you can select it whenever you need to connect.
2014.08.07
FCC DRAFT
56 Protect
Mobile network
You should not need to change any network settings. Contact
your service provider for help.
To see network settings options, tap Apps >
Settings
>
More
>
Mobile networks
.
Airplane mode
Use airplane mode to turn off all your wireless
connections—useful when flying. Press and hold the
Power key >
Airplane mode
.
Note: When you select airplane mode, all wireless services are
disabled. You can then turn Wi-Fi and/or Bluetooth® power
back on, if permitted by your airline. Other wireless voice and
data services (such as calls and text messages) remain off in
airplane mode. Emergency calls to your region’s emergency
number can still be made.
Protect
Quick start: Moto Alert
You can use Motorola Alert to let your friends and family know
where you are and if you need assistance. So everyone can rest
easy.
Find it: Apps >
Alert
Welcome to
Motorola Alert
Feel safer by staying connected to family
and friends.
Get started
Begin setting your
emergency contacts
& options.
2014.08.07
FCC DRAFT
57Protect
Tips & tricks
• Follow me: Automatically notify those closest to you when
you’ve left or arrived at a specific location.
•Meet up: You can use Motorola Alert to send a text message
to specified contacts if you want them to meet you
somewhere. Or, if you’d like them to be updated
periodically about your location.
• Keep your hot button handy: In an emergency situation,
you can use Motorola Alert to quickly sound an alarm or
auto-dial an emergency number that you set up.
Protect your phone
Make sure your information is protected in case your phone is
lost or stolen.
Find it: Apps >
Settings
>
Security & Screen Lock
The easiest way to protect your phone is to use
Screen lock
.
You can choose facial recognition, a pattern, PIN, or other
options to unlock your phone.
Screen lock
Slide
Encrypt phone
Require a numeric PIN or password to decrypt
your phone each time you power it on
SCREEN SECURITY
ENCRYPTION
Owner info
SIM CARD LOCK
PASSWORDS
Enable widgets
Security & Screen Lock
Trusted Devices
Useful when your lock type is not Slide or None
Set up SIM card lock
Make
p
asswords visible
For a screen lock, you can use
facial recognition, a pattern,
password, or other options.
Add some info to show
on your lock screen.
Encrypt the data stored
on your phone.
2014.08.07
FCC DRAFT
58 Protect
Tips & tricks
•Face unlock: Unlock your phone by looking at it. Tap
Apps >
Settings
>
Security & Screen Lock
>
Screen
lock
>
Face Unlock
and follow the prompts.
• Forgotten pattern, PIN, or password: If you forget your
pattern, PIN, or password, you can enter your Google™
account email and password to unlock the phone (see
“Can’t unlock?” on page 58.
Screen lock
To keep your phone secure, you can make the touchscreen
lock when it goes to sleep.
Find it: Apps >
Settings
>
Security & Screen Lock
>
Screen lock
, then select the lock type:
•
None
: Turn off the screen lock.
•
Slide
: Tap and drag to the outer circle that appears.
•
Face Unlock
: Look at your phone to unlock it.
Follow the prompts to capture your face and enter a PIN or
password (for backup or to change the lock setting). When
the screen is dark, press the Power key, then frame your face
in the square at the bottom to unlock.
Note: This feature is less secure than a pattern, PIN, or
password.
•
Pattern
: Draw a pattern to unlock.
•
PIN
: Enter four to sixteen digits to unlock.
•
Password
: enter four to sixteen letters, digits, or symbols to
unlock.
To change when your touchscreen goes to sleep, see “Power
key” on page 20.
Note: You can make emergency calls on a locked phone (see
“Emergency calls” on page 28). A locked phone still rings, but
you need to unlock it to answer.
Can’t unlock?
Face unlock: If your phone doesn’t recognize your face, you’ll
be prompted to enter your backup pattern or PIN code to
unlock it.
Pattern, PIN, or password: If you forget your pattern, PIN, or
password, you can enter your Google™ account email and
password to unlock the phone.
If you don’t have a Google account on your phone, contact
your service provider to have your device factory reset.
Warning: A factory reset will delete all data on your phone.
SIM lock
Caution: If you enter an incorrect SIM PIN code three times,
your phone locks your SIM card and asks for your PIN unlock
code. Contact your service provider for your PIN unlock code.
You shouldn’t need to use this feature, but to set a SIM card
PIN that you must enter when you turn on your phone, tap
Apps >
Settings
>
Security & Screen Lock
>
Set up
SIM card lock
>
Lock SIM card
.
2014.08.07
FCC DRAFT
59Protect
To set your SIM PIN, enter a 4-digit code. To change your code,
choose
Change SIM PIN
.
Encrypt your phone
Caution: If you forget your encryption code, you cannot
recover the data stored on your phone or memory card.
Encrypting your files can take an hour or more. Leave your
phone plugged in, and be careful not to interrupt the process.
Encryption protects the accounts, settings, apps, and files on
your phone, so that people cannot access them if your phone is
stolen.
You shouldn’t need to use this feature, but to encrypt your
phone and require a PIN or password whenever you turn on
your phone, tap Apps >
Settings
>
Security & Screen
Lock
>
Encrypt phone
.
Backup & restore
Your Google account data is backed up online. If you reset or
replace your phone, just log in to your Google account to
restore the contacts, events, and other details you synced with
the account. To choose what syncs with the account, tap
Apps >
Settings
>
Google
, tap your Google account,
and check things to sync. Please note that text messages, call
logs, and items stored on your phone will not be restored. To
restore your Google Play™ Store apps, see “Take care of your
apps” on page 16.
Reset
To reset your phone to factory settings and erase all the data on
your phone, tap Apps >
Settings
>
Privacy
>
Factory
Data Reset
>
Reset Phone
.
Warning: All downloaded apps and user data on your phone
will be deleted. Data on the cloud will not be deleted.
2014.08.07
FCC DRAFT
60 Want more?
Want more?
Get help & more
Get answers, updates, and info:
• Help is here: Tap Apps >
Help
for walk-through
tutorials, how-tos, FAQs, videos, and more, right on your
phone.
• Everything XT1254: Get PC software, user’s guides,
and more at www.motorola.com/myMoto.
• Accessories: Get accessories for your phone at
www.motorola.com/mobility.
•Get Apps: Ta p Ap p s >
Play Store
to buy and
download apps.
•News: Here’s how to find us:
Yo uTu b e ™ www.youtube.com/motorola
Facebook® www.facebook.com/motorola
Twitter www.twitter.com/motorola
Google+™ www.google.com/+Motorola
Tips & tri cks
• Google™ help: In almost every Google app, you can tap
Menu >
Help
. You can also view the Google help centers
online at www.google.com/support.
2014.08.07
FCC DRAFT
61Troubleshooting
Troubleshooting
Crash recovery
In the unlikely event that your phone stops responding to
touches and key presses, try a reboot—press and hold the
Power key until the screen goes dark and your phone restarts.
Service & repairs
If you have questions or need assistance, we’re here to help.
Go to www.motorola.com/support, where you can select
from a number of customer care options. You can also contact
the Motorola Customer Support Center at 0800 666 8676
(Argentina), 800-201-442 (Chile), 01-800-700-1504 (Colombia),
01 800 021 0000 (México), 0800-100-4289 (Venezuela), or
0-800-52-470 (Perú).
2014.08.07
FCC DRAFT
62 Safety, Regulatory, & Legal
Safety, Regulatory, & Legal
Battery Use & Safety
Battery Us e & Safety
Warning:
Your mobile device contains a battery that should only be removed by a Motorola
approved service center or recycler.
•
Don’t try to remove or replace the battery yourself. Attempting to remove or replace the
battery may damage the battery and may cause burning and injury.
•
Don’t try to take apart or fix your phone. Attempting to take apart or fix your phone may
damage the battery and may cause burning and injury.
•
Don’t crush, bend, or expose your phone to heat or liquid. This may damage the battery
and may cause burning and injury.
Battery Charging
Battery Charging
Charge your Motorola phone using a compatible Motorola charger, another brand class 2
Limited Power Source USB charger that complies with USB 1.1 or 2.0 and complies with
EN301489-34, IEC62684 or equivalent, or a high-power USB port on a PC. Chargers that do
not comply with these standards may be unsafe, and may cause slow charging, product
damage, or reduced device performance.
•
Your phone will not charge if the temperature is too high or low.
•
New batteries and batteries that have been stored for a while may take longer to charge.
•
Only use genuine Motorola batteries, which contain safety circuitry and are designed to
give the best performance in your Motorola device.
Driving Precautions
Driving Precautions
Responsible and safe driving is your primary responsibility when driving a vehicle. Always
obey local laws and regulations.
Seizures, Blackouts, Eyestrain, & Discomfort
Sei zures, Black outs & Eyestra in
Prolonged use of any device may cause discomfort in hands, fingers, arms, neck, and other
parts of your body, and may cause eyestrain and headaches. It is good practice to use your
device in a safe area with comfortable ambient lighting, and take frequent breaks if you feel
discomfort. Seek medical advice if symptoms persist.
In rare cases, flashing patterns or lights, for example in video games or movies, may cause
seizures or blackouts. If you suffer any seizures or blackouts, or have a history of seizures, stop
using your device and seek medical advice.
Caution about High Volume Usage
High Volume
Warning:
Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the sound, the less time is required before your hearing could be
affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in your
ears, ringing in your ears, or muffled speech, you should stop listening to the device through
your headset or headphones and have your hearing checked.
Children
Childr en
Keep your mobile device and its accessories away from small children.
These products
are not toys and may be hazardous to small children. For example, a choking hazard may exist
for small, detachable parts.
Supervise access.
If a child does use your mobile device, monitor their access to help
prevent loss of data or unexpected charges for data or application purchases.
Glass Parts
Glass Parts
Some parts of your mobile device may be made of glass. If the glass breaks, don’t attempt to
service the device yourself. Stop using your mobile device until the glass is replaced by a
qualified service center.
Allergens
Glass Parts
Motorola Mobility avoids using known allergens in our products. From time to time, trace
amounts of an allergen may be added during manufacture of a device or device component
that could cause discomfort for some individuals. This approach is common for many types
of products. We recommend that you monitor any products that may be in prolonged
contact with your skin, and remove them if you experience skin irritation.
2014.08.07
FCC DRAFT
63Safety, Regulatory, & Legal
Use & Care
Use & C are
To care for your Motorola mobile device, please observe the following:
•Liquids:
Don’t expose your mobile device to water, rain, extreme humidity, sweat, or
other liquids.
•Drying:
Don’t try to dry your mobile device using a microwave oven, conventional oven,
or dryer.
•Extreme heat or cold:
Don’t store or use your mobile device in temperatures below
-10°C (14°F) or above 60°C (140°F). Don’t recharge your mobile device in temperatures
below 0°C (32°F) or above 45°C (113°F).
• Dust and dirt:
Don’t expose your mobile device to dust, dirt, sand, food, or similar
materials.
•Cleaning:
To clean your mobile device, use only a dry soft cloth. Don’t use alcohol or
other cleaning solutions.
• Shock and vibration:
Don’t drop your mobile device or expose it to strong vibration.
•Protection:
To help protect your mobile device, always make sure that all connector and
compartment covers are closed and secure, and avoid carrying it with hard objects such
as keys or coins.
Operational Warnings
Operationa l Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Areas
Potentially explosive areas are often, but not always, posted and can include blasting areas,
fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or
storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or
metal powders.
Turn off your mobile device before entering such an area, and do not charge batteries. In
such areas, sparks can occur and cause an explosion or fire.
Symbol Key
Your charger, mobile device, device display, user’s guide, or packaging may contain
symbols, defined as follows:
Symbol Definition
Important safety information follows.
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local regulatory
authorities for more information.
Don’t dispose of your battery or mobile device with your
household waste. See “Disposal & Recycling” for more
information.
For indoor use only.
Listening at high volume to music or voice through a headset
may damage your hearing.
Only use your charger indoors.
032374o
032375o
2014.08.07
FCC DRAFT
64 Safety, Regulatory, & Legal
Radio Frequency (RF) Energy
RF Energy
Exposure to RF Energy & Device Operation
Your mobile device contains a transmitter and receiver of RF energy. It is designed to comply
with regulatory requirements concerning human RF exposure.
For optimal device performance, and to stay within the RF exposure guidelines:
•
Hold your mobile phone normally at your ear when talking on it.
•
When using the mobile phone next to your body (other than in your hand or against your
head), maintain a distance of 1.5 cm (3/4 inch) from your body to be consistent with how
the mobile phone is tested for compliance with RF exposure requirements.
•
If you use your mobile phone with a non-Motorola accessory case or holder, make sure
the accessory maintains the required separation distance and has no metallic parts.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to do so, such
as hospitals or health care facilities.
In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your
mobile device offers an airplane mode or similar feature, consult airline staff about using it in
flight.
Medical Devices
If you use an implantable pacemaker or defibrillator, or other medical device, consult your
healthcare provider and the device manufacturer’s directions before using this mobile
device.
Persons with a pacemaker or defibrillator should observe the following precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the
pacemaker or defibrillator when the mobile device is turned ON.
•
Use the ear opposite the pacemaker or defibrillator to minimize the potential for
interference.
•
Turn OFF the mobile device immediately if you have any reason to suspect that
interference is taking place.
Specific Absorption Rate (FCC & IC)
SAR (FCC & IC)
YOUR MOBILE DEVICE MEETS FCC AND IC LIMITS FOR
EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves (radio frequency electromagnetic fields) adopted by the Federal
Communications Commission (FCC) and Industry Canada (IC). These limits include a
substantial safety margin designed to assure the safety of all persons, regardless of age
and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting
at its highest certified power level in all tested frequency bands. The highest SAR values
under the FCC and IC guidelines for your device model are listed below:
During use, the actual SAR values for your device are usually well below the values stated.
This is because, for purposes of system efficiency and to minimize interference on the
network, the operating power of your mobile device is automatically decreased when full
power is not needed for the call. The lower the power output of the device, the lower its SAR
value.
If you are interested in further reducing your RF exposure then you can easily do so by
limiting your usage or simply using a hands-free kit to keep the device away from the head
and body.
Additional information can be found at
www.motorola.com/rfhealth
.
Head SAR LTE Band 13, Wi-Fi, Bluetooth 0.39 W/kg
Body-worn SAR LTE Band 4, Wi-Fi, Bluetooth 1.38 W/kg
2014.08.07
FCC DRAFT
65Safety, Regulatory, & Legal
European Union Directives Conformance
Statement
EU Conformance
The following CE compliance information is applicable to Motorola mobile devices that carry
one of the following CE marks:
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
For products that support Wi-Fi 802.11a (as defined in your product information): Outside the
United States, this device is restricted to indoor use when operating in the 5.15 to 5.25 GHz
(802.11a) Wi-Fi frequency band.
The following gives an example of a typical Type name:
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to
R&TTE Directive) at
www.motorola.com/rtte
(in English only). To find your DoC, enter
the Type name from your product’s label in the “Search” bar on the website.
Regulatory authorities within the EU may obtain compliance information by writing to: Product Safety and Compliance, Motorola
Mobility UK Ltd., Redwood, Crockford Lane, Chineham Business Park, Basingstoke, RG24 8WQ, UNITED KINGDOM.
0168
0168
0168 Type
Name
FCC Notice to Users
FCC Notic e
The following statement applies to all products that bear the FCC logo and/or FCC ID
on the product label.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation. See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
For products that support Wi-Fi 802.11a (as defined in product information): Outside the
United States, do not use your device outdoors while connected to an 802.11a Wi-Fi network.
Public Wi-Fi access points in this range are optimized for indoor use.
Industry Canada Notice to Users
Indus try Cana da Noti ce
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference and (2)
This device must accept any interference, including interference that may cause undesired
operation of the device. See RSS-Gen, Section 7.1.3. This device complies with ICES-003
requirements for Class B ITE (Information Technology Equipment).
CAN ICES-3
(B)/NMB-3(B)
2014.08.07
FCC DRAFT
66 Safety, Regulatory, & Legal
Software Notices
Software Notices
Warning against unlocking the bootloader or altering a product's operating system
software:
Motorola strongly recommends against altering a product's operating system,
which includes unlocking the bootloader, rooting a device or running any operating software
other than the approved versions issued by Motorola and its partners. Such alterations may
permanently damage your product, cause your product to be unsafe and/or cause your
product to malfunction. In such cases, neither the product nor any damage resulting
therefrom will be covered by warranty.
Important FCC information:
You must not make or enable any changes to the product that
will impact its FCC grant of equipment authorization. The FCC grant is based on the
product's emission, modulation, and transmission characteristics, including: power levels,
operating frequencies and bandwidths, SAR levels, duty-cycle, transmission modes (e.g.,
CDMA, GSM), and intended method of using the product (e.g., how the product is held or
used in proximity to the body). A change to any of these factors will invalidate the FCC grant.
It is illegal to operate a transmitting product without a valid grant.
Location Services
Location
Motorola mobile devices can provide information about their approximate location to
applications, using sources including GPS, AGPS, and Wi-Fi. GPS (Global Positioning
System) uses government-operated satellites that are subject to changes implemented in
accordance with Department of Defense policy and the Federal Radio Navigation Plan.
These changes may affect the performance of location technology on your mobile device.
AGPS (Assisted Global Positioning System) uses your wireless service provider’s network to
improve GPS performance. Airtime, data fees, and/or additional charges may apply in
accordance with your service plan. Contact your wireless service provider for details. Your
mobile device can also use Wi-Fi signals to determine your approximate location, using
information from known and available Wi-Fi networks.
Mobile devices transmit location-based information when connected to a wireless network
or when using other location technologies like GPS. If you use applications that require
location-based information such as driving directions, your mobile device will provide
location information to them. These applications may share location information with third
parties, including your wireless service provider, applications providers, Motorola, and other
third parties providing services.
Emergency Calls
When you make an emergency call, the cellular network may activate the AGPS technology
in your mobile device to tell the emergency responders your approximate location.
AGPS has limitations and
might not work in your area
. Therefore:
•
Always tell the emergency responder your location to the best of your ability; and
•
Remain on the phone for as long as the emergency responder instructs you.
Navigation
Nav ig ati on
If your Motorola mobile device provides navigation features, note that mapping information,
directions, and other navigational data may contain inaccurate or incomplete data. In some
countries, complete information may not be available. Therefore, you should visually confirm
that the navigational instructions are consistent with what you see. All drivers should pay
attention to road conditions, closures, traffic, and all other factors that may impact driving.
Always obey posted road signs.
Privacy & Data Security
Privacy & Data Secu rity
Motorola understands that privacy and data security are important to everyone. Because
some features of your mobile device may affect your privacy or data security, please follow
these recommendations to enhance protection of your information:
• Monitor access:
Keep your mobile device with you and don’t leave it where others may
have unmonitored access. Use your device’s security and lock features, where available.
• Keep software up to date:
If Motorola or a software/application vendor releases a patch
or software fix for your mobile device that updates the device’s security, install it as soon
as possible.
• Secure Personal Information:
Your mobile device can store personal information in
various locations, including your SIM card, memory card, and phone memory. Be sure to
remove or clear all personal information before you recycle, return, or give away your
device. You can also backup your personal data to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile device, go to
www.motorola.com/support
• Online accounts:
Some mobile devices provide a Motorola online account. Go to your
account for information on how to manage the account, and how to use security features
such as remote wipe and device location (where available).
• Applications and updates:
Choose your apps and updates carefully, and install from
trusted sources only. Some apps can impact your mobile device’s performance and/or
have access to private information including account details, call data, location details,
and network resources.
•Wireless:
For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi networks.
Also, when using your device as a hotspot (where available), use network security. These
precautions will help prevent unauthorized access to your device.
• Location-based information:
Mobile devices enabled with location based technologies
such as GPS, AGPS or Wi-Fi, can transmit location-based information. See “Location
Services” for more details.
2014.08.07
FCC DRAFT
67Safety, Regulatory, & Legal
• Other information your device may transmit:
Your mobile device may also transmit
testing and other diagnostic (including location-based) information, and other
non-personal information to Motorola or other third-party servers. This information is used
to help improve products and services offered by Motorola.
If you have further questions about how using your mobile device may impact your privacy or
data security, please contact Motorola at
privacy@motorola.com
, or contact your
service provider.
Disposal & Recycling
Recycling
Mobile Devices & Accessories
Please don’t dispose of mobile devices or electrical accessories (such as chargers,
headsets, or batteries) with your household waste.
Warning: Never dispose of
batteries, either separately or within a mobile device, in a fire because they
may explode.
Mobile devices or electrical accessories should be disposed of in
accordance with the national collection and recycling schemes operated by your
local or regional authority. Or, you may return unwanted Motorola mobile devices and
electrical accessories to any Motorola Approved Service Center in your region. For details on
approved national recycling schemes and Motorola recycling activities, go to:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional authorities for
more details.
Hearing Aid Compatibility in the US
Hearing Aid Comp atibility
In the US, specific hearing aid compatibility (HAC) performance
ratings can help clarify how certain wireless phones and hearing aids
may perform together. HAC compliant wireless phones are capable
of working with hearing aids that have a minimal immunity rating of
at least 2. The immunity rating indicates how susceptible a hearing
aid is to picking up interference from a digital wireless phone. It can
rate the performance of the hearing aid for either microphone
and/or telecoil coupling. Some hearing aids are more immune than others to this
interference noise, and phones also vary in the amount of interference they generate. The US
performance rating system for HAC compliant wireless phones is as follows:
The “M” (microphone) indicates that the product has been tested and rated for acoustic
coupling. The “T” (telecoil) represents that the product has been tested and rated for
inductive coupling. The higher the “M” or “T” rating, the less likely the hearing aid user will
experience interference when the hearing aid is set to the respective microphone or telecoil
mode. The highest values to date are 3 and 4 (e.g., “M4” or “M3/T3”).
To determine if a product is rated for HAC, please look for the HAC rating or logo on the
phone’s packaging. For a list of current HAC models, visit
www.motorola.com/hacphones
.
Results will vary depending on the user’s hearing aid and hearing loss. If your hearing aid
happens to be vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way to evaluate it for
your personal needs. To couple the device to your telecoil equipped hearing aid, switch your
hearing aid to the “T” or telecoil setting. Then, enable the ‘Hearing Aid’ mode feature on your
Motorola phone with the following sequence: Apps >
Phone
>
Menu
>
Settings
>
Hearing
aids
.
Motorola Mobility hearing aid compatible phones have been tested and rated for use with
hearing aids for some of the wireless technologies that it uses. However, there may be some
newer wireless technologies used in this phone that have not been tested yet for use with
hearing aids. It is important to try the different features of this phone thoroughly and in
different locations, using your hearing aid or cochlear implant, to determine if you hear any
interfering noise. Contact your service provider or Motorola for information on hearing aid
compatibility. If you have questions about return or exchange policies, contact your service
provider or phone retailer.
Software Copyright
Softwa re Copyri ght
Motorola products may include copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United States and other countries
preserve for Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted
software. Accordingly, any copyrighted software contained in Motorola products may not be
modified, reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to
grant either directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third-party software provider,
except for the normal, non-exclusive, royalty-free license to use that arises by operation of law
in the sale of a product.
Content Copyright
Conte nt Copyri ght
The unauthorized copying of copyrighted materials is contrary to the provisions of the
Copyright Laws of the United States and other countries. This device is intended solely for
copying non-copyrighted materials, materials in which you own the copyright, or materials
which you are authorized or legally permitted to copy. If you are uncertain about your right to
copy any material, please contact your legal advisor.
2014.08.07
FCC DRAFT
68 Safety, Regulatory, & Legal
Open Source Software Information
OSS Information
For instructions on how to obtain a copy of any source code being made publicly available by
Motorola related to software used in this Motorola mobile device, you may send your request
in writing to the address below. Please make sure that the request includes the model
number and the software version number.
MOTOROLA MOBILITY LLC
OSS Management
1000 Enterprise Way
Sunnyvale, CA 94043
USA
The Motorola website
opensource.motorola.com
(in English only) also contains
information regarding Motorola’s use of open source.
Motorola has created the
opensource.motorola.com
website to serve as a portal for
interaction with the software community-at-large.
To view additional information regarding licenses, acknowledgments and required copyright
notices for open source packages used in this Motorola mobile device, please go to
Apps >
Settings
>
About phone
>
Legal information
>
Open source licenses
. In addition, this Motorola device may include self-contained
applications that present supplemental notices for open source packages used in those
applications.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of America and
Canada. The Governments of the United States of America and Canada may restrict the
exportation or re-exportation of this product to certain destinations. For further information
contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs
and International Trade.
Service & Repairs
Service & Repair s
If you have questions or need assistance, we’re here to help.
Go to
www.motorola.com/support
, where you can select from a number of customer
care options. You can also contact the Motorola Customer Support Center at 1-800-734-5870
(United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or
1-800-461-4575 (Canada).
How to Obtain Service or Other Information
1. Please access and review the online Customer Support section of Motorola's consumer
website prior to requesting warranty service.
2. If the Product is still not functioning properly after making use of this resource, please
contact the Warrantor listed at the Motorola website or the contact information for the
corresponding location.
3. A representative of Motorola, or of a Motorola Authorized Repair Center, will help
determine whether your Product requires service. You may be required to download, or
otherwise obtain and accept software updates from Motorola or a Motorola Authorized
Repair Center. You are responsible for any applicable carrier service fees incurred while
obtaining the required downloads. Complying with the warranty process, repair
instructions and accepting such software updates is required in order to receive additional
warranty support.
4. If the software update doesn’t fix the problem, you will receive instructions on how to ship
the Product to a Motorola Authorized Repair Center or other entity.
5. To obtain warranty service, as permitted by applicable law, you are required to include: (a)
a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written
description of the problem; (c) the name of your service provider, if applicable; (d) your
address and telephone number. In the event the Product is not covered by the Motorola
Limited Warranty, Motorola will inform the consumer of the availability, price and other
conditions applicable to the repair of the Product.
To obtain service or other information, please access and review the online Customer
Support section of Motorola's consumer website at
www.motorola.com
.
2014.08.07
FCC DRAFT
69Troubleshooting
Motorola Mobility LLC Global Limited Warranty
Global Warranty
What does this Limited Warranty cover?
Motorola Mobility LLC (“
Motorola
”) promises to the original purchaser (“
you
”) that this
Mobile Phone, and any in-box accessories which accompany it (the “
Products
”), will be free
of defects for a period of 12 months from the date of original purchase (“
Warranty Period
”)
provided that the Products are used for normal [consumer/end user] purposes (the “
Limited
Warranty
”). This Limited Warranty covers only a purchase of new Products from Motorola or
an authorized reseller or distributor of Motorola Products and accompanied in-box by this
written Limited Warranty. This Limited Warranty is personal to you and not transferable.
Claims under this Limited Warranty may only be made in the country of purchase. If,
following a repair, there are fewer than 90 days remaining in the Warranty Period, the
Warranty Period will be extended to end 90 days from the date of repair.
THE PROMISES MADE TO YOU IN THIS LIMITED WARRANTY ARE IN ADDITION TO,
AND DO NOT REDUCE OR OTHERWISE AFFECT, YOUR STATUTORY RIGHTS.
What will we do if you make a claim under this Limited
Warranty?
If you make a valid claim under this Limited Warranty, Motorola will (at its discretion) either (1)
repair the Product using new, used, or reconditioned replacement parts; or (2) replace the
Product with a new or ‘as new’ reconditioned Product; or (3) refund the purchase price. Any
refunded or replaced Product shall become the property of Motorola.
What is not covered?
This Limited Warranty does not cover the following unless they occurred because of a defect
in materials or workmanship:
(a) Batteries or any protective coatings the performance of which naturally deteriorates over
time.
(b) Cosmetic damage, including scratches, dents, cracks or other cosmetic damage from
normal wear and tear.
(c) Damage caused by use with non-Motorola products. Defects or damage that result from
the use of non-Motorola branded or certified compatible products, accessories or other
peripheral equipment and/or software.
(d) Damage caused beyond the reasonable control of Motorola, including damage caused
by (i) accident, abuse, misuse; (ii) operating a Product outside its permitted or intended uses
as defined in the Products’ User Manual, Quick Start Guide, Online Tutorials, and other
documentation provided to you (including use of the Products for [commercial rental]
purposes); (iii) improper storage (e.g. subjecting the Product to extreme temperatures),
abuse or neglect (e.g. broken/bent/missing clips/fasteners/connectors); impact damage
(e.g. dropping the Product); (iv) contact with liquids, water, rain, extreme humidity, unusually
heavy perspiration or other moisture; sand, food, dirt or similar substances (except for
Products sold as resistant to such substances, but then only to the extent the damage was not
caused by incorrectly securing the phone’s protective elements or subjecting a Product to
conditions beyond its stated specifications or limits); or (v) flood, fire, earthquake, tornado or
other acts of God not within Motorola's reasonable control.
(e) Unauthorized service. Defects or damage resulting from someone other than Motorola or
a Motorola authorized service center servicing, testing, adjusting, installing, maintaining,
altering, or tampering with the Products.
(f) Products that have been modified in any manner without the written permission of
Motorola, including (i) serial numbers, date tags or other manufacturer coding that has been
removed, altered or obliterated; (ii) mismatched or duplicated serial numbers; (iii) broken
seals or other evidence of tampering; or (iv) which have been modified or show evidence of
attempts to modify them.
IMPORTANT: IT IS ILLEGAL TO USE THIS PRODUCT IF IT CEASES TO COMPLY WITH THE
GOVERNMENT AUTHORIZATIONS THAT APPROVED ITS RELEASE. THEREFORE, YOU
MUST NOT MAKE CHANGES TO THE PRODUCT AFFECTING ITS EMISSION,
MODULATION, TRANSMISSION CHARACTERISTICS, INCLUDING POWER LEVELS,
OPERATING FREQUENCIES AND BANDWIDTHS, SAR LEVELS, DUTY-CYCLE,
TRANSMISSION MODES AND THE INTENDED METHOD OF THE PRODUCT.
(g) Normal wear and tear or otherwise due to the normal aging of the Product.
(h) Defects, damages, or the failure of the Product due to any third party communication
service or network you subscribe to or use with the Product.
(i) Software.
What other limitations are there?
•
TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA DOES NOT GIVE
ANY WARRANTIES OR MAKE ANY REPRESENTATIONS, EXPRESS OR IMPLIED, IN
RELATION TO THE PRODUCTS. IN PARTICULAR, MOTOROLA DOES NOT WARRANT
OR REPRESENT THAT THE PRODUCTS WILL MEET YOUR REQUIREMENTS, WORK IN
COMBINATION WITH ANY THIRD PARTY HARDWARE OR SOFTWARE OR SERVICES,
PROVIDE UNINTERRUPTED OR ERROR-FREE SERVICE, OR OPERATE WITHOUT RISK
OF DATA LOSS.
•
YOU SHOULD BE AWARE THAT NO RETAILER OR OTHER THIRD PARTY IS
AUTHORIZED TO MAKE ANY REPRESENTATIONS ON BEHALF OF MOTOROLA OR
TO MODIFY THIS LIMITED WARRANTY.
•
TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA SPECIFICALLY
DISCLAIMS ANY STATUTORY WARRANTIES WHICH MIGHT OTHERWISE APPLY.
•
TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA SPECIFICALLY
DISCLAIMS LIABILITY, WHETHER IN CONTRACT, TORT OR UNDER OTHER LEGAL
THEORY (INCLUDING NEGLIGENCE), FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCTS, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
2014.08.07
FCC DRAFT
PROFITS; LOSS OF BUSINESS; BUSINESS INTERRUPTION; LOSS OF OPPORTUNITY;
LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO, OR
CORRUPTION OF INFORMATION, DATA, SOFTWARE OR APPLICATIONS
(INCLUDING ANY COSTS ASSOCIATED WITH RECOVERING, PROGRAMMING, OR
REPRODUCING ANY INFORMATION, DATA, SOFTWARE, OR APPLICATIONS
STORED ON OR USED WITH MOTOROLA PRODUCTS); OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS OR SERVICES PROVIDED UNDER THIS LIMITED WARRANTY. BY MAKING
A CLAIM UNDER THIS LIMITED WARRANTY YOU ACKNOWLEDGE THAT YOU
UNDERSTAND THAT.
•
SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OR EXCLUSION OF
CERTAIN DAMAGES SO THE DISCLAIMERS MAY NOT LIMIT YOUR LEGAL RIGHTS
AGAINST MOTOROLA. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM JURISDICTION TO
JURISDICTION. THIS LIMITED WARRANTY DOES NOT SEEK TO TAKE THOSE RIGHTS
AWAY UNLESS THE APPLICABLE LAW ALLOWS YOU TO CONTRACT OUT OF THOSE
RIGHTS.
My Product is defective, what should I do?
1. Review the online Motorola customer support website at
www.motorola.com/support
for troubleshooting information.
2. If the Product is still not functioning properly after you have followed troubleshooting
instructions suggested on this website, please contact Motorola using the contact details
provided on the customer support website at
www.motorola.com/support
.
3. If your Product is covered by this Limited Warranty, you may be required to download, or
otherwise obtain and accept software updates. You are responsible for any third party
data costs incurred when obtaining the downloads.
Before we can provide any further support under this Limited Warranty you must first
comply with the warranty processes (1), (2), and (3), repair instructions, and accept any
necessary software updates.
4. If the software update does not fix the problem, you will receive instructions on how and
where to ship the Product for assessment. We will generally need: (i) proof of purchase;
(ii) a written description of the problem; (iii) the name of your mobile network service
provider, if applicable; (iv) your address and telephone number. We will only use this
information for the purposes of processing your claim under this Limited Warranty.
5. If the Product is not covered by this Limited Warranty (and you do not have any other
statutory rights in your place of usual residence), Motorola will inform you of the
availability, price, and other conditions applicable to the repair, replacement, or refund of
the Product.
Copyright & Trademarks
Copyri ght & Tradema rks
Motorola Mobility LLC
222 W. Merchandise Mart Plaza
16th Floor
Chicago, IL 60654
www.motorola.com
Note:
Do not ship your product to the above address. If you need to return your product for
repairs, replacement, or warranty service, please contact the Motorola Customer Support
Center at:
1-800-734-5870 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not be available
in all areas; additional terms, conditions and/or charges may apply. Contact your service
provider for details.
All features, functionality, and other product specifications, as well as the information
contained in this guide, are based upon the latest available information and believed to be
accurate at the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
Note:
The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC. Android, Google and other trademarks are owned by Google Inc.
The Android robot is reproduced or modified from work created and shared by Google and
used according to terms described in the Creative Commons 3.0 Attribution License. All
other product or service names are the property of their respective owners.
© 2014 Motorola Mobility LLC. All rights reserved.
Caution:
Motorola does not take responsibility for changes/modification to the transceiver.
Product ID: Motorola Model XT1254
Manual Number: 68017787001-A
2014.08.07
FCC DRAFT
2014.08.07
FCC DRAFT
Please recycle!
motorola.com
2014.08.07
FCC DRAFT
