Motorola Mobility T56VB1 CDMA/UMTS/GSM/LTE Handset with WLAN, BT, and NFC User Manual Exhibit 12

Motorola Mobility LLC CDMA/UMTS/GSM/LTE Handset with WLAN, BT, and NFC Exhibit 12

User Manual 1 of 2

APPLICANT: MOTOROLA MOBILITY LLC FCC ID: IHDT56VB1
Temporary Confidentiality Requested
Motorola Mobility LLC; 222 W. Merchandise Mart Plaza; Chicago, IL 60654, USA www.motorola.com Page 8 - 1
Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) and
RSP100, Section 5.
The attached User’s Manual is the final production-intended version of the generic Motorola
International English User Manual. This guide will be adapted to carrier-specific versionsi, but the key
information herein will be retained. Translations into other languages will also be done to support the
needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to,
placing this product onto the market. Selected portions of the User Guide can be found as indicated
below:
8.1 Safety and Regulatory Section: Page 2
8.2 Specific Absorption Rate (SAR) Data: Page 2
Part 2, Page 1
8.3 Guidance for use with Hearing Aids
(Pursuant to 47 CFR 20.19(f)(1): Page 2
Part 2, Page 2
8.4 Instructions to User on accessing Electronic
Labeling (per KDB784748 D02): Page 2
8.5 Instructions to User on accessing Electronic
Labeling (per KDB784748 D02): Page 4
i Motorola Mobility attests that the User’s Guide provided with product shipping into Canada will provide any required Industry
Canada notices and/or statements in both English and French, per the requirements of RSS-Gen.
Safety, Regulatory, & Legal
Where is my legal, safety and regulatory information?
In order to provide
you with better access to this important information, we’ve made the materials
accessible from the phone’s settings menu and on the web. Please review

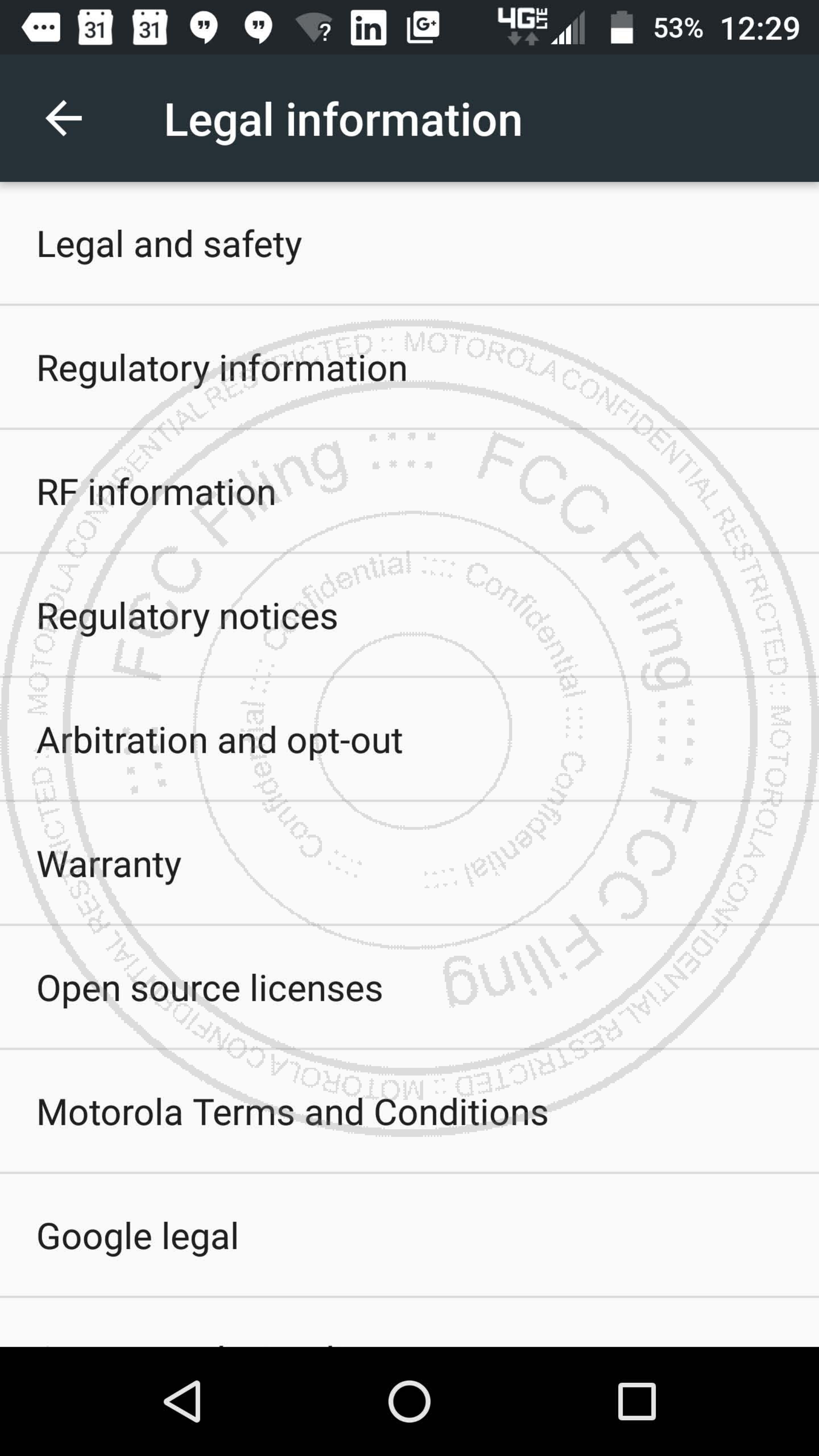

these materials prior to using your device. To access the materials from a
connected phone, go to
Settings
>
Legal information
, and select a topic.
To access the materials on the web, visit
www.motorola.com/device-legal
.

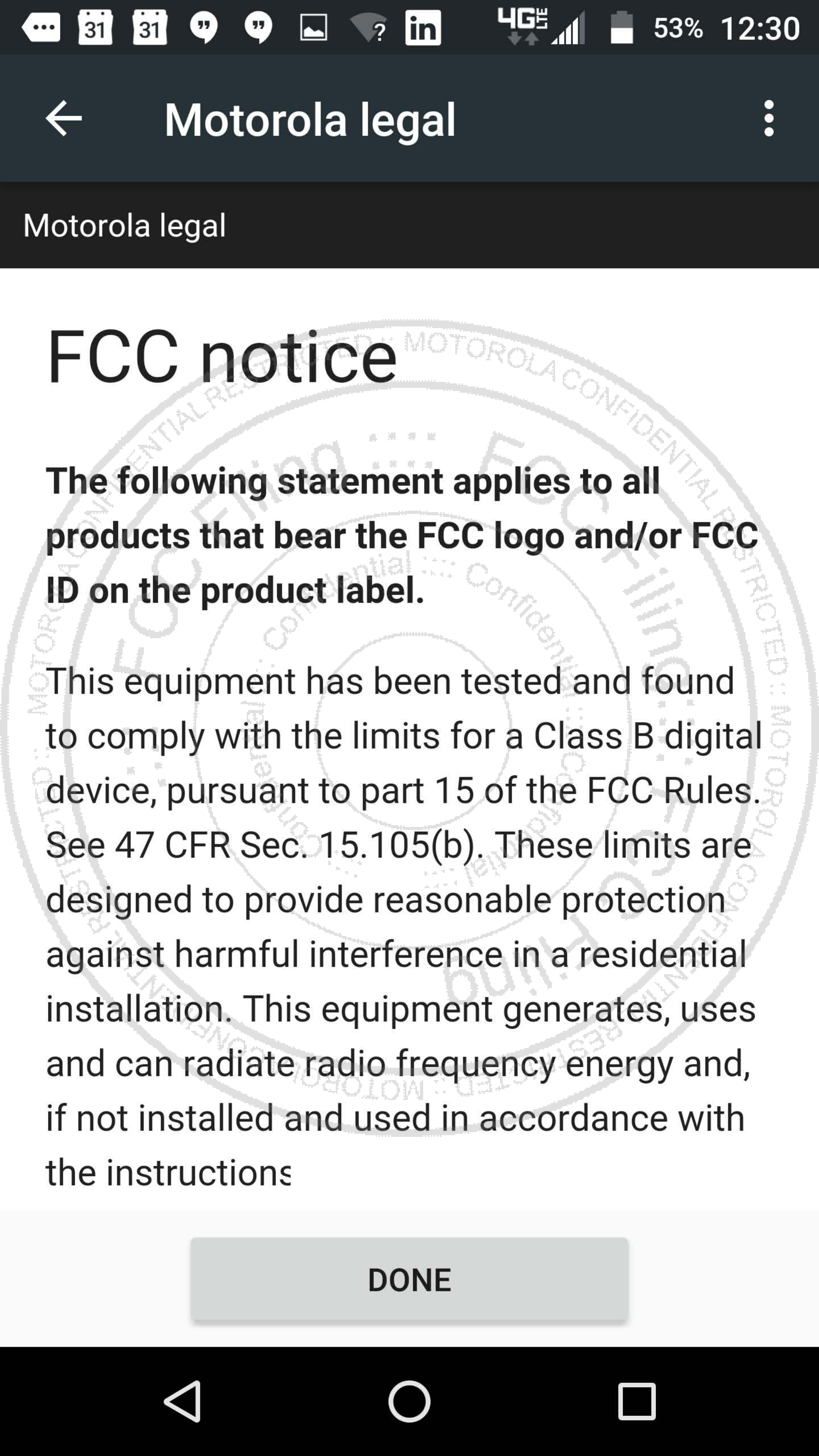

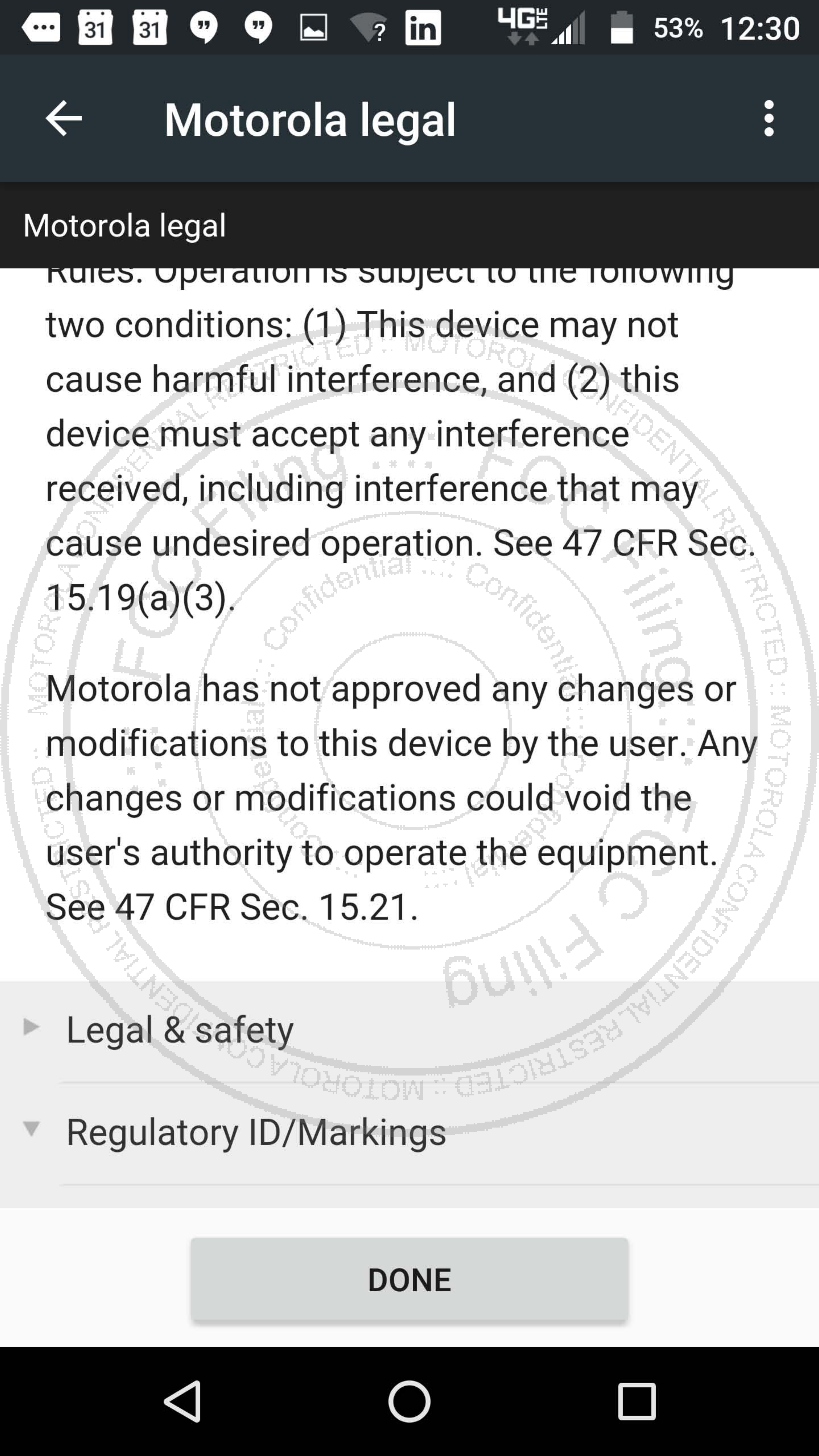

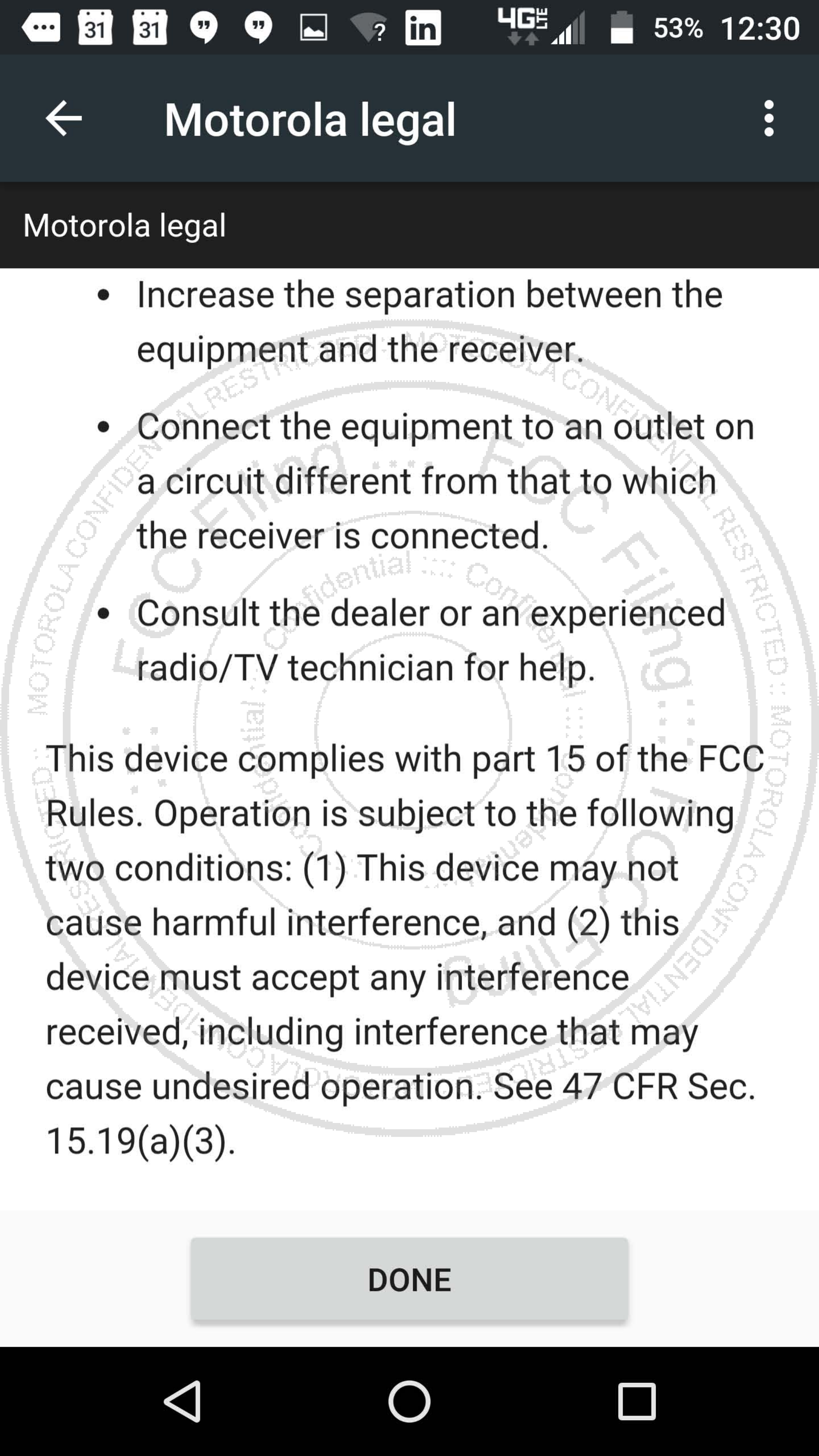

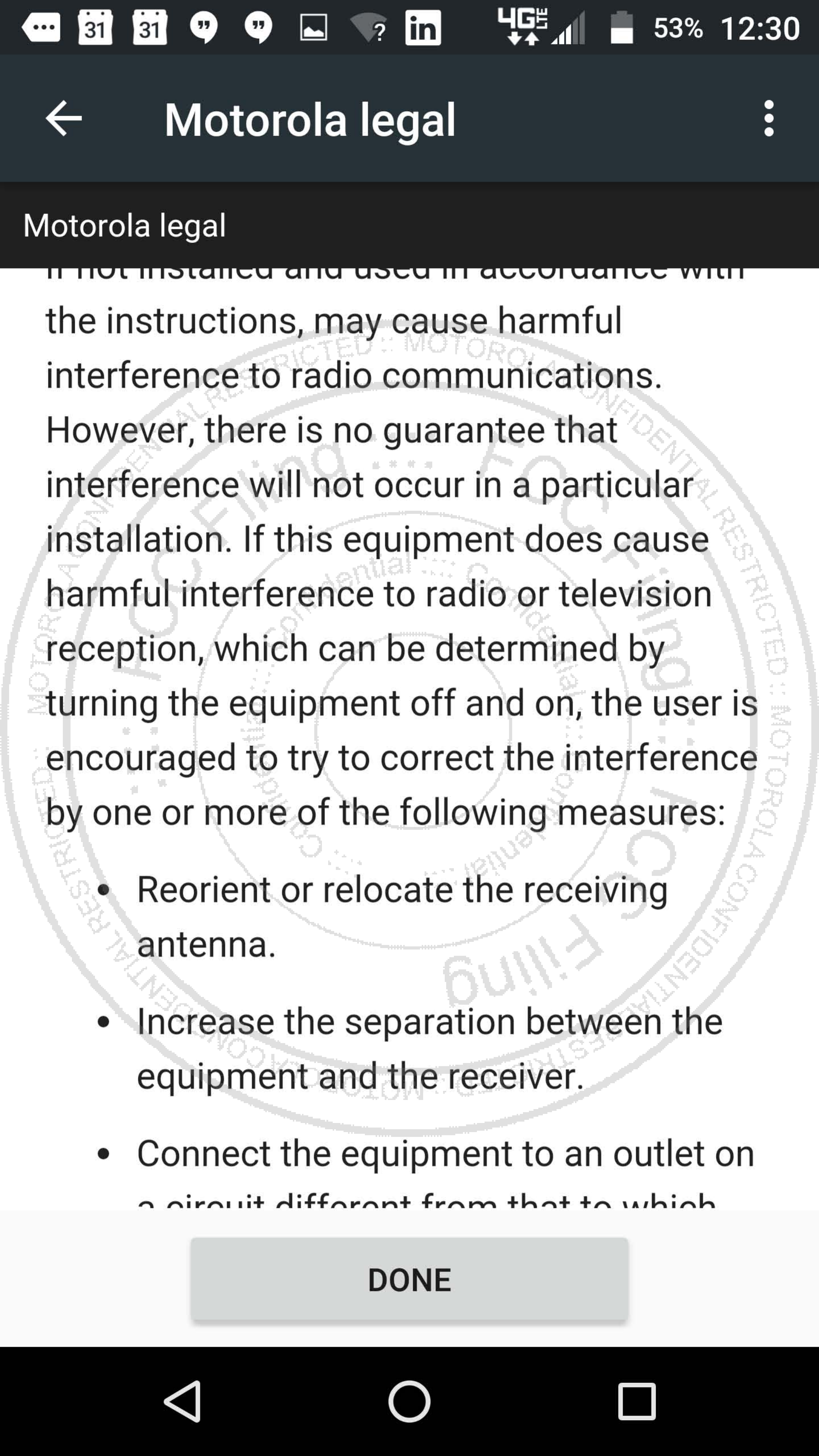

FCC and IC Compliance.
This device complies with part 15 of the FCC
rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation. This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Electronic Label
. Your mobile device may use an electronic label that
provides some regulatory information about the device. To see the electronic
label, tap Apps >
Settings
>
About phone
>
Regulatory information
.
Specific Absorption Rate (ICNIRP).
YOUR MOBILE DEVICE MEETS
INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES. The
highest SAR values under the ICNIRP guidelines for your device model are
listed below:
To view additional SAR information on your phone, tap Apps >
Settings
>
L
egal information
>
RF information
. To view the information on the web,
visit
www.motorola.com/rfhealth
.
Hearing Aid Compatibility (US only).
In the US, specific
hearing aid compatibility (HAC) performance ratings can
help clarify how certain wireless phones and hearing aids
may perform together. HAC compliant wireless phones are
capable of working with hearing aids that have a minimal
immunity rating of at least 2. The immunity rating indicates how susceptible a
hearing aid is to picking up interference from a digital wireless phone. It can
rate the performance of the hearing aid for either microphone and/or telecoil
coupling. Some hearing aids are more immune than others to this interference
noise, and phones also vary in the amount of interference they generate. The
US performance rating system for HAC compliant wireless phones is as follows:
The “M” (microphone) indicates that the product has been tested and rated for
acoustic coupling. The “T” (telecoil) represents that the product has been
tested and rated for inductive coupling. The higher the “M” or “T” rating, the
less likely the hearing aid user will experience interference when the hearing
aid is set to the respective microphone or telecoil mode. The highest values to
date are 3 and 4 (e.g., “M4” or “M3/T3”).
To determine if a product is rated for HAC, please look for the HAC rating or
Head SAR
Wi-Fi 5 GHz 0.83 W/kg
Body-worn SAR CDMA 800, Wi-Fi, Bluetooth 1.19 W/kg
logo on the phone’s packaging. For a list of current HAC models, visit
www.motorola.com/hacphones
.
Results will vary depending on the user’s hearing aid and hearing loss. If your
hearing aid happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your hearing device
is the best way to evaluate it for your personal needs. To couple the device to
your telecoil equipped hearing aid, switch your hearing aid to the “T” or
telecoil setting. Then, enable the ‘Hearing Aid’ mode feature on your Motorola
phone with the following sequence: Apps >
Phone
>
Menu
>
Settings
>
Calls
>
Hearing aids
.
Motorola Mobility hearing aid compatible phones have been tested and rated
for use with hearing aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies used in this phone
that have not been tested yet for use with hearing aids. It is important to try the
different features of this phone thoroughly and in different locations, using your
hearing aid or cochlear implant, to determine if you hear any interfering noise.
Contact your service provider or Motorola for information on hearing aid
compatibility. If you have questions about return or exchange policies, contact
your service provider or phone retailer.
Service & Repairs
. If you have questions or need assistance, we’re here to
help. Go to
www.motorola.com/support
, where you can select from a
number of customer care options. You can also contact the Motorola
Customer Support Center at 1-800-734-5870 (United States), 1-888-390-6456
(TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).
Copyright & Trademarks
Motorola Mobility LLC
222 W. Merchandise Mart Plaza
16th Floor
Chicago, IL 60654
www.motorola.com
MOTOROLA, the stylized M logo, MOTO, and the MOTO family of marks are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC.
Android, Google and other trademarks are owned by Google Inc. All other
product or service names are the property of their respective owners.
© 2016 Motorola Mobility LLC. All rights reserved.
Manual Number: TBD-A
