1
Safety, Regulatory, & Legal
Where is my legal, safety and regulatory information?.In order to
provide you with better access to this important information, we’ve
made the materials accessible from the phone’s settings menu and on
the web. Please review these materials prior to using your device. To
access the materials from a connected phone, go to Settings > Legal
information, and select a topic. To access the materials on the web,
visit www.motorola.com/device-legal.
Electronic Label. Your mobile device may use an electronic label
that provides some regulatory information about the device. To see
the electronic label, go to Settings > About phone > Regulatory
information.
Battery charging. Charge your mobile device using a compatible
Motorola charger, another brand class 2 Limited Power Source USB
charger that complies with USB 1.1, 2.0, 3.0, or greater, and complies
with EN301489-34, EN60950-1 or equivalent, or a high-power USB
port on a PC. Chargers that do not comply with these standards may
be unsafe and may cause slow charging, product damage, or reduced
device performance.
• Your mobile device will not charge if the temperature is too high
or low.
• Only use Motorola-approved batteries, which contain safety
circuitry and are designed to give the best performance in your
mobile device.
• Don’t use a damaged charger or charger cable to charge your
device.
• Don’t use tools, sharp objects, or excessive force to clean the USB
port, as this may damage your mobile device.
Distractions. Using your mobile device in some circumstances could
distract you and may cause a dangerous situation. Be aware of your
surroundings and environmental hazards when using your mobile
device.
Driving Precautions. Responsible and safe driving is your primary
responsibility when driving a vehicle. Always obey local laws and
regulations.
Seizures, blackouts, eyestrain & discomfort. Prolonged use of any
device may cause discomfort in hands, fingers, arms, neck, and other
parts of your body, and may cause eyestrain and headaches. It is good
practice to use your device in a safe area with comfortable ambient
lighting, and take frequent breaks if you feel discomfort. Seek medical
advice if symptoms persist.
In rare cases, flashing patterns or lights, for example in video games
or movies, may cause seizures or blackouts. If you suer any seizures
or blackouts, or have a history of seizures, stop using your device and
2
seek medical advice.
Medical devices. If you use an implantable pacemaker or defibrillator,
or other medical device, consult your healthcare provider and the
device manufacturer’s directions before using this mobile device.
If you use a pacemaker or defibrillator, the FCC recommends that you
observe the following precautions:
• ALWAYS keep the mobile device more than 20 centimeters (8
inches) from the pacemaker or defibrillator.
• Use the ear opposite the pacemaker or defibrillator to minimize
the potential for interference.
• Turn OFF the mobile device immediately if you have any reason to
suspect that interference is taking place.
Important: Some products contain magnets. Always keep products
with magnets more than 20 cm. (8 in.) from medical devices, such as
pacemakers, internal cardio defibrillators or other devices that can
be aected by a magnetic field. Also, keep away from credit cards, ID
cards and other media that use magnetically encoded information.
Children and animals. Keep your mobile device and its accessories
away from small children and animals. These products are not toys
and maybe hazardous to small children and animals. For example, a
choking hazard may exist for small, detachable parts. Keep plastic
bags away from babies and children to avoid danger of suocation
and choking. Supervise access. If children use your mobile device and
accessories, monitor their access for their safety, and to help prevent
loss of data or unexpected charges for data or app purchases.
Glass parts. Some parts of your mobile device, like your screen, could
be made of glass. If the glass breaks, chips, or cracks, do not touch
or attempt to remove it. Stop using your mobile device until it can be
repaired by a qualified service center.
Use & care. To care for your Motorola mobile device, please observe
the following:
• Liquids. Don’t expose your mobile device to water, rain, extreme
humidity, sweat, or other liquids.
• Drying. Don’t try to dry your mobile device using a microwave
oven, conventional oven, or dryer.
• Extreme heat or cold. Don’t store, charge, or use your mobile
device in extreme heat or cold.
• Dust and dirt. Don’t expose your mobile device to dust, dirt, sand,
food, or similar materials.
• Cleaning. To clean your mobile device, use only a dry soft cloth.
Don’t use chemicals or compressed air.
• Shock and vibration. Don’t drop your mobile device or expose it
to strong vibration.
3
• Protection. To help protect your mobile device, always make sure
that any available connectors, compartments and removable
covers are closed and secure, and avoid carrying it with hard
objects such as keys or coins.
Operational warnings. Obey all posted signs when using mobile
devices in public areas.
• Potentially explosive areas: Potentially explosive areas are
often, but not always, posted and can include blasting areas,
fueling stations, fueling areas (such as below decks on boats),
fuel or chemical transfer or storage facilities, or areas where the
air contains chemicals or particles, such as grain dust, or metal
powders.
Turn o your mobile device before entering such an area, and do
not charge batteries. In such areas, sparks can occur and cause an
explosion or fire.
• Symbol key: Your charger, mobile device, battery (if user-
removable), device display, user’s guide, or packaging may contain
symbols, defined as follows:
032374o
Important safety information follows.
032375o
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities for
more information.
Don’t dispose of your battery or mobile
device with your household waste. See
Disposal & recycling for more information.
032376o
Don’t dispose of your battery or mobile
device in a fire.
For indoor use only.
Listening at high volume to music or voice
through a headset or headphone may
damage your hearing.
Specific Absorption Rate (ICNIRP). [ALL except pt-BR, en-US, fr-CA,
APAC, PRC] [EU, India, Japan, LA, MEA, RU/CIS]
YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES FOR
EXPOSURE TO RADIO WAVES. The highest SAR values under the
ICNIRP guidelines for your device model are listed below:
4
Head SAR [Technology & Band], Wi-Fi,
Bluetooth 0.815 W/kg
Body-worn SAR [Technology & Band], Wi-Fi,
Bluetooth 1.540 W/kg
To view additional SAR information on your phone, go to Settings >
Legal information > RF information. To view the information on the
web, visit www.motorola.com/rfhealth.
User Privacy. [ja-JP, MEA] Motorola and Lenovo are committed to
protecting and appropriately using personal data and user information
under our care. To better understand what data Motorola and Lenovo
may collect and use, be sure to review the Motorola and/or Lenovo
privacy policies linked within your device (found at device set-up and
in Settings). Please also be sure to take advantage of the privacy and
security controls and features within your device.
In addition, please note that when your Motorola product is turned on
for the first time (and is connected to the internet), the international
mobile station equipment identity (IMEI) number or serial number
(SN) of this product together with the information about the country
and city where this product is first activated will be registered
with Motorola and/or Lenovo; this will be a one-time registration.
Confirming the mobile phone/tablet’s activation will facilitate after-
sales service to you by verifying the product’s authenticity. For the
registration, the data transmitted is less than 1KB.
Supported Frequencies and Power. This device is capable of
operation on the following frequencies, subject to location and
network availability.
Model XT1900-5/XT1900-7
Operating Mode Frequency Range
MHz / Band Maximum Nominal
Transmit Power
(conducted) dBm
GSM850 35
GSM900 35
GSM1800 32
GSM1900 32
3G BAND I 25
3G BAND II 25
3G BAND IV 25
3G BAND V 25
3G BAND VIII 25
LTE Band 1 25.7
LTE Band 3 25.7
LTE Band 4 25.7
54
LTE Band 5 25.7
LTE Band 7 25.7
LTE Band 8 25.7
LTE Band 20 25.7
LTE Band 28 25.7
LTE Band 38 25.7
LTE Band 40 25.7
WLAN b/g/n 20
Bluetooth 20
WLAN 5GHz Band I 23
WLAN 5GHz Band II 23
WLAN 5GHz Band III 23
WLAN 5GHz Band IV 14
GPS NA
GLONASS NA
FM NA
NFC 42dBuA/m at 10m
European Conformance (CE). The following information is applicable
to mobile devices that carry a CE mark. Contact point: Regulatory
Compliance, Motorola Mobility UK Ltd., Redwood, Crockford Lane,
Chineham Business Park, Basingstoke, RG24 8WQ, UK.
Hereby, Motorola Mobility LLC declares that the radio
equipment with this declaration and bearing the CE mark is
in compliance with Directive 2014/53/EU.
The full DoC can be found at www.motorola.com/red. Use the search
feature to find your device’s model or type. Your device’s model
and type may be under the battery, under the rear cover, or on the
exterior of the device.
Restrictions of Use. This product may be used in the
following member states subject to the following
restrictions. For products that support Wi-Fi 802.11a/ac (as
defined in your product information): Outside the United
States, this device is restricted to indoor use when
operating in the 5.15 to 5.35 GHz (802.11a) Wi-Fi frequency
band.
AT BE BG CH CY CZ DE DK EE EL ES
FI FR HR HU IE IS IT LI LT LU LV
MT NL NO PL PT RO SE SI SK TR UK
6
Exposure to RF energy & device operation. [EU] Your mobile device
contains a transmitter and receiver of RF energy. It is designed to
comply with regulatory requirements concerning human RF exposure.
For optimal device performance, and to stay within the RF exposure
guidelines:
• Hold your mobile device normally at your ear when talking on it.
• When using the mobile device next to your body (other than in
your hand or against your head), maintain a distance of 5 mm
from your body to be consistent with how the mobile device is
tested for compliance with RF exposure requirements.
• If you use your mobile device with a non-Motorola accessory
case or holder, make sure the accessory maintains the required
separation distance and has no metallic parts.
Note: [fr-FR] According to the World Health Organization, “many
studies have been carried out over the last twenty years to evaluate
the risks that mobile devices present to health. Up to now, the
negative impact on health of using mobile devices has not been
proven” (Leaflet No. 193). In accordance with French regulations,
we are obliged to include the following recommendations regarding
precautionary measures: you can limit your exposure to radio-
frequency energy a) by using your mobile device in areas with good
network coverage, or b) by using a hands-free kit to keep your mobile
device away from your head and body. In this latter case, pregnant
women are advised to keep their mobile device away from their
abdomen. It is also recommended that adolescents keep their mobile
devices away from the lower part of their abdomen.
EU Declaration of Conformity. [tr-TR] [Replace with actual report]
Certifying Organization:
Motorola Mobility UK Ltd., Redwood, Crockford Lane,
Chineham Business Park, Basingstoke, RG24 8WQ, UK.
We, Motorola Mobility LLC, declare under our sole
responsibility that the above named product(s) conform to the
essential requirements of the following European Union directives:
2014/53/EU Radio Equipment Directive (RED). The conformity
assessment procedure referred to in Article 17 and detailed in Annex
III of Directive 2014/53/EU has been followed and performed with the
involvement of a Notified Body: PHOENIX TESTLAB, Königswinkel 10
D-32825 Blomberg, Germany. Notified body Number: 0700
2011/65/EU European RoHS 2 Directive
1907/2006/EC European REACH Regulation
2012/19/EC European WEEE 2 Directive
2006/66/EC European Battery Directive
The Technical Construction File (TCF), relevant to the product
described above and which supports this DoC, is available from the
Certifying Organization and address stated above.
76
Signed for and on behalf of Motorola Mobility
<signature>
Pat Conway
VP Global Test
Place of Issue: Motorola Mobility LLC, 222 W. Merchandise Mart
Plaza, Suite 1800, Chicago, IL 60654. USA.
Issued: 18th April 2016
Revised: N/A
Applied Standards. [tr-TR] [Replace with actual report] The following
harmonized standards and normative documents are those to which
the product’s conformance is declared, and by specific reference to
the essential requirements of the referenced Directives:
RoHS 2 2011/65/EU
EN50581: 2012
Safety and Legal Information Technical Specifications. [tr-TR]
Form XXXXXX
Band XXXXXX
Operating System XXXXXX
Size XXXXXX
Screen XXXXXX
Camera XXXXXX
Data Transfer XXXXXX
Sensor XXXXXX
Memory XXXXXX
Connection XXXXXX
Browser XXXXXX
Messaging XXXXXX
Video/Audio XXXXXX
Other XXXXXX
Importer Company. [tr-TR] Brightstar Telekomünikasyon ve Dağıtım
Ltd. Şti. Ayazağa Mah. Cendere Yolu No: 9/10, 34396, Şişli, Istanbul,
Turkey Tel.: +90 212 3322170 Fax: +90 212 3322177
Service Life. [tr-TR] This product has an expected service life of 5
(five) years as determined by the Turkish Ministry of Customs and
Trade.
Declaration of Conformity. [tr-TR] This device, containing all Turkish
characters, complies with the ETSI TS 123.038 V8.0.0 and ETSI TS
123.040 V8.1.0 technical specifications. It also complies with EEE
regulations.
Eurasian compliance mark. [RU/CIS] EAC mark covers Russian Type
Approval.
Store and Transfer Temperature. [RU/CIS] Store and transport in
between +5…+45 degrees Celsius, humidity 5%...95%, away from
heating and electrical equipment, dust, or mud. Use in between
-10…+35 degrees Celsius, humidity 8…85%, away from heating and
electrical equipment, dust, and mud.
Technical Specifications. [RU/CIS]
8
CPU
Camera
Battery
Display
Wireless
Model Number
MOTOROLA, the stylized M logo, MOTO, and the MOTO family
of marks are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC. LENOVO is a trademark of Lenovo. All
other product or service names are the property of their respective
owners.
© 2017 Motorola Mobility LLC. All rights reserved.
Manual Number: TBD-A
Motorola Mobility LLC
222 W. Merchandise Mart Plaza
Chicago, IL 60654
www.motorola.com

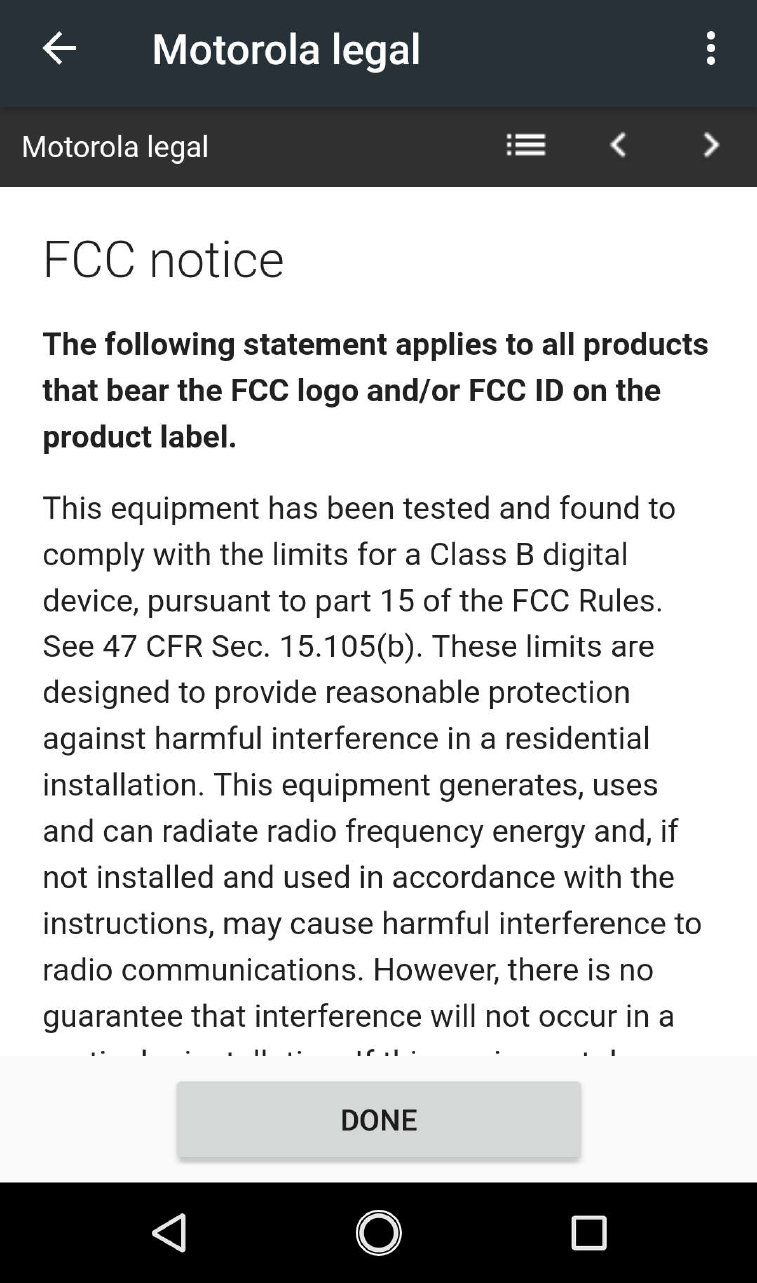

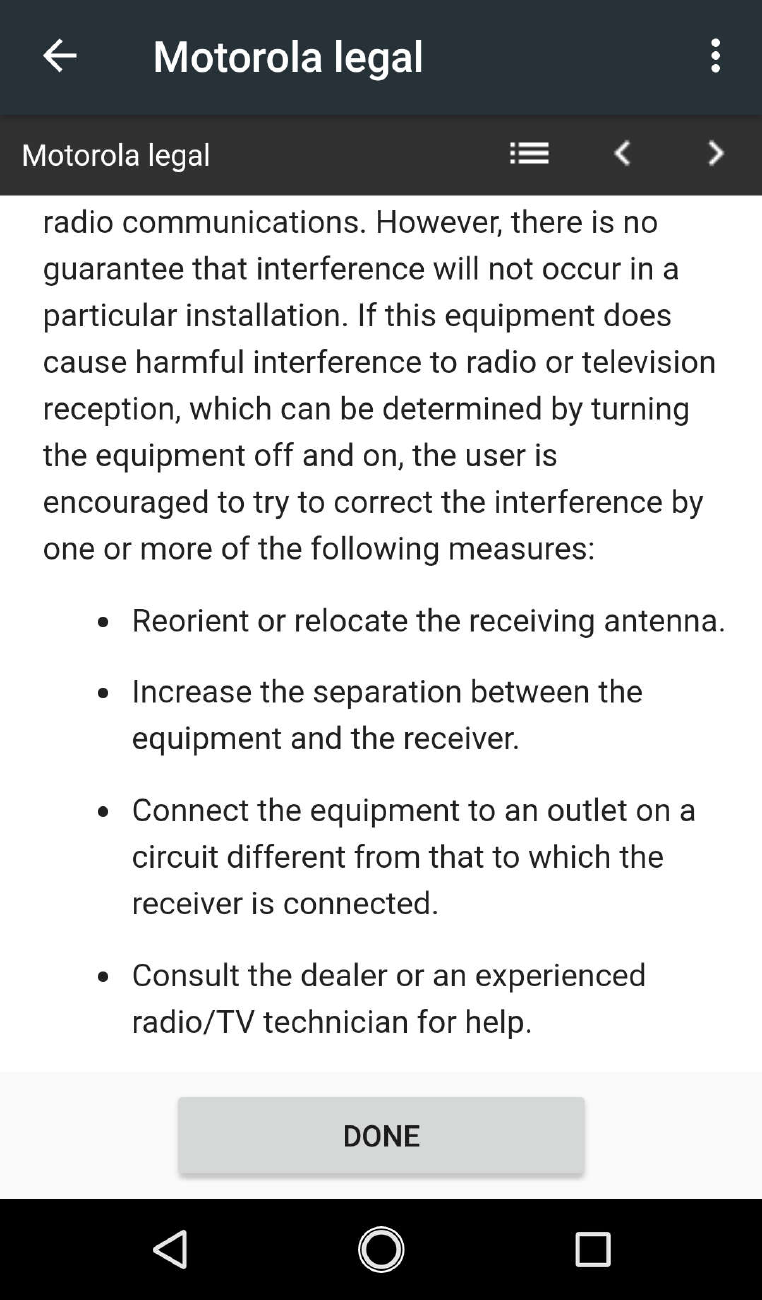

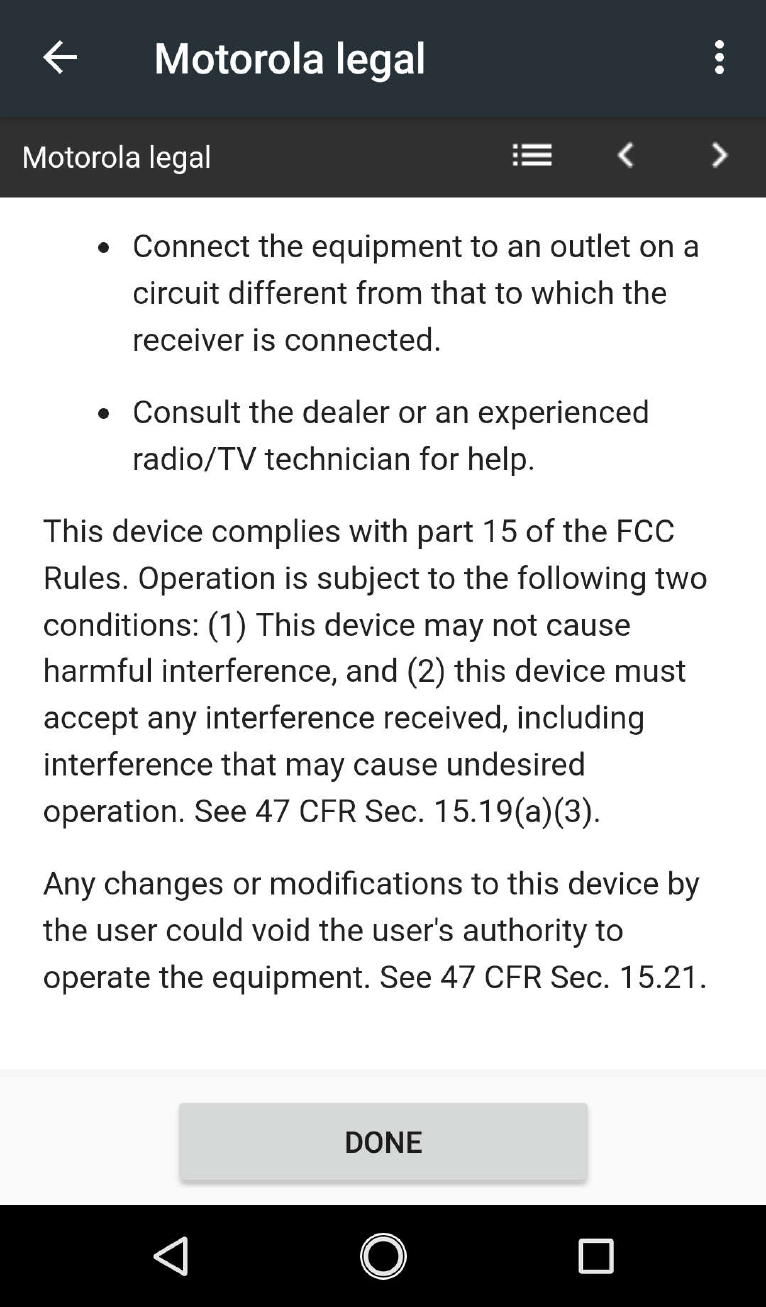

Settings>Legal information> Regulatory notices> FCC notice

Navigation menu
